Makita GV7000, GV7000C User Manual

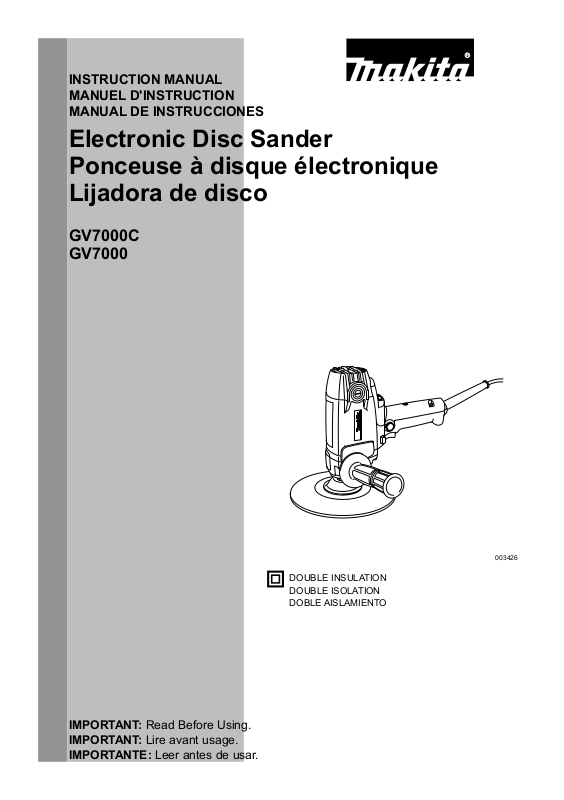

INSTRUCTION MANUAL MANUEL D'INSTRUCTION MANUAL DE INSTRUCCIONES

Electronic Disc Sander Ponceuse à disque électronique Lijadora de disco

GV7000C GV7000

IMPORTANT: Read Before Using. IMPORTANT: Lire avant usage. IMPORTANTE: Leer antes de usar.

003426

DOUBLE INSULATION DOUBLE ISOLATION DOBLE AISLAMIENTO

ENGLISH (Original instructions)

SPECIFICATIONS

Model GV7000 GV7000C

Abrasive disc diameter 180 mm (7")

Spindle thread 5/8"

No load speed (RPM) 4,700/min. 2,500 - 4,700/min.

Overall length 210 mm (8-1/4")

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.

• Specifications may differ from country to country.

• Weight according to EPTA-Procedure 01/2003

GENERAL SAFETY RULES

(For All Tools)

WARNING! Read and understand all instructions.

Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS.

Work Area

1. Keep your work area clean and well lit.

Cluttered benches and dark areas invite accidents.

2. Do not operate power tools in explosive

atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools

create sparks which may ignite the dust or fumes.

3. Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

4. Double insulated tools are equipped with a polarized plug ( one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double insulation

the three wire grounded power cord and grounded power supply system.

5. Avoid body contact with grounded surfaces

such as pipes, radiators, ranges and refrigerators. There is an increased risk of

electric shock if your body is grounded.

6. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Net weight 2.1 kg (4.7 lbs) 2.1 kg (4.6 lbs)

USA002-2

7. Do not abuse the cord. Never use the cord to

carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of

electric shock.

8. When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W". These cords are rated for outdoor use and reduce the risk of electric shock.

Personal Safety

9. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A

moment of inattention while operating power tools may result in serious personal injury.

10. Dress properly. Do not wear loose clothing or

jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts.

Loose clothes, jewelry, or long hair can be caught in moving parts.

11. Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.

12. Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

eliminates the need for

13. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.

14. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. Ordinary eye or sun glasses are NOT eye protection.

Tool Use and Care

15. Use clamps or other practical way to secure and support the workpiece to a stable platform.

Holding the work by hand or against your body is unstable and may lead to loss of control.

16. Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.

17. Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.

18. Disconnect the plug from the power source

before making any adjustments, changing accessories, or storing the tool. Such

preventive safety measures reduce the risk of starting the tool accidentally.

19. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

20. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind and are easier to control.

21. Check for misalignment or binding of moving

parts, breakage of parts, and any other condition that may affect the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly

maintained tools.

22. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.

Service

23. Tool service must be performed only by qualified repair personnel. Service or

maintenance performed by unqualified personnel could result in a risk of injury.

24. When servicing a tool, use only identical

replacement parts. Follow instructions in the Maintenance section of this manual. Use of

unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury.

USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table 1 shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

Table 1: Minimum gage for cord

Ampere Rating

Volts Total length of cord in feet

120 V 25 ft. 50 ft. 100 ft. 150 ft.

More Than Not More Than AWG

0 6 18 16 16 14

18 16 14 12610

10 12 16 16 14 12

000173

SPECIFIC SAFETY RULES

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to sander safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Accessories must be rated for at least the

12 16 14 12

USB046-4

speed recommended on the tool warning label. Wheels and other accessories running over rated speed can fly apart and cause injury. Maximum operating speed of accessories should be higher

than the highest no load speed marked on the tool’s nameplate.

2. Hold tool by insulated gripping surfaces when

performing an operation where the cutting tool may contact hidden wiring or its own cord.

Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.

3. Always use safety glasses or goggles.

Ordinary eye or sun glasses are NOT safety glasses.

Not Recommended

4. Check the backing pad carefully for cracks, damage or deformity before operation. Replace cracked, damaged or deformed pad immediately.

5. NEVER use tool with wood cutting blades or other sawblades. Such blades when used on a sander frequently kick and cause loss of control leading to personal injury.

6. Hold the tool firmly.

7. Keep hands away from rotating parts.

8. Make sure the abrasive disc is not contacting

the workpiece before the switch is turned on.

9. When sanding metal surfaces, watch out for flying sparks. Hold the tool so that sparks fly away from you and other persons or flammable materials.

10. Do not leave the tool running. Operate the tool only when hand-held.

11. Do not touch the workpiece immediately after operation; it may be extremely hot and could burn your skin.

12. Check that the workpiece is properly supported.

13. Pay attention that the wheel continues to rotate after the tool is switched off.

14. This tool has not been waterproofed, so do not use water on the workpiece surface.

15. Ventilate your work area adequately when you perform sanding operations.

16. Use of this tool to sand some products, paints and wood could expose user to dust containing hazardous substances. Use appropriate respiratory protection.

SAVE THESE INSTRUCTIONS.

WARNING:

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

USD201-2

Symbols

The followings show the symbols used for tool.

･ volts

･ amperes

･ hertz

･ alternating current

･ no load speed

･ Class II Construction

･ revolutions or reciprocation per minute

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and

unplugged before adjusting or checking function on the tool.

Switch action

1. Switch trigger

2. Lock button

003407

CAUTION:

• Before plugging in the tool, always check to see

that the switch trigger actuates properly and returns to the "OFF" position when released.

• Switch can be locked in "ON" position for ease of

operator comfort during extended use. Apply caution when locking tool in "ON" position and

maintain firm grasp on tool. To start the tool, simply pull the switch trigger. Release the switch trigger to stop. For continuous operation, pull the switch trigger and then push in the lock button. To stop the tool from the locked position, pull the switch trigger fully, then release it.

Speed adjusting dial (GV7000C only)

003408

The tool speed can be changed by turning the speed adjusting dial to a given number setting from 1 to 5. Higher speed is obtained when the dial is turned in the direction of number 5. And lower speed is obtained when it is turned in the direction of number 1.

1. Speed adjusting dial

Refer to the table for the relationship between the number settings on the dial and the approximate tool speed.

Number RPM (/min)

1 2,500

2 2,800

3 3,500

4 4,200

006385

5 4,700

CAUTION:

• If the tool is operated continuously at low speeds

for a long time, the motor will get overloaded and heated up.

• The speed adjusting dial can be turned only as far

as 5 and back to 1. Do not force it past 5 or 1, or

the speed adjusting function may no longer work. The tools equipped with electronic function are easy to operate because of the following features.

Constant speed control (GV7000C only)

Electronic speed control for obtaining constant speed. Possible to get fine finish, because the rotating speed is kept constant even under load condition.

Soft start feature (GV7000C only)

Safety and soft start because of suppressed starting shock.

ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and

unplugged before carrying out any work on the

tool.

Installing side grip (auxiliary handle) & cover

1. Cover

2. Side grip

1. Cover

2. Side grip

003413

CAUTION:

• Always be sure that the side grip is installed

securely before operation. Install the cover, then screw the side grip on the tool securely. The side grip and the cover can be installed on either side of the tool.

Installing or removing abrasive disc

003414

Mount the rubber pad onto the spindle. Fit the abrasive disc on the rubber pad and screw the lock nut onto the spindle. To tighten the lock nut, hold the spindle with the wrench so that it cannot revolve, then use the lock nut wrench and securely tighten clockwise.

1. Lock nut

2. Abrasive disc

3. Rubber pad

4. Spindle

1. Lock nut wrench

2. Wrench

003412

003418

To remove the disc, follow the installation procedure in reverse.

OPERATION

Sanding operation

1. Brush holder cap

2. Screwdriver

003421

CAUTION:

• Always wear safety goggles or a face shield during

operation.

• Never run the tool without the abrasive disc. You

may seriously damage the pad. Hold the tool firmly. Turn the tool on and then apply the abrasive disc to the workpiece. In general, keep the abrasive disc at an angle of about 15 degrees to the workpiece surface. Apply slight pressure only. Excessive pressure will result in poor performance and premature wear to abrasive disc.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and

unplugged before attempting to perform inspection

or maintenance.

• Never use gasoline, benzine, thinner, alcohol or

the like. Discoloration, deformation or cracks may

result.

Replacing carbon brushes

1. Limit mark

003423

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

ACCESSORIES

CAUTION:

• These accessories or attachments are

recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or

attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Rubber pad

• Abrasive discs

• Lock nut

• Wrench 17

• Lock nut wrench 28

001145

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.
