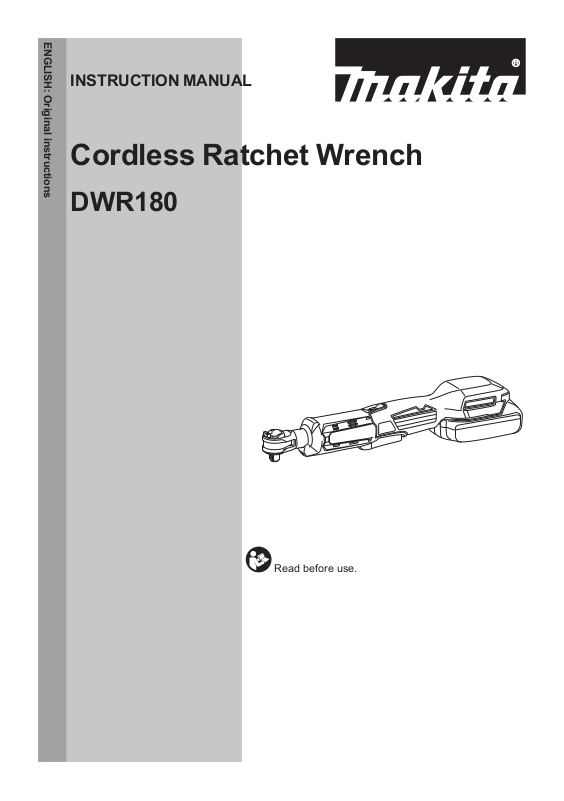

Makita DWR180 User guide

ENGLISH: Original instructions

INSTRUCTION MANUAL

Cordless Ratchet Wrench

DWR180

Read before use.

SPECIFICATIONS

Ni-MH

Model: DWR180

Fastening capacities (with
manual retightening)

Square drive 6.35 mm, 9.5 mm

No load speed 0 - 800 min

Maximum fastening torque 47.5 N•m

Overall length 369 mm

Rated voltage D.C. 18 V

Net weight 1.2 - 1.6 kg

• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange

without notice.

• Specicationsandbatterycartridgemaydi󰀨erfromcountrytocountry.

• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi-

est combinations, according to EPTA-Procedure 01/2014, are shown in the table.

Applicable battery cartridge and charger

Batterycartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B

Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /

• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof

residence.

WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges

andchargersmaycauseinjuryand/orre.

Standard bolt M5 - M12

High tensile bolt M5 - M10

-1

DC18SH

Symbols

Thefollowingsshowthesymbolswhichmaybeused
fortheequipment.Besurethatyouunderstandtheir

meaning before use.

Read instruction manual.

OnlyforEUcountries

Do not dispose of electric equipment or

batterypacktogetherwithhouseholdwaste

material!
In observance of the European Directives,
on Waste Electric and Electronic
Equipment and Batteries and Accumulators
and Waste Batteries and Accumulators
and their implementation in accordance
with national laws, electric equipment and

batteriesandbatterypack(s)thathave

reached the end of their life must be col-

lectedseparatelyandreturnedtoanenvi­ronmentallycompatiblerecyclingfacility.

Li-ion

Intended use

The tool is intended for fastening bolts and nuts.

Noise

ThetypicalA-weightednoiseleveldeterminedaccord­ing to EN62841-2-2:
Sound pressure level (L

Uncertainty(K):3dB(A)

Thenoiselevelunderworkingmayexceed80dB(A).

NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test

methodandmaybeusedforcomparingonetoolwith

another.

NOTE: The declared noise emission value(s)

mayalsobeusedinapreliminaryassessmentof

exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared

value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched

o󰀨 and when it is running idle in addition to the

trigger time).

2 ENGLISH

) : 74 dB(A)

pA

Vibration

The vibration total value (tri-axial vector sum) deter­mined according to EN62841-2-2:
Work mode: fastening
Vibration emission (ah) : 2.5 m/s

Uncertainty(K):1.5m/s

NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method

andmaybeusedforcomparingonetoolwithanother.

NOTE:Thedeclaredvibrationtotalvalue(s)mayalso
beusedinapreliminaryassessmentofexposure.

2

2

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the

declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched

o󰀨 and when it is running idle in addition to the

trigger time).

EC Declaration of Conformity

For European countries only

TheECdeclarationofconformityisincludedasAnnexA

to this instruction manual.

SAFETY WARNINGS

General power tool safety warnings

WARNING: Read all safety warnings, instruc-

tions, illustrations and specications provided

with this power tool. Failure to follow all instructions

listedbelowmayresultinelectricshock,reand/or
seriousinjury.

Save all warnings and instruc­tions for future reference.

Theterm"powertool"inthewarningsreferstoyour
mains-operated(corded)powertoolorbattery-operated

(cordless) power tool.

Work area safety

1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.

2. Do not operate power tools in explosive atmo-

spheres, such as in the presence of ammable

liquids, gases or dust. Power tools create sparks

whichmayignitethedustorfumes.

3. Keep children and bystanders away while
operating a power tool. Distractions can cause

youtolosecontrol.

Electrical safety

1. Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill

reduce risk of electric shock.

2. Avoid body contact with earthed or grounded

surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-

tricshockifyourbodyisearthedorgrounded.

3. Do not expose power tools to rain or wet con­ditions. Water entering a power tool will increase

the risk of electric shock.

4. Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords

increase the risk of electric shock.

5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.

6. If operating a power tool in a damp location

is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces

the risk of electric shock.

7.

Power tools can produce electromagnetic elds

(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device and/
or doctor for advice before operating this power tool.

Personal safety

1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med­ication. A moment of inattention while operating

powertoolsmayresultinseriouspersonalinjury.

2. Use personal protective equipment. Always
wear eye protection. Protective equipment such

asadustmask,non-skidsafetyshoes,hardhator

hearing protection used for appropriate conditions

willreducepersonalinjuries.

3. Prevent unintentional starting. Ensure the

switch is in the o󰀨-position before connecting

to power source and/or battery pack, picking
up or carrying the tool.Carryingpowertoolswith

yourngerontheswitchorenergisingpowertools

that have the switch on invites accidents.

4. Remove any adjusting key or wrench before

turning the power tool on.Awrenchorakeyleft
attachedtoarotatingpartofthepowertoolmay
resultinpersonalinjury.

5. Do not overreach. Keep proper footing and
balance at all times. This enables better control

of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or

jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor

long hair can be caught in moving parts.

7. If devices are provided for the connection of

dust extraction and collection facilities, ensure
these are connected and properly used. Use of

dust collection can reduce dust-related hazards.

3 ENGLISH

Do not let familiarity gained from frequent use

8.

of tools allow you to become complacent and
ignore tool safety principles. A careless action can

causesevereinjurywithinafractionofasecond.

9. Always wear protective goggles to protect

your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.

It is an employer's responsibility to enforce
the use of appropriate safety protective equip­ments by the tool operators and by other per­sons in the immediate working area.

Power tool use and care

1. Do not force the power tool. Use the correct
power tool for your application. The correct

powertoolwilldothejobbetterandsaferatthe

rate for which it was designed.

2. Do not use the power tool if the switch does

not turn it on and o󰀨.Anypowertoolthatcannot

be controlled with the switch is dangerous and
must be repaired.

3. Disconnect the plug from the power source

and/or remove the battery pack, if detachable,
from the power tool before making any adjust­ments, changing accessories, or storing power
tools.Suchpreventivesafetymeasuresreduce

theriskofstartingthepowertoolaccidentally.

4. Store idle power tools out of the reach of chil­dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the

hands of untrained users.

5. Maintain power tools and accessories. Check

for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If dam­aged, have the power tool repaired before use.

Manyaccidentsarecausedbypoorlymaintained

power tools.

6. Keep cutting tools sharp and clean.Properly
maintained cutting tools with sharp cutting edges

arelesslikelytobindandareeasiertocontrol.

7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak­ing into account the working conditions and
the work to be performed. Use of the power tool

foroperationsdi󰀨erentfromthoseintendedcould

result in a hazardous situation.

8.

Keep handles and grasping surfaces dry, clean
and free from oil and grease.Slipperyhandlesand

grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.

9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-

mentofclothworkglovesinthemovingpartsmay
resultinpersonalinjury.

Battery tool use and care

1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for

onetypeofbatterypackmaycreateariskofre
whenusedwithanotherbatterypack.

2. Use power tools only with specically desig-
nated battery packs.Useofanyotherbattery

packsmaycreateariskofinjuryandre.

3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another.Shortingthebatterytermi-

nalstogethermaycauseburnsorare.

4.

Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acci­dentally occurs, ush with water. If liquid con­tacts eyes, additionally seek medical help. Liquid

ejectedfromthebatterymaycauseirritationorburns.

5. Do not use a battery pack or tool that is dam-

aged or modied.Damagedormodiedbatteries
mayexhibitunpredictablebehaviourresultingin
re,explosionorriskofinjury.

6. Do not expose a battery pack or tool to re or

excessive temperature.Exposuretoreortem­peratureabove130°Cmaycauseexplosion.

7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc­tions.Chargingimproperlyorattemperatures

outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.

Service

1. Have your power tool serviced by a qualied

repair person using only identical replacement
parts.Thiswillensurethatthesafetyofthepower

tool is maintained.

2. Never service damaged battery packs. Service

ofbatterypacksshouldonlybeperformedbythe

manufacturer or authorized service providers.

3. Follow instruction for lubricating and chang-

ing accessories.

Cordless Ratchet Wrench safety
warnings

1. Hold the power tool by insulated gripping
surfaces, when performing an operation
where the fastener may contact hidden wiring.

Fastenerscontactinga"live"wiremaymake

exposed metal parts of the power tool "live" and
could give the operator an electric shock.

2. Hold the tool rmly.

3. Always be sure you have a rm footing.

Be sure no one is below when using the tool in
high locations.

4 ENGLISH

4. Wear ear protectors.

5. Check the impact socket carefully for wear,

cracks or damage before installation.

6. Keep hands away from rotating parts.

7. Do not touch the ratchet head, impact socket,

bolt, nut or the workpiece immediately after
long time operation.Theymaybeextremelyhot

andcouldburnyourskin.

SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.

MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.

Important safety instructions for
battery cartridge

1.

Before using battery cartridge, read all instruc­tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper the battery
cartridge.Itmayresultinare,excessiveheat,

or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.

4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten­tion right away. It may result in loss of your
eyesight.

5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-

ductive material.

(2) Avoid storing battery cartridge in a con-

tainer with other metal objects such as
nails, coins, etc.

(3) Do not expose battery cartridge to water

or rain.

A battery short can cause a large current

ow, overheating, possible burns and even a

breakdown.

6. Do not store and use the tool and battery car­tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn

out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge.Suchconductmayresultina

re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require­ments.

Forcommercialtransportse.g.bythirdparties,

forwarding agents, special requirement on pack­aging and labeling must be observed.

For preparation of the item being shipped, consult­ing an expert for hazardous material is required.

Pleasealsoobservepossiblymoredetailed

national regulations.

Tapeormasko󰀨opencontactsandpackupthe
batteryinsuchamannerthatitcannotmove

around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to

non-compliantproductsmayresultinare,exces­siveheat,explosion,orleakofelectrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low
temperature burns. Pay attention to the han­dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to
cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery
cartridge.Itmayresultinpoorperformanceor

breakdownofthetoolorbatterycartridge.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri­cal power lines.Itmayresultinamalfunctionor

breakdownofthetoolorbatterycartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS.

CAUTION: Only use genuine Makita batteries.

Use of non-genuine Makita batteries, or batteries that

havebeenaltered,mayresultinthebatterybursting
causingres,personalinjuryanddamage.Itwill
alsovoidtheMakitawarrantyfortheMakitatooland

charger.

Tips for maintaining maximum
battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery
service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

it for a long period (more than six months).

5 ENGLISH

FUNCTIONAL DESCRIPTION

CAUTION: Always be sure that the tool is

switched o󰀨 and the battery cartridge is removed

before adjusting or checking function on the tool.

Installing or removing battery cartridge

CAUTION: Always switch o󰀨 the tool before

installing or removing of the battery cartridge.

CAUTION: Hold the tool and the battery car-

tridge rmly when installing or removing battery

cartridge.Failuretoholdthetoolandthebattery
cartridgermlymaycausethemtoslipo󰀨yourhands
andresultindamagetothetoolandbatterycartridge
andapersonalinjury.

Overheat protection

When the tool is overheated, the tool stops automat-

icallyandthelampstartsblinking.Inthissituation,
letthetoolandbatterycoolbeforeturningthetoolon

again.

Overdischarge protection

Thisprotectionworkswhentheremainingbattery
capacitygetslow.Inthissituation,removethebattery
fromthetoolandchargethebattery.

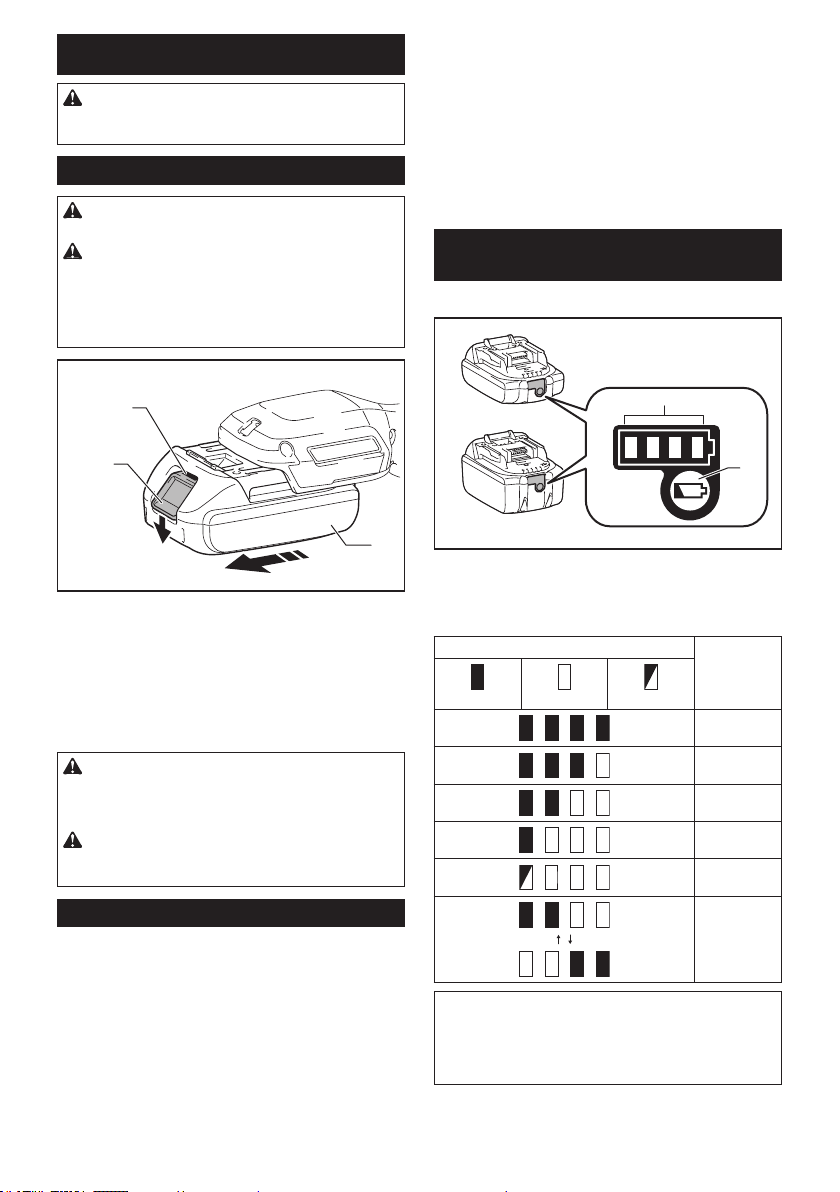

Indicating the remaining battery
capacity

Only for battery cartridges with the indicator

1

2

3

►1. Red indicator 2. Button 3.Batterycartridge

Toremovethebatterycartridge,slideitfromthetool

while sliding the button on the front of the cartridge.

Toinstallthebatterycartridge,alignthetongueonthe
batterycartridgewiththegrooveinthehousingandslip
itintoplace.Insertitallthewayuntilitlocksinplace
withalittleclick.Ifyoucanseetheredindicatoronthe
uppersideofthebutton,itisnotlockedcompletely.

CAUTION: Always install the battery cartridge

fully until the red indicator cannot be seen. If not,

itmayaccidentallyfalloutofthetool,causinginjuryto
youorsomeonearoundyou.

CAUTION: Do not install the battery cartridge

forcibly.Ifthecartridgedoesnotslideineasily,itis

notbeinginsertedcorrectly.

Tool / battery protection system

Thetoolisequippedwithatool/batteryprotectionsys­tem.Thissystemautomaticallycutso󰀨thepowerto
extendtoolandbatterylife.Thetoolwillautomatically
stopduringoperationifthetoolorbatteryisplaced

under one of the following conditions:

Overload protection

This protection works when the tool is operated in a manner

thatcausesittodrawanabnormallyhighcurrent.Inthissitu­ation,turnthetoolo󰀨andstoptheapplicationthatcausedthe

tool to become overloaded. Then turn the tool on to restart.

1

►1. Indicator lamps 2. Check button

Pressthecheckbuttononthebatterycartridgetoindi­catetheremainingbatterycapacity.Theindicatorlamps

light up for a few seconds.

Indicator lamps Remaining

Lighted O󰀨 Blinking

75% to 100%

50% to 75%

25% to 50%

0% to 25%

Charge the

Thebattery

malfunctioned.

NOTE: Depending on the conditions of use and the

ambienttemperature,theindicationmaydi󰀨erslightly
fromtheactualcapacity.

NOTE:Therst(farleft)indicatorlampwillblinkwhen
thebatteryprotectionsystemworks.

6 ENGLISH

2

capacity

battery.

mayhave

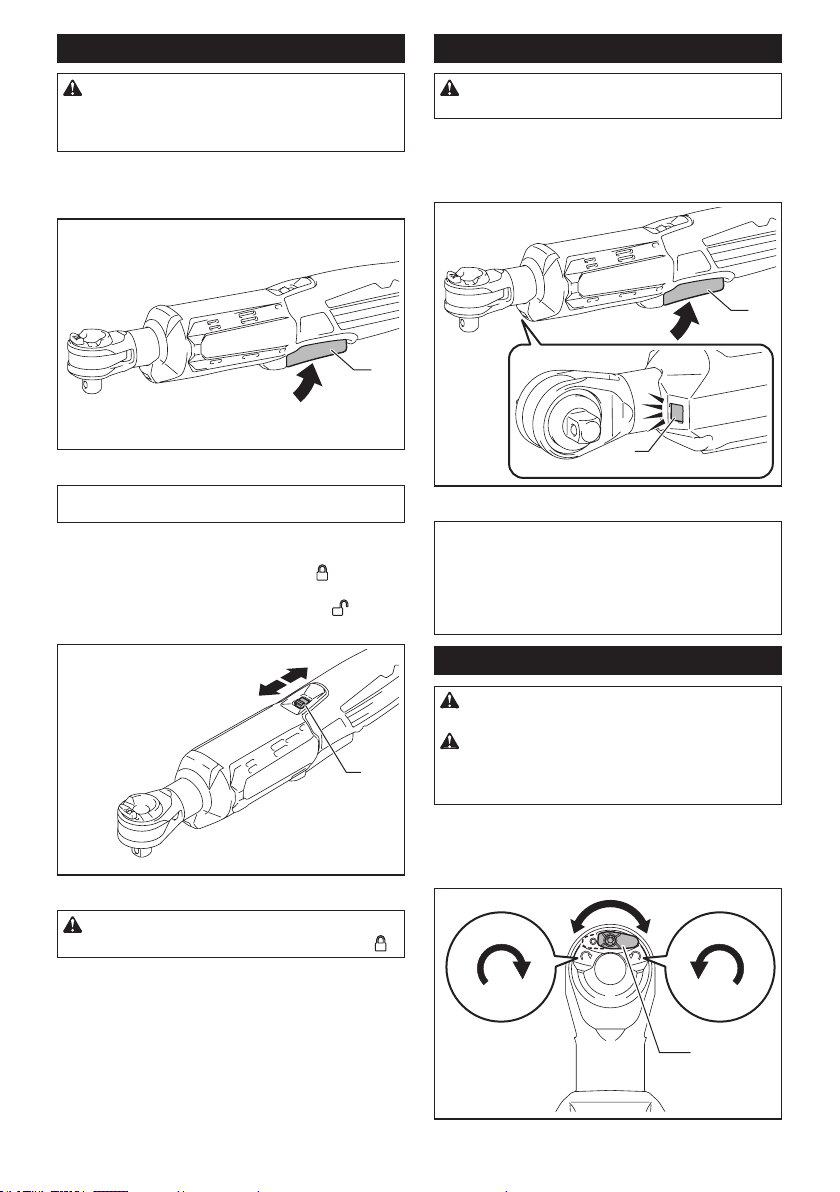

Switch action

Lighting up the front lamp

CAUTION: Before installing the battery car-

tridge into the tool, always check to see that the
switch lever actuates properly and returns to the
"OFF" position when released.

Tostartthetool,simplypulltheswitchlever.Toolspeed
isincreasedbyincreasingpressureontheswitchlever.

Release the switch lever to stop.

1

►1. Switch lever

NOTE:Thetoolautomaticallystopswhenyoukeep

pulling the switch trigger for about 1 minute.

Topreventtheswitchleverfromaccidentallypulled,the

lock lever is provided.
When the lock lever is in the lock position , the switch

lever cannot be actuated.
When the lock lever is in the unlock position , the

switch lever can be actuated.

3

2

1

►1. Lock lever 2. Lock 3. Unlock

CAUTION: Do not look in the light or see the

source of light directly.

Pull the switch lever to light up the lamp. The lamp
keeps on lighting while the switch lever is being pulled.
Thelightautomaticallygoesoutapproximately10sec­onds after the switch lever is released.

1

2

►1. Switch lever 2. Lamp

NOTICE: When the tool is overheated, the lamp

blinks.Cooldownthetoolfullybeforeoperatingthe

tool again.

NOTICE:Useadryclothtowipethedirto󰀨thelens

of the lamp. Be careful not to scratch the lens of lamp,

oritmaylowertheillumination.

Reversing lever action

CAUTION: Always check the direction of

rotation before operation.

CAUTION: Use the reversing lever only after

the tool comes to a complete stop. Changing the

directionofrotationbeforethetoolstopsmaydam­age the tool.

This tool has a reversing lever to change the direction of
rotation. Turn the reversing lever to the A side for clock­wise rotation or to the B side for counterclockwise rotation.

Makesurethatthereversingleverisfullyturnedwithaclick.

CAUTION: When not operating the tool,

always slide the lock lever to the lock position .

►1. Reversing lever

7 ENGLISH

A

B

1

ASSEMBLY

CAUTION: Always be sure that the tool is

switched o󰀨 and the battery cartridge is removed

before carrying out any work on the tool.

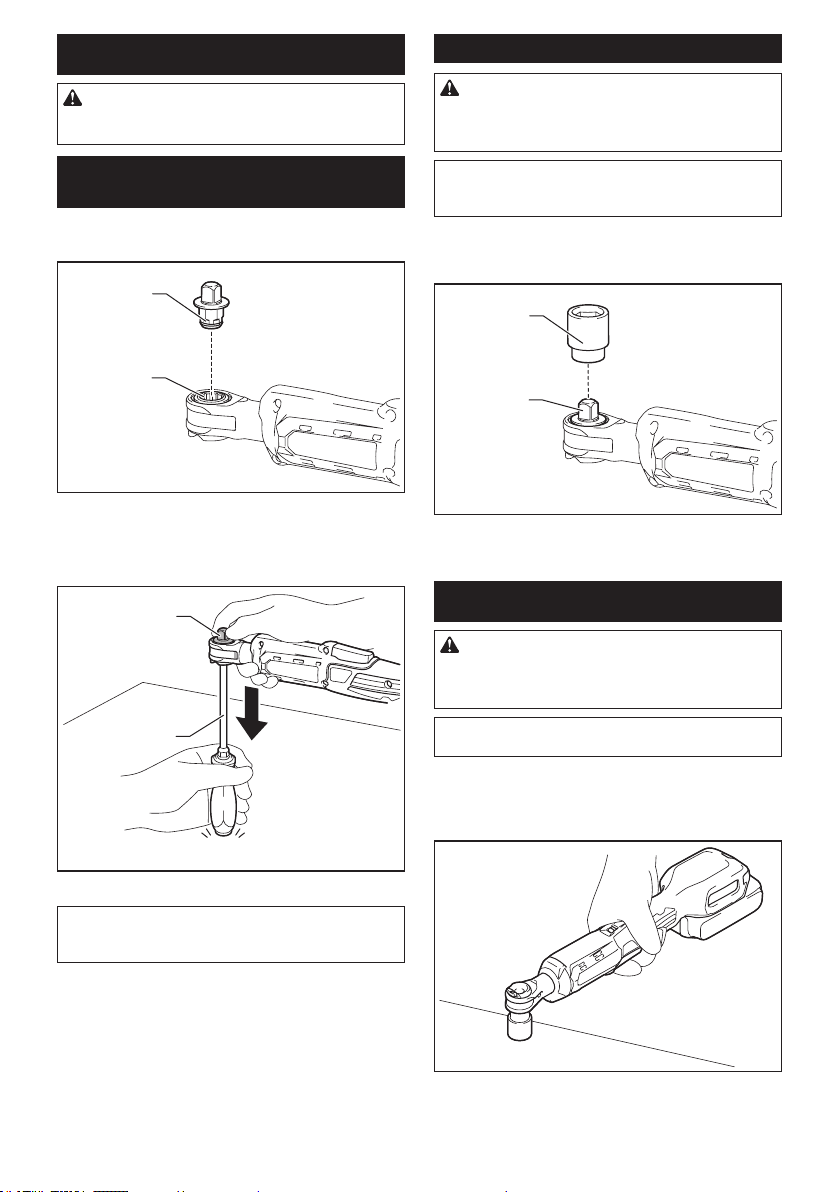

Installing or removing socket
adaptor

To install the socket adaptor, push it into the adaptor
hole until it locks into place.

1

2

►1. Socket adaptor 2. Adaptor hole

To remove the socket adaptor, insert a stick like a
screwdriver into the backside of the socket adaptor, and

thentapitgently.

Installing or removing socket

CAUTION: Before operation, make sure that

the socket is properly locked onto the socket
adaptor.Incompleteattachmentofthesocketmay

causeinjury.

NOTICE:Alwaysusethecorrectsizesocketforbolt/

nut. An incorrect size socket will result in inconsistent
fastening torque and/or damage to the bolt/nut.

To install the socket, push it onto the socket adaptor

untilitlocksintoplace.Toremovethesocket,simply
pullito󰀨.

1

2

►1. Socket 2. Socket adaptor

1

2

►1. Socket adaptor 2. Screwdriver

NOTICE: During removal procedure, keep holding

thesocketadaptortopreventitfromfallingo󰀨from

the tool.

OPERATION

CAUTION: Hold the tool rmly especially

when the bolt/nut reaches the seating position.
The socket stops rotating and the motor reaction
generate instant backlash to rotate the tool.

NOTICE: Hold the tool pointed straight at the

bolt/nut.

Holdthetoolrmlyandplacethesocketoverthe

bolt/nut. Turn the tool on and fasten. When the bolt/
nut reaches the seating position, the tool stops

automatically.

8 ENGLISH

The tool also works without socket. The adaptor hole
can fasten M8 (5/16") bolt/nut. (works as 13mm socket)

Using as hand tool

Youcanusethetoolasahandratchetwrenchby

turning the tool in the direction arrows as illustrated. In

particularwhenlooseningasti󰀨bolt/nut,loosenitby
handrstthenturnthetoolon.

OPTIONAL
ACCESSORIES

CAUTION: These accessories or attachments

are recommended for use with your Makita tool

specied in this manual.Theuseofanyother

accessories or attachments might present a risk of

injurytopersons.Onlyuseaccessoryorattachment

for its stated purpose.

Ifyouneedanyassistanceformoredetailsregard­ingtheseaccessories,askyourlocalMakitaService

Center.

• Socket

• Socket adaptor

• Makitagenuinebatteryandcharger

NOTE:Someitemsinthelistmaybeincludedinthe
toolpackageasstandardaccessories.Theymay
di󰀨erfromcountrytocountry.

NOTICE:Excessivefasteningtorquemaydamage

the bolt/nut, the socket or the tool.

MAINTENANCE

CAUTION: Always be sure that the tool is

switched o󰀨 and the battery cartridge is removed

before attempting to perform inspection or
maintenance.

NOTICE: Never use gasoline, benzine, thinner,

alcohol or the like. Discoloration, deformation or
cracks may result.

To maintain product SAFETY and RELIABILITY,

repairs,anyothermaintenanceoradjustmentshould
beperformedbyMakitaAuthorizedorFactoryService
Centers,alwaysusingMakitareplacementparts.

9 ENGLISH

10

11

Makita Europe N.V.

Makita Corporation

n

Jan-Baptist Vinkstraat 2,

www.makita.com

3070 Kortenberg, Belgium

3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa

885834-226
EN
20200824
