Makita DPC7001 User Manual

Parts Breakdown

DPC7001

Page 1 of 11 2/13

Parts Breakdown

DPC7001

Page 2 of 11 2/13

Parts Breakdown

DPC7001

Page 3 of 11 2/13

Parts Breakdown

DPC7001

Page 4 of 11 2/13

Parts Breakdown

DPC7001

Page 5 of 11 2/13

Parts Breakdown

DPC7001

Page 6 of 11 2/13

Parts Breakdown

DPC7001

Page 7 of 11 2/13

Parts Breakdown

DPC7001

Fig # Part ID Part Name Quantity

Products with multiple versions are listed in subsiding order with the newest version on top not indented

1 123130250 CYLINDER & PISTON,CPL, DPC7001 1
2 122132100 PISTON, DPC7000 1
3 123132020 PISTON RING, DPC7000 2
4 031132020 PISTON PIN, DPC9500,T1 1
5 119132060 SPRING RING, DCS6000I21 2
6 965521023 GASKET, DPC7000 1
7 962210015 NEEDLE CAGE, DCS6000I21 1
8 960102179 BALL BEARING 6203C4, DCS9000 2
9 133120301 CRANKSHAFT, DPC7000 1
10 939630370 KEY, DPC7000 1
11 957605112 SHORT C.SWITCH ASSY, DCS431 1
12 908005305 TORX SCREW 5X30, DCS340 1
14 962900054 RADIAL RING, DPC7000 1
16 908006205 F.H.SCREW, DCS460 4
17 031111630 CRANKCASE, MAG.SIDE, DPC7001 1
18 965551051 F.H. SCREW M6X70,DPC7000 1
19 926206000 SPRING WASHER 6, DCS6800I 1
20 123213010 SQ.NUT W/PIVOT, DPC7000 1
21 924306400 DISC, DCS6000I21 1
22 922606000 HEX NUT M6, DCS6000I21 1
23 905810354 GUDGEON M10X35, DPC7000 2
24 031111650 CRANKCASE, DPC9500 . 1
25 936430160 SPIRAL PIN 3X16, DCS460 1
26 965518013 GASKET, DPC7000 1
27 965401011 RUBBER BUSH, DCS340 1
28 031150730 CHOKE SHAFT, DPC9500 1
30 962900051 RADIAL RING, DPC7000 1
31 123310011 TUBULAR HANDLE, DPC7001 1
32 144310072 STRENGTH.PIECE, DPC7000 1
33 908006205 F.H.SCREW, DCS460 2
34 122310051 STRENGTH.PIECE, DPC7000 1
35 119117300 GRIP ASSY, DPC7000 1
36 965451750 BUTTON, DCS6000I21 1
37 965551160 PRESSURE SPRING, DCS6000I21 1
38 965551150 STOP PIN, DCS6000I21 1
39 119117030 CATCH LEVER, DCS6800I 1
40 935940240 CYL.PIN 4M 6X24, DCS6000I21 1
41 119117052 SPRING, DCS6800I 1
42 119117041 SPRING, DCS6000I21 1
43 935950400 CYL.PIN 5M 6X40, DCS6000I21 1
44 119117021 THROTTLE LEVER, DPC7000 1
45 920205000 HEX NUT M5, DCS340 2
46 908005305 TORX SCREW 5X30, DCS340 2
47 122117054 THROTTLE LINKAGE, DPC7000 1
48 963232045 PACKING RING 32X4.5, DCS431 1
49 965451900 FUEL TANK PLUG, DCS430-T1 1
50 963232045 PACKING RING 32X4.5, DCS431 1
53 965402360 RUBBER BUFFER, DPC7000 2
54 965452490 TUBE HOSE 1
55 965451191 AIR VALVE CPL.,DPC7000 1
56 965452480 FUEL LINE, DPC9500 1
57 965451560 STOPPER, DPC7000 1
58 965451710 STOPPER, DPC7000 1
59 123114600 TANK CPL.,DPC7000 1
60 965403131 RUBBER BUFFER, DPC7000 5
61 908006105 FILLISTER H. SCREW, DPC9500 . 5
62 965450200 SUCTION LINE, DCS9500 . 1
63 963601240 FELT, DCS340 1

Page 8 of 11 2/13

Parts Breakdown

DPC7001

64 963601120 SUCTION HEAD FUEL, DCS6000I21 1
65 123181010 CLUTCH SHOE, DPC7000(3/SET) 1
66 122182011 CLUTCH HUB, DPC7000 1
67 122184011 CLUTCH SPRING, DPC7000 1
68 122182030 GUIDE DISC, DPC7000 1
69 962200006 INNER RING, DPC7001 1
70 962300016 NEEDLE CAGE BEARING DPC7001 1
71 957223309 CLUTCH DRUM W/PULL,DPC7000 1
73 923210003 HEXAGONAL NUT, LEFT, DPC7001 1
76 398213600 SPROCKET GUARD, DPC7000 1
78 923210002 HEX NUT W/SHOULDER,DPC7000 2
79 980114306 LABEL, DPC7001 1
80 392320100 FOOT, DPC9500 1
81 908006355 FILLISTER H. SCREW, EK7301 2
82 957604240 SPARK PLUG CAP, DPC7000 1
83 965604230 CONTACT SPRING, DPC7000 1
84 965603021 SPARK PLUG,WSR5F DPC6200 1
85 980114094 LABEL, DCS6000I-21 1
86 031112600 FAN HOUSING ASSY,DPC7000 1
87 928405000 WASHER, DCS340 1
88 965402262 STARTER GRIP, DCS6800I 1
90 900004363 SPACER, DCS6000I21 1
91 123163013 REWIND SPRING, DCS6000I21 1
92 123163020 SPRING COVER, DCS6000I21 1
93 907204102 THREAD FORMING SCREW, DCS6000I21 1
94 123162031 CABLE DRUM, DCS6000I21 1
95 929314100 SNAP RING, 14 X 1, DCS6000I21 1
96 122164010 START ROPE 1000MM, DCS6800I 1
97 908005255 F.H. SCREW, DPC9500 4
98 920308024 HEX NUT M8X1, DCS34 1
99 928308001 SPRING WASHER , DCS340 1
100 010140010 IGNITION ASSEMBLY, DPC7001 1
101 031166010 STARTER RATCHET, DCS6000I21 2
103 908004125 FILLISTER H. SCREW, DPC9500 2
104 900003050 FELT RING, DPC7000 1
105 965401015 RUBBER BUSHING, DPC7001 1
107 908006305 FILLISTER H.SCREW M6X30, DPC7001 2
108 392341040 CLAMP, DPC9500 1
109 395341600 SWIVEL SEGMENT, DPC9500 1
110 920406000 HEXAGONAL NUT M6, DPC7000 3
111 908006205 F.H.SCREW, DCS460 3
112 920406000 HEXAGONAL NUT M6, DPC7000 2
113 398341610 PROTECTION HOOD 1
114 398000600 CUT. DEVICE ASSY,DPC7000 1
115 398341620 PROTECTION HOOD, DPC7000 1
117 900910204 HEX SCREW 10X20, DPC7000 1
118 398228042 PRESSURE DISC, OUTER, DPC7000 1
119 395228053 PRESSURE DISC, DPC7001 1
120 908006145 SCREW M6X14, DCS6800I 2
121 398410600 GUARD PLATE, DPC7000 1
122 398211610 HAND GUARD, DPC7000 1
123 965300450 V-BELT 750MM, DPC7001 1
124 920410000 HEXAGONAL NUT, DPC9500 1
125 397221090 V-VELT PULLEY, DPC7001 1
126 963815320 PACKING RING, DPC7000 1
127 960102155 BALL BEARING, DPC7000 1
128 398211600 GEAR HOUSING, DPC7000 1
129 900005009 DISTANCE RING, DPC7000 1
130 929235150 SNAP RING 35X1.5, DPC7000 1
131 960102155 BALL BEARING, DPC7000 1
132 929235150 SNAP RING 35X1.5, DPC7000 1

Page 9 of 11 2/13

Parts Breakdown

DPC7001

133 962900036 RADIAL RING, DPC7000 1
134 939144140 KEY 4X4X14, DPC7000 1
135 398228013 SPINDLE, DPC7000 1
136 929145175 SNAP RING 45X1.75,DPC7000 1
137 392228040 ADAPTER BUSHING 1,DPC7000 1
138 398211090 BUSHING, DPC7000 1
146 910308601 ADJUSTING SCREW, DPC7000 1
147 900005075 DISTANCE RING, DPC7001 1
148 926208001 SPRING WASHER 8, DPC7000 1
149 985000560 GRIP M8, DPC7000 1

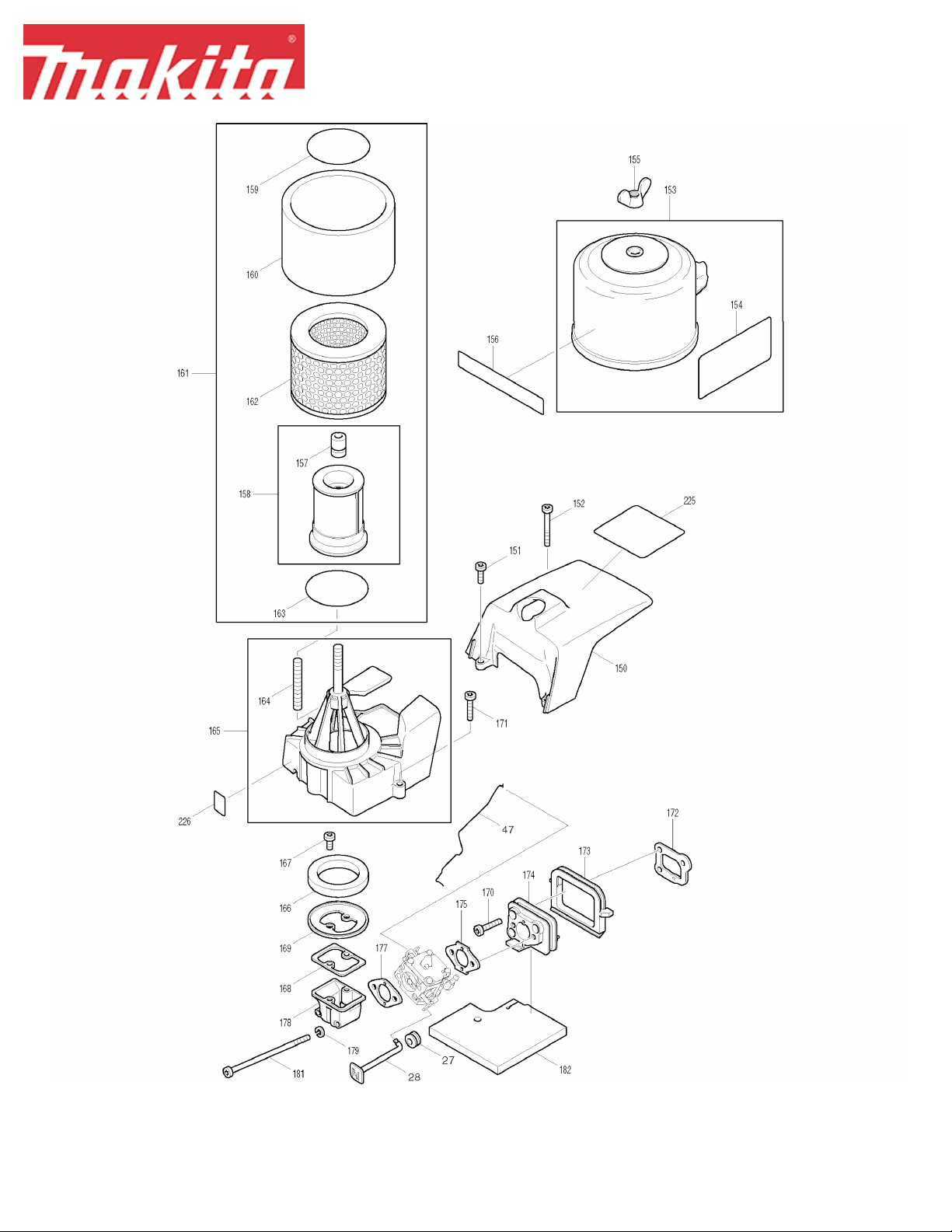

150 392118150 HOOD (PLASTICS), DPC7001 1
151 908005165 HEAD SCREW M5X16, DCS340 2
152 908305405 FILLISTER H. SCREW, DPC9500 1
153 392118050 FILTER COVER, DPC9500 1
154 980113480 LABEL (309/343 BELTS), DPC9500 1
155 921708000 WING NUT M8, DPC7000 1
156 980114237 LABEL (SAFETY), DCS430 1
157 965401025 RUBBER BUSH, DPC7000 1
158 001173020 INNER FILTER CPL.,DPC7000 1
159 963257070 PACKING RING, DPC7000 1
160 001173000 PRE-FILTER,DPC7000 1
161 001173030 AIR FILTER CPL., DPC7001 1
162 122173140 AIR FILTER, DPC7000 1
163 963257070 PACKING RING, DPC7000 1
164 905808555 GUDGEON, DPC7000 1
165 123118052 HOOD, DPC7000,T2 1
166 965402960 GASKET, DPC7000 1
167 908005125 F.H. SCREW M5X12, DCS431 2
168 965516090 GASKET, DPC7000 1
169 144171040 CONNECTING PLATE, DPC7000 1
170 908405255 SCREW M5X25, DCS340 3
171 908005255 F.H. SCREW, DPC9500 2
172 965518111 GASKET, DPC9500 1
173 133131041 GASKET, DPC9500 1
174 133131051 INTERMEDIATE FLANGE,DPC9500 1
175 965518031 GASKET, DPC9500 1

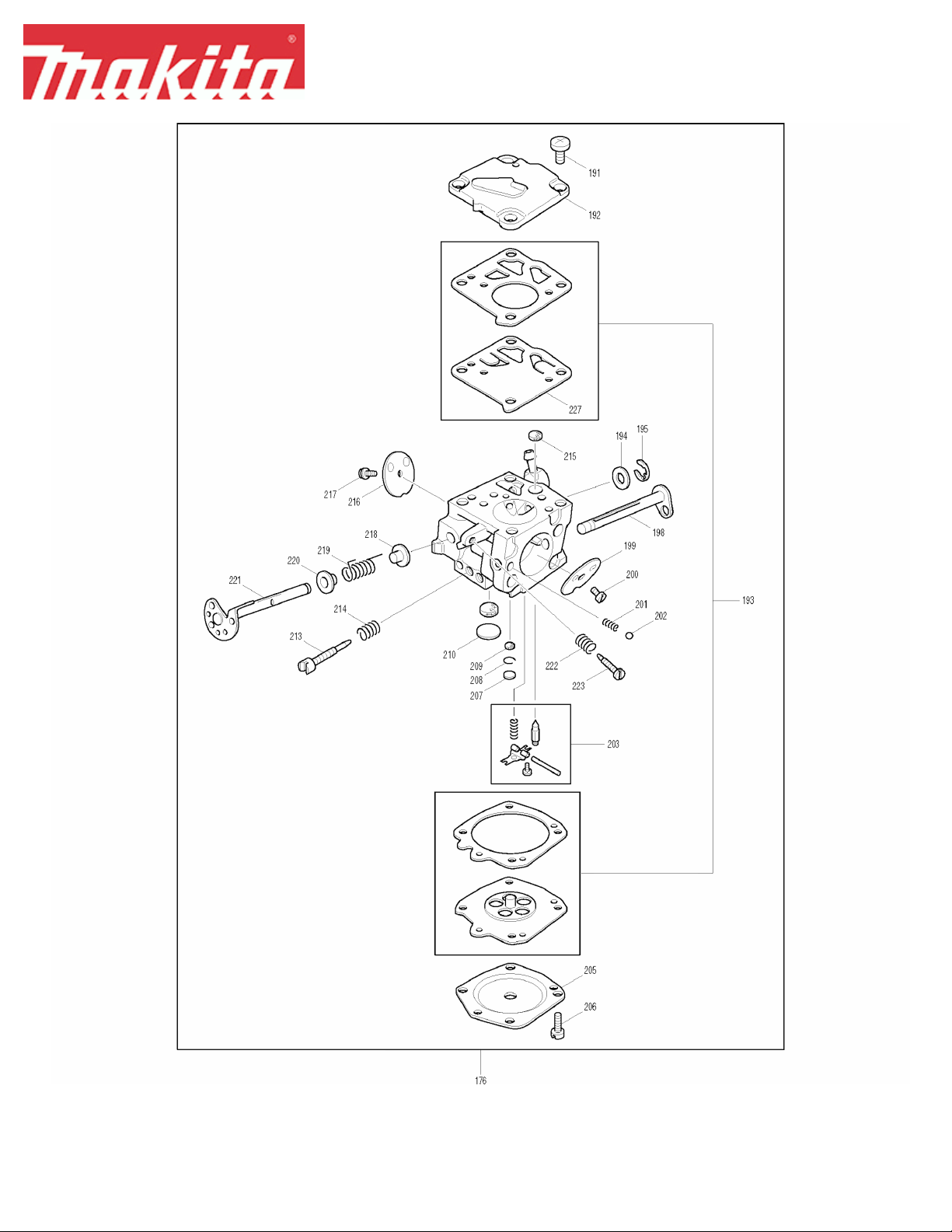

176 122151620 CARBURETOR, DPC7000 1
177 965518090 GASKET, DCS6000I21 1
178 144171030 CONNECTING SLEEVE, DPC7000 1
179 926105001 SPRING RING 5, DPC7000 2
181 908205805 FILLISTER HEAD SCREW M5X80, DPC7001 2
182 965402851 COVER FOAM PLATE, DPC7000 1
183 908005095 SCREW M5X9, DCS5200I 1
184 398174600 HEAT SHIELD, DPC7000 1
185 908005125 F.H. SCREW M5X12, DCS431 1
186 928406000 DISC, DPC9500 4
187 908006655 FILLISTER H. SCREW, DPC9500 .. 2
188 908005125 F.H. SCREW M5X12, DCS431 1
189 965518052 GASKET, DPC7001 1
190 123174159 MUFFLER, DPC7000 1
191 113150170 SCREW ,DCS6800I 4
192 113150160 PUMP COVER, DPC7000 1
193 957150100 DIAPHRAGM & GASKET (TILLOTSON), DPC7311 1
194 122151400 DISC, DCS6000I21 . 1
195 100150350 SAFETY WASHER, DCS6000I21 1
198 031150020 CHOKE SHAFT, DPC9500 1
199 113150261 CHOKE SHUTTER, DPC7000 1
200 113150370 SCREW W/WASHER, DPC7000 1
201 101150080 LOCKING SPRING, DPC7000 1
202 113150380 LOCKING BALL, DPC7000 1
203 957150010 CTRL. PARTS, CARB., DPC7000 1

Page 10 of 11 2/13

Parts Breakdown

DPC7001

205 122151121 DIAPHRAGM COVER, DPC7000 1
206 001150140 SCREW, DPC7001 4
207 113150030 COVER DISC, DCS6000I21 1
208 107150240 SPRING RING, DCS6000I21 1
209 107150230 SCREEN FOR NOZZLE, DCS6000I21 1
210 113150040 COVER DISC, DPC7311 1
213 122151470 IDLE ADJ.SCREW(L), DCS6000I21 1
214 144151480 SPRING(L), DCS6000I21 1
215 020150180 SCREEN, DCS6000I21 1
216 144151320 THROTTLE SHUTTER, DPC7000 1
217 113150370 SCREW W/WASHER, DPC7000 1
218 144151315 BUSHING, DCS6000I21 1
219 144151310 SPRING, DPC7000 1
220 144151315 BUSHING, DCS6000I21 1
221 122151302 THROTTLE SHAFT, DPC7000 1
222 113150240 IDLE STOP SCREW, DPC7000 1
223 113150230 SPRING, DPC7000 1
225 980114340 LABEL, 309 1
226 980113841 LABEL, DCS430 1
227 113150150 PUMP DIAPHRAGM (237-144), DPC7311 1
228 924806400 WASHER, DPC7001 2
229 980114330 LABEL, DPC7001 1
230 938232483 RIVET, DPC7001 3
232 010114040 ANGULAR UNION ASSY, DPC7000 1
319 001131150 DECOMPRESSION VALVE, DCS431,DPC7321 1

010114040 ANGULAR UNION ASSY, DPC7000 1

Page 11 of 11 2/13
