09 - 2008
BSS611X / BSS611Z

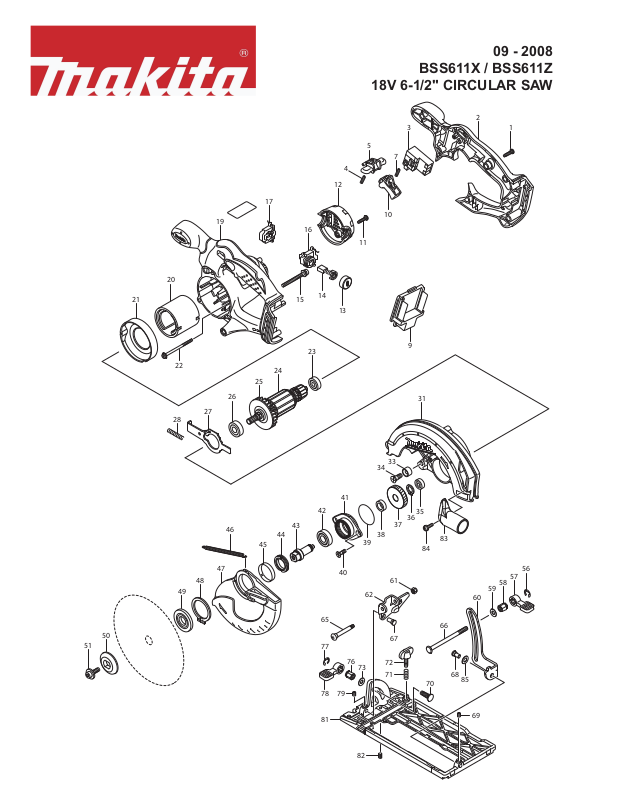

18V 6-1/2" CIRCULAR SAW
3
5
7
4
12
17
19
20
21
22
26
28
27
24
25
16
14
15
13
23
10
11
9
31
2
1
33
34
41
42
46
45
47
48
49
50
51
43
44
40
65
77
78
79
81
38
39
62
76
72
73
71
35
36
37
83
84
56
61
60
66
67
68
70
85
69
57
58
59
82
Page 2
Item No. Part No. Description Q'ty Unit
1 265995-6 TAPPING SCREW 4X18 5 PC.
2 450227-6 HANDLE COVER 1 PC.
3 651976-0 SWITCH TG73BD 1 PC.
4 231469-9 COMPRESSION SPRING 4 1 PC.
5 419664-3 LOCK OFF LEVER 1 PC.
7 231469-9 COMPRESSION SPRING 4 1 PC.
9 643812-4 TERMINAL 1 PC.
10 419665-1 SWITCH LEVER 1 PC.
11 265995-6 TAPPING SCREW 4X18 2 PC.
12 419281-9 REAR COVER 1 PC.
13 643829-7 HOLDER CAP 2 PC.
14 194435-6 CARBON BRUSH CB-441 (2PCS/SET) 1 SET
15 911263-2 PAN HEAD SCREW M5X40 3 PC.
16 643825-5 BRUSH HOLDER 1 PC.
17 643824-7 BRUSH HOLDER 1 PC.
19 158604-3 MOTOR HOUSING COM 1 PC.
20 638571-3 YOKE UNIT 1 PC.
21 419285-1 BAFFLE PLATE 1 PC.
22 266292-3 TAPPING SCREW 4X65 2 PC.
23 210045-2 BALL BEARING 627DDW 1 PC.
24 510095-0 ARMATURE ASSY (INCLUDES ITEMS 23, 25 & 26) 1 PC.
25 241869-5 FAN 55 1 PC.
26 211061-7 BALL BEARING 6000LLB 1 PC.
27 345659-9 SHAFT LOCK 102MM (TYPE1) 1 PC.
27 346059-6 SHAFT LOCK 104MM (TYPE2) 1 PC.
28 233092-6 COMPRESSION SPRING 5 1 PC.
31 158617-4 BLADE CASE COM. 1 PC.
31
31
INC. 213434-0 O-RING 26 1 PC.
INC. 816847-0 OPERATIONAL INDICATION LABEL 1 PC.
33 262049-0 RUBBER RING 6 1 PC.
34 251368-9 + COUNTERSUNK SCREW M6 1 PC.
35 210028-2 BALL BEARING 606ZZ 1 PC.
36 961052-5 RETAINING RING S-12 1 PC.
37 227156-6 SPUR GEAR 52 1 PC.
38 257173-2 RING 12 1 PC.
39 213512-6 O RING 39 1 PC.
40 265034-2 + COUNTERSUNK HEAD SCREW M5X16 2 PC.
41 318009-1 BEARING BOX 1 PC.
42 210109-2 BALL BEARING 6001DDW 1 PC.
43 324626-7 SPINDLE 1 PC.
44 285845-9 BEARING RETAINER 19-29 1 PC.
45 345469-4 THICKNESS RING 1 PC.
46 231821-1 TENSION SPRING 3 1 PC.
47 419280-1 SAFETY COVER 1 PC.
48 961152-1 RETAINING RING (EXT) S-34 1 PC.
49 224411-7 INNER FLANGE 35 1 PC.
50 224409-4 OUTER FLANGE 35 1 PC.
Page 3
Item No. Part No. Description Q'ty Unit
S
51 266133-3 HEX. SOCKET HEAD BOLT M6X20 1 PC.
56 961014-3 STOP RING E-8 1 PC.
57 272229-0 LEVER 40 1 PC.
58 252158-3 HEX.NUT M6 1 PC.
59 941151-9 FLAT WASHER 6 1 PC.
60 345658-1 DEPTH GUIDE 1 PC.
61 252103-8 HEX. LOCK NUT M5-8 1 PC.
62 345657-3 ANGULAR GUIDE 1 PC.
65 265056-2 + PAN HEAD SCREW M5 1 PC.
66 266194-3 FLAT HEAD SCREW M6X90 1 PC.
67 256480-0 SHOULDER PIN 6-7 1 PC.
68 256480-0 SHOULDER PIN 6-7 1 PC.
69 266264-8 HEX. SOCKET HEAD SCREW M5X6 1 PC.
70 251919-8 CAP SQUARE NECK BOLT M6X20 1 PC.
71 231007-7 COMPRESSION SPRING 6 1 PC.
72 251896-4 SCREW M5X20 1 PC.
73 941151-9 FLAT WASHER 6 1 PC.
76 252133-9 HEX. NUT M6 1 PC.
77 961014-3 STOP RING E-8 1 PC.
78 272251-7 LEVER 30 1 PC.
79 266264-8 HEX. SOCKET HEAD SCREW M5X6 1 PC.
81 154831-0 BASE COMPLETE 1 PC.
82 266229-0 HEX. SOCKET SET SCREW M5X8 1 PC.
85 253186-1 FLAT WASHER 7 1 PC.
ACCESSORIE
A01 164095-8 GUIDE RULE 1 PC.
A02 783203-8 HEX. WRENCH 5 1 PC.
A03 419283-5 DUST NOZZLE 1 PC.
A04 726095-2 6-1/2" C.T.SAW BLADE 16T - BULK 1 PC.
A05 DC18RA CHARGER DC18RA 1 PC.
A05 DC18SD CHARGER DC18SD 1 PC.
A05 DC18SE 12V AUTOMOTIVE CHARGER DC18SE 1 PC.
A05 DC18RAKIT CHARGER + BATTERY (DC18RA+BL1830) 1 SET
A05 DC24SA CHARGER F/ 7.2-24V, 1.3-3.3AH BATTERY 1 PC.
A05 DC24SC CHARGER F/ 7.2-24V, 1.3-3.3AH BATTERY 1 PC.
A06 194205-3 18V LI-ION BATTERY BL1830(3.0AH) 1 PC.
A06 194230-4 18V LI-ION BATTERY BL1830(3.0AH), 2/PK 1 SET
A06 194288-3 18V LI-ION BATTERY BL1830 (3.0AH), 10/PK 1 SET
A07 824757-7 PLASTIC CARRYING CASE 1 PC.
A7
A07
INC. 163455-1 LATCH 2 PC.
INC. 419360-3 HANDLE 1 PC.
A08 194649-7 BATTERY PROTECTOR (F/BL1430, BL1830) 1 PC.
A09 450128-8 BATTERY COVER (F/LI-ION) 1 PC.
*INC.=INCLUDES
