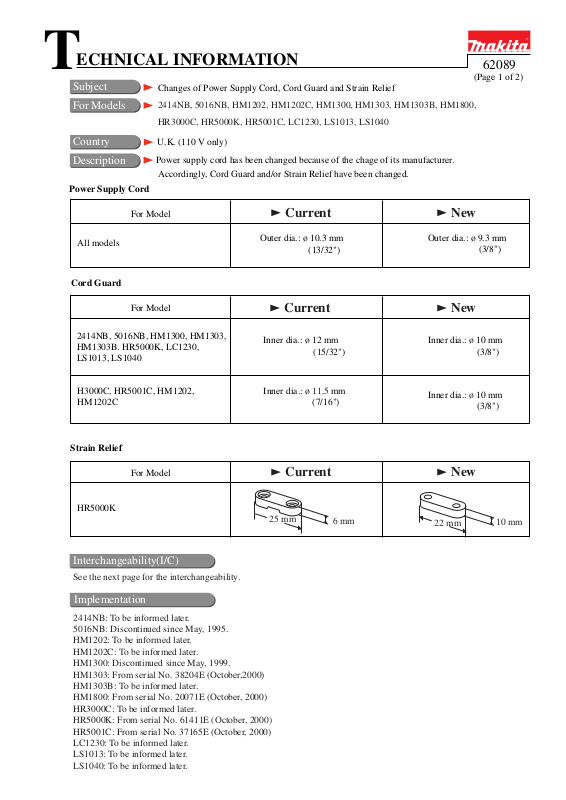

T
Subject
ECHNICAL INFORMATION
Changes of Power Supply Cord, Cord Guard and Strain Relief
62089
(Page 1 of 2)
For Models
Country
Description
Power Supply Cord
All models
Cord Guard
2414NB, 5016NB, HM1300, HM1303,
HM1303B. HR5000K, LC1230,
LS1013, LS1040
2414NB, 5016NB, HM1202, HM1202C, HM1300, HM1303, HM1303B, HM1800,
HR3000C, HR5000K, HR5001C, LC1230, LS1013, LS1040
U.K. (110 V only)
Power supply cord has been changed because of the chage of its manufacturer.
Accordingly, Cord Guard and/or Strain Relief have been changed.
For Model
For Model
Current New
Outer dia.: ø 10.3 mm
(13/32")
Current New
Inner dia.: ø 12 mm
(15/32")
Outer dia.: ø 9.3 mm
(3/8")
Inner dia.: ø 10 mm
(3/8")
H3000C, HR5001C, HM1202,
HM1202C
Strain Relief
For Model
HR5000K
Interchangeability(I/C)
See the next page for the interchangeability.
Implementation
2414NB: To be informed later.
5016NB: Discontinued since May, 1995.
HM1202: To be informed later.
HM1202C: To be informed later.
HM1300: Discontinued since May, 1999.
HM1303: From serial No. 38204E (October,2000)
HM1303B: To be informed later.
HM1800: From serial No. 20071E (October, 2000)
HR3000C: To be informed later.
HR5000K: From serial No. 61411E (October, 2000)
HR5001C: From serial No. 37165E (October, 2000)
LC1230: To be informed later.
LS1013: To be informed later.
LS1040: To be informed later.
Inner dia.: ø 11.5 mm
(7/16")
Current New
25 mm
6 mm
Inner dia.: ø 10 mm
(3/8")
22 mm
10 mm
Page 2
Interchangeability(I/C)
For 2414NB, LC1230, LS1013, LS1040
Item No.
2414NB: 037
LC1230: 037
LS1013: 033
LS1040: 013
2414NB: 036
LC1230: 036
LS1013: 034
LS1040: 014
For HR3000C, HM1202, HM1202C
Item No.
HR3000C: 083
HM1202: 091
HM1202C: 091
HR3000C: 082
HM1202: 090
HM1202C: 090
Current part
Power Supply Cord
665716-0
Cord Guard 12-90
682506-6
Current part
Power Supply Cord
695158-4
Cord Guard 11.5
682561-8
Q'ty
1 No
1
Q'ty
1 No
1
I/C
Power Supply Cord
695217-4
Cord Guard 10-90
No
682505-8
I/C
Power Supply Cord
695228-9
Cord Guard 10
No
682560-0
62089
(Page 2 of 2)
New part NoteQ'ty
1
Interchangeable
as a set
1
New part NoteQ'ty
1
Interchangeable
as a set
1
For HR5000K
Current part New part NoteQ'tyItem No. I/CQ'ty
112
111
113
110
109
For 5016NB, HM1300, HM1303, HM1303B
5016NB: 097
HM1300: 005
HM1303: 012
HM1303B: 012
5016NB: 096
HM1300: 006
HM1303: 011
HM1303B: 011
Power Supply Cord
665726-7
Cord Guard 12-90
682506-6
Strain Relief
687034-6
For HR5001C
Current part New part NoteQ'tyItem No. I/CQ'ty
Power Supply Cord
665726-7
Cord Guard 11.5
682561-8
Item No.
Current part
Power Supply Cord
665726-7
Cord Guard 12-90
682506-6
No
11No
1 No
1 No
1 No
Power Supply Cord
695237-8
Cord Guard 10-90
682505-8
Strain Relief
687000-3
Power Supply Cord
695237-8
Cord Guard 10
682560-0
Q'ty
I/C
1 No
1
Power Supply Cord
695237-8
Cord Guard 10-90
No
682505-8
1
1
1
1
1
New part NoteQ'ty
Interchangeable
Interchangeable
1
1
as a set
as a set
Interchangeable
as a set
For HM1800
Current part New part NoteQ'tyItem No. I/CQ'ty
089 1 Yes 1
Power Supply Cord
665726-7
Power Supply Cord
695237-8
