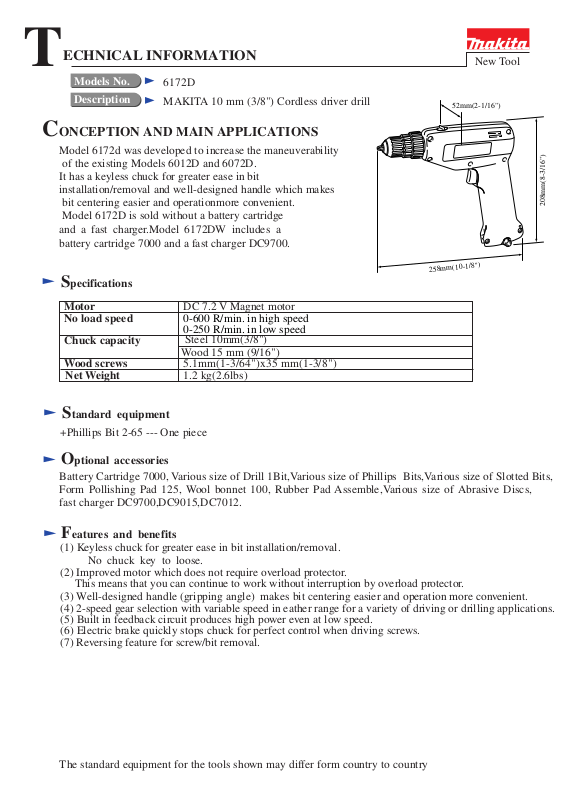

Page 1
T
ECHNICAL INFORMATION
New Tool
Models No.
Description
6172D
MAKITA 10 mm (3/8") Cordless driver drill
CONCEPTION AND MAIN APPLICATIONS
Model 6172d was developed to increase the maneuverability
of the existing Models 6012D and 6072D.
It has a keyless chuck for greater ease in bit
installation/removal and well-designed handle which makes
bit centering easier and operationmore convenient.
Model 6172D is sold without a battery cartridge
and a fast charger.Model 6172DW includes a
battery cartridge 7000 and a fast charger DC9700.
Specifications
Motor
No load speed
Chuck capacity
Wood screws
Net Weight
DC 7.2 V Magnet motor
0-600 R/min. in high speed
0-250 R/min. in low speed
Steel 10mm(3/8")
Wood 15 mm (9/16")
5.1mm(1-3/64")x35 mm(1-3/8")
1.2 kg(2.6lbs)
52mm(2-1/16")
208mm(8-3/16")
258mm(10-1/8")
Standard equipment
+Phillips Bit 2-65 --- One piece
Optional accessories
Battery Cartridge 7000, Various size of Drill 1Bit,Various size of Phillips Bits,Various size of Slotted Bits,
Form Pollishing Pad 125, Wool bonnet 100, Rubber Pad Assemble,Various size of Abrasive Discs,
fast charger DC9700,DC9015,DC7012.
Features and benefits
(1) Keyless chuck for greater ease in bit installation/removal.
No chuck key to loose.
(2) Improved motor which does not require overload protector.
This means that you can continue to work without interruption by overload protector.
(3) Well-designed handle (gripping angle) makes bit centering easier and operation more convenient.
(4) 2-speed gear selection with variable speed in eather range for a variety of driving or drilling applications.
(5) Built in feedback circuit produces high power even at low speed.
(6) Electric brake quickly stops chuck for perfect control when driving screws.
(7) Reversing feature for screw/bit removal.
The standard equipment for the tools shown may differ form country to country
Page 2
Repair
There is no special cautions for repair.
Circuit diagram
