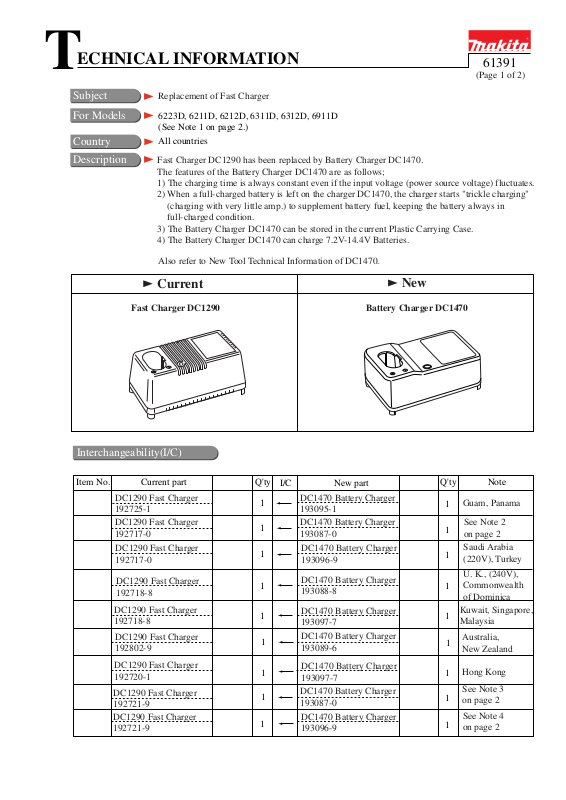

Page 1
T
ECHNICAL INFORMATION
61391
(Page 1 of 2)
Subject
For Models
Country
Description
Replacement of Fast Charger
6223D, 6211D, 6212D, 6311D, 6312D, 6911D
(See Note 1 on page 2.)
All countries
Fast Charger DC1290 has been replaced by Battery Charger DC1470.
The features of the Battery Charger DC1470 are as follows;
1) The charging time is always constant even if the input voltage (power source voltage) fluctuates.
2) When a full-charged battery is left on the charger DC1470, the charger starts "trickle charging"
(charging with very little amp.) to supplement battery fuel, keeping the battery always in
full-charged condition.
3) The Battery Charger DC1470 can be stored in the current Plastic Carrying Case.
4) The Battery Charger DC1470 can charge 7.2V-14.4V Batteries.
Also refer to New Tool Technical Information of DC1470.
Current
Fast Charger DC1290 Battery Charger DC1470
New
Interchangeability(I/C)
Item No.
Current part
DC1290 Fast Charger
192725-1
DC1290 Fast Charger
192717-0
DC1290 Fast Charger
192717-0
DC1290 Fast Charger
192718-8
DC1290 Fast Charger
192718-8
DC1290 Fast Charger
192802-9
DC1290 Fast Charger
192720-1
DC1290 Fast Charger
192721-9
DC1290 Fast Charger
192721-9
Q'ty
1
1
1
1
1
1
1
1
1
I/C
DC1470 Battery Charger
193095-1
DC1470 Battery Charger
193087-0
DC1470 Battery Charger
193096-9
DC1470 Battery Charger
193088-8
DC1470 Battery Charger
193097-7
DC1470 Battery Charger
193089-6
DC1470 Battery Charger
193097-7
DC1470 Battery Charger
193087-0
DC1470 Battery Charger
193096-9
New part
Q'ty
Guam, Panama
1
See Note 2
1
on page 2
Saudi Arabia
1
(220V), Turkey
U. K., (240V),
Commonwealth
1
of Dominica
Kuwait, Singapore,
1
Malaysia
Australia,
1
New Zealand
Hong Kong
1
See Note 3
1
on page 2
See Note 4
1
on page 2
Note
Page 2
61391
(Page 2 of 2)
Item No.
Interchangeability mark ;
The arrow means that the new part is substituted for the current.
Current part
DC1290 Fast Charger
192722-7
DC1290 Fast Charger
192723-5
DC1290 Fast Charger
192725-1
Q'ty Q'ty
I/C
1
1
1
DC1470 Battery Charger
193091-9
DC1470 Battery Charger
193090-1
DC1470 Battery Charger
193092-7
New part
Note
Note 1: DC1470 is designed to charge 1.3Ah/7.2V-14.4V Nickel-Cadmium batteries.
Therefore, the replacement of Fast Charger is not applied to "DWB" model.
Note 2: Austria, France, Germany, Italy, Netherlands, Russia, Spain, Sweden, Switzerland,
Algeria, Canary Islands, Congo, Gabon, Morocco, Reunion, South Africa
Note 3: Bolivia, Brazil (220V), Chile, Paraguay, Peru, Bhutan, Syria, New Caledonia, Tahiti
Note 4: Indonesia, Thailand, Philippines, Viet Nam
Implementation
To be informed later
Korea
1
China
1
Saudi Arabia
1
(127V)
