Make Noise Pressure Points User Manual
Pressure Points
Limited WARRANTY:
Make Noise warrants this product to be free of defects in materials or construction for a period of one year
from the date of purchase (proof of purchase/invoice).
Malfunction resulting from wrong power supply voltages, backwards power cable connection, abuse of the
product or any other causes determined by Make Noise to be the fault of the user are not covered by this
warranty, and normal service rates will apply.
During the warranty period, any defective products will be repaired or replaced, at the option of Make Noise,
on a return-to-Make Noise basis, with the customer paying the transit cost to Make Noise. Please contact
Make Noise for Return To Manufacturer Authorization.
Make Noise implies and accepts no responsibility for harm to person or apparatus caused through operation
of this product.
Please contact technical@makenoisemusic.com with any questions, needs & comments, otherwise...
go MAKE NOISE.
http://www.makenoisemusic.com
Installation:
The Make Noise Pressure Points is an electronic signal generator requiring 20mA of +12V
regulated power and a properly formatted distribution receptacle to operate. It is designed to
be used within the euro format modular synthesizer system.
Go to http://www.doepfer.de/a100_man/a100t_e.htm for the details of this format.
To install, find 20HP of space in your euro-rack synthesizer system, confirm proper installa-

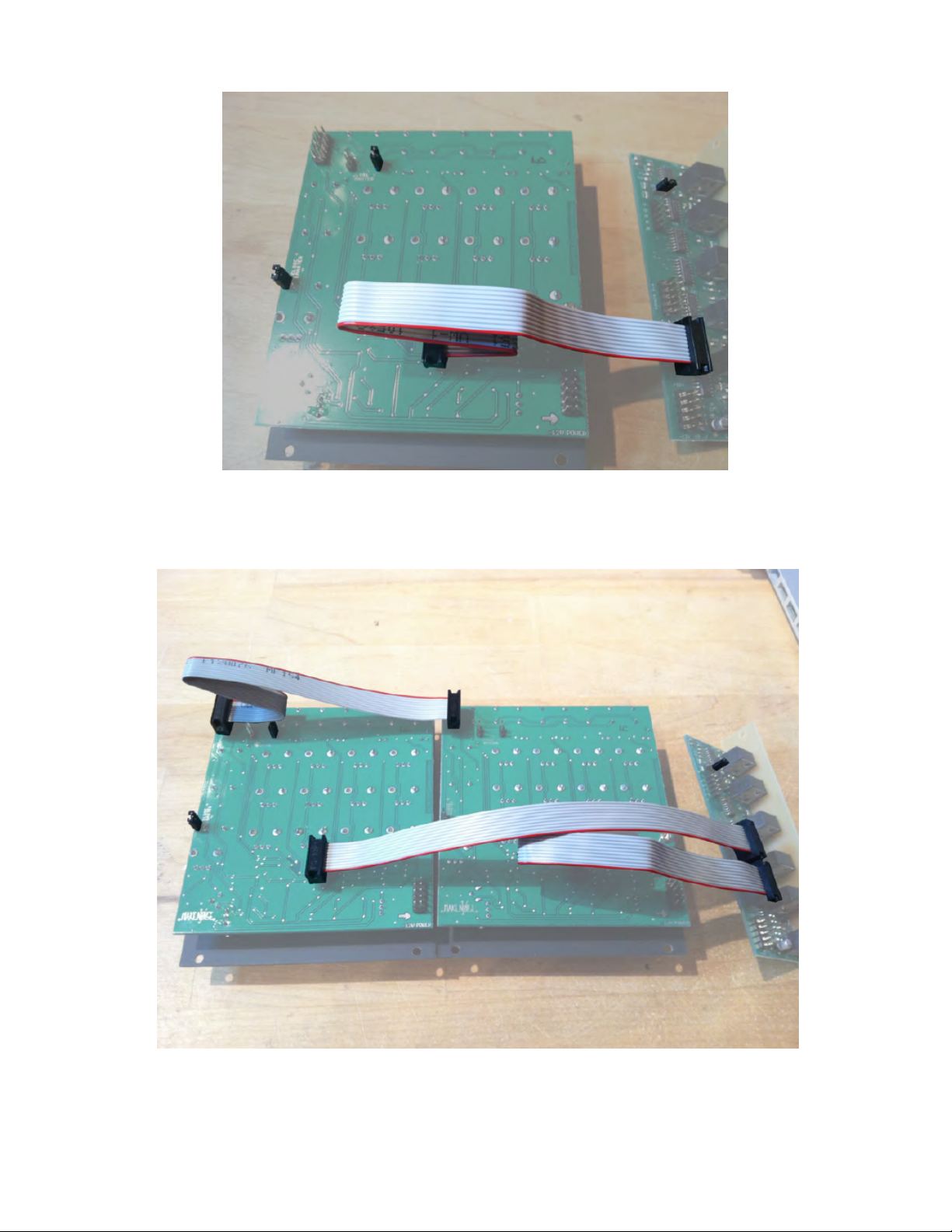

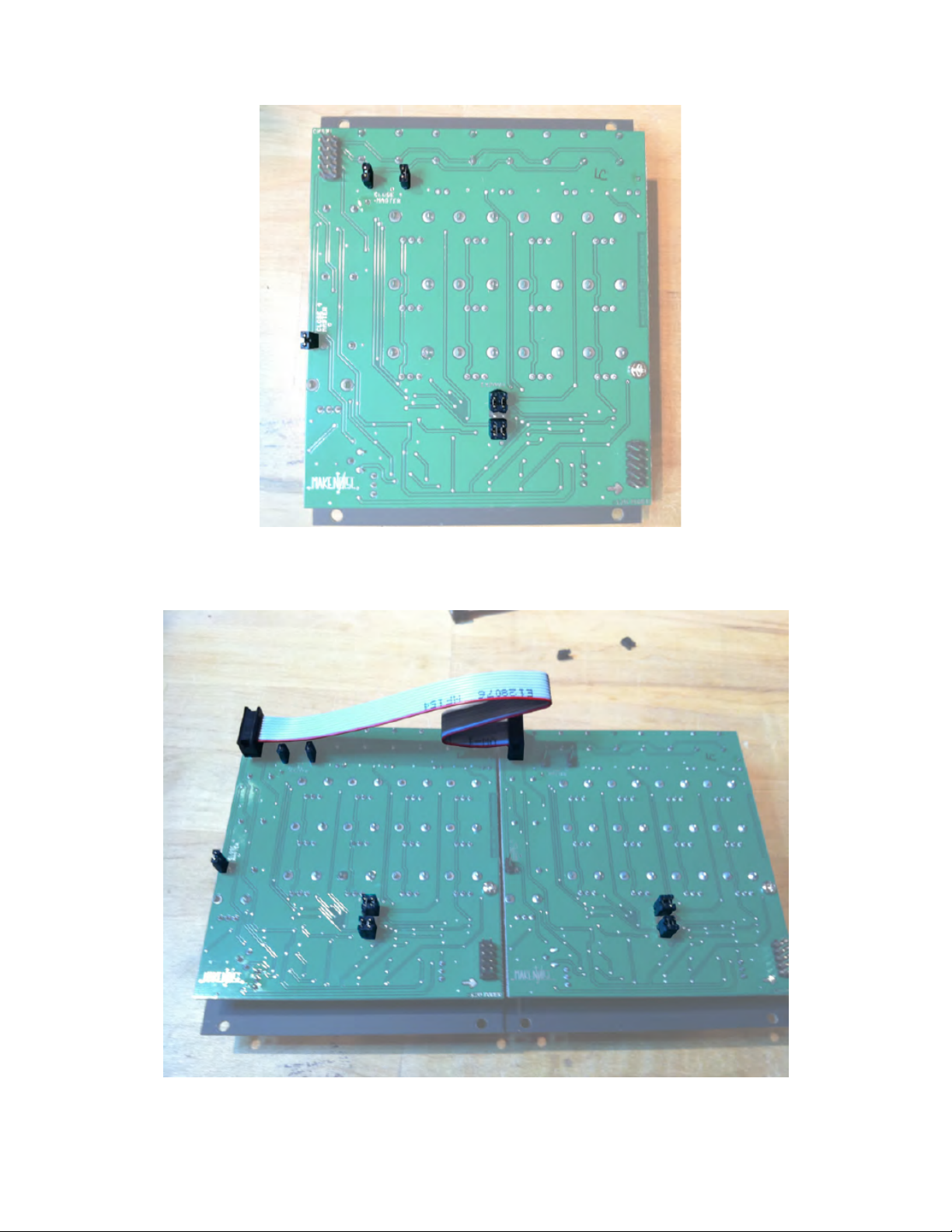

tion of included power cable on backside of module (see picture below), plug the 16pin end
power cable into the euro-rack style power distribution board, minding the polarity so that the
RED stripe on the cable is oriented to the NEGATIVE 12 volt supply line. This is USUALLY at
the bottom.
Please refer to your case manufacturers’ specifications for location of the negative supply.
