Page 1
Troubleshooting Guide
Weak or missing signal
- check LED on power inserter
- check LED on UFO
Both LED's must be ON for the
UFO to work
Interference, Herring-bone pattern.
White horizontal stripes in the picture.
Ghosting, Double Pictures
Description:
Type
Channels
Reference No
Electrical Data:
Frequency
Gain
Noise figure
Output voltage
Return loss
Impedance
Horizontal Bandwidth
Power supply
Omnidirectional antenna for TV and FM Radio reception with built in amplifier.
TV Ch2 - Ch69 + FM
109680
.
45 - 860 Mhz
28dB
2.5dB
108dB μV
> 10dB
75 Ohm
360 degrees
12 - 24V / 50mA
Remove the cables one
by one to find the defective
one, then replace or repair.
Increase distance
Increase UFO Height
Changing position by a few
metres often solves this.
NO light indicates no voltage.
Often this is caused by a short in one
of the cable connectors.
Interference is often caused by different
electronic equipment - mobile phones, computers
etc being used in close proximity to the UFO.
Ghosting is caused by the TV signal being reflected
by buildings, large ships etc.
Technical Data
Assembly and Mounting Instructions
www.majestic-global.com
Television and FM Antenna
Problem Possible Reason Solution
12V or 24V
Power inserter /
Signal splitter
Battery
IN OUT OUT
Television
FM Tuner
UFO
Page 2

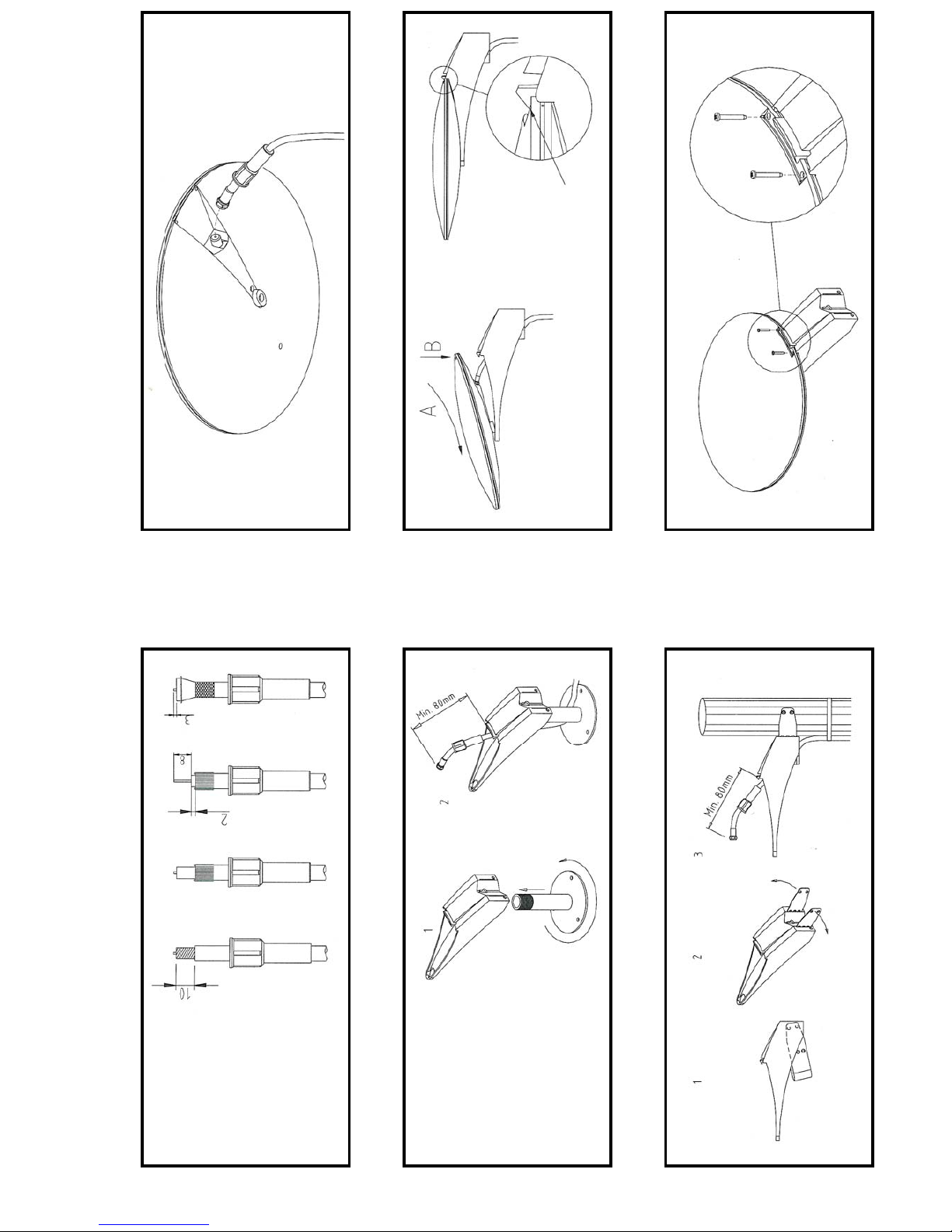

Attaching the Connectors
Mounting on a horizontal surface.
Positioning the antenna:
Screw Bracket to Desk Mount
Position the mount, and mark off
holes for fixing.
Strip cable to depths shown (mm)
Attach supplied coaxial connectors.
Insert Mast Bracket Pull Bracket through Attach to mast with appropriate fixture
A:
B:
Push forward
Push Down
Ensure that the
UFO shells are
fully mated
to the bracket
Mounting on mast.
Connecting the cable.
Mount UFO on base.
Screws for extra strengh.
