Majestic TMOO7, TM007 User Manual

U S E R M A N U A L

T M O O 7

7” Widescreen LCD Television

w w w . m a j e s t i c - g l o b a l . c o m

TMOO7 - User Manual

CAUTION

1. Never attempt your own maintenance, If something is not
functioning correctly, please turn the TM007 off and contact your
Local Authorised Majestic Dealer. The TM007 contains highly sensitive
componentry that can easily be damaged or broken if you open the
unit yourself.

2. Do not expose the TM007 to high levels of humidity, dust, steam,
oil, smoke, direct sunlight etc.

3. Do not use thinners or other chemical cleaning agents. Wipe the TV
off with a soft cloth if it gets dirty.

4. Do not leave the unit in excessively hot or cold places. Storage
temperatures are within the range of -25c to +60c and Operating
temperatures are within the range of 0c to +40c

5. Do not connect the TM007 to the power with any other adapter
apart from the one supplied with the unit.

6. Turn power OFF when not in use and unplug the adaptor.

7. Avoid dropping the unit or any hard impact.

For your safety:

This unit should not be installed within view of the person driving
the vehicle or vessel. The driver should not watch TV or operate the
controls while driving.

Please note that watching and operating the TV while driving are
prohibited by law in some countries.

Page 1

TMOO7 - User Manual

(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)

(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)

Channel selecting buttons
Volume adjusting buttons
Menu button
TV / AV selecting button
Power button
Remote sensor
LCD panel
External antenna socket
Earphone socket
Audio 2 / Video 2 Input socket
Audio 1 / Video 1 / Input socket for Rear Vision Control
Built-In Speaker
l2V DC Power Adapter Socket
Mounting screw hole
Unit Stand
External Battery Housing
Built-In Antenna

TMOO7

Parts Description - Main Unit

Page 2

TMOO7 - User Manual

TMOO7

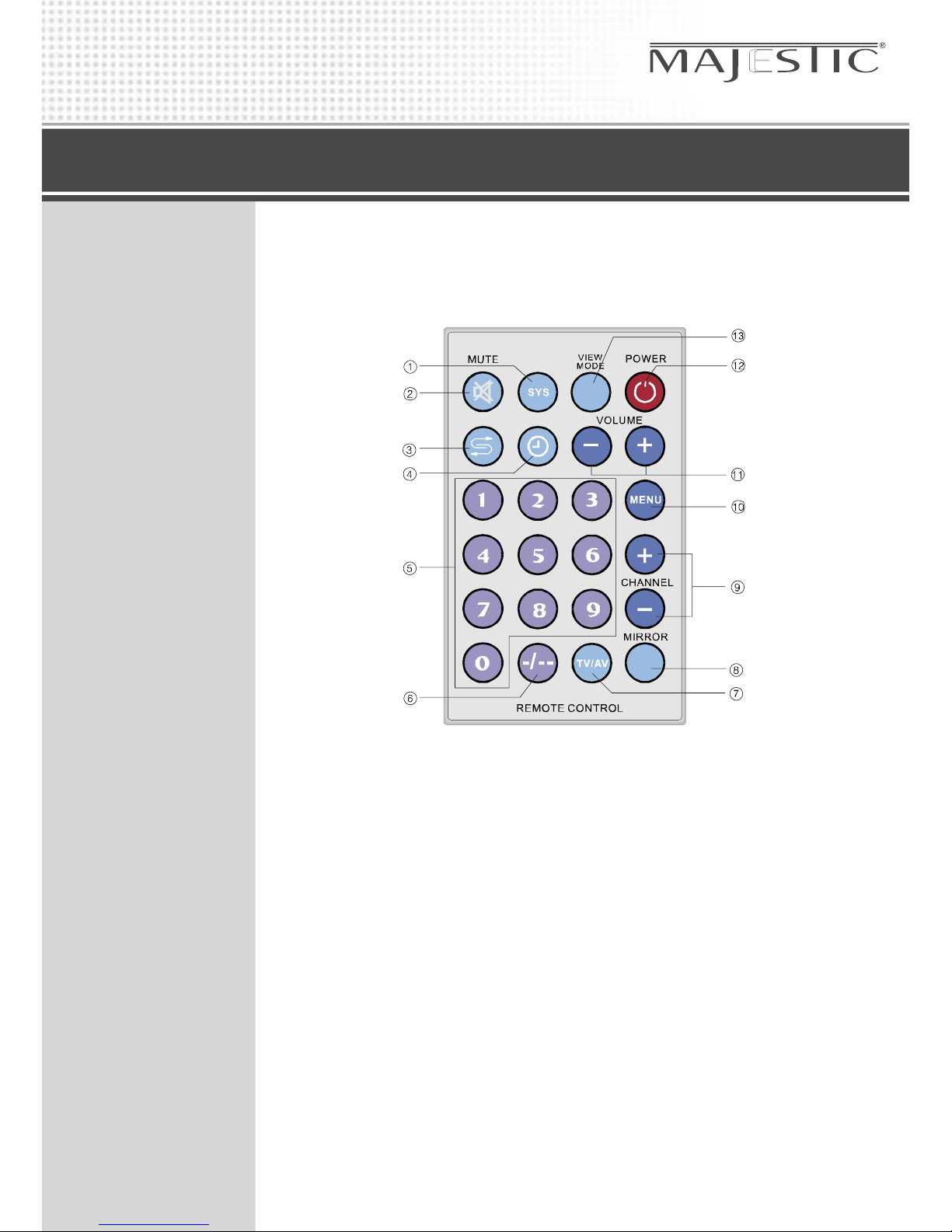

Parts Description - Remote Control

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)
(10)
(11)
(12)
(13)

TV Sound System Select button
Mute button
Flash-back button - (Returns to previous channel)
Sleep timer button
Channel select button
Channel digit selecting button
TV/AV select button
Picture mirror button
Channel up and down buttons
Menu button
Volume Adjust Buttons
Power ON / OFF
View Mode Button

Page 3

TMOO7 - User Manual

POWER SUPPLY

Car Battery (DC I 2V):

The optional car adaptor allows the TV to be powered by a car battery
through the vehicles’ cigarette lighter.

Battery Pack (DC 12V):

The optional battery pack allows the TV to be powered when no other
available power source is present. Please ensure that batteries are
inserted correctly as shown in the battery socket. Do not leave Battery

Pack connected when TV is OFF, the TV will drain the batteries due to the
memory current.

BASIC OPERATION

1. Turning ON/OFF TV

1) Connect the power source, and press the [POWER ON/OFF]

button. Press the [POWER ON/OFF] again to turn the unit off.

2) If the TM007 is OFF, then the [CH+] or [CH-] buttons will also
turn the unit ON.

3) The Sleep and Auto-Off times will be reset if the unit is
disconnected from it’s power source.

2. Selecting the TV or AV Mode

1) Press [AV/TV ] button each to change the mode from TV to AV

or from AV to TV. While changing modes, the volume will MUTE.

2) If selecting the TV mode, please extend the built-in antenna or
connect an external antenna to ensure the best reception.

3) If the unit has not been programmed for local stations then you
can either automatically or manually search for local stations. For
further details, please read the preset function MENU on Page 9.

Page 4

TMOO7 - User Manual

MENU OPERATION

1) Picture adjust menu function

Press the [MENU] button the following screen will appear:

Press [CH+] or [CH-] button to select each item.
Press [V+] or [V-] button to adjust each item.

BRIGHTNESS:

COLOUR:

CONTRAST:

SHARPNESS:

Press [CH+] or [CH-] button to select the brightness.

Press [V+] or [V-] button to adjust the brightness.

Press [CH+] or [CH-] button to select the colour.

Press [V+] or [V-] button to adjust the colour.

Press [CH+] or [CH-] button to select the contrast.

Press [V+] or [V-] button to adjust the contrast.

Press [CH+] or [CH-] button to select the sharpness.

Press [V+] or [V-] to adjust the sharpness.

Page 5

PIC T URE

BRI G HTNE S S

COL O UR

CON T RAST

SHA R PNES S

35

33

30

22

TMOO7 - User Manual

2) Adjusting the audio

Press [MENU] again to adjust the volume.
Hold on [V+] or [V-] button to adjust the volume.

The screen display:

Furthermore , you could press [V+] or [V-] button to adjust the volume
even when there is no menu displayed.

3) Function adjustment.

Press [MENU] button three times to adjust the functions.
Press [CH+] or [CH-] button to select the function.
Press [V+] or [V-] button to change the function option.

The screen display:

Page 6

AUD I O

VOL U ME 33

FUN C TION

LAN G UAGE

CAL E NDAR

GAM E

ENG L ISH

NOR M AL

NOR M AL

TMOO7 - User Manual

LANGUAGE:

Press [CH+] or [CH-] button to select the language. Press [V+] or [V-]
button to change the language. Options available are English and
Chinese.

CALENDAR:

Press [CH+] or [CH-] button to select the calendar. Press [V+] or [V-]
button to adjust the month and date.

GAME:

Press [CH+] or [CH-] button to select the game. Press [V+] or [V-] button
to enter into the game. The games Russia Square is available in this
unit. The operation methods are as follows, Press [V+] button to move
right, press [V-] button to move left, press [CH+] to turn up and down,
press [CH-] button to accelerate.

Picture mirror: **Used when TV is utilised as a Reversing Camera.

Press [CH+] or [CH-] button to select the picture.
Press [V+] or [V-] button to turn the picture left to right.

Picture Up and Down:

Press [CH+] or [CH-] button to select the picture. Press the [V+] or [V-]
button to turn the picture up and down.

4) System adjustment

Press the [MENU] button four times continuously, then display the
system adjustment.
Press [CH+] or [CH-] button to select the item.
Press [V+] or [V-] button to change the functions.

The screen displays:

Page 7

TMOO7 - User Manual

C.SYS:

Press [V+] or [V-] to change the colour system.
The colour system options are:

AUTO, PAL, P3.58, N3.58, N4.43, SECAM, SECAM-L, PALM, PALN.

The default original colour system is “AUTO”

S.SYS:

Press [V+] or [V-] to change the TV sound system.
The TV sound system options are:

M, BG, I, DK.

SWAP:

Press [CH+] or [CH-] to choose the program swap item.

This function sets the current channel to the ‘SWAP’ channel.

Press [CH+] or [CH-] to choose target channel (The selected channel is
indicated by a RED channel number.)
Press [V+] or [V-] to change the channel, then press [CH+] or [CH-]
to choose currently channel number, press [V+] or [V-] to save the
setting.

COPY:

Press [CH+] or [CH-] to choose program copy item. The function allows
you to copy the current channel number to the channel number which
you need. Press [CH+] or [CH-] to choose target channel number (it
means the Channel has been chosen, when the channel number colour
change to red.), Press [V+] or [V-] to add or reduce the number, then
press [CH+] or [CH-] to choose currently channel number, press [V+] or

[V-] to save the setting.

WEAK SIGNAL:

Under normal circumstances this should be set to ON. This allows weak
signals to be received in good conditions.

Page 8

TMOO7 - User Manual

5) Preset Function:

Press the [MENU] button five times continuously, you will access the
pre-set function menu. Press [CH+] or [CH-] to choose the item which
you want to access, then press [V+] or [V-] to make your selection. The
options are as follows:

AUTO SEARCH: The default setting is “Auto”, press [V+] or [V-] to
activate the Auto Search. When a signal is detected, it will be saved in
the first available slot.

SEARCH: Press [CH+] or [CH-] to choose this item, press [V+] or [V-] to
proceed to search channels manually. Once a signal has been detected
it will be stored.

FINE TUNE: Press [CH+] or [CH-] to choose this item, by pressing [V+]
or [V-], you can adjust the fine tuning manually while the image is on
the screen.

BAND: Press [CH+] or [CH-] to choose this item, press [V+] or [V-] to
choose the band, the band formats which you can choose have:

VHF-L, VHL-H, UHF.

PROGRAM: Press [CH+] or [CH-] to choose this item, press [V+] or [V-]

to increase or decrease the channel, the total channels available for
storage is 255.

SKIP: Press [CH+] or [CH-] to choose this item, press [V+] or [V-] to wipe
the current channel.

Page 9

TMOO7 - User Manual

6) Clock Set Function

Press the [MENU] button six times continuously, you would find the
clock set function menu. Press [CH+] or [CH-] to choose item which you
request, then press [V+] or [V-] to change the item.

The default setting is “sleep”. Press [V+] or [V-] to change the sleeping
time, time will increase and decrease in 10 minute increments. The
max sleeping time is 240 minutes.

CLOCK:

Press [CH+] or [CH-] to choose this item, the original condition is as
below:

Press [V+] or [V-] to reset to zero, press [V+] to increase by one minute,
the max setting is 59 minutes, then press the button once more, it
will come back to zero. Press [V-] to add one hour, the max can be
23 Hours, then press the button once more and it will come back to
original setting.

NOTE: This setting will reset to the factory default when the TM007 is
disconnected from a power source.

OFF TIME:

Press [CH+] or [CH-] to find the default for this setting, then Press [V+] or

[V-] to set it to zero, press [V+] to increase the minutes (59 Mins Max)

Press [V-] to increase the hours, (23 Hours Max) The unit will automati­cally power down after the pre-set time.

Page 10

TMOO7 - User Manual

NOTE: This setting will reset to the factory default when the TM007 is
disconnected from a power source.

ON TIME:

Press [CH-] to find the default setting for this item, then press [V+] or [V-]
to make it to zero, press [V+] to increase the minutes (59 Mins Max).
Press [V-] to increase the hours, (23 Hours Max). The unit will automati-
cally power up once the selected time occurs.

NOTE: This setting will reset to the factory default when the TM007 is
disconnected from a power source.

ALARM:

Press [CH-] to find the default setting of this item, then press [V+] or [V-]
to make it to zero, press [V+] to increase the minutes (59 Mins Max).
Press [V-] to increase the hours, (23 Hours Max). The alarm will sound
when the selected time is reached.

B. TIME:

Press [CH+] to find the default setting of this item, then press [V+] or [V-]
to make it to zero, press [V+] to increase the minutes (59 Mins Max).
Press [V-] to increase the hours, (23 Hours Max). The unit will auto­alarm you the time when the booking time comes.

B.PR:

Press [V+] or [V-] to increase or decrease the booking channel number,
you can choose from 0 to 255.

Page 11

TMOO7 - User Manual

7) AV Operation

When you change TV system to AV system, Pre-set function and S.SYS,
SWAP, COPY, WEAK SIGNAL, PRESET will not display on the screen.

8) Listening with earphones.

Plug the earphones into the earphone socket. The Speakers will MUTE
and the sound will be directed through the earphones.

9) Using an outdoor antenna

In areas where TV signal are too weak for the rod antenna to provide
good reception, you should use an outdoor antenna. Connect the
smaller end of antenna adaptor to the LCD TVs external antenna
socket, the bigger end to the antenna feedback.

10) V.MODE function

Press V.MODE button of remote control you can change the picture
display mode. Available modes are

Mode Aspect Ratio

Full 16:9
Adjust 4:3
Normal 16:9
Zoom 16:9

Page 12

TMOO7 - User Manual

E. TROUBLESHOOTING

The following conditions do not necessary mean that the TV is broken.
Please check the causes as indicated below requesting that the TV be
serviced.

Page 13

Condition

No sound and
no picture

No Picture

No Sound

Poor Reception

Dark Picture

Picture is visible,
but poor
reception

Snow

Poor Colour

Cause

Dead batteries or batteries inserted incorrectly,
AC Adapter is not inserted correctly
Incompatible power supply being used.
Is TV / AV Selected properly?

Is the channel tuned in correctly?
Try to reset the Broadcasting Channels
Is the S.SYS selected properly?

Is the volume adjusted correctly?
Are the earphones plugged in

?

Poor signal can degrade sound

.

Is the S.SYS selected properly?

Is the antenna adjusted to receive the signal?
Is the channel tuned to the correct frequency?
Is the S.SYS selected properly?

Is the brightness / contrast adjusted correctly?

The broadcast signal may be too weak.
Is the antenna adjusted properly

?

Is the 'Weak Signal' function on

?

You may be receiving electronic interference from
engines, high voltage wires or other electronic devices.

Is the colour setting adjusted properly?
Poor signal can degrade the colour of the picture

.

Is the correct S.SYS selected

?

Remote Control
doesn't work

Replace Batteries and check they are inserted correctly.
Is anything blocking the path of the signal to the unit?

TMOO7 - User Manual

F. SPECIFICATIONS

Type: TFT LCD colour Television
Reception Frequencies: 45.25MHZ 863.25MHZ
System: PAL / SECAM
Display Element: Colour TFT LCD
Screen Size: 7 inches
Resolution: 1440 x 234
Audio Output: 500mW(Max)
Speaker: 20mm x 40mm square speaker (one)
Back Light: High luminance fluorescent light tube

Connection Terminals:

External antenna socket
Earphone socket
External power socket (DC 12V)
Audio / Video input socket

Power Supply: 2-way power supply system

12V Cigarette Lighter Plug
Battery Pack - Requires 10 x ‘AA’ Batteries (Not Supplied)

Power consumption: Approx.. SW
Dimensions: 192mm x 133mm x 42mm
Weight: Approx.. 630g

G. ACCESSORIES WITH TV

Antenna Adaptor, A / V Cable, USB Cable, Remote Control, 12V Car
Adaptor, Earphones, Stand, Battery Pack

Page 14

Majestic Global

Unit 1 / 20 Export Drive

MOLENDINAR QLD 4214

AUSTRALIA

Ph: [phone]

Fax: [phone]

[e-mail]

www.majestic-global.com
