Magnavox MDR161V User Manual

Download

Owner’s Manual

MDR161V

DVD Recorder/ VCR with Line-in Recording (NO TUNER)

Read your Owner’s Manual first for

quick tips that make using your

Magnavox product more enjoyable.

If you have read assistance,

you may access our online help at

www.magnavox.com/support

or call

1-866-341-3738

while with your product

(and Model / Serial number)

Lea primero el Manual del Propietario,

en donde encontrará consejos que

le ayudarán a disfrutar plenamente

de su producto Magnavox.

Si después de leerlo aún necesita ayuda,

consulte nuestro servicio de

asistencia en línea en

www.magnavox.com/support

o llame al teléfono

1-866-341-3738 y tenga a mano el producto (y número de model / serial)

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

Safety Instruction

The model and serial numbers of this unit may be found on the cabinet. You should record and retain those numbers for future reference.

English

Model No.:

Serial No.:

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPARATUS TO RAIN OR MOISTURE. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

Français

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO

Español

QUALIFIED SERVICE PERSONNEL.

The important note and rating are located on the rear or bottom of the cabinet.

The symbol for CLASS ll (Double Insulation)

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

–

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (Battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

LASER SAFETY

This apparatus is classified as a CLASS 1 LASER PRODUCT. This apparatus employs a laser. Only a qualified service person should remove the cover or attempt to service this apparatus, due to possible eye injury.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous radiation exposure.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

English

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

Never use a gas duster on this unit. The gas trapped inside of this unit may cause ignition and explosion.

To Avoid the Hazards of Electrical Shock and Fire

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• Do not put your fingers or objects into the unit.

Location and Handling

• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.

• Avoid a place with drastic temperature changes.

• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.

• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

• Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.

Dew Condensation Warning

• Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few hours until its inside gets dry.

- The unit is moved from a cold place to a warm place.

- Under conditions of high humidity.

- After heating a cold room.

Note about Recycling

• This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

• For product recycling information, please visit - www.magnavox.com. Click on

Français

Español

Notice for Progressive Scan Output

• Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525(480) progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p(480p) DVD player, please contact our customer service center.

–

Continued on next page.

Introduction

Safety Instruction ................................................................. 2

English

Supplied Accessories ......................................................................6

Maintenance .........................................................................................6

Trademark Information .................................................................7

Features .................................................................................. 8

Symbols Used in This User Manual .......................................9

Functional Overview ......................................................... 10

Français

Front Panel ........................................................................................10

Rear Panel ..........................................................................................11

Remote Control .............................................................................12

Using the Remote Control ......................................................12

Front Panel Display .......................................................................14

Connection

Español

Connection ..........................................................................15

Connecting to an External Tuner ........................................15

TV Connection Overview ........................................................15

Connecting to a TV with an HDMI™ Compatible

Port ...................................................................................................16

Connecting to a TV with Component Video Input

Jacks ...................................................................................................16

Connecting to a TV with an S-Video Input Jack .........17

Connecting to a TV with Audio / Video Input

Jacks ...................................................................................................17

Connecting to a TV without Audio / Video Input

Jacks ...................................................................................................18

Digital Audio Connection .........................................................19

2 Channel Analog Audio Connection .............................. 19

Basic Setup

Before You Start ................................................................20

Finding the Viewing Channel on Your TV......................20

On-screen Display / Menu .......................................................21

Main Menu .........................................................................................22

Switching DVD / VCR Mode .................................................23

How to Insert a Disc / Cassette Tape..............................23

Initial Setting ........................................................................24

Clock Setting .......................................................................24

Recording

Information on DVD Recording ....................................24

Before Recording ...............................................................25

Auto Chapter Setting ..................................................................25

Recording Audio Select (XP) .................................................25

Setting Aspect Ratio for Video Mode Recording.......26

Basic Recording & One-touch Timer Recording ............. 26

Timer Recording ................................................................27

Hints for Timer Recording .......................................................30

Satellite Link ........................................................................31

Settings for an External Device ......................................32

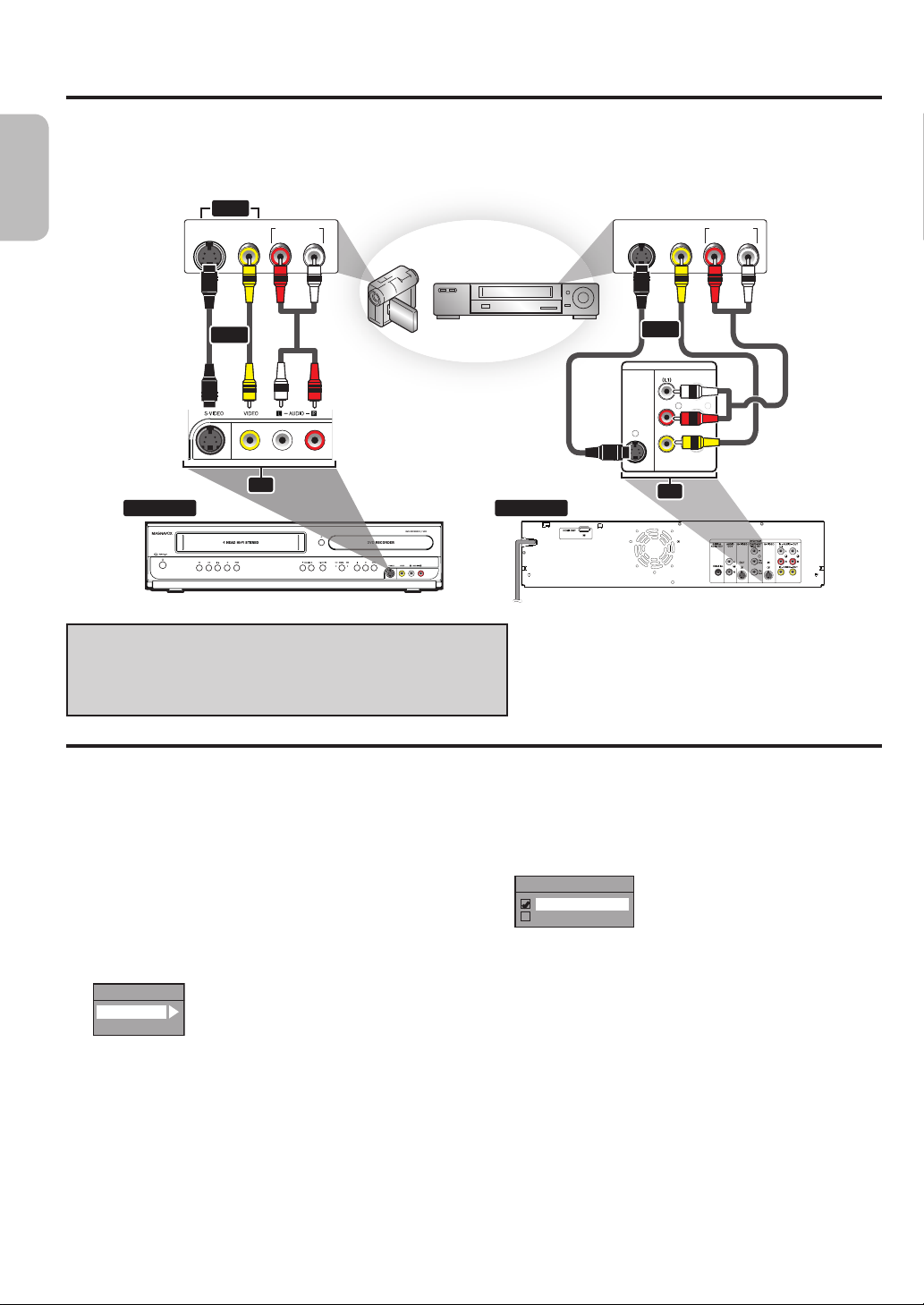

Connection to an External Device .....................................32

Setting the Video Input ..............................................................32

Recording from an External Device ................................... 33

Bi-directional Dubbing ......................................................33

Protecting a Disc................................................................34

Make a Disc Playable on Other DVD Players ............35

Finalizing a Disc ...............................................................................35

Auto Finalizing .................................................................................35

Playback

Information on Playback ...................................................36

Basic Playback .....................................................................37

Direct Playback ...............................................................................37

Playback from the Title List .....................................................37

Playing an Audio CD, Viewing JEPG files on

CD-RW/R or DVD-RW/-R ................................................38

Using the Title / Disc Menu .................................................... 38

Pause ..................................................................................................... 38

Special Playback .................................................................. 39

Resume Playback ...........................................................................39

Fast Forward / Fast Reverse Playback ...............................39

Skipping TV Commercials during Playback ....................39

Rapid Playback .................................................................................39

Step by Step Playback .................................................................40

Slow Forward / Slow Reverse Playback ...........................40

Zoom ....................................................................................................40

Marker Setting .................................................................................41

Repeat Playback..............................................................................41

Random Playback .......................................................................... 42

Slide Show .........................................................................................42

Program Playback ..........................................................................42

Search ...................................................................................43

Time Search ......................................................................................43

Selecting Audio/Video Format ........................................44

Switching Subtitles .........................................................................44

Switching Audio Sound Track ................................................44

Switching Camera Angles .........................................................45

Reducing Block Noise .................................................................45

–

Editing

Information on Disc Editing ............................................46

Title List ...............................................................................................46

Editing Discs ......................................................................................46

Formatting a Disc ..............................................................47

Choosing the Recording Format of a Brand-new

DVD-RW ...................................................................................... 47

Reformatting a Disc Manually.................................................47

Creating/Deleting a Playlist..............................................48

Adding Titles to a Playlist..........................................................48

Deleting All Playlists .....................................................................48

Deleting Titles ....................................................................49

Editing Discs ........................................................................49

Deleting Part of a Title ...............................................................49

Putting Names on Titles ............................................................50

Setting Chapter Marks ................................................................51

Setting or Clearing All Chapter Marks at Once ..........52

Dividing a Title ................................................................................52

Combining Titles ............................................................................ 53

Setting or Releasing the Title Protection.........................53

Function Setup

List of Settings ....................................................................54

Setups ...................................................................................56

Playback ............................................................................................... 56

Display .................................................................................................. 58

Video .....................................................................................................58

HDMI .................................................................................................... 59

Reset All ..............................................................................................60

Español

Español .................................................................................71

Discos Reproducibles ..................................................................71

Códigos de Región ....................................................................... 71

Disco Grabable ............................................................................... 71

Disco no Grabable ....................................................................... 71

Conexión Básica .............................................................................72

Conexión a un Televisor con un Puerto

Compatible con HDMI™ ....................................................72

Modo HDMI y señales efectivas de salida ......................72

Configuración Inicial .....................................................................73

Grabación Básica ............................................................................73

Grabación con Temporizador ............................................... 74

Reproducción ...................................................................................74

Limited Warranty

Limited Warranty ..............................................Back cover

English

Français

Español

VCR Functions

VCR Functions ....................................................................60

Playback ............................................................................................... 60

Recording ........................................................................................... 61

One-touch Timer Recording (OTR) .................................61

Index Search .....................................................................................62

Time Search ......................................................................................62

Other Operations .........................................................................63

Others

Troubleshooting .................................................................64

Language Code ...................................................................68

Glossary ...............................................................................69

Specifications .......................................................................70

–

Continued on next page.

Supplied Accessories

Remote Control (NB887UH) with Batteries (AA, 1.5V x 2)

OPEN/

STANDBY-ON

CLOSESOURCE

English

TITLE

Français

RCA Audio/Video Cables

Owner’s Manual

Español

ŴŴŴ

ŴŴŴŴŴ ŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴ

ŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴŴ

Quick Start Guide

Maintenance

Cleaning discs

•

When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center to out. Do not wipe in a circular motion.

• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.

Cleaning the disc lens

• If this unit still does not perform properly although you refer to the relevant sections and to “Troubleshooting” in this owner’s manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

Disc handling

• Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

• Always store the disc in its protective case when it is not used.

Auto head cleaning

• Automatically cleans video heads as you insert or remove a cassette, so you can see a clear picture.

• Playback picture may become blurred or interrupted while the TV program reception is clear. Dirt accumulated on the video heads after a long period of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your unit may need to be cleaned.

1. Please visit your local Audio/Video store and purchase a good quality VHS video head cleaner.

2. If a video head cleaner does not solve the problem, please consult your dealer or an Authorized Service Center.

Note(s)

• Remember to read the instructions along with the video head cleaner before use.

•

Clean video heads only when problems occur.

Servicing

• Please refer to relevant topics on “Troubleshooting” (p.64-67) before returning the product.

• If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit to the standby mode, unplug the power plug and please call our help line mentioned on the front page to locate an Authorized Service Center.

Cleaning the cabinet

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth.

• Never use a solvent, thinner, benzene or alcohol to clean the unit. Do not spray insecticide liquid near the unit. Such chemicals may discolor the surface or damage the unit.

IR signal check

If the remote control does not work properly, you can test if the remote control sends out the infrared signal using a digital camera (including the built-in camera of a cellular phone). It will help to define the cause of malfunction.

Using a digital camera (including the built-in camera of a cellular phone):

Direct a digital camera to the remote control, press and hold a button on the remote control. If infrared light appears on the digital camera screen, the remote control is working.

Note(s)

• Some cameras have an IR Filter and will not display the IR signal.

–

Trademark Information

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Dolby Digital Stereo Creator

“Dolby

Digital Stereo Creator enables consumers to create stereo DVD-Videos with stunning Dolby Digital sound tracks at home. The technology, when utilized instead of PCM recording, also saves recordable disc space, allowing for higher video resolution or extended recording time on each DVD. DVDs mastered using Dolby Digital Stereo Creator will play back on all DVD-Video players.”

Note(s)

• This is true when the players are compatible with actual recordable DVD discs.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

is a trademark of DVD Format/Logo Licensing

Corporation.

English

Français

Español

MAGNAVOX is a registered trademark of Philips Electronics North America Corporation and is used by Funai Electric Co., Ltd. and Funai Corporation, Inc. under license from Philips Electronics North America.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

–

Continued on next page.

Features

This unit not only plays DVD, CD and VCR but also offers features for you to record and then edit on DVD.

English

Recording

This unit is compatible with recording on DVD-RW which is recordable repeatedly and DVD-R which accept the additional recordings until the disc becomes full but not overwritable. You can choose either one for your convenience. Also, this unit allows you to record to the cassette tape.

Français

Up to 12 program recording:

You can program the unit to record up to 12 programs within a one-month period. Daily or weekly program recordings are also available.

One-touch timer recording (OTR): You can easily extend a recording time. Every time [REC] is

Español

pressed during recording, the recording time will be increased by 30 minutes up to 8 hours. The recording automatically stops when the recording time ends or the disc is full.

Dubbing mode:

You can copy a DVD to a cassette tape or copy a cassette tape to a DVD. This function will be possible only if the DVD or a cassette tape is not copy protected. You cannot record on a cassette tape when its erase-protection tab is removed.

Left channel stereo recording:

This unit can record the sound of the left channel monaural input as left and right channels automatically.

Automatic chapter mark setting:

Chapter marks will be put on recordings as you set before attempting to record.

Automatic title menu making:

The unit creates a title menu automatically when finalizing discs for video mode recording.

Automatic playlist making:

The unit creates a playlist automatically after recording VR mode DVD-RW.

Automatic title finalizing:

For video mode DVD-RW/-R recording, you can finalize discs automatically after f inishing all timer recordings or at the end of the disc space if you set this in the main menu.

Playback

Theater surround sound in your home:

When connecting the unit to an amplifier or a decoder which is compatible with Dolby Digital, you can experience the theater surround sound from discs with surround sound system.

Quick search for what you would like to watch:

You can easily f ind the part you would like to watch using the search function. Search for a desired point on a disc by title, chapter or time.

Viewing JPEG files:

You can view JPEG files which are recorded on CD-RW/-R and DVD-RW/-R.

Quick search for what you would like to watch:

You can easily f ind the part you would like to watch using the index search/time search functions. An index mark will be assigned at the beginning of each recording you make. For time search function, you can go to a specific point on a cassette tape by entering the exact amount of time you would like to skip.

Editing

Deleting titles:

You can delete titles which you do not need anymore.

Putting names on titles:

You can put names on titles.

Setting / clearing chapter marks:

You can set / clear chapter marks on titles.

Dividing or combining titles (VR mode DVD-RW only):

You can divide or combine a playlist title.

Deleting parts of titles (VR mode DVD-RW only):

You can delete a specific part of a title.

Compatibility

Available for playing discs on a regular DVD player:

Recorded discs can be played on regular DVD players, including computer DVD drives compatible with DVD-video playback. For DVD-RW/-R , you need to finalize the recorded discs to play on other DVD players.

Others

Progressive scan system

Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional television signals.

HDMI (High-Definition Multimedia Interface)

You can enjoy clearer audio/video output when connecting this unit to a display device with an HDMI-compatible port.

–

Symbols Used in This User Manual

To specify which disc type each function is for, we put the following symbols at the beginning of each item to operate.

Note(s)

• DVD-RW recorded in the non compatible recording format is not recordable.

• DVD-R recorded in VR mode is not recordable on this unit.

Symbol Description

For Recording, Playing, and Editing

Description refers to DVD-RW (VR mode)

Description refers to DVD-RW (Video mode)

Description refers to DVD-R (Video mode)

For Recording and Playing

Description refers to VHS tapes Use only cassettes marked VHS ( )

For Playback only

Description refers to DVD-video

Description refers to audio CD

Description refers to CD-RW/-R and DVDRW/-R with JPEG files.

English

Français

Español

If you do not f ind any of the symbols listed above under the function heading, the operation is applicable to all media.

–

Continued on next page.

Functional Overview

Front Panel

English

Français

12*3

Español

15161920212223

(*) The unit can also be turned On by pressing these buttons or inserting a cassette tape.

1. Cassette compartment (VCR)

Inser t a cassette tape here.

2. A button (DVD)*

Press to open or close the disc tray.

3. Disc tray (DVD)

Place a disc when it is open.

4. AUDIO input jacks (L2) (DVD/VCR)

Use to connect an external device with an RCA audio cable.

5. VIDEO input jack (L2) (DVD/VCR)

Use to connect an external device with an RCA video cable.

6. S-VIDEO input jack (L2) (DVD/VCR)

Use to connect the S-video output of an external device with an S-video cable.

7. I REC button (DVD)

• Press once to star t a recording.

• Press repeatedly to start the one-touch timer recording.

8. B button (DVD)*

Press to start or resume playback.

9. C button (DVD)

• Press to stop playback or recording.

• Press to stop the proceeding timer recording for DVD.

10. DVD indicator

Lights up when the DVD output mode is selected.

11. SOURCE button (DVD/VCR)

Press to select the component you would like to operate.

12. VCR indicator

Lights up when the VCR output mode is selected.

13. D.DUBBING button (DVD/VCR)

Press to star t VCR to DVD (DVD to VCR) duplication which you set in the main menu.

14. TRACKING L / K buttons (VCR)

• Press to adjust the tracking during cassette tape playback or slow motion.

• While playback is in still mode, you can adjust the picture to remove vertical blur.

15. Display (DVD/VCR)

Refer to “Front Panel Display” (p.14).

16. Infrared sensor window (DVD/VCR)

Receive signals from your remote control so that you can control the unit from a distance.

17. I REC button (VCR)

Press once to start a recording. Press repeatedly to start the one-touch timer recording.

18. B button (VCR)

Press to start playback.

C A

19.

20. D button ( VCR)

21. E button ( VCR)

22. y button (DVD/VCR)

23. POWER-ON indicator (DVD/VCR)

button ( VCR)

• Press to remove the cassette tape from the cassette compartment.

• Press to stop cassette tape playback or recording.

• Press to stop the proceeding timer recording for VCR.

Press to rapidly advance the cassette tape or view the picture rapidly during playback (forward search).

Press to rewind the cassette tape or to view the picture rapidly in reverse during playback (rewind search).

Press to turn On the unit or to switch the unit to standby mode. (To completely shut down the unit, you must unplug the AC power cord.)

Red LED lights up when power is On.

45678*9101112131418 17

–

Rear Panel

English

Français

37910 8 6 453

1. AC Power Cord

• Connect to a standard AC outlet to supply power to this unit.

• Unplug this cord from the AC outlet to completely shut down the unit.

2. HDMI OUT jack

Use an HDMI cable to connect to a display with an HDMI compatible port.

3. AUDIO OUT jacks

Use to connect a TV monitor, AV receiver or other device with an RCA audio cable.

4. VIDEO OUT jack

Use to connect a TV monitor, AV receiver or other device with an RCA video cable.

5. VIDEO IN jack (L1)

Use to connect an external device with an RCA video cable.

6. AUDIO IN jacks (L1)

Use to connect an external device with an RCA audio cable.

7. S-VIDEO IN jack (L1)

Use to connect the S-video output of an external device with an S-video cable.

8. COMPONENT VIDEO OUT jacks

Use to connect the component video inputs of a T V monitor with a component video cable.

9. S-VIDEO OUT jack

Use to connect the S-video input of a TV monitor, AV receiver or other device with an S-video cable.

10. COAXIAL DIGITAL AUDIO OUT jack

Use to connect the digital audio coaxial input of an AV receiver, Dolby Digital decoder, or other device with a digital audio coaxial cable.

Note(s)

• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

• This unit does not have an RF modulator.

Caution when using S-video, component, or HDMI connection for VCR:

• Only video/audio playback is available with these connec tions.

Español

–

Continued on next page.

Remote Control

Installing the Batteries in the Remote Control

Install the batteries (AA 1.5V × 2) matching the polarity

English

indicated inside the battery compar tment of the remote control.

123

Français

Note(s)

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

• Lithium or ni-cad and ni-mh rechargeable batteries are not

Español

recommended for use in the remote control.

• Do not mix different types of bat teries such as alkaline and standard (carbon-zinc).

• Do not mix new and old batteries together.

• Do not use different kinds of batteries together. Although they may look similar, different batteries may have different voltages.

• Make sure that the + and - ends of each bat tery match the indications in the battery compar tment.

• Remove batteries from the batter y compartment that are not going to be used for a month or more.

• When disposing of used bat teries, please comply with governmental regulations or environmental public instruc tion’s rules that apply in your country or area.

• Do not recharge, shor t-circuit, heat, burn or disassemble batteries.

10 12

STANDBY-ON

OPEN/ CLOSESOURCE

14 15

19 3 4

TITLE

21 5

28 30

11 13

Using the Remote Control

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote control and the infrared sensor window on the unit.

• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the infrared sensor window of the unit.

• Remote controls for different devices can inter fere with each other. Avoid using remote controls for other devices located close to the unit.

• Replace the batteries when you notice a fall-off in the operating range of the remote control.

• The maximum operable ranges from the unit are as follows.

- Line of sight: approx. 23 feet (7m)

- Either side of the center: approx. 16 feet (5m) within

30°

- Above: approx. 16 feet (5m) within 15°

- Below: approx. 10 feet (3m) within 30

16 feet (5m)

30˚

23 feet (7m)

16 feet (5m)

30˚

1. STANDBY-ONy button (DVD/VCR)

• Press to turn On the unit or to switch the unit to standby mode. (To completely shut down the unit, you must unplug the AC power cord.)

2. Number/Character buttons (DVD/VCR)

• Press to select a title/chapter/track/file on display.

• Press to enter values for the settings in the main menu.

• Press to enter title names.

• Press to start the index/time search in VCR mode.

3. DISPLAY button (DVD/VCR)

• Press to display the display menu On or Off.

4. DISC MENU button (DVD)

• Press to display the disc menu.

5. OK button (DVD/VCR)

• Press to confirm or select menu items.

6. SETUP button (DVD/VCR)

• Press to display the main menu.

7. VCR button (DVD/VCR)

• Press to select the VCR output mode.

8. H (previous) button (DVD)

• During playback, press to return to the beginning of the current chapter, track or f ile.

• When playback is in pause, press repeatedly to reverse the playback step by step.

• During playback, press twice in quick succession to skip to the previous chapter or track.

–

9. E (reverse) button (DVD/VCR) DVD mode:

• During playback, press to fast reverse playback.

• When playback is paused, press to slow reverse

playback.

VCR mode:

• During playback, press to rewind the cassette tape or

to view the picture rapidly in reverse.

• Press to fast reverse the cassette tape in stop mode.

10. CM SKIP button (DVD)

• During playback, press to skip 30 seconds.

11. F (pause) button (DVD/VCR)

• Press to pause playback or recording.

12. D.DUBBING button (DVD/VCR)

• Press to start VCR to DVD (DVD to VCR) duplication,

which you set in the main menu.

13. REC MODE button

• Press repeatedly to switch the recording mode.

14. SOURCE button (DVD/VCR)

• Press to select the appropriate input.

15. OPEN/CLOSE A button (DVD/VCR) DVD mode:

• Press to open or close the disc tray.

VCR mode:

• Press to remove the cassette tape from the cassette

compartment.

16. TR ACKING + / - buttons ( VCR)

• Press to adjust the tracking during playback or in slow

motion of the cassette tape.

• While playback is in still mode, you can adjust the

picture to remove vertical blur.

17. HDMI button (DVD)

• Press to set the HDMI connector’s video signal output

mode.

18. CLEAR button (DVD/VCR) DVD mode:

• Press to clear the password you are entering, to cancel

the programming for CD, to clear the selected marker number, etc.

VCR mode:

• Press to reset the tape counter.

19. AUDIO button (DVD/ VCR) DVD mode:

• Press to display the audio menu during playback.

VCR mode:

• During playback of a Hi-Fi videotape, press to change

the audio out setting.

20. TIMER button (DVD/VCR)

• Press to display the timer programming list.

21. TITLE button (DVD)

• Press to display the title list.

• During DVD playback, press and hold for more than

3 seconds to switch the progressive scanning mode to the interlace mode.

22. Cursor K / L / 0 / 1 buttons (DVD/VCR)

• Press to select items or settings.

23. RETURN button (DVD/VCR)

• Press to return to the previously displayed menu

screen.

24. DVD button

• Press to select the DVD output mode.

25. B (play) button (DVD/VCR)

• Press to start playback or resume playback.

26. G (next) button (DVD)

• During playback, press to skip to the next chapter, track or file.

• When playback is paused, press repeatedly to forward the playback step by step.

27. C (stop) button (DVD/VCR)

• Press to stop playback or recording.

DVD mode:

• Press to exit from the title list.

28. D (forward) button (DVD/VCR) DVD mode:

• During playback, press to fast for ward playback.

• When playback is paused, press to slow forward

playback.

VCR mode:

• During playback, press to rapidly advance the cassette

tape or view the picture rapidly in forward.

• When playback is paused, press to view the cassette

tape in slow motion.

• Press to fast forward the cassette tape in stop mode.

29. RAPID PLAY button (DVD)

• During playback, press to play in a slightly faster/slower

mode while keeping the sound output.

30. SEARCH button (VCR)

• Press to call up the index or time search menu.

31. TIMER SET button (DVD/VCR)

• Press to set the unit in the timer standby mode. In the

timer standby mode, press to cancel the mode and to turn the unit On.

32. I REC button (DVD/VCR)

• Press once to star t a recording.

• Press repeatedly to start the one-touch timer

recording.

Note(s)

• When the unit is in standby mode, press [ C A] on the unit as [A] on the remote control is not available.

English

Français

Español

–

Continued on next page.

Front Panel Display

English

231

BS CS DR CD

VCR

HDDDB

DVD

4. Displays the following

• Elapsed playback time

• Current title / chapter / track / file number

• Recording time / remaining time

• Clock

• Selected external input position

• Remaining time for one-touch timer recording

• Selected HDMI output mode

• VCR tape counter

Français

• Appears in the afternoon with the clock display.

2. Title / track / file and chapter mark

• Appears when indicating a title / track / file number.

Español

• Appears when indicating a chapter number.

3. Current status of the unit

• Appears when playback is in pause or in step by step playback.

• Appears when playing a disc or a cassette tape.

• Appears during slow forward / reverse playback.

• Appears when the timer programming or OTR has been set or is proceeding.

• Flashes when all timer recordings have been finished.

• Appears during the recording process.

• Flashes when recording is paused.

• Appears when this unit is in DVD output mode and a disc is in the unit.

• Appears during duplication process.

• Appears when this unit is in VCR output mode and a cassette tape is in the unit.

• Appears during duplication process.

• Appears when this unit is in VCR output mode.

VCR

• Appears when the timer recording is proceeding for VCR.

• Appears when VCR is in timer recording standby mode.

• Flashes when a program cannot be per formed for some reason.

• Appears when this unit is in DVD output mode.

DVD

• Appears when the timer recording is proceeding for DVD.

• Appears when DVD is in timer recording standby mode.

• Flashes when a program cannot be per formed for some reason.

• Appears during VCR to DVD duplication process.

• Appears during DVD to VCR duplication process.

Display Message

DVD

• Appears when the disc tray is opening.

DVD

• Appears when the disc tray is closing.

DVD

• Appears when a disc is loaded on the disc tray.

DVD

• Appears when data is being recorded on a disc.

DVD

• Appears when HDMI output mode (480p) is selected.

DVD

• Appears when HDMI output mode (720p) is selected.

DVD

• Appears when HDMI output mode (1080i) is selected.

DVD

• Appears when HDMI output mode (1080p) is selected.

–

Connection

Read this first:

1. Disconnect the AC power cords of the devices from the AC outlet.

2. Make the connection as illustrated below.

3. After making all the connections, connect the AC power cords of the devices.

• Connect this unit directly to the T V. If the RCA audio/video cables are connected to another VCR, pictures may be distorted due to the copy protection system.

Connecting to an External Tuner

RCA video cable

RCA audio cable

IN --- A UD I O --- OUT

IN --- VIDEO --- OUT

Rear of this unit

RCA audio cable

RCA video cable

AUDIO IN

VIDEO IN

RF coaxial

cable

ANT. IN

VIDEO OUTAUDIO OUT

external tuner

RF coaxial

cable

ANT. INANT.OUT

satellite

dish

cable TV

company

English

Français

Español

Note(s)

• Required cables and connecting methods differ depending on the external tuner. For more information, please contact your ex ternal tuner provider.

With this setup:

• You can record any unscrambled channel by selecting the channel on the ex ternal tuner. When using the external tuner connect the unscrambled cable signal to the external tuner and then send the output cable signal from the unit to the Cable Box. Be sure that the external tuner is turned On.

• You cannot record one channel while watching another channel.

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1

• RCA video cable x 1 Please purchase the rest of the necessary cables at your local store.

TV Connection Overview

Refer to

page

If your device only has an ANT. IN jack

ANT. IN

page

Higher

Quality

Standard

Quality

If Your TV has

HDMI IN

COMPONENT VIDEO IN

S-VIDEO IN

AUDIO INLRVIDEO IN

–

Continued on next page.

Connecting to a TV with an HDMI™ Compatible Port

• HDMI outputs the video / audio signals without conver ting to analog signals.

English

• No audio connection is required.

HDMI IN

Français

HDMI cable

HDMI OUT

Rear of this unit

Español

To play the digital video images of a DVD via an HDMI connection, it is necessary that both the player and the display device (or an AV amplifier) suppor t a copyright protection system called HDCP (High-bandwidth Digital Content Protection system). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV device. This unit supports HDCP. Please read the operating instructions of your display device (or AV amplifier) for more information.

Notes for HDMI Connection

• Because HDMI is an evolving technology, it is possible that some devices with an HDMI input may not operate properly with this unit.

• When using an HDCP-incompatible display device, the image will not be displayed properly.

• Among the devices that support HDMI, some devices can control other devices via the HDMI connector; however, this unit cannot be controlled by another device via the HDMI connec tor.

• When this unit’s HDMI connector is connected to a DVI-D compatible monitor (HDCP compatible) with an HDMI-DVI conver ter cable, the signals are output in digital RGB.

• If a power failure occurs or you unplug the unit, some problems in the HDMI set ting may occur. Please check and set the HDMI setting again.

Connecting to a TV with Component Video Input Jacks

Do not tilt the connector when inserting it into the HDMI jack, and make sure the shapes of the jack and the connector are matched.

Cables not included.

Please purchase the necessary cables at your local store.

HDMI Mode and Actual Output Signals

Press [HDMI] to select the HDMI output mode. The output mode changes as follows every time [HDMI] is pressed.

Front Panel Display Video Output Signal

480 Progressive

Press [HDMI]

• An HDMI mode which is not suppor ted by the display device will be skipped.

720 Progressive

1080 interlaced

1080 Progressive

RCA audio cable

AUDIO

OUT

Rear of this unit

RCA component video cable

DVD / VCR

COMPONENT

VIDEO OUT

(Green)

(Blue)

(Red)

/CB

/CR

AUDIO IN

COMPONENT

VIDEO IN

(Green)

(Blue)

(Red)

/CB

/CR

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1 Please purchase the rest of the necessary cables at your

local store.

–

Connecting to a TV with an S-Video Input Jack

Connecting to a TV with Audio / Video Input Jacks

AUDIO IN

RCA audio cable

S-VIDEO

Rear of this unit

AUDIO

OUT

S-video cable

S-VIDEO IN

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1 Please purchase the rest of the necessary cables at your

local store.

English

IN --- AUDIO --- OUT

IN --- VIDEO --- OUT

Rear of this unit

RCA audio cable

RCA video cable

AUDIO IN

Français

VIDEO IN

Español

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1

• RCA video cable x 1

–

Continued on next page.

Connecting to a TV without Audio / Video Input Jacks

English

VHF / UHF

Français

cable TV

company

antenna

Rear of this unit

external tuner

ANT. INANT.OUT

VIDEO OUTLRAUDIO OUT

RCA audio cable

RCA video cable

RCA audio cable

Set channel 3 or 4

ANT. IN

IN --- AUDIO --- OUT

IN --- VI D EO --- OUT

Español

RF coaxial cable

No Antenna (RF) Output!

If your TV only has an Antenna input (no A/V inputs), you will need an RF modulator (NOT INCLUDED) to connect this unit.

RF modulator

CHANNEL

VIDEO IN

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1

• RCA video cable x 1 Please purchase the rest of the necessary cables at your local store.

Note(s)

• The RF modulator is not supplied with this unit. You need to purchase it at your local store.

• The quality of the picture may become poor if this unit is connected to an RF modulator.

AUDIO IN

ANT. IN

TO TV

ANT. IN

AUDIO IN TO TVANT. IN

RF modulator

VIDEO IN

RCA video cable

CHANNEL

Set channel 3 or 4

RF coaxial cable

–

Digital Audio Connection

2 Channel Analog Audio Connection

Coaxial Cable Connection

Dolby Digital decoder

COAXIAL

digital audio

coaxial input jack

digital audio

coaxial cable

Rear of this unit

HDMI Audio Connection

AV receiver / amplifier with an HDMI input jack

HDMI IN

HDMI

cable

HDMI OUT

DIGITAL

AUDIO OUT

COAXIAL

RCA Audio Cable Connection

Stereo system

AUDIO IN

Analog audio

input jacks

RCA audio cable

Rear of this unit

AUDIO

OUT

English

Français

IN --- AU DI O --- OUT

IN --- VID E O --- OU T

Español

To set up “HDMI Audio” refer to pages 55 and 59. To set up “Dolby Digital” refer to pages 54 and 57.

Audio format

(disc)

Dolby Digital

LPCM

Dolby Digital

Setting of this unit

PCM

Stream Dolby Digital Dolby Digital

PCM

Stream

HDMI Digital Output

2channel PCM 2channel PCM

2channel PCM —

Actual Output

Cables not included.

Please purchase the rest of the necessary cables at your local store.

Note(s)

• The audio source on a disc in a Dolby Digital multi channel surround for mat cannot be recorded as digital sound by an MD or DAT deck.

• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel sur round sound similar to movie theaters.

• Playing a DVD using incorrect set tings may generate noise distortion and may also damage the speakers.

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1

–

Continued on next page.

Before You Start

After you have completed all the connections, you must f ind the viewing channel (external input channel) on your TV.

English

Finding the Viewing Channel on Your TV

Examples of Input Mode Names for Common TV Brands

Admiral AUX Magnavox

Français

Curtis Mathis

LINE1, LINE2, 00, 90, 91, 92, 93

INPUT, TV/VCR, 00, 90, 91, 92, 93

Panasonic TV/VIDEO

RCA

Samsung TV/VIDEO

Español

Hitachi INPUT, AUX Sanyo VIDEO

Sharp 00

Sony

JVC

VIDEO, VIDEO1, VIDEO2, VIDEO3

Kenwood AUX Toshiba TV/GAME

LXI-Series 00 Zenith 00

AUX CHANNEL

INPUT, TV/VCR, LINE1, LINE2, 00, 90, 91, 92, 93

VIDEO1, VIDEO2, VIDEO3

1 After you have made all the necessary connections,

press [y] to turn On the unit.

2 Turn On your TV.

• If connected to your VCR, make sure it is switched Off or to standby mode before proceeding.

3 Press on the TV’s remote control, then press

channel down button repeatedly until the “Initial Setup” menu is displayed.

Initial Setup

OSD Language

English Français Español

Select the language for Setup display.

This is the correct viewing channel (external input channel) for the recorder.

• For some TVs, there may be a button on the T V’s remote control that accesses the exter nal input channel. It may be labeled “SOURCE”, “AV” or “SELECT”. In such a case, press it repeatedly. Refer to your TV’s User Manual for details.

• If more than 10 minutes have passed since you turned On the unit, you may see the screen saver instead of the “Initial Setup” menu.

Screen saver:

Note(s)

• Video input selection varies for different brand’s models of TVs.

• Consult your TV manufacturer if none of the above are successful.

4 Proceed to step 2 in “Initial Setting” (p.24)

–

On-screen Display / Menu

5 1

This unit uses the following on-screen displays and menus to easily guide you to the unit operations.

The on-screen displays give you the information on the loaded disc, the disc/file in playback, the HDMI status, etc.

The menus allow you to change the various kinds of settings for playback, recording, or editing to suit your preference.

The on-screen display changes in the following order as you press [DISPLAY].

OFF

VCR mode

VCR Information

0:00:00 HIFISP

12:00AM

English

Disc Information/Menu (only in DVD mode)

VCR Information (only in VCR mode)

Title Name Information (only in DVD mode)

(only when DVD-RW/DVD-R is in playback)

File Name Information (only in CD mode)

(only when a CD/DVD with JPEG files is in playback)

HDMI Information

(only for the images output through the HDMI output)

Disc Information / Menu

DVD mode

-RW

4 53

• This is an example screen for explanation purposes only. Displayed items vary depending on the cassette tape you inserted.

• During stop mode or pause, VCR information is not available with HDMI connection.

1. Indicates the current video status.

2. Indicates the current time.

3. Indicates recording or playback mode

4. Indicates the tape counter.

5. Audio status of the current cassette tape.

Note(s)

• VCR infor mation does not appear on the screen when the unit is connected by an HDMI, component, or S-video cable, except during playback.

Title/File Name Information

Title Name Information

Title Name

My Title

File Name Information

File Name

My File

Français

Español

• This is an example screen for explanation purposes only. Displayed items vary depending on the disc you inserted.

1. Indicates the disc type and format mode.

2. Indicates the type of titles for VR mode DVD-RW.

3. Indicates the selected external input channel.

4. Indicates the recording mode and possible recording time

left.

5. Indicates the operation status.

6. Each icon means:

: Search

: Audio

: Subtitle

: Angle

: Repeat

: Marker

: Noise Reduction

: Zoom

7. Indicates the current title number/total number of titles,

the current chapter number/total number of chapters, and time lapse of the current title playback/ total duration of the title.

HDMI Information

Video Info. : 480p / YCbCr Audio Info. : Bitstream

1. Indicates the resolution of the HDMI output image.

2. Indicates the HDMI video format.

3. Indicates the HDMI audio format.

• “- - -” will be displayed when it does not have any information.

–

Continued on next page.

Main Menu

1 2 3 4 5

1 2 3 4 5 2 3

2 3 4 4

1 2

Press [SETUP] to display the “Setup” menu. The “Setup” menu provides entries to all main functions of the unit. Use [K / L] to select an item, then press [OK].

English

Français

1. General Setting:

To go to the general setting menu.

2. Timer Programming:

To program a timer recording.

3. Title List:

Español

To call up the title list.

4. DVD Menu:

To configure the DVD setting.

5. DISC Playback Mode:

To configure the disc playback setting.

• “DISC Playback Mode” is only available when an audio CD, or CD-RW/-R or DVD-RW/-R with JPEG files is inser ted into the unit.

1. Playback:

To configure the unit for disc playback.

2. Display:

To configure the On-Screen Display (OSD) screen.

3. Video:

To configure the video setting.

4. Recording:

To configure the unit for disc recording.

5. Clock:

To set the clock on the unit.

6. HDMI:

To configure the HDMI connection setting.

7. R ese t All :

To reset the unit to the factory default settings.

Setup

General Setting

Timer Programming

Title List

DVD Menu

DISC Playback Mode

General Setting Menu

General Setting

1 2

Playback Display

Video

Recording Clock

HDMI

Reset All

Parental Lock Audio Out Disc Menu Language Audio Language Subtitle Language Angle Icon Still Mode

DVD Menu / DISC Playback Mode

DVD Menu

Format

Finalize Disc Protect OFF ON

Delete All Playlists

DISC Playback Mode

Random Play

Program Play

DISC Playback Mode


7 5 8

Random Play Slide Show

1. Format: (DVD-RW only) Allows you to format the disc.

2. Finalize:

Allows you to finalize a disc containing recorded titles.

3. Disc Protect: (VR mode DVD-RW only) Allows you to protect a disc from accidental editing or

recording.

4. Delete All Playlists: (VR mode DVD-RW only)

5. Random Play:

Allows you to activate the random playback feature.

6. Program Play: (audio CD only) Allows you to activate the program playback feature.

7. P hoto : (JPEG files only) Allows you to configure settings for JPEG playback.

8. Slide Show: (JPEG files only) Allows you to select the display time for the slide show

mode.

–

Switching DVD / VCR Mode

TITLE

Because this product is a combination of a VCR and a DVD recorder, you must first select which component you would like to operate.

Remote control

TITLE

How to Insert a Disc / Cassette Tape

How to Insert a Disc

1 Press [DVD]. 2 Press [A] to open the disc tray. 3 Place a disc on the disc tray with its label side facing up.

English

VCR button

DVD button

Front panel

VCR indicator

SOURCE button

DVD indicator

DVD mode

Press [SOURCE] on the front panel or press [DVD] on the remote control. (Verify that the DVD indicator is lit.)

VCR mode

Press [SOURCE] on the front panel or press [VCR] on the remote control. (Verify that the VCR indicator is lit.)

Note(s)

• You cannot switch component while the unit is in timerstandby mode.

• If you switch component during playback, the playback will stop.

Align the disc to the disc tray guide

4 Press [A] to close the disc tray.

• It may take a while to load the disc.

To eject the disc:

Press [A] to open the disc tray, then remove the disc before switching the unit to standby mode.

How to Insert a Cassette Tape

1 Press [VCR]. 2 Insert a cassette tape as illustrated below.

Cassette compartment

• Insert from the f lap side first with the window side facing up.

To eject the cassette tape:

Press [ C A] on the front panel or press [A] on the remote control.

Note(s)

• When the unit is in standby mode, press [ C A] on the unit as [A] on the remote control is not available.

Français

Español

–

Continued on next page.

Initial Setting

Perform the following steps when you turn On this unit for the first time.

1 Follow the procedure in “Finding the Viewing Channel

English

Français

on Your TV” (p.20) to display the “Initial Setup” menu.

2 Use [K / L] to select your desired language, then press

[OK].

Initial Setup

OSD Language

English Français Español

Select the language for Setup display.

Information on DVD Recording

Before you make a recording, read the following information.

Recordable Discs

This unit can record to DVD-RW and DVD-R . DVD-R can be recorded only once whereas DVD-RW can be recorded and erased multiple times.

Logos

DVD-RW DVD-R

8cm/12cm, single-sided, single layer disc Approx. max. recording time (SLP mode): 360 minutes (4.7GB) (for 12cm) 108 minutes (1.4GB) (for 8cm)

Attributes

3 Proceed to step 4 in “Clock Setting”.

Español

Clock Setting

Set the clock before you try timer programming. Perform the following steps below.

1 Press [SETUP], then use [K / L] to select “General

Setting”, then press [OK].

• The “General Setting” menu will appear.

2 Use

3 Use

4 Use [0 / 1] to select an item to set, then use

5 Press

Recording

[K / L]

• The “Clock Set ting” menu will appear.

to select “Clock”, then press

[K / L]

to select the date or time, then press

Clock Setting

APR / 16 / 2015 (THU)

12 : 00 AM

to change the item, then press

[OK]

when you f inish

setting all items.

Clock Setting

APR / 16 / 2015 ( THU )

12 : 00 AM

• Your setting will be activated. The clock starts counting when you press [OK].

[SETUP]

to exit.

Note(s)

• The clock setting will be cancelled if you press [SETUP] before pressing [OK] in step 4.

• When setting the clock manually, the setting will be lost if there is a power failure or the unit is unplugged for more than 30 seconds.

• To set Day, Year, Hour, and Minute, the [Number buttons] also be used.

• The built-in calendar can be set for any year in the range of 2014 up to 2064.

[OK]

[K / L]

can

• The following discs are recommended for good recording quality and are proven to be compatible with this unit. However, depending on the media condition, the unit may not read the disc properly.

Verbatim DVD -R 8x, DVD-RW 2x JVC DVD-RW 4x Maxell DVD-R 8x/16x

Performance of any other discs are not guaranteed.

Unrecordable Discs

• DVD-RW recorded in the non compatible recording format

• DVD-R recorded in VR mode

• DVD+RW/+R

Recording Mode

You can choose a recording mode from 5 options. Recording time will depend on the recording mode you select as follows:

Disc size

8cm Disc

12cm Disc

Recording mode

XP (1Hr)

SP (2Hr)

LP (4Hr)

EP (6Hr)

SLP (8Hr)

XP (1Hr)

SP (2Hr)

LP (4Hr)

EP (6Hr)

SLP (8Hr)

• The recording time is only an estimate. The actual recording time may differ.

• The audio and video quality will be poorer as the recording time becomes longer.

• On each press of [REC MODE], recording mode and its allowed recording time will be displayed.

Recording time

18 min

36 min

72 min

108 min

144 min

60 min

120 min

240 min

360 min

480 min

Video/sound quality

(good)

(poor)

(good)

(poor)

–

Note(s)

• This unit cannot record to CD-RW or CD-R .

• All high definition pictures will be down-conver ted to s tandard definition pictures when they are recorded on this unit.

• DVD-RW/-R and CD-RW/-R recorded on a PC or a DVD/CD recorder may not be playable if ...

- the disc is damaged or dirty.

- there is condensation on the player’s lens.

• Discs recorded on a PC may not be playable on this unit depending on the recording settings of the authoring software. Check with the software publisher for details.

• Because recording on this unit is in Variable Bit Rate (VBR) mode, the actual remaining time for recording may be shor ter than the estimated remaining time which is displayed on screen.

Recording Restrictions

You cannot record copy-protected programs on this unit. Copy-protected video signal is included in DVD videos, some satellite broadcasting, some pay-per-view programs, and some “premium” stations. If copy-protected material is detected, recording will pause or stop automatically and an error message will appear on screen. “Copy-once only” video can only be recorded to CPRM compatible DVD-RW formatted in VR mode.

What is “CPRM”

CPRM is a copy protection technology with a scramble system for the recording of “copy-once” broadcast programs. CPRM stands for Content Protection for Recordable Media. This unit is CPRM compatible, which means you can record copy-once broadcast programs, but you cannot make another copy of those recordings. CPRM recordings can only be made on CPRM compatible DVD-RW formatted in VR mode, and CPRM recordings are only playable on DVD players that are specifically compatible with CPRM.

Before Recording

Auto Chapter Setting

You can set a specified time for chapter marks.

1 Press [SETUP], then use [K / L] to select “General

Setting”,

then press [OK].

• The “General Setting” menu will appear.

2 Use

3 Use 4 Use

5 Press

[K / L]

• The “Recording” menu will appear.

[OK].

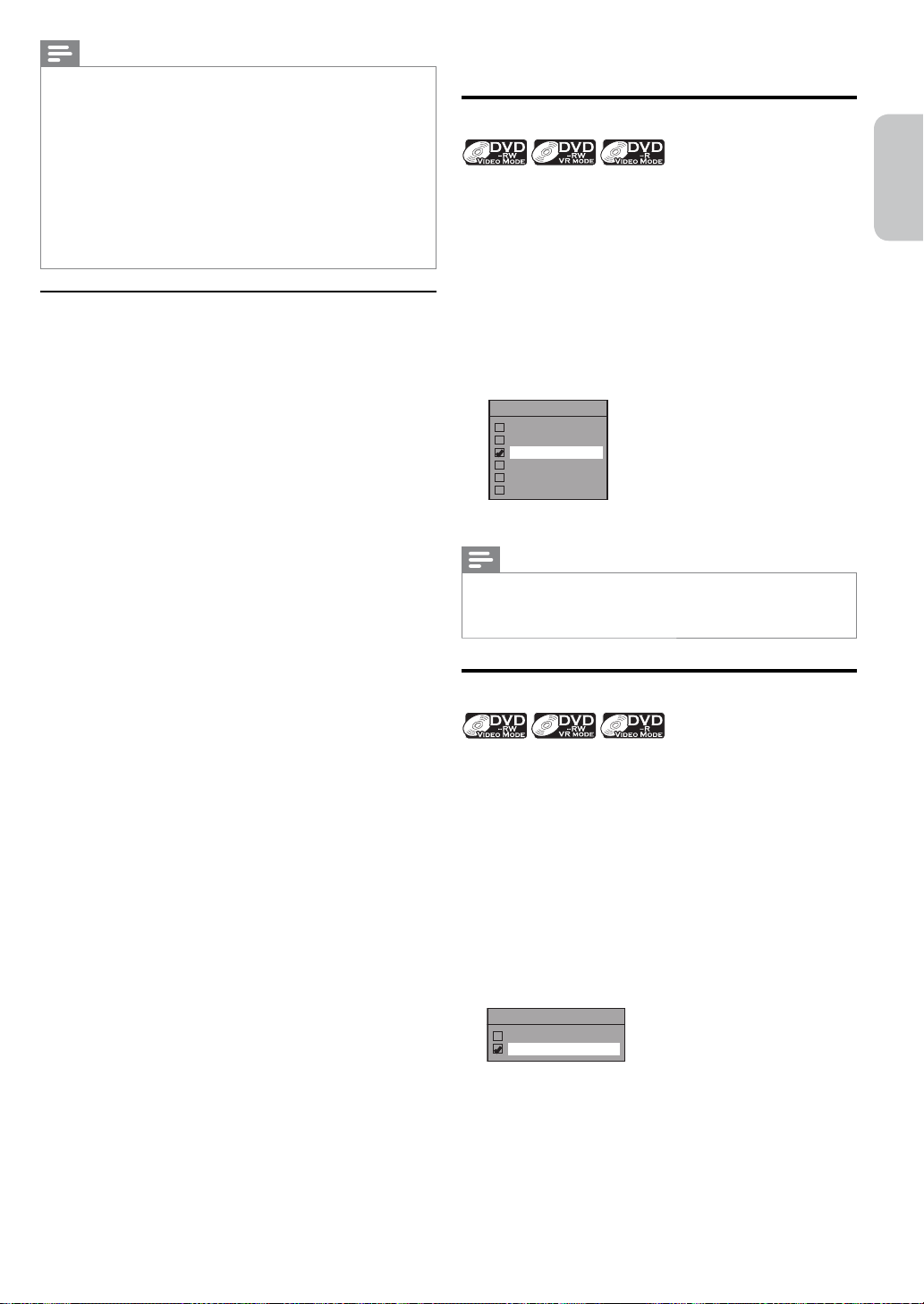

Auto Chapter

Note(s)

• The interval for auto chapter may be up to two minutes different from the time option you set.

• A blank chapter may be created depending on the remaining time of the disc.

to select “Recording”, then press [OK].

[K / L]

to select “Auto Chapter”, then press [OK].

[K / L]

to select a desired time option, then press

OFF 5 minutes 10 minutes 15 minutes 30 minutes 60 minutes

[SETUP]

to exit.

English

Français

Español

Making discs playable on other DVD players (Finalization)

For DVD-RW/-R, it is necessary to finalize the disc after recording in order to make them playable on other DVD players. (Refer to pages 35) When a video mode disc is finalized, the title menu will be created. This unit cannot finalize the discs created on other DVD recorders.

Recording Audio Select (XP)

You can enjoy high quality sound recording. This function works only when the recording mode is set to XP.

1 Press [SETUP], then use [K / L] to select “General

Setting”,

then press [OK].

• The “General Setting” menu will appear.

2 Use

3 Use

4 Use

5 Press

[K / L]

• The “Recording” menu will appear.

then press [OK].

press [OK].

Recording Audio Select (XP)

PCM Dolby Digital

PCM

Records PCM audio for the best sound quality.

Dolby Digital

Records Dolby Digital audio for good sound quality.

to select “Recording”, then press [OK].

[K / L]

to select “Recording Audio Select (XP)”,

[K / L]

to select “PCM” or “Dolby Digital”, then

[SETUP]

to exit.

–

Continued on next page.

Note(s)

• “PCM” stands for Pulse Code Modulation. It changes analog sound to digital sound without compressing audio data .

• When the recording mode is set something other than XP, the unit records “Dolby Digital” audio automatically even if “PCM”

English

is selected.

Setting Aspect Ratio for Video Mode Recording

Français

You can set aspect ratio for video mode recording.

1 Follow step 1 to 2 in “Recording Audio Select (XP)”. 2 Use

3 Use

Español

[K / L]

to select “Aspect Ratio (Video mode)”,

then press [OK].

[K / L]

to select an item, then press [OK].

Aspect Ratio (Video mode)

Auto 4 : 3 16 : 9

Basic Recording & One-touch Timer Recording

Follow the steps to record TV programs from an external tuner. This unit is not equipped with a tuner; it cannot receive TV broadcasts without an external tuner or such devices.

1 Press [DVD], then inser t a recordable disc*.

* For recordable discs, refer to “Recordable Discs”

(p.24)

• Refer to “ How to Insert a Disc” (p.23).

• It may take a while to load the a disc.

• When inser ting a brand-new DVD-RW, the unit will automatically format the disc.

2 Press [REC MODE] repeatedly until your desired

recording mode is selected.

• Refer to “Recording Mode” (p.24).

Auto (default)

It will be recorded with the same aspect ratio as the program being broadcast.

4:3

Recorded in the aspect ratio of 4:3.

16:9

Recorded in the aspect ratio of 16:9.

4 Press

• For DVD-RW VR mode, the image will be recorded with the

[SETUP]

Note(s)

aspect ratio of the program being broadcast, regardless of the “Aspect Ratio (Video mode)” setting.

to exit.

SP 0:58

3 Press [SOURCE] to select the appropriate external

input position (L1/L2) to which your external tuner is connected. Then select a desired channel to record on the external tuner.

4 Press [REC] to start recording.

• “ I ” will be displayed for 4 seconds.

• Press [F] to pause the recording. Press [F] or [REC] again to resume the recording.

SP 2:00

–

To set one-touch timer recording (OTR)

This is a simple way to set the recording time in blocks of 30 minutes.

Press [REC] repeatedly until a desired recording time (30 minutes to 8 hours) appears on the TV screen.

One-touch timer recording will start.

0:30

(normal recording)

8:00

1:00

7:30

To change the recording length during the one-touch timer recording:

Press [REC] repeatedly until a desired length appears. To cancel the one-touch timer recording within the

specified time: Press [ C].

5 Press [ C] to stop recording.

• The recorded title will appear in the title list. Refer to “Title List” (p.46).

Writing to Disc 90%

• This operation may take a while to complete.

Note(s)

• When you press [REC], recording starts immediately and continues until the disc is full or you stop recording.

• When the unit clock has not been set, the space for date and time of the title names will be blank .

• You cannot change the recording mode during the recording pause mode.

• You can change a channel (external input) to be recorded during the recording pause mode.

Timer Recording

You can program the unit to record up to 12 programs within a month in advance. Daily or weekly program recordings are also available.

Before recording, make sure:

• Set the clock before setting a timer programming.

• Insert a recordable disc with enough recordable space or a cassette tape with an erase-protection tab.

Note(s)

• If you have not yet set the clock: The entry screen for the clock setting will appear instead of the timer programming list in step 1. Continue with step 4 in “Clock Setting” (p.24) before setting a timer programming.

• Use [0 / 1] to move the cursor to the lef t and the right in the entr y screen for the timer programming.

• If a basic recording or one-touch timer recording is in progress on one component (e.g., VCR) and the timer recording set for the other component (e.g., DVD) is about to begin, the unit automatically switches to the progr ammed channel for timer recording 2 minutes before the programmed starting time, and the recording in progress (for VCR) will be cancelled UNLESS their recording channels are the same. If their recording channels are the same, the timer recording will star t without canceling the recording currently in progress. In this case, the recording of the same channel will be made on both DVD and VCR.

• You cannot make a progr am whose recording time exceeds 12 hours.

• Cancel timer-standby mode by pressing [TIMER SET] before operation for either DVD or VCR . When f inished operating, press [TIMER SET] to resume timer-standby mode.

• In timer-standby mode, you can turn On the power and use the component ( VCR or DVD) which is not cur rently timerprogrammed.

Timer Programming Display

Timer Programming

APR/17/15 12:00 AM L1 SP

Date Start End L1/L2 APR/17 12:00AM 1:00AM L1 New Program

THU APR/16 11:00AMSP (1:00)

1/1

English

Français

Español

Notes for one-touch timer recording

• The remaining recording time will be displayed on the front panel display during one-touch timer recording. Press [DISPLAY] to see it on the TV screen.

• Unlike the timer recording, you can per form the following operations during one-touch timer recording.

- Switching the unit to standby mode to stop one-touch timer recording.

-Using [REC] or [C] on the remote control.

• You cannot use the pause function during one-touch timer recording.

• If a DVD one-touch timer recording is complete during VCR playback or recording, the DVD will be in stop mode and the VCR keeps the current mode.

• When a one-touch timer recording is finished and the power is turned to standby, the unit will switch to timer-standby mode automatically if a timer recording has been programmed. Press [TIMER SET] to cancel timer-standby mode to use the unit continuously.

1. Title of a timer program (Contains date, time, selected external input position, recording mode of the program)

2. Current date and time

3. Recording mode, and length of the recording

4. Timer program list

5. Total number of pages and current page (2 pages maximum)

6. Recording media (“

–

” (DVD) or “ ” ( VCR))

Continued on next page.

1 Press [TIMER]. 2 Use

English

Date Start End L1/L2 New Program

• If there are 6 or more programs, use [H / G] to change

3 Use

Français

Español

[K / L]

Timer Programming

pages.

[K / L]

Date

APR/17

L1/L2

JAN/01

Daily

MON-SAT

MON-FRI

SAT

FRI

SUN

JAN/31

to select “New Program”, then press [OK].

THU APR/16 11:00AM

to enter the date, then press [ 1].

Start

End

- - : - -

REC To Mode

DVD SP

SP 2:00

When pressing [ L] at the current date, the date will change as follows.

(e.g., January 1st)

7 Use [K / L] to select a recording mode.

Date

Start End

12 : 00AM

REC To Mode

DVD

SP 1:00

Start End

12 : 00AM

REC To Mode

DVD

SP 1:00

Date

APR/17

L1/L2

1 : 00AM

Start End

1 : 00AM

12 : 00AM

REC To Mode

DVD

Auto 1:00

Auto

APR/17

L1/L2

Refer to “Recording Mode” (p.24).

• When recording to DVD, you can check the remaining recordable space of the disc when you select the recording mode.

Date

APR/17

L1/L2

Auto recording mode select (DVD only)

When “Auto” is selected as a recording mode, the unit calculates how much time is available on the disc and selects the best recording mode available automatically to complete recording the program.

• “Auto” is only available for one program in the timer program list.

• The recording may be cut shor t when the available recording space of the disc is too limited.

4 Use [K / L / 0 / 1] or the [Number buttons] to enter

the start and end time, then press [ 1].

Date

L1/L2

Start End

12 : 00AM

REC To Mode

DVD SP

SP 2:00

- - : - -

APR/17

• You cannot make a program in which recording time exceeds 12 hours .

5 Use [K / L] to select the appropriate external input

position (L1 / L2) to which your external tuner is connected, then press [ 1].

Date

Start End

APR/17

L1/L2

1 : 00AM

12 : 00AM

REC To Mode

DVD SP

SP 1:00

6 Use [K / L] to select the recording media (“DVD” or

“VCR”), then press [ 1].

(e.g., Recording to DVD)

Date

Start

APR/17

L1/L2

12 : 00AM

REC To Mode

1 : 00AM

DVD SP

SP 1:00

End

8 Press [OK] when all items are entered.

• After displaying an instructive message for 10 seconds, the timer program list will appear.

Press TIMER SET to Timer Standby mode.

Ensure the external source is tuned to

the correct channel.

When Timer set on DVD or VCR,

it is not available in the standby mode.

Press TIMER SET to cancel the Standby mode.

Timer Programming

APR/17/15 12:00 AM L1 SP

Date Start End L1/L2 APR/17 12:00AM 1:00AM L1

THU APR/16 11:00AMSP (1:00)

Your program setting is now stored.

• To set another program, repeat steps 2 to 8.

• To exit, press [TIMER] or [SETUP].

• When 2 or more programs are overlapped, “Timer program overlapped” appears, and the overlapped program will be displayed in blue.

• To correct the timer program refer to “Checking, canceling or correcting the timer programming information.” (p.29).

9 Press [TIMER SET] to set a timer programming.

• will appear on the front panel display, while this unit waits to make the recording.

CS DR CD

HDD

DVD

“VCR” will appear on the front panel display if VCR timer recording has been set.

9 Press [TIMER SET] to se t a timer prog ramming.

–

To stop the timer recording in progress

1 Press [ C] on the remote control.

• Confirmation window will appear.

2 Use [K / L] to select “Yes”, then press [OK].

• To stop the timer recording immediately, press [ C] on the unit.

If the timer program did not complete correctly, an error number appears in the timer programming list.

Timer Programming

Date Start End L1/L2

E41 APR/17 12:00AM 1:00AM L1

New Program

FRI APR/17 11:00PM

Checking, canceling or correcting the timer programming information.

1 Press [TIMER SET]. 2 Press [TIMER]. 3 Check the information.

Timer Programming

APR/17/15 12:00 AM L1 SP

Date Start End L1/L2 APR/17 12:00AM 1:00AM L1 New Program

To delete the timer program:

4-A

1. Use [K / L] to select the program you would like to delete, then press [OK].

2. Use [K / L] to select “Delete”, then press [OK].

• Confirmation window will appear.

3. Use [K / L] to select “Yes”, then press [OK].

To correct the timer program:

4-B

1. Use [K / L] to select the program you would like to correct, then press [OK].

2. Use [K / L] to select “Program Change”, then press [OK].

3. Correct the timer program by using [ K / L / 0 / 1], then press [OK].

Press [TIMER] to exit.

Press [TIMER SET] to return to the timer standby

mode.

Note(s)

• Press [TIMER] to check the timer recording in progress. While the timer recording is proceeding, that program will be highlighted in red. In this case, you cannot select any other program.

THU APR/16 11:00AMSP (1:00)

1/1

Each error number means:

E1-22

Recording error other than below

E37-39 E23-24 Unrecordable disc E25-28 Copy prohibited program E29 Disc protected

E30 Disc full E31-32 Already 99 titles recorded E33 Already 999 chapters recorded E34 No space for Control information E35

PCA* full E36 Already finalized video format disc E40 Some portion has not been recorded because of

program overlapping. Recording did not start at the

start time. E41 Power failed E42 No disc when recording

• A program with an error number is grayed out in the timer programming list.

• A timer program with an error number will be cleared once the entry screen for the program is displayed.

PCA is a disc’s space reserved for recording test.

English

Français

Español

–

Continued on next page.

Hints for Timer Recording

• If there is a power failure or this unit has been unplugged for more than 30 seconds, the clock setting and all timer programming will be lost.

English

• If no disc or a non-recordable disc is inserted, timer recording cannot be per formed. In some cases, appear momentarily around the start time as the unit attempts to record. Please insert a recordable disc.

• If a cassette tape with an erase-protection tab is not in the cassette compartment or there is no cassette tape in the cassette compartment, “VCR” on the front panel display flashes and timer recording cannot be performed. Please

Français

inser t a recordable cassette tape.

• If a casset te tape ends during the timer recording, the unit will automatically stop, eject the cassette tape, and switch itself to standby mode. To continue recording, inser t a recordable tape.

• When all of the timer recordings have completed, flashes. Press [TIMER SET] to release the unit from the timer standby mode.

Español

• If both DVD and VCR are timer programmed, you cannot use any functions for either unit during timer standby or timer recording. If you would like to use functions other than recording under such conditions, cancel timer recording by pressing or stop recording by pressing panel of the unit during timer recording.

• To cancel timer standby mode, press [TIMER SET].

• When the star ting and ending times are the same, “Exceeds 12 hours” appears and the program setting will not be accepted.

• When the disc or cassette tape becomes full during the recording, the unit switch itself to standby mode.

• If the starting time is earlier and the ending time is later than the current time, the recording will star t right after you press [TIMER SET] in step 9 on page 28.

• The timer recording cannot be performed for DVD and VCR at the same time. If you set 2 programmings with the same channel and time in both devices, the program which is set first will have priority.

• “Press TIMER SET for timer recording” will appear on the TV screen 5 minutes before the programmed starting time.

[TIMER SET]

[ C]

during timer standby

on the front

[ C A]

will

The Priority of Overlapped Settings

• The timer program which has the earlier start time will be placed first in the timer program list, and be given priority over the programs with the later start time when timer programs overlap.

• When timer programs overlap, the first 2 minutes (at most) of the later recording will be cut off.

• When 2 or more timer programs have the same start time, the program set f irst will be given priority.

• A timer recording of lower priority will be cancelled or start from the middle.

• Check the overlapped timer programmings and change the priority if necessary.

When the starting time is the same:

A program set previously (PROG. A) has priority.

PROG. A

PROG. B

actual recording

The first 2 minutes (at most) will be cut off (when recording to DVD only).

PROG. A

PROG. B

Notes for DVD recording

• When the recording time of 2 programs are overlapped, or the end time of a program and the start time of another program is the same, the first 2 minutes (at most) of the subsequent progr am will be cut off.

• If the cut-off portion is 3 minutes or more, this program will be displayed with error number E40 in the timer programming list.

When the end time of the programming currently being recorded and the start time of the subsequent program are same:

The beginning of the PROG. B may be cut off.

PROG. A

PROG. B

actual recording

The first 2 minutes (at most) will be cut off.

PROG. BPROG. A

–

Satellite Link

You can set the unit to start recording whenever it detects the video signal from the external tuner.

Preparing for the satellite link timer recording: Preparation on the tuner

• The satellite link accepts only the connection from L1 (rear) with the external tuner. (The connection from L2 cannot read any signals from the external tuner.)

• The external tuner should be equipped with some kind of timer function. Using the timer function of the tuner, set it to output audio/video signals when it is time to start recording, and stop output audio/video signals when it is time to f inish recording. Refer to the tuner’s manual on how to set the timer.

• Make sure to set the satellite link standby mode when you finish programming.

1 Press [SETUP]. 2 Use [K / L] to select “Timer Programming”, then press

[OK].

3 Use [K / L] to select “Satellite Link”, then press [OK].

Timer Programming

Timer Programming Satellite Link

4 Use [K / L] to select the time, media and recording

mode, then press [OK].

Satellite Link

DVD

Start Mode

VCR

5:00PM DVD SP

To Standby Mode

9 Press [OK] again.

Satellite Link

DVD

Start Mode

VCR

5:00PM DVD SP

To Standby Mode

• The unit will then turn Off automatically as it goes into satellite link standby mode.

To cancel the satellite link function while in satellite link standby mode:

Press [TIMER SET] to turn On the unit.

To cancel the satellite link function while the satellite link recording is in progress:

Press [ C] on the front panel to stop the disc recording.

C A

Press [ recording.

• If the signal of the external input breaks up over 5 seconds, the satellite link function will be cancelled.

• If you have not set the clock, the “Clock Setting” menu will appear in step 4. Follow step 4 in “Clock Setting” (p.24).

• You cannot set the ending time for the satellite link timer recording on this unit.

• Recording picture will be distorted if the copy protection signal is being detected during satellite link timer recording.

• You can record the satellite link by using S-video input jacks on the rear panel. Refer to “Connecting to a T V with an S-Video Input Jack” (p.17) for more information.

• When a regular timer recording and the satellite link timer recording are overlapped, those recordings are recorded as illustrated below.

• Press [TIMER] during the satellite link timer recording to check the satellite link timer recording in progress.

timer recording satellite link

actual recording

The first 2 minutes (at most) will be cut off.

] on the front panel to stop the cassette tape

Note(s)

example 1

English

Français

Español

5 Use [K / L] to set a desired starting time, then press

[ 1].

• The hour can be selected from 1 to 12 with AM or PM.

• Repeat the procedures in step 5 to set a desired minutes.

• If you would like to go back to the left, press [

6 Use [K / L] to select the recording media (“DVD” or

“VCR”), then press [ 1].

7 Use [K / L] to select the recording mode.

• Refer to “Recording Mode” (p.24) for details.

8 Press [OK].

• “To Standby Mode” will be highlighted.

example 2

timer recording

satellite link

actual recording

example 3

timer recording

satellite link

actual recording

The first 2 minutes (at most) will be cut off

–

Continued on next page.

Settings for an External Device

Connection to an External Device

English

Connect the ex ternal device to the unit by using either input jacks L2 (Front) or L1 (Rear). If the external device has monaural output, use the AUDIO L jack of L2 (Front) or L1 (Rear). Use an S-video or the RCA audio/video cable for this connection.

AUDIO OUT

VIDEO

Français

S-VIDEO

OUT

S-VIDEO

External device

OUT

(camcorder, VCR etc.)

VIDEO

OUT

AUDIO OUT

RCA

S-video cable

RCA

audio

video

cable

Español

to L2 IN

Front of this unit Rear of this unit

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1

• RCA video cable x 1 Please purchase the rest of the necessary cables at your local store.

Setting the Video Input

1 Press [SETUP], then use [K / L] to select “General

Setting”, then press [OK].

• “General Setting” menu will appear.

2 Use

3 Use 4 Use

[K / L]

to select “Video”, then press

• The submenu will appear.

[K / L]

to select “Select Video”, then press

[K / L]

to select desired external input, then press

[OK]

Select Video

L1 (Rear) L2 (Front)

[OK]

to L1 IN

5 Use

[OK]

LRL

IN --- VIDEO --- OUT

RCA video cable

S-video

cable

S-VIDEO IN --- AUDIO --- OUT

[K / L]

to select the input jack type, then press

RCA audio cable

• To use the VIDEO IN jack, select “Video In”.

• To use the S-VIDEO IN jack, select “S-Video In”.

L1 (Rear)

Video In S-Video In

6 Press

[SETUP]

to exit.

–

Recording from an External Device

Bi-directional Dubbing

Before recording from an external device, refer to “Connecting to an Ex ternal Tuner” (p.15).

Recording to a DVD

Press [DVD], then inser t a recordable disc.

• Refer to “ How to Insert a Disc” (p.23).

• It takes a while to load the disc.

Recording to a Cassette tape

Press [VCR], then inser t a cassette tape with an erase- protection tab intact.

• Refer to “ How to Insert a Cassette Tape” (p.23).

2 Select the appropriate external input channel (L1 or L2)

by pressing [SOURCE].

• If the exter nal device is connected to the rear of this unit , select L1.

• If the exter nal device is connected to the front of this unit, select L2.

• You can also select L1 or L2 channel by using the

[Number buttons]. (e.g., For L1, press [0], [0], [1])

3 Press [REC MODE] repeatedly to select a recording

mode.

• Refer to “Recording Mode” (p.24) for DVD or “Recording” (p.61) for VCR .

4 Press [ I REC] on the unit to start recording. 5 Start playback on the external device. 6

Press [

• This operation may take a while to complete.

For VCR

For disc

] on the unit to stoprecording.

For casette tape

C A

] on the unit to stop recording.

You can copy the contents of a DVD to a cassette tape or do vice versa. This function is only available when the contents are not copy-protected. (Before you start, refer to page 24 for the list of compatible discs.)

Notes for dubbing

• The dubbing direction setting in the “Dubbing Mode” menu is always reset to “ VCR DVD” whenever you switch the unit to standby mode.

• You cannot change the output mode during VCR to DVD or DVD to VCR duplication.

Notes for recording to a cassette tape

• Make sure

- the cassette tape’s erase-protection tab is intact.

- the cassette tape is long enough.

Notes for recording to a disc

• Make sure

- the disc is compatible (refer to page 24).

Preparing for dubbing (cassette tape to DVD):

• Insert a cassette tape to be dubbed.

• Insert a recordable DVD.

• Make sure there is enough space on the DVD.

Preparing for dubbing (DVD to cassette tape):

• Insert a disc to be dubbed.

• Insert a cassette tape with an erase-protection tab intact.

• Make sure there is enough recordable length on the tape.

1 Press [SETUP], then use [K / L] to select “General

Setting”, then press [OK].

• The “General Setting” menu will appear.

2 Use

3 Use

[K / L]

• The “Recording” menu will appear.

[OK]

• The selection menu will appear.

to select “Recording”, then press

[K / L]

to select “Dubbing Mode”, then press

[OK]

English

Français

Español

For DVD

–

Continued on next page.

VCR to DVD

DVD to VCR

4 Use [K / L] to select “VCR DVD”, then press [OK].

Dubbing Mode

English

VCR DVD DVD VCR

Press [SETUP] to exit.

5 Press [DVD], then press [REC MODE] repeatedly to

select a desired recording mode.

6 Press [VCR], then press [ B] to find the point where

Français

you would like to star t dubbing.

7 Press [ F] when you come to a desired star t point. 8 Press [D.DUBBING].

• VCR to DVD duplication will s tar t.

9 Press [ C] to stop the dubbing.

Español

4 Use [K / L] to select “DVD VCR”, then press [OK].

Dubbing Mode

VCR DVD DVD VCR

Press [SETUP] to exit.

5 Press [VCR], then press [REC MODE] repeatedly to

select a desired recording mode.

• Rewind or fast forward the tape to the point where you would like to start recording.

6 Press [DVD], then press [ B] to find the point where

you would like to star t dubbing.

7 Press [ F] when you come to a desired star t point. 8 Press [D.DUBBING].

• DVD to VCR duplication will s tar t.

9 Press [ C] to stop the dubbing.

Notes for DVD to VCR duplication

• This function is available for audio CDs, but not CDs with JPEG files.

• The recording mode for VCR cannot be displayed in step 5 when using an HDMI / Component / S-Video connection. To display the VCR recording mode on the screen, the unit must be connected through the VIDEO OUT jack and the TV ’s input select should be set to the appropriate ex ternal input channel.

Notes for VCR to DVD duplication

• After starting VCR to DVD duplication, the picture may be distor ted because of the auto tracking function. This is not a malfunction. Play the tape until the pic ture is stabilized, then set the starting point where you would like to s tar t recording, and start VCR to DVD duplication.

• This unit will automatically stop the duplication if playback with no image is detected for more than 3 minutes during VCR to DVD duplication.

• Playback sound mode of the dubbed contents is determined by the playback sound mode of the VCR at the point of dubbing.

Protecting a Disc

To prevent the accidental recording, editing, or erasing of the titles, you can set disc protection in the “DVD Menu”.

1 Press [SETUP]. 2 Use [K / L] to select “DVD Menu”, then press [OK]. 3 Use [K / L] to select “Disc Protect OFF ON”, then

press [OK].

DVD Menu

Format Make Edits Compatible Disc Protect OFF ON Delete All Playlist

4 Use [K / L] to select “Yes”, then press [OK].

Protect this disc?

Yes

• The disc will be protected.

• This operation may take a while to complete.

Note(s)

To cancel the disc protect:

• When you inser t a disc protected with this unit, “Disc Protect OFF” will appear instead of “OFF ON” in step 3.

DVD Menu

Format Make Edits Compatible

Disc Protect ON OFF

Delete All Playlist

• To release the protection for the disc, select “Disc Protect ON

OFF” in step 3, then follow rest of the procedures.

–

Make a Disc Playable on Other DVD Players

Auto Finalizing

Finalizing a Disc

In order for DVD-RW or DVD-R to be playable on other DVD players, the disc needs to be finalized. Finalizing a disc may take several minutes up to an hour.

A shor ter recording period on the disc will take longer for finalization. Do not unplug the power cord during f inalization.

Note(s)

• Once you have finalized a DVD-R, you cannot edit or record anything on that disc.

• Even if you have finalized a DVD-RW recorded in VR mode, you can edit, record or delete a title.

• When you inser t a DVD-RW finalized with this unit, “Undo Finalize” will appear instead of “Finalize”.

DVD Menu

Format

Undo Finalize

Disc Protect ON OFF Delete All Playlist

• To release the finalizing for the disc, select “Undo Finalize” in step 3.

• DO NOT turn the power Off or put the unit in standby mode during finalization. Doing so will result in malfunction.

1 Press [SETUP]. 2 Use [K / L] to select the “DVD Menu”, then press [OK]. 3 Use [K / L] to select “Finalize”, then press [OK]. 4 Use [K / L] to select “Yes”, then press [OK].

Finalize disc?

Yes

• Finalizing will start.

You can finalize discs automatically using this function. You can use this function to finalize discs after finishing timer recordings and at the end of the disc space.

Note(s)

• This function is not available af ter f inishing daily or weekly program recording.

1 Press [SETUP], then use [K / L] to select “General

Setting”, then press [OK].

• The “General Setting” menu will appear.

2 Use

3 Use 4 Use

5 Use

6 Press

[K / L]

• The “Recording” menu will appear.

then press

Auto Finalize

Disc Full End of Timer Rec

(e.g., “Disc Full”)

Disc Full

• Your setting will be activated.

to select “Recording”, then press

[K / L]

to select “Auto Finalize”, then press

[K / L]

to select “Disc Full” or “End of Timer Rec”,

[OK]

[K / L]

to select “ON”, then press

ON OFF

[SETUP]

to exit.

[OK]

English

Français

Español

Finalizing 90%

To cancel finalizing (DVD-RW only)

• To cancel finalizing in step 4, press [ C], then select “Yes” using [K / L], then press [OK]. Finalizing is cancelled and the unit will be in stop mode.

Do you want to cancel ?

Yes

Finalizing 5%

• If appears when pressing [ C], you cannot cancel finalizing because the finalizing is in progress.

• Finalizing will continue if you select “No”, then press [OK] (or if you press [RETURN]).

• You cannot cancel finalizing the DVD-R once it has started.

• This operation may take a while to complete.

5 Finalization is complete.

–

Continued on next page.

Information on Playback

Before you play DVD, read the following information.

Playable Discs and Files

English

This unit is compatible to play the following discs. To play a DVD, make sure that it meets the requirements for region codes and color systems as described below. You can play discs that have the following logos. Other disc types are not guaranteed to play.

Français

DVD-video

DVD-RW (VR or Video mode)

Unplayable Discs

The following discs will not play on this unit.

• CD-ROM • Compact Disc-Interactive (CD-I)

• DVD-RAM • Video Single Disc (VSD)

• DVD-ROM • DVD-audio

• Unfinalized disc • Video CD (VCD)

• DVD or CD contains Windows Media™ Audio/DivX files

• Blu-ray Disc™ • HD DVD • Super Video CD

LogosPlayable discs

On the following disc, the sound may not be heard.

• Super audio CD - Only the sound on the CD layer can

be heard. The sound on the high-density super audio CD layer cannot be heard.

Note(s)

• In some cases, discs other than the ones shown above may not be playable on this unit.

/MP3

Español

DVD-R (Video mode)

CD-DA (audio CD)

CD-RW

CD-R

JPEG

MediaPlayable files

CD-RW/-R DVD-RW/-R

is a trademark of DVD Format/Logo Licensing Corporation

Color Systems

DVD is recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada). This unit uses NTSC; DVDs you play must be recorded in the NTSC system. You cannot play DVDs recorded in other color systems.

Region Codes

This unit has been designed to play DVDs with region 1. DVDs must be labeled for ALL regions or for region 1 in order to play on this unit. You cannot play DVDs that are labeled for other regions. Look on your DVD for the symbols on the right. If these region symbols do not appear on your DVD, you cannot play the DVD on this unit. The number inside the globe refers to region of the world. A DVD labeled for a specific region can only play on a unit with the same region code.

Hint for DVD Playback

The contents of DVDs are generally divided into titles. Titles may be fur ther subdivided into chapters.

DVD

chapter 1 chapter 2 chapter 1 chapter 2 chapter 3

title

title 2

audio CD

track 1 track 2 track 3 track 4 track 5

JPEG

folder 1 folder 2

file 1 file 2 file 3 file 4 file 5

–

Basic Playback

Direct Playback

Playback from the Title List

Note(s)

• Some discs may start playback automatically.

Note(s)

• Some discs may start playback automatically.

• Playback will stop when you change the output mode.

1 Press [DVD], then insert a playable disc*.

* For playable discs, refer to “Playable Discs and Files”

(p.36)

• Refer to “ How to Insert a Disc” (p.23).

• It may take a while to load the disc.

Align the disc to the disc tray guide

2 Press [ B] to start playback.

• If you are playing a DVD-video, the menu may appear.

• Refer to “ Using the Title / Disc Menu” (p.38)

3 Press [ C] once to stop playback temporarily.

• Refer to “Resume Playback” (p.39)

1 Press [DVD], then insert a playable disc*.

* For playable discs, refer to “Playable Discs and Files”

(p.36)

• Refer to “ How to Insert a Disc” (p.23).

• It may take a while to load the disc.

2 Press [TITLE].

• The title list will appear.

• Press [DISC MENU] to switch Original/Playlist if necessary.

• To exit the title list, press [ C].

• To resume the title list, press [TITLE].

3 Use [K / L / 0 / 1] to select a desired title, then press

[OK].

(e.g., VR mode DVD-RW original)

Title List

ORG

APR/16/15 12:00AM L1 LP 12:00AM (2:30:00) APR/16/15 L1 LP

4 5 6

• Press [ G ] to display the next page, and press [ H ] to display the previous page.

2 3

1 / 6

4 Use [K / L] to select “Play From Start”, then press

[OK].

Play From Start

Edit

Title Delete

Add To Playlist

• Playback will start.

5 Press [ C] once to stop playback temporarily.

• Refer to “Resume Playback” (p.39)

Note(s)

• You can also star t playback by pressing [ B] instead of [OK] in step 3.

English

Français

Español

–

Continued on next page.

Playing an Audio CD, Viewing JEPG

ﬁ les on CD-RW/R or DVD-RW/-R

English

Note(s)

• Files whose ex tension is other than “. jpg / . jpeg (JPEG)” will not be lis ted.

• Some unplayable folders or files may be listed due to the recording status.

• High-resolution JPEG files take longer to be displayed.

• Progressive JPEG files ( JPEG f iles saved in progressive format)

Français

Español

cannot be displayed on this unit.

1 Press [DVD], then insert a playable disc*.

* For playable discs, refer to “Playable Discs and Files”

(p.36)

• Refer to “ How to Insert a Disc” (p.23).

• It may take a while to load the disc.

• When an audio CD is inser ted, the track list will appear.

• When a CD-RW/-R or DVD-RW/-R with JPEG f iles is inser ted, the file list will appear.

• When you inser t a CD-RW/-R or DVD-RW/-R mixed with JPEG files, the playback media selection screen will be displayed. For JPEG, select “Photo”.

• To exit the track /file list, press [ C].

• To resume the title list, press [TITLE].

2 Use [K / L] to select a desired folder or track/file, then

press [OK].

(e.g., File list)

File List

DISC NAME

Folder 1 Folder 2

1/ 2

When selecting a track/file:

Playback will start.

When selecting a folder (Not available for audio CD):

The files in the folder will appear. Use [K / L] to select the file or folder you would like to play,

then press [OK].

• Press [ 1], [OK] or [ B] to move to any lower hierarchies.

• Press [

Hints for audio CD tracks and JPEG files:

• Folders are shown by

• Audio CD tracks are shown by .

• JPEG files are shown by

• The number of tracks/files/folders for each disc type which

audio CD: 99 tracks CD-RW/-R: 999 files, 255 folders DVD-RW/-R: 999 files, 255 folders

• Letters of a file/folder name over flowing the given space

• If there are no files in the folder, “No Files” will be

] or [RETURN] to move back to the previous

hierarchy.

the unit can recognize are...

will be displayed as “...”. Unrecognizable characters will be replaced with asterisks.

displayed.

It is recommended that files to be viewed on this unit are recorded under the following specifications:

<JPEG>

• Upper limit: 6,300 x 5,100 dots.

• Lower limit: 32 x 32 dots.

• File size of image maximum: 12 MB.

Notes on JPEG files

• After the track is displayed for 5 seconds or 10 seconds (set in “Slide Show” (p.42)), the display moves to the next tr ack.

• During JPEG playback, press [ 1] or [0 ] to rotate a picture 90 degrees clockwise or counterclockwise respectively. (Not available when the display menu appears.)

Using the Title / Disc Menu

DVDs may contain a title list which describes the contents of the disc, or a disc menu which guides you through the available functions in the disc.

1 Press [DVD], then, inser t a playable disc*.

* For playable discs, refer to “Playable Discs and Files”

(p.36)

• Refer to “ How to Insert a Disc” (p.23)

• It may take a while to load the disc.

2 Press [TITLE] or [DISC MENU] to call up the title list

or disc menu.

3 Use [K / L / 0 / 1] to make a selection, and then press

[OK] to enable your selection.

4 Press [ C] to exit.

Note(s)

• You can also select a numbered menu using the [Number buttons].

• Menus vary among discs. Refer to the information accompanying the disc for details.

• [TITLE] or [DISC MENU] will not always be active with all DVDs.

Pause

1 During playback, press [ F].

• Playback will be paused and sound will be muted.

2 Press [ B] to return to the normal playback.

Note(s)

• On DVDs, set “Still Mode” to “Field” in the “Playback” menu if pictures in pause mode are blurred. (Refer to page 57.)

–

Special Playback

Resume Playback

You can play from where you last stopped playback.

1 During playback, press [ C].

• The resume message will appear.

Resume ON

2 Press [ B].

• In a few seconds, playback will resume from the point at which it last stopped. You can resume playback at the same point even if you switch the unit to standby mode.

• To cancel the resume playback and start playing the disc from the beginning, press [ C] again while the playback is stopped.

Note(s)

• For JPEG files, playback will resume from the beginning of the file at which play was stopped.

Skipping TV Commercials during Playback

You can skip TV commercials to enjoy the recorded programs without interruption.

1 During playback, press [CM SKIP].

• Normal playback will star t at 30 seconds ahead from the point you press [CM SKIP].

• Ever y time you press [CM SKIP], the searching point will be extended by 30 seconds ahead.

• You can press [CM SKIP] up to 6 times (180 seconds).

(e.g., Press [CM SKIP] once.)

CM SKIP 30 sec.

(forwarding 30 seconds)

English

Français

Fast Forward / Fast Reverse Playback

1 During playback, press [ D] or [E ] .

• Ever y time you press [ D] or [E ] , approximate speed will be changed as follows.

normal

20x

• Fast forward or fast reverse playback across titles (for DVD) is not possible.

• For audio CDs, approximate speed is fixed at 8x with sound (indicated with

2 Press [ B] to return to the normal playback.

Note(s)

• Forward/reverse speed will be indicated with icons as follows.

forward (approx. speed)

2x: 20x: 40x:

reverse (approx. speed)

5x: 20x: 40x:

speed playback

/ ).

2x 20x5x 40x40x

Playback will return to the normal playback.

Rapid Playback

Rapid playback function is only available during playback.

This function is only available on discs recorded in the Dolby Digital format, and plays in a slightly faster/slower speed while keeping the sound quality just as normal playback.

1 During playback, press [RAPID PLAY].

2 Press [ B] to return to the normal playback.

• Audio (language) setting cannot be changed while using this mode.

• This feature may not work at some points on a disc.

• Audio is PCM during rapid playback mode except when using digital audio connection.

• When using digital audio connection (COAXIAL), the LPCM sound (2 channel) will be output.

Press [RAPID PLAY] once during playback.

x0.8:

Plays approximately at 0.8 times of normal playback.

Press [RAPID PLAY] twice during playback.

x1.3:

Plays approximately at 1.3 times of normal playback.

Press [RAPID PLAY] 3 times to play in

x1:

normal speed. No effects.

Note(s)

Español

–

Continued on next page.

Step by Step Playback

English

1 During playback, press [ F].

• Playback will be paused and sound will be muted.

2 Press [ G ] repeatedly.

• Playback will advance one frame (or step) at a time when you press [ G ] with the sound muted.

• To play step by step back ward:

Français

Español

Press [H ] repeatedly.

• Ever y time you press the button, the playback will go backward by one frame.

• Press and hold [H ] / [G ] to reverse/ advance continuously.

3 Press [ B] to return to the normal playback.

Slow Forward / Slow Reverse Playback

1 During playback, press [ F], then press [ D] or [E ].

• Ever y time you press [ be changed as follows. (The sound will remain muted.)

1/8x

] or [

pause

], approximate speed will

1/16x 1/8x1/16x 1/3x1/4x

Zoom

1 During playback, press [DISPLAY] to call up the display

menu.

2 Use [0 / 1] to select to display the zoom menu.

(e. g. , DV D-vide o)

1/ 5 1/ 5

3 Use [K / L] to select a desired zoom factor to zoom,

then press [OK].

1/ 5 1/ 5

The zoom menu will appear. There are four options: x1.0, x1.2, x1.5 and x2.0. These are displayed excluding the current zoom rate.

• Zoom area will be displayed.

4 Use [K / L / 0 / 1] to select a desired zoom position,

then press [OK].

0:01:00 / 1:23:45

× 1.2 × 1.5 × 2.0

DVD

Video

DVD

Video

2 Press [ B] to return to the normal playback.

Note(s)

• Forward/reverse speed will be indicated with icons as follows.

forward (approx. speed)

1/16x : 1/8x: 1/3x:

reverse (approx. speed)

1/16x : 1/8x: 1/4x:

• Zoom playback will star t.

Note(s)

• When selecting a smaller fac tor than the current one, the zoom area will not be displayed.

• To exit the zoom menu, press [RETURN] repeatedly in step 3.

• To cancel the zoom function, select “x1.0” using [K / L], then press [OK].

• You cannot slide the zoomed picture on some JPEG files.

–

Marker Setting

This feature allows you to assign a specific point on a disc to be called back later.

1 During playback, press [DISPLAY] to call up the display

menu.

• If the display menu is already shown, skip to step 2 .

2 Use [0 / 1] to select to display the marker list.

(e. g. , DV D-vide o)

1/ 5 1/ 5

3 Use [K / L] to select a desired marker number.

When it reaches a desired point, press [OK].

1/ 5 1/ 5

• The title (track) number and the time will be displayed.

4 To return to the marker later:

Use [K / L] to select a desired marker number, then press [OK].

Note(s)

• To clear a marker, select the marker number to be cleared, then press [CLEAR].

• All markers will be erased when you perform the operations listed below.

- Opening the disc tray

- Switching the unit to standby / Off

- Recording on a recordable disc

• You can mark up to 6 points.

---

0:01:00 / 1:23:45

DVD

Video

Repeat Playback

Available repeat function may vary depending on the discs.

1 During playback press [DISPLAY] to call up the display

menu.

• If the display menu is already shown, skip to step 2 .

2 Use [0 / 1] to select to display the selection menu.

1/ 5 1/ 5

3 Use [K / L] to select a desired repeat type, then press

[OK].

• The selected repeat playback will start.

(e. g. , DV D-vide o)

OFF Title Chapter A – B

(e.g., audio CD)

OFF

Track All

A – B

(e.g., JPEG files)

OFF Title Chapter A – B

Title:

The current title will be played repeatedly.

Chapter:

The current chapter will be played repeatedly.

All:

The current disc will be played repeatedly.

A-B:

A desired section can be played repeatedly.

1. Use [K / L] to select “A-B”, then press [OK].

2. Press [OK] at a desired star ting point A.

3. Press [OK] at a desired ending point B.

Trac k:

The current track or file will be played repeatedly.

Group:

The current folder will be played repeatedly.

Note(s)

• Point B for the repeat A-B playback should be set within the same title or track as point A.

• To cancel the repeat playback, select “OFF” in step 3. The repeat setting will also be cancelled when you stop playback.

• You cannot select “Group” during the random playback.

• During the A-B repeat, if you reach point A with any reverse playback, the reverse playback will be cancelled and the A-B repeat playback resumes from point A.

0:01:00 / 1:23:45

DVD

Video

English

Français

Español

–

Continued on next page.

Random Playback

Program Playback

You can play a disc randomly instead of playing in the original

English

order.

1 Press [SETUP]. 2 Use [K / L] to select “DISC Playback Mode”, then

press [OK].

• The “DISC Playback Mode” menu will appear.

Français

• For JPEG, use [K / L] to select “Photo”, then press [OK].

3 Use [K / L] to select “Random Play”, then press [OK].

• Random playback will start.

Note(s)

• To cancel random playback, press [ C] twice during random playback. “OFF” appears on the TV screen.

Español

Slide Show

You can select the display time from 5 seconds to 10 seconds.

1 Follow steps 1 and 2 in “Random Playback ” on this

page.

2 Use [K / L] to select “Slide Show”, then press [OK]. 3 Use [K / L] to select the display time, then press [OK]. 4 Press [SETUP] to exit.

Note(s)

• Large-size JPEG files take a few moments to be displayed.

You can program the disc to play in your desired order.

1 Press [SETUP]. 2 Use [K / L] to select “DISC Playback Mode”, then

press [OK].

• “DISC Playback Mode” menu will appear.

3 Use [K / L] to select “Program Play”, then press [OK]. 4 Use [K / L] to select a desired track, then press [OK]

or [ B].

DISC Playback Mode

Program Play

-- -- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -- -- --

0:00:00Total

Repeat this step until you program all a desired tracks.

5 Press [ B].

DISC Playback Mode

Program Play

04 10 06 -- -- -- -- -- --

-- -- -- -- -- -- -- -- -- --

0:31:07Total

• Program playback will star t.

Note(s)

• To erase tracks you selected, press [CLEAR] in step 4.

• You can make program settings for up to 50 tracks.

• To cancel program playback, press [ C] twice during program playback. “OFF” appears on the TV screen.

• You may also select a desired track using the [Number buttons] in step 4.

–

Search

Using [ H ] / [ G ] :

1 During playback, press [ G ] to skip the current title or

chapter and move to the next.

• The title or chapter will move forward by one each time you press [ G ] .

• If there is no chapter in a title, the current title will be skipped.

• To go back to the beginning of the current title or chapter, press [ H ]]. Press it repeatedly to go to the previous title or chapter. The title or chapter will move backward by one each time you press [ H ] .

Using [DISPLAY]:

1 During playback, press [DISPLAY] to call up the display

menu.

2 Use [0 / 1] to select , then press [OK].

(e. g. , DV D-vide o)

1/ 5 1/ 5

• The number next to will be highlighted.

3 Title:

Use [K / L] or the [Number buttons] to enter a desired title number to search, then press [OK].

• Title search will start.

Chapter:

Press [ 1] to move to the number next to for chapter. Use [K / L] or the [Number buttons] to enter a desired

chapter number to search, then press [OK].

• After the search, playback will start automatically.

Note(s)

• In the search mode display, the total number of each search content (title/chapter/time) is shown after a slash (/).

0:01:00 / 1:23:45

DVD

Video

1/ 5 1/ 5 0:01:00 / 1:23:45

DVD

Video

Time Search

1 During playback, press [DISPLAY] to call up the display

menu.

• If the display menu is already displayed, skip to step 2.

2 Use [0 / 1] to select ,t hen pr ess [OK].

(e. g. , DV D-vide o)

1/ 5 1/ 5 0:01:00 / 1:23:45

(e.g., audio CD)

1/ 5CD0:00:15 / 0:05:00

• The number next to will be highlighted.

To move to the number next to , Press [ 1].

• When time search is not available, not displayed.

3 Use [K / L / 0 / 1] or the [Number buttons] to enter

a desired time to search, then press [OK].

• After the search, playback will start automatically.

Note(s)

• Time search is only available in the same track, file or title.

DVD

Video

and time counter are

English

Français

Español

total number of titles

total time of the title

total number of chapters

–

Continued on next page.

Selecting Audio/Video Format

You can select the format of audio and video depending on the contents of the disc you are playing.

Switching Audio Sound Track

English

Switching Subtitles

DVD-video may have subtitles in one or more languages. Available subtitle languages can be found on the disc case. You can switch subtitle languages anytime during playback.

Français

1 During playback, press [DISPLAY] to call up the display

menu.

2 Use [0 / 1] to select to display the selection menu.

(e. g. , DV D-vide o)

1/ 5 1/ 5

Español

3 Use [K / L] to select a desired subtitle language, then

press [OK].

1/ 5 1/ 5

OFF

1.English

• Subtitle will be displayed in the selected language. When selecting “OFF”, subtitle will disappear.

Note(s)

• Some discs will only allow you to change the subtitle from the disc menu. Press [TITLE] or [DISC MENU] to display the disc menu.

• If a 4-digit language code appears in the subtitle menu, refer to “Language Code” (p.68).

0:01:00 / 1:23:45

DVD

0:01:00 / 1:23:45

DVD

Video

When playing a DVD-video recorded with two or more sound tracks (these are often in different languages), you can switch them during playback.

When playing audio CD you can switch “L/R”(stereo), “L”(left) or “R”(right).

1 During playback press [DISPLAY] to call up the display

menu, then proceed to step 2 or press [AUDIO], then proceed to step 3.

• If the display menu is already shown, skip to step 2 .

2 Use [0 / 1] to select to display the selection menu. 3 Use [K / L] to select a desired audio sound track or

audio channel, then press [OK].

For DVD-video

• Audio sound track will switch.

1/ 5 1/ 5

1.Dolby Digital 5.1ch English

2.Dolby Digital 2ch English

• If the title contains both main and sub audio, you can further selec t “L” (main), “R” (sub) or “L /R” (mixed of main and sub).

For audio CD

• Audio channel will switch.

1/ 5CD0:00:15 / 0:05:00

1. L/R

2. L

3. R

Note(s)

• Some discs will only allow you to change the sound track from the disc menu. Press [TITLE] or [DISC MENU] to display the disc menu.

0:01:00 / 1:23:45

DVD

Video

–

Switching Camera Angles

Reducing Block Noise

Some DVD-video have scenes shot from two or more angles. Angle information should be on the disc case if the disc contains multi-angle scenes.

1 During playback, press [DISPLAY] to call up the display

menu.

2 Use [0 / 1] to select , then press [OK].

(e. g. , DV D-vide o)

1/ 5 1/ 5

• appears when an alternate camera angle is available.

• The angle will switch each time you press [OK].

Note(s)

• does not appear on the TV screen if the “Angle Icon” is set to “OFF” in the “Playback” menu. Refer to page 57.

0:01:00 / 1:23:45

DVD

Video

This function reduces noise in the playback picture.

1 During playback, press [DISPLAY] to call up the display

menu.

2 Use [0 / 1] to select to display the selection menu.

(e. g. , DV D-vide o)

1/ 5 1/ 5

0:01:00 / 1:23:45

DVD

Video

3 Use [K / L] to select a desired option, then press [OK].

1/ 5 1/ 5

• Your setting will be activated.

OFF: When playing titles with a few noises such as DVD-

video.

Type 1: For the titles recorded in long time mode such as

EP or SLP mode.

Type 2: Same as type 1, only more effective.

OFF Type 1 Type 2

0:01:00 / 1:23:45

DVD

Video

English

Français

Español

–

Continued on next page.

Information on Disc Editing

Title List

English

Title List allows you to check the titles recorded on the disc. You can choose a title to play from this list and edit the titles.

1 Press [DVD], then press [TITLE].

4 5 6

Title List

ORG

APR/15/15 1:00AM L1 LP

Français

Español

12:00AM (2:00:00) APR/15/15 L1 LP

1 2 3

4 5 6

3 312

Edit

ORG

Scene Delete

Edit Title Name

Chapter Mark

Protect

1 / 2

Editing Discs

You can edit discs for the following items. Note that once you edit a title, the original title is overwitten.

• Adding Titles to a Playlist (Refer to page 48.)

• Deleting All Playlists (Refer to page 48.)

• Deleting Titles (Refer to page 49.)

• Deleting Part of a Title (Refer to page 49.)

• Putting Names on Titles (Refer to page 50.)

• Setting Chapter Marks (Refer to page 51.)

• Setting or Clearing All Chapter Marks at Once (Refer to page 52.)

• Dividing a Title (DVD-RW only) (Refer to page 52.)

• Combining Titles (Refer to page 53.)

• Setting or Releasing the Title Protection (Refer to page

53.) (Possible editing functions depend on the recording format and editing method.)

Original and playlist (VR mode)

For VR mode DVD-RW, you can edit the recordings in the playlist without changing the original recordings. The playlist does not take up much disc space. After you make a recording to VR mode DVD-RW, a playlist will be created automatically.

APR/15/15 11:00PM L1 LP

1. Title list: List of the titles recorded on the disc, and their information.

2. The protect icon: Appears when the title has been protected. (Original titles only)

3. Arrow: Indicates that there is a previous / nex t page.

4. Title list icon: Indicates a type of the displayed title list.

: VR (Original)

ORG

: VR (Playlist)

5. Title name

6. Title information: Displays various information on the selected

title.

7. S ubm enu : Submenus for the selected menu are displayed here.

8. Title name (editable): If you do not name the title, the recorded

date, time and recording mode are displayed here.

9. Progress bar : Indicates the progress of the playback. The vertical lines in the bar indicate chapter marks, and “ Y ” sliding on the bar indicates the current point of playback displayed in the preview window.

10. Preview window: Preview of the selected title is displayed here.

11. Playback status: Indicates the current playback status of the

selected title.

0 : 00 : 59

789

: Video mode

Video

2 Press [ C] to exit the title list.

What “Original” or “Playlist” is for

Throughout this manual, you will find original and playlist which refer to the actual content and the edited version.

• Original content refers to what’s actually recorded in the VR mode on a DVD-RW.

• Playlist content refers to the edited version of the VR mode DVD-RW; how the original content is to be played.

Finalizing a disc

• This will allow a disc that is recorded on this unit to be played on other DVD players. Without finalization, it will not be playable on other DVD players.

• Af ter finalizing a DVD-RW/-R, you cannot edit any information that is on that disc.

Note(s)

• When selecting “Edit” in the pop-up menu of the title list and editing the title, the title list will be displayed after writing the edited contents onto the disc.

• The capacity indicator on the r ight side of the title list may not indicate the precise capacity of the disc.

• The capacity indicator may not include titles with a shor t recording time.

• Once you have finalized a DVD-R, you cannot edit or record anything on that disc.

–

Formatting a Disc

Reformatting a Disc Manually

Choosing the Recording Format of a Brand-new DVD-RW

When inserting a brand-new DVD-RW, the unit automatically starts to initialize the disc. The DVD-RW will be formatted in either video or VR mode according to the recording format mode setting of the unit. Before inserting a brand-new DVDRW, you need to set the recording format to a desired mode. You can also manually format a DVD-RW once it has been used.

Note(s)

• The recording format setting is effective only for DVD-RW. You cannot change the recording format for a DVD-R.

• You cannot mix two formats on one DVD-RW disc. If you inser t a disc that has been formatted before, the recording format is not changed if you select another format in the “Setup” menu only. To reformat a disc (change disc format type), refer to “Reformat ting a Disc Manually” (p.47).

1 Press [SETUP]. 2 Use [K / L] to select “DVD Menu”, then press [OK].

Setup

General Setting

Timer Programming

Title List

DVD Menu

If you are using a DVD-RW, you can format the disc by performing “Format”. You can format a DVD-RW for either video mode recording or VR mode recording.

Note(s)

• The recording format setting is effective only for DVD-RW. You cannot change the recording format for a DVD-R.

1 Insert a DVD-RW disc to reformat, then press

[SETUP].

2 Use [K / L] to select “DVD Menu”, then press [OK].

Setup

General Setting

Timer Programming

Title List

DVD Men u

3 Use [K / L] to select “Format”, then press [OK].

(e.g., VR mode DVD-RW)

DVD Menu

Format Finalize Disc Protect OFF ON Delete All Playlists

English

Français

Español

3 Use [K / L] to select “Format”, then press [OK].

DVD Menu

Format

Finalize

4 Use [K / L] to select “Format Mode”, then press [OK].

DVD Menu

Format Finalize

Start

Format Mode

5 Use [K / L] to select “Video mode” or “VR mode”,

then press [OK].

6 Press [SETUP] to exit. 7 Insert a brand-new disc.

Formatting 90%

• Formatting will start.

8 Formatting is complete.

• “100%” is indicated.

4 Use [K / L] to select “Start”, then press [OK].

DVD Menu

Format Finalize Disc Protect OFF ON Delete All Playlists

Start Format Mode

• The selection menu will appear and prompt you to confirm.

5 Use [K / L] to select “Yes”, then press [OK].

Are you sure?

Yes No

• Formatting will start.

• If you would like to cancel formatting, select “No”.

6 Formatting is complete.

Formatting 100%

• “100%” is indicated.

–

Continued on next page.

Creating/Deleting a Playlist

Deleting All Playlists

Adding Titles to a Playlist

English

Playlist

For VR mode DVD-RW, you can create the playlist as you wish.

You can add up to 99 titles to a playlist (as long as the total number of chapters does not exceed 999).

Français

Español

Note(s)

• When a playlist contains 99 titles or more or 999 chapters or more, “Add to Playlist” cannot be selected.

1 Press [DVD], then [TITLE].

• If the “Playlist” screen appears, press [DISC MENU] to switch to the “Original” screen.

2 Use [K / L / 0 / 1] to select a desired title, then press

[OK].

3 Use [K / L] to select “Add to Playlist”, then press [OK].

Play From Start

Edit

Title Delete

Add To Playlist

4 Use [K / L] to select “Yes”, then press [OK].

Create a Playlist ?

Yes

• The title is added to playlist.

5 Press [RETURN] or [ C] to exit.

• Data will be written onto the disc momentarily.

• This operation may take a while to complete.

Playlist

A playlist can be deleted if it is no longer needed.

Note(s)

• Deleting a playlist will not increase the available recording time on the disc.

1 Press [DVD], then [SETUP].

• The main menu will appear.

2 Use [K / L] to select “DVD Menu”, then press [OK]. 3 Use [K / L] to select “Add to Playlist”, then press [OK].

DVD Menu

Format Finalize Disc Protect OFF ON Delete All Playlists

4 Use [K / L] to select “Yes”, then press [OK].

Delete entire playlist?

Yes No

• “Are you sure?” will appear. Use [K / L] to select “Yes” and then press

DVD Menu

Format Finalize Disc Protect OFF ON

Delete entire play list?

Delete All Playlist

Are you sure?

Yes

• The playlist will be deleted.

• Data will be written onto the disc momentarily.

• This operation may take a while to complete.

[OK]

–

Deleting Titles

Editing Discs

You can delete a title which you do not need anymore. Please be advised that the titles once deleted cannot be brought back to the disc.

For DVD-RW, when the last recorded title in the title list is deleted, the available disc space to record on will be increased. For DVD-R, the disc space to record on will not be changed.

1 Press [DVD].

In stop mode, press [TITLE].

• Title list or iginal or playlist will appear.

• For VR mode DVD-RW, press [DISC MENU] to switch between “Original” and “Playlist”.

2 Use [K / L / 0 / 1] to select a desired title, then press

[OK].

(e.g., VR mode DVD-RW original)

Title List

APR/16/15 12:00AM L1 LP 12:00AM (2:30:00)

APR/16/15

4 5 6

L1 LP

2 3

1 / 6

3 Use [K / L] to select “Title Delete”, then press [OK].

Play From Start

Edit

Title Delete

Add To Playlist

Deleting Part of a Title

You can delete a specific part of a title. Even when par ts of a title are deleted from the playlist, the original title will remain as it is.

Note(s)

• When a scene is deleted from an original, the playlist related to the original will be deleted.

• You cannot select “Scene Delete” if the number of chapter marks in the original or playlist is more than 999. (Depending on the content, there is a case where you cannot select “Scene Delete” even if there are 999 or fewer chapter marks.)

• The recordable disc space will not increase even after deleting a part of a title on the playlist.

1 Press [DVD].

In stop mode, press [TITLE].

• Title list or iginal or playlist will appear.

• For VR mode DVD-RW, press [DISC MENU] to switch between “Original” and “Playlist”.

2 Use [K / L / 0 / 1] to select a desired title, then press

[OK].

(e.g., VR mode DVD-RW original)

Title List

APR/16/15 12:00AM L1 LP 12:00AM (2:30:00)

APR/16/15

4 5 6

L1 LP

2 3

English

Français

Español

4 Use [K / L] to select “Yes”, then press [OK].

Delete this title?

Yes

• “Are you sure?” will appear. Select “Yes” using [K / L], then press [OK].

• The title will be deleted.

5 Press [RETURN] or [ C] to exit.

Writing to Disc 90%

• Data will be written onto the disc momentarily.

• This operation may take a while to complete.

1 / 6

3 Use [K / L] to select “Edit”, then press [OK].

Play From Start

Edit

Title Delete

Add To Playlist

4 Use [K / L] to select “Scene Delete”, then press [OK].

(e.g., VR mode DVD-RW playlist.)

Edit

Scene Delete

Edit Title Name

Chapter Mark

Title Dividing

Title Combining

APR/16/15

1:00AM L1 LP

1 : 25 : 47

–

Continued on next page.

5 Use [ H/ G ] , [E ] , [ D], [ B], and [ F] to find the

start point, then press [OK].

Edit - Scene Delete

Start

End

English

APR/16/15

1:00AM L1 LP

Preview

Delete

1 : 25 : 47

Then use [ H/ G ] , [E ] , [ D], [ B], and [ F] again to

Français

Español

move to the end point, then press [OK].

Edit - Scene Delete

Start

End

Preview

Delete

APR/16/15

1:00AM L1 LP

• The cursor will move to “Preview”.

• The bar at the bot tom of the screen indicates the area selec ted for deletion is indicated in red.

• You can check the preview by pressing [OK].

• 5 seconds before and after the deleted point will be played for preview.

Before editing

Edited

1 : 45 : 00

start point end point

6 Use [K / L] to select “Delete” then press [OK].

Edit - Scene Delete

Start

End

Preview

Delete

APR/16/15 1:00AM L1 LP

1 : 47 : 00

7 Use [K / L] to select “Yes” then press [OK].

• “Are you sure?” will appear. Select “Yes” using [K / L] and then press [OK].

Edit - Scene Delete

Are you sure?

Yes

Putting Names on Titles

You can put title names on the titles and change the names from this menu.

1 Follow steps 1 to 3 in “Deleting Titles” (p.49) to

display “Edit” menu.

2 Use [K / L] to select “Edit Title Name”, then press

[OK].

Edit

ORG

Scene Delete

Edit Title Name

Chapter Mark

Protect

APR/16/15

11:00AM L1 SP

3 To enter a title name, follow the steps in “Edit Title

Name” (p.51).

Edit - Edit Title Name

ORG

• When you finish entering a title name, press [OK].

4 Use [K / L] to select “Yes”, then press [OK].

Edit - Edit Title Name

ORG

MY FAVORITE

• The name you entered will be saved for the title.

5 After this operation is complete, press [RETURN] to

exit.

• Data will be written onto the disc momentarily.

• This operation may take a while to complete.

1 : 05 : 00

ABC

abc

123

@! ?

character set

area for

1 : 05 : 00

Yes

1 : 05 : 00

entering title names

APR/16/15 1:00AM L1 LP

1 : 50 : 00

• The selected part of the title is deleted.

8 Press [RETURN], then [RETURN] or [ C] to exit.

• Data will be written onto the disc momentarily.

• This operation may take a while to complete.

–

Edit Title Name

1 Use [K / L] to select a desired character set, then

press [OK].

2 Follow the list below using the [Number buttons]

repeatedly until a desired letter appears. When you finish entering a title name, press [OK].

Select

Press

* Press

Press

• To delete letters, press [CLEAR] repeatedly. Hold [CLEAR] to delete all letters.

• Use [0 / 1] to move the cursor left and right.

• You can enter up to 30 letters.

• Undefined letters in a title name are shown by “*”. If you delete them, adjoining letters may change to “*” or others.

ABC

abc @ ! ?

123

! ” # $ % & ’ ( )

+ , - . / : ; < = >

(*1) (*1)

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

? @ [ ] ^ _ { | }

to change the character set to “@!?” mode. to to go back to the previous character set.

Note(s)

Setting Chapter Marks

You can put chapter marks in each title. Once a chapter is marked, you can use it for the chapter search feature.

Note(s)

• The maximum number of chapters for each DVD: VR mode DVD: 999 chapters per entire original and playlist

• Besides the above-mentioned, it is not likely to be able to add according to recorded time and number of chapters.

1 Follow steps 1 to 3 in “Deleting Titles” (p.49) to

display the “Edit” menu.

2 Use [K / L] to select “Chapter Mark”, then press [OK].

• The submenu will appear.

3 Use [ H / G ] , [ E / D], [ B], and [ F] to find the

point where you would like to create a new chapter mark, or, use [ H / G ] to find a chapter mark that you would like to delete.

4 Use [K / L] to select “Add” or “Delete”, then press

[OK].

(e.g., VR mode DVD-RW original)

Edit - Chapter Mark

ORG

Add

Delete

Chapter 2 / 3

APR/16/15 1:00AM L1 LP

5 Use [K / L] to select “Yes”, then press [OK].

• If you select “Add” in step 4, a new chapter mark will be added. If you select “Delete” in step 4, the chapter mark will be deleted.

(e.g., Add)

Edit - Chapter Mark - Add

ORG

Chapter 2 / 3

1 : 25 : 47

Yes

English

Français

Español

APR/16/15 1:00AM L1 LP

• A new chapter mark will be added.

1 : 25 : 47

6 Press [RETURN]. 7 Press [RETURN] again, then [RETURN] or [ C] to exit.

• Data will be written onto the disc momentarily.

• This operation may take a while to complete.

–

Continued on next page.

Setting or Clearing All Chapter Marks at Once

English

For titles in video mode DVD-RW, you can set or edit chapters at ever y time interval. You can clear the chapter mark too. You can specify the interval of chapter marks for titles which last more than 5 minutes.

Français

Español

Note(s)

• You cannot select a chapter mark interval that exceeds the length of a title.

• The length of chapters may slightly deviate from the one specified in step 3.

• A chapter mark may be delayed depending on the recording content.

• The maximum number of chapters for video mode DVD is 99 chapters per title.

• The interval for auto chapter may be up to two minutes different from the time option you set.

1 Follow steps 1 to 3 in “Deleting Titles” (p.49) to

display “Edit” menu.

2 Use [K / L] to select “Chapter Mark”, then press [OK].

Edit

Video

Edit Title Name

Chapter Mark

APR/16/15 1:00AM L1 LP

1 : 25 : 47

3 Use [K / L] to select a desired interval, then press

[OK].

Edit - Chapter Mark

Video

OFF

5 minutes

10 minutes

15 minutes

30 minutes

60 minutes

APR/16/15 1:00AM L1 LP

1 : 25 : 47

4 Use [K / L] to select “Yes”, then press [OK].

• Chapter marks are added.

• If you select “OFF” in step 3, all of the chapter mark s are erased.

5 Press [RETURN], then [RETURN] or [ C] to exit.

• Data will be written onto the disc momentarily.

• This operation may take a while to complete.

Dividing a Title

Playlist

You can divide one title into two new titles.

Note(s)

• You cannot divide a title on the disc when the number of recording titles reaches the maximum of 99, and the number of recording chapters reaches the maximum of 999.

1 Press [DVD].

In stop mode, press [TITLE].

• For VR mode DVD-RW, press [DISC MENU] to select “Playlist”.

2 Use [K / L / 0 / 1] to select a desired title, then press

[OK].

3 Use [K / L] to select “Edit”, then press [OK].

(e.g., VR mode DVD-RW playlist)

Play From Start

Edit

Title Delete

4 Use [ H / G ] , [E ] , [ D], [ F] and [ B] to find the

point where you would like to divide the title.

5 Use [K / L] to select “Title Dividing”, then press [OK]. 6 Use [K / L] to select “Yes”, then press [OK].

(e.g., VR mode DVD-RW playlist)

Edit - Title Dividing

Yes

APR/16/15 1:00AM L1 LP

• The title will be divided into two new titles.

• Both title names are identical.

Writing to Disc 90%

• This operation may take a while to complete.

For VR mode DVD-RW: Proceed to step 7.

7 Press [RETURN] or [ C] to exit.

• Data will be written onto the disc momentarily.

• This operation may take a while to complete.

1 : 25 : 47

–

Combining Titles

Playlist

You can combine two titles into a single title.

Note(s)

• You cannot select the same title twice and combine it into a single title.

• If either one of the two original titles is deleted, the combined new title is also deleted.

1 Follow steps 1 to 3 in “Dividing a Title” (p.52) to

display the “Edit” menu.

2 Use [K / L] to select “Title Combining”, then press

[OK].

Edit

Scene Delete

Edit Title Name

Chapter Mark

Title Dividing

Title Combining

APR/16/15 1:00AM L1 LP

• Title Combining setting window will appear.

• Selected title grays out, and the frame of the next title becomes yellow.

Edit - Title Combining

APR/16/15 11:00PM L1 LP 11:00PM (0:30:00) APR/16/15 L1 LP

1 +

4 5 6

1 : 25 : 47

2 3

1 / 6

Setting or Releasing the Title Protection

Playlist

To prevent the accidental editing or erasing of the titles, you can protect them in the “Edit” menu. You can cancel the title protection feature after it is applied.

1 Follow steps 1 to 3 in “Putting Names on Titles”

(p.50) to display the “Edit” menu.

2 Use [K / L] to select “Protect”, then press [OK].

Edit

ORG

Scene Delete

Edit Title Name

Chapter Mark

Protect

APR/16/15 1:00AM L1 LP

• If the title is protected, icon will appear in the or iginal list.

3 Confirm the indication “OFF ON”, then press [OK]

again.

• If the title is already protected, “ON OFF” will appear. If you press [OK], the title will be released from protection.

Edit - Protect

ORG

APR/16/15 1:00AM L1 LP

1 : 25 : 47

OFF ON

1 : 25 : 47

English

Français

Español

3 Use [K / L / 0 / 1] to select another title to combine,

then press [OK].

• The selection menu will appear.

4 Use [K / L] to select “Yes”, then press [OK].

Combine selected titles?

Yes No

• The two titles will combine into a single title.

Title List

APR/16/15 12:00AM L1 LP 12:00AM (2:30:00) APR/16/15 L1 LP

4 5 6

2 3

1 / 6

5 Press [RETURN] or [ C] to exit.

• Data will be written onto the disc momentarily.

• This operation may take a while to complete.

• icon will appear on the title in the original list.

4 Press [RETURN], then [RETURN] or [ C] to exit.

• Data will be written onto the disc momentarily.

• This operation may take a while to complete.

To protect a whole disc (VR mode DVD-RW only):

Select “Disc Protect OFF then select “Yes”. Refer to “Protecting a Disc” (p.34).

ON” from the DVD Menu,

–

Continued on next page.

List of Settings

The following table contains configurable system settings and their defaults.

Setup Items (highlight is the default) Contents

English

Français

Playback

→

Pages 56-57

Parental Lock

Audio Out Dynamic

Range Control

PCM

OFF

level 8 “Adult” to 1 “Kid Safe”

OFF

48kHz

96kHz

Set the parental level for DVD playback.

Compress the r ange of sound volume.

Set whether the sound recorded in 96kHz will be down sampled at 48kHz.

Español

General Setting

Dolby Digital PCM

Disc Menu Language

Audio Language

Subtitle Language

Angle Icon

Still Mode

Stream

English

French Spanish Other

Original

English French Spanish Other

OFF

English French Spanish Other

OFF

Auto

Field Frame

Set the type of sound signal which is output from the digital audio output jack.

Set the language for disc menu language.

Set the language for audio.

Set the language for subtitles.

Set whether or not to display the angle icon.

Set the type of still image while pausing playback.

Display

→

Page 58

OSD Language

Screen Saver OFF

FL Dimmer Auto

English

Français Español

1minute 5minutes

10minutes

15minutes

Bright

Dark

–

Set the language for OSD (on-screen display).

Set the idling time before the screen saver starts.

Set the brightness of the front panel display.

–

Setup Items (highlight is the default) Contents

Video

→

Page 58

Progressive ON

OFF

Set to progressive scan mode (set to “ON”) or to interlace scan mode (set to “OFF”).

TV Aspect

Select Video

→

Page 32

Recording Auto Chapter

→

Page 25

Recording Audio Select (XP)

→

Page 25

Auto Finalize

→

Page 35

General Setting

Aspect Ratio (Video mode)

→

Page 26

4:3 Letter Box

4:3 Pan & Scan 16:9 Wid e

L1(Re ar)

Video In

S-Video In

L2(Front)

Video In

S-Video In

OFF 5 minutes

10 minutes

15 minutes 30 minutes 60 minutes

PCM

Dolby Digital

Disc Full ON

OFF

End of Timer Rec

OFF

Auto

4:3 16:9

Set picture size according to the aspect ratio of your TV.

Set the video input type for the external input.

Insert chapter mar ks at time intervals.

Set the recording audio type. (Only when the rec mode is set to XP.)

Set the unit to finalize the disc automatically.

Set an aspect ratio for video mode recording.

English

Français

Español

Set the dubbing direction.

Set the color space for the HDMI output.

Set whether to output the HDMI audio signal or not.

Set the black-white contrast level for HDMI RGB output.

Reset all settings to their defaults.

Clock

→

Page 24

HDMI

→

Page 59

Reset All

Page 60

Dubbing Mode

→

Pages 33-34

VCR DVD

DVD VCR

Clock Setting Set the clock.

Format

RGB

YCbCr

HDMI Audio

OFF

RGB Range

Normal

Enhanced

Yes

Note(s)

• Your change to each setting stays on even when the power is Off except for Dubbing Mode.

• An item which is not currently available is grayed out in the settings.

–

Continued on next page.

Setups

Playback

English

Press [C] if you are playing a disc.

1 Press [SETUP], then use [K / L] to select “General

Setting”, then press [OK].

• The “General Setting” menu will appear.

2 Use [K / L] to select “Playback”, then press [OK].

Français

General Setting

Playback Display Video Recording Clock HDMI Reset All

Español

3 Use [K / L] to select an item, then press [OK].

Parental Lock

Audio Out

Disc Menu Language

Audio Language

Subtitle Language

Angle Icon

Still Mode

• The submenu will appear.

4 Refer to

selected item.

5 When you are f inished with these settings, press

[SETUP] to exit.

to 7 on pages

56-57

and set the

A password has not been set

Use [K / L] to select “Yes”. Use the [Number buttons] to enter a new password (except for 4737), then press [OK].

Change Password?

Yes

• Your setting will be activated.

A password has been set

Password Input

Use the [Number buttons] to enter the current password.

Password Input

• Your setting will be activated.

If you would like to change the password, use [K / L] to select “Yes”. Use the [Number buttons] to enter a new password (except for 4737), then press [OK].

Change Password?

Yes

Password Input

• Your setting will be activated.

Note(s)

• Press [CLEAR] to erase numbers entered incorrectly.

• When you forget the password or you would like to clear all settings in the “Parental Lock” menu, enter 4737 using the [Number buttons] in the password input window. The password will be cleared and parental levels will be set to “OFF”.

Parental Lock (Default: OFF)

Some DVD-videos feature a parental lock level. Playback will stop if the ratings exceed the levels you set. It will require you to enter a password before the disc will playback. This feature prevents your children from viewing inappropriate material.

Use [K / L] to select a desired level, then press [OK].

Parental Lock

OFF 8 [Adult] 7 [NC 17] 6 [R] 5 [PG R] 4 [PG 13] 3 [PG] 2 [G] 1 [Kid Safe]

• If a password has not been set, proceed to A.

• If a password has been set, proceed to

Note(s)

• Parental lock function may not be available on some discs.

• With some DVDs, it may be difficult to f ind if they are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.

• Record the password in case you forget it.

• If there is a DVD in the unit when you set up the parental lock, press [A] to activate the parental lock level.

Audio Out

Choose the appropriate audio setting for your external device.

It will only affect disc playback. Use [K / L] to select an item, then press [OK].

Audio Out

Dynamic Range Control PCM

Dolby Digital

Dynamic Range Control (Default: ON)

Set to “ON” to compress the range between soft and loud sounds.

Use [K / L] to select an item, then press [OK].

Dynamic Range Control

ON OFF

• Your setting will be activated.

Note(s)

• The dynamic range control function is only available on discs which are recorded in the Dolby Digital format.

–

PCM (Default: 48kHz)

Subtitle Language (Default: OFF)

Use [K / L] to select an item, then press [OK].

PCM

48kHz 96kHz

• Your setting will be activated.

48kHz: If your amplifier/decoder is NOT compatible with

96kHz PCM, select “48kHz”. 96kHz sound will be output in 48kHz.

96kHz: If your amplifier/decoder is compatible with 96kHz

PCM, select “96kHz”. 96kHz sound will be output.

Note(s)

When playing a disc with copyright protection:

• Even if you select “96kHz”, the sound will be down sampled at 48kHz.

Dolby Digital (Default: Stream)

Use [K / L] to select an item, then press [OK].

Dolby Digital

PCM Stream

• Your setting will be activated.

PCM: Converts the Dolby Digital into PCM (2 channel).

When your amplifier/decoder is NOT compatible with Dolby Digital, set to “PCM”.

Stream: Outputs Dolby Digital signals.

When your amplifier/decoder is compatible with Dolby Digital, set to “Stream”.

Disc Menu Language (Default: English)

Set the language for the disc menu. Use [K / L] to select an item, then press [OK].

Disc Menu Language

English French Spanish Other

• Your setting will be activated.

Audio Language (Default: Original)

Set the audio language. Use [K / L] to select an item, then press [OK].

Audio Language

Original English French Spanish Other

• Your setting will be activated.

• When “Original” is selected, the audio language will be in the disc’s default language.

Set the subtitle language. Use [K / L] to select an item, then press [OK].

Subtitle Language

OFF English French Spanish Other

• Your setting will be activated.

If “Others” is selected for 3 to 5 , press the 4-digit code using the [Number buttons]. Refer to “Language Code” (p.68).

Code Input

----

• When you finish entering the code, press [OK].

Note(s)

• Only the languages supported by the disc can be selected.

• Audio language setting may not be available on some discs.

• You can also change or switch Off the subtitles on a DVD from the disc menu if it is available.

• Press [CLEAR] or [0 ] to erase numbers entered incorrectly.

Angle Icon (Default: ON)

Set to “ON” to show the angle icon during the playback. Use [K / L] to select an item, then press [OK].

Angle Icon

ON OFF

• Your setting will be activated.

Still Mode (Default: Auto)

Select “Auto” usually. Use [K / L] to select an item, then press [OK].

Still Mode

Auto Field Frame

• Your setting will be activated.

Auto: Optimum resolution setting (“Field” or “Frame”)

will be selected.

Field: Images in the still mode will be stabilized. Frame: Images in the still mode will be highly defined.

Note(s)

• Frame is 1 completed video image made up of 2 fields (There are 30 frames per second in NTSC video).

English

Français

Español

–

Continued on next page.

Display

Video

Press [C] if you are playing a disc.

English

1 Press [SETUP], then use [K / L] to select “General

Setting”, then press [OK].

2 Use [K / L] to select “Display”, then press [OK]. 3 Use

Français

4 Refer to the following instructions

[K / L]

to select an item, then press

OSD Language

Screen Saver

FL Dimmer

• The selection menu will appear.

configure the settings.

to 3 and

5 When you are f inished with these settings, press

Español

[SETUP] to exit.

OSD Language (Default: English)

Set the language for the on-screen display.

Use [K / L] to select an item, then press [OK].

OSD Language

English Français Español

• Your setting will be activated.

Screen Saver (Default: 10 minutes)

Set the number of minutes of inactivity before the screen saver is activated.

Use [K / L] to select an item, then press [OK].

Screen Saver

OFF 1 minute 5 minutes 10 minutes 15 minutes

[OK]

Press [C] if you are playing a disc.

1 Press [SETUP], then use [K / L] to select “General

Setting”, then press [OK].

2 Use [K / L] to select “Video”, then press [OK].

3 Use

4 Refer to the following instructions

[K / L]

to select an item, then press

Progressive

1 2

TV Aspect

Select Video

• The submenu will appear.

configure the settings.

• For 3 , refer to “Set ting the Video Input” (p.32).

[OK]

to 2 and

5 When you are f inished with these settings, press

[SETUP] to exit.

Progressive (Default: OFF)

This unit is compatible with the progressive scan system. This feature provides you with higher definition images than the traditional output system. To utilize this feature, you must set mode to “ON”.

Use [K / L] to select “ON”, then press [OK].

Progressive

ON OFF

Use [0 / 1] to select “Yes”, then press [OK].

Activating progressive scan: Check your TV has progressive scan and connect with component video cable.

NOTE :

If there is no picture or picture is distorted after selecting “Yes”, Wait about 15 seconds for auto recovery.

Activate? Yes No

• Your setting will be activated.

FL Dimmer (Default: Bright)

Set the front panel display brightness.

Use [K / L] to select an item, then press [OK].

FL Dimmer

Auto Bright Dark

• You can choose one from “Auto”,”Bright” and “Dark”. If “Auto” is selected, the display gets dark when the power is in standby mode.

Use [K / L] to select “Yes” within 15 seconds (if the picture is okay), then press [OK].

• Your setting will be activated.

Note(s)

• If your T V is compatible with progressive scan (480p), it is recommend that you use the HDMI or component video cable (commercially available) to connect this unit to the TV. (Refer to pages 16-17.) If not, use the RCA video cable and set the progressive scan to “OFF”, or press and hold [SETUP] for more than 3 seconds during DVD playback.

• When selecting “No” or not pressing any buttons on the unit or remote control within 15 seconds in step 3, progressive scan will remain “OFF” (interlace scan).

–

TV Aspect (Default: 4:3 Letter Box)

HDMI Audio (Default: ON)

You can set the TV aspect ratio to match the format of what you are playing or watching (digital TV broadcast) with the unit and your TV screen (4:3 standard or 16:9 widescreen TV).

Use [K / L] to select an item, then press [OK].

TV Aspect

4:3 Letter Box 4:3 Pan & Scan 16:9 Wide

If you have a standard TV:

Select “4:3 Letter Box” and black bars will appear on the top and bottom of the TV screen when displaying a wide-screen picture. Select “4:3 Pan & Scan” for a full height picture with both sides trimmed when displaying a wide-screen picture.

If you have a widescreen TV:

Select “16:9 Wide”.

HDMI

1 Press [SETUP], then use [K / L] to select “General

Setting”, then press [OK].

2 Use

[K / L]

General Setting

Playback Display Video Recording Clock HDMI Reset All

to select “HDMI”, then press

[OK]

If you do not want to output the audio through HDMI (e.g., digitally output the audio through the COAXIAL DIGITAL AUDIO OUT jack to your audio system, etc.), you can set the HDMI audio output Off.

Use [K / L] to select an item, then press [OK].

• Set to “OFF” when the HDMI sound is not output.

HDMI Audio

ON OFF

• Your setting will be activated.

RGB Range (Default: Normal)

You can adjust the RGB range to make the dark areas of the HDMI images brighter.

Use [K / L] to select an item, then press [OK].

• Select “Enhanced” if the black-white contrast is not clear.

• This setting is effec tive only for HDMI RGB output.

RGB Range

Normal Enhanced

• Your setting will be activated.

English

Français

Español

• You cannot select HDMI when an HDMI cable is not connec ted and the items are shown in gray color.

3 Use

Format

HDMI Audio

RGB Range

[K / L]

to select an item, then press

[OK]

4 When you are f inished with the setting, press [SETUP]

to exit.

Format (Default: RGB)

You can select the color space for HDMI output. Set the appropriate color space for your display device.

Use [K / L] to select an item, then press [OK].

• When the connected device is not compatible with Y/Cb/Cr, the HDMI signal is output as RGB regardless of the setting.

Format

RGB YCbCr

• Your setting will be activated.

–

Continued on next page.

Reset All

You can reset all settings to the defaults.

Note(s)

English

• The settings listed below will remain unchanged even af ter resetting to the factory defaults.

- OSD language setting

-Clock setting

- Parental lock setting

-T

imer programming information

1 Press [SETUP], then use [K / L] to select “General

Français

Español

Setting”, then press [OK].

• The “General Setting” menu will appear.

2 Use [K / L] to select “Reset All”, then press [OK]. 3 Use [K / L] to select “Yes”, then press [OK].

Reset to factory default?

Yes

4 Use [K / L] to select “Yes” again, then press [OK].

Are you sure?

Yes

• The settings will now be reset.

VCR Functions

Caution when using S-video, component, or HDMI connections for VCR:

• Only the audio/video playback is available with these connections.

• Under the condition listed below, the playback image cannot be viewed. Use the standard video connection in such case:

- during DVD recording.

• HDMI video resolution cannot be changed when the unit is in VCR mode.

Playback

1 Press [VCR], then insert a prerecorded tape.

• Refer to “ How to Insert a Cassette Tape” (p.23).

2 Press [ B] to start playback. 3 Press [ C] to stop playback.

To pause playback: Press [ F].

Playback will pause and sound will be muted.

To r e sume play b ack: Press [ B].

Note(s)

• When a cassette tape without an er ase-protection tab is inser ted, the unit will start playback automatically.

• Tracking will be automatically adjusted upon playback. To adjust the tracking manually, press [TRACKING K / L] on the remote control.

• S-VHS cassette tapes are not supported on this unit.

• Playback will stop when you change the output mode.

–

Recording

(0:30) (1:00)

(Normal recording)

(7:30)(8:00)

One-touch Timer Recording (OTR)

1 Press [VCR], then insert a recordable tape with an

erase-protection tab intact.

• Refer to “ How to Insert a Cassette Tape” (p.23).

Accidental erasure prevention

To prevent accidental recording on a recorded cassette tape, remove its erase-protection tab. To record on it later, cover the hole with cellophane tape.

erase-protection tab

2 Select the recording mode using [REC MODE].

• A desired recording mode is selected in SP (standard play) or SLP (super long play) mode by pressing [REC MODE].

Recording mode:

Tape speed Recording / playback time

Type of tape T6 0 T120 T160

SP mode 1 hour 2 hours 2-2/3 hours

SLP mode 3 hours 6 hours 8 hours

3 Press [SOURCE] to select the appropriate external

input position (L1/L2) to which your external tuner is connected.

4 Press [REC] to start recording.

Press [ C] to stop the recording.

To pause recording: Press [ F]. To resume recording: Press [ F] or [REC].

• After the unit has been in pause mode for 5 minutes, it will stop automatically to protec t the tape and the video head from damage.

• Refer to “Timer Recording” (p.27 - 30).

Note(s)

• This function is only available when the unit is connected through the VIDEO OUT jack.

This feature allows you to set the recording length simply by pressing [REC] on the remote control.

1 Press [VCR], then insert a recordable tape with an

erase-protection tab intact.

• Refer to “ How to Insert a Cassette Tape” (p.23).

2 Select the recording mode using [REC MODE].

• Refer to “Notes for VCR-to-DVD duplication” (p.34) and “Recording” (p.61)

3 Press [SOURCE] to select the appropriate external

input position (L1/L2) to which your external tuner is connected.

4 Press [REC] to begin the one-touch timer recording.

You can select a fixed recording time by pressing [REC] repeatedly.

• When the one-touch timer recording is f inished, the unit will turn to standby mode automatically.

To change the recording length during the one-touch timer recording:

Press [REC] repeatedly until a desired length appears.

To cancel the one-touch timer recording within the specified time:

Press [C].

Note(s)

• The remaining recording time will be displayed on the front panel display during one-touch timer recording. Press [DISPLAY] to see it on the TV screen.

• You cannot pause the one-touch timer recording.

• If VCR one-touch timer recording is complete during DVD playback or recording, the VCR will be in stop mode and the DVD keeps its current mode.

• Unlike a timer recording, you can perform the following operations during the one-touch timer recording:

- Turning the power to standby mode to stop one-touch timer recording.

-Using [REC] or [C] on the remote control.

• When the one-touch timer recording is f inished and the power is in standby mode, the unit will switch to the timer standby mode automatically if a timer recording has been programmed. Press [TIMER SET] to cancel the timer standby mode to use the unit continuously.

• This function is only available when the unit is connected through the VIDEO OUT jack.

English

Français

Español

–

Continued on next page.

Index Search

Pro.1 Pro.2 Pro.3 Pro.4 Pro.5

02 01 01 02 03

Beginning of tape

End of tape

CURRENT PROGRAM

INDEX MARK

Time Search

An index mark will be assigned at the beginning of each

English

recording you make. You may skip to a specific marked point by following the steps below.

1 Press [VCR], then press [SEARCH] to call up the

“INDEX SEARCH” menu.

2 Using the [Number buttons], enter the number of

Français

Español

recordings you would like to skip within 30 seconds.

INDEX SEARCH 03

3 Press [E / D] to star t the index search.

• If you would like to go in the forward direction, press [ D].

• If you would like to go in the reverse direction, press [E ] .

• After the index search, the VCR will play the cassette tape automatically.

Note(s)

• You can make up to 20 index marks.

• This function is only available when the unit is connected through the VIDEO OUT jack.

This feature allows you to go to a specific point on a cassette tape by entering the exact amount of time you would like to skip in order to reach the point.

1 Press [VCR], then press [SEARCH] repeatedly to call

up the “TIME SEARCH” menu.

2 Using the [Number buttons], enter your desired time

to skip within 30 seconds.

• The maximum time you can skip is 9:59.

TIME SEARCH 2:50

3 Press [E / D] to start the time search.

• If you would like to go in the forward direction, press [ D].

• If you would like to go in the reverse direction, press [E ] .

• After the time search, the unit will play the cassette tape automatically.

Note(s)

• Index search and time search are not available during recording.

• Press [ C] to stop the search.

• If the end of the cassette tape is reached during search, this unit will cancel the search and rewind the cassette tape.

• This function is only available when the unit is connected through the VIDEO OUT jack.

–

Other Operations

1 Press [VCR].

Fast forward:

When the unit is in stop mode, press [D] to fast forward the cassette tape.

Rewind:

When the unit is in stop mode, press [E ] to rewind the cassette tape.

To cue or review picture during playback (picture search):

Press [E ], [ D] during playback. Press it again and the unit will search in super high speed.

(in the SLP mode only)

To freeze the picture on TV screen during playback (still mode):

Press [ F]. Each time you press the button, the picture will be forwarded by one frame. If the picture begins to vibrate vertically during the still

mode, stabilize the picture by pressing [TRACKING

/ L] on remote control.

Counter reset: Press [CLEAR] to reset the counter to “0:00:00”.

To playback in slow motion:

Press [ F] during playback, then press [ D]. Press [ D] or [E ] repeatedly to select a desired speed.

Automatic rewind:

When a cassette tape is played or fast forwarded to its end, the cassette tape will rewind to the beginning, stop and eject itself.

When you playback a cassette tape recorded in Hi-Fi stereo:

Press [AUDIO] on the remote control to select Hi-Fi or MONO for playback sound mode.

• If you have connected a stereo TV to this unit, select “HIFI”.

• If you have connected a monaural TV to this unit, select “MONO”.

Monaural

Main audio

program

HIFI

R-channelL-channel

Monaural

Main audio

program

Second audio

program

MONO

Monaural

L+R

Main audio

program

Second audio

program

Your Selection

Type of recorded tape

non Hi-Fi tapes

Hi-Fi tapes recorded in Hi-Fi stereo

Hi-Fi tapes

recorded main audio program

Hi-Fi tapes

recorded second

audio program

Second audio

English

Français

Español

Note(s)

• Still/slow mode will stop after 5 minutes to prevent damage to the cassette tape and the video heads.

• To return to playback from the picture search/still/slow mode, press [

–

Continued on next page.

Troubleshooting

Before requesting service for this unit, check the table below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

English

Français

Español

Symptom Remedy

The power does not turn On. • Check that the AC power cord is connected securely.

• Check the breaker (in case of power failure).

• Press [TIMER SET] to cancel the timer standby mode.

There is no picture. • Re-connect the connecting cords securely.

• Check if the connecting cords are damaged.

• Check the connection to your TV (p. 15-18).

• Switch the input selector on your TV (such as to “L1”) so that the signal from the unit appears on the TV screen.

Cannot record a TV program. • This unit does not have a tuner to receive TV broadcasting.

There is no sound or the sound is distorted.

General

The remote control does not function. • Batteries are weak.

The unit does not operate properly. • When static electricity, etc., causes the unit to operate abnormally, unplug

You must connect this unit to an external tuner to record TV programs (p. 15).

• Re-connect all connections securely.

• Check if the connecting cord is damaged.

• Check the connections to the amplifier input.

• Check if the input device setting on the amplifier is correct.

• When the unit is in pause mode or in slow-motion playback mode, sound is not output. This is not a malfunction.

• When the unit is in fast forward or fast reverse mode, sound is not output. This is not a malfunction.

• While the setup menu or timer programming display is shown, or while the screen saver is active, the audio is muted.

• There are obstacles between the remote control and the unit.

• The remote control is too far from the unit.

• There are no batteries in the remote control.

• Check if the unit is turned On.

• Check if you are pointing the remote control at the recorder and NOT the TV. If you have a plasma TV, it may interfere with the IR signal. Try the remote with the plasma TV Off. If the remote works, you may need to move the unit away from the plasma TV.

• Press [DVD] or [VCR], whichever is needed. Then, try again.

• Press [TIMER SET] to cancel the timer standby mode.

the unit and then plug it in again.

Playback picture is distor ted. • Keep away devices which may cause electrical disturbances, such as cellular

Nothing was recorded even though you set the timer setting correctly.

DVD/ VCR

Timer recording is not complete or did not start from the beginning.

Timer recording is impossible.

phones.

• There was a power failure during recording.

• The unit’s internal clock stopped due to a power failure that lasted for more than 30 seconds. Reset the clock (p. 24).

• The program contains copy protection signals that restrict copying.

• The timer setting overlapped with another setting that had priority.

• The timer setting overlapped with another setting that had priority (p. 30).

• There was not enough disc space.

• Make sure [TIMER SET].

appears on the front panel display of this unit. If not, press

–

Symptom Remedy

No image from HDMI connection. • Check the HDMI connection. (Check the status of the HDMI related

DVD/ VCR

There is no sound or the sound is distorted.

Setup menu cannot be called up. • Setup menus cannot be called up during DVD recording or DVD playback.

There is no picture. • If the main menu appears on the TV screen, press [RETURN] to exit.

Picture noise appears. • Clean the disc with a cleaning cloth. There is no sound. • If you are using the DIGITAL AUDIO OUT (COAXIAL) jack, check the

Sound is noisy. • Clean the disc with a cleaning cloth. No DTS sound is output. • This unit is not compatible with DTS sound. The disc does not play. • No disc is inserted.

Discs recorded on this unit cannot be

DVD

played on other DVD players.

The disc does not start playback from the beginning.

The unit starts playing the disc automatically.

Some functions such as stop, search or slow-motion playback cannot be performed.

The language for the sound track cannot be changed.

The subtitle language cannot be changed or turned Off.

The camera angles cannot be changed. • Multi-angles are not recorded on the DVD-video being played.

Recording does not stop immediately after you press [C].

The disc tray does not open when you press [A].

indications.)

• Check whether the connected monitor or other device supports HDCP. (This unit will not output a video signal unless the other device suppor ts HDCP.)

• Check the HDMI settings.

• Check whether the output format of this unit (HDMI FORMAT) matches the supported input format of the other connected device.

• If the unit is connected to the unauthorized display device with an HDMI cable, the audio/video signal may not be output when playing a commercial DVD-video.

• The HDMI sound is not output when “HDMI Audio” is set to “OFF”.

• Check the RCA audio cable connection. If you are using an HDMI-DVI conversion cable, you must connect the RCA audio cable, too.

• Check whether the output format of this unit (HDMI FORMAT) matches the supported input format of other connected devices.

• Check if the progressive scan mode is set correctly according to your TV (p. 58).

setting in “Audio Out” (p. 56)

• Clean the disc with a cleaning cloth.

• A blank disc is inserted.

• The disc is upside down. Insert the disc with the labeled side facing up.

• The disc is not correctly inserted.

• The unit cannot play certain discs (such as CD-ROMs) (p. 36).

• The region code on the DVD-video does not match the unit (p. 36).

• Moisture has condensed inside the unit. Remove the disc and leave the unit turned On for about 2 hours until the moisture evaporates (p. 3).

• If the disc was recorded on another recorder, the unit cannot play the disc if it was not finalized.

• If you are using DVD-RW/-R, please ensure you finalized the disc after recording (p. 35).

• Resume playback was activated (p. 39). Press [C] twice.

• You have inserted a disc whose title menu or DVD menu automatically appears on the TV screen when it is first inserted.

• The DVD-video features an auto playback function.

• Depending on the disc, you may not be able to do some of the operations. Refer to the instruction manual supplied with the disc.

• The title does not have the multilingual audio tracks.

• The DVD-video prohibits the changing of the language for the sound track.

• Multilingual subtitles are not recorded on the DVD-video.

• The angle-change operation is available whenever the disc contains a multiangle feature. Actual change will be performed when the feature comes up.

• The DVD-video prohibits changing angles.

• Try changing the angle using the DVD-video’s menu.

• It may take a few seconds for the unit to input disc data before recording stops.

• It may take a few seconds for the disc tray to open after you have recorded or edited a disc. This is because the unit is adding disc data to the disc.

English

Français

Español

–

Continued on next page.

“Repairing” appears on the TV screen.

English

You need to cancel the repairing process.

DVD

Français

Symptom Remedy

• If there is a power failure or the AC power cord is unplugged during recording, finalizing, formatting or editing (even after “Repairing” disappears), a repairing process will begin automatically just after turning the unit On

Repairing

Do you want to cancel a repairing process? When selecting “Yes”, the disc may not be usable.

Repairing

Yes

again.

• It may take several minutes up to about several hours.

• If you intend to cancel the repairing process, press [A] on the front panel, then select “Yes” and press [OK]. After that, press [A] to take out the disc. The disc which was cancelled during the repairing process MAY NOT work.

VCR

Español

Picture noise appears. • Head cleaning for VCR may be necessary. Refer to “Auto head cleaning”

(p.6)

• Adjust tracking control for better picture by pressing [TRACKING K / L] while you are playing a cassette tape.

The cassette tape does not play. • No cassette tape is inserted. Recording does not star t after you press

[REC].

• Make sure the cassette tape has an erase-protection tab when you record to a cassette tape. If needed, cover the hole with cellophane tape.

The remote control does not function. • Check if a cassette tape is in this unit. The motor rotates even when playback /

recording is stopped.

• The motor may rotate for a duration of approximately 5 minutes for efficient operation. This is not a malfunction.

–

Error message Cause Solution

Disc Error — Please eject the disc. —

Playback feature may not be available on this disc.

Region Error — Please eject the disc. — Playback is not authorized in your region.

Parental Lock On The current selected parental level

prohibits playback. Recording Error

This program is not allowed to be recorded. Recording Error

This program is not recordable in Video mode.

Recording Error Can not record on this disc.

Recording Error This program is not allowed to be

recorded. Recording Error

This disc is protected and not recordable.

Recording Error Disc is full. (No area for new recording)

Recording Error You cannot record more than 99 titles on

one disc. (The maximum is 99)

Recording Error You cannot record more than 999

chapters on one disc. (The maximum is 999)

Recording Error You cannot record on this disc as

Control Information is full.

Recording Error You cannot record on this disc as Power

Calibration Area is full.

Recording Error This disc is already finalized.

• Unplayable disc is inserted in the unit.

• The disc is upside down.

• Playback is not authorized for the region of the DVD-video which you inser ted in the unit.

• The current selected parental level prohibits playback.

• You are trying to record a copy of a prohibited program.

• You are trying to record the copyonce program onto a DVD-RW disc in Video mode.

• You are trying to record onto a disc which is unrecordable or the disc status is unable to record.

• The disc is dirty.

• The disc is damaged.

• You are trying to record the copyonce program onto a DVD-RW disc which is not compatible with CPRM.

• You are trying to record onto a protected disc which is set in the “DVD Menu”.

• You are trying to record onto a disc which has no space for recording.

• You are trying to record onto a DVD-RW/-R which already contains the maximum number of recording titles (99).

• You are trying to record onto a VR mode DVD-RW which already contains the maximum number of recording chapters (999).

• This disc has no space to write the Control Information when recording or deleting contents. When editing has been repeatedly performed, the control Information area may be full even when the recording area has enough space.

• When recordings are performed repeatedly onto an unstable disc, this area may fill up.

• Every time you insert a disc for recording, the disc’s working area will be used. If you repeat this frequently, it will be used up sooner and you may not be able to record the full 49 titles.

• You are trying to record onto a disc which is already finalized.

• Insert a standardized disc which have the logos on page “Playable Discs and Files” (p.36).

• Insert the disc with the labeled side facing up.

• Insert a DVD-video with region codes 1 or ALL.

• Check the “Parental Lock ” setting in the “Playback” menu (page 54).

• You cannot record a copy of a prohibited programs.

• Set “Format Mode” to “VR mode” (pages 47).

• Insert a recordable disc, and ensure the disc status satisfies the recording requirements (page 24).

• Clean the disc with a cleaning cloth.

• Replace the disc.

• Insert a DVD-RW disc in VR mode (ver.1.1 or 1.2 compatible with CPRM).

• Release the disc protect setting in the “DVD Menu” (page 53).

• Insert a recordable disc with enough recording space.

• Delete unnecessary titles (page 49).

• Delete unnecessar y chapter marks (page 51).

• Delete unnecessary titles (page 49).

• Insert a new disc.

• Undo the finalizing for a DVD-RW disc (page 35).

English

Français

Español

If you are still having trouble with the unit after checking “Troubleshooting” write down the error code and the error description, and call our help line (located on the front cover of this User Manual) to find an Authorized Service Center.

–

Continued on next page.

Language Code

Abkhazian 4748 Afar 4747

English

Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471

Français

Assamese 4765 Aymara 4771 Azerbaijani 4772 Bashkir 4847 Basque 5167 Bengali;Bangla 4860

Español

Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian 4853 Burmese 5971 Byelorussian 4851 Cambodian 5759 Catalan 4947 Chinese 7254 Corsican 4961 Croatian 5464 Czech 4965 Danish 5047 Dutch 6058 English 5160 Esperanto 5161 Estonian 5166 Faroese 5261 Fiji 5256 Finnish 5255 French 5264 Frisian 5271 Galician 5358 Georgian 5747 German 5051 Greek 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455

Language Code

Hungarian 5467 Icelandic 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish 5347 Italian 5566 Japanese 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean 5761 Kurdish 5767 Laothian 5861 Latin 5847 Latvian; Lettish 5868 Lingala 5860 Lithuanian 5866 Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955 Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian 6061 Occitan 6149 Oriya 6164 Oromo (Afan) 6159 Panjabi 6247 Pashto; Pushto 6265 Persian 5247 Polish 6258 Portuguese 6266 Quechua 6367 Rhaeto-Romance 6459 Romanian 6461

Language Code

Russian 6467 Samoan 6559 Sangho 6553 Sanskrit 6547 Scots Gaelic 5350 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560 Sindhi 6550 Singhalese 6555 Siswat 6565 Slovak 6557 Slovenian 6558 Somali 6561 Spanish 5165 Sundanese 6567 Swahili 6569 Swedish 6568 Taga log 6658 Taji k 6653 Tami l 6 647 Tatar 6666 Telu gu 6651 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Turkish 6664 Turkme n 6657 Twi 6669 Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6861 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yorub a 7161 Zulu 7267

–

Glossary

Analog Audio

An electrical signal that directly represents sound. Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. See also “Digital Audio”.

Aspect Ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as it is high).

Chapter (DVD only)

Similar to how a book is split up into several chapters, a title on a DVD is usually divided into chapters. See also “Title”.

Component Video Output

Each signal of luminance (Y ) and component (P is independent to output so that you can experience picture color as it is.

Also, due to compatibility with progressive video (480p), you can experience a higher-density picture than that in interlace (48 0i) mode.

Digital Audio

An indirect representation of sound by numbers. During recording, the sound is measured at discrete inter vals (44,100 times a second for CD audio) by an analog-to-digital converter, generating a stream of numbers. On playback, a digital-toanalog converter generates an analog signal based on these numbers. See also “Sampling Frequency” and “Analog Audio”.

Dolby Digital

The system to compress digital sound developed by Dolby Laboratories. It offers you sound of stereo(2ch) or multi channel audio.

Finalize

To make DVDs, which have been recorded on, possible to play on DVD players. With this unit, it is possible to finalize DVD-RW, and DVD-R.

HDMI™ (high definition multimedia interface)

A digital interface between audio and video source. It can transmit component video, audio, and a control signal with one cable connection.

JPEG (joint photographic experts group)

JPEG is a method of compressing still image files. You can copy JPEG f iles to CD-RW/-R or DVD-RW/-R from a computer and play the files on this unit.

B/CB

, PR/CR)

PCM (pulse code modulation)

The most common system of encoding digital audio, found on CD and DAT. Excellent quality, but requires a lot of data compared to formats such as Dolby Digital and MPEG audio. For compatibility with digital audio recorders (CD, MD and DAT) and AV amplifiers with digital inputs, this unit can conver t Dolby Digital and MPEG audio to PCM. See also “Digital Audio”.

Progressive Scan (480p)

A type of display that does not split each frame into fields, and instead scans directly through all the scan lines of each frame in order. Progressive scan provides less flickering and higher image resolution than traditional (480i) TV signals. Refer to page 58 for instructions on selective progressive scan mode.

Region Code

Regions associate discs and players with par ticular areas of the world. This unit will only play discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions).

Sampling Frequency

The rate which sound is measured by a specified inter val to turn into digital audio data. The number of samplings in one second is defined as sampling frequency. The higher the rate, the bet ter the sound quality.

S-Video Output

S-video delivers independent signals of color (C) and luminance (Y) to a TV as video signals, so that a higher-quality picture will be gained.

Title (DVD only)

A collection of chapters on DVD. See also “Chapter”.

Trac k

Audio CDs use tracks to divide up the contents of a disc. The DVD equivalent is called a chapter. See also “Chapter”.

Video mode

Video mode is the same recording format as used on the DVD videos you purchase in local shops. You can play the discs recorded in this format in most DVD players, however it offers only limited editing. You will need to finalize discs recorded in video mode before playing them back on other units.

VR mode

A basic recording format for DVD-RW. VR mode offers advanced editing, however it is playable only on VR mode compatible units. Finalization is recommended before playing them on other units.

English

Français

Español

–

Continued on next page.

Specifications

General

VCR video heads Four heads Power requirements 120V AC, 60Hz

English

Power consumption 30W (standby: 3.8W) Dimensions (width x height x depth) 17.2 x 4.0 x 10.3 inches (435 x 99.5 x 260mm) Weight 9.33 lbs. ( 4.23kg ) Operating temperature 41°F (5°C) to 104°F (40°C) Operating humidity Less than 80% (no condensation)

Recording

Français

Recording format -VR (video recording) format, Video format Recording discs DVD-Rewritable, DVD-Recordable

Video recording format

Sampling frequency Compression format

Audio recording format

Español

Sampling frequency Compression format

Terminals

Audio input

RCA jack x 2

Video input

RCA jack x 1

Front

S-video input

Mini DIN 4-pin x 1

Audio input

RCA jack x 2

Audio output

RCA jack x 4

Video input

RCA jack x 1

Video output

RCA jack x 1

S-video input

Mini DIN 4-pin x 1

Rear

S-video output

Mini DIN 4-pin x 1

Component video out

RCA jack x 3

Coaxial digital audio out

RCA jack x 1

HDMI output

HDMI jack x 1

13.5 MHz MPEG

48 kHz Dolby Digital

2V rms (input impedance: more than 22kΩ)

1Vp-p (75Ω)

Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω)

2V rms (input impedance: more than 22kΩ)

2V rms (output impedance: more than 1kΩ)

1Vp-p (75Ω)

Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω)

Y: 1Vp-p (75Ω) P

500mVp-p (75Ω)

: 700mVp-p (75Ω) PR/CR: 700mVp-p (75Ω)

B/CB

Note(s)

• The specifications and design of this product are subject to change without notice.

–

Español

Códigos de Región

Discos Reproducibles

Este aparato es compatible con la reproducción de los siguientes discos y archivos.

LogotiposDiscos reproducibles

DVD-video

DVD-RW (Modo de VR o Video)

DVD-R (Modo de Video)

CD-DA (CD de audio)

CD-RW

CD-R

SoportesArchivos reproducibles

JPEG

es una marca registrada de DVD Format/Logo Licensing Corporation.

CD-RW/-R DVD-RW/-R

El número presente en el interior el globo se refiere a una región del mundo.Este aparato puede reproducir discos DVD que estén rotulados para ALL las regiones o para la región 1.

Disco Grabable

Este aparato puede grabar a, DVD-RW y DVD-R. Los discos DVD-R pueden ser grabados sólo una vez. Los

discos DVD-RW pueden ser grabados y borrados muchas veces.

En este aparato los discos DVD-RW/-R serán grabados automáticamente en el modo DVD-VR.

Logotipos

Disco de 8 cm / 12 cm, un solo lado, una sola capa Tiempo de grabación máx. aprox.

DVD -RW

• Los siguientes discos se recomiendan para obtener una buena calidad de grabación y han sido comprobados como compatibles con este aparato. Sin embargo, según sea la condición del medio el equipo podría no leer el disco correctamente.

Verbatim DVD-R 8x, DVD-RW 2x JVC DVD-RW 4x Maxell DVD-R 8x/16x

El comportamiento de cualquier otro disco no está garantizado.

DVD -R

(modo SLP): 360 minutos (4,7 GB) (para 12 cm) 108 minutos (1,4 GB) (para 8 cm)

Atributos

EnglishEspañolEspañol

Disco no Grabable

• Un DVD-RW grabado en un modo distinto de -VR no será grabable en este aparato a menos que usted borre todo el contenido del disco. (Consulte la página 47.)

• Un DVD-R grabado en un modo distinto de -VR no será grabable en este aparato.

–

Conexión Básica

IN --- AUDIO --- OU T

IN --- VIDEO --- OUT

parte trasera de este aparato

cable RCA de audio

cable RCA de video

AUDIO IN

VIDEO IN

EspañolEspañolEnglish

Conexión a un Televisor con un Puerto Compatible con HDMI™

• HDMI emite las senales de video / audio sin convertirlas en senales analogicas.

• No es necesaria una conexion de audio.

HDMI OUT

cable HDMI

parte trasera de este aparato

HDMI IN

No incline el conector para introducirlo en la toma HDMI y compruebe que el tipo de toma corresponde con el tipo de conector.

Modo HDMI y señales efectivas de salida

Presione [HDMI] para seleccionar el modo de salida HDMI. Cada vez que se presiona [HDMI] el modo de salida varía como sigue.

Pantalla del

panel frontal

Presione [HDMI]

• El modo HDMI que no esté admitido por el dispositivo de exhibición será pasado por alto.

Señal de salida

de video

Progresivo de 480

Progresivo de 720

1080 entrelazado

Progresivo de 1080

–

Conﬁ guración Inicial

Cuando usted encienda este aparato por primera vez necesita seguir estos pasos.

1 Presione [y].

• Encienda el televisor. Seleccione la entrada a la cual está conectado el aparato.

2 Utilice [K / L] para seleccionar su idioma deseado, y

luego presione [OK] para establecerlo.

Initial Setup

OSD Language

English Français Español

Elija idioma de preparación.

3 Presione [OK] para activar “Ajste Manual de Reloj”.

Ajuste inicial

Ajste Manual de Reloj

- - - / - - / - - - - ( - - - )

- - : - - - -

4 Utilice [0 / 1] para seleccionar un elemento a

configurar, y utilice [K / L] para seleccionar el contenido de su preferencia, y luego presione [OK].

Ajuste inicial

Grabación Básica

1 Presione [DVD].

• Presione [OPEN/CLOSE A] para abrir la bandeja de discos e inser tar su disco con el rótulo aupntando hacia arriba. Presione de nuevo [OPEN/CLOSE A] para cerrar la bandeja de discos.

* Asegúrese de que el disco sea compatible con este

aparato.(Para obtener la lista de discos compatibles consulte la página 71.)

2 Para seleccionar un modo de grabación presione [REC

MODE].

60 min 120 min 240 min 360 min 480 min

Calidad del video

y el sonido

Buena

Deficiente

Modo de grabación

XP (1Hr) SP (2Hr) LP (4Hr) EP (6Hr) SLP (8Hr)

Tiempo de

grabación

Disco de 8 cm Disco de 12 cm

18 min 36 min 72 min 108 min 144 min

3 Presione [SOURCE] para seleccionar la posición

adecuada de la entrada externa (L1/L2) a la cual está conectado su sintonizador externo. Luego seleccione en el sintonizador externo el canal que desea grabar.

4 Presione [REC] para iniciar la grabación.

Note(s)

Para configurar la grabación a un toque con temporizador (OTR)...

Esta es una manera sencilla de configurar el tiempo de grabación en bloques de 30 minutos. Presione [REC] repetidamente hasta que aparezca en la pantalla del televisor la longitud deseada de grabación (30 minutos a 6 horas). Comenzará la grabación a un toque con temporizador.

EnglishEspañolEspañol

Ajste Manual de Reloj

ABR /16 / 2015 (JUE)

12 : 00 AM

OK :

Ajuste hora.

RETURN : Salir de Ajuste inicial.

0:30

6h00m

0h30m

1h00m

5h30m

(grabación normal)

Para cambiar la duración de la grabación durante la grabación a un toque con temporizador:

Presione [REC] repetidamente hasta que aparezca la duración deseada.

Para cancelar la grabación a un toque con temporizador dentro del tiempo especificado:

Presione [STOP C].

5 Para de tener la grabación presione [STOP C].

–

Grabación con Temporizador

Usted puede programar el equipo para que grabe hasta 12 programas, con un mes de anticipación. También hay disponibles grabaciones de programas diarias o semanales.

Antes de grabar, asegúrese de que

• Antes de establecer una programación del temporizador configure el reloj.

• Inserte un disco grabable con suficiente espacio libre o una cinta de cassette con una lengüeta de grabación.

1 Presione [TIMER]. 2 Utilice [K / L] para seleccionar “Prog. nuevo”, y luego

presione [OK].

Programaci. con Reloj

Fcha Empieza Termina

EspañolEspañolEnglish

3 Configure una programación del temporizador. 4 Presione [OK]. 5 Presione [TIMER SET] para configurar una

programación del temporizador.

• Aparecerá en el pantalla del panel frontal.

Configure la fecha.

Fcha

ABR /17

L1/L2

Configure las horas de inicio y finalización.

Fcha

ABR /17

L1/L2

JUE ABR /16 11:00AM

Prog. nuevo

Empieza

Termina

- - : - -

GRAB a Modo

DVD

SP 2h00m

Empieza Termina

12 : 00AM

- - : - -

GRAB a Modo

DVD

SP 2h00m

L1/L2

Reproducción

1 Presione [DVD].

2 Abra la bandeja de discos, y Inserte un disco.

3 Cerrar la bandeja de discos.

4 Comience a reproducir.

5 Detenga la reproducción.

Seleccione la posición adecuada de la entrada externa (L1/ L2) a la cual está conectado su sintonizador externo.

Fcha

Empieza Termina

12 : 00AM 1 : 00AM

ABR /17

L1/L2

GRAB a Modo

DVD

SP 1h00m

Seleccione un medio de grabación (“DVD” o “VCR”).

Fcha

Empieza Termina

12 : 00AM 1 : 00AM

ABR /17

L1/L2

GRAB a Modo

DVD

SP 1h00m

Seleccione un modo de grabación.

Fcha

Empieza Termina

12 : 00AM 1 : 00AM

ABR /17

L1/L2

GRAB a Modo

DVD

SP 1h00m

–

W T

s f

W T w W

t v c

c d

W T

t s

T g w e d W

T a

LIMITED WARRANTY

NINETY (90) DAY LABOR / ONE (1) YEAR PARTS

ARRANTY COVERAGE:

his warranty obligation is limited to the terms as set forth

below.

HO IS COVERED:

his product warranty is issued to the original purchaser or the

person receiving the product as a gift against defects in materials

nd workmanship as based on the date of original purchase

(“Warranty Period”) from an Authorized Dealer. The original

ales receipt showing the product name and the purchase date

rom an authorized retailer is considered such proof.

HAT IS COVERED:

his warranty covers new products if a defect in material or

orkmanship occurs and a valid claim is received within the

arranty Period. At its option, the company will either (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product

hat is new or which has been manufactured from new, or ser-

iceable used parts and is at least functionally equivalent or most

omparable to the original product in current inventory, or (3) refund the original purchase price of the product. Replacement products or parts provided under this warranty are

overed against defects in materials and workmanship from the

ate of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage for you. When a product or part is

xchanged, any replacement item becomes your property and the replaced item becomes company property. When a refund is

iven, your product becomes company property. Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements

an result in delay.

HAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:

his Limited Warranty applies only to new company manufac-

ured products that can be identified by the trademark, trade

name, or logo affixed to it. This Limited Warranty does not apply

o any hardware product or any software, even if packaged or old with the product, as manufacturers, suppliers, or publishers

may provide a separate warranty for their own products pack-

ged with the bundled product.

he company is not liable for any damage to or loss of any pro-

rams, data, or other information stored on any media contained

ithin the product, or other additional product or part not covred by this warranty. Recovery or reinstallation of programs, ata or other information is not covered under this Limited

arranty.

or a part that has been modified without written company permission, or (d) if any serial number has been removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including refurbished product sold “AS IS” by some retailers.

This Limited Warranty does not cover:

Shipping charges to return defective product. Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna/signal source systems outside of the product. Product repair and/or part replacement because of improper installation or maintenance, connections to improper voltage supply, power line surge, lightning damage, retained images or screen markings resulting from viewing fixed stationary content for extended periods, product cosmetic appearance items due to normal wear and tear, unauthorized repair or other cause not within the control of the company. Damage or claims for products not being available for use, or for lost data or lost software. Damage from mishandled shipments or transit accidents when returning product. A product that requires modification or adaptation to enable it to

operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications. A product used for commercial or institutional purposes (including but not limited to rental purposes). Product lost in shipment and no signature verification receipt can be provided. Failure to operate per Owner’s Manual.

TO OBTAIN ASSISTANCE… Contact the Customer Care Center at:

1-866-341-3738

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

his warranty does not apply (a) to damage caused by accident,

buse, misuse,

(b) to damage caused by service performed by anyone other than

ompany approved Authorized Service Location, (c) to a product

neglect, misapplication, or non-supplied product,

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501

Printed in China

2VMN00209 ★★★★★

E9P8JUH

*2VMN00209*
