Magnavox DP170MGXF User Manual

Owner’s Manual

Please read before using this unit.

DVD / CD Player

DP170MGXF

INSTRUCCIONES EN

ESPAÑOL INCLUIDAS.

Supplied Accessories

remote control NB098UD AA 1.5 VDC battery x 2

RCA audio / video cables WPZ0102TM018 / WPZ0102LTE01

owner’s manual 1VMN27833

Owner’s Manual

Connecting to RF Modulator (Not Supplied)

If your TV has antenna in jack only, it is still possible to

connect this unit to your TV by using an RF modulator. In this case, follow the instructions below.

1) Disconnect the power cords of the devices from the

AC outlet.

2) Make the connection as illustrated below.

3) Set your RF modulator’s channel 3/4 switch to either 3 or 4, whichever the TV channel is least used in

your area. If your RF modulator has a modulator / antenna switch, set it according to the manual supplied with the RF modulator.

4) Plug in the power cords of the devices to the AC outlet.

5) Turn on your TV and choose the same channel as you set the RF modulator’s channel 3/4 switch to.

For more details, follow the manual supplied with the RF modulator.

rear of this unit

RCA video cable

rear of TV

VHF / UHF

antenna

cable TV

company

RCA audio cable

rear of your RF

modulator

RF coaxial

cable

Set channel 3 or 4

ANT. IN

RF coaxial cable

AUDIO IN TO TVANT. INLRCHANNEL43VIDEO IN

Note:

• RF modulator is not supplied with this unit. You need to purchase it at your local store.

• The quality of picture may become poor if this unit is connected to an RF modulator.

If you need additional operating assistance after

reading this owner’s manual, please call

TOLL FREE : 1-800-605-8610

or visit our web site at

http://www.magnavox.com/support

Contents

PRECAUTIONS

IMPORTANT SAFETY INSTRUCTIONS ....................................... 2

About the Discs ......................................................................... 5

Playable Discs ...........................................................................................5

Unplayable Discs .....................................................................................5

SETUP

Connections .............................................................................. 6

Connection to a TV .................................................................................6

HDMI Audio ............................................................................................... 7

HDMI Mode and Actual Output Signals ......................................... 7

Connection to an Audio System .......................................................8

Rear Terminals .......................................................................................... 8

About the Remote Control ....................................................... 9

Remote Control .......................................................................................9

Installing the Batteries for the Remote Control ........................... 9

DVD FUNCTIONS

Playback .................................................................................. 10

MP3 / JPEG Playback ................................................................ 11

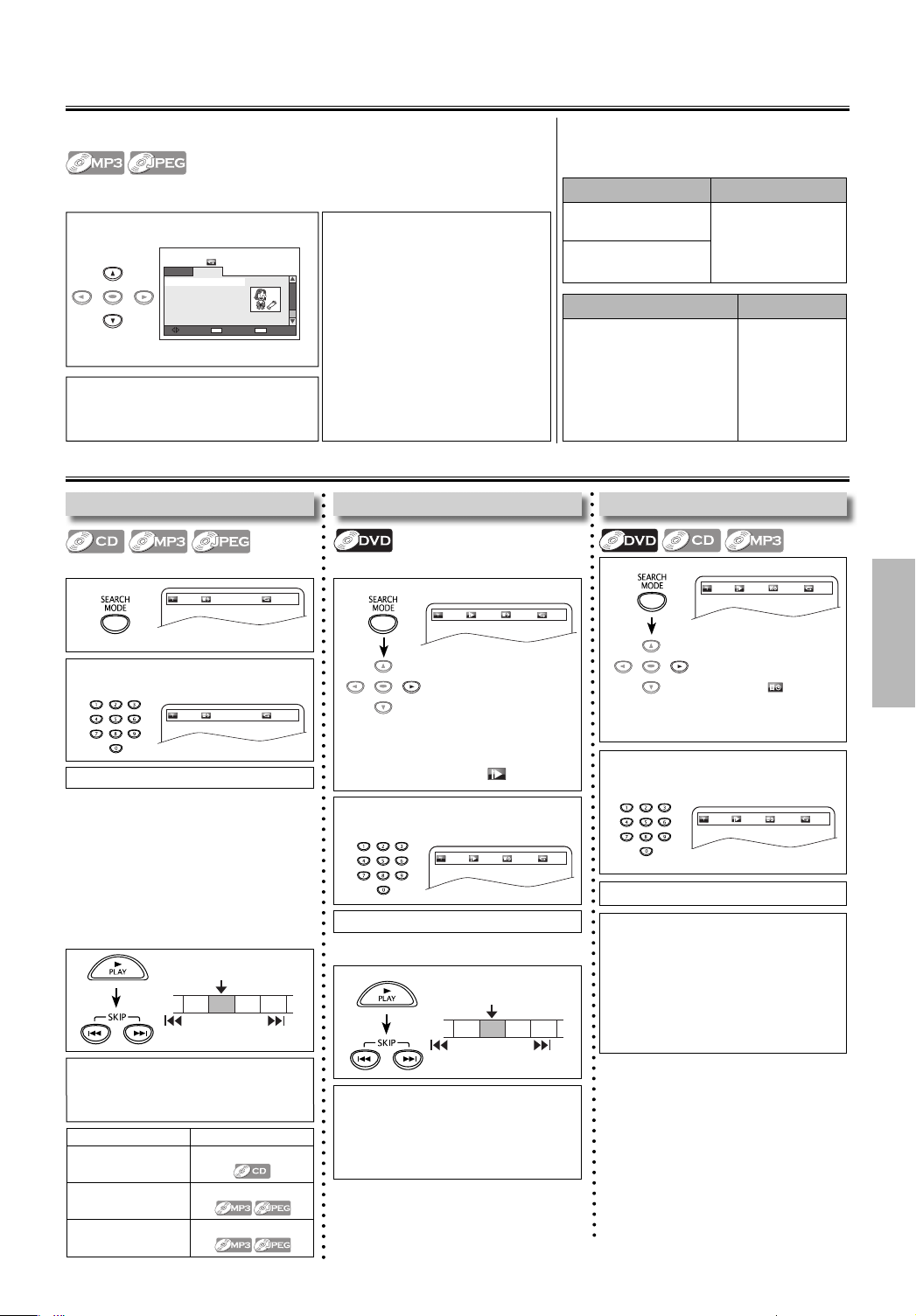

Search Functions ..................................................................... 11

Using Track / File / Folder Search .....................................................11

Using Title / Chapter Search ..............................................................11

Using Time Search .................................................................................11

On-Screen Display ................................................................... 12

Repeat / Random / Programmed Playback ............................ 13

Repeat Playback .....................................................................................13

Repeat A-B Playback .............................................................................13

Random Playback ..................................................................................13

Programmed Playback .........................................................................13

Special Settings ....................................................................... 14

Subtitle Language..................................................................................14

Audio Language .....................................................................................14

Camera Angles ........................................................................................14

Stereo Sound Mode ..............................................................................14

DVD Setting ............................................................................. 15

Language Setting ...................................................................................15

Display Setting ........................................................................................16

Video Setting ...........................................................................................16

Audio Setting ...........................................................................................17

Others Setting .........................................................................................18

INFORMATION

Troubleshooting Guide ........................................................... 19

Specifications .......................................................................... 19

LIMITED WARRANTY ................................................................ 20

Español .................................................................................... 23

Quick Use Guide.......................................................... Back Cover

PRECAUTIONSSETUP

DVD FUNCTIONS

INFORMATIONEspañol

PRECAUTIONS

The model and serial numbers of this unit may be found on the cabinet. You should record and retain those numbers for future reference.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPARATUS TO RAIN OR MOISTURE. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The important note is located on the rear or bottom of the cabinet.

Model No.:

Serial No.:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated“dangerous voltage”within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacture’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments / accessories specified by the

manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio / TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

–

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (Battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire, or the like.

LASER SAFETY

This apparatus employs a laser. Only a qualified service person should remove the cover or attempt to service this apparatus, due to possible eye injury.

CAUTION:

CAUTION: Visible and invisible laser radiation when open and inter lock defeated. Do not stare into beam. LOCATION: Inside, near the deck mechanism.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

To Avoid the Hazards of Electrical Shock and Fire

• Do not handle the AC power cord with wet hands.

• Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• Do not put your fingers or objects into the unit.

Location and Handling

• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.

• Avoid a place with drastic temperature changes.

• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and / or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.

• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

• Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.

Dew Condensation Warning

• Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few hours until its inside gets dry.

- The unit is moved from a cold place to a warm place.

- Under conditions of high humidity.

- After heating a cold room.

Note about Recycling

• This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Notice for Progressive Scan Output

• Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525(480) progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p (480p) DVD player, please contact our customer service center.

PRECAUTIONS

–

TRADEMARK INFORMATION

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of

PRECAUTIONS

Products that have earned ENERGY STAR® are designed to protect the environment through superior energy efficiency.

Dolby Laboratories.

is a trademark of DVD Format / Logo Licensing

Corporation.

SYMBOLS USED IN THIS MANUAL

The following symbols appear in some headings in this manual.

: Description refers to DVD-video.

: Description refers to audio CD.

: Description refers to DVD, CD-RW/-R with MP3 files.

: Description refers to DVD, CD-RW/-R with JPEG

files.

MAINTENANCE

Servicing

• Please refer to relevant topics on the “Troubleshooting Guide” on page 19 before returning the unit.

• If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power plug, and please call our help line mentioned on the front page to locate an authorized service center.

Cleaning the Cabinet

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth.

• Never use a solvent, thinner, benzene or alcohol to clean the unit. Do not spray insecticide liquid near the unit. Such chemicals may discolor the surface or damage the unit.

Cleaning Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center to out. Do not wipe in a circular motion.

• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.

Cleaning the Disc Lens

• If this unit still does not perform properly although you refer to the relevant sections and to “Troubleshooting Guide” in this owner’s manual, the laser optical pickup unit may be dirty. Consult your dealer or an authorized service center for inspection and cleaning of the laser optical pickup unit.

Disc Handling

• When you handle a disc, hold it by its edge and try not to touch the surface of the disc.

• Always store the disc in its protective case when not in use.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

–

with the design is a registered trademark of

About the Discs

Playable Discs

Type of

media

DVD-video

*1, 2, 4, 6, 8

Mark (logo) Region code

DVD+RW

DVD+R

*1, 4, 5, 6, 7, 8

audio CD

*4, 6, 8

CD-RW

CD-R

*4, 5, 6, 7, 8

Kodak

Picture CD

*4, 5, 6, 7, 8

is a trademark of DVD Format / Logo Licensing Corporation.

Recorded

signals

digital video

(MPEG2)

digital video

(MPEG2)

MP3 / JPEG

digital audio

MP3 / JPEG

JPEG

Disc size Disc types

5 inches

(12 cm)

3 inches

(8 cm)

5 inches

(12 cm)

3 inches

(8 cm)

DVD-Video

DVD

MP3/JPEG

audio CD

MP3/JPEG

e.g.)

chapter 1 chapter 2 chapter 1

e.g.)

chapter 1 chapter 2 chapter 1

e.g.)

title 1 title 2

chapter 3 chapter 4

title 1 title 2

chapter 3 chapter 4

folder 1 folder 2

le 1

track 1 track 2 track 5

le 1

le 3

le 2 le 1

track 3

folder 1 folder 2

le 3

le 2 le 1

is trademark of Eastman Kodak Company.

le 4

track 4

le 4

chapter 2

le 2

track 6

le 2

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back. *2: Certain DVD-video do not operate as described in this manual due to the intentions of the disc’s producers. *3: Discs recorded in the VR (Video Recording) format cannot be played back. *4: Scratched or stained discs may not be played back. *5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special

properties of discs.

*6: You can play back discs which bear the marks above. If you use non-standardized discs, this unit may not play them back. Even

if they are played back, the sound or video quality will be compromised. *7: If the recorded portion of the disc is too small (smaller than 2 *8: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.

/16 inches (55mm) across), it may not be played back.

PRECAUTIONS

Unplayable Discs

NEVER play back the following discs as malfunction may result! DVD-RAM / DVD-audio / CD-i / photo CD / DVD with region codes other than 1 or ALL / DTS-CD / DVD-ROM for personal computers

/ CD-ROM for personal computers / HD DVD / Blu-ray Disc

On the following disc, the sound MAY NOT be heard. super audio CD

Any other discs without compatibility indications

Note:

• Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super audio CD layer cannot be delivered.

–

Connections

Connection to a TV

SETUP

Method 1 Method 2 Method 3*

analog audio standard picture good picture better picture best audio /

AUDIO IN

and

RCA video

SETUP

RCA audio

cable

This unit

AUDIO OUT VIDEO OUT S-VIDEO OUT

*1 This unit is compatible with the progressive scan system. The feature provides you with the higher quality pictures than traditional

output system does. To utilize this feature, a component connection is required. Refer to “HDMI Video Resolution” or “ Progressive ” setting on page 18 to set the video resolution.

*2 Analog audio connection is not required for this connection.

cable

VIDEO IN

VIDEO

OUT

S-video

cable

S-VIDEO IN

S-VIDEO

OUT

oror

COMPONENT

VIDEO IN

RCA component video cable

COMPONENT

VIDEO OUT

COMPONENT

VIDEO IN

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1

• RCA video cable x 1 Please purchase the rest of the necessary cables at your local store.

Method 4*


HDMI IN

HDMI

cable

HDMI OUT

Note:

• Connect this unit directly to your TV. If RCA audio / video cables are connected to a VCR, pictures may be distorted due to the copy protection system.

• Changing “ Progressive ” setting is not available while HDMI cable is connected.

If your TV is compatible with 525 (480) progressive scanning and you want to enjoy that high quality picture;

You must select the connection COMPONENT VIDEO OUT above and progressive scanning mode. To set the mode, set “Progressive” to “On” in “Video” menu. Refer to pages 15-16 for more details.

• When “Progressive” is “On”, video signals from the unit’s VIDEO OUT and S-VIDEO OUT jacks will be distored or not be output at all.

If your TV is not compatible with progressive scanning;

Use this unit in interlace mode and set “Progressive” to “Off” in “ Video” menu or by pressing and holding [PLAY B] on the front of the unit for more than 5 seconds.

After connecting to your TV:

You will need to switch to video input on your TV. This is usually marked TV / VIDEO, INPUT or AUX. Please refer to your TV’s owner’s manual for details.

Input modes for common TV brands:

Listed below are inputs for common brand name TV’s.

Admiral: AUX Curtis Mathis: LINE1, LINE2, 00, 90, 91, 92, 93 GE: INPUT, TV / VCR, 00, 90, 91, 92, 93 Hitachi: INPUT, AUX JVC: VIDEO, VIDEO1, VIDEO2, VIDEO3 Kenwood: AUX LXI-Series: 00 Magnavox: AUX CHANNEL

Panasonic: TV / VIDEO RCA: INPUT, TV / VCR, 00, 90, 91, 92, 93 Samsung: TV / VIDEO Sanyo: VIDEO Sharp: 00 Sony: VIDEO1, VIDEO2, VIDEO3 Toshiba: TV / GAME Zenith: 00

–

HDMI Audio

Media Audio Recording Format

DVD-Video

audio CD 2ch PCM 2ch PCM

MP3 2ch PCM 2ch PCM

Dolby Digital Dolby Digital Multi PCM

LPCM Multi PCM Multi PCM

Bistream LPCM

HDMI Audio Setting

HDMI Mode and Actual Output Signals

Press [HDMI] to change the resolution of the video signal being output from the HDMI OUT. The video resolution changes as follows every time [HDMI] is pressed. Or change the setting in the “Resolution” in the settings menu.

480p 480p

e.g.) when 480p is selected as an default.

To play back the digital video images of DVD-video via an HDMI connection, it is necessary that both the player and the display device (or an AV receiver / amplifier) support a copyright protection system called HDCP

(highbandwidth digital content protection system). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV device. This unit supports HDCP. Please read the operating instructions of your

display device (or AV receiver / amplifier) for more information.

720p 480p

1080i 480p

1080p

Note:

• When using HDCP-incompatible display device, the picture will not be viewed properly.

• The audio signals from the HDMI jack (including the sampling frequency, the number of channels and bit length) may be limited by the device that is connected.

• Among the display device(s) that support HDMI, some do not support audio output (for example, projectors). In connections with device such as this unit, audio signals are not output from the HDMI output jack.

• When this unit’s HDMI jack is connected to a DVI-D compatible display device(s) (HDCP compatible) with an HDMIDVI converter cable, the signals are output in digital RGB.

• Pressing [HDMI] does not work when HDMI cable is not connected, or when no video signal is being output from the HDMI OUT jack.

• Pressing [HDMI] does not work when a DVI compatible display devices is connected. Change the video resolution in the “Resolution” in the settings menu.

• When you make a selection, the TV monitor temporarily goes blank and then comes back again. If it does not, press [HDMI] repeatedly to change the resolution or press and hold [PLAY B] on the front panel for 5 seconds to change the setting back to its default.

SETUP

–

Connection to an Audio System

Analog Audio Connection

stereo system

Audio

RCA audio cable

This unit

SETUP

AUDIO OUT

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1

Please purchase the rest of the necessary cables at your local store.

analog audio input jacks

AUDIO

OUT

Digital Audio Connection

Dolby Digital decoder,

MD deck or DAT deck

digital audio

coaxial cable

DIGITAL AUDIO OUT

Connection

Connecting to a Dolby Digital decoder for Dolby Digital audio output.

Connecting to the other device (an MD deck or DAT deck etc.) without Dolby Digital decoder.

* To complete these settings, refer to pages 15,17.

COAXIAL

Setting

digital audio input jack

Setup > Audio>

Digital Out

Bitstream

LPCM

Note:

• The audio source on a disc in a Dolby Digital multi-channel surround format cannot be recorded as digital sound by an MD or DAT deck.

• By hooking this unit up to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi-channel surround sound as heard in the movie theaters.

• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

• “Digital Out” setting is not available while HDMI audio is output.

Rear Terminals

1 2

43 5

HDMI OUT jack

Use to connect a TV with an HDMI compatible port with an HDMI cable.

DIGITAL AUDIO OUT COAXIAL jack

Connect a digital audio coaxial cable here through the digital audio coaxial input jack of a decoder or audio receiver.

AUDIO OUT jacks

Connect an audio cable here through the audio input jacks of a television or other audio device.

COMPONENT VIDEO OUT jacks

Connect a component video cable here through the component video input jacks of a television.

S-VIDEO OUT jack

Connect an S-video cable here through the S-video input jack of a television.

VIDEO OUT jack

Connect a video cable here through the video input jack of a television.

–

+ 16 hidden pages
