SCOPE
：
This specification applies to the Pb Free high current type SMD inductors for
(1) SHAPES AND DIMENSIONS
(2) ELECTRICAL SPECIFICATIONS
(3) CHARACTERISTICS

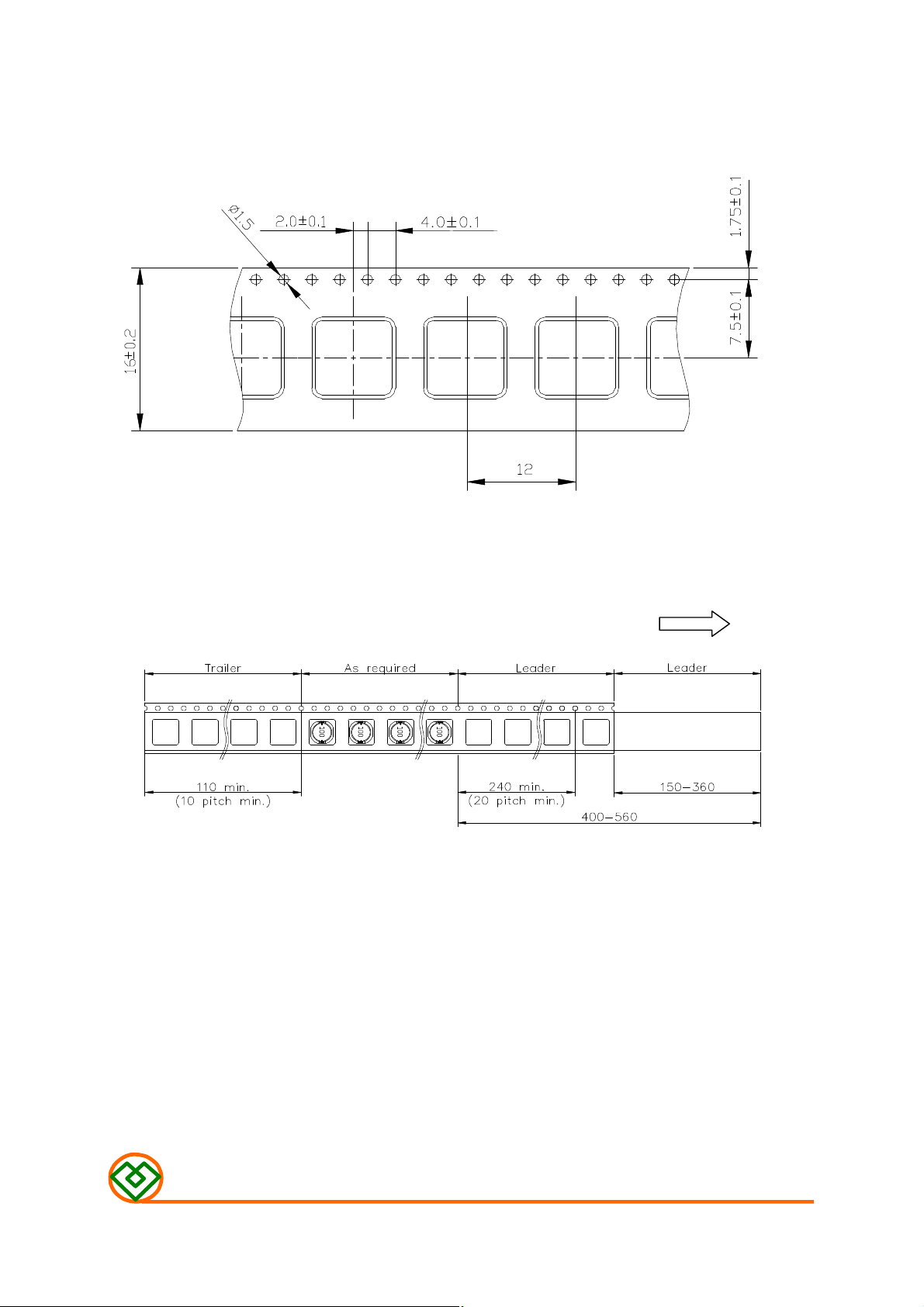

MSCDRI-6030L-SERIES
PRODUCT INDENTIFICATION
MSCDRI - 6030L - 100 M
① ② ③ ④
① Product Code
② Dimensions Code
③ Inductance Code
④ Tolerance Code
A: 6.30 Max. mm
B: 6.20 Max. mm
C: 3.00 Max. mm
D: 4.80 Ref. mm
E: 0.60 Ref. mm
F: 2.00 Ref. mm
SEE TABLE 1
TEST INSTRUMENTS
L : HP 4284A PRECISION LCR METER (or equivalent)
RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)
(3)-1 Ambient temperature ……......... ＋60℃ Max.
(3)-2 Operate temperature range ...... －40℃～＋125℃
(Including self temp. rise)
(3)-3 Storage temperature range ...... －40℃～＋125℃
MAG.LAYERS
MSCDRI-6030L-SERIES Page 1/8
TABLE 1
MAGLAYERS
PT/NO.
MSCDRI-6030L-1R0□
MSCDRI-6030L-1R5□
MSCDRI-6030L-2R2□
MSCDRI-6030L-3R3□
MSCDRI-6030L-3R6□
MSCDRI-6030L-4R7□
MSCDRI-6030L-6R2□
MSCDRI-6030L-6R8□
MSCDRI-6030L-100□
MSCDRI-6030L-120□
MSCDRI-6030L-150□
MSCDRI-6030L-180□
MSCDRI-6030L-220□
MSCDRI-6030L-270□
MSCDRI-6030L-330□
MSCDRI-6030L-390□
MSCDRI-6030L-470□
MSCDRI-6030L-560□
MSCDRI-6030L-680□
MSCDRI-6030L-820□
MSCDRI-6030L-101□
MSCDRI-6030L-151□
Inductance Percent Test Resistance
L(μH) Tolerance Frequency RDC(Ω) Max. IDC1(A) IDC2(A)
1.0 M,N 100kHz/0.25V 14m 3.59 5.32 1R0
1.5 M,N 100kHz/0.25V 16m 2.93 4.45 1R5
2.2 M,N 100kHz/0.25V 20m 2.42 4.13 2R2
3.3 M,N 100kHz/0.25V 26m 1.89 3.54 3R3
3.6 N 100kHz/0.25V 26m 1.89 3.54 3R6
4.7 M,N 100kHz/0.25V 33m 1.66 3.03 4R7
6.2 N 100kHz/0.25V 39m 1.45 2.69 6R2
6.8 M,N 100kHz/0.25V 41m 1.40 2.60 6R8
10 M,N 100kHz/0.25V 59m 1.14 2.25 100
12 M,N 100kHz/0.25V 63m 1.04 2.12 120
15 M,N 100kHz/0.25V 75m 0.93 2.04 150
18 M,N 100kHz/0.25V 89m 0.85 1.86 180
22 M,N 100kHz/0.25V 0.115 0.77 1.58 220
27 M,N 100kHz/0.25V 0.144 0.70 1.35 270
33 M,N 100kHz/0.25V 0.168 0.63 1.19 330
39 M,N 100kHz/0.25V 0.180 0.58 1.16 390
47 M,N 100kHz/0.25V 0.225 0.53 1.05 470
56 M,N 100kHz/0.25V 0.264 0.48 0.97 560
68 M,N 100kHz/0.25V 0.324 0.44 0.87 680
82 M,N 100kHz/0.25V 0.396 0.40 0.76 820
100 M,N 100kHz/0.25V 0.498 0.36 0.69 101
150 M,N 100kHz/0.25V 0.738 0.31 0.52 151
Rated DC Current
Marking
※ □ specify the inductance tolerance,M(±20%),N(±30%)
※ IDC1： Based on inductance change (△L/Lo： ≦ drop 30%) @ambient temperature 25℃
IDC2： Based on temperature rise (△T：40℃ TYP.)
Rated DC Current： The less value which is IDC1 or IDC2.
MAG.LAYERS
MSCDRI-6030L-SERIES Page-2/8
(4) RELIABILITY TEST METHOD
MECHANICAL
TEST ITEM SPECIFICATION TEST DETAILS
Substrate bending
△L/Lo≦±5%
There shall be direction is made approximately 3mm.(keep time 30 seconds)
no mechanical PCB dimension shall the page 7/9
damage or elec- F(Pressurization)
trical damege.
The sample shall be soldered onto the printed circuit board
in figure 1 and a load applied unitil the figure in the arrow
PRESSURE ROD
figure-1
Vibration
Solderability
△L/Lo≦±5%
There shall be and a frequency of from 10 to 55Hz/1 minute repeated should
no mechanical be applied to the 3 directions (X,Y,Z) for 2 hours each.
damage. (A total of 6 hours)
New solder Flux (rosin, isopropyl alcohol{JIS-K-1522}) shall be coated
More than 90% over the whole of the sample before hard, the sample shall
The sample shall be soldered onto the printed circuit board
and when a vibration having an amplitude of 1.52mm
then be preheated for about 2 minutes in a temperature of
130～150℃ and after it has been immersed to a depth 0.5mm
below for 3±0.2 seconds fully in molten solder M705 with
a temperature of 245±5℃.
More than 90% of the electrode sections shall be couered
with new solder smoothly when the sample is taken out of
the solder bath.
MAG.LAYERS
MSCDRI-6030L-SERIES
Page-3/8
