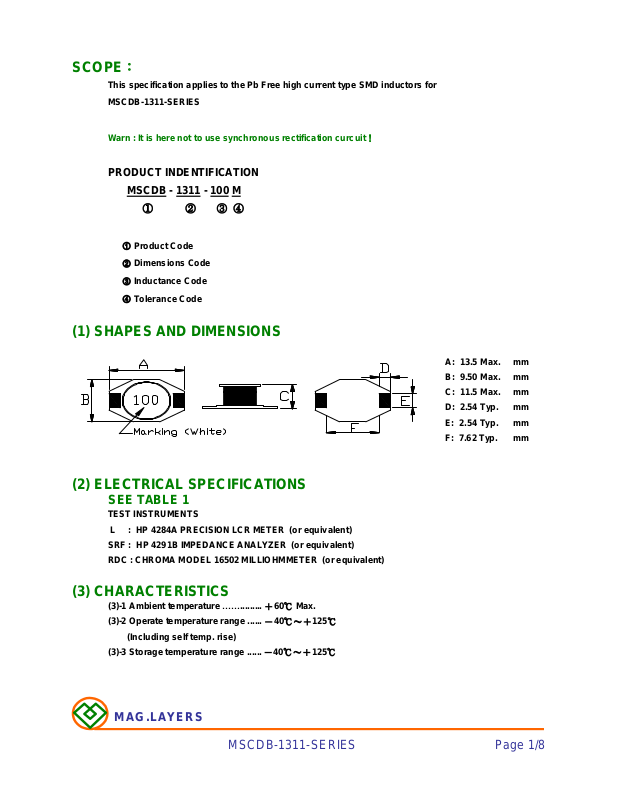

SCOPE
：
(1) SHAPES AND DIMENSIONS
(2) ELECTRICAL SPECIFICATIONS
(3) CHARACTERISTICS
This specification applies to the Pb Free high current type SMD inductors for
MSCDB-1311-SERIES
Warn : It is here not to use synchronous rectification curcuit！
PRODUCT INDENTIFICATION
MSCDB - 1311 - 100 M
① ② ③ ④
① Product Code
② Dimensions Code
③ Inductance Code
④ Tolerance Code
A: 13.5 Max. mm
B: 9.50 Max. mm
C: 11.5 Max. mm
D: 2.54 Typ. mm
E: 2.54 Typ. mm
F: 7.62 Typ. mm
SEE TABLE 1
TEST INSTRUMENTS
L : HP 4284A PRECISION LCR METER (or equivalent)
SRF : HP 4291B IMPEDANCE ANALYZER (or equivalent)
RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)
(3)-1 Ambient temperature ……......... ＋60℃ Max.
(3)-2 Operate temperature range ...... －40℃～＋125℃
(Including self temp. rise)
(3)-3 Storage temperature range ...... －40℃～＋125℃
MAG.LAYERS
MSCDB-1311-SERIES Page 1/8
TABLE 1
MAGLAYERS
PT/NO.
MSCDB-1311-1R0□
Inductance Percent Test SRF(MHz) Resistance Rated DC Current
L(μH) Tolerance Frequency Typ. RDC(Ω)Max.IDC1(A) IDC2(A)
1.0 M,N 100kHz/0.25V 100 8m 16 10.0 1R0
Marking
MSCDB-1311-2R2□
MSCDB-1311-3R3□
MSCDB-1311-4R7□
MSCDB-1311-100□
MSCDB-1311-150□
MSCDB-1311-220□
MSCDB-1311-330□
MSCDB-1311-470□
MSCDB-1311-680□
MSCDB-1311-101□
MSCDB-1311-151□
MSCDB-1311-221□
MSCDB-1311-331□
MSCDB-1311-471□
MSCDB-1311-681□
MSCDB-1311-102□
2.2 N 100kHz/0.25V 60 18m 14 8.5 2R2
3.3 N 100kHz/0.25V 50 20m 12 6.5 3R3
4.7 N 100kHz/0.25V 35 23m 9.5 4.5 4R7
10 M,N 100kHz/0.25V 22 33m 8.0 3.5 100
15 M,N 100kHz/0.25V 18 42m 7.0 3.0 150
22 M,N 100kHz/0.25V 11 54m 5.5 2.5 220
33 M,N 100kHz/0.25V 9 80m 4.0 2.0 330
47 M,N 100kHz/0.25V 8 0.10 3.8 1.6 470
68 M,N 100kHz/0.25V 7 0.17 3.0 1.2 680
100 K,M 100kHz/0.25V 5 0.22 2.5 1.2 101
150 K,M 100kHz/0.25V 4 0.34 2.0 0.9 151
220 K,M 100kHz/0.25V 3.5 0.44 1.6 0.7 221
330 K,M 100kHz/0.25V 2.5 0.70 1.2 0.6 331
470 K,M 100kHz/0.25V 2.0 0.95 1.0 0.3 471
680 K,M 100kHz/0.25V 2.0 1.20 1.0 0.2 681
1000 K,M 100kHz/0.25V 1.5 2.00 0.8 0.1 102
※ □ specify the inductance tolerance,K(±10%),M(±20%),N(±30%)
※ IDC1： Based on inductance change (△L/Lo：drop 10% Max.) @ambient temperature 25℃
IDC2： Based on temperature rise (△T： 40℃ TYP.)
Rated DC Current： The less value which is IDC1 or IDC2.
MAG.LAYERS
MSCDB-1311-SERIES Page-2/8
(4) RELIABILITY TEST METHOD
MECHANICAL
TEST ITEM SPECIFICATION TEST DETAILS
Substrate bending
△L/Lo≦±5%
There shall be direction is made approximately 3mm.(keep time 30 seconds)
no mechanical PCB dimension shall the page 7/9
damage or elec- F(Pressurization)
trical damege.
The sample shall be soldered onto the printed circuit board
in figure 1 and a load applied unitil the figure in the arrow
PRESSURE ROD
figure-1
Vibration
Solderability
△L/Lo≦ ±5%
There shall be and a frequency of from 10 to 55Hz/1 minute repeated should
no mechanical be applied to the 3 directions (X,Y,Z) for 2 hours each.
damage. (A total of 6 hours)
New solder Flux (rosin, isopropyl alcohol{JIS-K-1522}) shall be coated
More than 90% over the whole of the sample before hard, the sample shall
The sample shall be soldered onto the printed circuit board
and when a vibration having an amplitude of 1.52mm
then be preheated for about 2 minutes in a temperature of
130～150℃ and after it has been immersed to a depth 0.5mm
below for 3±0.2 seconds fully in molten solder M705 with
a temperature of 245±5℃.
More than 90% of the electrode sections shall be couered
with new solder smoothly when the sample is taken out of
the solder bath.
MAG.LAYERS
MSCDB-1311-SERIES
Page-3/8
MECHANICAL
Sodering temperature (℃)
(230
℃)
2 min
TEST ITEM SPECIFICATION
Resistance to There shall be Temperature profile of reflow soldering
Soldering heat no damage or
(reflow soldering) problems.
300
250
soldering
(Peak temperature 260±3℃ 10 sec
200
150
100
50
Pre-heating
150 ~ 180℃
30 sec Min
+0
10
sec.
Slow cooling
(Stored at room
temperature)
2 min. or more
The specimen shall be passed through the reflow oven with the
condition shown in the above profile for 1 time.
The specimen shall be stored at standard atmospheric conditions
for 1 hour, after which the measurement shall be made.
ELECTRICAL
TEST ITEM SPECIFICATION TEST DETAILS
Dielectric There shall be AC 100V voltage shall be applied for 1 minute acrosset the top
withstand no other surface and the terminal of this sample
voltage damage or
problems.
Temperature
characteristics
△L/L20℃≦±10%
0～2000 ppm/℃ an ambient temperature of -20 to +85℃,and the value
The test shall be performed after the sample has stabilized in
calculated based on the value applicable in a normal
temperature and narmal humidity shall be △L/L20℃≦±10%.
MAG.LAYERS
MSCDB-1311-SERIES
Page-4/8
ENVIROMENT CHARACTERISTICS
TEST ITEM SPECIFICATION
High temperature
storage
△L/Lo≦ ±5%
There shall be Upon completion of the measurement shall be made after the
no mechanical sample has been left in a normal temperature and normal
damage. humidity for 1 hour.
The sample shall be left for 96±4 hours in an atmospere with
a temperature of 85±2℃ and a normal humidity.
Low temperature
storage
Change of
temperature in the table 2 below and then it shall be subjected to standard
△L/Lo≦ ±5%
There shall be Upon completion of the test, the measurement shall be made
no mechanical after the sample has been left in a normal temperature and
damage. normal humidity for 1 hour.
△L/Lo≦ ±5%
There shall be atmospheric conditions for 1 hour, after which measurement
no other dama- shall be made.
ge of problems
The sample shall be left for 96±4 hours in an atmosphere with
a temperature of -25±3℃.
The sample shall be subject to 5 continuos cycles, such as shown
table 2
Temperature Duration
1
2
3
4
－25±3℃
(Themostat No.1)
Standard
atmospheric
85±2℃
(Themostat No.2)
Standard
atmospheric
30 min.
No.1→No.2
30 min.
No.2→No.1
Moisture storage
Test conditions：
The sample shall be reflow soldered onto the printed circuit board in every test.
△L/Lo≦ ±5%
There shall be Upon completion of the test, the measurement shall be made
no mechanical after the sample has been left in a normal temperature and
damage. normal humidity more than 1 hour.
MAG.LAYERS
The sample shall be left for 96±4 hours in a temperature of
40±2℃ and a humidity(RH) of 90～ 95%.
MSCDB-1311-SERIES
Page-5/8
(5) LAND DIMENSION (Ref.)
PCB: GLASS EPOXY t＝1.6mm
(5)-1 LAND PATTERN DIMENSIONS
(STANDARD PATTERN)
unit：mm
(5)-2 SUBSTRATE BENDING TEST BENDING TEST BOARD
MAG.LAYERS
MSCDB-1311-SERIES Page-6/7
(6) PACKAGING
(6)-1 CARRIER TAPE DIMENSIONS (mm)
(6)-2 TAPING DIMENSIONS (mm)
Unreeling
Direction
MAG.LAYERS
MSCDB-1311-SERIES
Page-7/8
(6)-3 REEL DIMENSIONS (mm)
Tape width
(6)-4 QUANTITY
250pcs/Reel
The products are packaged so that no damage will be sustained.
:24
MAG.LAYERS
MSCDB-1311-SERIES
Page-8/8
