Mag Layers MSCD-106 User Manual

SCOPE

：

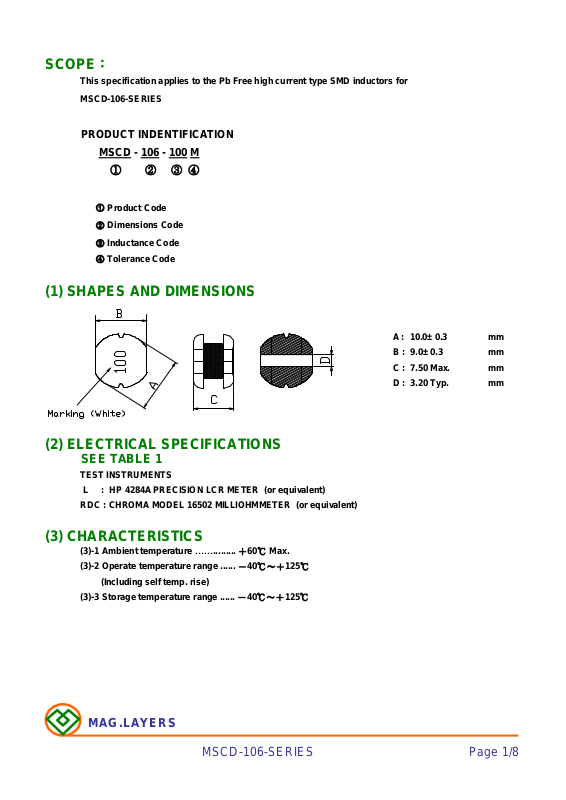

This specification applies to the Pb Free high current type SMD inductors for

(1) SHAPES AND DIMENSIONS

(2) ELECTRICAL SPECIFICATIONS

(3) CHARACTERISTICS

MSCD-106-SERIES

PRODUCT INDENTIFICATION
MSCD - 106 - 100 M
① ② ③ ④

① Product Code
② Dimensions Code
③ Inductance Code

④ Tolerance Code

A : 10.0± 0.3 mm
B : 9.0± 0.3 mm
C : 7.50 Max. mm
D : 3.20 Typ. mm

SEE TABLE 1

TEST INSTRUMENTS
L : HP 4284A PRECISION LCR METER (or equivalent)
RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)

(3)-1 Ambient temperature ……......... ＋60℃ Max.

(3)-2 Operate temperature range ...... －40℃～＋125℃

(Including self temp. rise)

(3)-3 Storage temperature range ...... －40℃～＋125℃

MAG.LAYERS

MSCD-106-SERIES Page 1/8

TABLE 1

MAGLAYERS

PT/NO.
MSCD-106-100□
MSCD-106-120□
MSCD-106-150□
MSCD-106-180□
MSCD-106-220□
MSCD-106-270□
MSCD-106-330□
MSCD-106-390□
MSCD-106-470□
MSCD-106-560□
MSCD-106-680□
MSCD-106-820□
MSCD-106-101□
MSCD-106-121□
MSCD-106-151□
MSCD-106-181□
MSCD-106-221□
MSCD-106-271□
MSCD-106-331□
MSCD-106-391□
MSCD-106-471□
MSCD-106-561□
MSCD-106-681□
MSCD-106-821□
MSCD-106-102□

Inductance Percent Test Resistance Rated DC Current

L(μH) Tolerance Frequency RDC(Ω)Max. IDC1(A) IDC2(A)

10 M 100kHz/0.25V 60m 3.50 4.20 100
12 M 100kHz/0.25V 70m 3.40 3.80 120
15 M 100kHz/0.25V 80m 3.10 3.50 150
18 M 100kHz/0.25V 90m 3.00 3.20 180
22 M 100kHz/0.25V 0.10 2.60 2.85 220
27 M 100kHz/0.25V 0.11 2.40 2.70 270
33 M 100kHz/0.25V 0.12 2.30 2.50 330
39 M 100kHz/0.25V 0.14 2.10 2.35 390
47 M 100kHz/0.25V 0.17 1.95 2.20 470
56 M 100kHz/0.25V 0.19 1.85 2.00 560
68 M 100kHz/0.25V 0.22 1.65 1.90 680

82 M 100kHz/0.25V 0.25 1.50 1.70 820
100 K,M 100kHz/0.25V 0.35 1.40 1.60 101
120 K,M 100kHz/0.25V 0.40 1.30 1.40 121
150 K,M 100kHz/0.25V 0.47 1.20 1.30 151
180 K,M 100kHz/0.25V 0.63 1.00 1.10 181
220 K,M 100kHz/0.25V 0.73 0.95 1.05 221
270 K,M 100kHz/0.25V 0.97 0.90 0.95 271
330 K,M 100kHz/0.25V 1.15 0.80 0.85 331
390 K,M 100kHz/0.25V 1.30 0.75 0.80 391
470 K,M 100kHz/0.25V 1.48 0.65 0.70 471
560 K,M 100kHz/0.25V 1.90 0.60 0.65 561
680 K,M 100kHz/0.25V 2.45 0.50 0.55 681
820 K,M 100kHz/0.25V 2.55 0.48 0.50 821

1000 K,M 100kHz/0.25V 3.00 0.46 0.48 102

Marking

※ □ Specify the inductance tolerance, K(±10%),M(±20%)
※ IDC1： Based on inductance change (△L/Lo：drop 10% Max.)@ ambient temperature 25℃

IDC2： Based on temperature rise (△T： 40℃ TYP.)
Rated DC Current： The less value which is IDC1 or IDC2.

MAG.LAYERS

MSCD-106-SERIES

Page-2/8

(4) RELIABILITY TEST METHOD

MECHANICAL

TEST ITEM SPECIFICATION TEST DETAILS

Substrate bending

△L/Lo≦±5%

There shall be direction is made approximately 3mm.(keep time 30 seconds)
no mechanical PCB dimension shall the page 7/9
damage or elec- F(Pressurization)
trical damege.

The sample shall be soldered onto the printed circuit board

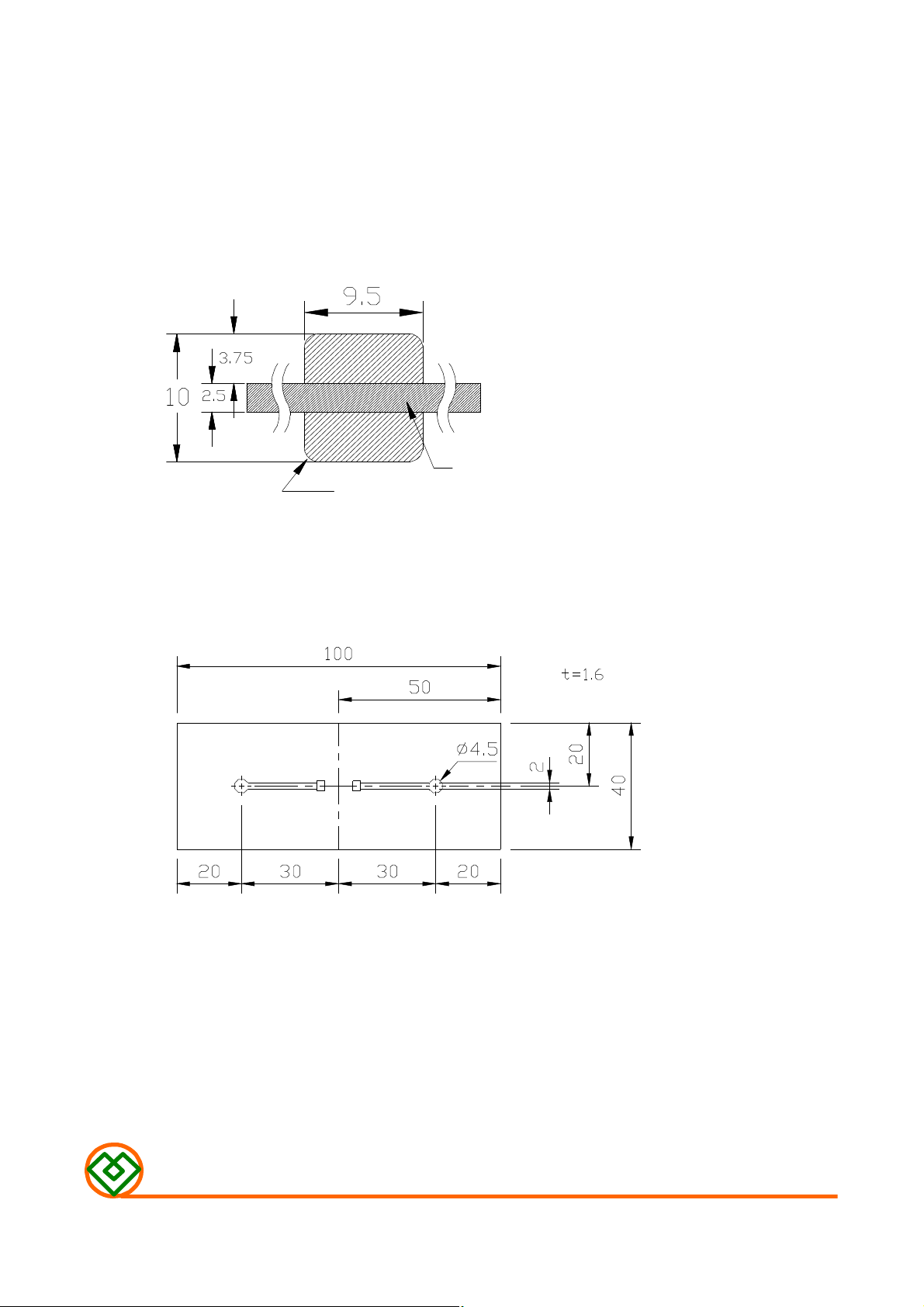

in figure 1 and a load applied unitil the figure in the arrow

PRESSURE ROD

figure-1

Vibration

Solderability

△L/Lo≦±5%

There shall be and a frequency of from 10 to 55Hz/1 minute repeated should

no mechanical be applied to the 3 directions (X,Y,Z) for 2 hours each.

damage. (A total of 6 hours)

New solder Flux (rosin, isopropyl alcohol{JIS-K-1522}) shall be coated
More than 90% over the whole of the sample before hard, the sample shall

The sample shall be soldered onto the printed circuit board
and when a vibration having an amplitude of 1.52mm

then be preheated for about 2 minutes in a temperature of
130～150℃ and after it has been immersed to a depth 0.5mm
below for 3±0.2 seconds fully in molten solder M705 with
a temperature of 245±5℃.
More than 90% of the electrode sections shall be couered
with new solder smoothly when the sample is taken out of
the solder bath.

MAG.LAYERS

MSCD-106-SERIES

Page-3/8
