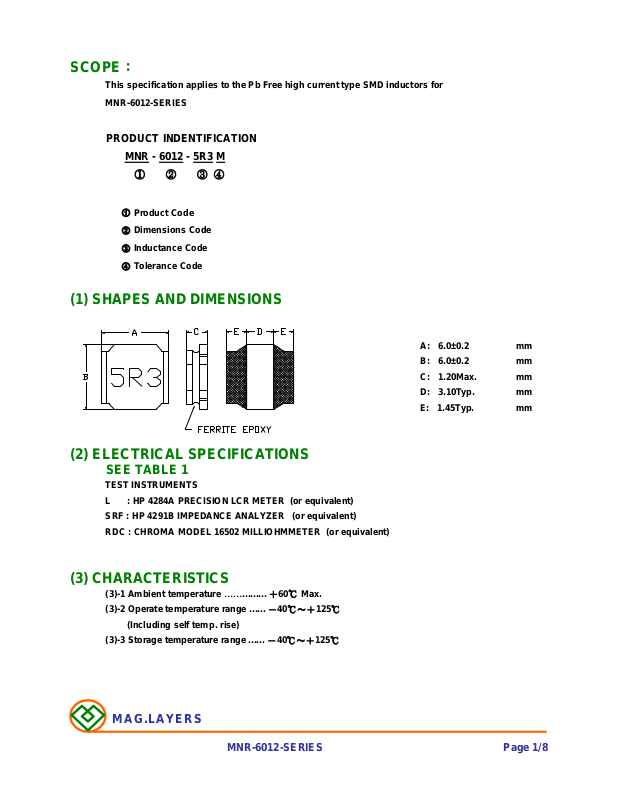

Mag Layers MNR-6012 User Manual

SCOPE

：

(1) SHAPES AND DIMENSIONS

(2) ELECTRICAL SPECIFICATIONS

(3) CHARACTERISTICS

This specification applies to the Pb Free high current type SMD inductors for
MNR-6012-SERIES

PRODUCT INDENTIFICATION
MNR - 6012 - 5R3 M

① ② ③ ④

① Product Code
② Dimensions Code
③ Inductance Code
④ Tolerance Code

A: 6.0±0.2 mm
B: 6.0±0.2 mm
C: 1.20Max. mm
D: 3.10Typ. mm
E: 1.45Typ. mm

SEE TABLE 1

TEST INSTRUMENTS
L : HP 4284A PRECISION LCR METER (or equivalent)
SRF : HP 4291B IMPEDANCE ANALYZER (or equivalent)
RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)

(3)-1 Ambient temperature ……......... ＋60℃ Max.

(3)-2 Operate temperature range ...... －40℃～＋125℃

(Including self temp. rise)

(3)-3 Storage temperature range ...... －40℃～＋125℃

MAG.LAYERS

MNR-6012-SERIES

Page 1/8

TABLE 1

MAGLAYERS

PT/NO.
MNR-6012-3R3□
MNR-6012-5R3□
MNR-6012-6R8□
MNR-6012-8R2□

MNR-6012-100□

※ □ specify the inductance tolerance,M(±20%),N(±30%)
※ IDC1： Based on inductance change (△L/Lo：drop 30% Max.) @ ambient temp. 25℃

IDC2： Based on temperature rise (△T： 40℃ Typ.)
Rated DC Current： The less value whith is IDC1 or IDC2.

Inductance Percent L Test SRF(MHz) Resistance

L(μH) Tolerance Frequency Min. RDC(Ω)±20% IDC1(A) IDC2(A)

3.3 M,N 100KHz/0.25V 42 90m 1.80 1.50 3R3

5.3 M,N 100KHz/0.25V 34 0.110 1.50 1.40 5R3

6.8 M,N 100KHz/0.25V 30 0.165 1.30 1.18 6R8

8.2 M,N 100KHz/0.25V 25 0.185 1.10 1.10 8R2
10 M,N 100KHz/0.25V 22 0.235 1.00 1.00 100

Rated DC Current

Marking

MAG.LAYERS

MNR-6012-SERIES Page-2/8

(4) RELIABILITY TEST METHOD

MECHANICAL

TEST ITEM SPECIFICATION TEST DETAILS

Substrate bending

△L/Lo≦±5%

There shall be direction is made approximately 3mm.(keep time 30 seconds)
no mechanical PCB dimension shall the page 7/9
damage or elec- F(Pressurization)
trical damege.

The sample shall be soldered onto the printed circuit board
in figure 1 and a load applied unitil the figure in the arrow

PRESSURE ROD

figure-1

Vibration

Solderability

△L/Lo≦ ±5%

There shall be and a frequency of from 10 to 55Hz/1 minute repeated should
no mechanical be applied to the 3 directions (X,Y,Z) for 2 hours each.
damage. (A total of 6 hours)

New solder Flux (rosin, isopropyl alcohol{JIS-K-1522}) shall be coated
More than 90% over the whole of the sample before hard, the sample shall

The sample shall be soldered onto the printed circuit board
and when a vibration having an amplitude of 1.52mm

then be preheated for about 2 minutes in a temperature of
130～150℃ and after it has been immersed to a depth 0.5mm
below for 3±0.2 seconds fully in molten solder M705 with
a temperature of 245±5℃.
More than 90% of the electrode sections shall be couered
with new solder smoothly when the sample is taken out of
the solder bath.

MAG.LAYERS

MNR-6012-SERIES

Page-3/8
