INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE
INSTALLATION MANUAL
Gas 30-inch
Free-standing and Slide-in
PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE
THE MANUAL IS INTENDED TO ASSIST IN THE INITIAL INSTALLATION AND ADJUSTMENTS OF THE RANGE.
CLEARANCE DIMENSIONS
Range may be installed with zero inches clearance
Only qualified personnel should
install or service this range.
Read "Safety Instructions" in the
Use & Care book before using
range,
adjacent to (against) combustible construction at the rear
and on the sides below the cooktop. For complete
information in regard to the installation of wall cabinets
above the range and clearances to combustible wall
above the cooking top see the installation drawings. For
SAFETY CONSIDERATIONS do not install a range in any
combustible cabinetry which is not in accord with the
installation drawings.
Improper installation, adjustment,
alteration, service, maintenance or
use of range can result in serious
injury or property damage.
WARNING
• ALL RANGES CAN TIP AND
CAUSE INJURIES TO
PERSONS.
• INSTALLANTI-TIP DEVICES
PACKEDWITH RANGE.
° FOLLOW ALL INSTALLATION
INSTRUCTIONS.
with some of the features referred
I Your range maynotbe equipped
to in this manual:
* NOTE: 30 inch dimension between cooking top and wall
cabinet shown on illustration does not apply to ranges
with an elevated oven. The 30 inch dimension may be
reduced to not less than 24 inches when the wall cabinets
in a domestic home are protected with fireproof materials
in accordance with American National Standards -
National Fuel Gas Code or in mobile homes when they
are protected with fireproof materials in accordance with
the Federal Standard for Mobile Home Construction and
Safety.
To eliminate the risk of burns or fire by reaching over
heated surface units, cabinet storage space located
above the surface units should be avoided. If cabinet
storage is to be provided, the risk can be reduced by
installing a range hood that projects horizontally a
minimum of 5 inches beyond the bottom of the cabinets.
CAUTION: Some cabinets and building materials
are not designed to withstand the heat produced by the
normal safe operation of a listed appliance.
Discoloration or damage, such as delamination, may
occur.
8101 P592-60
(05-04-00)

INSTALLATION DRAWINGS
36' HEIGHT
OF CABINET
RECOMMENDED GAS LINE
LOCATION SELF-CLEAN
MODELS.
t
2 114"
300_ECABiNET
NING._..,_
3 I14"
LOCATION NON-SELF
ED GAS LINE
CLEANING MODELS,
FOR 120 VOLT
GROUNDED ELECTRJCAL
OUTLET IN tHIS AREA.
OUTLET MUST BE FLUSH.
AREA IS 13"W × g'H,
LOCATED 9 3/_" ABOVE
FLOOR, AND 1 112' FRO_iI
RIGHT WALL.
25" NORMAL
CABINET
DEPTH
24* CABINET
DEPTH
*- ALLOWED 18" FOR
NON-CONVECT MO,DELS.
'231/4"
DEPTH
36" HEIGHT
OF CABINET
/ I / RECOMMENDED GAS
CAUTION: _ CEAB INGET_/'I_
SOME WHITE EUROPEAN STYLE CABINETS ARE EQUIPPED WITH DELICATE
WHITE VINYL DRAWER AND DOOR FRONTS. THE VINYL MAY NOT BE
DESIGNED TO WITHSTAND THE HEAT PRODUCED BY THE NORMAL SAFE
OPERATION OF A SELF-CLEAN RANGE. DISCOLORATION OR DELAMINATtON
MAY OCCUR. TO AVOID POSSIBLE DAMAGE, WE RECOMMEND INCREASING
THE 30" CABINET OPENING TO 31 1/4" MINIMUM AND USING HEAT SHIELD
KIT-CABKIT V. THE COUNTERTOP CUT-OUT MUST REMAIN 30".
PROVIDEFOR 120VOLT
GROUNDEDELECTRICAL
OUTLETINTHISAREA.
OUTLETMUSTBEFLUSH.
FLATAREA ,,_
_._ 25" MINIMUM
24" CABINET
NOTE:
ON CABINET TOPS WITH
FORMED FRONT EDGE, SHAVE
RAISED SECTION TO CLEAR TOP.
CABINET
TOPDEPTH
* Whenreplacinganexistingunit,a maximumof23 1/2"isacceptable.Ifthe cutdepthexceeds23 1/2",usefillerkit(K70Fill).
-2-

Oo 0 O0
I I
L I
ANY COMBUSTIBLE
SURFACE
f
1 3"
I
0" CLEARANCE
BETWEEN ADJACENT
COMBUSTIBLE
CONSTRUCTION AND
THE BACK AND SIDES
OF THE RANGE
BELOW THE COOKING
SURFACE.
MAX. DEPTH
OF CABINETS
ABOVE COOK TOP
DIMENSION "A" SIDE CLEARANCE ABOVE COOKING SURFACE
TOP BURNER RATE FOR CONVENTIONAL SELF-CLEAN
NATURAL GAS (SEE RATING PLATE) OVEN OVEN
9,200 BTU/HR OR LESS O INCHES ,3 INCHES
MORE THAN 9,200 BTU/HR 1 INCH 3 INCHES
Check the range model number plate to see if the range is
approved for installation in mobile homes and/or
recreational vehicles. If approved the following items are
applicable.
MOBILE HOMES
The installation of a range designed for mobile home
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part
3280 [formerly the Federal Standard for Mobile Home
Construction and Safety, Title 24 HUD, (Part 280)] or,
when such standard is not applicable, the Standard for
Manufactured Home Installations, ANSI A225.1/NFPA
501A, or with local codes.
In Canada the range must be installed in accordance with
the current CSA Standard C22.1 - Canadian Electrical
Code Part 1 and Section Z240.4.1 - Installation
Requirements for Gas Burning Appliances in Mobile
Homes (CSA Standard CAN/CSA - Z240MH).
ART #9219-922
RECREATIONAL VEHICLES
The installation of a range designed for recreational
vehicles must conform with state or other codes or, in the
absence of such codes, with the Standard for
Recreational Vehicles, ANSI A119.2-latest edition.
In Canada the range must be installed in accordance with
CAN/CSA - Z240.6.2 - Electrical Requirements for R.V.'s
(CSA Standard CAN/CSA - Z240 RV Series) and Section
Z240.4.2 - Installation Requirements for Propane
Appliances and Equipment in R.V.'s (CSA Standard
CAN/CSA - Z240 RV Series).
LOCATING THE RANGE
Do not set range over holes in the floor or other locations
where it may be subject to strong drafts. Any opening in
the wall behind the range and in the floor under the range
should be sealed. Make sure the flow of cooling/
ventilation air is not obstructed below the range.
NOTE: A range should NOT be installed over kitchen
carpeting.
-3-

ANTI-TIP DEVICE INSTALLATION INSTRUCTIONS
NOTE: A risk of range tip over exists if the appliance is
not installed in accordance with the installation
instructions provided. The proper use of this device
minimizes the risk of TIP-OVER. In using this device the
consumer must still observe the safety precautions as
stated in the USE and CARE MANUAL and avoid using
the oven door and/or lower drawer as a step stool.
Installation instructions are provided for wood and cement
in either floor or wall. Any other type of construction may
require special installation techniques as deemed
necessary to provide adequate fastening of the ANTI-TIP
bracket to the floor or wall.
STEP 1 - Locating The Bracket (see figure 1)
A. Determine where either the right or left rear "edge" of
the range will be located and mark the floor or wall.
B. Place the BRACKET 15/16" from the marked "EDGE"
toward center of opening and against the back wall as
shown in figure 1, with orientation hole against wall.
C. Use the bracket as a template and mark the required
holes, as shown in figure 1 for the type of construction
you will be using.
STEP 2 - Anti-Tip Bracket Installation
A. Wood Construction:
1. Floor: Locate the center of the two holes identified
in figure 1 as "HOLES FOR FLOOR". Drill a 1/8"
pilot hole in the center of each hole (a nail or awl
may be used if a drill is not available). Secure the
ANTI-TIP bracket to the floor with the two screws
provided. Proceed to STEP 3.
2. Wall: Locate the center of the two holes identified
in figure 1 as "HOLES FOR WALL. Drill an angled
1/8" pilot hole in the center of each hole as shown
in figure 2. (A nail or awl may be used if a drill is
not available). Secure the ANTI-TIP bracket to the
wall with the two screws provided as shown in
figure 2. Proceed to STEP 3.
B.
Cement or Concrete Construction:
1. Suitable screws for concrete construction can be
obtained at a hardware store. Drill the required
size hole for the screws obtained into the
concrete at the center of the holes identified in
figure 1 as "HOLES FOR FLOOR". Secure the
ANTI-TIP bracket to the floor. Proceed to STEP 3.
STEP 3 - Range Installation
A. Align the range to its designated location and slide it
back into position. Make sure that the leveling foot is
fully inserted into and secured by the ANTI-TIP
bracket. Note: A minimum clearance of 1/4" is
required between the range and the leveling foot that
will engage the ANTI-TIP bracket, see figure 2.
B. For safety considerations as well as optimum
performance adjust the range so that it is level. This
may be checked by placing a spirit level or a large
pan of water on the cooktop or the oven rack. If an
adjustment is required on free-standing, pull the range
forward, tip the range and rotate the leveling feet as
required. Slide-in ranges require total removal from
cabinet before an adjustment can be made.
C. To check the range for proper installation of the
anti-tip bracket: Use a flashlight and look underneath
the bottom of the range to see that one of the rear
leveling legs is engaged in the bracket slot.
D. Proceed with the remainder of the installation
instructions.
FIGURE 1
SCREWS MUST
EN R WOOD \
OR M TAt \
WAL PLAVEmx \
-4-
NOTE: USE A MINIMUM OF (2) SCREWS
TO iNSTALL ANTI TIP _RACKET
TO THE WAIl OR FLOOR
SCREW BRACKFT
/ [0 WALL
\
/
SIDE IN
-Q SECdRE
FIGURE 2
RANGE •

CONNECTING THE RANGE
ELECTRIC SUPPLY
The appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code,
ANSI/NFPA 70.
In Canada the range must be installed in accordance with
the current CSA Standard C22.1 - Canadian Electrical
Code Part 1.
ELECTRICAL SUPPLY CONNECTION:
The range requires 120 volts, 60 cycle alternating current
from an outlet. See serial plate for rating.
User may experience occasional circuit tripping if Ground
Fault Circuit Interrupter (GFCl) outlet or breaker is in use.
kWARNING
Electrical Grounding Instructions
This appliance is equipped with a (three-prong)
grounding plug for your protection against shock
hazard and should be plugged directly into a
properly grounded receptacle. Do not cut or remove
the grounding prong from this plug.
kWARNING
GAS SUPPLY CONNECTION: (See figure 4)
A QUALIFIED SERVICEMAN OR GAS APPLIANCE
INSTALLER MUST MAKE THE GAS SUPPLY
CONNECTION. Leak testing of the appliance shall be
conducted by the installer according to the
instructions given in section h.
NATURAL GAS SUPPLY LINE MUST HAVE A NATURAL
GAS SERVICE REGULATOR. INLET PRESSURE TO
THIS APPLIANCE SHOULD BE REDUCED TO A
MAXIMUM OF 14 INCHES WATER COLUMN (0.5
POUNDS PER SQUARE INCH (P.S.I.) LIQUEFIED
PETROLEUM (LP.)/PROPANE GAS SUPPLY LINE
MUST HAVE ALP. GAS PRESSURE REGULATOR.
INLET PRESSURE TO THIS APPLIANCE SHOULD BE
REDUCED TO A MAXIMUM OF 14 INCHES WATER
COLUMN (0.5 P.S.I.). INLET PRESSURES IN EXCESS
OF 0.5 P.S.I. CAN DAMAGE THE APPLIANCE
PRESSURE REGULATOR AND OTHER GAS
COMPONENTS IN THIS APPLIANCE AND CAN
RESULT IN A GAS LEAK.
A GAS CUTOFF VALVE SHOULD BE PUT IN AN
a.
ACCESSIBLE LOCATION IN THE SUPPLY LINE
AHEAD OF THE RANGE, FOR TURNING ON AND
TURNING OFF GAS SUPPLY. If range is to be
connected to house piping with flexible or semi-rigid
metal connectors for gas appliances, CONNECTOR
NUTS MUST NOT BE CONNECTED DIRECTLY TO
PIPE THREADS. THE CONNECTORS MUST BE
INSTALLED WITH ADAPTORS PROVIDED WITH
THE CONNECTOR.
DISCONNECT ELECTRICAL SUPPLY
BEFORE SERVICING THE APPLIANCE.
GAS SUPPLY
Installation of this range must conform with local codes or,
in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1-1atest edition.
In Canada the range must be installed in accordance with
the current CGA Standard CAN/CGA-B149 - Installation
Codes for Gas Burning Appliances and Equipment and/or
local codes.
In The Commonwealth Of Massachusetts
This product must be installed by a licensed plumber or
gas fitter when _nstalled within the Commonwealth of
Massachusetts.
A "T" handle type manual gas valve must be installed in
:he gas supply line to this appliance.
A flexible gas connector, when used must not exceed a
length of three (3) feet/36 inches.
b.
The house piping and/or range connector used to
connect the range to the main gas supply must be
clean, free of metal shavings, rust, dirt and liquids (oil
or water). Dirt, etc. in the supply lines can work its
way into the range manifold and in turn cause failure
of the gas valves or controls and clog burners and/or
pilot orifices.
CAUTION: DO NOT LIFT OR MOVE RANGE BY
DOOR HANDLES, OR BACKGUARD.
c. Turn off all pilots and main gas valve of other gas
appliances.
d. Turn off main gas valve at meter.
e. Before connecting range, apply pipe thread
compound approved for LPG to all threads.
Connect range to gas supply at appliance pressure
regulator using adaptors supplied with flexible
connector. Rigid pipe may also be used. See rating
plate for type of gas range has been manufactured
for.
g. Turn on main gas valve at meter, and relight pilots at
other gas appliances.
-5-

Gas Supply ConnectionsForRangesWith
Appliance PressureRegulator
Located InTheBottom OfRange
SUPPLY LINE
_ FLEXIBLE
4
4_IIADAP"ER FEMALE ELBOW
h.
Apply a non-corrosive leak detection fluid to all joints
and fittings in the gas connection between the supply
line shut-off valve and the range. Include gas fittings
and joints in the range if connections were disturbed
during installation. Check for leaks! Bubbles
appearing around fittings and connections will indicate
a leak. If a leak appears, turn off supply line gas
shut-off valve, tighten connections, turn on the supply
line gas shut off valve, and retest for leaks.
CAUTION: NEVER CHECK FOR LEAKS WITH A
FLAME,
WHEN LEAK CHECK IS COMPLETE, WIPE OFF
ALL RESIDUE,
Remove shipping screw from ALL top burners.
(Conventional top burner models only). This is to hold
the burners in place on the burner bracket for shipping
purposes only. (See figure 5).
,©
APPLIANCE SHUI-OFF VALVE
>l<: PRESSURE I_ ON LOWER OVEN
REGULA1OR
TO CONNECT GAS SUPPLYTO 1/2" N,P,T,MALE INLET
O AOAP_ER
_- 1/2" N.P..
_ fSTREET ELL
-- @ - _oj=Forp
REGULATOR
TO CONNECT GAS SUPPLYTO 1/2" N.P.T.FEMALE INLET
WHEN THE INSTALLER HAS COMPLETED INSTALLATION
OF THE APPLIANCE, LEAVE THE APPLIANCE PRESSURE
REGULATOR SHUT-OFF VALVE IN THE "ON" POSITION.
GasSupply ConnectionForRangesWith
Appliance PressureRegulator
LocatedUnderMainTopOf Range
FLEXIBLE SUPPLY LINE ADAPTOR
Adjust burner air shutter to the widest opening that will
not cause the flame to lift or blow off the burner when
cold.
NOTE: Correctly adjusted sealed burners, can have
flames that will lift or blow off without a pot over the
burner. These should be adjusted with a pot in place.
REMOVE SHIPPING SCREW_ _
FIGURE 5
CHECKING PRESSURE OF HOUSE PIPING
SYSTEM
1. The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 Ibs./sq. in. (3.5 kPa) (13.8 in. water
column).
FIGURE 4
Appliance Pressure Regulator
& Alternate Connectors
* The appliance pressure regulator on your range may
differ from this illustration.
-6-
.
The appliance must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 Ibs./sq. in. (3.5 kPa) (13.8 in. water column).

WARNING
THISPRODUCTSHOULDNOT
BEINSTALLEDBELOWA
VENTILATIONTYPEHOOD
SYSTEMTHATDIRECTSAIRtN
A DOWNWARDDIRECTION.
(SEEFIGURE)
THESESYSTEMSMAYCAUSE
IGNITIONANDCOMBUSTION
_- .... BURNERSRESULTINGIN
_o PROBLEMSWITHTHEGAS
Top Section - Electric Ignition
To operate, push and turn top burner knob to the LtTE
position. The top burner will light. To turn OFF spark after
the top burner has ignited turn knob to HI setting.
Top Burner Adjustment
All Top Burner Valves: The approximate height of the
flame at the high or full-on position is shown below.
Adjust burner air shutter to the widest opening that will not
cause the flame to lift or blow off the burner when cold.
NOTE: Correctly adjusted sealed burners, can have
flames that will lift or blow off without a pot over the
burner. These should be adjusted with a pot in place.
..... _ PERFORMANCEOFTHEUNIT.
_RT # 9215-252
NOTE:THEFIGUREMAYNOTACCURATELYREPRESENTYOUR
RANGEORCOOKTOP;HOWEVER,THISWARNINGAPPLIESTO
ALLGASCOOKINGPRODUCTS.
_ ERSONALINJURYANDMAY
AFFECTTHECOOKING
RANGE ADJUSTMENTS
Top Section - Gas Top Pilot Adjustment
(See figure 6)
Purge all air from supply system by turning on one top
burner valve. Then turn off valve and adjust top pilot flame
using adjusting screw "A" (figure 6) so that flame is even
with top of flash tube. To light the burner, push and turn
top burner knob to the lite position. NOTE: Some models
have ONLY one pilot adjustment at the manifold pipe.
LOT ADJUSTMENT SCREW I'A_'
PILOT
REMOVE SH PPI NG SCREWq _0_
CONVENTIONAL BURNERS
°1
#
[i
AIR SHUTTER
TOP OF
FLASH TUBE
ART# 9219-958
FIGURE 6
SEALED BURNERS
FIGURE 7
WARNING
Gas leaks may occur in your system and result in a
dangerous situation. Gas leaks may not be detected by
smell alone. Gas suppliers recommend you purchase and
install an UL approved gas detector. Install and use in
accordance with the manufacturer's instructions.
-7-

Air Shutter - Oven Burner
a. The approximate length of the flame of oven burner is
a 1/2 inch distinct inner blue flame, figure 8.
b. Oven burner flame can be checked as follows:
Yellow flame on burner - open burner air shutter
to the widest opening that will not cause the flame
to lift or blow off the burner when cold. (See #2 on
figure 9).
.
Distinct blue flame but lifting - close burner air
shutter to the point where it will not cause the
flame to lift or blow off the burner when cold. (See
#2 on figure 9).
Removing Sealed Burner For Adjustment Or
Service:
Mark ignitor location relative to main top with pencil. This
mark on the main top is used as a reference point when
replacing the burner assembly to insure that the burner is
tightened to its original position.
Place burner wrench (part no. 8312D075-60, available
from your dealer or authorized service agency) over
surface burner assembly with ignitor positioned inside gap
in wrench ring (figure 10). This prevents ignitor from being
crushed when wrench tightens on burner assembly.
Rotate burner assembly approximately one-eighth turn
counter-clockwise and lift from main top (figure 11).
COUNTER-CLOCKWISE
TO LOOSEN
C.
The oven burner air shutter adjustment is the same on
ranges with a gas pilot or electric ignition.
LOCK SCREW
3
AIR SHUTTER
ORIFICE HOOD
FIGURE 9
High Altitude Notice
The specified gas burner ratings typically apply to
elevations up to 2000 feet. For higher altitudes, the rates
may need to be reduced to achieve satisfactory operation.
A local certified gas servicer will be able to advise if a
reduction is necessary.
FIGURE 10
To Reassemble: Replace burner assembly in main top
and rotate approximately one-eighth turn clockwise using
burner wrench until burner locks into position with ignitor
aligned with reference mark on main top.
ORFTCE HOOD-
-8-
FIGURE 11

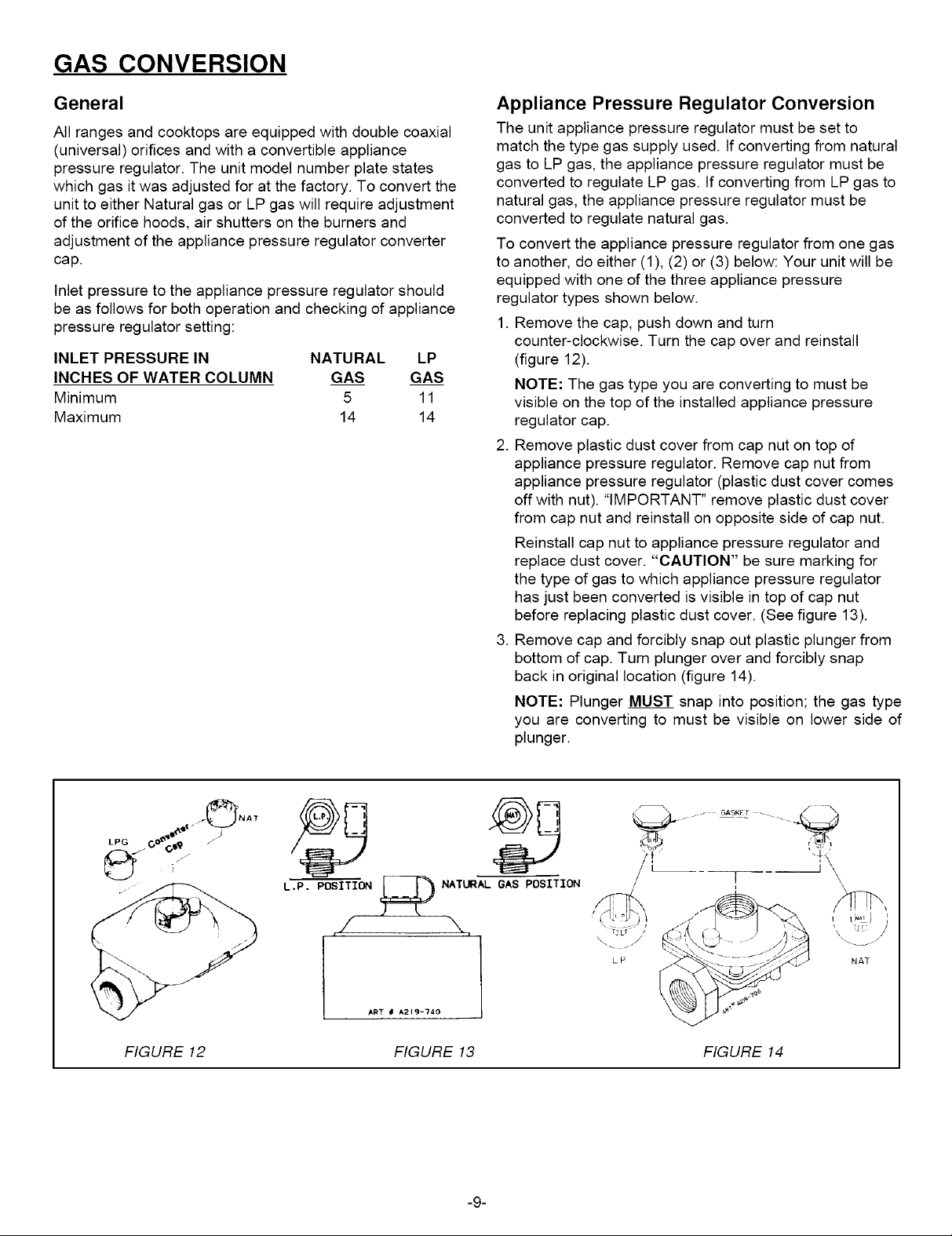

GAS CONVERSION
General
All ranges and cooktops are equipped with double coaxial
(universal) orifices and with a convertible appliance
pressure regulator. The unit model number plate states
which gas it was adjusted for at the factory. To convert the
unit to either Natural gas or LP gas will require adjustment
of the orifice hoods, air shutters on the burners and
adjustment of the appliance pressure regulator converter
cap.
Inlet pressure to the appliance pressure regulator should
be as follows for both operation and checking of appliance
pressure regulator setting:
INLET PRESSURE IN NATURAL LP
INCHES OF WATER COLUMN GAS GAS
Minimum 5 11
Maximum 14 14
Appliance Pressure Regulator Conversion
The unit appliance pressure regulator must be set to
match the type gas supply used. If converting from natural
gas to LP gas, the appliance pressure regulator must be
converted to regulate LP gas. If converting from LP gas to
natural gas, the appliance pressure regulator must be
converted to regulate natural gas.
To convert the appliance pressure regulator from one gas
to another, do either (1), (2) or (3) below: Your unit will be
equipped with one of the three appliance pressure
regulator types shown below.
1. Remove the cap, push down and turn
counter-clockwise. Turn the cap over and reinstall
(figure 12).
NOTE: The gas type you are converting to must be
visible on the top of the installed appliance pressure
regulator cap.
2. Remove plastic dust cover from cap nut on top of
appliance pressure regulator. Remove cap nut from
appliance pressure regulator (plastic dust cover comes
off with nut). "IMPORTANT" remove plastic dust cover
from cap nut and reinstall on opposite side of cap nut.
Reinstall cap nut to appliance pressure regulator and
replace dust cover. "CAUTION" be sure marking for
the type of gas to which appliance pressure regulator
has just been converted is visible in top of cap nut
before replacing plastic dust cover. (See figure 13).
3. Remove cap and forcibly snap out plastic plunger from
bottom of cap. Turn plunger over and forcibly snap
back in original location (figure 14).
NOTE: Plunger MUST snap into position; the gas type
you are converting to must be visible on lower side of
plunger.
LPG C
7! ¸ '._,'
/ L J _\
NATURAL GAS POSITION i
L.P. POSITION
/ [ \,
,/ \,
LP NAT
ART _ A219-740
FIGURE 12 FIGURE 13 FIGURE 14
-9-

ORIFICE CONVERSION
1. From Natural Gas To LP/Propane Gas:
a. Change the appliance pressure regulator from
natural to LP setting. (See figure 12, 13 or 14).
b.
Screw the burner orifice hoods down tight against
the pins. (See figure 15B). Use care to not over
tighten. Over tightening can damage the coaxial
pin inside the orifice hood.
NOTE: On units using Eaton Oven Safety Valve,
screw the valve orifice hood down tight against
the valve body. (See figure 15D). It is important
that the hood be turned down as far as it can go
to insure that complete conversion has occurred.
c. Models with standing pilots: Adjust burner pilots.
(See figure 6). Turn the selector switch on the
face of the thermostat to the LP position.
d. Adjust burner air shutter to the widest opening
that will not cause the flame to lift or blow off the
burner when cold.
NOTE: Correctly adjusted sealed burners, can
have flames that will lift or blow without a pot over
the burner. These should be adjusted with a pot
in place.
,
From LP/Propane Gas To Natural Gas:
a. Change the appliance pressure regulator from LP
to natural setting. (See figure 12, 13 or 14).
b. Screw the burner orifice hoods away from the
pins. (See figure 15A). Approximately 1 1/2 to 2
turns.
NOTE: On units using Eaton Oven Safety Valve,
screw the burner orifice hoods away from pin (see
figure 15C). Approximately 1 1/2 to 2 turns.
c. Models with standing pilots: Adjust top burner
pilots. (See figure 6). Turn the selector switch on
the face of the thermostat to the Nat. position.
d. Adjust burner air shutter to the widest opening
that will not cause the flame to lift or blow off the
burner when cold.
NOTE: Correctly adjusted sealed burners, the
flame will lift or blow without a pot over the
burner. These should be adjusted with a pot in
place.
FOR ALL TOP BURNER AND
OVEN SAFETY VALVE CONVERSION
(EXCEPT EATON VALVE)
ORIFICE HOOD_
ART # 9219-983-O j
FIGURE 15,4 FIGURE 15B
NATURAL GAS LP GAS
SETTING SETTING
FOR EATON
OVEN SAFETY VALVE CONVERSION
ORIFICE
ART _ 9219-985 0
FIGURE 15C
NATURAL GAS
SETTING
FIGURE 15D
LP GAS
SETTING
-10-

HOW TO REMOVE RANGE
FOR SERVICING
Follow these procedures to remove appliance for
servicing:
1. Shut off gas supply to appliance.
2. Disconnect electrical supply to appliance, if equipped.
3. Disconnect gas supply tubing to appliance.
4. Slide range forward to disengage range from the
anti-tip bracket. (See page 4).
5. Reverse procedure to reinstall, tf gas line has been
disconnected, check for gas leaks after reconnection.
NOTE: A qualified servicer should disconnect and
reconnect the gas supply.
The servicer MUST follow installation instructions
provided with the gas appliance connector and the
warning label attached to the connector.
6. To prevent range from accidentally tipping, range must
be secured to the floor by sliding rear leveling leg into
the anti-tip bracket.
SERVICE-PARTS INFORMATION
When your range requires service or replacement parts,
contact your dealer or authorized service agency. Please
give the complete model and serial numbers of the range
which is located on the range model number plate.
-11-
