1.0 cu.ft Microwave Oven Convection

MCC1010T

So Right at Home.

Instruction Manual and Cooking Guide

Before operating this oven, please read these instructions completely.

TABLE OF CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

................................................................................................................

TABLE OF CONTENTS

.....................................................................................................................................

1 IMPORTANT SAFETY INSTRUCTION FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY

............................................................

2 INTERFERENCE STATEMENT

.........................................................................................................................

3 GROUNDING INSTRUCTIONS

.........................................................................................................................

3 INSTALLATION

..................................................................................................................................................

4 SPECIFICATIONS

.............................................................................................................................................

5 FEATURES DIAGRAM

.......................................................................................................................................

6 ACCESSORIES

.................................................................................................................................................

8 BEFORE OPERATION

........................................................................................................................................

9 SETTING THE CLOCK

........................................................................................................................................

9 CHILD LOCK AND POWER SAVE MODE

........................................................................................................

OPERATION

......................................................................................................................................................

MICROWAVE COOKING

..................................................................................................................................................

GRILL COOKING

...............................................................................................................................................................

CONVECTION COOKING(with pre-heat)

..........................................................................................................................

CONVECTION COOKING (traditional cooking)

.................................................................................................................

COMBINATION COOKING

................................................................................................................................................

WEIGHT DEFROST

..........................................................................................................................................................

TIME DEFROST

................................................................................................................................................................

AUTO COOK

.....................................................................................................................................................................

SPEEDY COOK

.................................................................................................................................................................

TO STOP THE OVEN WHILE THE OVEN IS OPERATING

.............................................................................................

ABNORMAL MESSAGES

.................................................................................................................................

GENERAL GUIDE LINES

.................................................................................................................................

COOKING INSTRUCTION

...............................................................................................................................

COOKING UTENSILS

......................................................................................................................................

MICROWAVE PRINCIPLES

............................................................................................................................

HOW MICROWAVE COOK FOOD

..................................................................................................................

COOKING TECHNIQUES

................................................................................................................................

DEFROSTING GUIDE

.....................................................................................................................................

DEFROSTING CHART

....................................................................................................................................

COOKING CHART

...........................................................................................................................................

REHEATING CHART

.......................................................................................................................................

CARE OF YOUR MICROWAVE OVEN

...........................................................................................................

USE YOUR MICROWAVE OVEN SAFELY

......................................................................................................

BEFORE YOU CALL FOR SERVICE

...............................................................................................................

QUESTIONS AND ANSWERS

.........................................................................................................................

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in

harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to

accumulate on sealing surfaces.

and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Prior to use(If your oven has a grill element)

In order to protect your oven during transportation and storage, the grill element is covered with a protective coating. To remove this coating the grill element must be heated for 5 minutes. This procedure will produce some bad odors as the protective coating on the element disappears.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following: WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive

microwave energy:

1. Read all instructions before using the appliance.

2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on page 1.

3. This appliance must be grounded. To ensure continued protection against shock hazard, connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page

4. Install or locate this appliance only in accordance with the provided installation instructions.

5. Some products such as whole eggs and sealed containers - for example, closed glass jars-may explode and should not be heated in this oven.

6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

7. As with any appliance, close supervision is necessary when used by children.

8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.

9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment.

10. Do not cover or block any openings on the

appliance.

11. Do not store this appliance outdoors. Do not use this

product near water — for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. Do not let cord hang over edge of table or counter.

15. Either: a) When cleaning surfaces of door and oven that

comes together on closing the door, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth , or

b) When separate cleaning instructions are

provided, See door surface cleaning instructions on (page.29).

16. To reduce the risk of fire in the oven cavity: a) Do not overcook food. Carefully attend appliance

if paper, plastic, or other com-bustible materials are placed inside the oven to facilitate cooking.

b) Remove wire twist-ties from paper or plastic

bags before placing bag in oven.

c) If materials inside the oven should ignite, keep

oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.

d) Do not use the cavity for storage purposes. Do

not leave paper products, cooking utensils, or food in the cavity when not in use.

17. Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapours from such corrosive chemicals may interact with the contact and springs of the safety interlock switches thereby rendering them inoperable.

18. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.

19. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire.

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STA TEMENT

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces the risk of electric shock by providing an escape wire for electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING:

This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followings.

• Reorient the receiving antenna of radio or television.

• Relocate the Microwave oven with respect to the receiver.

• Move the microwave oven away from the receiver.

• Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

THE MANUFACTURER is not responsible for any radio or TV interference caused by UNAUTHORIZED MODIFICATION to this microwave oven. It is the responsibility of the user to correct such interference.

WARNING:

Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded, and either :

(1) If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade

grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

(2) Do not use an extension cord, if the power supply cord is too short, have a qualified electrician or

serviceman install an outlet near the appliance.

WARNING:

Do not cut or remove the third (ground) prong from the power cord under any circumstances.

INSTALLA TION

Examine the oven after unpacking.

Check for damage such as a misaligned door, broken door or dent in the cavity. If any damage is visible, DO NOT INSTALL, and notify your dealer immediately.

Level, flat location.

Install the microwave oven on a level, flat surface and more than 3ft(914mm) above the floor.

Ventilation.

Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause a failure. For proper ventilation, allow 4 inches of space between oven top, sides, rear and adjacent surfaces.

Away from radio and TV sets.

Poor television reception and radio interference may result if the oven is located close to a TV, radio, antenna, feeder, etc. Place the oven as far from them as possible.

Away from heating appliances and water taps.

Keep the oven away from heat, steam or splashing liquids. These things can adversely affect oven wiring and contacts.

Power supply. This microwave oven requires a power supply of approximately 13 Amperes, 120 Volts, 60Hz and a grounded outlet. A short power cord is provided to reduce the risk of the user becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the cord should be at least as great as the electrical rating of the oven. The extension cord must be a grounding-type 3-wire cord. The longer cord should be arranged so that it will not drape over the table top or counter where it can be pulled on by children or tripped over unintentionally.

The minimum height of free space necessary above the top surface of the oven is 4inches.

When use 3-pronged plug

When use grounding adaptor, make sure the receptacle box is fully grounded.

3-prong Receptacle

Receptacle Box cover

3-prong plug

Grounding Lead

Grounding Adapter

Receptacle

“THE CANADIAN ELECTRICAL CORD DOES NOT ALLOW THE USE OF THE GROUNDING ADAPTOR”

Receptacle Box Cover

SPECIFICATIONS

POWER SUPPLY

120V AC 60 Hz SINGLE PHASE WITH GROUNDING

POWER CONSUMPTION 1500W

MICROWAVE OUTPUT POWER 1000W

FREQUENCY 2450 MHZ GRILL POWER CONSUMPTION 850W CONVECTION POWR CONSUMPTION 1450W COMBINATION HEATING POWER CONSUMPTION 1500W OUTSIDE DIMENSIONS (WXHXD) 542 x 329 x 515 mm ( 21.3 x 13.0 x 20.3 in. ) CAVITY DIMENSIONS (WXHXD) 350 x 230 x 355 mm ( 13.8 x 9.1 x 14.0 in. ) NET WEIGHT APPROX. 20 Kg ( 44.1 lbs. ) TIMER 60 min. POWER SELECTIONS 10 LEVELS

* Specifications are subject to change without notice.

542

329

515

FEATURES DIAGRAM

1 DOOR HOOK - When the door is closed, it will automatically lock shut. If door is opened while oven

is operating, the magnetron will immediately stop operating.

2 DOOR VIEWING SCREEN - Allows viewing of food. The screen is designed so that light can pass

through, but not the microwave.

3 METAL RACK 4 TOP HEATER - Turns on when convection, grill and combi cooking is selected. 5 OVEN LAMP - Automatically turns on during oven operating. 6 SAFETY INTERLOCK SYSTEM 7 CONTROL PANEL 8 TURNTABLE TRAY - Rotates during cooking and ensure even distribution of Microwaves.

It can also be used as a cooking utensil.

9 ROLLER GUIDE - This must always be used for cooking together with the turntable tray. 0 COUPLER - This fits over the shaft in the center of the ovens cavity floor. This is to remain in the

oven for all cooking.

q CONVECTION OUTLET & FAN w OVEN FRONT PLATE e DOOR SEAL - Door seal maintains the microwave energy within the oven cavity and prevents

microwave leakage.

FEATURES DIAGRAM (continued)

Auto cook

MW Grill Combi Weight Time

Auto Cook

Lock

Convection

Defrost

Combi

Grill

Convection

START /

SPEEDY COOK

Weight Defrost

Auto Cook Menu

1. Roast pork

2. Roast beef

3. Roast chicken

4. Baked fish

5. Fresh vegetable

Time

Defrost

Clock

STOP/CLEAR

Display : Cooking time, power level, indicators and

present time are displayed. MW : When blinking, the oven is operating in MICROWAVE COOK. Grill : When blinking, the oven is operating in GRILL. Combi : When blinking, the oven is operating in

COMBI. Defrost Weight : When blinking, the oven is operating in WEIGHT DEFROST. Time : When blinking, the oven is operating in TIME DEFROST. Auto-cook : When blinking, the oven is operating AUTO COOK. Lock : When lighting, the oven is CHILD LOCK. Con-vection : When blinking, the oven is operating in CONVECTION. lb : When blinking, the oven is operating in weight input mode.

Auto cook : Used to cook or reheat.

Combi : Used to select combi.

Weight Defrost : Used to defrost foods.

Grill : Used to select grill.

MW : Used to set power level of micro wave.

Time Defrost : Used to defrost foods.

Convection : Used to select convection and selected

temp.

Clock : Used to set clock.

Dial knob : Used to set time, weight and quantity.

START/SPEEDY COOK : Used to start a programmed,

also for speedy start(each press adds 30 seconds microwave cooking time).

STOP/CLEAR : Used to stop the oven operation or to

delete the cooking data.

ACCESSORIES

This oven comes equipped with several accessories. They can be used in various ways to facilitate cooking.

■ Rotating base

This fits over the shaft in the center of the oven’s cavity floor.

This to remain in the oven for all cooking. It should only be removed for cleaning.

■ Turntable tray or turntable

This metal tray fits over the rotating base and locks into place.

This is to be used in the oven for all cooking. It rotates clockwise or counterclockwise during cooking. It is easily removable for cooking and cleaning needs.

■ Metal rack

This metal rack is used with the turntable tray.

■ HOW TO USE THE ACCESSORIES OF COOKING

Important:

The rotating base must be placed in the center of the oven’s cavity and fitted in the rotating shaft exactly. In case the rotating base does not fit in the rotating shaft, the rotating base might become as tray and sparks can occur.

■ Turntable

• Microwave cooking

• Convection cooking

• Combination cooking

• Auto cooking

■ Metal rack

• Grill cooking

• Auto cooking(1, 2, 3, 4)

BEFORE OPERATION

When your oven is plugged in, the display will flash “ :0” and a tone will sound. If the AC power ever goes off, the display shows “ :0” when the power comes back on. Your oven has multiple(12hr/24hr) clock system. To set the clock follow under procedure.

Example : To set 5:30

1. Press Clock button once. (example : to set " 5:30 ") The display will be " 12H " shows.

2. Press Clock button once more, " 24H " shows in display.

This is a 24hour clock system. If you want 12hour clock system, omit this step.

3. Turn the dial knob to set the hour number " 5: ". The hour number starts blinking, the colon will right.

4. Press Clock button. " 5:00 " shows in display. The minute number starts blinking, the colon and hour number will light.

5. Turn the dial knob until " 5:30 " in the display window.

6. Press Clock button. The colon starts blinking.

If you selected 12hour clock system, this digital clock allows you to set from 1:00 to 12:59. If you selected 24hour clock system, this digital clock allows you to set from 0:00 to 23:59.

SETTING THE CLOCK

Convection

Time

Defrost

Clock

▲

Convection

Time

Defrost

Clock

▲

Convection

Time

Defrost

Clock

▲

Child lock : The child lock prevents the oven from being used. For example because children could hurt themselves on hot liquids etc.

Power save mode : This function is used for saving energy.

To set child lock

1. Press STOP/CLEAR button. " : 0" or clock appears in the display.

2. Press and then hold STOP/CLEAR button for 3 seconds. The oven will lock indicator lights. Now the oven cannot be operated.

3. To cancel child lock simply repeat procedure 2. The oven will beep and lock indicator disappears. The oven is again available for normal use.

To set power save mode

1. Press STOP/CLEAR button. " : 0" or clock appears in the display.

2. Press and then hold Clock button for 3 seconds. The display will turn off and a beep sounds. To operate the oven in power save mode, press any key or turn the knob. Then " :0" or clock will be shown and the operation of all function key will be same as in the normal mode. But if there is no operation within 10 seconds in clear mode or while manipulating the key, all the contents of display will disappear.

3. To cancel power save simply repeat setting procedure. When the display is on. The power save mode will be canceled and a beep sounds. The oven is again available for normal use.

CHILD LOCK AND POWER SAVE MODE

START / SPEEDY COOKSTOP/CLEAR

▲

START / SPEEDY COOKSTOP/CLEAR

Convection

Time

Defrost

Clock

▲

Tips : Also remember to read this operating instruction for proper safety information and instruction before

using the oven. Prior to setting the controls, place one cup of water in the oven, on a heat-proof glass measuring cup, for testing purposes.

Note : When the operation is finished the oven beeps three times, " : 0" or clock appears in the display, the rotating

plate stops turning and the oven light turns off. The oven will continue to beep every 1 minute until the STOP/CLEAR button is pressed, or the door is opened.

The cooling fan continues to run for 5 minutes after cooking has stopped when it takes over 3 minutes for cooking.( the display will show "COOL" and " :0 or clock" ) Opening the oven door interrupts any operation except cooling fan.To cancel the operation, press STOP/CLEAR button. To continue the operation, press START/SPEEDY COOK button. The oven displays the set cooking time in 10 seconds steps( up to 5 minutes cooking time ), in 30 seconds steps( up to 10 minutes cooking time ), in 1 minutes steps( up to 60 minutes cooking time ).

Power level table

OPERATION

This microwave cooking method allows you to cook food for a desired time. In addition to the maximum power level(100%), you can select different microwave power from 9 other levels, 10% to 90% for the foods that require slower cooking. If you have used the appliance for grilling, convection or combination cooking, let the oven cool down before using again. Never switch the microwave oven on when it is empty.

MICROW AVE COOKING

1. Press MW button once. MW indicator lights. " P-HI " shows in display.

2. Select the appropriate power level by pressing the MW button

again until the corresponding percentage is displayed. Refer to the power level table below for further details.

3. Turn the dial knob to set the cooking time. For a cooking time of 5 minutes 30 seconds, turn the dial knob to the right to set 5:30. ( up to 60 minutes ) " 5:30" shows in display.

4. Press START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Convection

Time

Defrost

Clock

▲

START / SPEEDY COOKSTOP/CLEAR

▲

Power level

P-HI P-90 P-80 P-70 P-60

percentage

100%

90% 80% 70% 60%

Output

1000W

900W 800W 700W 600W

Power level

P-50 P-40 P-30 P-20 P-10 P-00

percentage

50% 40% 30% 20% 10%

Output

500W 400W 300W 200W 100W

Note : The oven will automatically work on 100% microwave power if a cooking time is entered without the power level previously being selected.You can check the power level while cooking is in progress by pressing the MW button. The display will show the current power level for 3 seconds.

The grill enables you to heat and brown food quickly, without using microwaves.

GRILL COOKING

Note : When first using the grill heaters, smoke and odour

will be given off. To avoid this happening when food is being cooked, heat the upper and lower grills without food for approximately 10 minutes. Place food directly on the rack, in a flan dish or on a heat resistant plate on the rack.

Note :

The heating element is located in the top of the oven.

1. Press Grill button once. GRILL(upper grill) indicator lights.

2. Turn the dial knob to set the grilling time.

For a grilling time of 11 minutes, turn the dial knob to the right to set 11:00.( up to 60 minutes )

“11:00” shows in display.

3. Press START/SPEEDY COOK button.

The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Combi

Grill

Weight Defrost

3. Roast chicken

4. Baked fish

5. Fresh vegetable

▲

START / SPEEDY COOKSTOP/CLEAR

WARNING :

The temperature inside the oven and window is very high. Do not touch the oven window and metallic interior of the oven when taking food in and out. Use thick oven gloves while handling food or accessories.

▲

Suggested use

This method is ideal for toasting bread or muffins. Remember the oven will be hot. Place all food on metal rack.

Cookware

Use oven-proof cookware. As there is no microwave energy being used you can place metal tins directly onto the metal rack with no

For convection cooking, it is recommended that you preheat the oven to the appropriate temperature before placing the food in the oven. The maximum preheating time is 30 minutes. If the cooking is not started immediately after preheating, the convection indicator will continue to flash and the preheated oven temperature will be displayed. It is maintained for 15 minutes; it is then switched off automatically.

CONVECTION COOKING(with pre-heat)

1. Press Convection button once. CONVECTION indicator

lights.

“110C” shows in display(230˚F).

2. Select the convection cooking temperature by pressing the Convection button again until the corresponding

temperature is displayed.

3. Press START/SPEEDY COOK button. CONVECTION indicator blinks. Temperature of preheating and “PrE-” blink alternatively in the display. The oven will now preheat. When oven is preheated the oven will beep and the preheated oven temperature will appear in the display. Then open the door and place your food in the oven. Oven temperature and shows in display.

4. Turn the dial knob to set the cooking time. For a cooking time of 11 minutes, turn the dial knob to the right to set 11:00.(up to 60 minutes)

“11:00” shows in display.

5. Press START/SPEEDY COOK button.

The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Convection

Time

Defrost

Clock

▲

START / SPEEDY COOKSTOP/CLEAR

Temperature Conversion Table

110˚C(230˚F)→120˚C(248˚F)→130˚C(266˚F)→140˚C(284˚F)→150˚C(302˚F)→ 160˚C(320˚F)→170˚C(338˚F)→180˚C(356˚F)→190˚C(374˚F)→200˚C(392˚F)→ 210˚C(410˚F)→220˚C(428˚F)→230˚C(446˚F)→240˚C(464˚F)→250˚C(482˚F)→

▲

START / SPEEDY COOKSTOP/CLEAR

▲

Note: The display shows Celsius in unit. Therfore you should refer to the page 22, CONVERSION CHART to look

for the corresponding Farenheit.

Temperature sequence

110C → 120C → 130C → 140C → 150C → 160C → 170C → 180C → 190C → 200C → 210C → 220C → 230C → 240C → 250C →

The convection mode enables you to cook food in the same way as in a traditional oven. Microwaves are not used. Always use oven gloves when touching the recipients in the oven, as they will be very hot.

CONVECTION COOKING(traditional cooking)

1. Press Convection button once. CONVECTION indicator

lights. “110C” shows in display(230˚F).

2. Select the convection cooking temperature by pressing the Convection button again until the corresponding temperature is displayed.

3. Turn the dial knob to set the cooking time. For a cooking time of 11 minutes, turn the dial knob to the right to set 11:00.(up to 60 minutes) “11:00” shows in display.

4. Press START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Convection

Time

Defrost

Clock

▲

START / SPEEDY COOKSTOP/CLEAR

Note: You can check the setting temperature while cooking is in progress by pressing the Convection button.

▲

Suggested use

This function is ideal for cooking meringues, cookies, biscuits, scones, bread, puddings, large fruit cakes and all pastries. Remember the oven will be hot. Place all food on metal rack.

Cookware

Use oven-proof cookware. As there is no microwave energy being used you can place metal tins directly onto the metal rack with no danger of arcing.

Temperature Conversion Table

110˚C(230˚F)→120˚C(248˚F)→130˚C(266˚F)→140˚C( 284˚F)→150˚C(302˚F)→ 160˚C(320˚F)→170˚C(338˚F)→180˚C(356˚F)→190˚C( 374˚F)→200˚C(392˚F)→ 210˚C(410˚F)→220˚C(428˚F)→230˚C(446˚F)→240˚C( 464˚F)→250˚C(482˚F)→

Note: The display shows Celsius in unit. Therfore you should refer to the page 22, CONVERSION CHART to look

for the corresponding Farenheit.

Temperature sequence

110C → 120C → 130C → 140C → 150C → 160C → 170C → 180C → 190C → 200C → 210C → 220C → 230C → 240C → 250C →

This function allows you to combine convection operation with microwave to produce traditional baked or roasted results in less time. Always use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. Always use oven gloves when touching the recipients in the oven, as they will be very hot.

COMBINATION COOKING ( Microwave + Convection + Upper Grill )

1. Press Combi button once. COMBI indicator light and "C-0" will show in the display.

2. Press Convection button once.

“110C” shows in display(230˚F). Select the convection cooking temperature by pressing the Convection button again until the corresponding temperature is displayed.

3. Turn the dial knob to set the cooking time. For a cooking time of 11 minutes, turn the dial knob to the right to set 11:00.( up to 60 minutes )

“11:00” shows in display.

4. Press START/SPEEDY COOK button.

The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Note: You can check the cooking temperature while

cooking is in progress by pressing the Convection button. The display will show the cooking temperature for 3 seconds. In sequential operation mode, only “C-0” can be selected.

Combi

Grill

Weight Defrost

3. Roast chicken

4. Baked fish

5. Fresh vegetable

▲

Convection

Time

Defrost

Clock

▲

START / SPEEDY COOKSTOP/CLEAR

▲

Note: The display shows Celsius in unit. Therfore you should refer to the page 22, CONVERSION CHART to look

for the corresponding Farenheit.

Temperature Conversion Table

Temperature sequence

110C → 120C → 130C → 140C → 150C → 160C → 170C → 180C → 190C → 200C → 210C → 220C → 230C → 240C → 250C →

Weight Defrost automatically sets the defrosting times and power levels to give even defrosting results for frozen food. During the defrosting process the oven will beep to remind you to check the food. The oven will beep, open the door, turn the frozen food over and close the door, press the START/SPEEDY COOK button.

WEIGHT DEFROST

1. Press Weight Defrost button once. The Weight-Defrost

indicator lights an “ : 0.0 ” is displayed. The “llb ” indicator blinks.

2. Turn the dial knob to set the weight. Weight can be set up from 0.5lb to 6.5lb. The weight will change in 0.5lb increments or decrements. For a defrosting weight of 2lb, turn the dial knob to the right to set 2.0. "2.0 "shows in display.

3. Press START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. The “lb ” indicator goes off. Cooking starts and the time in the display will count down.

Combi

Grill

Weight Defrost

3. Roast chicken

4. Baked fish

5. Fresh vegetable

▲

START / SPEEDY COOKSTOP/CLEAR

▲

During the defrosting process the oven will beep to remind you to check the food. The oven will beep, open the door, turn the frozen food over and close the door, press the START/SPEEDY COOK button.

TIME DEFROST

1. Press Time Defrost button once. The Time-Defrost indicator lights and “ : 0 ” is displayed.

2. Turn the dial knob to set the defrosting time.

For a time of 11 minutes, turn the dial knob to the right to set 11:00.(up to 60 minutes) "11:00 "shows in display.

3. Press START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Convection

Time

Defrost

Clock

▲

START / SPEEDY COOKSTOP/CLEAR

▲

Note : WEIGHT DEFROSTING beging. The defrosting

time is determined by the weight entered.

This function allows you to simply and automatically cook a range of popular foods. Always use oven gloves when touching the recipients in the oven.

AUTO COOK

1. Press Auto Cook button once. Auto Cook indicator light. "AC-1 " will show in the display.

2. Select the menu by pressing the Auto Cook button until the

required menu is displayed. Refer to the auto cook menu chart below for further details.

3. Turn the dial knob to set the cooking weight. For a cooking weight of 2lb, turn the dial knob to the Right to set 2lb.( up to 4.0lb ) "2.0" shows in display. "lb" shows in display. Refer to the auto cook menu chart below for further details.

4. Press START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Auto Cook Menu Chart

Press auto cook key

Once

Twice 3 times 4 times 5 times

Auto Cook Menu

ROAST PORK

ROAST BEEF

ROAST CHICKEN

BAKED FISH

FRESH VEGETABLE

Minimum Weight

1 lb 1 lb

1.6 lb

0.6 lb

0.2 lb

Maximum Weight

4 lb 4 lb 6 lb 2 lb 2 lb

Weight Step

0.2 lb

0.1 lb

Auto cook

Combi

Auto Cook Menu

1. Roast pork

2. Roast beef

3. Roast chicken

4. Baked fish

5. Fresh vegetable

▲

START / SPEEDY COOKSTOP/CLEAR

▲

Note : You can check the setting cooking menu while

the cooking is in progress by pressing the Auto Cook button.

Auto Cook Menu Start Temp. Method Cookware

Place the pork or beef directly on the metal rack on the turntable.

Place the chicken directly on the metal rack on the turntable.

Micro and heat proof shallow dish. (e.g Pyrex.)

Microproof dish. (e.g Pyrex.)

ROAST PORK

ROAST BEEF

ROAST

CHICKEN

BAKED FISH

FRESH

VEGETABLE

Chilled temp.

1. Tie the joint into a neat shape.

2. Place the pork directly on the metal rack on the turntable.

3. Brush with a little oil.

4. Place roasts fat-side down a metal rack.

5. Cook on "AUTO COOK-ROAST PORK or ROAST BEEF".

6. Turn over when hearing the beep.

7. Remove from oven. Drain off any excess juices.

8. Stand for 10 minutes in foil before serving.

1. Wash and dry chicken. Tie the legs loosely together with string.

2. Pierce the skin a couple of times just under the legs.

3. Brush butter mixture all over the chicken directly on the metal rack on the turntable.

4. Place roasts breast-side down a metal rack.

5. Cook on "AUTO COOK-ROAST CHICKEN".

6. Turn over when hearing the beep.

7. Remove from oven. Drain off any excess juices. Season with salt if required. Stand for 10 minutes in foil before serving.

1. All types of fresh fish(except battered or breadcrumbed fish) can be cooked whether whole, fillets or steaks.

2. Place the prepared fish in a buttered dish.

3. Season with salt and pepper, sprinkle with lemon juice and dot with butter. Do not cover dish.

4. Place on dish on the metal rack on the turntable.

5. Cook on "AUTO COOK- BAKED FISH".

1. Wash and trim.

2. Place prepared vegetables into a suitable sized container.

3. Sprinkle with 4-5 tbs. of water.

4. Cover with pierced cling film or a lid.

5. Place on dish on the turntable.

6. Cook on "AUTO COOK- FRESH VEGETABLE.

* For best results cut vegetables into similar sized

pieces.

The speedy cook function allows the oven to being cooking immediately on full power. The speedy cook button has been pre-programmed to increase in increments of 30 seconds up to a maximum time of 5 minutes.

SPEEDY COOK

1. Press START/SPEEDY COOK button.

The oven will be " : 30" is displayed. MW indicator lights. And the oven will start immediately. No need to press START/SPEEDY COOK button. The oven light comes on and the turn table starts rotating and the time in the display will count down in seconds.

START / SPEEDY COOKSTOP/CLEAR

1. Open the door.

• Oven stops operating.

• You can restart the oven by closing the door and touching START/SPEEDY COOK button.

2. Press the STOP/CLEAR button.

• Oven stops operating.

• If you wish to cancel the cooking settings, press the STOP/CLEAR button again.

TO STOP THE OVEN WHILE THE OVEN IS OPERATING

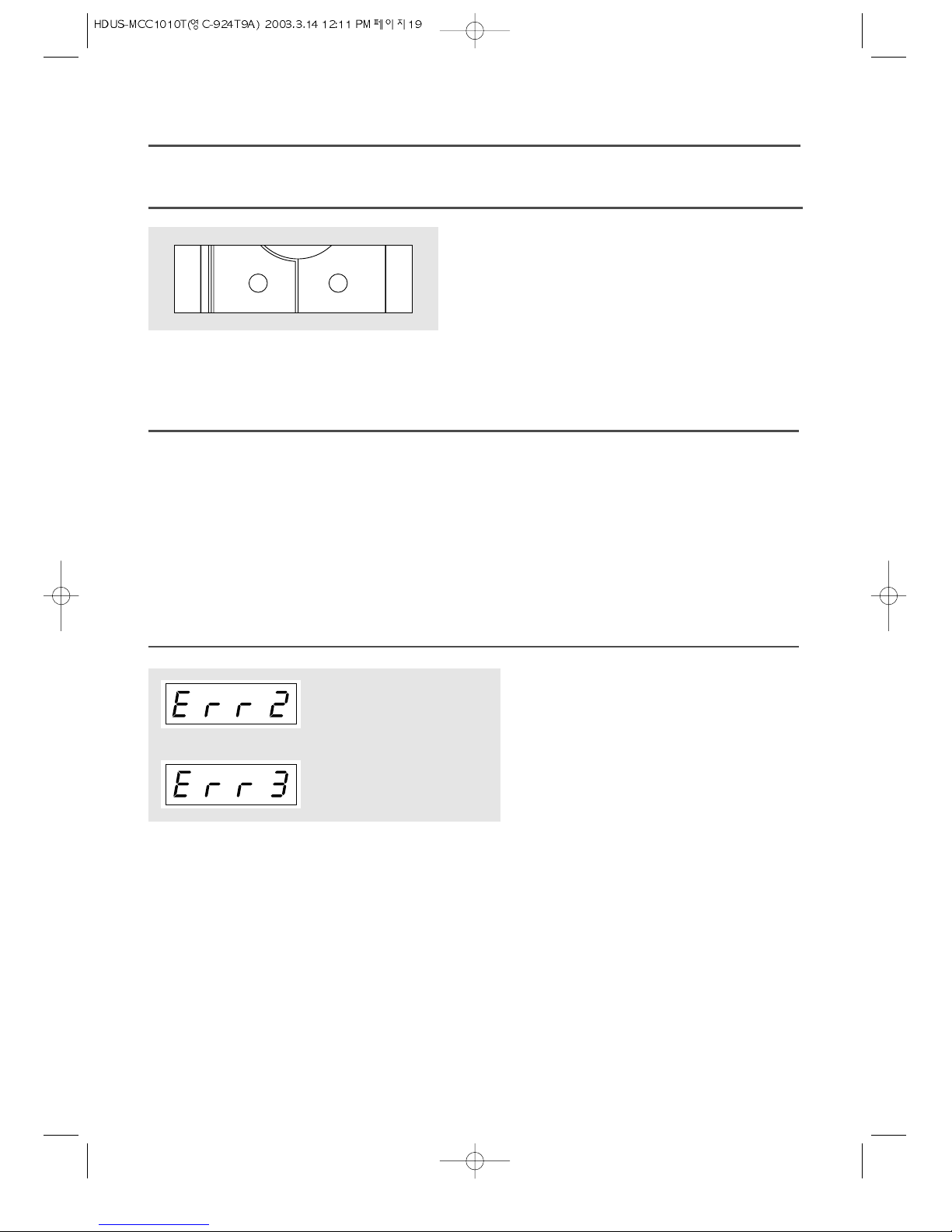

ABNORMAL MESSAGE

• If the inside temperature of the oven is higher than expected or the temperature sensor doesn't work properly, "Err 2" message will be shown in the display.

• Unplug the power and call our technical service.

• When the temperature sensor is disconnected,

"Err 3" message will be shown in the display.

• Unplug the power and call our technical service.

▲

GENERAL GUIDE LINES

Since microwave cooking to some extent is different from traditional cooking, the following general guidelines should be considered whenever you use your microwave oven

If the food is undercooked

Check if:

• You have selected the correct power level.

• The selected time is sufficient-the times given in the recipes

are approximate. They depend on initial temperature, weight and density of the food etc.

• The container is appropriate.

If the food is overcooked,i.e. dried out or burnt

Before you cook again, consider whether:

• The power level was too high.

• The set time was too long-the times in the recipes are

approximate. They depend on initial temperature, weight and density of the food etc.

Points to remember when defrosting

• The shape of the package alters the defrosting time. Shallow rectangular packets defrost more quickly than a deep block. Separate pieces as they begin to defrost; free flow slices defrost more easily.

• Shield areas of food with small pieces of foil if they start to become warm.

• When defrosting, it is better to under thaw the food slightly and allow the process to finish during the standing time.

The amount of food

The more food you want to prepare the longer it takes. A rule of thumb is that double amount of food requires almost double the time. If one potato takes four minutes to cook, approximately seven minutes are required to cook two potatoes.

Starting temperature of food

The lower the temperature of the food which is being put into the microwave oven, the longer time it takes. Food at room temperature will be reheated more quickly than food at refrigerator temperature.

Composition of the food

Food with a lot of fat and sugar will be heated faster than food containing a lot of water. fat and sugar will also reach a higher temperature than water in the cooking process. The more dense the food, the longer it takes to heat. “Very dense” food like meat takes longer time to reheat than lighter, more porous food like sponge cakes.

Size and shape

Smaller pieces of food will cook more quickly than larger pieces and uniform pieces of food cook more evenly than irregularly shaped foods. With unevenly shaped food, the thinner parts will cook faster than the thicker areas. Place the thinner chicken wings and legs to the centre of the dish.

Stirring, turning of foods

Stirring and turning of foods are techniques used in conventional and well as in microwave cooking to distribute the heat quickly to the centre of the dish and avoid over-cooking at the outer edges of the food.

Covering food helps:

• To reduce spattering

• To shorten cooking times

• To retain food moisture

All covering, which will allow microwaves to pass through are suitable-See above “Which utensils can be used in the oven?”

Releasing pressure in foods

Several foods are tightly covered by a skin or membrane. These foods should be pricked with a fork or cocktail stick to release the pressure and to prevent bursting, as steam builds up within them during cooking. This applies to potatoes, chicken livers, sausages, egg yolks and some fruits.

Standing time

Always allow the food to stand for some time after using the oven. standing time after defrosting, cooking/reheating always improves the result since the temperature will then be evenly distributed through out the food. In a microwave oven foods continue to cook even when the microwave energy is turned off. They are no longer cooking by microwaves, but they are still being cooked by the conduction of the high residual heat to the centre of the food. The length of standing time depends on the volume and density of the food. Sometimes it can be as short as the time it takes you to remove the food from the oven and take it to the serving table. However, with larger, denser foods, the standiing time may be as long as 10 minutes. During ‘standing’, the internal temperature of the food will rise by as much as 8˚C and the food will finish cooking in this time.

Arranging food

This is done in several ways in microwave cooking to give more even cooking results. If you are cooking several items of the same food such as jacket potatoes, place them in a ring pattern for uniform cooking. When cooking foods of uneven shapes or thickness, place the smaller or thinner area of the food towards the centre of the dish where it will be heated last.

Uneven foods such as fish should be arranged in the oven with the tails to the centre. If you are saving a meal in the refrigerator or ‘plating’ a meal for reheating, arrange the thicker, denser foods to the outside of the plate and the thinner or less dense foods in the middle. Place thin slices of meat on top of each other or interlace them. Thicker slices such as meat loaf and sausages have to be placed close to each other. Gravy or sauce should be reheated in a separate container.

Choose a tall, narrow container rather than a low and wide container. When reheating gravy, sauce or soup, do not fill the container more than 2/3.

When you cook or reheat whole fish, score the skin this prevents cracking. Shield the tail and head with small pieces of foil to prevent over-cooking but ensure the foil does not touch the sides of the oven.

2/3

COOKING UTENSILS

Recommended Use

•Glass and glass-ceramic bowls and Dishes - Use for heating or cooking.

• Microwave browning dish - Use to brown the exterior of small items such as steaks, chops, or pancakes.

Follow the directions provided with you browning dish.

• Microwaveable plastic wrap - Use to retain steam. Leave a small opening for some steam to escape and avoid placing it directly on the food.

• Wax paper - Use as a cover to prevent spattering.

• Paper towels, and napkins - Use for short term heating and covering; they absorb excess moisture and

prevent spattering. Do not use recycled paper towels, which may contain metal and can catch fire.

• Thermometers - Use only those labeled “Microwave Safe” and follow all directions. Check the food in several places. Conventional thermometers may be used once the food has been removed from the oven.

• Microwave cling film, microwave roasting bags - Microwave cling film and bags must be vented for steam to escape, pierce in 4~5 places. Do not use plastic or metal ties as they may melt or catch fire due to electrical ‘arcing’.

Limited Use

• Aluminum foil - Use narrow strips of foil to prevent overcooking of exposed areas. Using too much toil can damage your oven, so be careful.

• Ceramic, porcelain, and stoneware - Use these if they are labeled “Microwave Safe.” If they are not labeled, test them to make sure they can be used safely. Never use dishes with metalic trim.

• Plastic - Use only if labeled “Microwave Safe.” Other plastics can melt.

• Thin plastic, paper, straw and wooden containers - Always attend the oven closely. Look at the oven from

time to time when cooking or reheating food in disposable containers of plastic, paper or other combustible material. Only use for warming food. Pay special attention as over-heating may cause a fire in your oven.

Not Recommended

• Glass jars and bottles - Regular glass is too thin to be used in a microwave, and can shatter.

• Paper bags - These are a fire hazard, except for popcorn bags that are designed for microwave use.

• Styrofoam plates and cups - These can melt and leave an unhealthy residue on food.

• Plastic storage and food containers - Containers such as margarine tubs can melt in the microwave.

• Metal utensils - These can damage your oven. Remove all metal before cooking.

COOKING INSTRUCTIONS

Utensils should be checked to ensure that they are suitable for use in microwave ovens.

UTENSILS TEST

Place the utensil in question next to a glass measure filled with water, in the microwave oven. Microwave at high power for 1-2 minutes. If the water heats up, but the utensil remains cool, the utensil is microwave-safe. However if the utensil becomes warm, microwaves are being absorbed by the utensil and it should not be in the microwave oven. You probably have many items on hand in your kitcken right now that can be used as cooking equipment in your microwave oven. Read through the following checklist.

MICROW AVING PRINCIPLES

Microwave energy has been used in this country to cook and reheat food since early experiments with RADAR in World War ll. Microwaves are present in the atmosphere all the time, both naturally and manmade sources. Manmade sources include radar, radio, television, telecommunication links and car phones.

In a microwave oven, electricity is converted into microwave by the MAGNETRON.

REFLECTION

The microwaves bounce off the metal walls and the metal door screen.

TRANSMISSION

Then they pass through the cooking containers to be absorbed by the water molecules in the food, all foods contain water to a more or lesser extent.

ABSORPTION

The microwaves cause the water molecules to vibrate which causes FRICTION, i.e. HEAT. This heat then cooks the food. Microwaves are also attracted to fat and sugar particles, and foods high in these will cook more quickly. Microwaves can only penetrate to a depth of 11/2 - 2 inches(4-5cm) and as heat spreads through the food by conduction, just as in a traditional oven, the food cooks from the outside inwards.

HOW MICROW AVES COOK FOOD

▲▲

▲

WEIGHT & MEASURE CONVERSION CHART

Ounces Hundredths of a Pound Tenths of a Pound Grams

1-2 .06-.15 0.1 50 3-4 .16-.25 0.2 100 5-6 .26-.35 0.3 150

7 .36-.45 0.4 200

8-9 .46-.55 0.5 250 10-11 .56-.65 0.6 300 12-13 .66-.75 0.7 350

14 .76-.85 0.8 400

15-16 .86-.95 0.9 450

■ WEIGHT DEFROST AND COOK CONVERSION CHART

POUNDS(lb.) GRAMS(g)

/4 114

2 227

/4 341 1 454 2 907 3 1361 4 1814 5 2268 6 2722 7 3175 8 3629 9 4082

10 4526 11 4990

■ POUNDS & OUNCES TO GRAMS

■ FLUID MEASUREMENTS

OUNCES(oz.) GRAMS(g)

128 257 385 4 113 5 142 6 170 7 198 8 227

OUNCES(oz.)

GRAMS(g)

9 255 10 284 11 312 12 340 13 369 14 397 15 425 16 454

1 Cup = 8 fluid ounces = 240 ml. 1 Pint = 16 fluid ounces = 480 ml. 1 Quart = 32 fluid ounces = 960 ml. 1 Gallon = 128 fluid ounces = 3840 ml.

110˚C 120˚C 130˚C

230˚F 248˚F 266˚F

140˚C 150˚C 160˚C

284˚F 302˚F 320˚F

170˚C 180˚C 190˚C

338˚F 356˚F 374˚F

200˚C 210˚C 220˚C

392˚F 410˚F 428˚F

230˚C 240˚C 250˚C

446˚F 464˚F 482˚F

TEMPERATURE MEASUREMENTS

ST ANDING TIME

Dense foods e.g. meat, jacket potatoes and cakes, require standing time(inside or outside of the oven) after cooking, to allow heat to finish conducting to cook the center completely. Wrap meat joints and jacket potatoes in aluminium foil while standing. Meat joints need approx. 10-15 minutes, jacket potatoes 5 minutes. Other foods such as plated meal, vegetables, fish etc require 2-5 minutes standing. After defrosting food, standing time should also be allowed. If food is not cooked after standing time, return to the oven and cook for additional time.

MOISTURE CONTENT

Many fresh foods e.g. vegetables and fruit, vary in their moisture content throughout the season, particularly jacket potatoes. For this reason cooking times may have to be adjusted. Dry ingredients e.g. rice, pasta, can dry out during storage so cooking times may differ.

DENSITY

Porous airy foods heat more quickly than dense heavy foods.

CLING FILM

Cling film helps keep the food moist and the trapped steam assists in speeding up cooking times. Pierce before cooking to allow excess steam to escape. Always take care when removing cling film from a dish as the build-up of steam will be very hot.

SHAPE

Even shapes cook evenly. Food cooks better by microwave when in a round container rather than square.

SP ACING

Foods cook more quickly and evenly if spaced apart. NEVER pile foods on top of each other.

ST ARTING TEMPERATURE

The colder the food, the longer it takes to heat up. Food from a fridge takes longer to reheat than food at room temperature.

LIQUIDS

All liquids must be stirred before and during heating. Water especially must be stirred before and during heating, to avoid eruption. Do not heat liquids that have previously been boiled. DO NOT OVERHEAT.

TURNING & STIRRING

Some foods require stirring during cooking. Meat and poultry should be turned after half the cooking time.

ARRANGING

Individual foods e.g. chicken portions or chops, should be placed on a dish so that the thicker parts are towards the outside.

QUANTITY

Small quantities cook faster than large quantities, also small meals will reheat more quickly than large portions.

PIERCING

The skin or membrane on some foods will cause steam to build up during cooking. These foods must be pierced or a strip of skin should be peeled off before cooking to allow the steam to escape. Eggs, potatoes, apples, sausages etc, will all need to be pierced before cooking. DO NOT ATTEMPT TO BOIL EGGS IN THEIR SHELLS.

COVERING

Cover foods with microwave cling film or a lid. Cover fish, vegetables, casseroles, soups. Do not cover cakes, sauces, jacket potatoes or pastry items.

COOKING TECHNIQUES

DEFROSTING GUIDE

GENERAL INFORMA TION

➪ Put the food on a microwave rack (roasts, bone-in pieces) or in a microwave casserole (small pieces

such as cubes or strips) or weigh at home on a kitchen scale. Round number to the nearest tenth of a pound and choose that number with each item pads.

➪ The shape of food items, especially larger ones, will vary affect the way defrost. Always check the status

after the standing time. Fish, seafood and poultry should still be somewhat icy in the center the held under cold running water to finish defrosting. If more time is needed, use DEFROST by time to add time in small increments.

➪ Halfway through the defrosting process, a series of beeps will indicate that it is time to change the

position of the item being defrosted. The includes turning over or rotating the item, separating defrosted pieces or sections, or shielding.

➪ Shielding means to use a 2-inch strip of aluminum foil to protect thinner or unevenly shaped part from

beginning to cook. Microwave energy will not penetrate the foil. Some rules apply to the use of foil: Do not let the foil pieces touch each other or the sides of the microwave oven. Be sure that all ends are touched under and lie flat to the food. Remember to adjust foil when a item is turned over and cover with wax paper.

➪ To prepare food for freezer storage(and later defrosting), wrap tightly in moisture proof packaging. If

using freezer plastic bags, be sure to let all the air out to prevent freezer bump on the food. Package so that food is as evenly shaped as possible ease in defrosting

DEFROSTING CHART

Item and Weight

BEEF

Mineed beef 454g (1 lb.)

Stew Meat 681 (11/2 lbs.)

Loin Roast 907g (2 lbs.)

Patties 4 (113g (4 oz.))

PORK

Loin Roast 907g (2 lbs.)

Spareibs 454g (1 lb.)

Chops 4 (142g (5 oz.))

Minced 454g (1 lb.)

POULTRY

Whole Chicken 1134g (21/2 lbs.)

Chicken Breasts 454g (1 lb.)

Fryer Chicken (cut up) 907g (2 lbs.)

Chicken Thighs 681g (11/2 lbs.)

FISH & SEAFOOD

Whole Fish 454g (1 lb.)

Fish Fillets 681g (11/2 lb.)

Shrimp 227g (1/2 lb.)

* The times are approximate because freezer temperatures vary.

Special Techniques

Break apart and remove thawed portions with fork.

Separate and rearrange once. Turn over after half the time.

Shield as needed. Turn over after half the time.

Turn over after half the time. Shield as needed.

Separate and rearrange once.

Separate and turn over once. Break apart and remove thawed

portions with fork. Breat side down. Turn over after half

the time. Shield as needed.

Separate and rearrange once.

Separate and turn over once.

Separate and rearrange once.

Defrosting Time

5-7 min.

6-8 min.

10-12 min.

2-4 min.

8-10 min.

3-5 min.

4-6 min.

10-14 min.

5-7 min.

7-9 min.

6-10 min.

2-3 min.

3-4 min.

1-2 min.

Standing Time

5-7 min.

7-10 min.

5-7 min.

10-15 min.

5-7 min.

COOKING CHART

MEAT

ITEM POWER LEVEL COOKING TIMER PER POUND

Beef

Standing/rolled Rib - Rare P-80 5-7 min.

- Medium P-80 6-8 min.

- well done P-80 7-9 min. Ground Beef(to brown for casserole) P-HI 4-6 min. Hamburgers, Fresh or defrosted (4 oz. Each)

2 patties P-HI 1-2 min. 4 patties P-HI 2-3 min.

Pork

Loin, Leg P-80 8-10 min. Bacon

4 slices P-HI 1-2 min.

6 slices P-HI 2-3 min. NOTE: The above times should be regarded only as a guide. Allow for difference in individual tastes and preferences. The times may vary due to the shape, cut, and composition of the meat.

POULTRY

ITEM POWER LEVEL COOKING TIMER PER POUND

Chicken

Whole P-HI 5-7 min. Breast(boned) P-80 3-5 min. portions P-80 4-6 min.

Turkey

Whole P-HI 7-10 min. NOTE: The above times should be regarded only as a guide. Allow for difference in individual tastes and preferences. The times may vary due to the shape and composition of the food.

FRESH FISH

ITEM

POWER COOKING TIME

METHOD

STANDING

LEVEL PER POUND TIME Fish Fillets P-HI 2-3 min. Add 15-30 ml(1-2 Tbsp) 2-3 min. Whole Mackerel,

P-HI 2-3 min. - 3-4 min.

Cleaned and Prepared Whole Trout, Cleaned

P-HI 3-5 min. - 3-4 min.

and Prepared Salmon Steaks P-HI 3-5 min. Add 15~30 ml(1~2 Tbsp) 3-4 min.

Check time per 1lb. in chart below and multiply by the weight of the item.

VEGETABLE

ITEM POWER LEVEL PREPARATION QUANTITY COOKING TIME

STANDING TIME

Artichokes, fresh P-HI Whole 4(8 oz. each) 5-7 min. 5 min. Artichokes, frozen P-HI Hearts 250g(9 oz. pkg) 6-8 min. 5 min.

Asparagus, fresh P-HI 11/2-in.pieces 500g(1 lb.) 3-5 min. 3 min. Asparagus, frozen P-HI Whole spears 280g(10 oz. pkg) 5-7 min. 3 min. Broccoli, fresh P-HI Spears 500g(1 lb.) 3-5 min. Broccoli, frozenP-HI Whole or cut 280g(10 oz. pkg) 5-7 min. 3 min. Brussels sprouts, fresh P-HI Whole 280g(10 oz. tub) 3-5 min. Brussels sprouts, frozen P-HI Whole 280g(10 oz. pkg) 5-7 min. 3 min. Carrots, fresh P-HI 1/2-in.slices 500g(1 lb.) 4-6 min. 3 min. Carrots, frozen P-HI Sliced 280g(10 oz. pkg) 3-4 min. 3 min. Cauliflower, frozen P-HI florets 280g(10 oz. pkg) 3-4 min. 3 min. Celery, fresh P-HI 1/2-in.slices 500g(1 lb.) 3-5 min. 5 min. Corn, fresh P-HI on cob, husked 4 ears 5-7 min. 5 min.

Corn, frozen

P-HI on cob, husked 4 ears 5-7 min. 5 min. P-HI whole kernel 280g(10 oz. pkg) 4-6 min. 3 min.

Eggplant, fresh

P-HI cubed 500g(1 lb.) 3-5 min. 3 min. P-HI whole, pierced

500~700g(1-11/2 lb.)

4-6 min. 5 min. Leeks fresh P-HI whole, ends 500g(1 lb.) 4-6 min. 5 min. Lima beans, frozen P-HI whole 280g(10 oz. pkg) 4-6 min. 3 min. Mixed vegetables frozen P-HI - 280g(10 oz. pkg) 4-6 min. 3 min. Mushrooms, fresh P-HI sliced 500g(1 lb.) 2-3 min. 3 min. Okra, frozen P-HI sliced 280g(10 oz. pkg) 4-6 min. 5 min. Onions, fresh P-HI whole, peeled 8-10 small 5-7 min. 5 min. Pea pods(snow peas), frozen P-HI whole 170g(6 oz. pkg) 2-3 min. 3 min. Peas and carrots P-HI - 280g(10 oz. pkg) 2-3 min. 3 min. Parsnips, fresh P-HI cubed 500g(1 lb.) 4-6 min. 5 min. Potatoes, white or sweet, P-HI whole 4(6 oz. each) 15-17 min. 3 min. fresh P-HI whole 8(6 oz. each) 18-20 min. 5 min. Squash, summer, fresh P-HI 1/2-in.slices 500g(1 lb.) 3-5 min. 3 min. Squash, summer, frozen P-HI sliced 280g(10 oz. pkg) 3-5 min. 3 min. Squash, winter, fresh P-HI whole, pierced 700g(11/2lbs.) 6-8 min. 5 min. Squash, winter, frozen P-HI whipped 340g(12 oz. pkg) 4-6 min. 3 min. Succotash, frozen P-HI - 280g(10 oz. pkg) 3-5 min. 3 min. Turnips P-HI cubed 4 cups 4-6 min. 3 min.

ITEM QUANTITY POWER LEVEL COOKING TIME SPECIAL INSTRUCTION Appetizers

(bite size)

2 servings P-HI 1-2 min.

Breakfast entrée 110~140g(4-5 oz.) P-HI 1-2 min. Entrée 250g(8-9 oz.) P-HI 6-8 min. Regular TV-style

600g(21 oz.) P-HI 10-12 min.

dinner Hearty TV-style 300g(11 oz.) P-HI 4-6 min. dinner 480g(17 oz.) P-HI 5-8 min.

2 pieces P-HI 1-2 min.

Fried chicken 4 pieces P-HI 2-4 min.

6 pieces P-HI 3-5 min.

Fried fresh fillets

2 fillets P-HI 1-2 min. 4 fillets P-HI 2-4 min.

1 P-HI 1-2 min.

Pizzas (sliced) 2 P-HI 2-3 min.

4 P-HI 3-6 min.

Pouch dinners

140~160g(5-6 oz.)

P-HI 2-3 min.

280~300g(10-11 oz.)

P-HI 5-7 min.

Bagels

2 P-60 1-2 min. 4 P-60 2-4 min. 1 P-60

/2-1 min.

Danish

2 P-60 1-2 min.

4(6 oz. pkg) P-60 2-3 min.

6(13 oz. pkg) P-60 3-4 min.

Dinner rolls 6 P-60 1-2 min.

1(1-11/4 oz.) P-60

/2-1 min.

Hard rolls 2 P-60 1-2 min.

4 P-60 2-3 min. Frozen Juice 170g(6 oz.) P-HI 1-2 min. Concentrates 340g(12 oz.) P-HI 2-3 min. Non-Dairy creamer 450g(16 oz.) P-60 6-8 min. Pancake 280g(10 oz.) P-60 3-5 min.

160g(6 oz.) P-60 5-7 min.

Frozen vegetables

280g(10 oz.) P-60 6-10 min.

Cheese cake 500g(17 oz.) P-60 3-4 min.

Brownies 360g(13 oz.) P-60 1-3 min.

Pound cake 300g(103/4 oz.) P-60 1-2 min.

Coffee cake

300~340g(11-12 oz.)

P-60 2-3 min.

Heat 12 at time on paper towel lined paper plate or microwave oven roasting rack

If containers is 3/4-inch deep, remove foil cover and replace foil tray in original box. For containers more then 3/4-inch deep, remove food to similar size glass container; heat, covered. If no top crust stir occasionally.

REHEATING CHART

Arrange, on paper tower lined paper plate, covered with paper tower.

Arrange on microwave oven roasting rack.

Pierce pouch. Set on plate. Turn over halfway through cooking.

Each individually wrapped in paper toweling (for1-2) or arrange on paper plate, cover with paper toweling.

Remove lid. If container is foil lined transfer to a pitcher or open carton. Let stand after defrosting.

Pierce box, set on plate. If box is foil wrapped, remove foil. If vegetables are in pouch, pierce pouch. Let stand 5 min.

Remove from original container. Arrange on a serving plate. Let stadn 5 minutes after cooking(to defrost). Add an additional 1-2 minutes to serve warm.

CARE OF YOUR MICROW AVE OVEN

Turn the oven off before cleaning.

Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven wetal, plate tray wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended.

The outside oven surface should be cleaned with soap and water, rinsed and dried with a soft cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

If the Control Panel becomes wet, clean with a soft, dry cloth. Do not use harsh detergents or abrasives on Control Panel.

If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

1 2

3 4 5

USE YOUR MICROW AVE OVEN SAFELY

General Use

Do not attempt to defeat or tamper with safety interlocks. Do not place any object between the oven front frame and the door or allow residue to build up on sealing surfaces. Wipe with a mild detergent, rinse and dry. Never use abrasive powders or pads. Do not subject the oven door to strain or weight such as a child hanging on an open door. This could cause the oven to fall forward resulting in injury to you and damage to the oven. Do not operate the oven if door seals or sealing surfaces are damaged; or if door is bent; or if hinges are loose

or broken. Do not operate the oven empty. This will damage the oven. Do not attempt to dry clothes, newspapers or other materials in the oven. They may catch on fire. Do not use recycled paper products as they may contain impurities which may cause sparks or fires. Do not hit or strike the control panel with hard objects. This can damage the oven.

Food

Never use your microwave oven for home canning. The oven is not designed for proper home canning. Improperly canned food may spoil and be dangerous to consume.

Always use the minimum recipe cooking time. It is better to undercook rather than overcook foods. Undercooked foods can be returned to the oven for more cooking. If food is overcooked, nothing can be done. Heat small quantities of food or foods with low moisture carefully. These can quickly dry out, burn or catch on fire. Do not heat eggs in the shell. Pressure may build up and eggs can explode. Potatoes, apples, egg yolks and sausages are examples of food with non-porous skins. These must be pierced before cooking to prevent bursting. Do not attempt to deep fat fry in your microwave oven. Always stir liquids before heating. Heated liquids can erupt, if not mixed with air. Do not leave the oven unattended while popping corn. Do not pop corn in a paper bag unless it is the commercially prepared Microwave Popcorn product. The kernels

can overheat and ignite a brown paper bag. Do not put packaged Microwave Popcorn bags directly on the oven tray. Place the package on a microwave

safe glass or ceramic plate to avoid overheating and cracking the oven tray. Do not exceed the Microwave Popcorn manufacturers' suggested popping time. Longer popping does not yield

more popcorn but it can result in scorch, burn of fire. Remember, the Popcorn bag and tray can be too hot to handle. Remove with caution and use pot holders.

ARCING

If you see arcing, open the door and correct the problem.

Arcing is the microwave term for sparks in the oven. Arcing is caused by:

• Metal or foil touching the side of the oven.

• Foil not molded to food (upturned edges act like antennas).

• Metal, such as twist-ties, poultry pins, or gold rimmed dishes, in the microwave.

• Recycled paper towels containing small metal pieces being used in the microwave.

BEFORE YOU CALL FOR SERVICE

Refer to following checklist, you may prevent an unnecessary service call.

* The oven doesn't work;

1. Check that the power cord is securely plugged in.

2. Check that the door firmly closed.

3. Check that the cooking time is set.

4. Check for a blown circuit fuse or tripped main circuit breaker in your house.

* Sparking in the cavity;

1. Check that utensils are metal containers or dishes with metal trim.

2. Check that metal skewers touch the interior walls.

If there is still a problem, contact the service station. A list of these stations is included in the oven.

QUESTIONS AND ANSWERS

* Q : I accidentally ran my microwave oven without any food in it. Is it damaged?

* A : Running the oven empty for a short time will not damage the oven.

However, it is not recommended.

Q : Can the oven be used with the glass tray or roller guide removed?

A : No. Both the glass tray and roller guide must always be used in the oven before cooking.

* Q : Can I open the door when the oven is operating?

* A :

The door can be opened anytime during the cooking operation. Then microwave energy will be instantly

switched off and the time setting will maintain until the door is closed and START is touched.

* Q : Why do I have moisture in my microwave oven after cooking?

* A : The moisture on the side of your microwave oven is normal. It is caused by steam form cooking food

heating the cool oven surface.

Q : Dose microwave energy pass through the viewing screen in the door?

A : No. The metal screen bounces back the energy to the oven cavity. The holes are made to

allow light to pass through. They do not let microwave energy pass through.

* Q : Why do eggs sometimes pop?

* A : When baking or poaching eggs, the yolk may pop due to steam build-up inside the yolk membrane.

To prevent this, simply pierce the yolk with a toothpick before cooking. Never cook eggs without piercing their shells.

DO NOT ATTEMPT TO SERVICE THE OVEN YOURSELF!

QUESTIONS AND ANSWERS (continued)

* Q : Why is standing time recommended after the cooking operation has been completed?

* A : Standing time is very important.

With microwave cooking, the heat is in the food, not in the oven. Many foods build up enough internal heat to allow the cooking process to continue, even after the food is removed from the oven. Standing time for joints of meat, large vegetables and cakes allows the inside to cook completely, without overcooking the outside.

* Q : What does “standing time” mean?

* A : “Standing time” means that food should be removed from the oven and covered for additional time to

allow it to finish cooking. This frees the oven for other cooking.

* Q : Why does my oven not always cook as fast as the microwave cooking guide says?

* A : Check your cooking guide again, to make sure you’ve followed directions exactly ; and to see what

might cause variations in cooking time. Cooking guide times and heat settings are suggestions, to help prevent over-cooking... the most common problem in getting used to a microwave oven.

Variations in the size, shape and weights and dimensions could require longer cooking time. Use your own judgement along with the cooking guide suggestions to check whether the food has been properly cooked just as you would do with a conventional cooker.

Q : Will the microwave oven be damaged if it operates while empty?

A : Yes. Never run it empty.

Q : Can I operate my microwave oven without the turntable or turn the turntable over to hold a large dish?

A : No. If you remove or turn over the turntable, you will get poor cooking results. Dishes used in your

oven must fit on the turntable.

* Q : Is it normal for the turntable to turn in either direction?

* A : Yes. The turntable rotates clockwise or counterclockwise, depending on the rotation of the motor

when the cooking cycle begins.

* Q : Can I pop popcorn in my microwave oven? How do I get the best results?

* A : Yes. Pop packaged microwave popcorn following manufactures guidelines or use the preset

POPCORN pad. Do not use regular paper bags. Use the “listening test” by stopping the oven as soon as the popping slows to a “pop” every 1 or 2 seconds. Do not repop unpopped kernels. Do not pop popcorn in glass cookware.

First-Class

Postage

Required

Post Office will

not deliver

without proper

postage.

Please send products and other correspondence to:

Magic Chef 455 E. State Pkwy., Suite 104 Schaumburg, IL 60173

Please detach before mailing

EHG01-01

PPRROODDUUCCTT RREEGGIISSTTRRAATTIIOONN

RETURN THIS CARD NOW FOR:

• Warranty Confirmation

With the information you provide, we can confirm the date of purchase, model and serial number of your product. This confirmation is of benefit to you if the original proof of purchase is lost. We will keep the information in our files for up to ten (10) years.

• $100,000 Give Away lll

We’ll automatically enter you for a chance to win $5,000, $25,000, or even $50,000!

IMPORTANT:

Please Complete and Return.

You could win up to $50,000 in the

$100,000 Give away lll! See inside...

PO BOX 174264 DENVER CO 80217-4264

At Magic Chef we are committed to qqality. Please take a moment now th register your purchase. Your valuable input regarding this purchase helps us create the products you’ll want in the future. We’ll also enter you in the “$100,000 Give Away lll” for a chance to win $5,000, $25,000 or even $50,000! Thank you for your time, and thanks for choosing Magic Chef.

1. 1. Mr. 2. Mrs. 3. Ms. 4. Miss

2. Telephone #:

IMPORTANT!

PLEASE COMPLETE AND RETURN WITHIN

THE NEXT

10 DAYS!

EHG01-01

First Name Initial Last Name

Street Apt. No.

City ZIP Code

State

3. Date of purchase:

E-mail

9. Your date of birth:

10. Marita status: 1. Married 2. Single

11.

Not including yourself, what is the GENDER and AGE (in years) of children and other adults living in your household?

1. No one else in household 2. Child under 1 year

Male Female Age

1. 2. yrs.

Price paid (excluding sales tax):

$ .00

Male Female Age

1. 2. yrs.

4. Model number:

Please refer to your owne’s manual or the back of your product to locate the model number.

Serial number:

5. Name of store where purchased:

What factors/features most influenced your decision to purchase this product?

1. Magic Chef reputation 5. Size

2. Previous experience 6. Salesperson’s Recommendation with Magic Chef products 7. Friend’s/Relative’s Recommendation

3. Price 6. Other ________________

4. Style/Appearance

12.

Which group describes your annual family income?

01. Under $15,000 08. $75,000-$99,999

02. $15,000-$19,999 09. $100,000-$124,999

03. $20,000-$29,999 10. $125,000-$149,999

04. $30,000-$39,999 11. $150,000-$174,999

05. $40,000-$49,999 12. $175,000-$199,999

06. $50,000-$59,999 13. $200,000-$249,999

07. $60,000-$79,999 14. $250,000 & over

13. For your primary residence, do you: 1. Own? 2. Rent?

14.

To help us understand our customers’ lifestyles, please indicate the interests and activities in which you or your spouse enjoy participating on a regular basis.

1. Bible/Devotional Reading 16. Culture/Arts Events

2. Hunting/Shooting 17. Sweepstakes

3. Health/Natural Foods 18. Fishing

4. Foreign Travel 19. Stamp/Con Collecting

5. Avid Book Reading 10. Wildlife/Enviornment

Thanks for taking the time to fill out this questionnaire. Your answers will be used for market research studies and reports. They will also allow you to receive important mailings and special offers from a number of fine companies whose products and services relate directly to the specific interests, hobbies, and other information indicated above. Through this selective program, you will be able to obtain more information about activities in which you are involved and less about those in which you are not. Please check here if, for some reason, you would prefer not to participate in this opportunity. Please check here if you do not want to recieve mailings and offers using you e-mail address.

Official Rules: No Purchase necessary to win. Sweepstakes is sponsored by a number of different companies and will award the following prizes: one 1 st Prize of $50,000; one 2nd Prize of $25,000; and five 3rd Prizes of $5,000. Enter by completing this porduct registration card or a 3” x 5” card with you name, address, city, state, ZIP code, and the words “$100,000 Give Away lll, Dept. EHG” and mail to P.O. Box 174264, Denver, CO 80217-4264. Mechanically reproduced entries not acceptable. Sweepstakes begins May 20, 1999, and ends December 31, 2001. Entries are limited to one per household. Not responsible for late, lost or illegible entries. A random drawing held in january 2002 will select the winners from all entries collectively received by the sponsoring companies. Odds of winning depend on the number of eligible entries received. Open to US residents at least 18 years old, except employees and their families of the contest judge, Daewoo Electronics corporation of America, and their subsidaries and affiliates. Each winner must submit a signed and notarized affidavit of eligibility. By submitting an entry, winner agrees to the use of their name, address, and photogragh for advertising/publicity purposes without compensation. all entries become the property of the contest judge. No transfer or substitution of prize is allowed. Winner is solely reponsible for all taxes. Offer void in FLORIDA and where prohibited by law. For notice of contest winners, send a self-addressed, stamped envelope to: $100,000 Give Away lll”, P.O Box 173133, Denver, CO 80217-3133.

For service information on

Magic Chef microwave ovens,

please call 1-800-553-4355

8. Which of the following items do you: (A) (B)

(check all that apply)

TV 1. VCR 2. TV/VCR Combo 3. CD Player 4. Microwave Oven 5. DVD Player 6. Digital TV 7.

Currently

Own?

Plan to Purchase Within

the Next 6 Months?

Warranty

DAEWOO ELECTRONICS AMERICA, INC. warrants each new electronic product manufactured by it to be free from defective material and workmanship and agrees to remedy any such defect or to furnish a new part (at the Company’s option) in exchange for any part of any unit of its manufacture which under normal installation, use, and service disclosed such defect, provided the unit is delivered by the owner to us or to our authorized distributor from whom purchased or authorized service station, intact, for our examination with all transportation charges prepaid to our factory, To establish and receive warranty service at our factory or authorized service facilities, proof of purchase/dated sales invoice is required

Return authorization must be obtained before any merchandise is returned to the factory. This warranty does not extend to any of our electronic products which have been subjected

to misuse, neglect, accident, incorrect wiring not our own, improper installation, unauthorized modification, or to use in violation of instructions furnished by us, nor units which have been repaired or altered outside of our factory, nor to cases where the serial number thereof has been removed, defaced, or changed

This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume for us any other liability in connection with the sale of our electronic products.

Over-the-counter exchange for units that are initially defective. “Initially defective” is described as when the dealer opens the unit and finds that it is inoperative or a customer opens a new unit and finds that it is inoperable. This unit may be returned to the factory by the dealer for exchange. Under no circumstances will the customer be permitted to return the defective unit directly to the factory. Exchange must be directly with the dealer.

Model Parts Labor Magnetron MCC1010T 1 year 1 year 8 years

For Service or Assistance, please call 1-800-553-4355 or visit website

www.magicchef-ewave.com

Magic Chef C1010, MCC1010T, WM1010CC Instruction Manual And Cooking Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
