Magellan MRM 300EU User Manual

Magellan® RoadMate

Reference Manual

™

Instructions for Operating the

Magellan RoadMate 300

***

The Magellan RoadMate 300 is a vehicle-navigation aid designed to assist you in arriving at your selected destinations. When using the Magellan RoadMate, these safety rules must be followed to prevent accidents that can result in injury or death to yourself or others:

• When driving, the need to view the display is minimal. Voice prompts will guide you to your destination. The driver should enter data or program the unit only when the vehicle is stopped. Only a vehicle passenger should enter data or program the unit while the vehicle is moving.

• It is your responsibility to comply with all traffic laws.

• While every attempt is made to ensure that the database is accurate, roadways, points of interest, and business and service locations may change over time. The database does not include, analyse, process, consider, or reflect any of the following: legal restrictions (such as vehicular type, weight, height, width, load and speed restrictions); road slope or grade; bridge height, width, weight, or other limits; population density; area quality or safety; availability or proximity of law enforcement, emergency rescue, medical, or other assistance; construction work zones or hazards; road or lane closures; road, traffic, or traffic facilities’ safety or condition; weather conditions; pavement characteristics or conditions; special events; traffic congestion. It is your responsibility to disregard any unsafe, hazardous, or illegal routing suggestions.

IMPORTANT SAFETY WARNINGS

***

• Keep the Magellan RoadMate safe from extreme temperature conditions. For example, do not leave it exposed to direct sunlight for an extended period of time.

• Laws in some areas prohibit wearing stereo headphones while operating a motor vehicle. Please contact your area’s Department of Motor Vehicles for information.

• Take care when mounting the unit in your vehicle, whether using the windscreen mount or other mount or accessories, that it does not obstruct the driver’s view of the road, interfere with the operation of the vehicle’s safety devices such as air bags, or present a hazard to occupants of the vehicle should the unit be dislodged while driving. You assume the risks associated with damage to your vehicle or vehicle occupants as the result of your choices in mounting the unit.

• Please refer to the Read Me First document supplied with your Magellan RoadMate for installation instructions.

© 2004 Thales Navigation, Inc. All rights reserved. The Magellan logo, Magellan, RoadMate, Turn it on and go, TrueView, TrueFix, and QuickSpell are trademarks of Thales Navigation. No part of this user manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose other than the purchaser’s personal use, without the prior written permission of Thales Navigation.

631232-18A

Table of Contents

Magellan RoadMate 300 ...................................................................................................................1

Front View .............................................................................................................................................. 1

Rear View ............................................................................................................................................... 1

Left- and Right-Side Views ...................................................................................................................... 2

Bottom View ........................................................................................................................................... 2

Basemaps vs. Detailed Map ..............................................................................................................3

Basemap Routing vs. Detailed Map Routing ........................................................................................3

Secure Digital (SD) Cards .................................................................................................................4

To Insert the SD Card: ............................................................................................................................ 4

To remove the SD card: .......................................................................................................................... 4

Vehicle Installation ..........................................................................................................................5

Installation with the Windscreen Mount ................................................................................................... 5

Installing the External Antenna ................................................................................................................ 6

Turning the Magellan RoadMate On ...................................................................................................8

Inputting Text Characters ..................................................................................................................8

Additional Characters (More) .............................................................................................................9

Numerical Characters (123) ..............................................................................................................9

Using QuickSpell® ...........................................................................................................................9

What Is QuickSpell? ................................................................................................................................ 9

Choosing the Routing Method ..........................................................................................................12

Basemap Routing ...........................................................................................................................13

Selecting a Point on the Map ................................................................................................................ 13

Search BaseMap Town ......................................................................................................................... 14

Switching SD Cards ..............................................................................................................................15

Selecting a Destination Using “Select Address” ................................................................................16

Select Address ...................................................................................................................................... 16

Selecting a Destination Using “Address Book” ..................................................................................18

Address Book: Previous Destinations .................................................................................................... 18

Address Book: List Addresses ............................................................................................................... 20

Address Book: Create New Entry ........................................................................................................... 26

Address Book: Trip Planner ..................................................................................................................37

Selecting a Destination Using “Points of Interest” .............................................................................44

Points of Interest: Search POI by Name ................................................................................................. 44

Points of Interest: Search Nearest POI ................................................................................................... 45

Points of Interest: Search BaseMap Town ............................................................................................. 50

Selecting a POI on the Map ................................................................................................................... 51

Selecting a Destination Using “Town centre” ....................................................................................52

Guidance Information Screens .........................................................................................................53

Map Screen .......................................................................................................................................... 54

Changing the Map Zoom Levels ............................................................................................................54

List of Directions Screen ....................................................................................................................... 55

TrueView Screen ...................................................................................................................................55

Route Changes ..............................................................................................................................56

Deviating from the Planned Route ......................................................................................................... 56

Excluding a Segment in a Planned Route ..............................................................................................56

Cancelling a Planed Route .................................................................................................................... 56

Changing the Routing Method ............................................................................................................... 57

Current Location ............................................................................................................................58

Displaying Information About Your Current Location .............................................................................. 58

Save Location ....................................................................................................................................... 58

User Option Menu ..........................................................................................................................59

Trip Computer ...............................................................................................................................60

Stopping or Starting the Trip Computer .................................................................................................60

Saving the Current Trip Report .............................................................................................................. 60

Table of Contents

Resetting the Trip Computer .................................................................................................................61

Viewing a Saved Trip Report ................................................................................................................. 61

Deleting a Trip Report ........................................................................................................................... 62

Track Recorder ..............................................................................................................................63

Start Track Recorder ............................................................................................................................. 63

Stop Track Recorder ............................................................................................................................. 63

Save Track Record ...............................................................................................................................64

View Track ............................................................................................................................................65

Delete, Rename Track .......................................................................................................................... 66

Configuration .................................................................................................................................68

Brightness ............................................................................................................................................68

Volume ................................................................................................................................................. 68

Auto Power Off .....................................................................................................................................69

Language ............................................................................................................................................. 69

User Settings .................................................................................................................................70

POI Selection ........................................................................................................................................ 70

Map Options ......................................................................................................................................... 71

Select Map Colour ................................................................................................................................71

Route Preferences ................................................................................................................................ 72

Split TrueView ....................................................................................................................................... 72

Menu Colours ....................................................................................................................................... 73

Tone Options ........................................................................................................................................ 74

Diagnostics ........................................................................................................................................... 74

User - Edit Name .................................................................................................................................. 79

Password Settings ................................................................................................................................. 79

Front View

Magellan RoadMate

Magellan RoadMate 300

1 Power Press to turn the Magellan RoadMate on or off 2 Zoom In While viewing the map, press to enlarge the map view 3 Zoom Out While viewing the map, press to shrink the map view 4 View Switch between Map, List of Directions and TrueView 5 Locate Show details of your current location and save it to your address book 6 Option Access customisable features 7 Cancel Cancel changes and selections

8Enter

9 Navigation Key Select menu options, characters, and pan map

Confirm menu selections and text input, repeats last voice prompt during routing while on the Map Screen

Rear View

1 Antenna Rotate up when in use to receive signals from the GPS satellite network

Magellan RoadMate

Left- and Right-Side Views

1 USB Connection Connection for your PC 2 Power Connection Plug into your vehicle or at home 3 Headset Connection Plug in an earpiece for noisy areas

Bottom View

1 SD Card Slot Secured Digital (SD) Card slot

Maps and Data

Basemaps vs. Detailed Map

A basemap contains major map features such as highways and town centres. The basemap that is built into the Magellan RoadMate has basic detail sufficient for generally orienting oneself to a broad geographic area. The basemap is used when routing between detailed regions, or to a point on the map (this will be explained later).

Detailed maps include all roads and highways, points of interest (POIs), geographic features, railways and street addresses.

Basemap Routing vs. Detailed Map Routing

The Magellan RoadMate comes with a built-in basemap. The basemap contains highways and town centres. The basemap does not contain street address information, points of interest, or other map data (such as waterways, railroads, or parks). The Magellan RoadMate can route via the basemap to a town centre or point selected on the screen using the available road data. Where there is no data, a thin, straight line from point to point will be used with a flag indicating the start and finish of normal street routing. You will be routed from your current position via a straight line to the nearest major road or freeway on-ramp, along the freeway to the off-ramp closest to your destination, and then via straight line to your destination.

With the detailed map, you are routed using turn-by-turn guidance on all town streets and highways. Also, you have access to detailed map data and points of interest. As you can see, with the detailed map the route becomes more direct using the surface streets.

With this information in mind, let’s see how the Magellan RoadMate routes between regions.

Destination

Current Position

Destination Selected from detailed map database

Current Position

SD Cards

Secure Digital (SD) Cards

The Secure Digital (SD) card is a small, lightweight flash memory device that allows increased data storage for your Magellan RoadMate. The compact size is ideal for storing large amounts of data and not taking a lot of physical space. The SD card slot on your Magellan RoadMate uses what is called a “push-push” method of locking and releasing. In other words, when you insert the card you must push it to lock it in, and to release it you must push it also. SD cards come in a variety of sizes and manufacturers, please visit our web site at www.magellangps.com for a list of compatible SD cards.

To Insert the SD Card:

Make sure the unit is off. “Hot-Swapping” or changing cards with the power on is not supported and may damage the unit and the SD card.

1. Peel back the rubber gasket to expose the SD card slot. Do not completely remove the rubber gasket.

The SD card can only be inserted in one direction. Do not force the card into the slot.

2. Insert the SD card into the slot with the metal contacts going in first and the bevelled edge to the left.

Metal Contacts

3. Push the SD card into the slot. You will feel slight resistance. Continue to push until you hear a click.

4. Replace the rubber gasket.

Beveled Edge

To remove the SD card:

1. Peel back the rubber gasket to expose the SD card slot. Do not completely remove the rubber gasket.

Do not attempt to pull the card out of the slot at this point.

2. Push the SD card into the slot as before until you hear a click.

3. Remove the SD card from the slot.

4. Replace the rubber gasket.

Installation

Vehicle Installation

Take care when mounting the Magellan RoadMate in your vehicle, whether using the windscreen mount or another mount, that it does not obstruct the driver’s view of the road. Make sure that the fitting of the Magellan RoadMate and cable does not interfere with the operation of vehicle safety devices, such as air bags. You assume the risks associated with damage to your vehicle or your vehicle’s occupants as a result of how you choose to mount the Magellan RoadMate.

Installation with the Windscreen Mount

Using a Phillips screwdriver, attach the mounting plate to the back of the Magellan RoadMate with four screws until the screws are square with the plate.

Slide the mount assembly onto the windscreen mount bracket attached to the back of the unit.

Press the windscreen mount to the glass and rotate the locking dial until it clicks into place.

Plug the power cable into the unit.

Installation

Plug the cigarette lighter connector into an appropriate 12V receptacle in your car.

Rotate the antenna upward.

Installation is complete. You are ready to turn the Magellan RoadMate on and go.

Installing the External Antenna

The external antenna (not included) provides faster satellite fix times and greater signal strength. Because it is mounted outside of the vehicle, it is not affected by reflective coatings on windows and has an unobstructed line of sight to the satellites.

Rotate the antenna all the way anti-clockwise until it stops..

Hold the antenna at the lower portion and pull straight off the back of the unit.

Installation

Plug the end of the external antenna into the socket on the back of the unit.

Attach the antenna to a flat portion of the roof of your vehicle. The antenna is magnetic. Do not use any adhesives to attach the antenna to your vehicle.

Route the antenna cable so it does not interfere with the operation of the vehicle.

Basic Operation

Turning the Magellan RoadMate On

Ensure that you install the SD card as described in the “SD Cards” chapter before applying power to the Magellan RoadMate. Press the Power button. The Power button is located on the left side of the unit. See “Magellan RoadMate 300” on page 1 for button locations.

If the power is properly connected a logo screen will be displayed.

If this is the first time you have turned on the receiver, you will need to select the language you wish to use for your Magellan RoadMate. This screen is displayed only when the receiver is turned on for the first time. You can change the language later by pressing the Option button, selecting Configuration, and selecting Languages.

The Warning screen will appear. At the bottom of the screen, select your preferred user. The Magellan RoadMate can be personalised for three different users.

Inputting Text Characters

Whenever you need to input names, street addresses, etc., the Magellan RoadMate will display a keypad. Touch the screen or use the navigation key to input text.

Alphabetic Characters

Numerical Character Menu

Cancel

Space Bar

Backspace

Additional Characters Menu

Accept Entry

Basic Operation

Additional Characters (More)

When you are entering information, you may need to add punctuation or other special characters. When available, select More to bring up the additional characters.

Numerical Characters (123)

You may also need to add numbers to your text. When available, select 123 to bring up the numeric keypad.

Using QuickSpell

What Is QuickSpell?

The Magellan RoadMate uses QuickSpell technology to provide you with the fastest method possible to enter characters. QuickSpell eliminates the possibility of a misspelled word or looking for a town or street that is not loaded. As you begin entering characters, the QuickSpell feature of the Magellan RoadMate greys out any characters that are not available, thereby speeding up the data entry process.

Example:

Suppose that you need to input the name of a town, in this case, Genève.

Select “G”.

Select “E”.

Basic Operation

Select “N”.

Select “E”.

When you feel that enough characters have been entered so that the list of towns is short enough to find “Genève”, select OK.

Scroll up or down the list and select “Genève, SZ”.

If the list is still too long, press the Cancel button to return to the keyboard and continue entering characters. The list of items found in the database is limited to 100 items. When over 100 items have been found, “Matches: > 100” will be displayed in the bottom right corner of the display; you may need to press the Cancel button and enter additional characters.

Select Address

Address Book

Selecting Destinations

Select Region

Previous Destinations

List Addresses

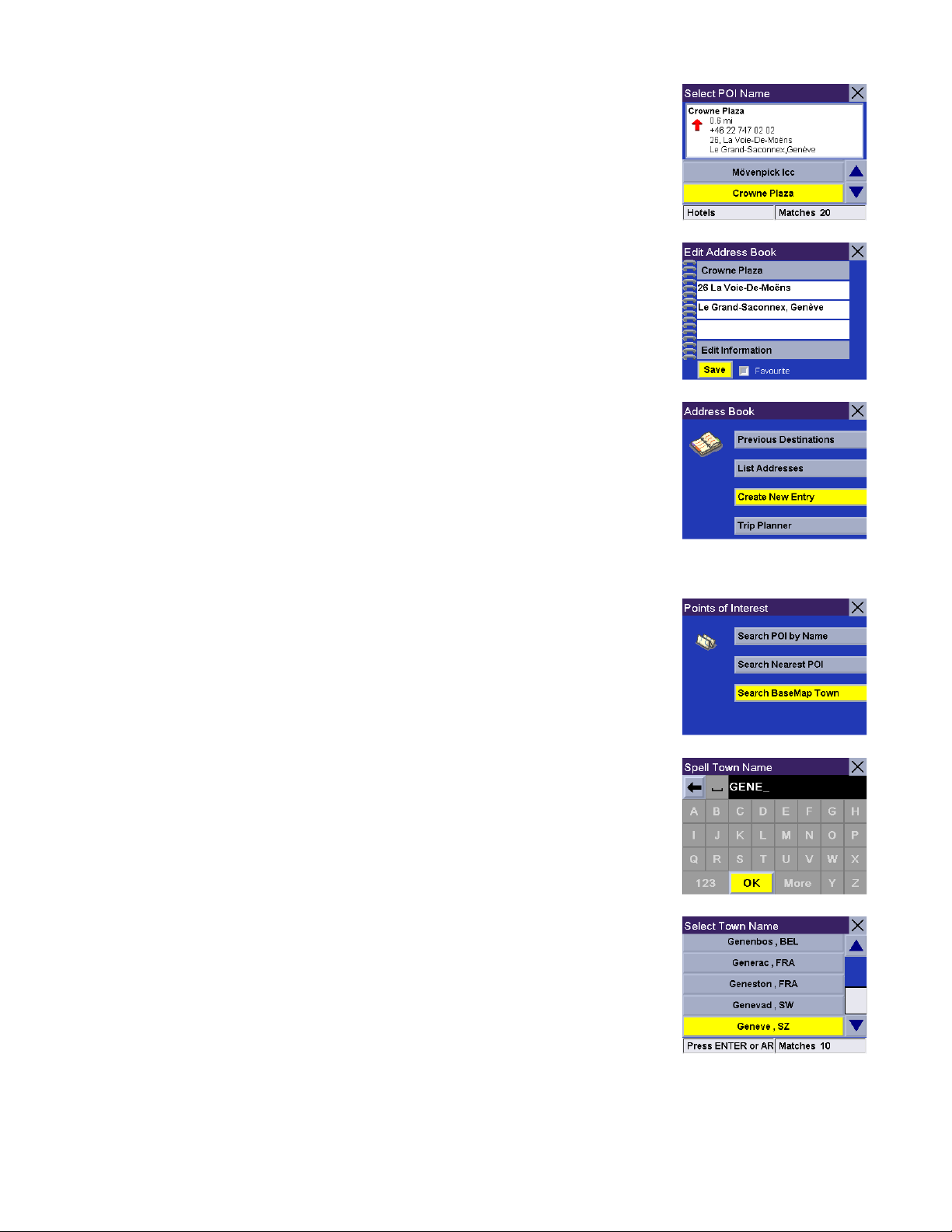

Points of interest

Create New Entry

Tri p P la nn er

Search POI by Name

Select Region

Search Nearest POI

Search BaseMap Town

Select Region

Tow n Ce n tr e

Selecting Destinations

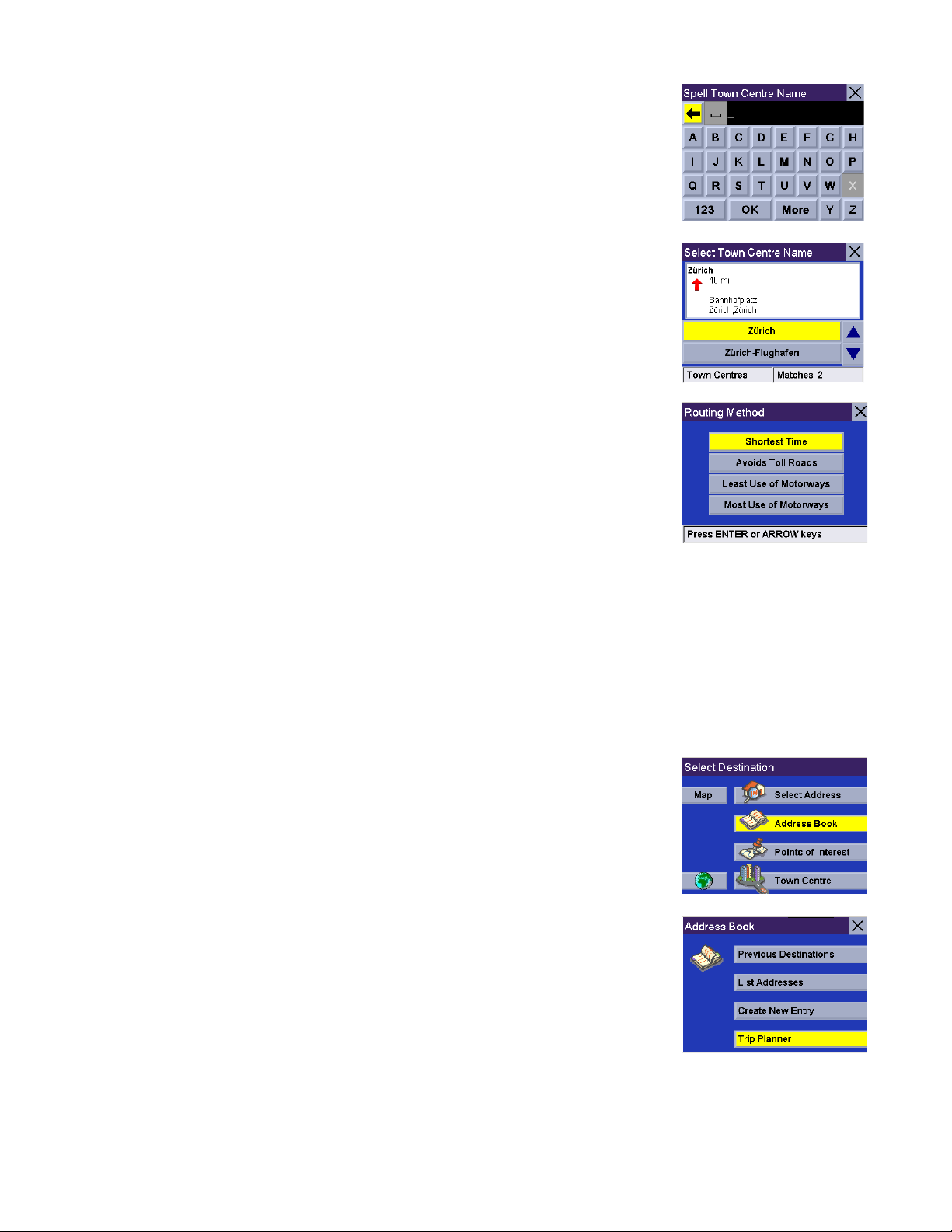

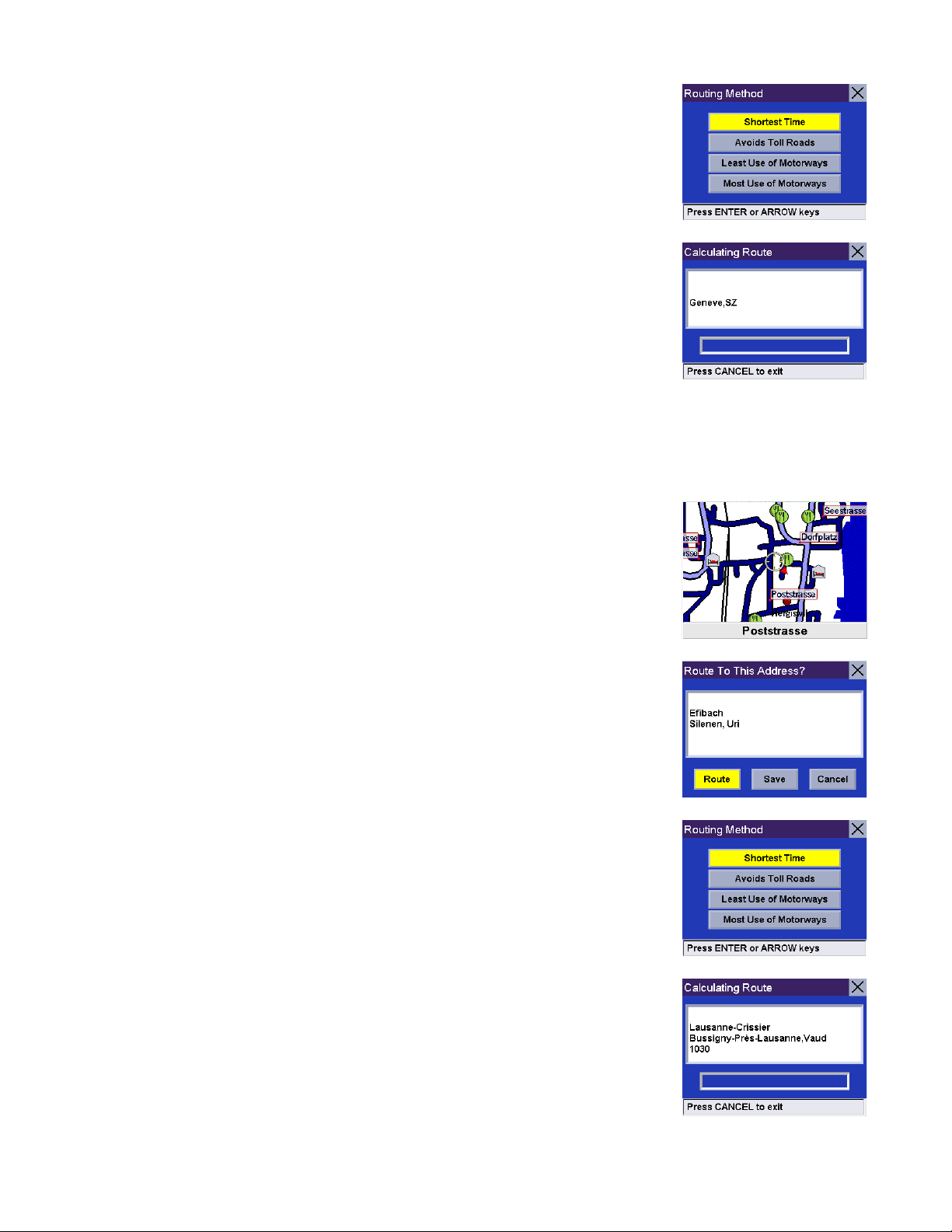

Choosing the Routing Method

Every route is calculated based on the Routing Method criteria selected. Every time a new destination is selected, the Magellan RoadMate prompts you for the method that will be used to calculate the route.

Shortest Time: This selection calculates a route that should take the least amount of time using known speed limits, streets, and other information in the database. Other factors such as traffic conditions, road closures, and emergency activity are not factors in the calculation of shortest time.

Avoid Toll Roads: This option calculates the route by excluding known toll roads from the calculation whenever possible. This option may not reflect the shortest time.

Least Use of Motorways: This selection calculates the route by avoiding motorways whenever possible.

Most Use of Motorways: This selection calculates the route by using motorways as much as possible.

Selecting Destinations

Basemap Routing

Basemap routing works if the point you wish to route to is outside your active detailed map area. The basemap covers all major European countries. You can create a route to a point on the map or to a major town centre located on the basemap. The Magellan RoadMate will use major highways for routing whenever the route you are creating requires you to use the basemap.

Selecting a Point on the Map

Zoom out to view a larger map area. Touch the screen and drag the map to the point where there is no detailed map information.

Once you have roughly located the area you wish to route to, zoom in to 0.8 mi or closer. Continue to move the around the map until you have located the area you wish to route to. Press Enter.

A dialog box will appear. You can Route to or Save the point, or Cancel the request. Select Route.

Select the desired Routing Method.

The Magellan RoadMate will calculate the route. When the calculations are complete, the Map screen will be displayed and you can begin your route.

Selecting Destinations

If your present position is in a detailed map, you will be routed normally. Once you exit the detailed map, you will be routed along major highways to the junction closest to your destination as indicated by the flag. Then a straight thin line will show to route you to your destination.

Search BaseMap Town

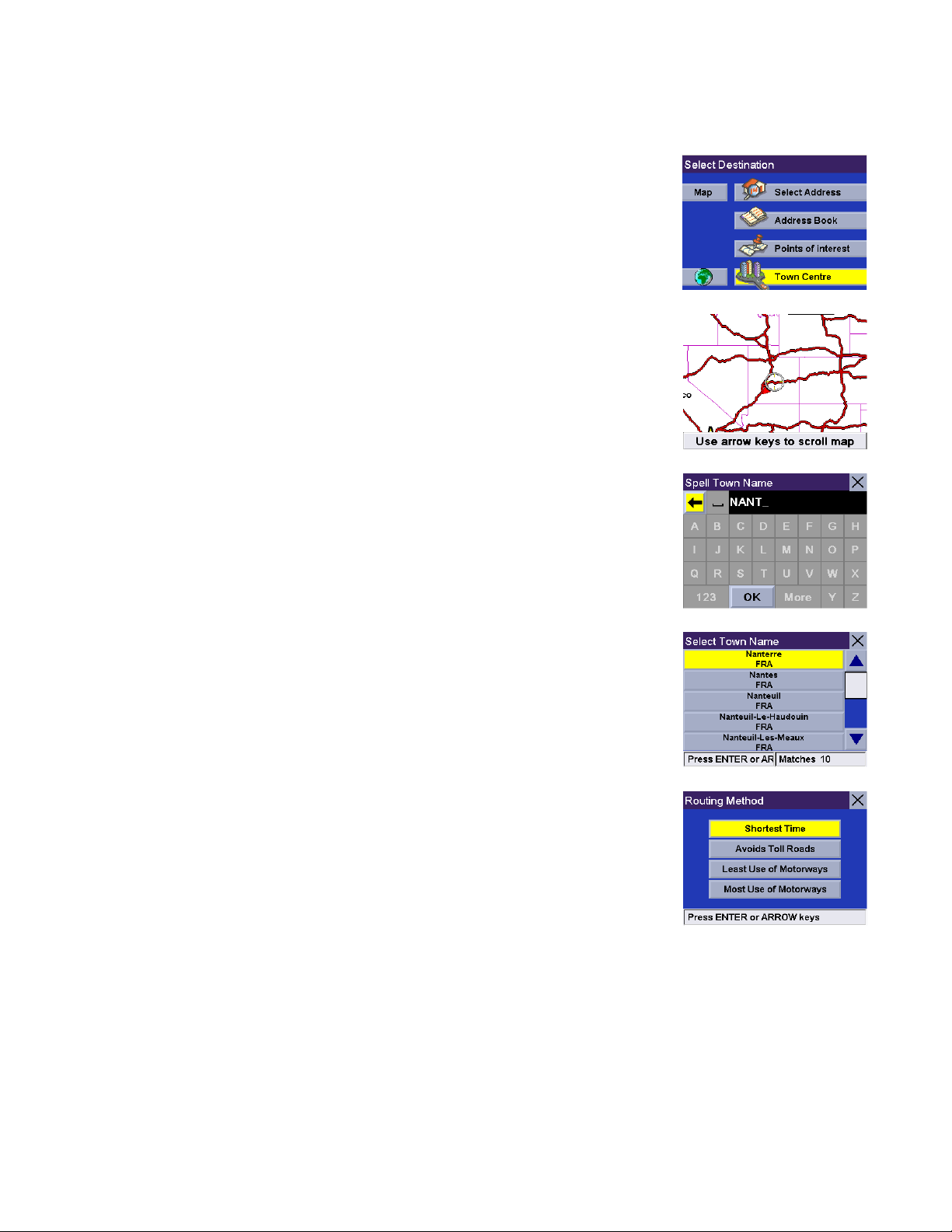

This function enables you to route to one of the town centres located in your Magellan RoadMate basemap.

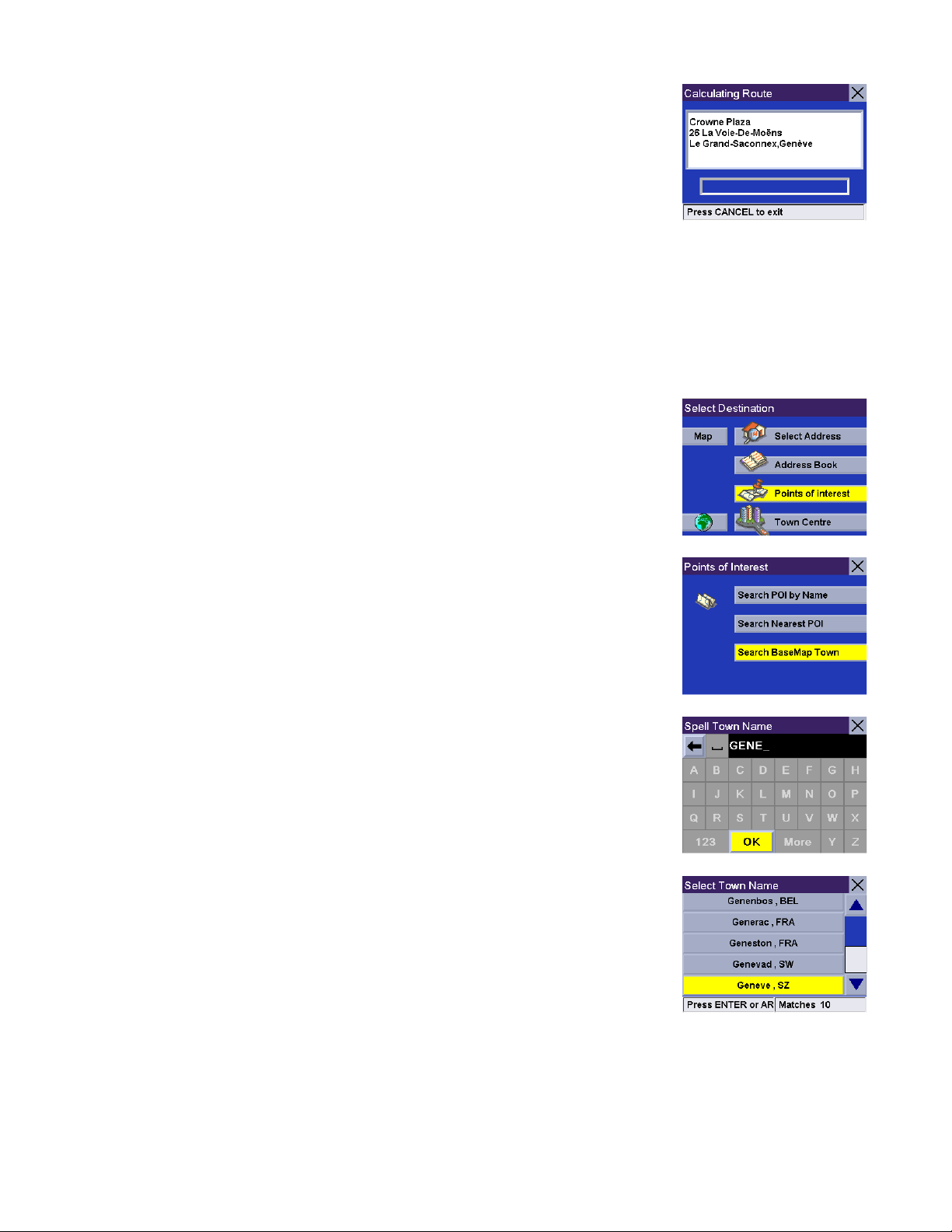

From the Select Destination screen, select Points of interest.

Select Search Basemap Town.

Enter the first few characters for the town. After you have selected the characters, select OK. If you wish, you may enter the entire town name.

Use the navigation key to scroll the list up or down and select the desired town.

Select the desired Routing Method.

Selecting Destinations

The Magellan RoadMate will calculate the route. When the calculations are complete, the Map screen will be displayed. The distance represents travel on roads and by using straight lines where no road data is present.

The conditions for basemap routing apply. Where there is no road data, a straight line will connect your current position with the nearest junction, and from the junction to the town centre.

Switching SD Cards

You may want to access data stored on another SD Card. See “Secure Digital (SD) Cards” on page 4 for instructions on inserting and removing SD Cards.

Selecting Destinations

Selecting a Destination Using “Select Address”

Select Address

A destination can be created by entering the street address that you want to go to. This address is not automatically added to your Address Book but is saved to your Previous Destination list (which is part of the address book menu) if you have routed to it.

From the Select Destination screen, select Select Address.

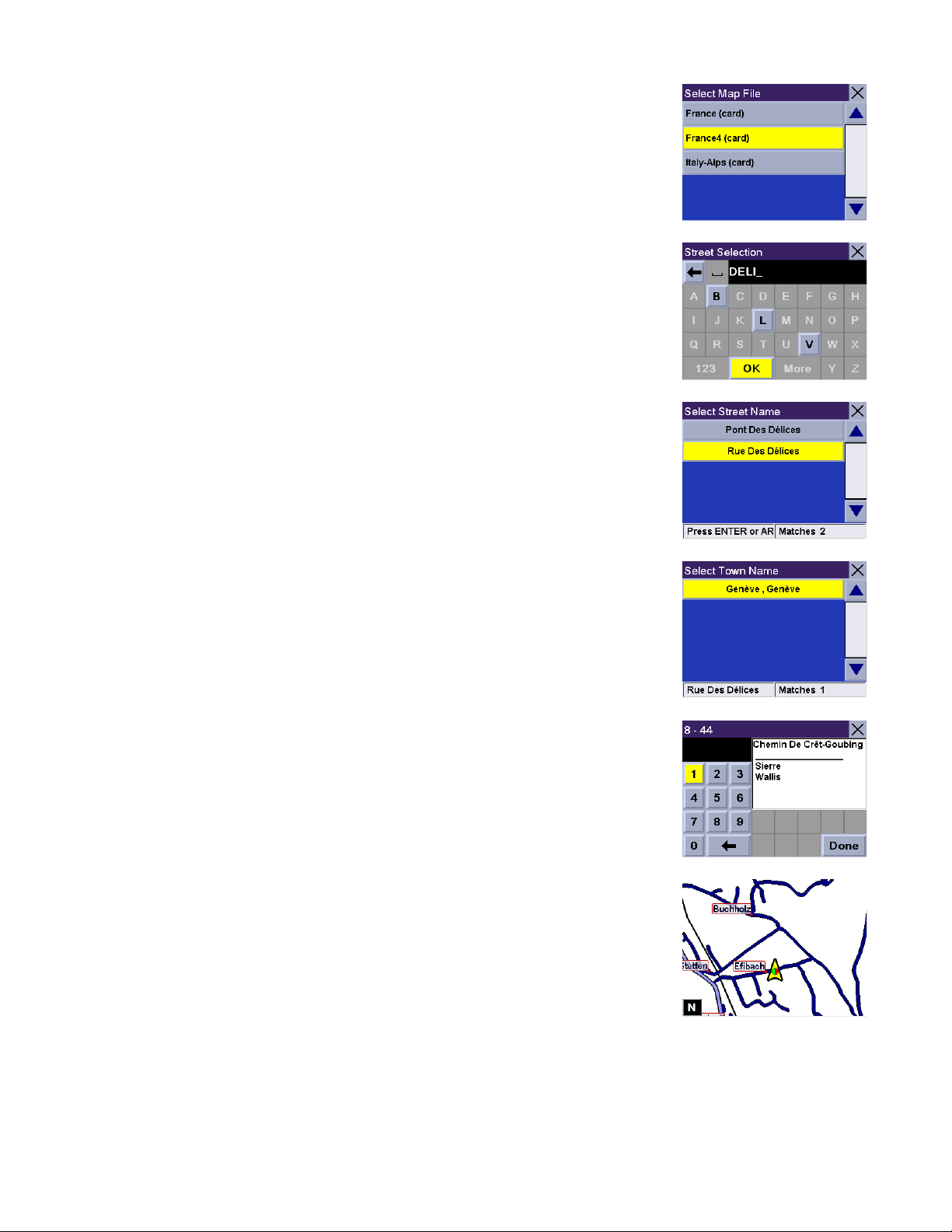

Select the detailed region you wish to search from.

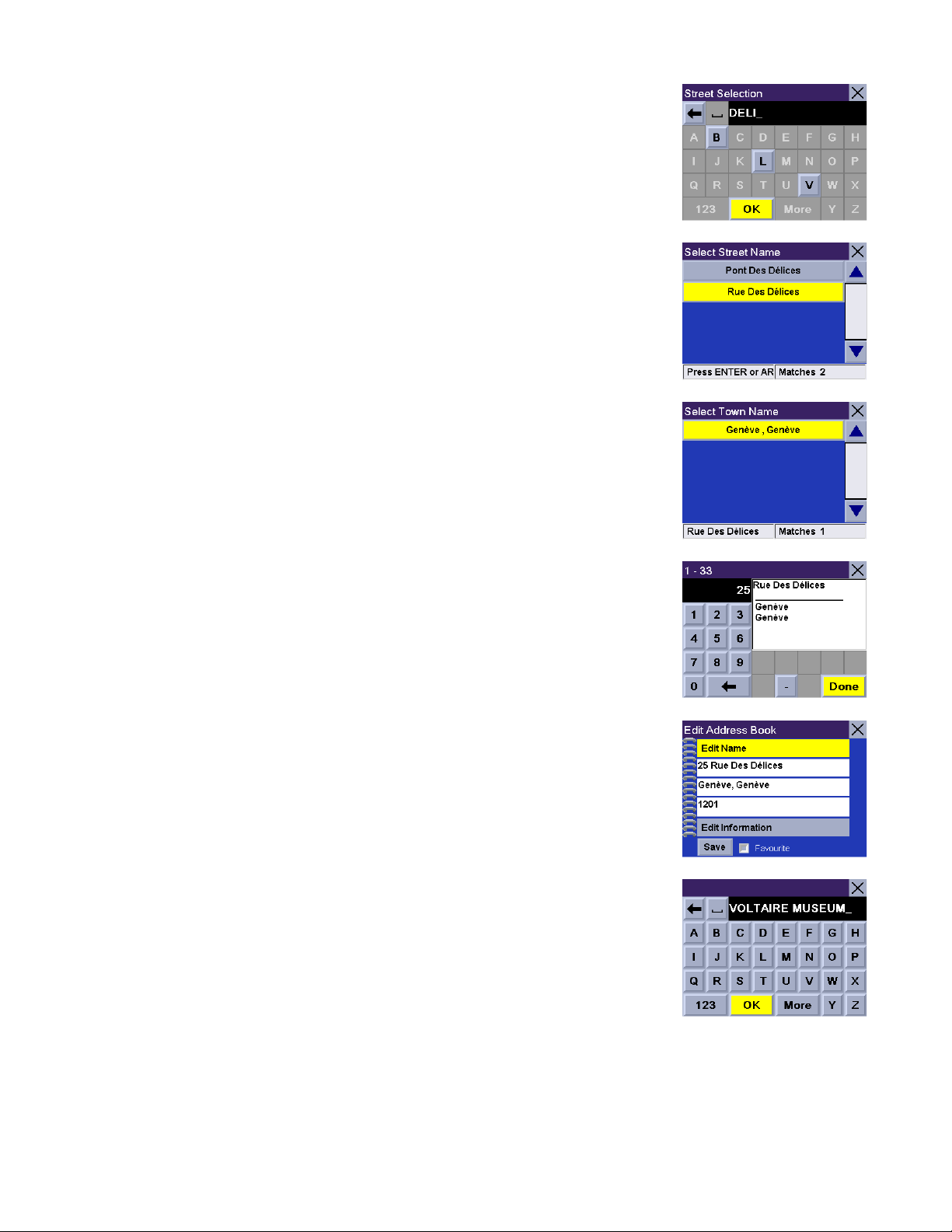

Enter the first few characters for the street name. If the street you are looking for has a hyphen, replace it with a space. After you have selected the characters, select OK.

Use the navigation key to scroll the list up or down and select the desired street from the list.

The Magellan RoadMate will list all the towns the street is in based on the selected region. If this list does not appear, the street is only in one town. Select the desired town from the list.

Selecting Destinations

Enter the street address. The acceptable range of numbers is displayed at the top of the screen. If you do not know the exact address, just select Done and the Magellan RoadMate will route you to the lowest number in the range. Select Done to continue.

Select the desired Routing Method.

The Magellan RoadMate will calculate the route. When the calculations are complete, the Map screen will be displayed.

Selecting Destinations

Selecting a Destination Using “Address Book”

The Address Book can store up to 200 addresses for each of the three users. When you select “Address Book” you are given four options. Selecting “Previous Destinations” lets you select from a list of the last 50 destinations you have routed to with the option of saving them to your address book. “List Addresses” displays a list of all the addresses you have stored in your Address Book. “Create New Entry” lets you create a new address and store it in your address book. “Trip Planner” lets you select two or more addresses from your Address Book to route to in sequence.

Address Book: Previous Destinations

From the Select Destination screen, select Address Book.

Select Previous Destinations.

Select from the list of previous destinations.

Select Route to be routed to the selected town.

Select the desired Routing Method.

Selecting Destinations

The Magellan RoadMate will calculate the route. When the calculations are complete, the Map screen will be displayed.

Previous Destinations – Save to your Address Book

From the Select Destination screen, select Address Book.

Select Previous Destinations.

Select the address that you wish to save.

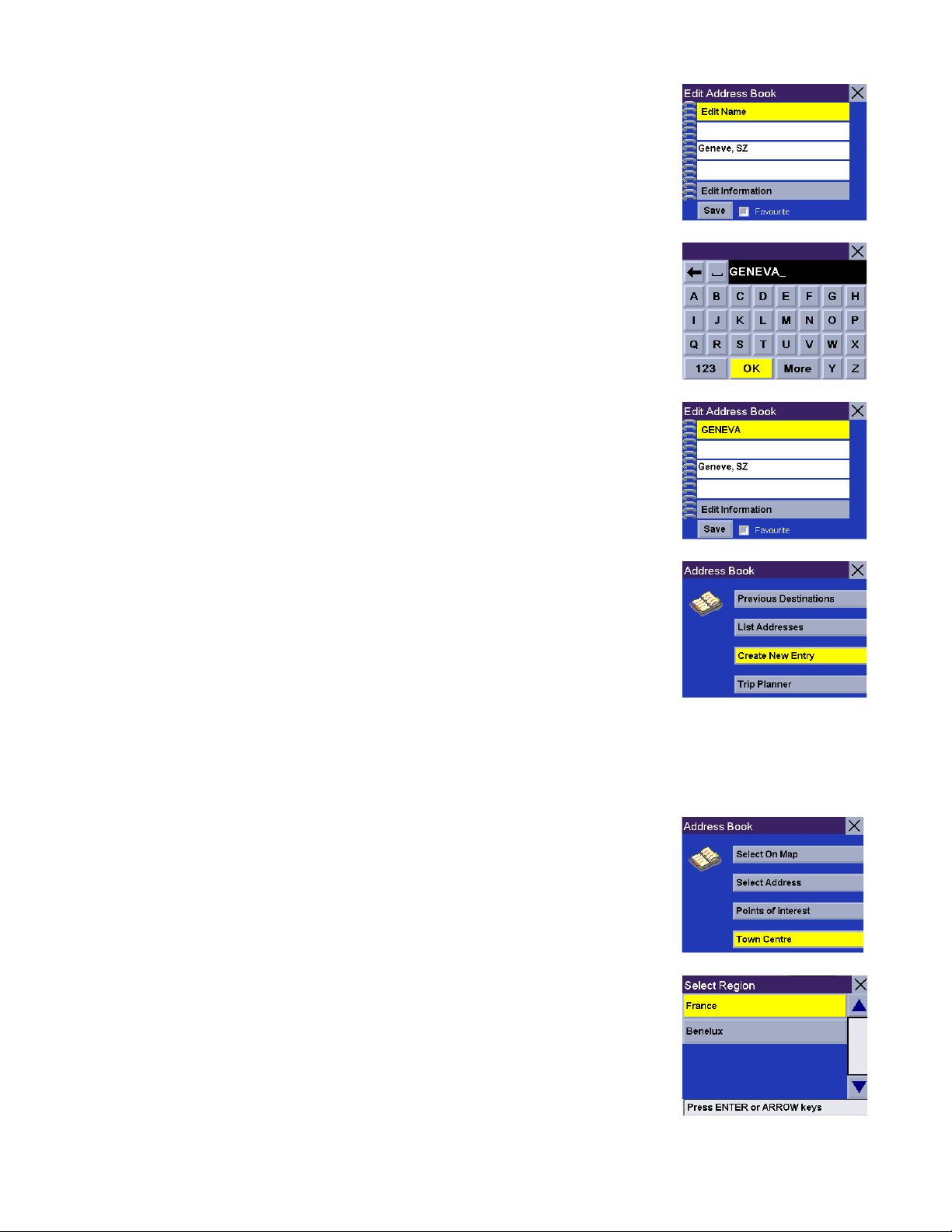

To save this destination to the Address Book, select Edit.

The top line (Name) and the bottom line (Information) can be edited. The address cannot be changed. Select the line you want to modify.

Selecting Destinations

Enter the desired text. Select OK.

You can also add this address to your Favourites list. Select Favourite.

When you are satisfied with the information, select Save.

The address is saved to the Address Book. Press Cancel to return to the Previous Destinations screen.

Address Book: List Addresses

List All

From the Select Destination screen, select Address Book.

Select List Addresses.

Select List All.

Selecting Destinations

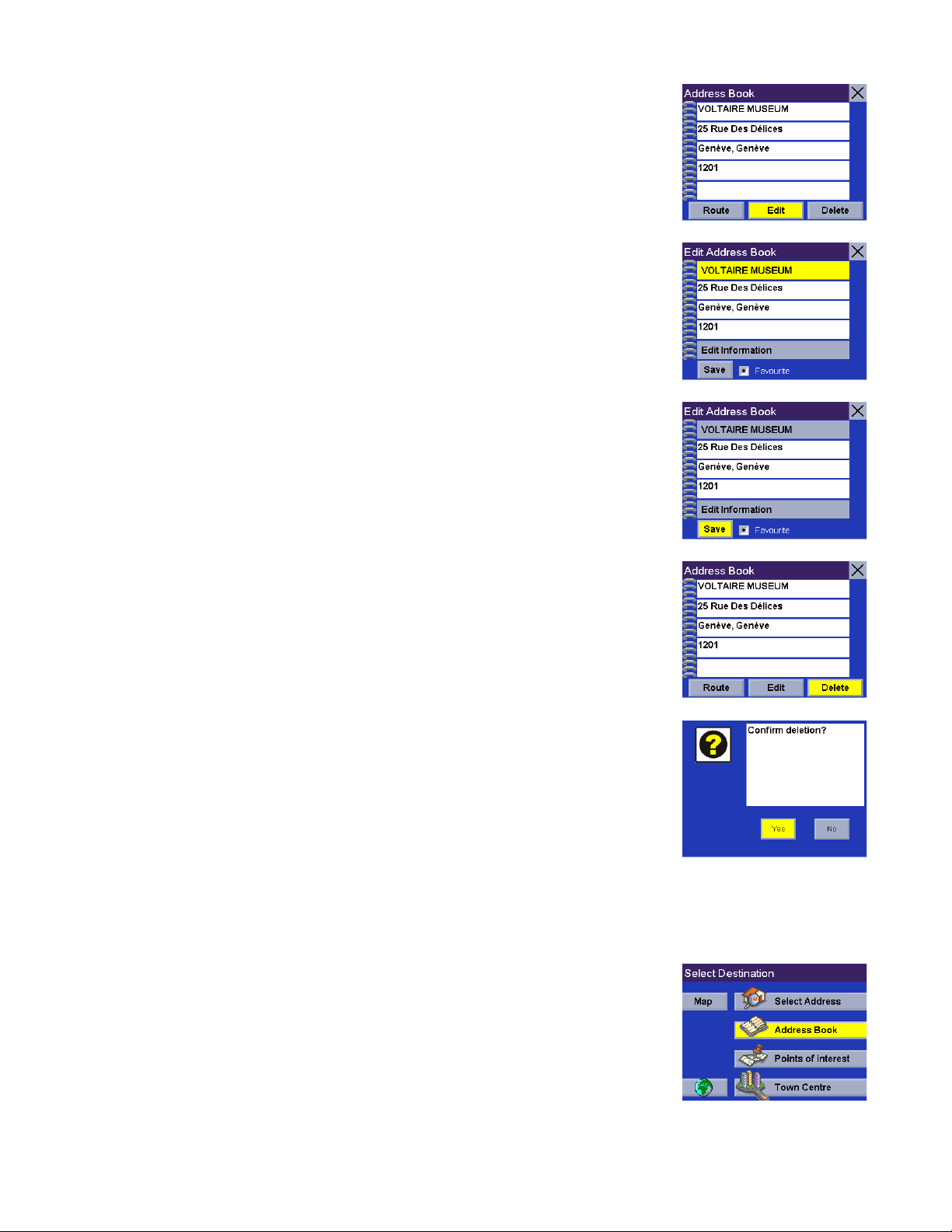

Select the destination from the list of addresses in the Address Book and press Enter. You will then have the option of routing to, editing, or deleting this address.

Route

Select Route.

Select the desired Routing Method.

The Magellan RoadMate will calculate the route. When the calculations are complete, the Map screen will be displayed.

Edit

Select Edit.

Click on either the top line (name) or the bottom line (information) and enter the desired text.

Selecting Destinations

Select Save to save the changes and return to the Address Book screen.

Delete

Select Delete.

A dialog box will appear prompting you to confirm the deletion. Select Yes.

The address has been deleted from your address book and you are returned to the Select Destination screen.

List Favourites

From the Select Destination screen, select Address Book.

Select List Addresses.

+ 58 hidden pages
