Mad Professor Mighty Red Distortion User Manual

MAD PROFESSOR AMPLIFICATION LTD

Finland

www.mpamp.com • [e-mail]

This product is manufactured by

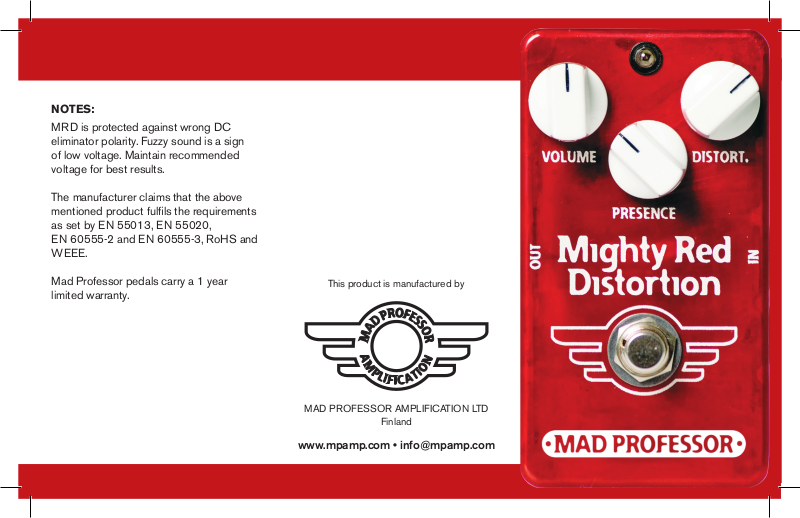

Notes:

MRD is protected against wrong DC
eliminator polarity. Fuzzy sound is a sign
of low voltage. Maintain recommended
voltage for best results.

The manufacturer claims that the above
mentioned product fulfils the requirements
as set by EN 55013, EN 55020,
EN 60555-2 and EN 60555-3, RoHS and
WEEE.

Mad Professor pedals carry a 1 year
limited warranty.

Thank you for buying the
MIGHTY RED DISTORTION!

Mighty Red Distortion is a high-gain
distortion pedal, which was modeled after
the 80’s style compressed gain sounds.
It is extremely easy (and lot of fun) to play,
because its texture is adjusted to give clarity
and defi nition also at heavy distortion. Gain
range allows also low distortion sounds as
well as stacking with other pedals, where
an overdrive (preferably MP LGW) can pre­drive MRD for extreme and highly focused
sounds. To get these gain levels with their
impressive signal to noise ratio, we didn’t
use any noise gate or expander. Instead,
we used special amplifi er techniques and
extreme low noise amplifi er stages, which
result in a natural decay and a rather high
current consumption for a distortion pedal
in view of battery operation.

MRD has that 80’s sound many have longed
for but never got before at such low noise
levels and versatility.

The Presence control was designed to control
the upper treble, but not to affect the upper
midrange, so that you can get the exact treble
you desire. You can master anything from fat
warm singing distortion to screaming cutting
leads with the MRD’s Presence control.

Step into your spandex trousers
and plug in the
MIGHTY RED DISTORTION pedal!!

The controls are:

• VOLUME, sets the level of distorted signal

• DISTORTION, controls the amount of

distortion

• PRESENCE, controls upper treble, while
not affecting the upper midrange so you can
adjust tones from warm and sweet into
cutting leads with an attitude.

C A U T I O N !

Never operate the unit with its bottom
removed or damage will most likely occur.

Mad Professor Mighty Red Distortion
ELECTRICAL SPECIFICATION:

• Supply voltage range 7.5 to 18V DC

• Current consumption at 9V DC:

10.6 mA

• Max gain 68 dB

• Max output 1.9V pk-pk or 950 mV rms

• Signal/Noise ratio approximately 96 dB

POWER REQUIREMENTS:

6F22 9V battery or DC eliminator 2.1 mm

plug center negative and positive sleeve.

MAD PROFESSOR - MIGHTY RED DISTORTION - OWNER’S MANUAL
