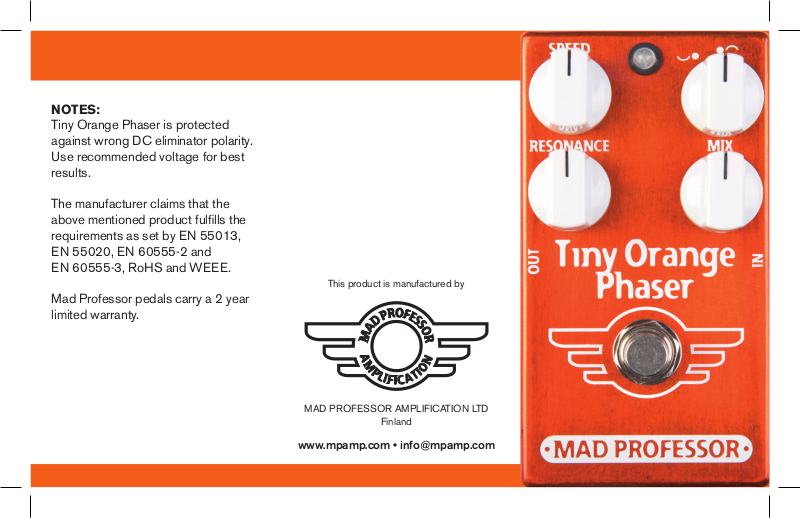

Tiny Orange Phaser is protected
against wrong DC eliminator polarity.
Use recommended voltage for best
results.
The manufacturer claims that the
above mentioned product fulfills the
requirements as set by EN 55013,
EN 55020, EN 60555-2 and
EN 60555-3, RoHS and WEEE.
Mad Professor pedals carry a 2 year
limited warranty.
Page 2
MAD PROFESSOR - TINY ORANGE PHASER - OWNER’S MANUAL

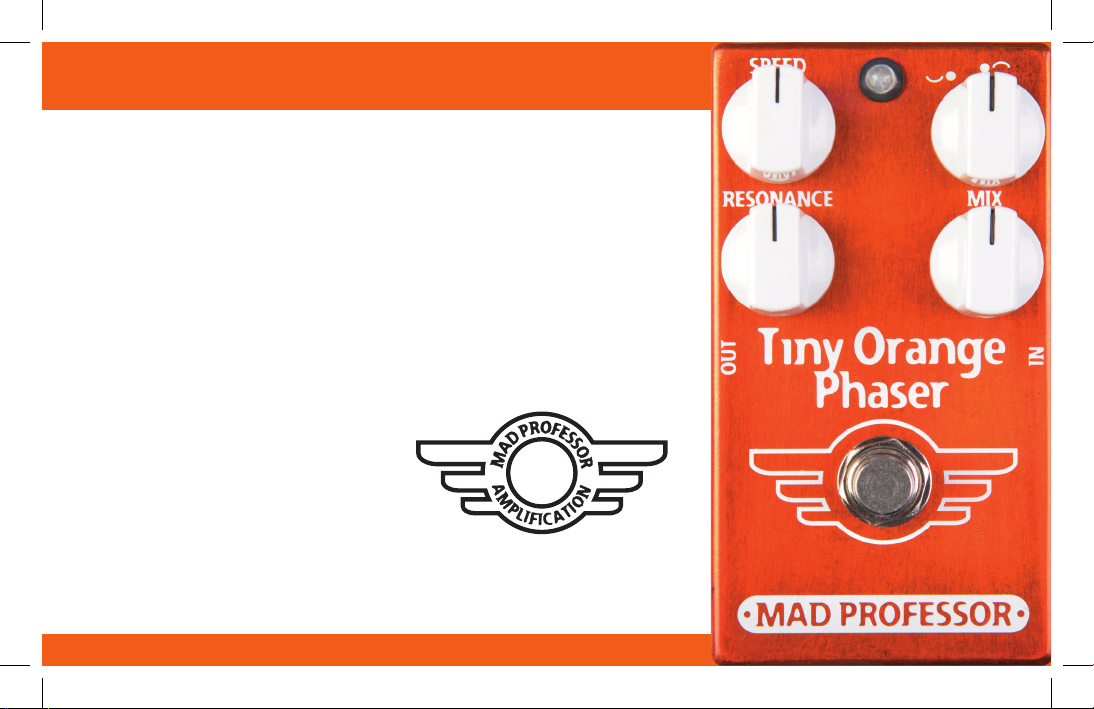

Thank you for buying the
TINY ORANGE PHASER!
This is a high qualiTy phaser
pedal designed by björn juh l.
Unlike most vintage phasers, the Tiny
Orange Phaser is especially tuned for
electric guitar.
The tone is very musical and balanced
thanks to carefully matched parts in the
circuit.
With the four controls you can fine-tune
the phaser effect to your taste.
With The Mix control you can adjust
phaser tones from very mild into deep
phase effect.
Speed range and amplitude of the internal
oscillator are set to allow high phaser
speeds without getting erratic.
You can find classic phasing sounds at
about 12 o’clock speed setting, the lower
settings produce a nice floating “Vibe”
type of sound.
The controls are:
• Speed controls the speed of the
modulation
• ReSonance sets the resonance
of the effect, making it sharper when
increased
• Mix mixes phaser effect with dry signal
• RoTaTinGSWiTcH switches
between two different phaser effects,
a deeper and a lighter one
c a U T i o n !
Never operate the unit with its
bottom removed or damage will
most likely occur.
poWeRReqUiReMenTS:
6F22 9V battery or DC eliminator
2.1 mm plug center negative and
positive sleeve.
eLecTRicaLSpeciFicaTion:
• Current draw at 9V DC approx.
26 mA
• Input impedance approx.
500K Ohms
• Output impedance approx.
1K Ohms
• Voltage supply range 8V to 10V
• Complete bypass (true bypass)
and input of circuit grounded when
in bypass
