Car Seat/Booster Seat
Owner’s Manual
READ THIS MANUAL.
Do not install or use
this car seat until you
read and understand
the instructions in
this manual.
FAILURE TO
PROPERLY USE
THIS CAR SEAT
INCREASES THE
RISK OF
SERIOUS INJURY
OR DEATH IN A
SUDDEN STOP
OR CRASH.
© 2004 Graco ISPB024CB 08/04
2
1.0 Warnings to Parents and Other Users . . . . . . . .3
2.0 Registration Information . . . . . . . . . . . . . . . . . . .4
2.1 Register Your Car Seat . . . . . . . . . . . . . . . . . .4
2.2 Recall Information . . . . . . . . . . . . . . . . . . . . .4
2.3 If You Need Help . . . . . . . . . . . . . . . . . . . . . .4
3.0 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
4.0 Important Information . . . . . . . . . . . . . . . . . . .7-10
4.1 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4.2 Height and Weight Limits . . . . . . . . . . . . . . . .9
4.2.1 WITH Built-In Harness . . . . . . . . . . . . .10
4.2.2 WITHOUT Built-In Harness . . . . . . . . .10
5.0 Car Seat Location . . . . . . . . . . . . . . . . . . . .11-17
5.1 Vehicle Seat Requirements . . . . . . . . . . . . . .11
5.2 Vehicle Seat Belt Requirements . . . . . . . . . .12
5.2.1 UNSAFE Vehicle Belt Systems . . . . . .12
5.2.2 SAFE Vehicle Belt Systems . . . . . . . . .14
6.0 Using Car Seat With Built-In Harness . . . . .18-27
6.1 Positioning the Harness Straps . . . . . . . . . . .18
6.2 Securing the Car Seat in Your Vehicle . . . . .22
6.2.1 With a Vehicle Lap or
Lap/Shoulder Belt . . . . . . . . . . . . . . . .22
6.2.2 With UAS . . . . . . . . . . . . . . . . . . . . . .24

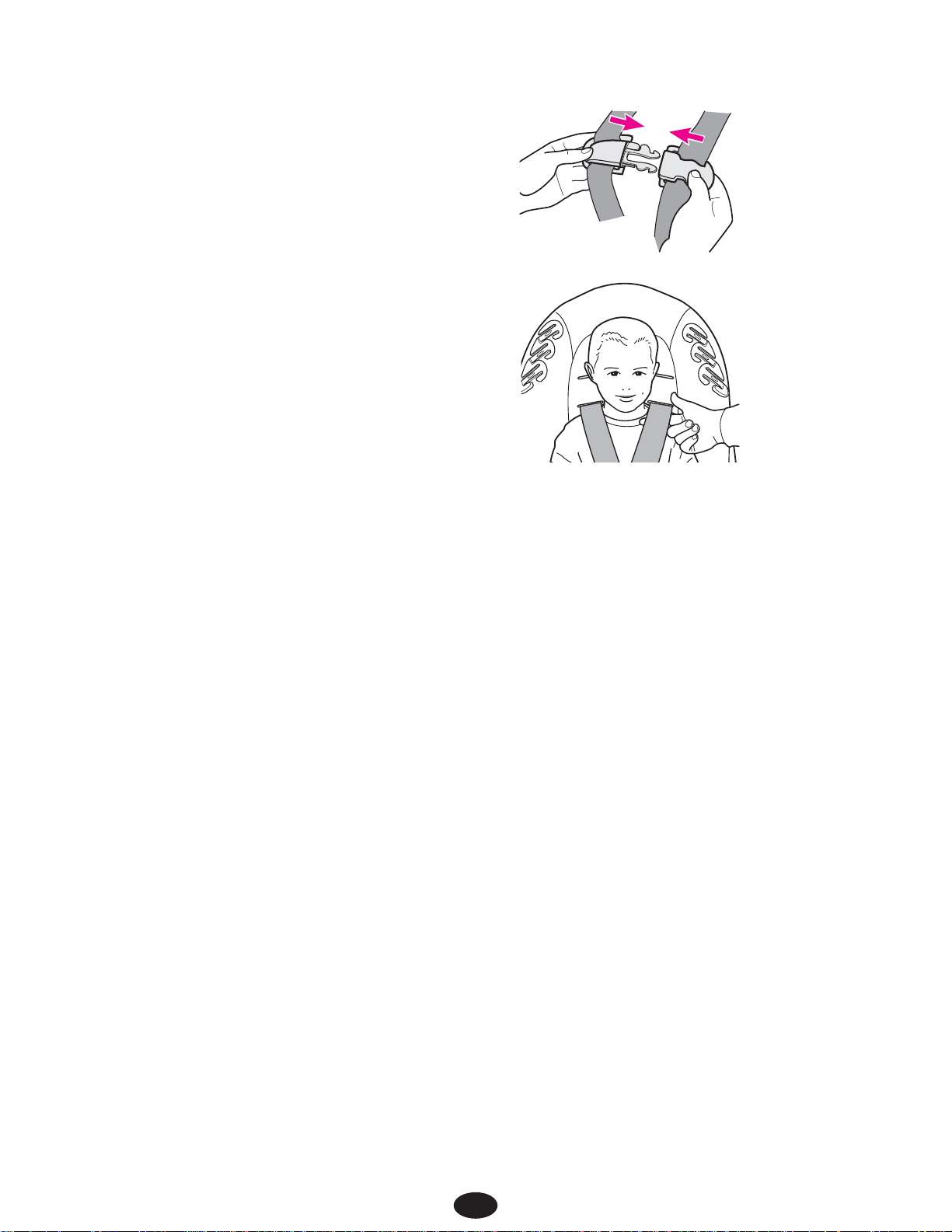

6.3 Securing Your Child in the Car Seat . . . . . . .26
7.0 Using Car Seat Without Built-In Harness . . . . .28-30
7.1 Harness Removal . . . . . . . . . . . . . . . . . . . . .29
7.2 Securing Child and Booster
Seat in Vehicle . . . . . . . . . . . . . . . . . . . . . . .30
8.0 Additional Information . . . . . . . . . . . . . . . . .31-34
8.1 Using the Tether . . . . . . . . . . . . . . . . . . . . . .31
8.2 Storing UAS . . . . . . . . . . . . . . . . . . . . . . . . .32
8.3 Airplane Use . . . . . . . . . . . . . . . . . . . . . . . .32
8.4 Cupholder . . . . . . . . . . . . . . . . . . . . . . . . . .33
9.0 Care and Maintenance . . . . . . . . . . . . . . . . .34-35
Table of Contents
3
Failure to properly use this car seat increases the risk of
serious injury or death in a sharp turn, sudden stop or
crash. Your child’s safety depends on you installing and
using this car seat correctly.
Even if using this car seat seems easy to figure out on
your own, it is very important to READ THE OWNER’S
MANUAL and the vehicle owner’s manual.
Your child’s safety depends on:
1. Choosing the correct mode of use for the car
seat depending on your child’s size.
2. Inserting the harness straps (if needed) in the
proper slots for your child.
3. Selecting a suitable location for the car seat in
your vehicle.
4. Properly routing the vehicle seat belt or properly
using UAS.
5. Properly securing the car seat in the vehicle
using a seat belt designed to restrain both the car
seat and your child or by using UAS. Many seat
belts are NOT safe to use with this car seat, even
though they can easily be threaded through or
around the car seat!
6. Properly securing your child in the car seat.
1.0 Warnings to Parents
and Other Users
4
Model Number:
Manufactured in:
Purchase Date:
2.0 Registration Information
2.1 Register Your Car Seat
2.3 If You Need Help
Please fill in the above information. The model
number can be found on a label underneath your
car seat. Fill out the prepaid registration postcard
attached to the seat cover and mail it today.
Child restraints could be recalled for safety reasons.
You must register this restraint to be reached in a
recall. Send your name, address and model number to:
Elfe Juvenile Products.
4580 Hickmore
Montreal, Quebec
H4T 1K2
or call 1-800-667-8184 or
514-344-3533 in Montreal or
www.elfe.net
Please contact our Customer Service Department with
any questions you may have concerning parts, use, or
maintenance. When you contact us, please have your
product’s model number ready so that we may help
you efficiently. These numbers can be found on a
sticker on the underside of your car seat.
1-800-667-8184 Montreal: 514-344-3533
• Call the Customer Service in Canada at
1-800-667-8184 or in Montreal at 1-514-344-3533
• www.elfe.net
2.2 Recall Information
5

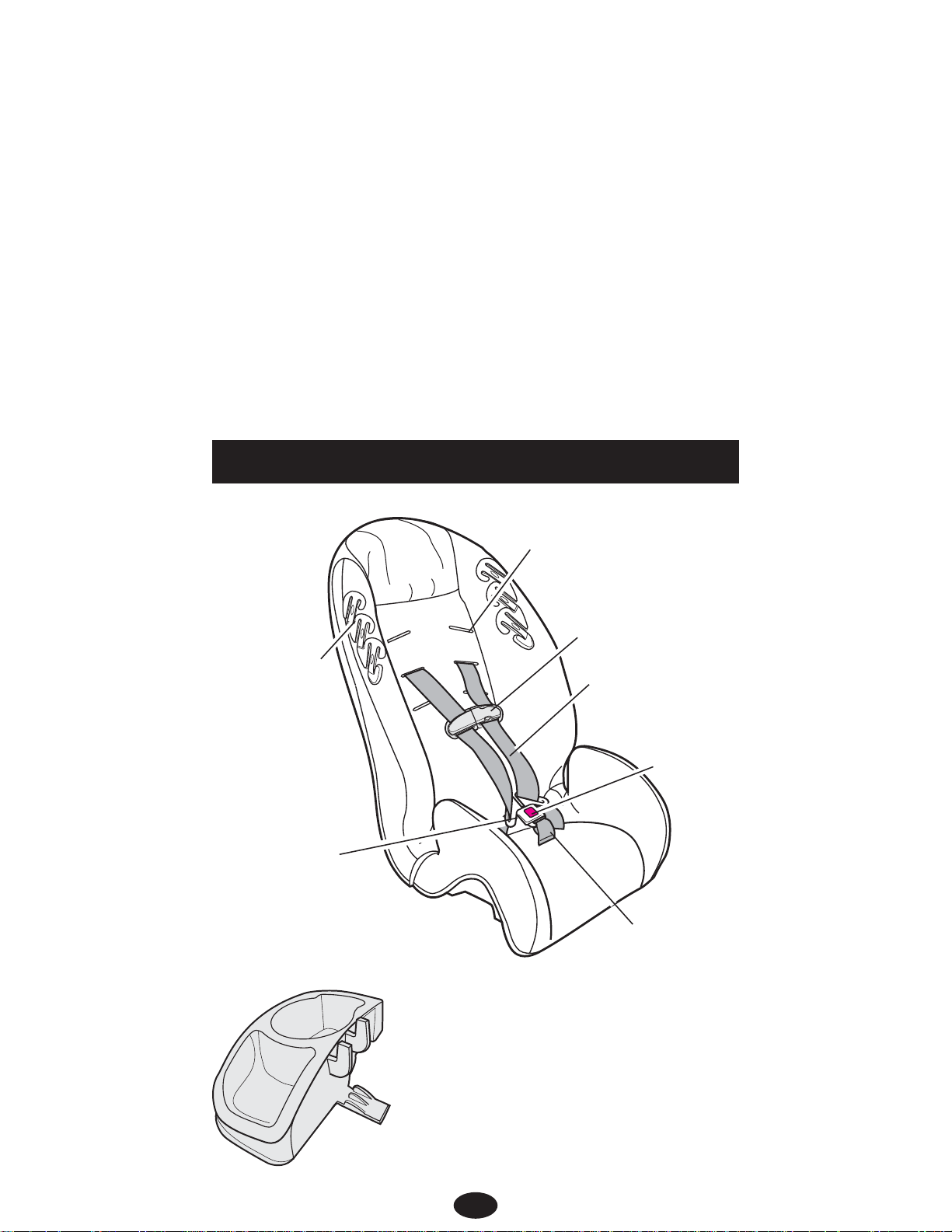

Harness slot
Harness clip
Harness strap
Crotch strap
Harness
buckle
3.0 Features
Cupholder (certain models)
Shoulder belt
positioner
Harness
buckle
tongue
6

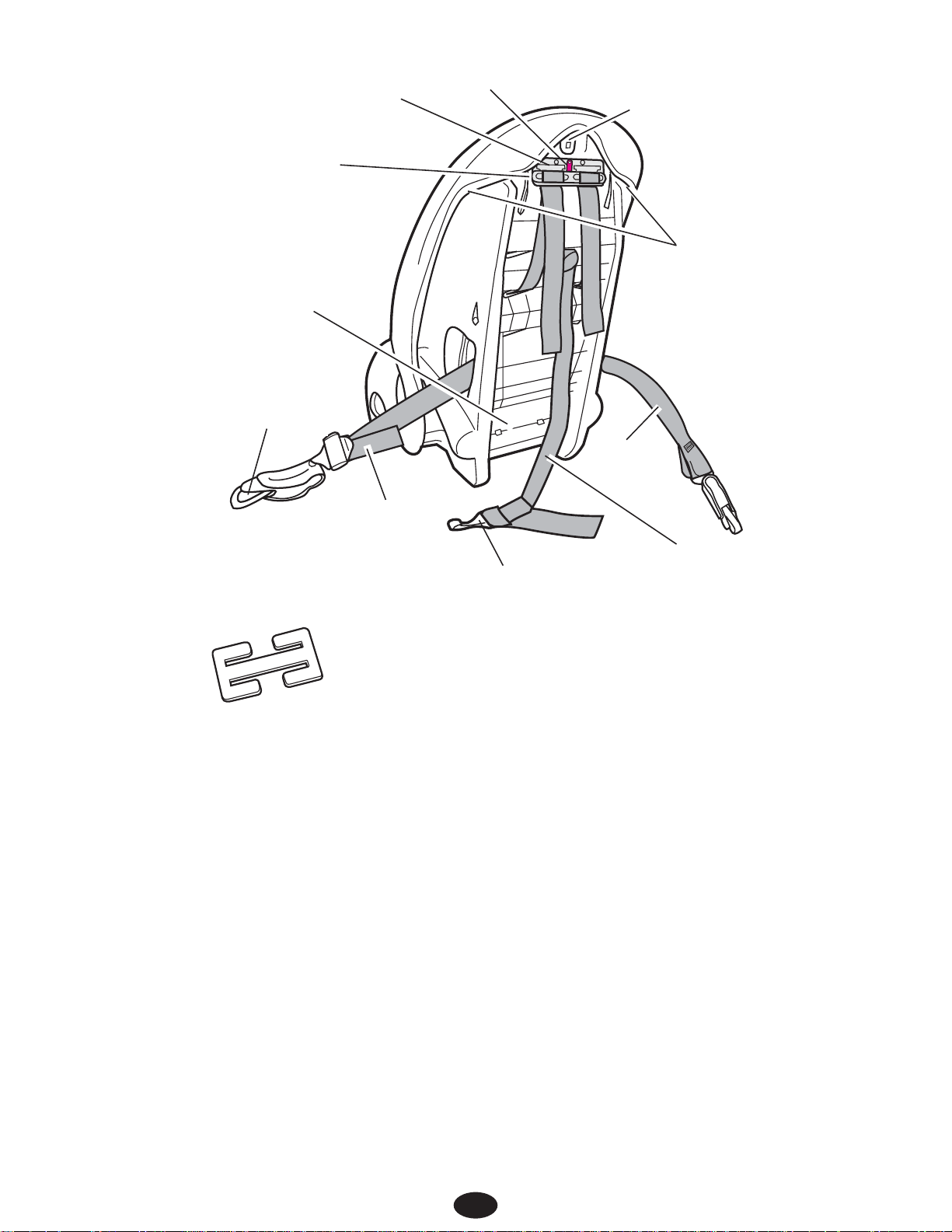

**Vehicles are now (or can be) equipped with tether
anchor points behind some seats. A tether anchors
the top of the car seat to the body of the vehicle.
When used properly with the vehicle seat belt,
a tether helps reduce injury in a sudden stop
or crash. Always use the tether.

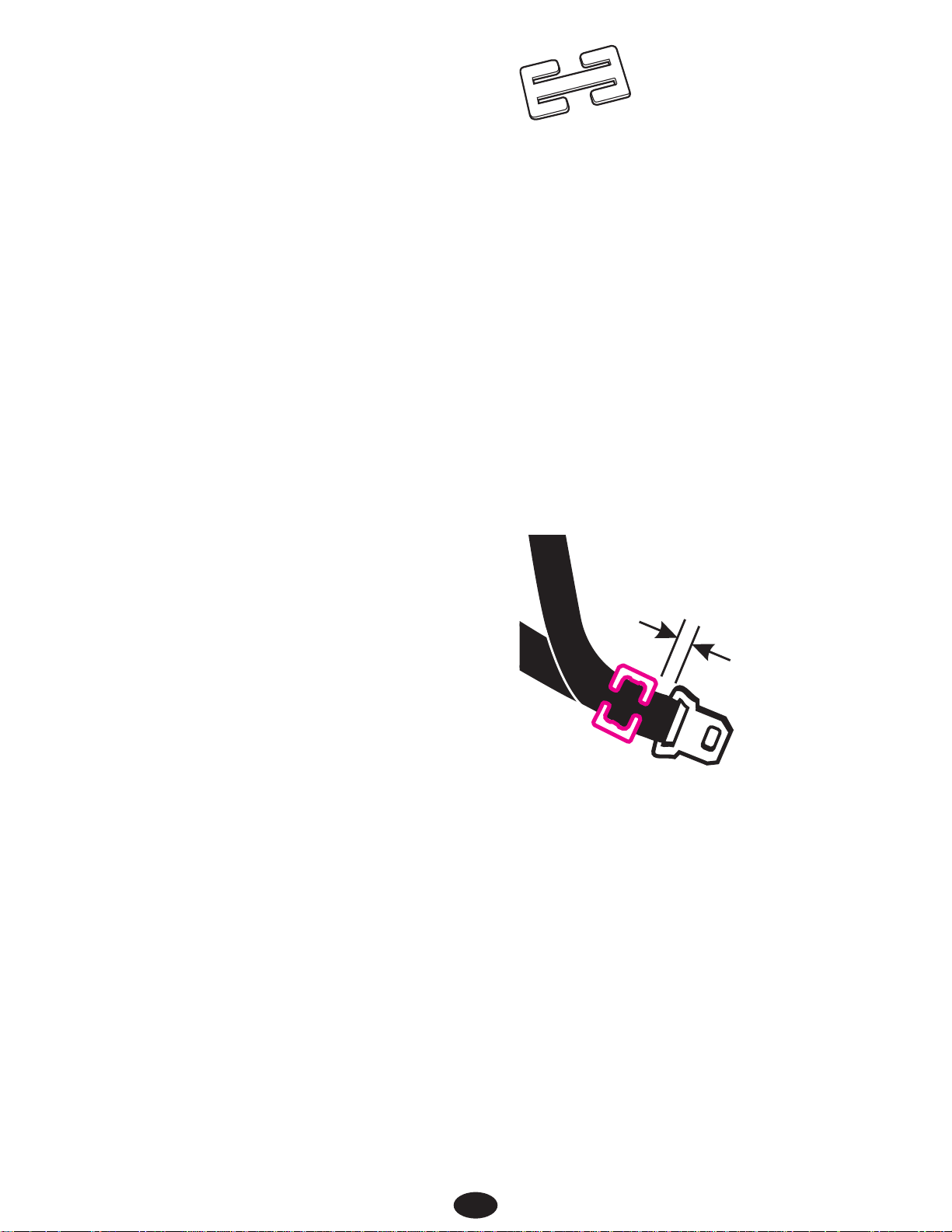

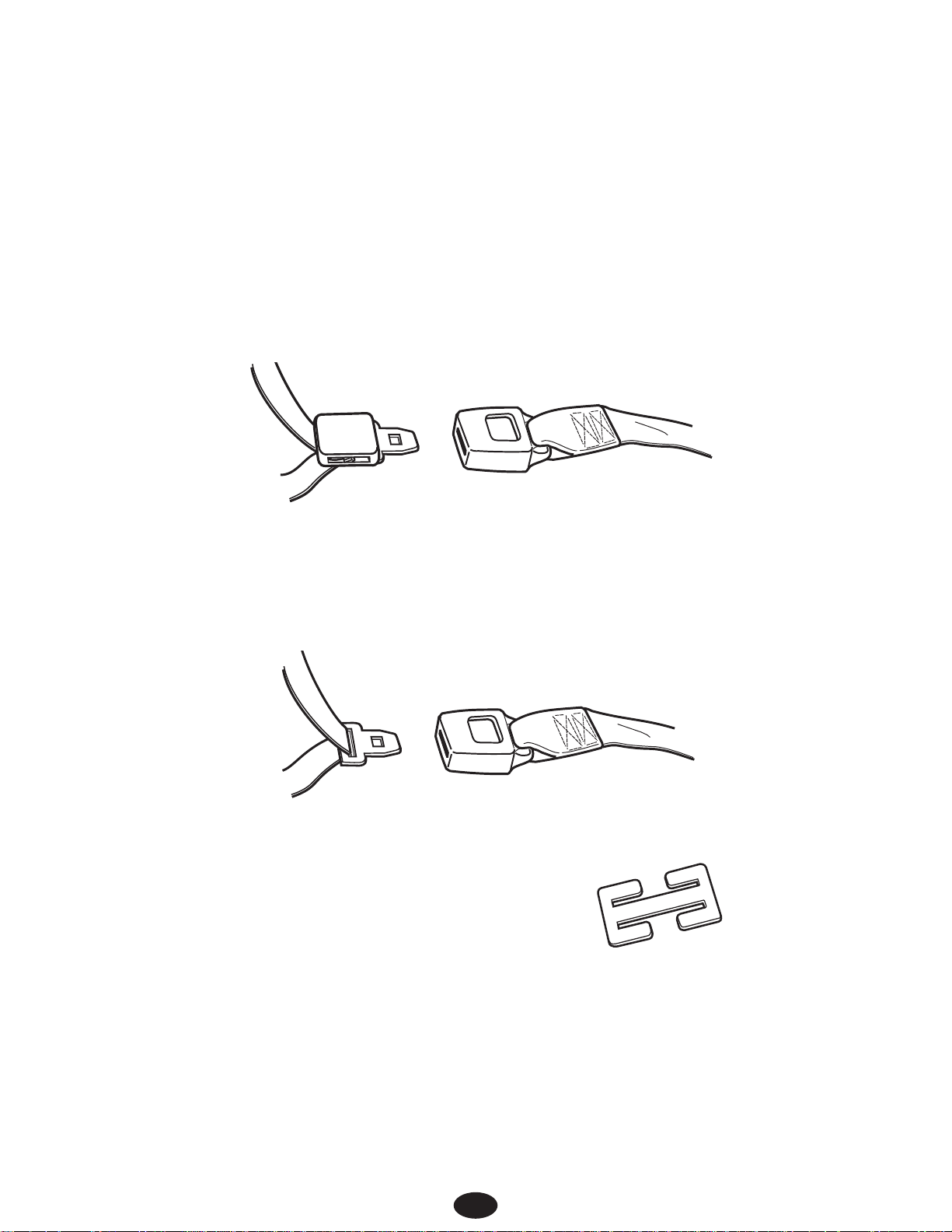

*The locking clip is stored on the back of
the car seat. You will need to use it with
certain types of vehicle seat belts.
Locking clip
storage*
Harness
plate
Tether strap**
Owner’s manual
storage compartment
Expiration date
Adjuster
bar
Tether clip
—
Adjuster
bar lock

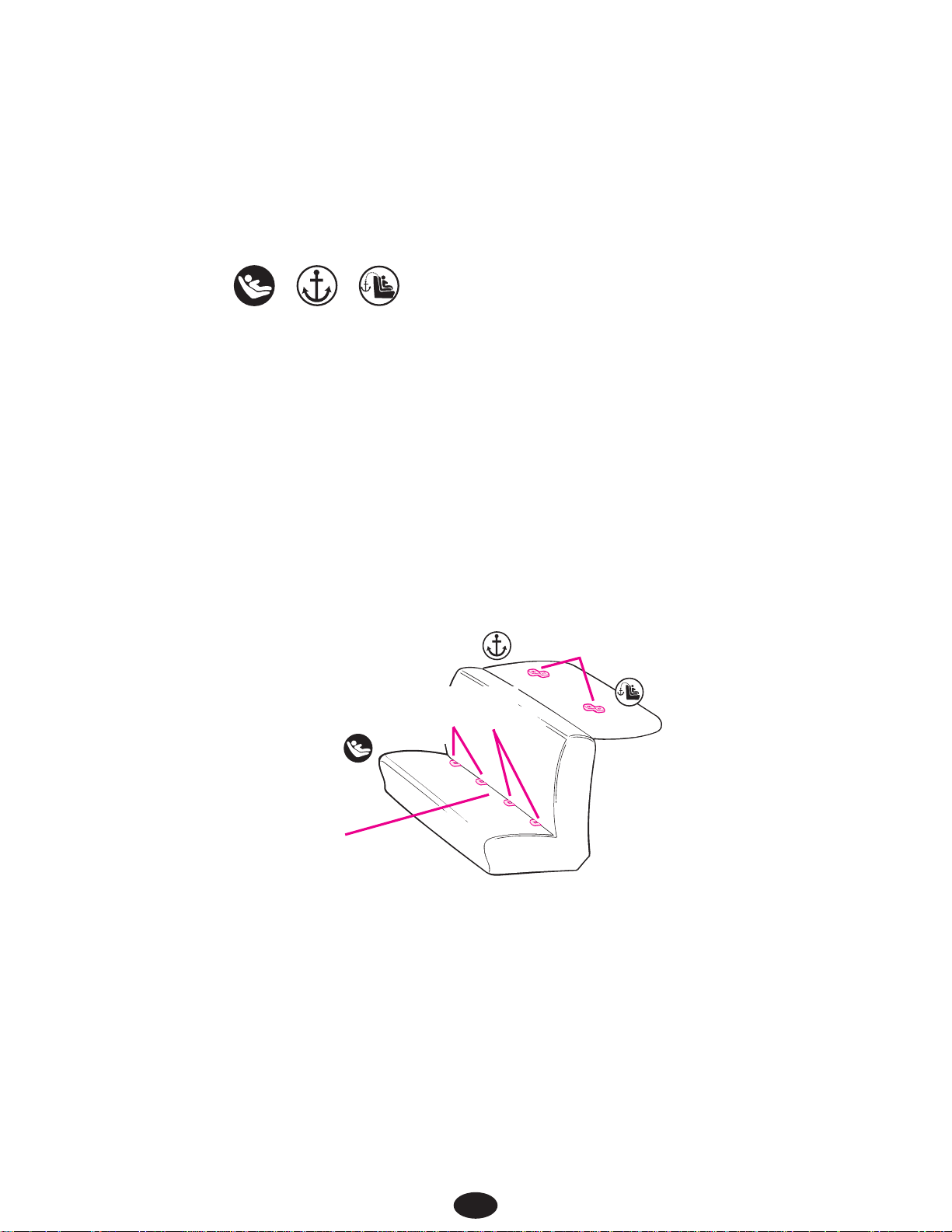

UAS***
***Canada Motor Vehicle Safety Standards have
defined a new system for installing car seats in
vehicles. The system is called UAS (Universal
Anchorage System).
UAS may ONLY be used IN
PLACE of vehicle belt if vehicle is equipped with UAS
anchor points. Please refer to vehicle owners manual for
UAS locations in vehicles.
UAS &
Tether
storage bars
Adjustment
belt
UAS
Connector
7
• DO NOT INSTALL OR USE THIS CAR SEAT
UNTIL YOU READ AND UNDERSTAND THE
INSTRUCTIONS IN THIS MANUAL AND IN
YOUR VEHICLE OWNER’S MANUAL. DO NOT
let others install or use the car seat unless they
understand how to use it.
• FAILURE TO PROPERLY USE THIS CAR SEAT
INCREASES THE RISK OF SERIOUS INJURY OR
DEATH IN A SHARP TURN, SUDDEN STOP OR
CRASH. Your child can be injured in a vehicle even
if you are not in a crash. Sudden braking and sharp
turns can injure your child if the car seat is not
properly installed or if your child is not properly
secured in the car seat.
• According to accident statistics, CHILDREN ARE
SAFER WHEN PROPERLY RESTRAINED IN
REAR VEHICLE SEATING POSITIONS, RATHER
THAN FRONT SEATING POSITIONS. For a vehicle
with a front passenger air bag, refer to your vehicle
owner’s manual as well as these instructions for car
seat installation.
• NEVER LEAVE YOUR CHILD UNATTENDED.
• NEVER LEAVE A CAR SEAT UNSECURED IN
YOUR VEHICLE. An unsecured car seat can be
thrown around and may injure occupants in a sharp
turn, sudden stop or crash. Remove it or make sure
that it is securely belted in the vehicle. If not using
UAS, make sure UAS connectors are properly stored
on back of seat.
• REPLACE THE CAR SEAT AFTER AN ACCIDENT
OF ANY KIND. An accident can cause damage to
the car seat that you cannot see.
4.0 Important Information
4.1 Warnings
8
• STOP USING CAR SEAT AND THROW IT AWAY
after the date molded into the back of the car seat.
• DO NOT MODIFY YOUR CAR SEAT or use any
accessories or parts supplied by other manufacturers.
• NEVER USE CAR SEAT IF IT HAS DAMAGED OR
MISSING PARTS. DO NOT use a cut, frayed or
damaged car seat harness, UAS belt or vehicle seat
belt.
• THE CAR SEAT CAN BECOME VERY HOT IF
LEFT IN THE SUN. Contact with these parts can
burn your child’s skin. Always touch the surface of
any metal or plastic parts before putting your child
in the car seat.
• WITH HARNESS SYSTEM: This child restraint
conforms to Canada Motor Vehicle Safety Standard
213 and is certified for use in motor vehicles
and aircraft.
WITHOUT HARNESS SYSTEM: This child restraint
(booster seat) conforms to Canada Motor Vehicle
Safety Standard 213.2 and is certified for use in
motor vehicles. Booster seat is NOT certified for use
in aircraft.
• NEVER GIVE THIS CAR SEAT to someone else
without also giving them this manual.
• NEVER USE ASECOND-HAND CAR SEAT
or a car seat whose history you do not know.
9
FAILURE TO USE CAR SEAT IN A MANNER
APPROPRIATE FOR YOUR CHILD’S SIZE MAY
INCREASE THE RISK OF SERIOUS INJURY OR
DEATH. Instructions for the use of this car seat
and your vehicle’s seat belt differ greatly depending
on the size of your child. Be sure you are using the car
seat in the correct mode and with the correct features
for your child.

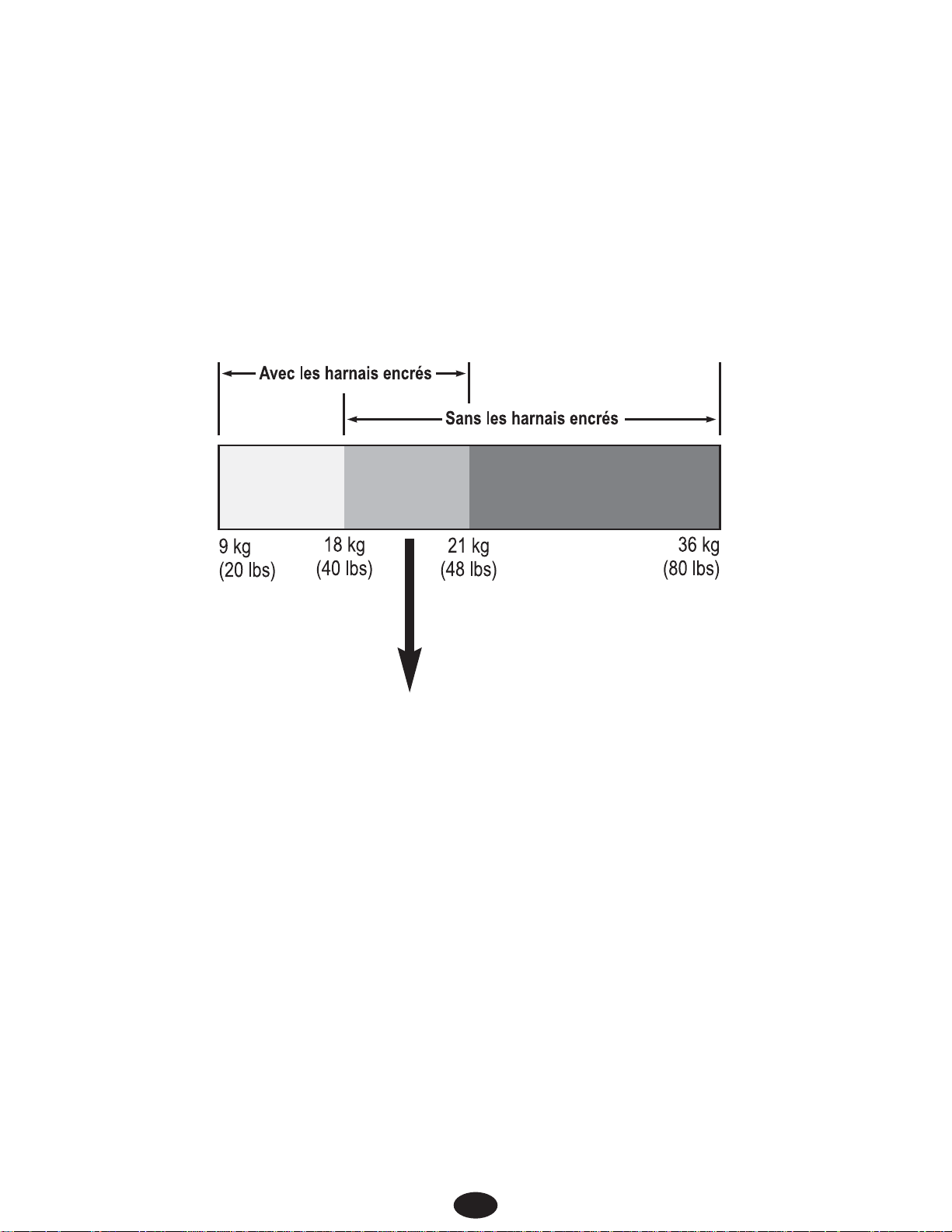

4.2 Height and Weight Limits
10
4.2.1 WITH Built-in Harness
Your child MUST meet all requirements:
• WEIGHT: 9 to 21 kg (20 to 48 lbs)
• HEIGHT: 69 to 109 cm (27 to 43 inches)
• At least one year old and can sit upright unassisted
• Shoulders are BELOW top harness slots. If
shoulders are above top harness slots, child is
too large for built-in harness.
4.2.2 WITHOUT Built-in Harness
Your child MUST meet all requirements:
• WEIGHT: 18 to 36 kg (40 to 80 lbs)
• HEIGHT: 89 to 138 cm (35 to 54 inches)
• Child’s ears are BELOW top of booster seat. If tops
of ears are above top of seat, child is too large for
booster seat.
If child is between 18 and 21 kg (40 and 48 lbs) and
shoulders are below the upper harness slots, we
highly recommend use of the built-in harness for as
long as it is suitable and comfortable up to 21 kg
(48 lbs).
11
• Children are safer when properly restrained in
rear vehicle seating positions. Whenever possible
secure the car seat in the center position of the seat
directly behind the front seats. However, this position
is often equipped with a
lap belt only and cannot
be used when this car
seat is used without the
built-in harness.
• The vehicle seat must face forward.

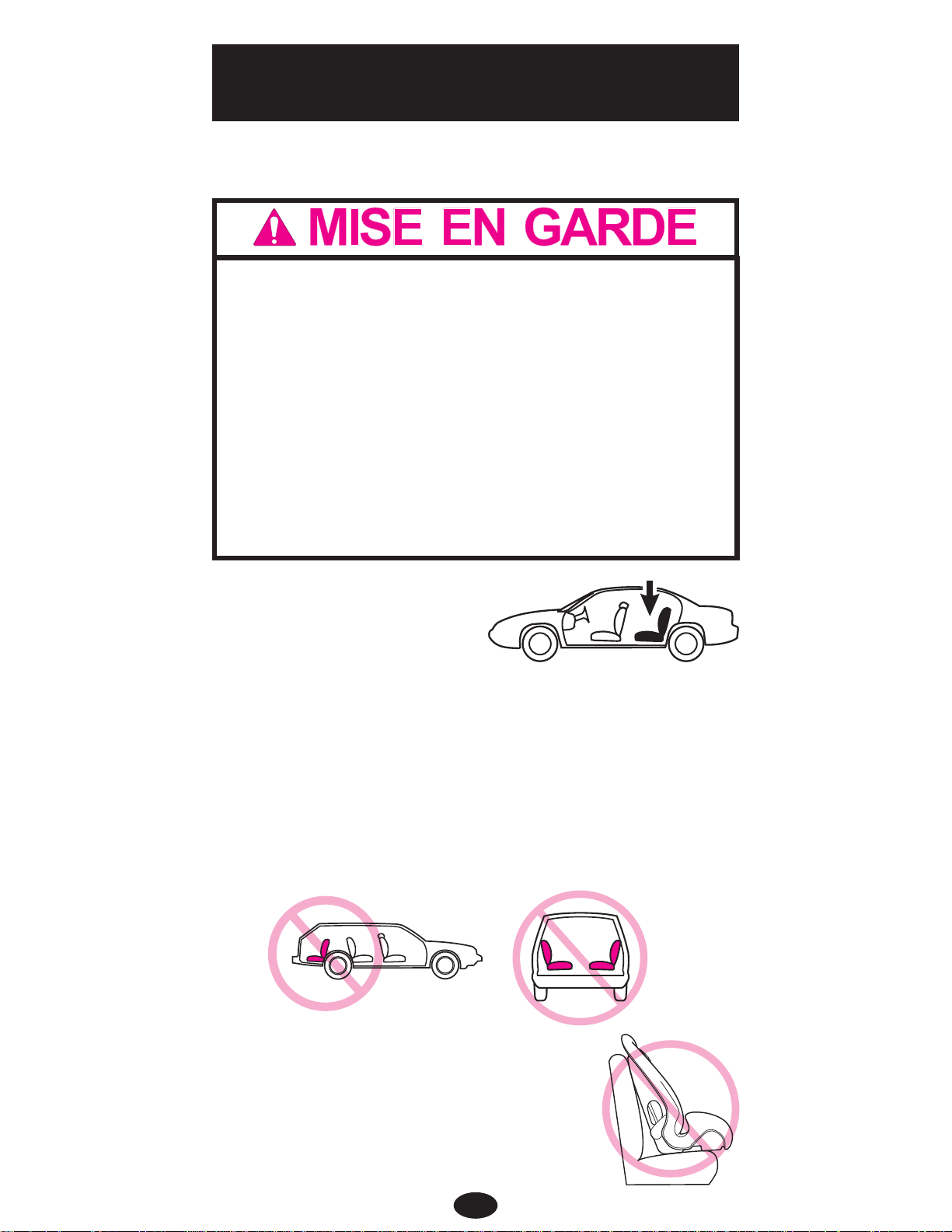

5.0 Car Seat Location
5.1 Vehicle Seat Requirements
IMPROPER PLACEMENT OF THE CAR SEAT
INCREASES THE RISK OF SERIOUS INJURY
OR DEATH. Some seating positions in your vehicle
may not be safe for this car seat. Some vehicles do
not have any seating positions that can be used
safely with the car seat. If you are not sure where
to place the car seat in your vehicle, consult your
vehicle owner’s manual or call Elfe Juvenile Products,
1-800-667-8184.
• Front of car seat must not hang
over edge of vehicle seat.
12

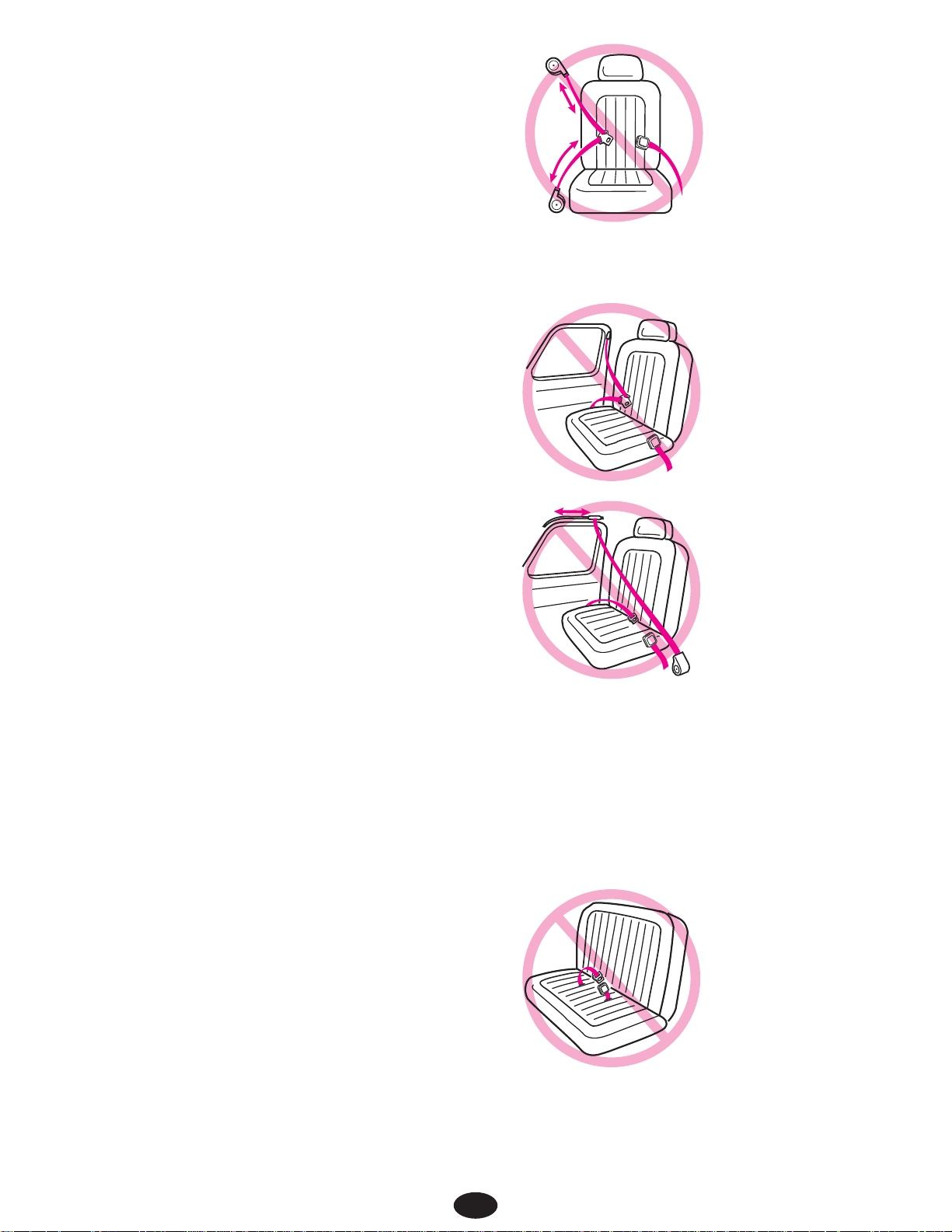

DO NOT USE ANY OF THE FOLLOWING SYSTEMS
TO SECURE THE CAR SEAT. UAS can be used IN
PLACE OF the following unsafe belt systems if your
vehicle is equipped with UAS anchor points. NEVER
USE unsafe belt systems. Please refer to the vehicle
owners manual for UAS locations.
• Lap Belts with Emergency
Locking Retractor (ELR)
This lap belt stays loose and
can move until it locks in a
crash or sudden stop.
5.2 Vehicle Seat Belt
Requirements
MANY SEAT BELT SYSTEMS ARE NOT SAFE TO
USE WITH THE CAR SEAT. THE VEHICLE SEAT
BELT MUST BE DESIGNED TO HOLD THE CAR
SEAT TIGHTLY AT ALL TIMES.
Pay careful attention to these systems; some of the
seat belts that are not safe to use look very much
like seat belts that are safe to use. If you are
unsure,
consult your vehicle owner’s manual or call
Elfe Juvenile Products,
1-800-667-8184.
5.2.1 UNSAFE Vehicle
Belt Systems
13
• Combination
Lap/Shoulder Belt
with Retractor
Each strap has a retractor
at one end and is attached
to the latch plate at the
other end.
• Passive Restraint Lap or Shoulder Belt
Mounted on Door
• Passive Restraint Lap Belt with Motorized
Shoulder Belt
DO NOT use vehicle belts
that are attached to the
door in any way or that
move along a track to
automatically surround
the passenger when the
door is closed.
• Lap Belts Forward of
Seat Crease
14
5.2.2 SAFE Vehicle Belt
Systems
• Lap Belts - Manually Adjusted
When buckled, the belt is tightened manually by
pulling on the excess belt.
• Lap Belts with Automatic Locking Retractor (ALR)
The automatic locking retractor will not permit the lap
belt to lengthen once it is buckled. Tighten the belt
by feeding the belt back into the retractor while
pushing down hard on the car seat.
THE FOLLOWING BELT SYSTEMS CAN BE USED
WITH YOUR CAR SEAT, IF the seat location meets
all other requirements of these instructions and those
in your vehicle owner's manual. UAS can be used in
place of the following vehicle belt systems if your vehicle is equipped with UAS anchor points. Please refer to
vehicle owners manual for UAS locations.
For Built-in Harness Only
15

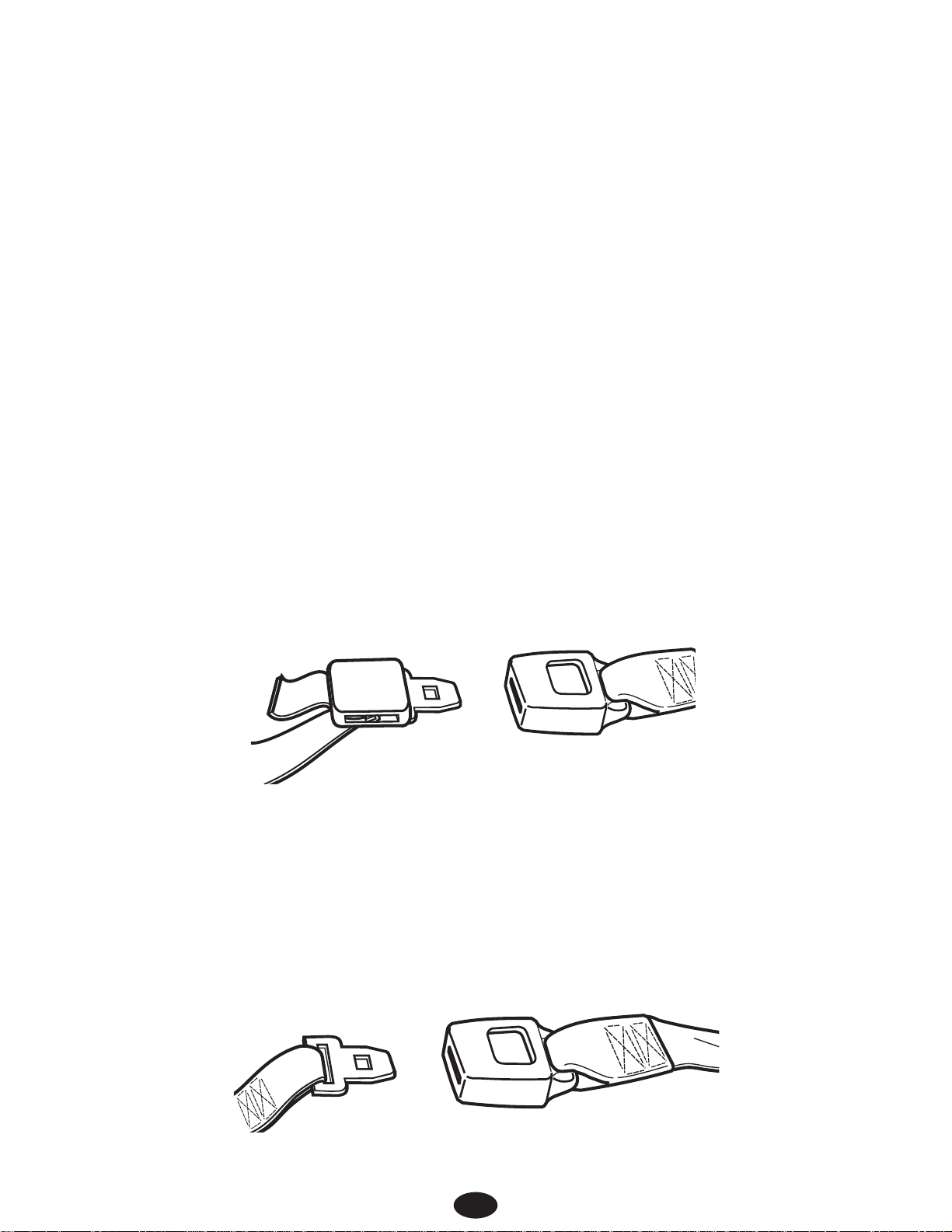

• Combination Lap/Shoulder Belt with Locking
Latch Plate
Once it is buckled, this type of belt has a latch plate
that will not allow the lap portion of the belt to loosen.
Belt is tightened by pulling hard on the shoulder
portion of the vehicle belt while pushing down hard
on the car seat.
• Combination Lap/Shoulder Belt with Sliding
Latch Plate
This belt has a latch plate that slides freely along
the belt.
WITH Built-in harness: This belt MUST be
converted to prevent movement of the lap
portion of the belt. You must use
the locking clip provided with the
car seat, unless your vehicle's seat
belt can be converted in another
way as described in your vehicle
owner's manual.
WITHOUT Built-in harness: Conversion or locking
clip are not needed.
With OR Without Built-in
Harness
Locking clip
16
To Install Locking Clip:
1. Tighten the buckled
belt by pushing down
hard on the car seat
and pulling hard on the
shoulder belt.
2. While pushing down
on seat, pinch the two
straps together behind
the buckle tongue.
Unbuckle the belt without
allowing it to slip.
3. Connect lap and
shoulder belts as
shown
.
4. Rebuckle belt. Check
that lap belt does not
move by pulling hard. If
belt loosens or lengthens,
repeat procedure.
Remove locking clip when
not using car seat. Store
under it’s tab on the back
of seat.
½ “ (1.25 cm)
17
Newer vehicles may have one or more seating
positions with UAS. If vehicle is equipped with UAS,
the vehicle lower anchor points may be visible at the
vehicle seat crease. If not visible, they may be
marked with the symbol below .
See your vehicle owner’s manual for exact
locations, anchor identification, and requirements
for use with a car seat.
Typical seat in a passenger vehicle. Other vehicle
types may have different UAS locations.
Check vehicle owner’s manual for vehicle top tether
anchor locations. They may be identified using one
of the anchor symbols as shown above
or.
ONLY use UAS on a car seat in a seating position
recommended by vehicle manufacturer.
Vehicle
Top Tether Anchor
Points
Vehicle Lower
Anchor Points
Vehicle
Seat Crease
With UAS (Universal Anchorage
System)
18
6.0 Using Car Seat WITH
Built-in Harness
6.1 Positioning the Harness
Straps
FAILURE TO PROPERLY ADJUST THE HARNESS
STRAPS FOR YOUR CHILD INCREASES THE RISK
OF SERIOUS INJURY OR DEATH IN THE EVENT OF
A SHARP TURN, SUDDEN STOP OR CRASH.
Snugly adjust the belts provided with this child restraint
around your child.

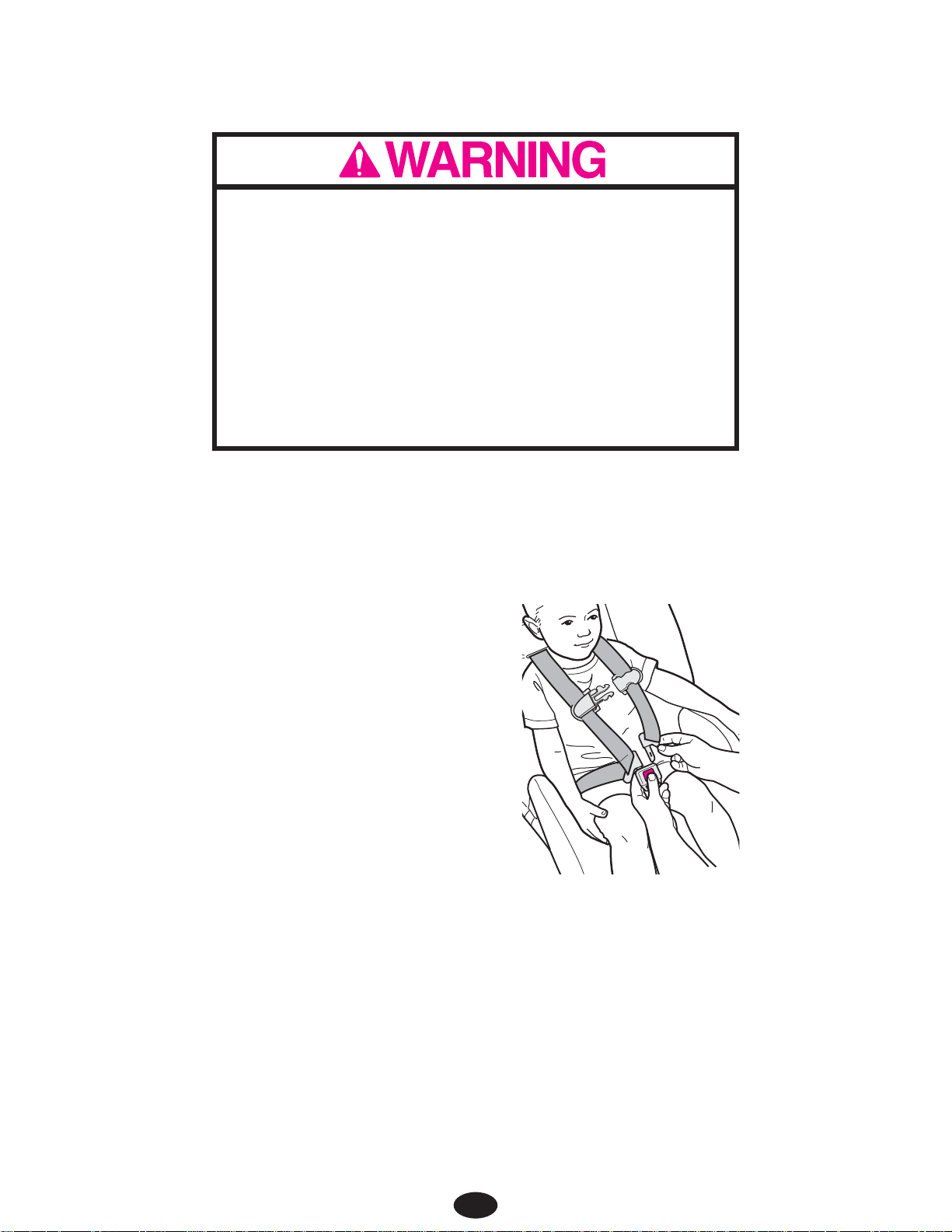

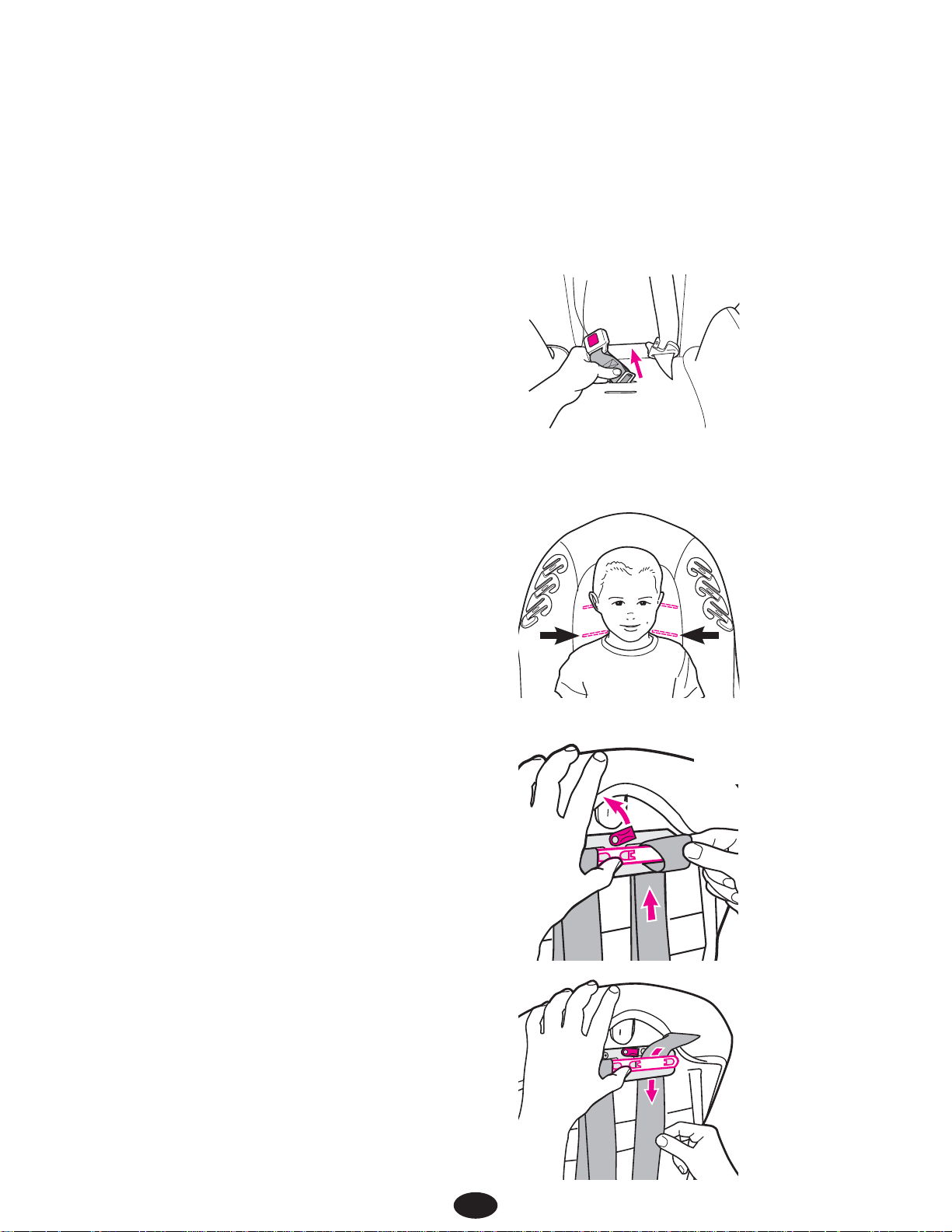

1. Open harness clip .
2. Unbuckle harness
straps
.
3. Place child in the seat.
19
4. Check the crotch strap.
Choose the position that
is closest to but not under
your child.
To move the strap:
Reach under seat and
push metal retainer up
through the slot sideways
. Place the retainer in
the appropriate slot. Pull
on buckle to make sure it
is secure.
5. The harness straps
must go into the slots
even with or just above
the shoulders
.
6. If straps are in the proper
slots, go to step 11 on
page 21.

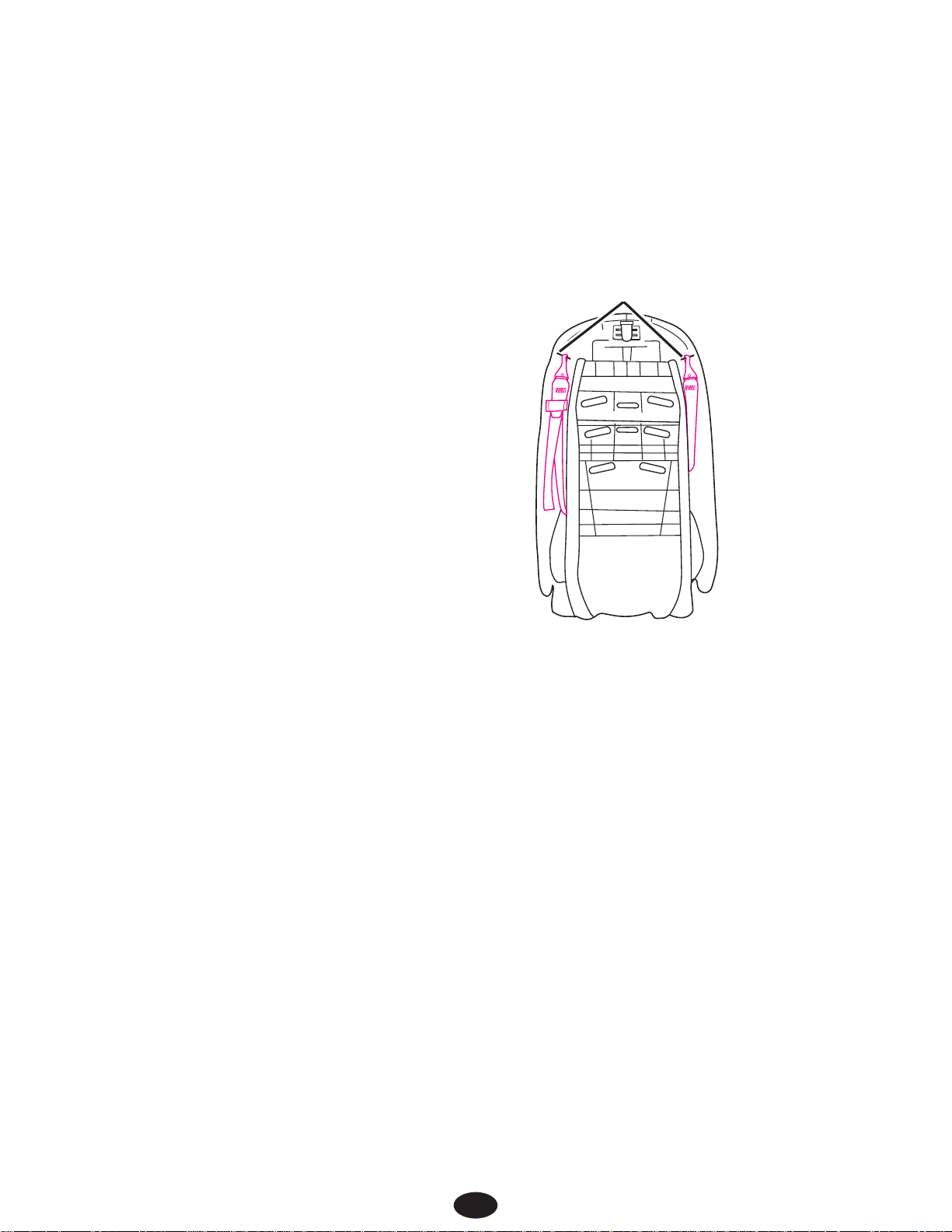

7. To adjust harness
straps: Remove straps
from harness plate and
adjuster bar
.
20
8. Pull strap ends through
slots and reinsert them
in the correct slots
as determined in step 5.
9. Reassemble straps onto
adjuster bar exactly as
shown
.
10. Push adjuster bar
down
.
11. Rotate red lock down
.
There must be some strap
extended below the
adjustment bar.
21
11. Check that the straps are inserted at the same
level and that they are not twisted. From the
front of the seat, pull on harness to make sure
it is secure.

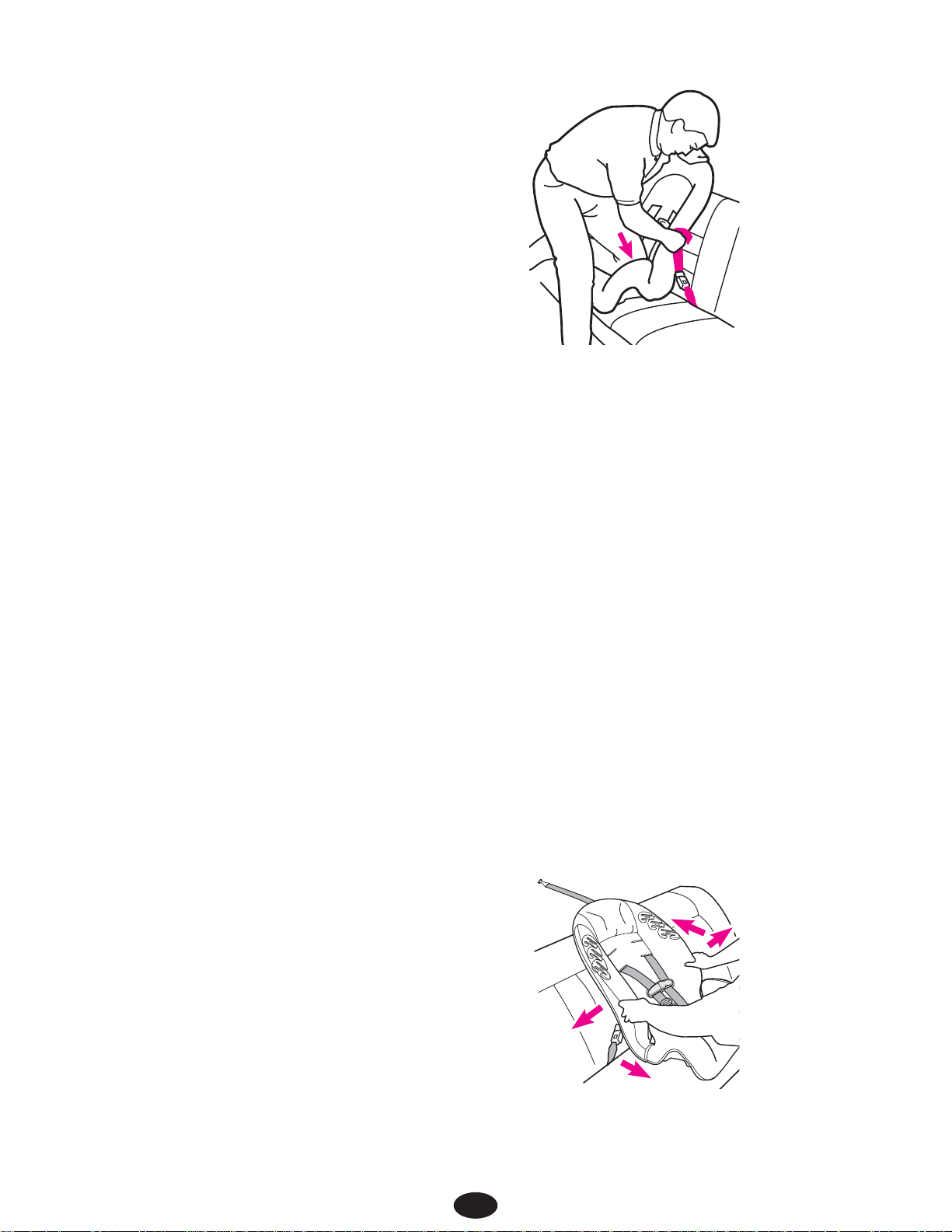

12. Harness Adjustment
Remove child from car seat. From behind the seat
move the red lock up, lift adjuster bar and lengthen
or shorten the straps as needed.
(See also Section 6.3, Securing Your Child in the
Car Seat, page 26.)
REMEMBER to check the shoulder and crotch
straps as your child grows and move them to the
next position when necessary.
22
6.2 Securing the Car Seat in
Your Vehicle
FAILURE TO PROPERLY SECURE THE CAR SEAT
IN THE VEHICLE INCREASES THE CHILD’S RISK
OF SERIOUS INJURY OR DEATH IN THE EVENT OF
A SHARP TURN, SUDDEN STOP OR CRASH.
Carefully follow these instructions and those in your
vehicle owner’s manual to be sure your car seat is
properly located, positioned, and held tightly at all times.

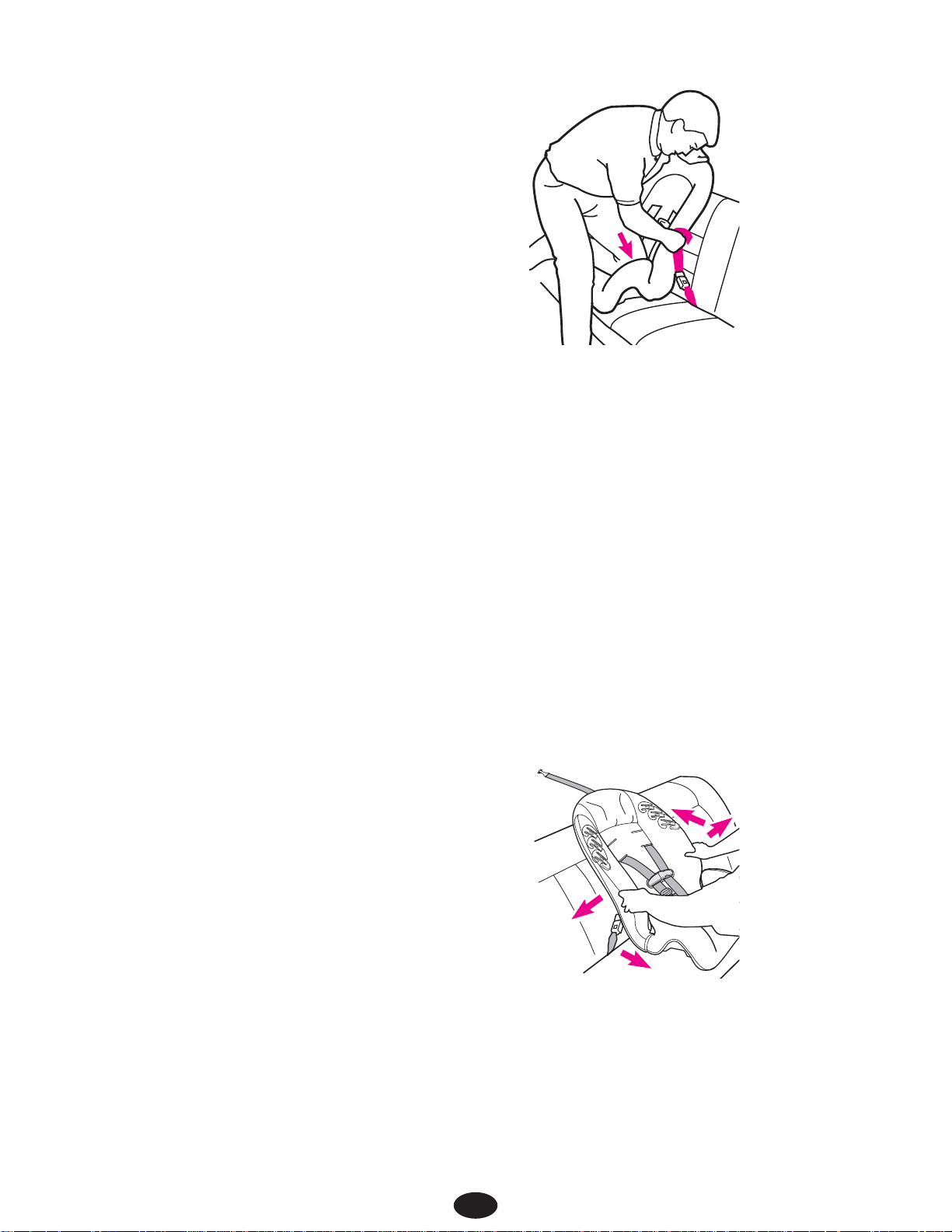

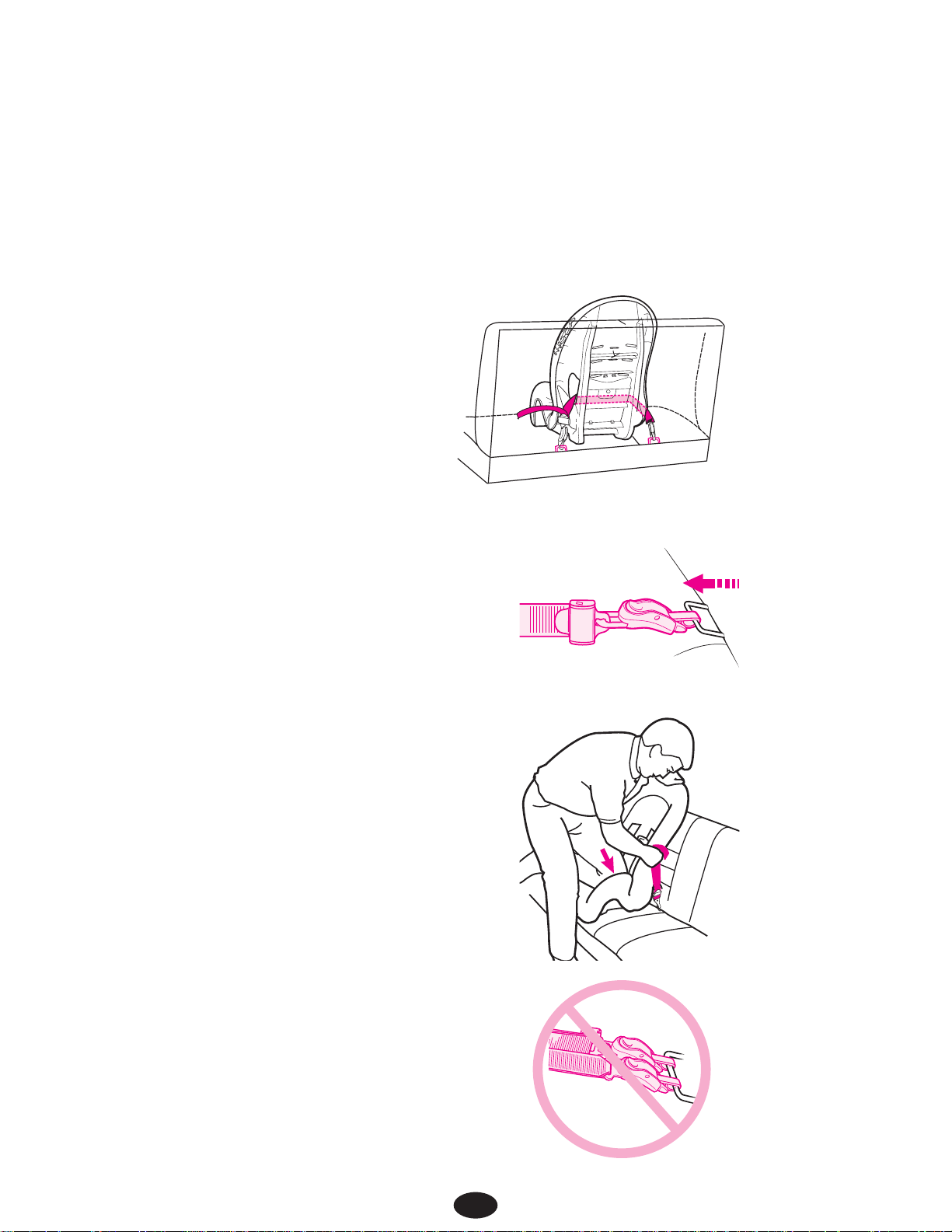

1. Place the car seat firmly
against the back of a
forward-facing vehicle
seat.

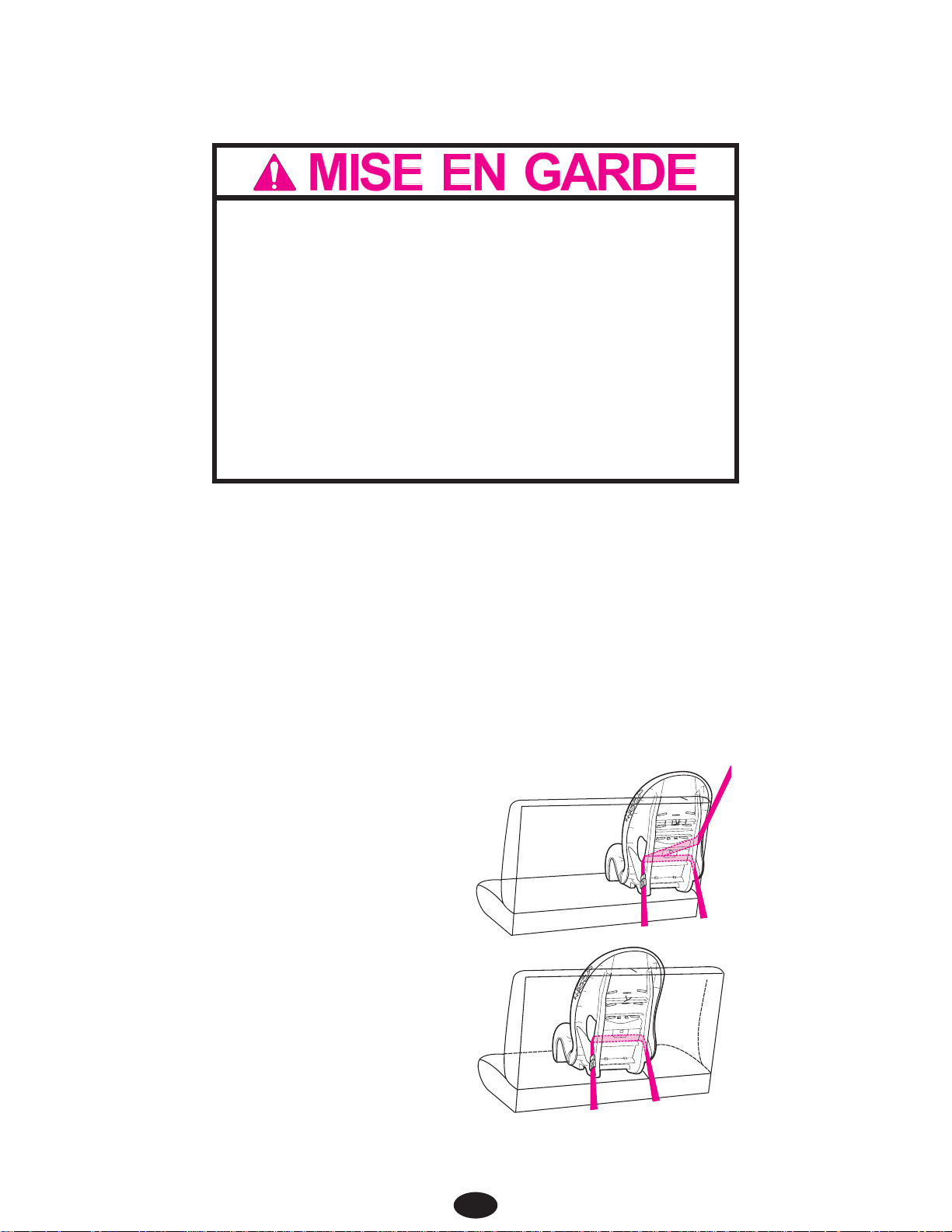

2. Thread the seat belt:
For Lap/Shoulder belt
For Lap-only belt
3. Buckle the vehicle belt.
The vehicle belt should
not be twisted or turned.
6.2.1 With a Vehicle Lap or
Lap/Shoulder Belt:
Store UAS. See Section 8.2, Storing UAS, page 32.
Loading...
