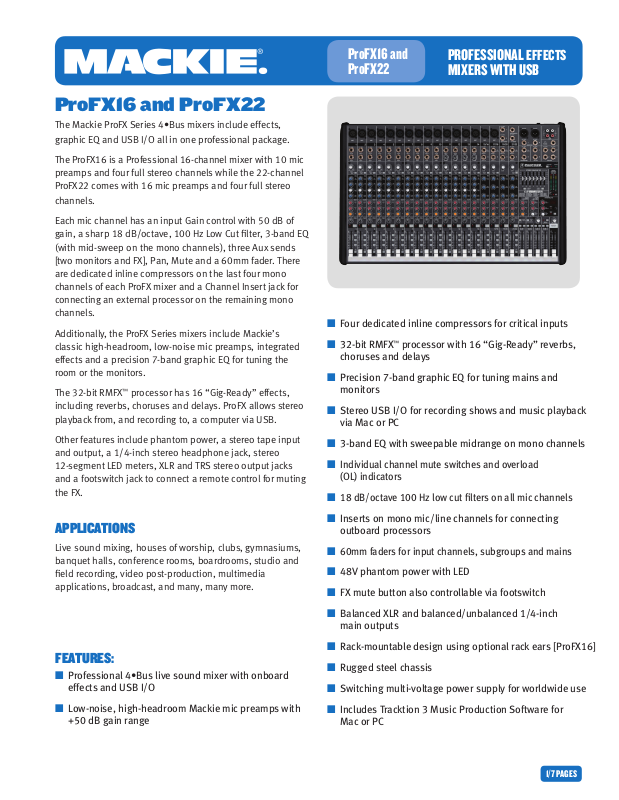

Mackie PROFX16, PROFX22 User Manual
ProFX16 and ProFX22
The Mackie ProFX Series 4•Bus mixers include effects,
graphic EQ and USB I/O all in one professional package.
The ProFX16 is a Professional 16-channel mixer with 10 mic
preamps and four full stereo channels while the 22-channel
ProFX22 comes with 16 mic preamps and four full stereo
channels.
Each mic channel has an input Gain control with 50 dB of
gain, a sharp 18 dB/octave, 100 Hz Low Cut lter, 3-band EQ
(with mid-sweep on the mono channels), three Aux sends
[two monitors and FX], Pan, Mute and a 60mm fader. There
are dedicated inline compressors on the last four mono
channels of each ProFX mixer and a Channel Insert jack for
connecting an external processor on the remaining mono
channels.
Additionally, the ProFX Series mixers include Mackie’s
classic high-headroom, low-noise mic preamps, integrated
effects and a precision 7-band graphic EQ for tuning the
room or the monitors.
The 32-bit RMFX™ processor has 16 “Gig-Ready” effects,
including reverbs, choruses and delays. ProFX allows stereo
playback from, and recording to, a computer via USB.
Other features include phantom power, a stereo tape input
and output, a 1/4-inch stereo headphone jack, stereo
12-segment LED meters, XLR and TRS stereo output jacks
and a footswitch jack to connect a remote control for muting
the FX.
ProFX16 and
ProFX22
PROFESSIONAL EFFECTS
MIXERS WITH USB
■ Fourdedicatedinlinecompressorsforcriticalinputs
■ 32-bitRMFX
chorusesanddelays
™
processorwith16“Gig-Ready”reverbs,
■ Precision7-bandgraphicEQfortuningmainsand
monitors
■ StereoUSBI/Oforrecordingshowsandmusicplayback
viaMacorPC
■ 3-bandEQwithsweepablemidrangeonmonochannels
■
Individualchannelmuteswitchesandoverload
(OL)indicators
■
18dB/octave100Hzlowcutltersonallmicchannels
APPLICATIONS
Live sound mixing, houses of worship, clubs, gymnasiums,
banquet halls, conference rooms, boardrooms, studio and
eld recording, video post-production, multimedia
applications, broadcast, and many, many more.
FEATURES:
■ Professional4•Buslivesoundmixerwithonboard
effectsandUSBI/O
■ Low-noise,high-headroomMackiemicpreampswith
+50dBgainrange
■ Insertsonmonomic/linechannelsforconnecting
outboardprocessors
■
60mmfadersforinputchannels,subgroupsandmains
■ 48VphantompowerwithLED
■ FXmutebuttonalsocontrollableviafootswitch
■ BalancedXLRandbalanced/unbalanced1/4-inch
mainoutputs
■ Rack-mountabledesignusingoptionalrackears[ProFX16]
■ Ruggedsteelchassis
■ Switchingmulti-voltagepowersupplyforworldwideuse
■ IncludesTracktion3MusicProductionSoftwarefor
MacorPC
1/7 PAGES
ProFX16 and ProFX22 SPECIFICATIONS
ProFX16 and
ProFX22
PROFESSIONAL EFFECTS
MIXERS WITH USB
Noise Characteristics
Equivalent Input Noise (EIN)
(mic in to insert send out, 150
20 Hz to 20 kHz)
max gain –128 dBu
Residual Output Noise
All outputs, master levels off, all channel levels off –95 dBu
All outputs, master levels unity, all channel levels off –85 dBu
All outputs, master levels unity, one channel level unity –85 dBu
source impedance,
Frequency Response
Mic input to any output
(gain at unity, +0 dB / –1 dB) 20 Hz to 40 kHz
Distortion (THD+N)
(20 Hz to 20 kHz bandwidth)
Mic in to Main out (+4 dBu output) <0.01%
Attenuation and Crosstalk
Adjacent Inputs, 1 kHz –90 dB
Fader Off, 1 kHz –75 dB
Mute Switch/Break Switch Mute, 1 kHz –100 dB
Common Mode Rejection Ratio (CMRR)
Mic In to Main Out, max gain, 1 kHz 70 dB
Maximum Levels
All inputs +22 dBu
Main Mix XLR +28 dBu
All other outputs +22 dBu
Impedances
Mic In 3.3 k
Channel Insert Return 10 k
All other inputs 20 k
Tape output 1 k
Phones output 25
All other outputs 120
Equalization
Mono Channels
Low ±15 dB @ 80 Hz
Mid ±15 dB
100 Hz – 8 kHz
High ±15 dB @ 12 kHz
Low Cut Filter 18 dB/octave @ 100 Hz
Stereo Channels
Low ±15 dB @ 80 Hz
Mid ±15 dB @ 2.5 kHz
High ±15 dB @ 12 kHz
Maximum Voltage Gain (EQ Flat)
Mic input Channel to
Insert Output 50 dB
Tape Output 60 dB
USB Output 50 dB
1/4" Main Output 70 dB
XLR Main Output 76 dB
Monitor Send 85 dB
FX Send 90 dB
Mono Line Input Channel to
Insert Output 30 dB
Tape Output 40 dB
USB Output 40 dB
XLR Main Output 56 dB
Monitor Send 65 dB
FX Send 70 dB
Stereo Line Input Channel to
Tape Output 30 dB
USB Output 30 dB
XLR Main Output 46 dB
Monitor Send 55 dB
FX Send 60 dB
Tape Input to
XLR Main Output 36 dB
USB Input to
XLR Main Output 36 dB
Stereo Return to
Mon Output 30 dB
XLR Main Output 26 dB
2/7 PAGES
ProFX16 and ProFX22 SPECIFICATIONS continued...
ProFX16 and
ProFX22
PROFESSIONAL EFFECTS
MIXERS WITH USB
Digital Effects
I/O Mono input / Stereo output
Number of Presets 16
Meters
Main L/R Mix
Two columns of 12 segments each:
OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), –2, –4, –7, –10, –20, –30
Channel OL LED
Measured post-EQ, pre-fader
(–3 dB before channel clipping) 18 dBu
7 Band Graphic EQ
Frequency Centers 125, 250, 500, 1k, 2k, 4k, 8k
Gain ±15 dB
Assignable to Main or Monitor, bypassable
USB
Format USB 1.1
I/O Stereo Input / Stereo Output
A/D/A 16 Bit, 44.1 kHz / 48 kHz
Physical Properties (packaged product)
Height 8.0 in / 203 mm (both)
Depth 20.2 in / 513 mm (both)
Width 21.6 in / 549 mm (ProFX16)
28.1 in / 714 mm (ProFX22)
Shipping Weight 20 lb / 9.1 kg (ProFX16)
26 lb / 11.8 kg (ProFX22)
Physical Properties (product)
Front Height 1.7 in / 44 mm (both)
Rear Height 3.8 in / 97 mm (both)
Depth 16.0 in / 407 mm (both)
Width 18.7 in / 475 mm (ProFX16)
25.1 in / 639 mm (ProFX22)
Net Weight 13 lb / 5.9 kg (ProFX16)
18 lb / 8.2 kg (ProFX22)
Options
Rack Ear Kit for ProFX16 P/N 2036168-00
Mixer Bag for ProFX16 P/N 2036809-10
Mixer Bag for ProFX22 P/N 2036809-11
Mixer Cover for ProFX16 P/N 2036809-12
Mixer Cover for ProFX22 P/N 2036809-13
Phantom Power
48 VDC to all Mic channels at once
AC Power Requirements
Power Consumption 40 watts (ProFX16)
45 watts (ProFX22)
Universal AC Power Supply 100 – 240 VAC,
50 – 60 Hz
Operating Temperature 0˚ – 40˚C
32˚ – 104˚F
Ordering Information
ProFX16 Professional Effects Mixer with USB, US
ProFX16 Professional Effects Mixer with USB, EU
ProFX22 Professional Effects Mixer with USB, US
ProFX22 Professional Effects Mixer with USB, EU
P/N 2036015-00
P/N 2036015-01
P/N 2036026-00
P/N 2036026-01
3/7 PAGES
