Mackie Producer Bundle Hookup guide

PRODUCER BUNDLE

HOOKUP GUIDE

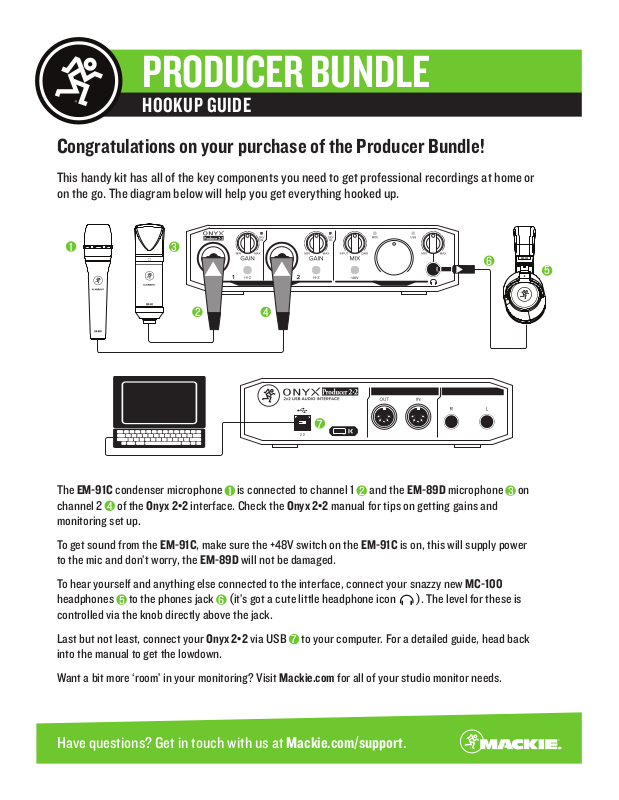

Congratulations on your purchase of the Producer Bundle!

This handy kit has all of the key components you need to get professional recordings at home or
on the go. The diagram below will help you get everything hooked up.

1

The EM-91C condenser microphone is connected to channel 1 and the EM-89D microphone on
channel 2
monitoring set up.

of the Onyx 2•2 interface. Check the Onyx 2•2 manual for tips on getting gains and

4

3

6

2

1

4

7

2

3

5

To get sound from the EM-91C, make sure the +48V switch on the EM-91C is on, this will supply power
to the mic and don’t worry, the EM-89D will not be damaged.

To hear yourself and anything else connected to the interface, connect your snazzy new MC-100
headphones to the phones jack (it’s got a cute little headphone icon ). The level for these is
controlled via the knob directly above the jack.

Last but not least, connect your Onyx 2•2 via USB to your computer. For a detailed guide, head back
into the manual to get the lowdown.

Want a bit more ‘room’ in your monitoring? Visit Mackie.com for all of your studio monitor needs.

65

7

Have questions? Get in touch with us at Mackie.com/support.
