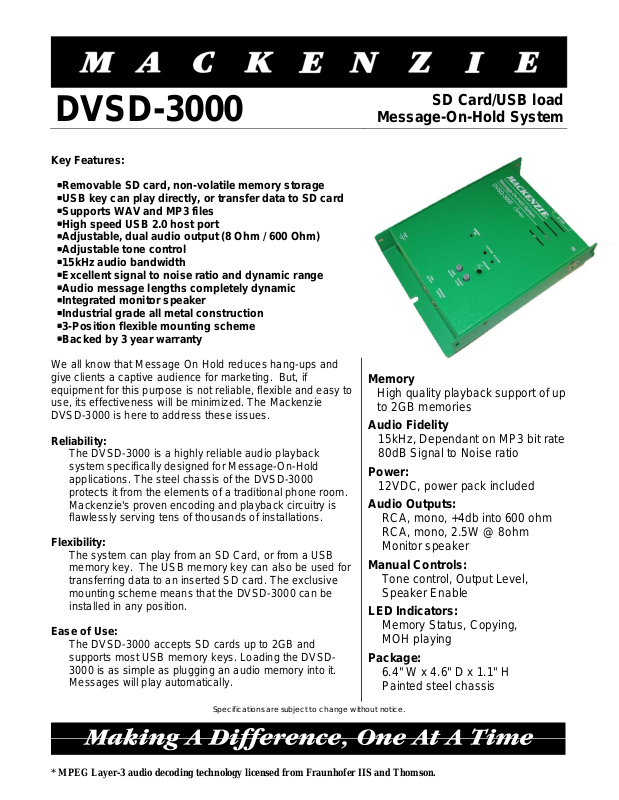

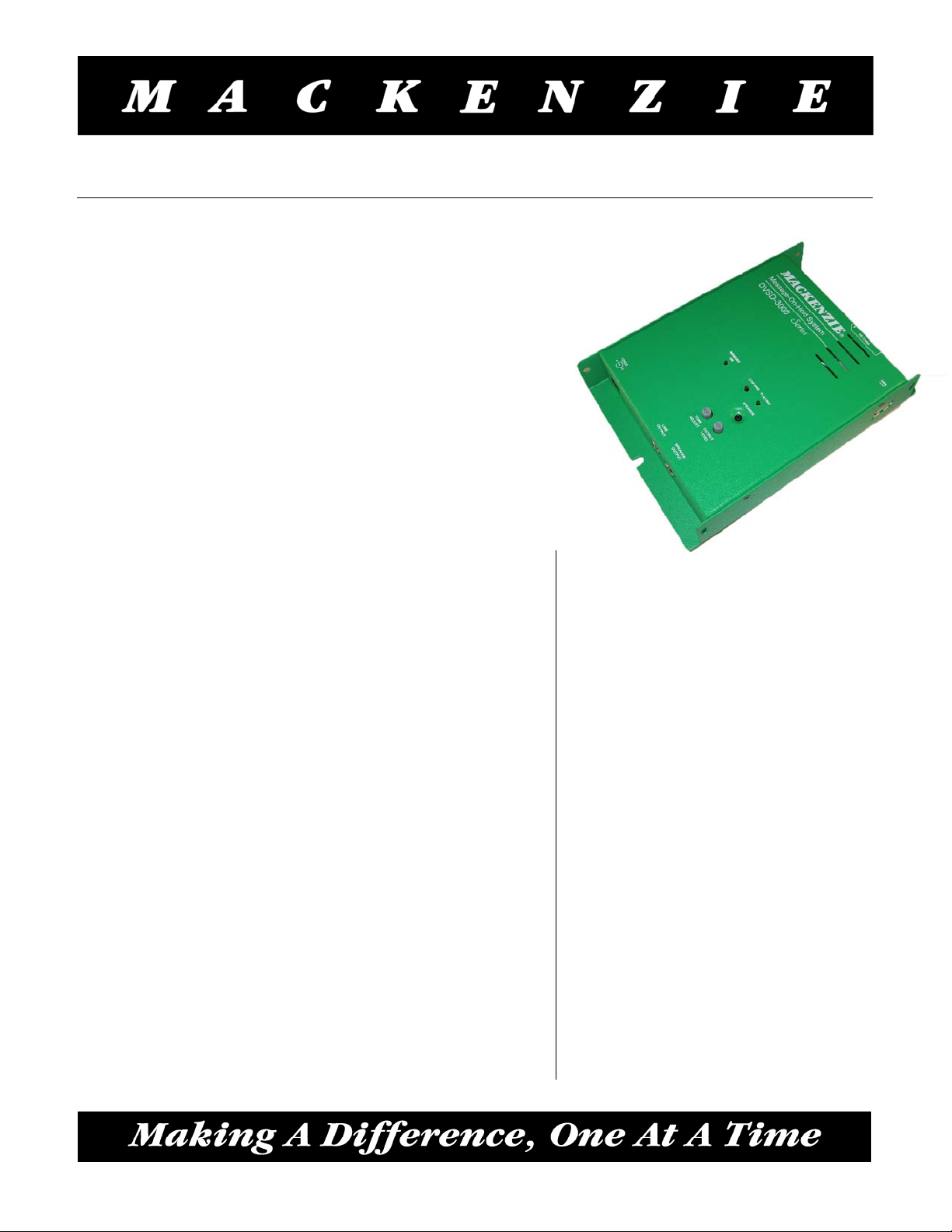

Mackenzie Labs DVSD-3000 Specifications

DVSD-3000

Key Features:
Removable SD card, non-volatile memory storage

USB key can play directly, or transfer data to SD card
Supports WAV and MP3 files
High speed USB 2.0 host port
Adjustable, dual audio output (8 Ohm / 600 Ohm)
Adjustable tone control
15kHz audio bandwidth
Excellent signal to noise ratio and dynamic range
Audio message lengths completely dynamic
Integrated monitor speaker
Industrial grade all metal construction
3-Position flexible mounting scheme
Backed by 3 year warranty

We all know that Message On Hold reduces hang-ups and
give clients a captive audience for marketing. But, if
equipment for this purpose is not reliable, flexible and easy to
use, its effectiveness will be minimized. The Mackenzie
DVSD-3000 is here to address these issues.

Reliability:

The DVSD-3000 is a highly reliable audio playback
system specifically designed for Message-On-Hold
applications. The steel chassis of the DVSD-3000
protects it from the elements of a traditional phone room.
Mackenzie's proven encoding and playback circuitry is
flawlessly serving tens of thousands of installations.

Flexibility:

The system can play from an SD Card, or from a USB
memory key. The USB memory key can also be used for
transferring data to an inserted SD card. The exclusive
mounting scheme means that the DVSD-3000 can be
installed in any position.

Ease of Use:

The DVSD-3000 accepts SD cards up to 2GB and
supports most USB memory keys. Loading the DVSD­3000 is as simple as plugging an audio memory into it.
Messages will play automatically.

Specifications are subject to change without notice.

SD Card/USB load

Message-On-Hold System

Memory

High quality playback support of up
to 2GB memories

Audio Fidelity

15kHz, Dependant on MP3 bit rate
80dB Signal to Noise ratio

Power:
12VDC, power pack included

Audio Outputs:

RCA, mono, +4db into 600 ohm
RCA, mono, 2.5W @ 8ohm
Monitor speaker

Manual Controls:
Tone control, Output Level,
Speaker Enable

LED Indicators:

Memory Status, Copying,
MOH playing

Package:

6.4" W x 4.6" D x 1.1" H
Painted steel chassis

* MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson.

DVSD-3000

1

MEMORY OK LED (GREEN):

1

LED is ON if either an SD Card or a USB memory
key with valid audio messages is detected by the system.
Blinks if no files are detected.

TONE ADJUST KNOB:

2

Adjusts the Bass & Treble amount to deliver the
best overall system performance.

POWER JACK:

3

Insert supplied power adapter.

2

3

Model DVSD-3000

MESSAGE-ON-HOLD SYSTEM

SD Card/USB load

Message-On-Hold System

12

11 (TOP SIDE)

Recording, downloading or playing of copyrighted material
such as sound effects, narration or music is unlawful unless
permitted by a legal exception or consented to by the rights
owner. Recording and download equ i pment should only be
used with material that you have the legal right to copy and
you are responsible for obtaini ng these rights, Mackenzie
Laboratories, Inc. has no right to grant such permission.

COPYRIGHT POLICY

LINE OUTPUT:

4

Audio output level of up to +4dB into 600 ,
this is a standard level for most applications.

SPEAKER OUTPUT:

5

Audio output level of up to 2.5W into 8 Ohm. Use
this output if more drive is needed to reach a more
comfortable listening level.

AUDIO OUTPUT LEVEL KNOB:

6

Adjusts the volume to the both line level and speaker
audio outputs.

THE MACKENZIE DYNAVOX

DVSD-3000 Quikey

03 Mar 2008, Version 1.0
Mackenzie Laboratories, Inc.
1163 Nicole CT, Glendora, CA 91740 USA
TEL [phone] FAX [phone]

w w w . m a c k l a b s . c o m

4

5

9

8

7

6

10

SPEAKER PUSHBUTTON:

7

Turns local Monitor speaker ON/OFF.

COPYING LED (RED):

8

Used to display recording mode. Red light ON,
indicates message (s) is being copied from USB
memory key to SD Card.

PLAYING LED (GREEN):

9

This green LED is ON when the system is playing
Pre-Recorded messages.

USB MEMORY KEY CONNECTOR:

10

Audio files can be played directly from a
USB memory key, or the files on it can be
copied to an SD card, if one is present.

SD CARD CONNECTOR:

11

Audio files be played directly from an SD card

MONITOR SPEAKER:

12

Allows user to preview message play back.
