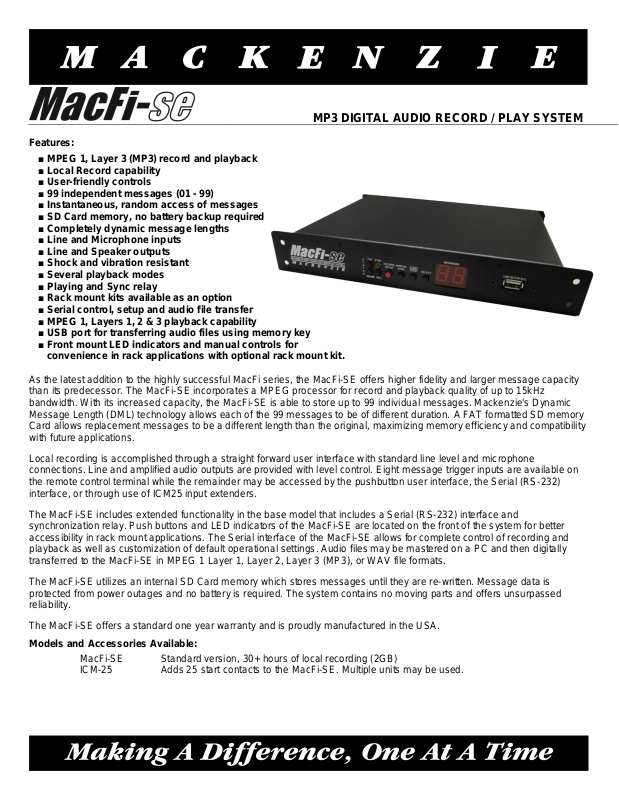

Page 1
MP3 DIGITAL AUDIO RECORD / PLAY SYSTEM
MacFi-SE
Standard version, 30+ hours of local recording (2GB)
ICM-25
Adds 25 start contacts to the MacFi-SE. Multiple units may be used.
Features:
■ MPEG 1, Layer 3 (MP3) record and playback
■ Local Record capability
■ User-friendly controls
■ 99 independent messages (01 - 99)
■ Instantaneous, random access of messages
■ SD Card memory, no battery backup required
■ Completely dynamic message lengths
■ Line and Microphone inputs
■ Line and Speaker outputs
■ Shock and vibration resistant
■ Several playback modes
■ Playing and Sync relay
■ Rack mount kits available as an option
■ Serial control, setup and audio file transfer
■ MPEG 1, Layers 1, 2 & 3 playback capability
■ USB port for transferring audio files using memory key
■ Front mount LED indicators and manual controls for
convenience in rack applications with optional rack mount kit.
As the latest addition to the highly successful MacFi series, the MacFi-SE offers higher fidelity and larger message capacity
than its predecessor. The MacFi-SE incorporates a MPEG processor for record and playback quality of up to 15kHz
bandwidth. With its increased capacity, the MacFi-SE is able to store up to 99 individual messages. Mackenzie's Dynamic
Message Length (DML) technology allows each of the 99 messages to be of different duration. A FAT formatted SD memory
Card allows replacement messages to be a different length than the original, maximizing memory efficiency and compatibility
with future applications.
Local recording is accomplished through a straight forward user interface with standard line level and microphone
connections. Line and amplified audio outputs are provided with level control. Eight message trigger inputs are available on
the remote control terminal while the remainder may be accessed by the pushbutton user interface, the Serial (RS-232)
interface, or through use of ICM25 input extenders.
The MacFi-SE includes extended functionality in the base model that includes a Serial (RS-232) interface and
synchronization relay. Push buttons and LED indicators of the MacFi-SE are located on the front of the system for better
accessibility in rack mount applications. The Serial interface of the MacFi-SE allows for complete control of recording and
playback as well as customization of default operational settings. Audio files may be mastered on a PC and then digitally
transferred to the MacFi-SE in MPEG 1 Layer 1, Layer 2, Layer 3 (MP3), or WAV file formats.
The MacFi-SE utilizes an internal SD Card memory which stores messages until they are re-written. Message data is
protected from power outages and no battery is required. The system contains no moving parts and offers unsurpassed
reliability.
The MacFi-SE offers a standard one year warranty and is proudly manufactured in the USA.
Models and Accessories Available:
Page 2
MP3 DIGITAL AUDIO RECORD / PLAY SYSTEM
MACKENZIE LABORATORIES, INC.
1163 Nicole Court
Glendora, CA 91740 USA
Audio Coding:
Recording: MPEG 1, Layer 3 (VBR)
Playback: MPEG 1, Layer 3 (VBR) or MPEG 1, Layer 1,
2 & 3 via audio file transfer capability of the
MacFi-SE, and 16 bit WAV files
Audio Quality:
Dynamic Range: 80dB, Typical
Signal to Noise: 80dB, Typical
Frequency Resp.: 50Hz to 15kHz
THD: <0.5% at 1kHz, Typical
Audio Input:
Line: 10kΩ, RCA
Mic: 1.5k ohm, 1/8" mini jack
Level: +4dBm max., potentiometer
Sync Input:
Interface: 10kΩ, RCA
Mode: Audio sensor detects tones 100mS in duration
Audio Output:
Line: 600Ω, transformer isolated, RCA
Amplified: 4 watts into 8 ohm, 2 pin pluggable terminal
Level: Potentiometer
Audio Memory:
Type: SD Card
Capacity: 2GB minimum, 30+ hours of storage time
Serial Interface:
Type: RS-232
Mode: 9,600 or 115,200 baud,
8 data bits, 1 stop bit, no parity, no flow control
Commands: Play, Record, Stop, File Download, Status, etc.
Connection: 3 pin pluggable terminal
Power Requirement:
Input Voltage: 12VDC, 1 Amp
Connection: 2 pin pluggable terminal

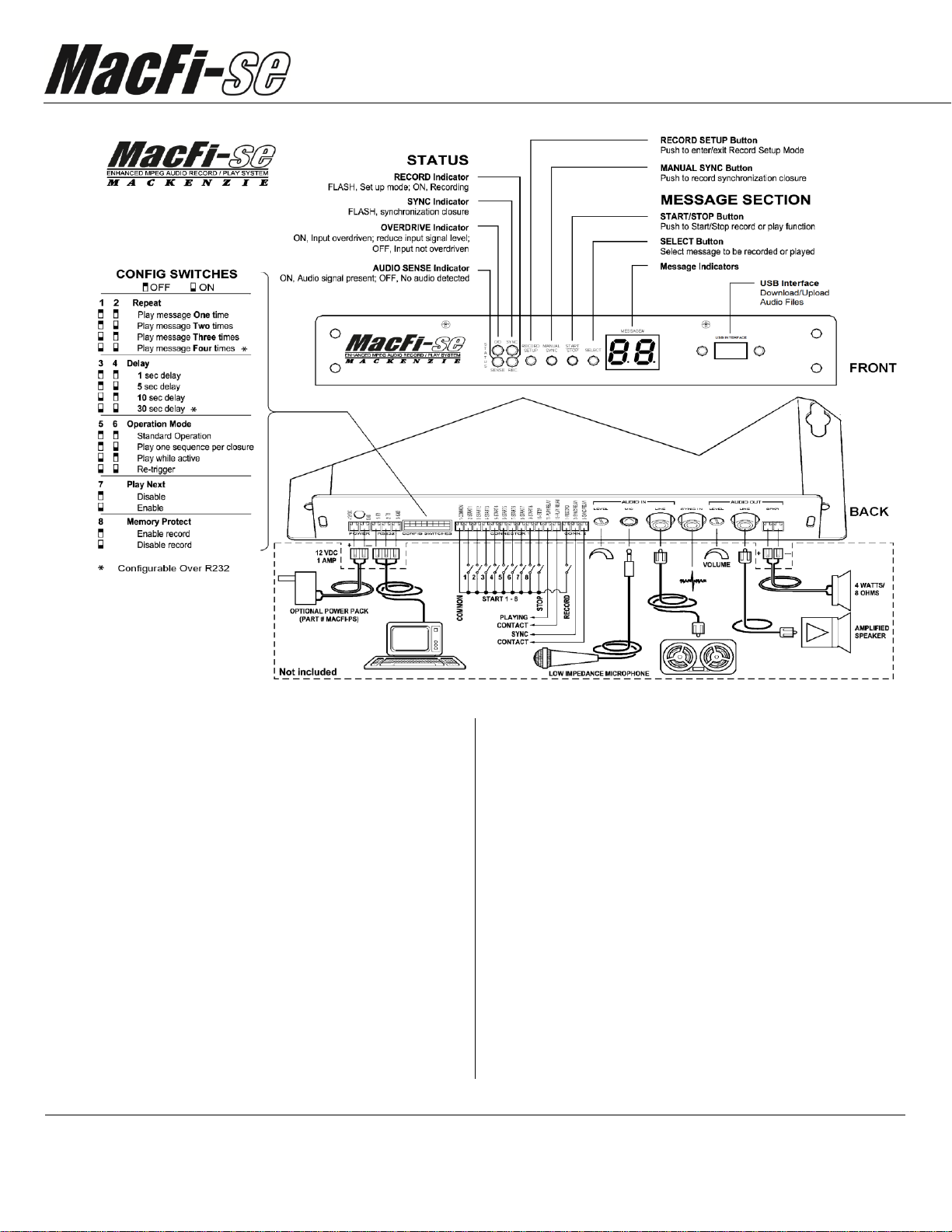

Control I/O:
Control Inputs: Record, Stop, 8 Message Start contacts.
ICM-25 (Option): Add to the MacFi-SE for 25 more start inputs
per module.
Status Outputs: Playing, Sync
Output Type: Dry relay contact, 1A@24VDC non-inductive
load
Connection: Pluggable terminal
Mechanical:
Package: Wall mount chassis - 10" W x 8" D x 1.5" H
Material: 18 gauge cold rolled steel chassis
Rack mount(option): 1U adapter
Regulatory Agency Approvals:
FCC, Part 15, Class A; UL/CSA approval on external power
pack(sold separately)
Specifications and Pricing are subject to change without notice
SPECIFICATIONS
MACFIMP09012004
