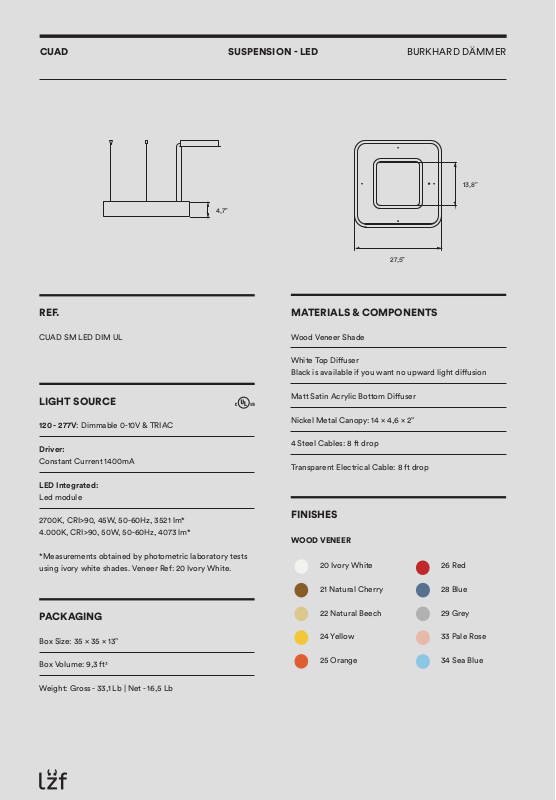

CUAD SUSPENSION - LED BURKHARD DÄMMER
13,8”
4,7”
27,5”
REF.
CUAD SM LED DIM UL
LIGHT SOURCE
120 - 277V: Dimmable 0-10V & TRIAC
Driver:
Constant Current 1400mA
LED Integrated:
Led module
2700K, CRI>90, 45W, 50-60Hz, 3521 lm*
4.000K, CRI>90, 50W, 50-60Hz, 4073 lm*
*Measurements obtained by photometric laboratory tests
using ivory white shades. Veneer Ref: 20 Ivory White.
PACKAGING
Box Size: 35 × 35 × 13”
Box Volume: 9,3 ft
3
MATERIALS & COMPONENTS
Wood Veneer Shade
White Top Diuser
Black is available if you want no upward light diusion
Matt Satin Acrylic Bottom Diuser
Nickel Metal Canopy: 14 × 4,6 × 2”
4 Steel Cables: 8 ft drop
Transparent Electrical Cable: 8 ft drop
FINISHES
WOOD VENEER
20 Ivory White
21 Natural Cherry
22 Natural Beech
24 Yellow
25 Orange
26 Red
28 Blue
29 Grey
33 Pale Rose
34 Sea Blue
Weight: Gross - 33,1 Lb | Net - 16,5 Lb
