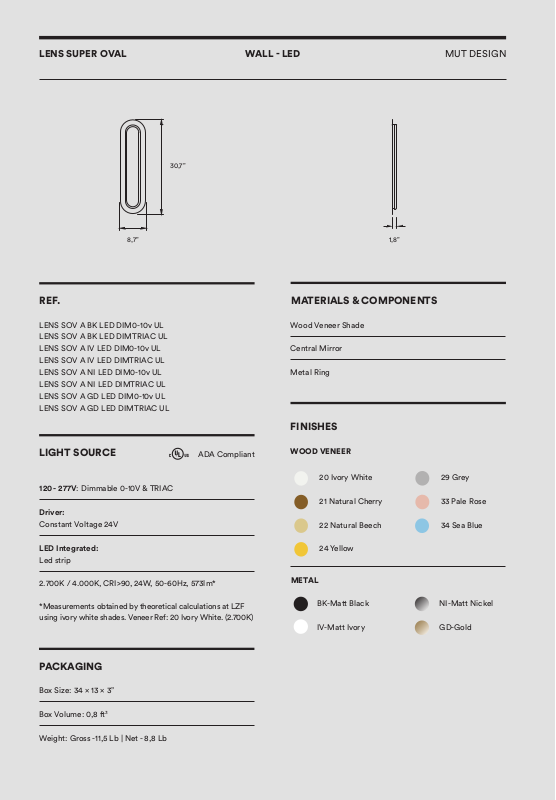

LENS SUPER OVAL WALL - LED MUT DESIGN
30,7”
8,7”
REF.
LENS SOV A BK LED DIM0-10v UL
LENS SOV A BK LED DIMTRIAC UL
LENS SOV A IV LED DIM0-10v UL
LENS SOV A IV LED DIMTRIAC UL
LENS SOV A NI LED DIM0-10v UL
LENS SOV A NI LED DIMTRIAC UL
LENS SOV A GD LED DIM0-10v UL
LENS SOV A GD LED DIMTRIAC UL
LIGHT SOURCE
120 - 277V: Dimmable 0-10V & TRIAC
Driver:
Constant Voltage 24V
LED Integrated:
Led strip
2.700K / 4.000K, CRI>90, 24W, 50-60Hz, 573lm*
*Measurements obtained by theoretical calculations at LZF
using ivory white shades. Veneer Ref: 20 Ivory White. (2.700K)
ADA Compliant
1,8”
MATERIALS & COMPONENTS
Wood Veneer Shade
Central Mirror
Metal Ring
FINISHES
WOOD VENEER
20 Ivory White
21 Natural Cherry
22 Natural Beech
24 Yellow
METAL
BK-Matt Black
IV-Matt Ivory
29 Grey
33 Pale Rose
34 Sea Blue
NI-Matt Nickel
GD-Gold
PACKAGING
Box Size: 34 × 13 × 3”
Box Volume: 0,8 ft
Weight: Gross -11,5 Lb | Net - 8,8 Lb
3
