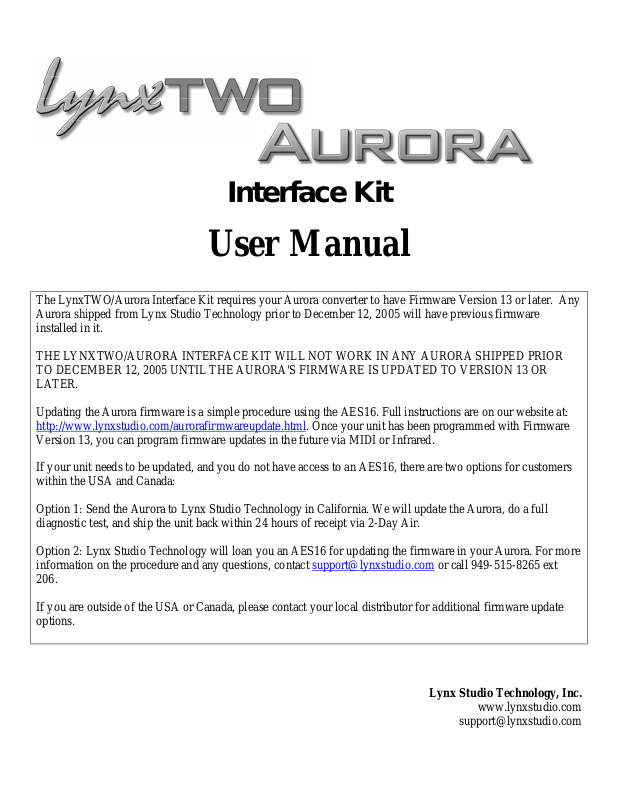

Lynx Studio LynxTWO User Manual
Interface Kit
User Manual
The LynxTWO/Aurora Interface Kit requires your Aurora converter to have Firmware Version 13 or later. Any
Aurora shipped from Lynx Studio Technology prior to December 12, 2005 will have previous firmware
installed in it.
THE LYNXTWO/AURORA INTERFACE KIT WILL NOT WORK IN ANY AURORA SHIPPED PRIOR
TO DECEMBER 12, 2005 UNTIL THE AURORA'S FIRMWARE IS UPDATED TO VERSION 13 OR
LATER.
Updating the Aurora firmware is a simple procedure using the AES16. Full instructions are on our website at:
http://www.lynxstudio.com/aurorafirmwareupdate.html. Once your unit has been programmed with Firmware
Version 13, you can program firmware updates in the future via MIDI or Infrared.
If your unit needs to be updated, and you do not have access to an AES16, there are two options for customers
within the USA and Canada:
Option 1: Send the Aurora to Lynx Studio Technology in California. We will update the Aurora, do a full
diagnostic test, and ship the unit back within 24 hours of receipt via 2-Day Air.
Option 2: Lynx Studio Technology will loan you an AES16 for updating the firmware in your Aurora. For more
information on the procedure and any questions, contact support@lynxstudio.com or call 949-515-8265 ext
206.
If you are outside of the USA or Canada, please contact your local distributor for additional firmware update
options.
Lynx Studio Technology, Inc.
www.lynxstudio.com
support@lynxstudio.com
LynxTWO/Aurora Interface Kit
User Manual
Table of Contents
1 Introduction..................................................................................................................................................... 1
2 Features........................................................................................................................................................... 1
3 Before You Begin........................................................................................................................................... 1
3.1 Contents .................................................................................................................................................. 1
3.2 Operation Requirements......................................................................................................................... 2
4 Nomenclature used in this manual.................................................................................................................. 2
5 Warranty Registration.....................................................................................................................................2
6 Installation Procedure ..................................................................................................................................... 3

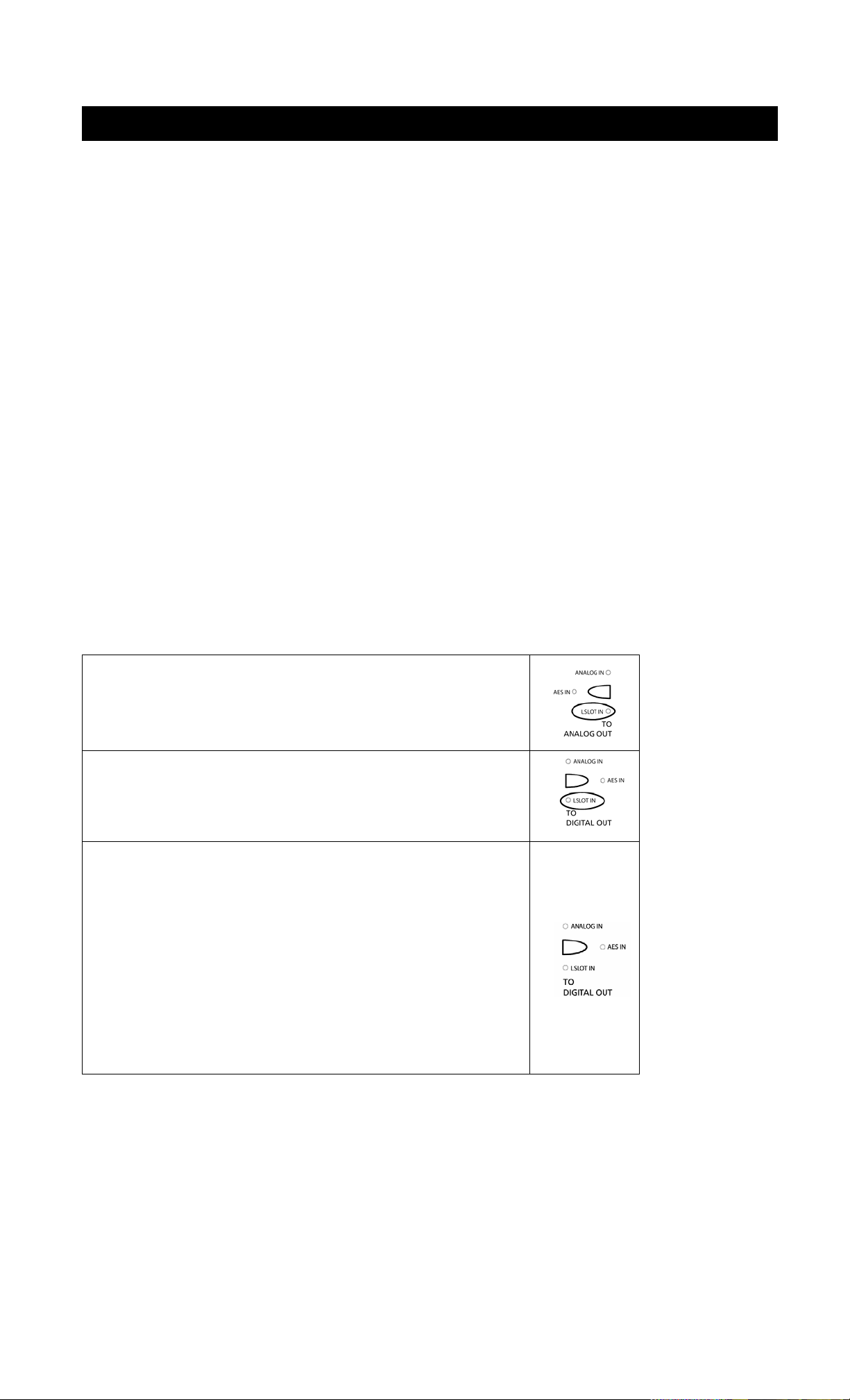

7 Aurora Routing ............................................................................................................................................... 6
8 Lynx Mixer Setup and Controls...................................................................................................................... 7
8.1 LStream Interface to the Host LynxTWO/L22....................................................................................... 7
8.2 LStream Output Routing......................................................................................................................... 7
8.3 Output Channel Source Selection........................................................................................................... 8
8.4 LStream Output Channel Group Mapping.............................................................................................. 8

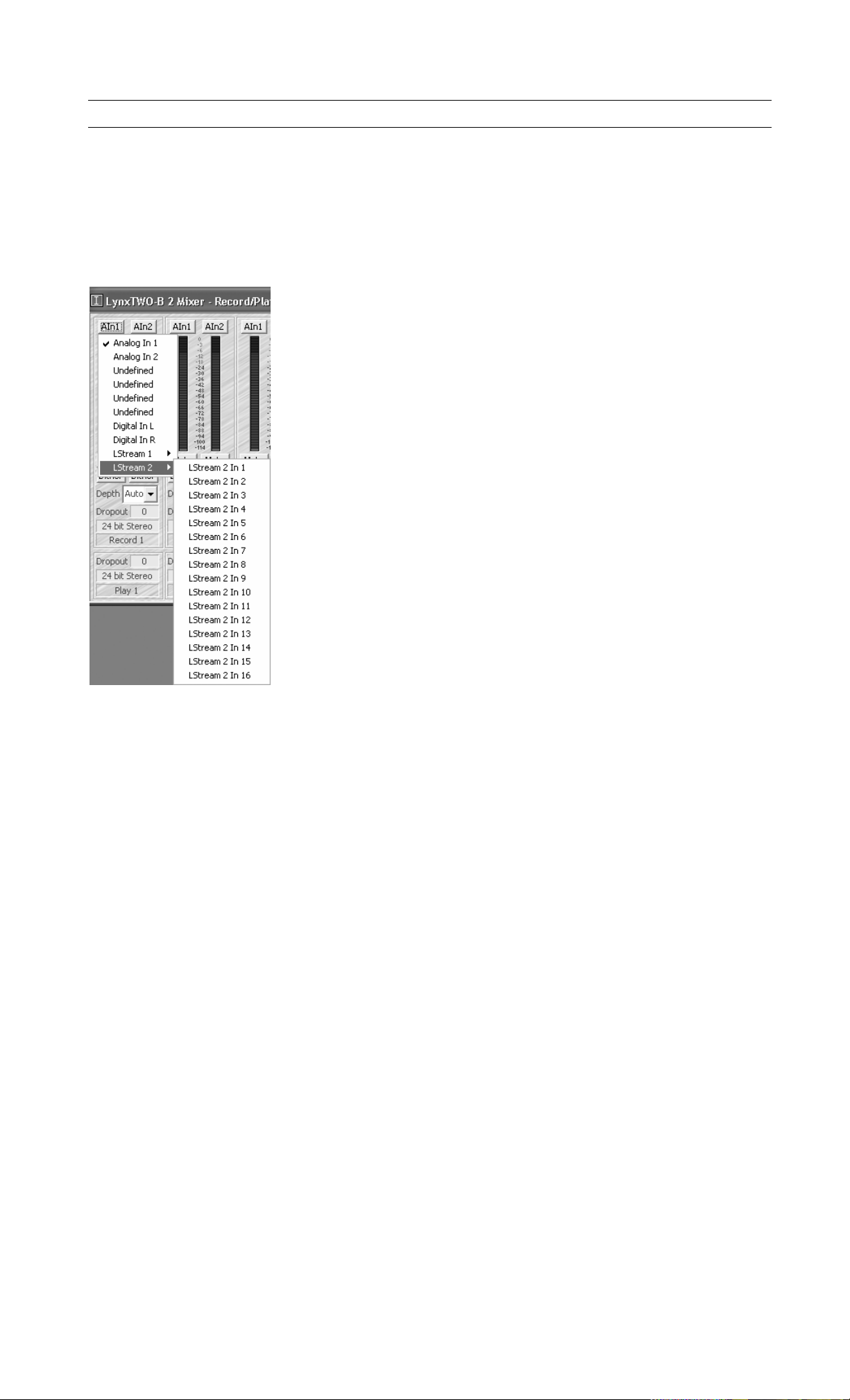

8.5 LStream Input Routing ........................................................................................................................... 9

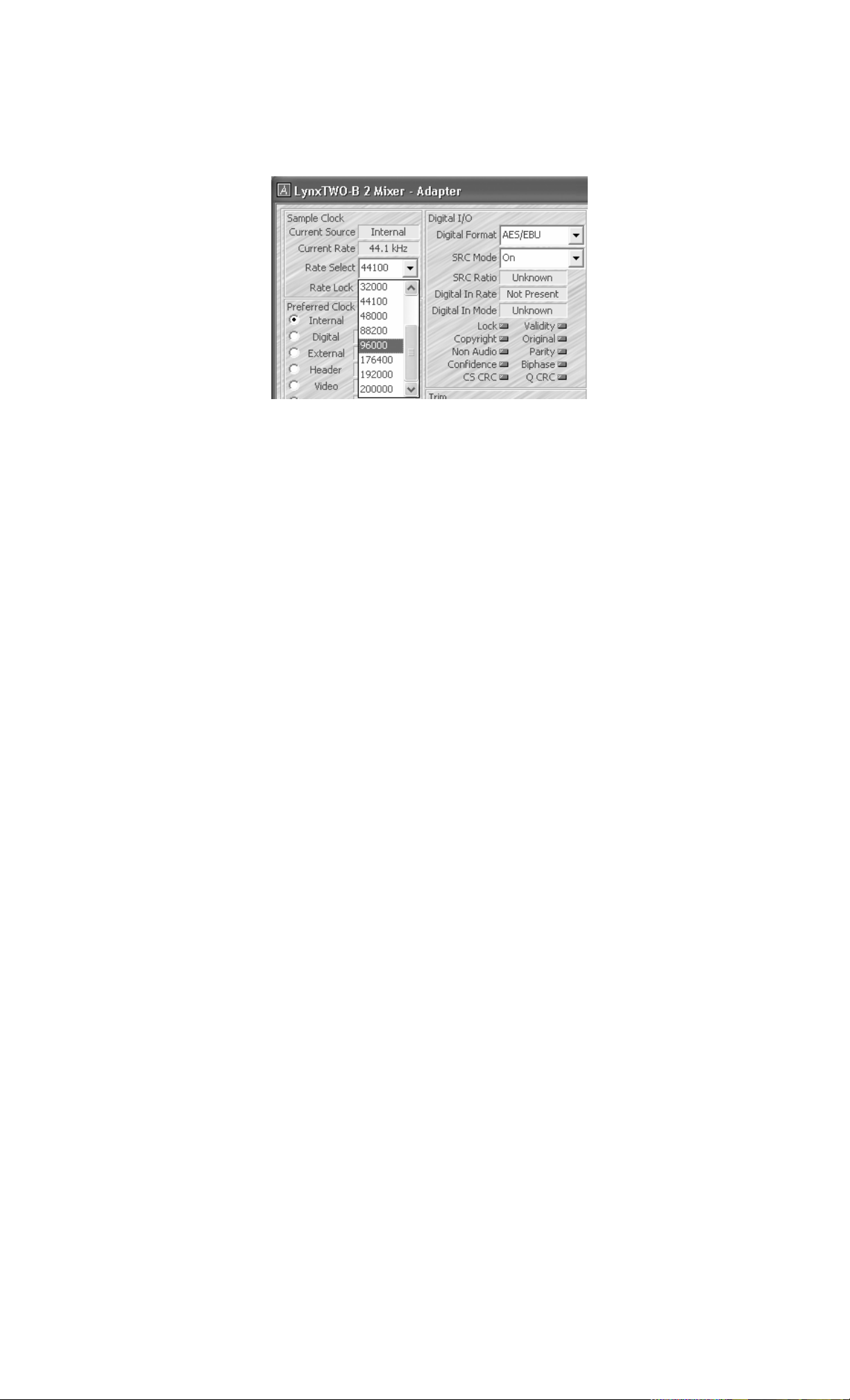

9 Clock Settings............................................................................................................................................... 10
9.1 Aurora as clock master, LynxTWO as clock slave............................................................................... 10
9.2 LynxTWO as clock master, Aurora as clock slave.............................................................................. 10
9.3 Aurora and LynxTWO slave to house clock......................................................................................... 11
10 Support...................................................................................................................................................... 12
10.1 Lynx Website Support Resources.........................................................................................................12
10.2 Telephone Support................................................................................................................................ 12
10.3 Registering your LynxTWO/Aurora Interface Kit ...............................................................................12
10.4 Return Policy ........................................................................................................................................12
11 Warranty Information............................................................................................................................... 13
1
1 Introduction
Thank you for purchasing the LynxTWO™/Aurora™ Interface Kit! We are proud to provide you
with a reliable, inexpensive means to integrate an Aurora with a LynxTWO or L22 interface.
This manual provides basic information to help you get started. Additional information is available
via our web site and email support. Please refer to the support section at the end of this manual for
support contact information.
The LynxTWO/ Aurora Interface Kit uses the Lynx External LStream™ protocol to allow an Aurora
AD/DA converter to pass audio to and from a LynxTWO or L22 PCI interface installed in a
Windows PC or Macintosh computer. The Interface Kit includes everything necessary to facilitate
this connection.
Prior to installing the Interface Kit, verify that the LynxTWO or L22 has been properly installed into
your computer per the installation instructions for that device’s Users Manual, and insure that you
can successfully record and play audio through the card’s onboard I/O. With that being the case,
installation of the LynxTWO/Aurora Interface Kit is generally a quick, simple operation.
2 Features
¾ Seamless interface adds Aurora I/O to existing LynxTWO or L22 systems
¾ Up to 16 Channels at 48kHz (with Aurora 16)
¾ 8 Channels at 96kHz
¾ 4 Channels at 192kHz
¾ Easy installation into Aurora 8 or Aurora 16
3 Before You Begin
We recommend that you read through the manual to acquire an overview of the installation procedure
and use of the LynxTWO/Aurora Interface Kit. This manual will presume a working knowledge of
the Aurora converter and LynxTWO/L22 interface. For additional information, please refer to the
Aurora owner’s manual.
3.1 Contents
Verify that you received the following in the LynxTWO/Aurora Interface Kit shipping carton:
• 6-foot CBL-LSEXT cable
• LStream Interface bracket and ribbon cable
• Warranty Registration Card
• User Manual
3.2 Operation Requirements
Using the LynxTWO/Aurora Interface kit requires a fully functional LynxTWO or L22 installed into
a Windows 2000/XP PC, or OSX Macintosh. Although the Aurora will work with a LynxTWO or
L22 that has older drivers and firmware, it is advisable to update the firmware and drivers for the card
prior to integrating the Aurora to insure that you have access to the fullest feature set and
compatibility possible. Current drivers and firmware are available at
http://www.lynxstudio.com/download.html.
If this is a new installation, verify that the LynxTWO or L22 can record and play audio using its
onboard I/O before attempting integration of the Aurora.
It is critical that the Aurora used has firmware revision 13 or greater before installing and configuring
the LynxTWO/Aurora Interface Kit. To determine what firmware revision your Aurora has, press the
TRIM and POWER buttons at the same time with the power to the Aurora on. If the LED flashes
over number 13 or above with an Aurora 16, or number 7 or above for an Aurora 8, then your unit is
compatible with the LynxTWO/Aurora Interface Kit. If pressing Power and Trim does not cause any
LEDs to flash, then your unit needs to be updated.
Updating the Aurora firmware to version 13 requires a Lynx AES16 card. Once a unit has been
programmed with version 13, future updates can be applied via MIDI or InfraRed. If you do not own
or have access to an AES16 card, please contact Lynx technical support department to arrange for
your Aurora to be returned to Lynx for programming, or to have an AES16 sent to you for on-site
programming.
4 Nomenclature used in this manual
The following typographic conventions are used in this manual:
¾ ALL UPPER CASE TEXT refers to a specific parameter selection control (i.e. SYNC SOURCE)
or a cable connection.
¾ Text in quotation marks indicates a parameter selection value or menu option (i.e. “EXT”).
¾ Phrases, such as: Start > Programs > Lynx Studio Technology use the greater than symbol (“>”)
to indicate multiple menu options or mouse selections within a software control context.
5 Warranty Registration
We are committed to providing you with the best service possible. To help us serve you better,
please be sure to register your LynxTWO/Aurora Interface Kit using one of the following methods:
• Fill out and mail the Warranty Registration Card included with your kit
• Register on the web at:
http://www.lynxstudio.com/support.html
Once you are registered you will automatically receive notifications of new products and upgrades.
Page 2

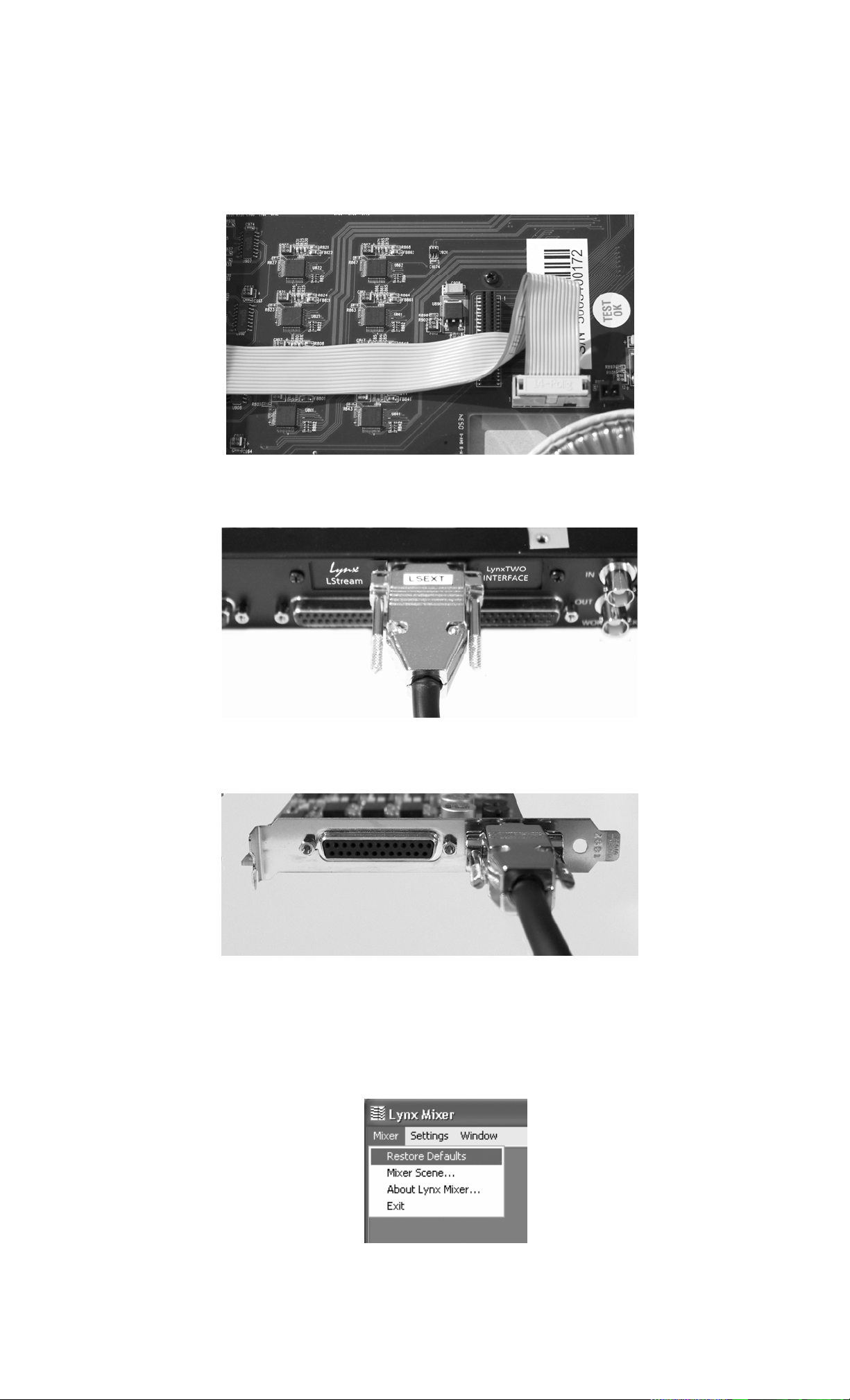

6 Installation Procedure
1. Remove the AC power cord. Take the top off of the Aurora 16 or Aurora 8. There are seven
large screws plus one small screw near the center of the front faceplate.
2. Remove the LSlot Interface Port cover above the AES I/O Ports by removing the two
mounting screws. Set these two screws aside, as they will be used to install the LSLOT
Interface Bracket.
3. Mount the LStream LynxTWO Interface Bracket in the LSLOT Interface port. Secure with
the two mounting screws which were removed in step 2.
4. Identify the 14-pin header labeled JP3 on the Aurora mainboard.
Page 3
