MAKE THE MOST OF YOUR
™
SEDONA SIDE BURNER ACCESSORY
CARE & USE/INSTALLATION
WARNINGS
WarnIng
READ THIS MANUAL CAREFULLY and completely before using your grill to reduce the risk of:
1. Fire
2. Burn hazard, personal injury or property damage
3. Ruined steaks or other unpleasant cooking experiences
4. Unapproved installation or servicing.
THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or death.
Read this manual thoroughly before installation, use, or servicing of this product.
danger
If you smell gas:
1. Shut off all gas supply lines to the grill.
2. Extinguish any open flames.
3. Carefully open the lid. Remember, it may be
extremely hot!
If odor continues, keep everyone away from the
grill and immediately call your gas supplier or your
fire department.
WarnIng
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
danger
s’Il y a une odeur de gaz:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute flamme nue.
3. Ouvrir le couvercle.
Si l’odeur persiste, éloignez-vous de l’appareil et
appelez immédiatement le fournisseur de gaz ou
le service d’incendie.
avertIssment
•Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides inflammables dans le
voisinage de l’appareil, ni de tout autre appareil.
•Une bouteille de propane qui n’est pas raccordée
en vue de son utilisation, ne doit pas être entreposée dans le voisinage de cet appareil ou de
tout autre appareil.
warning! calIfornIa proposItIon 65
1. The burning of gas cooking fuel generates some by-products which are on the list of substances which are
known by the State of California to cause cancer or reproductive harm.
2. California law requires businesses to warn customers of potential exposure to such substances. To minimize
exposure to the substances, always operate this unit according to the use and care instructions found in this
manual. Be certain to provide adequate ventilation when cooking.
3. California Proposition 65 lists “Silica, crystalline” which is used in one of the components of the IR burner, as
an agent known to the state of California to cause cancer.
2
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
Part # 34172
Rev. A 2/13
HOW TO LIGHT YOUR GRILL ACCESSORY
1. Before each use, complete the checklist below.
2. Make sure all burner control knobs are in the “OFF” position.
3. Push and hold the control knob for 2 - 5 seconds while listening for and visually
verifying the ignition spark is present.
4. Turn the knob to the “LITE” position.
5. After ignition set the knob to the desired setting.
CHECKLIST BEFORE EACH USE (FOR YOUR SAFETY)
•Do you smell gas? If yes, shut off everything and call the
gas company or a qualified plumber to check for leaks, if
not please continue
•Are you prepared to stay with the side burner during the
entire cooking process? If not, gather what you need before starting the lighting process. If yes, please continue.
•Is your cooking area free and clear of any combustibles,
besides your food, that might ignite? If no, clear the area
before starting the lighting process, If yes, please continue
•Do all control knobs turn freely? If not, call for service; if
yes, please continue.
•If you are using a portable propane cylinder, is it connected and leak tested? If not, check the connection before
continuing. If yes please continue.
•Do you know where your side burner’s main gas supply
shut-off valve is located? If not, locate it before continuing. If yes, please continue.
•Are all burners properly seated in the side burner? If not,
seat the burners properly before continuing. If yes please
continue.
•Is the wind blowing just lightly and not blowing on the
side burner? If not, wait until the wind subsides or turn
your free-standing grill so the wind goes into the front of
the grill. If yes, please continue with the lighting process.
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
3
|
WARNINGS
WarnIng
•Never use dented, rusty or damaged propane cylinders. Never store additional or empty propane cylinders
in the cabinet or in the vicinity of this or any other appliance. Do not store propane cylinders indoors or on
their sides.
•Children should never be left alone or unattended in an area where an accessory is located. Place your
accessory well away from areas where children play. Do not store items that may interest children in or
around the area of your accessory, in your accessory cart, or in the masonry enclosure.
•Never move the accessory when hot. When in use, portions of the accessory are hot enough to cause
severe burns.
•Always maintain the required clearances from combustibles as detailed. Accessories are designed for outdoor use only. Never use in a garage, building, shed, breezeway, or other enclosed area. Do not use this
equipment under any overhead combustible construction.
•Grill accessories are not designed or certified for and are not to be installed in or on recreational vehicles,
portable trailers, boats or any other moving installation.
•Always have an ABC Fire Extinguisher accessible — never attempt to extinguish a grease fire with water or
other liquids.
•storing your accessory: Store your accessory in a well-ventilated area. If stored indoors, detach and leave
LP cylinder outdoors in a well-ventilated area away from heat and away from where children may tamper
with it.
•Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Electrical cords
should be placed away from walkways to avoid tripping hazard.
•Gardez tout cordon d’alimentation électrique et tuyau d’alimentation en combustible à
•l’écart des surfaces chauffées.
•Do not repair or replace any part of the accessory unless specifically recommended in this manual. Other
service should be performed by a qualified technician.
•If the accessory is installed by a professional installer or technician, be sure that he/she shows you where
your gas supply shut-off is located. All gas lines must have a shut-off that is readily and easily accessible.
If you smell gas, check for gas leaks immediately. Check only with a soap and water solution. (See INDEX:
“Leak Testing” for further details.) Never check for gas leaks with an open flame.
•Inspect the LP gas supply hose prior to each use of the accessory. If there is evidence of excessive abrasion
or wear, or the hose is cut, it must be replaced before using the accessory.
•Never remove the grounding prong from the plug or use this product with an ungrounded, 2-prong
adapter.
THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE.
This product complies with ANSI standard Z21.58/CSA
1.6 latest edition and has been tested and approved by
Intertek.
4
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
To obtain replacement parts or service contact:
Lynx Professional Grills
5895 Rickenbacker
Commerce, CA 90040
888-289-5969
A MESSAGE TO OUR CUSTOMERS
You’ve just joined the world of Lynx cooks … a discriminating collection of
amateur and professional chefs that take outdoor cooking to a new level.
Lynx manufactures many accessory cooking appliances to compliment your
Lynx grill and your desire for truly superior cooking results.
Your appliance has been designed and built with meticulous attention to
detail and it offers some unique and powerful features. You can achieve
maximum performance and enjoyment of these features only by carefully
reading this manual ... before your first cook-out.
This manual includes important safety tips and great hints for better grilling. You should keep it handy for easy reference.
Also, at Lynx, we enjoy hearing from our customers. We like to hear about
your successes but also about any difficulties you are having. Please feel
free to contact us with any questions or problems, or just to share a new
recipe. Please include the model number of your appliance in your correspondence.
With the proper use and care this product will provide years of trouble-free
service.
Should your Lynx appliance change ownership, please make sure that the
new owner receives this manual.
Thanks again for your purchase. Enjoy!
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
5
|
WARNINGS
WarnIng
1. The outdoor cooking gas appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of 0.5 psi (3.5 kPa).
2. The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal
to or less than 1/2 psi (3.5 kPa).
state of massacHusetts
1. Massachusetts requires all gas be installed using a plumber or gas fitter carrying the appropriate Massachusetts license.
2. All permanently-installed natural gas or propane installations require a “T” handle type manual gas valve be
installed in the gas supply line to this appliance.
3. This does not apply to portable propane installations using a 20 pound cylinder.
WarnIng - electrIcal groundIng
•Product installation must meet local electric codes or, in the absence of local codes, the latest edition of the
National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CGA 1.6b2005.
•Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance.
•This accessory is equipped with a three prong (grounding) electric plug for your protection against shock hazard
and must be plugged directly into a properly grounded three prong outlet. Never cut or remove the grounding
prong from this plug.
•Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved
for outdoor use with a “W-A” marking.
•To protect against electric shock, do not immerse any part of the power cord, an extension cord or any plugs in
water or other liquid.
•Unplug the product from the outlet when not in use and before cleaning. Allow it to cool before putting on or
taking off parts.
•Do not let the cord hang over the edge of a table or touch hot surfaces.
•Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance malfunc-
tions or has been damaged in any manner. Contact the manufacturer for repair.
6
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
IMpORTANT SAFETY pRECAUTIONS
Please review these imPortant safety Precautions before you use your
grill accessory.
1. NEVER LEAVE THE GRILL ACCESSORY UNATTENDED
WHILE COOKING.
2. Ensure all tie-down wires have been removed from the
burners.
3. Always use caution when operating the grill accessory
in a windy area. (See INDEX: “Grilling in Windy Conditions” for further details.)
4. Avoid wearing loose-fitting garments or long sleeves
while grilling. They could ignite.
5. Never touch the grill accessory racks or immediate
surrounding metal surfaces with your bare hands while
grilling.
6. Use an insulated glove or mitt when opening and operating the grill accessory.
7. The grill accessory covers must be fully removed or
opened while lighting the grill accessory. Releasing
fuel into a closed grill accessory before lighting will not
make it light sooner or more efficiently. It will only risk
explosion and personal injury or death. Never lean over
hot grill accessory surface or look directly into the grill
accessory when attempting to light.
8. Do not heat unopened food containers as pressure
build-up will cause the container to explode.
9. Do not use aluminum foil to line grill accessory racks
or drip pans. This will alter the airflow or trap excessive heat in the control area and can melt knobs and
ignition modules. Such damage is specifically excluded
from your warranty.
10. Never use charcoal or any other solid fuel in the grill
accessory.
11. Cooking excessively fatty meats and oils will cause flare
ups. Internal fires or damage caused by them or by
the grill accessory being left unattended while cooking
are not covered under the terms and conditions of our
warranty.
12. Never grill without a drip pan in place if your accessory
utilizes a built-in drip pan. Always ensure the drip pan
is pushed all the way to the back of the grill accessory.
When not correctly in place, hot grease can leak downward and produce a fire or explosion.
13. Grease is extremely flammable. Let hot grease cool
down before attempting to handle or dispose of it.
The drip tray should be cleaned of grease on a regular
basis.
14. Do not use the grill accessory unless a leak check has
been performed on all gas connections. (See INDEX:
“Leak Testing” for further details.)
15. Never operate the grill accessory while under the influence of alcohol or drugs.
16. Do not lean on side shelves and never place a load
weighing more than 25 pounds on a side shelf.
17. If any burner does not light or goes out during operation, turn off all gas control knobs and wait five (5)
minutes before attempting to re-light.
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
7
|
TABLE OF CONTENTS
A MESSAGE TO OUR CUSTOMERS 5
IMPORTANT SAFETY PRECAUTIONS 7
USING YOUR ACCESSORY 9
Accessories Covered in this Manual 9
LIGHTING INSTRUCTIONS FOR ALL ACCESSORIES 10
Safety Practices and Precautions 10
At Each New Season 10
Purging the Gas Lines 10
Match Lighting 11
Low Heat Flame Adjustment 11
CONTACTING LYNX CUSTOMER CARE 12
BEFORE YOU START 13
If Shipment Arrives Damaged 13
Important Notes 13
Where’s the Wind? 13
How Long is Your Run? 13
Are You “On-the-Level”? 13
Built-in Installations 14
Clearance to Combustible Materials 14
GAS & ELECTRIC CONNECTIONS 15
Gas Plumbing 15
Natural Gas 15
LP Gas 16
Converting for Fuel Type 16
LP Connections 16
Propane Hook Up 17
Natural Gas Hook Up 17
Maximum Runs for all appliances on supply line 17
Electrical Connections 18
Optional Electrical Kits 18
Connecting the Wiring 18
TESTING THE INSTALLATION 19
Leak Testing 19
Fixing a Gas Leak 19
SIDE BURNER SCHEMATICS 20
CUT-OUT DIMENSIONS FOR BUILT-IN GRILLS & ACCESSORIES 22
LYNX LIMITED WARRANTY 23
SIDE BURNER EXPLODED PARTS VIEW 24
LSB501 24
LSB502 25

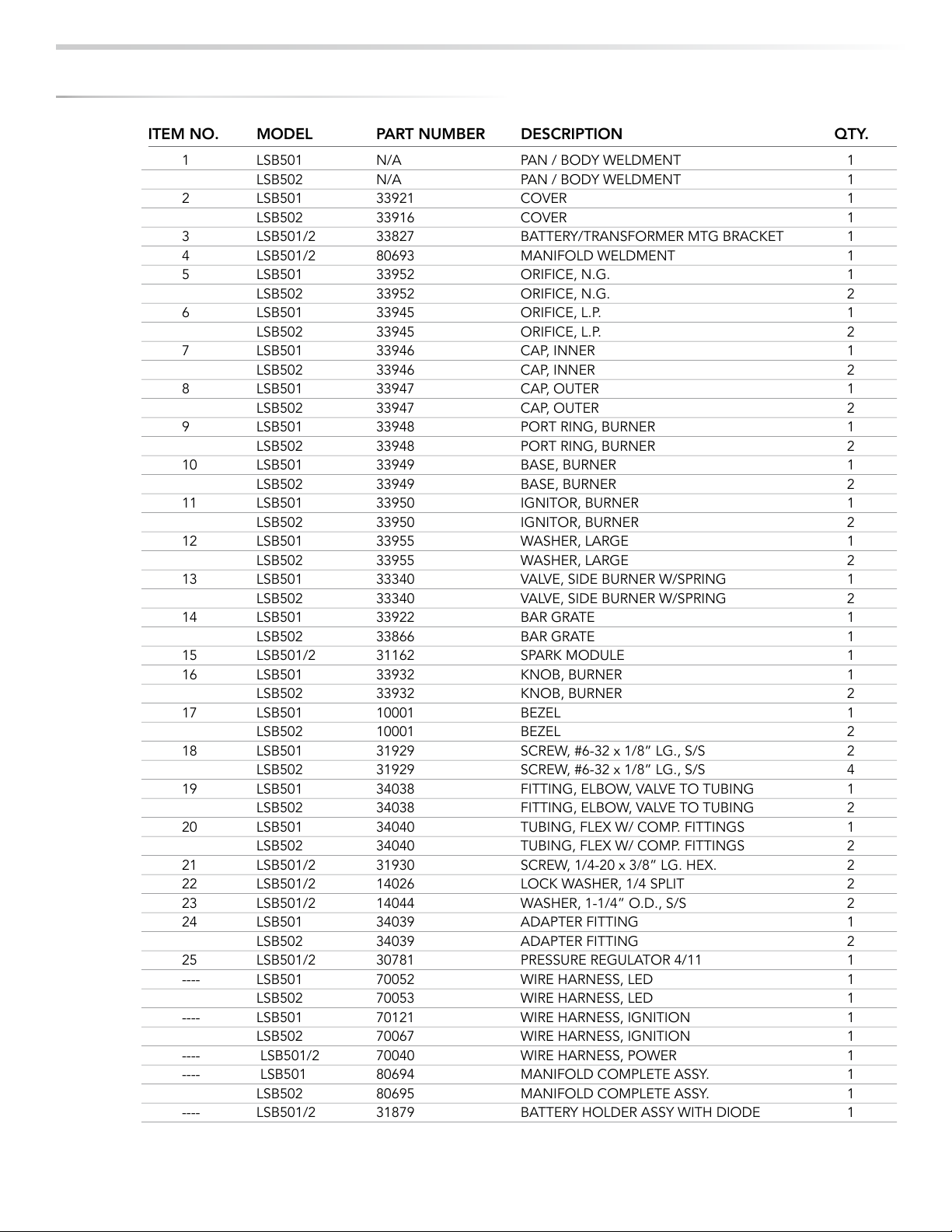

SIDE BURNER EXPLODED PARTS VIEW PARTS LIST 26
INDEX 27
8
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
Accessories covered in this MAnuAl
USING YOUR ACCESSORY
This manual covers several accessory appliances and optional accessories for those appliances.
The LSB501 and LSB502 (Side Burner 1 & 2) feature either one or two 12,500 BTU/Hr burners for cooking smaller
food items. The LSB501 and LSB502 are designed for installation in a non-combustible, built-in enclosure.
SINGLE SIDE BURNER
LSB501
DOUBLE SIDE BURNER
LSB502
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
9
|
SAFETY PRACTICES AND PRECAUTIONS
Lighting instructions for ALL Accessories
WarnIng
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
Ensure that burner ties and all packing materials are removed before lighting any new accessory.
AT EACH NEW SEASON
At the start of each new grilling season you should remove
the cooking grates and check the burners, venturis, orifices
and valves for obstructions.
LIGHTING INSTRUCTIONS
1. Remove burner cover completely. Do not attempt to
light any burner with the cover in place
2. Ensure all knobs are in the OFF position. Test the ignition system by pressing in the burner control knob
and looking and listening for the clicking sound of
the igniter. If no spark is visible and no clicking sound
is heard, proceed with match-lighting or refer to the
trouble shooting section.
3. Turn on the main gas supply and purge if needed.
4. Push in and turn the burner control knob to the LITE
position and hold for 5 seconds.
5. If burner does not light, turn knob to OFF, wait 5 minutes to allow gas to dissipate and repeat step 4 above
PURGING THE GAS LINES
You should purge the gas line of air before attempting to
light the grill accessory.
Spiders and insects often nest in these areas of the accessory and can disrupt air flow, causing damage to the accessory and personal injury.
Also, check all hoses and fittings for damage, abrasion,
wear and tear and repair, if necessary, before turning the
gas on.
The 4/11 gas pressure regulator, Lynx part number 30781
supplied with the unit must be used for natural gas, or
LP supplied from a bulk storage system. The regulator is
factory preset, and convertible for either natural or LP gas.
(See INDEX: “Converting for Fuel Type” for further details.)
If connection to a Type 1, 20 lb LP cylinder is required, a LP
gas pressure regulator and hose assembly is required and
it must be the type specified by Lynx. (See INDEX: “Contacting Lynx”.) When a LP gas pressure regulator and hose
assembly is used, the 4/11 regulator must be removed to
prevent over-regulation.
Leak check all connections with a soap and water solution
before operating the burners. Turn all knobs to OFF and
SLOWLY turn on the gas supply valve. (See INDEX: “Leak
Testing” for further details.)
1. Make sure all grill controls are in the “OFF” position.
2. Slowly turn on the main gas supply.
3. Push in the control knob for the burner furthest from
the fuel source. Using the burner furthest from the fuel
source will completely purge the lines. It will take several seconds for the burner to light.
4. Hold the knob ON for about 20 seconds to allow the
air in the system to purge and the burner to light
5. Wait at least 5 minutes after shutting off the control
before attempting to light the burners.
Do not use any grill or side burner if you smell gas.
10
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
MATCH LIGHTING
Lighting instructions for ALL Accessories ...continued
LOW HEAT FLAME ADJUSTMENT
Using a paper match or a utility lighter, hold a flame over
the burner ports while you push and turn the control knob
of the corresponding burner to the “lite” position. Keep
your face as far away from the burner as possible.
If the burner does not light in 5 seconds, turn the knob off
and wait 5 minutes before attempting again.
Read the ‘User Manual/Installation Instructions’ carefully
and completely before using your accessory to reduce the
risk of fire, burn hazard or other injury.
The burners on your Lynx accessory feature an adjustable
low setting.
Fluctuations in gas pressure, gas conversion and even in the
quality of the gas itself may affect burner performance at
the “LOW” setting. It could be either too high or too low.
To adjust the burner for low setting:
1. Make sure the grill accessory is cool.
2. Remove the grates so that you can see the flame while
adjusting the burner.
3. Light the burner and set it to “LOW”. (all the way counter- clockwise).
4. Pull off the control knob.
5. While holding the valve shaft with pliers, insert a thin
flat-blade screwdriver into the shaft and, while watching
the flame, adjust it to a minimum stable setting.
Use a small screwdriver for low
setting burner adjustment.
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
11
|
CONTACTING LYNX CUTOMER CARE
Before calling Lynx Customer Care, please make sure you
have the following information:
•Model number
•Date of purchase
•Proof of purchase by the original owner
•Serial number
The serial number can be located on the rating plate which
is located either on the underside of the drip tray, on the
heat shield behind the front panel).
For warranty service, contact the Lynx Customer Care
Department for an authorized service agent near you at:
(888) 289-5969
Your satisfaction is of the utmost importance to us. If a
problem cannot be resolved to your satisfaction, please
write, fax or email us:
Lynx Professional Grills
5895 Rickenbacker
Commerce, CA 90040
Lynx Customer Care: (888) 289-5969
Tel: (323) 838-1770
Fax: (323) 838-1778
www.lynxgrills.com
Contact Lynx for replacement parts. Parts are shipped
F.O.B. Commerce, CA.
www.lynxgrills.com
12
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
BEFORE YOU START
important notes
Where’s the Wind?
When selecting a suitable location, consider important fac-
tors such as exposure to the wind and foot-traffic patterns.
Built-in accessories located in areas with prevailing winds
should be protected by a wind barrier.
hoW Long is Your run?
Keep all gas supply lines as short as possible because gas
lines lose pressure over distance and with each elbow and
tee that is added. This drop in pressure affects accessory
performance. (See INDEX: “Gas Supply Line Runs” for
further details.)
Are You “on-the-LeveL”?
Proper leveling during installation is critical. An accessory
that is out of level will cause erratic burner combustion and
inefficient, uneven heating. A carpenter’s spirit level should
be used to level the accessory both front-to-back and side-
to-side.
WARNING
•Never install this product into a combustible enclosure. Doing so could result in fire, property damage and personal injury.
•Never locate the accessory under a roof or overhang, in a building, garage, shed or other such enclosed area.
•Always maintain the required clearances from combustibles as detailed. Accessories are designed for outdoor
use only. Never use in a garage, building, shed, breezeway, or other enclosed area. Do not use this equipment
under any overhead combustible construction.
•Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, or Natural Gas and propane Installation Code, CSA B149.1, or Propane Storage
and Handling Code, B149.2, in Canada.
IF SHIpMENT ARRIVES DAMAGED
VISIBLE LOSS OR DAMAGE
Be certain any visible damage to the carton is noted on
freight bill or express receipt and signed by the person
making delivery.
FILE CLAIM FOR DAMAGES IMMEDIATELY, regardless of
extent of damage.
CONCEALED LOSS OR DAMAGE
If damage is unnoticed until the accessory is unpacked, notify the transportation company or carrier immediately and
file a “concealed damage” claim with them. This should
be done within (15) days of the date delivery is made to
you. Be sure to hold on to the container for inspection. We
cannot assume responsibility for damage or loss incurred in
transit. (See INDEX: “Contacting Lynx Customer Care” for
further details.)
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
13
|
BUILT-IN INSTALLATIONS
before you start...continued
CLEARANCE TO COMBUSTIBLE MATERIALS
Lynx built-in accessories are intended for installation in a
built-in enclosure constructed of non-combustible materials.
The accessory drops into the opening shown in the cutout
detail drawing and hangs from its counter-top trim. A deck
is not required to support it from the bottom.
Pay special attention to the provisions shown for gas line
hook-up. (See INDEX: “Cut-out Dimensions for Built-in
Grills & Accessories”.)
The enclosure should have ventilation holes to prevent gas
build-up in the event of a leak. The deck ledges and counter should be flat and level. (Refer to ANSI Z21.58 Standard
for Outdoor Cooking Gas Appliances, Section 1.7 Enclosures For Self Contained LP-Gas Supply Systems or local
codes for additional information.)
The accessory may be powered directly from your Sedona
grill’s transformer’s power supply. (See INDEX: “Electrical
Connections”).
When a grill is not available or if the grill is not located
close enough to the accessory a LASK Switch Kit is available from the manufacturer as an optional purchase.
Minimum clearance from the sides and back of the accessory to adjacent combustible construction below the top of
unit are 12” from the sides and back.
Dégagement minimal entre les parois latérales et l’arrière
de l’appariel et la construction combustible au-dessous du
panneau supérieur de l’appareil (30 cm à partir des parois
latérales et 30 cm à partir de l’arrière).
Minimum clearance from sides and back of unit to adjacent
combustible construction extending above the unit is 18”
from the sides and back.
Dégagement horizontal minimal entre les parois latérales et
l’arrière de l’appariel et la construction verticale combustible
au-dessus de l’appareil (45.7 cm à partir des parois latérales
et 45.7 cm à partir de l’arrière).
Do not use this appliance under overhead combustible
surfaces.
Ne pas utiliser cet appareil sous une surface combustible.
14
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|

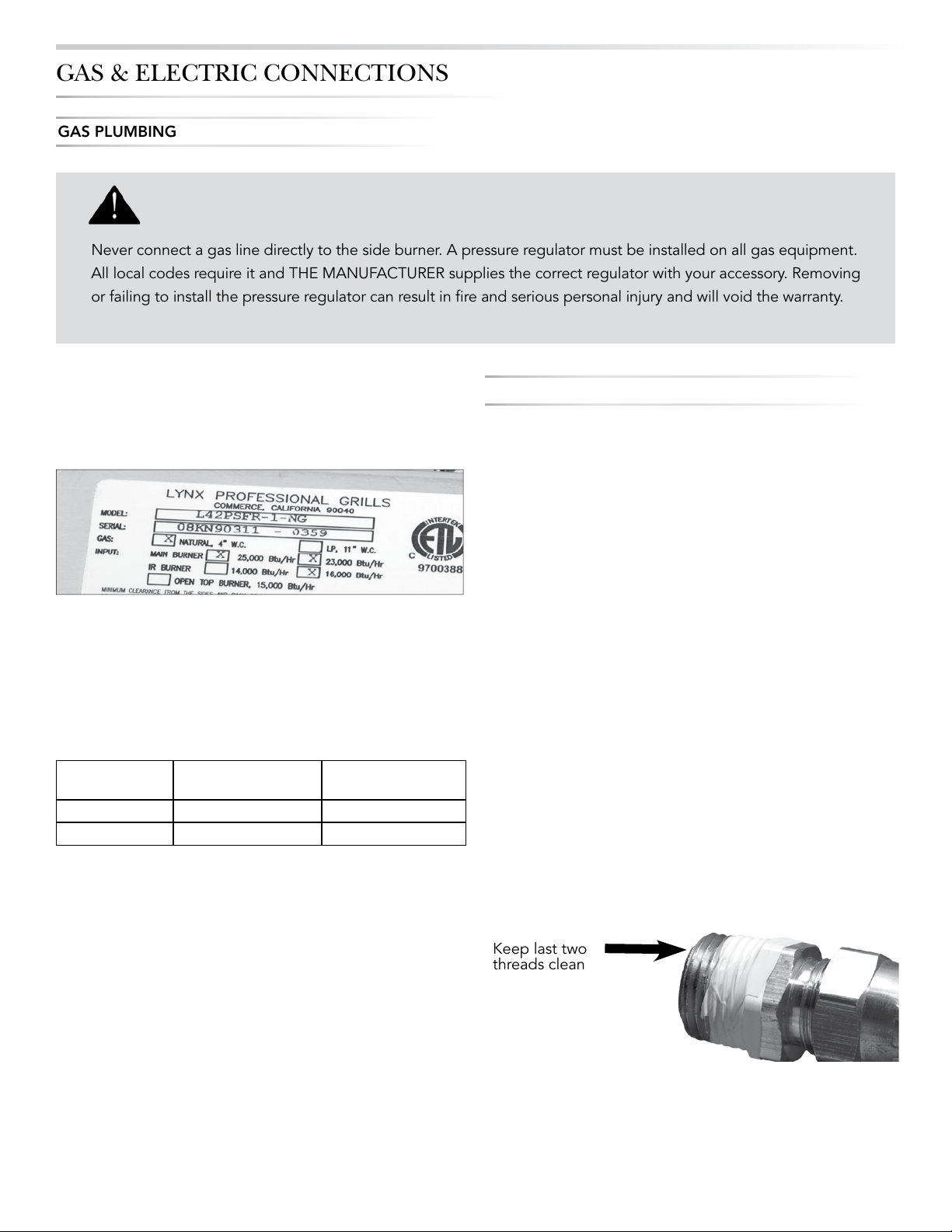

WARNING
Never connect a gas line directly to the side burner. A pressure regulator must be installed on all gas equipment.
All local codes require it and THE MANUFACTURER supplies the correct regulator with your accessory. Removing
or failing to install the pressure regulator can result in fire and serious personal injury and will void the warranty.
Gas PlumbinG
Gas & electric connections
Keep last two
threads clean
The accessory is factory set to use either propane (LP) or
natural gas (NAT). It is critical that the gas you use matches
that which the accessory was set up for. You can verify that
by checking the rating plate.
The rating plate is located on the sheet metal body of the
appliance.
Ensure that the gas supplied meets with the minimum pressure requirements.
Do not operate the accessory on any gas other than that for
which the accessory has been set.
Fuel WC Max Inlet WC Min Under Full
Load
Nat Gas 7 in 4 in
LP 14 in 10 in
Water Column Requirements
Both the regulator and the burner orifices have been factory preset for the type of gas specified on the rating plate.
NATURAL GAS
The manufacturer recommends that only qualified professionals perform the required plumbing on this product.
The gas supply line must be sized to accommodate the
total BTU requirements of all the gas-fired equipment that
will be connected to that line.
In no case should pipe less than 3/4” inside diameter or 1”
outside diameter be used.
•Calculate the total BTU output of all equipment and
refer to “INDEX: Gas Supply Line Runs” for allowable run
distances. Failure to meet these minimum requirements
may reduce performance of the accessory and any other
appliances running on that supply line.
•Always keep supply line runs as short as possible. (See
INDEX: “Gas Supply line runs”.)
•A gas shut-off valve must be installed in an easily accessible location by a qualified plumber.
•Keep any threading compound off of the first two pipe
threads to avoid having any small pieces of compound
break loose and clog a burner valve or orifice. Do not put
sealant on any male end of flare fittings.
Converting to a different type of gas requires a conversion kit which is available from the manufacturer, and
must be installed by a qualified technician. (See INDEX:
“Contacting Lynx”.)
All installation and all installation parts must conform to
local codes with the National Electrical Code, ANSI/NFPA
70-1990 and the National Fuel Gas Code, ANSI Z223.1/
NFPA 54 in the U.S. and CGA-B149.1/.2 in Canada.
Canadian installations must conform to CGA-B149.1/.2
natural gas/propane installation code. (Canada)
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
It is recommended that any flexible pipe used be kept as
short as possible. (See INDEX: “Gas Connections” for typical permanent hook up.)
15
|
LP Gas
The side burners that are factory preset for use with LP gas
come equipped with a 4/11 regulator, Lynx part number
30781. The regulator is used for permanently plumbed,
hard piped LP connections, such as those in line with a
bulk cylinder. If connection to a Type 1, 20 lb LP cylinder
is required a LP gas pressure regulator and hose assembly
is required and must be the type specified by Lynx. (See
INDEX: “Contacting Lynx”.)
When a LP gas pressure regulator and hose is used, the
4/11 regulator must be removed to prevent over-regulation.
ConvertinG for fueL tyPe
After changing the orifices the service technician must make
sure the correct regulator setting is used. If you are using the
4/11 convertible regulator, ensure that it is set for the correct
fuel. The correct fuel type will be abbreviated at the end of
the plunger. The service technician must remove the cap and
check the plunger. If needed, pull the plunger from the cap,
flip it over and re-attach it to the cap. Then re-attach the cap
into the regulator and tighten with a 7/8 inch wrench.
Never connect an unregulated gas line to the grill accessory.
When exchanging your cylinder for a refill, exchange only
for a Type 1 20 lb. cylinder with an over-fill protection de-
vice.
Never use a cylinder with a damaged valve.
A dented or rusty LP cylinder may be hazardous and should
be avoided. If in doubt, have it checked by your LP supplier.
Always check for leaks after every LP cylinder change. (See
INDEX: “Leak Testing” for further details.)
Always shut off the LP-gas supply at the cylinder when the
accessory is not in use.
Cylinders must be stored outdoors in a well-ventilated area
out of the reach of children. If your accessory is stored in-
doors, the LP cylinder must be stored outside.
Place a dust cap on the cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on
the cylinder valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result in leakage of
propane.
Mettre un bouchon antipoussière sur la sortie du robinet
d’une bouteille qui n’est pas utilisée. Utiliser uniquement
le type de bouchon antipoussière fourni avec le robinet de
la bouteille. D’autres types de bouchons pourraient ne pas
être étanches et permettre des fuites de propane.
LP ConneCtions
Make sure the LP cylinder valve is fully closed. It is possible for
the valve to be open without releasing gas but, as soon as you
start connecting the regulator, gas will leak from the connec-
tion.
Insert the regulator inlet into the cylinder valve and turn the
black coupler clockwise until the coupler is hand tight. Do
not over-tighten this connection.
To disconnect the coupler, first make sure the main cylinder
valve is turned off. Grasp the coupler and turn counter clock-
wise. Always leak-test the connection after refilling or ex-
changing LP cylinders. (See INDEX: “Leak Testing” for further
details.)
Gas & electric connections ...continued
LP cylinder with type 1 valve connection
16
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
LP GAS HOOK UP NATURAL GAS/LP BULK-TANK HOOK UP
L.P. GAS HOOK-UP
NATURAL GAS HOOK-UP
LP BULK-TANK HOOK-UP
Gas & electric connections ...continued
COLD WEATHER WARNING: PROPANE
Extremely cold temperatures may cause your burner
to light inside the burner instead of outside. Once
lit, if you hear a ‘whooshing’ sound, immediately
turn the burner knob off to extinguish the flame and
then immediately re-light the burner.
WarnIng
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
maxImum runs for all
applIances on supply lIne
Run Length
3/4” Pipe (in feet)
10 360,000
20 245,000
30 198,000
40 169,000
50 150,000
60 135.000
70 123,000
80 115,000
Max BTU for all
Appliances on line
17
|
OPTIONAL ELECTRICAL KITS
electric connections
In addition to the accessory burner kits, Lynx also manufactures 3 specialized electrical kits that you may purchase for your
accessory, depending upon how it will be installed. Each electrical kit ships with an instructional sheet for assembly. Assembly instructions and schematics/drawings can also be found on our website at www.lynxgrills.com
.
•LASK Lynx Accessory Switch Kit
•LPEK Lynx Power Extension Kit
Installation requires an outdoor 120VAC 15A GFI (Ground
Fault Interrupter) electrical outlet adjacent to the accessory.
The GFI outlet features an internal breaker that reduces
shock hazard. This type of outlet should be installed inside
the enclosure by a qualified electrician.
The built in side burners are designed for connection to an
adjacent Lynx grill, 12-volt transformer during installation to
provide power for lighting and ignition (See INDEX: “Side
Burner Schematics”.) A Lynx LASK switch kit may be used
if no grill is available for connection. The side burners use
a standard 9-Volt battery as a back- up for the electronic
ignition system only. To install or replace the battery, follow
this procedure:
1. Locate the battery compartment
2. Using a small screwdriver, or a coin or similar object,
pry open the battery compartment and pull out the
holder
This switch and transformer kit allows independent control of a Lynx accessory
burner without connection to a grill. The kit contains a transformer and mounting
bracket as well as a switch assembly with a mounting plate
The Lynx Power Extension Kit provides 12 feet of additional wire between your
Lynx Grill and accessory burner.
CONNECTING THE WIRING
The accessory electrical harnesses are designed to provide
power for both ignition and lighting. While ignition is controlled at the accessory, lighting is controlled at the grill.
You can control lighting at the accessory by installing the
Lynx Accessory Light Switch (LASK).
Disconnect the 4-pin connector on the grill and connect
those plugs to the mating plugs on your accessory. (See
INDEX: “Electrical Connections”.)
Important note: If using multiple Lynx accessories with the
Control Illumination/Blue LED’S, a connector for this purpose is built into the accessory wiring. This will allow you to
use the light switch on your Lynx grill to actuate the power
on more than one accessory.
3. Remove the battery, and replace it with a fresh 9-volt
battery being careful to install the battery with the terminals facing inward.
4. Insert the battery holder back into the battery compartment and snap it into place
If the electrical system fails to operate, a connection may
have come loose in shipping or the GFI may have tripped,
requiring a reset. See the Troubleshooting section for
more details.
18
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
testing the installation
Before turning the gas supply on, check for proper installa-
tion using the following test:
1. Plug the transformer back into the receptacle.
2. Push in the gas control knob on your accessory and
watch the igniter spark.
3. Turn on the light switch on the grill. Both the grill and
the grill accessory lights should operate together. This
indicates a proper assembly.
4. Turn the gas on to all appliances.
5. Perform a leak test if you have not done so since
plumbing the unit.
6. Check all burners for proper ignition. Refer to the Light-
ing Instructions for Side Burners.
Leak TesTing
Leak Test Procedure:
1. Create a soapy solution of 1 part soap and 3 parts
water.
2. Confirm that all control knobs are in the off position.
3. Turn on the fuel supply. For natural gas, turn the valve
handle 1/4 turn to align with the gas flow.
4. For LP, turn the cylinder valve knob counter clockwise
one full rotation.
5. Apply the soap solution generously by paint brush or
squirt bottle on all connections and fittings.
6. If bubbles appear to “grow” on any of the connections,
you have a gas leak. IMMEDIATELY turn off the gas
supply.
Fixing a gas Leak
To prevent fire or explosion hazard, DO NOT smoke
or allow any potential source of ignition (sparks,
electrical arcing, etc) in the area while performing a
leak test. Leak tests should be conducted outdoors
only. Never conduct a leak test using fire or flame.
1. Shut off the gas supply
2. Turn all grill controls to the “ON” position to purge the
grill of any gas build-up, then turn the controls back
“OFF”.
3. Wash off the soapy solution with cold water and dry.
4. Tighten the loose joint, or replace the faulty part with
manufacturer-recommended replacement parts.
5. DO NOT attempt to repair the LP cylinder valve if it is
damaged. The only way to safely resolve a damaged
cylinder is to REPLACE IT.
6. Repeat the leak test to ensure that no leaks are present.
danger!
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
19
|
LEAD WITH PIN
DEAD LE AD (NO PIN)
LED
Light
LED
Light
MF
Mo lex
Female
Male pins
Green
Varistor
MM
Molex Male
Female Pins
MF
Mo lex
Female
Male pins
MM
RIGHT
BURNER
LEFT
BURNER
Molex Male
Female Pins
LSB502 Side Burner
SIDE BURNER SCHEMATICS
LSB501 SIDE BURNER
LSB501 Side Burner
LEAD WITH PIN
DEAD LE AD (NO PIN)
Molex Male
Female Pins
MM
MF
Mo lex
Female
Male pins
Green
Varistor
LED
Light
LSB502 SIDE BURNER
LSB502 Side Burner
LEAD WITH PIN
DEAD LE AD (NO PIN)
MF
Mo lex
Female
Male pins
Molex Male
Female Pins
MM
MM
Molex Male
Female Pins
MF
Mo lex
Female
Male pins
Green
Varistor
LED
Light
LED
Light
BURNER
20
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
MF
Mo lex
Female
Male pins
MM
Molex Male
Female Pins
LEFT
BURNER
RIGHT
BURNER
SIDE BURNER CONNECTOR
SIDE BURNER SCHEMATICS ...continued
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
21
|
CUT-OUT DIMENSIONS FOR SEDONA BUILT-IN GRILLS & ACCESSORIES
Note: Side burners may be rotated 90 degrees.
Note: For Natural Gas grills, the manufacturer
recommends using 3/4” gas supply lines.
Locate a 110 V 15Amp
GFI outlet for rotisserie
models.
Single &
Double Side
Burner (LSB)
12.00”
A
*
A
2.25”
3.50”
B
COUNTERTOP NOTCH DETAIL
Only required if island countertop
overhangs the face of the island
2.00”
CUTOUT NOT
REQUIRED
WITH LIJs
C
0.56”
34.00”
INSULATING JACKET
B
3.50”
Outdoor
Refrigerator
(L500REF)
21.50”
Door & Drawer Options
(LDR, LSA or LTA)
A
NOTE: Insulating jacket required for all grills
installed into a combustible enclosure.
A
C
5”
4.5”
3”
Double
Drawers
(LUD)
BUiLT-in griLL
Model A B C
L400 23.00 10.00 21.25
L500 29.00 10.00 21.25
L600 35.00 10.00 21.25
BUiLT-in griLL w/ inSULaTing JaCKET
Model A B C
LIJ400 30.00 11.62 23.25
LIJ500 36.00 11.62 23.25
LIJ600 42.00 11.62 23.25
COMPLEMEnTarY PrODUCTS
Model A B C
LSB501* 11.00 4.00 16.00
LSB502* 21.00 4.00 16.00
LDR424 22.00 19.00 –
LDR530 28.25 19.00 –
LDR636 33.75 19.00 –
LSA530 28.25 19.00 20.00
LSA636 33.75 19.00 20.00
LUD517 17.25 12.75 20.00
L500REF 21.50 34.00 24.50
Measurements in inches.
A
* When installing the LSB side burners
over the refrigerator, the counter top
must be at least 37-1/2” above the floor.
B
An enclosure for an LP-gas cylinder shall be ventilated by openings at
both the upper and lower levels of the enclosure. The effectiveness of the
opening(s) for purposes of ventilation shall be determined with the LP-gas
supply cylinder in place. This shall be accompanied by one of the follow-
ing:
a) One side of the enclosure shall be completely open; or
b) For an enclosure having four sides, a top and a bottom:
1. At least two ventilation openings shall be provided in the side walls of the
enclosure, located within 5 in (217 mm) of the top of the enclosure, equally
sized, spaced at a minimum of 90 degrees (1.57 rad), and unobstructed. The
opening(s) shall have a total free area of not less than 1 in 2/ lb (14.2 cm2/
kg) of stored fuel capacity.
2. Ventilation opening(s) shall be provided at floor level of the enclosure and
shall have a total free area of not less than 1/2 in2/lb (7.1 cm2/kg) of stored
fuel capacity. If ventilation openings at floor level are in a side wall, there
shall be at least two openings. The bottom of the openings shall be 1 in
(25.4 mm) or less from the floor level and the upper edge no more than 5 in
(127 mm) above the floor level. The openings shall be equally sized, spaced
at a minimum of 90 degrees (1.57 rad) and unobstructed.
3. Every opening shall have minimum dimensions so as to permit the entrance
of a 1/8 in (3.2 mm) diameter rod.
4. Ventilation openings in side walls shall not communicate directly with other
enclosures of the outdoor cooking gas appliance.
Keep the ventilation openings of the cylinder enclosure free and clear from
debris.
22
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
LYNX LIMITED WARRANTY
1. Installation or start-up, damages or problems caused by
improper installation or use;
2. Service by an unauthorized service provider;
3. Damage or repair due to service by an unauthorized
service provider or use of unauthorized parts;
4. Warranty does not apply to products installed in any
commercial or non-residential application. Examples
of excluded applications include, but are not limited to
day care centers, schools, bed and breakfast centers,
churches, private clubs, fire stations, club houses, com-
mon areas in multi-family dwellings, restaurants, hotels,
nursing homes, food service locations and institutional
food service locations.
5. To correct normal adjustments or settings, due to im-
proper installation, commissioning or local gas supply
properties;
6. Shipping and handling costs, export duties, installation,
removal, or re-installation cost.
7. Display models are generally sold “as is.” If you have
purchased a display model, please be advised that
it is sold “as is” and that it is subject to the following
warranty exclusions: any exterior or cosmetic damage
is non warrantable; any missing components will be re-
placed at consumers expense; major handling damage
to manifold, valve and ignition system will be serviced at
consumer’s expense; all other warranty’s (standard war-
ranty) will remain in effect.
8. The cost of a service call to diagnose trouble.
I. Limited Lifetime Warranty.
The stainless steel body housings and the ProSear™ burners* are warranted to be free from defects in material and
workmanship when subjected to normal domestic use and
service for the lifetime of the original purchaser. The tubular
stainless steel main burners carry a limited 7 year warranty.
This warranty excludes surface corrosion, scratches, and
discoloration which may occur during regular use. This warranty is limited to the replacement of the defective parts,
with the owner paying all other cost including labor. *Does
not include the rotisserie infrared burner.
II. Limited Five-Year Warranty.
The structural integrity of the interior grill parts, exterior,
and drip pans are warranted to be free from defects in material and workmanship, when subjected to normal domestic use and service, for a period of five years from the date
of purchase. This warranty is limited to the replacement of
the defective parts, with the owner paying all other cost
including labor.
III. Limited One-Year Warranty.
All other grill components are warranted to be free from
defects in material and workmanship for a period of one
year from the original date of purchase. Lynx will replace or
repair parts found to be defective at no cost to the original
purchaser.
IV. Limitations & Exclusions.
1. This Warranty shall apply to products purchased and located in the United States and Canada. Products must
be purchased in the country where service is requested.
2. Warranty applies only to the original purchaser and may
not be transferred.
3. Warranty is in lieu of all other warranties expressed or
implied and all other obligations or liabilities related to
the sale or use of its grill products.
4. Warranty shall not apply and Lynx is not responsible for
damage resulting from misuse, abuse, alteration of or
tampering with the appliance, accident, hostile environment, flare-up fires, improper installation, or installation
not in accordance with the instructions contained in this
manual, or the local codes.
5. Lynx shall not be liable for incidental, consequential,
special or contingent damages resulting from its breach
of this written warranty or any implied warranty.
6. Some states do not allow limitations on how long an
implied warranty lasts, or the exclusions of or limitations on consequential damages. This warranty gives
you specific legal rights and you may have other rights
which vary from state to state.
7. No one has the authority to add to or vary Lynx’s warranty, or to create for Lynx any other obligation or liability in connection with the sale or use of its products.
8. Limited to the replacement of defective parts with the
owner paying all other costs including labor.
V. What is not covered: Lynx shall not be responsible for
and shall not pay for the following:
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
23
|
SIDE BURNER EXpLODED pARTS VIEW
LSB501 SIDE BURNER
2
14
13
12
16
18
17
4
10
7
8
9
11
24
5 6
23
21 22 19 20
24
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
3
1
25
15
SIDE BURNER EXpLODED pARTS VIEW...continued
LSB502 SIDE BURNER
8
9
16
18
2
14
7
11
19
13
12
17
4
25
21
22
23
20
10
24
5 6
15
1
3
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
25
|
SIDE BURNER EXpLODED pARTS LIST
ITEM NO. MODEL PART NUMBER DESCRIPTION QTY.
1 LSB501 N/A PAN / BODY WELDMENT 1
LSB502 N/A PAN / BODY WELDMENT 1
2 LSB501 33921 COVER 1
LSB502 33916 COVER 1
3 LSB501/2 33827 BATTERY/TRANSFORMER MTG BRACKET 1
4 LSB501/2 80693 MANIFOLD WELDMENT 1
5 LSB501 33952 ORIFICE, N.G. 1
LSB502 33952 ORIFICE, N.G. 2
6 LSB501 33945 ORIFICE, L.P. 1
LSB502 33945 ORIFICE, L.P. 2
7 LSB501 33946 CAP, INNER 1
LSB502 33946 CAP, INNER 2
8 LSB501 33947 CAP, OUTER 1
LSB502 33947 CAP, OUTER 2
9 LSB501 33948 PORT RING, BURNER 1
LSB502 33948 PORT RING, BURNER 2
10 LSB501 33949 BASE, BURNER 1
LSB502 33949 BASE, BURNER 2
11 LSB501 33950 IGNITOR, BURNER 1
LSB502 33950 IGNITOR, BURNER 2
12 LSB501 33955 WASHER, LARGE 1
LSB502 33955 WASHER, LARGE 2
13 LSB501 33340 VALVE, SIDE BURNER W/SPRING 1
LSB502 33340 VALVE, SIDE BURNER W/SPRING 2
14 LSB501 33922 BAR GRATE 1
LSB502 33866 BAR GRATE 1
15 LSB501/2 31162 SPARK MODULE 1
16 LSB501 33932 KNOB, BURNER 1
LSB502 33932 KNOB, BURNER 2
17 LSB501 10001 BEZEL 1
LSB502 10001 BEZEL 2
18 LSB501 31929 SCREW, #6-32 x 1/8” LG., S/S 2
LSB502 31929 SCREW, #6-32 x 1/8” LG., S/S 4
19 LSB501 34038 FITTING, ELBOW, VALVE TO TUBING 1
LSB502 34038 FITTING, ELBOW, VALVE TO TUBING 2
20 LSB501 34040 TUBING, FLEX W/ COMP. FITTINGS 1
LSB502 34040 TUBING, FLEX W/ COMP. FITTINGS 2
21 LSB501/2 31930 SCREW, 1/4-20 x 3/8” LG. HEX. 2
22 LSB501/2 14026 LOCK WASHER, 1/4 SPLIT 2
23 LSB501/2 14044 WASHER, 1-1/4” O.D., S/S 2
24 LSB501 34039 ADAPTER FITTING 1
LSB502 34039 ADAPTER FITTING 2
25 LSB501/2 30781 PRESSURE REGULATOR 4/11 1
---- LSB501 70052 WIRE HARNESS, LED 1
LSB502 70053 WIRE HARNESS, LED 1
---- LSB501 70121 WIRE HARNESS, IGNITION 1
LSB502 70067 WIRE HARNESS, IGNITION 1
---- LSB501/2 70040 WIRE HARNESS, POWER 1
---- LSB501 80694 MANIFOLD COMPLETE ASSY. 1
LSB502 80695 MANIFOLD COMPLETE ASSY. 1
---- LSB501/2 31879 BATTERY HOLDER ASSY WITH DIODE 1
26
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
|
INDEX
A
Adjustment, Low Heat .................................................. 11
B
Built-in Cut-out Dimensions .......................................... 22
C
Code Requirements ....................................................... 13
Cold Weather Use ..........................................................17
Connections:
Electrical ........................................................................ 18
Gas .............................................................................15
Optional Electrical Kits ................................................. 18
Contacting LYNX Customer Care .................................. 12
Converting Fuel Type .................................................... 16
Cut-out Dimensions for Built-in
Grills & Accessories ...................................................... 22
D
Damage, Shipment ....................................................... 13
Dimensions, Cut-out ..................................................... 22
E
Electrical Connections .................................................. 18
Exploded Parts View,
Side Burners ........................................................... 24, 25
M
Manual Lighting ............................................................ 11
Maximum Supply Line Runs .......................................... 17
N
Natural Gas Conversion ................................................ 16
Natural Gas Hookup ..................................................... 17
O
Optional Electrical Kits .................................................. 18
P
Parts List, Exploded View .............................................. 26
Propane Hook up .......................................................... 17
Purging the Gas Lines ................................................... 10
S
Side Burner Schematics .......................................... 20, 21
Serial Number, Location ................................................ 12
Service, Contacting Lynx ............................................... 12
Specications:
Code Requirements ....................................................... 13
Gas Pressure .................................................................. 15
Natural Gas Hook Up .................................................... 17
Propane Hook Up .......................................................... 17
Supply Line Runs ........................................................... 17
G
Gas Connections ........................................................... 15
Gas Leaks, Testing for ................................................... 19
Gas Pressure Specs ....................................................... 15
Gas Requirements ......................................................... 15
Gas Supply Line Runs .................................................... 17
Gas to LP Conversion .................................................... 16
Grilling in Windy Conditions ........................................... 7
L
Leak testing ................................................................... 19
Lighting the Burner ....................................................... 10
Lighting with a Match .................................................... 11
Locating Serial Number ................................................. 12
LP Conversion ............................................................... 16
LP to Gas Conversion .................................................... 16
SEDONA SIDE BURNER ACCESSORY CARE & USE/INSTALLATION
T
Technical Support ......................................................... 12
Testing:
Leak Testing ................................................................... 19
The Installation ............................................................. 19
W
Warranty, Limited .......................................................... 23
27
|
Lynx Professional Grills
5859 Rickenbacker Rd.
Commerce, CA 90040
Lynx Customer Care: 888.289.5969
Fax: 323.838.1778
www.lynxgrills.com
™
Loading...
