Lynx LSB13LP User Manual
MaKe tHe Most oF Your
siDe Burner accessorY
care & use/installation
WarninGs
WARNING
READ THIS MANUAL CAREFULLY and completely before using your grill to reduce the risk of:
1. Fire
2. Burn hazard, personal injury or property damage
3. Ruined steaks or other unpleasant cooking experiences
4. Unapproved installation or servicing.
THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or death.
Read this manual thoroughly before installation, use, or servicing of this product.
DANGER
IF YOU SMELL GAS:
1. Shut off all gas supply lines to the grill accessory.
2. Extinguish any open flames.
3. Carefully open the lid. Remember, it may be
extremely hot!
4. If odor continues, keep everyone away from the
grill accessory and immediately call your gas
supplier or your fire department.
WARNING
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
S’IL Y A UNE ODEUR DE GAZ:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute flamme nue.
3. Ouvrir le couvercle.
4. Si l’odeur persiste, éloignez-vous de
l’appareil et appelez immédiatement le
fournisseur de gaz ou le service d’incendie.
AVERTISSMENT
1. Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides inflammables dans le
voisinage de l’appareil, ni de tout autre appareil.
2. Une bouteille de propane qui n’est pas raccordée
en vue de son utilisation, ne doit pas être entreposée dans le voisinage de cet appareil ou de
tout autre appareil.
WARNING! CALIFORNIA PROPOSITION 65
1. The burning of gas cooking fuel generates some by-products which are on the list of substances which are
known by the State of California to cause cancer or reproductive harm.
2. California law requires businesses to warn customers of potential exposure to such substances. To minimize
exposure to the substances, always operate this unit according to the use and care instructions found in this
manual. Be certain to provide adequate ventilation when cooking.
3. California Proposition 65 lists “Silica, crystalline” which is used in one of the components of the IR burner, as
an agent known to the state of California to cause cancer.
2
Side burner acceSSory care & uSe/inStallation
|

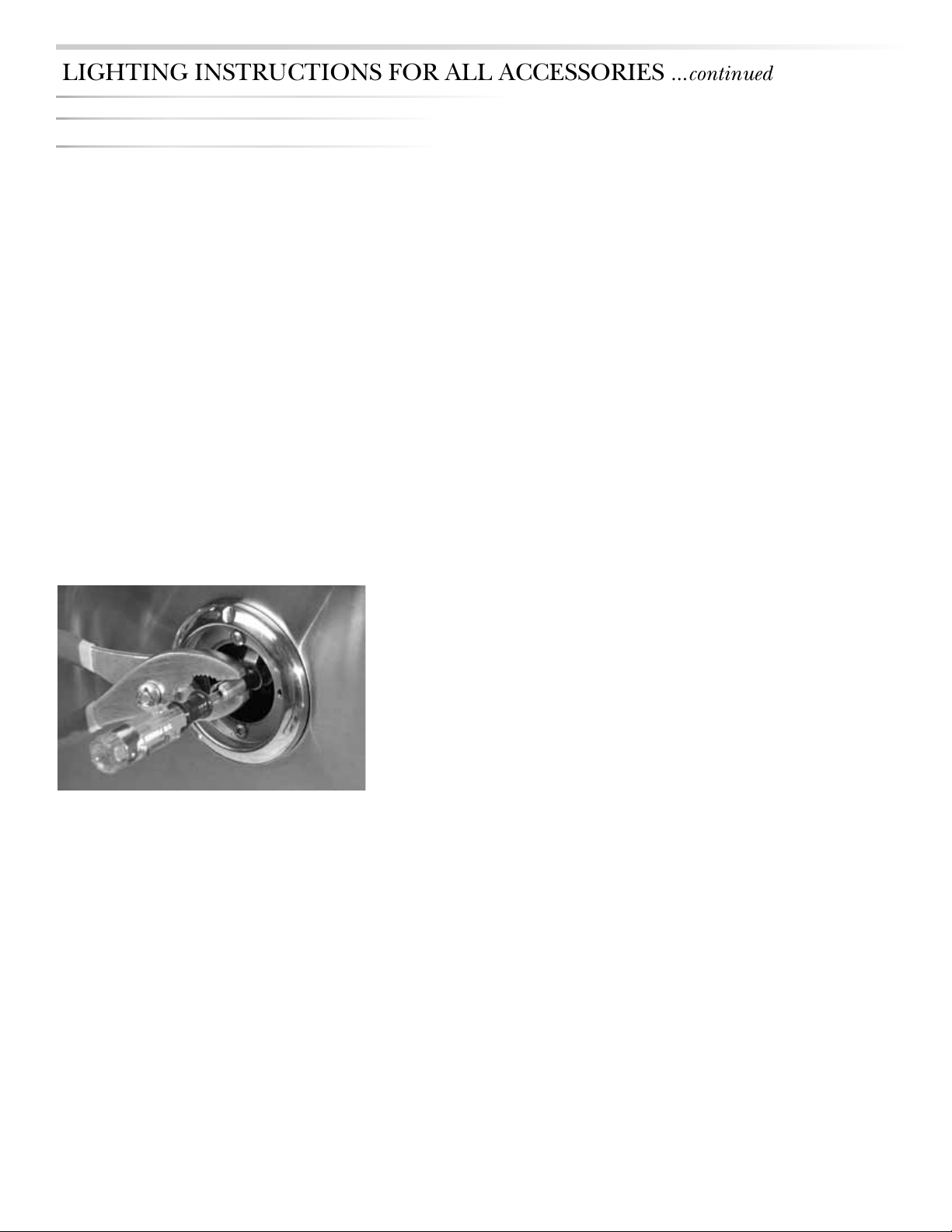

HoW to liGHt Your Grill accessorY
1. Before each use, complete the checklist below.
2. Make sure all burner control knobs are in the “OFF” position.
3. Push and hold the control knob for 2-5 seconds, allowing the igniter to heat up.
4. Turn the knob to the “LITE” position.
5. After ignition set the knob to the desired setting.
cHecKlist BeFore eacH use (For Your saFetY)
•Do you smell gas? If yes, shut off everything and call the
gas company or a qualified plumber to check for leaks, if
not please continue.
•Are you prepared to stay with the side burner during the
entire cooking process? If not, gather what you need before starting the lighting process. If yes, please continue.
•Is your cooking area free and clear of any combustibles,
besides your food, that might ignite? If no, clear the area
before starting the lighting process, If yes, please continue.
•Do all control knobs turn freely? If not, call for service; if
yes, please continue.
•If you are using a portable propane cylinder, is it connected and leak tested? If not, check the connection before
continuing. If yes please continue.
•Do you know where your side burner’s main gas supply
shut-off valve is located? If not, locate it before continuing. If yes, please continue.
•Are all burners properly seated in the side burner? If not,
seat the burners properly before continuing. If yes please
continue.
•Is the wind blowing just lightly and not blowing on the
side burner? If not, wait until the wind subsides or turn
your free-standing grill so the wind goes into the front of
the grill. If yes, please continue with the lighting process.
PART NO. 33487 REV.C 01/14
Side burner acceSSory care & uSe/inStallation |3
WarninGs
WARNING
•Never use dented, rusty or damaged propane cylinders. Never store additional or empty propane cylinders
in the cabinet or in the vicinity of this or any other appliance. Do not store propane cylinders indoors or on
their sides.
•Children should never be left alone or unattended in an area where an accessory is located. Place your
accessory well away from areas where children play. Do not store items that may interest children in or
around the area of your accessory, in your accessory cart, or in the masonry enclosure.
•Never move the accessory when hot. When in use, portions of the accessory are hot enough to cause
severe burns.
•Always maintain the required clearances from combustibles as detailed. Accessories are designed for outdoor use only. Never use in a garage, building, shed, breezeway, or other enclosed area. Do not use this
equipment under any overhead combustible construction.
•Grill accessories are not designed or certified for and are not to be installed in or on recreational vehicles,
portable trailers, boats or any other moving installation.
•Always have an ABC Fire Extinguisher accessible — never attempt to extinguish a grease fire with water or
other liquids.
•Storing your accessory: Store your accessory in a well-ventilated area. If stored indoors, detach and leave
LP cylinder outdoors in a well-ventilated area away from heat and away from where children may tamper
with it.
•Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Electrical cords
should be placed away from walkways to avoid tripping hazard.
•Do not repair or replace any part of the accessory unless specifically recommended in this manual. Other
service should be performed by a qualified technician.
•If the accessory is installed by a professional installer or technician, be sure that he/she shows you where
your gas supply shut-off is located. All gas lines must have a shut-off that is readily and easily accessible.
If you smell gas, check for gas leaks immediately. Check only with a soap and water solution. (See INDEX:
“Leak Testing” for further details.) Never check for gas leaks with an open flame.
•Inspect the LP gas supply hose prior to each use of the accessory. If there is evidence of excessive abrasion
or wear, or the hose is cut, it must be replaced before using the accessory.
•Never remove the grounding prong from the plug or use this product with an ungrounded, 2-prong
adapter.
THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE.
This product complies with ANSI standard Z21.58/CSA
1.6 latest edition and has been tested and approved by
Intertek.
4
Side burner acceSSory care & uSe/inStallation
|
To obtain replacement parts or service contact:
Lynx Professional Grills
7300 Flores Street
Downey, CA 90242
888-289-5969
a MessaGe to our custoMers
You’ve just joined the world of Lynx cooks … a discriminating collection of
amateur and professional chefs that take outdoor cooking to a new level.
Lynx manufactures many accessory cooking appliances to compliment your
Lynx grill and your desire for truly superior cooking results.
Your appliance has been designed and built with meticulous attention to
detail and it offers some unique and powerful features. You can achieve
maximum performance and enjoyment of these features only by carefully
reading this manual ... before your first cook-out.
This manual includes important safety tips and great hints for better grilling. You should keep it handy for easy reference.
Also, at Lynx, we enjoy hearing from our customers. We like to hear about
your successes but also about any difficulties you are having. Please feel
free to contact us with any questions or problems, or just to share a new
recipe. Please include the model number of your appliance in your correspondence.
With the proper use and care this product will provide years of trouble-free
service.
Should your Lynx appliance change ownership, please make sure that the
new owner receives this manual.
Thanks again for your purchase. Enjoy!
Side burner acceSSory care & uSe/inStallation |5
WarninGs
WARNING
1. The outdoor cooking gas appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of 0.5 psi (3.5 kPa).
2. The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal
to or less than 1/2 psi (3.5 kPa).
STATE OF MASSACHUSETTS
1. Massachusetts requires all gas be installed using a plumber or gas fitter carrying the appropriate Massachusetts license.
2. All permanently-installed natural gas or propane installations require a “T” handle type manual gas valve be
installed in the gas supply line to this appliance.
3. This does not apply to portable propane installations using a 20 pound cylinder.
WARNING - ELECTRICAL GROUNDING
•Product installation must meet local electric codes or, in the absence of local codes, the latest edition of the
National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CGA 1.6b2005.
•Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance.
•This accessory is equipped with a three prong (grounding) electric plug for your protection against shock hazard
and must be plugged directly into a properly grounded three prong outlet. Never cut or remove the grounding
prong from this plug.
•Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved
for outdoor use with a “W-A” marking.
•To protect against electric shock, do not immerse any part of the power cord, an extension cord or any plugs in
water or other liquid.
•Unplug the product from the outlet when not in use and before cleaning. Allow it to cool before putting on or
taking off parts.
•Do not let the cord hang over the edge of a table or touch hot surfaces.
•Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance malfunc-
tions or has been damaged in any manner. Contact the manufacturer for repair.
6
Side burner acceSSory care & uSe/inStallation
|
iMportant saFetY precautions
Please review these imPortant safety Precautions before you use your
grill accessory.
1. NEVER LEAVE THE GRILL ACCESSORY UNATTENDED
WHILE COOKING.
2. Ensure all tie-down wires have been removed from the
burners.
3. Always use caution when operating the grill accessory
in a windy area. (See INDEX: “Grilling in Windy Conditions” for further details.)
4. Avoid wearing loose-fitting garments or long sleeves
while grilling. They could ignite.
5. Never touch the grill accessory racks or immediate
surrounding metal surfaces with your bare hands while
grilling.
6. Use an insulated glove or mitt when opening and operating the grill accessory.
7. The grill accessory covers must be fully removed or
opened while lighting the grill accessory. Releasing
fuel into a closed grill accessory before lighting will not
make it light sooner or more efficiently. It will only risk
explosion and personal injury or death. Never lean over
hot grill accessory surface or look directly into the grill
accessory when attempting to light.
8. Do not heat unopened food containers as pressure
build-up will cause the container to explode.
9. Do not use aluminum foil to line grill accessory racks
or drip pans. This will alter the airflow or trap excessive heat in the control area and can melt knobs and
ignition modules. Such damage is specifically excluded
from your warranty.
10. Never use charcoal or any other solid fuel in the grill
accessory.
11. Cooking excessively fatty meats and oils will cause flare
ups. Internal fires or damage caused by them or by
the grill accessory being left unattended while cooking
are not covered under the terms and conditions of our
warranty.
12. Never grill without a drip pan in place if your accessory
utilizes a built-in drip pan. Always ensure the drip pan
is pushed all the way to the back of the grill accessory.
When not correctly in place, hot grease can leak downward and produce a fire or explosion.
13. Grease is extremely flammable. Let hot grease cool
down before attempting to handle or dispose of it.
The drip tray should be cleaned of grease on a regular
basis.
14. Do not use the grill accessory unless a leak check has
been performed on all gas connections. (See INDEX:
“Leak Testing” for further details.)
15. Never operate the grill accessory while under the influence of alcohol or drugs.
16. Do not lean on side shelves and never place a load
weighing more than 25 pounds on a side shelf.
17. If any burner does not light or goes out during operation, turn off all gas control knobs and wait five (5)
minutes before attempting to re-light.
Side burner acceSSory care & uSe/inStallation |7
taBle oF contents
A MESSAGE TO OUR CUSTOMERS 5
IMPORTANT SAFETY PRECAUTIONS 7
USING YOUR LYNX ACCESSORY 9
Accessories Covered in this Manual 9

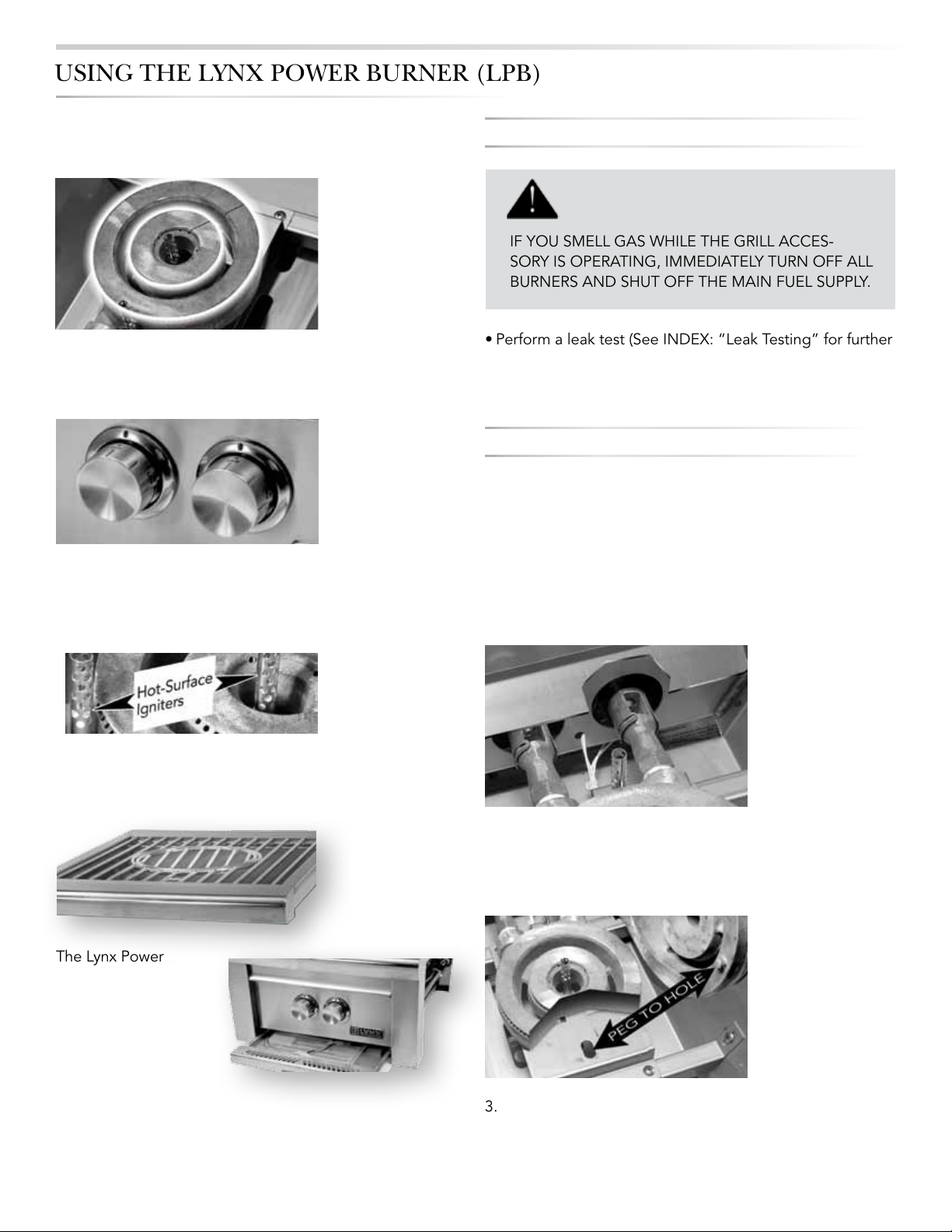

USING THE LYNX POWER BURNER (LPB) 10
Smell of Gas While Cooking 10
Yellow Flames 10

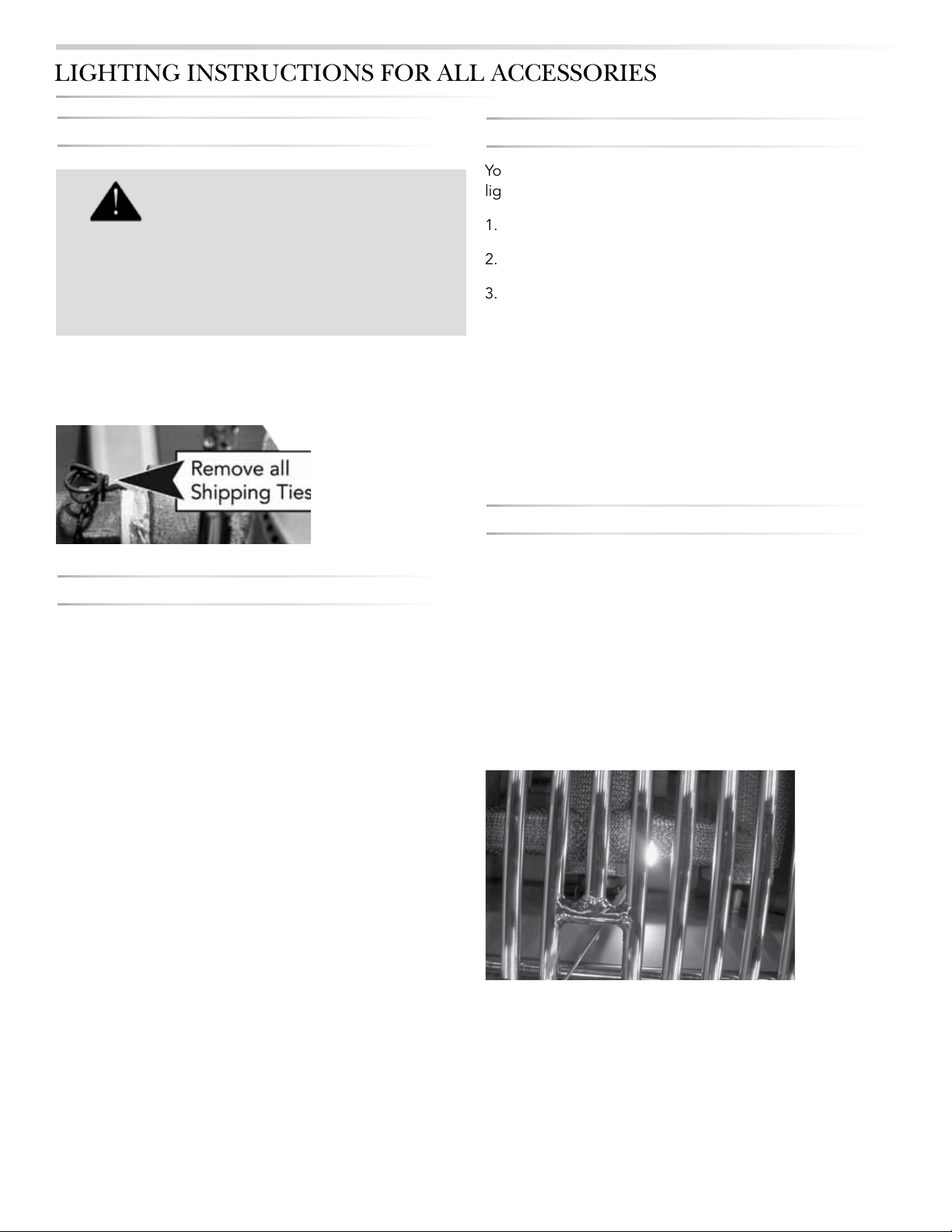

LIGHTING INSTRUCTIONS FOR ALL ACCESSORIES 11
Safety Practices and Precautions 11
At Each New Season 11
Purging the Gas Lines 11
Match Lighting 11
Low Heat Flame Adjustment 12
CONTACTING LYNX CUSTOMER CARE 13
BEFORE YOU START 14
If Shipment Arrives Damaged 14
Visible Loss or Damage 14
Concealed Loss or Damage 14

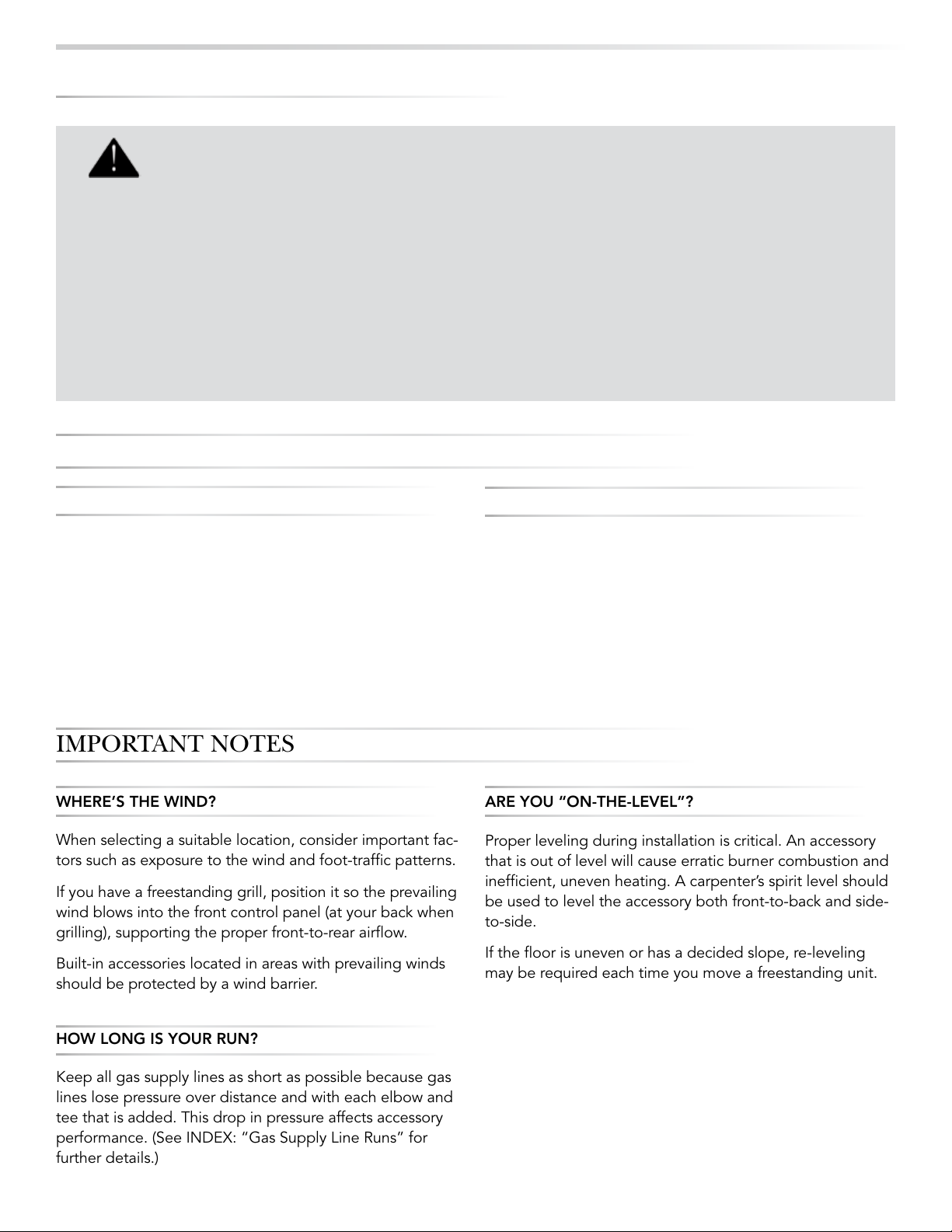

Important Notes 14
Where’s the Wind? 14
How Long is Your Run? 14
Are You “On-the-Level”? 14
Built-in Installations 15
Clearance to Combustible Materials 15

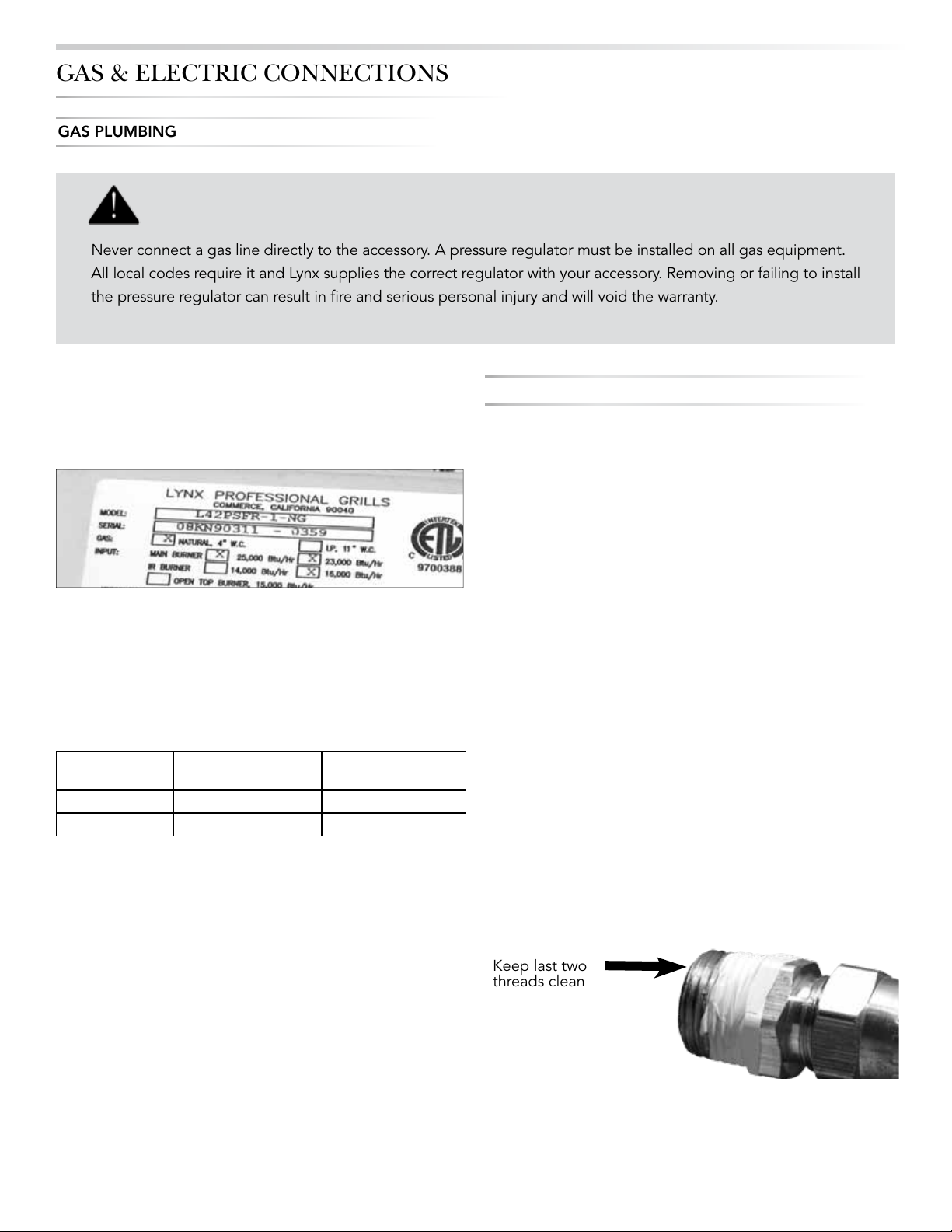

GAS & ELECTRIC CONNECTIONS 16
Gas Plumbing 16
Natural Gas 16

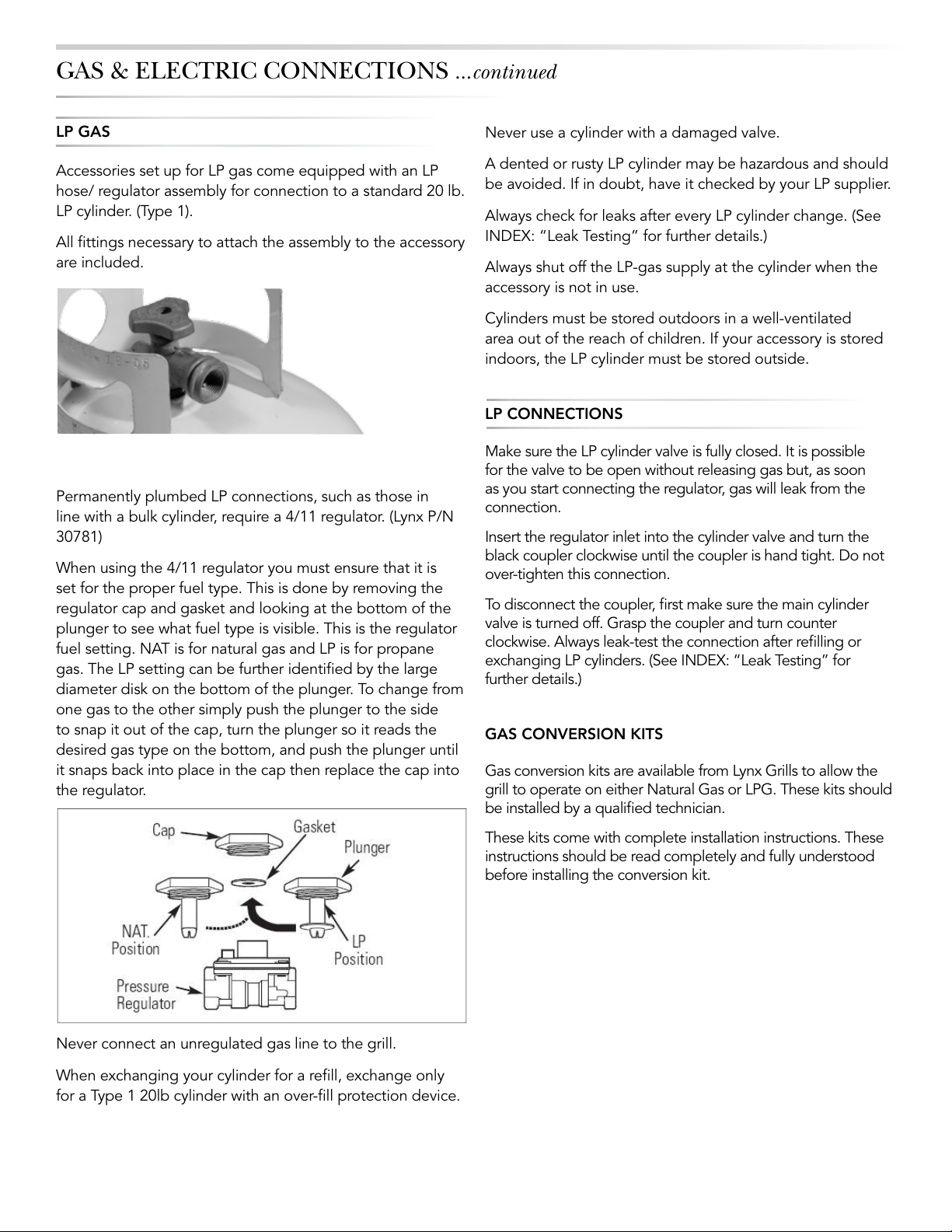

LP Gas 17
LP Connections 17
Gas Conversion Kits 17

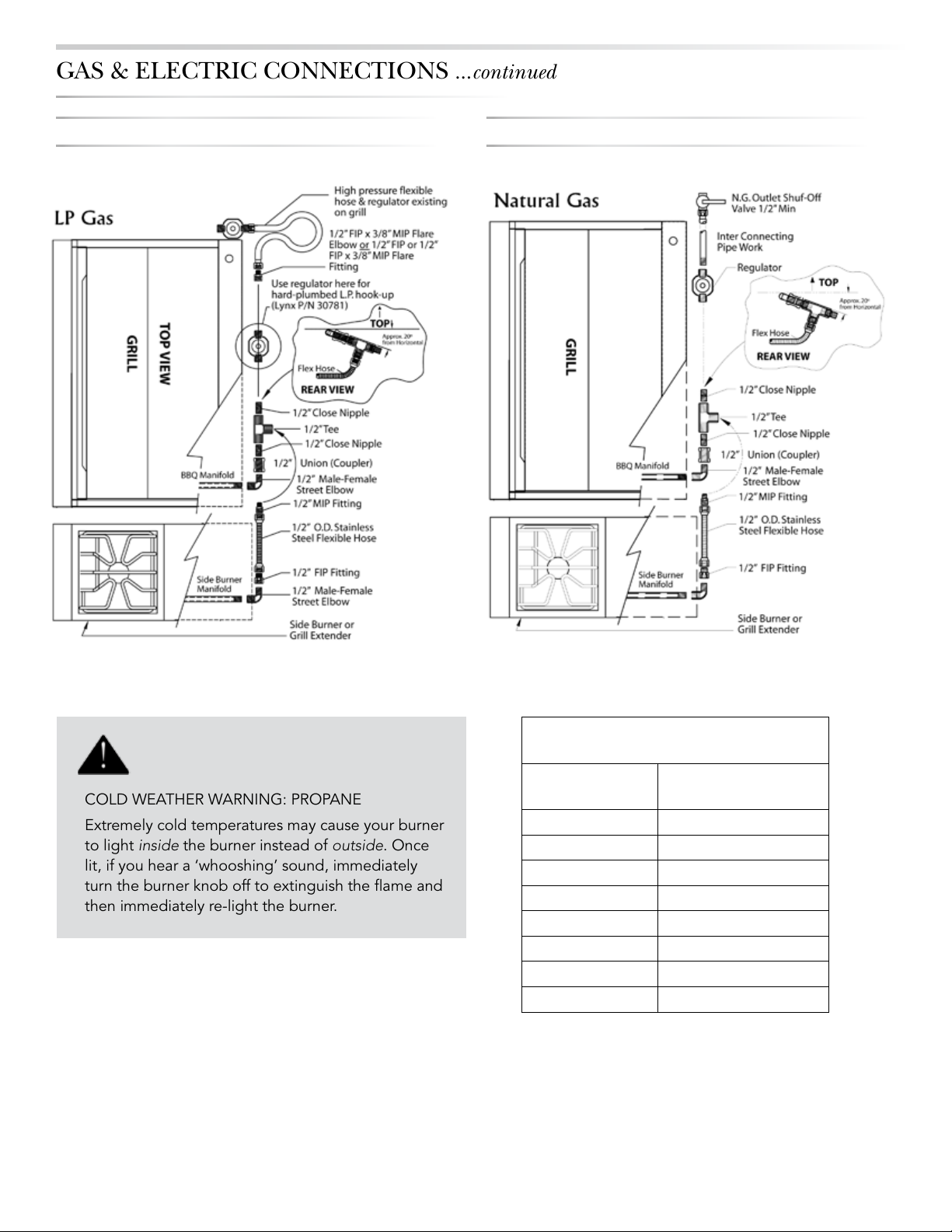

Propane Hook Up 18
Natural Gas Hook Up 18
Maximum Runs for all appliances on supply line 18
Electrical Connections 19
Optional Electrical Kits 19
Connecting the Wiring 19

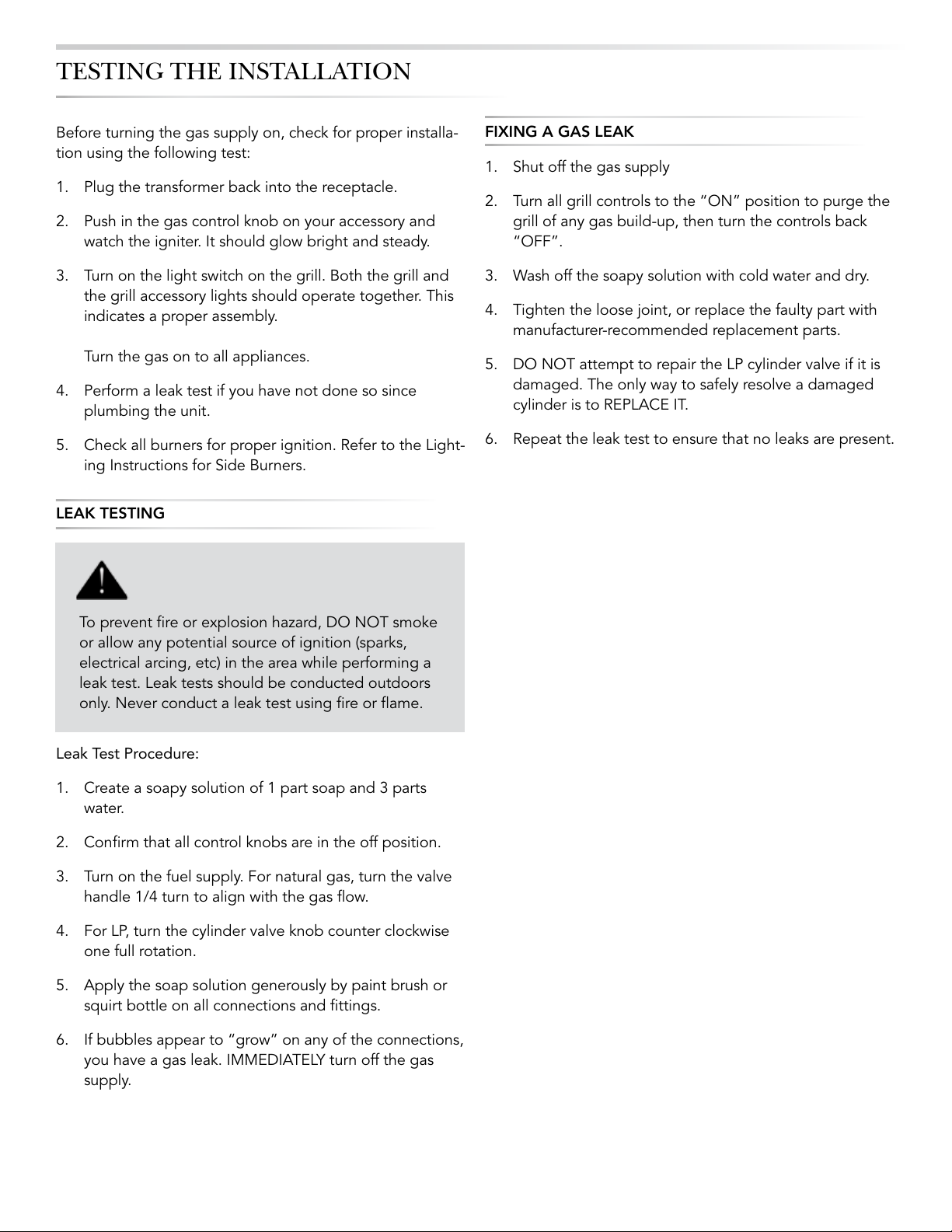

Testing the Installation 20
Leak Testing 20
Fixing a Gas Leak 20

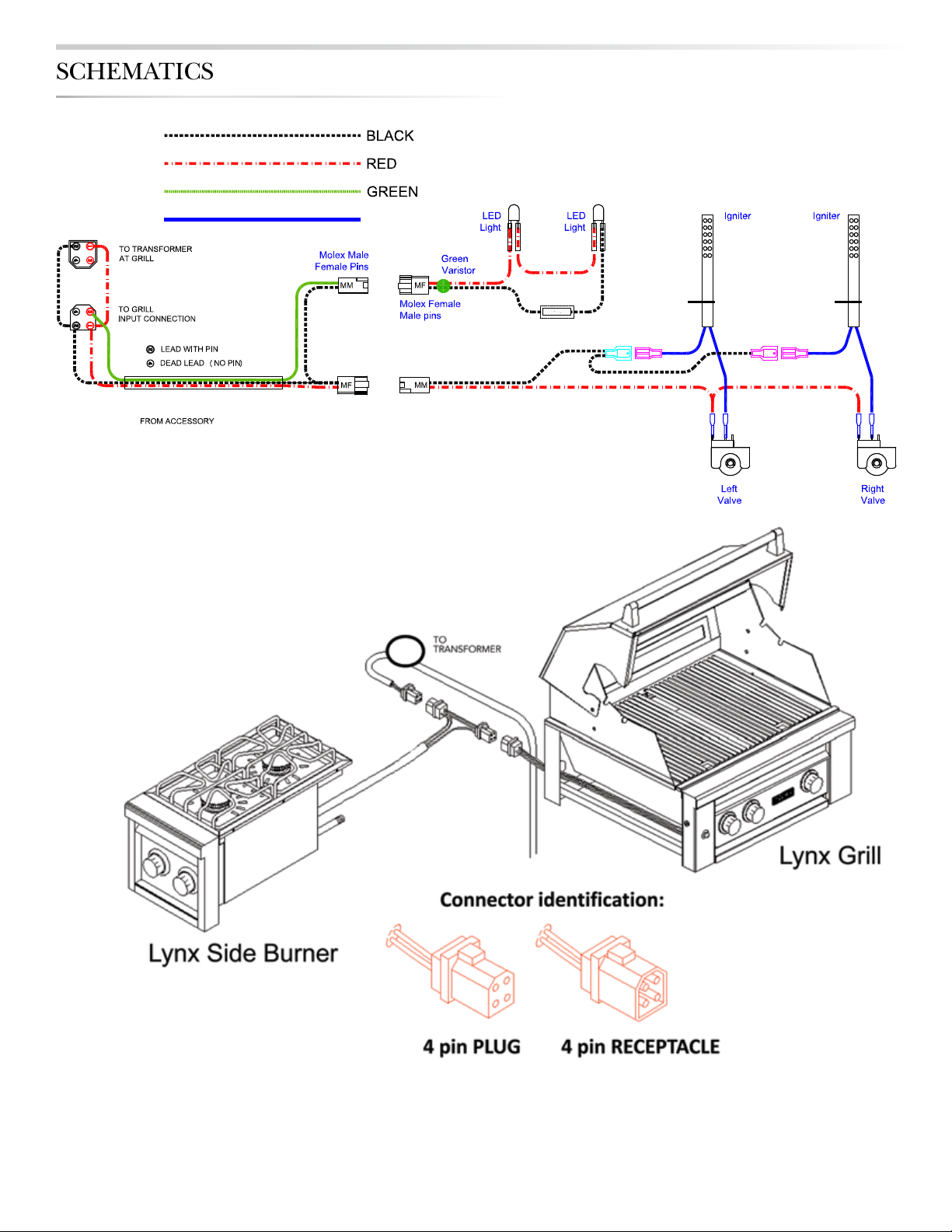

SCHEMATICS 21

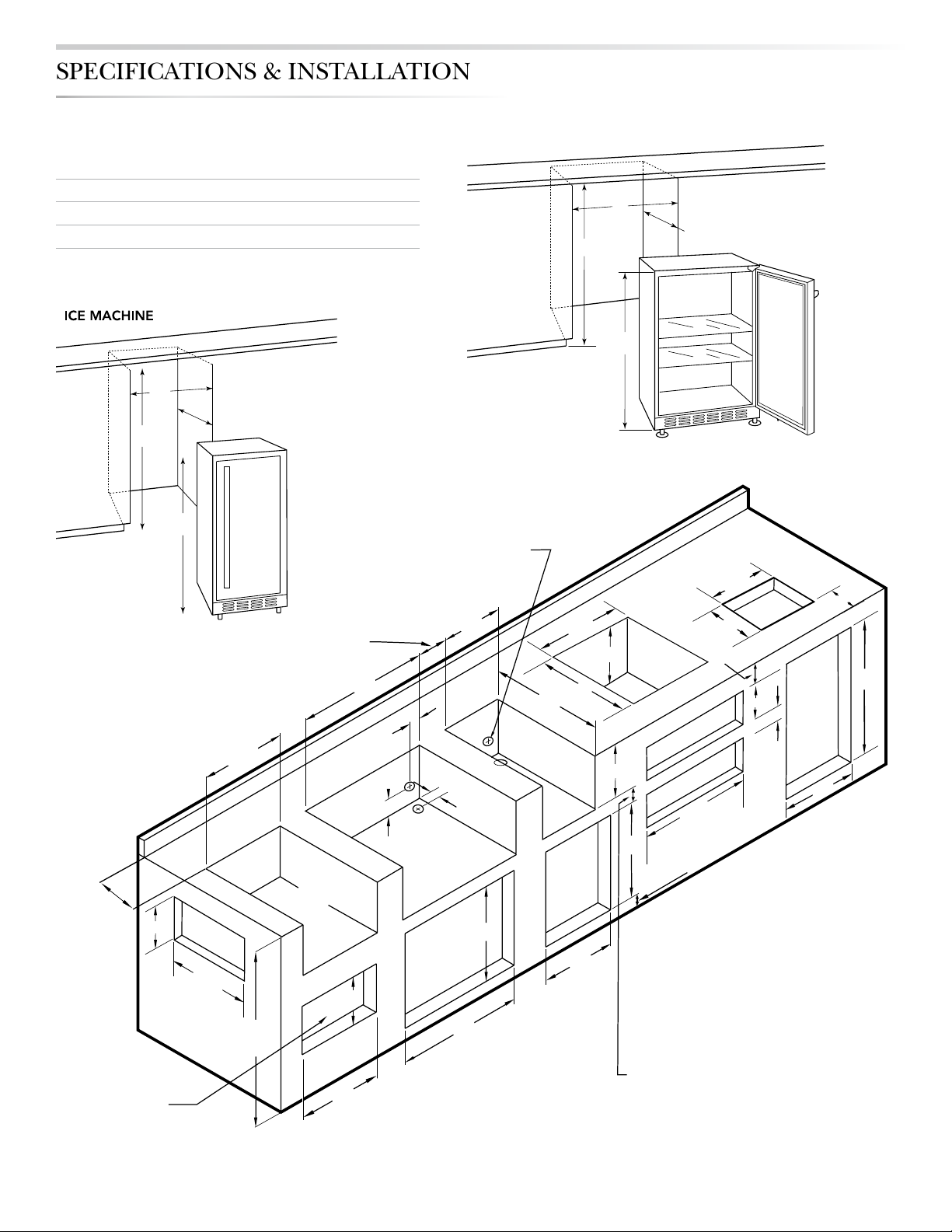

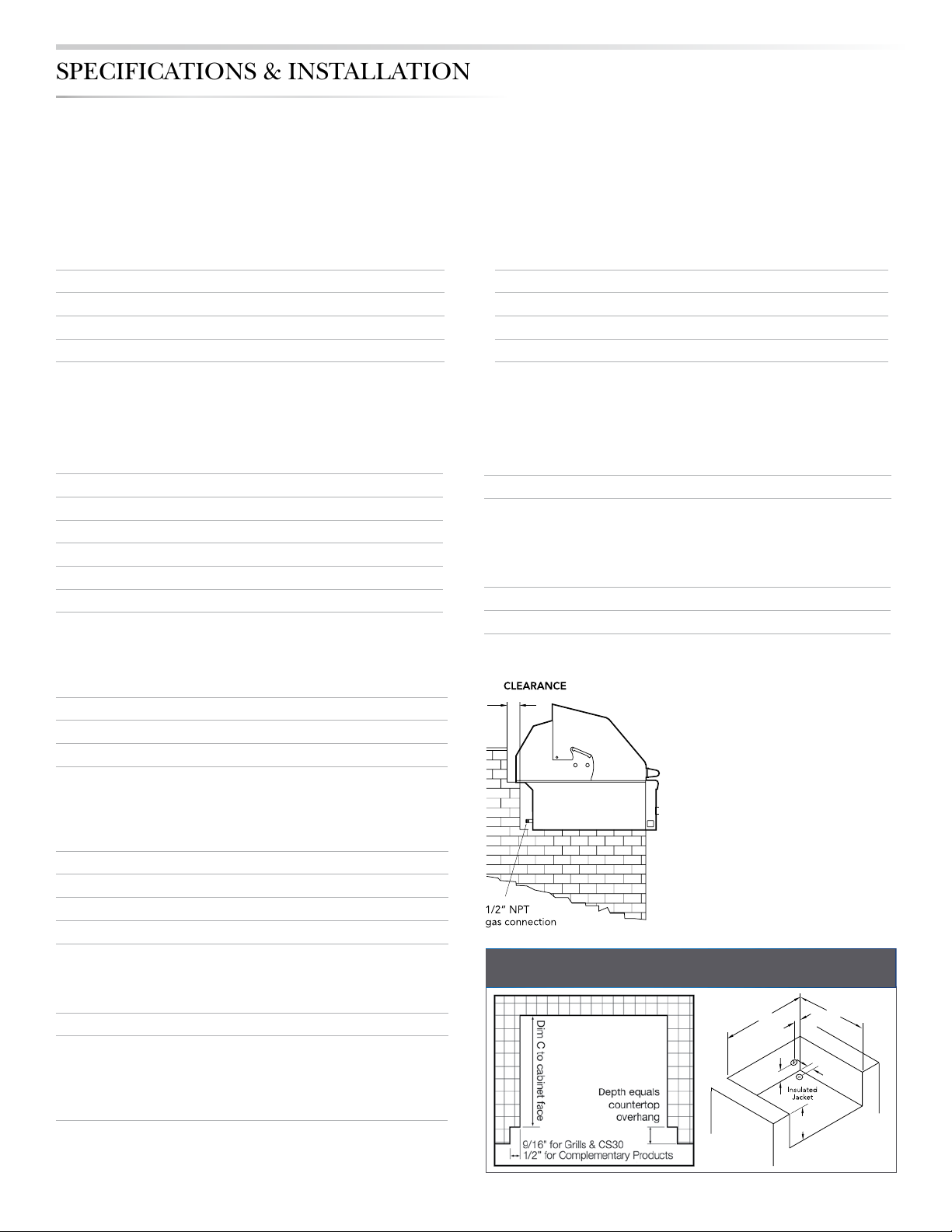

SPECIFICATIONS & INSTALLATION 22
LYNX LIMITED WARRANTY 24
LYNX COMMON AREA LIMITED WARRANTY 25

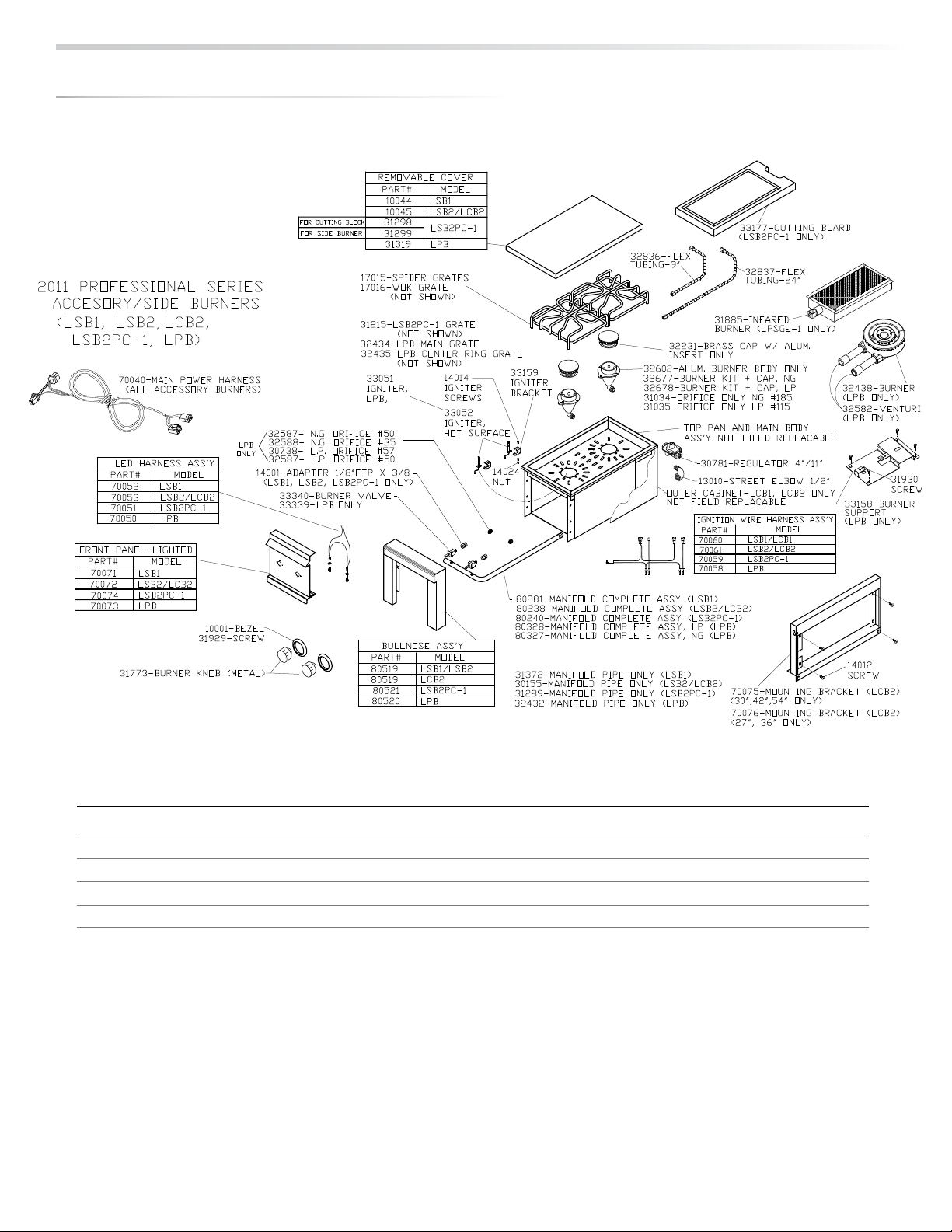

SIDE BURNER EXPLODED PARTS VIEW 26
INDEX 27
8
Side burner acceSSory care & uSe/inStallation
|
Accessories covered in this MAnuAl
usinG Your lYnX accessorY
This manual covers several Lynx accessory appliances and optional accessories for those appliances.
Except where noted, the assembly, installation and use of these Lynx accessories is identical.
POWER BURNER
MODEL LBP
The Lynx Power Burner is a dual-ring commercial style
burner with a range of 3,000 to 47,000 BTU’s.
PREP CENTER
MODEL LSB2PC-1
The LSB2PC-1 Prep Center Features two 15,000 BTU burn-
ers and an integral bamboo cutting board for food prep.
SIDE BURNER 1 & 2
MODELS LSB1-3 & LSB2-2
The LSB1-3 & LSB2-2 (Lynx Side Burner 1 & 2) features
either one or two 15,000 BTU burners for cooking smaller
food items. The LSB1-3 and LSB2-2 are designed for
installation in a non-combustible, built-in enclosure.
Side burner acceSSory care & uSe/inStallation |9
Loading...
