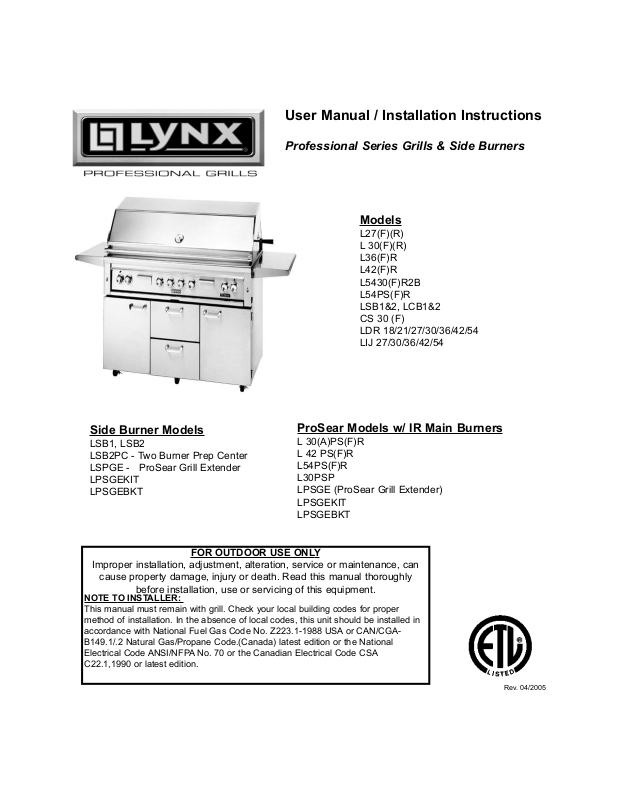

Lynx LQD Installation Manual
Models
L27(F)(R)
L 30(F)(R)
L36(F)R
L42(F)R
L5430(F)R2B
L54PS(F)R
LSB1&2, LCB1&2
CS 30 (F)
LDR 18/21/27/30/36/42/54
LIJ 27/30/36/42/54
Rev. 04/2005
FOR OUTDOOR USE ONLY
Improper installation, adjustment, alteration, service or maintenance, can
cause property damage, injury or death. Read this manual thoroughly
before installation, use or servicing of this equipment.
NOTE TO INSTALLER:
This manual must remain with grill. Check your local building codes for proper
method of installation. In the absence of local codes, this unit should be installed in
accordance with National Fuel Gas Code No. Z223.1-1988 USA or CAN/CGAB149.1/.2 Natural Gas/Propane Code.(Canada) latest edition or the National
Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CSA
C22.1,1990 or latest edition.
Side Burner Models
LSB1, LSB2
LSB2PC - Two Burner Prep Center
LSPGE - ProSear Grill Extender
LPSGEKIT
LPSGEBKT
ProSear Models w/ IR Main Burners
L 30(A)PS(F)R
L 42 PS(F)R
L54PS(F)R
L30PSP
LPSGE (ProSear Grill Extender)
LPSGEKIT
LPSGEBKT
User Manual / Installation Instructions
Professional Series Grills & Side Burners
Table of Contents
2
Safety Practices & Precautions.....................................................................................
Leak Testing.........................................................................................................................
Locating the Grill.................................................................................................................
Utility Requirements............................................................................................................
Features and Identification ................................................................................................
Lighting Instructions...........................................................................................................
Match Lighting.....................................................................................................................
Burner Adjustments............................................................................................................
Using the Grill......................................................................................................................
Using the Smoker................................................................................................................
Using the Rotisserie............................................................................................................
Burner Removal and Cleaning...........................................................................................
ProSear Supplement...........................................................................................................
Side Burners........................................................................................................................
Service..................................................................................................................................
Warranty................................................................................................................................
Rev. 04/2005
3
6
7
9
13
16
17
18
19
19
21
22
24
28
33
39
WARNING! Read this manual carefully and completely before using your grill to reduce the risk
of fire, burn hazard or other injury, making sure of proper installation and servicing.
Rev. 04/2005
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
2. Open lid.
4. If odor continues, immediately call your gas
supplier or your fire department.
AVERTISSEMENT
S’il y a une odeur de gaz:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute flamme nue.
3. Ouvrir le couvercle.
4. Si l’odeur persiste, appeler immédiatement
votre compagnie de gaz ou votre départment
des incendies.
FOR YOUR SAFETY
1. Do not store or use gasoline or other flammable vapors and liquids in the vicintiy of this
or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
AVERTISSEMENT
1. Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides inflammables dans
le voisinage de l’appareil, ni de tout autre
appareil.
2. Une bouteille de propane qui n’est pas raccordée en vue de son utilisation, ne doit pas
être entreposée dans le voisinage de cet
appareil ou de tout autre appareil.
FOR OUTDOOR USE ONLY: If Stored Indoors,
Detach and Leave Cylinder Outdoors.
Pour utilisation à l’extérieur seulement.
Si l’appareil est entreposé à l’interieur, enlever
les bouteilles et les laisser à l’extérieur.
BEFORE LIGHTING
1. Read instructions before lighting.
2. Open lid during lighting.
3. If ignition does not occur in 5 seconds, turn
the burner control(s) off, wait 5 minutes, and
repeat the lighting procedure.
AVANT D’ALLUMER L’APPAREIL
1. Lisez les instructions avant d’allumer l’appareil.
2. Ouvrez le couvercle avant d’allumer l’appareil.
3. Si l’appareil ne s’allume pas en 5 secondes,
fermez le robinet du brûleur, attendez 5 minutes, et procédez de nouveau à l’allumage.
Safety Instructions
Safety Practices & Precautions
3
FOR YOUR SAFETY:
1. Never use natural gas in a unit designed for liquid propane or visa versa.
2. If you smell gas:
A. Shut off gas to the appliance.
B. Extinguish any open flames.
C. Open lid.
D. If odor continues, immediately call your gas supplier.
3. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
4. Whenever the grill burners have been removed, follow the installation instructions.
5. NEVER LEAVE THE GRILL UNATTENDED WHILE COOKING.
6. California Proposition 65 — WARNING! The burning of gas cooking fuel generates
some by-products, which are on the list of substances, which are known by the State of
California to cause cancer or reproductive harm. California law requires businesses to
warn customers of potential exposure to such substances. To minimize exposure to the
substances, always operate this unit according to the use and care instructions found in
this manual. Be certain to provide adequate ventilation when cooking.
California Proposition 65 lists “Silica, crystalline” which is used in one of the components of the
IR burner, as an agent known to the state of California to cause cancer.
7. Do not repair or replace any part of the grill unless specifically recommended in this
manual. All other service should be performed by a qualified technician.
8. Gas grills are not design-certified for and are not to be installed in or on recreational
vehicles, portable trailers, boats or any other moving installation.
9. Children should not be left alone or unattended in an area where a grill is located. Place your
grill well away from areas where children play. Do not store items that may interest children in or
around the grill, in the cart or in the masonry enclosure. When in use, portions of the grill are
hot enough to cause severe burns.
10. Avoid wearing loose-fitting garments or long sleeves while using the grill. Never touch the
grill racks, hood or immediate surrounding metal surfaces with your bare hands as these areas
become extremely hot during use and could cause burns. Use an insulated glove or mitt when
opening and operating the grill. Open grill lid slowly to allow heat and smoke to escape before
fully opening. Never lean over hot grill surface or look directly into the grill when attempting to
light. The grill hood must be fully opened when lighting.
Rev. 04/2005
Safety Practices & Precautions
4
11. Have an ABC Fire Extinguisher accessible — never attempt to extinguish a grease fire
with water or other liquids.
12. Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
Gardez tout cordon d’alimentation électrique et tuyau d’alimentation en combustible a
l’écart des surfaces chauffées.
13. Do not heat unopened food containers as a build-up of pressure may cause the container to
burst.
14. Never store additional or empty propane cylinders in the grill cabinet or around the grill.
Do not store propane cylinders indoors or on their sides. Never use dented, rusty or
damaged propane cylinders.
15. Do not use aluminum foil to line grill racks or drip pans. This will alter combustion
airflow or trap excessive heat in the control area. This can result in melted knobs and
ignition modules.
16. If the grill is installed by a professional installer or technician, be sure that he shows
you where your gas supply shut-off is located. All gas lines must have a shut-off that
is readily and easily accessible. If you smell gas, check for gas leaks immediately. Check
only with a soap and water solution. Never check for gas leaks with an open flame.
17. Never use charcoal in the grill. Never operate the grill in a windy area. If windy conditions
exist, install a suitable windbreak.
18. Be aware that cooking excessively fatty meats and other such products will cause flareups.
Internal fires or damage caused by flare-ups or the grill being left unattended while cooking, are
not the responsibility of LYNX and any resulting damage is not covered under the terms and
conditions of our Warranty.
19. Never grill without the drip pan in place. The drip pan must be pushed all the way to the
back of the grill. Without the drip pan in place, hot grease could leak downward and produce a
fire or explosion hazard.
20. Store your grill in a well-ventilated area. Remove the LP cylinder, if so equipped, and
store it outdoors in a well-ventilated area away from heat and away from where children may
tamper with it.
21. Always adhere to the required clearances from combustibles as detailed. The grill is
designed for use outdoors only. Never operate in a garage, building, shed, breezeway or other
enclosed area.
22. Grease is extremely flammable. Let hot grease cool down before attempting to handle
or dispose of it. The drip tray should be cleaned of grease on a regular basis.
23. Keep any electrical supply cord away from any heated surface. Electrical cords should be
placed away from walkways to avoid tripping hazard.
Rev. 04/2005
Safety Practices & Precautions
5
24. Do not use the grill until a leak check has been performed (see page 6).
25. Do not move grill while in use or hot.
26. Never place more than 30 pounds on a side shelf. Do not lean on shelves.
27. Do not operate grill under the influence of alcohol or drugs.
28. If any burner does not light or goes out during operation, turn off all gas control
knobs with hood open and wait five (5) minutes before attempting to re-light.
LOCATION:
Never connect any unregulated gas supply to the grill.
The regulator with hose Type 1 connection has the following safety features:
The system will not allow gas to flow until a positive connection has been made.
The system has a thermal element that will shutoff the flow of gas between 115 and 150ºC (240
and 300ºF).
The system has a flow limiting device which, when
activated, will restrict the flow of gas to 10 cubic feet per
hour.
NOTE:The cylinder control valve must be turned off before any connection is made or removed. NEVER USE GRILL WITHOUT LEAK TEST
ING THIS CONNECTION.
Should the large black thermally sensitive coupling nut be exposed to temperatures above 115-150ºC it will
soften and allow the regulator probe to disengage from the cylinder valve, thereby shutting off the flow of
gas. Should this occur, do not attempt to reconnect the nut. Remove the entire regulator assembly and
replace it with a new one. The cause of the excessive heat should be determined and corrected before
operating your grill again. The regulator probe also contains a flow-sensing element, which will limit the
flow of gas to the regulator to a manageable amount (10 cubic feet/hour) in the event of a hose or regula
tor rupture. If it is evident that the flow control device has activated the cause of the excess flow should be
determined and correct ed before using your grill again.
NOTE: Improper lighting procedures can cause the flow control to activate, resulting in reduced heat out
put. If this is suspected, to reset flow control, shut off all burner controls and cylinder valve, wait 30 sec
onds, then turn cylinder valve on extremely slowly wait five (5) seconds and turn burner valve on and light.
Rev. 04/2005
DANGER: To prevent fire or explosion hazard:
NO SMOKING. DO NOT use or permit sources of ignition in the area while doing a leak test.
Perform leak tests outdoors only. Never perform a leak test with fire or flame.
HOW TO PERFORM A LEAK TEST:
1. Create a soapy solution of equal parts mild dishwashing detergent and water.
2. Confirm that all control knobs are in the off position.
3. Turn on fuel supply. Turn cylinder valve knob counter clockwise (right to left) one
rotation.
4. Apply soap solution generously by paint brush or squirt bottle on all connections and
fittings.
5. If “growing” bubbles appear on any of the connection points, then you have detected a
gas leak. IMMEDIATELY close the LP cylinder valve by turning the handle clockwise.
FIXING A FUEL LEAK:
If you detect a leak:
1. Push in and turn on control knobs to release pressure in hose, then turn the control
knobs back to off.
2. Wash off soapy solutions with cold water and towel dry.
3. Stop a leak by tightening the loose joint, or by replacing the faulty part with a
replacement part recommended by the manufacturer. DO NOT attempt to repair the
cylinder valve if it should become damaged; the cylinder MUST BE REPLACED.
Leak Testing
6

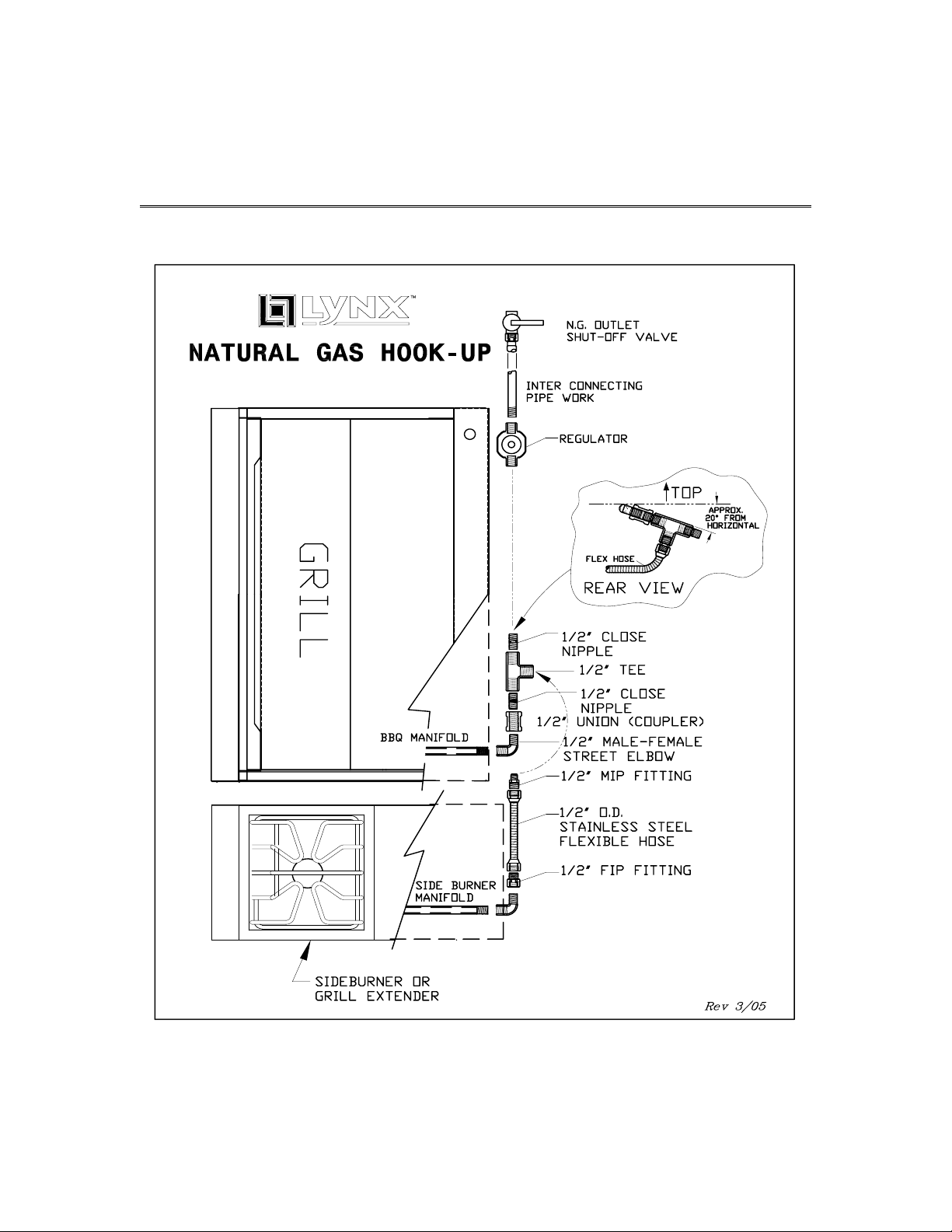

Natural Gas Leak Check
LP Gas Leak Check
Check points
LP Tank
90°x1/2”
Street Elbow
Regulator
Adapter
(supplied by others)
Shut-off Valve
(supplied by others)
1/2” NPT Nipple
(
supplied by others)
Check hose for
signs of abrasion
cracks and leaks
Rev. 04/2005
Locating the Grill
7
When selecting a suitable location, take into account concerns such as exposure to wind and
traffic paths. Try to keep all gas supply lines as short as possible. Never locate the grill in a
building garage, shed or other such enclosed area. A carpenter’s “spirit level” should be used to
assure that the unit is level both front-to-back and side-to-side. If it is not level, burner combustion may be erratic. The unit may not function efficiently. If the floor is uneven or has a decided
slope, re-leveling may be required after each moving of a freestanding unit.
BUILT-IN INSTALLATIONS:
The LYNX Built-In Grill is designed for easy installation into masonry enclosures. For non-combustible applications the grill drops into the opening shown in cutout detail drawing and hangs
from its counter top trim. A deck is not required to support it from the bottom. When using the
insulated jacket in a combustible enclosure, the jacket must be supported from the bottom by a
ledge on each side or a full deck beneath the jacket. Review the detailed drawing and pay spe-
cial attention to the provisions shown for gas line hook-up. It is recommended that the enclosure
have ventilation holes to prevent gas build-up in the event of a leak. The deck ledges and
counter should be flat and level. If your grill is equipped with a rotisserie, electrical service
should be provided (on the Left Side of most models).
CLEARANCE TO NON-COMBUSTIBLE CONSTRUCTION:
A minimum of 2” clearance on Premier Models 27/36/48 from the back of the grill.
Professional Models 30/42/48 and 54 require a minimum of 4” for the purpose of opening the
hood. The grill exhausts combustion products and cooking greases to the back. Never locate the
grill where this exhaust will be difficult to clean.
CLEARANCE T
O COMBUSTIBLE CONSTRUCTION:
Minimum clearance from sides and back of unit to adjacent combustible construction below top
of unit, 12 inches from sides and 12 inches from back. / Dégagement minimal entre les parois
latérales et l’arrière de l’appariel et la construction combustible au-dessous du panneau
supérieur de l’appareil (30 cm à partir des parois latérales et 30 cm à partir de l’arrière).
Minimum horizontal clearance from sides and back of unit to adjacent vertical combustible construction extending above top of unit, 12 inches from sides and 12 inches from back. /
Dégagement horizontal minimal entre les parois latérales et l’arrière de l’appariel et la
construction verticale combustible au-dessus de l’appareil (30 cm à partir des parois
latérales et 30 cm à partir de l’arrière).
Do not use this appliance under overhead combustible surfaces. / Ne pas utiliser cet appareil
sous une surface combustible.
Warning: Installing this product into a combustible enclosure without an insulated jacked
could result in fire, property damage and personal injury.
If the grill is to be placed into a combustible enclosure, an approved insulated jacket is necessary and is available from your LYNX dealer. Use only a LYNX insulated jacket as it has been
designed and tested specifically for your Grill. Refer to page 8 for cutout dimensions.
A minimum of 6” of clearance is needed on each side of the grill for the motor and skewer.
Rev. 04/2005
8
Rev. 04/2005
Allow min. 4” clearance
between left side of grill
or side burner for battery access.
PROPANE (LP) or NA
TURAL GAS ONLY
Your grill is equipped to use either propane (LP) or natural gas (NAT).
It is very important that the grill rating plate agrees with that of the gas
supply.

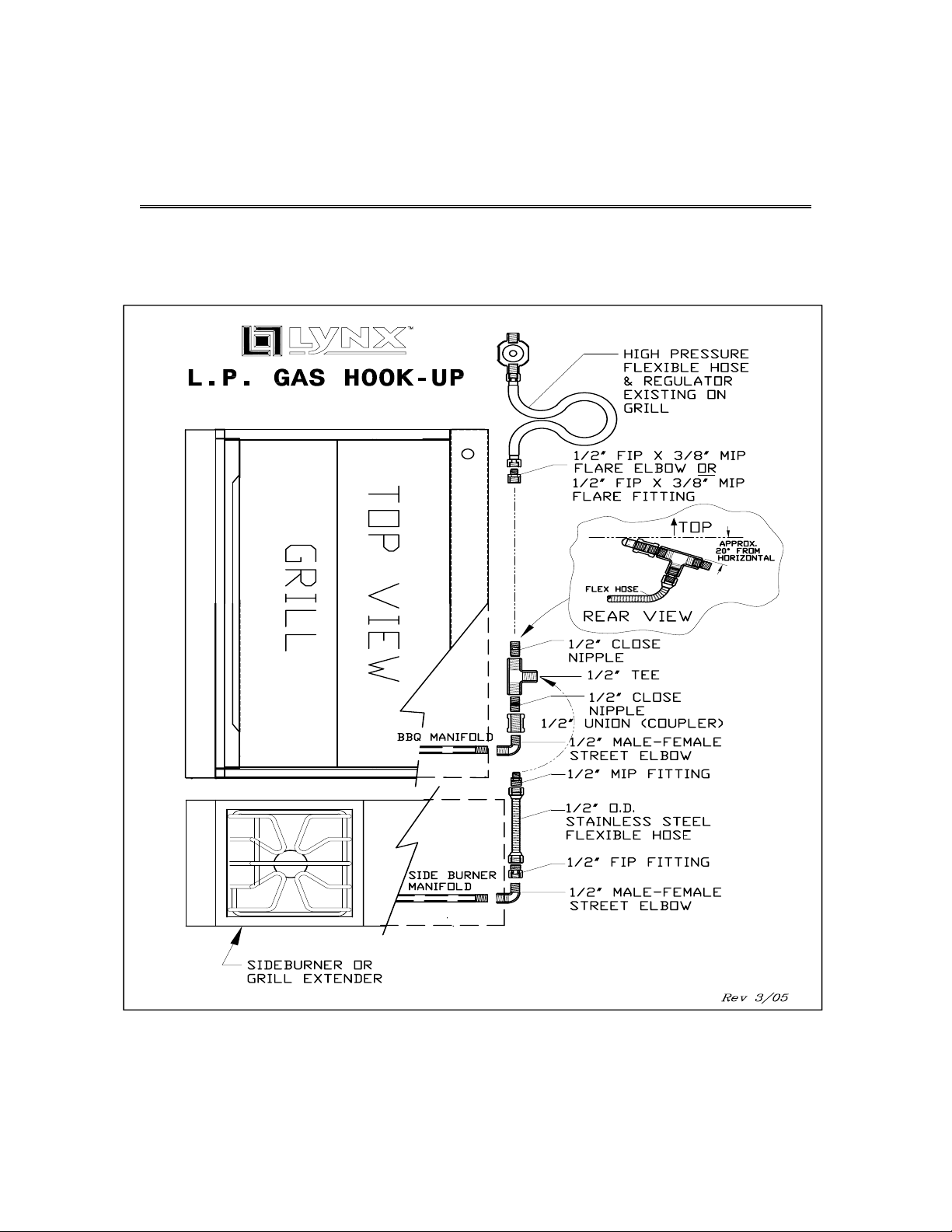

L.P
. Gas Hook Up (Type 1 or QCC1 regulator):
Grills orificed for use with L.P. gas come equipped with an LP
hose/regulator assembly for connection to a standard 20 lb. L.P. cylinder (Type 1). The L.P. tank
is not included. Connection: 1/2" NPT male with a 3/8" Flare adapter. LP Hose and fittings are
included. Operating pressure: 10.0"W.C.
Connect the 3/8” flare end of the L.P. hose to the brass adapter on the manifold Connect the
Regulator to the tank (with the tank valve fully closed). Although the flow of gas is stopped when
the Type 1 system is disconnected, you should always turn the L.P. tank main valve off after
each use and during transport of the tank or unit. Insert the regulator inlet into the tank valve
and turn to the black coupler clockwise until the coupler is tight.
Do not over-tighten the coupler.
To purge gas line: Make sure all controls are in the OFF position.
Turn the main tank valve on SLOWLY and turn one burner control
valve on the unit to the “light” position (DO NOT LITE GRILL). Leave
control ON for about 20 seconds to allow the air in the system to
purge. Wait 10 minutes before attempting to light the burners.
Do not attempt lighting the grill within 10 minutes after purging!
To disconnect the coupler, first make sure the main tank valve is
turned off. Grasp the coupler and turn counter clockwise. The inlet
will then disengage, remove the inlet from the tank valve opening if it
has not already done so when it disengaged. Your local L.P. filling
station should be equipped with the proper equipment to fill your tank.
If trading your tank in, always ensure to obtain only Type 1 20lb cylinders with an overfill protection device.
Utility Requirements
9
Cap
Appliance Regulator
Type 1 LP
Regulator
Elbow1/2”x
3/8 Flare
Rev. 04/2005
The rating plate is located either under the drip tray, the heat
shield behind the front panel (remove smoker tray) or on the
inside left cabinet wall (most freestanding grills). Do not attempt
to operate the grill on any gas other than what the grill is orificed
for and what the regulator is set for. The regulator cap must be
turned over to change gas types. For connection to an LP tank,
the grill comes equipped with a high capacity LP Regulator/hose
assembly (Type 1). Never connect an unregulated gas line to
the grill.
Utility Requirements
10
L.P. Tank Requirements: A dented or rusty L.P. tank may be hazardous and should be
checked by your L.P. supplier. Never use a cylinder with a damaged valve. Always check
for leaks after every L.P. tank change.
The L.P. gas cylinder must be constructed and marked in accordance with the specifications for L.P. gas cylinders of the U.S. Department of Transportation (DOT) and designed for use
with a Type 1 system only. Do not change the regulator/hose assembly from that supplied with
the unit or attempt to use a 5LP-A equipped regulator/hose assembly with a standard 510 POL
tank/valve assembly. The cylinder must be provided with a shut off valve terminating in an L.P.
gas supply cylinder valve outlet specified, as applicable, for connection Type 1.
If the appliance is stored indoors the cylinder must be disconnected and removed from
the appliance. Cylinders must be stored outdoors in a well-ventilated area out of the
reach of children.
Turn off LP-gas supply at cylinder when appliance is not in use. / Fermez l’alimentation en
GPL à la bouteille si l’appareil ne fonctionne pas.
The LP-gas supply cylinder must be disconnected when this appliance is not in use. / La
bouteille de GPL doit être déconnectée si cet appareil ne fonctionne pas.
Natural Gas Inst
allations:
The installation of the grill must conform with local codes or, in the absence of local codes, to
the National Fuel Gas Code ANSI Z223.1-1988 or latest edition. If installed in Canada, installation must be in accordance with Gas Code CAN/CGA B149, 1 or .2 and local codes.
The gas supply line must be sized to accommodate all the gas-fired equipment that may
be connected to that supply, i.e. total BTU output to be consumed, needs to be determined so as to calculate what size diameter pipe is needed, for the total length of pipe
from the gas main (at house) to grill hook-up. If the gas line is too small, the grill will not
function properly.
An installer-supplied gas shut-off valve must be installed in an easily accessible location.
All installer-supplied parts must conform to local codes with the National Electrical Code,
ANSI/NFPA 70-1990 and the National Fuel Gas Code, ANSI Z223.1-1988.
The appliance and its individual shut off valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures above 1/2” PSIG (3.5KPA).
The appliance must be isolated from the gas supply piping system by closing its individual manual shut off during any pressure testing. Do not apply threading compound to the first two pipe
threads as to avoid clogging of the burner valves and orifice. Do not put sealant on any male
end of flare fittings.
Rev. 04/2005
Utility Requirements
11
GFI Outlet
Electrical Requirements for Built-in Unit
s:
Installation should include an outdoor 120VAC 15A GFI electrical outlet located adjacent
to the grill. Do not locate motor or outlet on the same side as a Side Burner unless a minimum
of 12” clearance is provided. Simply plug in the electrical cord from the transformer provided,
into a GFI equipped outdoor outlet.
Professional Models Only: The power source should be a GFI outlet for plugging in the cord
from the transformer (supplied). The transformer reduces the voltage to 12 Volts for the light and
rotisserie motor. A qualified electrician can install a GFI outlet inside the island enclosure for
built-in units. The transformer has 2 output leads with jackplugs on the end. These jackplugs
must be plugged in to the 2 female jacks mounted on the bottom rail of the grill on the lower left
side approximately half way towards the rear of the unit*. The 2 jackplugs are interchangeable
and can be plugged in to either of the female jacks. These supply the power to the light and
rotisserie motor jack.
Rev. 04/2005
WARNING
Electrical Grounding Instructions:
This outdoor cooking gas appliance is equipped with a
three-prong (grounding) plug for your protection against
shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug.
A
VERTISSEMENT
Instruction pour la mise à la terre electrique.
Cet appareil est muni d’une fiche à trois broches (mise
à la terre) afin de vous protéger des chocs et doit être
branché directement dans une prise de courant à trois
broches adéquatement mise à la terre. Il ne faut pas
couper ou enlever la broche de mise à la terre de cette
fiche.
Plug jacks in here
Transformer jacks
Professional Series Units
*Plug both output jacks from the transformer
into the panel mounted on left side of grill.
12

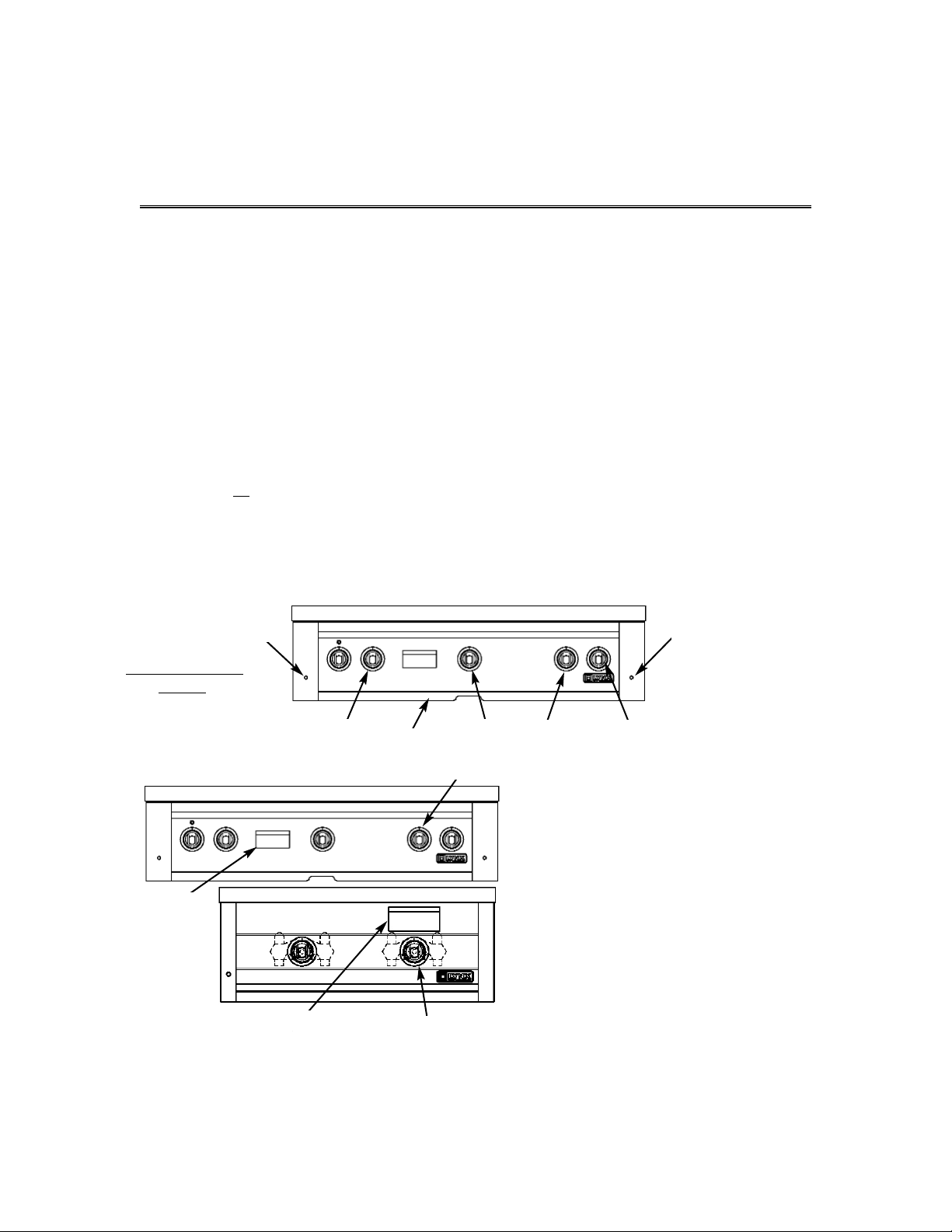

Features and Identification
Rotis Grill Grill
Smoker
Tray
Ignition Switch
Light
Switch
Light
Switch
Rotis Grill
Grill
Smoker
Tray
Ignition
Switch
Ignition
Switch
Smoker
Rotis
GrillGrill
Smoker
30” Professional
48” Premier*
* 48” Premier has (2) Rotis Burners and (2) Smoker Trays
54” Professional
27” 36”
42” Professional
Ignition
Switch
Light
Switch
RotisGrill GrillGrill and
Smoker
Grill Grill
Smoker
Tray
Smoker
Tray
Safety
Valve
Safety Valve
Rotis
Rev. 04/2005
Ignition
Switch
Grill
Smoker
Tray
Rotis
Grill and
Smoker
Safety
Valve
Grill
Rotis
Smoker
Grill
Smoker Ignition
Switch
Safety
Valve
Rotis
Light
Switch
ProSear
Grill
Loading...
