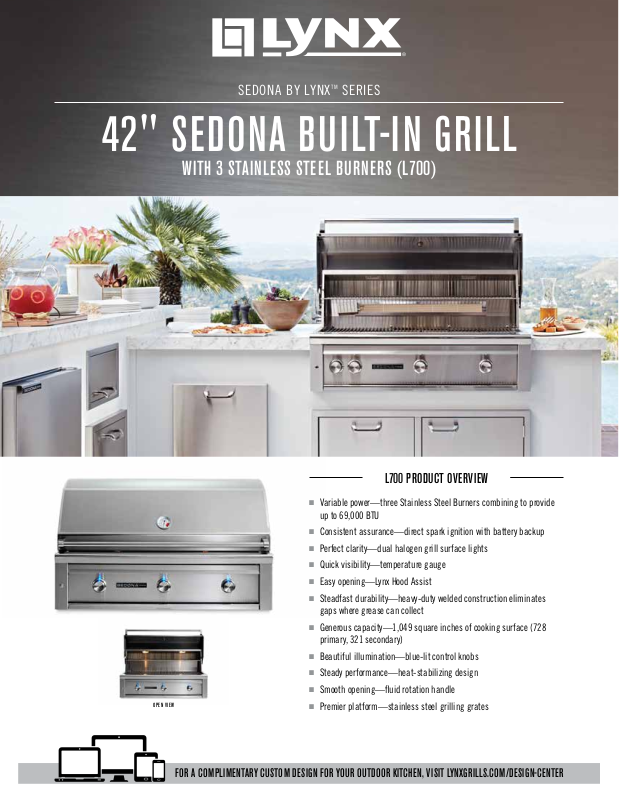

Lynx L700NG Specsheet
SEDONA BY LYNXTM SERIES
42" SEDONA BUILT-IN GRILL
WITH 3 STAINLESS STEEL BURNERS (L700)
OPEN VIEW
L700 PRODUCT OVERVIEW
■
Variable power—three Stainless Steel Burners combining to provide
up to 69,000 BTU
■
Consistent assurance—direct spark ignition with battery backup
■
Perfect clarity—dual halogen grill surface lights
■
Quick visibility—temperature gauge
■
Easy opening—Lynx Hood Assist
■
Steadfast durability—heavy-duty welded construction eliminates
gaps where grease can collect
■
Generous capacity—1,049 square inches of cooking surface (728
primary, 321 secondary)
■
Beautiful illumination—blue-lit control knobs
■
Steady performance—heat-stabilizing design
■
Smooth opening—fluid rotation handle
■
Premier platform—stainless steel grilling grates
FOR A COMPLIMENTARY CUSTOM DESIGN FOR YOUR OUTDOOR KITCHEN, VISIT LYNXGRILLS.COM/DESIGN-CENTER
42" SEDONA BUILT-IN GRILL
WITH 3 STAINLESS STEEL BURNERS (L700)
L700 PRODUCT FEATURES
The Sedona by LynxTM Series is always evolving to be the best at something new. That philosophy is reflected in its features.
We’ve refined these features to give you a grilling experience that’s both simple and stunning.
STAINLESS STEEL BURNERS INTEGRATED ILLUMINATION
SPARK IGNITION SYSTEM
SEAMLESS WELDED CONSTRUCTION
FOR MORE
INFORMATION ON
TM
SEDONA BY LYNX
SERIES
PRODUCT FEATURES,
PLEASE VISIT
LYNXGRILLS.COM
LYNX HOOD ASSIST
CERAMIC RADIANT BRIQUETTES
CUT-OUT DIMENSIONS: WIDTH: 41" / HEIGHT: 10" / DEPTH: 21.25"
EXPANSIVE GRILLING SURFACE
48”
5”
1/2
”
4
Insulated
Jacket
5/8
”
11
L700 ISLAND PREPARATION
1/4
”
23
3”
* 2" round hole must be
located at rear of grill cutout. 120V GFI
outlet must be located within 6' of the
2" hole.
3”
min.
41”
1/4
2
1/2
3
”
3/8
36
”
min.
Access
Doors
1/4
21
”
10
2”
19”
3/4
”
33
”
Grill*
PRODUCT TECHNICAL SPECIFICATIONS
COUNTERTOP NOTCH DETAIL INSULATING JACKET
SHIPPING DIMENSIONS:
SHIPPING WEIGHT: 240 POUNDS
GAS REQUIREMENTS: SHIPS IN LIQUID PROPANE OR NATURAL GAS
FROM FACTORY
ELECTRICAL REQUIREM ENTS: INSTALLATION REQUIRES AN OUTDOOR
120V/15GFI ELECTRICAL OUTLET ADJACENT TO PRODUCT
COOKING CONFIGURATION: BUILT-IN GRILL WITH ROTISSERIE, 1 PROSEAR
INFRARED BURNER AND 2 STAINLESS STEEL BURNERS
WIDTH 34" / HEIGHT 47" / DEPTH 30"
BUILT-IN GRILL WITH INSULATING JACKET
Model A B C
L700 41" 10" 21 ¼"
Insulating
A
PRODUCT SPECIFICATIONS & INSTALLATION
Note: Insulating jacket required for all grills installed into a combustible enclosure. For natural gas grills,
Lynx recommends using ¾" gas lines. Side burners may be rotated 90 degrees. See installation manuals for details.
Jacket
5”
4-1/2"
FOR EVEN MORE ON THIS PRODUCT AND OTHER COMPLIMENTARY LYNX PRODUCTS, VIST LYNXGRILLS.COM
C
3”
B
