Lynx L600PSRXX Specifications

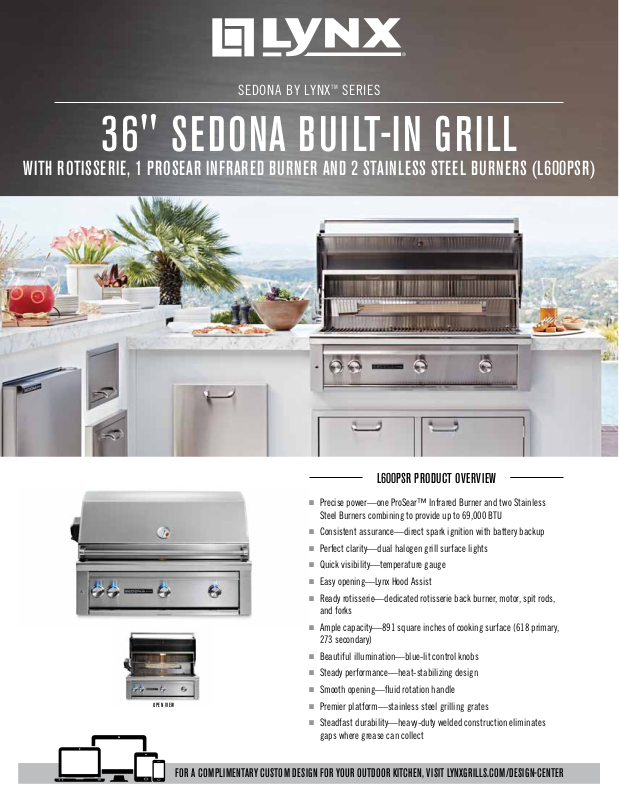

SEDONA BY LYNXTM SERIES
36" SEDONA BUILT-IN GRILL
WITH ROTISSERIE, 1 PROSEAR INFRARED BURNER AND 2 STAINLESS STEEL BURNERS (L600PSR)
OPEN VIEW
L600PSR PRODUCT OVERVIEW
■
Precise power—one ProSear™ Infrared Burner and two Stainless
Steel Burners combining to provide up to 69,000 BTU
■
Consistent assurance—direct spark ignition with battery backup
■
Perfect clarity—dual halogen grill surface lights
■
Quick visibility—temperature gauge
■
Easy opening—Lynx Hood Assist
■
Ready rotisserie—dedicated rotisserie back burner, motor, spit rods,
and forks
■
Ample capacity—891 square inches of cooking surface (618 primary,
273 secondary)
■
Beautiful illumination—blue-lit control knobs
■
Steady performance—heat-stabilizing design
■
Smooth opening—fluid rotation handle
■
Premier platform—stainless steel grilling grates
■
Steadfast durability—heavy-duty welded construction eliminates
gaps where grease can collect
FOR A COMPLIMENTARY CUSTOM DESIGN FOR YOUR OUTDOOR KITCHEN, VISIT LYNXGRILLS.COM/DESIGN-CENTER
36" SEDONA BUILT-IN GRILL
WITH ROTISSERIE, 1 PROSEAR INFRARED BURNER AND 2 STAINLESS STEEL BURNERS (L600PSR)
L600PSR PRODUCT FEATURES
The Sedona by LynxTM Series is always evolving to be the best at something new. That philosophy is reflected in its features.
We’ve refined these features to give you a grilling experience that’s both simple and stunning.
PROSEARTM INFRARED BURNER CERAMIC RADIANT BRIQUETTES SEAMLESS WELDED CONSTRUCTION
STAINLESS STEEL BURNERS
EXPANSIVE GRILLING SURFACE ROTISSERIE SYSTEM SPARK IGNITION SYSTEM LYNX HOOD ASSIST
L600 ISLAND PREPARATION
1/4
”
23
3”
Insulated
Jacket
5/8
”
11
* 2" round hole must be
located at rear of grill cutout. 120V GFI
outlet must be located within 6' of the
2" hole.
35”
1/4
2
”
1/2
3
”
3”
min.
Grill*
3/8
36
”
min.
INTEGRATED ILLUMINATION
CUT-OUT DIMENSIONS: WIDTH: 35” / HEIGHT: 10” / DEPTH: 21.25”
FOR MORE
INFORMATION ON
SEDONA BY LYNX
TM
PRODUCT FEATURES,
PLEASE VISIT
LYNXGRILLS.COM
SERIES
42”
5”
1/2
”
4
Access
Doors
1/4
21
”
10
2”
19”
3/4
”
33
PRODUCT TECHNICAL SPECIFICATIONS
COUNTERTOP NOTCH DETAIL INSULATING JACKET
SHIPPING DIMENSIONS:
SHIPPING WEIGHT: 180 POUNDS
GAS REQUIREMENTS: SHIPS IN LIQUID PROPANE OR NATURAL GAS
FROM FACTORY
ELECTRICAL REQUIREMENTS: INSTALLATION REQUIRES AN OUTDOOR
120V/15GFI ELECTRICAL OUTLET ADJACENT TO PRODUCT
COOKING CONFIGURATION: BUILT-IN GRILL WITH 1 PROSEAR INFRARED
BURNER AND 1 STAINLESS STEEL BURNER
WIDTH 33.5” / HEIGHT 41” / DEPTH 30”
BUILT-IN GRILL WITH INSULATING JACKET
Model A B C
L600 35" 10" 21 ¼"
Insulating
A
PRODUCT SPECIFICATIONS & INSTALLATION
Note: Insulating jacket required for all grills installed into a combustible enclosure. For natural gas grills,
Lynx recommends using ¾" gas lines. Side burners may be rotated 90 degrees. See installation manuals for details.
Jacket
5”
4-1/2"
FOR EVEN MORE ON THIS PRODUCT AND OTHER COMPLIMENTARY LYNX PRODUCTS, VIST LYNXGRILLS.COM
C
3”
B
