Lynx L500PSR, L500PSRLP Specifications
SEDONA BY LYNXTM SERIES

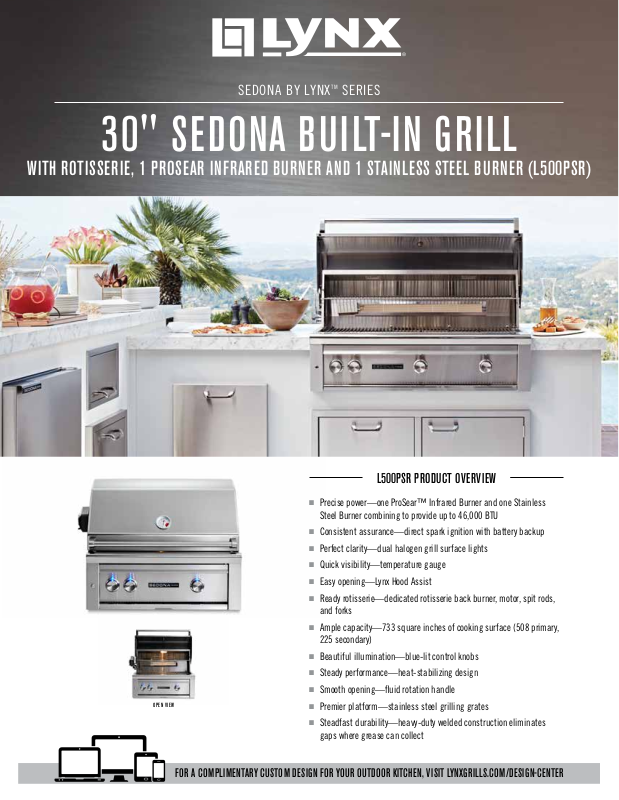

30" SEDONA BUILT-IN GRILL
WITH ROTISSERIE, 1 PROSEAR INFRARED BURNER AND 1 STAINLESS STEEL BURNER (L500PSR)
OPEN VIEW
L500PSR PRODUCT OVERVIEW
■
Precise power—one ProSear™ Infrared Burner and one Stainless
Steel Burner combining to provide up to 46,000 BTU
■
Consistent assurance—direct spark ignition with battery backup
■
Perfect clarity—dual halogen grill surface lights
■
Quick visibility—temperature gauge
■
Easy opening—Lynx Hood Assist
■
Ready rotisserie—dedicated rotisserie back burner, motor, spit rods,
and forks
■
Ample capacity—733 square inches of cooking surface (508 primary,
225 secondary)
■
Beautiful illumination—blue-lit control knobs
■
Steady performance—heat-stabilizing design
■
Smooth opening—fluid rotation handle
■
Premier platform—stainless steel grilling grates
■
Steadfast durability—heavy-duty welded construction eliminates
gaps where grease can collect
FOR A COMPLIMENTARY CUSTOM DESIGN FOR YOUR OUTDOOR KITCHEN, VISIT LYNXGRILLS.COM/DESIGN-CENTER
30" SEDONA BUILT-IN GRILL
WITH ROTISSERIE, 1 PROSEAR INFRARED BURNER AND 1 STAINLESS STEEL BURNER (L500PSR)
L500PSR PRODUCT FEATURES
The Sedona by LynxTM Series is always evolving to be the best at something new. That philosophy is reflected in its features.
We’ve refined these features to give you a grilling experience that’s both simple and stunning.
PROSEARTM INFRARED BURNER CERAMIC RADIANT BRIQUETTES SEAMLESS WELDED CONSTRUCTION
EXPANSIVE GRILLING SURFACE SPARK IGNITION SYSTEM LYNX HOOD ASSIST
STAINLESS STEEL BURNERS
FOR MORE
INTEGRATED ILLUMINATION
L500 ISLAND PREPARATION
INFORMATION ON
SEDONA BY LYNX
PRODUCT FEATURES,
PLEASE VISIT
LYNXGRILLS.COM
ROTISSERIE SYSTEM
CUT-OUT DIMENSIONS: WIDTH: 29" / HEIGHT: 10" / DEPTH: 21.25"
TM
SERIES
36”
1/4
”
23
5”
1/2
”
4
3”
Insulated
Jacket
5/8
”
11
* 2” round hole must be
located at rear of grill cutout. 120V GFI
outlet must be located within 6’ of the
2” hole.
3”
min.
29”
1/4
2
”
1/2
3
”
Grill*
3/8
36
”
min.
Access
Doors
1/4
21
”
10
2”
19”
1/4
”
28
PRODUCT TECHNICAL SPECIFICATIONS
COUNTERTOP NOTCH DETAIL INSULATING JACKET
SHIPPING DIMENSIONS:
SHIPPING WEIGHT: 168 POUNDS
GAS REQUIREMENTS: SHIPS IN LIQUID PROPANE OR NATURAL GAS
FROM FACTORY
ELECTRICAL REQUIREMENTS: INSTALLATION REQUIRES AN OUTDOOR
120V/15GFI ELECTRICAL OUTLET ADJACENT TO PRODUCT
COOKING CONFIGURATION: BUILT-IN GRILL WITH ROTISSERIE, 1 PROSEAR
INFRARED BURNER AND 1 STAINLESS STEEL BURNER
WIDTH 35" / HEIGHT 33.5" / DEPTH 30"
BUILT-IN GRILL WITH INSULATING JACKET
Model A B C
L500 29" 10" 21 ¼"
Insulating
A
PRODUCT SPECIFICATIONS & INSTALLATION
Note: Insulating jacket required for all grills installed into a combustible enclosure. For natural gas grills,
Lynx recommends using ¾" gas lines. Side burners may be rotated 90 degrees. See installation manuals for details.
Jacket
5”
4-1/2"
FOR EVEN MORE ON THIS PRODUCT AND OTHER COMPLIMENTARY LYNX PRODUCTS, VIST LYNXGRILLS.COM
C
3”
B
