Lynx Grills Inc.
L24REF
APPLIANCE SAFETY
Your safety and the safety of others are very important to us.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
Serious injury can result if you do not follow these instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what can happen if the instructions are not followed.
WARNING: Important safety instructions
Read this manual carefully and completely before using your refrigerator to reduce the risk of:
1. Fire
2. Electric shock
3. Personal injury or property damage
4. Unapproved installation or service
This product is designed for indoor or outdoor installation. Improper installation, adjustment, alteration, service or maintenance can cause personal or property damage. Read this manual thoroughly before installation, use or service.
IMPORTANT: When using electrical appliances, basic safety precautions should always be followed including
the following:
1. Read all instructions before using the refrigerator
2. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appli-
ance. To protect against electrical shock, do not immerse cord, plugs, or base in water or other liquids.
3. Plug into a grounded 3-prong receptacle.
4. Never use an extension cord
5. Never remove the grounding prong or use a 3/2 plug adapter
6. Avoid using an outlet controlled by a wall switch
7. Unplug the unit when not in use and before cleaning.
8. Do not operate any appliance with damaged cord or plug, or after the appliance malfunctions or has been
damaged in any manner. Contact Lynx Customer Care Department for service information or additional
details.
9. UL listed for indoor and outdoor use.
10. Make sure the appliance is turned off before plugging in or removing the plug from the power receptacle.
11. Do not repair or replace any part of this refrigerator. All servicing should be done by an authorized service
agency. Contact Lynx Customer Care Department for service information.
12. Save these instructions for future reference.
CAUTION: UNPLUG the refrigerator before beginning any work. Make sure you READ and UNDERSTAND these
instructions BEFORE installation. If you have any questions or concerns prior to, or during service, please call Customer
Care/Tech. Support at 888-289-5969, Mon.– Fri. 6AM to 4:30PM, and Saturdays from 8AM to 1PM Pacific Time.
Page 3
Lynx Grills Inc.
L24REF
Proper Disposal of Your Old Appliance:
Old refrigerators can represent a suffocation hazard to children!
1. Remove the doors from your old refrigerator .
2. Leave shelves in place.
3. If an old refrigerator contains refrigerants, it must be recycled by a licensed service or disposal company.
INSTALLATION INSTRUCTIONS
UNPACKING
Excessive Weight Hazard! * Use two or more people to move and install your appliance.
Failure to do so can result in back or other injury.
ALLOW APPLIANCE TO SIT UPRIGHT FOR 24 HOURS BEFORE TURNING ON, TO ALLOW THE
COMPRESSOR LUBRICANT TO DRAIN.
1. Remove Packaging Materials
2. Remove tape and glue residue from surfaces before turning on the appliance. Rub a small amount of liquid
dish soap over the adhesive with your fingers. Rinse with warm water and dry.
3. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or
glue. These products can damage the surface of your appliance.
4. When Moving Your Appliance:
Your appliance is heavy. When moving the appliance for cleaning or service, be sure to protect the floor.
Always pull the appliance straight out when moving it. Do not wiggle or “walk” the appliance when trying to
move it, because floor damage can occur.
5. Clean Before Using
After you remove all of the packaging materials, clean the inside of your appliance before using it. See the
cleaning instructions in “Appliance Care.”
6.If necessary level the refrigerator as needed for best operation.
Keep flammable materials and vapors, such as gasoline, away from appliances. Failure to do so can
result in death, explosion, or fire.
LOCATION REQUIREMENTS
IMPORTANT: Do not install the appliance near an oven, radiator, or other heat source,.
Check the strength of the floor before installing your appliance. It should hold the weight of the fully loaded
appliance. Allow at least 1” (2.5 cm) of airspace at the top and on both sides of the appliance and 1” (2.5 cm)
between the back of the appliance and the wall. If the appliance is going to be placed against a wall, leave
extra space on the hinge side so the door can open wider than its width.
BE SURE THAT YOU DO NOT BLOCK THE AIRFLOW UNDER THE APPLIANCE .
Page 4
Lynx Grills Inc.
L24REF
INSTALLATION INSTRUCTIONS
L24REF DIMENSIONS, AND CUTOUT DIMENSIONS
Page 5
Lynx Grills Inc.
L24REF
INSTALLATION INSTRUCTIONS
CHOOSING THE RIGHT PLACE
Place the appliance in a dry and regularly ventilated place. Never place the appliance near heat emitting
devices (e.g. cooker, radiator, water heater or similar devices).
RECOMMENDED GROUNDING METHOD
A 115 Volt, 60 Hz. AC only 15- or 20- amp fused or circuit breaker protected, grounded electrical supply is
required. It is recommended that a separate circuit serving only your appliance be provided. Use outlets that
cannot be turned off by a switch or pull chain. Connect this appliance to a 3 prong power supply socket outlet
(which has a ground terminal). If you only have a two prong outlet have it replaced by a qualified technician
with an outlet that meets the local codes. Required nominal voltage and frequency are indicated on the rating
plate. The connection to the power supply and grounding has to be made according to current standards and
regulations. The appliance resists temporary voltage tolerance from -15 to 10%.
IMPORTANT
Electrical Shock Hazard. Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not
use a 2/3 adapter. Do not use an extension cord. Failure to follow these instructions can result in
death, fire, or electrical shock.
A GFCI (ground fault circuit interrupter) is built into every line cord. Do not defeat or bypass this important
safety feature. The line cord supplied with this appliance is specially designed for outdoor use. Use only a
factory supplied replacement cord with a GFCI (ground fault circuit interrupter) in the event the cord becomes
damaged.
ENERGY SAVING TIPS
The more airflow you can provide around an appliance, the less energy it will use.
Keep doors or drawers open a minimum of time, and shut securely.
LEVELING YOUR REFRIGERATOR
1. Locate the two front leveling legs mounted into the underside of the appliance.
2. Adjust the front legs just enough to lift the cabinet up off of the floor.
3. Place a leveling tool on top of the appliance first side to side, then front to back. Turn leg counterclockwise
to raise a corner. Turn leg clockwise to lower a corner.
4. Once you have achieved side to side level, increase the front to rear adjustment to be slightly higher at the
front. This will ensure the door closes automatically once it is released. Increase the front to rear
adjustment until the door self-closes.
5. After appliance is fully loaded, recheck with level as in Step 3.
Page 6
Lynx Grills Inc.
L24REF
APPLIANCE USE
In order to ensure proper temperature, you need to permit proper airflow in the appliance. Do not block any
air vents. If the vents are blocked, airflow will be prevented, and temperature and moisture problems may
occur. Always position contents to allow airflow between shelves and products.
Allow the appliance to cool at least 6 to 8 hours before adding contents. Allow 24 hours for temperature to
stabilize.
NOTE: When the appliance is first started, the compressor will run constantly until the appliance is cooled, It
may take up to 6 or 8 hours (or longer), depending on ambient temperature and the number of times the
appliance door is opened. After the appliance is cooled, the compressor will turn on and off as needed to
keep the appliance at the proper temperature.
The outside of your appliance may feel warm. This is normal. The appliance’s design and main function is to
remove heat from products and air space inside the appliance. The heat is transferred to the room air,
making the outside of the appliance feel warm.
REFRIGERATOR SOUNDS
After your refrigerator has run for a while you may notice some normal operating sounds. Any hard surfaces
surrounding the unit, such as floors or cabinetry can make these sound louder. The following will explain
these sounds and their causes:
Our refrigerator uses a high efficiency compressor and fans to keep your food items at the desired
temperature while minimizing energy usage. The fan and compressor may therefore run for longer periods
than your old refrigerator. You may also notice a pulsating or high-pitched sound coming from the
compressor or fans as they adjust to optimize performance.
As refrigerant flows inside the cabinet, you may hear some rattling noises. This may also be caused by items
stored inside the cabinet.
After each cooling cycle, you may hear a gurgling sound caused be the refrigerant flowing inside your
refrigerator.
Each time the refrigerator starts and stops you may hear some clicking sounds.
You may hear condensation water dripping into the drip pan.
Page 7
Lynx Grills Inc.
L24REF
APPLIANCE OPERATION
BASE KICK PLATE
To remove and replace the base kick plate:
1. Open the refrigerator door and remove the base kick plate by pulling down and out from the top.
2. Replace the base kick plated by putting the clips in the openings in the refrigerator panel. Push in until the
kick plate snaps into place.
CHANGING THE LIGHT BULB
NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size,
shape, base size and wattage. The required bulb is a T7 base and must not exceed 15 watts. You can purchase bulbs by calling Lynx Grills Customer Care.
1. Unplug appliance or disconnect power.
2. Remove the light shield. This is done by removing the lamp shield from the rear of the Lamp/Thermostat
housing. Squeeze the lamp shield and rotate the shield downwards to free the mounting tabs
3. Replace the light bulb with an appliance bulb of the same wattage.
4. Replace the light shield.
5. Plug in appliance or reconnect power.
Note: The light switch mounted on the Lamp/Thermostat housing is a non-operational switch see items 335 , i
044 & 045 in page 14. The light is controlled by the door switch,
LOSS OF POWER
In the event of a power outage or a temporary loss of power, unplug the refrigerator. After a loss of power
keep the refrigerator unplugged for at least 30 minutes to allow the refrigeration system to equalize. During
this time keep the door closed as much as possible to keep the interior as cold as possible.
REMEMBER: A full refrigerator stays cold longer than a partially filled one.
MOVING CARE FOR YOUR REFRIGERATOR
1. Remove all containers.
2. Unplug the appliance.
3. Clean it thoroughly.
4. Tape the appliance shut and tape the electrical cord to the cabinet.
5. When you get to your new location, refer to the “Installation Instructions” and “Appliance Use”
sections for information on installation and setting the controls.
*Excessive Weight Hazard! * Use two or more people to move and install your refrigerator.
Failure to do so can result in back or other injury.
Page 8
Lynx Grills Inc.
L24REF
APPLIANCE CARE
CLEANING YOUR FRONT-FREE REFRIGERATOR
Use nonflammable cleaners.
Frost-free means that you do not have to defrost your appliance. Frost is removed by air moving and
collecting any moisture and depositing it on the cooling coil. The cooling coil periodically warms up enough to
melt the frost, and the water then flows down to the drain pan (located behind the base grill) where it is
evaporated.
Complete cleaning should be done at least once a year.
1. Unplug appliance or disconnect power.
2. Remove all substances.
3. Wash the inside walls with a solution of mild detergent in warm water or 2 tbsp. (26 mg) baking soda to 1
qt (0.95 L) warm water.
Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids,
cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic
parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning
tools. These can scratch or damage materials.
4. Rinse well and wipe dry with a clean soft cloth.
5. Use the appropriate cleaning method for your exterior finish.
Wash exteriors with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or
harsh cleaners, or cleaners designed for stainless steel. Dry thoroughly with a soft cloth. For additional
protection for exterior surfaces apply stainless steel appliance polish with a clean, soft cloth. This is especially
important in costal areas, and installations near a swimming pool, or where chlorides are present.
6. Plug in appliance or reconnect power.
7. Replace all shelves.
Page 9
Lynx Grills Inc.
L24REF
TEMPERATURE SELECTION

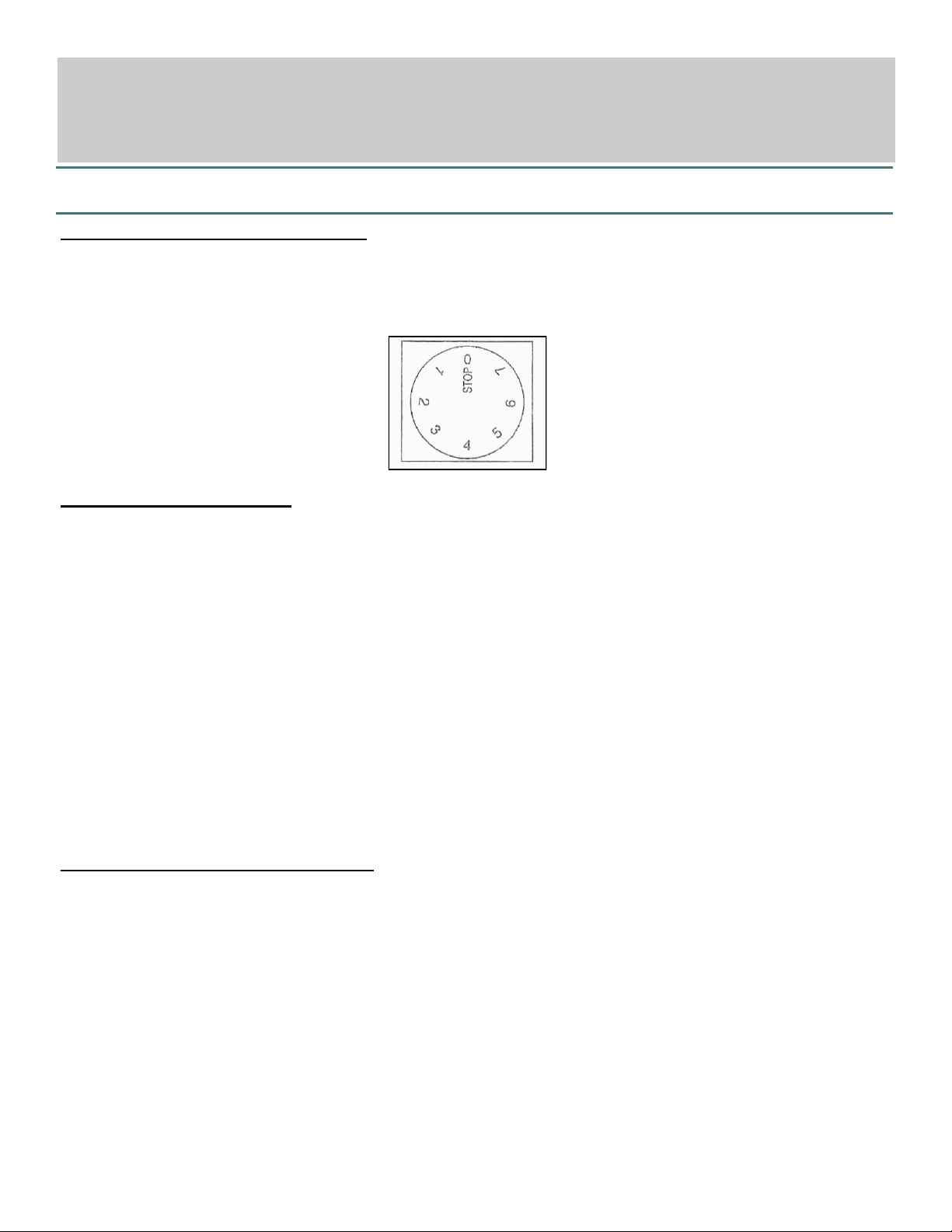

HOW TO ADJUST THE THERMOSTAT
The refrigerator is controlled with a thermostat knob located inside the unit, towards the right-hand corner. Turn the
knob clockwise from the STOP (0) position toward the higher numbers for colder temperatures.
TEMPERATURE CONTROLS
1. Higher settings on the knob (higher numbers) mean lower temperatures (colder) in all compartments of the
appliance. Temperature in the interior of the appliance may even drop below 32°F. Use higher thermostat settings
only when required or recommended. When the ambient temperature is normal, we recommend medium setting.
2. Changes of the ambient temperature affect temperature in the interior of the appliance (choose correct setting of
the thermostat knob).
3. In STOP (0) position the appliance does not operate (the cooling system is switched off), yet power supply is not
interrupted (the light is on, when you open the refrigerator door).
4. The temperature in the refrigerator also depends on how often you open the door.
In all small refrigerators without interior fans, temperatures are coldest near the bottom, and occasionally near the
rear. Place contents accordingly. It is best not to operate these units mostly empty. If temperatures are erratic, try
putting some water bottles or freezer packs inside to create a load for the compressor.
WINTERIZING YOUR REFRIGERATOR
This should be done when the daily low temperatures fall below 45°F. It is best to winterize before the low temperatures
begin. Operating the unit at temperatures below 45°F will void the warranty.
Unplug the refrigerator
Remove all contents
Remove the front grill
Clean the condenser of all loos debris that have accumulated like leaves, dirt etc.
Reinstall the front grill
Clean the interior and exterior of the refrigerator using approved products and polish
Covering the unit is not recommended. While it is not needed, you may remove the unit from the outdoor location and
store it indoors during the winter season.
When the temperature begins to warm you can put the refrigerator back into service by reversing the steps above. It is
recommended that the unit be operated for 24 hours to stabilize the temperature before using.
Page 10
Lynx Grills Inc.
L24REF
TROUBLE SHOOTING
Try the solutions suggested here first to avoid the cost of an unnecessary service call...
Your refrigerator will not operate:
1. Has a household fuse blown or circuit breaker tripped?
Replace the fuse or reset the circuit breaker.
2. There is water in the defrost drain pan. Is the refrigerator defrosting?
The water will evaporate. It is normal for water to drip into the defrost pan. Is it more humid than normal?
When it is humid, expect that the water in the defrost pan will take longer to evaporate.
3. The motor seems to run too much. Is there any frost buildup or a package preventing the door from
closing? Defrost and clean the refrigerator, move packages so the door closes properly.
Is the room temperature hotter than normal?
The motor will run longer under warm conditions. At normal room temperatures, your motor will run about
40% to 80% of the time. Under warmer conditions, it will run even more.
Has a large amount of food just been added to the refrigerator?
Adding a large amount of food warms the refrigerator. The motor normally will run longer to cool the refrigerator back down. It can take several hours for the refrigerator to return to the normal temperature.
Is the door closed completely?
Push the door firmly shut. If it will not shut all the way, see “The door will not close completely” later in this
section.
Are the condenser coils dirty, preventing proper cooling (on some models)?
This prevents air transfer and makes the motor work harder. Clean the condenser coils.
Is the door gasket sealed all the way around?
Contact Lynx Customer Care.
NOTE: If the problem is not due to any of the above, remember that the compressor on your new
appliance will operate longer than your old one due to its high-efficiency motor.
Is the temperature is too warm? Are the air vents blocked? Is the door opened often?
This prevents cold air movement. Move objects away from the air vents. See “Ensuring Proper Air Circulation” for air vent locations. Be aware that the refrigerator will warm when this occurs. In order to keep
the refrigerator cool, try to get everything you need out of the refrigerator at once, keep food organized so
it is easy to find, and close the door as soon as the food is removed.
4. The door will not close completely or is difficult to open: Are food packages blocking the door? Re-
arrange containers so that they fit more tightly and take up less space. Examine the door gasket to see if
it is dirty, sticky or damaged. Are the shelves out of position? Put the shelves back into their correct positions. Adjust the leveling leg so that the refrigerator tilts a little to the rear. This will help the door close.
Check the door hinges, reposition and tighten if needed to prevent the door from sagging
5. Water has risen above the kick plate. Water can seep into the refrigerator foam insulation and cause it
to swell. Water reaching the GFI cord or the compressor may damage the electrical system.
Page 11
Lynx Grills Inc.
L24REF
SERVICE OR ASSISTANCE
Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below.
When calling, please know the purchase date and the complete model and serial number of your appliance.
This information will help us to better respond to your request. This information is found on the rating plate
located on the back of the refrigerator.
IF YOU NEED REPLACEMENT PARTS
If you need to order replacement parts, we recommend that you only use factory specified parts. Factory
specified parts will fit right and work right, because they are made with the same precision used to build every new LYNX appliance.
1. Check the plug, fuse and/or circuit breaker.
2. Test the outlet with a lamp or radio to verify power is available.
3. Make certain that the outlet used is not controlled by a wall switch. This is more common in outdoor
kitchens.
4. Be sure the control is not set to 0 (OFF).
5. Check that the GFCI switch on the line cord is on. If necessary press the reset button.
6. Read the manual, especially the items under the Use and Care sections. You may find the answer to
your questions.
If you don’t find the answer to your questions in this manual, find the unit model number (on the upper back
of the refrigerator) and contact our Customer Care department.
Lynx Customer Care
7300 Flores Street, Downey, CA 90242
Ph.: 888-289-5969
service@lynxgrills.com
Mon-Fri 6AM to 4:30PM, Sat 8AM to 1PM Pacific Time
Page 12
Lynx
Part No.
Description
32160 Glass Shelf
31557 Upper Hinge
34277 Starting Relay
33530 Thermostat
33015 Bulb
34278 Adjustable Foot
34280 Condenser
34281 Light Switch
34279 Adjustable Foot Support
32215 Stainless Steel Door w/Handle
34282 Hinge Support - Lower
33176 Cable and Plug - GFI
34283 Compressor EM145Her 115V
34284 Kick Plate
34285 Condenser Fan Motor
11074 Lynx Logo
31736 End Cap
31580 Handle 2006 & Prior
31945 Handle 2007 & After
L24REF Replacement Parts List
Outdoor Refrigerator
Lynx Grills Inc.
L24REF
EXPLODED VIEW
Page 13
Lynx Grills Inc.
L24REF
CABINET ASSEMBLY
Page 14
Lynx Grills Inc.
L24REF
EXPLODED VIEW
DOOR ASSEMBLY
DOOR ASSEMBLY
LAMP & THERMOSTAT ASSEMBLY
EXPLODED VIEW
COMPRESSOR AND CONDENSER ASSEMBLY
Page 15
Lynx Grills Inc.
L24REF
Page 16
Lynx Grills Inc.
L24REF
ELECTRICAL DIAGRAM
Page 17
Lynx Grills Inc.
L24REF
Warranty
Call customer Care toll free in the U.S.A. @ 1-888-289-5969; Monday to Friday 6:00AM - 4:30PM,
Saturday 8AM to 1PM PacificTime.
ONE YEAR LIMITED WARRANTY
Within the 48 contiguous United States, and Canada, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor
will pay for factory specified parts and repair labor to correct defects in materials or workmanship. Service must
be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from
manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially
acceptable standards, and are not covered from damage during handling or breakage.
5 YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken glass shelves. Consumable parts (such as
filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
6. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
7. Expenses for travel and transportation for product service in remote locations.
8. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed
in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES/LIMITATION OF REMEDIES:
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR . WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO
THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO
STATE.
Lynx Grills, Inc.
7300 Flores Street, Downey, CA 90242
Ph.: 562-299-6900
Customer Care Ph.: 888-289-5969
www.lynxgrills.com
Loading...
