Lynx ionic-5CX Quick Start Manual

QUICK START GUIDE

V.18.06

Lynx Pro Audio S.L.

Valencia, Spain - www.lynxproaudio.com - [e-mail]

ionic-5CX

Manufacturer

CE CERTIFICACTION, EUROPEAN PRODUCT

ionic-5CX

LYNX Pro Audio S.L.
Calle uno - Pol. Ind. Picassent
E-46220 Picassent (Valencia)

This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited.
Copyright 2018. All rights reserved.

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

CONTENTS

1. SAFETY PRECAUTIONS 4

2. INTRODUCTION 5

3. CABINET OVERVIEW 6

4. CABINET CONNECTIONS 7

4.1 NORMATIVE 7

4.2 CONNECTORS 7

4.3 RECOMMANDATIONS 8

5. AMPLIFICATION 8

5.1 USING THE IONIC POWERED SUBWOOFERS 9

-The back panel 9

-Signal and connections 10

-Overview 11

-The confi guration panel 13

-How to select Input: Digital or Analog 14

-Select and run Presets 14

-The Online Control System OCS 15

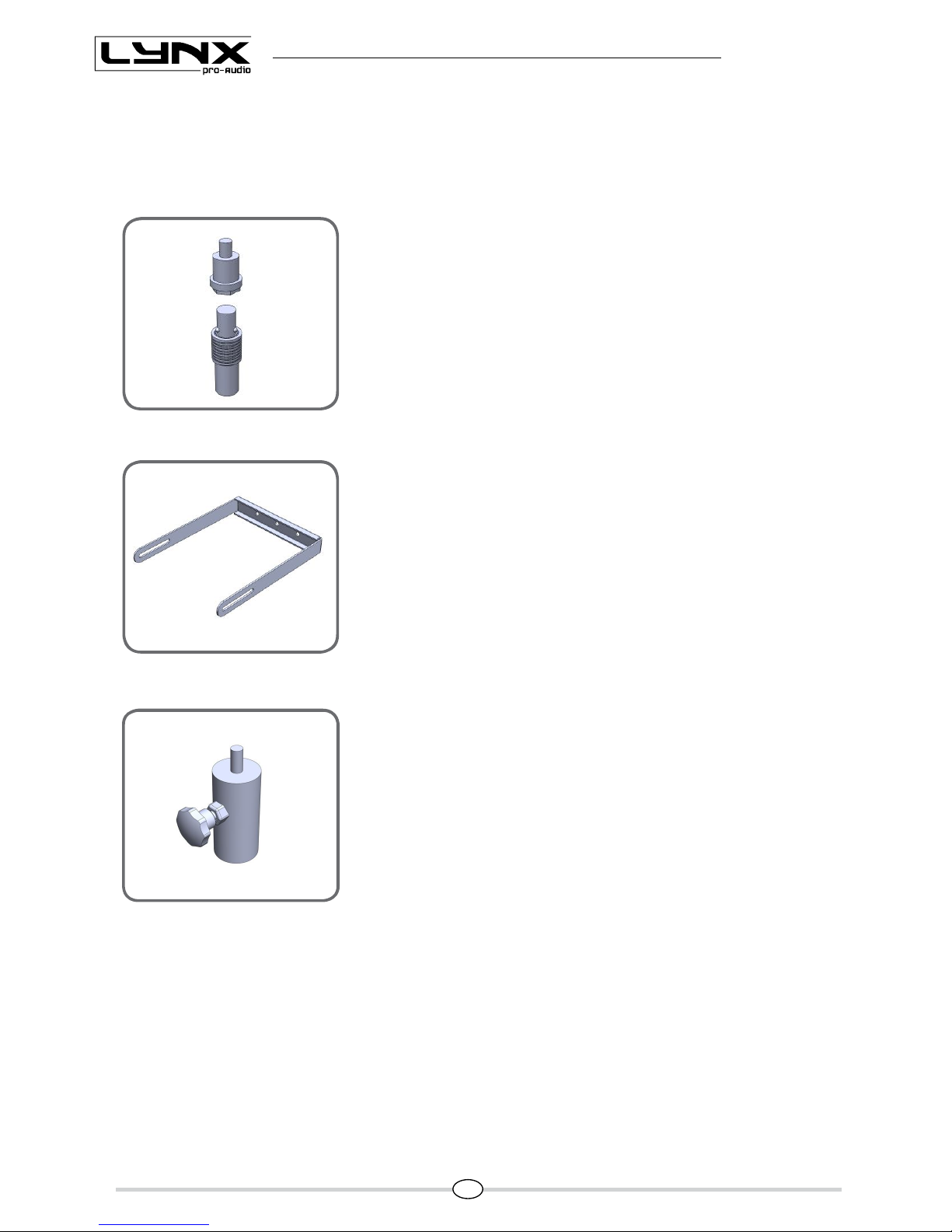

6. ACCESSORIES 16

7. CERTIFICATIONS AND GUARANTEE 17

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

- Electrical appliance.

The exclamation mark within a triangle identifi es the presence of electricity. Use the system care-

fully without wet hands or feet. Avoid installing the speaker in wet or excesivelly humid places. Do
not place material that contains liquid on or near the unit. Avoid dripping or splashing water or any
liquid over the unit. Regularly check the condition of the cables and make sure these are not being
walked on or pinched. Connect the speaker to bipolar, earthed mains. The mains plug must be con­nected to the appropriate protection (fuse or breaker). Connection to any other type of mains could
result in an electrical shock and violate local electrical codes. CAUTION: DO NOT CONNECT OR
DISCONNECT THE AC POWER CONNECTORS UNDER LOAD.

- Heavy equipment.

Apply back protection when using the system. Avoid loading and unloading at heights.

- Electrical shock risk.

The diagonal mark within a triangle identifi es the presence of dangerous voltage.

Do not open or handle the interior of the box. These parts are not to be adjusted by the user. For
maintenance and/or repair please go to an authorized service centre.In order to reduce the risk of
electric shock, disconnect from AC before plug in or unplugging Audio signal cables. Reconnect to AC
only if all signal connections are made and secured. Never manipulate the ground type plug provided.
The AC mains plugs should always remain accessible for operation.
Unplug the loudspeaker during storms or when it’s being used for a long time.

- Hearing damage risk.

These systems can reproduce large quantities of sound pressure which can damage hearing. Take
precautions if you are going to be near them for extended amounts of time and do not get too close.

- Hanging – Flying.

Do not hang the cabinets from the handles or from any other part other than the designated hanging

point. When fl ying this system please observe the technical and “Rainbow” software data carefully.

Never exceed the maximum safe working loads or ignore the instructions included within this manual.

Use Only fl ying accessories provided by Lynx Pro Audio S.L.

Rigging must be always carried out by professionals.

- Delicate Material.

Please ensure no foreign object or water enters the speaker. Only clean the unit with dry cloths. Do
not use solvents.

-Overheating – Fire risk.

To reduce the risk of the speaker over heating, avoid direct contact with sunlight. Avoid placing the
unit close to heat inducing objects such as radiators. Do not cover the equipment in use and do not

block any ventilation openings. Do not put naked fl ame, such as lighted candles, close or on top

of the unit.

- Electromagnetic and interferente emissions.

Avoid placing objects which through electromagnetic waves can damage the unit, such as mobile
phones, lap tops, magnetic strip cards etc.
This system complies with normatives EN 55103-1 (1)
EN 55103-2 (2)
(1) This device may not cause harmful interferences.
(2) This device may receive interference including interferences that may cause undesired working.

-IMPORTANT NOTE.

This Equipment must be used in accordance with these instructions and by trained professional
personnel only. This equipment should not be used in places with extreme tropical climates. Don’t
expose this apparatus to extreme humidity and or temperature values.

4

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

2. INTRODUCTION

This manual describes the recommended installation procedure for the ionic-5CX. Please read this manual
carefully.

The compact ionic-5CX is a versatile cabinet, very easy to use and easy to install. It is designed for general
installations where discreet cabinets are required. Clubs, theatres, houses of worship, public buidings, commercial

complexes, etc. The installation of the ionic-5CX can be done using external amplifi ers or in combination with the

powered subwoofers ionic-12S and 18S.

When using the ionic-5CX powered by the ionic-12S active subwoofers you can use various preset confi gurations

available from the integrated DSP.
Please note that a range of mounting accessories is available.

5

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

3. CABINET OVERVIEW

Measurements Back panel

Components

1 x 5” coaxial speaker with LF 1.5”
and HF 1” voice coil

Rated power ( AES) 150 W, 300 W program, 600 W peak

Nominal Impedance 16 Ohms

Frequency Range 64 Hz – 20 KHz (-10dB) Connectors

2 x Neutrik Speakon NL4MP / 4 x
Terminal Block 7.62 mm between pins

Frequency Response 90 Hz - 20 KHz (± 3dB) Finish Polyurea coating

Sensitivity 93 dB (1W@1m) Material 10 mm premium birch plywood

Max. SPL 114 dB - 120 dB peak Dimensions 140 x 140 x 220 mm (H x W x D)

Coverage 70º conical dispersion Weight 3Kg (6.6 lbs)

ionic-5CX

6

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

4. CABINET CONNECTIONS

4.1 Normative

The cabinet meet the following standards:
EN 55103-1:1996: Electromagnetic compatibility. Product family standard for audio, video, audio-visual and

entertainment lighting control apparatus for professional use (-1 Emmision).
EN 55103-1:1996: Electromagnetic compatibility. Product family standard for audio, video, audio-visual and

entertainment lighting control apparatus for professional use. (-2 Immunity)
EN 60065:2002: Audio, video and similar electronic apparatus. Safety requirements.

4.2 Connectors

The ionic-5CX have a connection panel at the rear of the cabinet. This consists of 2 internally bridged Neutrik
NL4-MP connectors which apply no process to the signal.

Note: If pins ±2 are not used they will still be internally bridged.

7

To connect the speakon follow the instructions in fi g. 1

Insert the male speakon in its corresponding hole and turn right until it clicks. This fi xes it safely and strongly and
helps stop it being pulled out by mistake. At the other end of the cable connect in the same way to the amplifi er

channel.

Furthermore the cabinets HR-6 and HR-8 can be supplied with 4 terminal blocks (7.62 mm between pins) instead
of the Neutrik NL4-MP.

Connector Connections per box impedance Rated power Program power

NL4MP ±1 2 16 Ohms 150 W AES 300 W AES

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

4.3 Recommendations

Always ensure cables are in good condition. Know the recommended cable length and thickness according

to the cabinet and quantity you are installing. An incorrect connection can aff ect the functioning of the system

or even damage it. Cable thickness will vary according to cabinet impedance, quantity and distance. This is
especially important when connecting Subwoofers.

As a guide, please see the following table which outlines the thickness depending on the power and length of
cable.

8

5. AMPLIFICATION

The ionic-5CX is very easy to use. The installation can be done using external amplifi ers or in combination with

the powered subwoofers ionic-12S and 18S.

When using the ionic-5CX powered by our ionic active subwoofers you can use various preset confi gurations

available from the integrated DSP.

Bear in mind Ohm ratings on the amplifi ers used to power the cabinets. For example, 2 ohm amplifi er
confi gurations are not recommended due to the excessive power from the amp output.

Never connect more cabinets than recommended in parallel. With parallel connections, the total impedance
can be calculated by dividing the impedance of 1 cabinet by the number connected.

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

9

5.1 USING THE IONIC POWERED SUBWOOFERS

The ionic-5CX can be powered from the active subwoofers ionic-12S or ionic-18S in diff erent confi guration

systems. You can use 2 cabinets in combination with one subwoofer ionic-12S or use 4 cabinets with one
subwoofer ionic-18S.

USB connection

LCD display &
digital control

Signal Input

Signal Output

Output power
speakon +1/-1

Main input Main link

* Ethernet

OPTIONAL

* Available when the user has requested the cabinets to be supplied with the Ethernet Module kit.

The back panel

In the following drawing you can see the back panel of the subwoofer ionic-12S (very similar to ionic-18S), which

includes the power amplifi cation and the digital signal control board. From this back panel you can also select
various preset confi gurations using the LCD display and digital control buttons.

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

XLR AEREAL CONNECTORS

INPUTS

1.- EARTH

2.- LIVE (+)

3.- LIVE (-)

XLR SOCKET CONNECTORS

SOCKET POWERCON TRUE1

CAUTION: Do not connect
or disconnect the AC Power
connectors under load.

NAC3FX-W

NAC3MX-W

Signal and connectors

10

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

11

Components 1 x 12” speaker with 3” voice coil

Processing 48 KHz / 56 bit double precision DSP

Control User control interface with LCD

Frequency Range 40 Hz – 250 Hz (-10dB) Control Connections

Ethernet (OCS) optional / USB (DSP
programming)

Frequency Response 46 Hz – 250 Hz (± 3dB) AC Power 85 – 270V. 50/60 Hz with PFC

Max. SPL 127 dB AC Connections

16A Neutrik powerCon TRUE1
with looping output

Coverage Angle Omnidirectional Finish High resistant Polyurea (Black)

Power

1400 W Class D with switching
power supply & PFC

Material 15mm Premium birch plywood

LF Amplifi er 1 x 700 W Dimensions (H x W x D) 407 x 440 x 520 mm

Speaker Output

Amplifi er

1 x 1700 W @ 8 Ohms Weight 23 Kg (50.6 lbs)

Overview

The subwoofer ionic-12S

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

12

Components 1 x 18” speaker with 3” voice coil

Processing 48 KHz / 56 bit double precision DSP

Control User control interface with LCD

Frequency Range 38 Hz – 250 Hz (-10dB) Control Connections

Ethernet (OCS) optional / USB (DSP
programming)

Frequency Response 42 Hz – 250 Hz (± 3dB) AC Power 85 – 270V. 50/60 Hz with PFC

Max. SPL 132 dB AC Connections

16A Neutrik powerCon TRUE1
with looping output

Coverage Angle Omnidirectional Finish High resistant polyurea (black)

Power

2400 W Class D with switching
power supply & PFC

Material 18mm Premium birch plywood

LF Amplifi er 1 x 1400 W Dimensions (H x W x D) 513 x 505 x 704 mm

Speaker Output

Amplifi er

2 x 600W @ 4 Ohms Weight 37 Kg (81.5 lbs)

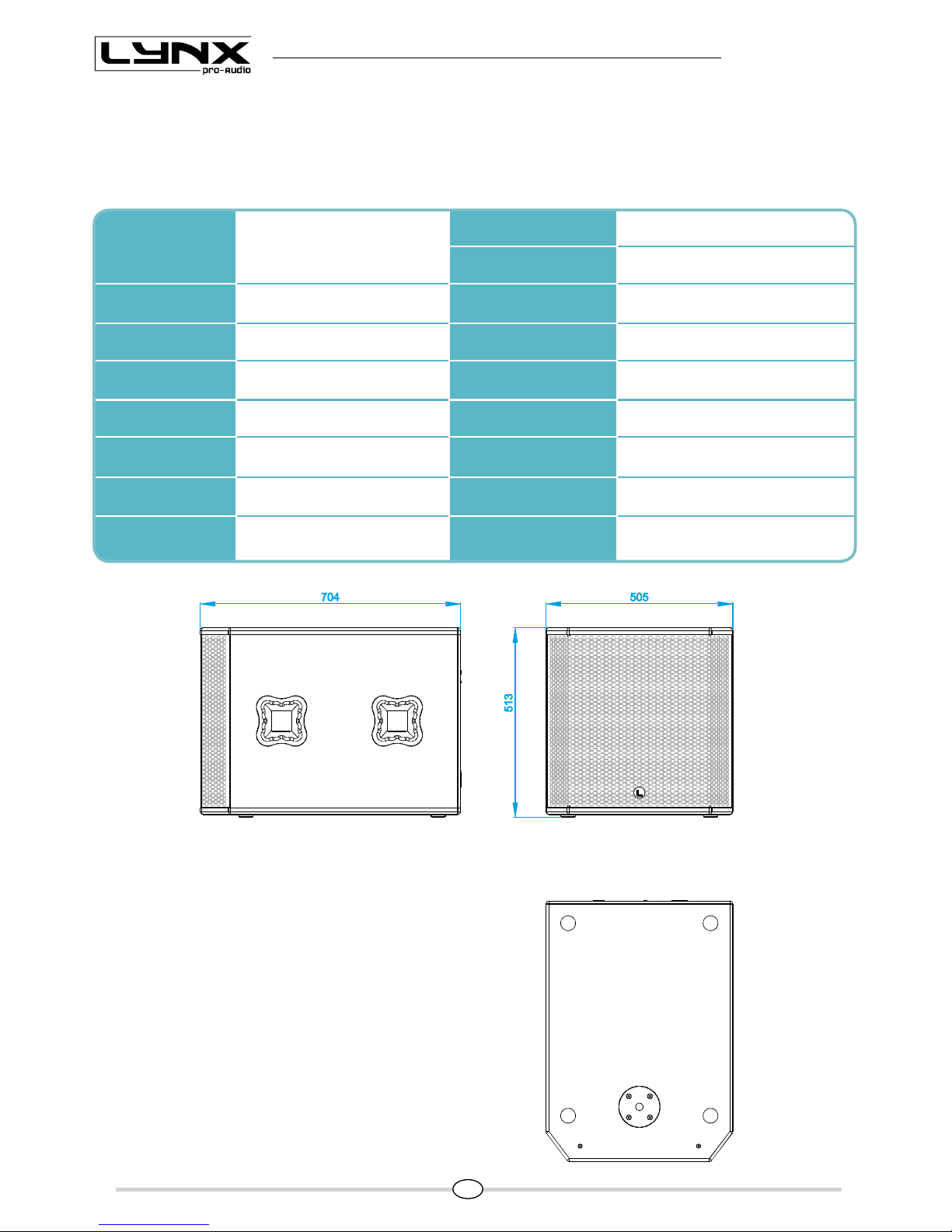

The subwoofer ionic-18S

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

Fig 1

13

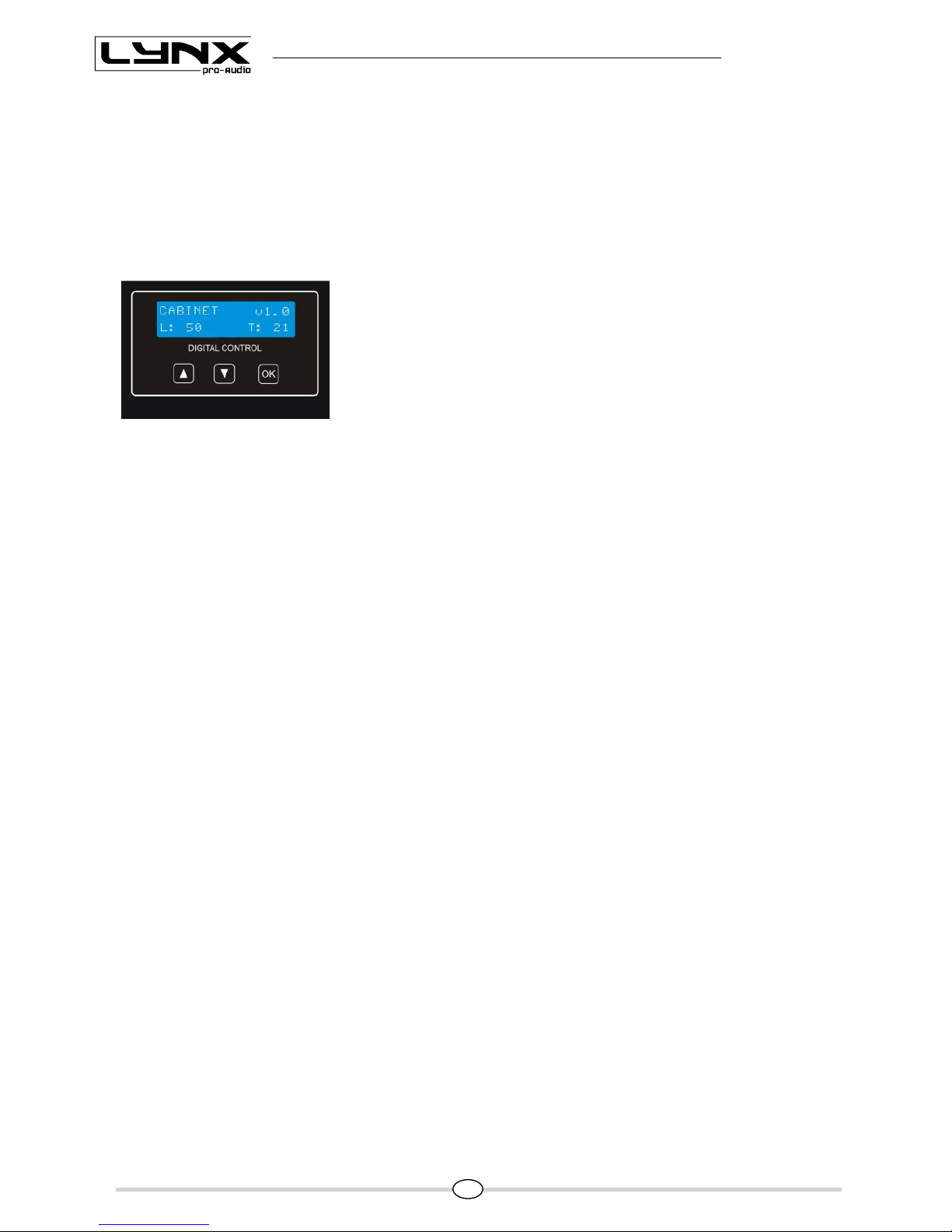

The confi guration panel

On the ionic subwoofers back panel you will see 3 buttons and an information screen, on which you can read the

established parameters and information such as amplifi cation module temperature, input signal level and name

of the current preset (Fig1). If changes are not made the display will automatically dim to save energy and avoid
unnecessary light in situations where light is not wanted. To re-activate the light simply press the OK button.

From the buttons below the display you can change the preset or select the input digital or analog. You can see
how to proceed on next page.

For ionic systems you can fi nd diff erent preset confi gurations in mono and stereo.

You can change the EQ of any preset but this change will not be saved in the preset, therefore as soon as you
change preset the EQ will be restarted. For example, if you want to use PRESET 1 but you prefer to change
the EQ, you connect the cabinet to your computer via USB or Ethernet and introduce the EQ changes using the
Online Control System software. Then you will be able to use your own EQ in PRESET 1 day after day only if you
don’t change to another preset. Once you change the preset the DSP restarts with the manufacturer settings. So

if you change from PRESET 1 to PRESET 2 and then come back to PRESET 1 you will fi nd that the PRESET 1

has the manufacturer’s EQ again.

Note:

You must apply the desired confi guration in each ionic subwoofer cabinet. Just select on the screen the cabinet
ionic-5CX with the preset confi guration desired.

This operation requires electrical power to work.

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

Note:

In case of a power cut, the DSP will save its last confi guration when restarted.

14

How to select input: Digital or Analog

This selection is only available when the user has requested the subwoofers to be supplied with the Digital input
kit. There are four input options: Analog / Digital L / Digital R / Digital L+R

To select the input mode just press the OK button (3) and the up button (1), both at the same time but pressing

the OK button fi rst. Then you can select one of the four options using the up button (1).

To confi rm your selection press OK (3) until the progress bar fi nishes.

The display will show an inverted D (digital) or an inverted A (analog) so you can always know if the input is digital
or analog.

2

3

1

Inverted D
indicates digital

Select and run presets

To change the preset confi guration (see Fig 2) just press the up button (1) and down button (2) until you see the
title and preset number required and once found press OK (3) until the progress bar fi nishes (Fig 3). The display

will indicate “Loading DSP” (Fig 4)

Fig 3

Fig 4

1 2 3

Fig 2

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

The Online Control System OCS

Who is it for?

Users of powered subwoofers ionic-12S and other DSP incorporated Lynx Pro Audio Cabinets, where the user
has requested the cabinets be supplied with the “Ethernet Module kit”.

What is it for?

Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the
preset, gain, mute, polarity and phase. You can also activate the air absorption compensation and select the
«SOLO» mode.

How does it work?

Via Ethernet (cable or wireless). Once installed, the O.C.S. software automatically detects all the cabinets
connected to the network and displays them in the O.C.S. window on the users PC.

What does it show?

As well as displaying the cabinet model and IP address the O.C.S will be monitoring in real time and the user will be
able to view RMS levels, Input clip, power module temperature, compression levels, air absorption compensation
and cabinet angulation.

15

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

6. ACCESSORIES

16

MS-5CX

Quick Coupler for 3/8” to 5/8” stand

UBR-5CX

Wall bracket for the ionic-5CX

SP-5CX

35 mm speaker pole to 3/8” male thread

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

DECLARATION OF CONFORMITY

Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives:
Low Voltage Directive 2006/95/EC

Electromagnetic Compatibility EMC 2004/108/EC
RoHS Directive 2002/95/EC

In accordance with Harmonized European Norms:
EN 60065:2002 Audio, video and similar electronic apparatus. Safety requirements
EN 55103-1:1996 Electromagnetic compatibility. Product family standard for audio, video, audiovisual

and entertainment lighting control apparatus for professional use. Part 1: Emission.
EN 55103-2:1996 Electromagnetic compatibility. Product family standard for audio, video, audiovisual

and entertainment lighting control apparatus for professional use. Part 2: Immunity.
ionic models: ionic-5CX / ionic-5CXi / ionic-12S / ionic-18S

17

LYNX Pro Audio S.L.

Calle 1 - Pol. Ind. Picassent

46220 Picassent (Valencia)

SPAIN - EU

Tel.: [phone]

www.lynxproaudio.com

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com [e-mail]

ionic-5CX

LYNX PRO AUDIO GUARANTEE

Lynx products are guaranteed against every kind of manufacturing fault 2 year after the date of sale. When products
are under guarantee, the repairing and the free supplying of the device parts in order to correct any kind of defect
are guaranteed by Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking
and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.

Lynx Pro Audio S.L. is not responsible for any damage or defect caused during the transport or caused by an undue
or improper handling y a non-authorized person during the life of this guarantee.

All our products undergo rigorous tests and quality controls. We guarantee the characteristics described here within
and their quality against any fabrication defect.

The user loses all warranty rights if he incorporates or carries out any modifi cation to the product, if he uses it outside

of the stated safe working loads or does not secure the system properly using all the pins in their corresponding
holes.

18

WEEE Declaration: Electrical and electronic equipment must be disposed of separately from normal waste at
the end of its operational lifetime. Please dispose of this product according to the respective national regulations
or contractual agreements. If there are any further questions concerning the disposal of this product please contact
Lynx Pro Audio S.L.
