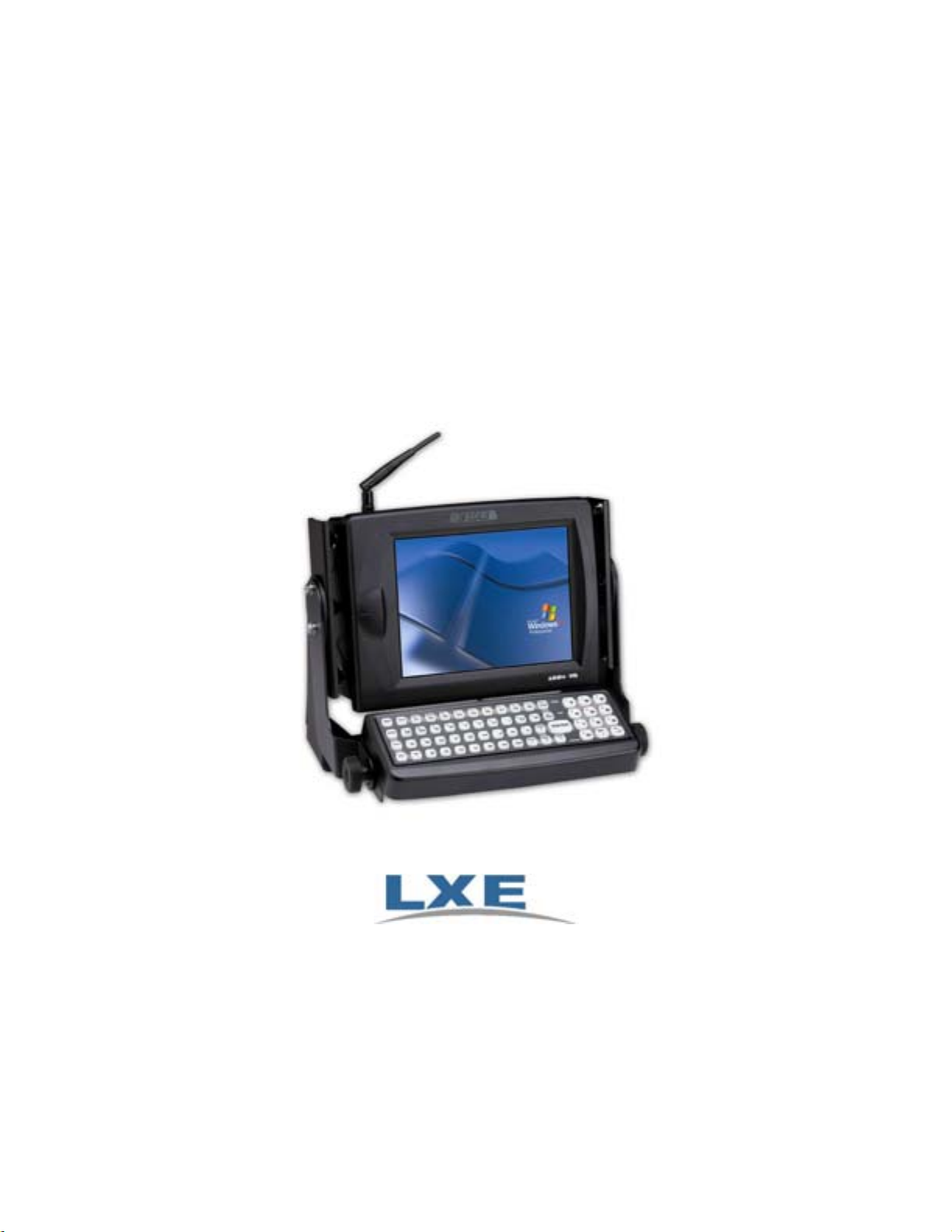

LXE VX4 User Manual

VX4 User’s Guide

(For Microsoft® Windows® 98, 2000 or XP Equipped VX4)

IMPORTANT NOTICE

LXE’s VX4 is obsolete. This electronic manual has been made available as a

courtesy to LXE’s VX4 customers. Please contact your LXE customer support

representative for assistance.

Copyright © December 2005 by LXE Inc.

All Rights Reserved

VX4A136OPGDWW

E-EQ-VX4OGWW-H-ARC

LANGUAGE : ENGLISH

Notices

Notice:

LXE Inc. reserves the right to make improvements or changes in the products described in this manual at any time without
notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LXE assumes no
liability resulting from any errors or omissions in this document, or from the use of the information contained herein. Further,
LXE Incorporated, reserves the right to revise this publication and to make changes to it from time to time without any
obligation to notify any person or organization of such revision or changes.

Copyright Notice:

This manual is copyrighted. All rights are reserved. This document may not, in whole or in part, be copied, photocopied,
reproduced, translated or reduced to any electronic medium or machine-readable form without prior consent, in writing, from
LXE Inc.

Copyright © 2005 by LXE Inc. An EMS Technologies Company.
125 Technology Parkway, Norcross, GA 30092 U.S.A. [phone]

Trademarks:

LXE® is a registered trademark of LXE Inc.

Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation in the United States and/or
other countries.

All other brand or product names are trademarks or registered trademarks of their respective companies or organizations. When
this manual is in PDF format: “Acrobat ® Reader Copyright © 1987-2005 Adobe Systems Incorporated. All rights reserved.
Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of Adobe Systems Incorporated.” applies.

The user is strongly cautioned to read Appendix B, “Regulatory Notices and Safety

!

Information”. Important safety cautions, warnings and regulatory information is contained in
Appendix B.

Important: This symbol is placed on the product to remind users to dispose of Waste Electrical

and Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this
product can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled
units with trash. For information about proper disposal, contact LXE through your local sales

representative, or visit www.lxe.com.

Revision Notice

VX4 User’s Guide

Upgrade From Revision G to Revision H

Rev. Section Explanation

F Entire Manual Manual name changed to “VX4 User’s Guide”.

F The VX4 Vehicle Mount

Computer

F Installation Revised “Connect Antenna” section.

G Introduction Added 8500 Series tethered scanners to Accessories. Added Power

G Appendix B – Regulatory

Notices and Safety
Information

H Cover Page Updated logo.

H Notices Added WEEE statement.

H Accessories Updated Accessories listing to reflect currently available items.

H External Power Supply,

Optional

H

Appendix B – Regulatory
Notices and Safety
Information

ARC Entire manual Archived. Available on LXE ServicePass website only. Product’s

Revised “Introduction” and “Environmental Specifications” sections.

Added “General Windows Keyboard Shortcuts”.

Settings recommendation for 8500 scanners. Updated Accessories
listing effective July 2004

Updated the 6726 Declaration of Conformity.

Added temperature statement.

Added WEEE statement.

Added Hungary to “R&TTE Directive Requirements.

Added temperature statement to A/C Power Supply Safety Statement.

replacement device is the LXE VX5.

Table of Contents

THE VX4 VEHICLE MOUNT COMPUTER 1

Introduction............................................................................................................... 1

Document Conventions ............................................................................................................2

Environmental Specifications...................................................................................................3

Quick Start.................................................................................................................4

Components.............................................................................................................. 5

The Full-Screen Display ...........................................................................................6

Microsoft Windows Control Panel...........................................................................

PCMCIA and ATA Slots ............................................................................................

The Keyboards..........................................................................................................

The QWERTY Keyboard .........................................................................................................

General Windows Keyboard Shortcuts ....................................................................................8

Key Maps..................................................................................................................................9

Unused Key Functions ...........................................................................................................9

NumLock and the VX4 ..........................................................................................................9

Keyboard Backlight..................................................................................................................9

Keyboard LEDs ......................................................................................................................10

CAPS LED ...........................................................................................................................10

Secondary Keys LED ...........................................................................................................11

Status LED ...........................................................................................................................11

Control Keys...........................................................................................................................12

Power Supply.......................................................................................................... 13

Backup Battery .......................................................................................................................13

Getting Help.............................................................................................................

Manuals and Accessories...................................................................................... 14

Manuals...................................................................................................................................14

Accessories .............................................................................................................................14

6
6
7

7

14

INSTALLATION 17

Install Mounting Brackets ......................................................................................17

Components ............................................................................................................................17

Mounting Dimensions ............................................................................................................18

Mounting Positions.................................................................................................................

Torque Measurements ............................................................................................................

Cable Retention Assembly .....................................................................................................

Connect Cable Ties to Back Mounting Bracket...................................................................

Procedure ................................................................................................................................22

Step 1 - Mount Bottom Mounting Bracket To Vehicle........................................................

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

18
19
20
21

22

ii Table of Contents

Step 2 - Connect VX4 To Back Mounting Bracket. ............................................................23

Step 3 - Attach VX4 In Bracket Assembly To Bottom Mounting Bracket..........................24

VMT Remote Keyboard Bracket Assembly...........................................................................26

VMT Remote Keyboard Mounting Dimensions..................................................................27

VMT Integrated Keyboard Bracket Assembly.......................................................................28

Connect Keyboard..................................................................................................31

Connect Antenna .................................................................................................... 32

Vehicle Remote Antenna Mount ............................................................................................32

Connect Serial Barcode Scanner .......................................................................... 33

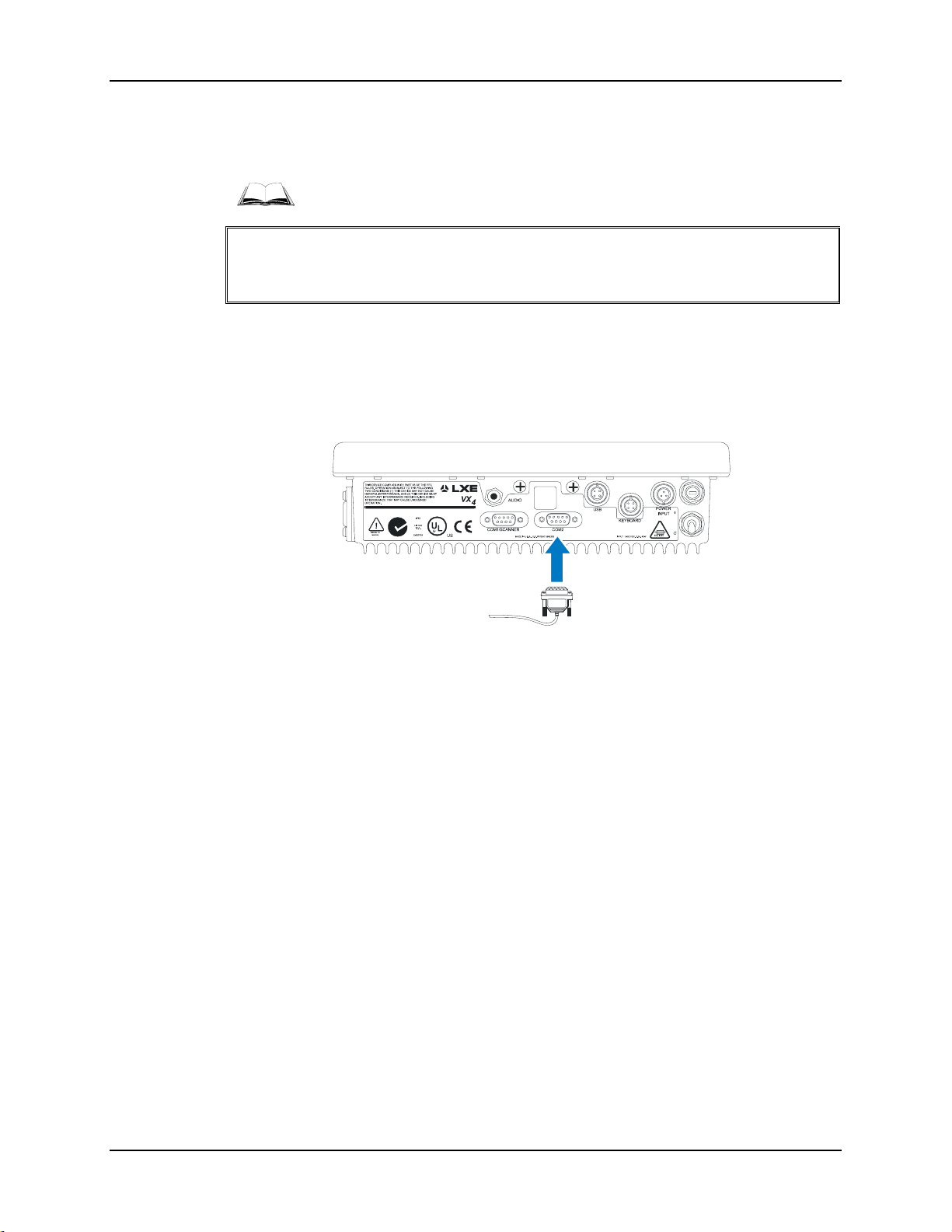

Connect Serial Printer or PC..................................................................................35

Connect USB Devices.............................................................................................36

Connect External Headset...................................................................................... 37

Connect Ethernet Cable .........................................................................................38

Connect Power Cable.............................................................................................39

External Power Supply, Optional........................................................................... 40

Vehicle 12-60VDC Direct Connection.................................................................... 41

Fuse Replacement for the VX4 .............................................................................. 44

OPERATION 45

Powering On/Off...................................................................................................... 45

Reset Key Sequence (Reboot) ................................................................................................46

Factory Default Settings.......................................................................................................46

Keyboard Backlight ................................................................................................ 46

Display and Touchscreen....................................................................................... 47

Cleaning the Display............................................................................................... 47

Adjust Screen Display............................................................................................47

Adjust Speaker Volume.......................................................................................... 48

Microsoft Windows Event Sounds .........................................................................................

48

Status Indicator.......................................................................................................48

Power Management ................................................................................................................49

Laser Barcode Scanner Warnings......................................................................... 50

Cleaning the Scan Aperture....................................................................................................50

Enter Data................................................................................................................ 51

Keyboard Entry.......................................................................................................................51

Touchscreen Entry..................................................................................................................51

Scanner Entry..........................................................................................................................

52

Aiming the Barcode Scanner................................................................................................52

Distance from Label .............................................................................................................

Successful Scan ....................................................................................................................

Unsuccessful Scan................................................................................................................

52

52

52

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Table of Contents iii

APPENDIX A KEY MAPS 53

Standard Keypad .................................................................................................... 53

Key Map 101-Key Equivalencies............................................................................

TN3270 Terminal Emulator Keypad.......................................................................

54
59

TN5250 Terminal Emulator Keypad....................................................................... 59

APPENDIX B REGULATORY NOTICES AND SAFETY INFORMATION 61

Approvals ................................................................................................................63

INDEX 75

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

iv Table of Contents

Illustrations

Figure 1 VX4 Components ..................................................................................................................................5

Figure 2 The VX4 PCMCIA and ATA Slots.......................................................................................................6

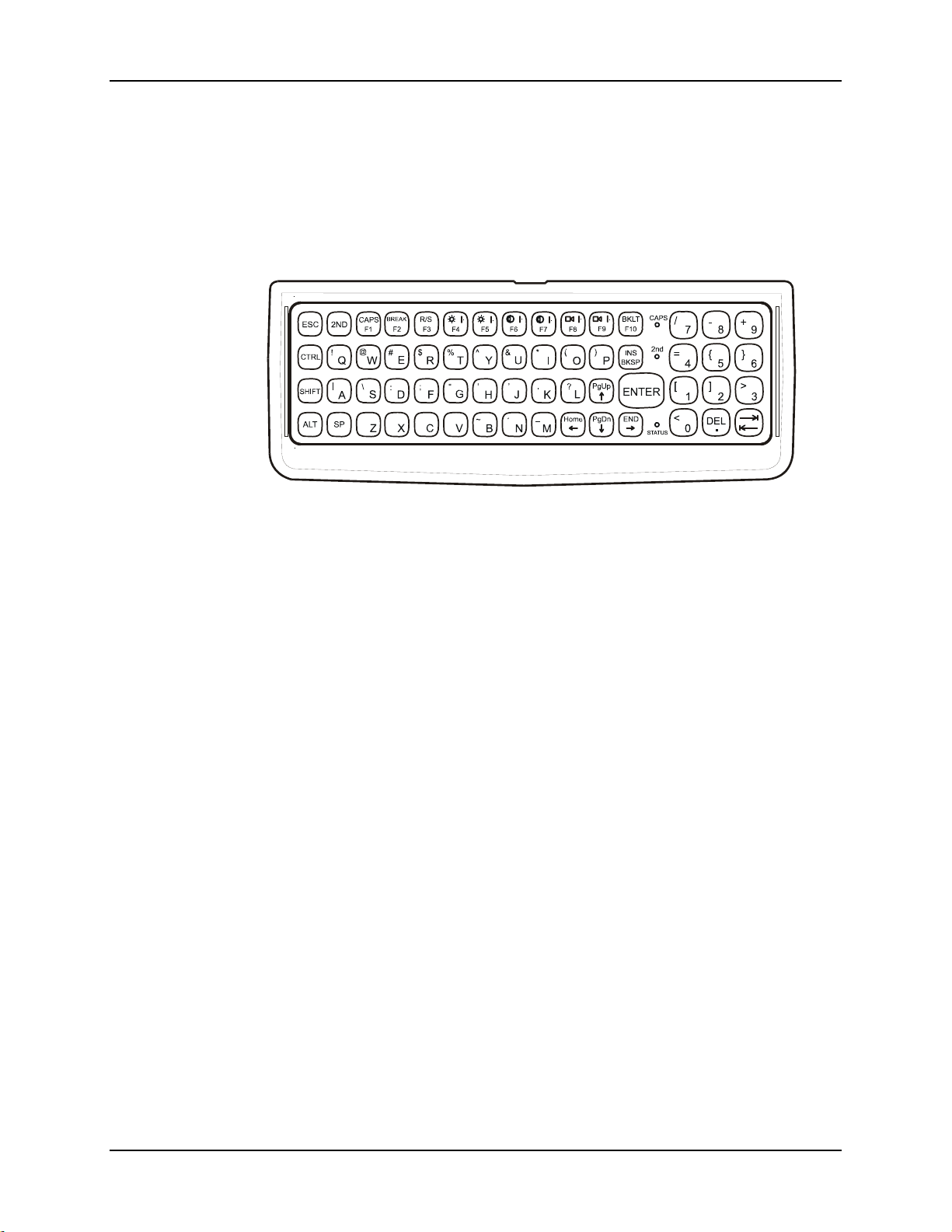

Figure 3 The LXE VMT Keyboard with Cable ................................................................................................... 7

Figure 4 The QWERTY Keyboard ......................................................................................................................7

Figure 5 Keyboard LEDs...................................................................................................................................10

Figure 6 The CapsLock Key ..............................................................................................................................10

Figure 7 The Secondary Key .............................................................................................................................11

Figure 8 The Resume/Suspend Key................................................................................................................... 11

Figure 9 The VMT Keyboard Display Controls ................................................................................................ 12

Figure 10 VX4 Bracket - Mounting Dimensions (Not To Scale) ...................................................................... 18

Figure 11 Suggested Mounting Positions ..........................................................................................................18

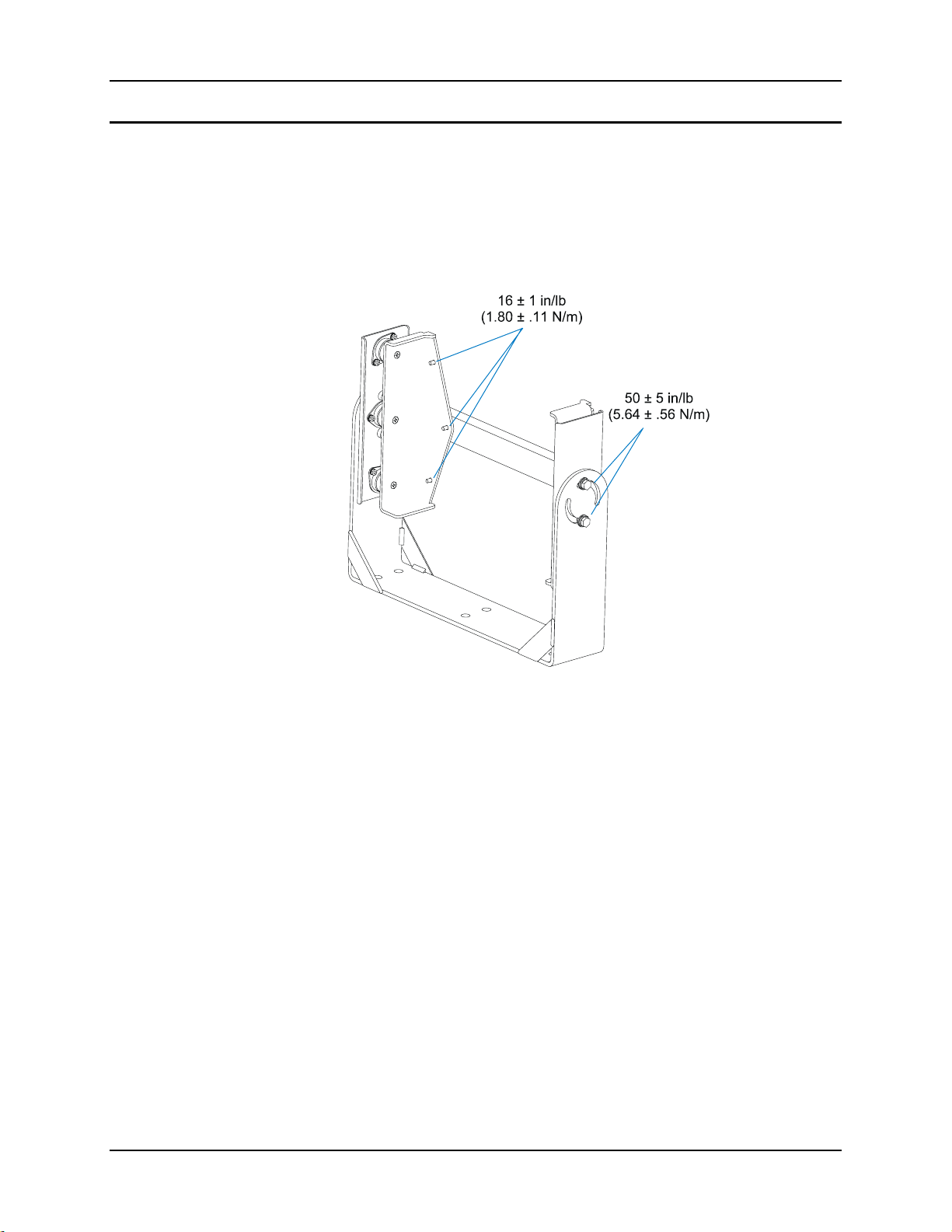

Figure 12 Torque Measurements .......................................................................................................................19

Figure 13 Strain Relief Cable Clamp Locations ................................................................................................20

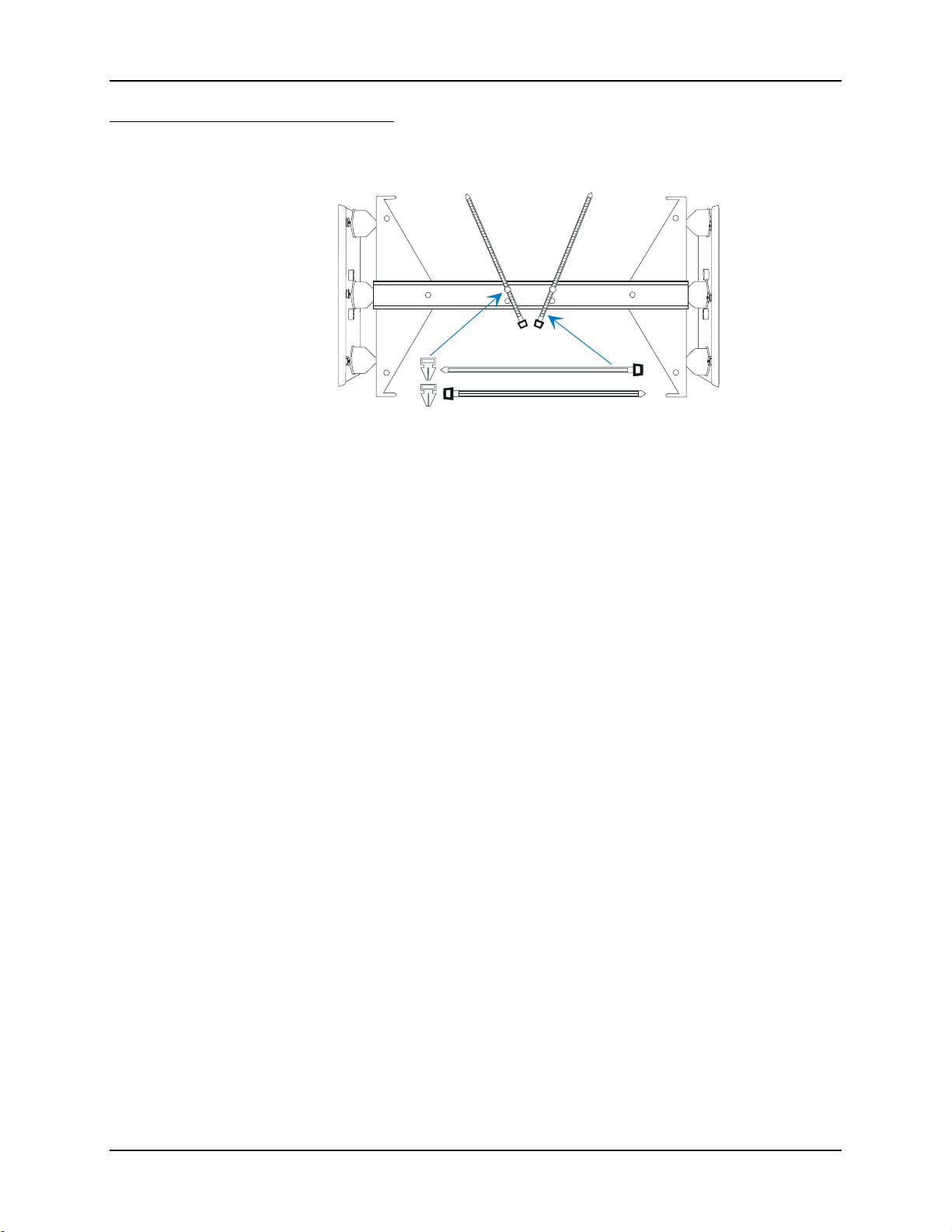

Figure 14 Cable Ties on Back Mounting Bracket Assembly............................................................................. 21

Figure 15 Connect Bottom Bracket to Vehicle..................................................................................................22

Figure 16 Back Mounting Bracket Assembly....................................................................................................23

Figure 17 VX4 Connected to Back Bracket.......................................................................................................23

Figure 18 Connect to Bottom Mounting Bracket...............................................................................................24

Figure 19 VX4 in Vehicle Bracket ....................................................................................................................25

Figure 20 VMT Remote Keyboard Bracket Assembly......................................................................................26

Figure 21 VMT Remote Keyboard - Mounting Dimensions.............................................................................27

Figure 22 VMT Integrated Keyboard Bracket Assembly..................................................................................28

Figure 23 Cable Tie Holders and Cable Hooks .................................................................................................29

Figure 24 Assembled VMT Integrated Keyboard Bracket ................................................................................30

Figure 25 Keyboard Connection Location and Keyboard .................................................................................31

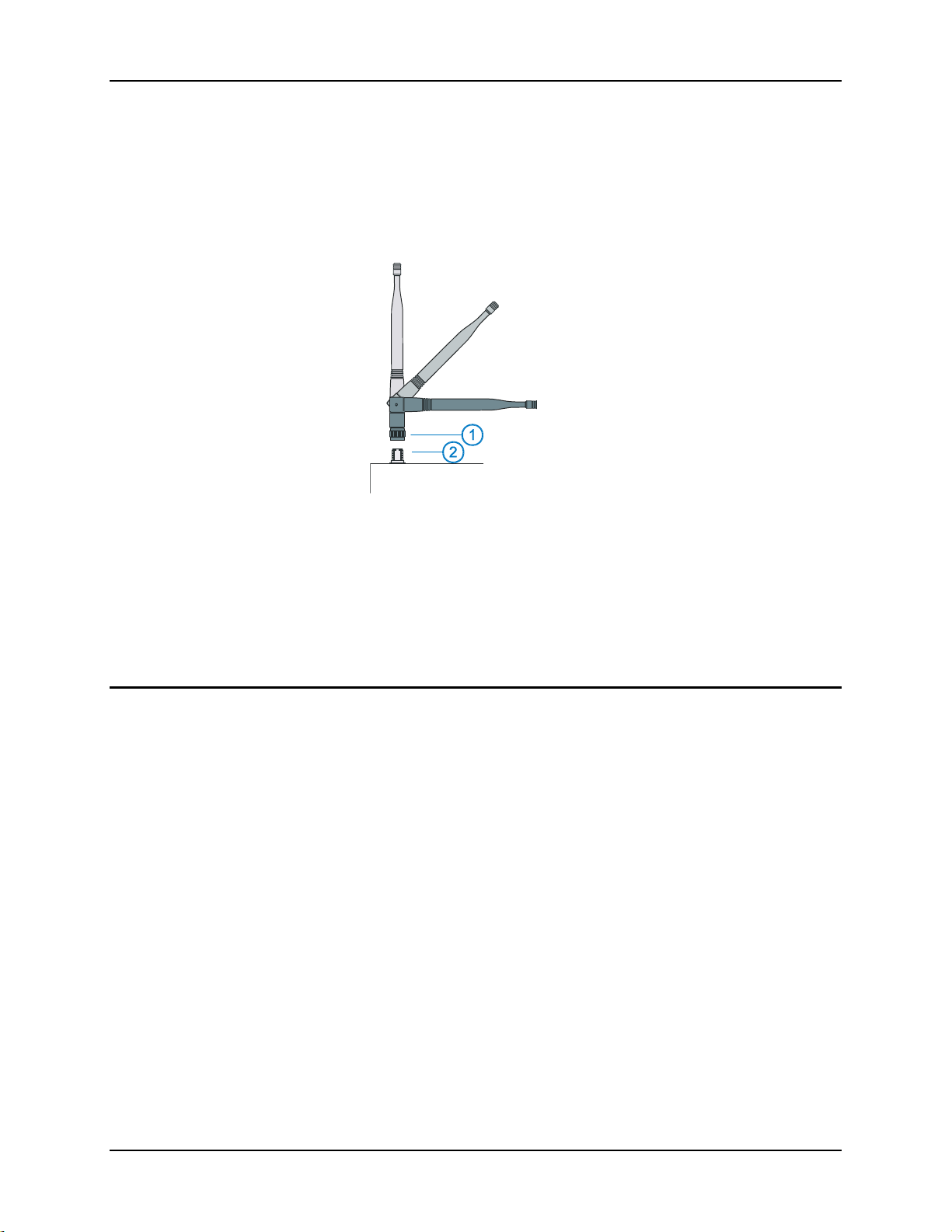

Figure 26 Connect 2.4GHz Antenna..................................................................................................................32

Figure 27 Connect Serial Scanner Cable ...........................................................................................................33

Figure 28 VX4 with Generic Barcode Scanner Attached ..................................................................................34

Figure 29 Generic Barcode Scanner ..................................................................................................................34

Figure 30 Connect Serial Cable to COM2 .........................................................................................................35

Figure 31 Connect USB Adapter Cable.............................................................................................................36

Figure 32 Connect USB Device to Adapter Cable.............................................................................................36

Figure 33 Connect External Headset .................................................................................................................37

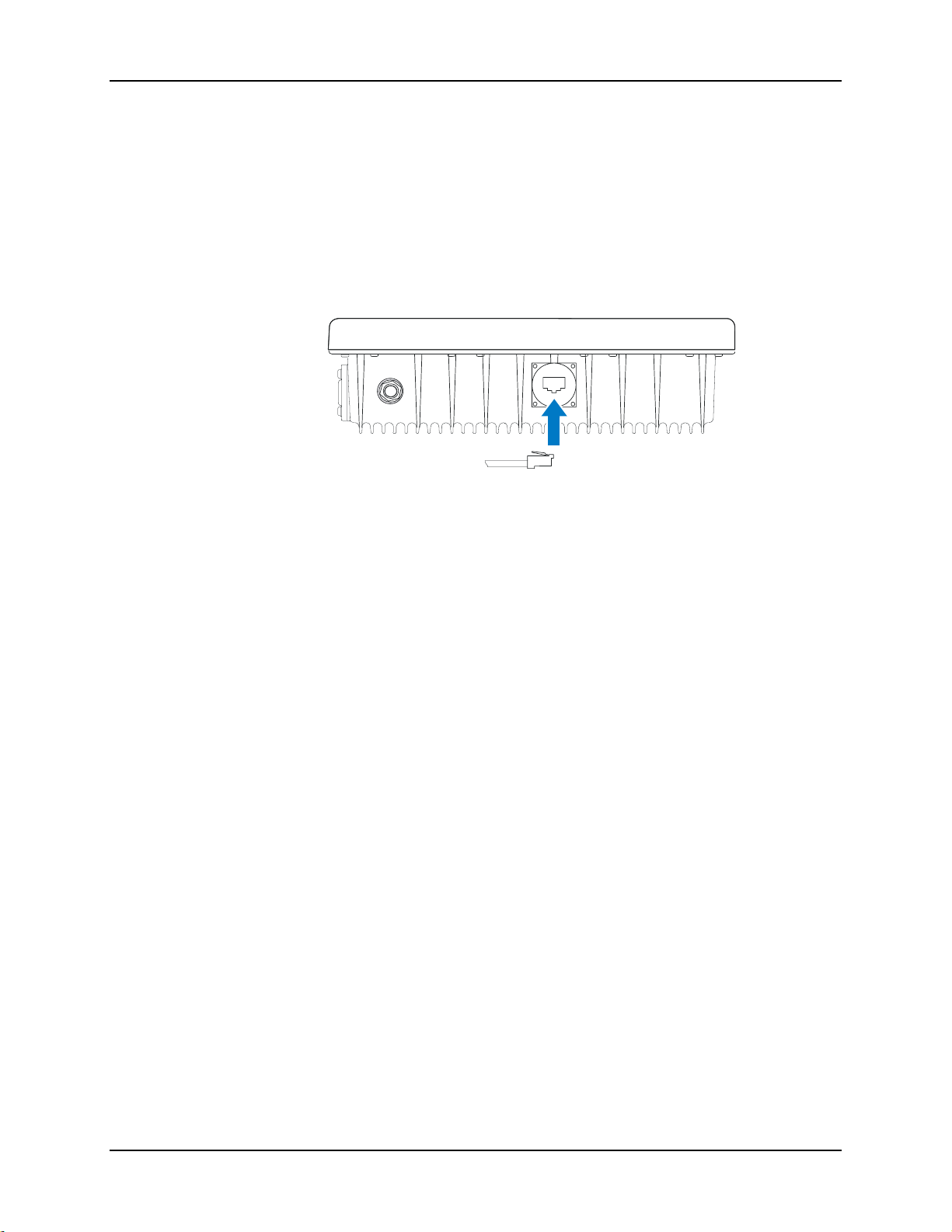

Figure 34 Connect Ethernet Cable.....................................................................................................................38

Figure 35 Connect Power Cable to VX4 ...........................................................................................................39

Figure 36 Optional Power Configuration ..........................................................................................................40

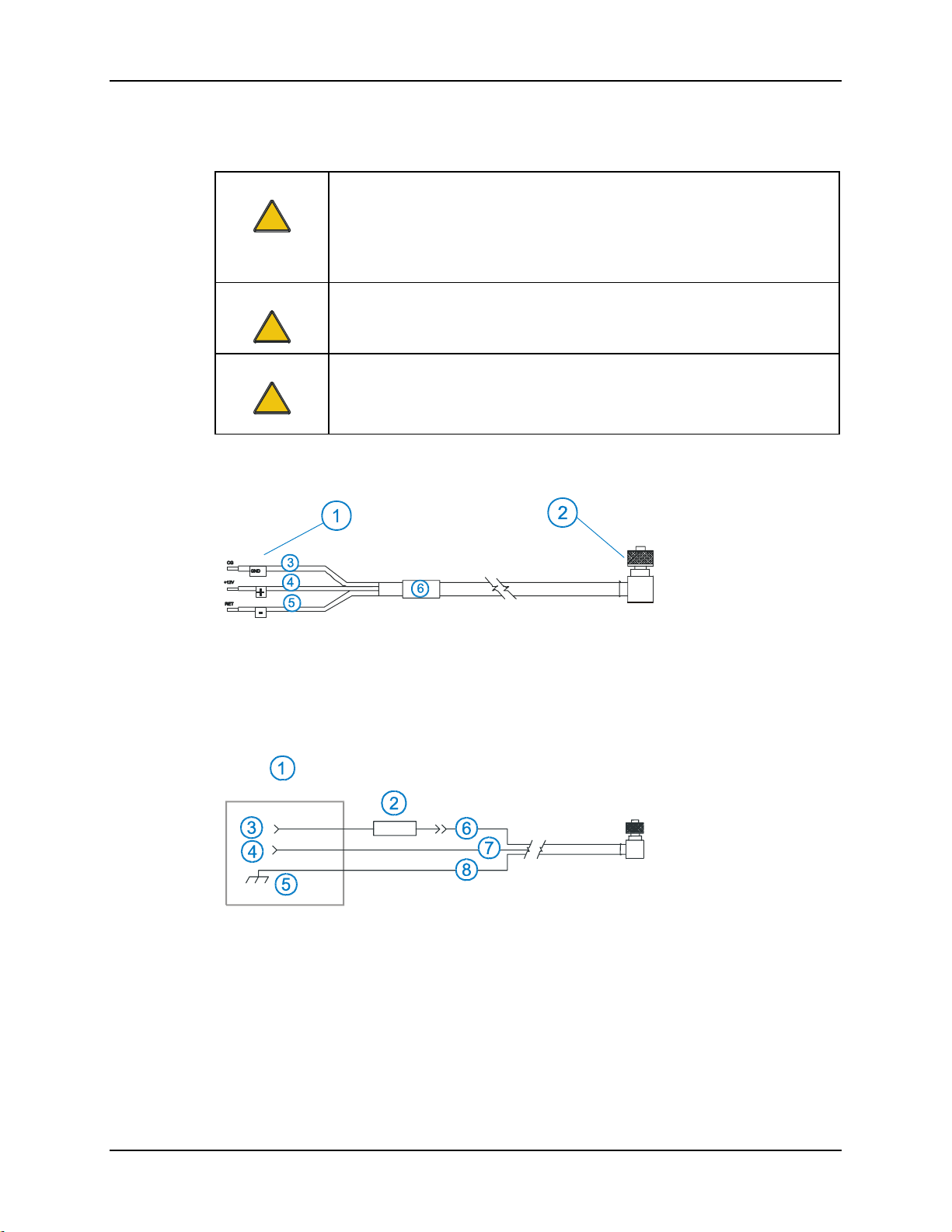

Figure 37 Direct Vehicle Power Connection Cable (Fuse Not Shown).............................................................41

Figure 38 Connecting the Power Cable to the Vehicle......................................................................................41

Figure 39 Vehicle Connection Wiring Color Codes..........................................................................................42

Figure 40 Fuse Replacement.............................................................................................................................. 44

Figure 41 The VX4 Power Switch.....................................................................................................................45

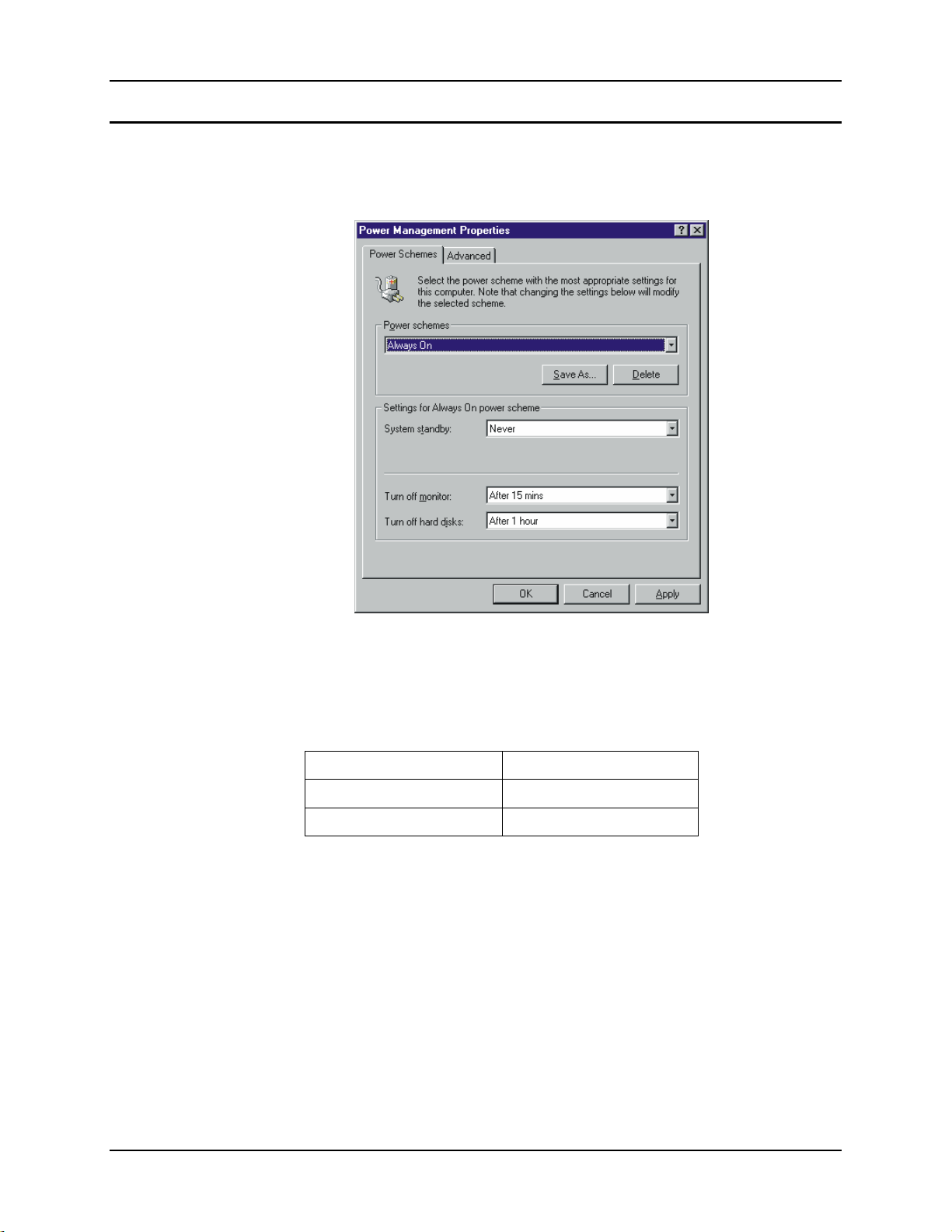

Figure 42 Microsoft Windows Power Management..........................................................................................49

Figure 43 Caution Labels Class II Scanner........................................................................................................50

Figure 44 Caution Labels Class IIIA Scanner ...................................................................................................50

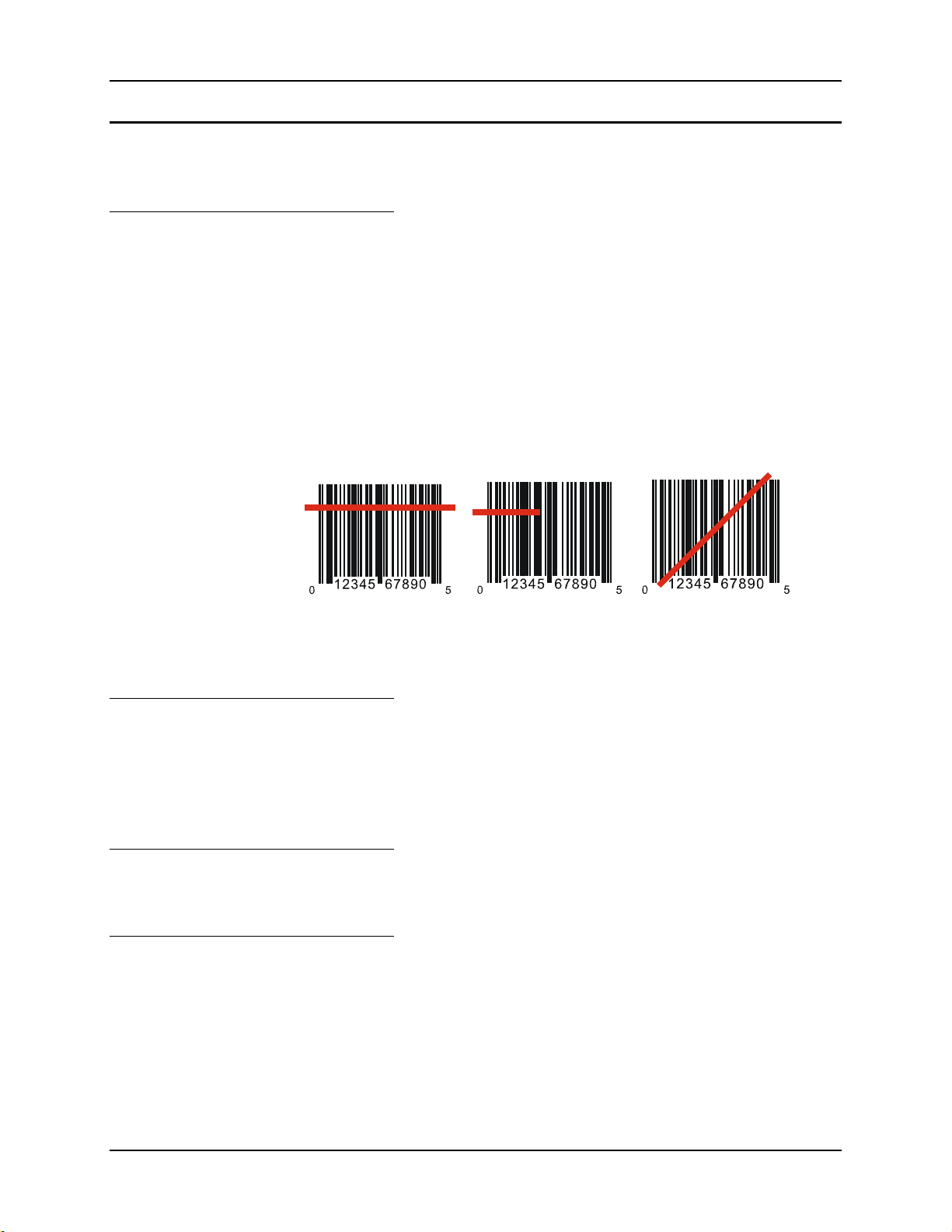

Figure 45 Scan Beam.........................................................................................................................................52

Figure 46 VMT QWERTY Keyboard ...............................................................................................................53

Figure 47 IBM 3270 Specific Keypad ...............................................................................................................59

Figure 48 IBM 5250 Specific Keypad ...............................................................................................................59

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Introduction

The VX4 Vehicle Mount Computer

The VX4 Vehicle Mount Computer (VMC) is a rugged, vehicle-mounted, PC (Personal
Computer) equipped with a Microsoft Windows operating system. The VX4 is capable of
wireless data communications from a fork-lift truck or any properly configured vehicle. The unit
uses a PCMCIA radio (spread spectrum 2.4GHz) for wireless data communications.

The VX4 is a tablet-style computer and features a SVGA color TFT display. The touch-screen
display supports graphic features and Microsoft Windows icons that the Windows 98, Windows
2000 or Windows XP operating system supports. An illuminated keyboard is available to
facilitate use in dimly lit areas.

The VX4 provides the power and functionality of a desktop computer in a vehicle mounted unit,
with a wide range of options:

• 266MHz Pentium or 400MHz Celeron CPU

1

• 64, 128 or 256MB of SDRAM

• Wireless LAN radios with single or dual (diversity) antenna

• Ethernet port

2

• Choice of storage media

• Extended temperature version

3

This document is one in a series covering the VX4 family of computers:

• For VX4 computers equipped with Microsoft Windows CE .NET Operating System:
VX4 CE .NET User’s Guide
VX4 CE .NET Reference Guide

• For VX4 computers equipped with Microsoft Windows 98, 2000 or XP operating

systems:

VX4 User’s Guide
VX4 Reference Guide

• For VX4 computers equipped with Datalight ROM-DOS Operating System:
VX4D User’s Guide
VX4D Reference Guide

These documents are available on the LXE Manuals CD-ROM.

This document is directed towards the daily user of a VX4 equipped with the Windows 98, 2000
or XP operating system. The “VX4 Reference Guide” contains technical information and
advanced functions specific to the VX4 equipped with the Windows operating systems listed
above.

1

256MB is currently available only with 400MHz Celeron processor. Please check with your

LXE representative for availability with Pentium 266MHz CPU.

2

Ethernet is available only with 400MHz Celeron processor.

3

Extended temperature versions are available with 128MB SDRAM only.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

2 Introduction

Document Conventions

This reference guide uses the following document conventions:

ALL CAPS All caps are used to represent disk directories, file names, and application

names.

Menu|Choice Rather than use the phrase “choose the Save command from the File menu”,

this manual uses the convention “choose File|Save”.

“Quotes” Indicates the title of a book, chapter or a section within a chapter (for

example, “Document Conventions”).

< > Indicates a key on the keyboard (for example, <Enter> ).

ATTENTION

!

Note: Keyword that indicates immediately relevant information.

Caution

!

WARNING

!

DANGER

!

Indicates a reference to other documentation.

Differences in operation or commands due to radio type.

Keyword that indicates vital or pivotal information to follow.

Attention symbol that indicates vital or pivotal information to follow. Also,
when marked on product, means to refer to the manual or operator’s guide.

International fuse replacement symbol. When marked on the product, the
label includes fuse ratings in volts (v) and amperes (a) for the product.

Keyword that indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.

Keyword that indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.

Keyword that indicates an imminent hazardous situation, which, if not
avoided, will result in death or serious injury.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Introduction 3

Environmental Specifications

Feature Specification

Operating Temperature

Standard version, with
rotating media

Standard version, without
rotating media

Extended Temperature
version

Storage Temperature

Standard version 14°F to 158°F (-10°C to 70°C) [non-condensing]

Extended Temperature
version

Water, Sand Dust IP66 per IEC60529

Operating Humidity Up to 90% non-condensing at 104°F (40°C)

Vibration Based on MIL Std 810D

ESD 15 kV

Shock 75G, 5ms duration, 100 shock impacts

41°F to 113°F (5°C to 45°C) [non-condensing]

32°F to 113°F (0°C to 45°C) [non-condensing]

Startup: -4°F to 122°F (-20°C to 50°C) [non-condensing]
Operating: -22ºF to 122ºF (-30ºC to 50ºF) [non-condensing]

-13°F to 158°F (-25°C to 70°C) [non-condensing]

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

4 Quick Start

Quick Start

This section’s instructions are based on the assumption that your new system is pre-configured
and requires only accessory installation (e.g. antenna, external keyboard and/or barcode scanner)
and a power source.

Use this guide as you would any other source book -- reading portions to learn about the VX4,
and then referring to it when you need more information about a particular subject. This guide
takes you through installation and operation of the LXE VX4.

In general, the sequence of events is:

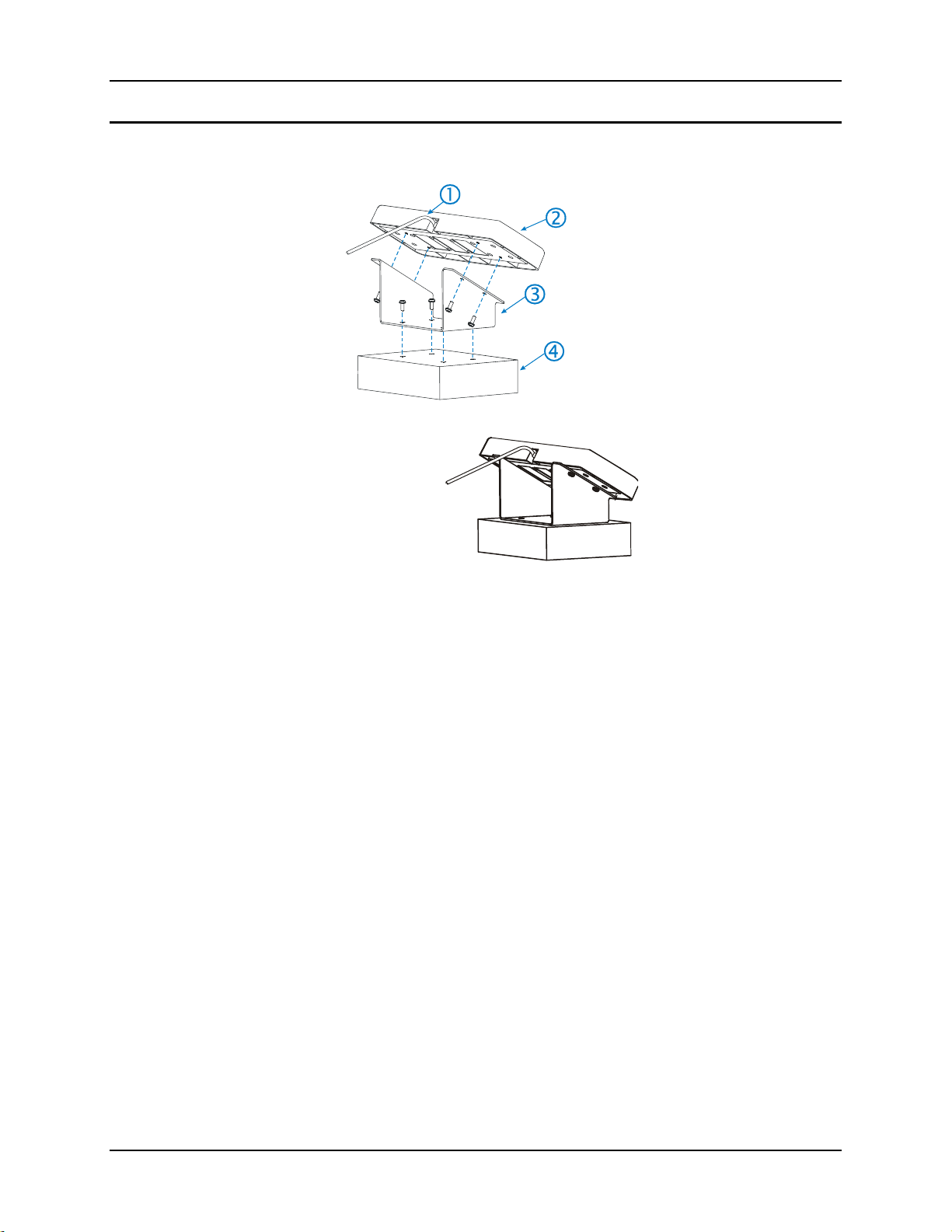

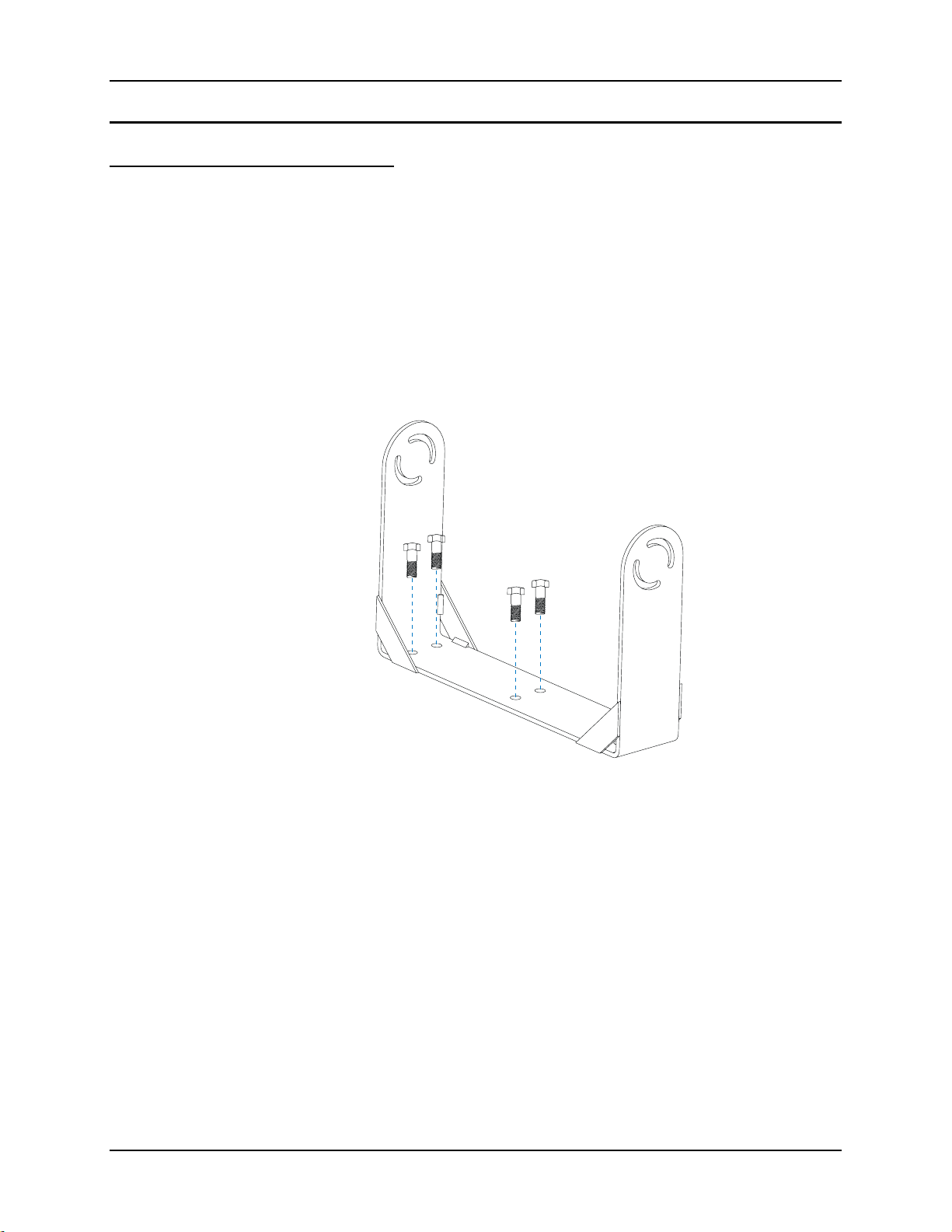

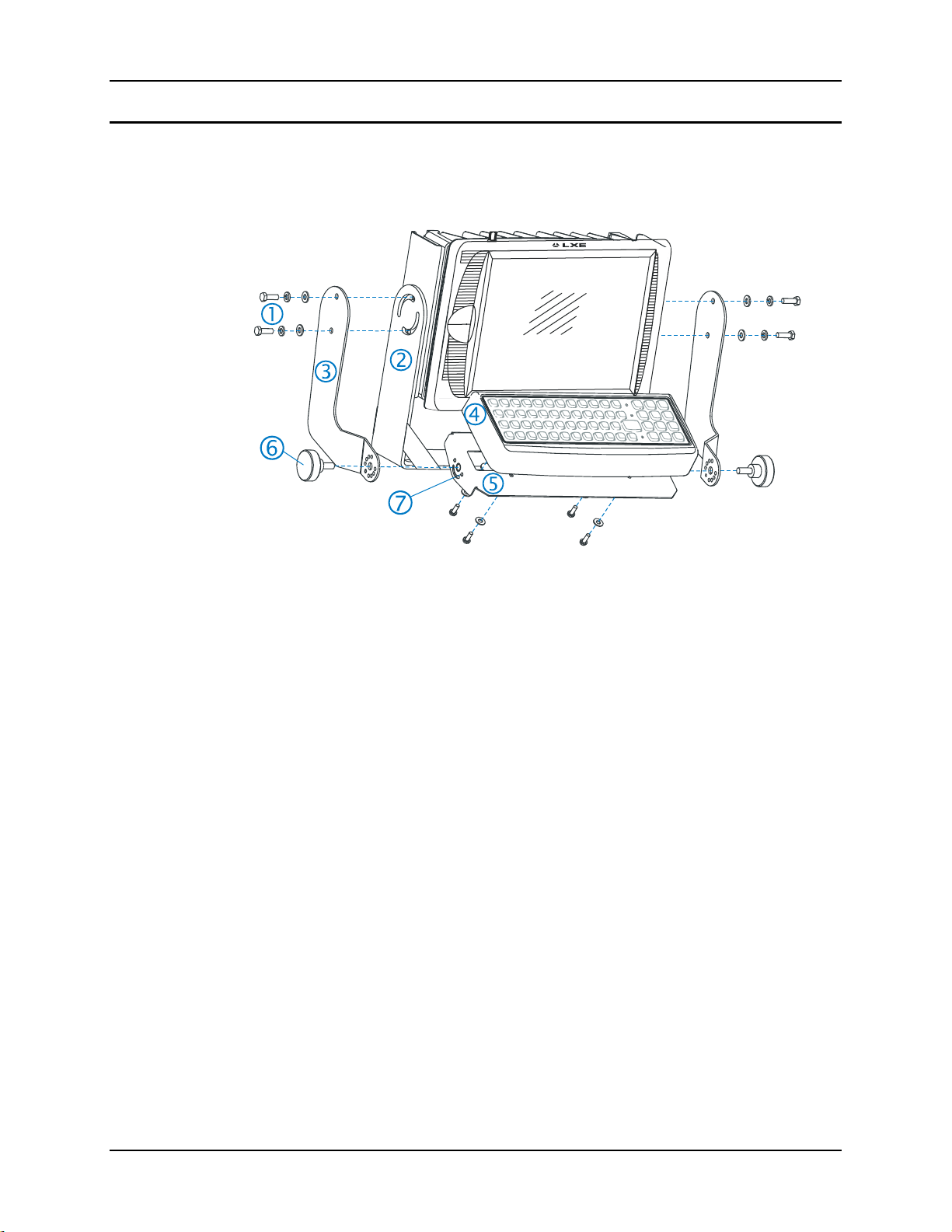

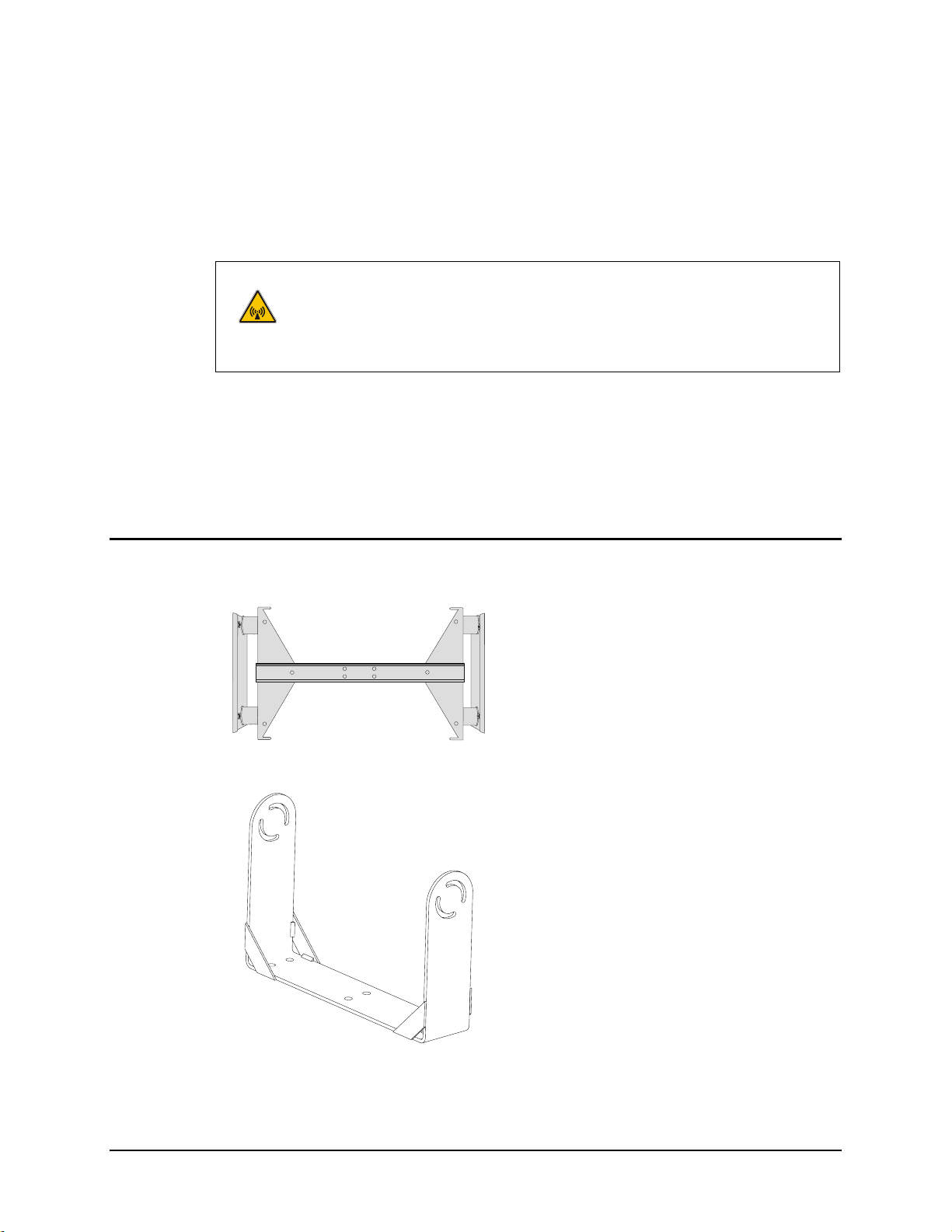

1. Install Vehicle Mounting Bracket (and keyboard mounting bracket) on vehicle.

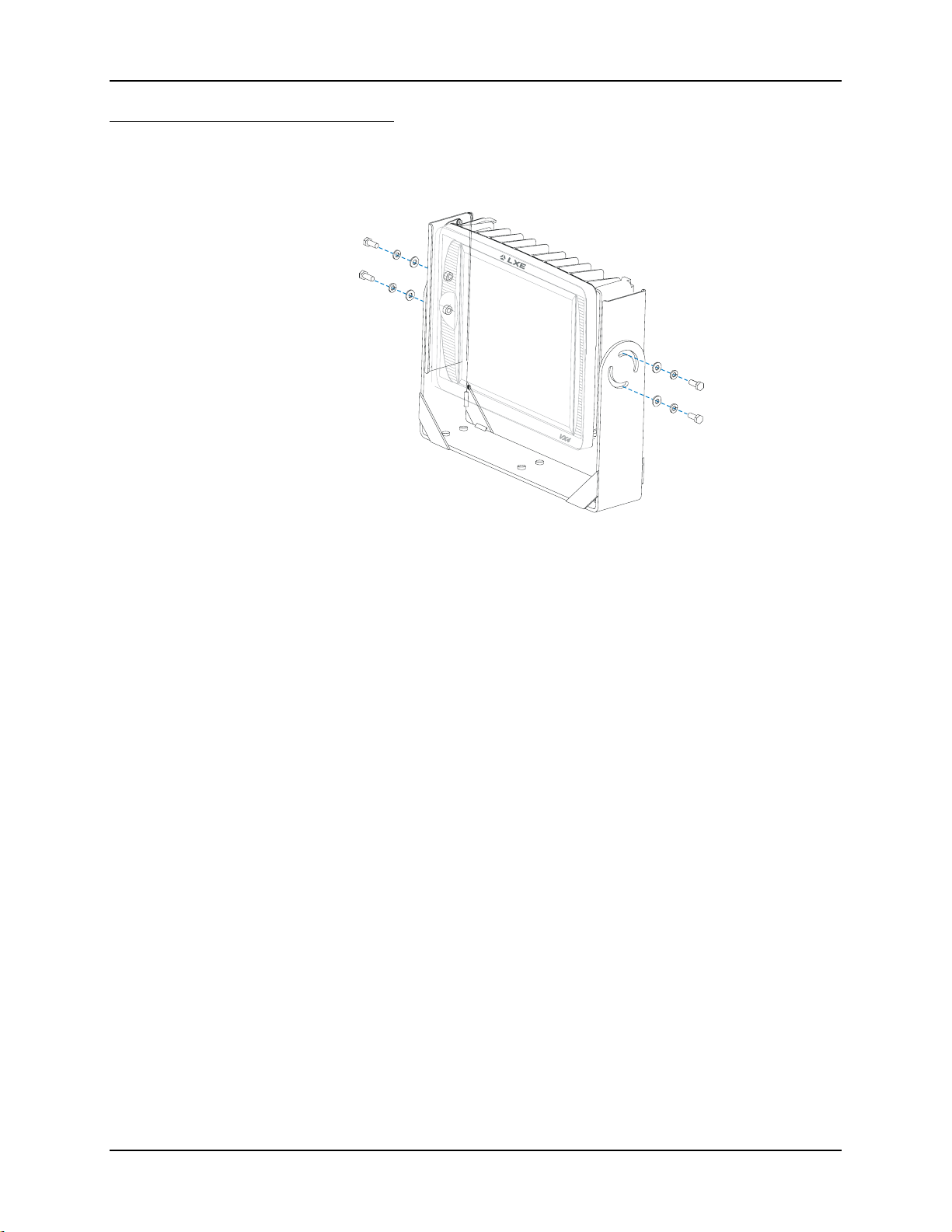

2. Secure VX4 in Mounting Bracket Assembly.

3. Connect vehicle power source to VX4 power cable.

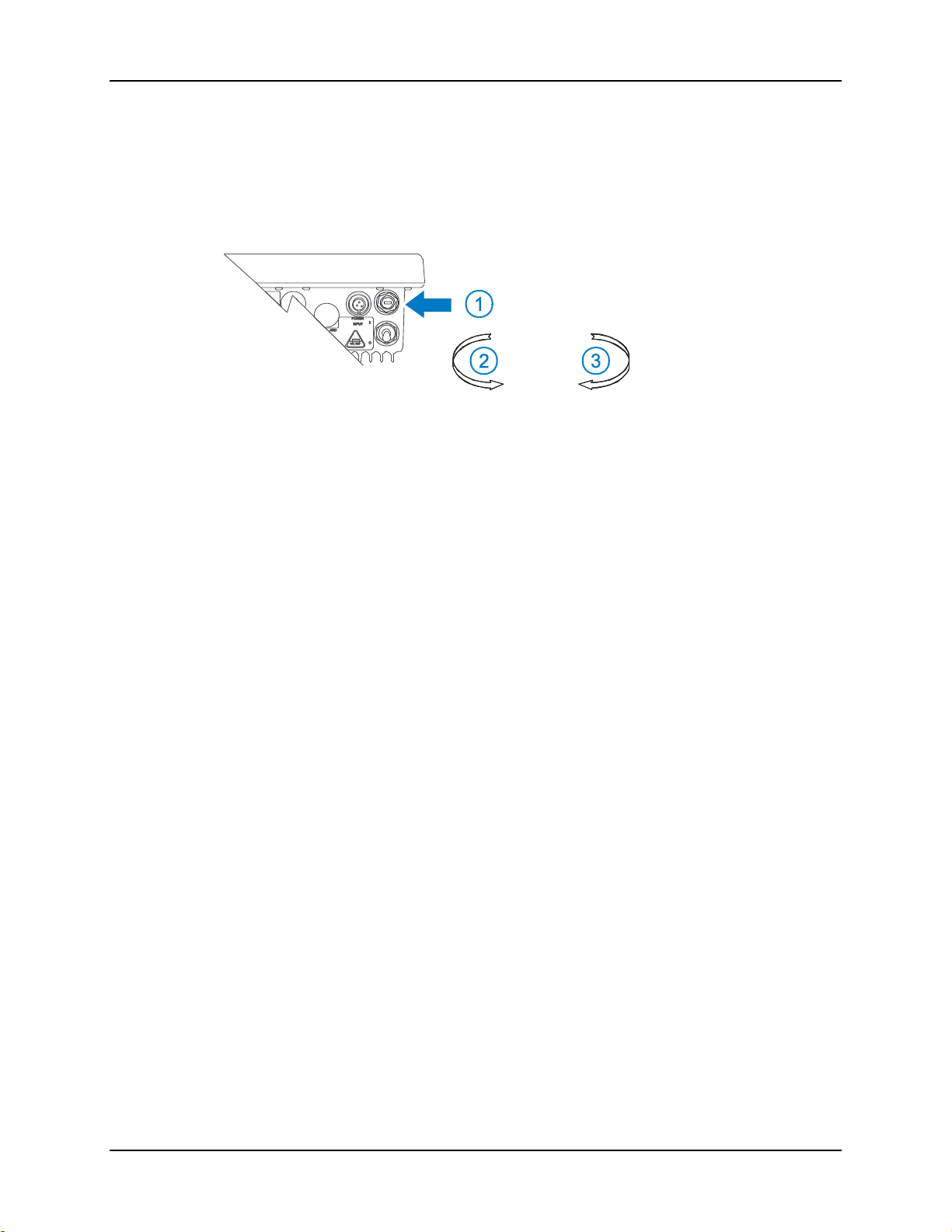

4. Connect power cable to the VX4.

5. Connect accessories to VX4, e.g. scanner, antenna, keyboard.

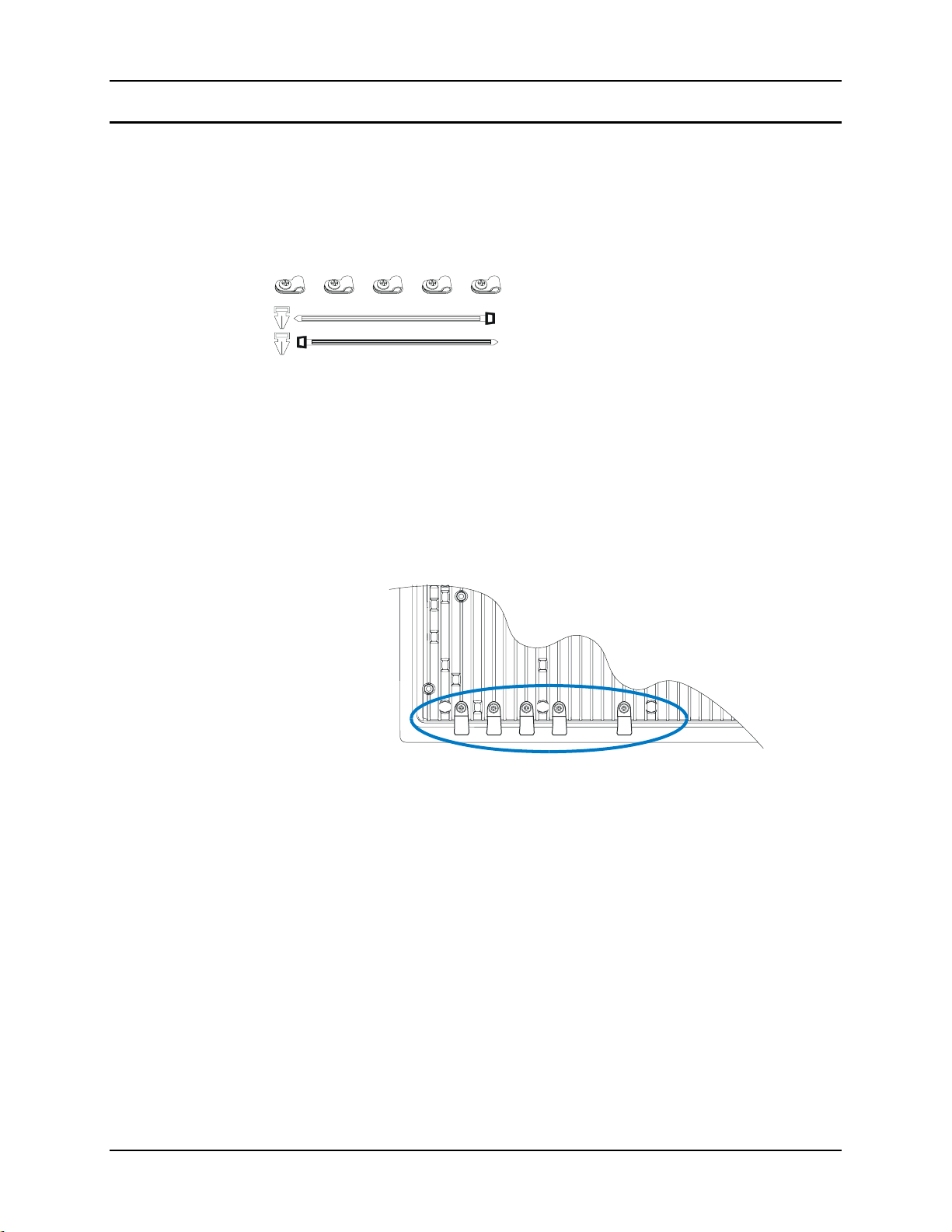

6. Secure all cables to the VX4 with the Strain Relief Cable Clamps.

7. Turn the VX4 on.

The VX4 and its keyboard should be mounted in an area in the vehicle where it:

• Does not obstruct the vehicle operator’s vision or safe vehicle operation.

• Will be protected from rain or inclement weather.

• Will be protected from extremely high concentrations of dust or wind-blown debris.

• Can be easily accessed by an operator seated in the driver’s seat.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Components 5

Components

1. Antenna Connector

2. PC Card Slots

3. Ethernet Connector

4. Speaker/Beeper

5. Audio Jack for
External Speaker or
Headset

6. COM1/Scanner
Connector

7. COM2 Connector

5

5

8. USB Cable
Connector

9. Keyboard
Connector

10. Power Connector

11. Power Switch

12. Fuse

4

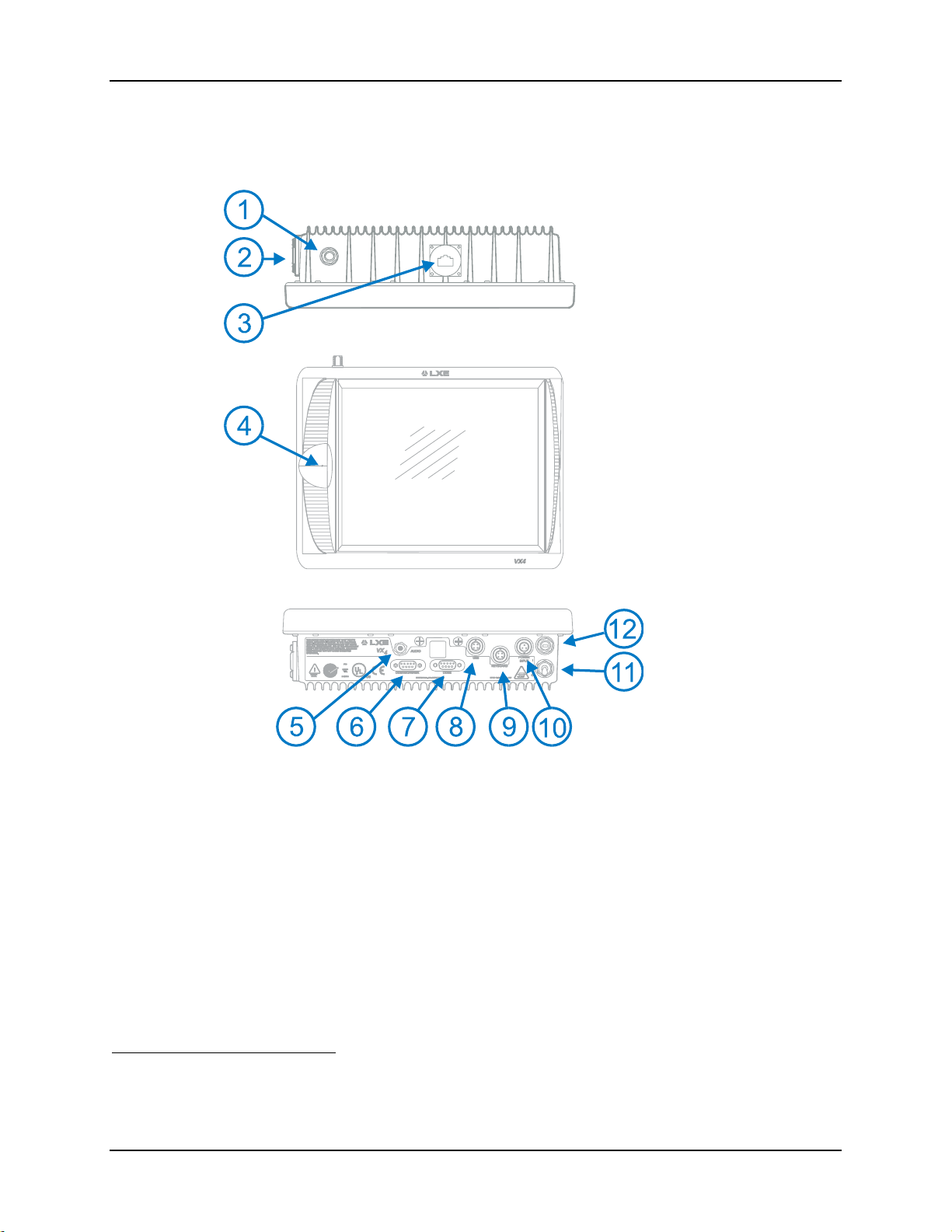

Figure 1 VX4 Components

4

The Ethernet connector is optional. It is not present on all VX4’s.

5

COM1 is configured with Pin 9 +5V. COM2 is configured with Pin 9 RI. Refer to the VX4

Reference Guide, Chapter 4, “System Configuration” for more information.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

6 The Full-Screen Display

The Full-Screen Display

The VX4 Display is a TFT color unit capable of supporting VGA and SVGA graphics modes. The
maximum display size is 800 x 600 pixels.

Microsoft Windows Control Panel

The Microsoft Windows Control Panel and System Tray icons panel provide standard Windows
options for configuring the VX4, such as:

• Sound volume

• Display configuration

• Power management

• PCMCIA card management

Please consult your System Administrator or refer to commercially available
Microsoft Windows user guides or the Windows on-line Help application for
these standard Windows configuration options.

PCMCIA and ATA Slots

The VX4 has two active PCMCIA slots and two Secondary IDE ATA slots. The right slots, Slot
0 and Slot 1 are PCMCIA slots. They support the Personal Computer Memory Card International
Association (PCMCIA) 2.1 standards. These slots are intended for use with LXE Type II

2.4GHz Spread Spectrum radios.

The left slots are used for ATA memory cards, either PCMCIA or Compact Flash format.

1. Slot 0 (Lower Right)

2. Slot 1 (Upper Right)

3. ATA Compact Flash Slot
(Lower Left)

4. ATA PCMCIA Slot (Upper Left)

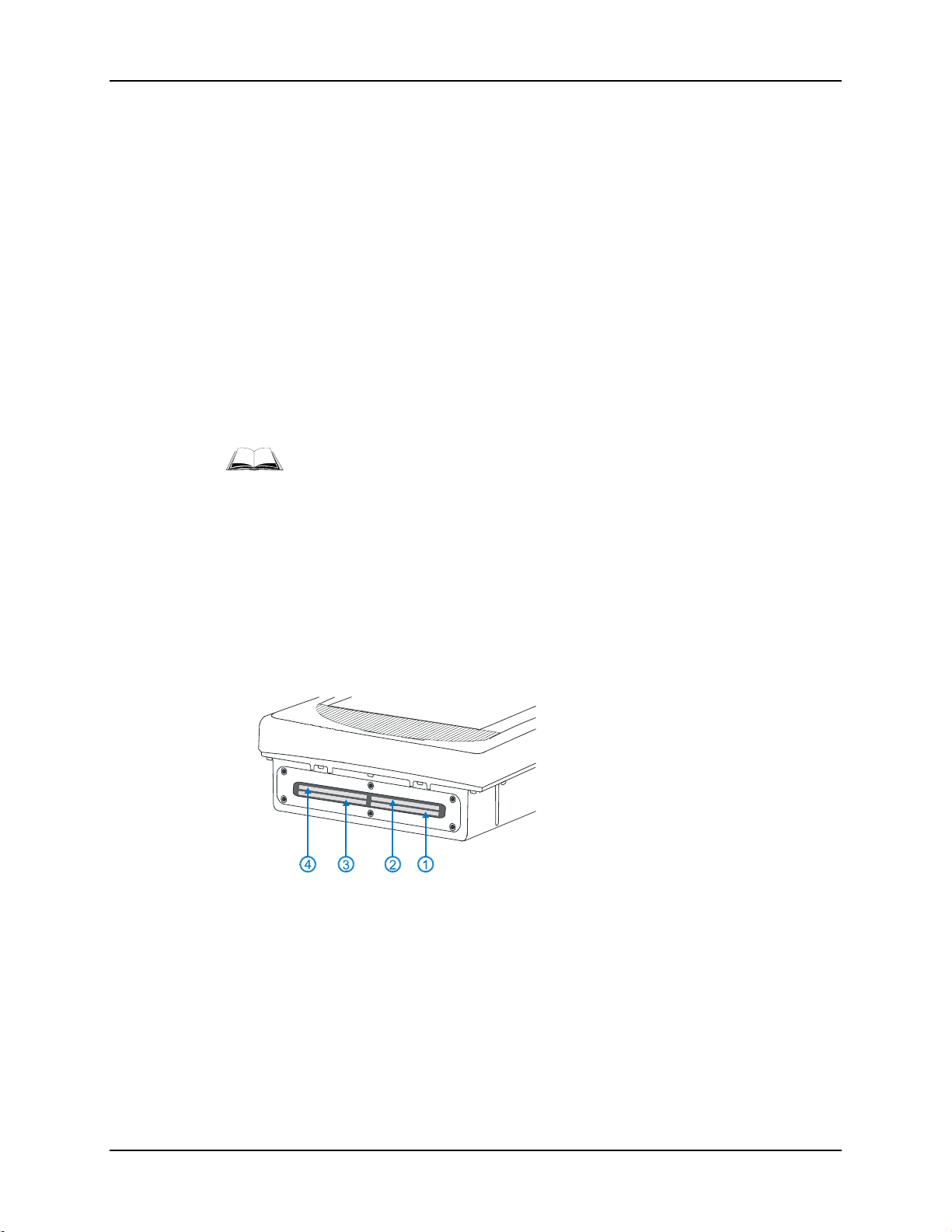

Figure 2 The VX4 PCMCIA and ATA Slots

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

The Keyboards 7

The Keyboards

Note: Installation instructions for mounting keyboard brackets and connecting keyboards other

than the LXE Vehicle Mount Terminal (VMT) keyboard are contained in the following
LXE Installation Instruction documents:

Cherry VMT Keyboard Installation
Storm VMT Keyboard Installation

These documents are available on the LXE Manuals CD.

The LXE VMT keyboard is a customized keyboard, connected to the VX4 with a keyed
watertight connector. The LXE VMT keyboard features a 60 key keyboard. The keyboard
backlight is controlled manually. See “Keyboard Backlight” below.

The keyboard has 101 keyboard functions, including a numeric keyboard pad. Please refer to
Appendix A, “Key Maps”, for keypress combinations.

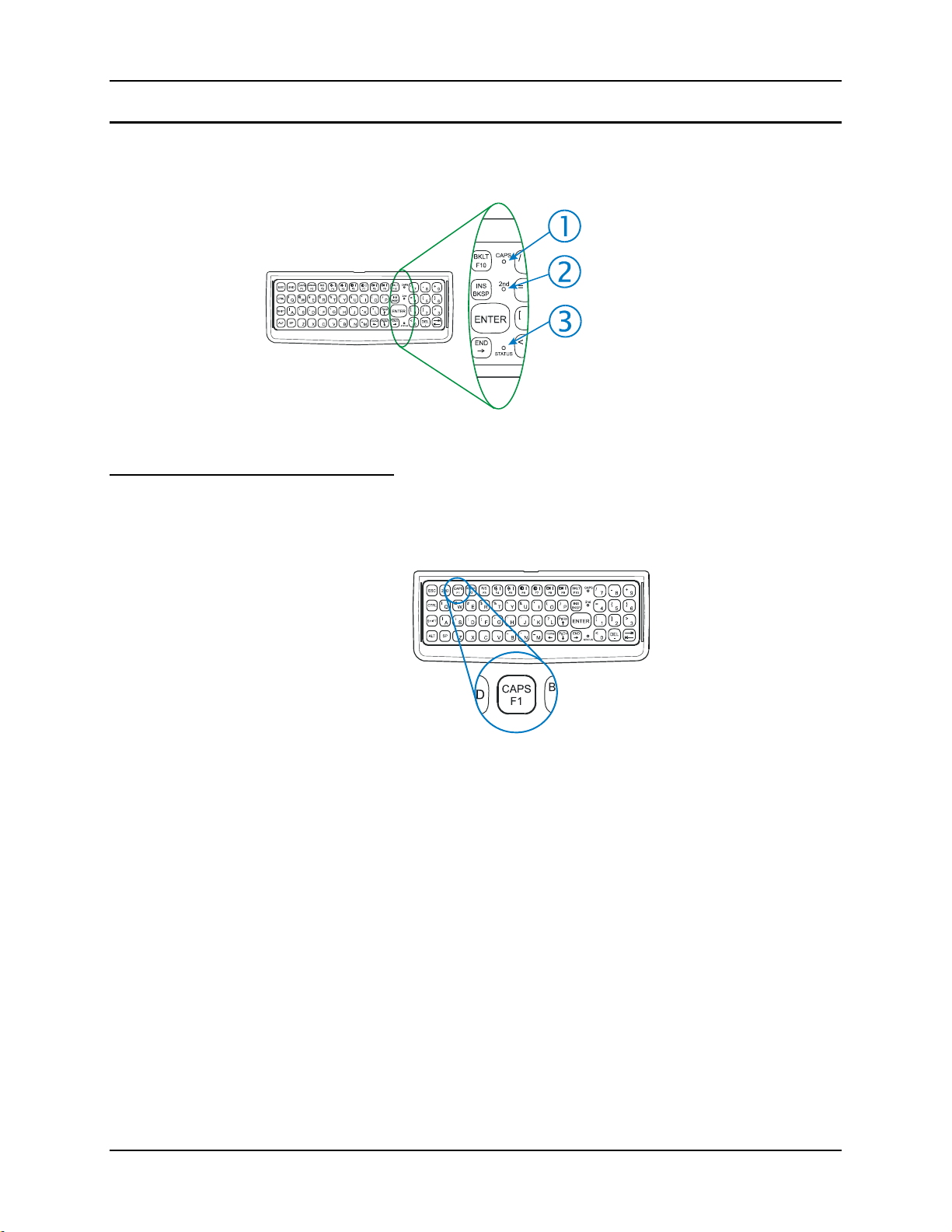

The QWERTY Keyboard

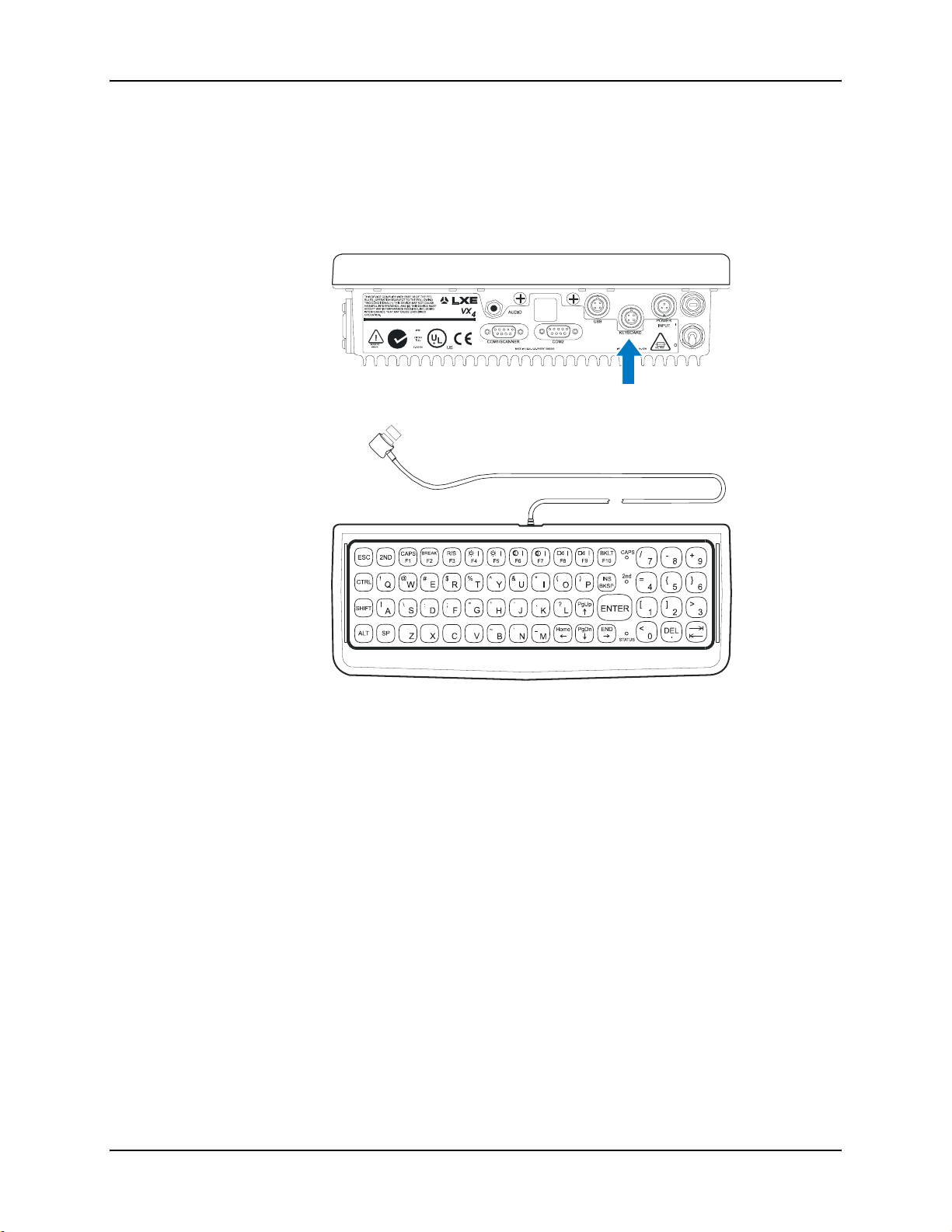

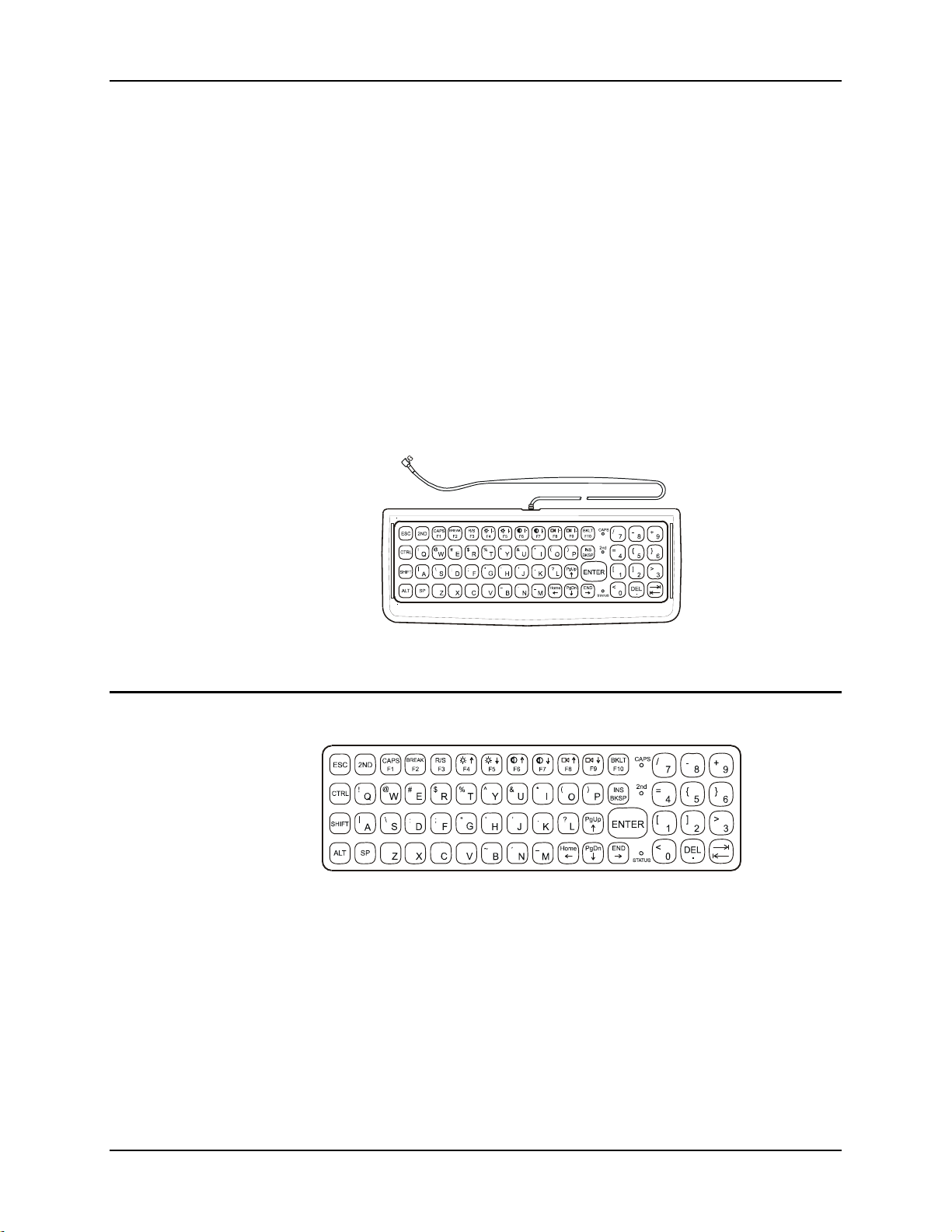

Figure 3 The LXE VMT Keyboard with Cable

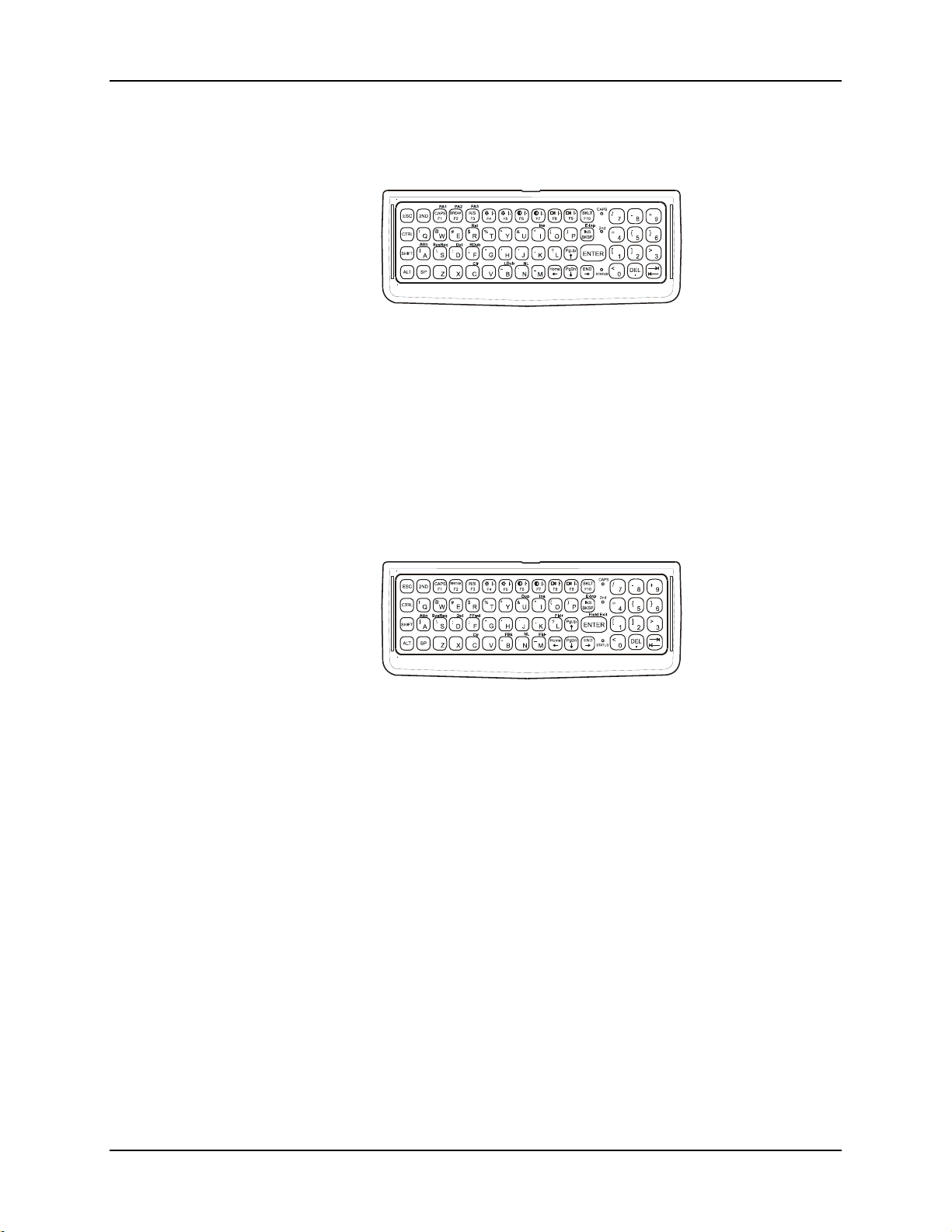

Figure 4 The QWERTY Keyboard

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

8 The Keyboards

General Windows Keyboard Shortcuts

Use the keyboard shortcuts in the chart below to navigate the LXE VMT keyboard. These are
standard keyboard shortcuts for Windows applications.

Press these keys … To …

CTRL + C Copy

CTRL + X Cut

CTRL + V Paste

CTRL + Z Undo

DELETE Delete

SHIFT with any of the arrow keys

CTRL+A Select all.

ALT+ESC Cycle through items in the order they were opened.

CTRL+ESC Display the Start menu.

ALT+Underlined letter in a menu
name

Underlined letter in a command
name on an open menu

ESC Cancel the current task.

Select more than one item in a window or on the
desktop, or select text within a document.

Display the corresponding menu.

Carry out the corresponding command.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

The Keyboards 9

Key Maps

The keyboard supports all 101 keyboard functions. However, because the keyboard only has 60
keys, all functions are not visible (or printed on the keyboard). Therefore the VX4 keyboard
supports what is called hidden keys -- keys that are accessible but not visible on the keyboard.

On standard keyboards many keys are found in the Alphanumeric section as well as on the
Numeric keypad (i.e. the 1 key is found on the numeric keypad and above the alpha characters on
standard keyboards). However these keys send distinctly different scan codes when the keys are
pressed. The default codes for the VX4 keys correspond to the numeric keypad on standard
keyboards. In order to duplicate the codes sent when the alphanumeric key is pressed, the hidden
keystroke must be used.

The hidden keys supported by the VX4 are listed in Appendix A, “Key Maps”.

Unused Key Functions

There are several key functions that are not used on the VX4. These include:

• <F3> - The Resume/Suspend function is not used as Microsoft Windows controls all

power management modes.

• <F4>, <F5>, <F6> and <F7> - The Display Brightness and Contrast functions are

not used as these properties are not adjustable on the TFT display on the VX4.

• <F8> and <F9> - The Volume control keys are not used as volume is adjusted via

the Microsoft Windows Volume icon in the System Tray.

nd

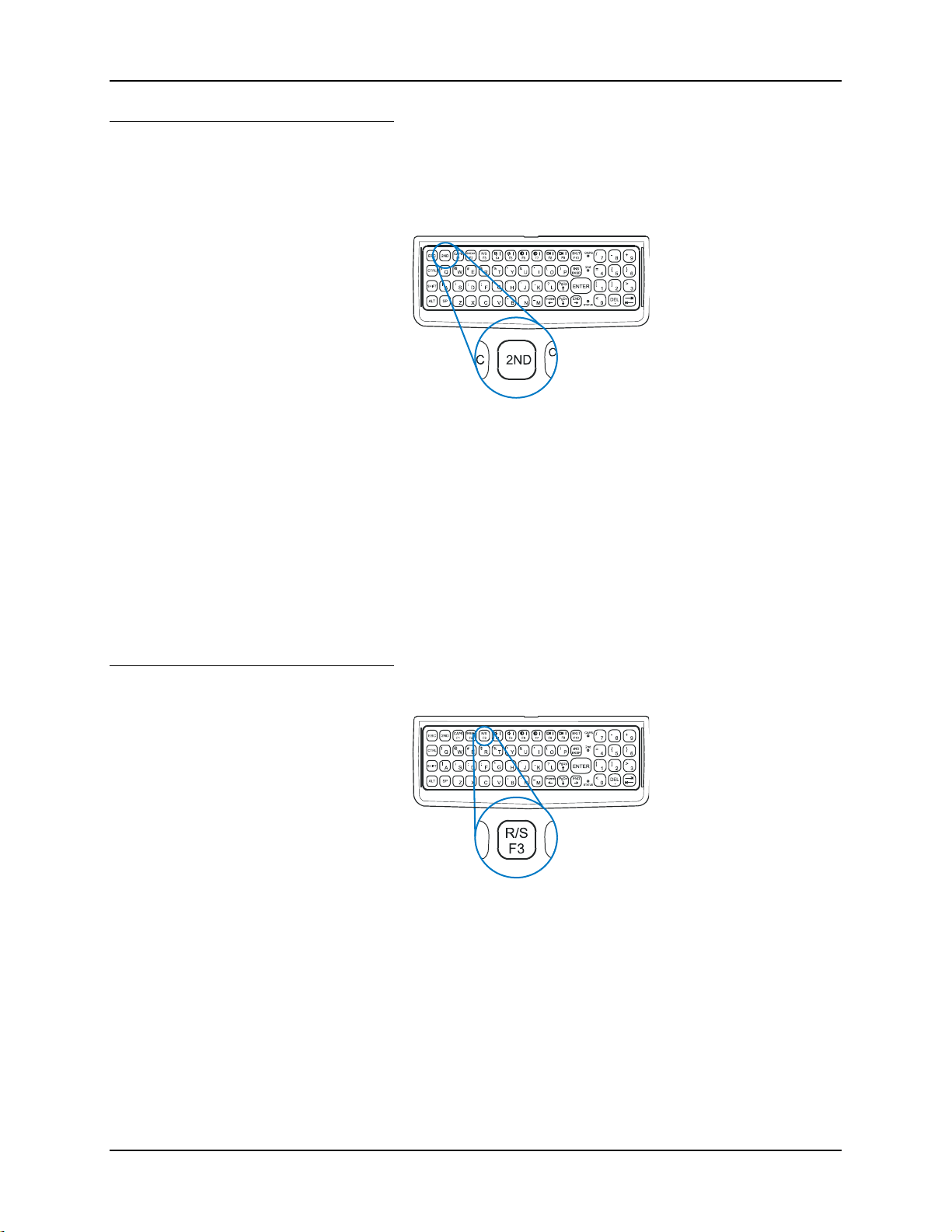

• <F10> - The <F10> key is used in conjunction with the <2

keyboard backlight on or off. See “Keyboard Backlight” below.

> key to toggle the

NumLock and the VX4

The keyboard does not have a NumLock indicator or key, however NumLock is On by default in
the BIOS. NumLock can be toggled Off or On using the <2
sequence.

Please refer to the “VX4 Reference Guide” for more information on NumLock.

Keyboard Backlight

The LXE keyboard keys are backlit with LEDs. The backlight is manually controlled using the

nd

> + <CTRL> + <F10> keypress sequence.

<2

nd

> <SHIFT> <F10> keypress

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

10 The Keyboards

Keyboard LEDs

The VX4 keyboard has three (3) LED indicators.

1. CapsLock Mode
LED Indicator

2. Secondary Mode
LED Indicator

3. Status LED
Indicator

Figure 5 Keyboard LEDs

CAPS LED

This LED indicates the state of the keyboard CapsLock mode. If CapsLock is enabled this LED is
illuminated green. When CapsLock is off, the LED is dark.

Figure 6 The CapsLock Key

nd

Press <2

The default value of CapsLock is “Off”.

> then <F1> to toggle CapsLock On and Off.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

The Keyboards 11

Secondary Keys LED

The VMT keyboard is equipped with several secondary keys. These keys are identified by the
superscripted text found on the keyboard keys. The secondary keys are accessible by using two
(2) keystrokes: the <2

nd

> key followed by the superscripted key.

Figure 7 The Secondary Key

Status LED

Once the <2
illuminated and the <2
with a <2

nd

> state is enabled (by pressing the <2nd> key) the Secondary Mode LED is

nd

> keypress and then immediately off with another <2nd> keypress.

For example:

nd

Press <2

Press <2

Press <2

Press <2

> and <F1> to turn CapsLock on and off.

nd

> and <↑> to initiate the PgUp command.

nd

> and <Q> to type the “!” key.

nd

> and <BkSp> to enter the Insert (Ins) mode.

nd

> state is enabled until another key is pressed. The <2nd> key is toggled on

Figure 8 The Resume/Suspend Key

The Status LED, located on the front of the keyboard, is illuminated green when the unit is
powered on. The Status LED is dark when power is disconnected.

Note: This LED should not be lit when power is disconnected from the VX4.

The Resume/Suspend key has no effect on a VX4. All power management is controlled by
Microsoft Windows. Windows Power Management contains options to set the display timer, hard
disk timer and standby timer. Please refer to “Status Indicator” in the “Operation” section of this
manual for more details on Windows Power Management.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

12 The Keyboards

Control Keys

The VMT keyboard has several control keys. Because of the construction of the VX4 and the
Microsoft Windows operating system, many of the Control Keys are not used on the VX4.

Note: The <F4>, <F5>, <F6>, and <F7> keys have no function as the VX4 has TFT LCD

screen with no provision for contrast or brightness adjustments.

The <F8> and <F9> keys have no function as the sound volume on the VX4 is

controlled with the Sound icon in the Microsoft Windows System Tray.

nd

The <F10> key is used to toggle the backlight as part of the keypress sequence <2
+ <F10>. This key sequence immediately toggles the status of the keyboard backlight. Pressing

nd

> + <F10> has no effect on the keyboard backlight.

<2

1. Display Brightness Control
Keys (Not used)

2. Display Contrast Control
Keys (Not used)

> + <CTRL>

3. Speaker Volume Control
Keys (Not used)

4. Backlight Control Key
(See above)

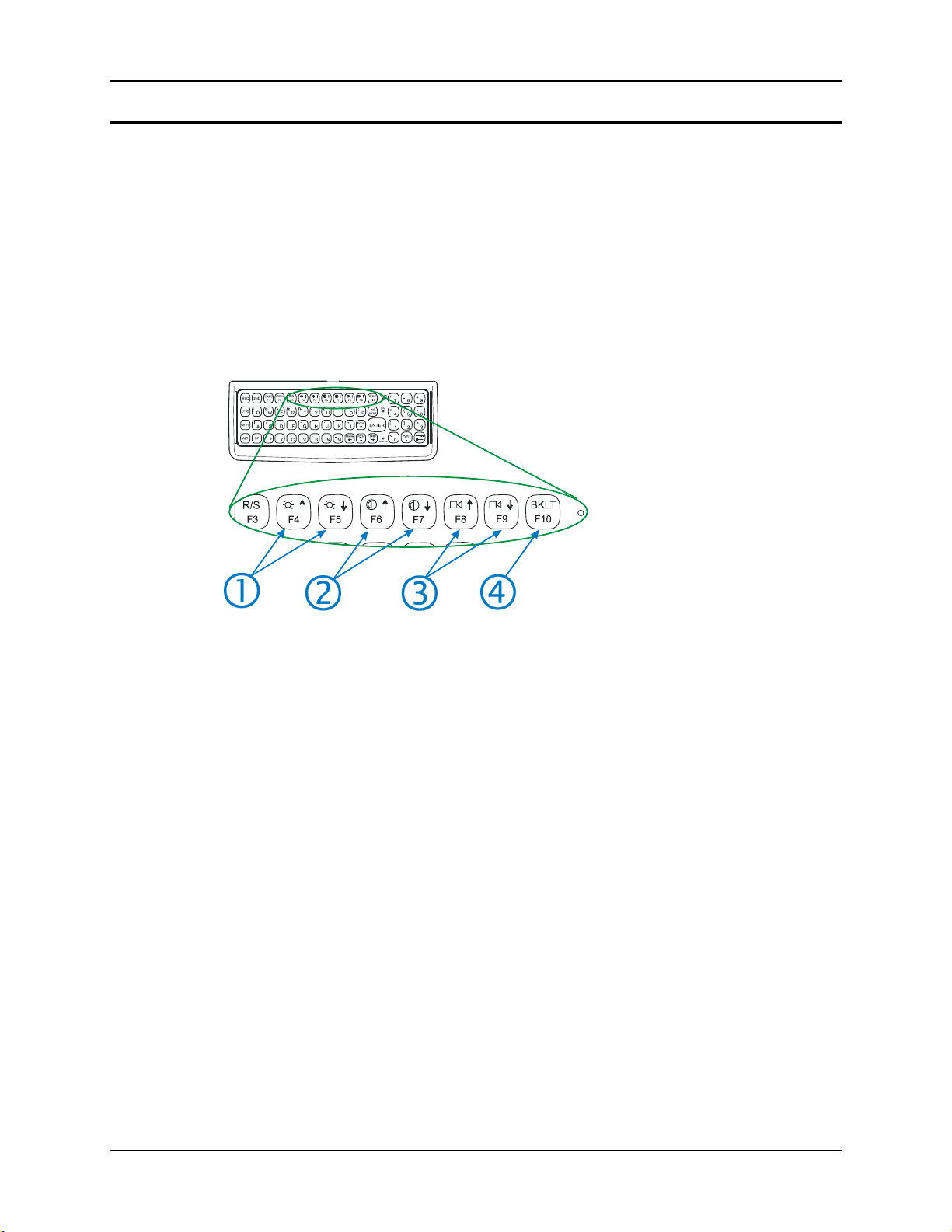

Figure 9 The VMT Keyboard Display Controls

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Power Supply 13

Power Supply

Vehicle power input for the VX4 is 12V to 60V DC and is accepted without the need to perform
any manual adjustments within the VX4. See the section titled “Installation”, sub-section titled
“Vehicle 12-60V DC Direct Connection.”

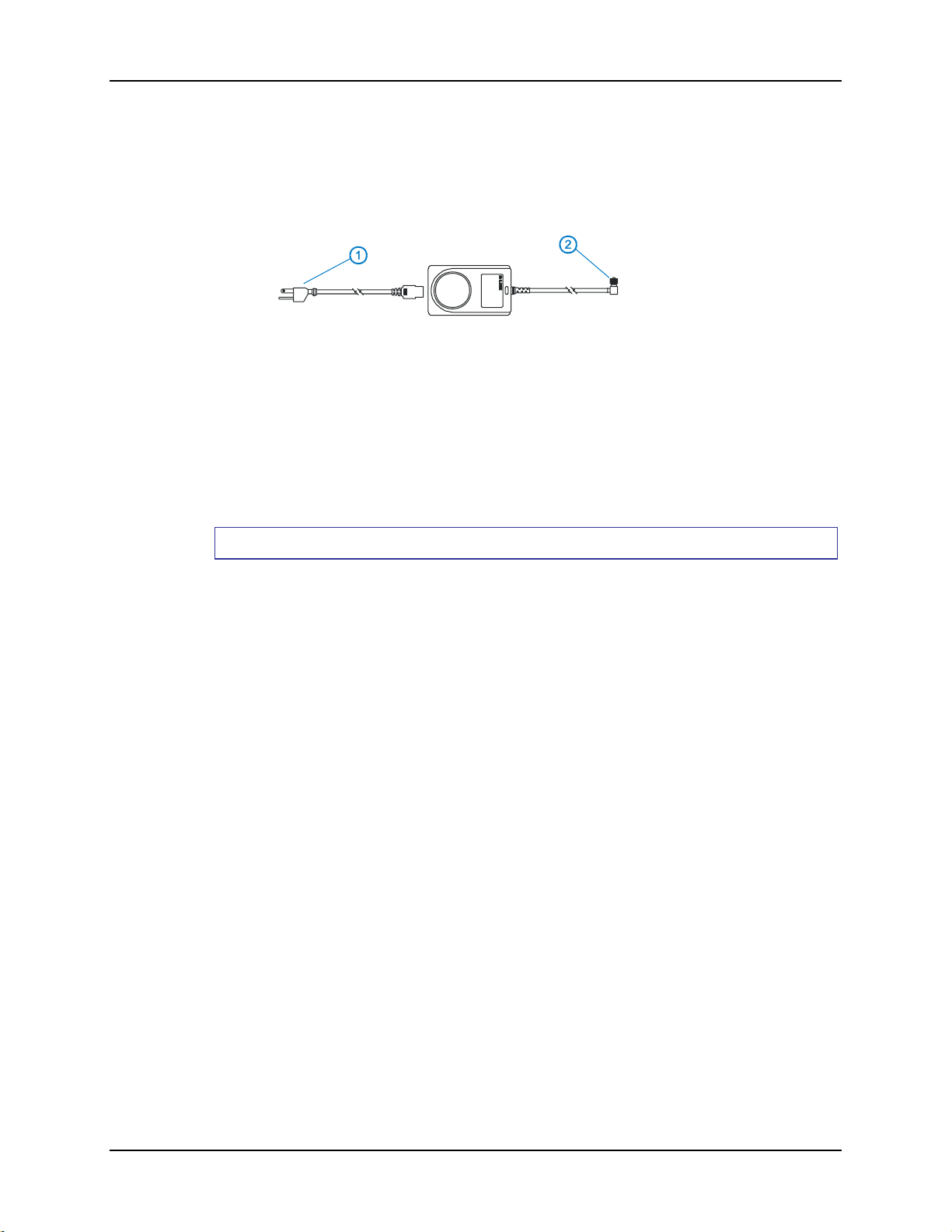

If 12V to 60V DC power is not available – for example, in an office environment – an optional
external Universal Input Power Supply can be used to convert AC wall power to an appropriate
DC level. See the section titled “Installation”, sub-section titled “External Power Supply.”

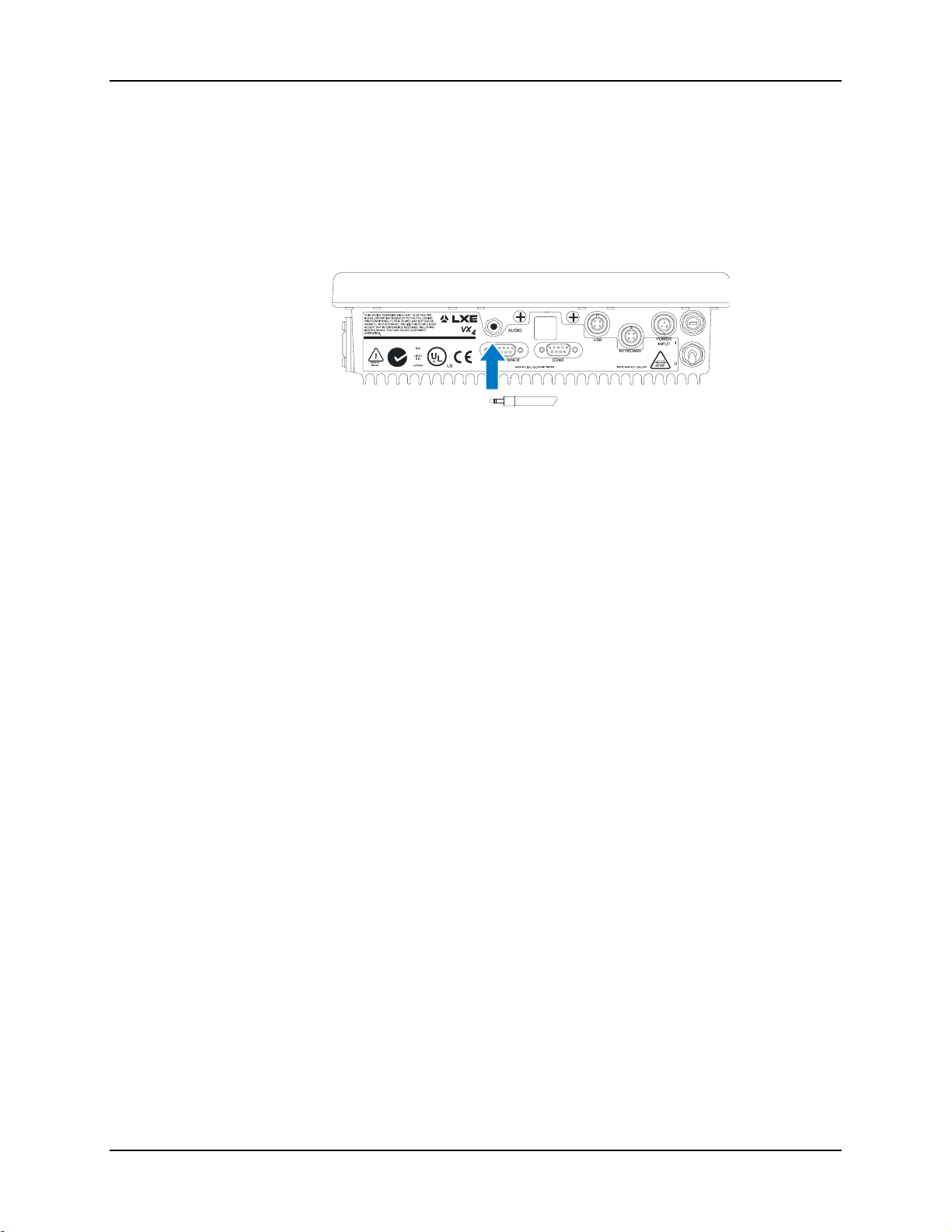

Power input is fused for protection and the fuse is externally accessible. See section titled
“Installation”, sub-section titled “Fuse Replacement for the VX4.”

Backup Battery

The internal 270 mAh Lithium backup (coin cell) battery provides power to maintain the real time
clock when the VX4 is not powered from an external source. The backup battery requires no user
intervention. Replacement must be performed by LXE.

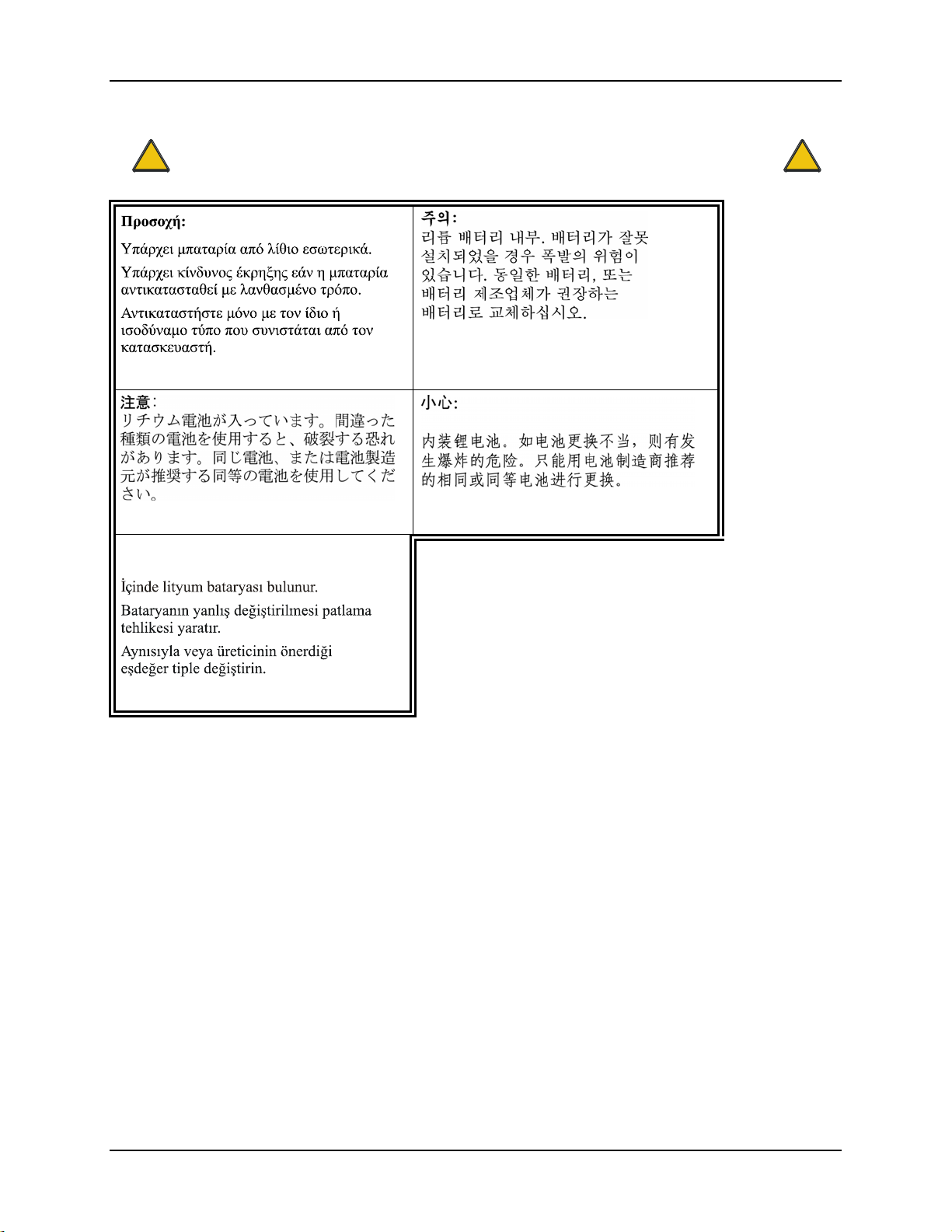

Caution

!

Danger of explosion if battery is incorrectly replaced.

Replace only with the same type or equivalent type recommended by the
manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

14 Getting Help

Getting Help

All LXE manuals are now available on one CD and they can also be viewed/downloaded

from the LXE website. Contact your LXE representative to obtain the LXE Manuals CD.

You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals
CD, in the file titled “Contacting LXE”. This information is also available on the LXE website
www.lxe.com.

Manuals and Accessories

Manuals

The following manuals are available on the LXE Manuals CD:

• VX4 Reference Guide

• ORiNOCO IEEE User’s Guide

• Contacting LXE

• LXE Technical Glossary

Accessories

Cables

Cable, Shielded, DB-9F to DB-25F, 6 ft. 9000A052CBL6D9D25

Cable, Shielded, Printer/PC, DB-9F to DB-25F, 6 ft. 9000A053CBL6D9D25

Cable, Shielded, PC, DB-9F to DB-9F, 6 ft. 9000A054CBL6D9D9

Cable, 1 ft. Mini-DIN to water tight keyboard connector 9000A069CBL1PS6ML4

Cable, USB adapter 9000A068CBL12M4USB

Brackets and Keyboards

LXE VMT Keyboard 9000A153KBDSTDWW

LXE VMT Keyboard, 5250 9000A154KYBD5250WW

LXE VMT Keyboard, 3270 9000A155KYBD3270WW

Integrated LXE VMT Keyboard Bracket 9000A013BRKTINTLXE

Remote LXE VMT Keyboard Bracket 9000A012BRKTRMTLXE

Vehicle Mounting Bracket. VXXA003BRACKET

Keyboard, Cherry, STD, US

Bracket, Cherry KYBD, STD 9000A003BRKTKBD

Cover, Cherry KYBD 9000A152CVRKBDSTD

Power Supplies

9000A152KBDSTDUS

Cbl, 12’, 12-60V Input Power 1380A053CBL12ML3

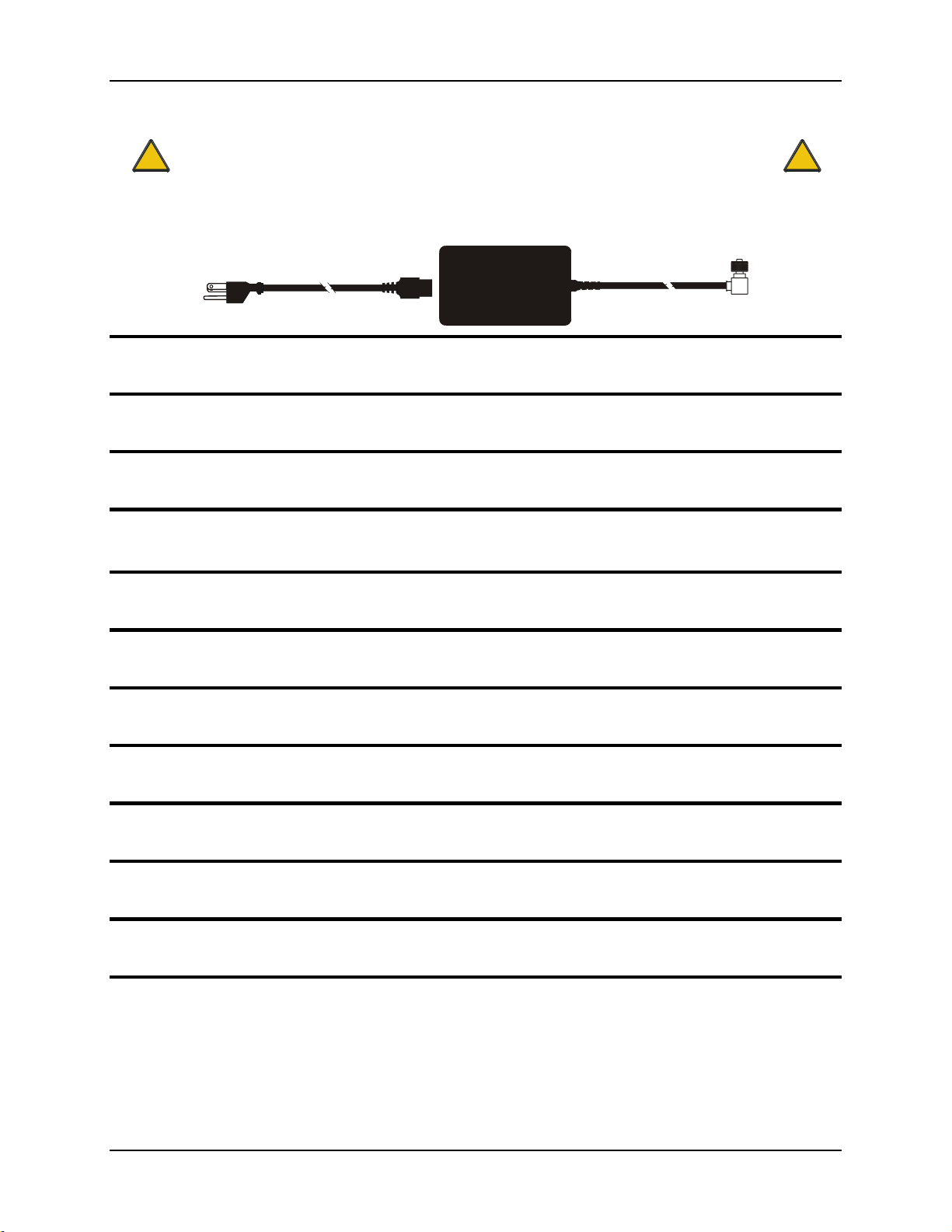

External AC Input Power Supply 9000A304PSACWW

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Manuals and Accessories 15

Miscellaneous

Pen, passive, touch 9000A501PASSIVEPEN

VX4 System Tools CD VX4A476DRIVERS

Remote Antenna Assembly 1300A276ANTREMOTE

Hard Drives

1GB PCMCIA Drive ATA, Flash, Solid State 9000A226HDD1GBPCMCIA

1GB PCMCIA Drive ATA, Low Temp, Solid State 9000A227HDD1GBLT 4

512MB PCMCIA Drive ATA, Low Temp, Solid State 9000A228HDD512MBLT 6

2GB PCMCIA Drive ATA, Flash, Solid State 9000A229HDD2GBPCMCIA

2GB PCMCIA Drive ATA, Low Temp, Flash, Solid

9000A230HDD2GBLTPCM

4

State

16MB Compact Flash Drive ATA, Solid State 9000A254HDDCF16MB

16MB Comp. Flash Drive ATA, Low Temp, Solid State 9000A254HDDCF16MBLT 4

64MB Compact Flash Drive ATA, Solid State 9000A254HDDCF64MB

64MB Comp Flash Drive ATA, Low Temp, Solid State 9000A254HDDCF64MBLT 4

Scanners

Scanner, Powerscan, SR, 8’ Cbl, WW 8300A326SCNRPWRSR8DA9F

Scanner, Powerscan, SR, 12’ Cbl, US 8300A327SCNRPWRSR12DA9F

Scanner, Powerscan SR, 11’ Cbl, PS/2, US 8300A330SCNRPWRSR11PS2

Scanner, Powerscan, LR, 8’ Cbl, WW 8310A326SCNRPWRLR8DA9F

Scanner, Powerscan LR 12’ Cbl, US 8310A327SCNRPWRLR12DA9F

Scanner, Powerscan, LR, 12’ Cbl, PS/2, US 8310A330SCNRPWRLR11PS2

Scanner, Powerscan, XLR, 8’ Cbl, WW 8320A326SCNRPWRXLR8DA9F

Scanner, Powerscan XLR, 12’ Cbl, US 8320A327SCNRPWRXLR12DA9F

Scanner, Powerscan XLR, 12’ Cbl, PS/2, US 8320A330SCNRPWRXLR11PS2

Scanner, LS3408FZ, 9’ Cbl, WW 8510A326SCNRFZYDA9F

Scanner, LS3408ER, 9’ Cbl, WW 8520A326SCNRERDA9F

Printers

Zebra, PA400, 240VAC, EC PA400-050-12100

Zebra, PA400, 120VAC, US PA400-050-11100

Zebra, PA400, 20-80VDC PA400-050-99100

Zebra, PT400, 240VAC, EC PT400-050-12100

Zebra, PT400, 120VAC, US PT400-050-11100

Zebra, PT400, 20-80VDC PT400-050-99100

6

Drives marked as Low Temp are available with the VX4ET.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

16 Manuals and Accessories

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Install Mounting Brackets

Installation

Components

Caution:

Equipment Needed: Phillips No. 1 screwdriver and a Torque wrench capable of measuring to 50

inch pounds (5.64±.56 N/m).

Note: Torquing tool is not supplied by LXE. Bolts, washers, and wrench needed when attaching

Before installation begins, verify you have the following vehicle mounting bracket assembly
components:

This device is intended to transmit RF energy. For protection against RF exposure
to humans and in accordance with FCC rules and Industry Canada rules, this
transmitter should be installed such that a minimum separation distance of at least
20 cm (7.8 in.) is maintained between the antenna and the general population.
This device is not to be co-located with other transmitters.

the bottom mounting bracket to the vehicle are not supplied by LXE.

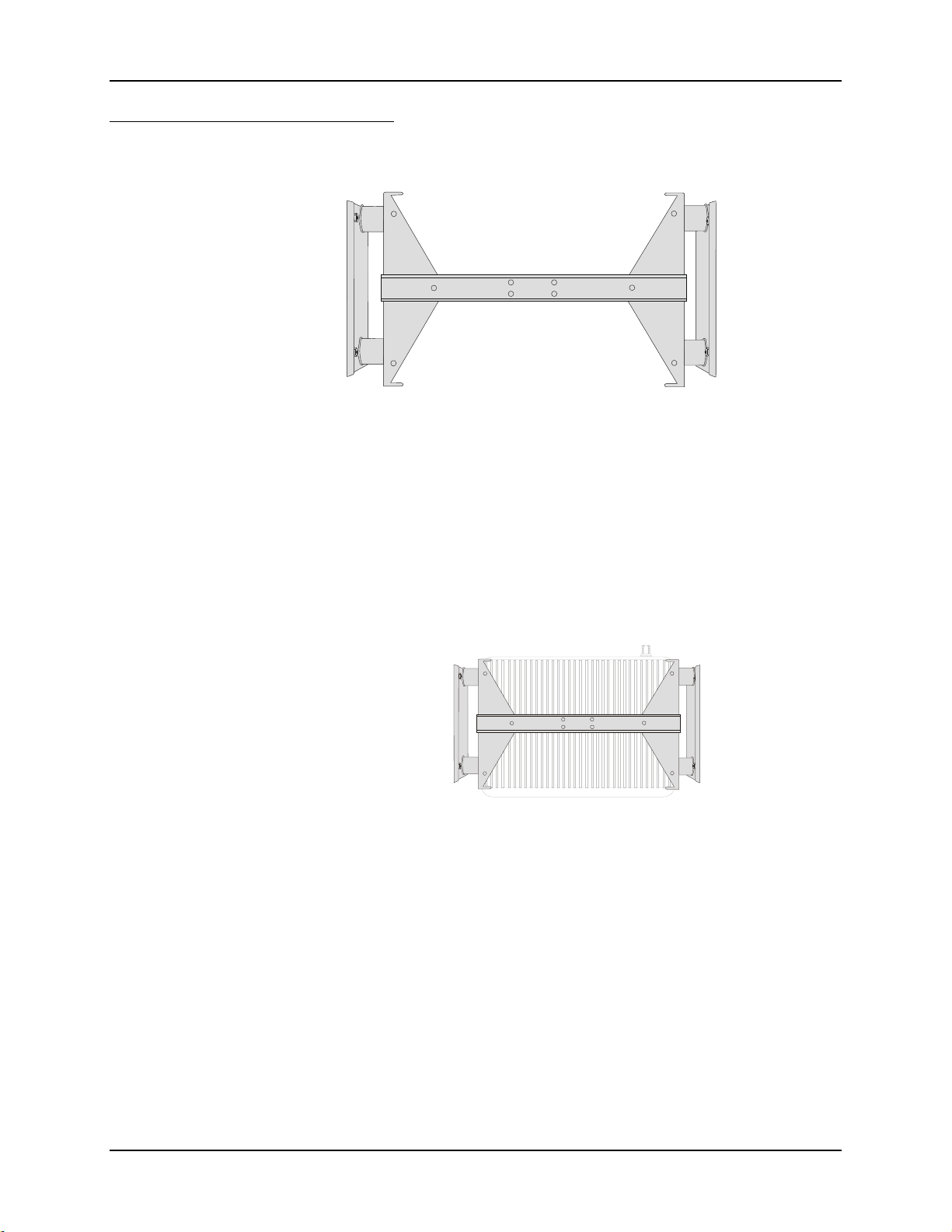

Back Mounting Bracket Assembly

This bracket is attached to the VX4. It is pre­assembled at LXE.

6 each 8-32 x 7/16 Pan Head Screw (connects

the bracket to the back of the computer)

4 each 8-32 x 3/8 Flat Screw (connects the

bracket with isolators to the bracket
mounted to the back of the computer)

Bottom Mounting Bracket

This bracket is mounted to the vehicle. Then it is
connected to the Back Mounting Bracket and VX4
assembly.

6 each 1/4 Flat Washer
6 each 1/4 Lock Washer
6 each ¼-20 Bolt

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

18 Install Mounting Brackets

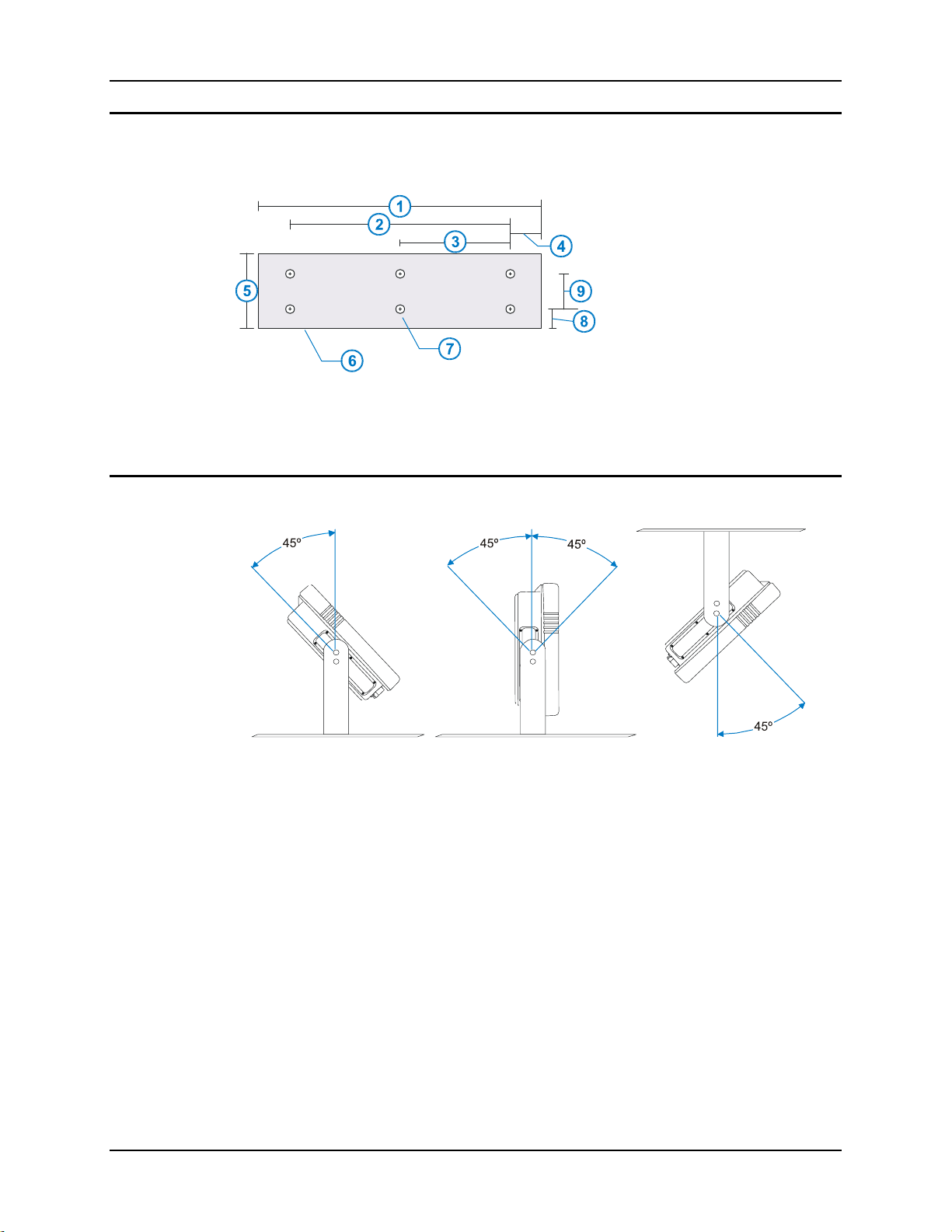

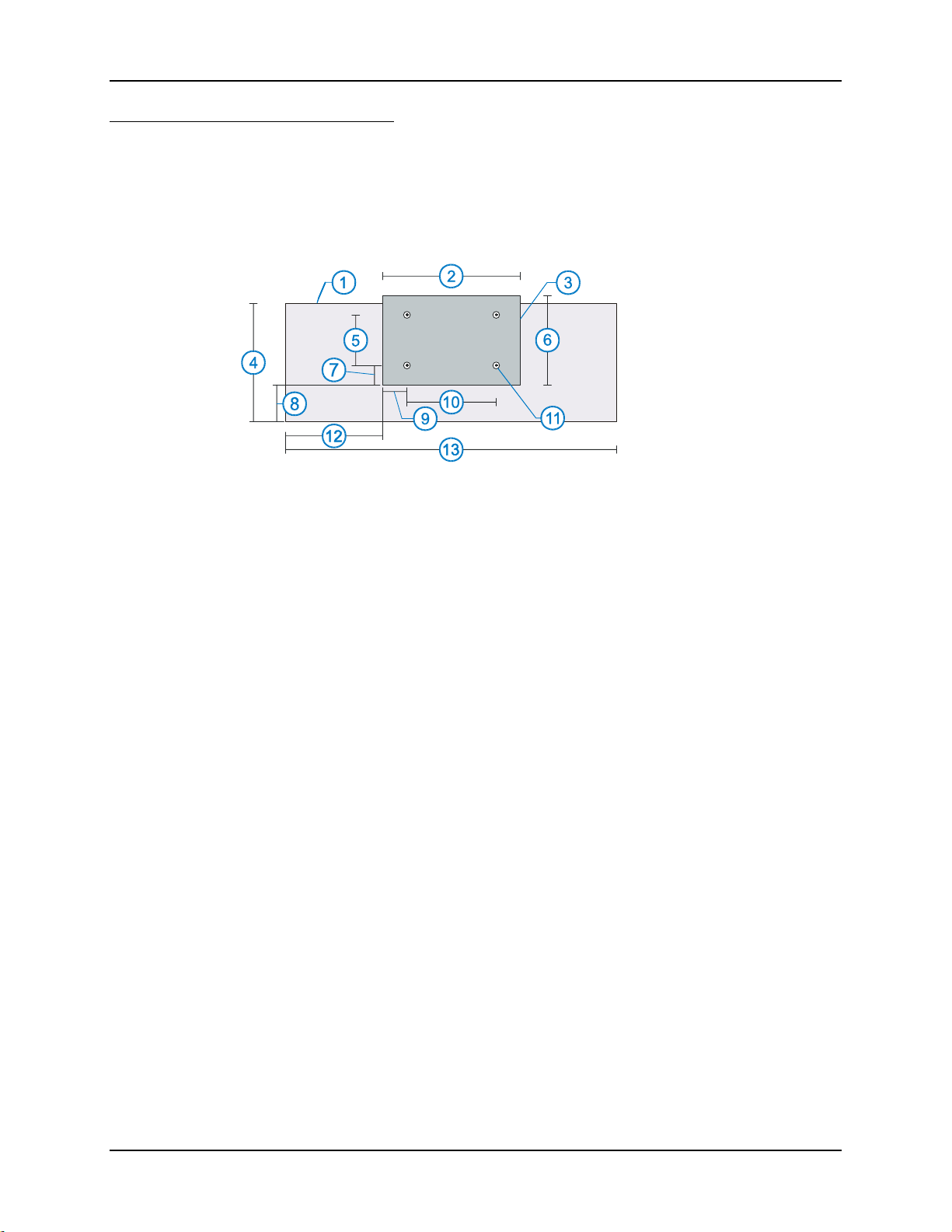

Mounting Dimensions

1. 14.40 in / 359.2 mm

2. 12.10 in / 307.3 mm

3. 6.05 in / 153.6 mm

4. 1.02 in / 25.9 mm

5. 3.00 in / 76.2 mm

6. Vehicle Mount Footprint

7. 0.18 in / 4.5 mm

8. 0.88 in / 22.3 mm

9. 1.25 in / 31.75 mm

Figure 10 VX4 Bracket - Mounting Dimensions (Not To Scale)

Mounting Positions

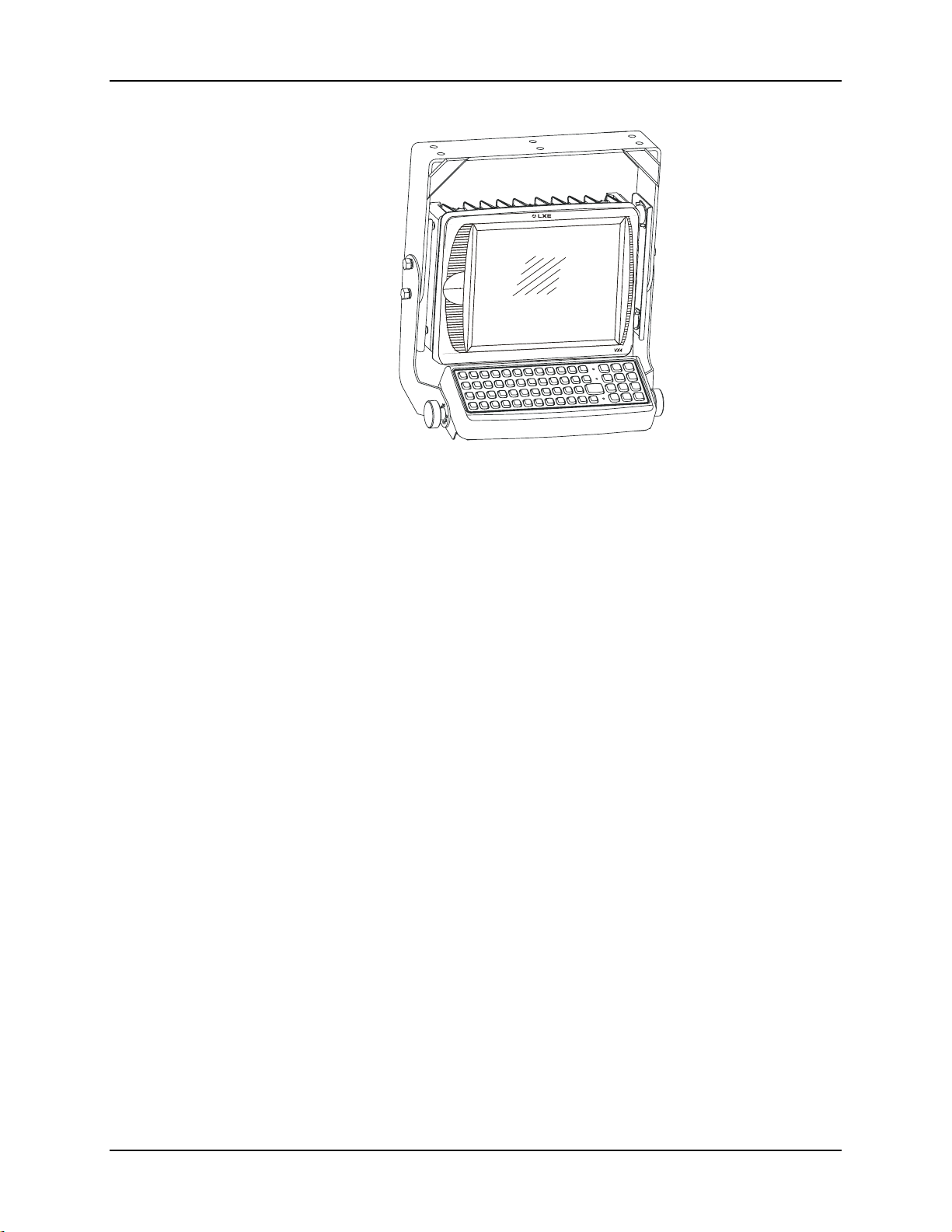

Figure 11 Suggested Mounting Positions

Viewing angle is 45° to both sides of the bottom mounting bracket.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Install Mounting Brackets 19

Torque Measurements

You will need a torquing tool capable of torquing to 50 inch pounds (5.64±.56 N/m).

Torque pan head screws to 16.0±1 in/lb (1.8±.11 N/m) when assembling the back mounting
bracket to the VX4.

Torque ¼ bolts to 50.0±5 in/lb (5.64±.56 N/m) when assembling the bottom mounting bracket
to the back mounting bracket.

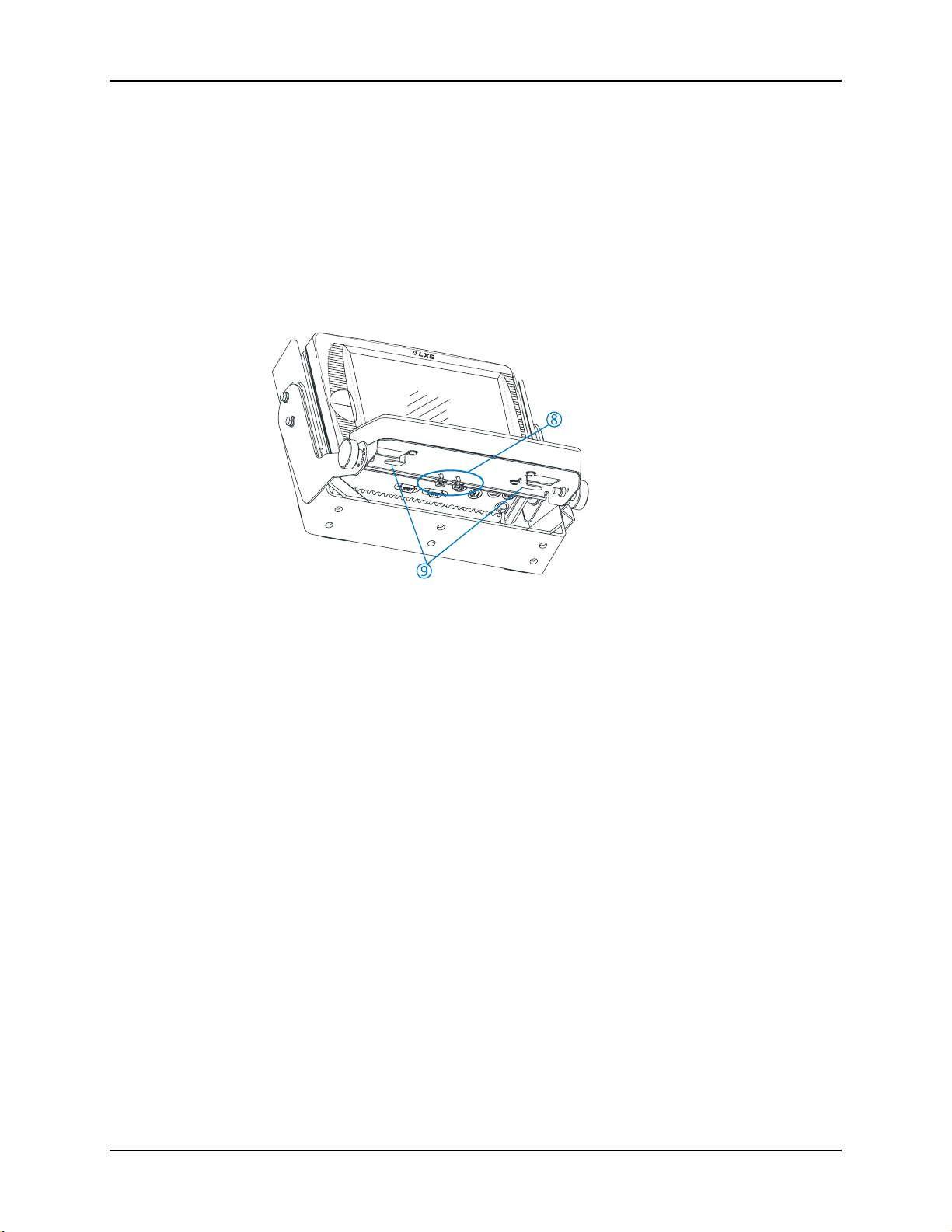

Figure 12 Torque Measurements

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

20 Install Mounting Brackets

Cable Retention Assembly

Before beginning the vehicle mounting bracket assembly, attach the cable ties to the VX4 and the
back mounting bracket as shown in the following figures.

Use the cable ties to secure the power cable and RS-232 cables to the VX4 after it has been
mounted to the vehicle.

(5) Strain Relief Cable Clamps and (2)
Cable Ties

Connect Strain Relief Cable Clamps to the
back of the VX4. Connect Cable Ties to the

7 each 8-32 x 7/16 Pan Head Screw

1. Turn the VX4 off before attaching the accessories.

2. Install accessories and the strain relief cable clamps.

3. Mount the accessories cable to the VX4 with the strain relief cable clamps,
ensuring a slack loop remains between the cable clamp and the accessories
connectors.

VX4 and the back mounting bracket.

Figure 13 Strain Relief Cable Clamp Locations

4. Insert a pan head screw into the screw holes and fasten securely.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Install Mounting Brackets 21

Connect Cable Ties to Back Mounting Bracket

Figure 14 Cable Ties on Back Mounting Bracket Assembly

1. Slide the pointed end of the cable tie through the top opening in the push mount.

2. Snap the push mount through the top hole and toward the VX4 as shown in the
above figure.

3. Place the cable (power, COM port) over the tie and lift up the pointed end of the
tie. Slide it through the narrow opening at the top of the cable tie, keeping the
serrated sides together.

4. Slide the tail of the cable tie closed until cables are snug.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

22 Install Mounting Brackets

Procedure

Step 1 - Mount Bottom Mounting Bracket To Vehicle.

1. Position the bracket to allow access to the switches and ports on the bottom of
the VX4.

2. Attach the bottom mounting bracket to the vehicle mounting surface using six
1/4 bolts (or equivalent) fasteners.

Note: 1/4 Bolts not included.

IMPORTANT: Mount to the most rigid surface available.

Figure 15 Connect Bottom Bracket to Vehicle

After the bottom bracket has been attached to a rigid, horizontal surface, you are ready to
assemble the VX4 bracket configuration.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Install Mounting Brackets 23

Step 2 - Connect VX4 To Back Mounting Bracket.

Figure 16 Back Mounting Bracket Assembly

1. Turn the VX4 off before attaching it to the back mounting bracket.

2. Place the VX4 face down on a stable surface.

3. Position the back mounting bracket on the VX4, matching the screw holes in the
bracket to the screw holes on the back of the VX4.

4. Insert a pan head screw into each of six holes. Torque the screws to 16±1 in/lb
(1.8±.11 N/m).

Figure 17 VX4 Connected to Back Bracket

Now you are ready to attach the VX4 in the bracket assembly to the vehicle.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

24 Install Mounting Brackets

Step 3 - Attach VX4 In Bracket Assembly To Bottom Mounting Bracket.

Figure 18 Connect to Bottom Mounting Bracket

1. Place lock washer first, then flat washer on bolt. Next insert mounting bolts through the
curved apertures in the bottom mounting bracket and into the screw holes in the side
bracket.

2. Loosely tighten each bolt as it is inserted.

Important: Do not torque bolts until all bolts are in place and viewing angle

is adjusted.

3. Loosen the hex bolts on both sides to adjust the viewing angle of the mounted VX4.

4. Torque the hex bolts to 50±5 in/lb (5.64±.56 N/m).

Note: Test the torque on the bolts frequently during operation and re-tighten if

necessary to 50±5 in/lb (5.64±.56 N/m).

5. Connect all cables to the VX4. Secure the cables with the strain relief cable clamps,
ensuring a slack loop remains between the cable clamp and the accessory connector.

6. The vehicle mounted bracket and the VX4 are now ready to use.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Install Mounting Brackets 25

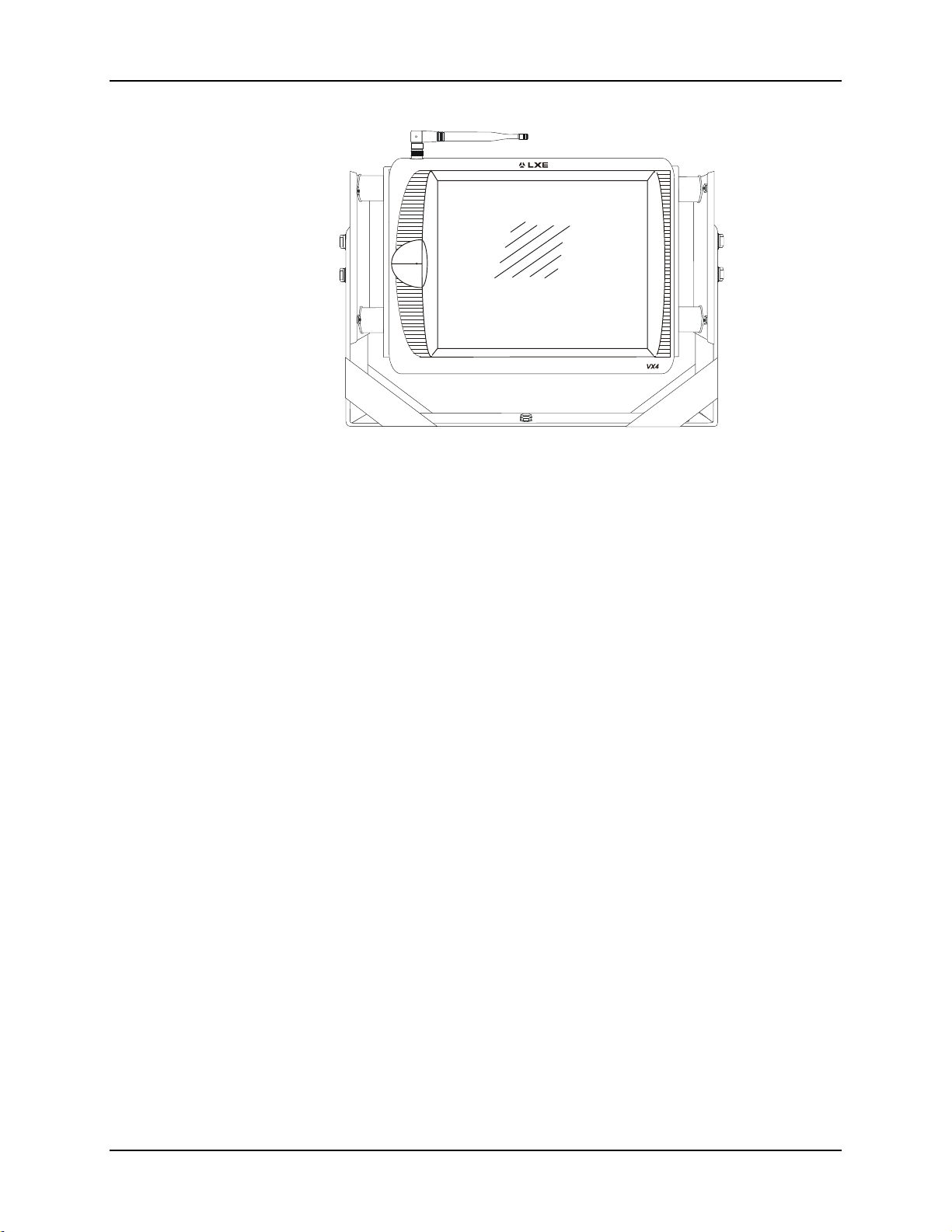

Figure 19 VX4 in Vehicle Bracket

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

26 Install Mounting Brackets

VMT Remote Keyboard Bracket Assembly

1. Keyboard Cable

2. VMT Keyboard

3. Bracket

4. Mounting Surface

Figure 20 VMT Remote Keyboard Bracket Assembly

Equipment Needed: Phillips screwdriver, torque wrench.

1. Place the keyboard face down on a flat, stable surface.

2. Position the bracket on the keyboard base, aligning the four screw holes in the
keyboard with the four mounting holes in the bracket flanges. When positioned
correctly, the bracket should overlap at the top of the keyboard.

3. Attach the keyboard to the bracket with four screws (included). Tighten to 9 +/­1 in/lb (1.02 N/m).

4. Attach the keyboard-bracket assembly to the vehicle’s mounting surface using
four 1/4 bolts or equivalent.

Note: Bolts, washers, and wrench needed when attaching the bracket to the vehicle are not

supplied by LXE.

IMPORTANT: Mount to the most rigid surface available.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Install Mounting Brackets 27

VMT Remote Keyboard Mounting Dimensions

1. Minimum area
required for
assembled bracket

2. 6.2 inch / 157 mm

3. Bottom Bracket
footprint

4. 4.4 inch / 111.5 mm

5. 2.3 inch / 57.2 mm

6. 4.0 inch / 101.6 mm

7. 0.9 inch / 22.4 mm

8. 0.3 inch / 6.6 mm

9. 1.1 inch / 27.7 mm

10. 4.0 inch / 101.6 mm

11. 0.3 inch / 7.6 mm

12. 2.9 inch / 72.6 mm

13. 11.9 inch / 302.0 mm

Figure 21 VMT Remote Keyboard - Mounting Dimensions

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

28 Install Mounting Brackets

VMT Integrated Keyboard Bracket Assembly

Note: Bolts, washers, and wrench needed when attaching the bracket to the vehicle are not

supplied by LXE.

1. Viewing Angle Adjustment Bolts and
Washers (4 sets)

2. Main Mounting Bracket Assembly

3. Keyboard Arm (2, right and left)

Figure 22 VMT Integrated Keyboard Bracket Assembly

Equipment Needed: Phillips screwdriver, torque wrench.

1. Loosen the VMT viewing angle adjustment bolts (1) of the Main Mounting
Bracket Assembly (2).

2. Remove the two bolts and washers from the left side of the Main Mounting
Bracket assembly, and mount the left Keyboard Arm (3) to the Main Mounting
Bracket assembly loosely using the washers and two new bolts.

3. Remove the two bolts and washers from the right side of the Main Mounting
Bracket assembly, and mount the right Keyboard Arm to the Main Mounting
Bracket assembly loosely using the washers and two new bolts.

4. Assemble the Keyboard (4) to the Keyboard Bracket (5) with the #10-32 screws
and washers. Tighten screws to 9 +/- 1 in/lb (1.02 N/m).

4. Keyboard

5. Keyboard Bracket

6. Adjustment Knob (2 each)

7. Detents (2 each side)

5. Assemble Keyboard and Bracket to Keyboard Arms using the Adjustment Knobs
(6).

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Install Mounting Brackets 29

6. Adjust VMT viewing angle as desired, and tighten angle adjustment bolts to 50
+/- 5 in/lb (5.64 +/- .56 N/m).

7. Adjust Keyboard angle as desired, ensuring the detents (7) and holes are aligned.
Tighten the Adjustment Knobs by hand.

Important: Do not torque bolts until all bolts are in place and view ing angle is

adjusted.

Note: Periodically check the connectors and retighten if necessary.

8. Tie Wrap Holders

9. Cable Hooks

Figure 23 Cable Tie Holders and Cable Hooks

8. Insert cable ties into the Tie Wrap holders (8) on the bottom of the Keyboard
Bracket.

9. Wrap excess cable length under the Keyboard Bracket on the Cable Hooks (9).
Secure entering and exiting cable with cable ties and cable tie holders.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

30 Install Mounting Brackets

Figure 24 Assembled VMT Integrated Keyboard Bracket

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Connect Keyboard 31

Connect Keyboard

The VMT has an external 4-pin watertight connector for the keyboard. All keyboards are
connected in a similar fashion. The keyboard is attached to the connector marked “KEYBOARD”.
The keyboard receives power from the VX4.

Figure 25 Keyboard Connection Location and Keyboard

1. Turn the VX4 off before attaching the keyboard cable.

2. Insert the keyboard cable into the VX4 keyboard connector, aligning the groove on

top of the cable with the notch at the top of the VX4 connector.

3. Once the pins are firmly seated, tighten (turning clockwise) the connector into place.

4. Secure the cable with the strain relief cable clamps, ensuring a slack loop remains

between the cable clamp and the keyboard connector.

5. Turn the VX4 on.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

32 Connect Antenna

Connect Antenna

Note: VX4’s equipped with a radio require an external antenna. A VX4 without a radio does

not use an antenna. Some VX4’s may be equipped with a dual antenna option. For these
VX4’s, an external antenna must be connected to each antenna connector.

1. Antenna Pin

2. Antenna Base

Place the antenna base over the antenna pin. Push down and twist clockwise until the antenna is
secure. Repeat for second antenna connector, if present.

Adjust the antenna angle to improve RF communications with the computer network.

Note: Substitution of antennas is not permitted unless authorized by LXE. Use of unauthorized

antennas will void the FCC emissions certification of the VX4.

Vehicle Remote Antenna Mount

The external antenna (or antennas) can be remotely mounted on the vehicle. Please refer to the
“Vehicle Remote Mount Antenna Installation Sheet” for details.

Figure 26 Connect 2.4GHz Antenna

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Connect Serial Barcode Scanner 33

Connect Serial Barcode Scanner

Refer to the documentation received with the barcode scanner for complete
instructions. Read all warnings and caution labels.

!

Pin 9 of COM1 is configured to provide +5V. Pin 9 of COM2 is configured to provide RI. To
change Pin 9 of either port, please refer to Chapter 4, “System Configuration” in the “VX4
Reference Guide”.

The scanner cable is attached to the connector marked “COM1/SCANNER”. The scanner receives
power from the VX4.

The cable requires a nine-pin D-shell female connector for the VX4.

Note: Use of a shielded cable is required to maintain FCC and CISPR22 emissions

compliance.

Before using the scanner, read section titled “Operation”, sub- section titled
“Laser Barcode Scanner Warnings.”

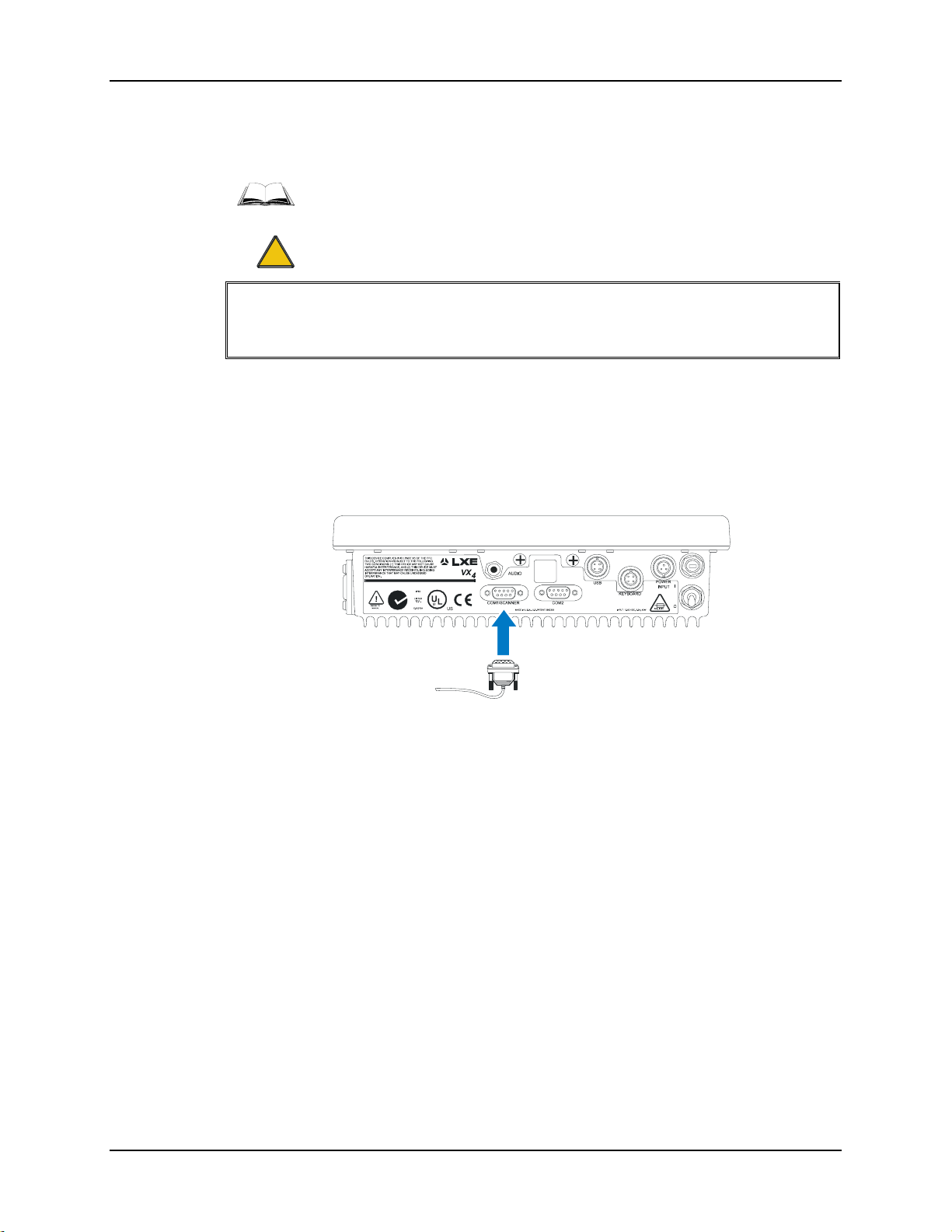

Figure 27 Connect Serial Scanner Cable

1. Seat the connector firmly over the pins and turn the thumbscrews in a clockwise
direction. Do not overtighten.

2. Use the strain relief cable clamps to secure the tethered scanner cable to the
VX4.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

34 Connect Serial Barcode Scanner

When you have finished using the scanner, remove it from the VX4 and store the scanner in a
closed container or bag.

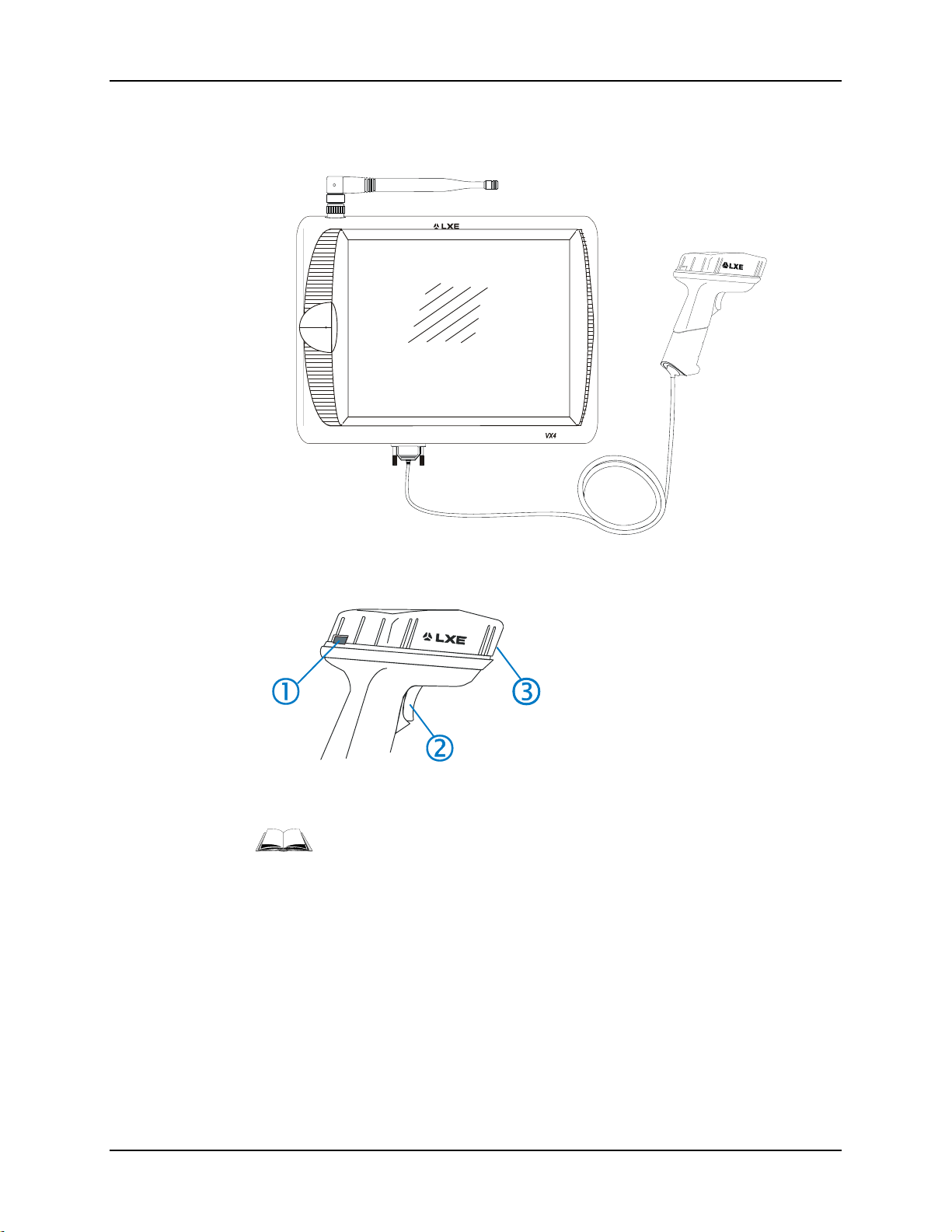

Figure 28 VX4 with Generic Barcode Scanner Attached

1. Good Scan LED (or equivalent)

2. Trigger

3. Laser Aperture at Front

Figure 29 Generic Barcode Scanner

Refer to the documentation received with the barcode scanner for complete
instructions.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Connect Serial Printer or PC 35

Connect Serial Printer or PC

Refer to the documentation received with the printer or PC for complete
instructions.

Pin 9 of COM1 is configured to provide +5V. Pin 9 of COM2 is configured to provide RI. To
change Pin 9 of either port, please refer to Chapter 4, “System Configuration” in the “VX4
Reference Guide”.

The printer or PC cable requires a nine-pin D-shell female connector for the VX4.

The printer or PC cable is attached to the connector marked “COM2”.

Note: Use of a shielded cable is required to maintain FCC and CISPR22 emissions

compliance.

Figure 30 Connect Serial Cable to COM2

1. Seat the connector firmly over the pins and turn the thumbscrews in a clockwise
direction. Do not over tighten.

2. Use the strain relief cable clamps to secure the cable to the VX4. Turn the
accessory on.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

36 Connect USB Devices

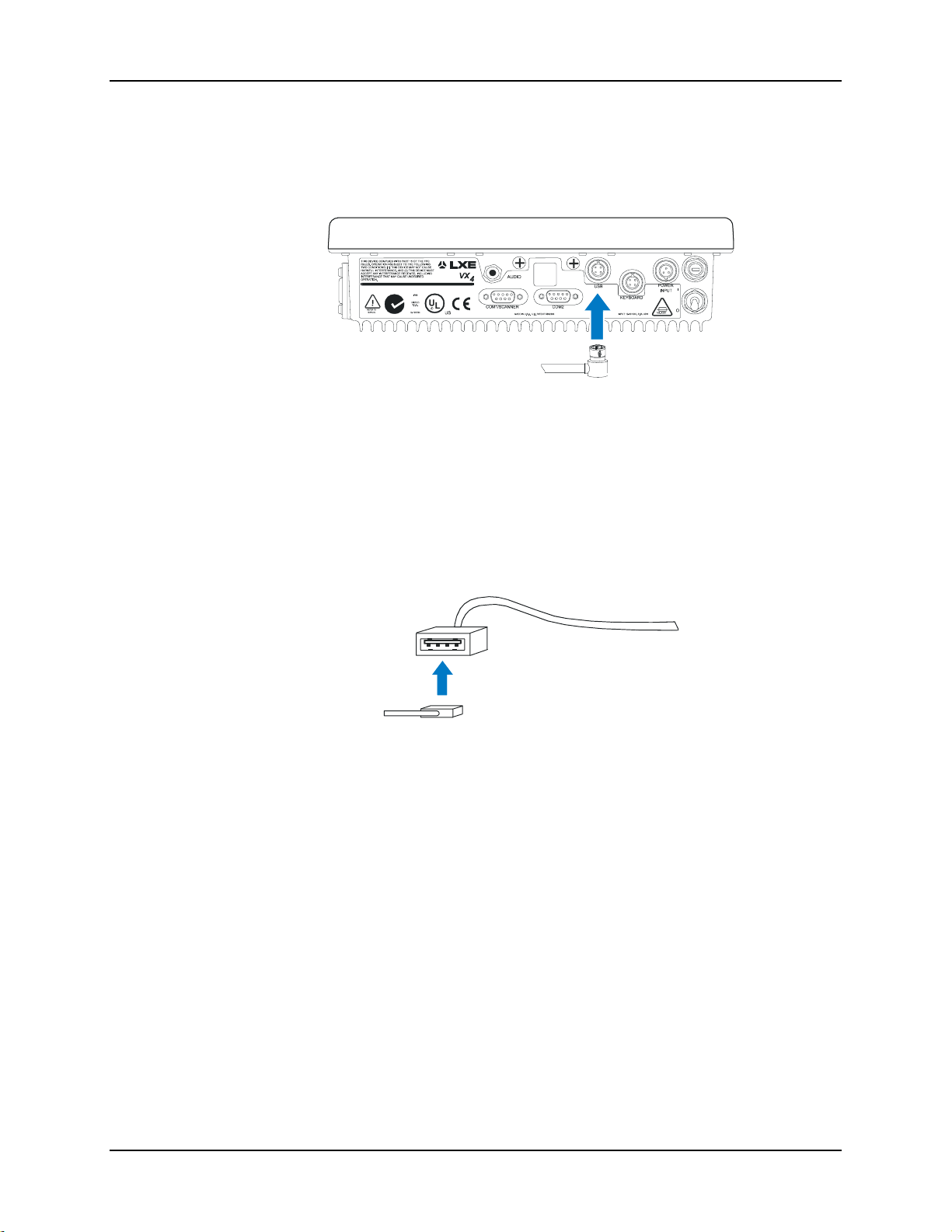

Connect USB Devices

The VX4 provides a USB port via an adapter cable attached to the connector marked “USB” .

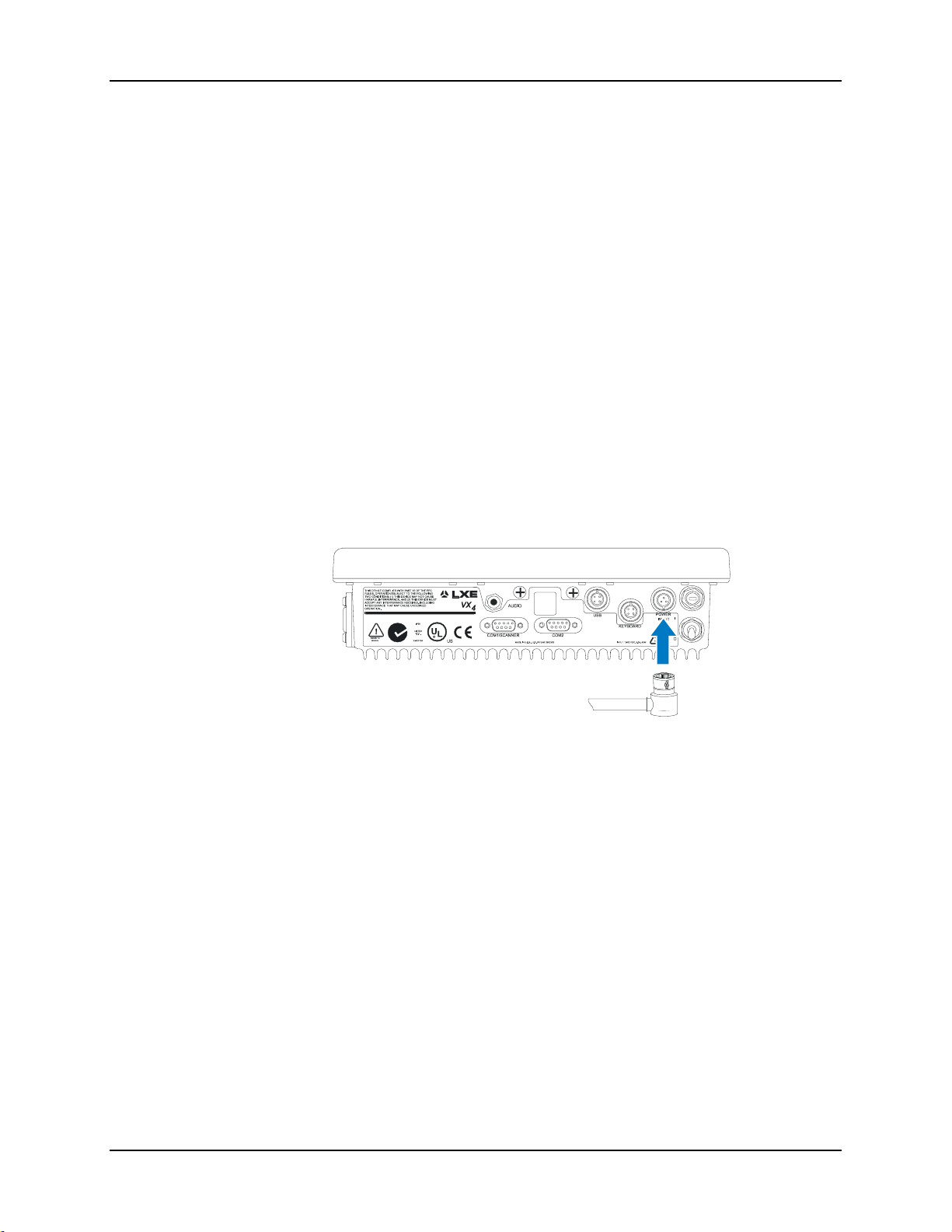

Figure 31 Connect USB Adapter Cable

1. Insert the watertight-connector end of the USB adapter cable into the VX4 USB
connector, aligning the groove on top of the cable with the notch at the top of the
VX4 connector.

2. Once the pins are firmly seated, tighten (turning clockwise) the connector into
place.

Figure 32 Connect USB Device to Adapter Cable

3. Plug the desired device, such as a USB mouse or floppy drive, into the end of the
adapter cable with the USB port. Refer to the documentation for your USB
device for more details on installation. USB devices may be installed, removed
or swapped without turning off the VX4.

Note: The USB Host Controller (or USB Port) must be enabled in the BIOS.

Also, to use a USB floppy drive, USB BIOS Legacy Support must be
enabled. For more information on these BIOS settings, please refer to
Chapter 4, “System Configuration” in the VX4 Reference Guide.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Connect External Headset 37

Connect External Headset

The VX4 provides an external headset connection via an audio jack connector marked “Audio” .

Note: The audio port is configured for the LXE supplied headset ONLY. Off-the-shelf PC

speakers and headphones do not use the same pinout.

Figure 33 Connect External Headset

1. Remove the plug covering the audio jack.

2. Insert the speaker or headphone plug into the audio connector; making sure the
plug is firmly seated in the connector jack.

3. Replace the plug when the speaker or headset is removed from the audio jack.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

38 Connect Ethernet Cable

Connect Ethernet Cable

Note: The Ethernet connector is optional. It is not present on all VX4’s.

The optional RJ-45 Ethernet connector is located on the top of the VX4, near the antenna
connector. The VX4 Ethernet connector accepts standard RJ-45 Ethernet cable (not included), the
same as any PCs on the network.

Figure 34 Connect Ethernet Cable

1. Remove the plug covering the Ethernet jack.

2. Insert the network cable and ensure it is firmly seated in the connector jack.

3. To remove the Ethernet cable, press the release tab on the cable end.

4. Replace the plug when the Ethernet jack is not in use.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Connect Power Cable 39

Connect Power Cable

1. Turn the VX4 off before attaching the power plug.

2. Connect the power cable to vehicle power (See the following section titled
“Vehicle 12-60VDC Direct Connection.”)

- or -

to an AC adapter. (See the following section titled “External Power Supply.”).

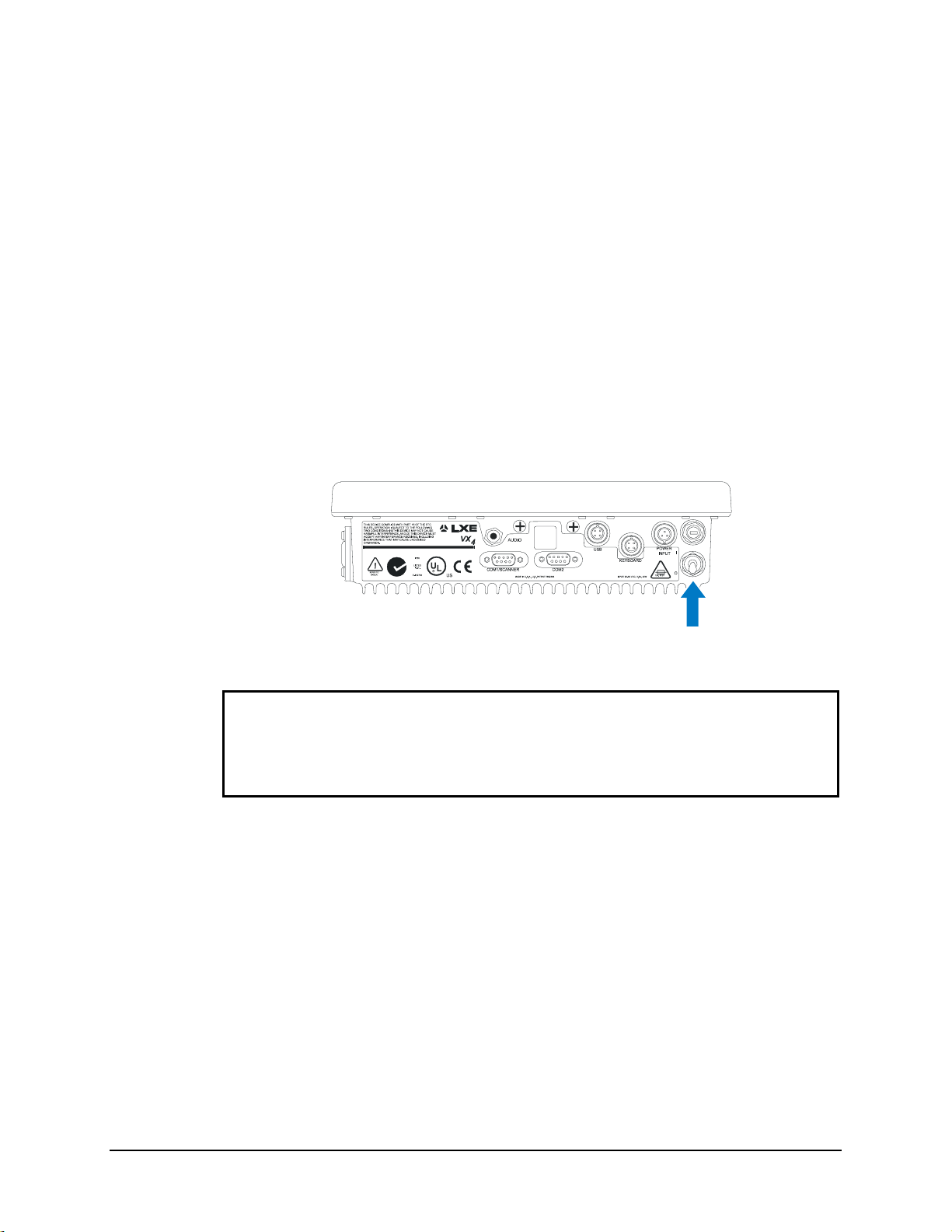

3. Connect power by inserting the power plug into the power connector on the
bottom of the VX4.

4. Both the plug and receptacle are keyed and care must be used when connecting
the power cable. Tighten the nut of the power plug clockwise until tight.

Secure the cable with the strain relief cable clamps, ensuring a slack loop
remains between the cable clamp and the connector.

Figure 35 Connect Power Cable to VX4

5. Turn the VX4 on.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

40 External Power Supply, Optional

External Power Supply, Optional

The LXE-approved AC Power Adapter is only intended for use in a 25ºC (77ºF) maximum
ambient temperature environment.

1. AC Input Cable

2. DC Output Cable

Figure 36 Optional Power Configuration

In North America, this unit is intended for use with a UL Listed ITE power supply with
output rated 12 – 60 VDC, minimum 3.5 A. Outside North America, this unit is intended for
use with an IEC certified ITE power supply with output rated 12 – 60 VDC, minimum 3.5 A.

The external power supply may be connected to either a 120V, 60Hz supply or, outside North
America, to a 230V, 50Hz supply, using the appropriate detachable cordset. In all cases, connect
to a properly grounded source of supply provided with maximum 15 Amp overcurrent protection
(10 Amp for 230V circuits).

How To: Connect External Power Supply

1. Turn the VX4 off.

2. Connect the detachable cordset provided by LXE to the external power supply
(IEC 320 connector).

3. Plug cordset into appropriate, grounded, electrical supply receptacle (AC mains).

4. Connect the watertight connector end to the VX4’s Power Connector by aligning
the connector pins to the power connector; push down on the watertight
connector and twist it to fasten securely.

5. Turn the VX4 on.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Vehicle 12-60VDC Direct Connection 41

Vehicle 12-60VDC Direct Connection

Caution:

!

Caution:

!

Warning:

!

For proper and safe installation, the input power cable must be connected to a
fused circuit on the vehicle. This fused circuit requires a 5 Amp maximum time
delay (slow blow) high interrupting rating fuse. If the supply connection is
made directly to the battery, the fuse should be installed in the positive lead
within 5 inches of the battery positive (+) terminal.

For installation by trained service personnel only.

Risk of ignition or explosion. Explosive gas mixture may be vented from
battery. Work only in well ventilated area. Avoid creating arcs and sparks at
battery terminals.

1. To Vehicle Battery

2. To Vehicle
Mounted Device

3. Green (GND)

4. Red / White (DC+)

5. Red / Black (DC-)

6. 12 – 60 VDC

Figure 37 Direct Vehicle Power Connection Cable (Fuse Not Shown)

1. Vehicle Electrical
System

2. 5 Amp Slow Blow
Fuse

3. DC +

4. DC -

5. Vehicle Chassis

6. Red / White

7. Red / Black

8. Green

Figure 38 Connecting the Power Cable to the Vehicle

Note: Correct electrical polarity is required for safe and proper installation. Connecting the

cable to the VX4 with the polarity reversed will cau se the VX4 ’s fu se to b e blo wn. S ee the
following figure titled “Vehicle Connection Wiring Color Codes” for additional wire
color-coding specifics.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

42 Vehicle 12-60VDC Direct Connection

How To: Connect Vehicle 12-60VDC Direct Connection

1. The VX4 must be turned off.

2. While observing the fuse requirements specified above, connect the power cable
as close as possible to the actual battery terminals of the vehicle. When available,
always connect to unswitched terminals in vehicle fuse panel, after providing
proper fusing.

ATTENTION: For uninterrupted power, electrical supply connections should

not be made at any point after the ignition switch of the
vehicle.

3. Route the cable the shortest way possible. The input cable from the connection to
the battery is rated for a maximum temperature of 105°C (221°F). When routing
this cable it should be protected from physical damage and from surfaces that
might exceed this temperature.

Do not expose the cable to chemicals or oil that may cause the wiring insulation
to deteriorate.

Note: If the vehicle is equipped with a panel containing Silicon Controller

Rectifiers (SCR’s), avoid routing the power cable in close proximity to
these devices.

Always route the cable so that it does not interfere with safe operation and
maintenance of the vehicle.

Use proper electrical and mechanical fastening means for terminating the cable.

Properly sized “crimp” type electrical terminals are an accepted method of
termination. Please select electrical connectors sized for use with 18AWG

2

) conductors.

(1mm

Wiring color codes for LXE supplied DC input power cabling:

Vehicle Supply Wire Color

+12 - 60VDC (DC +) Red with White Stripe

Return (DC -) Red with Black Stripe

Vehicle Chassis GND Green

Figure 39 Vehicle Connection Wiring Color Codes

Note: LXE’s VX4 accepts a wide DC input voltage range. Do not connect the

VX4 input power cable to any other LXE computer or damage to that
computer may occur.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Vehicle 12-60VDC Direct Connection 43

4. Provide mechanical support for the cable by securing it to the vehicle structure at
approximately one foot intervals, taking care not to over tighten and pinch
conductors or penetrate outer cable jacket.

5. Connect the cable to the VX4 by aligning the water-tight connector pins to the
power connector; push down on the water-tight connector and twist it to fasten
securely.

6. Turn the VX4 on.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

44 Fuse Replacement for the VX4

Fuse Replacement for the VX4

The VX4 uses a 125V, 5A time delay (slow blow), high current interrupting rating fuse that is
externally accessible and user replaceable. Should it need replacement, replace with same size,
rating and type of fuse -- Bussman Type GMC-5 (5x20mm).

1. Fuse

2. Twist in this direction
to remove

3. Twist in this direction
to insert

Figure 40 Fuse Replacement

1.

Turn the VX4 off and disconnect the power cable from the VX4.

2. While holding the VX4 over a level surface, push the fuse cover in and twist it
one quarter turn counterclockwise. A flat head screwdriver may be used to twist
the fuse cover.

3. Remove the fuse.

4. Discard the fuse and place a new fuse in the holder.

5. Push the fuse in and twist it clockwise one quarter turn.

6. Reconnect the power cable to the VX4.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Powering On/Off

Connect the VX4 to a power source, either AC or Vehicle.

The power (on/off) switch is a toggle switch located on the bottom of the VX4. The switch is
sealed by a rubber boot seal. The Status LED on the LXE VMT keyboard is lit when the power is
on.

You are now ready to use the computer.

Enter data using the keyboard, touchscreen or a Serial Barcode Scanner.

Note: Always turn the computer off prior to connecting or disconnecting any power source.

Operation

Always shut down Microsoft Windows before turning the power off.

Figure 41 The VX4 Power Switch

Powering off the VX4 without properly shutting down Microsoft Windows can corrupt
Windows. ALWAYS shut down Windows before powering off the VX4.

Powering off the VX4 before a write (to disk) function has completed, may result in the
corruption of the flash drive, if so equipped. Always shut down Microsoft Windows before
powering off the VX4.

When the system is turned off, the current contents of RAM are lost. Save any needed data and
exit in an orderly fashion from any running programs, then shut down Microsoft Windows, before
turning the system off.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

46 Keyboard Backlight

Reset Key Sequence (Reboot)

Note: The <CTRL> + <ALT> + <DEL> function can be used to shut down a Microsoft

Windows application or reboot the computer. The keypress brings up the “Close
Program” window (Windows 98) or the “Task Manager” window (Windows XP).

To reboot the VX4 without turning the computer off, press

<CTRL> + <ALT> + <DEL> or <CTRL> + <ALT> + <numeric .>

ATTENTION:

When the system is rebooted, the current contents of RAM are lost. Save any needed data and exit
in an orderly fashion from any running programs before rebooting.

When the VX4 is turned on or rebooted, the following settings are restored from flash memory
and are configured using BIOS Setup.

Note: Options in the Microsoft Windows Control Panel make access to the BIOS unnecessary

in many cases. Only those setting not controlled by Windows are listed below. For more
information on Windows settings, please refer to commercially available Windows
guides.

Factory Default Settings

Boot Sequence

Legacy Floppy (A and B) Disabled

Primary and Secondary
Master and Slave drives

Display POST Msgs Disabled

Rebooting the VX4, before a write (to disk) function has completed, may
result in the corruption of data on the hard drive.

Hard Drive, Removable Devices, CD-ROM drive, Network boot
in this order

Auto

Show Summary Screen Disabled

NumLock at boot Auto

Note: This is a partial listing. Please refer to the “VX4 Reference Guide” for more details.

Keyboard Backlight

The LXE keyboard has LEDs that illuminate the individual keys. The keyboard backlight may be
toggled manually by pressing <2
changes the state of the keyboard backlight as follows:

• Turns the backlight Off if it is currently On.

• Turns the backlight On if it is currently Off.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

nd

> + <CTRL> + <F10>. This key sequence immediately

Display and Touchscreen 47

Display and Touchscreen

The VX4 Display is a thin-film transistor display capable of supporting SVGA graphics modes.
Display size is 800 x 600 pixels. The display covering is designed to resist stains. The touch
screen allows signature capture and touch input.

The touch screen is a Resistive Panel with a scratch resistant finish that can detect touches by a
stylus, and translate them into computer commands. In effect, it simulates a computer mouse.
Only Delrin or plastic styluses should be used.

Note: Always use the point of the stylus for tapping or making strokes on the display. Never use

an actual pen, pencil or sharp object to write on the touch screen.

An extra or replacement stylus may be ordered from LXE. See the “Accessories” section for the
stylus part number.

Although the touch screen is installed and calibrated at the factory, users may make adjustments to
it by using the Hampshire TSHARC Control Panel on the Microsoft Windows Programs menu.
Please refer to your System Administrator or the VX4 Reference Guide for information on touch
screen calibration.

Cleaning the Display

Keep fingers and rough or sharp objects away from the scan aperture and display. If the glass
becomes soiled or smudged, clean only with a standard household cleaner such as Windex®
without vinegar or use Isopropyl Alcohol. Do not use paper towels or harsh-chemical-based
cleaning fluids since they may result in damage to the glass surface. Use a clean, damp, lint-free
cloth. Do not scrub optical surfaces. If possible, clean only those areas which are soiled.
Lint/particulates can be removed with clean, filtered canned air.

Adjust Screen Display

The color TFT display is an active source of light. There are no provisions for adjusting the
brightness or contrast of the display. The display remains on unless Microsoft Windows Power
Management is configured to turn the display off after a certain period of time.

Note: The <F4>, <F5>, <F6>, and <F7> keys on the VMT keyboard have no function as the

VX4 has a TFT screen.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

48 Adjust Speaker Volume

Adjust Speaker Volume

Microsoft Windows provides volume adjustment by clicking the “volume” icon in the system tray.
The volume control adjusts the built in speaker’s volume.

Note: The <F8> and <F9> keys on the VMT keyboard have no function as Windows controls

the sound volume.

Microsoft Windows Event Sounds

The VX4 CD contains WAV files that may be preferable to standard Microsoft Windows sounds
when using the internal speaker. For more information on changing the sounds used in Windows,
please refer to the Windows help feature.

Status Indicator

The LXE VMT keyboard has a Status LED, located below the <enter> key, that is illuminated
green when the unit is powered on. The LED is dark when power is disconnected. All power
management and modes are handled by Microsoft Windows.

Note: This LED should not be lit when power is disconnected from the VX4.

Status LED Condition

Off VX4 is Off.

Steady Green The VX4 is powered On and the display is On.

- or -

The VX4 is powered On and the display is Off. Press any key or
touch the screen to turn the display On.

- or -

The VX4 is in the Standby state. The VX4 is placed in Standby
state from the Microsoft Windows Shut Down menu or the
expiration of the Windows Standby timer. Any key press or screen
touch returns the VX4 to the “On” state. When the VX4 enters the
Standby state, the display and hard drive are turned off. On a VX4
running Windows 98, the keyboard backlight may be configured to
turn off in Standby mode.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Status Indicator 49

Power Management

All Power Management is handled through the Microsoft Windows Control Panel. System
standby and turning the monitor and hard disk off are accessed from the Power Management icon.

Figure 42 Microsoft Windows Power Management

For more information on configuring Microsoft Windows Power Management, please refer to the
Windows Help feature.

The Power Management defaults for the VX4 are:

System standby Never

Turn off monitor After 15 minutes

Turn off hard disks After 1 hour

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

50 Laser Barcode Scanner Warnings

Laser Barcode Scanner Warnings

• Do not look into the laser’s lens.

• Do not stare directly into the laser beam.

• Do not remove the laser caution labels from the scanner.

• Do not connect the laser barcode module to any other device.

Caution:

!

Please read the caution labels.

Avoid exposure. Laser light is emitted from the scanner’s aperture.

Use of controls, adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.

The scanner uses laser light. The following labels are representations of caution
and warning labels placed on laser scanners.

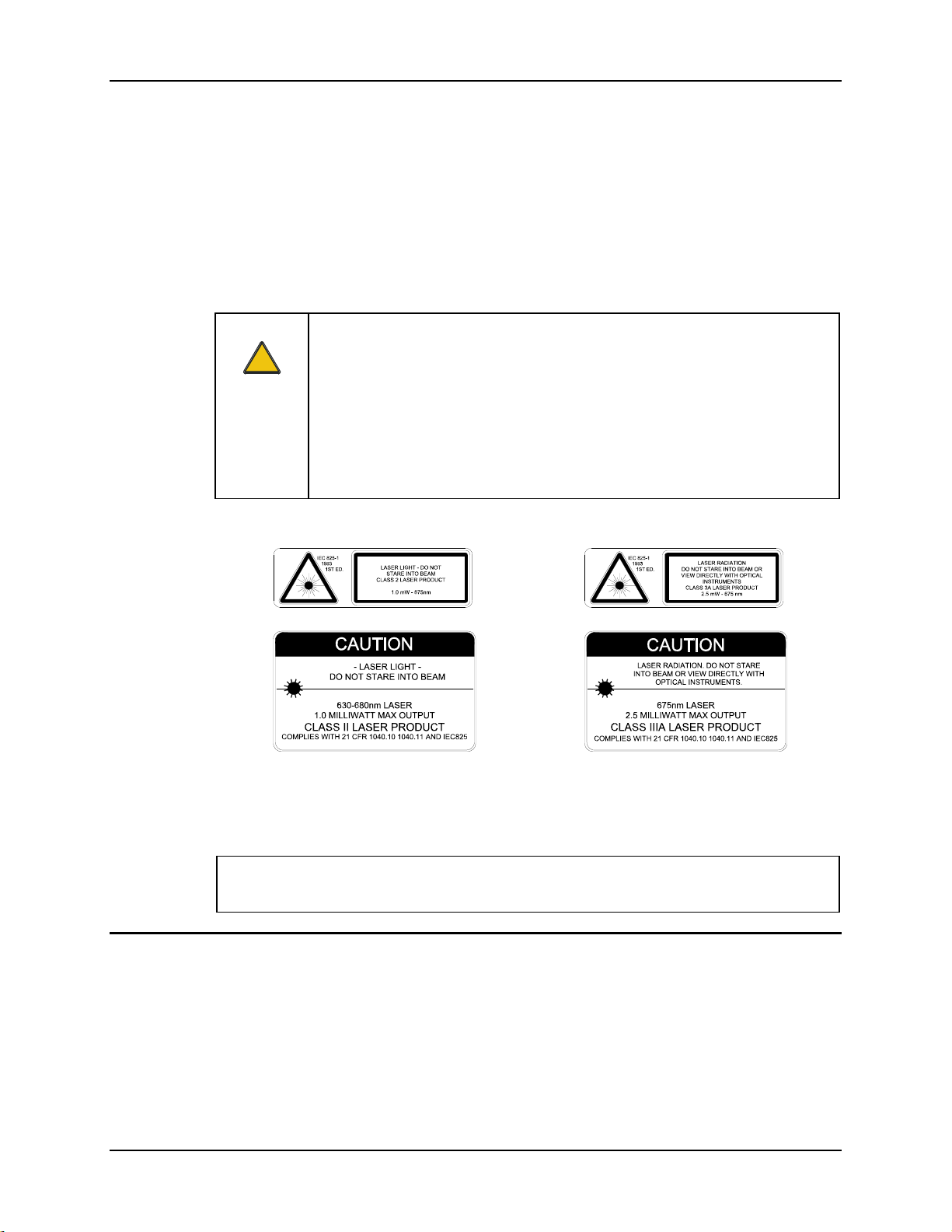

Figure 43 Caution Labels

Class II Scanner

Figure 44 Caution Labels

Class IIIA Scanner

Do not pour, spray, or spill any liquid on the scanner. The Barcode Scanner contains the
circuitry, scanning motor and laser. Handle with appropriate care.

Cleaning the Scan Aperture

Keep fingers and rough or sharp objects away from the scan aperture and display. If the glass
becomes soiled or smudged, clean only with a standard household cleaner such as Windex®
without vinegar or use Isopropyl Alcohol. Do not use paper towels or harsh-chemical-based
cleaning fluids since they may result in damage to the glass surface. Use a clean, damp, lint-free
cloth. Do not scrub optical surfaces. If possible, clean only those areas which are soiled.
Lint/particulates can be removed with clean, filtered canned air.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Enter Data 51

Enter Data

You can enter data into the VX4 through several different methods:

• The tethered scanner connected to the COM1 serial port provides barcode data entry

• The serial ports are used to input/output data

• The keyboards provide manual entry

• The touchscreen also provides manual entry.

Keyboard Entry

Refer to “Appendix: Key Maps” for specific keypresses.

The keyboard is used to manually input data that is not collected otherwise. Almost any function
that a full sized computer keyboard can provide is duplicated on the LXE VMT keyboard but it
may take a few more keystrokes to accomplish a keyed task.

Almost every key has two or three different functions. The primary alpha or numeric character is
printed on the key.

nd

For example, when the <2

nd

the <2
is printed above the corresponding key.

> character i.e. <2nd> + F1 toggles the CAPS Lock function. The specific <2nd> character

> key is selected pressing the desired second-function key produces

Please refer to “Appendix: Key Maps” for instruction on the specific keypresses to access all PC­compatible keyboard functions.

Touchscreen Entry

Note: This section is directed to the VX4 operator. The assumption is that the unit has been

Note: Always use the point of the stylus for tapping or making strokes on the display. Never use

The touchscreen input performs the same function as the mouse that is used to point to and click
elements on a desk top computer. The stylus is used in the same manner as a mouse – single tap or
double tap to select menu options, drag the stylus across text to select, hold the stylus down to
activate slider bars, etcetera. Holding the stylus down for ½ second performs the right mouse
click function.

When using a stylus, hold the stylus as if it were a pen or pencil. Touch an element on the screen
with the tip of the stylus then remove the stylus from the screen. The touch screen responds to an
actuation force (touch) of up to 4 oz. of pressure.

The touch screen can be used in conjunction with the keyboard and scanner and an input/output
device connected to one of the VX4’s serial ports.

configured and the touch panel calibrated by the System Administrator prior to releasing
the VX4 for operator use.

an actual pen, pencil or sharp object to write on the touch screen.

• Touch the stylus to the field of the data entry form to receive the next data feed.

• The cursor begins to flash in the field.

• The unit is ready to accept data from either the keyboard, integrated scanner or a

device connected to a serial port.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

52 Enter Data

Scanner Entry

The following section is directed toward a generic tethered scanner connected to the COM1 serial
port on the VX4.

Aiming the Barcode Scanner

Aim the scanner away from you, direct it at the barcode and press the trigger to scan.

The Scan On LED (or equivalent) turns red to indicate the scanner is on.

Adjust the aim so that the thin, red laser beam covers the entire length of the barcode.

Some scanners use a laser aiming beam which then spreads into a wide beam when the scanner’s
Aiming Beam Timer expires. Place the aiming beam in the center of the barcode and hold the
scanner steady until the beam spreads and the barcode is decoded. Beeps may be heard as the
barcode is decoded. Refer to the barcode scanner user’s guide for information on the Aiming
Beam Timer and beep sequences, and the TE reference guide for host generated beep sequences.

The scan beam must cross every bar and space on the barcode.

Distance from Label

Large barcodes can be scanned at the maximum distance. Hold the scanner closer to small
barcodes (or with bars that are very close together).

Note: Do not position the scanner exactly perpendicular to the barcode being scanned. In this

Successful Scan

When the scan is successful, the scanner’s good scan indicator illuminates, the scan on indicator is
off, and the currently running application may produce a distinctive audible tone.

Unsuccessful Scan

When the scan is unsuccessful, the scan on indicator remains illuminated and the currently
running application may produce distinctive audible tones. Check the following:

Correct Scan Incorrect Scan Incorrect Scan

Figure 45 Scan Beam

position, light can bounce back into the scanner’s exit window, and possibly prevent a
successful decode.

• Is the scanner programmed for the barcode being read?

• Check the barcode for marks or physical damage e.g. ripped label, missing section,

etc.

• Try scanning test symbols of the same code type at different distances and angles.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Standard Keypad 53

Appendix A Key Maps

Standard Keypad

Figure 46 VMT QWERTY Keyboard

The key map table that follows lists the commands used when running LXE’s ANSI Plus (with

2.4GHz radio), LDS Plus (with 2.4GHz radio) Terminal Emulation (TE) or RFTerm programs.
When running these programs please refer to the following terminal emulation reference guides
for equivalent keys and keypress sequences:

• ANSI Plus Reference Guide

• LDS Plus Reference Guide

• RFTerm™ Reference Guide

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

54 Key Map 101-Key Equivalencies

Key Map 101-Key Equivalencies

When using a sequence of keys that includes the 2nd key, press the 2nd key first then the rest of the
key sequence.

Note: The VMT keyboard does not have a NumLock indicator. NumLock is enabled by default

in BIOS. NumLock may be toggled On or Off using the <2nd> <SHIFT> <F10>
keypress sequence. To change NumLock status at boot, it is necessary to access the
BIOS. Please refer to “BIOS” in Chapter 4, “Software”. When NumLock is off, only the
numeric 0 through 9 and DOT keys are affected. All other keymaps are unchanged.

When the computer boots with a VMT keyboard, the default condition of Caps (or

CapsLock) is Off. The Caps (or CapsLock) condition can be set toggled with a

nd

>+<F1> key sequence. The CAPS LED on the VMT keyboard is illuminated when

<2
CapsLock is On.

To get this key

Increase Brightness7 x F4

Decrease Brightness7

Increase Contrast7

Decrease Contrast7

Increase Volume8 x F8

Decrease Volume8

Keyboard Backlight9 x x F10

Suspend/Resume10 x F3

2nd 2

Shift Shift

Alt Alt

Ctrl Ctrl

Esc Esc

Space Sp

Enter Enter

Enter (numeric) x Enter

CapsLock (Toggle) x F1

Back Space Ins/BkSp

Tab Tab

Press These Keys and Then

nd

Shift Ctrl Alt CapsLock

2

x F5
x F6
x F7

x F9

Press this key

nd

7

The Brightness and Contrast Adjustment keys have no function because the VX4D is

equipped with a TFT display that has no provision for these adjustments.

8

The Volume Control keys have no function as the volume is not adjustable on the VX4D.

9

The Keyboard Backlight key is used in <2nd> + <CTRL> + <F10> key sequence. Refer

to “VMT Keyboard Backlighting” in Chapter 4, “System Configuration”.

10

The Suspend/Resume key has no function.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Key Map 101-Key Equivalencies 55

To get this key

BackTab x Tab

Ctrl-Break11 x x F2

Pause x F2

Up Arrow Up Arrow

Down Arrow Down Arrow

Right Arrow Right Arrow

Left Arrow Left Arrow

Insert x Ins/BkSp

Delete (numeric) x DOT

Home x Left Arrow

End x Right Arrow

Page Up x Up Arrow

Page Down x Down Arrow

Right Shift x x F7

Right Alt x x F8

Right Ctrl x x F9

ScrollLock x x F4

NumLock x x F10

F1 F1
F2 F2
F3 F3
F4 F4
F5 F5
F6 F6
F7 F7
F8 F8

F9 F9
F10 F10
F11 x x F1
F12 x x F2

a A
b B
c C
d D
e E

f F
g G
h H

Press These Keys and Then

nd

Shift Ctrl Alt CapsLock

2

Press this key

11

Press <Ctrl> then <2nd> then <F2> to produce Ctrl-Break.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

56 Key Map 101-Key Equivalencies

To get this key

i I

j J
k K

l L

m M

n N
o O
p P
q Q

r R
s S

t T
u U
v V

w W

x X
y Y
z Z

A x A
B x B
C x C
D x D
E x E
F x F
G x G
H x H

I x I
J x J

K x K

L x L

M x M
N x N
O x O
P x P
Q x Q
R x R
S x S
T x T
U x U
V x V

Press These Keys and Then

nd

Shift Ctrl Alt CapsLock

2

Press this key

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Key Map 101-Key Equivalencies 57

To get this key

W x W

X x X
Y x Y

Z x Z
1 (alpha) x x 1
2 (alpha) x x 2
3 (alpha) x x 3
4 (alpha) x x 4
5 (alpha) x x 5
6 (alpha) x x 6
7 (alpha) x x 7
8 (alpha) x x 8
9 (alpha) x x 9
0 (alpha) x x 0

DOT (alpha) x K

1 (numeric) 1 (NumLock On)
1 (numeric) x 1 (NumLock Off)
2 (numeric) 2 (NumLock On)
2 (numeric) x 2 (NumLock Off)
3 (numeric) 3 (NumLock On)
3 (numeric) x 3 (NumLock Off)
4 (numeric) 4 (NumLock On)
4 (numeric) x 4 (NumLock Off)
5 (numeric) 5 (NumLock On)
5 (numeric) x 5 (NumLock Off)
6 (numeric) 6 (NumLock On)
6 (numeric) x 6 (NumLock Off)
7 (numeric) 7 (NumLock On)
7 (numeric) x 7 (NumLock Off)
8 (numeric) 8 (NumLock On)
8 (numeric) x 8 (NumLock Off)
9 (numeric) 9 (NumLock On)
9 (numeric) x 9 (NumLock Off)
0 (numeric) 0 (NumLock On)
0 (numeric) x 0 (NumLock Off)

DOT (numeric) DOT (NumLock

DOT (numeric) x DOT (NumLock

< x 0

Press These Keys and Then

nd

Shift Ctrl Alt CapsLock

2

Press this key

On)

Off)

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

58 Key Map 101-Key Equivalencies

To get this key

[ x 1

] x 2
> x 3
= x 4

{ x 5

} x 6

/ (numeric) x x 7

/ (alpha) x 7

- (numeric) x x 8

- (alpha) x 8

+ (numeric) x x 9

+ (alpha) x 9

* (numeric) x I

* (alpha) x x I

: (colon) x D

; (semicolon) x F

? x L

` x N

_ (underscore) x M

, (comma) x J

‘ (apostrophe) x H

~ (tilde) x B

\ x S

| x A

“ x G

! x Q

@ x W

# x E
$ x R

% x T

^ x Y

& x U

( x O

) x P

Press These Keys and Then

nd

Shift Ctrl Alt CapsLock

2

Press this key

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

TN3270 Terminal Emulator Keypad 59

TN3270 Terminal Emulator Keypad

Figure 47 IBM 3270 Specific Keypad

This keypad is designed to allow the user to enter terminal emulator commands when running
LXE’s TN3270 Terminal Emulation (TE) programs. When running these programs please refer to
the following terminal emulation reference guides for equivalent keys and keypress sequences:

• TN3270 Terminal Reference Guide

• RFTerm™ Reference Guide

TN5250 Terminal Emulator Keypad

Figure 48 IBM 5250 Specific Keypad

This keypad is designed to allow the user to enter terminal emulator commands when running
LXE’s TN5250 Terminal Emulation (TE) programs. When running these programs please refer to
the following terminal emulation reference guides for equivalent keys and keypress sequences:

• TN5250 Terminal Reference Guide

• RFTerm™ Reference Guide

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

60 TN5250 Terminal Emulator Keypad

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Appendix B Regulatory Notices and Safety Information

FCC Information:

This device complies with FCC Rules, part 15. Operation is subject to the following conditions:

1. This device may not cause harmful interference
and

2. This device must accept any interference that may be received, including interference that may cause
undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
Warning: Changes or modifications to this device not expressly approved by LXE, Inc., could void the user’s
authority to operate this equipment.

EMC Directive Requirements:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.

Industry Canada:

This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment
Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouiller du
Canada. Le present appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numeriques de le Classe A préscrites dans le Reglement sur le brouillage radioélectrique édits par le
ministere des Communications du Canada.

Notice:

The long term characteristics or the possible physiological effects of radio frequency electromagnetic fields have
not been investigated by UL.

RF Safety Notice:

Caution:

This device is intended to transmit RF energy. For protection against RF exposure to humans and in
accordance with FCC rules and Industry Canada rules, this transmitter should be installed such that
a minimum separation distance of at least 20 cm (7.8 in.) is maintained between the antenna and the
general population. This device is not to be co-located with other transmitters.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

62 Regulatory Notices

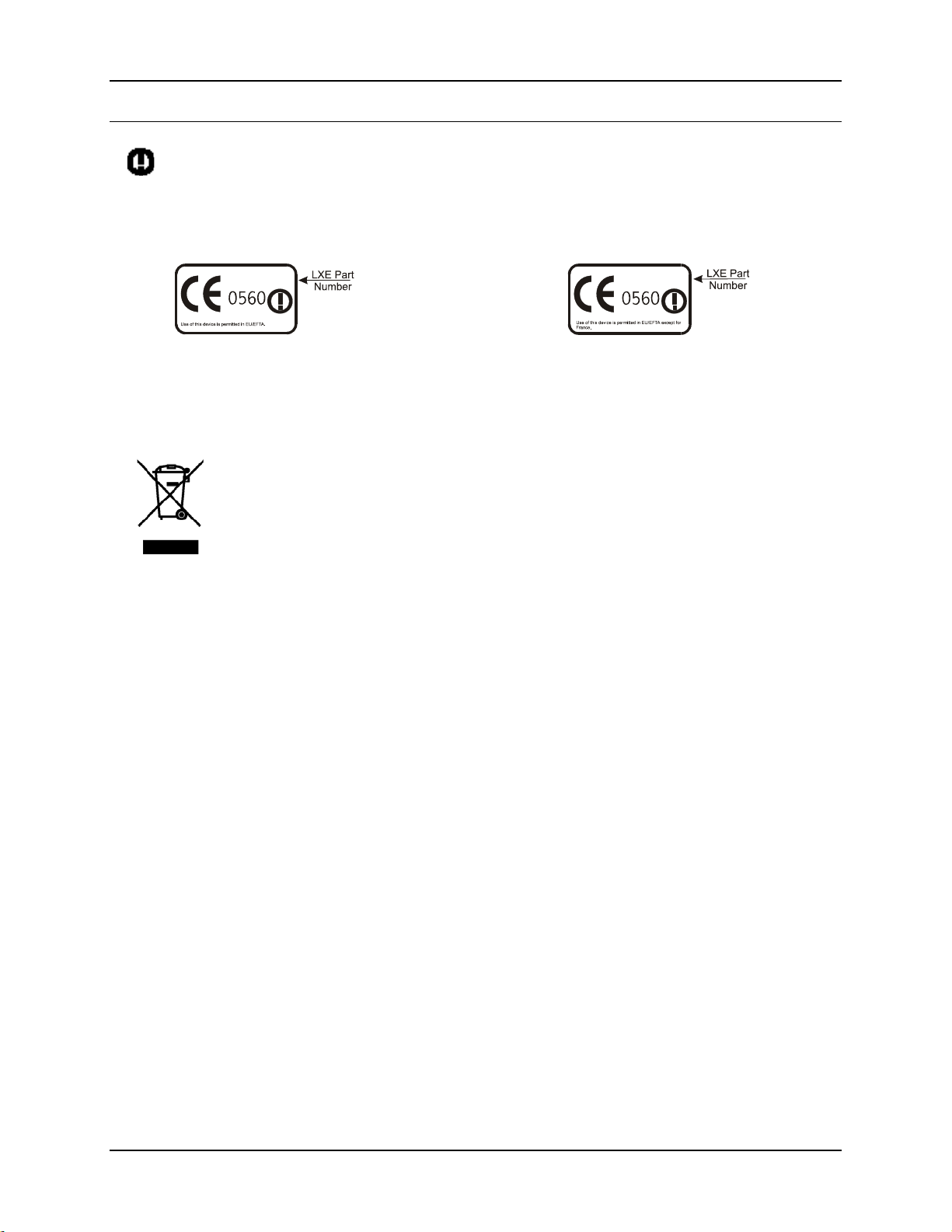

R&TTE Directive Requirements (Applies only to Equipment operated within the EU/EFTA)

Information to User

A label on the exterior of the device should resemble one of the labels shown below (the label contains
the LXE part number of the installed radio card). The labels shown below and affixed to the device,
identify where the device may be used and where its use is restricted. Use of a device is prohibited in
countries not listed below or otherwise identified by the label. (May or may not include the 0560 Notified
Body No.)

Permitted for use in: Austria, Belgium, Denmark, Finland,
Germany, Greece, Hungary, Iceland, Italy, Ireland, Liechtenstein,
Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden,
Switzerland, and the United Kingdom

Important: This symbol is placed on the product to remind users to dispose of Waste Electrical
and Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this
product can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled
units with trash. For information about proper disposal, contact LXE through your local sales

representative, or visit www.lxe.com.

Permitted for use in France.

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Regulatory Notices 63

Approvals

Product EMI / EMC Standards Safety Standards

VX4

EMI / EMC Standards:
FCC Part 15 Subpart B, Class A
EN 55022 : 1998 Class A
EN 55024 : 1998

EN 60950:2000 3
UL 60950:2000 3
CSA C22.2 No. 60950
IEC60950:1999 3

rd

rd

rd

Ed.
Ed.

Ed.

Transceiver RF Standards Notes

480824-3300 (LXE Part No.)

LXE 6400 System 2.4GHz Type II
PCMCIA Card

FCC Part 15, Subpart C
FCC Part 2
ETS 300 328
ETS 300 826

IC-RSS 210

Unlicensed Operation

Unlicensed Operation

Requires License for Outdoor Use

IC-RSS 102

480628-4096 (LXE Part No.)

LXE 6500 System 2.4GHz Type II
PCMCIA Card

FCC Part 15, Subpart C
FCC Part 2
ETS 300 328
ETS 300 826

IC-RSS 139

Unlicensed Operation

Unlicensed Operation

Requires License for Outdoor Use

IC-RSS 102

4810P3S01 (LXE Part No.)

LXE 6200 System 900MHz Type III

FCC Part 15, Subpart C
IC-RSS 210

Unlicensed Operation
Unlicensed Operation

PCMCIA Card

6526 (LXE Model No.)
6726 (LXE Model No.)

LXE 6500/6700 System 2.4GHz Type II
PCMCIA Card

FCC Part 15, Subpart C
FCC Part 2
EN 300 328
EN 300 826

IC-RSS 139

Unlicensed Operation

Unlicensed Operation

Requires License for Outdoor Use

IC-RSS 102

6816 (LXE Model No.)

LXE 2.4GHz Type II PCMCIA Card

FCC Part 15, Subpart C
FCC Part 2
EN 300 328
EN 300 826

IC-RSS 139

Unlicensed Operation

Unlicensed Operation

Requires License for Outdoor Use

IC-RSS 102

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

64 Regulatory Notices

LXE Transceiver 480628-4096 Declaration of Conformity

DECLARATION OF CONFORMITY

according to Directives:

1999/5/EC Radio Equipment and Telecommunications Terminal Equipment and the

93/68/EEC

Type of Equipment: Direct Sequence 2.4 GHz Wireless LAN Card

Brand Name or Trademark: LXE

Type Designation: 480628-4096

Manufacturer: LXE Inc.

Address: 125 Technology Parkway

Year of Manufacturer: 2000

The following harmonized European Standards, technical specifications, or other normative
documents have been applied:

EMI / EMC Standards:

EN 55022 : 1995 Limits and methods of measurement of radio disturbance characteristics

EN 300 826 : 1997 Electromagnetic compatibility - Generic immunity standard, Part 1:

EN 61000-4-2 : 1995 Electrostatic discharge immunity test
EN 61000-4-3 : 1997 Radiated radio frequency electromagnetic field immunity test
EN 61000-4-6 : 1996 RF conducted immunity test

Radio Frequency Standards:

EN 300 328 : 2000 Radio Equipment and Systems (RES);

Safety Standards:

IEC 950-2: 1991
+ Amendments
A1..A4

We, LXE Inc., declare that the equipment specified above complies with all Essential Health
and Safety Requirements of the above Directives and Standards, as amended.

Place:
Date of issue: 1 March, 2000 R. Sam Wismer,

mutual recognition of their conformity
CE Marking Directive

Norcross, GA 30092-2993 USA

of information technology equipment

Residential, commercial and light industrial

Wideband transmission systems;
Technical characteristics and test conditions for data transmission

equipment operating in the 2,4 GHz ISM band and using spread spectrum
modulation techniques

Safety of information technology equipment, including electrical business
equipment

LXE Inc., Norcross GA USA

Signed:

RF Approvals Engineer

LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA

ph. 770/447-4224 fax [phone]

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Regulatory Notices 65

LXE Transceiver 480824-3300 Declaration of Conformity

DECLARATION OF CONFORMITY

1999/5/EC Radio Equipment and Telecommunications Terminal Equipment and the

93/68/EEC

Type of Equipment: Frequency Hopping 2.4 GHz Wireless LAN Card

Brand Name or Trademark: LXE

Type Designation: 480824-3300

Manufacturer: LXE Inc.

Address: 125 Technology Parkway

Year of Manufacturer: 2000

The following harmonized European Standards, technical specifications, or other normative
documents have been applied:

EMI / EMC Standards:

EN 55022 : 1995 Limits and methods of measurement of radio disturbance characteristics

ETS 300 826 : 1997 Electromagnetic compatibility - Generic immunity standard, Part 1:

EN 61000-4-2 : 1995 Electrostatic discharge immunity test
EN 61000-4-3 : 1997 Radiated radio frequency electromagnetic field immunity test
EN 61000-4-6 : 1996 RF conducted immunity test

Radio Frequency Standards:

ETS 300 328 : 1996 Radio Equipment and Systems (RES);

Safety Standards:

IEC 950-2: 1991

+ Amendments

A1..A4

We, LXE Inc., declare that the equipment specified above complies with all Essential Health

Place: LXE Inc., Norcross GA USA

R. Sam Wismer,

according to Directives:

mutual recognition of their conformity
CE Marking Directive

Norcross, GA 30092-2993 USA

of information technology equipment

Residential, commercial and light industrial

Wideband transmission systems;
Technical characteristics and test conditions for data transmission

equipment operating in the 2,4 GHz ISM band and using spread spectrum
modulation techniques

Safety of information technology equipment, including electrical business
equipment

and Safety Requirements of the above Directives and Standards, as amended.

Signed:

Lead Approvals Engineer

LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA

ph. 770/447-4224 fax [phone]

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

66 Regulatory Notices

LXE Transceiver LXE 6526 Declaration of Conformity

DECLARATION OF CONFORMITY

according to Directives:

1999/5/EC Radio Equipment and Telecommunications Terminal Equipment and the

93/68/EEC

Type of Equipment: Direct Sequence 2.4 GHz Wireless LAN Card

Brand Name or Trademark: LXE

Type Designation: LXE 6526

Manufacturer: LXE Inc.

Address: 125 Technology Parkway

Year of Manufacturer: 2001

The following harmonized European Standards, technical specifications, or other normative
documents have been applied:

EMI / EMC Standards:

EN 55022 : 1995 Limits and methods of measurement of radio disturbance characteristics

EN 300 826 : 1997 Electromagnetic compatibility - Generic immunity standard, Part 1:

EN 61000-4-2 : 1995 Electrostatic discharge immunity test
EN 61000-4-3 : 1997 Radiated radio frequency electromagnetic field immunity test
EN 61000-4-6 : 1996 RF conducted immunity test

Radio Frequency Standards:

EN 300 328 : 1996 Radio Equipment and Systems (RES);

Safety Standards:

EN 60950-2: 1991
+ Amendments
A1..A4

mutual recognition of their conformity
CE Marking Directive

Norcross, GA 30092-2993 USA

of information technology equipment

Residential, commercial and light industrial

Wideband transmission systems;
Technical characteristics and test conditions for data transmission

equipment operating in the 2,4 GHz ISM band and using spread spectrum
modulation techniques

Safety of information technology equipment, including electrical business
equipment

We, LXE Inc., declare that the equipment specified above complies with all Essential Health
and Safety Requirements of the above Directives and Standards, as amended.

Place:
Date of issue: 30 March, 2001 R. Sam Wismer,

LXE Inc., Norcross GA USA

LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA

ph. 770/447-4224 fax [phone]

Signed:

RF Approvals Engineer

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Regulatory Notices 67

LXE Transceiver LXE 6726 Declaration of Conformity

DECLARATION OF CONFORMITY

according to Directives:

1999/5/EC Radio Equipment and Telecommunications Terminal Equipment

93/68/EEC

Type of Equipment: Direct Sequence 2.4 GHz Wireless LAN Card

Brand Name or Trademark: LXE

Type Designation: LXE 6726

Manufacturer: LXE Inc.

Address: 125 Technology Parkway

Year of Manufacturer: 2001

The following harmonized European Standards, technical specifications, or other normative
documents have been applied:

EMC:

EN 301 489-1: 07-2000

EN 301 489-17 07-2000

Radio:

EN 300 328-1 and -2: 2000-7 Radio Equipment and Systems (RES);

Safety:

EN 60950-2: 1992 + A1..A4 Safety of information technology equipment, including electrical

We, LXE Inc., declare that the equipment specified above complies with all Essential Health and
Safety Requirements of the above Directives and Standards, as amended.

and the mutual recognition of their conformity
CE Marking Directive

Norcross, GA 30092-2993 USA

Electromagnetic compatibility and Radio spectrum Matters
(ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical
requirements

Electromagnetic compatibility and Radio spectrum Matters
(ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 17: Specific conditions for
Wideband data and HIPERLAN equipment

Wideband transmission systems;
Technical characteristics and test conditions for data
transmission equipment operating in the 2,4 GHz ISM band
and using spread spectrum modulation techniques

business equipment

Place LXE Inc., Norcross GA USA
Date of issue 24 June 2004

C. Binnom Jr.
RF Approvals Engineer

LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA

ph. 770/447-4224 fax [phone]

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

68 Regulatory Notices

Annex to DoC for LXE 6726

With regard to the use of external antennas

The LXE 6726 can be equipped with external antennas. The antennas listed have been evaluated with the LXE 6726 pursuant to
ETSI EN 300 328, and therefore meet the definition of ‘dedicated antenna’ per ERC/REC 70-03 Appendix 1 Table 3; thus the
requirement set forth in ERC/REC 70-03 , Annex 3 are met by the LXE model 6726 transceiver.

Dedicated Antennas for use with LXE 6726

LXE P/N

153180-0001 0 dBi 17 dBm Omni, for LXE VX-series computers
155522-0001 0 dBi 17 dBm Omni, for LXE MX1-series computers
155814-0001 0 dBi 17 dBm Patch, for LXE MX1-series computers
157368-0001 0 dBi 17 dBm Patch, for LXE MX3-series computers
157399-0001 0 dBi 17 dBm Omni, for LXE MX5-series computers

99004-0027 0 dBi 17 dBm 3 dB Omni, for LXE model 2325 computer

DAC2450CT1

(Toko P/N)

153179-0001 0 dBi 17 dBm Omni, Access Point Antenna
153325-0001 0 dBi 17 dBm Omni, Access Point Antenna
480424-0400 0 dBi 17 dBm Omni, Access Point Antenna
153599-0001 3 dBi 17 dBm Omni, Access Point Antenna
153600-0001 3 dBi 17 dBm Omni, Access Point Antenna
480424-3404 3 dBi 17 dBm Omni, Access Point Antenna
155846-0001 3 dBi 17 dBm Spire® Access Point Antenna

155845-0001 6 dBi 13 dBm Spire® Access Point Antenna
155311-0001 6 dBi 13 dBm Patch, Access Point Antenna
480424-3411 6 dBi 13 dBm Patch, Access Point Antenna
480424-3402 6 dBi 13 dBm Patch, Access Point Antenna
481246-2400 6 dBi 13 dBm Patch, Access Point Antenna
480424-1702 6 dBi 13 dBm

480424-0411 9 dBi 7 dBm Omni, Access Point Antenna
480429-2703 12 dBi 7 dBm
480429-0411 12 dBi 7 dBm Omni, Access Point Antenna

460601-3020 15 dBi 3 dBm YAGI, Access Point Antenna
460602-3020 15 dBi 3 dBm YAGI, Access Point Antenna
480429-0415 15 dBi 3 dBm Omni, Access Point Antenna

Antenna Gain Radio Power Level Antenna Description

2.15 dBi 17 dBm Omni, for LXE MX2-series computers

180° Directional, Access Point Antenna

90° Directional, Access Point Antenna

C. Binnom Jr.
RF Approvals Engineer
24 June 2004

LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA

ph. 770/447-4224 fax [phone]

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Regulatory Notices 69

LXE Transceiver LXE 6816 Declaration of Conformity

DECLARATION OF CONFORMITY

according to:

the R&TTE Directive; 99/5/EEC

The EMC Directive; 89/336/EEC

The Low Voltage Directive; 73/23/EEC

and the Marking Directive; 93/68/EEC

Type of Equipment: DSSS 2.4GHz WLAN Radio Card

Brand Name or Trademark: LXE

Type Designation: 6816

Manufacturer: LXE Inc.

Address: 125 Technology Parkway

The following harmonized European Norms have been applied:

EMC Standards:

EN 301 489-1: 07-2000 Electromagnetic compatibility and Radio spectrum Matters (ERM);

EN 301 489-17:07-2000 Electromagnetic compatibility and Radio spectrum Matters (ERM);

EN 55022: 1998 Limits and methods of measurement of radio disturbance

Radio Standards:

EN 300 328-1 and -2: 2000-7

Safety Standard:

EN60950-1: 2001

The product carries the CE Mark:

ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical requirements

ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 17: Specific conditions for
Wideband data and HIPERLAN equipment

characteristics of information technology equipment

Radio Equipment and Systems (RES);
Wideband transmission systems;
Technical characteristics and test conditions for data transmission
equipment operating in the 2.4 GHz ISM band and using spread
spectrum modulation techniques

Safety of information technology equipment, including electrical
business equipment

Norcross, GA 30092 USA

We, LXE Inc., declare that the equipment specified above complies with all Essential Health
and Safety Requirements of the above Directives and Standards, as amended.

Date of issue: June 18, 2003

Cyril A. Binnom Jr.

Regulatory Engineer

LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA

ph. 770/447-4224 fax [phone]

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

70 Regulatory Notices

Annex to DoC for LXE 6816

With regard to the use of external antennas

The LXE 6816 can be equipped with external antennas. The antennas listed have been assessed with the LXE 6816 pursuant to EN
300 328, and therefore meet the definition of ‘dedicated antenna’. The table below lists the maximum output power setting for the
radio module in order to result in a total EIRP of 100mW or less. Any combination of output power and a specific type of antenna
resulting in an EIRP greater than 100mW is illegal for use throughout the Community and is outside the scope of this DoC. Antennas
not listed below are also outside the scope of this DoC.

Dedicated Antennas for use with LXE 6816

LXE Antenna

Part Number

153180-0001 N/A 2.2 dBi 17 dBm Cushcraft Omni Antenna
155846-0001 6000A279ANT3SPIREL

155845-0001 6000A277ANT6SPIREL

480424-0411 N/A 9 dBi 11 dbm Mobile Mark Omni Antenna
155104-0001 N/A 0 dbi 20 dbm LXE Omni
154591-0001 N/A 0 dbi 20 dbm LXE Patch

Toko DAC2450CT1 N/A 0 dbi 20 dbm LXE Omni

157368-0001 N/A 0 dbi 20 dbm LXE Omni
158586-0001 N/A 0 dbi 20 dbm LXE Omni
158399-0001 N/A 0 dbi 20 dbm LXE Omni

Cyril A. Binnom Jr.
Regulatory Engineer
18 June 2003

LXE Model

Number

6000A280ANT3SPIRER
6000A283ANT3INDSPR

6000A278ANT6SPIRER
6000A282ANT3INDSPR

Antenna

Gain

3 dBi 17 dBm Spire® Omni Antenna

6 dBi 13 dBm Spire® Omni Antenna

Max Radio

Power Level

Antenna

Description

LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA

ph. 770/447-4224 fax [phone]

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Regulatory Notices 71

!

Caution:

Lithium battery inside. Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent
type recommended by battery manufacturer. (US)

Attention:

Contient une pile de lithium. Risque d’explosion dans le cas où la pile ne serait pas correctement remplacée.
Remplacer uniquement avec une pile semblable ou equivalente au type de pile recommandé par le fabricant. (FR)

Forsigtig:

Indeholder lithiumbattterier. Risiko for eksplosion, hvis batteriet udskiftes forkert. Må kun udskiftes med samme
eller tilsvarende type, som anbefalet af fabikanten. (DK)

Varoitus:

Tämä tuote käyttää laservaloa. Skannerissa on jokin seuraavista tarroista. Lue Huomio-kohta. (FI)

Vorsicht:

Enthält Lithium-Batterie. Bei unsachgemäßem Ersatz besteht Explosionsgefahr. Nur durch gleichen oder vom
Hersteller empfohlenen Typ ersetzen. (DE)

Attenzione:

Batteria al litio. Pericolo di esplosione qualora la batteria venga sostituita in maniera scorretta. Sostituire solo con lo
stesso tipo o equivalente consigliato per il fabbricante. (IT)

Atenção:

Contém pilha de lítio. Há perigo de explosão no caso de uma substituição incorreta. Substitua somente pelo mesmo
tipo, ou equivalente, recomendado pelo fabricante. (PT)

Lithium Battery Safety Statement

!

Varning:

Innehåller litiumbatteri. Fara för explosion om batteriet är felaktigt placerat eller av fel typ. Använd endast samma
eller motsvarande typ batterier rekommenderade av tillverkaren. (SE)

Advarsel:

Innmontert Lithium batteri. Eksplosjonsfare ved feil montering av batteri. Benytt kun batteri anbefalt av produsent.
(NO)

Cuidado:

Pila de litio adentro. Peligro de explosión si la pila se reemplaza incorrectamente. Reemplace solamente con el
mismo tipo o equivalente recomendado por el fabricante. (ES)

Oppassen:
Bevat Lithium-batterij. Incorrrecte plaatsing van batterij kan leiden tot explosiegevaar. Alleen vervangen door
hetzelfde of door fabrikant aanbevolen gelijkwaardig type. (NL)

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

72 Regulatory Notices

at:

!

(GR)

(JP)

Dikk

Lithium Battery Safety Statement

(KR)

(CN)

!

(TR)

Legend:

Chinese CN Italian IT
Danish DK Japanese JP
Dutch NL Korean KR
English US Norwegian NO
Finnish FI Portuguese PT
French FR Spanish ES
German DE Swedish SE
Greek GR Turkish TR

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Regulatory Notices 73

A/C Power Supply Safety Statement – VX4

!

The LXE-approved AC Power Adapter is only intended for use in a 25ºC (77ºF) maximum

Output Rated 12 – 60 VDC, Minimum 3.5 A.

ambient temperature environment.

Optional A/C Power Supply:

Outside North America, this unit is intended for use with an IEC certified ITE power supply with output rated as stated
at the top of this page. (US)

Alimentation c.a. optionnelle:

Hors de l’Amérique du Nord, cette unité est conçue pour être utilisée avec une alimentation ITE certifiée CEI de sortie nominale
indiquée au haut de cette page. (FR)

Valgfrit vekselstrømforsygning

Udenfor Nord Amerika er denne enhed udstattet med en IEC (international elektronisk Kommission) udfærdiget med en ITE
strømforsygning med strømudgang som fastslået på denne sides begyndelse. (DK)

Vaihtoehtoinen vaihtovirran syöttölaite:

Pohjois-Amerikan ulkopuolella tämä laite on tarkoitettu käytettäväksi sellaisen IEC:n sertifioiman ITE-tehonsyöttölaitteen
kanssa, jonka antoteho on tämän sivun yläosassa esitetyn mukainen. (FI)

!

Optionales Netzteil (Wechselstrom)

Außerhalb Nordamerikas sollte diese Einheit über ein der IEC-Norm entsprechendes ITE-Netzteil gespeist werden, und zwar mit
einer wie oben auf dieser Seite genannten Ausspeisung. (DE)

Προαιρετική Τροφοδοσία Συνεχούς Ρεύματος

Εκτός Β. Αμερικής, η μονάδα αυτή προορίζεται για χρήση με ένα τροφοδοτικό ITE πιστοποιημένο κατά IEC με ονομαστική
ισχύ όπως δηλώνεται στην αρχή της σελίδας. (GR)

Alimentazione opzionale a corrente alternata:

Al di fuori dei paesi dell’America del nord, l’unità deve essere impiegata con un dispositivo d’alimentazione per attrezzature
informatiche approvato dalla IEC la cui potenza nominale sia pari a quella indicata all’inizio della pagina. (IT)

Vekselstrømforsyning (ekstrautstyr):

Utenfor Nord-Amerika skal dette produktet brukes med en IEC-sertifisert ITE-strømforsyning med klassifisert effekt som angitt
øverst på denne siden. (NO)

Fornecimento opcional de CA:

Fora dos EUA, esta unidade destina-se a ser usada com dispositivos de fornecimento de corrente ITE com certificação IEC, com
a capacidade indicada no topo desta página. (PT)

Suministro optativo de corriente alterna

Fuera de América del Norte, esta unidad se debe utilizar con un alimentador ITE homologado por la IEC (comisión
electrotécnica internacional) con una salida que tenga la calificación que figura en la parte superior de esta página. (ES)

Valfri A/C Strömförsörjning

Utanför Nordamerika är det meningen att denna enheten används med en IEC-certifierad ITE-strömförsörjare med den uteffekt
som anges längst uppe på den här sidan. (SE)

İsteğe Bağlõ A/C Güç Kaynağõ:

Kuzey Amerika dõşõnda, bu ünite, çõkõş sõnõflandõrmasõ bu sayfanõn başõnda belirtilen IEC sertifikalõ bir ITE güç kaynağõ ile
birlikte kullanõlmak üzere tasarlanmõştõr. (TR)
Updated 10/01/2001
Legend: Danish – DK; English – US; Finnish – FI; French- - FR; German – DE; Greek – GR; Italian – IT; Norwegian – NO;
Portuguese – PT; Spanish – ES; Swedish – SE; Turkish – TR.

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

74 Regulatory Notices

!

Vehicle Power Supply Connection Safety Statement

!

Vehicle Power Supply Connection:

If the supply connection is made directly to the battery, a 5A slow-blow fuse should be installed in the positive lead
within 5 inches (12.7 cm.) of the battery positive (+) terminal. (US)

Raccordement de l’alimentation du véhicule

Si l’alimentation est raccordée directement à la batterie, un fusible à action retardée de 5A doit être installé sur le
câble positif à moins de 12,7 cm de la borne positive (+) de la batterie. (FR)

EL forsyning af køretøjet.

Er forsyningsforbindelsen direkte tilknyttet til batteriet og og tilsluttet til den positive part indenfor 12,7 cm (+
delen). vil der være en langsom tændelse af 5 ampere. (DK)

Kytkentä ajoneuvon virtalähteeseen

Jos virtaa otetaan suoraan akusta, 5 ampeerin hidas sulake on asennettava positiiviseen johtoon enintään 12 cm:n
etäisyydelle akun positiivisesta (+) navasta. (FI)

Anschluss an Fahrzeugbatterie

Bei direktem Anschluss an die Fahrzeugbatterie sollte eine träge 5A-Sicherung in die positive Leitung
zwischengeschaltet werden, und zwar nicht weiter als ca. 13 cm von der positiven (+) Batterieklemme entfernt.
(DE)

Σύνδεση Τροφοδοτικού Ισχύος Οχήματος

Αν η σύνδεση του τροφοδοτικού γίνει κατευθείαν στη μπαταρία, μια ασφάλεια βραδείας τήξης των 5A θα πρέπει να
τοποθετηθεί στο θετικό καλώδιο εντός 5 ιντσών (12,7 εκ.) του θετικού (+) ακροδέκτη της μπαταρίας. (GR)

Collegamento dell’alimentazione del veicolo

Se il collegamento dell’alimentazione viene stabilito direttamente con la batteria, è necessario installare un fusibile
ad azione lenta da 5 A nel conduttore positivo a meno di 5 in. (12,7 cm) dal terminale positivo (+) della batteria.
(IT)

Tilkople strømforsyningen til kjøretøyet

Hvis strømforsyningen koples direkte til batteriet, skal det installeres en 5 A treg sikring i den positive ledningen
innen 12,7 cm fra plusspolen (+) på batteriet. (NO)

Ligação do fornecimento de corrente do veículo

Se a ligação de fornecimento de corrente for ligada directamente à bateria, deve instalar-se um fusível de 5A no
terminal positivo, a 12,7 cm. do terminal positivo (+) da bateria. (PT)

Conexión de suministro eléctrico para el vehículo

Si el suministro eléctrico se proporciona directamente a la batería, se debe instalar un fusible de retardo de 5 A en el
conductor positivo, como máximo a 12,7 cm (5 pulgadas) del terminal positivo (+). (ES)

Fordonets strömförsörjningskoppling

Om strömkopplingen görs direkt till batteriet, måste en 5A-säkring installeras i den positivt laddade ledningen inom

12.7 cm från batteriets pluspol (+). (SE)

Taşõt Güç Kaynağõ Bağlantõsõ

Kaynak bağlantõsõ doğrudan aküye yapõlõrsa, pozitif bağlantõ kablosu üzerinde akünün pozitif (+) kutbuna 12.7 cm
mesafede 5A’lõk yavaş atan bir sigorta monte edilmelidir. (TR)

Legend: Danish – DK; English – US; Finnish – FI; French- - FR; German – DE; Greek – GR; Italian – IT;

Norwegian – NO; Portuguese – PT; Spanish – ES; Swedish – SE; Turkish – TR.

Updated 10/01/2001

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

A

Accessories..............................................................14

Aim Barcode Scanner..............................................52

Antenna

Connector, Location..............................................5

Remote Vehicle Mount .......................................32

substitution of unauthorized................................32

B

Index

COM2 .................................................................35

External Speakers................................................37

Keyboard.............................................................31

Power Cable........................................................39

USB.....................................................................36

Contrast Up and Down

Not applicable .....................................................12

Control Keys, location.............................................12

Control Panel, Windows............................................6

CPU ...........................................................................1

CTRL+ALT+DEL...................................................46

Back Mounting Bracket

and VX4........................................................20, 23

Backlight Control Keys ...........................................12

Backup Battery ........................................................13

Barcode Scanner......................................................33

Barcode scanner data entry......................................51

Battery, Backup, Lithium ........................................13

Beam, Long Range Scanner ....................................52

BIOS Settings, Power On and Factory Default .......46

Bottom Mounting Bracket.......................................22

and the VX4 ........................................................24

Bracket

and VX4..............................................................25

Back Mounting ...................................................17

Bottom Mounting................................................17

Footprint Dimensions..........................................18

How To ...............................................................22

Mounting Positions .............................................18

Tools Required....................................................17

C

Cable Ties..........................................................20, 21

CAPS LOCK Mode LED Indicator.........................10

Caps-Lock Mode .....................................................10

Cleaning

Display ................................................................47

Scan Aperture .....................................................50

Color Codes, Wiring................................................42

COM1/Scanner Connection, Location ......................5

COM2 Connector, Location ......................................5

Component Locations................................................5

Connection

Antenna...............................................................32

COM1 .................................................................33

D

Data entry, How To .................................................51

Defaults

BIOS Settings .....................................................46

Caps Lock ...........................................................10

Windows Power Management ............................46

Display.......................................................................6

Cleaning ..............................................................47

Features...............................................................47

Pixels...............................................................6, 47

Power Management ............................................49

Display Brightness Control Keys ............................12

Display Contrast Control Keys................................12

Document Conventions .............................................2

E

Enter Data, How To.................................................51

Environmental Specifications....................................3

External Speakers ....................................................37

F

Features .....................................................................1

Flash Memory............................................................1

Fuse

Replacement........................................................44

Specification .......................................................44

G

Getting Started...........................................................4

Good Scan LED.......................................................34

E-EQ-VX4OGWW-H-ARC VX4 User’s Guide

76 Index

H

Hard disk

Power Management ............................................49

Headphone Jack.......................................................37

Hidden Keys ..............................................................9

How To

AC/DC Power Connection..................................40

Aim the Scan Beam.............................................52

Cable Retention Assembly..................................20

Connect 12-60VDC Vehicle Power....................42

Connect Barcode Scanner ...................................33

Connect External Speakers .................................37

Connect Power Cable..........................................39

Connect Serial Printer .........................................35

Connect USB Adapter.........................................36

Initiate Page Up command..................................11

Install Vehicle Mounting Brackets .....................17

Keyboard data entry............................................51

Toggle 2nd key on and off..................................11

Toggle Caps-Lock on and off .............................11

Type <!> .............................................................11

I

IEC IP56 ....................................................................3

Input Cable, Max Temp rating ................................42

Install

External Speakers..........................................37, 38

Fuse.....................................................................44

Mounting Brackets, Vehicle ...............................17

Optional Power Supply.......................................40

Power Cable........................................................39

Printer or PC .......................................................35

Scanner................................................................33

USB Adapter.......................................................36

VMT Keyboard...................................................31

Integrated Keyboard Assembly ...............................28

K

Key functions

Unused ..................................................................9

Key Map

101-Key Chart.....................................................54

ANSI Plus ...........................................................53

LDS Plus .............................................................53

TN3270 keypads .................................................59

TN5250 keypads .................................................59

Key Maps

Hidden Keys .........................................................9

Keyboard

Control Keys .......................................................12

Hidden Key Functions ..........................................9

LED Indicators....................................................10

Keyboard Backlight.............................................9, 12

Key Sequence .......................................................7

Keypress Sequence .............................................46

Toggling Manually..............................................46

Windows 2000 ....................................................46

Windows 98, Manual Control.............................46

Keyboard Connector, Location .................................5

Keyboard data entry ................................................51

keyboard shortcuts.....................................................8

L

Laser Aperture.........................................................34

Laser barcode scanner warnings..............................50

LED indicators.........................................................10

LEDs

2nd ......................................................................11

Caps-Lock, CAPS...............................................10

Secondary Keys ..................................................11

Status...................................................................11

M

Manuals ...................................................................14

Maximum overcurrent protection............................40

Measurement,Torque...............................................19

Mounting Bracket

and VX4..............................................................25

VMT Remote Keyboard Bracket ........................26

Mounting Dimensions .............................................18

Mounting Positions..................................................18

N

Nine-pin D-shell female connector

and the Scanner...................................................33

for printer or PC..................................................35

NUM LOCK

nd

Functions ..................................................9

and 2

Disabled ................................................................9

O

On/Off

condition of CapsLock........................................54

condition of NumLock........................................54

On/Off Switch .........................................................45

Operating Temperature..............................................3

Overcurrent protection.............................................40

VX4 User’s Guide E-EQ-VX4OGWW-H-ARC

Index 77

P

PC Card Slots, Location ............................................5

PCMCIA Slots...........................................................6

Pen Stylus ..........................................................47, 51

Polarity ..............................................................42, 43

Power Cable Connection .........................................39

Power Connector, Location .......................................5

Power Management

Defaults...............................................................49

Windows .......................................................46, 49

Power Switch...........................................................45

Power Switch, Location.............................................5

Printer ......................................................................35

Procedure

Mounting Brackets..............................................22

Push Mount..............................................................20

Q

Quick Start Instructions.............................................4

QWERTY layout .......................................................7

R

Rebooting the VX4..................................................46

Remote Mount Antenna...........................................32

Reset ........................................................................46

Environmental.......................................................3

Standby Mode

Power Management ............................................49

Status LED ..............................................................48

Status LED Indicator ...............................................10

Stylus .................................................................47, 51

Stylus Data Entry.....................................................51

Successful Scan indicators ......................................52

SVGA graphics modes ..............................................6

System Tray icons, Windows ....................................6

T

Terminal Emulator List .............................................1

Thin Film Transistor (TFT) Display..........................6

Tiedowns .................................................................20

Toggle 2nd key on and off ......................................11

Tools Required

Phillips No. 1 Screwdriver..................................17

Torque Wrench ...................................................19

Torque Wrench........................................................17

Touch Screen.....................................................47, 51

Touchscreen

Calibration ..........................................................47

Data Entry ...........................................................51

Finger or Stylus...................................................51

Trigger .....................................................................34

U

S

Scan Aperture

Cleaning ..............................................................50

Scanner

Nine-pin D-shell female connector.....................33

Scanner data entry ...................................................51

Scanner Installation .................................................33

Scanning distance ....................................................52

Secondary Mode LED Indicator..............................10

Serial Printer............................................................35

Setup

BIOS vs. Windows .............................................46

Shielded Cable
