MX1 Intrinsically Safe User’s Guide

I-Safe rating is voided if the MX1-IS device is opened or modified in the field. Removing

any leather covering in an I-Safe environment also voids the I-Safe rating.

Copyright © December 2006 by LXE Inc.

All Rights Reserved

E-EQ-MX1ISOGWW-J

Language: English

Notices

The user is strongly encouraged to read Appendix B, "Regulatory Notices and Safety

Information." Important safety cautions, warnings and regulatory information is

contained in Appendix B.

Notices:

LXE Inc. reserves the right to make improvements or changes in the products described in this manual at any time
without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy,
LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the information
contained herein. Further, LXE Incorporated, reserves the right to revise this publication and to make changes to it
from time to time without any obligation to notify any person or organization of such revision or changes.

Copyright Notice:

This manual is copyrighted. All rights are reserved. This document may not, in whole or in part, be copied,
photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form without prior
consent, in writing, from LXE Inc.

Copyright © 2006 by LXE Inc. An EMS Technologies Company.
125 Technology Parkway, Norcross, GA 30092 U.S.A. [phone]

LXE® is a registered trademark of LXE Inc. All other brand or product names are trademarks or registered
trademarks of their respective companies or organizations. When this manual is in PDF format: “Acrobat ® Reader
Copyright © 1987-2006 Adobe Systems Incorporated. All rights reserved. Adobe, the Adobe logo, Acrobat, and the
Acrobat logo are trademarks of Adobe Systems Incorporated.” Applies.

NOTICE: Changes to this document require LXE Regulatory Engineering Approval.

Important: This symbol is placed on the product to remind users to dispose of Waste Electrical and

Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product
can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled units with
trash. For information about proper disposal, contact LXE through your local sales representative, or
visit www lxe com.

Revision Notice

Important Safety Instruction and

J

Warnings

J Accessories

Added MX1ISA382BATT and note (Battery part number is
country specific. Check with your LXE Representative when
ordering replacement batteries for the MX1-IS.)

Added MX1ISA382BATT and note (Battery part number is
country specific. Check with your LXE Representative when
ordering replacement batteries for the MX1-IS.)

Revision Letter I not used.

Table of Contents

FEATURES OF THE MX1 INTRINSICALLY SAFE HAND HELD COMPUTER 1

Introduction ............................................................................................................... 1

Important Safety Instruction and Warnings............................................................ 2

Scanner Warnings and Labels................................................................................. 4

MX1 I-Safe Components........................................................................................... 5

The Protective Case ..................................................................................................................5

The Pistol Grip Handle .............................................................................................................5

Display ....................................................................................................................... 6

Icons..........................................................................................................................................6

Cleaning the Glass Display/Scanner Aperture .........................................................................6

Display Backlight .....................................................................................................................7

Display Backlight Timer ........................................................................................................7

Panning .....................................................................................................................................7

Intrinsically Safe Endcap.......................................................................................... 8

Scanner Endcap ........................................................................................................................8

Scanner Endcap Indicators .......................................................................................................8

Keypad Controls ....................................................................................................... 9

Full Alpha-Numeric (60 Key) ..................................................................................................9

Numeric-Alpha (41 Key)........................................................................................................10

Scan Key Function..................................................................................................................10

Enter Key Function.................................................................................................................10

Field Exit Key Function (IBM 5250 Only) ............................................................................10

Arrow / Cursor Key Function.................................................................................................10

2nd Key Function ...................................................................................................................11

CTRL Key Function ...............................................................................................................

ALT Key Function..................................................................................................................11

SHFT Key Function................................................................................................................11

SPC Key Function ..................................................................................................................

Mode Key Functions...............................................................................................................

CAPS Mode..........................................................................................................................12

Alpha to Numeric Toggle with A / #....................................................................................12

Keypress Sequences................................................................................................................12

Reset Key Sequence ...............................................................................................................

Power Button Functions......................................................................................... 13

Off Timer and Critical Suspend Mode ...................................................................................

Power Status and the Status LED ...........................................................................................

Power Management and the Keypad....................................................................................

Getting Help.............................................................................................................

Manuals...................................................................................................................................15

11

11
12

12

13
14
14

15

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

ii Table of Contents

Accessories .............................................................................................................................15

OPERATION 17

Insert I-Safe Main Battery Pack.............................................................................. 17

Power On and Off.................................................................................................... 18

Turn On the MX1-IS ..............................................................................................................18

Turn Off the MX1-IS..............................................................................................................18

Adjust Display and Volume.................................................................................... 19

Set The Display Contrast ........................................................................................................19

Full Alpha-Numeric .............................................................................................................19

Numeric-Alpha Keypad .......................................................................................................19

Set The Beeper Volume..........................................................................................................19

Full Alpha-Numeric .............................................................................................................19

Numeric-Alpha Keypad .......................................................................................................19

Enter Data ................................................................................................................ 20

Keypad Entry ..........................................................................................................................20

Scanner Entry..........................................................................................................................20

MX1-IS Environmental Specifications................................................................... 21

I-Safe Main Battery.................................................................................................. 21

Battery Pack............................................................................................................................21

Critical Suspend State.............................................................................................................21

Battery Charger....................................................................................................... 22

Optional LXE MULTI-charger...............................................................................................22

APPENDIX A KEY MAPS 23

Full Alpha-Numeric Key Map (60 Key) .................................................................. 23

Full Alpha-Numeric Key Map 101-Key Equivalencies for DOS Units.................................24

IBM 3270 and TN3270 Terminal Emulator Keypad..............................................................29

IBM 5250 and TN5250 Terminal Emulator Keypad..............................................................

30

Numeric-Alpha Key Map (41 Key).......................................................................... 31

Numeric-Alpha Key Map 101-Key Equivalencies for Batch Units .......................................

PPENDIX B REGULATORY NOTICES AND SAFETY INFORMATION 37

A

32

Approvals ................................................................................................................ 38

Revision History...................................................................................................... 45

INDEX 47

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Table of Contents iii

Illustrations

Figure 1 The MX1-IS Hand Held Computer........................................................................................................1

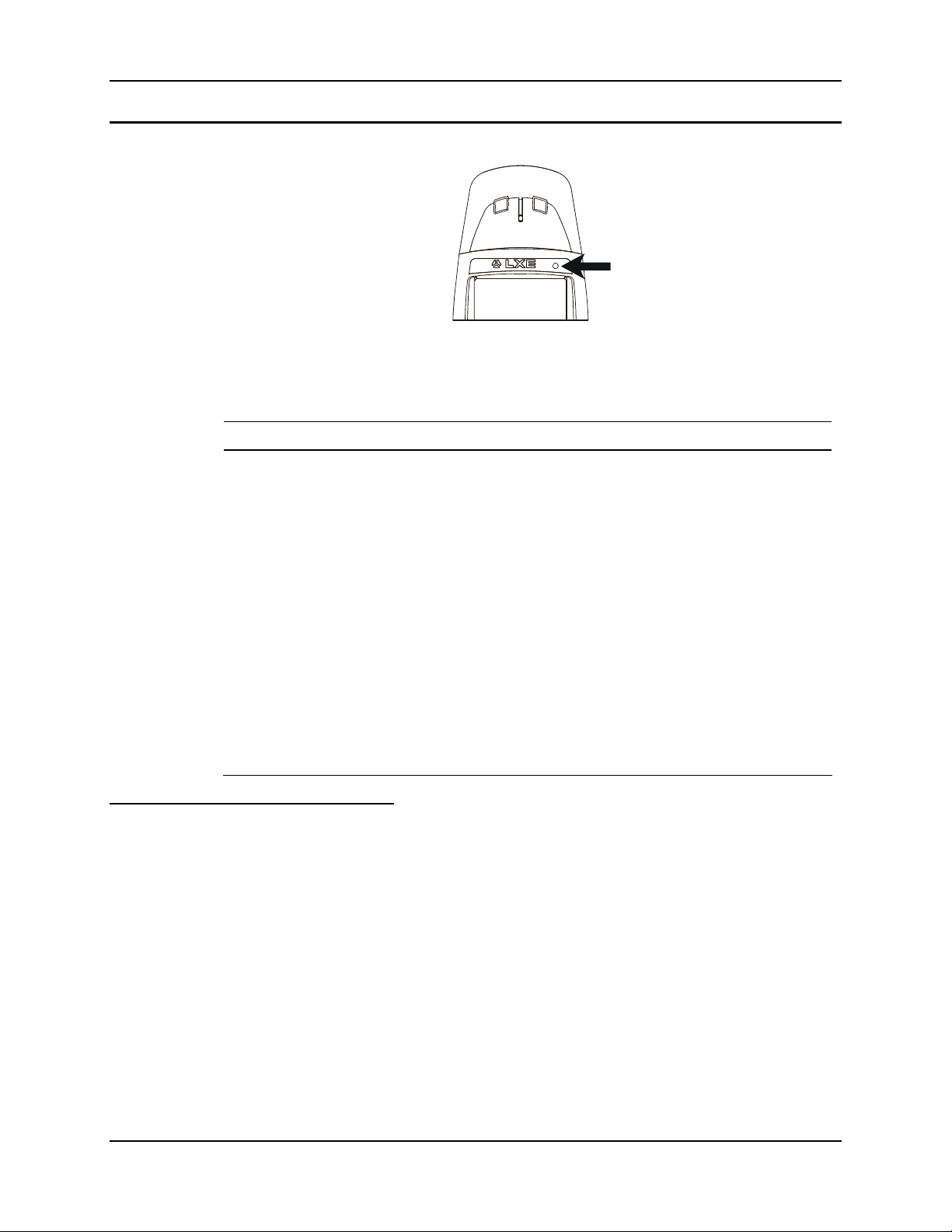

Figure 2 Scanner Module, Top.............................................................................................................................4

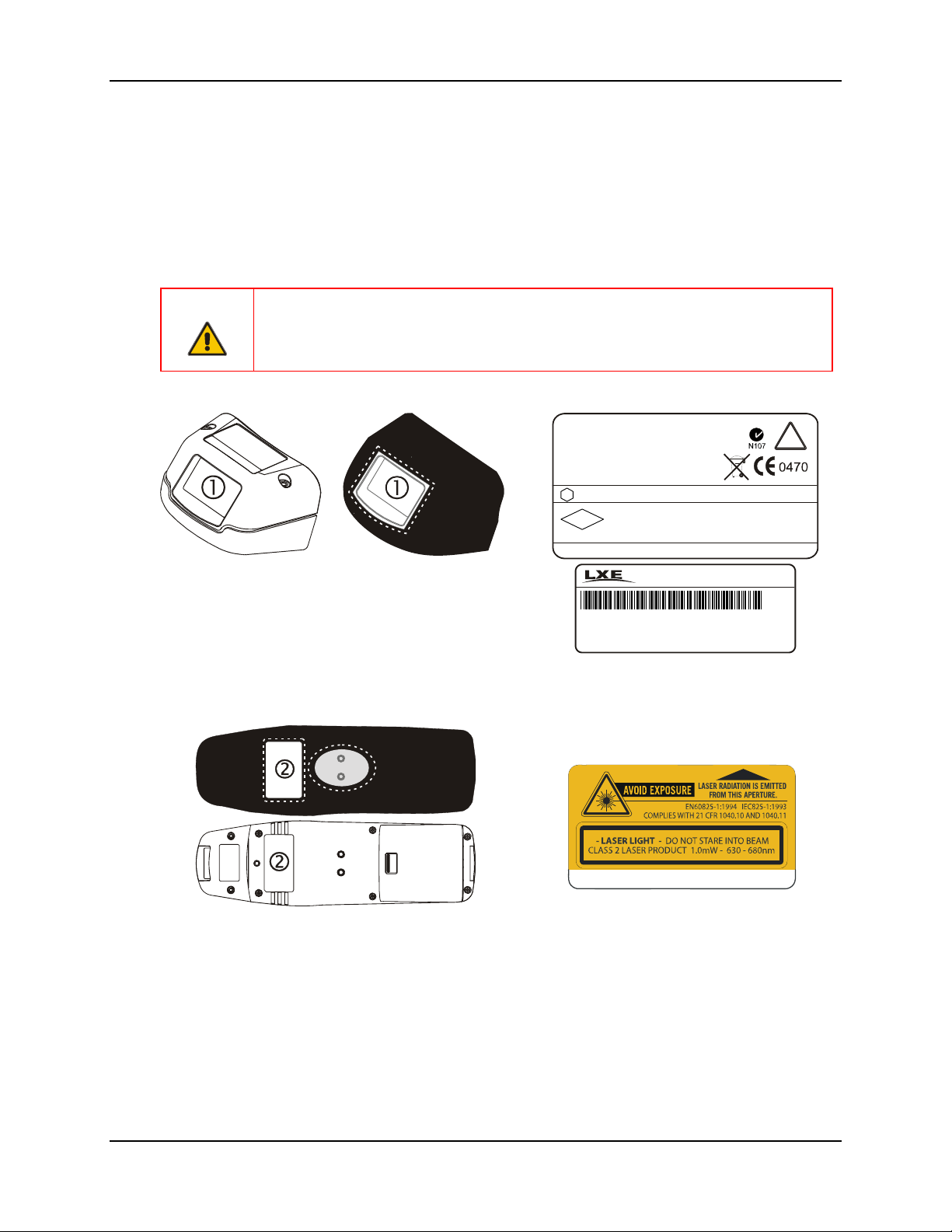

Figure 3 Other Equipment Labeling.....................................................................................................................4

Figure 4 Caution Labels - Scanner Module, Back ...............................................................................................4

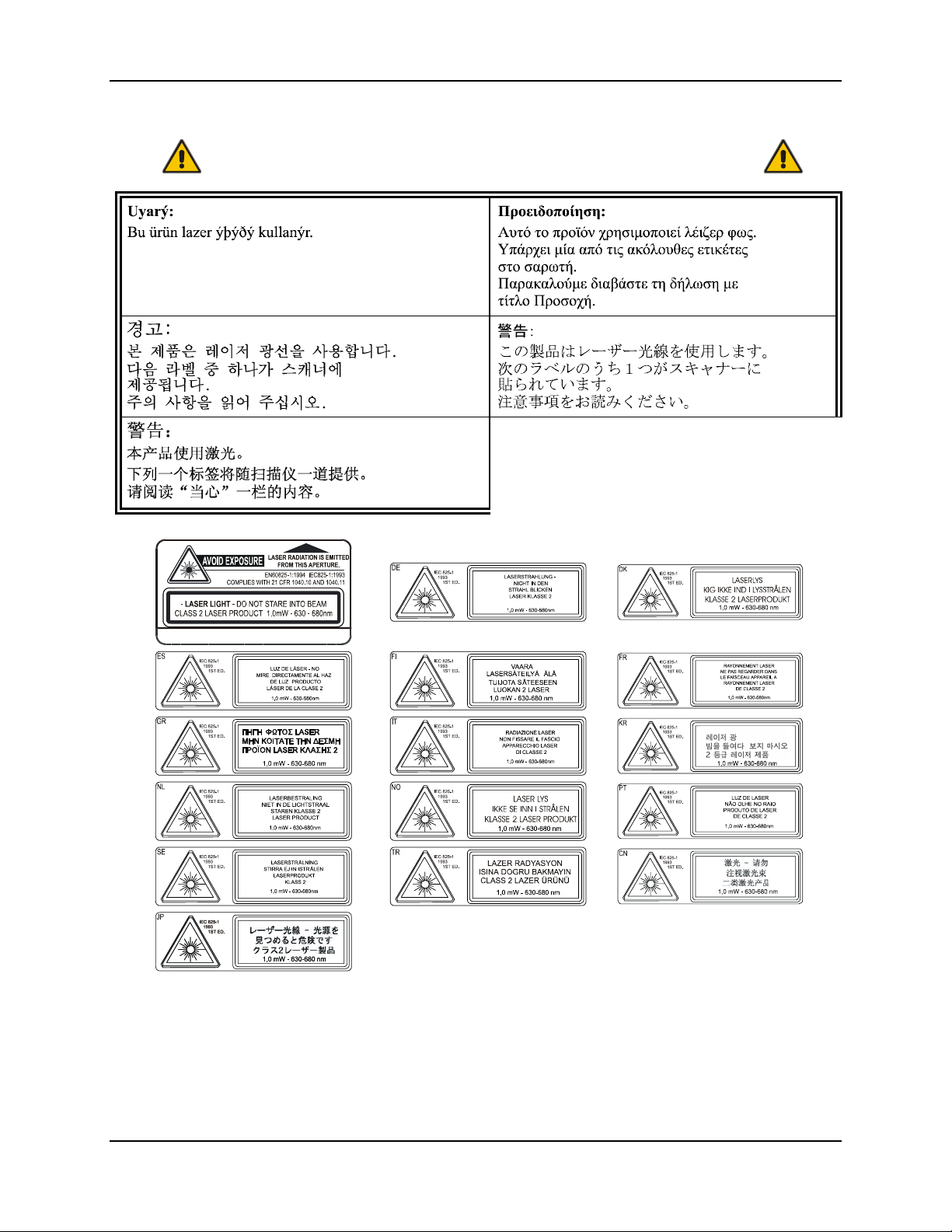

Figure 5 Caution Labels - Scanner....................................................................................................................... 4

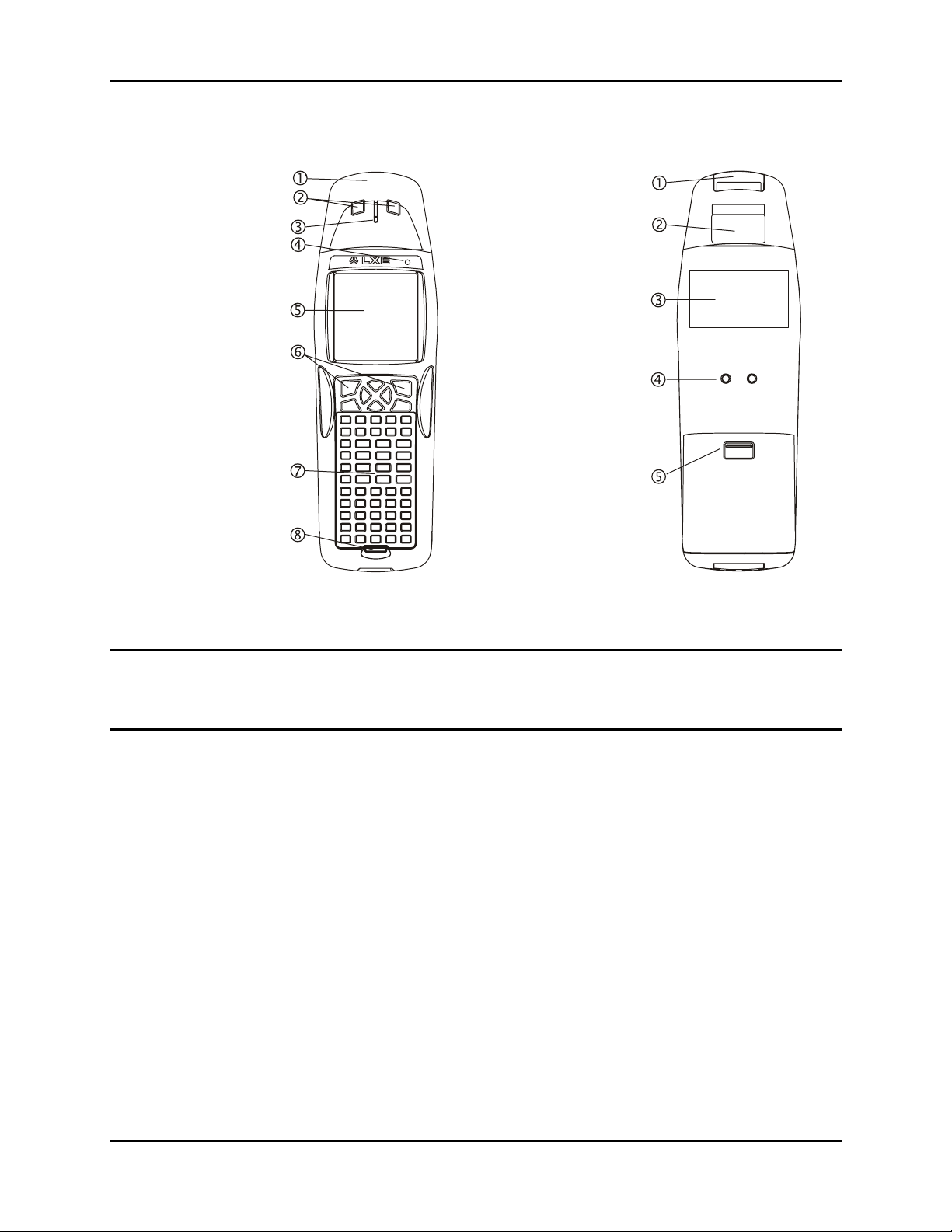

Figure 6 MX1-IS Components............................................................................................................................. 5

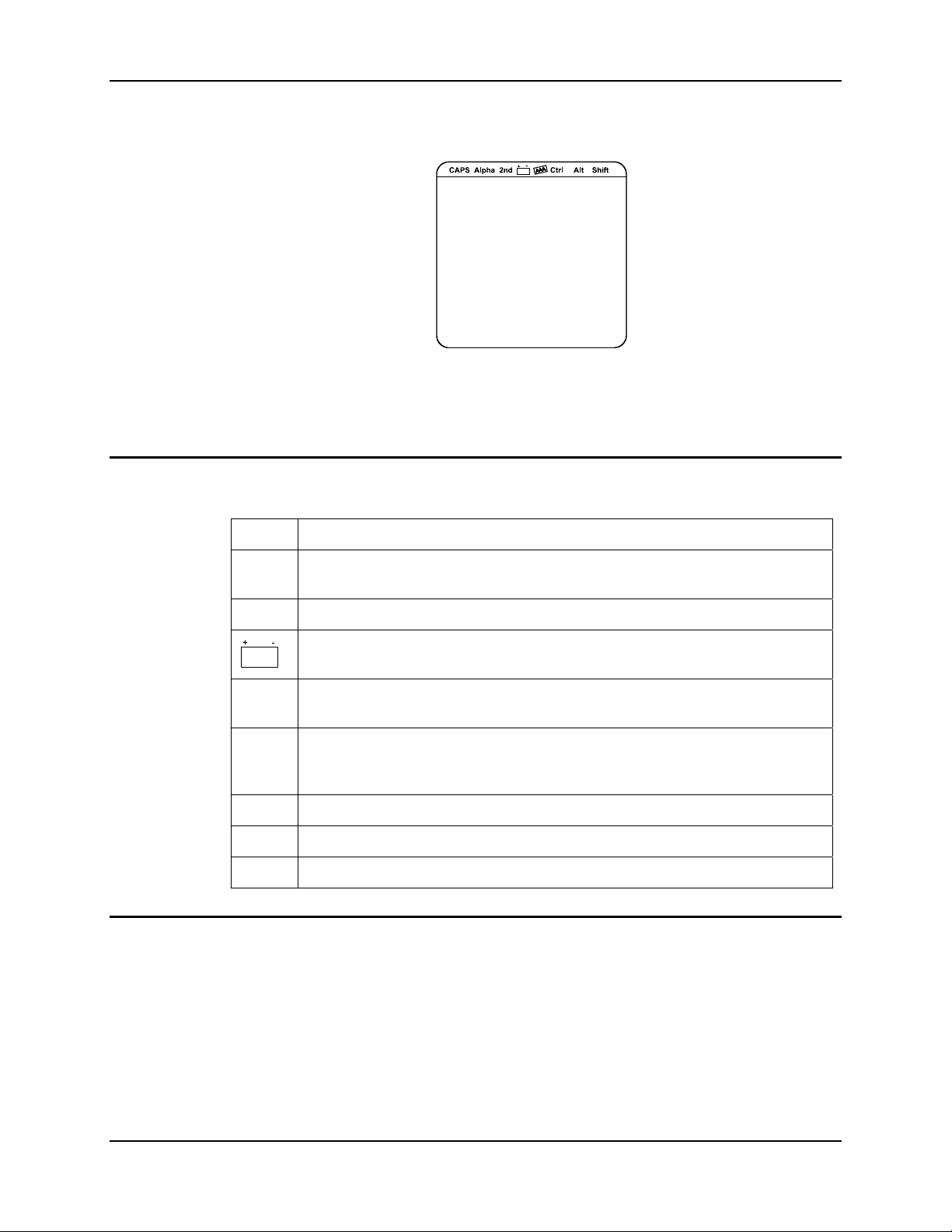

Figure 7 MX1-IS Display ....................................................................................................................................6

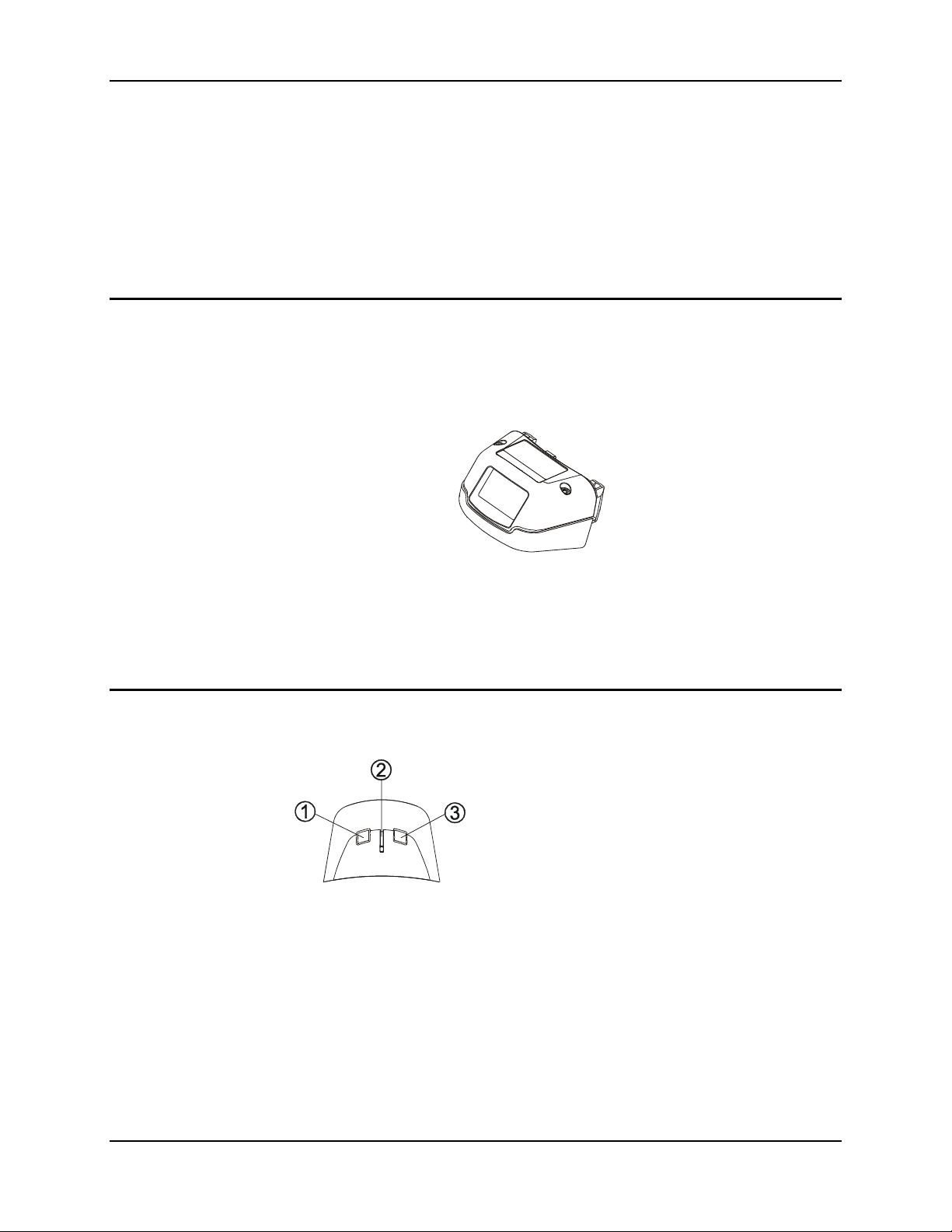

Figure 8 Scanner Endcap .....................................................................................................................................8

Figure 9 Scanner Endcap LEDs and Beeper ........................................................................................................8

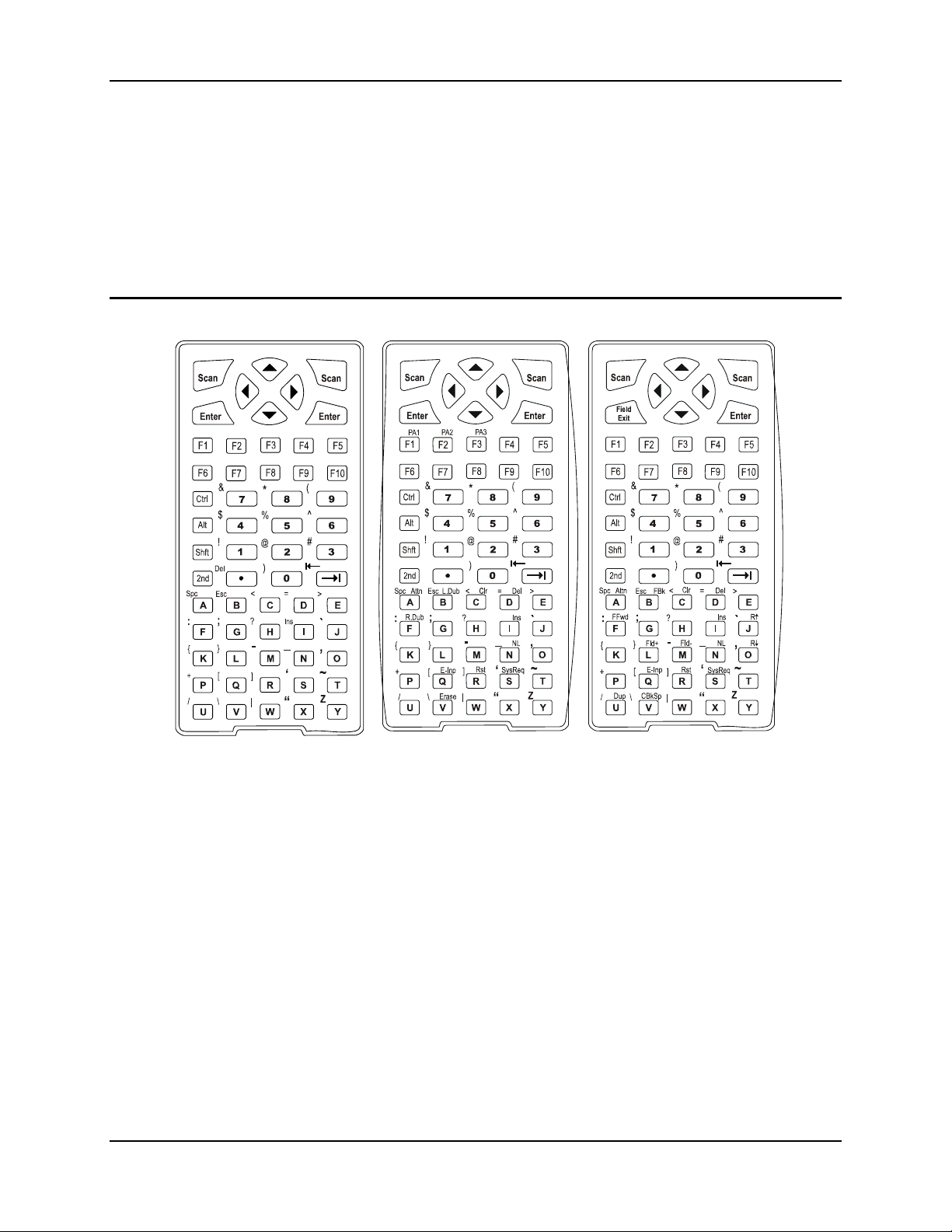

Figure 10 The Alpha-Numeric Keypads..............................................................................................................9

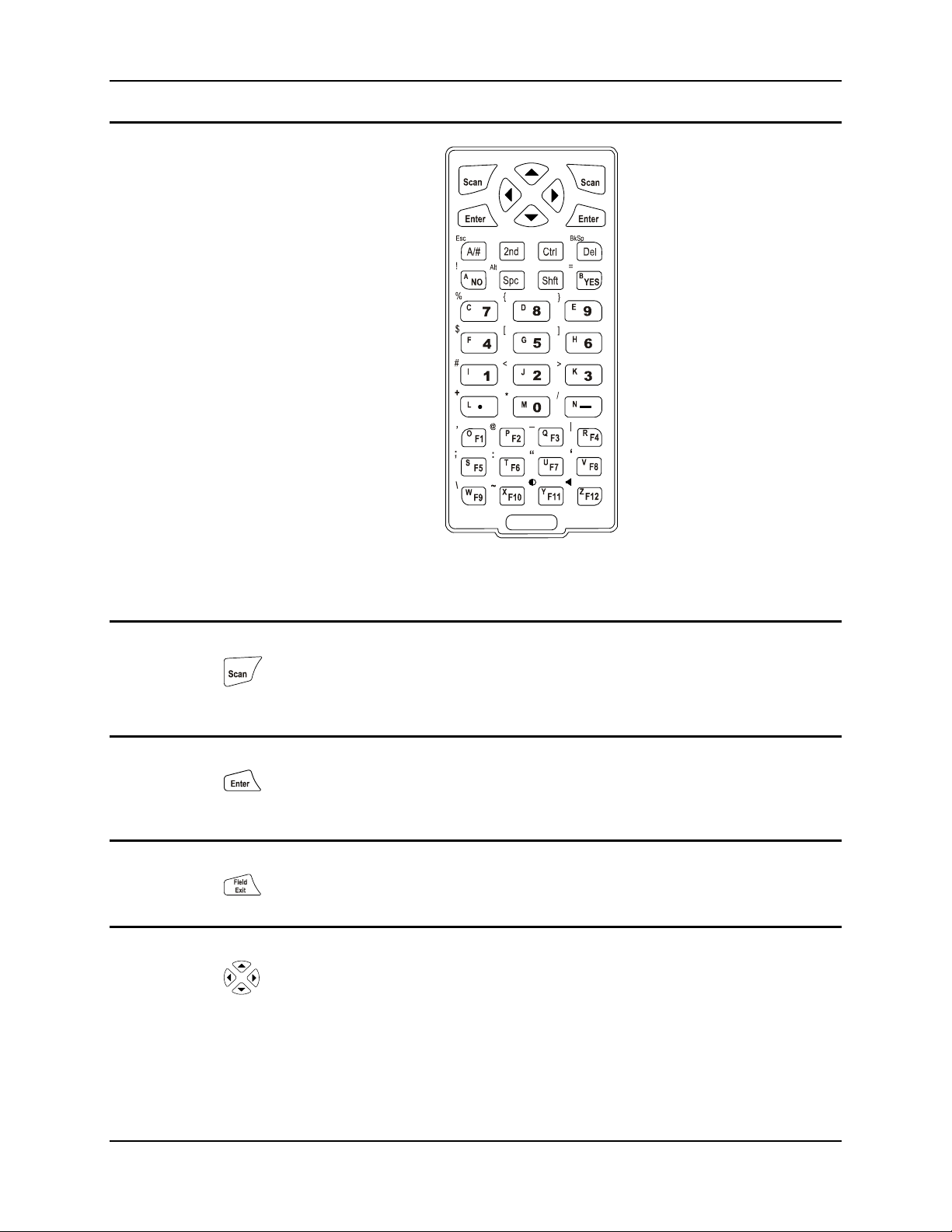

Figure 11 The Numeric-Alpha Keypad..............................................................................................................10

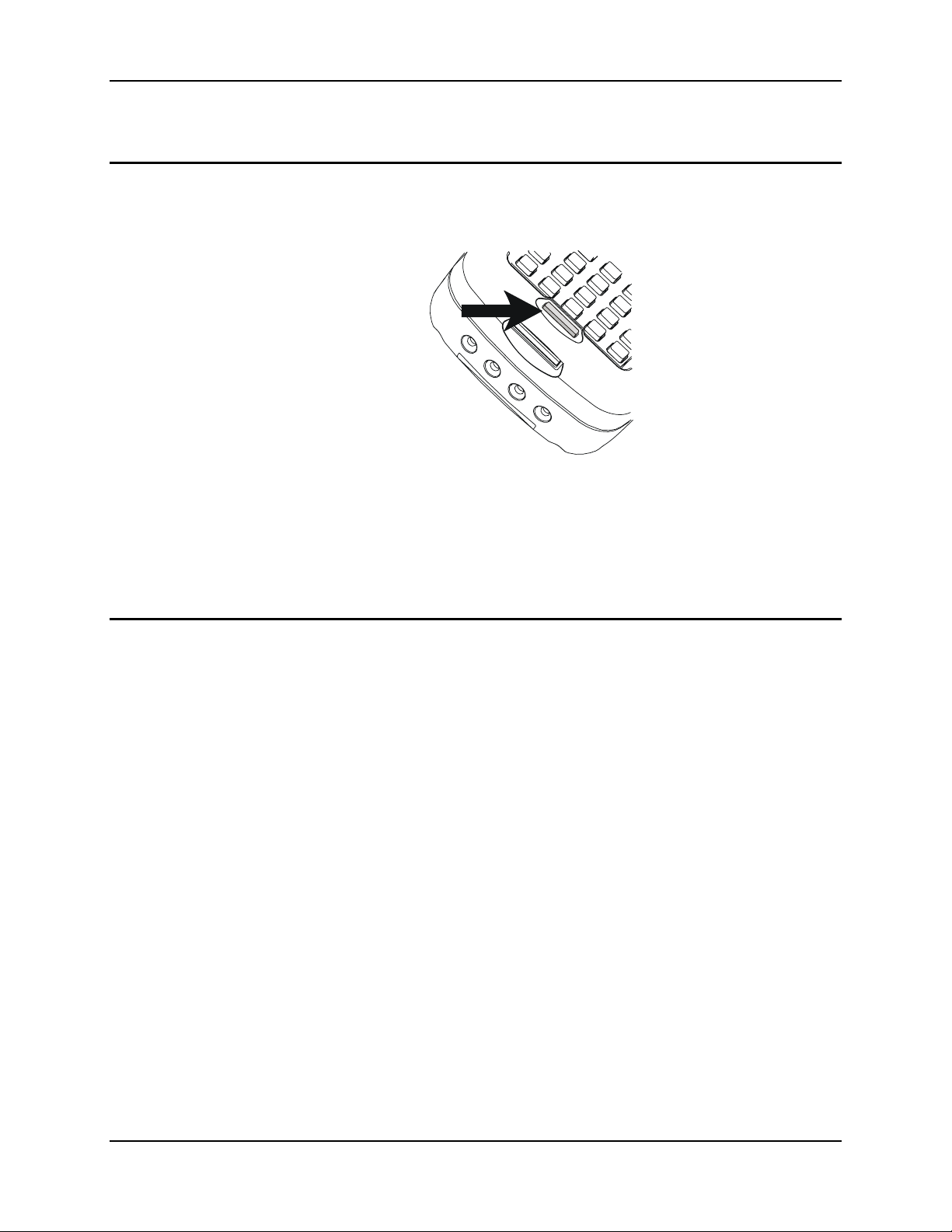

Figure 12 Location of the Power (PWR) Button................................................................................................13

Figure 13 Power Status and the Status LED ......................................................................................................14

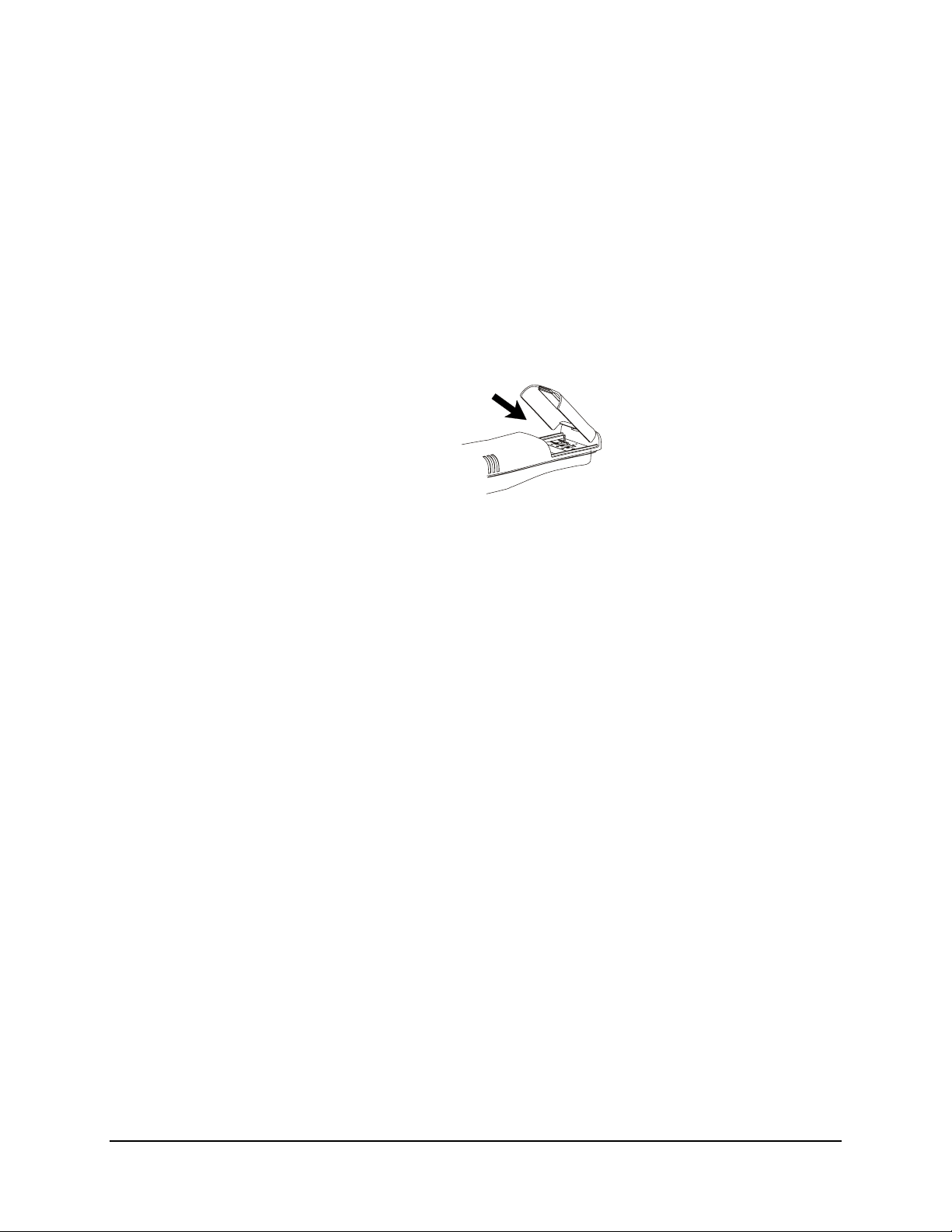

Figure 14 Open Battery Door.............................................................................................................................17

Figure 15 Location of the Power Button............................................................................................................18

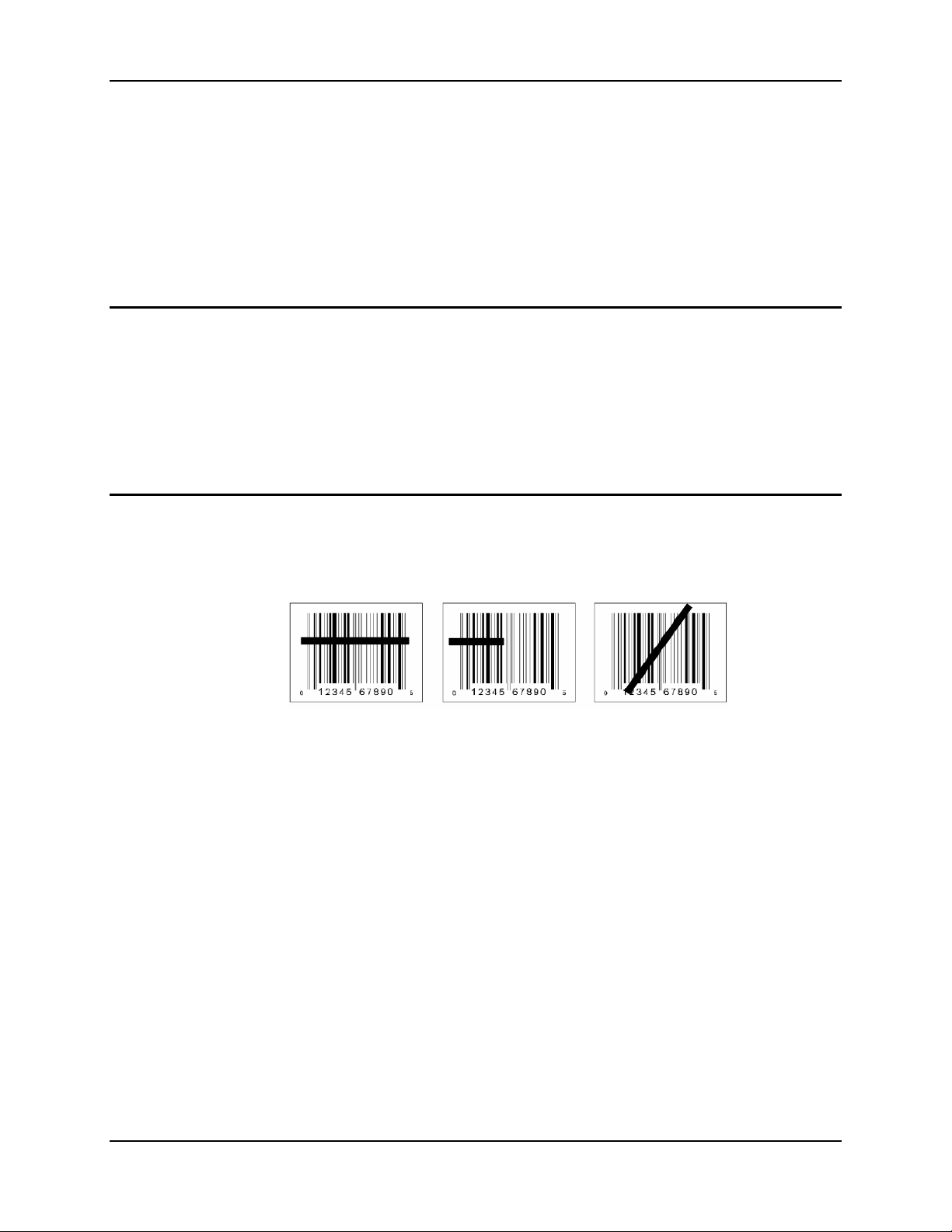

Figure 16 Scan Beam .........................................................................................................................................20

Figure 17 MX1-IS Battery and Charging Cup ...................................................................................................22

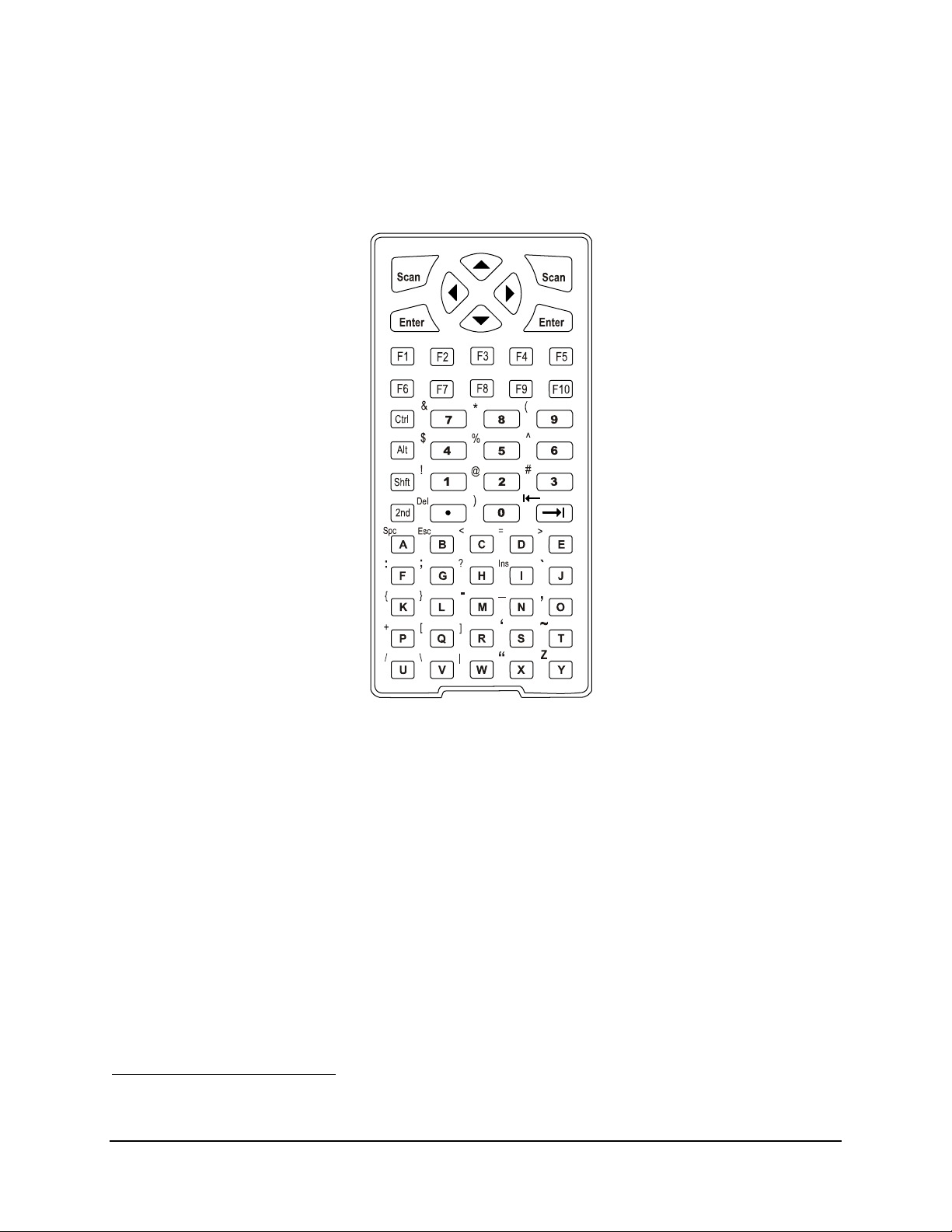

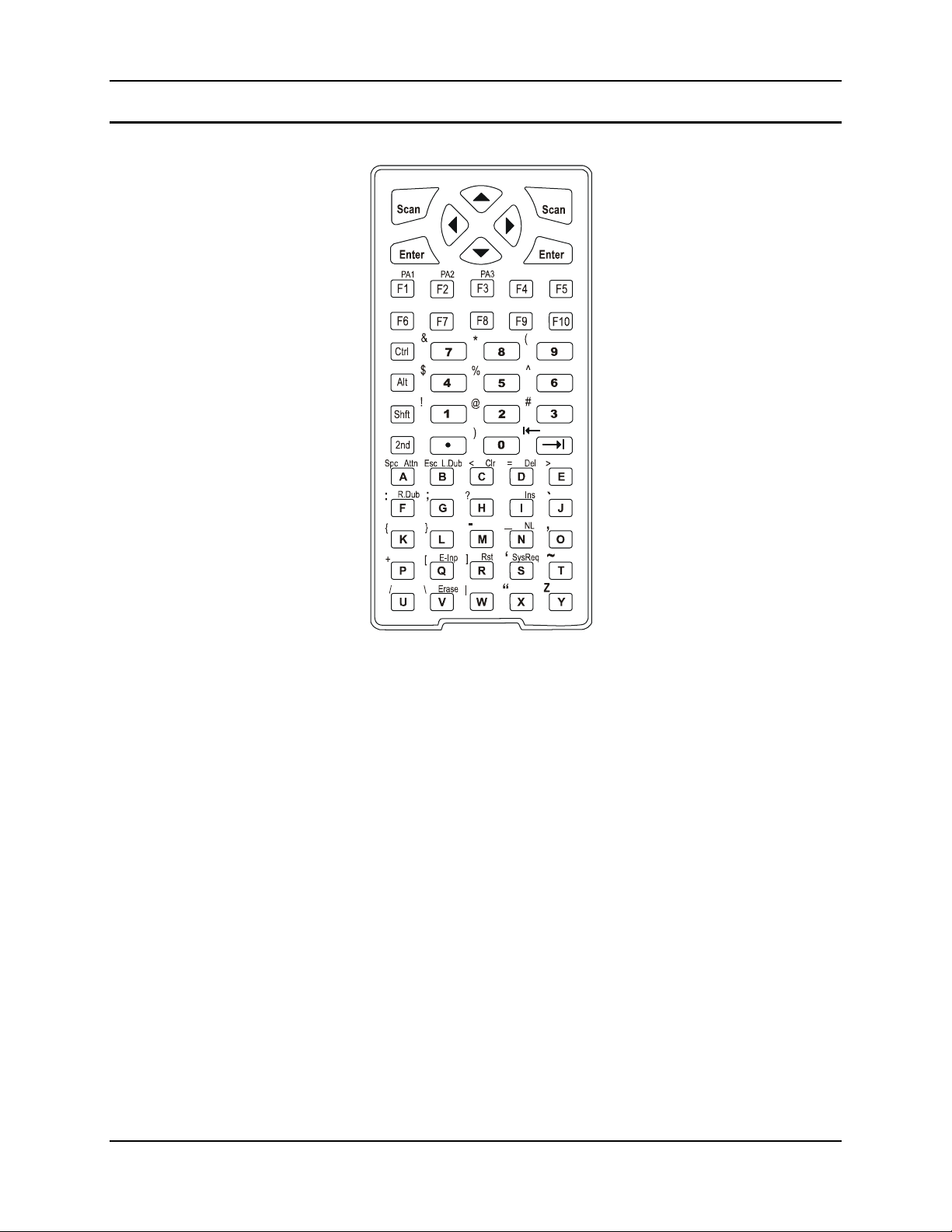

Figure 18 Full Alpha-Numeric Keypad .............................................................................................................23

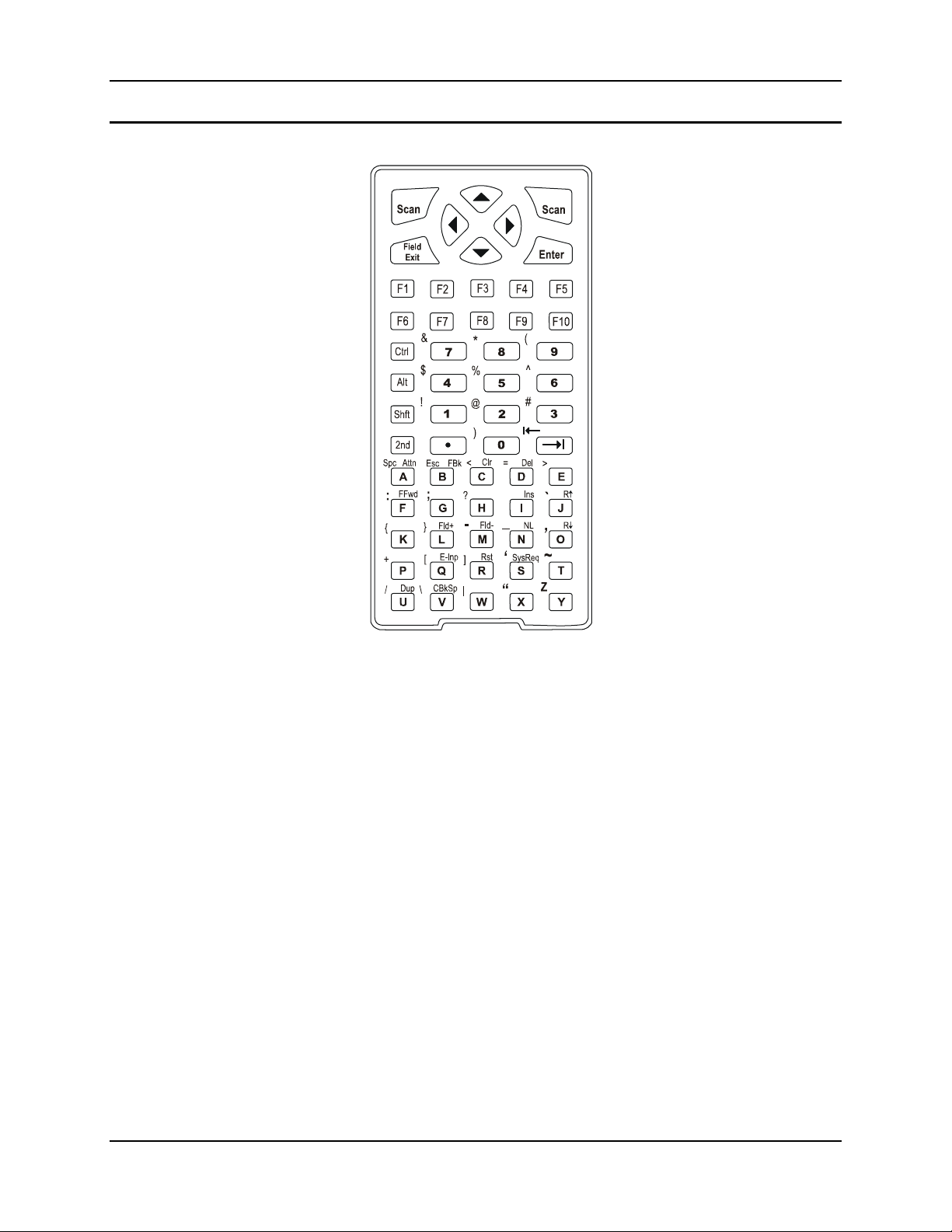

Figure 19 IBM 3270 Specific Keypad ...............................................................................................................29

Figure 20 IBM 5250 Specific Keypad ...............................................................................................................30

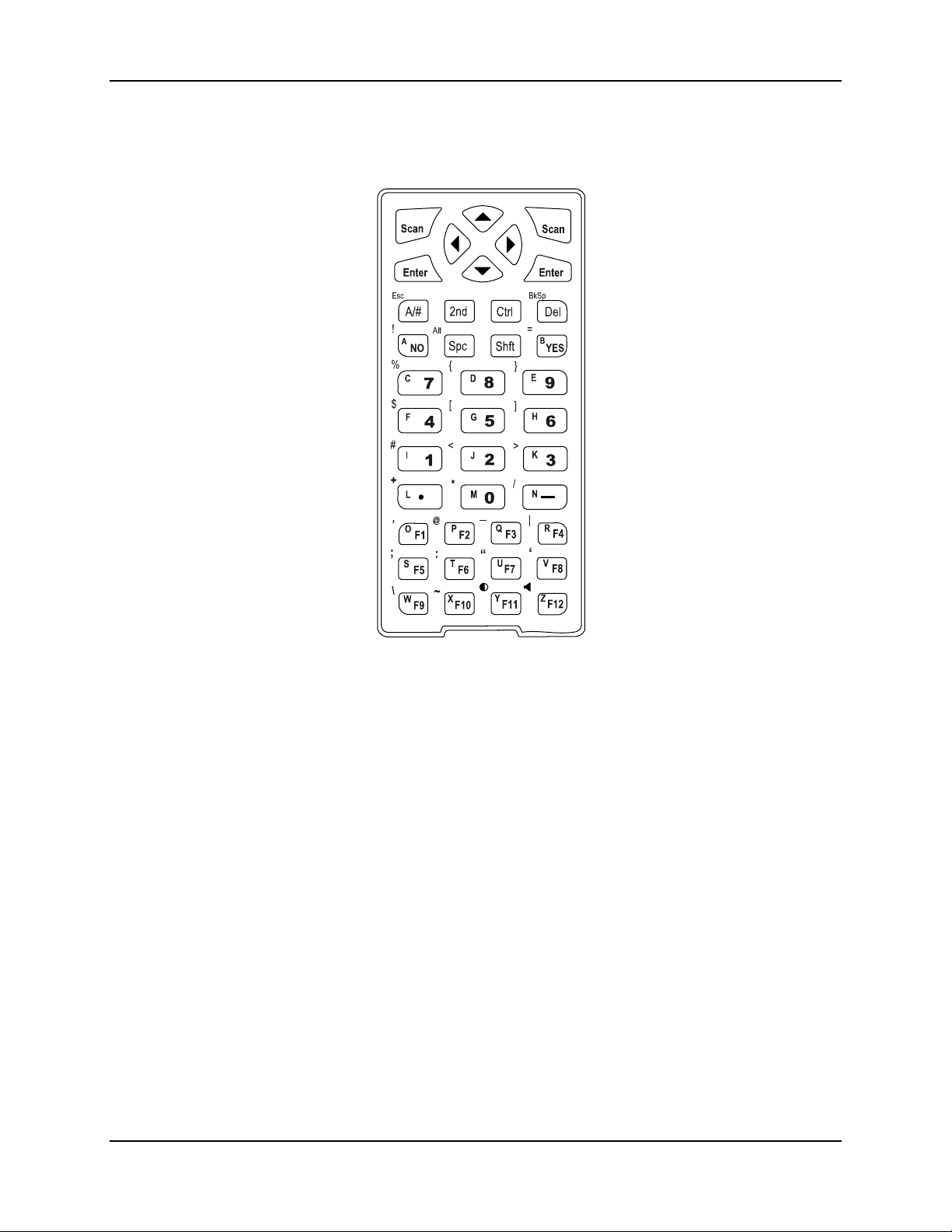

Figure 21 Numeric-Alpha Keypad..................................................................................................................... 31

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

iv Table of Contents

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Features of the MX1 Intrinsically Safe Hand Held Computer

Introduction

This document provides safety instructions, warnings, and regulatory compliance information
important for the safe operation and use of the LXE® model MX1 Intrinsically Safe (MX1-IS)
Hand Held Computer within hazardous environments.

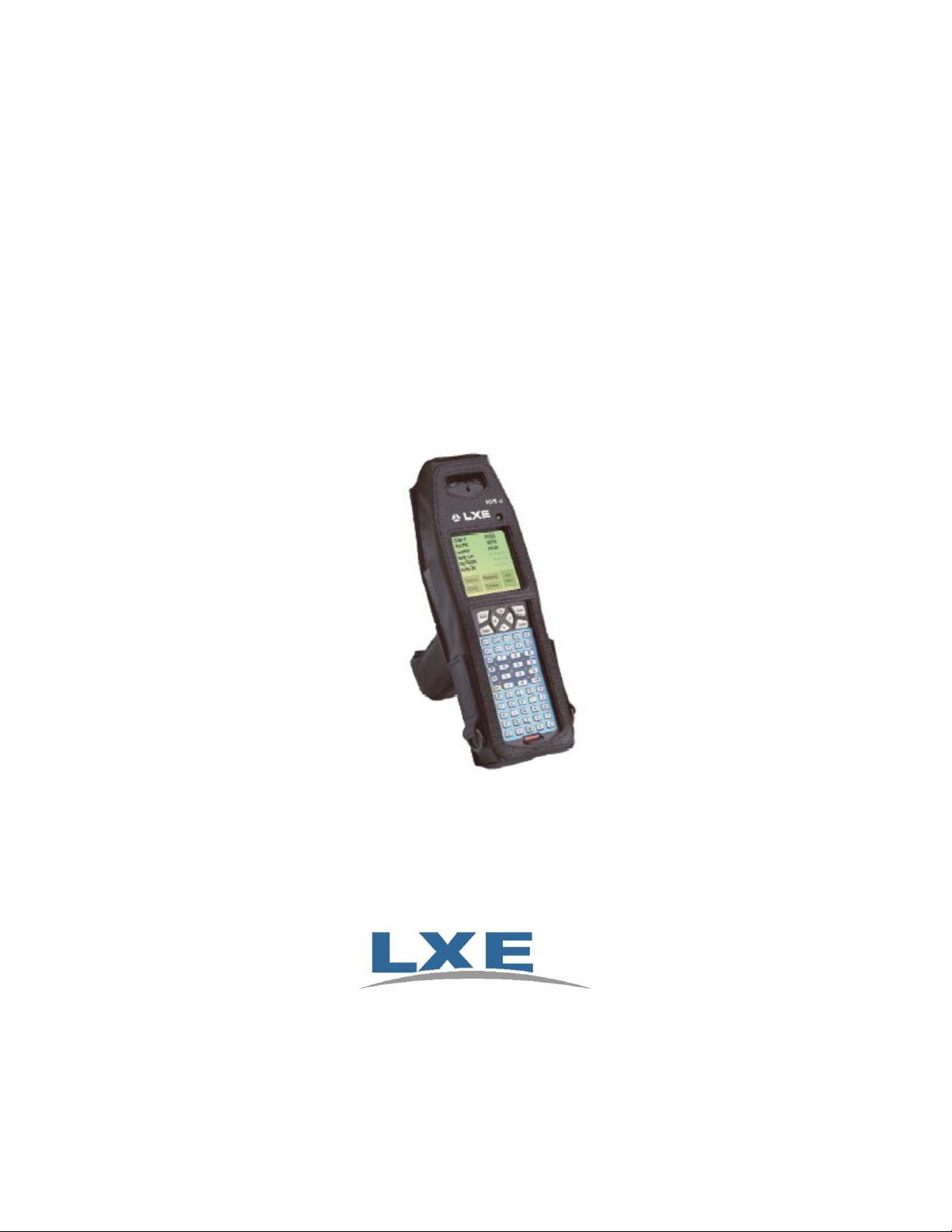

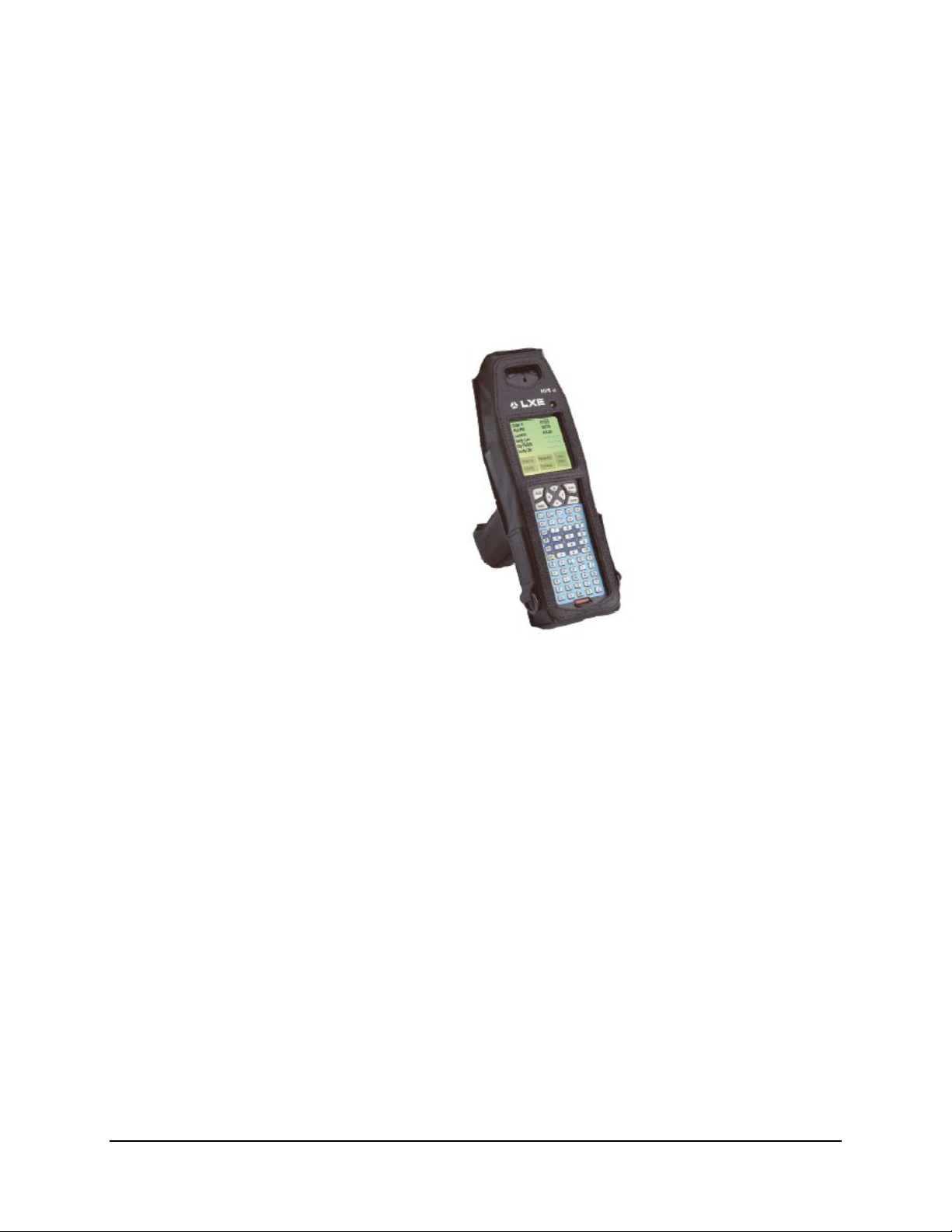

Figure 1 The MX1-IS Hand Held Computer

Note: Although there is an IR window and four battery charger connectors on the bottom of the

MX1-IS device, these capabilities are non-powered and non-functional. There is no
backup battery in the MX1-IS device.

The MX1-IS is a rugged, portable, hand-held computer capable of mobile wireless data
communications. The MX1-IS can transmit information using either a 900 MHz or 2.4 GHz radio.
The MX1-IS has a mandatory protective leather case and pistol grip handle. The leather protective
case allows the scanner aperture, scanner status indicators, system status indicator, display, keypad
and pistol grip trigger to be accessible to the user. The Main Battery Pack can be removed and
replaced without removing the leather case or the pistol grip handle.

The MX1-IS is a DOS compatible computer designed to run software applications such as LXE’s
Terminal Emulator applications (ANSI Plus, LDS Plus, DOS 5250, DOS 3270, TN3270 and
TN5250).

The heart of the MX1-IS is an Intel® 486 processor that is PC compatible. It features a graphics
screen with electroluminescent backlight. The keypad is constructed of a phosphorescent material
that needs no backlighting. The high-impact plastic case is designed to withstand multiple drops in
an industrial environment. The MX1-IS can be stored in a non-powered docking station on a desk
or a vehicle.

Note: The 900MHz radio is obsolete. Terminal emulators requiring 900MHz radios are

obsolete as of June 2005 (e.g. 3270 DOS TE, 5250 DOS TE).

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

2 Important Safety Instruction and Warnings

SAVE THESE INSTRUCTIONS

Important Safety Instruction and Warnings

It is necessary to take special precautions as detailed below to avoid the introduction of fire or explosion
hazards when operating the MX1-IS device within a hazardous environment. Please read this page
carefully and make sure you fully understand these instructions.

DO NOT USE THIS UNIT IN CLASSIFIED AREAS UNSUITABLE FOR ITS SAFETY

RATINGS.

US Approval

Per the Class / Division Classification System, this unit is
rated for safe use in the following classified locations:

US Approval

Per the Class / Zones Classification System, this unit is rated
for safe use in the following classified locations:

European Approval EEx ia IIB T4

Australian Approval Ex ia IIB T4

Class I, II, III
Division 1 & 2
Groups C, D, E, F, G
135° C (T4)

-20°C to +40° C (-4°F to 104°F)

T

amb

Class I
Zones 0
AEx ia IIB T4
135°C (T4)

-20°C <

-20°C <

-20°C <

Ta < +40°C

Ta < +40°C

Ta < +40°C

The following symbol is used to identify and warn against specific hazards, and for accident prevention
purposes:

Safety Alert Symbol with Keyword Definition and Meaning

Warning

Keyword that indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.

Warning:

1. The MX1-IS device is provided with a leather, impact-resistant case LXE part no.

MX1ISA406CASE. Operation of the MX1-IS device in a hazardous location environment

with the leather case removed voids intrinsic safety approval and is prohibited. If the case is
damaged, replace it before using the MX1-IS again.

2. To prevent static charge accumulation on the surface of the device, clean with a damp cloth

only. Wiping it with a dry cloth, or against clothing, may cause a buildup of static electricity.
Always use the leather case.

3. Discontinue use if the MX1-IS device is damaged or altered. Use of damaged or altered

equipment will void the intrinsic safety of the MX1-IS computer.

4. Substitution of components may impair intrinsic safety. Please return the MX1-IS device to

LXE for proper equipment repair or replacement. This device is not user or field-serviceable.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Important Safety Instruction and Warnings 3

5. Do not substitute batteries. The MX1-IS device is only intrinsically safe when used with the

approved LXE Main Battery Pack part no. MX1ISA381BATT / MX1ISA382BATT. Use of
any other battery pack voids the intrinsic safety approval of the MX1-IS device and is strictly
prohibited.

6. The Main Battery Pack must be in place for proper electrical polarity. Discontinue use if the

battery pack is damaged or altered. Use of a damaged or altered Main Battery Pack voids the
intrinsic safety approval of the MX1-IS device and is strictly prohibited.

7. Do not charge or recharge Main Battery Packs within a hazardous environment. The LXE

MULTI-chargers LXE part no. MX1ISA378CHGR3WW specifically for use with the MX1-IS
Main Battery Pack, are not intrinsically safe or approved for use in hazardous environments.

8. The MX1-IS device is provided with intrinsic safety warning labels. Do not alter or remove

these labels. Do not cover or obstruct these labels from view.

9. The MX1-IS battery, MX1ISA381BATT / MX1ISA382BATT, may be exchanged with a fully

charged battery in a hazardous location. The MX1-IS must be powered off before opening the
Battery Door.

Failure to comply with these instructions may result in death or

serious injury to persons due to potential increased risk of fire and

explosion when used in a hazardous location.

Important – LXE manufactures a device physically similar to the MX1
Intrinsically Safe Hand Held Computer (MX1-IS). Do not place MX1-IS
Main Battery Packs in any battery charging device not specifically
designed for the MX1-IS. Also, the MX1-IS device is not compatible
with the LXE MX1 device or the MX1 Main Battery Packs.

MX1-IS battery part number is country specific. Check with your LXE
Representative when ordering replacement batteries for the MX1-IS.

SAVE THESE INSTRUCTIONS

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

4 Scanner Warnings and Labels

Scanner Warnings and Labels

• Do not look into the laser’s lens.

• Do not stare directly into the laser beam.

• Do not remove the laser caution labels from the MX1-IS device.

• Do not connect the laser barcode module to any other device. The laser barcode module is

certified for use with the MX1-IS device only.

Caution:

Laser radiation when open. Please read the caution labels.

Use of controls, adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.

MANUFACTURED: SEPTEMBER 2006

1 - Laser Scanner Aperture

LXE 6726 TRANSCEIVER 480631 - 5010
FCC ID: KDZLXE6726M
CANADA: 1995391205A

Ex

II 2 G D EEx ia IIB T4, IP65 Nemko 03ATEX1346

FM

APPROVED

Ex ia IIB T4 AUS Ex 03.3897X

IS CL I, II, III, DIV 1, 2, GP C, D, E, F, G, T4

IS CLASS I, ZONE 0, AEx ia IIB T4

NORCROSS, GA 30092

MADE IN U.S.A.

!

Figure 2 Scanner Module, Top

TERMINAL S/N: MX1-IS06383353
MODEL #: MX1-IS
SPC: MX1ISAFE

Figure 3 Other Equipment Labeling

2 - CDRH or IEC 825 Label

Figure 4 Caution Labels - Scanner Module, Back Figure 5 Caution Labels - Scanner

Note: The “MX1 I-Safe Reference Guide” contains MX1-IS technical information and

advanced functions. (located on the LXE Manuals CD and on the LXE ServicePass
website).

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

MX1 I-Safe Components 5

MX1 I-Safe Components

1. Endcap

2. Scan
Indicators

3. Beeper

4. Status
Indicator

5. Display

6. Scan
Buttons

7. Keypad

8. Power
Button

MX1-IS Front

Figure 6 MX1-IS Components

1. Scan
Aperture

2. Warning
Label

3. Safety
Ratings Label

4. Handle
Contacts

5. Main Battery
Pack Cover
Latch

MX1-IS Back

The Protective Case

The protective case is constructed of leather. The case must be used at all times to prevent static
buildup in a hazardous environment.

The Pistol Grip Handle

The handle enables the user of the MX1-IS to hold the unit while pointing and activating the laser
scanner with one hand. Pulling the trigger activates the scanner and functions the same as the
SCAN key on the keypad. With the handle installed the SCAN key on the keypad remains active.
The trigger duplicates the operation.

The handle is built of a durable and flexible plastic that may detach from the MX1-IS if the unit is
dropped. The handle won’t detach completely, because the leather case is covering it.

Although the handle is removable, it must always be installed with it's leather grip to prevent static
buildup in hazardous environments.

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

6 Display

Display

Figure 7 MX1-IS Display

The MX1-IS display is a transflective monochrome backlit LCD unit capable of supporting gray
scales.

Icons

Across the top of the display are icons that provide visual cues to current computer operation.

Icon When highlighted ...

CAPS CAPS is on when upper case letters are selected. To enable or disable CAPS, press

2nd, then SHIFT, then the left arrow key.

2nd

AAA This is the backup battery indicator for LXE MX1-IS devices. The MX1-IS device

Alpha Numeric-Alpha keypad only. The A/# key is in Alphabetic mode. Operation in

Ctrl

Alt

Shift

The 2nd functions of the keypad are active.

Low Main Battery indicator. This indicates that the Main Battery Pack charge is
low and the battery should be replaced.

does not have a backup battery. This indicator can be ignored.

Numeric Mode is indicated by the absence of the Alpha icon. Toggling between
Alphabetic and Numeric modes is accomplished by pressing the A/# key.

The Control functions of the keypad are active.

The Alternate functions of the keypad are active.

Shift keys output between upper and lower case letters.

Cleaning the Glass Display/Scanner Aperture

Note: Do not perform the following steps in a hazardous environment.

Keep fingers and rough or sharp objects away from the scan aperture and display. If the glass
becomes soiled or smudged, clean only with a standard household cleaner such as Windex(R)
without vinegar or use Isopropyl Alcohol. Do not use paper towels or harsh-chemical-based
cleaning fluids since they may result in damage to the glass surface. Use a clean, damp, lint-free
cloth. Do not scrub optical surfaces. If possible, clean only those areas which are soiled.
Lint/particulates can be removed with clean, filtered canned air.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Display 7

Display Backlight

A display backlighting feature is available and depending upon programming, will operate in one
of three ways:

• Backlighting Off. This is the most efficient way to operate the computer with battery

power.

• Backlighting On For A Short Time. This will provide display backlighting for a

predetermined amount of time. Use of this feature will result in reduced battery life.

• Backlighting On Whenever The Unit Is On. This provides full time backlighting to the

display whenever the unit is turned on. It greatly reduces the expected battery life.

Display Backlight Timer

When the Display Backlight Timer expires the display backlight is turned off. The default value
for this parameter is 3 seconds. The value can be adjusted using the BIOS Setup. Refer to the
“MX1 I-Safe Reference Guide.”

Any of the following will wake the display and display backlight:

• Display update by host or currently running application on the MX1-IS

• Trigger

• Any key on the keypad

When the display wakes up, the Display Backlight Timer will begin the countdown again. When
any of the above events occur prior to the timer expiring, the timer starts the countdown again.

Panning

The MX1-IS display can be panned around using keypress sequences so the user can view an
entire virtual 640 x 480 pixel screen. Initially, the 20 columns and 20 rows in the top left corner of
a virtual screen are displayed.

Full Alpha-Numeric Keypad (60 keys)

nd

Up, Down, Left and Right 2
Home 2

key then the arrow key

nd

and Shift keys and letter I key

Numeric-Alpha Keypad (41 keys)

Up, Down, Left and Right 2
Home 2

nd

and Ctrl and the arrow key

nd

and Ctrl and the Enter key

When the Home key sequence is pressed, the cursor moves to the top left hand corner of the
virtual screen display.

When the initial 20 row x 20 column portion of the virtual screen is displayed:

• and the Pan Right key sequence is pressed, columns 10 through 30 are shown on the

display.

• and the Pan Down key sequence is pressed, rows 5 through 25 are shown on the display.

Please refer to the “MX1 I-Safe Reference Guide” for technical information about the Panning
function.

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

8 Intrinsically Safe Endcap

Intrinsically Safe Endcap

The MX1-IS can be configured with several different laser scan-range endcaps. Endcaps are
mounted on the top of the computer case and contain the beeper. The endcap port is designated as
COM 1.

Read all cautions, warnings and labels before using the scanner.

Important

Scanner Endcap

Several scanner endcaps are available with the MX1-IS. These consist of a High Performance,
Long Range, and Advanced Long Range scanner endcaps. Externally they appear identical with
the same indicators. Barcode Scanner operation varies depending upon the application but, once
enabled, the scanners are activated by pressing either the “Scan” button on the keypad or pulling
the trigger on the handle.

The range of a scanner is dependent upon many outside influences including size of the barcode,
quality of the barcode printing, material the barcode is printed on, and angle of the scanner endcap
relative to the barcode label. Any of these factors may result in having to re-scan the label from a
different distance or angle.

Scanner Endcap Indicators

See also section titled “Scanner Warnings and Labels.”

Figure 8 Scanner Endcap

Read all cautions, warnings and labels before using the scanner endcaps.

1 – Laser On Indicator

2 – Beeper

3 – Good Read Indicator

Figure 9 Scanner Endcap LEDs and Beeper

The left LED (1 - Laser On Indicator) on the top of the laser barcode endcap illuminates red,
indicating laser emission when the laser beam is being emitted. Following a good read, the right
LED (3 - Good Read Indicator) flashes green, indicating a successful scan. Beeps may be heard
after a good read, depending on the application running on the MX1-IS.

The laser automatically turns off after a successful read and is ready to scan again when the Scan
key (or the trigger) is pressed.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Keypad Controls 9

Keypad Controls

There are two keypads available for the MX1-IS. All keypads are phosphorescent. A
phosphorescent keypad does not use a keypad backlight but glows in dim/dark areas after
exposure to a light source.

All keypads are installed and configured by LXE. Full alpha-numeric (60 key) keypads are
available that are directly suited to ANSI, IBM 3270 and IBM 5250 host computer systems.

The keymaps (keypress sequences) are located in “Appendix A - Key Maps.”

Full Alpha-Numeric (60 Key)

Full Alpha-Numeric IBM 3270 Alpha-Numeric IBM 5250 Alpha-Numeric

Figure 10 The Alpha-Numeric Keypads

Note: The 900MHz radio is obsolete. Terminal emulators requiring 900MHz radios are

obsolete as of June 2005 (e.g. 3270 DOS TE, 5250 DOS TE).

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

10 Keypad Controls

Numeric-Alpha (41 Key)

Figure 11 The Numeric-Alpha Keypad

Please refer to Appendix A “Key Maps” for keypress sequences.

Scan Key Function

The Scan key activates the scanner when a scanner endcap is installed and either of the

two Scan buttons is pressed. This feature accommodates both left and right handed users
comfortably.

Enter Key Function

The Enter key is used to confirm a forms entry or to transmit information. How it is used

is determined by the application running on the computer. There are two Enter keys on all keypads
except the IBM 5250 Full Alpha-Numeric keypad which has one Enter key.

Field Exit Key Function (IBM 5250 Only)

The Field Exit key is used to exit an input field. If the field is an Auto Enter field, the

auto transmit function is activated. This key is present on the IBM 5250 specific keypad only.

Arrow / Cursor Key Function

The arrow keys (also called the cursor movement keys) are used to scroll through the

active display or to move the cursor around the screen.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Keypad Controls 11

2nd Key Function

The 2nd key is colored yellow and is used to activate the 2

Printed above many keys are yellow characters that represent the 2

nd

key activates the second key function. Note that the 2nd key only stays active for one

the 2
keystroke. Each time you need to use the 2
function before pressing another key, press the 2

nd

icon stays on the screen.

2

For example:

• Full Alpha-Numeric : 2nd plus the I key initiates INSERT mode.

• Numeric-Alpha : 2

CTRL Key Function

The CTRL key enables the control functions of the keypad. This function is similar to a

regular keyboard’s Control key. Note that the Ctrl key only stays active for one keystroke. Each
time you need to use a Ctrl function, you need to press the Ctrl key before pressing the function
key. When the Ctrl function is active, the Ctrl icon stays on the screen.

ALT Key Function

Note: Full alpha-numeric keypad only.

The ALT key enables the alternate functions of the keypad. This function is similar to a

regular keyboard’s Alt key. Note that the Alt key only stays active for one keystroke. Each time
you need to use an alternate function, you need to press the Alt key before pressing the function
key. When the Alt function is active, the Alt icon stays on the screen.

nd

function you must press the 2nd key. To cancel a 2nd

nd

key again. When the 2nd function is active, the

nd

plus the SPC key initiates ALT mode.

nd

functions of the keypad.

nd

function of that key. Using

SHFT Key Function

The Shft key enables the shifted functions of the keypad. This function is similar to a

regular keyboard’s Shift key. Note that the Shift key only stays active for one keystroke. Each
time you need to use a Shifted function, you need to press the Shft key before pressing the
function key. When the Shft function is active, the Shft icon stays on the screen.

When the Shft key is pressed the next key is determined by the major key legends, i.e., the alpha
keys display lower case letters when CAPS is On and function keys enable the shifted function
key.

SPC Key Function

Note: Numeric-alpha keypad only. SPC is a 2nd function on the full alpha-numeric keypad.

The Spc key adds a space to the line of data on the display. This function is similar to a

regular keyboard’s Spacebar. Note that the SPC key only stays active for one keystroke.

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

12 Keypad Controls

Mode Key Functions

CAPS Mode

This function is similar to a regular keyboard’s CapsLock key. Note that the CapsLock mode stays
active until the CapsLock key sequence is pressed again. Each time you need to use a Caps
function, you need to press the Caps key sequence first. To cancel a CapsLock function press the
Caps key sequence again. When the CapsLock mode is active, the Caps icon stays on the screen.

nd

Caps mode on both keypads is accessed through the key sequence 2

Alpha to Numeric Toggle with A / #

Note: Numeric-alpha keypad only.

When the keypad is in Alpha mode, the Alpha icon stays on the screen. When the Alpha
icon is not displayed, the keypad is in numeric mode. Note that the Alpha or Numeric mode stays
active until the A / # key is pressed again.. To toggle the A / # mode press the A / # key again.

plus Shft plus Left arrow.

The exception to this rule
character within a sequence of numbers, pressing 2
the keypad to alpha mode for one character – the next key pressed. Then the keypad returns to
numeric mode. Likewise for toggling alpha to numeric for one key only.

Keypress Sequences

See Appendix A for key maps for the alphanumeric and numeric-alpha keypads. MX1-IS specific
key maps for the 3270 and 5250 keypads are contained in the 3270 and 5250 DOS Terminal
Emulation Reference Guides.

Reset Key Sequence

Reset Key Sequence is Ctrl + Alt + Del.

• Del is a 2nd function on the full alpha-numeric keypad.

• Alt is a 2nd function on the numeric-alpha keypad.

The Reset Key sequence can be disabled in the BIOS Setup. See the “MX1 I-Safe Reference
Guide.”

-- when the keypad is in numeric mode and you want to type one alpha

nd

plus Ctrl and then the A / # key will toggle

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Power Button Functions 13

Power Button Functions

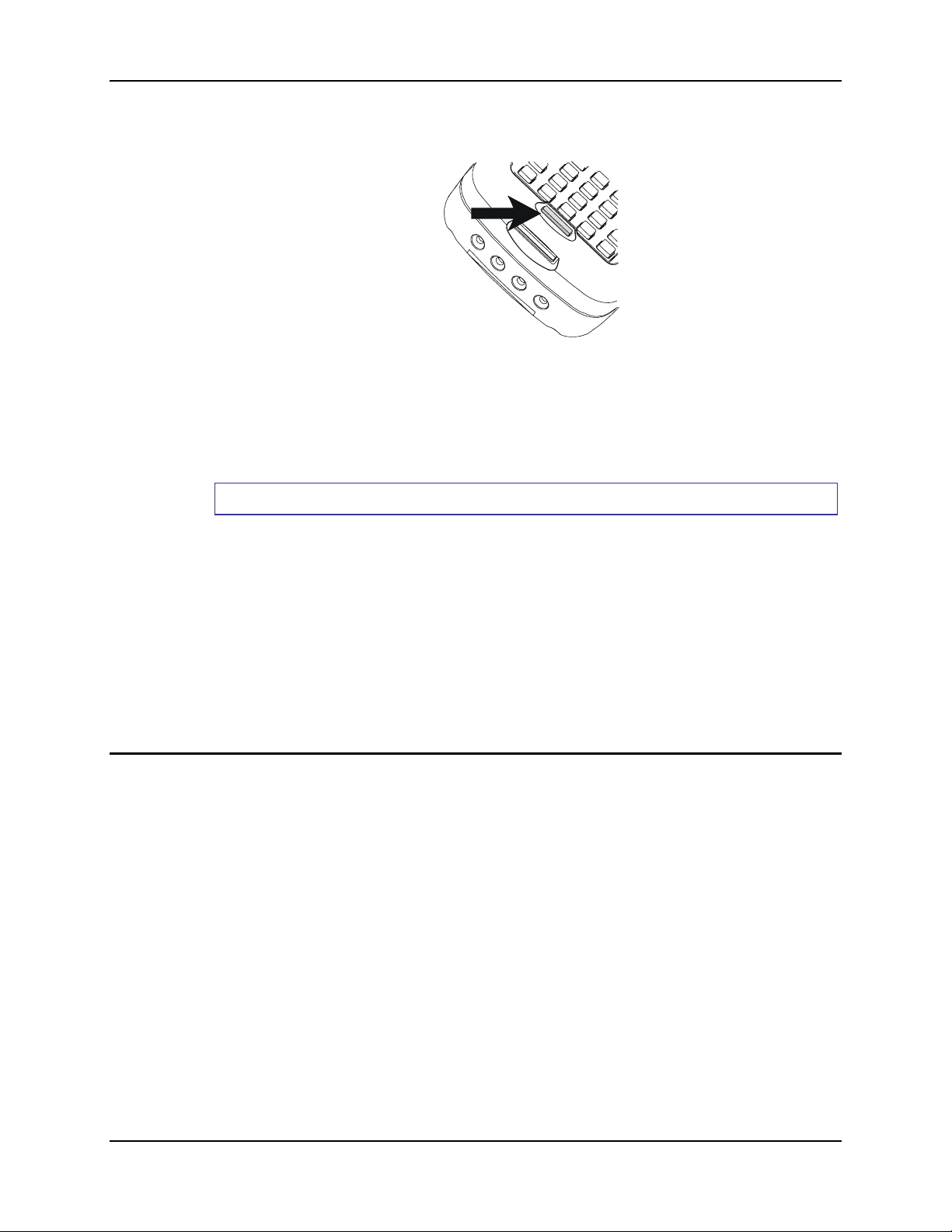

Figure 12 Location of the Power (PWR) Button

Note: The IR window and four battery charger connectors are present, but they are non-

powered and non-functional. The unit does not have a backup battery.

The Power button is used to turn the MX1-IS on and off and force it into the Suspend state. The
button will beep when pressed and beep again every second while it is held down.

How To

• Turn the MX1-IS off

• Turn the MX1-IS on

• Force the Suspend state

• Wake from Suspend

Off Timer and Critical Suspend Mode

The MX1-IS is automatically turned off when the Off Timer expires. The Off Timer runs when the
MX1-IS is in Critical Suspend mode. The MX1-IS automatically goes into Critical Suspend when
the Main Battery is reaching the critical power mark. The Off Timer default is 5 minutes. The
value can be adjusted using the BIOS Setup.

Important:

The MX1-IS Main Battery must be replaced when the unit enters Critical Suspend.
Turn the unit off before replacing the Main Battery.

Hold the Power key down for 4 beeps (signifies 3 or more
seconds) then release.

Hold the Power key down until the display turns on.

Tap the Power key (1 beep). The Suspend state is useful for
breaks or brief periods when the unit will not be used.

Tap the Power key to wake the MX1-IS from Suspend
(before the 5 minute timer expires).

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

14 Power Button Functions

Power Status and the Status LED

Figure 13 Power Status and the Status LED

The Status LED is located next to the LXE logo on the MX1-IS. The LED changes color and state
depending on power status.

Status LED Condition

Off MX1-IS is Off.

OR

The MX1-IS is powered On and the display is On.

Steady Green The MX1-IS is powered On and the display is Off. Press any key to

Blinking Green The MX1-IS is in the Suspend state. Tap the Power key to exit the

Steady Red Main Battery Low Warning or Low Main Battery. Replace the main

Blinking Red Main Battery Power Failure or the Main Battery is depleted. Replace

Power Management and the Keypad

Status LED is Steady Green. When the MX1-IS is in the Display Off state, any keypress returns
the computer to the On state and the display activates. The key pressed (key value) is not sent to
the Operating System or application.

nd

If the 2
entered Display Off or Suspend, the modifier keys and their icons are cleared from the display
when the MX1-IS wakes up.

, Ctrl, Shift, or Alt keys were active (and the icons were on the display) when the MX1-IS

turn the display On.

Suspend state. Hold the Power key down for 4 beeps to turn the MX1­IS off. There may be a brief wait while the MX1-IS synchronizes with
the RF network.

battery.

the main battery. The MX1-IS will turn off in 5 minutes (default or the
value selected in BIOS Setup for the Off Timer limit) if no action is
taken.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Getting Help 15

Getting Help

LXE user guides are now available on CD and they can also be viewed/downloaded from the LXE
ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD or access to
the LXE ServicePass website. You can also check the LXE ServicePass website for the latest
manual releases.

Note: Obsolete/archived manuals are not available on the LXE Manuals CD. They are

available for download from the ServicePass website only.

You can get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in
the file titled “Contacting LXE”. This information is also available on the LXE website.
Explanations of terms and acronyms used in this manual are located in the file titled “LXE
Technical Glossary” on the LXE Manuals CD and on the LXE website.

Manuals

MX1 I-Safe Reference Guide

MX1 I-Safe Multicharger User’s Guide

ANSI Plus Reference Guide

LDS Plus Reference Guide

3270 DOS TE Reference Guide (obsolete)

5250 DOS TE Reference Guide (obsolete)

6200 Network Management Guide (obsolete)

TN3270 Terminal Reference Guide

TN5250 Terminal Reference Guide

Integrated Scanner Programming Guide for DOS Devices

Getting the Most From Your Batteries

Accessories

Endcap Modules
Endcap, Scanner SE1223 HP MX1ISA342SCNR1223HP
Endcap, Scanner SE 1223 LR MX1ISA343SCNR1223LR
Endcap, Scanner SE 1223 ALR MX1ISA344SCNR1223ALR
Batteries and Battery Chargers
Main Battery Pack, Lithium-Ion, MX1-IS.
Battery part number is country specific. Check with your LXE
Representative when ordering replacement batteries for the MX1-IS.
MULTI-charger, MX1-IS MX1ISA378CHGR3WW
Docking Cradles
Docking Cradle, Non-powered MX1ISA001CRADLE
Holding Accessories
Leather Case with Handle and Shoulder Strap MX1ISA406CASE
Leather Strap MX1ISA407STRAP
Replacement Handle MX1ISA402HANDLE

MX1ISA381BATT /
MX1ISA382BATT

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

16 Getting Help

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Insert I-Safe Main Battery Pack

Important: Do not place MULTI-chargers in hazardous locations.

Note: New batteries must be charged prior to first use. This process takes approximately three

hours in an LXE I-Safe MULTI-charger.

Note: The MX1-IS battery pack can be exchanged with a fully charged battery pack in a

hazardous location. The MX1-IS must be turned off before the Battery Door is opened.

Operation

Figure 14 Open Battery Door

The MX1-IS Battery Compartment is located on the lower rear of the computer. Unfasten the
protective leather cover. Open the Battery Compartment door by pressing down on the door latch
slide tab at the top of the compartment. Remove the battery door.

There is no need to remove the pistol grip handle or the protective leather cover.

Care should be used when inserting or removing the battery pack so that damage does not occur to
the battery contacts on the MX1-IS. If damage does occur, cease using the unit until inspection or
repair can be performed by a qualified technician.

The Main Battery Pack should be inserted tab end first so that the tab mates with the hole at the
top of the battery compartment. The battery will then lay inside the battery compartment but will
not be secure. To secure the battery, the battery compartment door must be in place and the door
latch locked. This provides the tension necessary to hold the battery pack in place.

Note: There is no backup battery in the MX1-IS device.

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

18 Operation

Power On and Off

Turn On the MX1-IS

Press the Power button until the display turns on. The power button is located at the bottom of the
keypad.

Figure 15 Location of the Power Button

Note: The IR window and four battery charger connectors are present, but they are non-

When the MX1-IS is powered on, the display will begin scrolling power-on information as
software and drivers are loaded. When the display has stopped scrolling and a DOS C: prompt is
displayed or an application begins, the power on sequence is complete.

Turn Off the MX1-IS

Press and hold the Power button down. The unit will emit three short beeps and one long beep.
After the long beep the MX1-IS will power down. The Power button and the display will turn off.
The Power key function is configured in the BIOS Setup (see the “MX1 I-Safe Reference Guide.”)

Note: Quickly tapping the Power button will place the MX1-IS operating system in Suspend

powered and non-functional.

mode.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Operation 19

Adjust Display and Volume

Set The Display Contrast

Adjusting screen contrast lightens or darkens the characters on the screen to make them visible at a
comfortable level. The contrast is incremented or decremented one step each time the contrast key
is pressed.

Full Alpha-Numeric

The full alpha-numeric keypad does not have a contrast key legend. Adjust the display contrast by
pressing the:

nd

• 2

key, then the Shft key then the <C> key to enter Contrast change mode.

• Use the Up Arrow and Down Arrow keys to adjust contrast until the display lightens or

darkens to your satisfaction.

Press the Enter key to exit this mode.

Numeric-Alpha Keypad

To adjust screen contrast, locate the <F11> key at the bottom of the keypad. Adjust the

display contrast by pressing the:

nd

• 2

key, then the <F11> key

• Use the Up Arrow and Down Arrow keys to adjust contrast until the display lightens or

darkens to your satisfaction.

Press the Enter key to exit this mode.

Set The Beeper Volume

Note: An application may override the control of the beeper volume.

The audible alert or “beeper” volume can be adjusted to a comfortable level for the operator. The
volume is increased or decreased one step each time the volume key is pressed.

Full Alpha-Numeric

The full alpha-numeric keypad does not have a Volume key legend. Adjust the beeper volume by
pressing the:

nd

• 2

key, then the Shft key then the <V> key to enter Volume change mode.

• Use the Up Arrow and Down Arrow keys to adjust contrast until the beeper volume is

satisfactory.

Press the Enter key to exit this mode.

Numeric-Alpha Keypad

To adjust the beeper volume, locate the <F12> key at the bottom of the keypad. Adjust

the beeper volume by pressing the:

nd

• 2

key, then the <F12> key

• Use the Up Arrow and Down Arrow keys to adjust contrast until the beeper volume is

satisfactory.

Press the Enter key to exit this mode.

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

20 Operation

Enter Data

You can enter data into the MX1-IS through several different methods. The Scanner Endcaps
provide barcode data entry and the keypad provides manual entry.

Attention

Powering off or rebooting the MX1-IS before a write (to disk) function has

completed, may result in the corruption of the flash drive. Flash drive

corruption necessitates sending the unit to LXE for repair.

Keypad Entry

The keypad is used to manually input data that is not collected otherwise. Almost any function that
a full sized computer keyboard can provide is duplicated on the MX1-IS Full Alpha-Numeric and
Numeric-Alpha keypads but it may take a few more keystrokes to accomplish the task.

For example, when the 2nd key is selected pressing the desired second-function key will produce
the 2nd character. The specific 2nd character is printed in yellow above the corresponding key.

Please refer to “Appendix A - Key Maps” for instruction on the specific keypresses to access all
keypad functions.

Scanner Entry

To scan with the laser barcode endcap, point the laser head towards a barcode and either press the
Scan key on the keypad or pull the trigger on the handle. You will see a red laser beam strike the
barcode.

Correct Scan Incorrect Scan Incorrect Scan

Figure 16 Scan Beam

Align the red beam so that the barcode is centered within the beam. The laser beam must cross the
entire barcode. Move the MX1-IS towards or away from the barcode so that the barcode takes up
approximately two-thirds the width of the beam.

The left LED (Laser On Indicator) on the top of the laser barcode endcap will light, indicating
laser emission when the laser beam is being emitted. Following a good read, the right LED (Good
Read Indicator) flashes, indicating a successful scan. Beeps may be heard after a good read,
depending on the application running on the MX1-IS.

The laser automatically turns off after a successful read and is ready to scan again when the Scan
key (or the trigger) is pressed.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Operation 21

MX1-IS Environmental Specifications

Operating Temperature

Storage Temperature -22°F to 140°F (-30°C to 60°C) [non-condensing]

Water and Dust IEC IP65 Category 1 (with IP65 endcaps)

Operating Humidity 5% to 95% non-condensing at 104°F (40°C)

Vibration Based on MIL Std 810D

ESD 8 kV air, 4kV direct contact

Shock Multiple 4 foot drops to concrete

I-Safe Main Battery

Note: New batteries must be charged prior to use. There is no backup battery in the MX1-IS

The MX1-IS computer is designed to work with a Lithium-Ion (Li-Ion) battery pack from LXE.
Under normal conditions it should last approximately eight hours before requiring a recharge. The
more you use the scanner or the radio transmitter, the shorter the time required between battery
recharges.

Battery Pack

The battery pack is a rugged plastic enclosure that is designed to withstand the ordinary rigors of
an industrial environment. Exercise care when transporting the battery pack making sure it does
not come in contact with excessive heat or any power source other than the LXE MULTI-charger
unit.

14°F to 104°F (-10°C to 40°C) [non-condensing]

device.

Critical Suspend State

The Critical Suspend state or mode can only be entered because of a Main Battery Power failure.
A Main Battery Power failure can occur because the main battery pack’s energy has been
depleted.

When the MX1-IS is in the Critical Suspend state the battery icon appears on the screen, the Status
LED blinks red, all peripherals are shut down, the CPU clock is stopped, power is removed from
the PCMCIA card and the MX1-IS may beep. The MX1-IS is saving the state prior to the main
battery failing and cannot be used.

If the Off Timer expires the MX1-IS will turn itself off and all unsaved information is lost. Insert a
fully charged battery pack and press the Power button to turn the MX1-IS back on.

Note: The Off Timer can be configured in the BIOS Setup (see the “MX1 I-Safe Reference

Guide.”)

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

22 Operation

Battery Charger

Optional LXE MULTI-charger

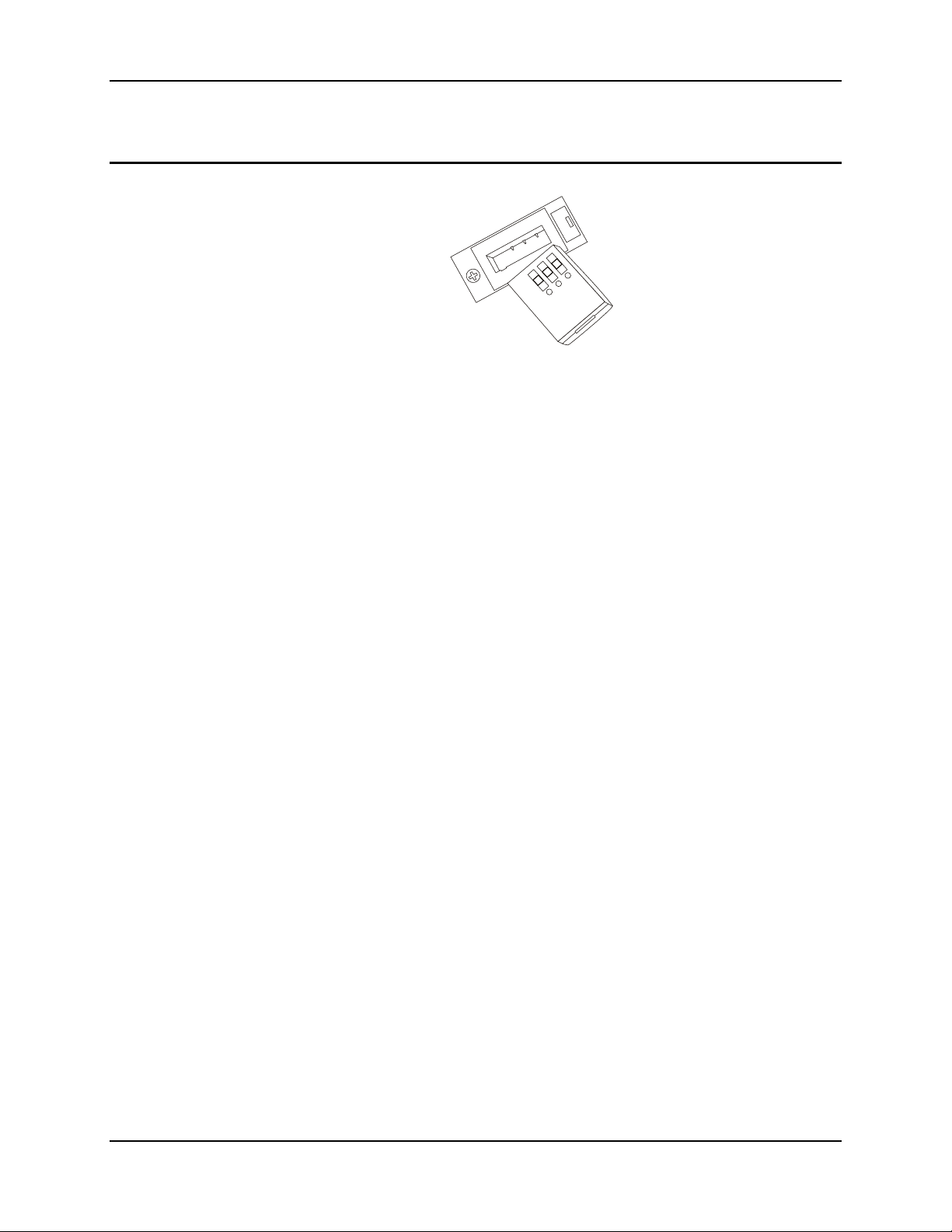

Figure 17 MX1-IS Battery and Charging Cup

The Main Battery Pack must be charged in the MX1-IS MULTI-charger,
MX1ISA378CHGR3WW.

Insert the Battery Pack with the arrow on the Battery Pack pointing UP, away from the charger.
Make sure that the groove on the back of the battery mates with the slot on the battery charging
cup.

Failure to follow these instructions can result in damage to the battery pack or the charger.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Appendix A Key Maps

Full Alpha-Numeric Key Map (60 Key)

Figure 18 Full Alpha-Numeric Keypad

The full alpha-numeric and numeric-alpha key maps that follow present the key sequences used at the DOS
prompt and when running LXE's ANSI Plus or LDS Plus Terminal Emulation (TE) programs.

When running the TE programs using this keypad, please refer to the appropriate LXE terminal emulation
reference guides for equivalent keys and keypress sequences:

ANSI Plus Reference Guide For units with 900MHz

LDS Plus Reference Guide For units with 900MHz or 2.4GHz radios

Note: LXE offers IBM specific keypads to be used with the LXE 3270 / TN3270 / 5250 / TN5250 TE software (a

graphic description of the keypads is contained in this appendix).

1

LXE’s 900MHz radio is obsolete. Terminal emulators requiring 900MHz radios are obsolete as

of June 2005 (e.g. 3270 DOS TE, 5250 DOS TE).

1

or 2.4GHz radios

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

24 Full Alpha-Numeric Key Map (60 Key)

Full Alpha-Numeric Key Map 101-Key Equivalencies for DOS Units

Note: The DOS unit key mapping is used on hand held computers that are NOT running an LXE Terminal

Emulator.

When using a sequence of keys that includes the 2
Set the On/Off condition of NumLock before pressing a key sequence. There is no visual indication of the
condition of NumLock.

nd

key, press the 2nd key first then the rest of the key sequence.

Note: When the computer boots, the default condition of NumLock is On. NumLock can be set using BIOS Setup

or toggled with a 2

Note: When the computer boots, the default condition of Caps (or CapsLock) is Off. The Caps (or CapsLock)

condition can be set using BIOS Setup or toggled with a 2

nd

-Shift-Right Arrow key sequence.

nd

-Shift-Left Arrow key sequence. CAPS is

displayed on the screen when CapsLock is On.

To get this

result

Press These Keys and Then

nd

2

Shift Ctrl Alt NumLock

Press this

key

Contrast x x C

Volume x x V

2nd 2

nd

Shift Shft

Alt Alt

Ctrl Ctrl

Scan Scan

Enter Enter

Esc x B

Back Space x x B

Tab Tab

BackTab x Tab

Space x A

Break x x D

Pause x x Q

Up Arrow Up Arrow

Down Arrow Down Arrow

Right Arrow Right Arrow

Left Arrow Left Arrow

Pan Up x Up Arrow

Pan Down x Down Arrow

Pan Right x Right Arrow

Pan Left x Left Arrow

Pan Home x x I

Insert x I

Delete x DOT

Home x x H

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Full Alpha-Numeric Key Map (60 Key) 25

result

Press These Keys and Then To get this

nd

2

Shift Ctrl Alt NumLock

Press this

key

End x x E

Page Up x x Up Arrow

Page Down x x Down Arrow

NumLock (Toggle) x x Right Arrow

CapsLock (Toggle) x x Left Arrow

Right Shift x x 1

Right Alt x x 4

Right Ctrl x x 7

ScrollLock x x L

PrintScrn x x P

SysReq x x S

F1 F1

F2 F2

F3 F3

F4 F4

F5 F5

F6 F6

F7 F7

F8 F8

F9 F9

F10 F10

F11 x F1

F12 x F2

a x A

b x B

c x C

d x D

e x E

f x F

g x G

h x H

i x I

j x J

k x K

l x L

m x M

n x N

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

26 Full Alpha-Numeric Key Map (60 Key)

result

Press These Keys and Then To get this

nd

2

Shift Ctrl Alt NumLock

Press this

key

o x O

p x P

q x Q

r x R

s x S

t x T

u x U

v x V

w x W

x x X

y x Y

z x

Y

CapsLock off

A A

B B

C C

D D

E E

F F

G G

H H

I I

J J

K K

L L

M M

N N

O O

P P

Q Q

R R

S S

T T

U U

V V

W W

X X

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Full Alpha-Numeric Key Map (60 Key) 27

result

Press These Keys and Then To get this

nd

2

Shift Ctrl Alt NumLock

Press this

key

Y Y

Z

or

Z

x

or

x

x

Y

or with

CapsLock On

1 (alpha) 1

2 (alpha) 2

3 (alpha) 3

4 (alpha) 4

5 (alpha) 5

6 (alpha) 6

7 (alpha) 7

8 (alpha) 8

9 (alpha) 9

0 (alpha) 0

DOT (alpha) DOT

1 (numeric) x x On 1

2 (numeric) x x On 2

3 (numeric) x x On 3

4 (numeric) x x On 4

5 (numeric) x x On 5

6 (numeric) x x On 6

7 (numeric) x x On 7

8 (numeric) x x On 8

9 (numeric) x x On 9

0 (numeric) x x On 0

DOT (numeric) x x On DOT

- (numeric) x x x M

+ (numeric) x x x P

/ (numeric) x x x U

* (numeric) x x x Y

Home (numeric) x x x Off 7

End (numeric) x x x Off 1

PgDn (numeric) x x x Off 3

PgUp (numeric) x x x Off 9

Lt Arrow (numeric) x x x Off 4

Rt Arrow (numeric) x x x Off 6

Up Arrow (numeric) x x x Off 8

Dn Arrow (numeric) x x x Off 2

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

28 Full Alpha-Numeric Key Map (60 Key)

Press These Keys and Then To get this

result

Insert (numeric) x x x Off 0

Del (numeric) x x x Off DOT

< x C

> x E

= x D

: (colon) x F

; (semicolon) x G

? x H

` x J

{ x K

} x L

- (minus sign) x M

_ (underscore) x N

, (comma) x O

+ x P

[ x Q

] x R

‘ (apostrophe) x S

~ (tilde) x T

/ x U

\ x V

| x W

“ x X

! x 1

@ x 2

# x 3

$ x 4

% x 5

^ x 6

& x 7

* (asterisk) x 8

( x 9

) x 0

nd

2

Shift Ctrl Alt NumLock

Press this

key

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Full Alpha-Numeric Key Map (60 Key) 29

IBM 3270 and TN3270 Terminal Emulator Keypad

Figure 19 IBM 3270 Specific Keypad

This keypad is designed to allow the user to enter terminal emulator commands when running LXE's IBM 3270
and TN3270 Terminal Emulation (TE) programs.

When running these programs on the MX1-IS, please refer to the following terminal emulation reference guides
for equivalent keys and keypress sequences:

1

3270 DOS TE Reference Guide For units with 900MHz

TN3270 Terminal Reference Guide For units with 2.4GHz radios

radios

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

30 Full Alpha-Numeric Key Map (60 Key)

IBM 5250 and TN5250 Terminal Emulator Keypad

Figure 20 IBM 5250 Specific Keypad

This keypad is designed to allow the user to enter terminal emulator commands when running LXE's IBM 5250
and TN5250 Terminal Emulation (TE) programs.

When running these programs on the MX1-IS, please refer to the following terminal emulation reference guides
for equivalent keys and keypress sequences:

1

5250 DOS TE Reference Guide For units with 900MHz

TN5250 Terminal Reference Guide For units with 2.4GHz radios

radios

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Numeric-Alpha Key Map (41 Key) 31

Numeric-Alpha Key Map (41 Key)

Figure 21 Numeric-Alpha Keypad

When running the ANSI Plus, LDS Plus, 3270, 5250, TN3270 or TN5250 terminal emulation programs with this
keypad, please refer to the following terminal emulation reference guides for equivalent keys and keypress
sequences:

1

ANSI Plus Reference Guide For units with either 900MHz

LDS Plus Reference Guide For units with either 900MHz

5250 DOS TE Reference Guide For units with 900MHz radios

3270 DOS TE Reference Guide For units with 900MHz radios

or 2.4GHz radios

1

or 2.4GHz radios

1

1

TN5250 Terminal Reference Guide For units with 2.4GHz radios

TN3270 Terminal Reference Guide For units with 2.4GHz radios

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

32 Numeric-Alpha Key Map (41 Key)

Numeric-Alpha Key Map 101-Key Equivalencies for Batch Units

When using a sequence of keys that include the A/# key, first press the A/#. When CAPS is On, the CAPS icon is
displayed on the screen and alphabetic characters are toggled to uppercase.

When using a sequence of keys that include the A/# key and the 2
When using a sequence of keys that do not include the A/# key and includes the 2
the rest of the key sequence.

Note: The batch unit key mapping is used on hand held computers that are NOT running an LXE Terminal

Emulator.

nd

key, first press the A/# key then the 2nd key.

nd

key, press the 2nd key first then

To get this

result

Press These Keys and then

A / # 2

nd

Shift Ctrl NumLock

Press this

key

Contrast x F11

Volume x F12

CAPS2 x x Left Arrow

2nd x 2nd

Shift Shft

NO NO

YES YES

Alt x Spc

A / #3 A / #

a / # x Enter

Ctrl Ctrl

Scan Scan

Enter Enter

Esc x A / #

Back Space x Del

Forward Tab x Right Arrow

Back Tab x Left Arrow

Space Spc

Break x x Right Arrow

Pause x x F3

Up Arrow Up Arrow

Down Arrow Down Arrow

Right Arrow Right Arrow

Left Arrow Left Arrow

Pan Up x x Up Arrow

Pan Down x x Down Arrow

2

CAPS icon is toggled on and off. When On, icon appears on the display.

3

Alpha icon is toggled on and off. When On, icon appears on the display.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Numeric-Alpha Key Map (41 Key) 33

Press this

key

result

Press These Keys and then To get this

A / # 2

nd

Shift Ctrl NumLock

Pan Right x x Right Arrow

Pan Left x x Left Arrow

Pan Home x x Enter

Insert x x F10

Delete Del

Home x x Up Arrow

End x x Down Arrow

Page Up x Up Arrow

Page Down x Down Arrow

NumLock

Determined by

BIOS Setup

CapsLock4 x x Left Arrow

Right Shift x x F7

Right Alt x x F8

Right Ctrl x x F9

ScrollLock x x F4

PrintScrn x x F6

SysReq x x F5

F1 F1

F2 F2

F3 F3

F4 F4

F5 F5

F6 F6

F7 F7

F8 F8

F9 F9

F10 F10

F11 F11

F12 F12

1 (numeric) x x On 1

2 (numeric) x x On 2

3 (numeric) x x On 3

4 (numeric) x x On 4

5 (numeric) x x On 5

6 (numeric) x x On 6

4

CAPS icon is toggled on and off. When On, icon appears on the display.

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

34 Numeric-Alpha Key Map (41 Key)

Press this

key

result

Press These Keys and then To get this

A / # 2

nd

Shift Ctrl NumLock

7 (numeric) x x On 7

8 (numeric) x x On 8

9 (numeric) x x On 9

0 (numeric) x x On 0

1 (alpha) Off 1

2 (alpha) Off 2

3 (alpha) Off 3

4 (alpha) Off 4

5 (alpha) Off 5

6 (alpha) Off 6

7 (alpha) Off 7

8 (alpha) Off 8

9 (alpha) Off 9

0 (alpha) Off 0

A5 x x NO

B x x YES

C x x 7

D x x 8

E x x 9

F x x 4

G x x 5

H x x 6

I x x 1

J x x 2

K x x 3

L x x DOT

M x x 0

N x x Minus Sign

O x x F1

P x x F2

Q x x F3

R x x F4

S x x F5

T x x F6

U x x F7

V x x F8

5

To use capital letters, both the Alpha icon and the CAPS icon must be displayed on the screen.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Numeric-Alpha Key Map (41 Key) 35

Press this

key

result

Press These Keys and then To get this

A / # 2

nd

Shift Ctrl NumLock

W x x F9

X x x F10

Y x x F11

Z x x F12

a6 x x NO

b x x YES

c x x 7

d x x 8

e x x 9

f x x 4

g x x 5

h x x 6

i x x 1

j x x 2

k x x 3

l x x DOT

m x x 0

n x x Minus Sign (alpha)

o x x F1

p x x F2

q x x F3

r x x F4

s x x F5

t x x F6

u x x F7

v x x F8

w x x F9

x x x F10

y x x F11

z x x F12

% x 7

^ x x x 6

& x x x 7

* (asterisk) x 0

( x x x 9

6

To use lower case letters, both the Alpha icon and the CAPS icon must NOT be displayed on the

screen.

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

36 Numeric-Alpha Key Map (41 Key)

Press These Keys and then To get this

result

) x x x 0

+ (numeric) x x F11

- (numeric) x x F12

* (numeric) x x NO

/ (numeric) x x YES

DOT (alpha) x x x 3

? x x x 8

A / # 2

nd

Shift Ctrl NumLock

Press this

key

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Appendix B Regulatory Notices and Safety Information

FCC Information:

This device complies with FCC Rules, part 15. Operation is subject to the following conditions:

1. This device may not cause harmful interference

and

2.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

Warning: Changes or modifications to this device not expressly approved by LXE, Inc., could void the user’s
authority to operate this equipment.

EMC Directive Requirements:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.

Industry Canada:

This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouiller du
Canada. Le present appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numeriques de le Classe A préscrites dans le Reglement sur le brouillage radioélectrique édits par le
ministere des Communications du Canada.

RF Safety Notice:

This device must accept any interference that may be received, including interference that may cause
undesired operation.

Caution:

This device is intended to transmit RF energy. For protection against RF exposure to humans and
in accordance with FCC rules and Industry Canada rules, this transmitter should be installed such
that a minimum separation distance of at least 20 cm (7.8 in.) is maintained between the antenna
and the general population. This device is not to be co-located with other transmitters.

R&TTE Directive Requirements - (Applies only to Equipment operated within the EU/EFTA)

Information to User

A label on the exterior of the device should resemble one of the labels shown below (the label contains the LXE
part number of the installed radio card). The labels shown below and affixed to the device, identify where the device
may be used and where its use is restricted. Use of a device is prohibited in countries not listed below or otherwise
identified by the label.

LXE Part

Number

Use of this device is permitted in EU/EFTA.

Permitted for use in: Austria, Belgium, Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Italy, Ireland,
Liechtenstein, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, and the United Kingdom.

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

38 Appendix B Regulatory Notices and Safety Information

Approvals

Product EMI / EMC Standards Safety Standards

MX1
Intrinsically
Safe Hand
Held
Computer

Transceiver RF Standards Notes

4810P3S01 (LXE Part No.)

LXE 6200 System 900MHz Type III
PCMCIA Card (Obsolete)

480628-4096 (LXE Part No.) [Lucent]
LXE 6500 System 2.4GHz Type II

PCMCIA Card (Obsolete)

6726 (LXE Model No.) [Cisco]
LXE 6700 System 2.4GHz Type II
PCMCIA Card

FCC Part 15 Subpart B, Class A
EN 55022:1998, (CISPR 22:1997)

Class A
EN 55024:1998
Industry Canada Class A

FCC Part 15, Subpart C
IC-RSS 210

FCC Part 15, Subpart C
FCC Part 2
ETS 300 328
ETS 300 826

IC-RSS 139
IC-RSS 102

FCC Part 15, Subpart C
FCC Part 2
EN 300 328
EN 300 826

IC-RSS 139

IC-RSS 102

FM3610:1999 ; EN50014:1997 A1..A2 ;
EN 50020:1994 ; EN50281-1-1:1998;
AS/NZS 60079.0:2000; AS/NZS 60079.11:2000

CDRH: 21 CFR 1040.10 and 1040.11
EN 60825-1
EN 60950:2000
IEC 825-1

Unlicensed Operation
Unlicensed Operation

Unlicensed Operation
Unlicensed Operation

Requires License for Outdoor Use

Unlicensed Operation

Unlicensed Operation

Requires License for Outdoor Use

Li-Ion Battery

When disposing of the MX1-IS Main Battery Pack, the following precautions should be observed: The battery
should be disposed of promptly. The battery should not be disassembled or crushed. The battery should not be
heated above 212°F (100°C) or incinerated.

Important: This symbol is placed on the product to remind users to dispose of Waste Electrical and Electronic
Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product can be recycled,
reclaimed and re-used when properly discarded. Do not discard labeled units with trash. For information about
proper disposal, contact LXE through your local sales representative, or visit www lxe com.

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Appendix B Regulatory Notices and Safety Information 39

MX1-IS DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

according to:

the Low Voltage Directive; 73/23/EEC

the EMC Directive; 89/336/EEC

and the Marking Directive; 93/68/EEC

Type of Equipment: Hand Held Computer

Brand Name or Trademark: LXE

Type Designation: MX1-IS

Manufacturer: LXE Inc.

Address: 125 Technology Parkway

Norcross, GA 30092-2993 USA

The following harmonized European Standards, technical specifications, or other normative documents
have been applied:

ATEX Safety Standards:

EN50014:1997 Electrical apparatus for potentially explosive atmospheres –

EN50020:1994 Electrical apparatus for potentially explosive atmospheres –

EMI / EMC Standards:

EN 55022 : 1998 Limits and methods of measurement of radio disturbance

EN 55024 : 1998 Information Technology Equipment – Immunity

LVD Safety Standards:

EN 60950:2000 Safety of information technology equipment, including

The product carries the CE Mark:

General requirements

Intrinsic safety ‘i’

characteristics of information technology equipment

characteristics – Limits and methods of measurement

electrical business equipment

We, LXE Inc., declare that the equipment specified above complies with all Essential Health
and Safety Requirements of the above Directives and Standards, as amended.

Date of issue: December 10, 2002 Alexander McKinney

Product Safety Engineer

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

40 Appendix B Regulatory Notices and Safety Information

LXE Transceiver 480628-4096 Declaration of Conformity

DECLARATION OF CONFORMITY

according to Directives:

1999/5/EC Radio Equipment and Telecommunications Terminal Equipment and the

93/68/EEC CE Marking Directive

Type of Equipment: Direct Sequence 2.4 GHz Wireless LAN Card

Brand Name or Trademark: LXE

Type Designation: 480628-4096

Manufacturer: LXE Inc.

Address: 125 Technology Parkway

Year of Manufacturer: 2000

The following harmonized European Standards, technical specifications, or other normative
documents have been applied:

EMI / EMC Standards:

EN 55022 : 1995 Limits and methods of measurement of radio disturbance characteristics of

EN 300 826 : 1997 Electromagnetic compatibility - Generic immunity standard, Part 1:

EN 61000-4-2 :
1995

EN 61000-4-3 :
1997

EN 61000-4-6 :
1996

Radio Frequency Standards:

EN 300 328 : 2000 Radio Equipment and Systems (RES);

Safety Standards:

IEC 950-2: 1991
+ Amendments
A1..A4

We, LXE Inc., declare that the equipment specified above complies with all Essential Health
and Safety Requirements of the above Directives and Standards, as amended.

Place:
Date of issue: 1 March, 2000 R. Sam Wismer,

mutual recognition of their conformity

Norcross, GA 30092-2993 USA

information technology equipment

Residential, commercial and light industrial

Electrostatic discharge immunity test

Radiated radio frequency electromagnetic field immunity test

RF conducted immunity test

Wideband transmission systems;
Technical characteristics and test conditions for data transmission equipment

operating in the 2,4 GHz ISM band and using spread spectrum modulation
techniques

Safety of information technology equipment, including electrical business
equipment

LXE Inc., Norcross GA USA

Signed:

RF Approvals Engineer

LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA

ph. 770/447-4224 fax [phone]

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Appendix B Regulatory Notices and Safety Information 41

LXE Transceiver LXE 6726 Declaration of Conformity

DECLARATION OF CONFORMITY

according to Directives:

1999/5/EC Radio Equipment and Telecommunications Terminal Equipment

93/68/EEC CE Marking Directive

Type of Equipment: Direct Sequence 2.4 GHz Wireless LAN Card

Brand Name or Trademark: LXE

Type Designation: LXE 6726

Manufacturer: LXE Inc.

Address: 125 Technology Parkway

Year of Manufacturer: 2001

The following harmonized European Standards, technical specifications, or other normative
documents have been applied:

EMC:

EN 301 489-1: 07-2000

EN 301 489-17 07-2000

Radio:

EN 300 328-1 and -2: 2000-7 Radio Equipment and Systems (RES);

Safety:

EN 60950-2: 1992 + A1..A4 Safety of information technology equipment, including electrical

We, LXE Inc., declare that the equipment specified above complies with all Essential Health and
Safety Requirements of the above Directives and Standards, as amended.

and the mutual recognition of their conformity

Norcross, GA 30092-2993 USA

Electromagnetic compatibility and Radio spectrum Matters
(ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical
requirements

Electromagnetic compatibility and Radio spectrum Matters
(ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 17: Specific conditions for
Wideband data and HIPERLAN equipment

Wideband transmission systems;
Technical characteristics and test conditions for data
transmission equipment operating in the 2,4 GHz ISM band
and using spread spectrum modulation techniques

business equipment

Place LXE Inc., Norcross GA USA

Date of issue 24 June 2004

C. Binnom Jr.
RF Approvals Engineer

LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA

ph. 770/447-4224 fax [phone]

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

42 Appendix B Regulatory Notices and Safety Information

Annex to DoC for LXE 6726

The LXE 6726 can be equipped with external antennas. The antennas listed have been evaluated with the LXE 6726 pursuant to
ETSI EN 300 328, and therefore meet the definition of ‘dedicated antenna’ per ERC/REC 70-03 Appendix 1 Table 3; thus the
requirement set forth in ERC/REC 70-03 , Annex 3 are met by the LXE model 6726 transceiver.

LXE P/N

153180-0001 0 dBi 17 dBm Omni, for LXE VX-series computers
155522-0001 0 dBi 17 dBm Omni, for LXE MX1-series computers
155814-0001 0 dBi 17 dBm Patch, for LXE MX1-series computers
157368-0001 0 dBi 17 dBm Patch, for LXE MX3-series computers
157399-0001 0 dBi 17 dBm Omni, for LXE MX5-series computers

99004-0027 0 dBi 17 dBm 3 dB Omni, for LXE model 2325 computer

DAC2450CT1

(Toko P/N)

153179-0001 0 dBi 17 dBm Omni, Access Point Antenna
153325-0001 0 dBi 17 dBm Omni, Access Point Antenna
480424-0400 0 dBi 17 dBm Omni, Access Point Antenna
153599-0001 3 dBi 17 dBm Omni, Access Point Antenna
153600-0001 3 dBi 17 dBm Omni, Access Point Antenna
480424-3404 3 dBi 17 dBm Omni, Access Point Antenna
155846-0001 3 dBi 17 dBm Spire® Access Point Antenna

155845-0001 6 dBi 13 dBm Spire® Access Point Antenna
155311-0001 6 dBi 13 dBm Patch, Access Point Antenna
480424-3411 6 dBi 13 dBm Patch, Access Point Antenna
480424-3402 6 dBi 13 dBm Patch, Access Point Antenna
481246-2400 6 dBi 13 dBm Patch, Access Point Antenna
480424-1702 6 dBi 13 dBm

480424-0411 9 dBi 7 dBm Omni, Access Point Antenna
480429-2703 12 dBi 7 dBm
480429-0411 12 dBi 7 dBm Omni, Access Point Antenna

460601-3020 15 dBi 3 dBm YAGI, Access Point Antenna
460602-3020 15 dBi 3 dBm YAGI, Access Point Antenna
480429-0415 15 dBi 3 dBm Omni, Access Point Antenna

Antenna Gain Radio Power Level Antenna Description

With regard to the use of external antennas

Dedicated Antennas for use with LXE 6726

2.15 dBi 17 dBm Omni, for LXE MX2-series computers

180° Directional, Access Point Antenna

90° Directional, Access Point Antenna

C. Binnom Jr.
RF Approvals Engineer
24 June 2004

LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA

ph. 770/447-4224 fax [phone]

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Appendix B Regulatory Notices and Safety Information 43

Warning:

This product uses laser light. One of the following labels is provided on the scanner. Please read
the Caution statement. (US)

Mise én garde:

Ce produit utilise un rayon laser. L’une des étiquettes suivantes est apposée sur le scanneur.
Veuillez lire l’avertissement qu’elle contient. (FR)

Advertência:

Este produto usa luz de laser. O scanner contém um dos seguintes avisos. Favor ler o Aviso. (PT)

Varning:

Denna produkt använder laserljus. En av de nedanstående etiketterna sitter på scannern. Var god
läs varningstexten. (SE)

Advarsel:

Dette produkt anvender laserlys. En af følgende mærkater anvendes på scanneren. Læs venligst
sikkerhedsforanstaltningen. (DK)

Varoitus:

Tämä tuote käyttää laservaloa. Skannerissa on jokin seuraavista tarroista. Lue Huomio-kohta.
(FI)

Warnung:

Dieses Produkt verwendet Laserlicht. Eines der folgenden Etiketten befindet sich auf dem
Scanner. Bitte lesen Sie den Gefahrenhinweis. (DE)

Laser Light Safety Statement

Attenzione:

Questo prodotto utilizza luce laser. Una delle etichette seguenti c’ ubicata sullo scanner. Si
raccomanda di leggere con attenzione le avvertenze riportate. (IT)

Advarsel:

Dette utstyret bruker laserlys. En av følgende etiketter er plassert på scanneren. Les advarselen
på etiketten. (NO)

Advertencia:

Este producto usa luz de láser. Las etiquetas se proveen en la máquina exploradora. Por favor,
lea detenidamente la explicación para las precauciones. (ES)

Waarschuwing:

Dit product gebruikt laserlicht. Een van de volgende labels is op de scanner aangebracht. Lees
a.u.b. de waarschuwing onder Oppassen. (NL)

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

44 Appendix B Regulatory Notices and Safety Information

i

ikk

.

Aþaðýdaki etiketlerden bir tanes
tarayýcýnýn üstünde saðlanýr.

Lütfen D

at ifadesini okuyun

Laser Light Safety Statement

(TR)

(KR)

Legend:

Chinese-CN; Danish-DK; Dutch-NL; English-US; Finnish-

(CN)

Labels - MX1-IS Hand Held Computer

FI; French-FR; German-DE; Greek-GR; Italian-IT;
Japanese-JP; Korean-KR; Norwegian-NO; Portuguese-PT;
Spanish-ES; Swedish-SE; Turkish-TR

(GR)

(JP)

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

Appendix B Regulatory Notices and Safety Information 45

Revision History

Revision H, Sep 2006

Features of the MX1 Intrinsically Safe Hand Held Computer : Added “Other Equipment Labeling”

to “Scanner Warnings and Labels”.

Revision G and I letters not used.

Revision F, Aug 2006

Appendix B – Regulatory Notices and Safety Information : Updated text and graphics in “R&TTE

Directive Requirements”. Added new section “Revision History”. Revision G not used.

Revision E, Sep 2005

Entire Manual : Updated document presentation to reflect LXE’s 2005 documentation standards.

Added new LXE logo. Added updated “Getting Help” and “Manuals.” Noted
obsolescense of 900MHz radios and Terminal Emulators where applicable. Added
WEEE statement to “Notices” section and “Appendix B – Regulatory Notices and Safety
Information”.

Revision D, Aug 2004

Entire Manual : Updated structure to reflect modular/style content effective January 2004.

Changed guide name to “MX1 Intrinsically Safe User’s Guide”.
Operation : Added section titled “MX1-IS Environmental Specifications”.
Appendix B – Regulatory Notices and Safety Information : Updated 6726 Declaration of

Conformity.

Revision C, Apr 2003

Front Page : Added “I-Safe rating is voided if the MX1-IS device is opened or modified in the

field. Removing any leather covering in an I-Safe environment also voids the I-Safe

rating”.
Save These Instructions : Added Australian Approval.
Appendix B – Regulatory Notices and Safety Information : Added Australian approvals

to Safety Standards.

Revision B, Jan 2003

Save These Instructions : Replaced US Approval tables with updated US Approval tables, added

European Approval.
Appendix B – Regulatory Notices and Safety Information : Added Cisco 6726 Radio approval in

“Transceiver”, added Declaration of Conformity and Annex to 6726 Declaration of

Conformity. Added updated MX1-IS Declaration of Conformity.

Revision A, Initial Release, Nov 2002

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

46 Appendix B Regulatory Notices and Safety Information

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J

A

Accessories.......................................................................15

B

Backlight for Display..........................................................7

Battery

New ..............................................................................17

Battery Compartment........................................................17

Battery Pack......................................................................21

described ......................................................................21

Beeper location...................................................................8

Beeper Volume, How To..................................................19

C

CAPS ..................................................................................6

Case, protective...................................................................5

Charger, battery ................................................................22

Cleaning..............................................................................6

COM 1

Endcap Port ....................................................................8

Contrast, Adjustments

Keypresses....................................................................19

Critical Suspend state........................................................21

D

Data, How To ...................................................................20

Default

Critical Suspend mode..................................................13

Display

Features ..........................................................................6

Icons...............................................................................6

Panning...........................................................................7

Display Backlight Timer.....................................................7

Display Contrast, How To ................................................19

Display, cleaning ................................................................6

E

Endcap

Scanner...........................................................................8

Endcaps...............................................................................8

Enter Data, How To..........................................................20

Environmental Specifications...........................................21

Exchange Battery

How To ........................................................................17

F

Features...............................................................................1

Force Suspend State..........................................................13

Function

2nd Key ........................................................................11

A / # Key ......................................................................12

ALT Key ......................................................................11

Arrow / Cursor Keys ....................................................10

Index

CAPS Mode................................................................. 12

CTRL Key ................................................................... 11

Enter Key..................................................................... 10

Field Exit Key.............................................................. 10

Power Key ...................................................................13

Scan Key...................................................................... 10

SHFT Key.................................................................... 11

SPC Key ...................................................................... 11

G

Getting Help..................................................................... 15

H

Help.................................................................................. 15

I

Icon

2nd Function .................................................................. 6

Alpha ............................................................................. 6

ALT ...............................................................................6

Caps ............................................................................... 6

CTRL............................................................................. 6

Function and description................................................ 6

Low Main Battery.......................................................... 6

Shift ...............................................................................6

Intel® 486 processor .......................................................... 1

K

Key Map

Full Alphanumeric ....................................................... 24

Numeric-Alpha ............................................................ 32

Keypad

3270 Full Alphanumeric .............................................. 29

5250 Full Alphanumeric .............................................. 30

Numeric-Alpha ............................................................ 31

Keypad data entry, How To ............................................. 20

Keypads.............................................................................. 9

Keys

3270 and TN3270 terminal emulators.......................... 29

5250 and TN5250 terminal emulators.......................... 30

L

Leather protective case....................................................... 5

LED, Status ...................................................................... 14

Lithium-Ion (Li-Ion) ........................................................ 21

Low Main Battery ............................................................ 14

Low Main Battery indicator ............................................... 6

M

Main Battery is depleted .................................................. 14

Main Battery Low Warning .............................................14

Main Battery Power Failure ....................................... 14, 21

Mode Key Functions........................................................ 12

MULTI-charger

E-EQ-MX1ISOGWW-J MX1 I-Safe User’s Guide

48 Index

Battery..........................................................................22

MX1 Reference Guide........................................................1

O

Off Timer

Default Value ...............................................................13

Operating Temperature.....................................................21

P

Panning the display.............................................................7

Power button.....................................................................13

Power Management

and the Keypad.............................................................14

Power Off, How To ..........................................................18

Power On, How To...........................................................18

Power Status LED.............................................................14

R

Range, scanner....................................................................8

Read Me First .....................................................................2

Reboot...............................................................................12

Regulatory Notices and Safety Information......................37

Reset Key Sequence .........................................................12

S

Safety..................................................................................2

Safety Information............................................................37

Scan trigger on handle ........................................................5

Scanner and data entry, How To.......................................20

Scanner endcap

Description .....................................................................8

Scanner range

Influenced by ................................................................. 8

Scanner, cleaning ............................................................... 6

Second 2nd functions ......................................................... 6

Setup Utility ....................................................................... 7

Status LED ....................................................................... 14

Suspend States.................................................................. 13

Suspend Timer .................................................................13

T

Terminal Emulation Programs ........................................... 1

Timer

Display Backlight Default Value................................... 7

Off................................................................................ 13

V

View

Display........................................................................... 6

Keypad, 41 Key ........................................................... 10

Keypads, 60 Key............................................................ 9

Virtual screen

Panning .......................................................................... 7

Volume, Adjustments

Keypresses................................................................... 19

W

Wake the MX1-IS from Suspend ..................................... 13

Wake Up .......................................................................... 14

Wake up action for display backlight................................. 7

Warnings ............................................................................ 2

Warnings and Labels

Laser Scanner................................................................. 4

MX1 I-Safe User’s Guide E-EQ-MX1ISOGWW-J
