Page 1
HX3 Reference Guide
(Microsoft® Windows® CE 5.0 Equipped)
Copyright © 2008 by LXE Inc.
All Rights Reserved
E-EQ-HX3RG-C
Page 2
Notices
LXE Inc. reserves the right to make improvements or changes in the products described in this guide at any time
without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy,
LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the
information contained herein. Further, LXE Incorporated, reserves the right to revise this publication and to make
changes to it from time to time without any obligation to notify any person or organization of such revision or
changes.
Copyright:
This document is copyrighted. All rights are reserved. This document may not, in whole or in part, be copied,
photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form without prior
consent, in writing, from LXE Inc.
Copyright © 2008 by LXE Inc. An EMS Technologies Company.
125 Technology Parkway, Norcross, GA 30092 U.S.A. (770) 447-4224
Trademarks:
LXE® and Spire® are registered trademarks of LXE Inc. RFTerm® is a registered trademark of EMS
Technologies Company.
Summit Data Communications, the Summit logo, and “The Pinnacle of Performance” are trademarks of Summit
Data Communications, Inc.
Microsoft®, Windows® and the Windows logo are registered trademarks of Microsoft Corporation in the United
States and/or other countries.
Symbol® is a registered trademark of Symbol Technologies. MOTOROLA® and the Stylized M Logo are
registered trademarks of Motorola®, Inc.
Java® and Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in
the U.S. or other countries, and are used under license.
RAM® and RAM Mount™ are both trademarks of National Products Inc., 1205 S. Orr Street, Seattle, WA
98108.
Wavelink® and Wavelink Avalanche® are registered trademarks and the Wavelink logo, tagline and Avalanche
MC are trademarks of Wavelink Corporation, Kirkland, WA.
®
The Bluetooth
Inc. is under license.
PowerScan® is a registered trademark of Datalogic Scanning, Inc., located in Eugene, OR.
All other brand or product names are trademarks or registered trademarks of their respective companies or
organizations.
When this document is in PDF format: “Acrobat ® Reader Copyright © 2008 Adobe Systems Incorporated. All
rights reserved. Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of Adobe Systems
Incorporated” applies.
word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE,
Important: This symbol is placed on the product to remind users to dispose of Waste Electrical
and Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this
product can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled
units with trash. For information about proper disposal, contact LXE through your local sales
representative, or visit www lxe com.
Page 3
Revision Notice
HX3 Reference Guide
Upgrade From Revision B to Revision C
Chapter 1 – Introduction Added Continuous Scan Mode. Updated graphics.
Chapter 3 – System Configuration Added Configuring the HX3 with LXEConnect.
Added HX3 Options Panel.
Updated LAUNCH.EXE.
Removed Configuring GrabTime.
Chapter 4 – Scanner Updated Barcode Processing Overview.
Added Continuous Scan Mode.
Chapter 5 – Wireless Network
Configuration
Note: A complete revision history is included in Appendix C, “Reference Material”.
Revised section Summit Client Configuration.
Page 4
Page 5
Table of Contents
CHAPTER 1 INTRODUCTION 1
Overview....................................................................................................................1
When to Use This Guide...........................................................................................................2
Important Battery Information..................................................................................................3
Document Conventions ............................................................................................................4
Getting Started.......................................................................................................... 5
Pre-requisites ............................................................................................................................5
HX3 Quick Start.......................................................................................................................
Quick Start Troubleshooting..................................................................................................
Setup the Client and Network...................................................................................................6
Saving Settings to the Registry.................................................................................................6
Components.............................................................................................................. 7
Front..........................................................................................................................................8
Back..........................................................................................................................................9
Left Side Use..........................................................................................................................9
Right Side Use........................................................................................................................9

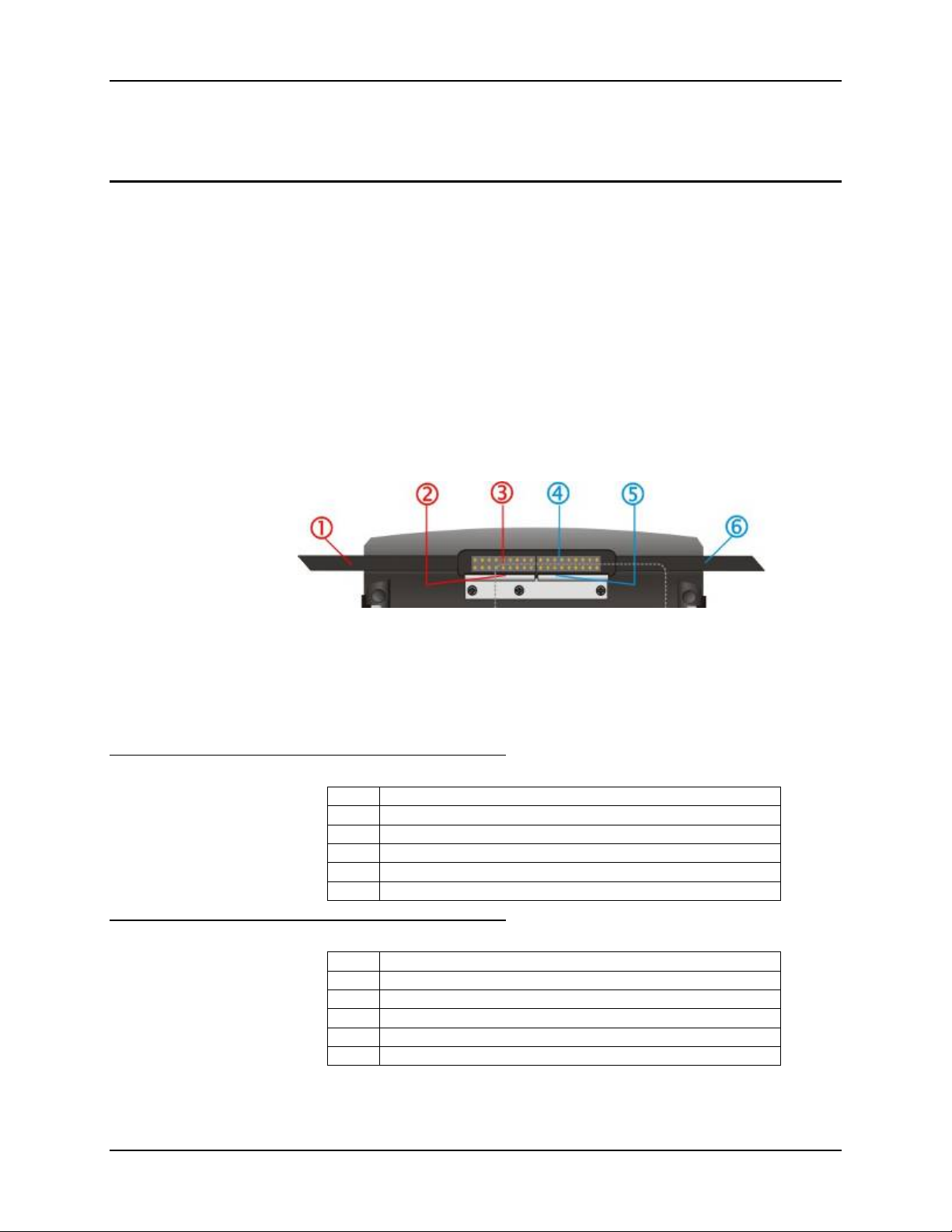

HX3 Connectors .....................................................................................................................10
Ring Scanner / Audio / Battery Connection.........................................................................10
Cradle Connection................................................................................................................10

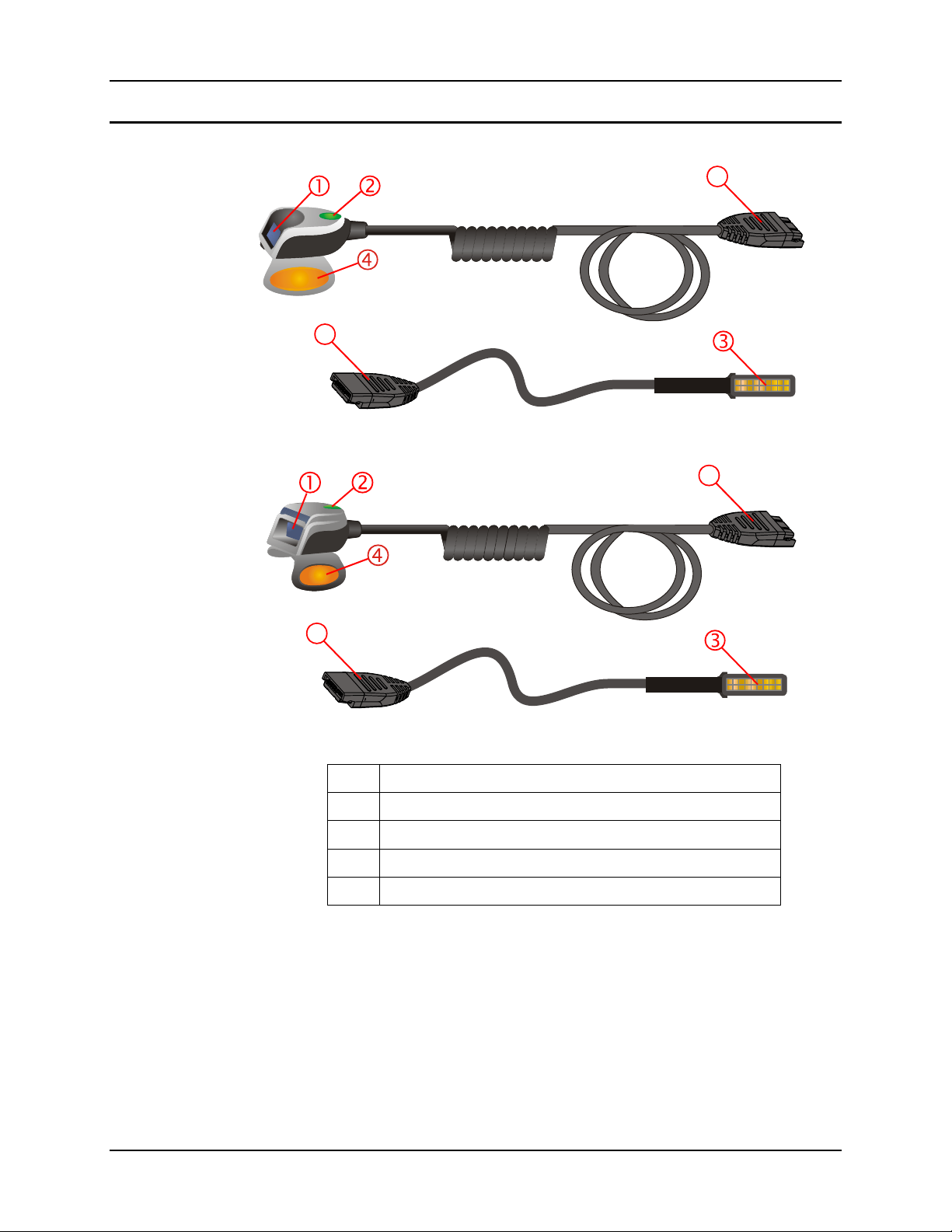

Tethered Ring Scanner / Imager.............................................................................................11
Continuous Scan Mode...........................................................................................................12

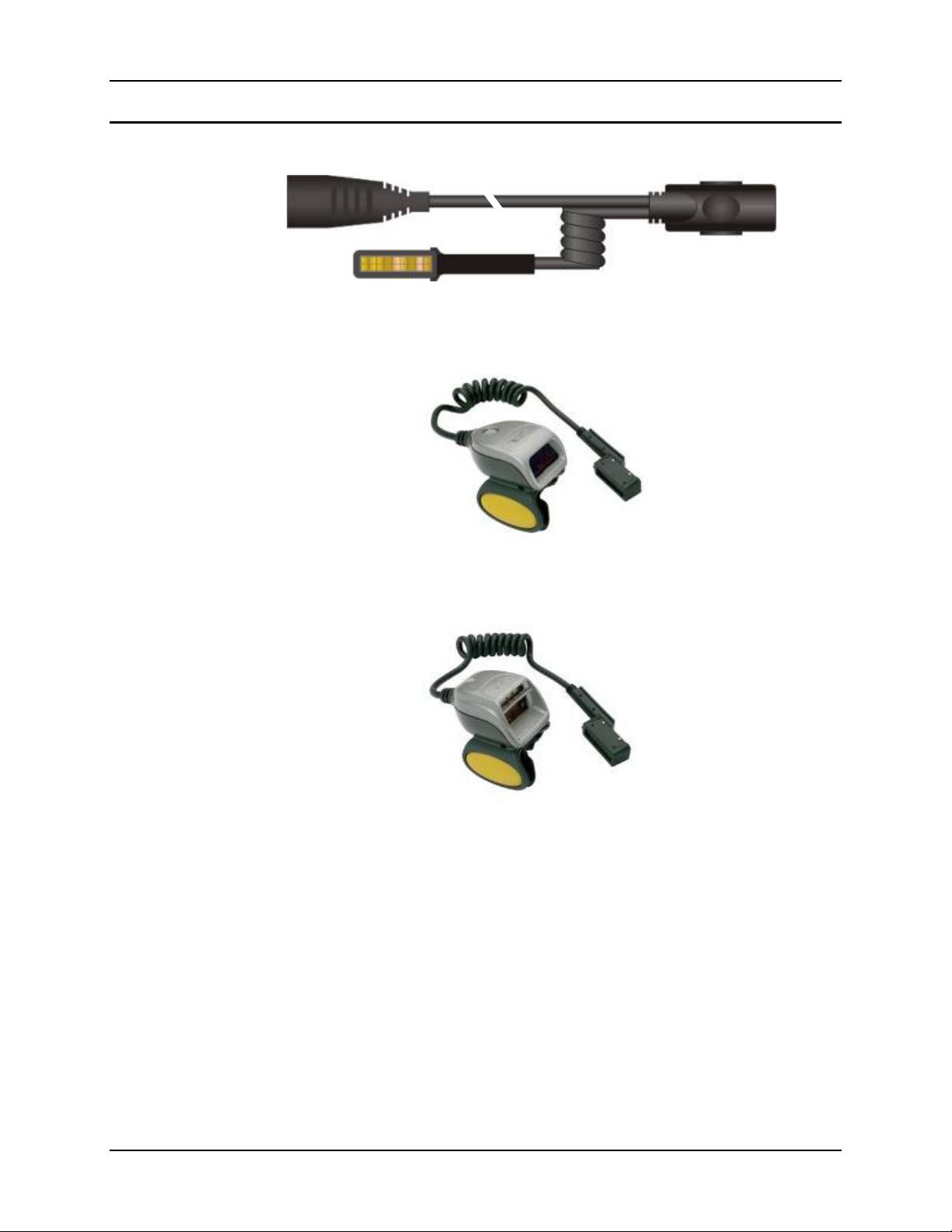

Cables .....................................................................................................................................13
Li-Ion Battery .........................................................................................................................14
Standard Battery...................................................................................................................14
Extended Battery..................................................................................................................
Mounting Bracket Clips..........................................................................................................
Mounting Devices...................................................................................................................
HX3 Voice Case Assembly..................................................................................................16
Hip Flip ................................................................................................................................

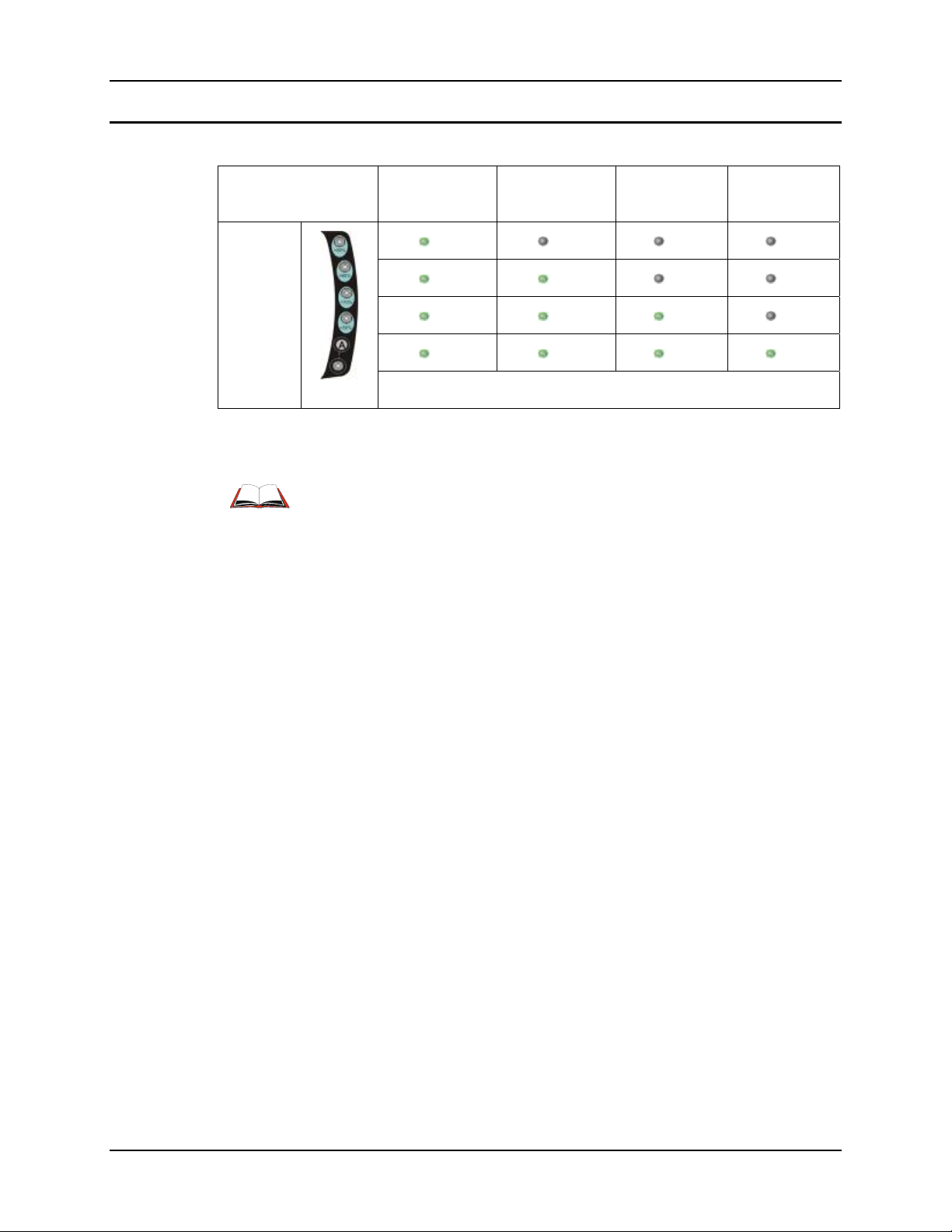

System Status LEDs ...............................................................................................................
5
6
14
15
16
16
17
Assembly.................................................................................................................
18
Connecting the Battery and Ring Scanner..............................................................................18
Ring Scanner on the Left Hand............................................................................................
Ring Scanner on the Right Hand..........................................................................................
18
18
Slipping the HX3 into the Voice Case....................................................................................19

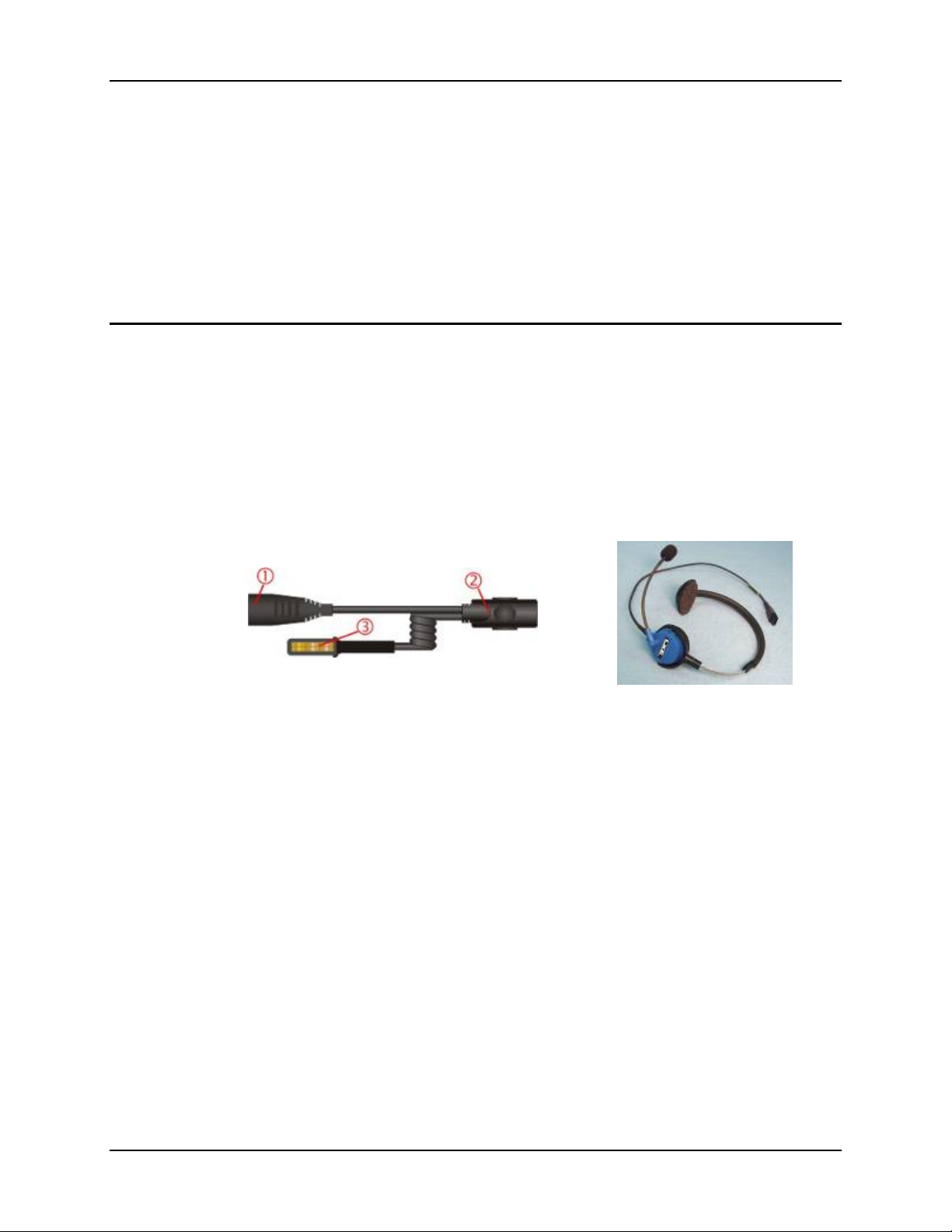

Connecting the Audio Cable and a Headset...........................................................................20
Adjust Microphone and Secure the Cable............................................................................
21
Tapping the Power Key .......................................................................................... 21
Power Key Functions .............................................................................................
E-EQ-HX3RG-C HX3 Reference Guide
22
Page 6
ii Table of Contents
Hardware Reset....................................................................................................................22
Warm Boot...........................................................................................................................22
Cold Boot .............................................................................................................................23
Checking Battery Status .........................................................................................................24
Using the Keypad....................................................................................................
Bluetooth.................................................................................................................
25
26
Initial Use ...............................................................................................................................27
Settings Tab | Bluetooth Options .........................................................................................27
Report when connection lost.......................................................................................................... 27
Report when reconnected............................................................................................................... 27
Report failure to reconnect.............................................................................................................27
Computer is connectable................................................................................................................ 27
Computer is discoverable............................................................................................................... 28
Prompt if devices request to pair ................................................................................................... 28
Continuous search..........................................................................................................................28
Subsequent Use.......................................................................................................................29
Bluetooth Devices...................................................................................................................30
Bluetooth Mobile Barcode Reader Setup.............................................................................31
Introduction.................................................................................................................................... 31
HX3 with Label ............................................................................................................................. 32
HX3 without Label ........................................................................................................................ 33
Bluetooth Beep and LED Indications ............................................................................................34
Bluetooth Printer Setup........................................................................................................34
Data Entry................................................................................................................35
Keypad Entry..........................................................................................................................35
Ring Scanner Data Entry........................................................................................................35
Barcode Scanner...................................................................................................................35
2D Imager.............................................................................................................................36
Scan Status LED...................................................................................................................36
Voice Data..............................................................................................................................36
Cleaning the Ring Scanner Aperture ....................................................................37
Strap Assemblies....................................................................................................37
Removing / Replacing the Ring Finger Strap Assembly........................................................
Removing / Replacing the Trigger Module............................................................................
37
37
Remove Finger Strap Assembly...........................................................................................38
Replace.................................................................................................................................
39
Getting Help............................................................................................................. 40
Manuals...................................................................................................................................40
Accessories.............................................................................................................................40
CHAPTER 2 PHYSICAL DESCRIPTION AND LAYOUT 43
Hardware Configuration.........................................................................................43
System Hardware....................................................................................................................
HX3 Reference Guide E-EQ-HX3RG-C
43
Page 7
Table of Contents iii
802.11 Wireless Client............................................................................................................44
Central Processing Unit..........................................................................................................44
System Memory......................................................................................................................44
Internal SD Memory Card....................................................................................................44
Power Supply..........................................................................................................................45
Bluetooth LXEZ Pairing.........................................................................................................46
Input/Output Connectors ........................................................................................................47
Audio Support.........................................................................................................................48
Speaker.................................................................................................................................48
Volume Control....................................................................................................................48
Voice ....................................................................................................................................48
Power Modes...........................................................................................................49
On Mode.................................................................................................................................49
Suspend Mode ........................................................................................................................50
Off Mode ................................................................................................................................50
The Keypad.............................................................................................................. 51
Blue Modifier Key..................................................................................................................51
Mappable Keys.......................................................................................................................51
Batteries...................................................................................................................52
Checking Battery Status .........................................................................................................52
HX3 Status LED and the Batteries.......................................................................................52
Low Battery Warning.............................................................................................................53
Main Battery Pack ..................................................................................................................53
Battery Hotswapping..............................................................................................................53
Backup Battery .......................................................................................................................54
Handling Batteries Safely.......................................................................................................54

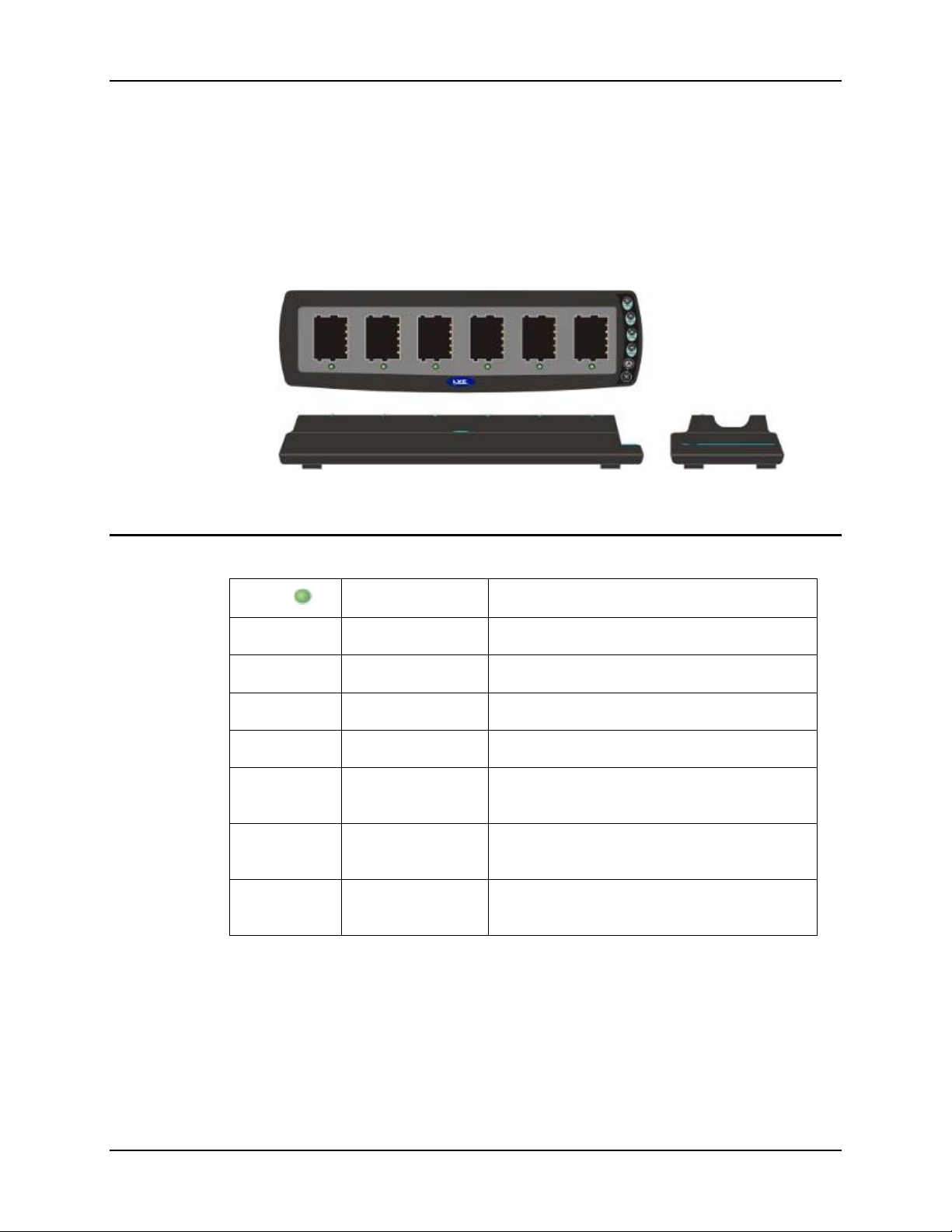

HX2 Multi-Charger (Optional).................................................................................55
Charging Pocket LEDs...........................................................................................................55
Charger/Analyzer LEDs .........................................................................................................56

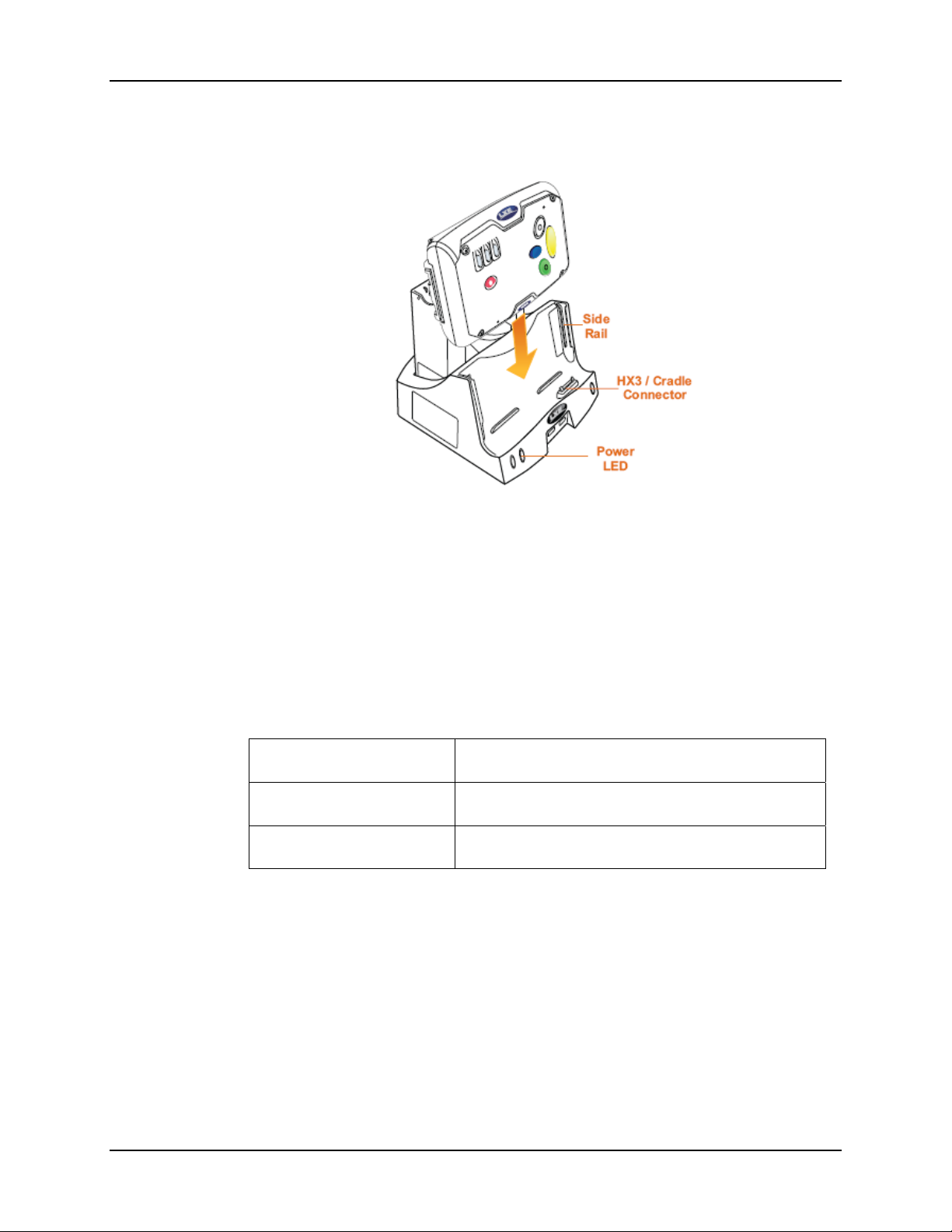

HX2 Docking/Charging Cradle............................................................................... 57
Cradle LEDs ...........................................................................................................................58
Cradle PWR LED.................................................................................................................
58
B1 and B2 LED....................................................................................................................58
CHAPTER 3 SYSTEM CONFIGURATION 59
Introduction............................................................................................................. 59
Configuring the HX3 with LXEConnect................................................................. 59
Install LXEConnect................................................................................................................60

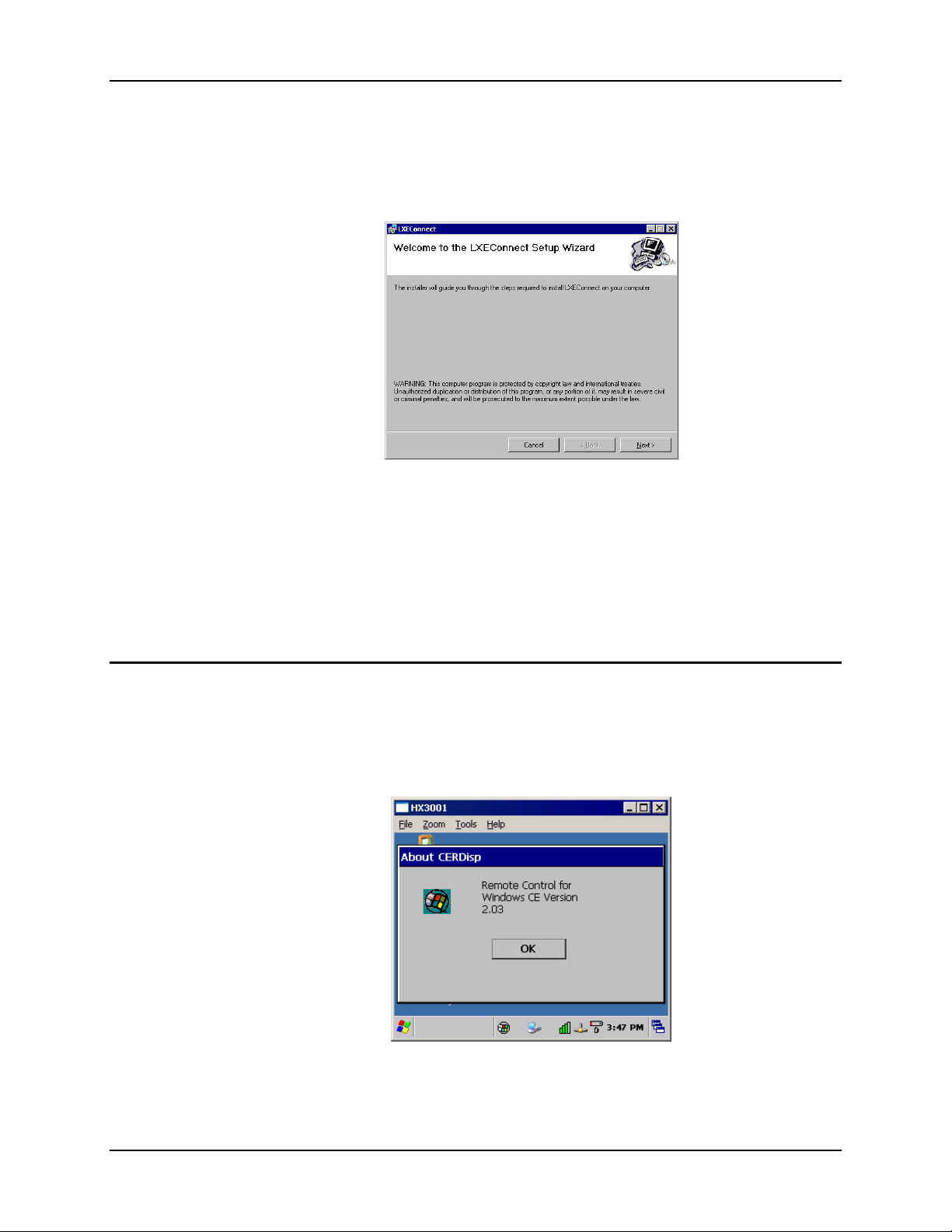

Using LXEConnect.................................................................................................................
61

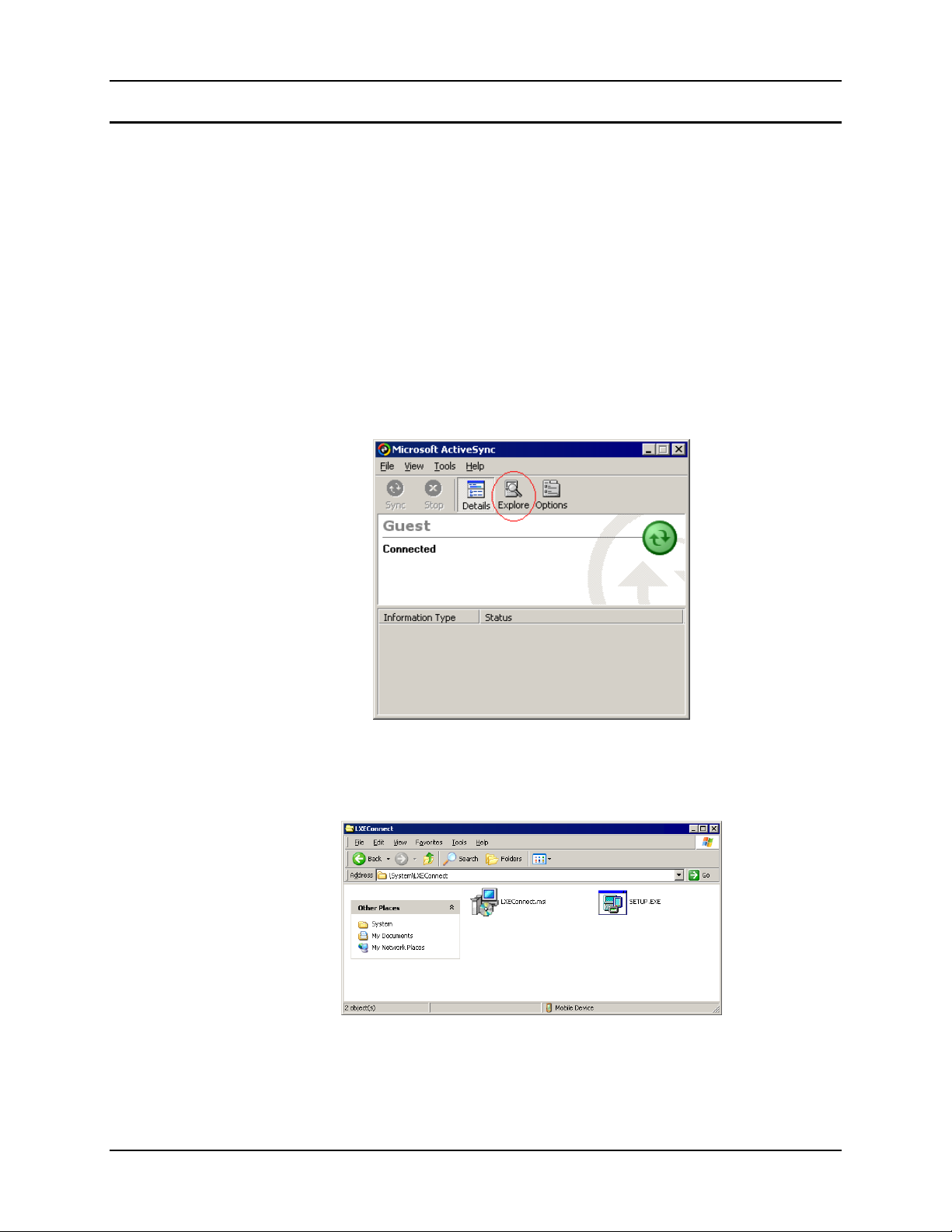

ActiveSync / Get Connected Process ................................................................... 63
Introduction ............................................................................................................................
E-EQ-HX3RG-C HX3 Reference Guide
63
Page 8
iv Table of Contents
Initial Install............................................................................................................................64
Install ActiveSync on Desktop/Laptop ................................................................................64

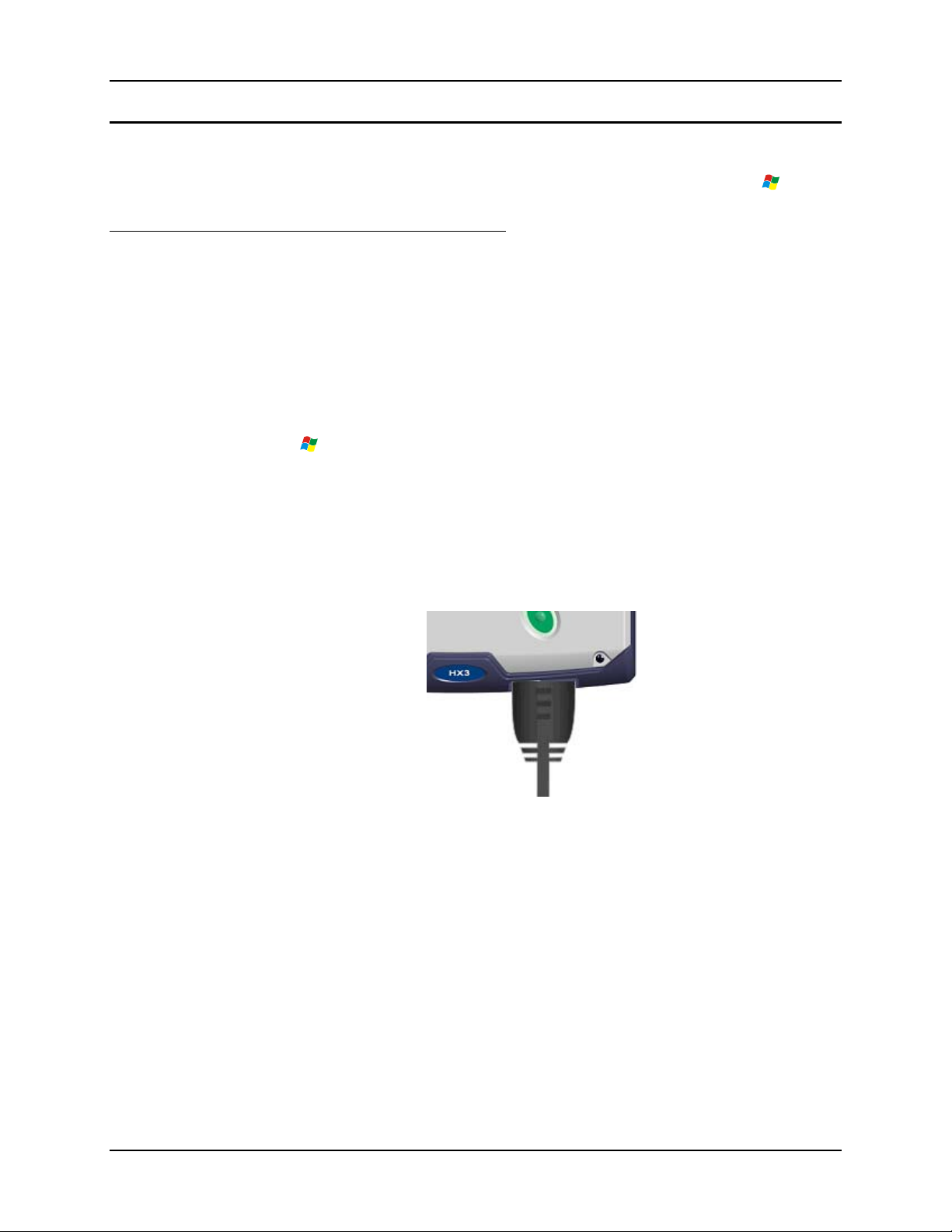

USB Connection ............................................................................................................................65
Connect – Initial Install Process .................................................................................................... 65
Backup HX3 Files...................................................................................................................66
Prerequisites.........................................................................................................................
66
Connect.................................................................................................................................67
Explore....................................................................................................................................67
Disconnect ..............................................................................................................................67
USB Connection...................................................................................................................67
ActiveSync Troubleshooting..................................................................................................68
Cold Boot and Loss of Host Re-connection.........................................................................68
Windows CE 5.0......................................................................................................
Installed Software...................................................................................................
69
70
Software Load.........................................................................................................................70
Software Applications ............................................................................................................70
Software Backup.....................................................................................................................71
Version Control ......................................................................................................................71
Boot Loader............................................................................................................................71
Folders Copied at Startup .......................................................................................................72
Optional Software...................................................................................................................72
Bluetooth..............................................................................................................................72
Wavelink Avalanche Enabler...............................................................................................73
Desktop....................................................................................................................74
My Device Folders .................................................................................................................75
Start Menu Program Options.................................................................................76
Communication.......................................................................................................................76
Start / Stop FTP Server.........................................................................................................76

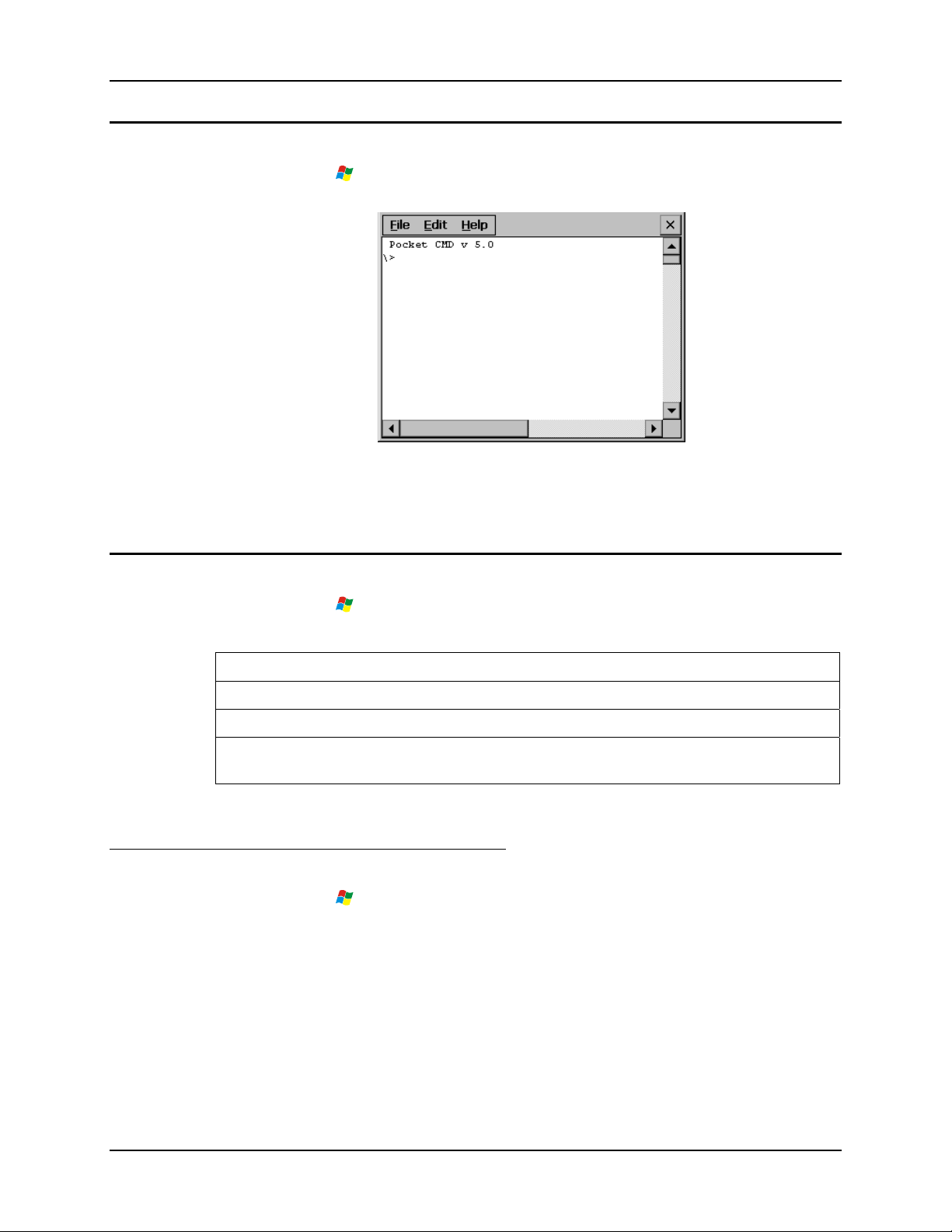

Command Prompt...................................................................................................................
77
Summit Client.........................................................................................................................77
Certs .....................................................................................................................................

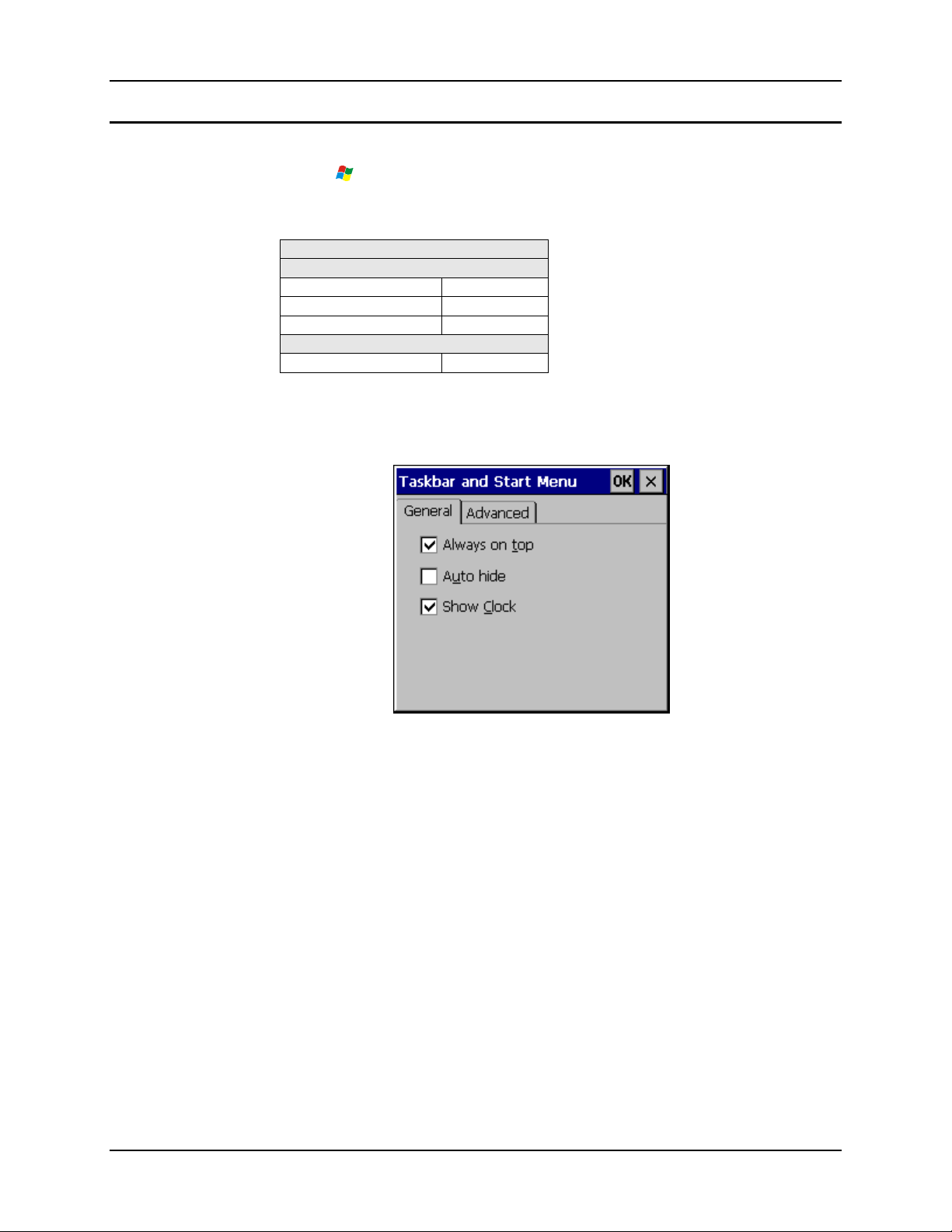

Taskbar ...................................................................................................................................
77
78

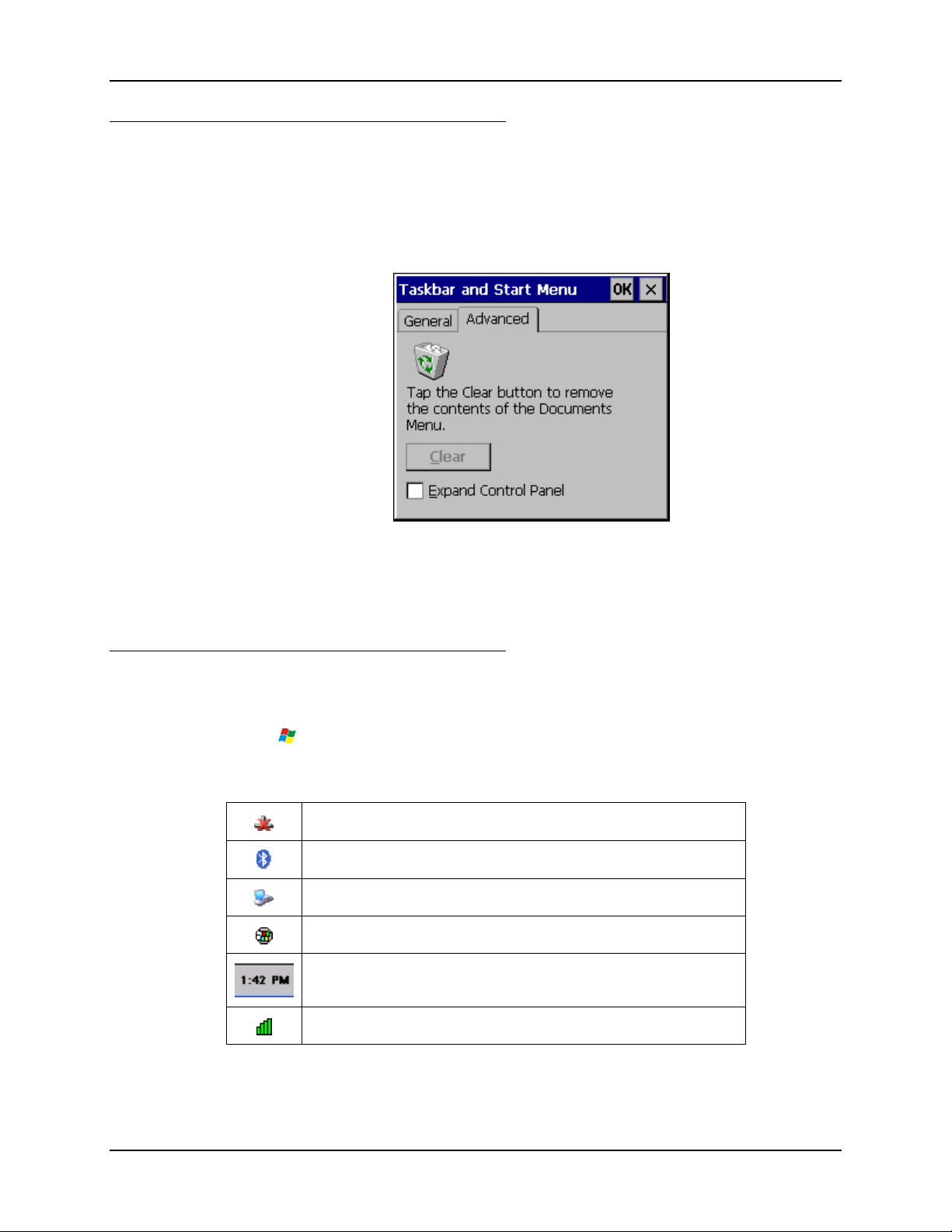

Advanced Tab ......................................................................................................................79
Taskbar Icons .......................................................................................................................79
Settings | Control Panel Options........................................................................... 80

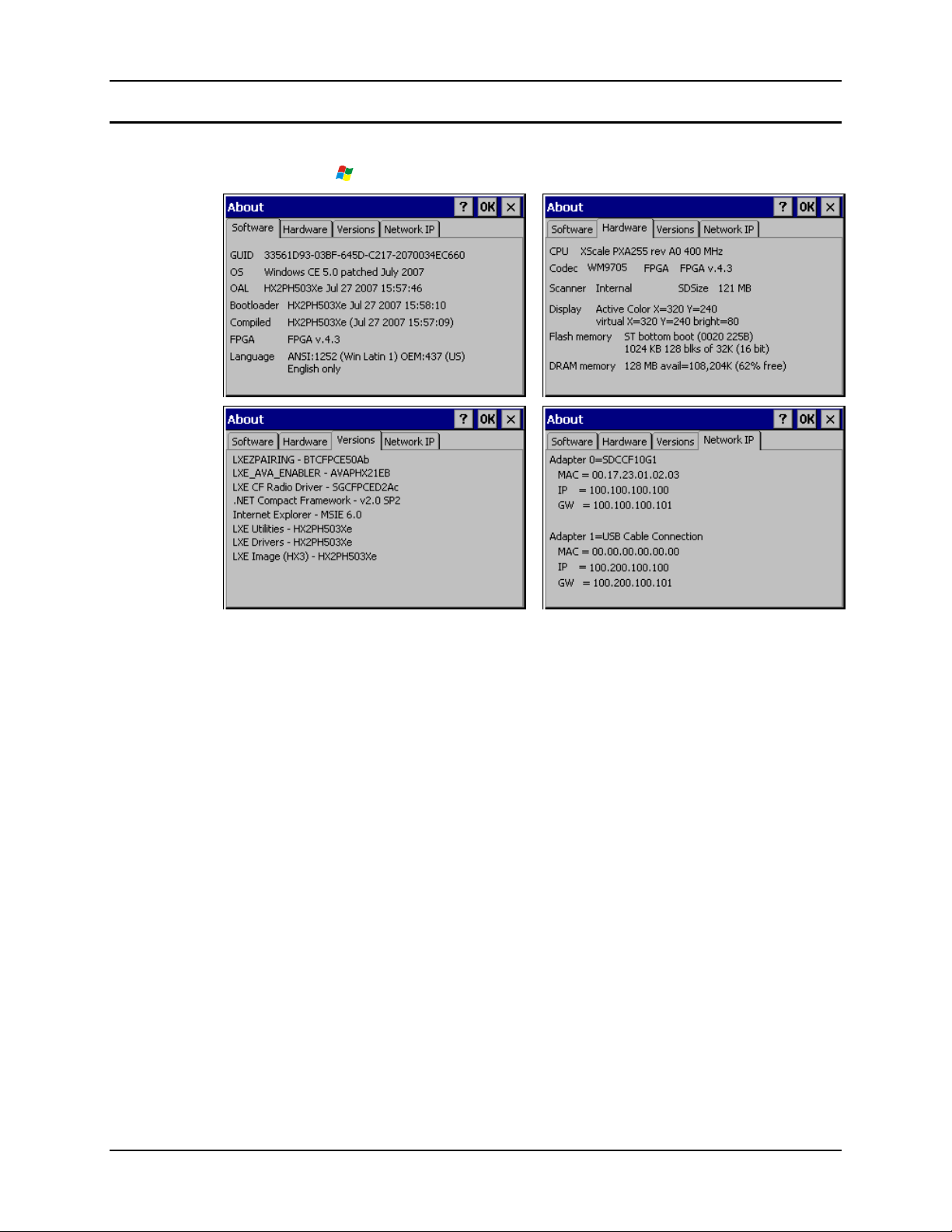

About ......................................................................................................................................82

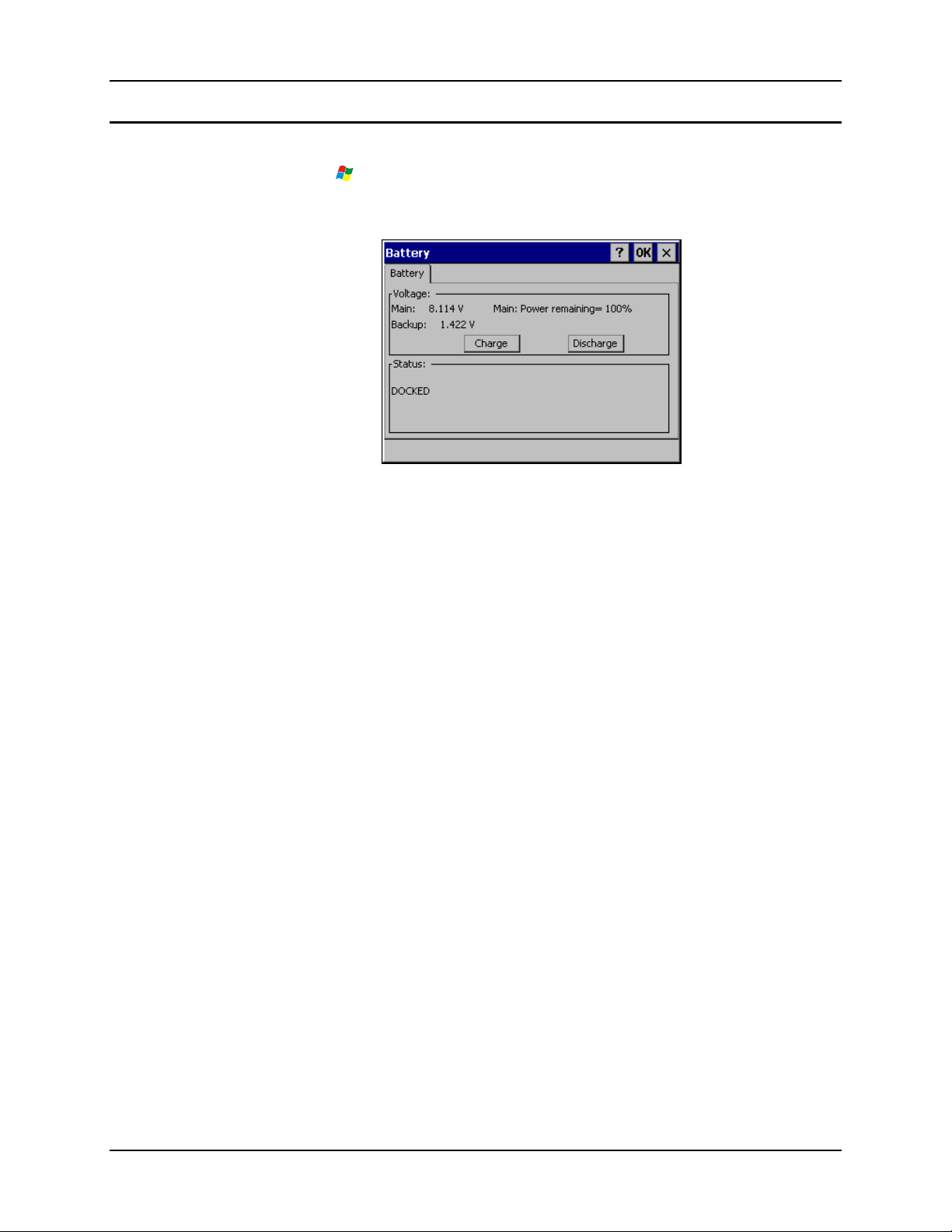

Battery.....................................................................................................................................
Bluetooth.................................................................................................................................
83
84

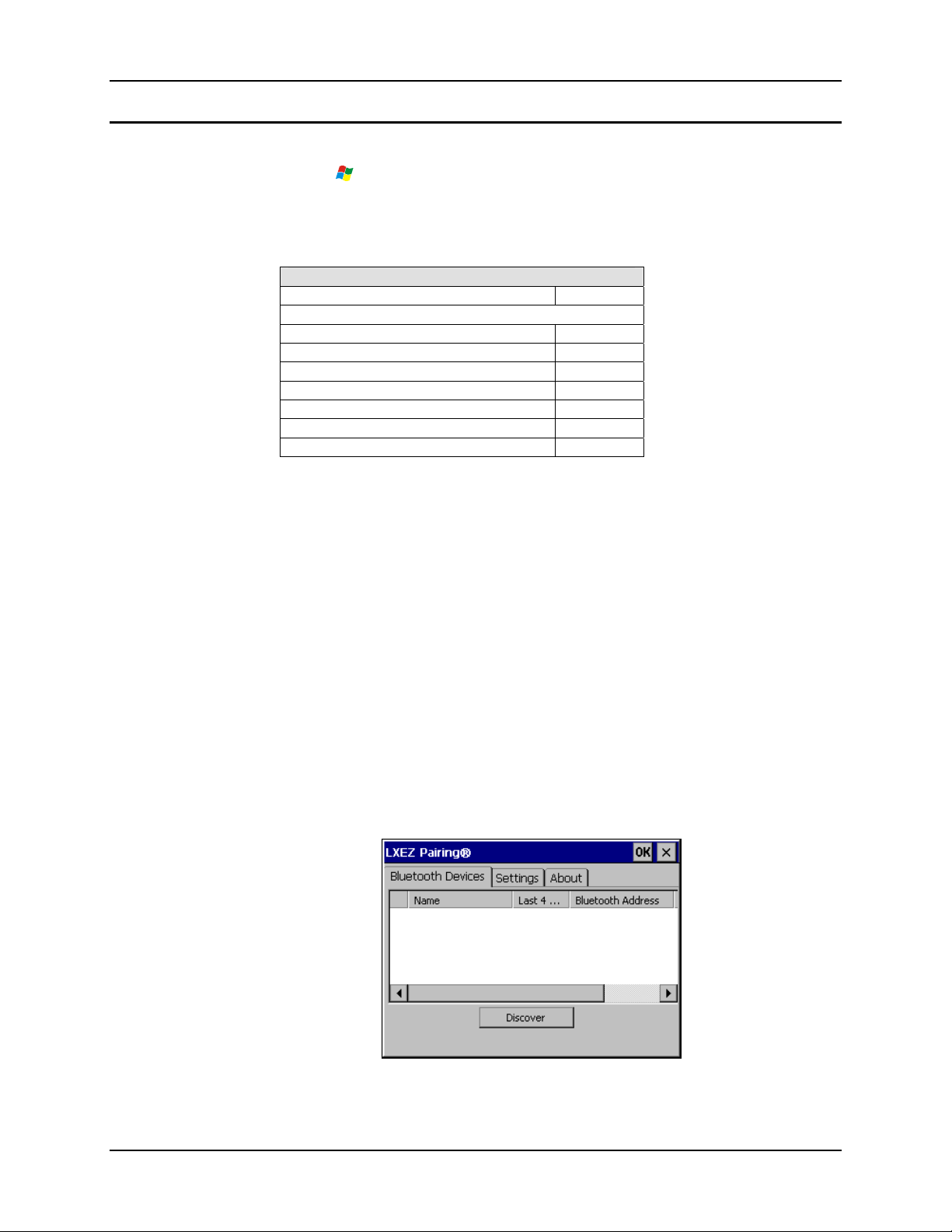

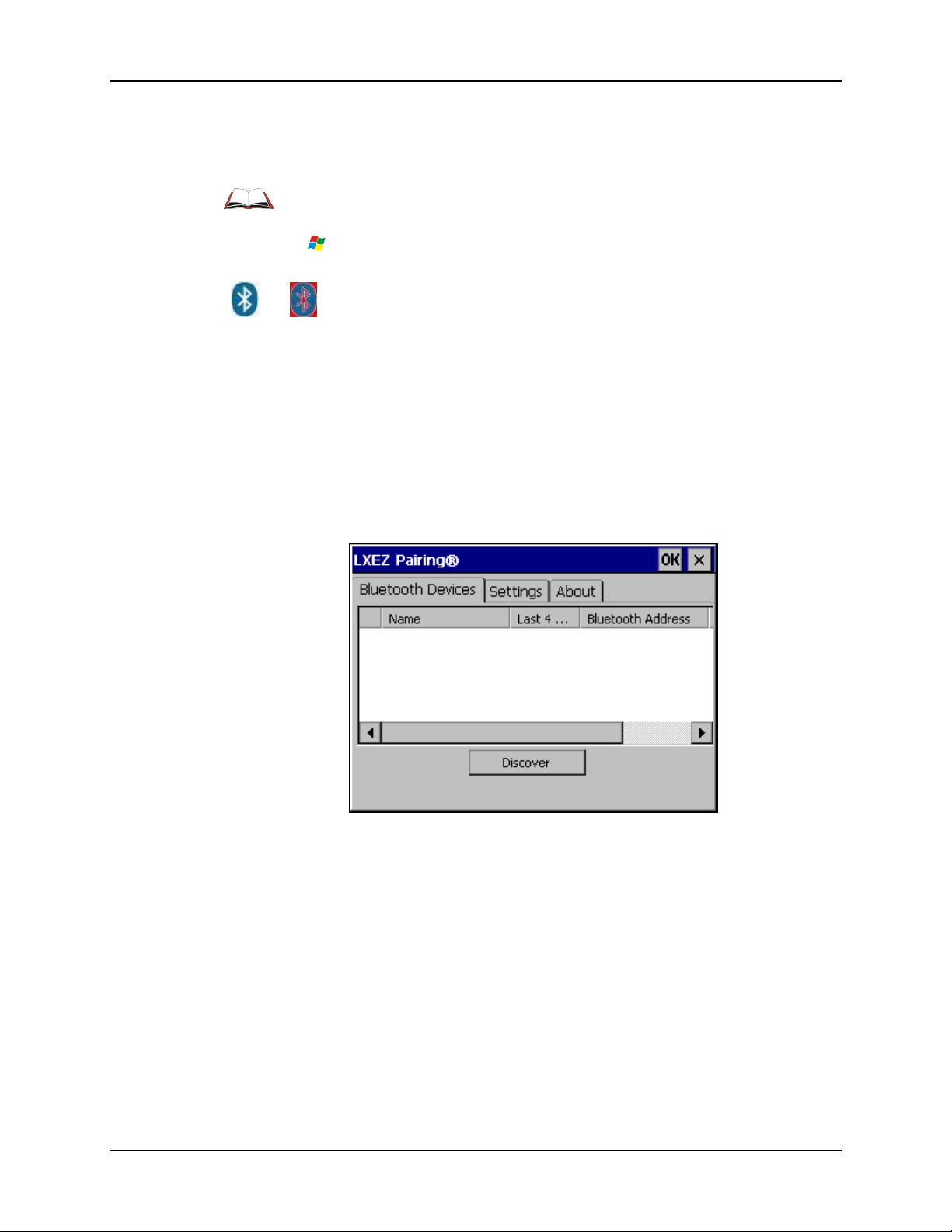

Bluetooth Devices................................................................................................................85
Settings.................................................................................................................................
87
Turn Off Bluetooth Button...................................................................................................87
Options.................................................................................................................................
About....................................................................................................................................
Pairing and Auto-Reconnect ................................................................................................
HX3 Reference Guide E-EQ-HX3RG-C
87
89
89
Page 9
Table of Contents v
Certificates..............................................................................................................................90
Date/Time...............................................................................................................................91
Dialing ....................................................................................................................................92
Display....................................................................................................................................93
Background ..........................................................................................................................93
Appearance...........................................................................................................................94
HX3 Options...........................................................................................................................95
Communication....................................................................................................................95
Misc......................................................................................................................................96
Keyboard.................................................................................................................................97
Keypad....................................................................................................................................98
KeyMap Tab.........................................................................................................................99
LaunchApp Tab..................................................................................................................100
RunCmd Tab ......................................................................................................................101
Mixer.....................................................................................................................................102
Output tab...........................................................................................................................102
Input tab..............................................................................................................................103
Mouse ...................................................................................................................................103
Network and Dialup Connections.........................................................................................104
Create a Connection Option...............................................................................................104
Owner ...................................................................................................................................105
Password...............................................................................................................................106
Troubleshooting – Passwords.............................................................................................106
PC Connection......................................................................................................................107
Power....................................................................................................................................108
Regional Settings..................................................................................................................109
Remove Programs.................................................................................................................110
Scanner .................................................................................................................................111
Stylus ....................................................................................................................................112
Double Tap.........................................................................................................................112
Calibration..........................................................................................................................
112
System...................................................................................................................................113
General...............................................................................................................................
Memory..............................................................................................................................
113
114
Device Name......................................................................................................................115
Copyrights..........................................................................................................................115
Volume and Sounds..............................................................................................................
Good Scan and Bad Scan Sounds ......................................................................................
116
116
Wi-Fi.....................................................................................................................................116
SD Flash Cards, CAB Files and Programs.......................................................... 117
Access Files on the Flash Card.............................................................................................117
Utilities...................................................................................................................118
LAUNCH.EXE.....................................................................................................................
REGLOAD.EXE ..................................................................................................................
WARMBOOT.EXE..............................................................................................................
E-EQ-HX3RG-C HX3 Reference Guide
118
119
119
Page 10
vi Table of Contents
Command-line Utility...........................................................................................................120
COLDBOOT.EXE .............................................................................................................120
PrtScrn.EXE.......................................................................................................................120
Wavelink Avalanche Enabler Configuration....................................................... 121
Briefly . . ..............................................................................................................................
Enabler Install Process..........................................................................................................
121
121
Enabler Uninstall Process.....................................................................................................121
Stop the Enabler Service.......................................................................................................122
Update Monitoring Overview...............................................................................................122
Mobile Device Wireless and Network Settings....................................................................123
Enabler Configuration ..........................................................................................................124
File Menu Options..............................................................................................................125
Avalanche Update using File | Settings..............................................................................126
Connection Tab............................................................................................................................127
Execution Tab..............................................................................................................................128
Server Contact Tab ...................................................................................................................... 129
Startup/Shutdown Tab .................................................................................................................130
Scan Config Tab ..........................................................................................................................131
Display Tab..................................................................................................................................131
Shortcuts Tab............................................................................................................................... 132
Adapters Tab................................................................................................................................133
Status Tab .................................................................................................................................... 135
Troubleshooting....................................................................................................................135
eXpress Scan ........................................................................................................136
CHAPTER 4 SCANNER 139
Introduction........................................................................................................... 139
Barcode Processing Overview ............................................................................140
Factory Default Settings....................................................................................... 141
Main Tab ................................................................................................................ 142
COM1 Tab..............................................................................................................
Barcode Tab..........................................................................................................
143
144
Buttons..................................................................................................................................144
Continuous Scan Mode.........................................................................................................145
Enable Code ID.....................................................................................................................
Barcode – Symbology Settings..........................................................................................
Strip Leading/Trailing Control ....................................................................................................149
Barcode Data Match List.............................................................................................................150
Barcode Data Match Edit Buttons............................................................................................................150
Match List Rules ......................................................................................................................................151
Add Prefix/Suffix Control ........................................................................................................... 152
Barcode – Ctrl Char Mapping............................................................................................
Translate All ................................................................................................................................ 153
146
147
153
HX3 Reference Guide E-EQ-HX3RG-C
Page 11
Table of Contents vii
Barcode – Custom Identifiers.............................................................................................155
Control Code Replacement Examples .........................................................................................156
Barcode Processing Examples..................................................................................................... 157
Length Based Barcode Stripping..........................................................................................158
CHAPTER 5 WIRELESS NETWORK CONFIGURATION 161
Introduction........................................................................................................... 161
Summit Client Configuration ............................................................................... 162
Summit Client Utility ...........................................................................................................
Help....................................................................................................................................
162
163
Summit Tray Icon...............................................................................................................163
Wireless Zero Config Utility and the Summit Radio.........................................................
Main Tab............................................................................................................................
Admin Login ................................................................................................................................ 165
163
164
Config / Profile Tab............................................................................................................166
Buttons.........................................................................................................................................166
Config / Profile Parameters.......................................................................................................... 168
Status Tab...........................................................................................................................171
Diags Tab ...........................................................................................................................172
Buttons.........................................................................................................................................172
Global / Global Settings Tab..............................................................................................173
Global / Global Settings Parameters............................................................................................174
Summit Wireless Security....................................................................................................178
Sign-On vs. Stored Credentials..........................................................................................178
Windows Certificate Store vs. Certs Path..........................................................................179
User Certificates...........................................................................................................................179
Root CA Certificates.................................................................................................................... 179
No Security.........................................................................................................................181
WEP Keys ..........................................................................................................................182
LEAP w/o WPA Authentication........................................................................................183
EAP-FAST Authentication ................................................................................................
185
PEAP/MSCHAP Authentication........................................................................................187
WPA/LEAP Authentication...............................................................................................
WPA PSK Authentication..................................................................................................
189
190
PEAP/GTC Authentication................................................................................................192
EAP-TLS Authentication...................................................................................................
194
Certificates ............................................................................................................
Root Certificates...................................................................................................................
196
196
Download a Root CA Certificate.......................................................................................196
Installing a Root CA Certificate on the Mobile Device.....................................................
198
User Certificates ...................................................................................................................200
Generating a User Certificate for the HX3.........................................................................
200
Installing a User Certificate on the HX3 (WPA-TLS Only)..............................................205
E-EQ-HX3RG-C HX3 Reference Guide
Page 12
viii Table of Contents
APPENDIX A KEY MAPS 209
5 Key Keypad ........................................................................................................209
PPENDIX B TECHNICAL SPECIFICATIONS 211
A
Physical Specifications........................................................................................ 211
Environmental Specifications..............................................................................212
Network Card Specifications ...............................................................................
Summit 802.11 b/g CF 2.4GHz............................................................................................
212
212
Summit 802.11 a/b/g CF 2.4/5.0GHz...................................................................................213
Bluetooth...............................................................................................................................
A
PPENDIX C REFERENCE MATERIAL 215
213
List of Valid VK Codes for CE 5........................................................................... 216
ASCII Control Codes............................................................................................. 217
Hat Encoding.........................................................................................................219
Decimal – Hexadecimal Chart.............................................................................. 221
Revision History.................................................................................................... 223
INDEX 225
Illustrations

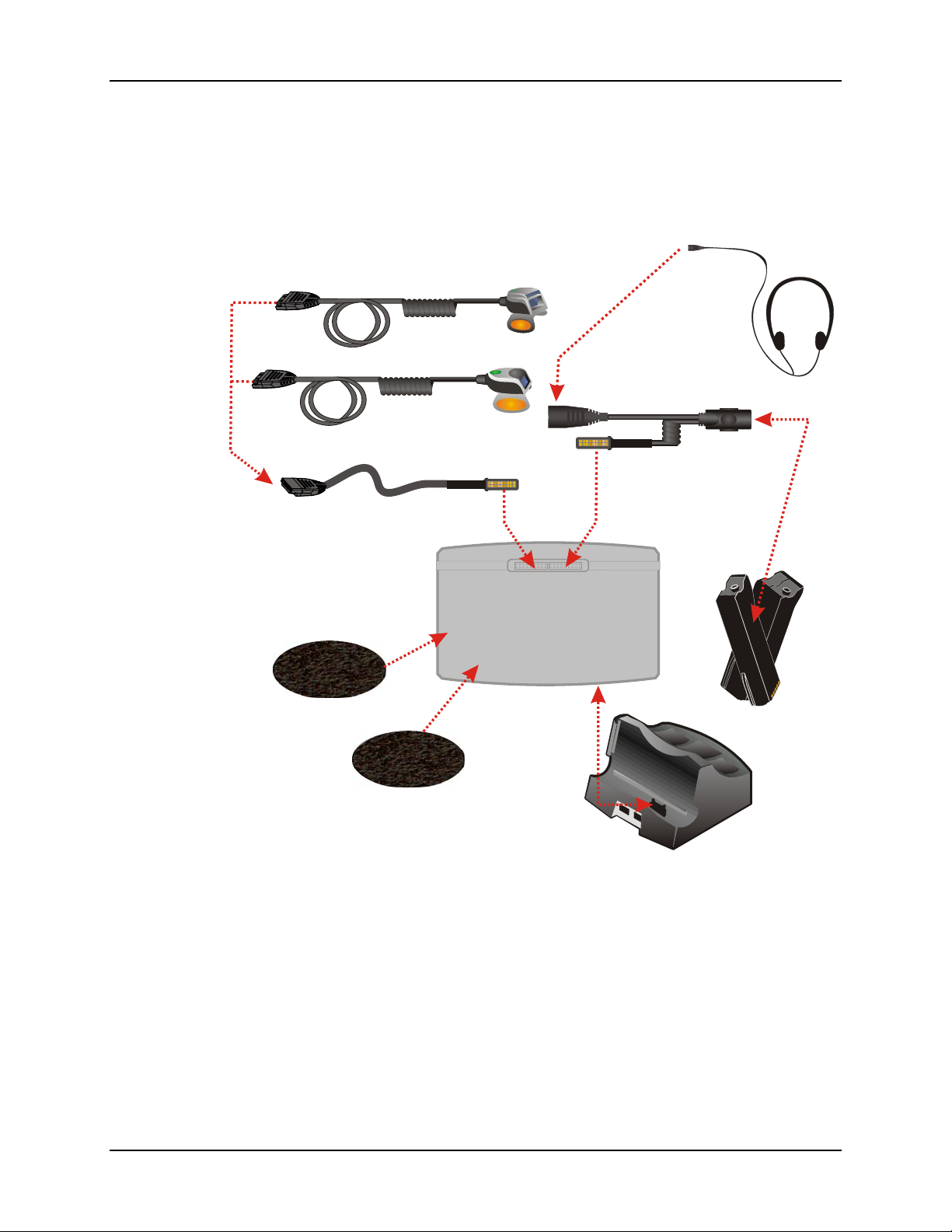

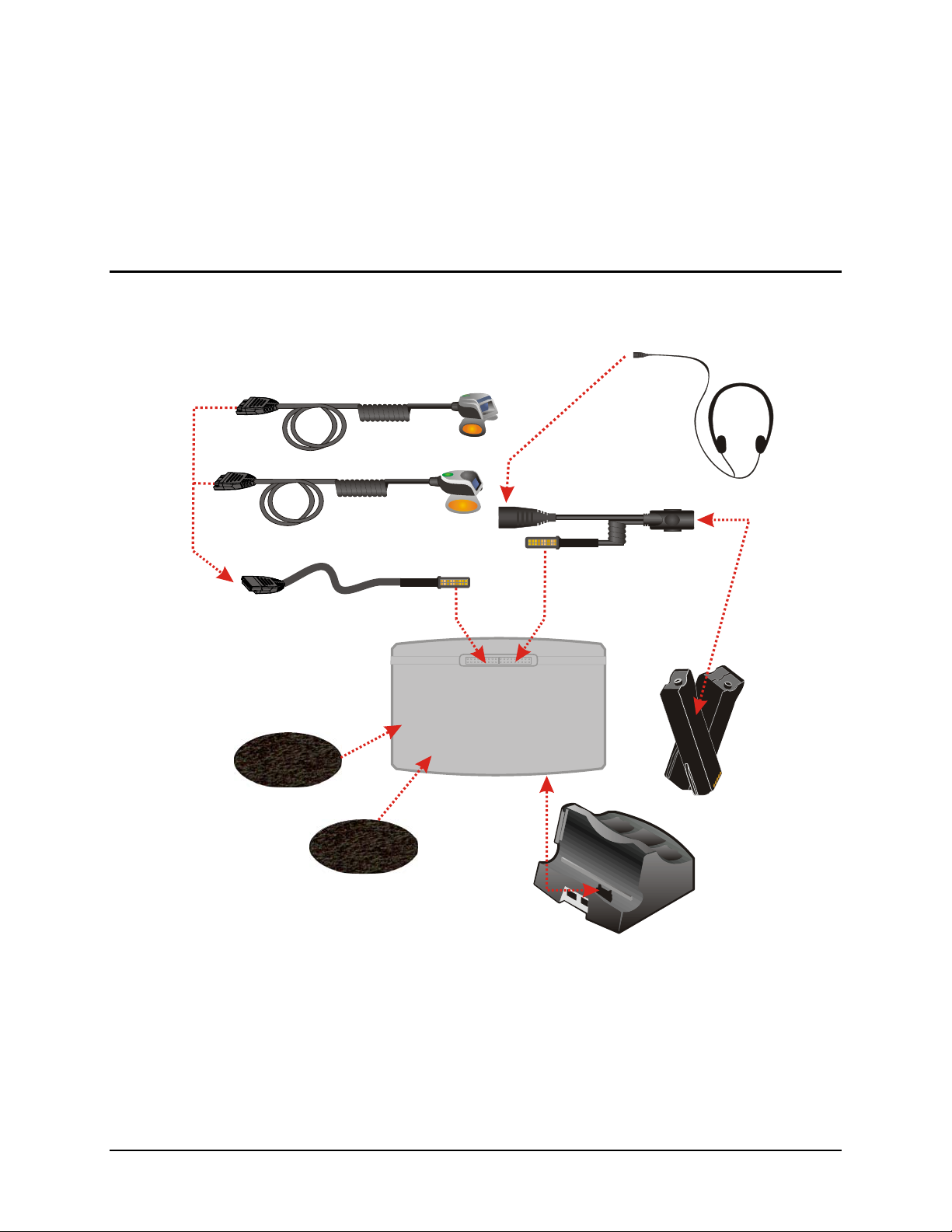

Figure 1-1 HX3 Components...............................................................................................................................7

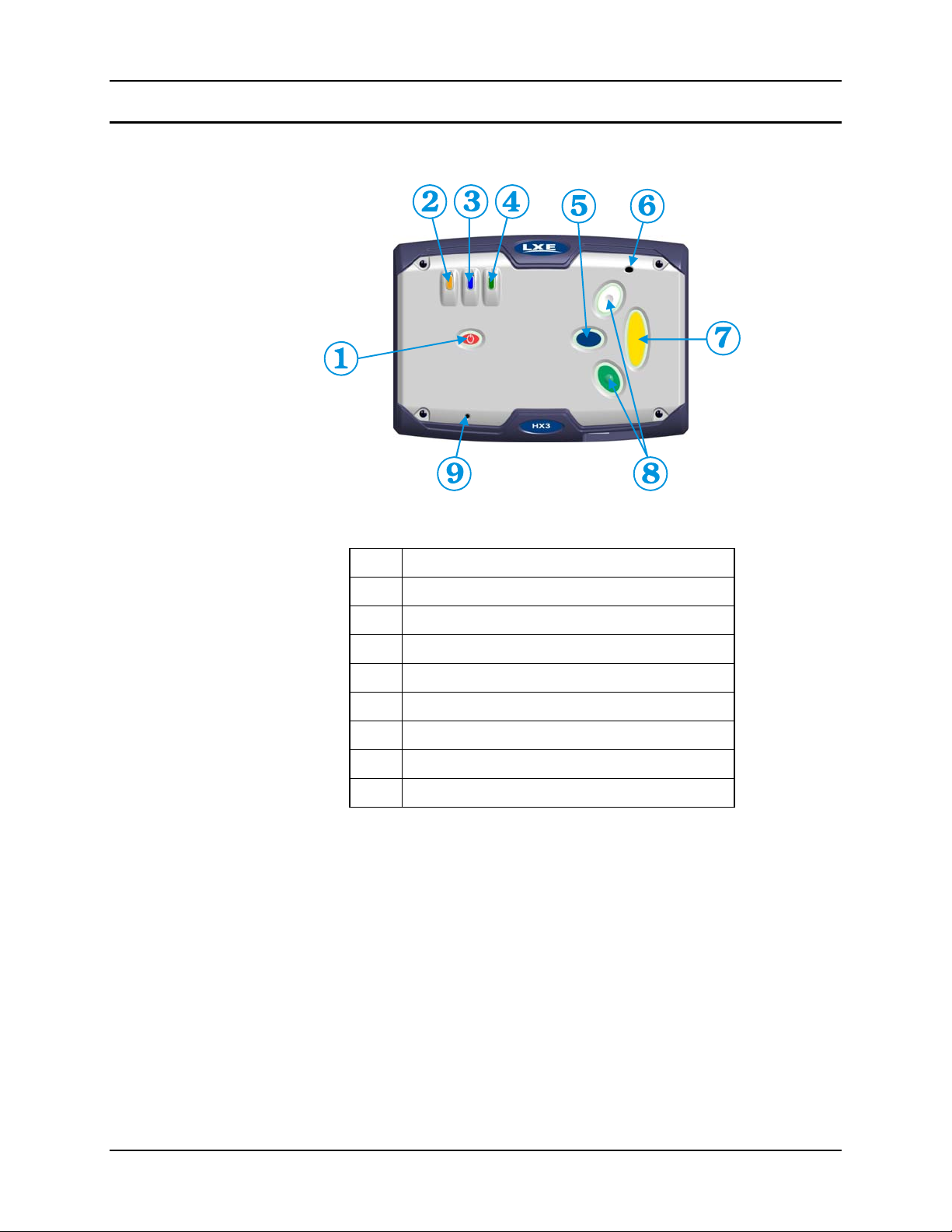

Figure 1-2 Front...................................................................................................................................................8

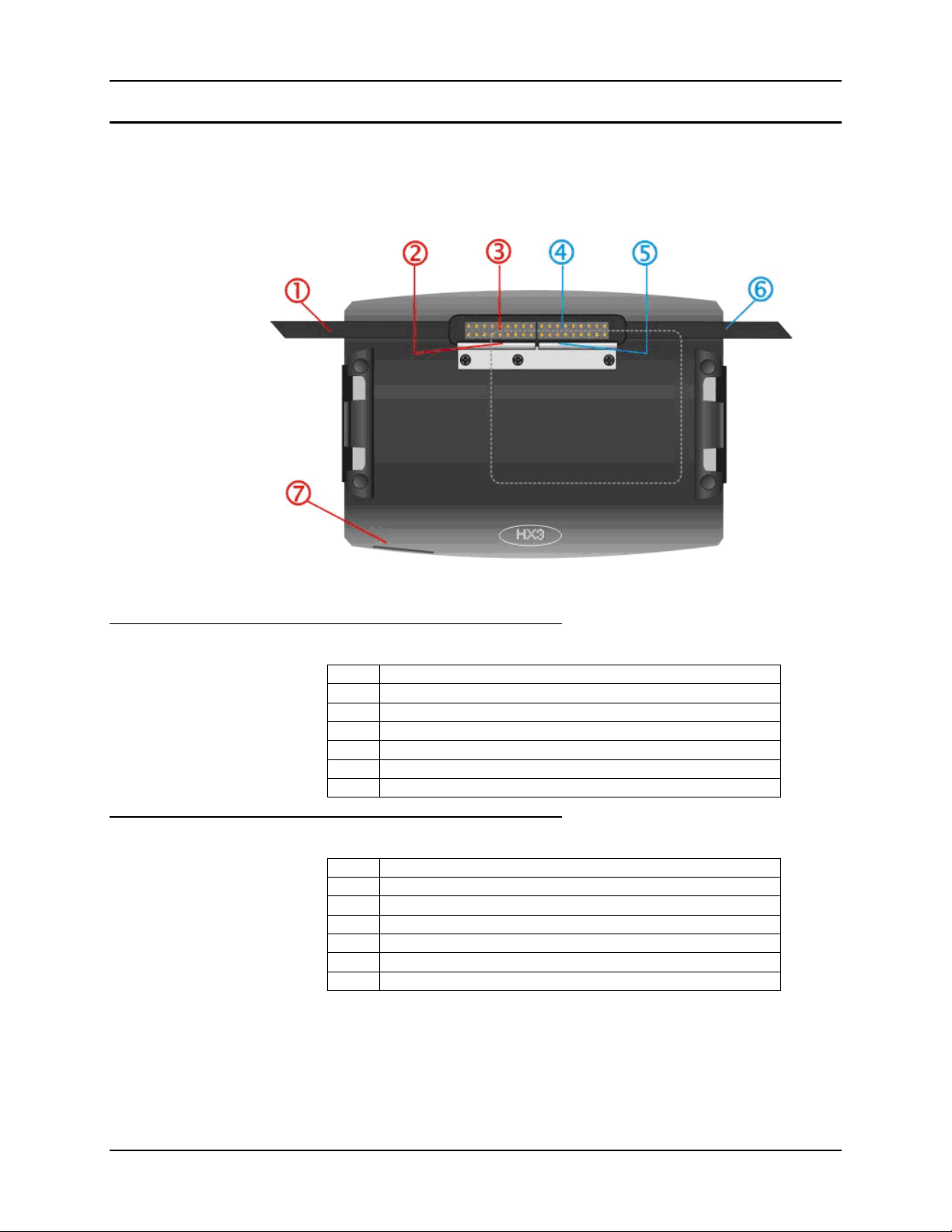

Figure 1-3 Back ...................................................................................................................................................9

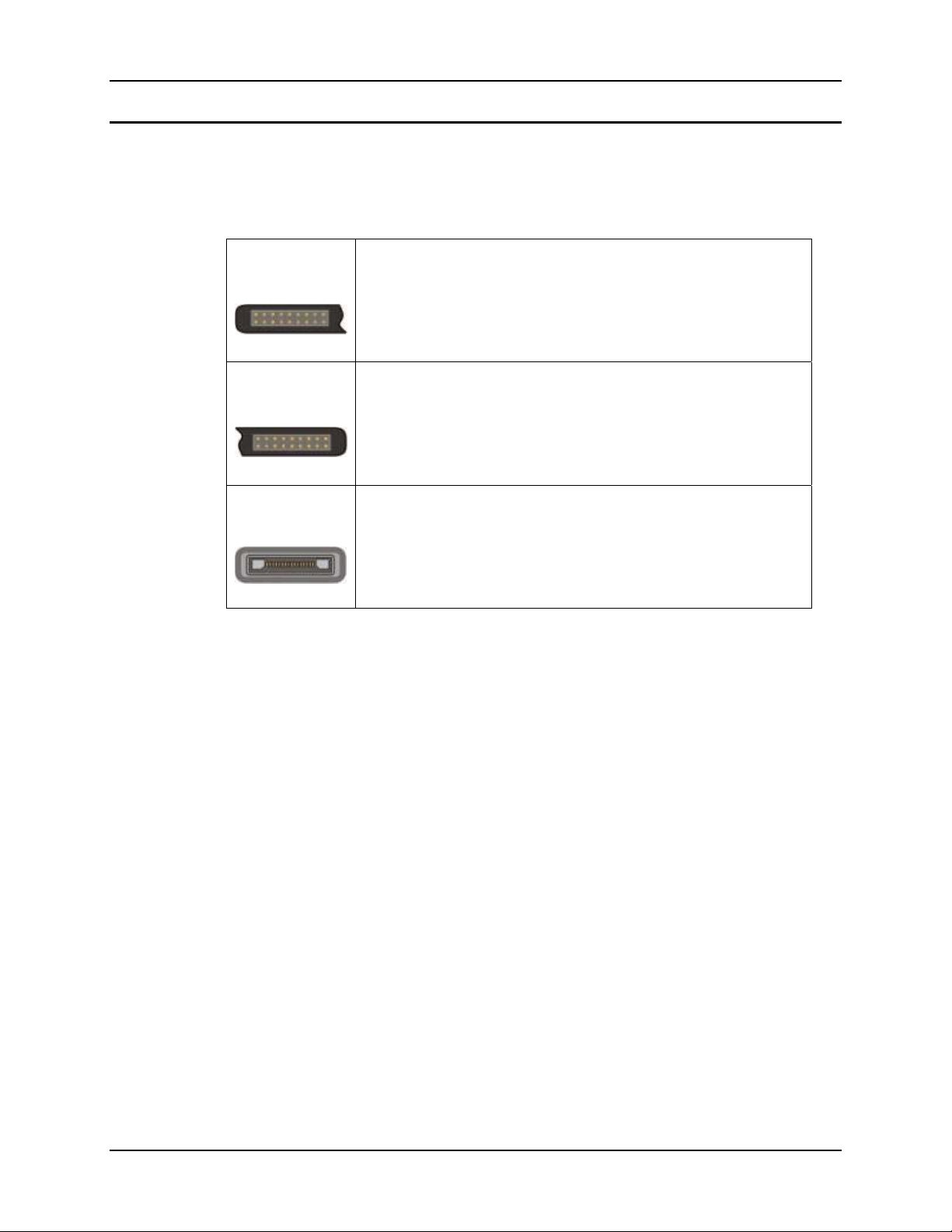

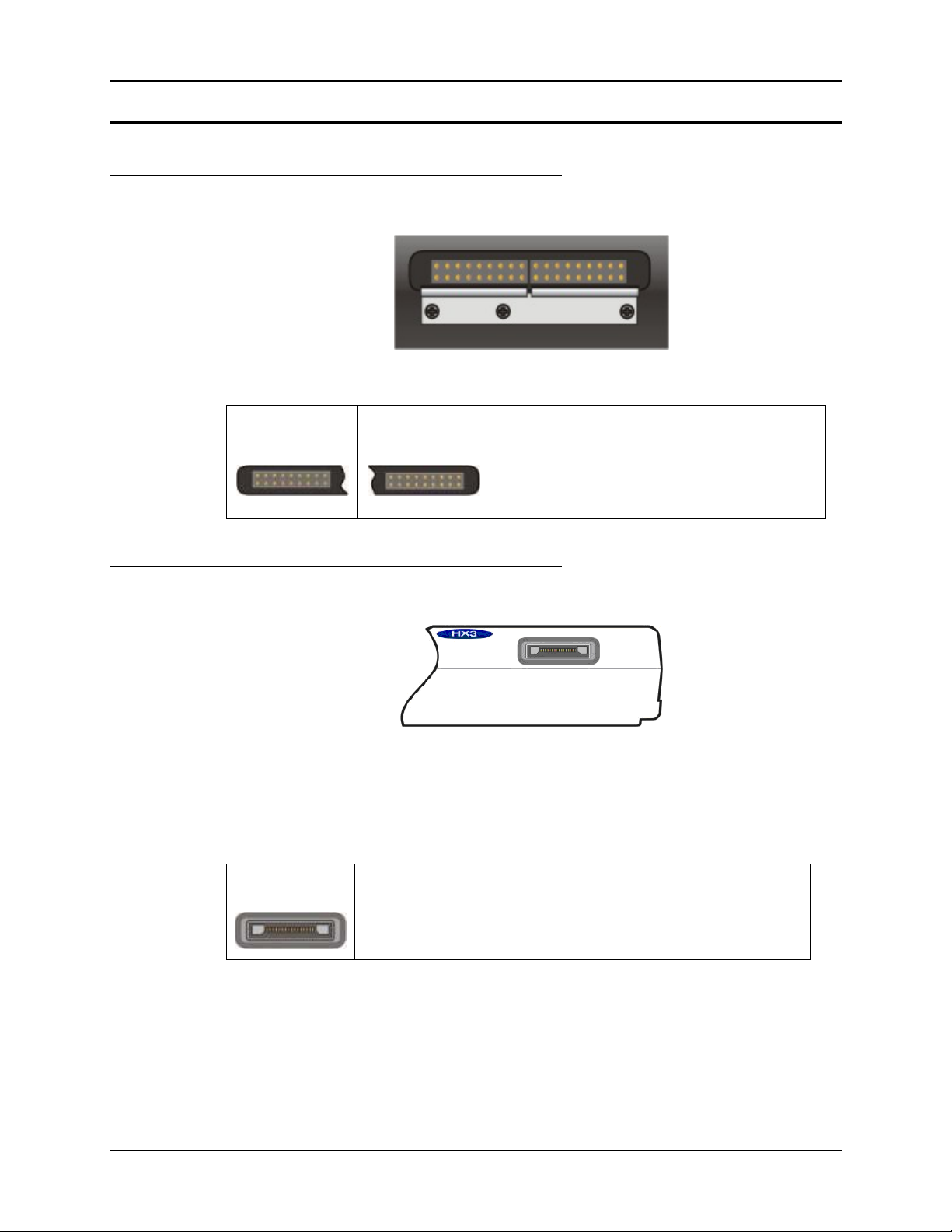

Figure 1-4 Scanner / Audio / Battery Ports – Connector 1 and 2 ......................................................................10
Figure 1-5 Cradle/Power Port – Connector 3.....................................................................................................10

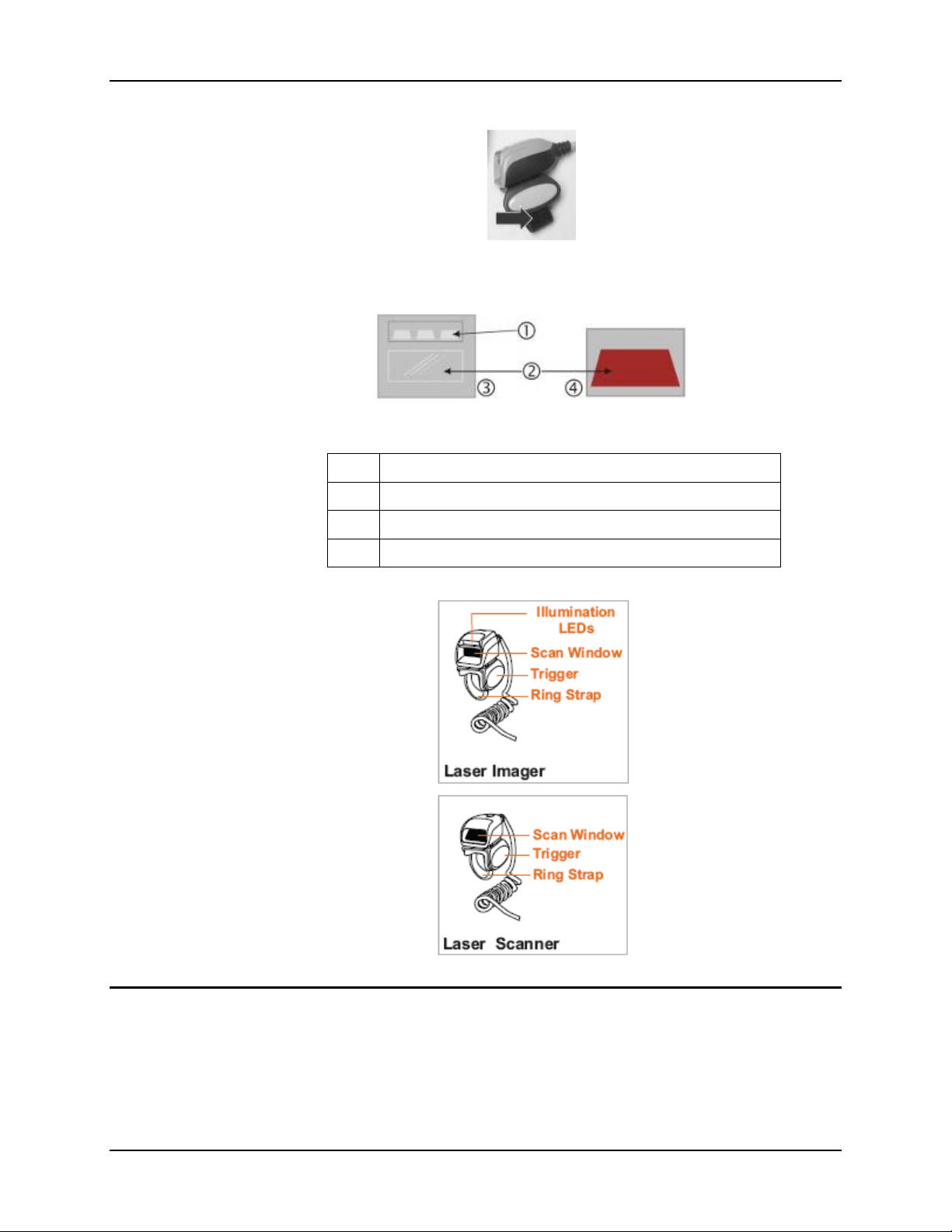

Figure 1-6 Laser Ring Scanner..........................................................................................................................11
Figure 1-7 Imager Ring Scanner................................................................................................ ........................11
Figure 1-8 Ring Scanner Hook and Loop Strap................................................................................................12
Figure 1-9 Ring Scanner/Imager Apertures.......................................................................................................12
Figure 1-10 Cable – Audio, Battery and HX3 Connectors................................................................................13
Figure 1-11 Cable – Laser Ring Scanner and HX3 Connectors ........................................................................13
Figure 1-12 Cable – Imager Ring Scanner and HX3 Connectors......................................................................13
Figure 1-13 Standard Battery .............................................................................................................................14
Figure 1-14 Extended Battery............................................................................................................................14
Figure 1-15 Mounting Brackets.........................................................................................................................15

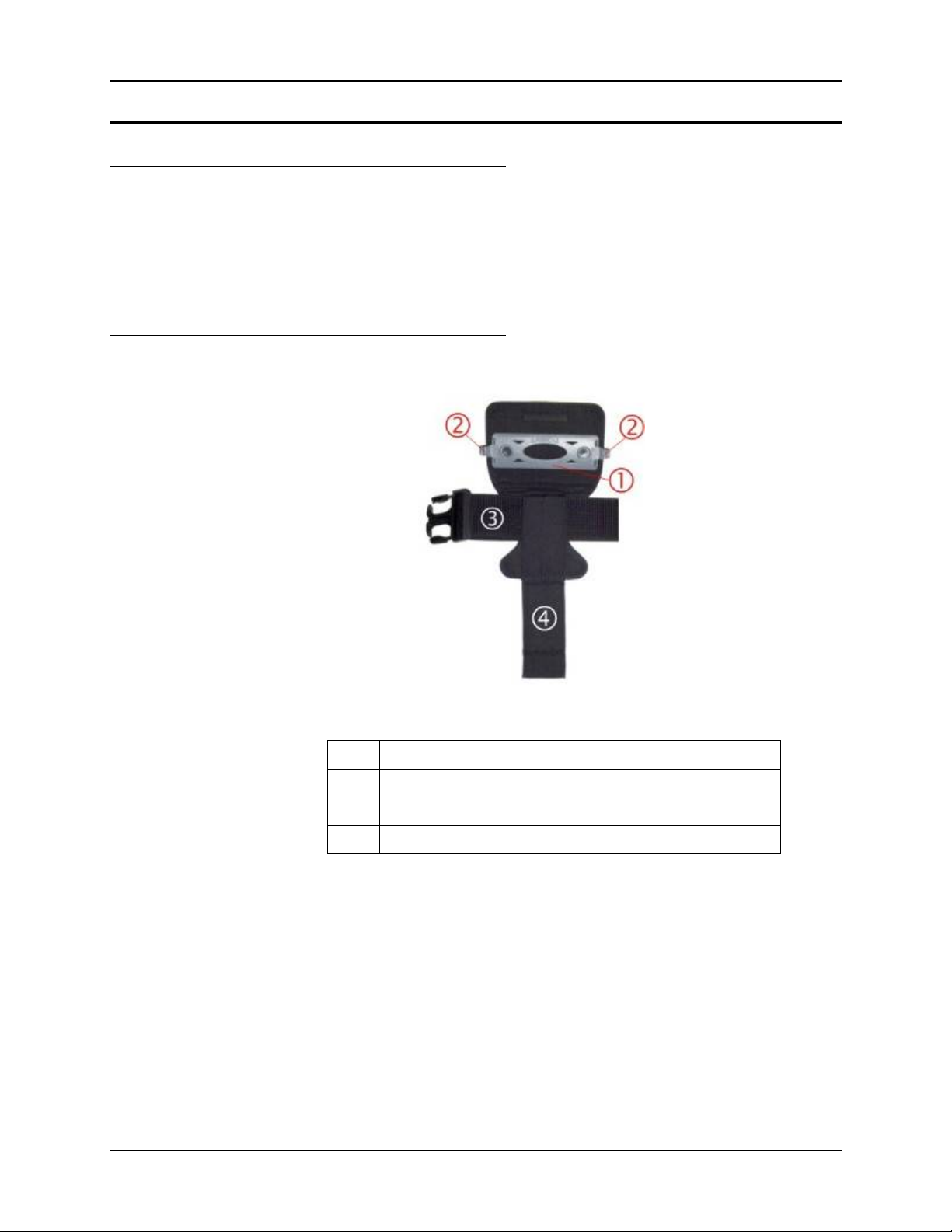

Figure 1-16 Hip Flip Mount Assembly and Clips..............................................................................................15
Figure 1-17 Hip Flip and Belt............................................................................................................................16

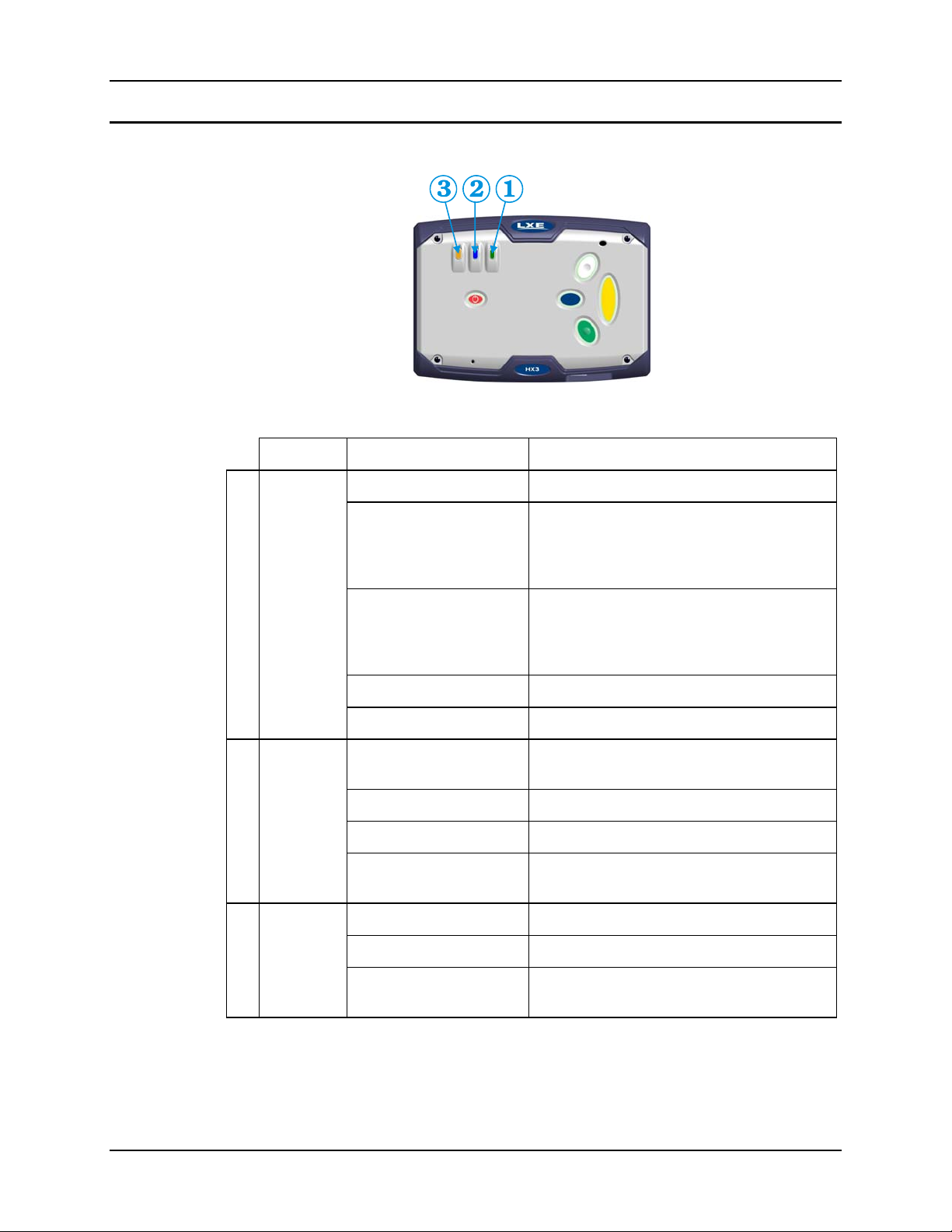

Figure 1-18 System Status LEDs.......................................................................................................................17
HX3 Reference Guide E-EQ-HX3RG-C
Page 13
Table of Contents ix
Figure 1-19 Tether the Battery and Ring Scanner – Left / Right.......................................................................18

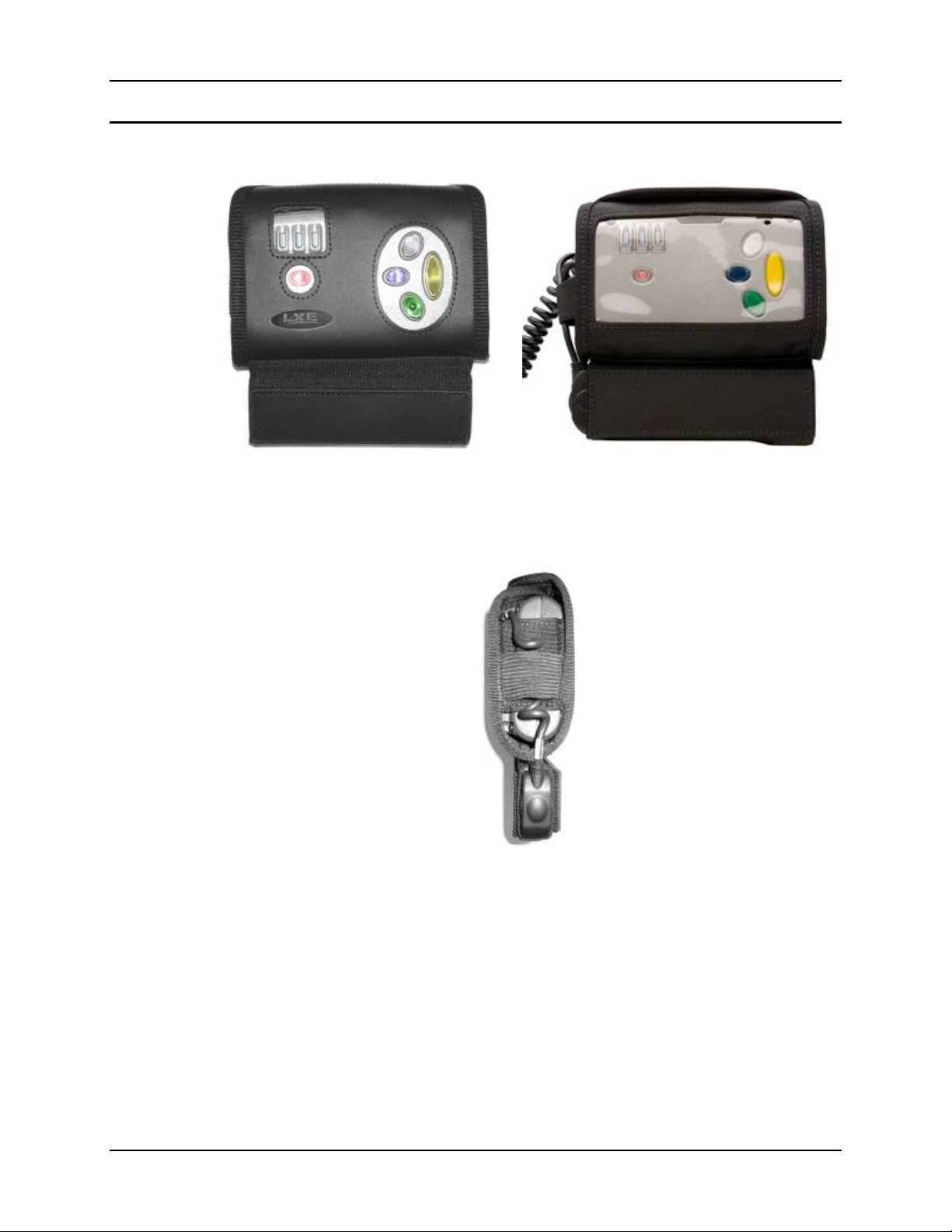

Figure 1-20 HX3 Voice Cases...........................................................................................................................19
Figure 1-21 HX3 Voice Case Battery Cable Routing........................................................................................19
Figure 1-22 Audio/Battery Cable and Headset..................................................................................................20

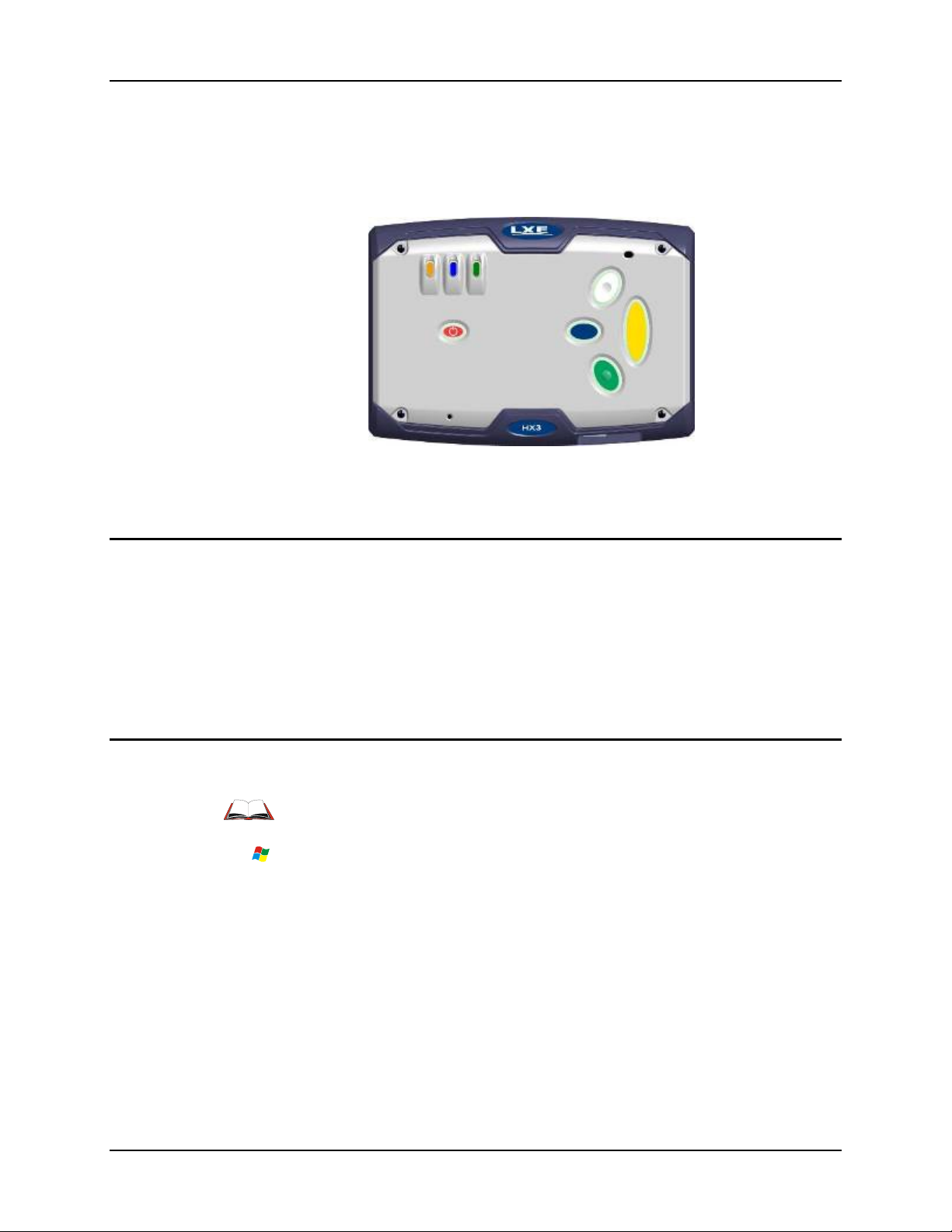

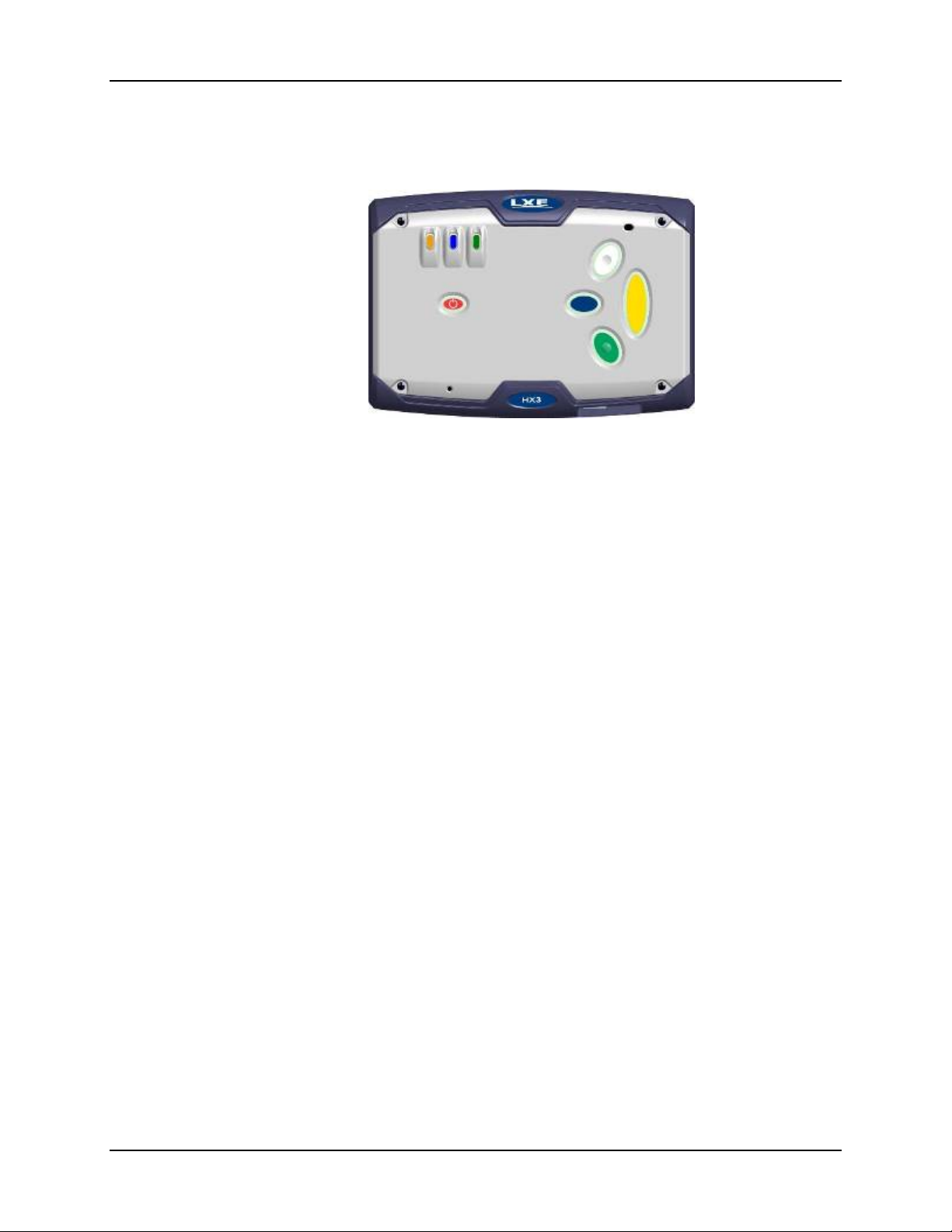

Figure 1-23 5 Key Keypad.................................................................................................................................25
Figure 1-24 Bluetooth LXEZ Pairing Display...................................................................................................26
Figure 1-25 Sample Bluetooth Address Barcode Label.....................................................................................31

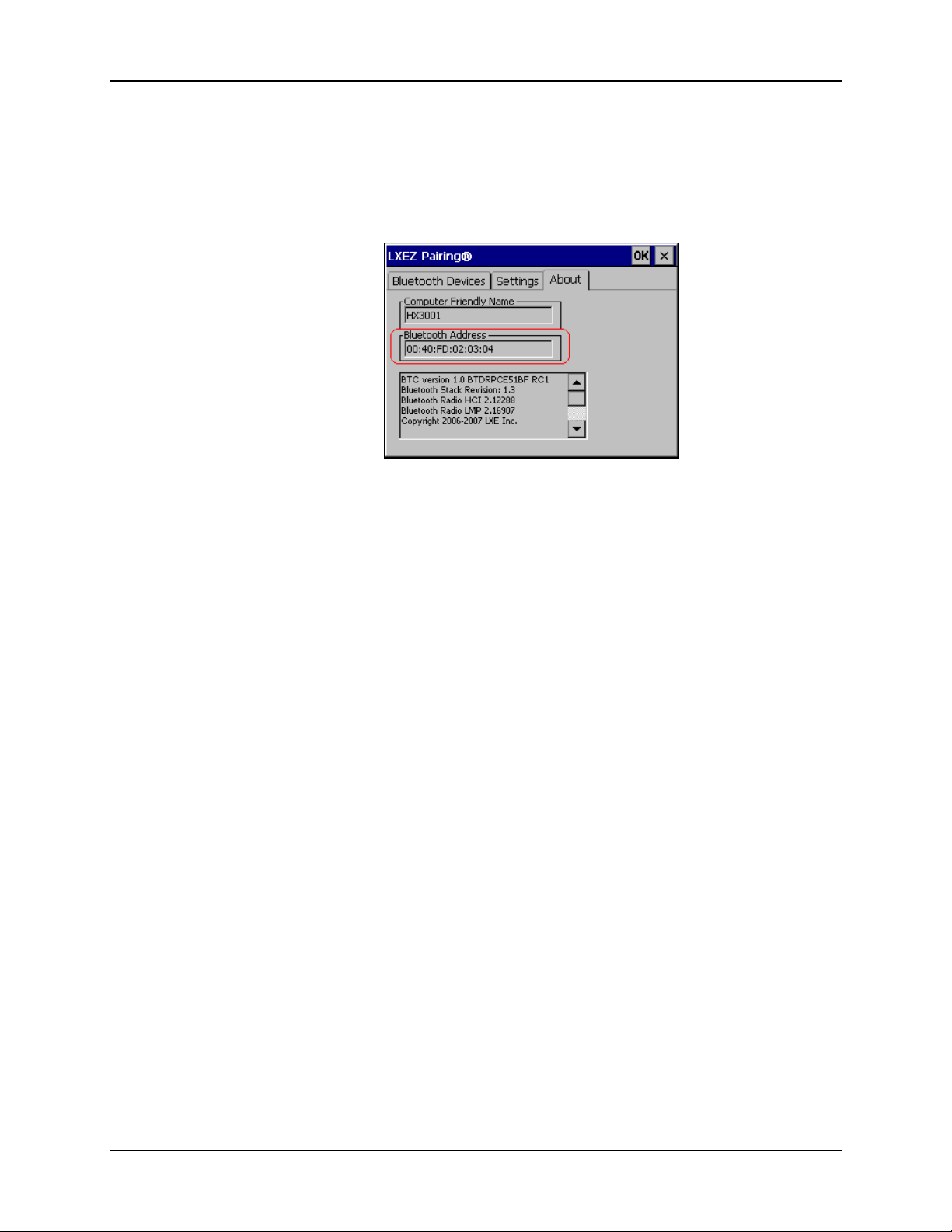

Figure 1-26 About tab and Bluetooth Address ..................................................................................................33

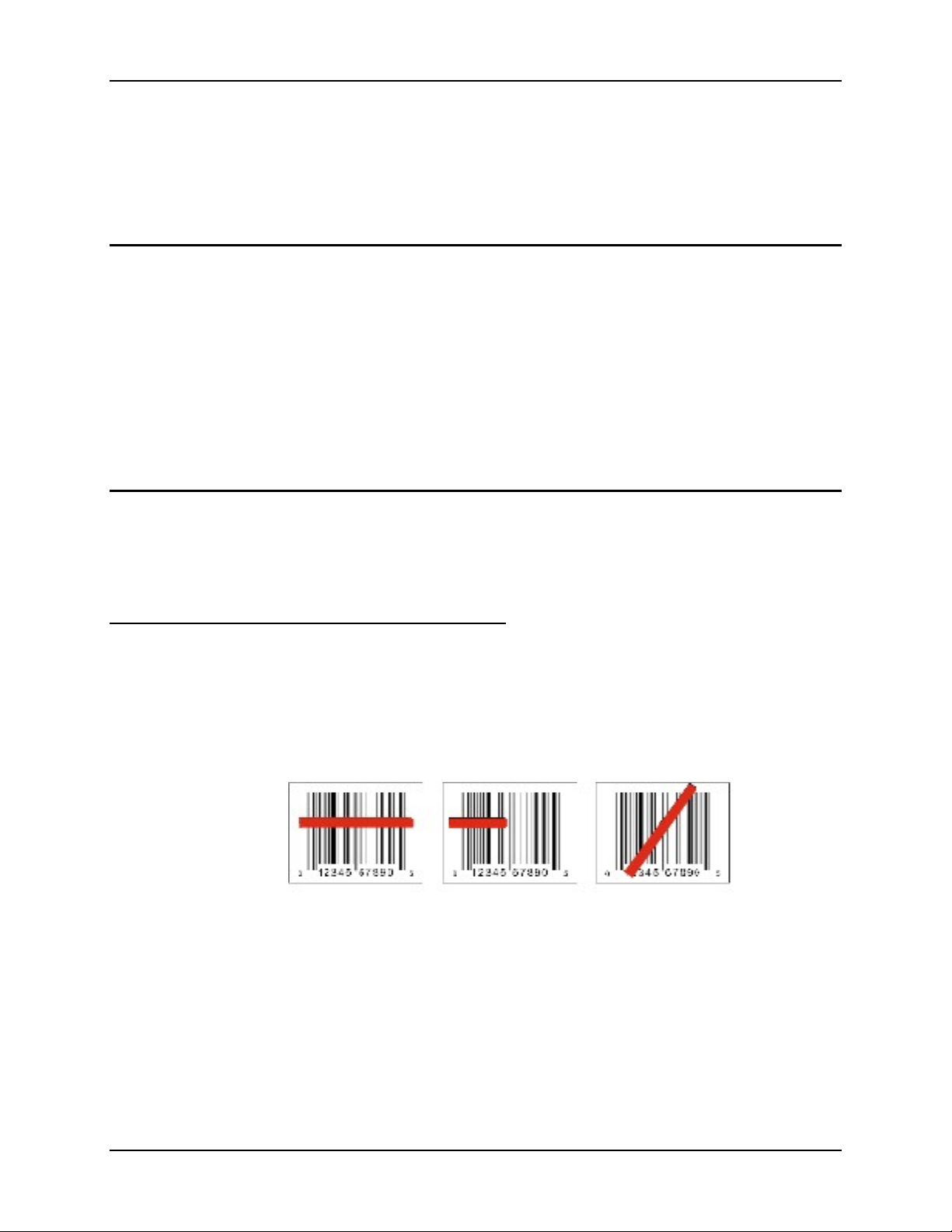

Figure 1-27 Laser Scan Beam on Linear Barcode.............................................................................................35

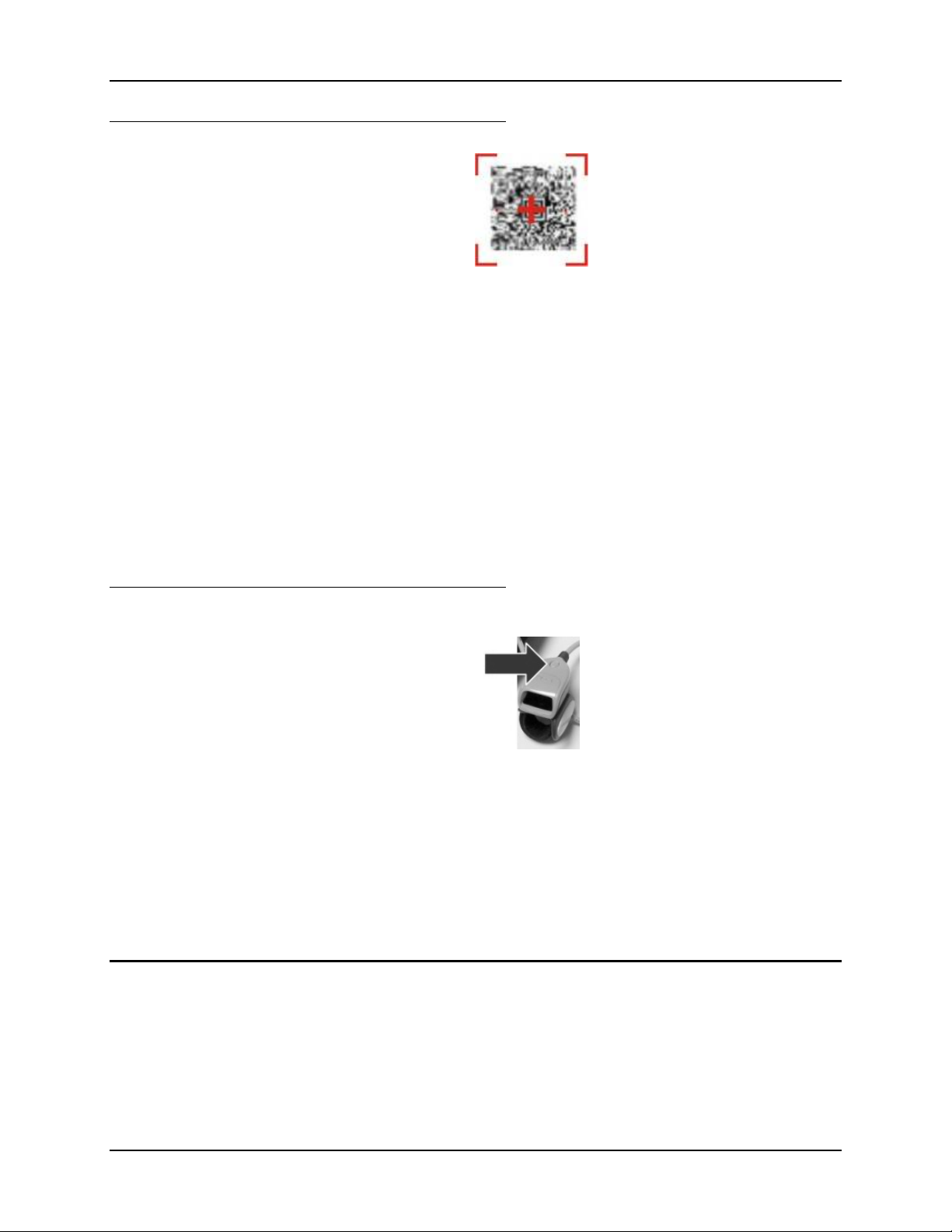

Figure 1-28 Imager Bracketed Crosshair Target on 2D Barcode ......................................................................36
Figure 1-29 Scan Status LED ............................................................................................................................36
Figure 1-30 Step 1: Rotate Trigger Module and Remove Screw.......................................................................38
Figure 1-31 Step 2: Rotate Trigger Module again until it pops up. Remove the trigger module......................38
Figure 1-32 Replace Trigger Module.................................................................................................................39
Figure 2-1 System Hardware.............................................................................................................................43
Figure 2-2 COM Ports .......................................................................................................................................47

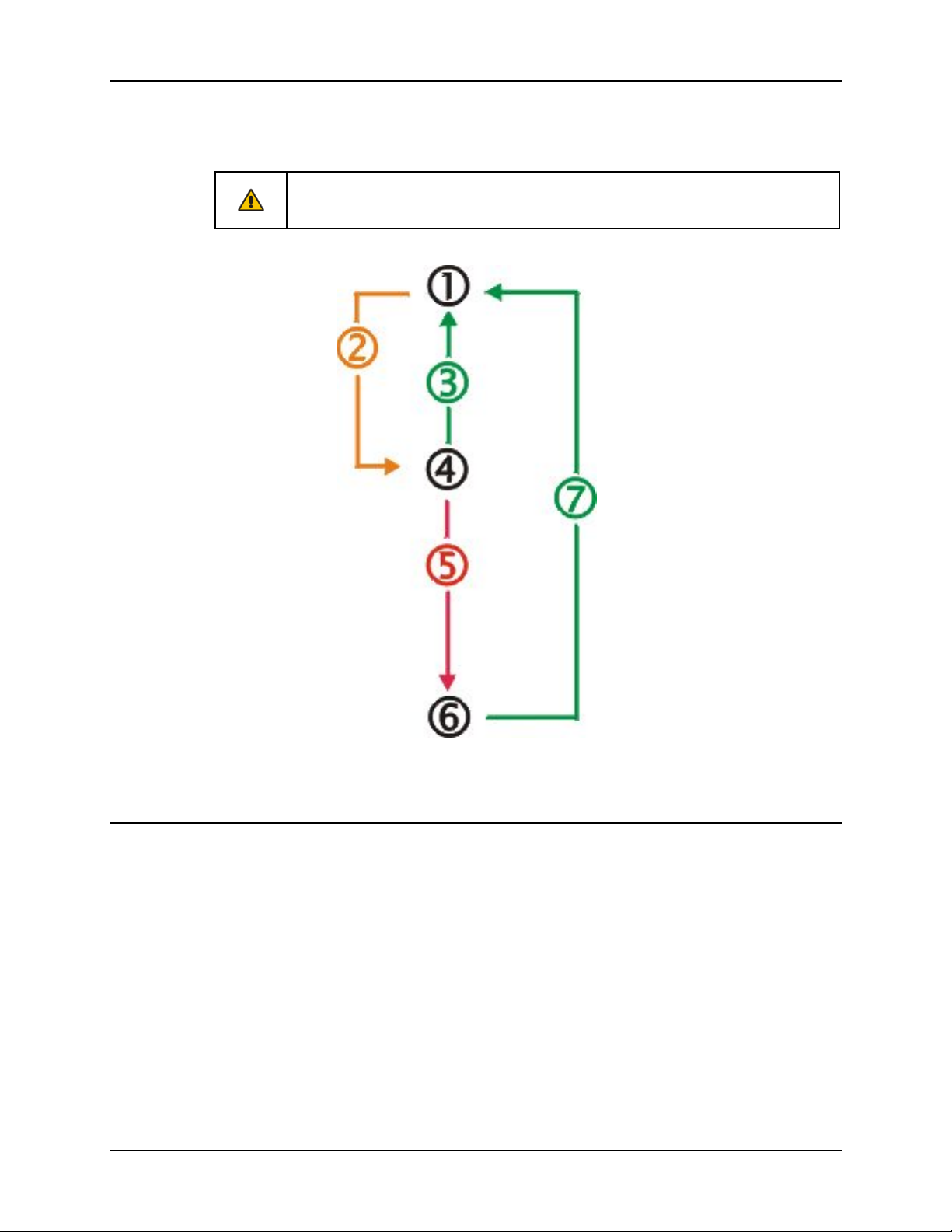

Figure 2-3 Power Modes – On, Suspend and Off..............................................................................................49
Figure 2-4 The 23-key Keypad..........................................................................................................................51
Figure 2-5 Multi-Charger...................................................................................................................................55
Figure 2-6 Multi-Charger Control Panel............................................................................................................56
Figure 3-1 LXEConnect Installation Files.........................................................................................................60
Figure 3-2 LXEConnect Installation Files.........................................................................................................60
Figure 3-3 LXEConnect Setup...........................................................................................................................61
Figure 3-4 LXEConnect Notice.........................................................................................................................61

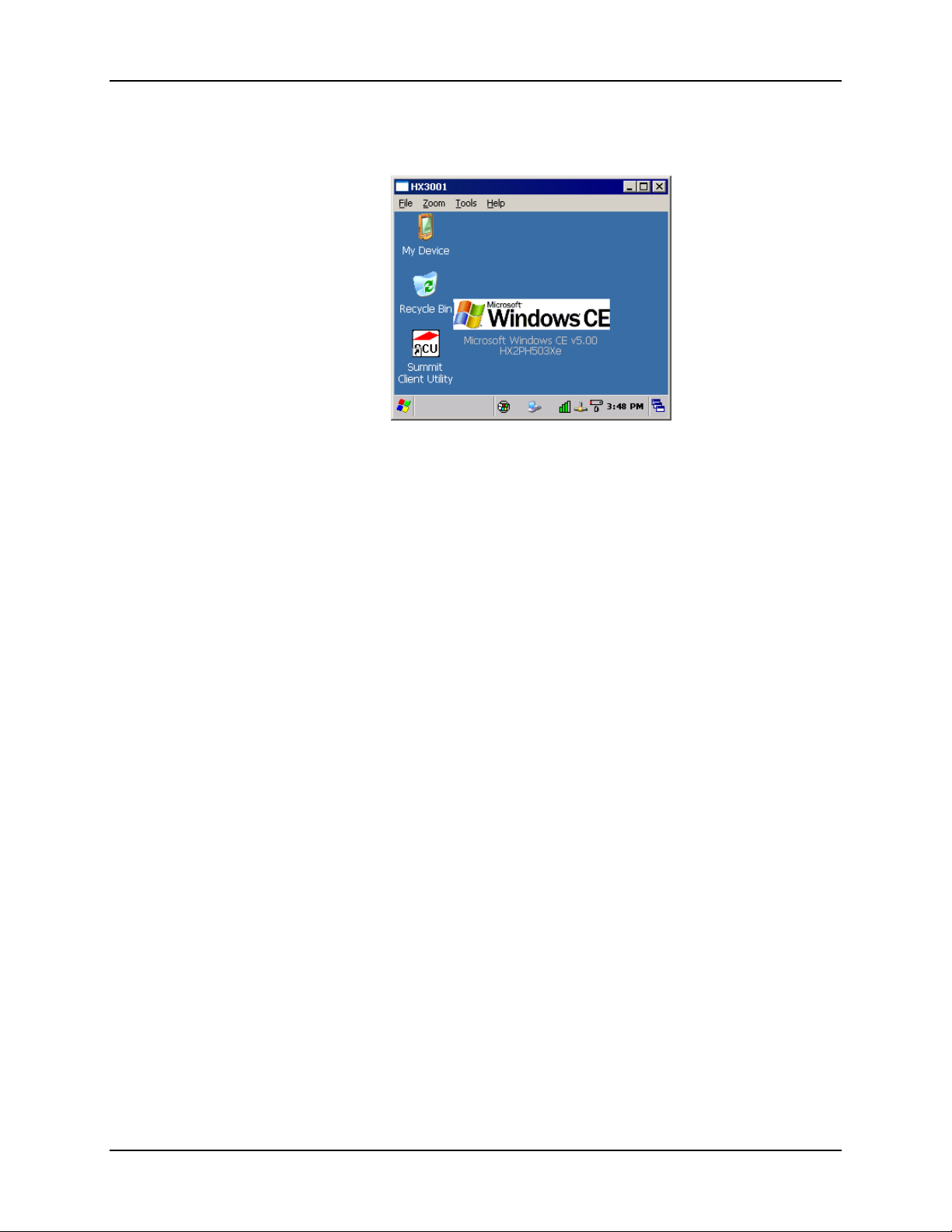

Figure 3-5 LXEConnect Desktop ......................................................................................................................62
Figure 3-6 Connect ActiveSync Cable to HX3 Cradle Connector..................................................................... 64

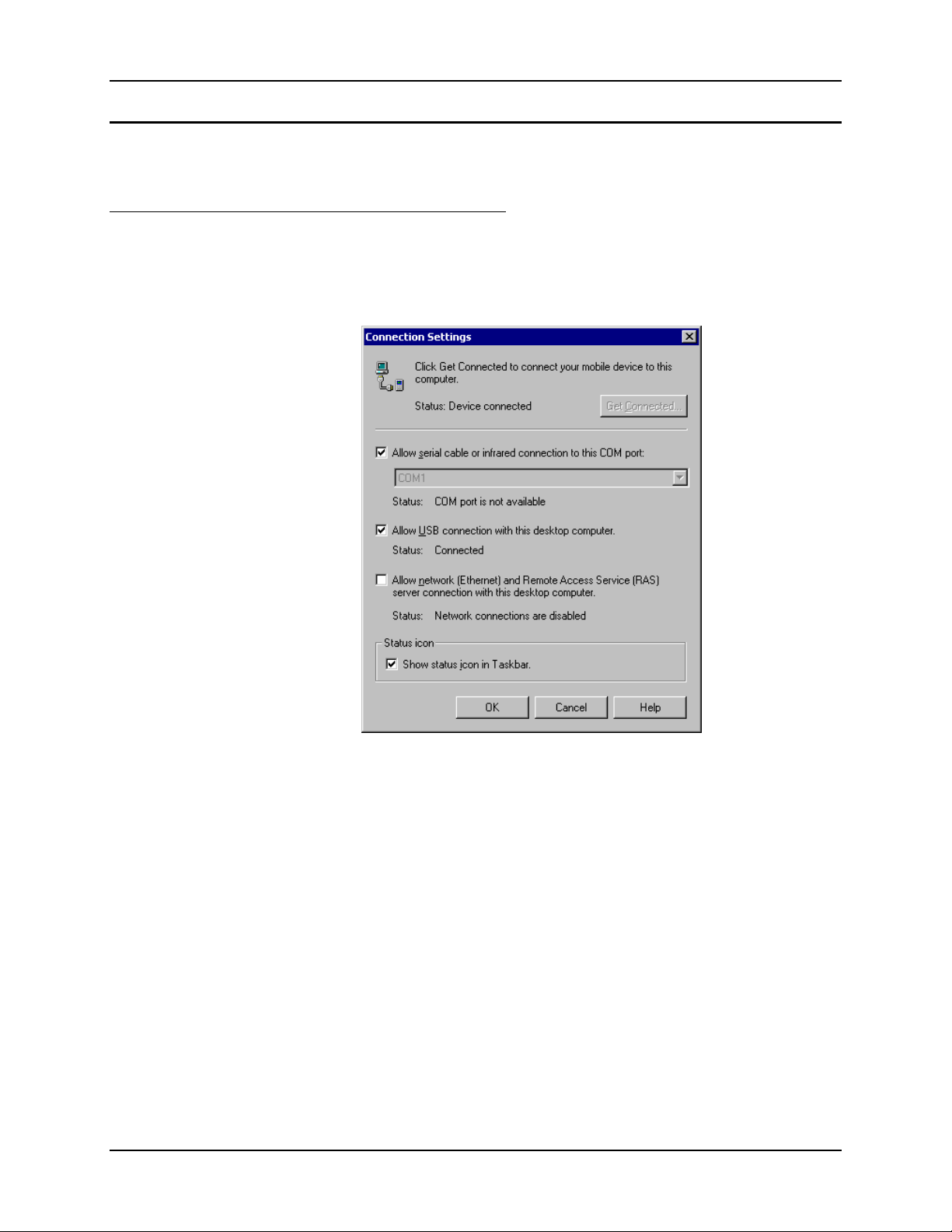

Figure 3-7 ActiveSync Connection Settings on a Windows PC........................................................................66
Figure 3-8 Pocket CMD Prompt Screen............................................................................................................77
Figure 3-9 Taskbar General Tab........................................................................................................................78
Figure 3-10 Advanced Tab ................................................................................................................................79
Figure 3-11 Control Panel – About....................................................................................................................82
Figure 3-12 Control Panel – Battery..................................................................................................................83
Figure 3-13 Control Panel - Bluetooth...............................................................................................................84
Figure 3-14 Discover Bluetooth Devices and Query Device Data ....................................................................85
Figure 3-15 Bluetooth Devices Panel ................................................................................................................85
Figure 3-16 Bluetooth Device Pair / Delete / Disconnect Menu........................................................................86
Figure 3-17 Bluetooth Device Properties Menu ................................................................................................86
Figure 3-18 Bluetooth Settings Panel ................................................................................................................87
Figure 3-19 Bluetooth About Panel...................................................................................................................89
Figure 3-20 Control Panel – Stored Certificates................................................................................................90
Figure 3-21 Control Panel – Date/Time Properties............................................................................................91
Figure 3-22 Control Panel – Dialing..................................................................................................................92
Figure 3-23 Control Panel – Display | Background...........................................................................................93
Figure 3-24 Control Panel – Display | Appearance ...........................................................................................94
Figure 3-20 HX3 Options Properties.................................................................................................................95
Figure 3-25 Control Panel – Keyboard..............................................................................................................97
Figure 3-26 Keypad – KeyMap Tab..................................................................................................................99
Figure 3-27 Keypad – LaunchApp Tab...........................................................................................................100
Figure 3-28 Keypad – RunCmd Tab................................................................................................................101
Figure 3-29 Mixer............................................................................................................................................102
Figure 3-30 Mouse...........................................................................................................................................103
Figure 3-31 Network and Dialup Connections................................................................................................104
Figure 3-32 Owner Properties..........................................................................................................................105
Figure 3-33 Password ...................................................................................................................................... 106
Figure 3-34 PC Connection .............................................................................................................................107
E-EQ-HX3RG-C HX3 Reference Guide
Page 14
x Table of Contents
Figure 3-35 Power ...........................................................................................................................................108
Figure 3-36 Regional Settings .........................................................................................................................109
Figure 3-37 Scanner Control Panel..................................................................................................................111
Figure 3-38 Stylus – Double-Tap ....................................................................................................................112
Figure 3-39 System – General .........................................................................................................................113
Figure 3-40 System – Memory........................................................................................................................114
Figure 3-41 System – Device Name................................................................................................................115
Figure 3-42 System – Copyrights ....................................................................................................................115
Figure 3-43 Volume & Sounds........................................................................................................................116
Figure 3-44 Avalanche Enabler Opening Screen.............................................................................................124
Figure 3-45 Avalanche Enabler Connection Options ......................................................................................127
Figure 3-46 Avalanche Enabler Execution Options (Dimmed).......................................................................128
Figure 3-47 Avalanche Enabler Server Contact Options.................................................................................129
Figure 3-48 Avalanche Enabler Startup / Shutdown Options..........................................................................130
Figure 3-49 Avalanche Enabler Scan Config Option ......................................................................................131
Figure 3-50 Avalanche Enabler Window Display Options .............................................................................131
Figure 3-51 Avalanche Enabler Application Shortcuts ...................................................................................132
Figure 3-52 Avalanche Enabler Adapters Options – Network ........................................................................133
Figure 3-53 Avalanche Network Profile Displayed.........................................................................................134
Figure 3-54 Manual Settings Properties Panels...............................................................................................134
Figure 3-55 Status Display...............................................................................................................................135
Figure 3-44 eXpress Scan Desktop Icon..........................................................................................................136
Figure 3-45 eXpress Scan Password Input ......................................................................................................136
Figure 3-46 Scan Barcode 1.............................................................................................................................137
Figure 3-47 Scan Remaining Barcodes............................................................................................................137
Figure 3-48 Configuring Settings ....................................................................................................................138
Figure 4-1 Scanner Control Panels ..................................................................................................................141
Figure 4-2 Scanner Control / Main..................................................................................................................142
Figure 4-3 Scanner Control / COM1 ...............................................................................................................143
Figure 4-4 Scanner Control / Barcode tab .......................................................................................................144
Figure 4-5 Barcode Tab / Symbology Settings................................................................................................147
Figure 4-6 Symbology / Strip Leading / Trailing.............................................................................................149
Figure 4-7 Symbology / Barcode Data Match List..........................................................................................150
Figure 4-8 Symbology / Prefix and Suffix Control..........................................................................................152
Figure 4-9 Barcode Tab / Ctrl Char Mapping..................................................................................................153
Figure 4-10 Barcode Tab / Custom Identifiers ................................................................................................155
Figure 4-11 AIM Custom IDs..........................................................................................................................158
Figure 4-12 AIM Custom Setup for C1...........................................................................................................159
Figure 4-13 Barcode Match Data for C1 .........................................................................................................159
Figure 5-1 Summit Client Utility (SCU)..........................................................................................................162
Figure 5-2 SCU – Main Tab ............................................................................................................................164
Figure 5-3 Main Tab – Enter Admin Password...............................................................................................165
Figure 5-4 SCU – Config / ProfileTab.............................................................................................................166
Figure 5-5 SCU – Scan....................................................................................................................................167
Figure 5-6 SCU – Status Tab...........................................................................................................................171
Figure 5-7 SCU – Diags Tab ...........................................................................................................................172
Figure 5-8 SCU – Global / Global Settings Tab..............................................................................................173
Figure 5-9 Choose Certificate..........................................................................................................................180
Figure 5-10 Configure a Summit Profile with No Security.............................................................................181
Figure 5-11 Configure a Summit Profile with WEP........................................................................................182
Figure 5-12 Summit WEP Keys.......................................................................................................................182
Figure 5-13 Configure a Summit Profile for LEAP w/o WPA........................................................................183
Figure 5-14 LEAP Credentials Dialog.............................................................................................................184
Figure 5-15 Configure a Summit Profile for EAP-FAST................................................................................185
Figure 5-16 Summit EAP-FAST Credentials .................................................................................................. 186
HX3 Reference Guide E-EQ-HX3RG-C
Page 15
Table of Contents xi
Figure 5-17 Configure a Summit Profile for PEAP/MSCHAP........................................................................187
Figure 5-18 PEAP/MSCHAP Credentials .......................................................................................................188
Figure 5-19 Configure a Summit Profile with LEAP for WPA TKIP.............................................................189
Figure 5-20 LEAP Credentials.........................................................................................................................189
Figure 5-21 Configure a Summit Profile with WPA PSK Encryption ............................................................190
Figure 5-22 Summit PSK Entry Dialog...........................................................................................................191
Figure 5-23 Configure a Summit Profile with PEAP/GTC..............................................................................192
Figure 5-24 PEAP/GTC Credentials................................................................................................................193
Figure 5-25 Configure a Summit Profile with EAP-TLS ................................................................................194
Figure 5-26 EAP-TLS Credentials Dialog .......................................................................................................195
Figure 5-27 Logon to Certificate Authority.....................................................................................................196
Figure 5-28 Certificate Services Welcome Screen ..........................................................................................196
Figure 5-29 Download CA Certificate Screen.................................................................................................197
Figure 5-30 Download CA Certificate Save to Desktop..................................................................................197
Figure 5-31 Certificate Stores..........................................................................................................................198
Figure 5-32 Import Certificate From a File......................................................................................................198
Figure 5-33 Browsing to Certificate Location.................................................................................................199
Figure 5-34 Logon to Certificate Authority.....................................................................................................200
Figure 5-35 Certificate Services Welcome Screen ..........................................................................................200
Figure 5-36 Request a Certificate Type...........................................................................................................201
Figure 5-37 Advanced Certificate Request Screen..........................................................................................201
Figure 5-38 Advanced Certificate Details .......................................................................................................202
Figure 5-39 Script Warnings............................................................................................................................203
Figure 5-40 Script Warnings............................................................................................................................203
Figure 5-41 User Certificate Issued.................................................................................................................203
Figure 5-42 Download Certificate Security Warning......................................................................................204
Figure 5-43 My Certificates Stores..................................................................................................................205
Figure 5-44 Import User Certificate................................................................................................................. 205
Figure 5-45 Browsing to Certificate Location.................................................................................................206
Figure 5-46 Browsing to Private Key Location...............................................................................................207
Figure C-1 Hat Encoded Characters Hex 00 through AD ...............................................................................219
Figure C-2 Hat Encoded Characters Hex AE through FF ...............................................................................220
Figure C-3 Decimal – Hexadecimal Chart (0 to 159 Decimal)........................................................................221
Figure C-4 Decimal – Hexadecimal Chart (160 to 255 Decimal)....................................................................222
E-EQ-HX3RG-C HX3 Reference Guide
Page 16
xii Table of Contents
HX3 Reference Guide E-EQ-HX3RG-C
Page 17
Overview
Chapter 1 Introduction
The LXE® HX3 is a small, lightweight wearable voice computer. The HX3 is designed for use
with voice applications while the user's hands are actively engaged with the physical environment,
including piece picking to carts, containers or conveyers; case picking; parcel moves; and broken
case activities.
The HX3 is designed for use in a belt worn voice pouch. A headset provides voice instructions to
the user and the user can respond via voice or an optional ring scanner. A display and
touchscreen are not necessary for operation and are not included in the HX3. The HX3 supports a
limited keyboard designed for use with voice applications.
The HX3 is powered by a tethered low profile, light and unobtrusive battery. The entire HX3
wearable computer system features breakaway connections at multiple points and a low-profile,
smooth design to resist snagging on common warehouse fixtures and equipment.
®
The HX3 has a Microsoft
operating system with an Intel
CPU. The HX3 supports an 802.11 WLAN radio and
Bluetooth® 2.0+EDR radio. Connectors are available
which interface with peripherals such as a Ring
Scanner (1D Laser and 2D Imager Ring Scanner), an
audio headset, a docking/charging cradle and a
tethered battery (see Components for port locations).
Windows® CE 5.0
®
XScale® PXA255
The HX3 hip flip holster, voice case and powered
cradle are available from LXE as accessories (see
Accessories).
Note: Until the tethered battery and backup battery
are completely depleted, the HX3 is always
drawing power from the batteries (On).
Based on your installed software version and hardware
options, your system may not be exactly the same as
the system described in this section. Contact your LXE
representative for information on the latest upgrades
for your HX3.
E-EQ-HX3RG-C HX3 Reference Guide
Page 18
2 Overview
When to Use This Guide
As the reference for LXE’s HX3 computer, this guide provides detailed information on its features
and functionality. Use this reference guide as you would any other source book – reading portions
to learn about the HX3, and then referring to it when you need more information about a
particular subject. This guide takes you through all aspects of installation and configuration for
the LXE HX3. Daily operation, installation and safety instructions for the general user are covered
in the HX3 User’s Guide.
This chapter, “Introduction”, describes this reference guide’s structure, describes HX3
components, contains initial setup instruction, briefly describes data entry processes, and explains
how to get help. Bluetooth pairing instruction is included.
Chapter 2 “Physical Description and Layout”, describes the function and layout of the HX3,
controls and connectors. Also describes the power supplies and docking options for the HX3.
Chapter 3 “System Configuration” takes you through the CE 5.0 operating system setup and the
HX3 file structure. The Avalanche Enabler is included.
Chapter 4 “Scanner” describes the function, layout and setup for the LXE Wedge.
Chapter 5 “Wireless Network Configuration” details 2.4GHz wireless client setup.
Configuration for WEP and WPA is included.
Appendix A “Key Maps” describes the keypress sequences for the keypad.
Appendix B “Technical Specifications” lists HX3 technical specifications.
Appendix C “Reference Material” contains parameter programming charts.
Related Manuals
Ring Scanner Programming Guide – contains programming barcodes used when setting up
scanner/imager engines in ring barcode readers.
HX3 User’s Guide – contains instruction and information directed to the daily HX3 user.
HX2 Multicharger User’s Guide – contains user, technical and troubleshooting information for
the HX2 battery multi-charger.
HX2 Cradle Reference Guide – contains user, technical and troubleshooting information for the
HX2 cradle.
Note: The HX3 uses the same batteries, cradle and charger as the LXE HX2.
HX3 Reference Guide E-EQ-HX3RG-C
Page 19
Overview 3
Important Battery Information
Backup Battery -- If the HX3 has been without a power source (connected to a fully charged
tethered battery or docked in a powered cradle) for an extended period of time or if HX3 external
power sources become completely dischar ged or dead, a fully charged HX3 backup b attery will
last for up to 15 minutes. If the backup battery is fully discharged, the HX3 will reset as soon as it
is docked in a powered cradle or connected to a fully charged tethered battery. A reset will cause
loss of data and custom programs in RAM. Always store unused HX3s with a fully charged
tethered battery. If possible, ensure the HX3 is periodically docked in a powered cradle to
maintain an optimum backup battery charged status.
The Status LED provides battery information.
When the LED is… The battery status is…
Green – Solid
Green – Blinking
Red – Steady
Red – Blinking
Off
• The HX3 uses the same batteries, charger and cradle as the LXE HX2 computer.
HX3 is booting.
The HX3 is On. The OS has loaded and the main battery has a
good charge (or the device is attached to an AC power source).
Main Battery Low. If the main battery is not replaced with a fully
charged battery before the main battery fails, the HX3 is turned
Off.
Main Battery Power Fail. The Backup battery maintains system
settings until depleted.
Suspend or Off. Unit is in suspend mode or both Main and
Backup batteries are depleted.
• Until the tethered battery and backup battery are completely depleted, the HX3 is
always drawing power from the batteries (On).
• New Standard / Extended batteries must be fully charged prior to use.
• Whenever possible, place the HX3 in a powered cradle to conserve tethered battery
power and recharge the backup battery.
• When a new battery is tethered to the HX3 for the first time (or after the backup
battery is depleted), the Time and Date reverts to factory default values.
• Backup battery replacement is performed by LXE.
The HX2 cradle can charge two standard batteries in less than four hours or two extended
batteries in less than 8 hours in the battery wells behind the HX2 docking bay. The cradle requires
an external power source before battery charging can occur.
The HX2 Multi-Charger can charge up to six batteries at the same time. Each charging bay can
accept either type of battery. The Multi-Charger requires an external power source before
charging/analyzing can occur.
When the HX3 is connected to a PC running ActiveSync and LXEConnect, additional battery
information can be viewed by clicking
3, System Configuration for details.
Li-Ion Battery
When disposing of the tethered batteries, the following precautions should be observed: The
battery should be disposed of properly. The battery should not be disassembled or crushed. The
battery should not be heated above 212°F (100°C) or incinerated.
| Settings | Control Panel | Battery tab. See Chapter
E-EQ-HX3RG-C HX3 Reference Guide
Page 20
4 Overview
Document Conventions
ALL CAPS
Menu | Choice
Italics
< >
ATTENTION
Note: Keyword that indicates immediately relevant information.
CAUTION
WARNING
DANGER
All caps are used to represent disk directories, file names, and application
names.
Rather than use the phrase “choose the Save command from the File menu”,
this manual uses the convention “choose File | Save”.
Indicates the title of a book, chapter or a section within a chapter (for
example, Document Conventions and Document Conventions
Indicates a key on the keypad (for example, <Enter> or Enter ).
Indicates a reference to other documentation.
Keyword that indicates vital or pivotal information to follow.
Attention symbol that indicates vital or pivotal information to follow. Also,
when marked on product, means to refer to the manual or user’s guide.
International fuse replacement symbol. When marked on the product, the
label includes fuse ratings in volts (v) and amperes (a) for the product.
Keyword that indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
Keyword that indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Keyword that indicates a imminent hazardous situation which, if not avoided,
will result in death or serious injury.
).
HX3 Reference Guide E-EQ-HX3RG-C
Page 21
Getting Started 5
Getting Started
Note: The sequence of steps in Getting Started must also be completed when the HX3 returns
from a Cold Boot and when a new OS version is loaded. The wireless client, flash card,
virtual keyboard and scanner parameters may also need to be reset after a cold reset.
This section’s instructions are based on the assumption that your new device is pre-configured and
requires only accessory installation (e.g. headset, ring scanner, etc.) and a battery. LXE
recommends that installation or removal of accessories be performed on a clean, well-lit surface.
When necessary, protect the work surface, the mobile device, and components from electrostatic
discharge.
Pre-requisites
• A fully charged battery is available.
• Optional add-on devices are available (e.g., headset, ring scanner, hip flip).
• Wireless Client configuration has been completed by the System Administrator.
• Required configured (mappable) keys have been assigned by the System
Administrator.
HX3 Quick Start
1. ActiveSync must be installed on a PC with a USB port.
2. Connect the fully charged battery. (Always connect a fully charged battery to the mobile
3. Mount the HX3 in a voice pouch or hip flip.
4. Insert the battery in the voice pouch or hip flip battery sleeve.
5. Attach the ring scanner to the HX3 (optional).
6. Connect the HX3 via a USB-C connection to a desktop PC.
7. Copy LXEConnect setup files from the HX3 to the PC. Install and launch LXEConnect on
8. Set up the wireless client and network management programs. Refer to Chapter 5 – Wireless
9. Set up mappable keys. Refer to Chapter 3 – System Configuration.
10. Pair Bluetooth devices. Refer to Bluetooth later in this chapter.
11. Save your settings to the Registry. Refer to Saving Settings to the Registry later in this
• Optional software and LXE applications have been installed and setup by the System
Administrator.
device at the beginning of the shift or workday.)
the PC.
Network Configuration.
chapter.
12. Exit LXEConnect and disconnect the ActiveSync connection.
E-EQ-HX3RG-C HX3 Reference Guide
Page 22
6 Getting Started
Quick Start Troubleshooting
HX3 seems to lockup
as soon as it is warm
booted.
Setup the Client and Network
Prerequisites
• Network SSID or ESSID number of the Access Point
• WEP or LEAP Authentication Protocol Keys
See Chapter 5 Wireless Network Configuration for complete information.
Saving Settings to the Registry
Some of the options in this section require an ActiveSync connection and
LXEConnect. Please see “ActiveSync and the HX3” in Chapter 3 System
Configuration for details on establishing this connection.
The HX3 saves the registry when you:
• Tap Start | Run | then type Warmboot. Tap OK.
There may be slight delays while the wireless client connects to the
network, authorization for voice-enabled applications complete,
Wavelink Avalanche management of the HX3 startup completes,
and Bluetooth relationships establish or re-establish. When the
status LED flashes green the OS has loaded. When the Wireless
LED is solid yellow a wireless connection has been established.
• Perform a Suspend / Resume function (by tapping the Power key and then tapping it
again).
• Install Restart in the Start menu by Start | Run | then type CTL RESTART=1 and tap
the OK button. Tap Start | Restart.
Note: Using any of these methods to save the registry ends the HX3 ActiveSync connection. To
make additional changes, it is necessary to reestablish the ActiveSync connection by
unhooking the USB end of the cable from the PC and then reinserting the cable.
The registry save process takes 0 – 3 seconds. If nothing has been changed, nothing is saved (e.g.
0 seconds)
The registry is automatically saved every 20 minutes. It is also saved every tenth time the registry
settings are changed. Registry settings are changed when control panel applet (e.g. Date/Time)
parameters are changed by the user and a warm boot was not performed afterward.
When you tap the Start | Run | then type Coldboot and tap the OK button, factory default registry
settings are loaded during coldboot. All user changes and settings are lost.
HX3 Reference Guide E-EQ-HX3RG-C
Page 23
Components 7
Components
Note: The figures on the next few pages assume a fully charged tethered battery is in the
battery sleeve (on a hip flip) and positioned at the top of the figure.
Voice Case
HipFlip
and Belt
Figure 1-1 HX3 Components
Note: New batteries must be charged prior to use. The backup battery is continually recharged
by the tethered battery.
E-EQ-HX3RG-C HX3 Reference Guide
Page 24
8 Components
Front
Figure 1-2 Front
1 Power Switch (Red)
2 Wireless LED (Yellow)
3 Bluetooth LED (Blue)
4 System Status LED (Green or Red)
5 Blue Modifier Key
6 Internal Speaker
7 Yellow key (Enter)
8 Green and White Keys (Down and Up Arrow)
9 Internal Microphone
Note: The keypress values shown above are the default keypress values. These keys may be
remapped, if desired.
HX3 Reference Guide E-EQ-HX3RG-C
Page 25
Components 9
Back
Note: Before connecting cables to the back, make sure the LXE logo on the HX3 is uppermost
or the left/right directions that follow won’t work.
Left Side Use
Right Side Use
Figure 1-3 Back
1 Ring Scanner Tether cable channel
2 Retaining Clip for Ring Scanner Tether Connector
3 Ring Scanner cable connector
4 Battery Cable connector
5 Retaining Clip for Tethered Battery Connector
6 Tethered Battery Cable channel
7 Cradle Connector
1 Tethered Battery Cable channel
2 Retaining Clip for Tethered Battery Connector
3 Battery Cable connector
4 Ring Scanner cable connector
5 Retaining Clip for Ring Scanner Tether Connector
6 Ring Scanner Tether Cable channel
7 Cradle Connector
E-EQ-HX3RG-C HX3 Reference Guide
Page 26
10 Components
HX3 Connectors
Ring Scanner / Audio / Battery Connection
Figure 1-4 Scanner / Audio / Battery Ports – Connector 1 and 2
Connector 1
See Cables.
Cradle Connection
Connector 3 is at the base of the HX3. It connects to the Cradle. When the HX3 is in a powered
cradle, the HX3 receives external power through the Cradle connector. USB Keyboard or USB
Mouse input is received through the Cradle connector (see figure above) when the HX3 is in a
cradle.
Connector 2
Figure 1-5 Cradle/Power Port – Connector 3
• Tethered Ring Scanner (Laser or Imager)
• Tethered Headset/Microphone and
Battery
• Tethered Battery
Connector 3
See the HX3 Cradle Reference Guide for instruction.
• Cradle
• Cradle Power Input
• USB Keyboard or mouse through cradle ports
HX3 Reference Guide E-EQ-HX3RG-C
Page 27
Components 11
Tethered Ring Scanner / Imager
5
5
Figure 1-6 Laser Ring Scanner
5
5
Figure 1-7 Imager Ring Scanner
1 Laser /Imager Scan Aperture
2 Scan-in-Progress LED
3 HX3 Connector
4 Scan button (Trigger)
5 Quick Disconnect Connectors
E-EQ-HX3RG-C HX3 Reference Guide
Page 28
12 Components
Figure 1-8 Ring Scanner Hook and Loop Strap
Figure 1-9 Ring Scanner/Imager Apertures
1 Imager – Illumination LEDs
2 Beam Aperture
3 Imager – Clear Glass Lens
4 Laser Scanner – Red Glass Lens
Continuous Scan Mode
If Continuous Scan Mode has been enabled (default is disabled), the laser is always on and
decoding. Refer to Chapter 4, Scanner. Caution: Laser beam is emitted continuously. Do not
stare into the laser beam.
HX3 Reference Guide E-EQ-HX3RG-C
Page 29
Components 13
Cables
Figure 1-10 Cable – Audio, Battery and HX3 Connectors
Figure 1-11 Cable – Laser Ring Scanner and HX3 Connectors
Figure 1-12 Cable – Imager Ring Scanner and HX3 Connectors
E-EQ-HX3RG-C HX3 Reference Guide
Page 30
14 Components

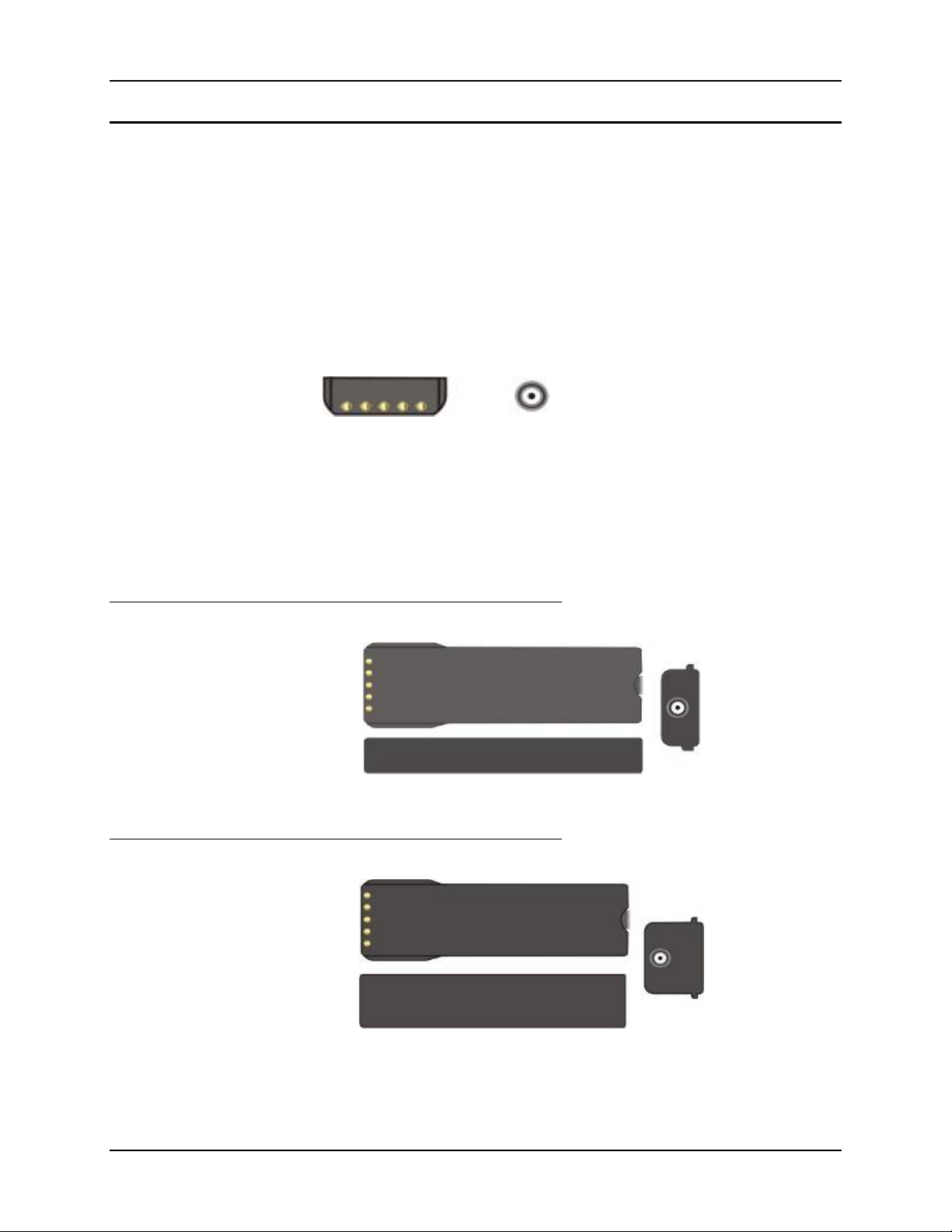

Li-Ion Battery
Note: The HX3 uses the same batteries, charger and cradle as the LXE HX2.
Main battery charging is handled exclu sively by the HX2 Multi-Charger/analyzer and the battery
charger integrated into a powered cradle.
The Standard battery is much thinner than the Extended battery.
Each battery will fit in the battery sleeve on the hip flip and the voice case.
Note: Do not allow water or chemical cleaning agents of any kind to come in contact with the
battery charging contacts or the battery cable connector; they may be damaged. If
necessary, clean them with a soft-bristle, dry brush or compressed air.
Battery Charge/Connect
Terminals
Note: When placing the tethered battery in a hip flip or voice case battery sleeve, ensure the
Battery Charge/Connect terminals are protected from accidental damage by keeping
them covered by the sleeve fabric at all times.
HX3 Battery Cable
Connector
Note: New batteries must be charged prior to use. The backup battery is continually recharged
Standard Battery
Extended Battery
by the tethered battery.
Figure 1-13 Standard Battery
Figure 1-14 Extended Battery
HX3 Reference Guide E-EQ-HX3RG-C
Page 31
Components 15

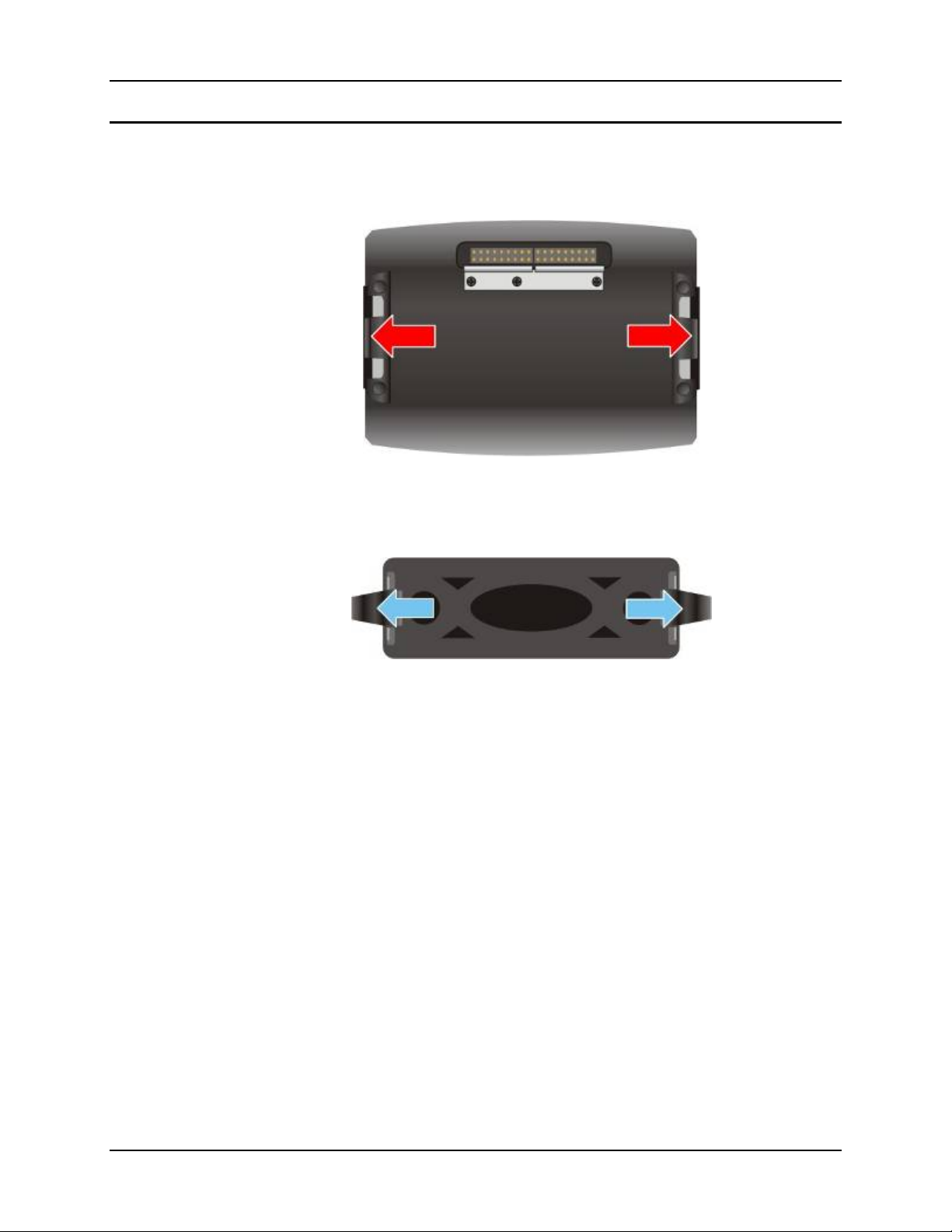

Mounting Bracket Clips
Mounting brackets are pre-installed to the back of the HX3. The brackets (one on each side)
secure the HX3 to the mounting bracket clips on a hip flip.
Figure 1-15 Mounting Brackets
The HX3 mount assembly is pre-installed to a hip flip.
Figure 1-16 Hip Flip Mount Assembly and Clips
Connect
Center the HX3 over the mount assembly and gently push down until both bracket clips (indicated
by the arrows shown above) snap over the brackets on the HX3. Carefully test the connection to
make sure the HX3 is secured to the hip flip.
Reset the connection by pressing down on either mounting clip to release the HX3 and try again.
Disconnect
Remove the HX3 from the mount assembly by pushing down on either mounting clip, or both,
until the HX3 mounting bracket disconnects.
Or you can disconnect from one clip, then lift the HX3 up at a 45 degr ee angle until the other side
disconnects. Lift the HX3 up and away from the mount assembly.
E-EQ-HX3RG-C HX3 Reference Guide
Page 32
16 Components
Mounting Devices
HX3 Voice Case Assembly
There are two optional voice cases for the HX3. One design has a partially open front, allowing
easy access to the HX3 keypad. The second case design has a clear window covering the keypad.
The voice case is a sturdy, lightweight covering for the HX3, tethered battery, and voice
accessories. The voice case cannot protect the HX3 from destructive, excessive force or a harsh or
wet environment. It is designed to protect the HX3 from minor, trivial bumps or jostling.
Additionally, the voice case with window helps protect the HX3 form dirt and dampness.
Hip Flip
Figure 1-17 Hip Flip and Belt
1 HX3 Mounting Bracket on Hip Flip
2 Mounting Bracket Clips
3 A Belt inside the Belt Loop
4 Brace (Adjustable)
HX3 Reference Guide E-EQ-HX3RG-C
Page 33
Components 17
System Status LEDs
Figure 1-18 System Status LEDs
LED Color Indicates . . .
1 System
Status
2 Bluetooth
3 Wireless
Activity
Green – Steady
Green – Blinking
Red – Steady
Red – Blinking
Off
Blue - Blinking Slowly
Blue - Blinking Medium
Blue - Blinking Fast
Off
Amber - Flickering
Amber - Steady
The HX3 is booting.
The HX3 is On, the OS is loaded and the unit
is attached to either a battery with a good
charge or to an external power source such as
a cradle.
Main Battery Low. If the main battery is not
replaced with a fully charged battery before
the backup battery fails, the HX3 is turned
Off.
Main Battery Power Fail.
HX3 is Off or in Suspend.
Bluetooth is active but not connected to a
device.
Bluetooth is paired and connected to a device.
Bluetooth is discovering Bluetooth devices.
Bluetooth hardware has been turned off or it
does not exist in the HX3.
HX3 is booting up.
The HX3 is connected to a wireless network.
Off
When multiple system status conditions are present, the most urgent condition is indicated. The
conditions listed above are in increasing order of urgency by LED type.
The HX3 is not connected to a wireless
network.
E-EQ-HX3RG-C HX3 Reference Guide
Page 34
18 Assembly
Assembly
Connecting the Battery and Ring Scanner
Notes: The unit cannot function unless a battery is securely tethered. Be sure to place the mobile
device in Suspend mode before disconnecting a battery, or all unsaved data may be lost.
Placing the HX3 in suspend terminates the ActiveSync connection. The ActiveSync
connection must be re-established after the HX3 exits suspend.
The battery and ring scanner should not be exchanged or replaced in a dirty, harsh or hazardous
environment. When the tethers are disconnected, any dust or moisture that adheres to the tether
connector can potentially cause damage upon cable re-connection.
Follow the numbers in the following tables to connect the battery and ring scanner to th e HX3.
Note: Before connecting cables to the back, make sure the LXE logo on the HX3 is uppermost
or the following left/right directions won’t work.
Figure 1-19 Tether the Battery and Ring Scanner – Left / Right
When you want to switch connectors from left to right, or vice versa, first gently press downward
on the Retaining Clip, then pinch and pull the cable connector (not the cable!) straight up and
away from the HX3. Do not use a metal object, or extreme force, to remove the cable connector
from the HX3. Re-connect cables and reassemble the HX3 body-worn components.
Ring Scanner on the Left Hand
1 Ring Scanner Tether cable channel
2 Retaining Clip for Ring Scanner Tether Connector
3 Ring Scanner cable connector
4 Battery Cable connector
5 Retaining Clip for Tethered Battery Connector
6 Tethered Battery Cable channel
Ring Scanner on the Right Hand
1 Tethered Battery Cable channel
2 Retaining Clip for Tethered Battery Connector
3 Battery Cable connector
4 Ring Scanner cable connector
5 Retaining Clip for Ring Scanner Tether Connector
6 Ring Scanner Tether Cable channel
HX3 Reference Guide E-EQ-HX3RG-C
Page 35
Assembly 19
Slipping the HX3 into the Voice Case
Partially Open Front
Figure 1-20 HX3 Voice Cases
Figure 1-21 HX3 Voice Case Battery Cable Routing
Clear Window
1. Slide the belt through the belt loop on the voice case. Do not put the belt on yet.
2. Attach the battery cable, ring scanner and audio device to the HX3.
3. Slip the HX3 into the voice case. Be sure the screen and keypad are visible through either the
opening (voice case without clear window) or through the clear window (voice case with
window).
4. Slide the battery cable through the protective loop at the bottom of the voice case. Make sure
the tethered cable for the ring accessory is on the outside of the voice case.
5. Slip the battery into the battery sleeve and connect the battery to the battery cable. The battery
charge terminals (small metallic circles) should always be covered by the sleeve.
E-EQ-HX3RG-C HX3 Reference Guide
Page 36
20 Assembly
6. Press the hook and loop fabric at the top of the device together.
7. The HX3 in the Voice Case is ready for use.
8. Put the belt on. Adjust the belt and voice case for comfort.
Examine the tethers and the hook and loop fabric fastening periodically. If any are loose or
unfastened, tighten the tethers and the top fastener before placing the voice case back into service.
If the voice case is damaged, it should be removed from service.
Note: The HX3 with a voice case does not fit in the cradle. Remove the voice case before
placing the HX3 in a charged cradle.
Connecting the Audio Cable and a Headset
See section titled Set the Audio Speaker Volume.
Note: The audio option draws power from the tethered battery. The mobile device internal
speaker and internal microphone are disabled when a headset and microphone is
connected.
The headset consists of an earpiece, a microphone and an attached cable. The headset attaches to
the audio/battery cable which attaches to the HX3. The mobile device internal speaker is disabled
when a headset is connected.
Figure 1-22 Audio/Battery Cable and Headset
1 Align the audio connector and the headset quick connect cable end. Firmly push the cable
ends together until they click and lock in place.
2 Snap the battery plug into the battery cable connector at the top of the battery.
3 Press the battery/audio connector into either left or right connector on the back of the HX3.
The retaining clip will snap into place and secure the cable connection. Place the cable in the
cable groove.
HX3 Reference Guide E-EQ-HX3RG-C
Page 37
Tapping the Power Key 21
Adjust Microphone and Secure the Cable
Do not twist the microphone boom when adjusting the microphone. The microphone should be
adjusted to be about two finger widths from your mouth.
Make sure the microphone is pointed at your mouth. Note the small “Talk” label near the
mouthpiece. Make sure the Talk label is in front of your mouth. The microphone cable can be
routed over or under clothing.
Under Clothing
• Leave the cable exposed only at the top of the collar.
• Be sure to leave a small loop of cable to allow movement of your head.
Over Clothing
• Use clothing clips to hold the cable close to your body.
• Tuck the cable under the belt, but leave a small loop where it goes under the belt.
• Do not wear the cable on the front of your body. It may get in your way or get
caught on protruding objects.
Tapping the Power Key
The Power key is an oval button located below the LEDs.
When a battery is connected to the HX3 for the first time press the Power key. The mobile device
begins the startup process. And the Status LED is solid green . W ait u ntil th e LED begins blin king
green to indicate the HX3 has successfully booted into the OS.
Suspend/Resume Mode -- At other times, tapping the Power key places the HX3 immediately in
Suspend Mode. Tapping the Power key again immediately returns the HX3 from Suspend.
Note: Placing the HX3 in suspend terminates the ActiveSync connection, if one is established.
The ActiveSync connection must be re-established after the HX3 exits suspend.
E-EQ-HX3RG-C HX3 Reference Guide
Page 38
22 Power Key Functions
Power Key Functions
See Also: Sections titled LED Indicators and System Status LED later in this guide.
• If installed and pre-configured, the wireless client connects automatically during
each reboot.
• If installed and pre-configured, Bluetooth re-connects to nearby paired devices
automatically at the conclusion of each reboot.
• If installed and pre-configured, Wavelink Avalanche connects remotely and
downloads updates automatically during each reboot.
Hardware Reset
Press and hold the Power key for approximately 15 seconds then release the key. After releasing
the Power key, the Status LED lights solid green to indicate the HX3 is rebooting.
If user data was not saved before the Hardware Reset function started, data loss occurs and
unsaved registry settings are lost. User data is saved whenever a Suspend/Resume function is
complete.
Warm Boot
Note: The hardware reset terminates the ActiveSync connection. The ActiveSync connection
must be re-established after the HX3 boots.
This action requires an ActiveSync connection and LXEConnect. Please see
“ActiveSync and the HX3” in Chapter 3 System Configuration for details on
establishing this connection.
| Run and type warmboot. Tap the OK button. A warm boot does not affect the operating
Tap
system, but data and programs in RAM are cleared, and registry changes, if any, are saved.
Network and Bluetooth connections will need to be re-established.
There may be slight delays while the wireless client connects to the network, re-authorization for
voice-enabled applications completes, Wavelink Avalanche management of the HX3 startup
completes, or Bluetooth relationships establish or re-establish.
Note: The warmboot terminates the ActiveSync connection. The ActiveSync connection must be
re-established after the HX3 boots.
HX3 Reference Guide E-EQ-HX3RG-C
Page 39
Power Key Functions 23
Cold Boot
This action requires an ActiveSync connection and LXEConnect. Please see
“ActiveSync and the HX3” in Chapter 3 System Configuration for details on
establishing this connection.
Tap
| Run and type coldboot. Tap the OK button. Factory default settings overwrite all
previously saved user settings.
• Wireless Client configuration will need to be completed by th e System
Administrator.
• Required mappable keys will need to be configured.
• Optional software
1
and LXE application 2 parameters will need to be set up by the
System Administrator.
Important -- Because of the extreme nature of the Cold Boot, LXE recommends that the
Cold Boot process be used only as an emergency procedure and Warm Boot or
Suspend/Resume be used whenever necessary.
Note: Refer to the sectio n titled Po wer Modes
for more information relating to the power states
of the HX3.
Note:
The HX3 reloads the operating system upon every warm boot or cold boot. Anything not
saved or preserved to the registry is lost.
In warm boot, the OS and the CAB files are reloaded from the internal SD card and the
preserved registry is also reloaded.
During cold boot, the system behavior is identical to warm boot with the addition that the
registry is erased, forcing the HX3 to reboot with factory defaults. The registry is recreated
when 20 minutes of uptime elapses or upon the first save or suspend function. It is also
recreated every 10 registry changes and at every warm boot.
Note: The coldboot terminates the ActiveSync connection. The ActiveSync connection must be
re-established after the HX3 boots.
1
Optional software setup may include Summit Wireless Client communication setup, Voice-
Enabled software, Wavelink Avalanche management of the HX3 and Bluetooth device-pairing
and re-connect.
2
LXE application software setup may include Summit Wireless Client communication setup.
E-EQ-HX3RG-C HX3 Reference Guide
Page 40
24 Power Key Functions
Checking Battery Status
The System Status LED indicates the battery status:
Green Steady: The HX3 is booting.
Green Blinking: Battery power is good (or the HX3 is attached to an AC power source).
Red Steady: Main battery power is low. Battery should be replaced as soon as possible.
Red Blinking: Main battery power failure.
Off: Both main and backup batteries have failed or the device is in Suspend mode.
Additional battery information is displayed in the Control Panel.
This action requires an ActiveSync connection and LXEConnect. Please see
“ActiveSync and the HX3” in Chapter 3 System Configuration for details on
establishing this connection.
Tap Start | Settings | Control Panel | Battery icon. Main battery level, backup battery level,
status and other details are displayed.
HX3 Reference Guide E-EQ-HX3RG-C
Page 41
Using the Keypad 25
Using the Keypad
Figure 1-23 5 Key Keypad
The HX3 keypad is designed for use with voice applications. The keypad has five keys which are
designed to be easily identified by color or shape and contour.
The Power key is red. It is located below the LEDs. The Power key is used to turn the HX3 on,
place the HX3 in suspend or wake the HX3 from Suspend.
Note: Placing the HX3 in suspend terminates the ActiveSync connection, if one is established.
The ActiveSync connection must be re-established after the HX3 exits suspend.
The white key is diagonally oriented and has a recessed center. The default value for the white
key is Up Arrow.
The green key is diagonally oriented and has a raised center. The default valu e for the green key
is Down Arrow.
The Blue Modifier key is blue and is horizontally oriented.
The yellow key is vertically oriented. The default value for the yellow key is Enter.
The Blue Modifier key can be used in sequence with the other keys. For example, the default
keypresses are:
• Blue Modifier plus White key = Volume Up
• Blue Modifier plus Green key = Volume Down
• Blue Modifier plus Yellow key = Diamond (programmable) key.
The System Administrator may setup Configurable Keys before releasing the HX3 for daily use.
The Diamond key (Blue+Enter). Maximum length is 7 characters.
Configurable keys are set using the Keypad control panel applet. See Chapter 3 System
Configuration for instruction.
See Appendix A - Key Maps for instruction on the specific keypresses to access all allowed keypad
functions.
E-EQ-HX3RG-C HX3 Reference Guide
Page 42
26 Bluetooth
Bluetooth
This action requires an ActiveSync connection and LXEConnect. Please see
“ActiveSync and the HX3” in Chapter 3 System Configuration for details.
Access:
or
Bluetooth is an option and may not be available on all HX3s. The HX3 default Bluetooth
hardware setting is On.
The LXE HX3 Bluetooth
devices. Only LXE printers or scanners are recognized and displayed in the Bluetooth panel. All
other Bluetooth devices are ignored.
Prerequisite The Bluetooth devices (printers and/or scanners) have been setup to allow them
The HX3 has an ActiveSync connection to a PC running LXEConnect.
| Settings | Control Panel | Bluetooth or Bluetooth icon in taskbar
or Bluetooth icon on desktop
Tap the Bluetooth icon in the taskbar to open the LXEZ Pairing application.
®
module is designed to Discover and pair with nearby LXE Bluetooth
to be “Discovered” and “Connected/Paired”. The System Administrator is
familiar with the pairing function of the Bluetooth devices.
Figure 1-24 Bluetooth LXEZ Pairing Display
The Bluetooth remote device should be as close as possible, and in direct line of sight, with the
HX3 during the pairing process.
HX3 Reference Guide E-EQ-HX3RG-C
Page 43
Bluetooth 27
Initial Use
1. Select Start | Settings | Control Panel | Bluetooth.
2. Tap the Settings Tab.
3. Change the Computer Friendly Name at the bottom of the Settings display. The Bluetooth
HX3 default name is determined by the LXE factory installed software version. LXE strongly
urges assigning every HX3 a unique name (up to 32 characters) before Bluetooth Discovery
is initiated.
4. Check or uncheck the HX3 Bluetooth options on the Settings tab.
5. Tap the OK button to save your changes or the X button to discard any changes.
Settings Tab | Bluetooth Options
Note: These options can still be checked or unchecked whether Bluetooth is enabled or
disabled.
As Bluetooth devices pair with the HX3, the name of the device and an icon representing the type
of device is displayed in the Devices window. The icon state changes as the paired Bluetooth
devices connect and disconnect from the HX3. When the Bluetooth devices are disconnected, the
device icon has a red highlight.
Note: Due to the headless design of the HX3, all Bluetooth dialog pop-up boxes are suppressed
by default, even when the HX3 desktop is viewed with LXEConnect. The dialog pop-ups
may be enabled for viewing with a remote management tool such as LXEConnect.
However the dialog pop-ups should be turned off when the HX3 is not being viewed with
a remote management utility to preserve battery life.
Report when connection lost
A dialog box appears on the HX3 display notifying the user the connection between one (or all) of
the paired Bluetooth devices has stopped. This option is disabled by default.
Click the OK button or the X button to remove the dialog box from the screen.
Report when reconnected
A dialog box appears on the HX3 display notifying the user a connection between one (or all) of
the previously-paired Bluetooth devices is complete. This option is disabled by default.
Click the OK button or the X button to remove the dialog box from the screen.
Report failure to reconnect
If the reconnect timeout (30 minutes) expires, a dialog box appears on the HX3 display notifying
the end-user the connection between one (or all) of the previously-paired Bluetooth devices has
failed. This option is disabled by default.
Click the OK button to remove the dialog box from the screen.
Computer is connectable
There is no dialog connected to this checkbox. Enable this checkbox when you want the HX3 to
be able to pair with other Bluetooth devices. This option is enabled by default.
E-EQ-HX3RG-C HX3 Reference Guide
Page 44
28 Bluetooth
Computer is discoverable
There is no dialog connected to this checkbox. Enable this checkbox when you want the HX3 to
be Discovered by other Bluetooth devices. This option is disabled by default.
Prompt if devices request to pair
A dialog box appears on the HX3 screen notifying the user a Bluetooth device requests to pair
with the HX3. This option is disabled by default.
The requesting Bluetooth device does not need to have been Discovered by the HX3 before the
pairing request is received.
Click the Accept button or the Decline button to remove the dialog box from the screen. This
option is disabled by default.
Continuous search
When enabled, the HX3 never stops searching for a device it has paired with once the connection
is broken (such as the paired device entering Suspend mode, going out of range or being turned
off).
When disabled, the HX3 stops searching after one half hour. The search can be restarted by
putting the HX3 through a Suspend/Resume cycle or accessing the Bluetooth controls via
ActiveSync connection and LXEConnect.
This option is enabled by default.
Note: Placing the HX3 in suspend terminates the ActiveSync connection, if one is established.
The ActiveSync connection must be re-established after the HX3 exits suspend.
HX3 Reference Guide E-EQ-HX3RG-C
Page 45
Bluetooth 29
Subsequent Use
Note: Taskbar and Bluetooth device Icon states change as Bluetooth devices are discovered,
pair, connect and disconnect. A taskbar Bluetooth icon with a red highlight indicates
Bluetooth is active and not paired with any device. A device icon with a red background
indicates a disconnected paired device.
1. Tap the Bluetooth icon in the taskbar or desktop to open the LXEZ Pairing application.
2. Tap the Bluetooth Devices tab, if necessary.
3. Tap the Discover button. When the Bluetooth
Bluetooth devices, the button name changes to Stop. Tap the Stop button to cancel the
Discover function at any time.
4. Any discovered devices are listed in the Bluetooth Devices window.
5. Doubletap a Bluetooth device in the Discovered window to open the Bluetooth device
properties menu.
6. Tap Pair as Scanner to set up the HX3 to receive scanner data.
7. Tap Pair as Printer to set up the HX3 to send data to the printer.
8. Tap Disconnect to stop pairing with the device. Once disconnected, tap Delete to remove the
device name and data from the HX3 Bluetooth Devices list. The device is deleted after the
user taps OK.
®
module begins searching for in-range
9. Upon successful pairing, the selected device may react to indicate a successful connection.
The reaction may be an audio signal from the device, flashing LED on th e device, or a dialog
box is placed on the HX3 display.
10. Whenever the HX3 returns from Suspend Mode, all previously paired, live, Bluetooth devices
in the vicinity are paired, one at a time, with the HX3. If the devices cannot connect to the
HX3 before the re-connect timeout time period expires there is no indication of the
continuing disconnect state.
Note: The Bluetooth printer port is COM9.
See Also: Chapter 3 – System Configuration, section titled Bluetooth.
E-EQ-HX3RG-C HX3 Reference Guide
Page 46
30 Bluetooth
Bluetooth Devices
Assumption: The System Administrator has Discovered and Paired targeted Bluetooth devices
for each HX3. The System Administrator has also enabled / disabled Bluetooth
settings and assigned a Computer Friendly Name for each HX3. See Chapter 3
System Configuration, Bluetooth control panel applet and supported Bluetooth
printers and scanners.
The Bluetooth taskbar Icon state and Bluetooth LED states change as Bluetooth devices are
discovered, pair, connect, and disconnect. The Bluetooth LED is located above the Power key on
the front of the HX3.
The Bluetooth LED blinks slowly when it is idle. Blinks quickly when the HX3 is discovering
other Bluetooth devices. And blinks normally when it is connected. There may be audible or
visual signals from paired devices as they re-connect with the HX3. Only LXE printers or
scanners are recognized and displayed in the Bluetooth panel. All other Bluetooth devices are
ignored.
Taskbar
Icon
Bluetooth
LED
Note: When an active paired device (not the HX3) enters Suspend Mode, is turned Off or leaves
the HX3 Bluetooth range, the Bluetooth connection between the linked device and the
HX3 is lost. There may be audible or visual signals as paired devices disconnect from the
HX3. The Bluetooth remote device should be as close as possible, in direct line of sight,
with the HX3 during the pairing process.
Legend
®
Bluetooth
Bluetooth device(s).
HX3 is not connected to any Bluetooth device.
HX3 is ready to connect with any Bluetooth device.
HX3 is out of range of all paired Bluetooth device(s). Connection is
inactive.
Blue - Blinking Slowly
Blue – Blinking Medium
Blue - Blinking Fast
Off
module is connected to one or more of the targeted
Bluetooth is active but not connected to a
device.
Bluetooth is paired and connected to a
device.
Bluetooth is discovering other Bluetooth
devices.
Bluetooth hardware has been turned off or
does not exist in the HX3.
See Accessories for supported Bluetooth printers and scanners.
See Also: Chapter 3 – System Configuration, section titled Bluetooth.
HX3 Reference Guide E-EQ-HX3RG-C
Page 47
Bluetooth 31
Bluetooth Mobile Barcode Reader Setup
Please refer to the mobile Bluetooth scanner manufacturer’s User Guide; it may be available on
the manufacturer’s web site. Please contact your LXE representative for Bluetooth product
assistance.
Introduction
LXE supports several different types of barcode readers. This section describes the interaction and
setup for a mobile Bluetooth laser scanner or laser imager connected to the HX3 using Bluetooth
functions.
• The HX3 must have the Bluetooth hardware and software installed. Contact your
LXE representative for details.
• If the HX3 has a Bluetooth address identifier barcode label affixed, then Bluetooth
hardware and software is installed.
• The mobile Bluetooth laser scanner / laser imager battery is fully charged.
• The HX3 batteries are fully charged. Alternatively, the HX3 may be in a powered
cradle.
• The barcode numbering examples in this segment are not real and should not be
created nor scanned with a Bluetooth scanner.
• To open the LXEZ Pairing program, tap Start | Settings | Control Panel |
Bluetooth or tap the Bluetooth icon on the desktop or tap the Bluetooth icon in
the taskbar.
LnkB00440fd01020 - Sample
Figure 1-25 Sample Bluetooth Address Barcode Label
Locate the barcode label, similar to the one shown above, attached to the mobile device. The label
is the Bluetooth address identifier for the HX3.
The mobile Bluetooth scanner / imager requires this information before discovering, pairing,
connecting or disconnecting can occur.
Important: The HX3 Bluetooth address identifier label should remain protected from
damage (rips, tears, spills, soiling, erasure, etc.) at all times. It may be required when pairing,
connecting, and disconnecting new Bluetooth barcode readers.
E-EQ-HX3RG-C HX3 Reference Guide
Page 48
32 Bluetooth
HX3 with Label
If the HX3 has a Bluetooth address barcode label attached, follow these steps:
1. Scan the Bluetooth address barcode label, attached to the HX3, with the LXE Bluetooth
mobile scanner.
2. If this is the first time the Bluetooth scanner has scanned the HX3 Bluetooth label, the devices
are paired. If not, go to the next step.
3. Open the LXEZ Pairing panel [Start | Settings | Control Panel | Bluetooth].
4. Tap Discover. Locate the Bluetooth scanner in the discovery panel.
5. Doubletap on the Bluetooth scanner. The right-mouse-click menu appears.
6. Select Pair as Scanner to pair the HX3 with the Bluetooth mobile scanner.
The devices are paired. The Bluetooth barcode reader responds with a series of beeps and LED
flashes. Refer to the following section titled Bluetooth Beep and LED Indications.
Note: After scanning the HX3 Bluetooth label, if th ere is no beep and no LED flash from the
Bluetooth device, the devices are currently paired.
HX3 Reference Guide E-EQ-HX3RG-C
Page 49
Bluetooth 33
HX3 without Label
If the HX3 Bluetooth address barcode label does not exist, follow these steps to create a unique
Bluetooth address barcode for the HX3:
First, locate the HX3 Bluetooth address by tapping Start | Settings | Control Panel | Bluetooth |
About tab.
Figure 1-26 About tab and Bluetooth Address
3
Next, create a Bluetooth address barcode label for the HX3
.
The format for the barcode label is as follows:
• Barcode type must be Code 128.
• FNC3 character followed by string Uppercase L, lowercase n, lowercase k,
uppercase B and then the Bluetooth address (12 hex digits, no colons). For example,
LnkB0400fd002031.
Create and print the label.
Scan the HX3 Bluetooth address barcode label with the mobile Bluetooth barcode reader.
The devices are paired. The Bluetooth barcode reader responds with a series of beeps and LED
flashes. Refer to the following section titled Bluetooth Beep and LED Indications.
Note: After scanning the HX3 Bluetooth label, if th ere is no beep and no LED flash from the
mobile Bluetooth device, the devices are currently paired.
3
Free barcode creation software is available for download on the World Wide Web. Search using
the keywords “barcode create”.
E-EQ-HX3RG-C HX3 Reference Guide
Page 50
34 Bluetooth
Bluetooth Beep and LED Indications
The following indications relate to the behavior of the mobile Bluetooth scanner, not the HX3.
Beep Type Behavior
1 beep Acknowledge label
2 beeps at low frequency Label rejected
Beep will sound high-low-high-low Transmission error
Beep will sound low-medium-high Link successful
Beep will sound high-low-high-low Link unsuccessful
LED Behavior
Yellow LED blinks at 2 Hz Linking in progress
Off Disconnected or unlinked
Yellow LED blinks at 50 Hz Bluetooth transmission in progress
Yellow LED blinks at the same rate
as the paging beep (1 Hz)
Green LED blinks once a second Disabled indication
Upon startup, if the mobile Bluetooth scanner sounds a long tone, this means the scanner has not
passed its automatic Selftest and has entered isolation mode. If the scanner is reset, the sequence is
repeated. Contact LXE Support for assistance.
Bluetooth Printer Setup
The Bluetooth managed device should be as close as possible, in direct line of sight, with the HX3
during the pairing process.
1. Open the LXEZ Pairing panel [Start | Settings | Control Panel | Bluetooth].
2. Tap Discover. Locate the Bluetooth printer in the discovery panel.
3. Tap and hold on the Bluetooth printer un til the right-mouse-click menu appears.
4. Select Pair as Printer to pair the HX3 with the Bluetooth managed printer.
The devices are paired. The Bluetooth managed printer may respond with a series of beeps or
LED flashes.
Please refer to the Bluetooth managed printer manufacturer’s User Guide; it may be available on
the manufacturer’s web site. Please contact your LXE representative for Bluetooth product
assistance.
Paging
Note: If there is no beep or no LED flash from the Bluetooth managed printer, the HX3 and the
printer are currently paired.
HX3 Reference Guide E-EQ-HX3RG-C
Page 51
Data Entry 35
Data Entry
You can enter data into the HX3 through several different methods. The Ring Scanner aperture
provides barcode data entry, the Input/Output (I/O) ports, the built-in microphone and speaker are
used to input/output data, and the physical and virtual keypads provide text entry.
Keypad Entry
The HX3 keypad provides limited data entry for use with voice applications. The default key
actions are up arrow, down arrow, blue modifier and enter. Other key functions can be obtained
using the programmable key (Blue+Enter) or by remapping one of the mappable keys.
Please refer to Appendix A – Key Maps for instruction on the unique keypresses to access the
available keyboard functions.
The Blue key is pressed when you want to use a second key function. For example, when you
press the Blue key (the sticky key), then press th e key that has the desired second-function key,
the second-function key is the “active” key.
Ring Scanner Data Entry
Barcode Scanner
To scan with the laser barcode scanner, point the ring scanner laser aperture towards a barcode
and press the Scan button. You will see a red laser beam strike the barcode. Align the red beam so
that the barcode is centered within the beam. The laser beam must cross the entire barcode. Move
the ring scanner towards or away from the barcode so that the barcode takes up approximately
two-thirds the width of the beam.
There may be an audio response combined with the Scan function.
See section titled Scan Status LED.
Read all cautions, warnings and labels before using the ring
scanner.
Do not look into the laser’s lens.
Do not stare directly into the laser beam.
Correct Scan Incorrect Scan Incorrect Scan
Figure 1-27 Laser Scan Beam on Linear Barcode
E-EQ-HX3RG-C HX3 Reference Guide
Page 52
36 Data Entry
2D Imager
Figure 1-28 Imager Bracketed Crosshair Target on 2D Barcode
To scan with the Imager Ring Scanner, point the scan aperture towards a 2D barcode and press the
Scan button. You will see a bracketed crosshair strike the barcode. Align the brackets so that the
center of the barcode is covered by the crosshair.
Move the ring scanner towards or away from the barcode until a response is emitted by the HX3
(1 beep, 2 beeps, a WAV file, etc) or the bracketed crosshair times out and disappears.
The Imager LED may illuminate when the Scan button is pressed. There are three options th at can
be set by the System Administrator using the Scanner control panel applet: Internal illumination,
External illumination, or Both. If external illumination or both is chosen, there are three white
LEDs located above the imager aperture that will illuminate for the duration of the scan then turn
off.
See the previous section titled Tethered Ring Scanner / Imager figure titled Ring Scanner/Imager
Apertures.
Scan Status LED
The Scan Status LED (oval shaped LED on the top of the ring scanner) turns red when the laser
beam is on. Following a barcode scan and read the Scan Status LED turns green for two seconds
and the HX3 may beep, indicating a successful scan. If the scan was unsuccessful, the Scan Status
LED turns off and a different beep sequence may be heard.
The ring scanner engine and Scan Status LED automatically turn off after a successful or
unsuccessful read. The ring scanner is ready to scan again after the Scan button is released, or
after the Scan Status LED turns off following a successful scan.
Voice Data
Figure 1-29 Scan Status LED
Data is entered into the HX3 by speaking into the headset’s microphone (or the internal
microphone located to the left of the LXE logo) when prompted.
HX3 Reference Guide E-EQ-HX3RG-C
Page 53
Cleaning the Ring Scanner Aperture 37
Cleaning the Ring Scanner Aperture
Keep fingers and rough or sharp objects away from the ring scanner aperture. If the glass becomes
soiled or smudged, clean only with a standard household cleaner such as Windex® without
vinegar or use Isopropyl Alcohol. Do not use paper towels or harsh-chemical-based cleaning
fluids since they may result in damage to the glass surface. Use a clean, damp, lint-free cloth. Do
not scrub optical surfaces. If possible, clean only those areas which are soiled. Lint/particulates
can be removed with clean, filtered canned air.
Strap Assemblies
Caution: Do not perform the following procedures if the ring barcode reader is tethered to the
HX3. There is a possibility the Scan button ma y be pressed inadvertently and the laser beam
emitted.
LXE recommends that installation or removal of accessories be performed on a clean, well-lit
surface. When necessary, protect the work surface, the mobile device, and components from
electrostatic discharge.
Note: Do not touch, push on or brace your finger against the scan aperture at any time.
Removing / Replacing the Ring Finger Strap Assembly
Note: Do not pull on the finger strap or the flexible liner to remove the finger strap assembly.
This quick disconnect function is designed for occasional safety hazards and is not
intended for daily removal.
A 20 pak of Ring Scanner Finger Straps is available from LXE (8600A401RINGSTRAP). See
Accessories.
Using the Quick Disconnect Function, grasp the finger strap and pull the finger strap out and
away from the ring scanner.
Before attaching the finger strap to the trigger module, thread the finger strap, warning label side
down, first through the hinge, then under and over the pin next to the scan button.
It should slide easily.
Removing / Replacing the Trigger Module
Equipment Needed: Phillips screwdriver with a blade diameter of 1/8” (.4mm). Not supplied by
LXE.
LXE recommends that installation or removal of accessories be performed on a clean, well-lit
surface. When necessary, protect the work surface, the mobile device, and components from
electrostatic discharge.
A 20 pak of full Trigger assemblies is available from LXE (8600A403TRIGGERKIT). See
Accessories.
E-EQ-HX3RG-C HX3 Reference Guide
Page 54
38 Strap Assemblies
Remove Finger Strap Assembly
Original finger strap assemblies – Remove the flexible liner from the finger strap assembly and
discard the flexible liner.
Version 2 finger strap assemblies – Fold the flexible liner back until the screw hole is visible.
1. Rotate the trigger module until the black screw is visible as shown in the following figure.
2. Using a Phillips screwdriver with a blade diameter of 1/8” (.4mm) loosen the black screw
counter-clockwise and set the screw aside in a safe place.
3. Remove the trigger module.

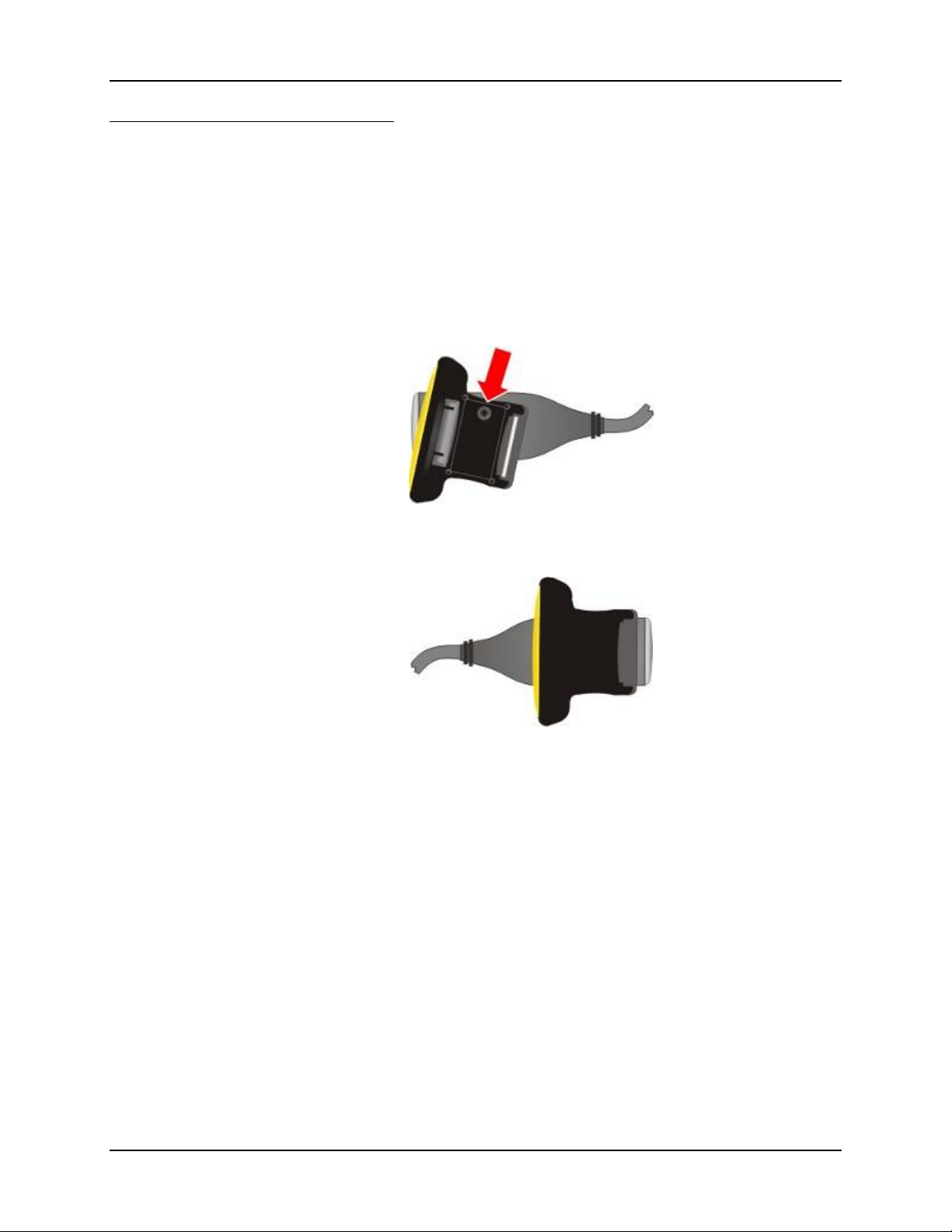

Figure 1-30 Step 1: Rotate Trigger Module and Remove Screw
Figure 1-31 Step 2: Rotate Trigger Module again until it pops up. Remove the
trigger module.
HX3 Reference Guide E-EQ-HX3RG-C
Page 55
Strap Assemblies 39
Replace
1. Position the trigger module on the base of the Ring Scanner, making sure the empty screw
hole is visible as shown in the following figure.
2. Find the tiny black screw that you removed previously.

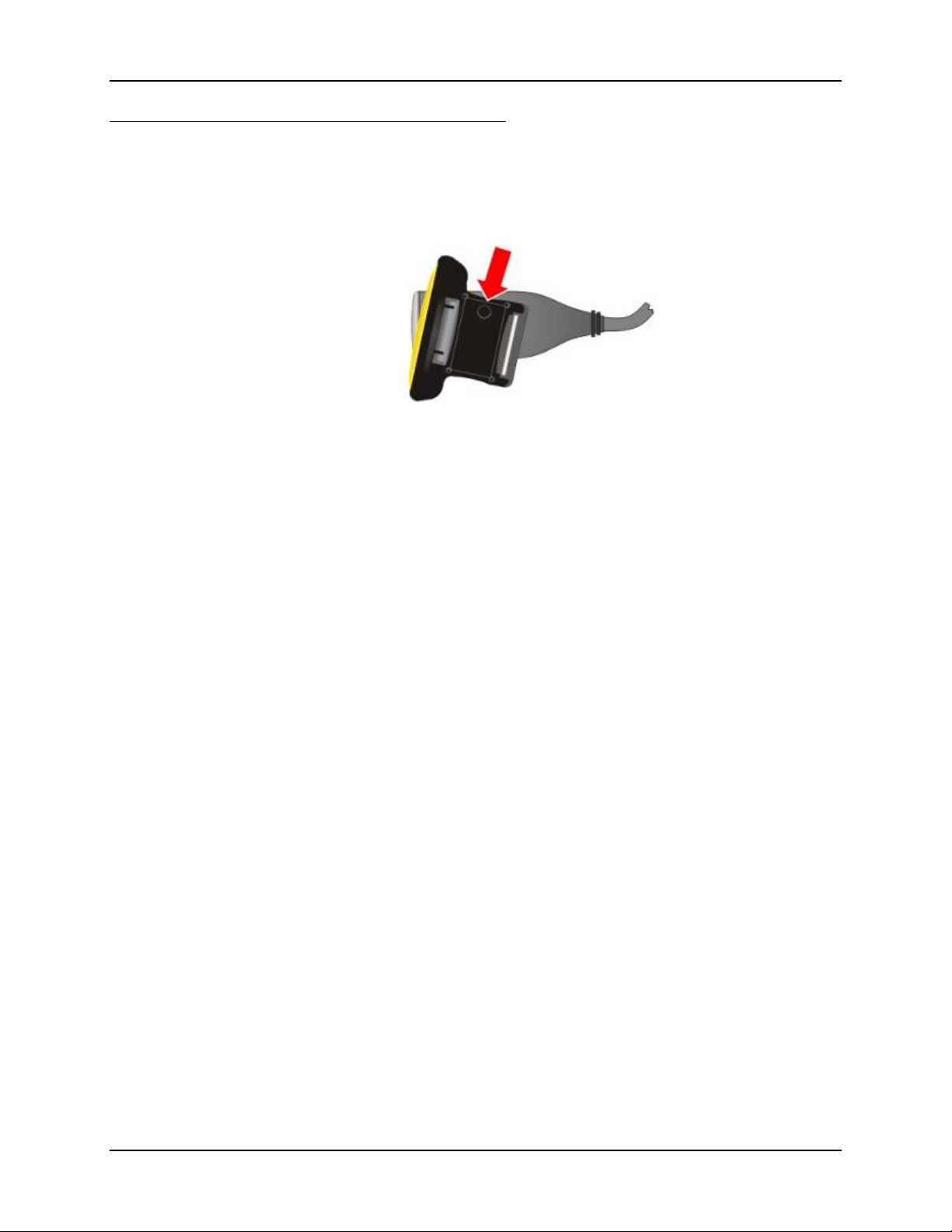

Figure 1-32 Replace Trigger Module
3. Using a Phillips screwdriver with a blade diameter of 1/8” (.4mm) rotate the black screw
clockwise until the trigger module is secured to the ring scanner.
4. Install the finger strap. See Removing / Replacing the Ring Finger Strap Assembly.
E-EQ-HX3RG-C HX3 Reference Guide
Page 56
40 Getting Help
Getting Help
All LXE manuals are now available on one CD and they can also be viewed/downloaded from the
LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD.
You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals
CD, in the file titled Contacting LXE. This information is also available on the LXE website’s
ServicePass page.
Explanations of terms and acronyms used in this manual are located in the file titled LXE
Technical Glossary on the LXE Manuals CD.
Manuals
• HX3 User’s Guide - English
• HX2 Cradle Reference Guide
• HX3 Reference Guide
• HX2 Multi-Charger User’s Guide
• LXE Security Primer
• CE API Programmers Guide
Accessories
Power
Standard Battery, Lithium Ion HX2A301BATTSTD
Extended Battery, Lithium Ion HX2A302BATTEXT
6 slot battery charger with universal power supply. Includes
analyzing capabilities on one slot. US power cord included.
6 slot battery charger with universal power supply. Includes
analyzing capabilities on one slot. Power cord not included.
Cradle
Desk cradle with spare charging slot. Includes universal power
supply. US power cord included.
Desk cradle with spare charging slot. Includes universal power
supply. Power cord not included.
• Ring Scanner Programming Guide
Contact your LXE representative for user and reference guide availability and subsequent updates.
Note: The HX3 uses the same batteries, cradle, charger and SDK as LXE’s HX2.
HX2A310CHRG6US
HX2A311CHRG6WW
HX2A312DESKCRADLEUS
HX2A313DESKCRADLEWW
Mobility
Hip Flip (for belt mounting) HX2A221HIPFLIP
Voice case (for belt mounting) HX3A220VOICECASE
Voice Case (for belt mounting) with viewing window HX2A222VOICECASE
Belt for hip flip or voice case 9200L67
HX3 Reference Guide E-EQ-HX3RG-C
Page 57
Getting Help 41
Cables
USB ActiveSync Cable (Type A to HX3 cradle connector) HX2A001CBLACTVSYNC
Battery Cable with Audio HX2A003CBLBATTAUDIO
Battery Extension Cable HX2A004CBLBATTEXT
Cable Connector Plug HX2A008CBLCONPLUG
Miscellaneous
CD with CE 5.0 API’s and LXE API’s with documentation for
custom application development
Ring Scanner Trigger Assembly, 20 pack 8600A403TRIGGERKIT
Ring Scanner Strap Kit, 20 pack 8600A401RINGSTARP
Barcode Readers
SR Laser Ring Scanner (long cable with quick disconnect adapter
cable)
2D Imager Ring (long cable with quick disconnect adapter cable) 8621A101SRLIMAGER
Replacement Finger Straps for Ring Scanners and Imagers, Pack
of 20
LXE Bluetooth module with laser ring scanner, battery, two
hand/wrist straps (large and small)
LXE Bluetooth module with 1D/2D imager ring scanner, battery,
two hand/wrist straps (large and small)
Li-Ion Spare Battery for LXE Bluetooth Ring Scanner Module 8650A376BTBOHBATTERY
LXE 8-bay battery charger with US power cord 8650A377BTBOHCHGRUS
LXE single-bay charger with US wall plug 8651A379SINGLECHGRUS
PowerScan 7000BT Scanner RS-232 with pointer 8700A301SCNRBTSRI
PowerScan 7000BT Base Station, RS232, without universal power
supply.
PowerScan 7000BT Base Station Power Supply, Std US, 120V 8700A502PSACUS
PowerScan 7000BT, RS232 Cable for Base Station, DB9S, Coil,
8’
PowerScan 7000BT Battery Charger with Power Supply, Four
Station, US Std
PowerScan 7000BT Battery Pack 8700A504BATT
Bluetooth Standard Range Fuzzy Logic laser 8810A326SCNRBTFZ
Bluetooth Auto Range LORAX laser 8820A327SCNRBTER
Spare battery 8800A376BATTERY
US AC Power Cord (use with 8800A301ACPS and
8800A379CHGRBASE)
Single Slot Universal Battery Charger adapter cup for 8800
Battery
Single slot battery charger with International power supply 8800A378CHGR1SLOT
Universal Battery charger 4-Slot Base. Power Supply included, no
AC power cord.
HX2A501CE50SDK
8611A101SRLLASER
8600A401RINGSTRAP
8651A100BTLASERKIT
8652A100BTIMAGERKIT
8700A501BASERS232
8700A001CBL8DA9F
8700A503CHGR4US
8800A051POWERCORD
8800A377CHGRADPTRCUP
8800A379CHGRBASE
E-EQ-HX3RG-C HX3 Reference Guide
Page 58
42 Getting Help
LS3408 Scanner Holster for Belt 8200A501HOLSTRBELT
Mounted Take Up Reel (Mounted applications) 8000A501INDREEL
Auto Sense Intellistand, Hands Free Scanning 8500A505STANDSMT
Strap with Scanner Clip 9000A411SCNRSTRAP
CBL ASSY, DA9F, 9ft (cradle to terminal) 8500A051CBL9DA9F
Desk Cradle, Radio/Charging, Multi-Interface (requires data cable
and power supply)
Desk Cradle, Charge Only, Multi-Interface (requires data cable
and power supply)
Forklift Cradle, Radio/Charging, Multi-Interface (requires data
cable and power supply)
Forklift Cradle, Charge Only, Multi-Interface (requires data cable
and power supply)
US AC Power Cord (use with 8800A301ACPS and
8800A379CHGRBASE)
Universal Desktop Power Supply 90-264VAC, 9VDC, 2A, EPS 8800A301ACPS
9-60VDC Forklift Power Supply (For Use with Forklift Cradles) 8800A302DCPS
Power Cable: Connects DC Power Supply to Forklift Cradle 8800A052DCPWRCABLE
Forklift Rugged Scanner Holder with RAM mount (all metal with
cloth padding)
8800A001CRADLERCMI
8800A002CRADLECMI
8800A003CRADLEVRCMI
8800A004CRADLEVCMI
8800A051POWERCORD
8800A005STAND
Audio
Single ear, single headband, headset with noise canceling
microphone, includes 5 replacement windscreens
Single ear, dual headband, headset with noise canceling
microphone, includes 5 replacement windscreens
Dual ear, behind the head, headset with noise canceling
microphone, includes 5 replacement windscreens
Replacement foam block for 502 dual band headsets, qty 1 HX1A504AHSBLOCKFOAM
Replacement head yoke for dual band 502 headset, qty 1 HX1A505DUALYOKE
Replacement head yoke for single band 501 headset, qty 1 HX1A506SINGLEYOKE
Replacement windscreen for all headset microphones, 10 Pack HX1A508WINDSCREEN10
Replacement windscreen for all headset microphones, 50 Pack HX1A509WINDSCREEN50
Replacement foam ear piece cover for 501 and 502 headsets,
10 pack
Replacement foam ear piece cover for 501 and 502 headsets,
50 pack
Replacement leatherette ear piece cover for 501 and 502 headsets,
10 pack
Replacement leatherette ear piece cover for 501 and 502 headsets,
50 pack
HX1A501SNGBHEADSET
HX1A502DUALBHEADSET
HX1A503BTHHEADSET
HX1A510FOAMEAR10
HX1A511FOAMEAR50
9000A512EARCOVLTHR10
9000A513EARCOVLTHR50
HX3 Reference Guide E-EQ-HX3RG-C
Page 59
Chapter 2 Physical Description and Layout
Hardware Configuration
System Hardware
The HX3 hardware configuration is shown in the following figure.
Voice Case
HipFlip
and Belt
Figure 2-1 System Hardware
E-EQ-HX3RG-C HX3 Reference Guide
Page 60
44 Hardware Configuration
802.11 Wireless Client
The HX3 has an LXE 802.11 network card that supports diversity with two internal antennas. The
CPU board does not allow hot swapping the network card. Adjusting power management on the
network card is set to static dynamic control.
WEP, WPA and LEAP are supported. See Chapter 5 – Wireless Network Configuration.
Central Processing Unit
The CPU is a 400MHz Intel Xscale PXA255 CPU. The operating system is Microsoft Windows
CE 5.0. The OS image is stored on an internal SD flash card and is loaded into DRAM for
execution.
Xscale turbo mode switching is supported and turned on by default.
The HX3 supports the following I/O components of the core logic:
• One SD card slot, inaccessible to the end-user.
• One TTL serial port designed to interface with LXE ring scanner only.
• One RS-232 serial port accessible via the cradle.
• USB master accessible via the cradle.
• USB client accessible via the cradle.
System Memory
The 400MHz CPU configuration supports 128MB SDRAM, 128MB SD card. SD card location is
inaccessible to the end user.
The system optimizes for the amount of SDRAM available. The operating system executes out of
RAM.
Internal flash is used for boot loader code and system low-level diagnostics code. Bootloader code
is validated at system startup. The UUID required by CE 5.0 is stored in the boot flash. A second
copy of the bootloader code is stored on the internal SD Flash drive, so that if a damaged
bootloader is detected, it may be re-flashed correctly.
Internal SD Memory Card
The HX3 has one SD card interface for storage of operating system and program code, as well as
persistent storage. The SD slot is inaccessible and ships with an LXE-qualified 128MB (optional
512MB) SD Flash card.
The internal SD flash card supports a FAT file system, via a special device driver, and appears to
the OS as a folder. This allows the contents to be manipulated via the standard Windows CE
interface. Operating system files are hidden on this drive with a terminal unique identifier in the
internal flash, to prevent them being accidentally erased by a user. In addition, the registry hive
files are stored on this device. The amount of Flash memory available for customer use is the
original SD flash card size less 40MB.
HX3 Reference Guide E-EQ-HX3RG-C
Page 61
Hardware Configuration 45
Power Supply
The LXE HX3 uses two batteries for operation. A Lithium-Ion (Li-Ion) battery supplies power to
the HX3 only when tethered to the HX3. The main battery is either the 2000 mAh (Standard) or
the 4000 mAh (Extended) battery. Only one main battery can be tethered to the HX3 at a time.
The batteries can be hot-swapped after the HX3 is placed in Suspend mode.
Note: Placing the HX3 in suspend terminates the ActiveSync connection, if one is established.
The ActiveSync connection must be re-established after the HX3 exits suspend.
The internal backup battery is a 50 mAh Nickel Cadmium (NiCad) battery. The backup battery is
recharged indirectly by the HX3 with a tethered battery. Recharging maintains the backup battery
near full charge at all times. When the backup battery is fully drained, it may take up to 5 hours to
recharge. The capability to discharge the backup battery is provided (see the HX3 Battery Control
Panel applet) to allow the user to condition the backup battery in order to recover full battery
capacity. The backup battery must be replaced by qualified service personnel. The backup battery
has a minimum 2 year service life.
When the HX3 is docked in a powered cradle, the HX3 receives USB/serial signals through the
cradle connector on the bottom of the HX3 and the cradle connector in the HX3 docking bay. The
HX3 must be firmly seated in the docking bay before USB/serial communication can occur. An
extra standard or extended Li-Ion battery pack can be recharged in the powered cradle while one
of the batteries is tethered to, and powering, the HX3. The stan dard battery is fully recharged in a
powered cradle in 4 hours. The extended battery is fully recharged in 8 hours.
Note: Docked HX3 -- An uninterrupted external power source (wall AC/DC adapter connected
to the HX3 cradle) transfers signals from the USB ports in the front of the cradle and the
serial port on the back of the cradle, to the HX3. HX3 frequent connection to a fully
charged tethered battery, is recommended to maintain backup battery charge status, as
the backup battery cannot be recharged by a dead or missing tethered battery.
The LXE HX2 Multi-Charger is designed to simultaneously charge up to six standard
Rechargeable Lithium Ion Battery Packs in less than four hours, depending upon battery pack
temperature and ambient conditions. The Extended battery packs require less than 8 hours. The
HX2 Multi-Charger can charge up to five Standard and Extended batteries when they are not
tethered to the HX3. See section titled HX2 Multi-Charger.
E-EQ-HX3RG-C HX3 Reference Guide
Page 62
46 Hardware Configuration
Bluetooth LXEZ Pairing
The HX3 contains Bluetooth version 2. 0 with Enhanced Data Rate (EDR) up to 3.0 Mbit/s over
the air. Bluetooth device connection (or pairing) can occur at distances up to 32.8 ft (10 meters)
Line of Sight. The wireless client retains wireless connectivity while Bluetooth is active.
The user will not be able to select PIN authentication or encryption on connections from the HX3.
However, the HX3 supports authentication requests from pairing devices. If a pairing device
requests authentication or encryption, the HX3 displays a prompt for the PIN or passcode.
Maximum encryption is 128 bit. Encryption is based on the length of the user’s passcode.
Bluetooth will simultaneously support one printer as a slave Bluetooth device and one scanner,
either as a slave or as a master Bluetooth device.
Blue LED
Blue LED
Blue LED
Blue LED
See Chapter 3 System Configuration, control panel section titled Bluetooth.
Barcode data captured by the Bluetooth scanner is manipulated by the settings in the HX3
Scanner Properties control panel applet.
Multiple beeps may be heard during a barcode scan using a mobile Bluetoo th scanner; beeps from
the mobile Bluetooth scanner as the barcode data is accepted/rejected, and other beeps from the
HX3 during final barcode data manipulation.
Blinking slowly Bluetooth is active but not connected to a device.
Blinking medium Bluetooth is paired and connected to a device.
Blinking fast Bluetooth is discovering other Bluetooth devices.
Unlit Bluetooth hardware has been turned off or does not
exist in the HX3.
HX3 Reference Guide E-EQ-HX3RG-C
Page 63
Hardware Configuration 47
Input/Output Connectors
The HX3 has three I/O connectors. Two connectors are located next to each other on the back of
the mobile device. Each of the two connectors (one for left-handed users and the other for righthanded users) interfaces with peripherals such as a Laser Ring Scanner, an Imager Ring Scanner,
an audio headset and a tethered battery.
Located on the back of HX3 and can accommodate a:
Connector 1
Connector 2
• Tethered Laser or Imager Scanner
• Tethered Headset/Microphone and Battery
• Tethered Battery
Located on the back of HX3 and can accommodate a:
• Tethered Laser or Imager Scanner
• Tethered Headset/Microphone and Battery
• Tethered Battery
Connector 3
The third I/O connector is used when docking the HX3 in a cradle. The cradle has RS-232, USB
Client, unpowered USB Host and Power connections. The power connection on the cradle
supplies power to the battery charging bays. All communication is managed by the cradle.
Located on the bottom of HX3 and can accommodate:
• Cradle
• Cradle Power Input
• USB Keyboard and mouse through cradle
Figure 2-2 COM Ports
E-EQ-HX3RG-C HX3 Reference Guide
Page 64
48 Hardware Configuration
Audio Support
Speaker
The internal speaker supplies audible verification signals normally used by the Window’s CE
operating system. The speaker is located on the front of the HX3, above the Enter key. The mobile
device emits a Sound Pressure Level (loudness) of at least 102 dB measured as follows:
The default is 1 beep for a good scan and 2 beeps for a bad scan.
Volume Control
Volume control is managed by a Windows CE control panel applet, an API and the Blue+White
and Blue+Green key sequences. Volume control is covered in greater detail later in this guide.
Voice
All Microsoft-supplied audio codecs are included in the OS image. The hardware codecs, the
input and output analog voice circuitry and the system design are designed to support voice
applications using a headset connected to the “Tethered Headset/Microphone and Battery”
accessory cable.
• Frequency: 2650 +
• Distance: 10 cm on axis in front of Speaker opening in front of unit.
• Duration : Continuous 2650 Hz tone.
Some of the options in this section require an ActiveSync connection and
LXEConnect. Please see “ActiveSync and the HX3” in Chapter 3 System
Configuration for details on establishing this connection.
100 Hz
HX3 Reference Guide E-EQ-HX3RG-C
Page 65
Power Modes 49
Power Modes
By default, Power Management is disabled on the HX3. LXE recommends the
default Power Management settings remain unchanged.
1. On
2. Tap Power key
3. Power key tap
4. Suspend
5. Tethered battery
and backup battery
depleted
On Mode
6. Off
7. Power Restored
and On key
pressed
Figure 2-3 Power Modes – On, Suspend and Off
After a new HX3 has been received, a charged battery tethered, and the Power key tapped, the
HX3 is always On until both batteries are drained completely of power.
When the tethered battery and backup battery are drained completely, the unit is in the Off mode.
The unit transitions from the Off mode to the On mode when a charged battery is attached to the
tether or external power is applied (for example, by docking the HX3 in a powered cradle) and the
HX3 Power key is pressed.
E-EQ-HX3RG-C HX3 Reference Guide
Page 66
50 Power Modes
Suspend Mode
The Suspend mode is entered when the user taps the Power key.
To extend battery life, place the HX3 in suspend when not in use.
The HX3 should be placed in Suspend Mode before hotswapping the main battery.
Hotswapping the Ring Scanner does not require placing the HX3 in Suspend Mode.
Exit suspend by tapping the Power key.
Note: Placing the HX3 in suspend terminates the ActiveSync connection, if one is established.
The ActiveSync connection must be re-established after the HX3 exits suspend.
Off Mode
The unit is in Off Mode when the tethered battery and the backup battery are depleted. Connect a
fully charged main battery and press the Power key to turn the HX3 On.
HX3 Reference Guide E-EQ-HX3RG-C
Page 67
The Keypad 51
The Keypad
The Blue key does not auto-repeat. Default timeout for any pressed key in any mode is 1 second.
Figure 2-4 The 23-key Keypad
See also: Appendix A - Key Maps.
Blue Modifier Key
Pressing the Blue key once toggles the Blue mode.
The Blue mode is exited when a key is pressed (including the Alpha key) .
The Blue key does not need to be held down when another key is pressed.
When the Blue key is kept pressed down while another key is pressed, then the Blue mode is
considered On. In this case, the Blue mode is exited when the user releases the Blue key.
See also: Appendix A - Key Maps.
Mappable Keys
Tap
Using the KeyPad Control applet, you could set the Diamond key (Blue+Enter) to function as the
ESCAPE key enabling you to use one keypress when you want to use the ESC function.
See Appendix A – Key Maps for instruction on the specific keypresses to access all keypad
functions.
The mappable key can be mapped by the user to generate any key code defined by Windows CE.
Some of the options in this section require an ActiveSync connection and
LXEConnect. Please see “ActiveSync and the HX3” in Chapter 3 System
Configuration for details on establishing this connection.
| Settings | Control Panel | KeyPad Control Panel icon.
E-EQ-HX3RG-C HX3 Reference Guide
Page 68
52 Batteries
Batteries
The HX3 is designed to work with a Lithium-Ion (Li-ion) tethered battery from LXE. Under
normal conditions it should last approximately eight to ten hours before requiring a recharge. The
more you use the ring scanner or the wireless transmitter, the shorter the time required between
battery recharges.
A suspended HX3 maintains the date and time for a minimum of two days while tethered to a
battery that has reached the Low Warning point and a fully charged backup battery. The HX3
retains data, during a battery hot swap, for at least 5 minutes.
Note: New battery packs must be charged prior to use. The Standard batteries require less
than four hours and the Extended batteries require less than 8 hours.
Checking Battery Status
Some of the options in this section require an ActiveSync connection and
LXEConnect. Please see “ActiveSync and the HX3” in Chapter 3 System
Configuration for details on establishing this connection.
Tap the
charge remaining is displayed. Turbo setting is enabled/disabled using this applet.
Note: Battery power drain increases substantially in Turbo mode.
| Settings | Control Panel | Power | Battery tab. Battery level, power status and
HX3 Status LED and the Batteries
When the LED is . . . The Status is . . . Comment
Steady Green
Blinking Green
Steady Red
Blinking Red
Off
Booting The HX3 is booting.
On HX3 is attached to a charged Main Battery or
to an external power source
Main Battery Low Low Battery Warning. If the main battery is
not replaced with a fully charged battery
before the main battery fails, the HX3 is
turned Off.
Main Battery
Power Fail
Off The main battery is deleted, the HX3 is not
Replace the main battery with a fully charged
main battery.
attached to a power source and the backup
battery is also depleted.
HX3 Reference Guide E-EQ-HX3RG-C
Page 69
Batteries 53
Low Battery Warning
It is recommended that the main battery pack be removed and replaced when its energy depletes.
When the main battery Low Battery Warning appears (the Status LED remains a steady red) place
the HX3 in suspend by pressing the Power key before changing the battery.
Note: Once you receive the main battery Low Battery Warning, you have approximately 5
minutes to perform an orderly shutdown and replace the main battery pack before the
device powers off. The Low Battery Warning will transition the mo bile device to Susp end
before the device powers off.
Main Battery Pack
The main battery pack has a rugged plastic enclosure that is designed to withstand the ordinary
rigors of an industrial environment. Exercise care when transporting the battery pack making sure
it does not come in contact with excessiv e heat or any power source other than the HX2 MultiCharger, HX2 Cradle or the HX3 unit.
Whenever possible, protect the battery charging terminals (five small round circles) by keeping
them covered by the battery sleeve fabric. The battery pack is resistant to impact damage.
Under normal conditions a properly tethered Standard battery should last a minimum of
approximately eight hours before requiring a recharge, the Extended battery a minimum of
approximately 16 hours.
Battery Hotswapping
Important: When the backup battery power is Low or Very Low ( | Settings | Control Panel |
Power | Battery tab) dock the HX3 in a powered docking cradle before
pack.
When the main battery power level is low, the HX3 will signal the user with the low battery
warning indicator (the Status LED remains a steady red ) that continues until the main battery is
replaced, the battery completely depletes, or external power is applied to the HX3 using a
powered cradle.
You can replace the main battery by first placing the device in Suspend Mode then removing the
discharged main battery and tethering a charged main battery within a five minute time limit (or
before the backup battery depletes).
When the main battery is disconnected the device enters Critical Suspend state, the HX3 remains
in Suspend mode and the backup battery continues to power the unit for at least five minutes.
Though data is retained, the HX3 cannot be used until a charged main battery pack is connected.
After tethering the full battery, press the Power key.
Full operational recovery from Suspend can take several seconds while the wireless client
connects to the network, authorization for Voxware-enabled applications complete, Wavelink
Avalanche management of the HX3 startup completes, and Bluetooth relationships establish or reestablish.
replacing the battery
Viewing the backup battery status requires an ActiveSync connection and
LXEConnect. Please see “ActiveSync and the HX3” in Chapter 3 System
Configuration for details on establishing this connection.
If the backup battery depletes before a fully charged main battery can be inserted, the HX3 will
turn Off.
E-EQ-HX3RG-C HX3 Reference Guide
Page 70
54 Batteries
Note: Placing the HX3 in suspend terminates the ActiveSync connection, if one is established.
The ActiveSync connection must be re-established after the HX3 exits suspend.
Backup Battery
Viewing the backup battery status or performing backup battery maintenance
requires an ActiveSync connection and LXEConnect. Please see “ActiveSync and
the HX3” in Chapter 3 System Configuration for details on establishing this
connection.
The HX3 has a backup battery that is designed to provide limited-duration electrical power in the
event of main battery failure. The backup battery is a 50 mAh Nickel Cadmium (NiCd) battery
that is factory installed in the unit. The energy needed to maintain the backup battery near full
charge at all times comes from the HX3 main battery.
It takes several hours of operation before the backup battery is capable of supporting the operation
of the mobile device. The duration of backup battery life is dependent upon operation of the HX3,
its features and any operating applications.
The backup battery has a minimum service life of two years. The backup battery is replaced by
LXE.
The backup battery can be discharged, recharged and conditioned using a CE Control Panel
applet. Tap
| Settings | Control Panel | Battery then tap the Discharge button.
Handling Batteries Safely
• Never dispose of a battery in a fire. This may cause an explosion.
• Do not replace individual cells in a battery pack.
• Do not attempt to pry open the battery pack shell.
• Be careful when handling any battery. If a battery is broken or shows signs of
leakage do not attempt to charge it. Dispose of it using proper procedures.
Caution
Nickel-based cells contain a chemical solution which burns skin, eyes, etc. Leakage
from cells is the only possible way for such exposure to occur. In this event, rinse
the affected area thoroughly with water. If the solution contacts the eyes, get
immediate medical attention.
NiCd and Li-Ion batteries are capable of delivering high currents when accidentally
shorted. Accidental shorting can occur when contact is made with jewelry, metal
surfaces, conductive tools, etc., making the objects very hot. Never place a battery
in a pocket or case with keys, coins, or other metal objects.
HX3 Reference Guide E-EQ-HX3RG-C
Page 71
HX2 Multi-Charger (Optional) 55
HX2 Multi-Charger (Optional)
The LXE HX2 Multi-Charger is designed to simultaneously charge up to six Rechargeable
Lithium Ion Batteries at a time, in any combination of Standard or Extended batteries. The
Standard batteries require less than four hours and the Extended batteries require less than 8
hours. Total charging time required depends upon battery pack temperature and conditions. There
is one bay that is used for Charging only when the Analyze button is not pressed.
Figure 2-5 Multi-Charger
Charging Pocket LEDs
LED
Off No Battery/power Battery pack not plugged in or no power applied.
Green Charged Battery pack fully charged.
Red Charging Battery pack charging.
Yellow Standby Battery pack temperature out of range.
Flashing Red
on any station
Flashing Red
on any station
Flashing Red
on all stations.
Indication Description
Fault Battery pack fault or failure.
Timeout Battery analyzer’s 4.5 hour timeout period
expired.
Charger/Analyzer
Failure
Battery analyzer fault or failure.
E-EQ-HX3RG-C HX3 Reference Guide
Page 72
56 HX2 Multi-Charger (Optional)
Charger/Analyzer LEDs
Percentage of
Battery Capacity
Analyze
Progress
LED
Status
Refer to the HX2 Multi-Charger User’s Guide for instruction in setting up the
charger, inserting the battery packs into the charging bays, interpreting the LEDs
and using the Charge/Analyze Pocket.
Between 90%
and 100%
On Off Off Off
On On Off Off
On On On Off
On On On On
When all LEDs are off, the battery capacity is less than 50%.
Figure 2-6 Multi-Charger Control Panel
Between 80%
and 90 %
Between 70%
and 80%
Between 50%
and 70%
HX3 Reference Guide E-EQ-HX3RG-C
Page 73
HX2 Docking/Charging Cradle 57
HX2 Docking/Charging Cradle
The desktop cradle secures the HX3, recharges the tethered battery and a spare battery (Standard
and Extended), has a protected storage bay for the tethered Ring Scanner when the HX3 is
docked, and enables serial communication with USB devices (host, client, and other USB cabled
devices).
Using an external power supply the cradle recharges Standard batteries in approximately 4 hours
(8 hours for the Extended battery). The HX3 does not need to be docked during a spare battery
charging process. See Accessories.
Remove the voice case before placing the HX3 in the cradle. The HX3 cannot be docked in a
cradle while it is mounted in a hip flip.
The cradle LEDs are on the front of the cradle.
B1 LED – Back left battery
charging bay
PWR LED - HX3 docked / on
/ receiving power bay
B2 LED – Back right battery
charging bay
IMPORTANT –
• Do not put the HX3 into Suspend Mode (using Start | Suspend or by tapping the
Power key) while the HX3 is connected to peripheral devices (or ActiveSync)
through the connectors on the cradle. The HX3 is unable to maintain the connection
during Suspend Mode.
• If the USB connections are interrupted due to a Suspend operation – then when the
HX3 resumes, disconnect the cables and then reconnect the cables again to initiate
USB and/or ActiveSync connection again.
Normal State – Off. With battery and AC power, normal
state may be any state listed in Cradle LEDs.
Normal State – Off. With HX3 in, turned On and AC
power, normal state is On.
Normal State – Off. With battery and AC power, normal
state may be any state listed in Cradle LEDs.
E-EQ-HX3RG-C HX3 Reference Guide
Page 74
58 HX2 Docking/Charging Cradle
Cradle LEDs
Cradle PWR LED
When PWR LED is … It means ….
No AC/DC power supplied to the cradle
and/or
No HX3 in the charging bay
Off
Green
B1 and B2 LED
and/or
HX3 is not properly seated in charging bay
and/or
if this is the first time the HX3 has been inserted, the HX3 is
properly seated and has not been powered On.
HX3 is On, is properly seated in the charging bay and is
receiving external power through the cradle.
When B1 and/or B2 LED is … It means ….
Off
Green Charged
Red Charging
Amber Standby
Flashing Red Fault
No battery or no AC
power
Refer to the HX2 Cradle Reference Guide for instruction in setting up the
cradle, inserting the battery packs, interpreting the LEDs, connectin g cables
and using the cradle for powering the HX3 and communication.
No spare battery in the battery bay(s) or no
AC/DC power is being applied to the cradle.
Spare battery pack fully charged.
Spare battery pack charging.
Spare battery pack temperature out of range.
Spare battery pack fault or failure.
HX3 Reference Guide E-EQ-HX3RG-C
Page 75
Introduction
Chapter 3 System Configuration
All configuration items in this chapter assume that an ActiveSync connection has
been made with a PC and the PC is running LXEConnect. All configuration input is
made via the HX3’s desktop displayed on the connected PC. Please see “Configuring
the HX3 with LXEConnect” at the beginning of this chapter for details.
There are several different aspects to the setup and configuration of the mobile device. The
examples found in this chapter are to be used as examples only, the configuration of your specific
mobile device computer may vary. The following sections provide a general reference for the
configuration of the mobile device and some of its optional features.
Based on your installed software version and hardware options, your system may not be exactly
the same as the system described in this section. Contact your LXE representative for information
on the latest upgrades for your HX3.
Note: LXE recommends frequently charging the tethered battery using an external power
source (a powered cradle) to ensure continuous charging of the backup battery.
Configuring the HX3 with LXEConnect
Requirements: ActiveSync version 3.8 (or higher) must be resident on the host (desktop/laptop)
computer. Please see the following section ActiveSync / Get Connected
Process for more details on ActiveSync.
Because the HX3 is a headless design, the LXEConnect utility must be used to configure the
HX3. LXEConnect first requires an ActiveSync connection be established.
ActiveSync is already installed on the HX3. The HX3 is preconfigured to establish a USB
ActiveSync connection to a PC when the proper cable is attached to the HX3 and the PC:
** Cable for initial ActiveSync Configuration:
USB Client to PC/Laptop USB-Client cable
The USB-A end of the cable connects to a USB port on a desktop or laptop PC. The other end
attaches to the HX3.
Once the HX3 has booted (indicated by the green LED blinking) connect the cables as described.
The ActiveSync connection is automatically established.
LXEConnect allows a user to view the HX3’s screen remotely from a PC using an ActiveSync
USB connection.
HX2A001CBLACTVSYNC
E-EQ-HX3RG-C HX3 Reference Guide
Page 76
60 Configuring the HX3 with LXEConnect
Install LXEConnect
1. Install Microsoft ActiveSync version 3.8 or higher on a PC with a USB port. For details,
please see ActiveSync / Get Connected Process later in this chapter.
2. Power up the HX3 and verify it has finished booting by observing the Status LED. Once the
HX3 has finished booting, the Status LED illuminates a blinking green.
3. Connect the HX3 to the PC using the USB connection cable (HX2A001CBLACTVSYNC).
Once connected, the ActiveSync dialog box appears.
4. Select “No” for partnership when prompted. Dismiss any ActiveSync dialog boxes warning a
partnership is not set up. It is not necessary to establish a partnership to use LXEConnect.
However, if a partnership is desired for other reasons, one may be established now. More
details on partnerships are included in ActiveSync / Get Connected Process later in this
chapter.
5. When the ActiveSync screen appears, select Explore.
Figure 3-1 LXEConnect Installation Files
6. An explorer window is displayed for the HX3. Browse to the \System\LXEConnect folder.
Figure 3-2 LXEConnect Installation Files
7. Select and copy the LXEConnect.msi and Setup.exe files from the HX3 to the user PC. Note
the location chosen for files
HX3 Reference Guide E-EQ-HX3RG-C
Page 77
Configuring the HX3 with LXEConnect 61
8. Close the ActiveSync explorer dialog box. Do not disconnect the HX3 ActiveSync
connection.
9. Execute the setup.exe file that was copied to the user PC. This setup program installs the
LXEConnect utility.
Figure 3-3 LXEConnect Setup
10. Follow the on screen installation prompts. The default installation directory is C:\Program
Files\LXE\LXEConnect.
11. When the installation is co mplete, create a desktop shortcut to the fo llowing file: C:\Program
Files\LXE\LXEConnect\LXEConnect.exe. If a different directory was selected during
installation, please substitute the appropriate director y.
12. LXEConnect is now installed and ready to use.
Using LXEConnect
1. If an ActiveSync connection is has not been established, connect the HX3 to the PC. Details
on ActiveSync are included in the following section.
2. Double-click the LXEConnect icon that was created on the desktop.
3. LXEConnect launches.
Figure 3-4 LXEConnect Notice
E-EQ-HX3RG-C HX3 Reference Guide
Page 78
62 Configuring the HX3 with LXEConnect
4. Click the OK button to dismiss the About CERDisp dialog box. The dialog box
automatically times out and disappears after approximately 30 seconds.
Figure 3-5 LXEConnect Desktop
5. The HX3 can now be configured from the LXEConnect window. Input from the PC’s mouse
and keyboard are recognized as if they were attached to the HX3.
6. When the remote session is completed, terminate the LXEConnect program by selecting File |
Exit or clicking on the X in the upper right hand corner to close the application then
disconnect the ActiveSync cable.
Note: After using LXEConnect, the HX3 cannot go into Suspend mode until after a warmboot.
If using Power Management on an HX3, always warmboot the HX3 from the
LXEConnect screen when finished using LXEConnect.
HX3 Reference Guide E-EQ-HX3RG-C
Page 79
ActiveSync / Get Connected Process 63
ActiveSync / Get Connected Process
Introduction
Requirement: ActiveSync version 3.8 (or higher) must be on the host (desktop/laptop, PC)
computer.
USB ActiveSync Cable (Type A to cradle connector
[HX2A001CBLACTVSYNC])
A partnership between a PC and the HX3 must be established using a USB connection. When
more than one PC will be synchronizing with the HX3, each PC will need its own partnership
with the HX3 established. See section titled Initial Install for the procedure.
After the partnership has been established with the HX3 and the host computer, ActiveSync can
be performed over USB, or wireless (RF). HX3 serial connection is not supported in this release.
Using Microsoft ActiveSync version 3.8 or higher, you can synchronize information on your PC
with the HX3 and vice versa. Synchronization compares the data on the HX3 with the PC and
updates both with the most recent data. For example, you can:
• Synchronize Microsoft Word and Microsoft Excel files between the HX3 and PC.
Files are automatically converted to the correct format.
• Back up and restore mobile device data.
• Copy (rather than synchronize) files between the mobile device and PC.
• Control when synchronization occurs by selecting a synchronization mode. For
example, synchronize continually while connected to a PC or only when the
synchronize command is chosen.
• Select which information types are synchronized and control how much data is
synchronized.
Note: By default, ActiveSync does not automatically synchronize all types of information. Use
ActiveSync Options to specify the types of information to synchronize. The
synchronization process makes the data (in the information types selected) identical on
both the PC and the mobile device. If an information type is selected that does not exist
on the HX3, the data appears to transfer, but it is ignored by the HX3 and not loaded.
When installation of ActiveSync is complete on a PC, the ActiveSync Setup W izard begins and
starts the following processes:
• connect the mobile device to the PC,
• set up a partnership so you can synchronize information between your mobile device
and your PC, and
• customize synchronization settings.
For more information about using ActiveSync on a PC, open Activ eSync, then open ActiveSync
Help .
E-EQ-HX3RG-C HX3 Reference Guide
Page 80
64 ActiveSync / Get Connected Process
Initial Install
Initial installation / relationship must be established using a USB cable connection between the
HX3 and the desktop/laptop (PC). Once a relationship has been established, tap
ActiveSync for help.
Install ActiveSync on Desktop/Laptop
Go to the Microsoft Windows website ActiveSync Download | Install file location:
www.microsoft.com/downloads
| Help |
and type
ActiveSync.
Install ActiveSync (3.8 or later) on the PC before using ActiveSync to connect the PC to the
mobile device.
Follow the instructions in the ActiveSync Wizard.
Check that
connection selected. Refer to USB Connection.
When installation of ActiveSync is complete on you r PC, the ActiveSyn c Setup W izard o n the PC
begins and it begins searching for a connected device.
Because ActiveSync is already installed on your mobile device, your first synchronization process
begins automatically when you finish setting up your PC in the ActiveSync wizard and, using the
ActiveSync cable, connect your mobile device to the PC.
ActiveSync in the Keywords text box. This process should locate the latest version of
| Programs | Communication | ActiveSync | Tools | Options has the correct
Figure 3-6 Connect ActiveSync Cable to HX3 Cradle Connector
Insert the HX3 cable end into the cradle connector on the bottom of the HX3 u ntil a click is heard.
Insert the USB-A end in a USB port on the desktop/laptop computer.
Note: The ActiveSync cable for the HX3 does not appear to fit tightly with the cradle connector
(see Figure). This is normal.
HX3 Reference Guide E-EQ-HX3RG-C
Page 81
ActiveSync / Get Connected Process 65
USB Connection
Tap the | Settings | Control Panel | PC Connection on the HX3. Tap the Change Connection
button. From the popup list, choose
USB Client
This will set up the HX3 to use the USB configuration (Default). Tap OK and ensure the check
box for Enable direct connections to the desktop computer is checked. These settings should
not be changed.
Tap OK to return to Settings.
Connect – Initial Install Process
Connect the correct cable to the PC (the host) and the HX3 (the client) cradle
(HX2A001CBLACTVSYNC). Tap the
HX3.
When the desktop/laptop computer and the HX3 in the powered cradle successfully connect, the
initial ActiveSync process is complete.
| Programs | Communication | Connect icon on the
E-EQ-HX3RG-C HX3 Reference Guide
Page 82
66 ActiveSync / Get Connected Process
Backup HX3 Files
Use the following to backup data files from the HX3 to a desktop or laptop PC using the
appropriate cables and Microsoft’s ActiveSync.
Prerequisites
Initial ActiveSync partnership between the HX3 and the target PC has been completed. After the
partnership has been established with the mobile device and the host computer, ActiveSync can be
performed over USB.
Figure 3-7 ActiveSync Connection Settings on a Windows PC
HX3 and PC Partnership
An ActiveSync partnership between the PC and HX3 has been established. See section Initial
Setup.
USB Transfer
• A PC with an available USB port and an HX3 in a cradle with a USB cable. The
desktop or laptop PC must be running Windows 98 SR2, Windows 2000 or
Windows XP.
• LXE-specific USB cable as listed in the following section Connect.
• Allow USB connection with this desktop computer is checked.
HX3 Reference Guide E-EQ-HX3RG-C
Page 83
ActiveSync / Get Connected Process 67
Connect
Connect the correct cable to the PC (the host) and the HX3 (the client).
Select “Connect” from
Note: ActiveSync over USB will start automatically when the cable is connected.
Explore
From the ActiveSync Dialog on the Desktop PC, click on the Explore button, which allows you to
explore the HX3 from the PC side, with some limitations.
You can copy files to or from the HX3 using drag-and-drop.
You will not be allowed to delete files or copy files out of the \Windows directory on the HX3.
(Technically, the only files you cannot delete or copy are ones marked as system files in the
original build of the Windows OS image. This, however, includes most of the files in the
\Windows directory).
Disconnect
USB Connection
| Programs | Communications | Connect.
• Disconnect the cable from the HX3 cradle.
• Click the ActiveSync status bar icon in the lower right hand corner of the PC’s status
bar. Then click the Disconnect button.
IMPORTANT – Do not put the HX3 into Suspend Mode while connected via USB. The HX3
will be unable to connect to the host PC when it resumes operation. If this happens, when the
HX3 resumes, disconnect the cables and then reconnect the cables again to initiate USB
and/or ActiveSync connection again.
E-EQ-HX3RG-C HX3 Reference Guide
Page 84
68 ActiveSync / Get Connected Process
ActiveSync Troubleshooting
ActiveSync on the host returns to the Get Connected screen without connecting
to the cabled device.
If the HX3 is connected to a PC by a cable, disconnect the cable from the HX3 and reconnect it
again.
Check that the correct connection is selected, USB Client.
See Also: Cold Boot and Loss of Host Reconnection.
ActiveSync indicator on the host remains grey
The host doesn’t know you are trying to connect. It may mean a bad cable. Try the connection
again with a known-good cable.
Cold Boot and Loss of Host Re-connection
ActiveSync assigns a partnership between a mobile device and a PC. A partnership is defined by
two objects – a unique computer name and a random number generated when the partnership is
first created. An ActiveSync partnership for a unique client can be established to two hosts.
If the HX3 is cold booted, the random number is deleted – and the partnership with the last one of
the two hosts is also deleted. The host retains the random numbers and unique names of all
devices having a partnership with it. Two clients cannot have a partnership with the same host if
they have the same name. (
If the cold booted HX3 tries to reestablish the partnership with the same host PC, a new random
number is generated for the HX3 and ActiveSync will insist the unique name of the HX3 be
changed. If the HX3 is associated with a second host, changing the name will destroy that
partnership as well. This can cause some confusion when re-establishing partnerships with hosts.
| Settings | Control Panel | System | Device Name)
HX3 Reference Guide E-EQ-HX3RG-C
Page 85
Windows CE 5.0 69
Windows CE 5.0
For general use instruction, please refer to commercially available Windows CE
guides or the Windows CE on-line Help application installed with the HX3
operating system.
This chapter’s contents assume the system administrator is familiar with Microsoft Windows
options and capabilities loaded on most standard Windows XP (or later) desktop computers.
Therefore, the sections that follow describe only those Windows capabilities
that are unique to the HX3 and its Windows CE environment.
Note:
The HX3 reloads the operating system upon every warm boot or cold boot. Anything not
saved or preserved to the registry is lost.
In warm boot, the OS and the CAB files are reloaded from the internal SD card and the
preserved registry is also reloaded.
During cold boot, the system behavior is identical to warm boot with the addition that the
registry is erased, forcing the HX3 to reboot with factory defaults. The registry is recreated
when 20 minutes of uptime elapses or upon the first save or suspend function. It is also
recreated every 10 registry changes and at every warm boot.
E-EQ-HX3RG-C HX3 Reference Guide
Page 86
70 Installed Software
Installed Software
Note: Some standard Windows options require an external modem connection. Modems are not
available from LXE nor supported by LXE.
When you order an HX3 you receive the software files required by the separate programs needed
for operation and wireless communication. The files are lo aded by LXE and stored in folders in
the HX3.
This section lists the contents of the folders and the general function of th e files. Files installed in
each HX3 are specific to the intended function of the HX3.
Software Load
The software supported by the HX3 is summarized below.
Operating System Windows CE 5.0 OS, hardware-specific OEM Adaptation Layer,
device drivers, Internet Explorer for Windows CE browser and
utilities.
Wireless Client Drivers The 2.4GHz Summit wireless client driver is pre-loaded by LXE.
Bluetooth Client Driver Optional.
Wavelink Avalanche The Avalanche Enabler is installed by LXE, but is not active by
LXE API Routines See Accessories for the LXE SDK Kit part number. The HX3 uses the
Note: Plea se con tact yo ur LXE rep resenta tive to g et a ccess to CAB files as they are released by
LXE.
Software Applications
The following applications are included:
• Scanner Wedge (LXE developed)
• ActiveSync
default.
same SDK as LXE’s HX2.
HX3 Reference Guide E-EQ-HX3RG-C
Page 87
Installed Software 71
Software Backup
Application programs and data that are normally RAM resident are backed up via ActiveSync, as
well as being stored on the internal SD card. The operating system is on internal SD card and does
not need backup. Registry configuration is backed up to internal SD card automatically using the
hive registry setup from CE 5.0. Registry backup occurs on every Suspend, WA RMBOOT.EXE,
every 20 minutes and every 10 registry changes.
Note: Placing the HX3 in suspend or performing a warmboot terminates the ActiveSync
connection, if one is established. The ActiveSync connection must be re-established after
the HX3 reboots or exits suspend.
Version Control
Version numbers are applied to the boot loader and the OS image independently. The version
information stored consists of the LXE build number, plus the date and time of compile (in lieu of
a build number). These version numbers are stored in non-volatile storage, where the user cannot
inadvertently modify them. A control panel and API is provided so the user can reference the
version numbers for support purposes.
The HX3 has a unique 128-bit ID code as required by the CE 5.0 specification. This ID number is
generated by the boot loader. This ID code is available in the control panel, and via a Win32
standard API.
Boot Loader
In addition, an API is provided to return a standard LXE copyright string, so that applications may
reference this to be sure they are running on an LXE mobile device for licensing purposes.
See Accessories for the LXE HX3 SDK Kit part number. The HX3 uses the same SDK as LXE’s
HX2.
The HX3 supports a proprietary boot loader. It is the responsibility of the boot loader to:
• Initialize all system hardware
• Load code into internal FPGA device(s)
• Load the OS image from SD card to DRAM
• Initiate OS startup
• Handle wakeup from system suspend, loading saved state
• Handle copying a new boot loader from SD card to internal flash
The HX3 reloads the OS every time during warm boot or cold boot. In Warm Boot (i.e., the user
executes a Warm Boot) the OS and the CAB files are reloaded from the internal SD card and the
preserved registry is also reloaded. Anything else (user data), which was not preserved in the
registry, is lost. During Cold Boot (i.e., user executes a Cold Bo ot utility) the system behavior is
identical to Warm Boot with the addition that the registry is reloaded with factory defaults.
The SD card holds user applications and CAB files. The SD card is mapped to the System folder
in the Windows CE file system.
E-EQ-HX3RG-C HX3 Reference Guide
Page 88
72 Installed Software
Folders Copied at Startup
The following folders are copied on startup:
System\Desktop copied to Windows\Desktop
System\Fonts copied to Windows\Fonts
System\Help copied to Windows\Help
System\Programs copied to Windows\Programs
Copying these folders at startup saves any changes made by the user. For example, saving userinstalled fonts and help files and tailoring the desktop and programs menus to meet the user’s
needs.
This function copies only the directory contents, no sub-folders.
Files in the Startup folder are executed, but only from System\Startup. Windows\Startup is parsed
too early in the boot process so it has no effect.
Executables in System\Startup must be the actual executable, not a shortcut, because shortcuts are
not parsed by the launch process.
Optional Software
Bluetooth
Only installed on a Bluetooth equipped HX3. The System Administrator can Discover and Pair
targeted Bluetooth devices for each HX3. The System Administrator can enable / disable
Bluetooth settings and assign a Computer Friendly Name for each HX3. The Bluetooth control
panel can be accessed by tapping Start | Settings | Control Panel | Bluetooth, or by doubletapping the Bluetooth icon in the taskbar.
HX3 Reference Guide E-EQ-HX3RG-C
Page 89
Installed Software 73
Wavelink Avalanche Enabler
The following features are supported by the Wavelink Avalanche Enabler when used in
conjunction with the Avalanche Management Console.
After configuration, Enabler files are installed upon initial bootup and after a hard reset. Network
parameter configuration is supported for:
• IP address: DHCP or static IP
• RF network SSID
• DNS hosts (primary, secondary, tertiary)
• Subnet mask
• Enabler update
Related Manual: “Using Wavelink Avalanche on LXE Windows Computers”.
The HX3 has the Avalanche Enabler installation files loaded, but not installed, on the mobile
device when it is shipped from LXE. The installation files are located in the System folder on CE
devices. The installation application must be run manually the first time Avalanche is used.
After the installation application is manually run, a reboot is necessary for the Enabler to begin
normal performance. Following this reboot, the Enabler will by default be an auto-launch
application. This behavior can be modified by accessing the Avalanche Update Settings panel
through the Enabler Interface. The designation of the mobile device to the Avalanche CE Manager
is LXE_HX3.
See Wavelink Avalanche Enabler Configuration at the end of this chapter for instruction.
If the user is NOT using Wavelink Avalanche to manage their mobile device, the Enabler
should not be installed on the mobile device(s).
Terminology may appear different, based on your installed version:
• Avalanche Manager may be shown as the Avalanche Mobility Center con sole
• Avalanche Agent may be shown as the Avalanche Mobile Device Server
• Avalanche Management Console may be shown as the Avalanche Mobility Center
or the Avalanche Mobility Center Console
Note that actual operation of the Enabler on the mobile device does not change.
E-EQ-HX3RG-C HX3 Reference Guide
Page 90
74 Desktop
Desktop
For general use instruction, please refer to commercially available CE user’s guides
or the CE on-line Help application installed in the HX3.
Note: Whenever possible, dock the HX3 in a powered cradle to conserve the main battery and
to ensure the backup battery is charged.
The HX3 Desktop appearance is similar to that of a desktop PC running Windows XP.
At a minimum, it has named icons that can be clicked to access My Computer, Internet Explorer,
and the Recycle Bin.
At the bottom of the screen is the Start button. Tapping the Start Bu tton causes the Start Menu to
pop up. It contains the standard Windows menu options: Programs, Favorites, Documents,
Settings, Help, and Run.
The Start Menu Shutdown option found on most desktop PC’s has been replaced with a single
command: Suspend because the HX3 is always powered On (when a fully charged tethered
battery and backup battery are present).
Tap the Suspend button, or tap the red Power button, to turn the screen off and place the HX3 into
Suspend mode.
Note: Placing the HX3 in suspend terminates the ActiveSync connection, if one is established.
The ActiveSync connection must be re-established after the HX3 exits suspend.
Tap the Power button to Resume all paused functions and wake the unit up.
Note: There may be more or fewer icons on your desktop than those listed below in the LXE
default Desktop table.
Desktop Icon Function
My Device Access files and programs.
Recycle Bin Storage for files that are to be deleted.
Summit Client Used for configuring Summit client for network security settings.
Start
Access programs, select from the Favorites listing, documents last
worked on, change/view settings for the control panel or taskbar, on-line
help, run programs or place the unit into Suspend mode.
HX3 Reference Guide E-EQ-HX3RG-C
Page 91
Desktop 75
My Device Folders
Folder Description
Application Data
My Documents Storage for downloaded files / applications No
Network Mounted network drive No
Profiles Network user profiles No
Program Files Applications No
System Internal SD Flash Card Yes
Temp Location for temporary files No
Windows Operating System in Secure Storage No
Data entered by the end-user and saved by
the running applications
Preserved upon
Coldboot?
No
E-EQ-HX3RG-C HX3 Reference Guide
Page 92
76 Start Menu Program Options
Start Menu Program Options
The following options represent the factory default program installation. Your system may be
different based on the software and hardware options purchased.
Access:
Communication
Command Prompt
Radio Config Utility
Summit Client
Wavelink Avalanche
Communication
Access: | Programs | Communication
Note: Some communication menu options require an external modem connection to the HX3.
| Programs
Stores Network communication options
Start FTP Server Begin connection to FTP server
Stop FTP Server Stop connection with FTP server
The command line interface in a separate window
Radio management program. WZC icon in toolbar.
RF client management program.
Option. Remote management for networked
devices.
• The wireless client connects automatically during each reboot.
• Bluetooth re-connects to paired devices automatically at the conclusion of each
reboot.
• If installed and pre-configured, Wavelink Avalanche connects remotely and
downloads updates automatically during each reboot.
Modems are not available from LXE nor supported by LXE.
Start / Stop FTP Server
Access: | Programs | Communication |
These shortcuts call the Services Manager to start and stop the FTP server. The server defaults to
Off (for security) unless it is explicitly turned on from the menu.
Start FTP Server or
Stop FTP Server
HX3 Reference Guide E-EQ-HX3RG-C
Page 93
Start Menu Program Options 77
Command Prompt
Access: | Programs | Command Prompt
Figure 3-8 Pocket CMD Prompt Screen
Type help at the command prompt for a list of available commands. Exit the Command Prompt by
typing exit at the command prompt or select File | Close.
Summit Client
Access: | Programs | Summit
Summit automatically installs and runs after every cold and warm boot.
Disable Summit
Tap the Disable Radio button. The wireless device is enabled by default after every cold reset.
Enable Summit
When the wireless device is disabled, tap the Enable Radio button. The wireless device is
enabled by default after every cold reset.
See Chapter 5 - Wireless Network Configuration for Summit Client Utility setup information and
instruction.
Certs
Access: | Programs | Summit | Certs
Contents of README.TXT file located in Start | Programs | Summit | Certs menu option:
Start | Programs | Summit | SCU
Start | Programs | Summit | SCU | Enable Radio
CA Certificate files, user certificate files and PAC files are accessed only from this
location. When entering the certificate filenames in the Summit Client Utility (SCU),
only the filename and extension are entered. Only PEM, DER and PFX extensions are
allowed for certificate files.
See Chapter 5 - Wireless Network Configuration for directions for acquiring CA and user
certificate files.
E-EQ-HX3RG-C HX3 Reference Guide
Page 94
78 Start Menu Program Options
Taskbar
Access: | Settings | Taskbar …
The Taskbar can be used to determine how the taskbar appears. Use the Advanced tab to clear the
contents of the Documents menu.
Factory Default Settings
General
Always on Top Enabled
Auto hide Disabled
Show Clock Enabled
Advanced
Expand Control Panel Disabled
There are a few changes in the CE version of Taskbar as it relates to the general desktop PC
Windows Taskbar options.
Figure 3-9 Taskbar General Tab
HX3 Reference Guide E-EQ-HX3RG-C
Page 95
Start Menu Program Options 79
Advanced Tab
Expand Control Panel
Tap the checkbox to have the Control Panel folders appear in drop down menu format from the
Settings | Control Panel menu option. When it is unchecked, the Control Panel Properties screen
is displayed.
Taskbar Icons
Figure 3-10 Advanced Tab
Clear Contents of Document Folder
Tap the Clear button to remove the contents of the Recently Opened Document folder.
As HX3 devices and applications open and change state, icons are placed in the Taskbar. In most
cases, tapping the icon in the Taskbar opens the related application.
Refer to
Following are a few of the HX3 and LXE unique taskbar icons that may appear in the Taskbar.
These icons are in addition to the Windows CE taskbar icons.
| Help for an explanation of standard Windows CE taskbar icons.
Wireless Zero Config Connected / Not Connected
Bluetooth
ActiveSync Connection
Cerdisp connected (displayed when LXEConnect is connected)
Current Time
Summit Client signal strength.
E-EQ-HX3RG-C HX3 Reference Guide
Page 96
80 Settings | Control Panel Options
Settings | Control Panel Options
Access: | Settings | Control Panel or My Device | Control Panel link
Option Function
About Software, hardware, versions and network IP. No user intervention
allowed.
Battery View voltage and status of the main and backup batteries. Battery charge
and discharge is performed using this option.
Bluetooth Discover and manage Bluetooth devices.
Certificates Manage digital certificates used for secure communication.
Date/Time Set Date, Time, Time Zone, and Daylight Savings.
Dialing Set dialup properties for internal modems (Modems are not supplied or
supported by LXE).
Display Set background graphic and scheme. Set backlight properties and timers.
HX3 Options Replaces .reg file functions with checkboxes. The .reg file functions
were included in previous OS versions as individual .reg files.
Keyboard Select a Key Map (or font). Set key repeat delay and key repeat rate.
Keypad Configure Alpha key, Mappable keys, RunCmd and LaunchApp.
Mixer Adjust the input and output parameters – volume, sidetone, and record
gain, for headphone, software and microphone.
Mouse Set the double-tap sensitivity for stylus taps.
Network and Dial
Up Options
Owner Set the mobile device owner details (name, phone, etc). Enter notes.
Password Set HX3 access password properties for signon and/or screen saver.
PC Connection Control the connection between the HX3 and a local desktop/laptop
Set network driver properties and network access properties.
Enable / disable Owner display parameters. Enter Network ID for the
device – user name, password, domain.
computer.
Power Set Power scheme properties. Review device status and properties..
Regional Settings Set appearance of numbers, currency, time and date based on country
region and language settings.
HX3 Reference Guide E-EQ-HX3RG-C
Page 97
Settings | Control Panel Options 81
Option Function
Remove Programs Select to remove specific user installed programs in their entirety. Note:
Programs listed in this location are deleted upon warm and cold boot
processes.
Scanner Set scanner key wedge, scanner port, and imager LED illumination
options. Assign baud rate, parity, stop bits and data bits for COM1 port.
Assign scanned data manipulation parameters.
Stylus Set double-tap sensitivity properties.
System Review System and Computer data and revision levels. Adjust Storage
and Program memory settings. Enter device name and description.
Review copyright notices.
Volume and Sounds Enable / disable volume and sounds. Set volume parameters and assign
sound wav files to CE events.
WiFi Set the parameters for a Summit client. (See “Chapter 5, Wireless
Network Configuration” for instruction.)
Note: Change the font displayed on the screen by choosing Start | Settings | Control Panel |
Keyboard and then the Key map dropdown list.
E-EQ-HX3RG-C HX3 Reference Guide
Page 98
82 Settings | Control Panel Options
About
Access: | Settings | Control Panel | About
Figure 3-11 Control Panel – About
The About panels display hardware and software details. The data cannot be edited by the user.
User application version information can be shown in the Version window. Version window
information is retrieved from the registry.
Modify the Registry using the Registry Editor (see section titled Utilities). LXE recommends
caution when editing the Registry and also recommends making a backup copy of the registry
before changes are made.
The registry settings for the Version window are under HKEY_LOCAL_MACHINE \ Software \
LXE \ Version in the registry.
Create a new string value under this key. The string name should be the Application name to
appear in the Version window. The data for the value should be the version number to appear in
the Version window.
HX3 Reference Guide E-EQ-HX3RG-C
Page 99
Settings | Control Panel Options 83
Battery
Access: | Settings | Control Panel | Battery
View the status of the Main and Backup batteries.
Figure 3-12 Control Panel – Battery
The Battery tab shows the status and the percentage of power left in the main battery. It also
shows the status of the backup battery. The listed values cannot be changed by the user.
LXE recommends Discharging and Recharging the backup battery twice a year. Use the Charge
or Discharge buttons to charge and discharge the backup battery:
To Charge Backup Battery Tap the Charge button. The Discharge button text changes to
“Off”. When the backup battery is Charging, tap the Off
button to stop the Charge process.
To Discharge Backup Battery Tap the Discharge button. The Charge button text changes to
“Off”. When the backup battery is discharging, tap the Off
button to stop the Discharge process.
The Main Battery is charged/recharged when the HX3 is docked in a powered cradle and the
battery is inserted in a cradle charging bay. It is also charged/recharged when the battery is
disconnected from the HX3 and then placed in a HX2 Multi-charger.
E-EQ-HX3RG-C HX3 Reference Guide
Page 100
84 Settings | Control Panel Options
Bluetooth
Access: | Settings | Control Panel | Bluetooth
Discover and manage pairing with nearby Bluetooth devices. Only LXE printers or scanners are
recognized and displayed in the Bluetooth panel. All other Bluetooth devices are ignored. Your
Bluetooth panel setups may be different than those shown on the following pages.
Factory Default Settings
Discovered Devices None
Settings
Report when connection lost Disabled
Report when connected Disabled
Report failure to reconnect Disabled
Computer is connectable Enabled
Computer is discoverable Disabled
Prompt if devices request to pair Disabled
Continuous search Enabled
Bluetooth taskbar Icon state and Bluetooth device Icon states change as Bluetooth devices are
discovered, pair, connect and disconnect. There may be audible or visual signals as paired devices
re-connect with the HX3.
• The HX3 default Bluetooth setting is On.
• The HX3 cannot be discovered by other Bluetooth devices when the Computer is
discoverable option is disabled (unchecked) on the Settings panel.
• Other Bluetooth devices cannot be discovered if they have been set up to be Non-
Discoverable or Invisible.
• The HX3 can pair with one Bluetooth scanner and one Bluetooth printer.
• It is not necessary to disconnect a paired scanner and printer before a different
scanner or printer is paired with the HX3.
• The Bluetooth remote device should be as close as possible, and in direct line of
sight, with the HX3 during the pairing process.
Assumption: The System Administrator has Discovered and Paired targeted Bluetooth
devices for the HX3.
Figure 3-13 Control Panel - Bluetooth
HX3 Reference Guide E-EQ-HX3RG-C
Loading...
