AGS-1024
24-Port Gigabit Switch
Use the AGS-1024 to:
Add 24 Gigabit Ports to Your AV Rack Solutions
Future Proof Your Network with Gigabit Speeds (10X
Performance of Fast Ethernet)
Set-up a Dedicated Network for Optimizing VoIP, Video,
Security, or Gaming Applications
AGS-1024
Quick Install Guide
Quick Install Guide
Model Number: AGS-1024
24-Port Gigabit Switch
© 2015 Luxul. All Rights Reserved.
No part of this publication may be modified or adapted in any way, for any
purposes without permission in writing from Luxul. The material in this manual
is subject to change without notice. Luxul reserves the right to make changes to
any product to improve reliability, function, or design. No license is granted, either
expressly or by implication or otherwise under any Luxul intellectual property rights.
An implied license only exists for equipment, circuits and subsystems contained in
this or any Luxul product.
DOCUMENT CONVENTIONS
The following graphical alerts are used in this document to indicate notable situations:
NOTE: Tips, hints, or special requirements that you should take note of.
CAUTION: Care is required. Disregarding a caution can result in data
loss or equipment malfunction.
WARNING!: Indicates a condition or procedure that could result in
personal injury or equipment damage.
FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
CONTACT LUXUL
Sales
P: 801-822-5450
E: sales@luxul.com
2
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450
Technical Support
P: 801-822-5450
E: support@luxul.com
LUX-QIG-AGS-1024 029151024
Simply Connected
PACKAGE CONTENTS
Please check the contents carefully after you open the packing:
One AGS-1024 24-Port Gigabit switch
Power Cord
Rack Mount Brackets and Screws
Four Rubber Foot Pads
Quick Installation Guide
If any of the listed items are missing or damaged, please contact the reseller from
whom you purchased the AGS-1024 for return/replacement.
HARDWARE DESCRIPTION
Front Panel
The front panel of the AGS-1024 Switch includes 24 (1 for each port) dual colored
Link/Activity LEDs that can be switched from green to blue. In addition, the front
panel has a single Power LED.

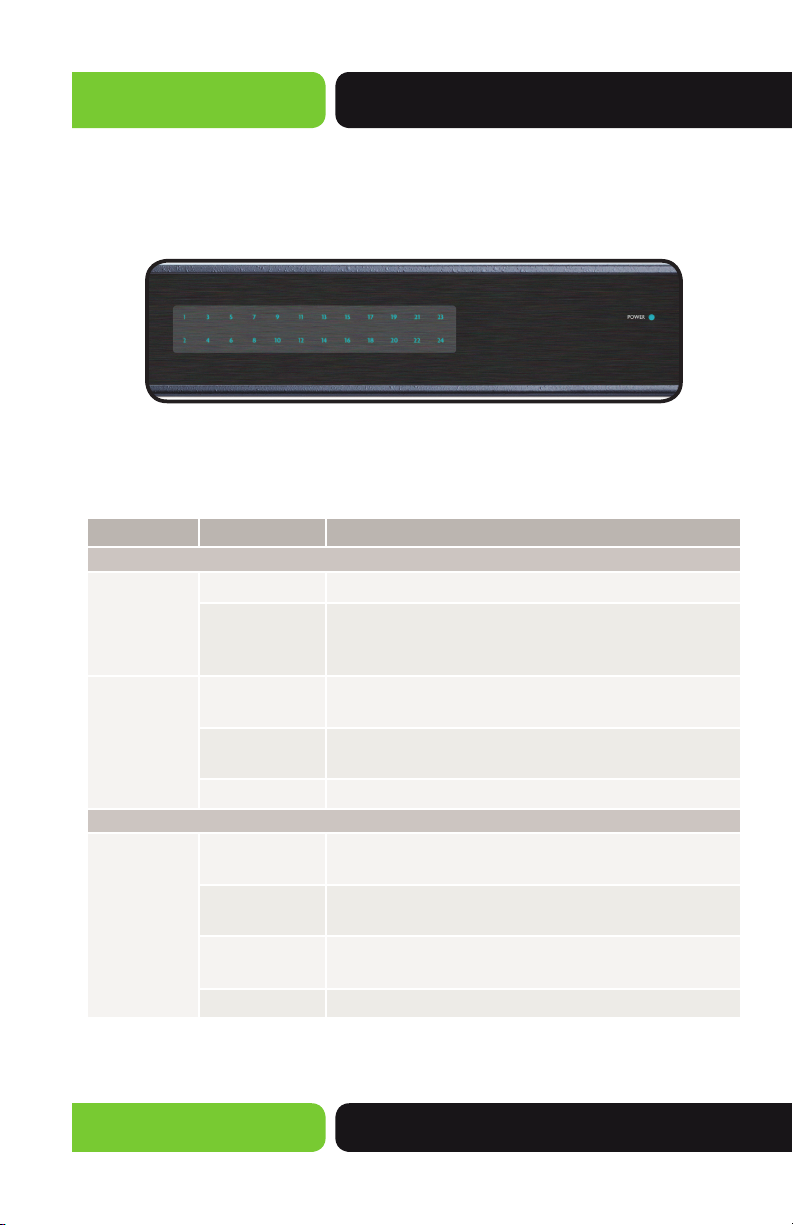

AGS-1024 Front Panel View
Rear Panel Layout
The rear panel of the AGS-1024 Switch includes 24 10/100/1000Mbps RJ45 ports.
Each port has one Link/Activity LED.
AGS-1024 Rear Panel View
© 2015 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
3
AGS-1024
Quick Install Guide
LED Indicators
The front panel LEDs of the AGS-1024 include 1 Power indicator and 24 numbered
Link/Activity indicators. These LEDs show the operating status of the AGS-1024
and each switch connection.
LED Indicators
The following chart shows the LED indicators of the AGS-1024 along with an
explanation of the indicator’s properties:
LED
Power
Link/Activity
Speed/Link/
Act
Status Description
Front
On This LED indicates that there is power to the AGS-1024.
Off If this indicator is not lit, please check the AC power
cord to ensure proper connection to the outlet and the
AGS-1024.
On Indicates a device is connected to the port of the
AGS-1024.
Flashing The Link/Activity LED fl ashes when a port is receiving or
transmitting data
Off Indicates the port is not connected to a device.
Back
Green The Link/Activity LED of the port will be on if there is a
1000Mbps device connected to the port
Amber The Link/Activity LED of the port will be on if there is a
10/100Mbps device connected to the port
Flashing The Link/Activity LED fl ashes when a port is receiving
or transmitting data
Off There is nothing connected to the port
4
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450
LUX-QIG-AGS-1024 029151024
Simply Connected
CAUTION: Please use the correct power cord for your environment. If
any voltage other than 100/240 is applied, it will result in
damage to the AGS-1024.
PREPARING FOR INSTALLATION
System Requirements
Network Connections: Ethernet Enabled Computer
Web Browsers: Internet Explorer 6.0 or higher, Mozilla 1.0 or higher, Safari 1.0
or higher
Internet: Broadband Internet Service (depending on the service provider, a
separate modem may be required)
Before Connecting to the Network
The AGS-1024 can be rack-mounted or used as a desktop switch. Before connecting
to the network, please be aware of the following requirements:
Install the AGS-1024 in a stable/safe place to avoid any possible damage
Make sure there is adequate space around the AGS-1024 for adequate ventilation
and proper heat dissipation.
Do not place heavy articles on the AGS-1024.
Power outlets should be within 5 feet of the AGS-1024.
Check the power cord to confi rm a secure connection.
Ensure there is suffi cient space around the AGS-1024 for proper ventilation and
heat dissipation. It is recommended to have at least 4-6 inches around all sides.
When installing the AGS-1024 on a surface, attach the rubber feet to the bottom
of the device to avoid scratching the surface.
© 2015 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
5
AGS-1024
Quick Install Guide
AGS-1024 INSTALLATION
Installing the AGS-1024 in a Rack
The AGS-1024 can easily be installed in a standard 19” rack. The AGS-1024 includes two
mounting ears for installing and stabilizing the switch. When attaching the mounting
ears and installing the switch within a rack, please refer to the following illustration:

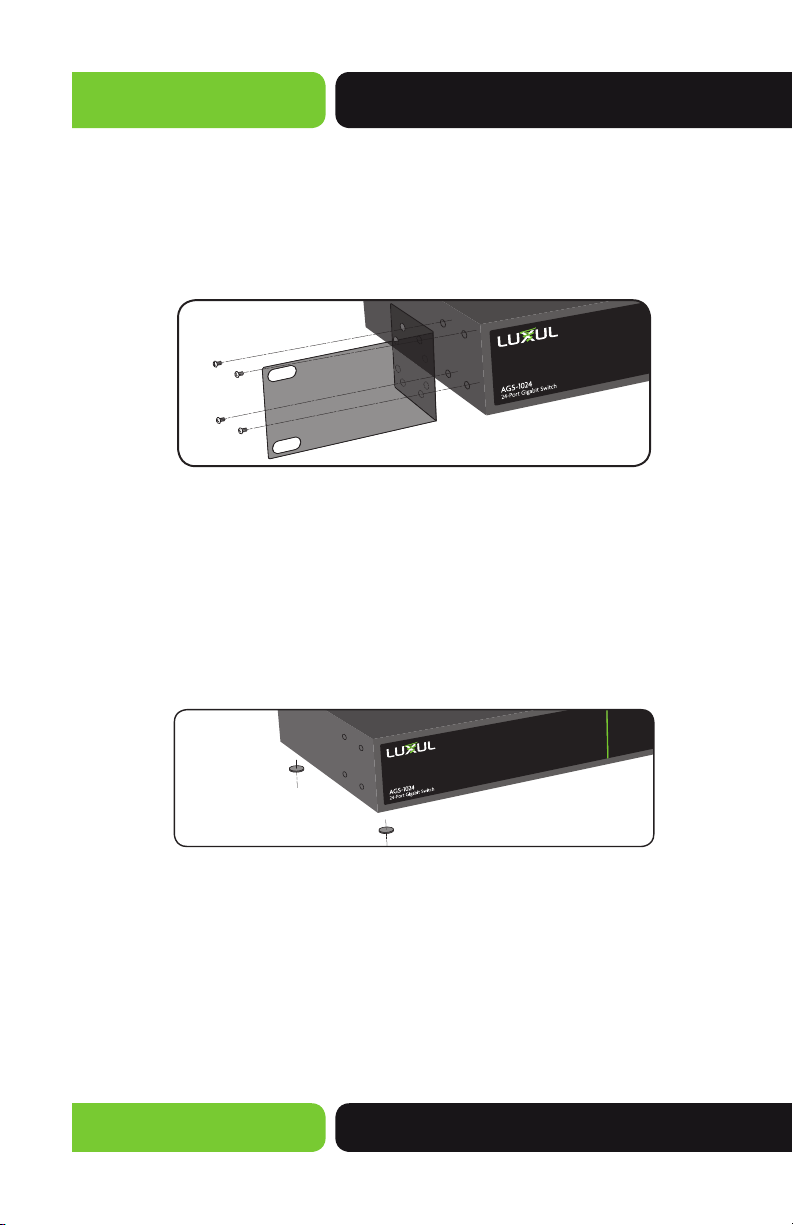

Rack-Mounting the AGS-1024
Using the included screws, attach the mounting ears to each side of the switch.
Mount the switch in the rack with the LEDs facing outwards. Be sure the switch is
level and properly secured within the rack.
Desktop Setup
For use as a desktop device, position and apply the included rubber feet to the
bottom of the AGS-1024.
Attaching the Rubber Feet to the AGS-1024
Connecting Devices
Use standard Ethernet CAT5, CAT5e, or CAT6 cable to connect the AGS-1024 to
a device as described below (CAT6 must be used in order to achieve full Gigabit
bandwidth). The AGS-1024 will automatically adjust to the characteristics (speed/
duplex) of the device to which it is connected.
6
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450
LUX-QIG-AGS-1024 029151024
Simply Connected

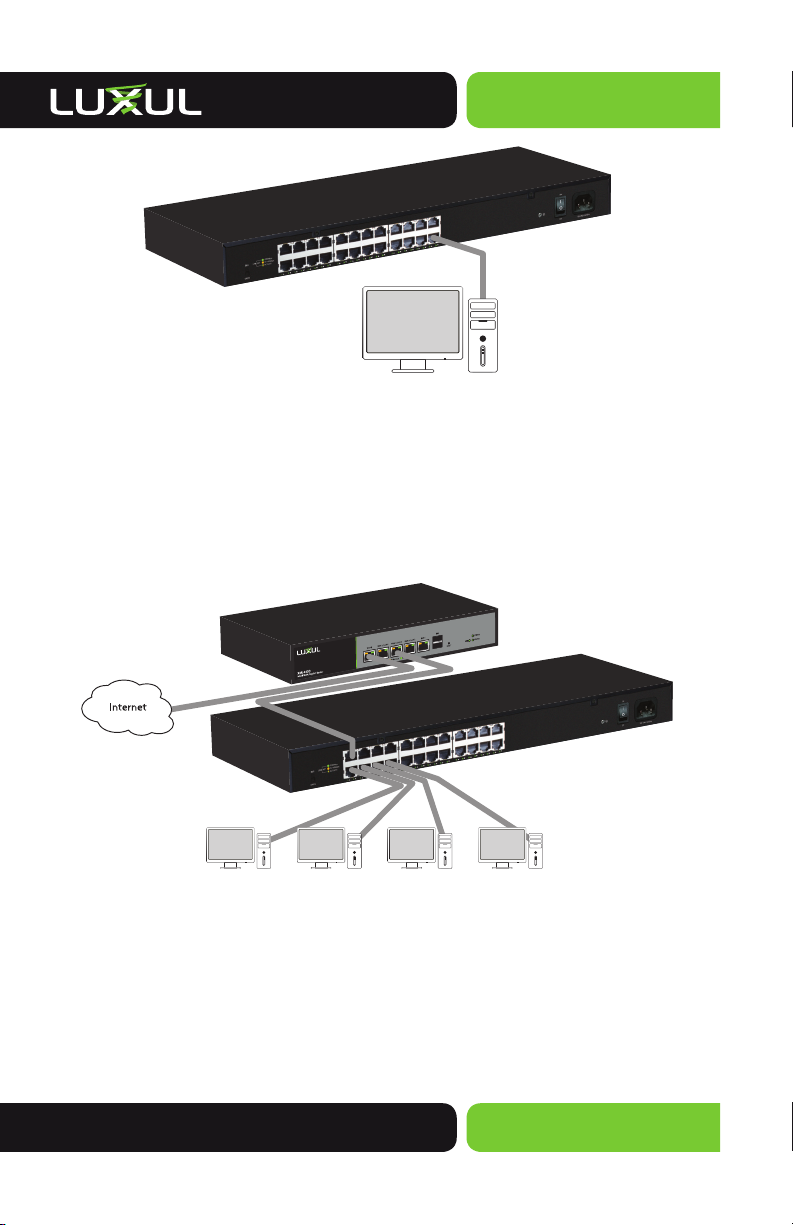

Connecting the AGS-1024 to a Device
When a device is properly connected, the Link/Activity LED for each port
lights up. Please refer to the LED Indicators section for indicator defi nitions and
troubleshooting.
Connecting to a Router or Other Switch
Connecting the AGS-1024 to Router or Switch
When a device is properly connected, the Link/Activity LED for each port
lights up. Please refer to the LED Indicators section for indicator defi nitions and
troubleshooting.
© 2015 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
7
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference
at his own expense.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with part 15 of the FCC Rules.
Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that
this Luxul AGS-1024 is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
For a copy of this report send a self addressed stamped envelope to:
Luxul CE, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020.
Industry Canada
CAN ICES-3(A)/NMB-3(A)
Information on this document supersedes all previous versions. Products and documents
subject to change without notice. Products may be discontinued without notice.
LUX-QIG-AGS-1024-v1
029151024
