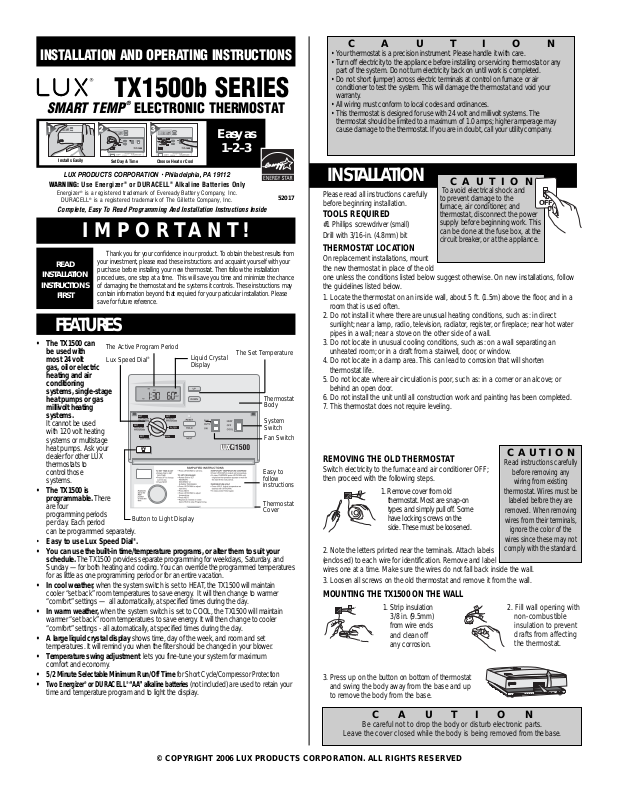

Lux TX1500B User Manual

INSTALLATION AND OPERATING INSTRUCTIONS

OFF

TX1500b SERIES

SMART TEMP

O M

Y DA

T EA

H M P

DOWN

Installs Easily

LUX PRODUCTS CORPORATION • Philadelphia, PA 19112

WARNING: Use Energizer® or DURACELL® Alkaline Batteries Only

Energizer® is a registered trademark of Eveready Battery Company, Inc.

DURACELL® is a registered trademark of The Gillette Company, Inc.

Complete, Easy To Read Programming And Installation Instructions Inside

IMPORTANT!

READ

INSTALLATION

INSTRUCTIONS

FIRST

FEATURES

• The TX1500 can be used with most 24 volt gas, oil or electric heating and air conditioning systems, single-stage heat pumps or gas millivolt heating systems.

It cannot be used with 120 volt heating systems or multistage heat pumps. Ask your dealer for other LUX thermostats to control those systems.

• The TX1500 is programmable. There

are four programming periods per day. Each period can be programmed separately .

• Easy to use Lux Speed Dial®.

• Y ou can use the built-in time/temperatur e pr ograms, or alter them to suit your schedule. The TX1500 provides separate programming for weekdays, Saturday, and

Sunday — for both heating and cooling. You can override the programmed temperatures for as little as one programming period or for an entire vacation.

• In cool weather , when the system switch is set to HEAT, the TX1500 will maintain cooler “set back” room temperatures to save energy. It will then change to warmer “comfort” settings — all automatically, at specified times during the day.

• In warm weather ,when the system switch is set to COOL, the TX1500 will maintain warmer “set back” room temperatures to save energy. It will then change to cooler “comfort” settings - all automatically, at specified times during the day.

• A large liquid crystal display shows time, day of the week, and room and set temperatures. It will remind you when the filter should be changed in your blower.

• Temperature swing adjustment lets you fine-tune your system for maximum comfort and economy.

•

5/2 Minute Selectable Minimum Run/Off Time for Short Cycle/Compressor Protection

•

Two Energizer®or DURACELL® “AA” alkaline batteries

time and temperature program and to light the display.

ELECTRONIC THERMOSTAT

O M

Y A

AT E

H M P

DOWN

SET

SUNDAY

SATURDAY

RESET

FAN

PROGRAM

AUTO

SET

FILTER

WEEKDAY

HOLD

PROGRAM

SET

RUN

DAY/TIME

SIMPLIFIED INSTRUCTIONS

•Press UP/DOWN to set time.

TEMPORARY TEMPERATURE OVERRIDE

TO SET TIME & DAY

•Press UP/DOWN to adjust set temperature.

•Rotate Dial to SET

TO SET PROGRAMS

•To clear OVERRIDE press UP/DOWN until

DAY/TIME.

•Rotate Dial to SET

original set temperature appears or wait for

•Press UP to change

DAY

AT HE

DOWN

SET

SUNDAY

SATURDAY

RESET

FAN

PROGRAM

HEAT

OFF

COOL

1500

Patents Pending

HEAT

AUTO

SET

OFF

FILTER

WEEKDAY

HOLD

COOL

PROGRAM

SET

RUN

DAY/TIME

1500

Patents Pending

SIMPLIFIED INSTRUCTIONS

•Press UP/DOWN to set time.

TEMPORARY TEMPERATURE OVERRIDE

TO SET TIME & DAY

•Press UP/DOWN to adjust set temperature.

•Rotate Dial to SET

TO SET PROGRAMS

•To clear OVERRIDE press UP/DOWN until

DAY/TIME.

•Rotate Dial to SET

original set temperature appears or wait for

•Press UP to change

Choose Heat or CoolSet Day & Time

Easy as

1–2–3

52017

Thank you for your confidence in our product. To obtain the best results from your investment, please read these instructions and acquaint yourself with your purchase before installing your new thermostat. Then follow the installation procedures, one step at a time. This will save you time and minimize the chance of damaging the thermostat and the systems it controls. These instructions may contain information beyond that required for your particular installation. Please save for future reference.

The Active Program Period Lux Speed Dial

Liquid Crystal Display

The Set Temperature

Thermostat Body

System Switch

Fan Switch

Easy to follow instructions

Thermostat Cover

Button to Light Display

(not included) are used to retain your

CAUTION

• Your thermostat is a precision instrument. Please handle it with care.

• Turn off electricity to the appliance before installing or servicing thermostat or any part of the system. Do not turn electricity back on until work is completed.

• Do not short (jumper) across electric terminals at control on furnace or air conditioner to test the system. This will damage the thermostat and void your warranty .

• All wiring must conform to local codes and ordinances.

• This thermostat is designed for use with 24 volt and millivolt systems. The thermostat should be limited to a maximum of 1.0 amps; higher amperage may cause damage to the thermostat. If you are in doubt, call your utility company.

INSTALLATION

Please read all instructions carefully before beginning installation.

TOOLS REQUIRED

#1 Phillips screwdriver (small) Drill with 3/16-in. (4.8mm) bit

THERMOSTAT LOCATION

On replacement installations, mount the new thermostat in place of the old one unless the conditions listed below suggest otherwise. On new installations, follow the guidelines listed below.

1. Locate the thermostat on an inside wall, about 5 ft. (1.5m) above the floor, and in a room that is used often.

2. Do not install it where there are unusual heating conditions, such as: in direct sunlight; near a lamp, radio, television, radiator, register, or fireplace; near hot water pipes in a wall; near a stove on the other side of a wall.

3. Do not locate in unusual cooling conditions, such as: on a wall separating an unheated room; or in a draft from a stairwell, door, or window.

4. Do not locate in a damp area. This can lead to corrosion that will shorten thermostat life.

5. Do not locate where air circulation is poor, such as: in a corner or an alcove; or behind an open door.

6. Do not install the unit until all construction work and painting has been completed.

7. This thermostat does not require leveling.

REMOVING THE OLD THERMOSTAT

Switch electricity to the furnace and air conditioner OFF; then proceed with the following steps.

1. Remove cover from old

thermostat. Most are snap-on types and simply pull off. Some have locking screws on the side. These must be loosened.

2. Note the letters printed near the terminals. Attach labels

(enclosed) to each wire for identification. Remove and label wires one at a time. Make sure the wires do not fall back inside the wall.

3. Loosen all screws on the old thermostat and remove it from the wall.

MOUNTING THE TX1500 ON THE WALL

3. Press up on the button on bottom of thermostat and swing the body away from the base and up to remove the body from the base.

1. Strip insulation 3/8 in. (9.5mm) from wire ends and clean off any corrosion.

CAUTION

To avoid electrical shock and to prevent damage to the furnace, air conditioner, and thermostat, disconnect the power supply before beginning work. This can be done at the fuse box, at the circuit breaker, or at the appliance.

CAUTION

Read instructions carefully

before removing any

wiring from existing

thermostat. Wires must be

labeled before they are removed. When removing wires from their terminals,

ignore the color of the wires since these may not comply with the standard.

2. Fill wall opening with

non-combustible insulation to prevent drafts from affecting the thermostat.

CAUTION

Be careful not to drop the body or disturb electronic parts.

Leave the cover closed while the body is being removed from the base.

Base

ELECT

GAS

RL1

SW1

TYPICAL SINGLE-STAGE

HEAT PUMP WIRING

Figure 12

110

GYWRHBORC

COMP

FAN

24 VAC HEAT

TRANSFORMER

CHG. OVER

ADD

JUMPER

BETWEEN

Y & W

ALT.

110

TYPICAL COOLING AND

HEATING SYSTEM

(5-WIRE)

FAN

COOL COMP

GAS

VALVE

24 VAC HEAT

TRANSFORMER

110

Figure 11

24 VAC COOL

TRANSFORMER

REMOVE JUMPER

BETWEEN

RH & RC

GYWRH RCOB

TYPICAL COOLING AND

HEATING SYSTEM

(4-WIRE)

Figure 10

110

GAS

VALVE

COOL COMP

FAN

24 VAC HEAT

TRANSFORMER

GYWRH RCOB

TYPICAL HOOKUP FOR 3-WIRE

HEAT SYSTEM IF THIRD

WIRE IS FAN WIRE

Figure 9

GAS

VALVE

110

FAN

24 VAC

TRANSFORMER

GYWRH RCOB

TYPICAL HOOKUP FOR 2-WIRE

24V HEATING SYSTEM AND

MILLIVOLT SYSTEM

Figure 8

GAS

VALVE

110

24 VAC

TRANSFORMER

THERMOPILE

GYWRH RCOB

Terminals

NOTE

GYW RH B O RC

Latch Button

If you are mounting the base

to a soft material like

plasterboard or if you are using

the old mounting holes, the

screws may not hold. Drill a 3/16-in. (4.8mm) hole at each screw location, and insert the

plastic anchors provided. Then

mount the base as described

below.

ATTACHING WIRES

4. Hold the base against the wall, with the wires coming through wherever it is convenient for wiring. Route the wires to below the terminal block. Position the base for best appearance (to hide any marks from an old thermostat). Attach the base to the wall with the two screws provided.

CAUTION

Do not allow wires to touch each other or parts on thermostat. Wires must be

trapped between black spacer and brass terminal. Also, be sure to tighten securely

all 7 electrical terminal screws.

If you have an electric system and the blower does not operate after installation, find the

NOTE

electric/gas heat selector on the back of the body . Move the selector to the ELEC position.

WIRING DIAGRAMS

FAN RELAY

COOLING COMPRESSOR

GYWRHBORC

Tape Off

* If replacing a Honeywell TM-11, tape off wire “R”; connect wire “B” to terminal “RH.” ** If replacing a Honeywell thermostat with a clock wire “C,” tape off wire “C”

FAN RELAY

COOLING COMPRESSOR

GYWRHBORC

Tape Off

* If both Y and C wire are

present, tape off “C” wire.

These diagrams below are provided for new installations or unreferenced wires.

HEATING CONTROL

HEATING TRANSFORMER

DAMPER OR CHANGEOVER V

(POWERED IN HEAT)

DAMPER OR CHANGEOVER VALVE

(POWERED IN COOL)

COOL TRANSFORMER

Tape Off **

HEA

Tape Off *

Heating/Cooling Systems

4- or 5-Wire with One Transformer

TING CONTROL

TING TRANSFORMER

HEA

DAMPER OR CHANGEOVER V

(POWERED IN HEAT)

DAMPER OR CHANGEOVER VALVE

(POWERED IN COOL)

COOL TRANSFORMER

Heating Systems

ALVE

(Optional)

FAN RELAY

COOLING COMPRESSOR

HEATING CONTROL

GYWRHBORC

* If both Y and C wire are

present, tape off “C” wire.

* If you have a “B” wire in your system which

is used as a common wire, connecting it to the “B” terminal on this thermostat may damage your system and/or the thermostat.

5- or 6-Wire with Two Transformers

FAN RELAY

COOLING COMPRESSOR

TING CONTROL

HEA

GYWRHBORC

Tape Of f

* If both Y and C wire are

esent, tape off “C” wire.

Cooling Systems

HEA

TING TRANSFORMER

DAMPER OR CHANGEOVER V

(POWERED IN HEAT)

DAMPER OR CHANGEOVER VALVE

(POWERED IN COOL)

COOL TRANSFORMER

Tape Off

Heating/Cooling Systems

HEATING TRANSFORMER

DAMPER OR CHANGEOVER V

(POWERED IN HEAT)

DAMPER OR CHANGEOVER VALVE

(POWERED IN COOL)

COOL TRANSFORMER

INSTALLING BATTERIES/ MAINTENANCE

The TX1500 requires batteries to operate your furnace and retain its programming in memory and to light the display. Replace the batteries when the REPLACE indicator appears in the display or at least once a year.

NOTE

REPLACE

ALVE

REPLACE BATTERIES WHEN

INDICATOR APPEARS

OR ATLEAST

ONCE A YEAR.

1. Remove fresh batteries from their carton.

2. Remove body of thermostat as described at bottom of first column.

3. Remove the used batteries.

4. Install two new Energizer alkaline batteries in the battery compartment. Observe the polarity marking shown in the compartment. Place body back on wall.

WARNING: Use Energizer®or DURACELL

5. Hook the top of the body onto the base, swing the body down and snap the body onto the

ALVE

(Optional)

base.

Installation is now complete. Be sure to turn the power back on to your heating and /or air conditioning system. If this is the first time you are installing batteries, the thermostat will display “SUN 12:00 AM”. Within 90 seconds the thermostat will begin to display the room temperature alternately with the time. To correct the display, see “Setting the TIME and DAY,” after you set the programs.

TECHNICAL SERVICE

If you have any problems installing or using this thermostat, please carefully and thoroughly review the instruction manual. If you require assistance, please contact our Technical Assistance Department at 856-234-8803 during regular business hours between 8:00AM and 4:30PM Eastern Standard Time, Monday through Friday. You can also receive technical assistance online anytime day or night at http://www.luxproducts.com. Our web site offers you answers to the most common technical questions, and also permits you to email your questions to our technical support staff at your convenience.

WARRANTY

Limited Warranty: If this unit fails because of defects in materials or workmanship within three years

of date of original purchase, LUX Products Corporation will, at its option, repair or replace it. This warranty does not cover damage by accident, misuse, or failure to follow installation instructions. Implied warranties are limited in duration to three years from date of original purchase. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Please return malfunctioning or defective units to the participating retailer from which purchase was made, along with proof of purchase. Please refer to "TECHNICAL ASSISTANCE" before returning thermostat. Purchaser assumes all risks and liability for incidental and consequential damage resulting from installation and use of this unit. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Applicable in the U.S.A. only.

When replacing batteries, you have approximately 1

minute before programs are lost.

Heat Selector

or DURACELL®"AA" size

Battery Compartment

Alkaline Batteries Only.

5/2 MIN ON/OFF

24/12H

C/F
