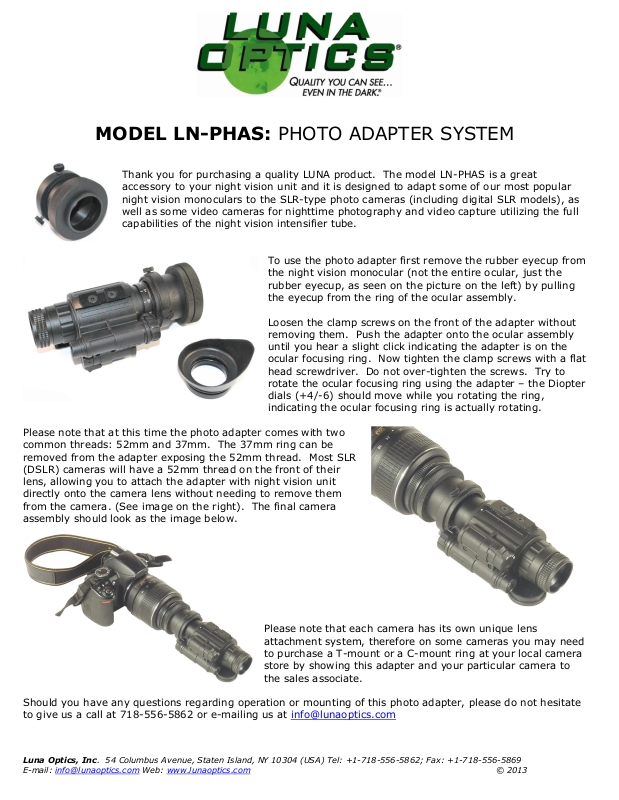

MODEL LN-PHAS: PHOTO ADAPTER SYSTEM

Thank you for purchasing a quality LUNA product. The model LN-PHAS is a great
accessory to your night vision unit and it is designed to adapt some of our most popular
night vision monoculars to the SLR-type photo cameras (including digital SLR models), as
well as some video cameras for nighttime photography and video capture utilizing the full
capabilities of the night vision intensifier tube.

To use the photo adapter first remove the rubber eyecup from
the night vision monocular (not the entire ocular, just the
rubber eyecup, as seen on the picture on the left) by pulling
the eyecup from the ring of the ocular assembly.

Loosen the clamp screws on the front of the adapter without
removing them. Push the adapter onto the ocular assembly
until you hear a slight click indicating the adapter is on the
ocular focusing ring. Now tighten the clamp screws with a flat
head screwdriver. Do not over-tighten the screws. Try to
rotate the ocular focusing ring using the adapter – the Diopter
dials (+4/-6) should move while you rotating the ring,
indicating the ocular focusing ring is actually rotating.

Please note that at this time the photo adapter comes with two
common threads: 52mm and 37mm. The 37mm ring can be
removed from the adapter exposing the 52mm thread. Most SLR
(DSLR) cameras will have a 52mm thread on the front of their
lens, allowing you to attach the adapter with night vision unit
directly onto the camera lens without needing to remove them
from the camera. (See image on the right). The final camera
assembly should look as the image below.

Please note that each camera has its own unique lens
attachment system, therefore on some cameras you may need
to purchase a T-mount or a C-mount ring at your local camera
store by showing this adapter and your particular camera to
the sales associate.

Should you have any questions regarding operation or mounting of this photo adapter, please do not hesitate
to give us a call at 718-556-5862 or e-mailing us at [e-mail]
