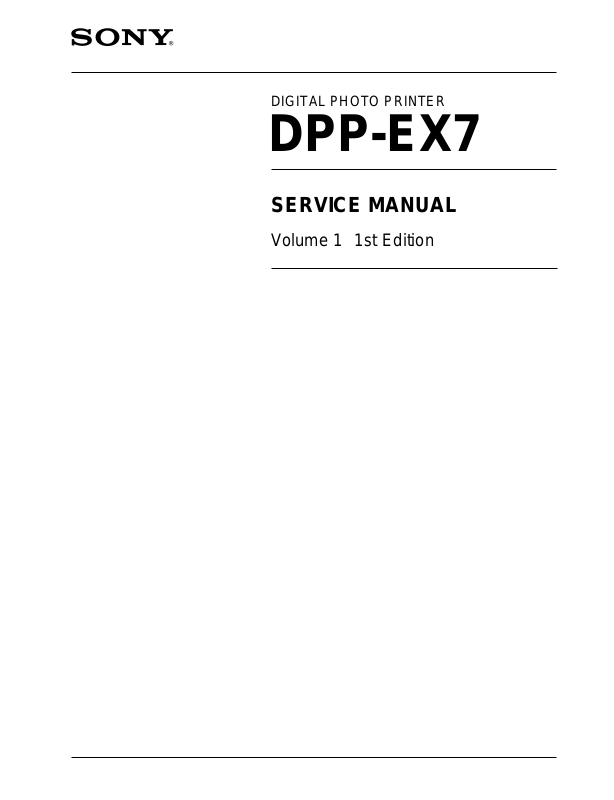

Page 1
DIGITAL PHOTO PRINTER
DPP-EX7
SERVICE MANUAL
Volume 1 1st Edition
Page 2
! WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
! WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
! AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres .
Pour toute réparation faire appel à une personne compétente uniquement.
WARNING
This unit has no power switch.
When installing the unit, incorporate a readily
accessible disconnect device in the fixed wiring, or
connect the power cord to a socket-outlet which must
be provided near the unit and easily accessible, so that
the user can turn off the power in case a fault should
occur.
WARNUNG
Dieses Gerät hat keinen Netzschalter.
Beim Einbau des Geräts ist daher im Festkabel ein
leicht zugänglicher Unterbrecher einzufügen, oder das
ß
Netzkabel mu
befindlichen, leicht zugänglichen Wandsteckdose
verbunden werden, damit sich bei einer
Funktionsstörung die Stromversorgung zum Gerät
jederzeit unterbrechen läßt.
mit einer in der Nähe des Geräts
DPP-EX7 V1
Page 3
Table of Contents
Manual Structure
Purpose of this manual .............................................................................................. 3
Related manuals......................................................................................................... 3
1. Service Information
1-1. Main Parts Location ....................................................................................1-1
1-1-1. Main Block Location.................................................................. 1-1
1-1-2. Board Location ...........................................................................1-1
1-2. Removal and Installation of Cabinet...........................................................1-1
1-2-1. Upper Cabinet Assembly ...........................................................1-1
1-2-2. LCD Sub Assembly.................................................................... 1-2
1-3. Sensor Arrangement and Functional Description .......................................1-3
2. Replacement of Main Parts
2-1. Replacement of Board.................................................................................2-1
2-1-1. DK-45 Board ..............................................................................2-1
2-1-2. PW-45 Board..............................................................................2-2
2-1-3. MD-45 Board .............................................................................2-2
2-1-4. JD-45 Board ...............................................................................2-3
2-1-5. PE-45 Board ............................................................................... 2-3
2-1-6. RM-45 Board ............................................................................. 2-4
2-1-7. PR-45 Board ...............................................................................2-4
2-1-8. TP-45 Board ............................................................................... 2-5
2-2. DC Fan ........................................................................................................2-5
2-3. Paper Eject Guide Assembly....................................................................... 2-6
2-4. Mechanical Deck Assembly........................................................................ 2-6
2-5. Switching Regulator....................................................................................2-7
2-6. PCMCIA Ejector .........................................................................................2-7
2-7. Thermal Head..............................................................................................2-8
2-8. Paper Feed Frame Assembly....................................................................... 2-8
2-9. Chassis Assembly........................................................................................2-9
2-10. Stepping Motor............................................................................................2-9
2-11. E Capstan Roller .......................................................................................2-10
2-12. LCD Module .............................................................................................2-11
DPP-EX7 V1
1
Page 4
3. Service Mode
3-1. Activation ....................................................................................................3-1
3-2. Touch Panel Position Adjustment ...............................................................3-1
3-3. LCD Contrast Check and Adjustment.........................................................3-2
3-4. Density Adjustment for During Thermal Head Replacement.....................3-2
4. Troubleshooting
4-1. Electrical Troubleshooting ..........................................................................4-1
4-2. Error Display ...............................................................................................4-2
4-3. Mechanical Troubleshooting....................................................................... 4-5
4-4. Upgrade .......................................................................................................4-7
2
DPP-EX7 V1
Page 5
Purpose of this manual
Related manuals
Manual Structure
This manual is the service manual Vol. 1 of Digital Photo Printer DPP-EX7.
This manual describes the information on maintenance and the service information
such as parts replacement, service mode and troubleshooting.
In addition to this “Service Manual Vol. 1”, this unit is provided with the manual
below.
..
. Service Manual Vol. 2 (Not supplied for products.)
..
Part No.: 9-955-392-21
This manual describes the semiconductors, spare parts, block diagrams, schematic
diagrams, and board layouts of this unit.
..
. Operating Instruction (Supplied for products.)
..
Part No.: 3-207-207-11
These manuals describe the information required for the actual management and
operation of this unit.
..
. “Semiconductor Pin Assignments” CD-ROM (Available on request)
..
This “Semiconductor Pin Assignments” CD-ROM allows you to search for
semiconductors used in B&P Company equipment.
Semiconductors that cannot be searched for on this CD-ROM are listed in the
service manual for the corresponding unit. The service manual contains a complete list of all semiconductors and their ID Nos., and thus should be used together
with the CD-ROM.
Part number: 9-968-546-XX
DPP-EX7 V1
3
Page 6
Page 7
Section 1
BVTP
3x20
BVTP
3x20
Upper cabinet
assembly
CN201
CN152
DK-45 board
Flexible printed
wiring board
Flexible
flat cable
Service Information
1-1. Main Parts Location
1-1-1. Main Block Location
LCD module
PCMCIA
ejector
Inverter unit
Switching
regulator
Paper feed frame assembly
Thermal head
DC fan
Chassis
assembly

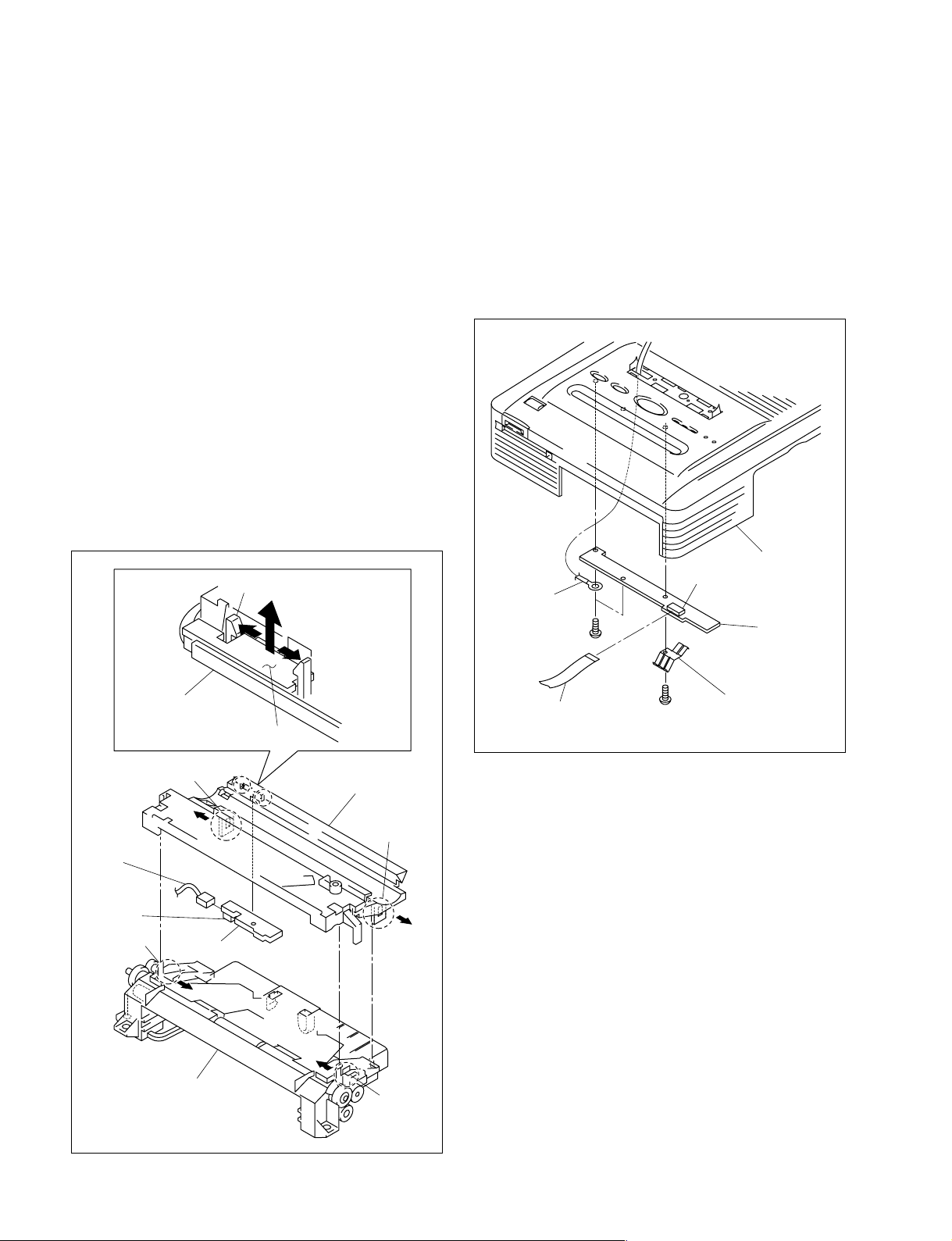

1-2. Removal and Installation of Cabinet
1-2-1. Upper Cabinet Assembly
1. Remove the four screws, then remove the upper
cabinet assembly.
2. Disconnect the flexible printed wiring board and one
flexible flat cable from the connectors (CN152 and
CN201) on the DK-45 board.
1-1-2. Board Location
RM-45 board
DK-45 board
PW-45 board
PR-45 board
MD-45 board
JD-45 board
PE-45 board
TP-45 board
3. Attach the upper cabinet assembly in the reverse order
of steps 1 to 2.
DPP-EX7 V1
1-1
Page 8

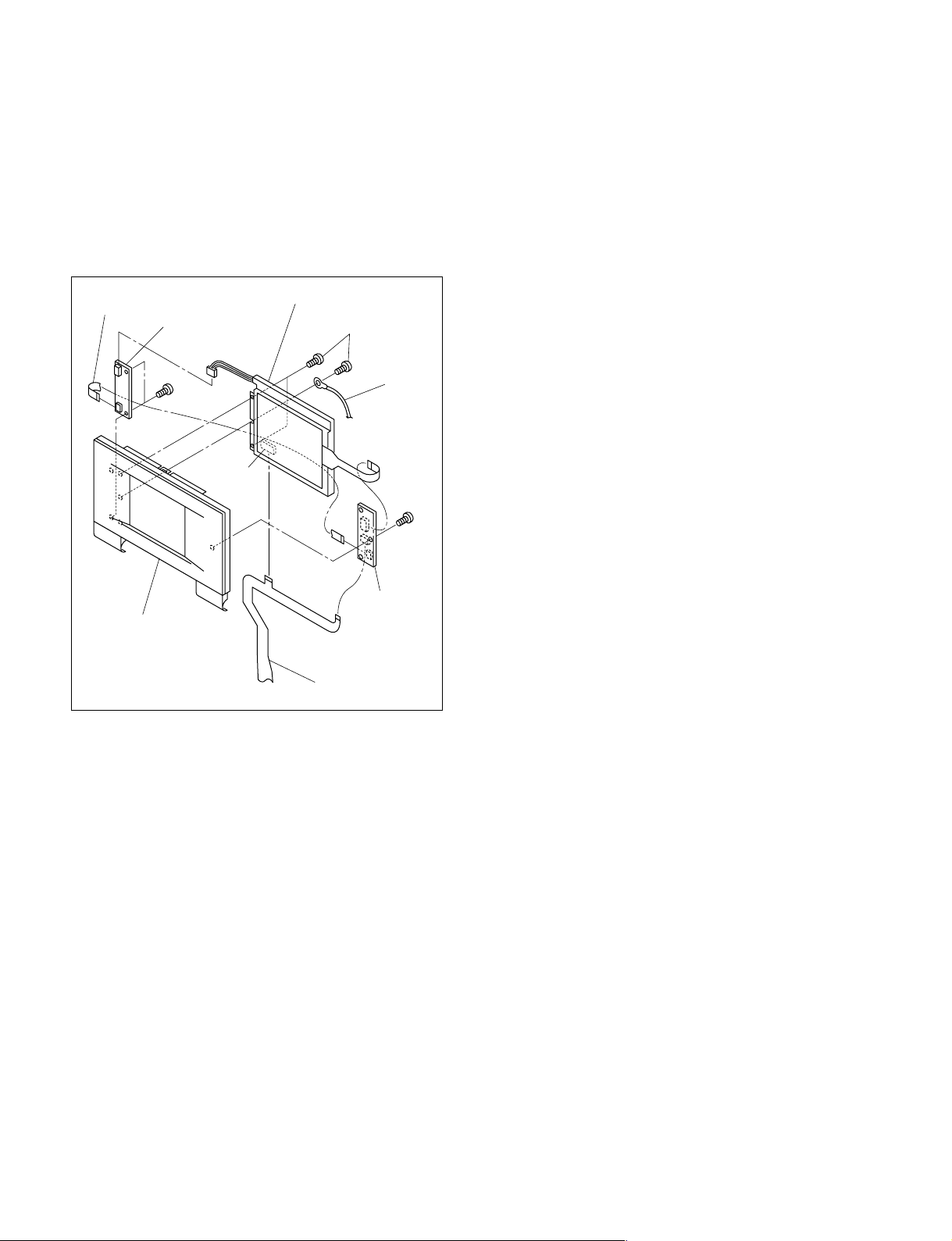

1-2-2. LCD Sub Assembly
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove one screw, then remove the hinge cover
assembly.
Hinge cover assembly
Upper cabinet
assembly
LCD sub assembly
3. Remove one screw (BVTP 2.6x6), then remove the
harness.
4. Remove one screw (BVTP 2.6x6), then remove the
spring (PR).
5. Remove two screws (BSW 2.6x8), then remove the
LCD sub assembly in the direction indicated by the
arrow.
LCD sub assembly
PTTWH 2x5
Harness
BVTP
2.6x6
Spring (PR)
PSW
2.6x8
6. Attach the LCD sub assembly in the reverse order of
steps 1 to 5.
1-2
DPP-EX7 V1
Page 9
1-3. Sensor Arrangement and Functional Description
MD-45 board
PH901
PH902
PH905
Ref. Name Type Function
PH903, 904 Mode position sensor Reflection type x2 Detects the position of a DC motor.
PH901, 902 Ribbon code sensor Reflection type x2 Detects the type of a ribbon.
D901 Ribbon mark sensor Transmissive type (LED) Detects the mark of each ribbon color.
PH905 Ribbon in-sensor Reflection type x1 Detects the existence of a ribbon
D901
PH903
PH904
MD-45 board (Side A)
cassette.
JD-45 board
PH1020
JD-45 board (Side A)
Ref. Name Type Function
PH1020 Jamming dead sensor Reflection type x1 Detects the paper position.
Detects the paper type.
DPP-EX7 V1
1-3
Page 10
PE-45 board
PH1030
PE-45 board (Side A)
Ref. Name Type Function
PH1030 Paper edge sensor Reflection type x1 Detects the paper position.
Detects the paper type.
RM-45 board
Q1040
RM-45 board (Side A)
Ref. Name Type Function
Q1040 Ribbon mark sensor Transmissive type Detects the mark of each ribbon color.
(photo transistor)
1-4
DPP-EX7 V1
Page 11
Section 2
Replacement of Main Parts
2-1. Replacement of Board

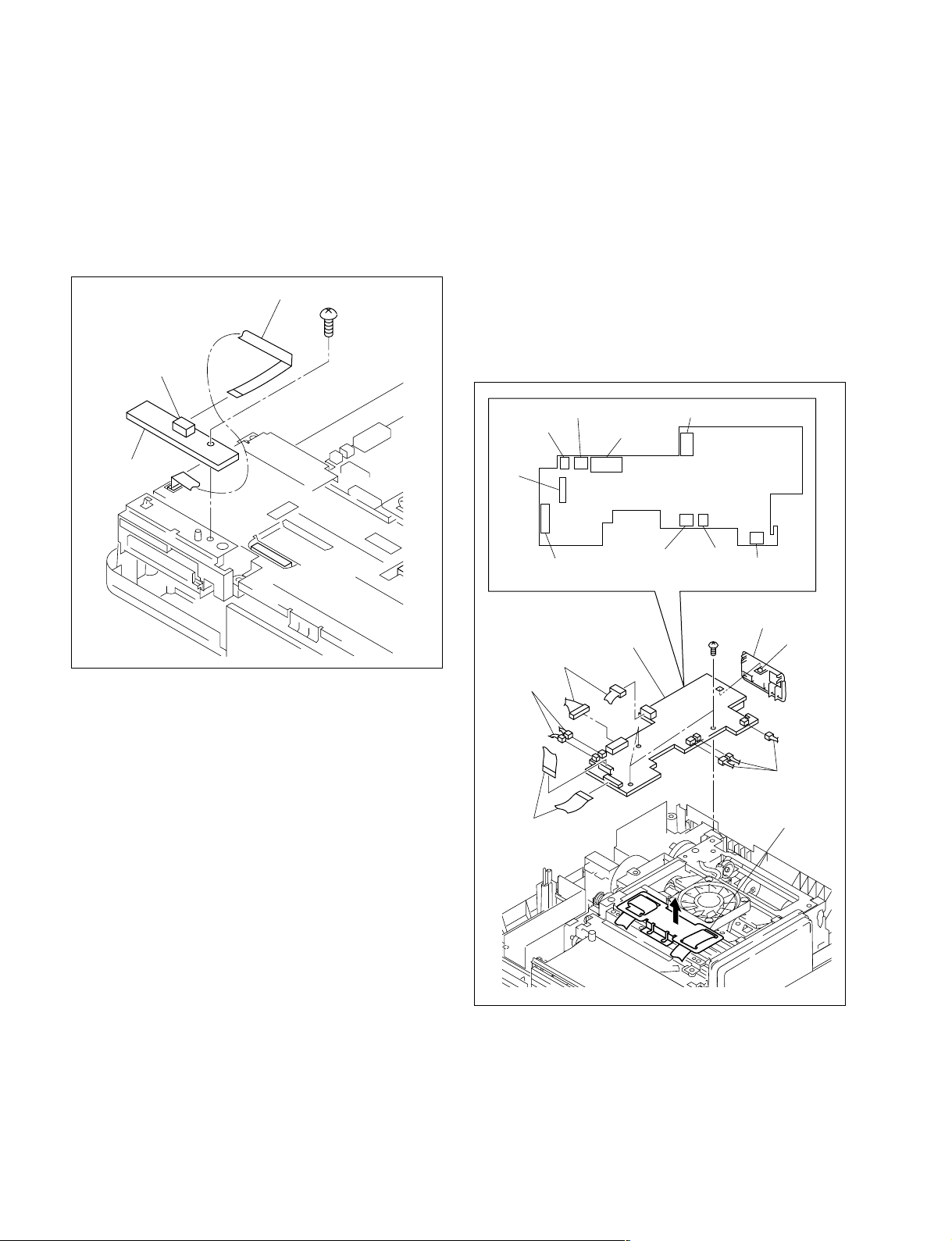

2-1-1. DK-45 Board
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Disconnect the four flexible flat cables from the
connectors (CN251, CN252, CN253 and CN255) on
the DK-45 board.
3. Remove the three screws (BVTP 2.6x8), two screws
(BVTT 2.6x5) and one screw (BTP 2.6x10), then
raise the ferrite holder in the direction indicated by the
arrow and remove the DK-45 board.
4. Remove the PC/MS guide assembly from the DK-45
board.
5. Remove the two solders, then remove the upper DK
shield case from the DK-45 board.
Flexible flat cables
Solders
BVTP
2.6x8
BVTP
2.6x8
6. Remove the five solders, then remove the lower DK
shield case from the DK-45 board.
DK-45 board
Solder
Solders
Solders
Lower DK shield case
7. Install the DK-45 board in the reverse order of steps 1
to 6.
BTP
2.6x10
CN251
CN255
CN253
PC/MS guide
assembly
BVTT
2.6x5
B
A
B
A
Upper DK
shield case
CN252
DK-45 board
Ferrite holder
DPP-EX7 V1
2-1
Page 12
2-1-2. PW-45 Board
2-1-3. MD-45 Board
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Disconnect one flexible flat cable from the connector
(CN1301) on the PW-45 board.
3. Remove one screw, then remove the PW-45 board.
Flexible flat cable
BVTP
2.6x6
CN1301
PW-45 board
4. Install the PW-45 board in the reverse order of steps 1
to 3.
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Disconnect the seven harnesses from the connectors
(CN901, CN903-906, CN908 and CN909) on the MD45 board and two flexible flat cables from the
connectors (CN910 and CN911) on the MD-45 board.
4. Raise the ferrite holder and remove the three screws,
then remove the MD-45 board.
5. Remove one hook, then remove the terminal plate.
CN906
CN911
CN910
Harnesses
Harnesses
CN909
CN901
MD-45 board (Side B)
MD-45 board
CN905
CN903
CN904
BVTT
2.6x5
CN908
Terminal
plate
Hook
2-2
Harnesses
Flexible flat cables
Ferrite holder
6. Install the MD-45 board in the reverse order of steps 1
to 5.
DPP-EX7 V1
Page 13

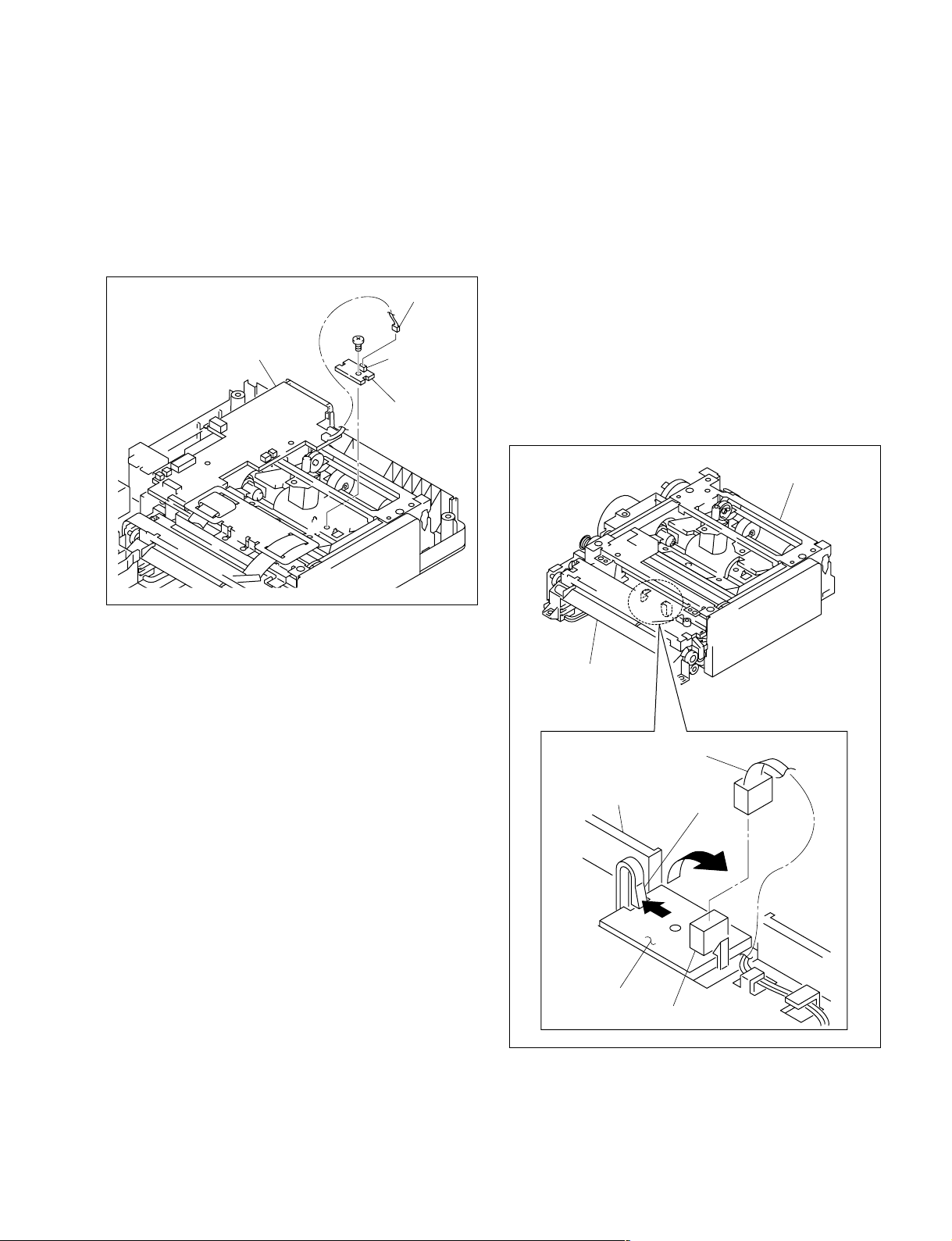

2-1-4. JD-45 Board
2-1-5. PE-45 Board
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove one screw, then remove the JD-45 board.
3. Disconnect one harness from the connector (CN1020)
on the JD-45 board.
Harness
P 2x3
MD-45 board
CN1020
JD-45 board
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Remove the paper eject guide assembly. (Refer to
Section 2-3.)
4. Remove the mechanical deck assembly. (Refer to
Section 2-4.)
5. Remove the PE-45 board in the direction indicated by
the arrow B while pushing one hook of the paper feed
frame assembly in the direction indicated by the arrow
A.
6. Disconnect one harness from the connector (CN1030)
on the PE-45 board.
Mechanical deck
assembly
4. Install the JD-45 board in the reverse order of steps 1
to 3.
Paper feed frame
assembly
Harness
Paper feed frame
assembly
Hook
B
A
PE-45 board
CN1030
7. Install the PE-45 board in the reverse order of steps 1
to 6.
DPP-EX7 V1
2-3
Page 14
2-1-6. RM-45 Board
2-1-7. PR-45 Board
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Remove the paper eject guide assembly. (Refer to
Section 2-3.)
4. Remove the mechanical deck assembly. (Refer to
Section 2-4.)
5. Remove the MD-45 board. (Refer to Section 2-1-3.)
6. Remove the paper feed frame assembly. (Refer to
Section 2-8.)
7. Remove the four hooks, then remove the paper guide
assembly from the paper feed frame assembly.
8. Remove the two hooks of the paper feed frame
assembly in the direction indicated by the arrow A,
then remove the RM-45 board in the direction
indicated by the arrow B.
9. Disconnect one harness from the connector (CN1040)
on the RM-45 board.
Hook
B
A
A
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove one screw, then remove the spring (PR).
3. Remove the two screws, then disconnect the harness
and remove the PR-45 board.
4. Disconnect one flexible flat cable from the connector
(CN1001) on the PR-45 board.
Upper cabinet
assembly
PR-45 board
Harness
BVTP
2.6x6
CN1001
Paper feed frame
assembly
Harness
CN1040
Hook
RM-45 board
Hook
RM-45 board
Paper feed frame
assembly
Paper guide
assembly
Hook
Hook
Flexible flat cable
BVTP
2.6x6
Spring (PR)
5. Install the PR-45 board in the reverse order of steps 1
to 4.
10. Install the RM-45 board in the reverse order of steps 1 to 9.
2-4
DPP-EX7 V1
Page 15

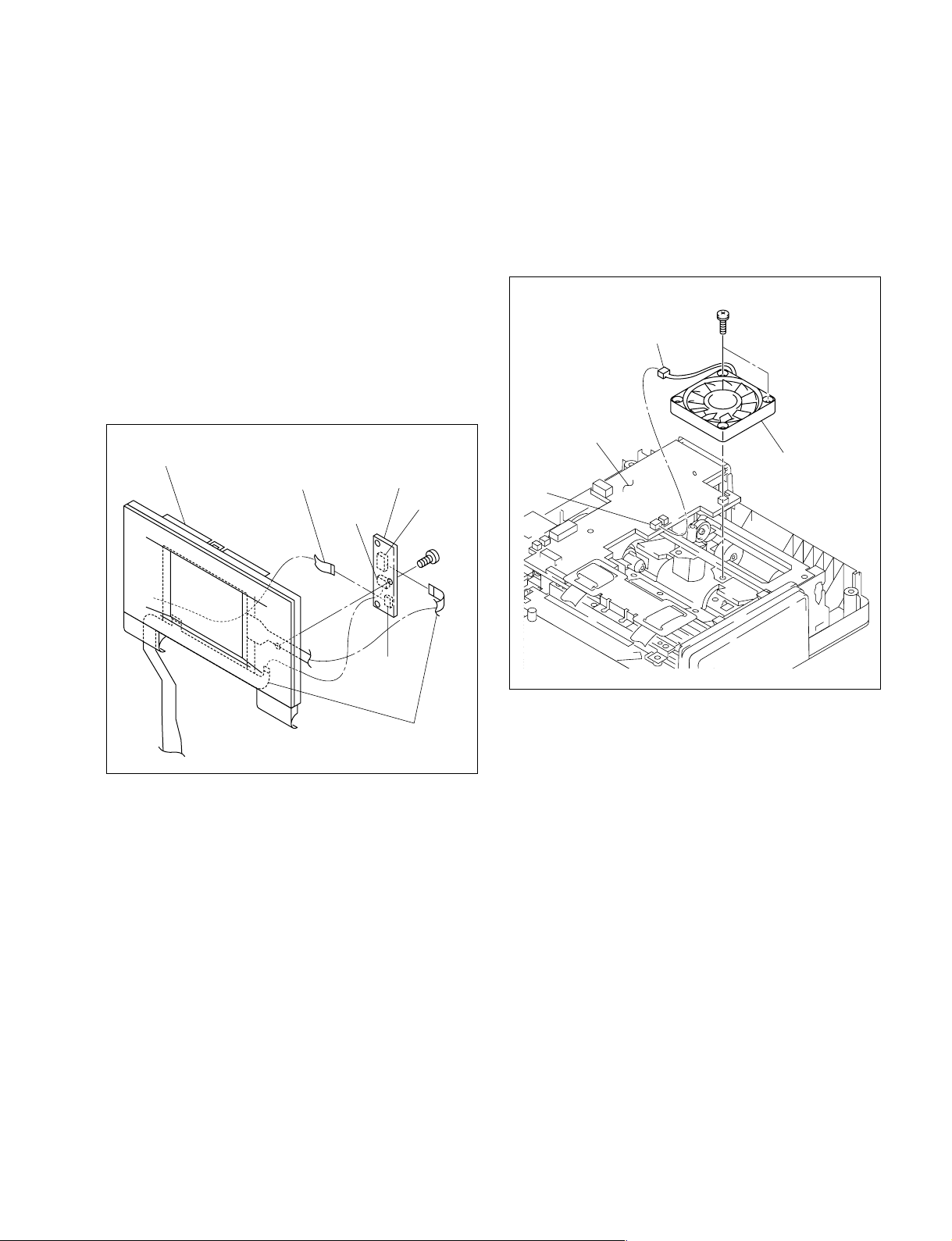

2-1-8. TP-45 Board
2-2. DC Fan
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the LCD subassembly. (Refer to Section 1-2-
2.)
3. Remove the LCD rear cabinet. (Refer to Section 2-12.)
4. Remove the hinge unit. (Refer to Section 2-12.)
5. Remove the two flexible printed wiring boards from
the connectors (CN1201 and CN1202) on the TP-45
board and disconnect one flexible flat cable from the
connector (CN1203) on the TP-45 board.
6. Remove one screw, then remove the TP-45 board from
the LCD front cabinet assembly.
LCD front cabinet
assembly
Flexible flat cable
TP-45 board
CN1201
CN1202
PTP 2x5
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Disconnect one harness from the connector (CN903)
on the MD-45 board.
3. Remove the two screws, then remove the DC fan.
PS 3x10
Harness
MD-45 board
DC fan
CN903
CN1203
Flexible printed
wiring boards
7. Install the TP-45 board in the reverse order of steps 1
to 6.
4. Attach the DC fan in the reverse order of steps 1 to 3.
DPP-EX7 V1
2-5
Page 16

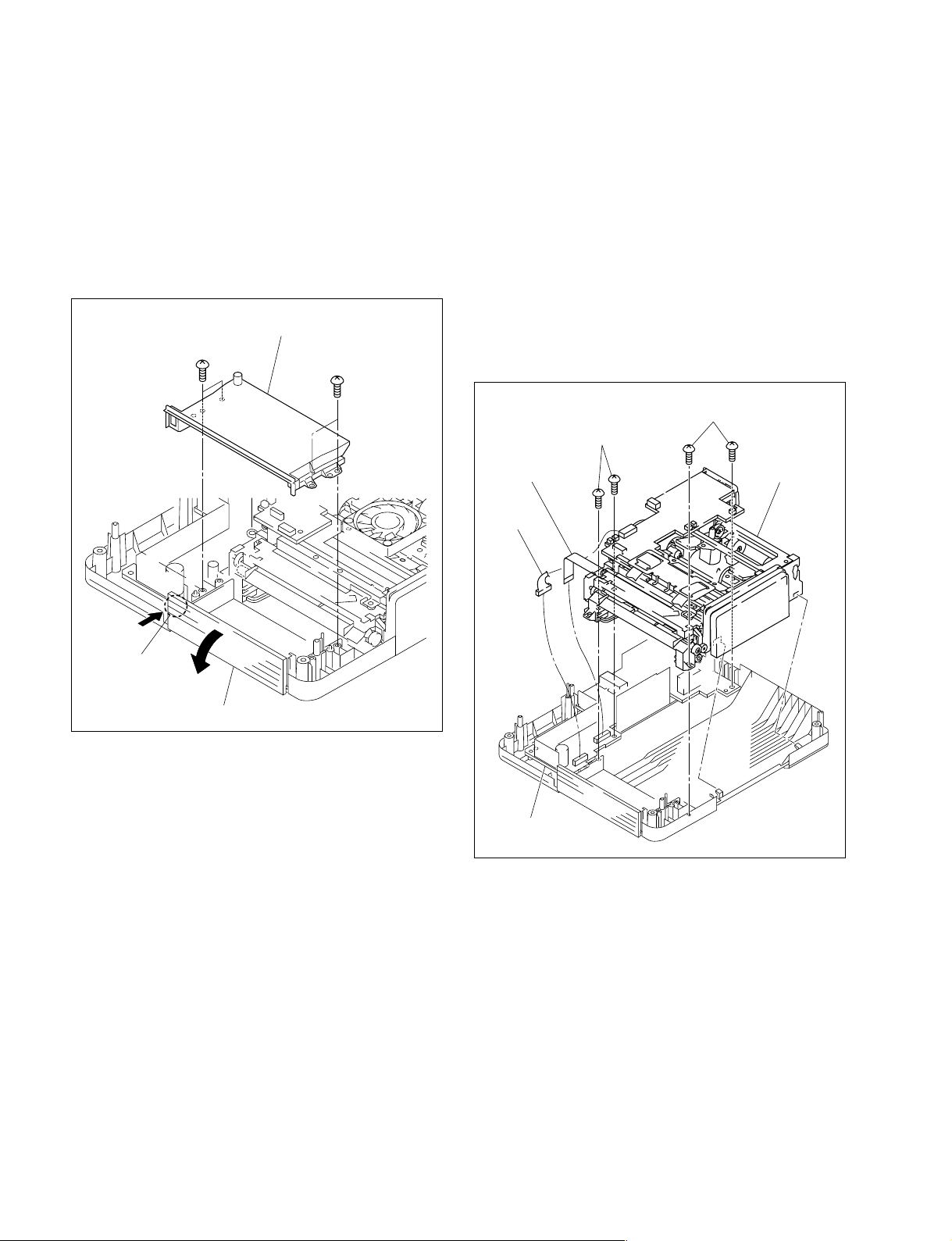

2-3. Paper Eject Guide Assembly
2-4. Mechanical Deck Assembly
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Push the PUSH portion and open the front door.
4. Remove the four screws, then remove the paper eject
guide assembly.
Paper eject guide
BVTP
2.6x8
assembly
BVTP
2.6x8
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Remove the paper eject guide assembly. (Refer to
Section 2-3.)
4. Disconnect one harness and one flexible flat cable
from the switching regulator.
5. Remove the two screws (BVTP 2.6x8) and two screws
(BTP 2.6x10), then remove the mechanical deck
assembly.
BTP
BVTP
2.6x8
Flexible flat
cable
Harness
2.6x10
Mechanical
deck assembly
PUSH portion
Front door
5. Attach the paper eject guide assembly in the reverse
order of steps 1 to 4.
Switching
regulator
6. Attach the mechanical deck assembly in the reverse
order of steps 1 to 5.
2-6
DPP-EX7 V1
Page 17

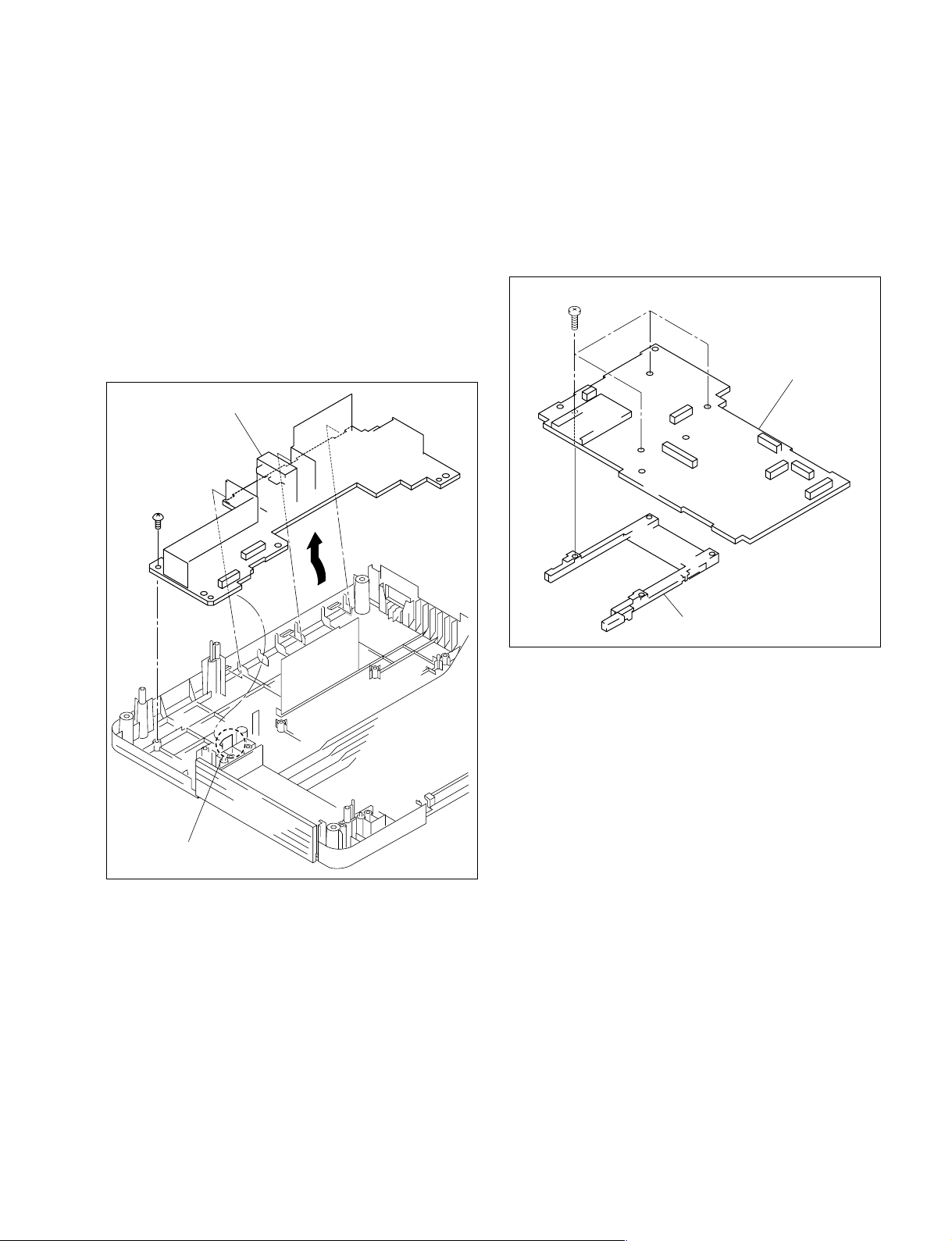

2-5. Switching Regulator
2-6. PCMCIA Ejector
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Remove the paper eject guide assembly. (Refer to
Section 2-3.)
4. Remove the mechanical deck assembly. (Refer to
Section 2-4.)
5. Remove one screw and one hook, then remove the
switching regulator in the direction indicated by the
arrow.
Switching regulator
BVTP
2.6x8
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Remove the four screws, then remove the PCMCIA
ejector.
B 2x10
DK-45 board
Hook
6. Attach the switching regulator in the reverse order of
steps 1 to 5.
PCMCIA ejector
4. Attach the PCMCIA ejector in the reverse order of
steps 1 to 3.
DPP-EX7 V1
2-7
Page 18

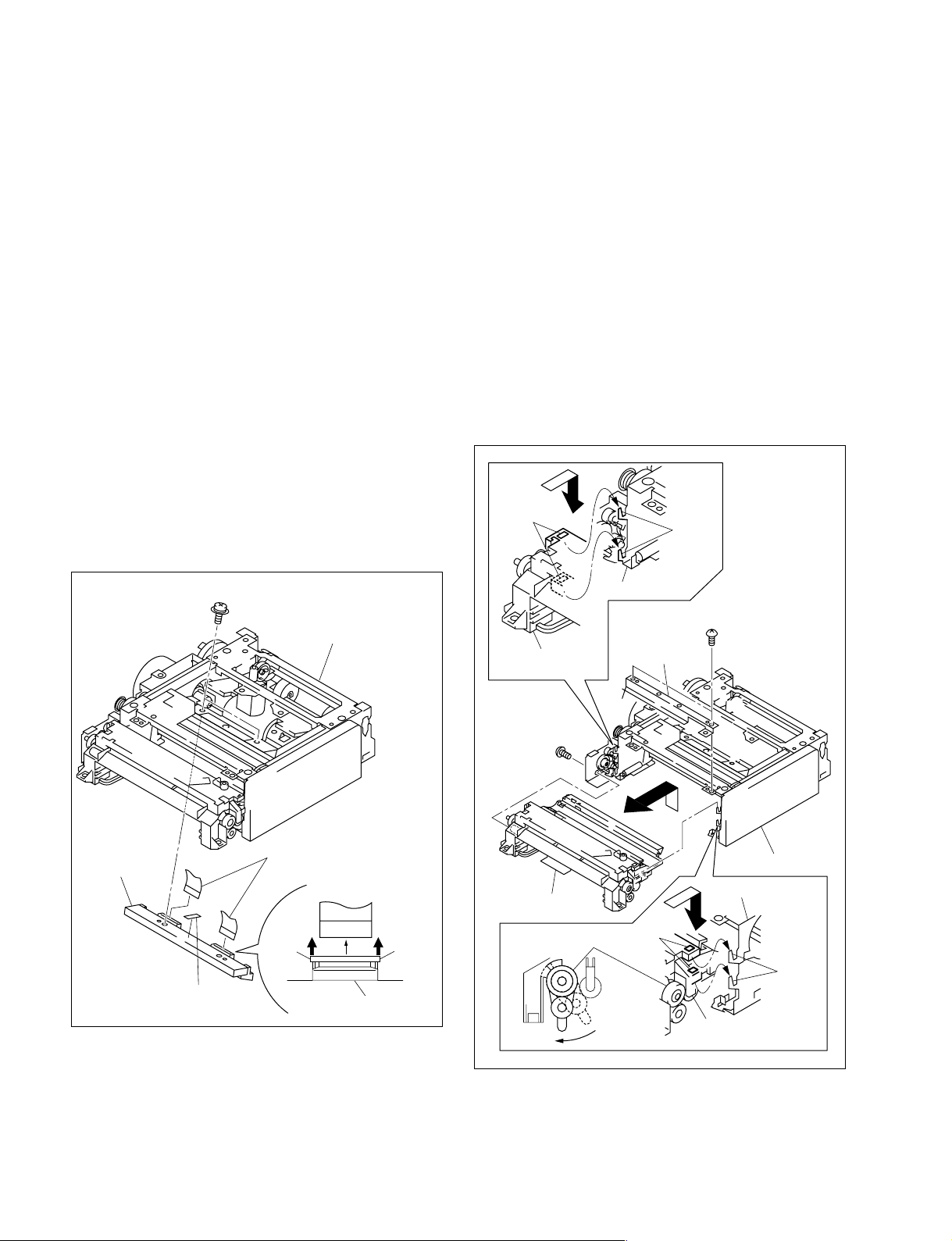

2-7. Thermal Head
2-8. Paper Feed Frame Assembly
n
After removing the thermal head, check that the center
shim is attached.
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Remove the paper eject guide assembly. (Refer to
Section 2-3.)
4. Remove the mechanical deck assembly. (Refer to
Section 2-4.)
5. Remove the DC fan. (Refer to Section 2-2.)
6. Remove the MD-45 board. (Refer to Section 2-1-3.)
7. Pull out the portion A of the connector on the thermal
head in the direction indicated by the arrow, then
disconnect the two flexible flat cables.
8. Remove the two screws, then remove the thermal
head.
9. Remove the center shim from the thermal head.
PSW 2.6x6
Mechanical deck
assembly
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Remove the paper eject guide assembly. (Refer to
Section 2-3.)
4. Remove the mechanical deck assembly. (Refer to
Section 2-4.)
5. Remove the MD-45 board. (Refer to Section 2-1-3.)
6. Remove the two screws (BVTT 2.6x5), then remove
the paper feed frame holder from the chassis assembly.
7. Remove one screw (BVTP 2.6x8), then remove the
paper feed frame assembly from the chassis assembly
in the direction indicated by the arrow.
Holes
Chassis assembly
Paper feed frame
assembly
Hooks
BVTT
2.6x5
Paper feed
frame holder
Thermal head
Center shim
Flexible flat cables
Portion
A
Connector
Portion
A
10. Attach the thermal head in the reverse order of steps 1
to 9.
BVTP
2.6x8
Chassis assembly
Paper feed frame
assembly
Pendulum gear
Holes
Chassis assembly
Hooks
Paper feed frame
assembly
8. Attach the paper feed frame assembly in the reverse
order of steps 1 to 7.
2-8
DPP-EX7 V1
Page 19
m
BVTT
2.6x5
CN905
Stepping motor
Harness
MD-45 board
. Attach the paper feed frame assembly while pushing the
pendulum gear in the direction indicated by the arrow.
. When attaching the paper feed frame assembly, be sure
to securely insert the four hooks of the chassis assembly
into the four holes of the paper feed frame assembly.

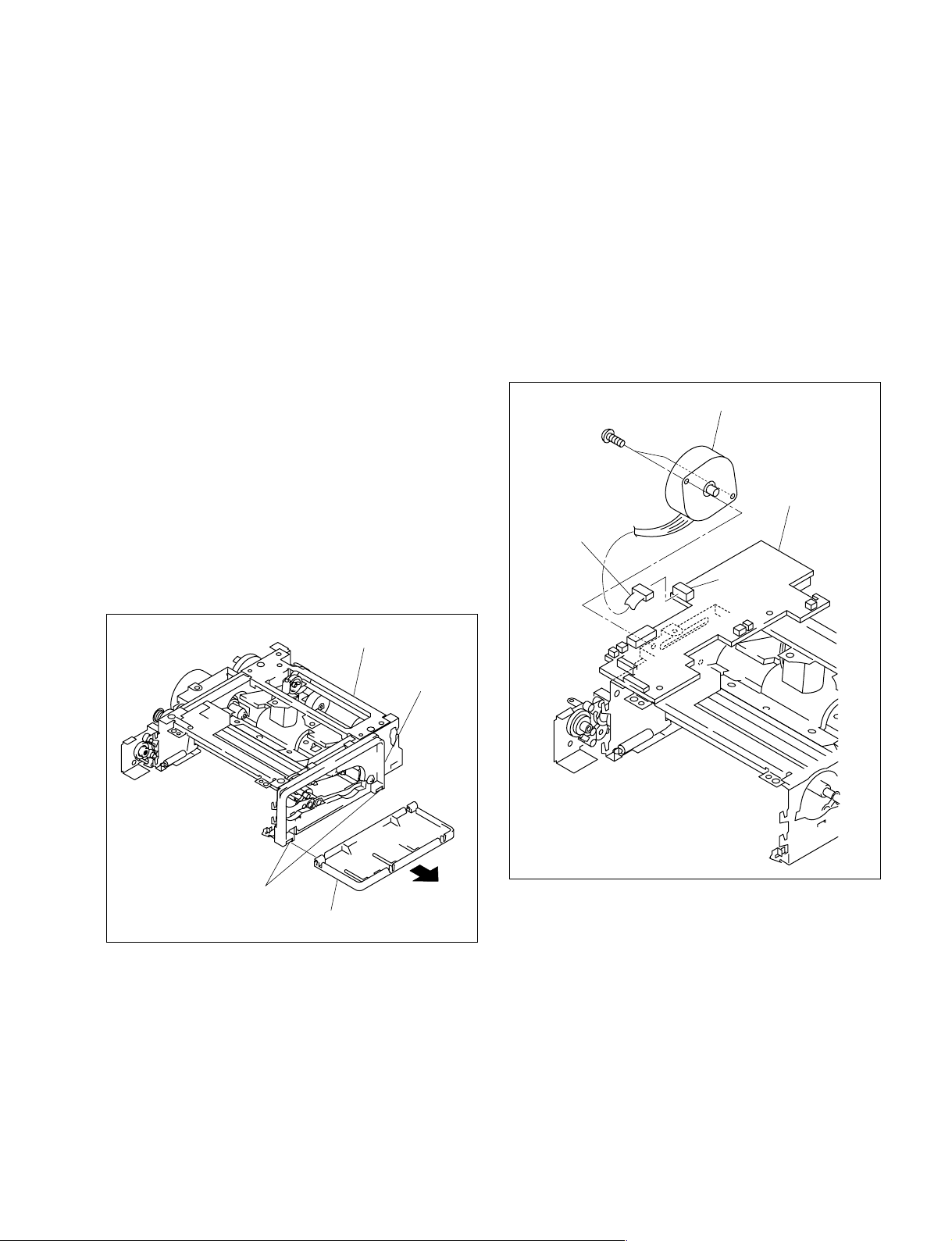

2-9. Chassis Assembly
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Remove the paper eject guide assembly. (Refer to
Section 2-3.)
4. Remove the mechanical deck assembly. (Refer to
Section 2-4.)
5. Remove the MD-45 board. (Refer to Section 2-1-3.)
6. Remove the paper feed frame assembly. (Refer to
Section 2-8.)
7. Open the ribbon door, then remove it from the two
hinges of the cassette guide in the direction indicated
by the arrow.
2-10. Stepping Motor
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Remove the paper eject guide assembly. (Refer to
Section 2-3.)
4. Remove the mechanical deck assembly. (Refer to
Section 2-4.)
5. Remove the two screws and disconnect one harness
from the connector (CN905) on the MD-45 board, then
remove the stepping motor.
Chassis assembly
Cassette guide
Hinges
Ribbon door
8. Attach the chassis assembly in the reverse order of
steps 1 to 7.
6. Attach the stepping motor in the reverse order of steps
1 to 5.
DPP-EX7 V1
2-9
Page 20

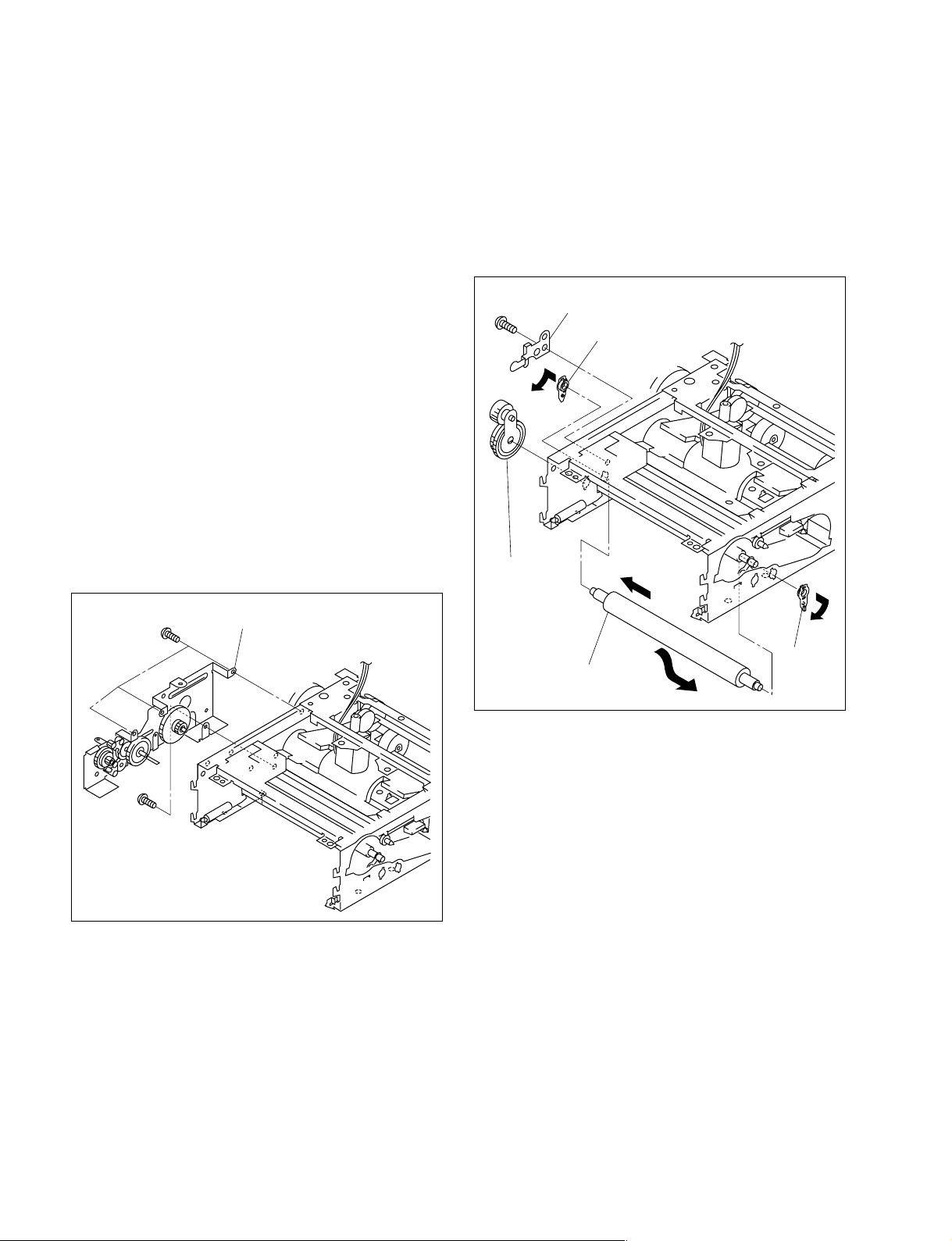

2-11. E Capstan Roller
n
When replacing the E capstan roller, platen roller or pinch
roller, be careful not to touch the roller with bare hands or
dirty gloves. In case that the roller is contaminated, clean it
with ethyl alcohol.
10. Remove the R pendulum lever assembly.
11. Remove one screw, then remove the CP shaft earth.
12. Rotate the two roller bearings in the direction indicated
by the arrow A, then remove them.
13. Move the platen roller in the direction indicated by the
arrow B, then remove it in the direction indicated by
the arrow C.
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the DK-45 board. (Refer to Section 2-1-1.)
3. Remove the paper eject guide assembly. (Refer to
Section 2-3.)
4. Remove the mechanical deck assembly. (Refer to
Section 2-4.)
5. Remove the chassis assembly. (Refer to Section 2-9.)
6. Remove the MD-45 board. (Refer to Section 2-1-3.)
7. Remove the paper feed frame assembly. (Refer to
Section 2-8.)
8. Remove the stepping motor. (Refer to Section 2-10.)
9. Remove the four screws, then remove the E
transmission gear assembly.
E transmission
BVTT
2.6x5
gear assembly
BVTT
2.6x5
CP shaft earth
A
R pendulum
lever assembly
Roller bearing
B
Platen roller
A
Roller
bearing
C
2-10
BVTT
2.6x5
DPP-EX7 V1
Page 21

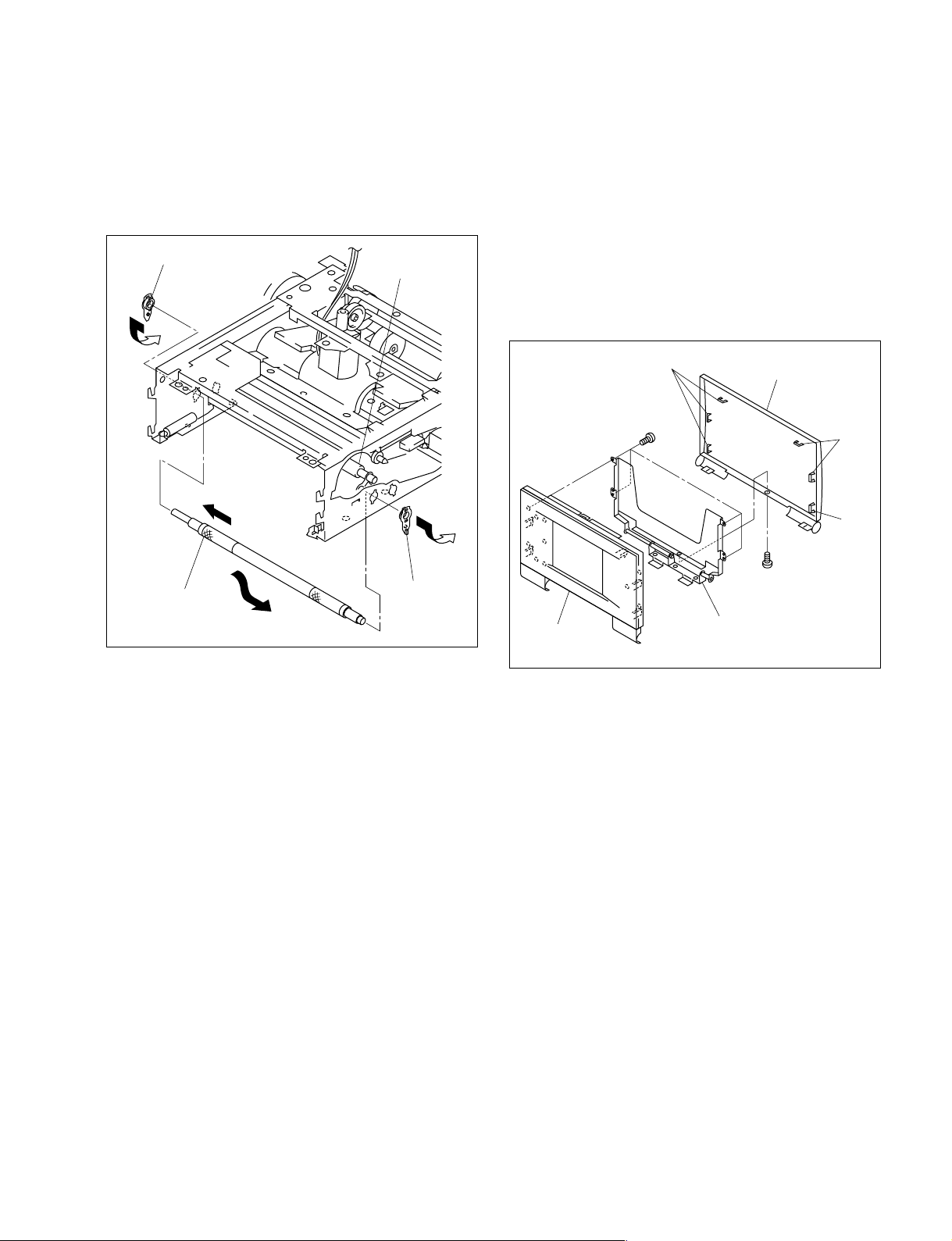

14. Rotate the two roller bearings in the direction indicated
Hinge unit
LCD rear cabinet
LCD front
cabinet assembly
Hooks
Hooks
Hook
PTP 2x5
M 2x3
by the arrow A, then remove them.
15. Move the E capstan roller in the direction indicated by
the arrow B, then remove it in the direction indicated
by the arrow C.
Roller bearing
Pinch roller
A
B
A
2-12. LCD Module
1. Remove the upper cabinet assembly. (Refer to Section
1-2-1.)
2. Remove the LCD subassembly. (Refer to Section 1-2-
2.)
3. Remove one screw (M 2x3) and six hooks, then
remove the LCD rear cabinet.
4. Remove the four screws (PTP 2x5), then remove the
hinge unit.
E capstan roller
Roller
bearing
C
16. Attach the E capstan roller in the reverse order of steps
1 to 15.
DPP-EX7 V1
2-11
Page 22
5. Remove the TP-45 board. (Refer to Section 2-1-8.)
6. Remove the two screws, then remove the inverter unit.
7. Remove one screw, then disconnect the harness.
8. Remove the two screws, then remove the LCD
module.
9. Remove the flexible printed wiring board from the
connector (CN1) on the LCD module.
Flexible flat
cable
LCD front cabinet assembly
Inverter unit
PTP
2x5
LCD module
CN1
PTP 2x5
Harnes
TP-45 board
Flexible printed
wiring board
PTP
2x5
10. Attach the LCD module in the reverse order of steps 1
to 9.
2-12
DPP-EX7 V1
Page 23
Section 3
y

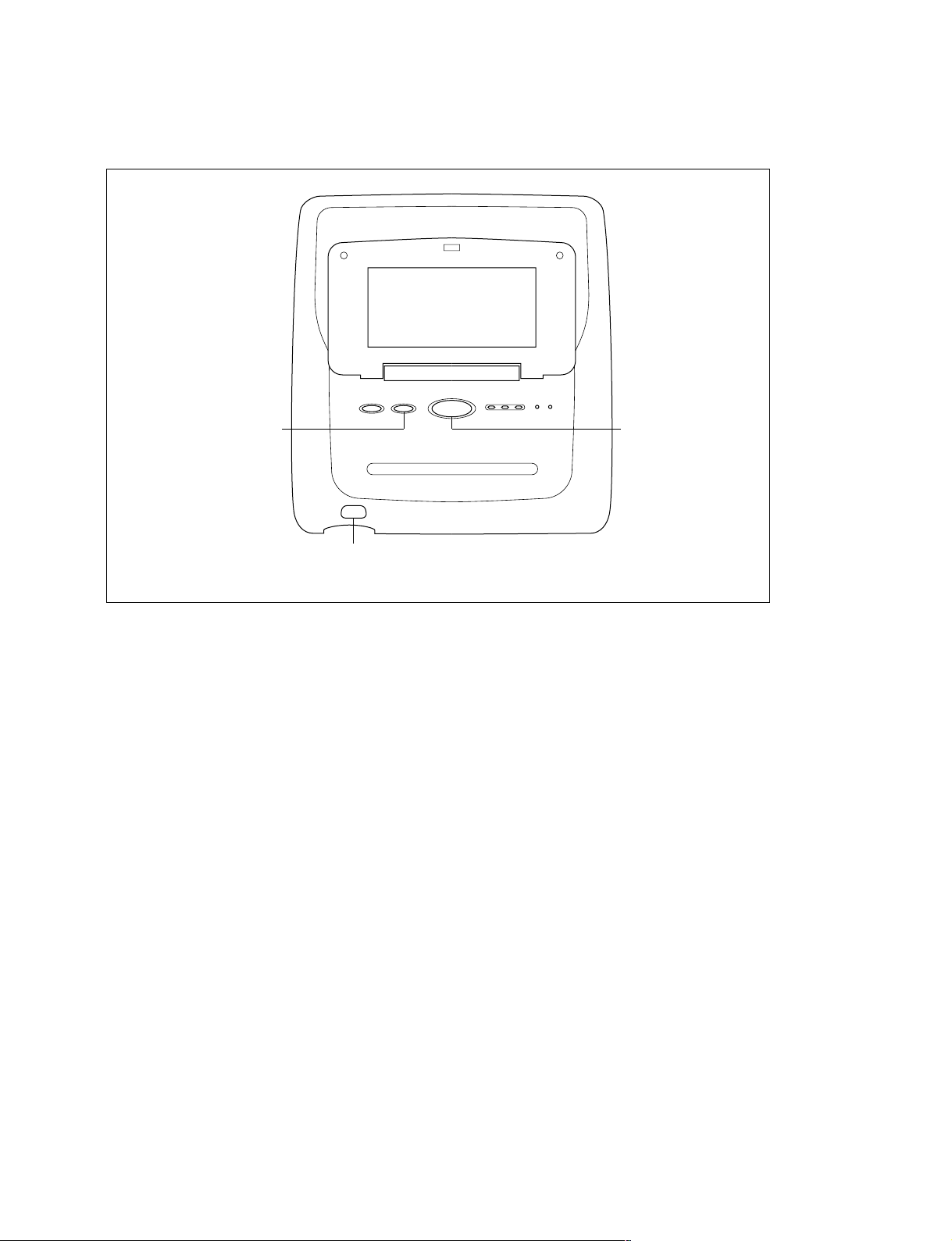

Service Mode
PRINT keyALL/DPOF key
POWER ke
(Front side)
m
. When executing the service mode, use a touch-pen exclusive to the LCD of this unit. (Supplied with
this unit)
Touch-pen (Part No.: X-3168-393-1)
. In this manual, the direct touch of a touch-pen on the LCD is referred to as “tap”.
3-1. Activation
1. Turn on the power while pressing the ALL/DPOF key.
n
Keep pressing the ALL/DPOF key until the service mode menu (hereafter referred to as the menu)
appears on the LCD. (Step 2)
2. After the LCD is activated and the menu is displayed, release the ALL/DPOF key.
n
To exit the service mode, press the POWER key.
3-2. Touch Panel Position Adjustment
1. Tap the <PANEL CALBRATE> icon on the menu.
2. Tap the center of a blue circle that appears on the LCD.
3. Repeat step 2 three times.
4. When you hear a beep sound, the adjustment is completed.
DPP-EX7 V1
3-1
Page 24
3-3. LCD Contrast Check and Adjustment
1. Tap the <LCD CONTRAST> icon on the menu.
2. Check if all steps (5-step contrast) displayed at the center of the screen can be identified.
3. If the identification is difficult, adjust the contrast by tapping the + key or _ key in the upper area of
the screen.
When the white area cannot be identified: Tap the _ key.
When the black area cannot be identified: Tap the + key.
4. After checking that all five steps can be identified, tap a \ (a square of the yellow) in the center of
the blue color’s adjustment bar.
n
When no adjustment of the five steps is required, tap a \ after step 2.
5. When you hear a beep sound, the adjustment is completed.
3-4. Density Adjustment for During Thermal Head Replacement
m
. Before replacing the thermal head, be sure to print a test pattern of gray (86 gray) using either normal
operating unit or old thermal head that is an already used as a reference of density.
. When performing the test pattern printing using an old thermal head, use it that is not damaged as a
whole due to black and white streaks.
n
The required number of print here is only one in each time it is made.
Procedures
1. Set the ribbon and paper (half size photo paper SVM-30SS).
2. Enter to the service mode, tap the <MECHANIC TEST> icon on the menu.
3. Tap the <PRINT GRAY> icon on the menu. Then the <PRINT GRAY> icon becomes to yellow and
the printing automatically starts.
4. After the printing is completed, press the PRINT key. When the screen goes back to the menu screen
of the service mode, turn off the power.

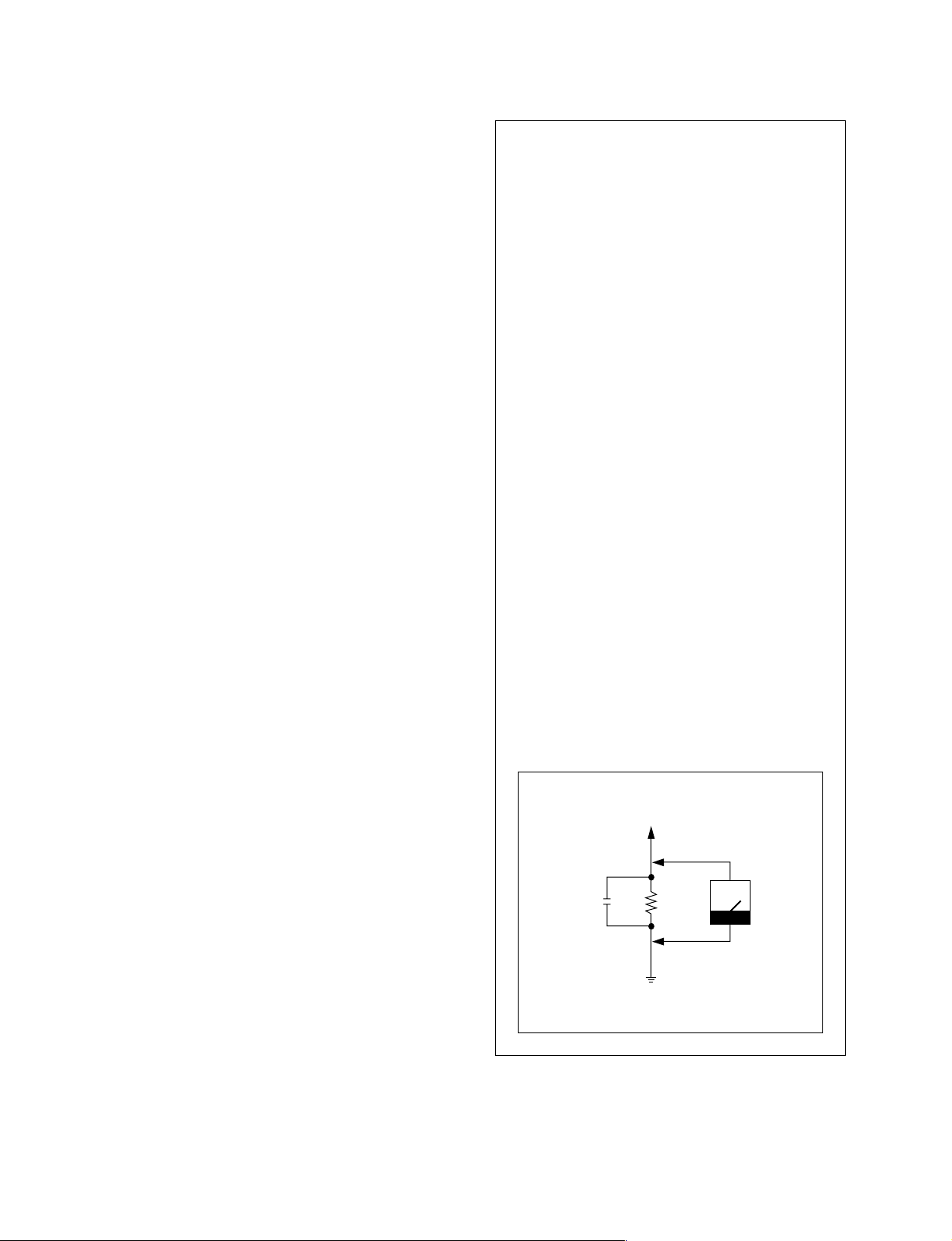

5. Before replacing the thermal head, record the resistance of the thermal head.
6. Replace the thermal head. (Refer to Section 2-7 for the replacement of thermal head.)
7. Set the ribbon and paper (half size photo paper SVM-30SS).
8. Enter to the service mode, tap the <PRINT DENSITY> icon on the menu of the service mode.
9. Tap the icon of the adjustment value (R1 to R8) corresponding to the resistance of the new thermal
head according to the table below.
R1 - 7350
R2 7071 - 7350
R3 7351 - 7640
R4 7641 - 7940
R5 7941 - 8240
R6 8241 - 8540
R7 8541 - 8850
R8 8851 -
3-2
DPP-EX7 V1
Page 25
10. Press the PRINT key.
n
Although a step image is automatically printed, it is not used.
11. After the printing is completed, tap the mid-density (fourth from the top of the left column) of the
adjustment icon.
12. When you hear a beep sound, the screen goes back to the menu screen of the test mode.
13. Perform steps 2 and 3 again.
14. Compare the density of the test patterns printed before (step 3) and after (step 13) replacement and
adjust the density so that they are equivalent in level.
. When adjusting to a darker level in density
Perform steps 7 to 10, then, in step 11, tap the one-level darker icon (top of the right column). To
adjust to an even darker level, repeat steps 7 to 10, then, in step 11, select an even darker icon.
. When adjusting to a lighter level in density
Perform steps 7 to 10, then, in step 11, tap the one-level lighter icon (third from the top of the left
column). To adjust to an even lighter level, repeat steps 7 to 10, then, in step 11, select an even
lighter icon.
DPP-EX7 V1
3-3
Page 26
Page 27
Section 4
Troubleshooting
4-1. Electrical Troubleshooting
Electrical troubles are described below.
Trouble: No memory stick image can be read.
Remedy: . Confirm the input selector switch is set to the memory stick.
. Confirm CN181 on the DK-45 board and the peripheral circuit.
. Confirm IC101 on the DK-45 board and the peripheral circuit.
. Confirm the file format is enabled for the memory stick image.
Trouble: No PC card image can be read.
Remedy: . Confirm the input selector is set to the PC card.
. Confirm CN254 on the DK-45 board and the peripheral circuit.
. Confirm IC251 on the DK-45 board and the peripheral circuit.
. Confirm the file format is enabled for the memory stick image.
Trouble: A printer is not recognized by the personal computer.
Remedy: . Confirm IC951 on the MD-45 board and the peripheral circuit.
. Confirm IC101 on the DK-45 board and the peripheral circuit.
. Confirm flexible flat cable (26 pins).
Trouble: The print color is not proper and the image is not normal.
Remedy: . Make a gray print in “MECHANIC TEST” of the service mode for confirmation.
(Refer to “3-4. Density Adjustment for During Thermal Head Replacement”.)
. Confirm CN253 on the DK-45 board and the peripheral circuit.
. Confirm flat cable FFC (between DK-45 board and thermal head).
Trouble: No image appears on the LCD.
Remedy: . Confirm flexible wiring board between the LCD and the main unit.
. Confirm IC101 on the DK-45 board and the peripheral circuit.
. Confirm CN201 on the DK-45 board and the peripheral circuit.
. Confirm the liquid crystal displaying module, inverter unit and flexible flat cable.
. Confirm “LCD CONTRAST” of the service mode.
Trouble: Touch panel does not operate.
Remedy: . Confirm touch panel.
. Confirm the TP-45 board.
. Confirm flexible wiring board between the LCD and the main unit.
DPP-EX7 V1
4-1
Page 28
4-2. Error Display
In this unit, the “status of mechanical deck” can be displayed in the service mode.
The direct touch of a touch-pen on the LCD is referred to as “tap”.
Activation
1. Turn on the power while pressing the ALL/DPOF key.
2. Release the ALL/DPOF key when the service mode screen appears.
Status display of mechanical deck
. Tap <PRINTER STATUS>
Viewing the screen
PRINTER STATUS: Displays the status of a mechanical deck.
n
In this mode, the value cannot be changed.
Current STATUS: Displays the current status.
LAST STATUS: Displays the status obtained when the power was turned off previously.
ERR1 to ERR10: Displays the status obtained when an error occurs.
* The status obtained when the error occurs is maintained to ten items. The status obtained when a
latest error occurs is displayed with a greater number of total printed sheets.
Detail of status
PRINT STATUS
Current STATUS
00, 00, 00, 00 : 00, 00, 00, 00
00, 00, 00, 00 : 00, 00, 00, 00
2 3
Last STATUS
00, 00, 00, 00 : 00, 00, 00, 00
00, 00, 00, 00 : 00, 00, 00, 00
Err 1
00, 00, 00, 00 : 00, 00, 00, 00
00, 00, 00, 00 : 00, 00, 00, 00
Err 2
00, 00, 00, 00 : 00, 00, 00, 00
00, 00, 00, 00 : 00, 00, 00, 00
1
1 Error & ribbon code
2 Total number of printed sheets
3 Total number of printing performed sheets
4-2
DPP-EX7 V1
Page 29
1 Error & ribbon code
Bit76543210
Name PES4 PES3 PES2 PES1 PES0 RM2 RM1 RM0
Contents Print error status Ribbon code
Print error status
PES4 PES3 PES2 PES1 PES0 Decimal State
0 0 0 0 0 0 No error
0 0 1 0 0 4 No ribbon
0 0 1 0 1 5 Ribbon completed
0 0 1 1 1 7 Ribbon code error
0 1 0 0 0 8 No paper
0 1 0 0 1 9 Paper completed
0 1 0 1 0 10 Paper length error (Long)
0 1 0 1 1 11 Paper length error (Short)
0 1 1 0 0 12 Remaining paper
1 0 0 0 0 16 PE error (Jamming)
1 0 0 0 1 17 JD error (Jamming)
1 0 0 1 0 18 Head error
1 0 0 1 1 19 Mode motor error (Mode change error)
1 0 1 0 0 20 Stepping motor error
1 0 1 0 1 21 Transition error
1 0 1 1 0 22 Ribbon error
1 1 1 1 1 31 Others
Ribbon code
RM2 RM1 RM0 Decimal State
0000Reserved
0011Reserved
0102Reserved
0113Reserved
1004Small size
1015Post card size
1106L size
1117Reserved
2 Total number of printed sheets
3 Total number of printing performed sheets
The status is displayed by hexadecimal digit. In DPP-EX7, the status obtained when the error occurs can
be displayed to ten items. The ten errors show for the last occurred errors include a latest one. More than
ten error statuses do not display whatever errors may occur up to ten items for the last.
DPP-EX7 V1
4-3
Page 30
Screen 1
PRINT STATUS
Current STATUS
40, 60, 00, 00 : 05, 01, 00, 00
01, 70, 01, 6C : 00, 00, 07, 11
Last STATUS
Err 1
Err 2
3 2
40, 01, 00, C0 : 04, 01, 00, 00
01, 70, 01, 6C : 00, 00, 07, 00
6 5
40, 08, 02, 08 : B5, 01, 01, 00
00, 1B, 00, 1A : 00, 00, 17, 02
9 8
40, 70, 03, 00 : B4, 01, 01, 00
00, 70, 00, 6F : 00, 00, 17, 00
!= !-
1
4
7
0
Screen 2
PRINT STATUS
Err 3
40, 00, 00, 04 : A6, 01, 01, 00
01, 03, 00, FF : 00, 00, 17, 00
Err 4
Err 5
Err 6
!\ !]
FF, FF, FF, FF : FF, FF, FF, FF
FF, FF, FF, FF : FF, FF, FF, FF
FF, FF, FF, FF : FF, FF, FF, FF
FF, FF, FF, FF : FF, FF, FF, FF
FF, FF, FF, FF : FF, FF, FF, FF
FF, FF, FF, FF : FF, FF, FF, FF
![
Screen 3
PRINT STATUS
Err 7
FF, FF, FF, FF : FF, FF, FF, FF
FF, FF, FF, FF : FF, FF, FF, FF
Err 8
FF, FF, FF, FF : FF, FF, FF, FF
FF, FF, FF, FF : FF, FF, FF, FF
Err 9
FF, FF, FF, FF : FF, FF, FF, FF
FF, FF, FF, FF : FF, FF, FF, FF
PAGEUP
PAGEDOWN
READRAW
EXIT
PAGEUP
PAGEDOWN
READRAW
EXIT
PAGEUP
PAGEDOWN
READRAW
EXIT
When tap “PAGEDOWN” on the screen, screen 1 →
screen 2 → screen 3 is displayed in order.
Example) Screen 1
Current STATUS
Error & ribbon code (1): 05
(No error occurs, post card)
Total number of
printed sheets (2 part): 016C (364 sheets)
Total number of printing
performed sheets (3 part): 0170 (368 sheets)
Last STATUS
Error & ribbon code (4): 04
(No error occurs, small size)
Total number of
printed sheets (5 part): 016C (364 sheets)
Total number of printing
performed sheets (6 part): 0170 (368 sheets)
The data of error is displayed from Err1 to Err2. (FF means
when no error occurs.) That is, errors had been occurred at
three times in result because error data was displayed until
Err3.
Err1
Error & ribbon code (7): B5
(Ribbon error, post card)
Total number of
printed sheets (8 part): 001A (26 sheets)
Total number of printing
performed sheets (9 part): 001B (27 sheets)
Err2
Error & ribbon code (0): B4
(Ribbon error, small size)
Total number of
printed sheets (!- part): 006F (111 sheets)
Total number of printing
performed sheets (!= part): 0070 (112 sheets)
Err3
Error & ribbon code (![): A6
(Stepping motor error, L size)
Total number of
printed sheets (!] part): 00FF (255 sheets)
Total number of printing
performed sheets (!\ part): 0103 (259 sheets)
4-4
Best errors of all printed sheets contain to Err3 between
Err1 to Err3. That is, Err3 means a latest error.
DPP-EX7 V1
Page 31
4-3. Mechanical Troubleshooting
The troubles caused by a mechanical deck can be mainly classified into the following.
1. Any paper cannot be fed normally. (Paper feed/eject trouble)
2. Any ink ribbon cannot be fed normally. (Ribbon trouble)
3. Printing cannot be performed normally. (Print trouble)
The cause and remedy of each trouble are described below.
1. Paper feed/eject trouble
Trouble: . No paper is ejected from the paper feed tray.
. Paper is ejected from the paper feed tray, but it stops halfway.
Cause: Perform the mode transition operation in MECHANIC TEST and confirm whether the UP
plate operation is normal. (Tap MODE RESET)
Normal: The paper feed block (K (paper feed) frame assembly) is abnormal.
Abnormal: The chassis assembly is abnormal.
Remedy: . Clean (wipe with dry cloth) if the paper feed roller and separation roller are dirty due to an
abnormal paper feed block.
. Replace the K (paper feed) frame assembly if the paper feed roller and separation roller are
not dirty.
. Replace the chassis assembly if it is abnormal (the mode gear is damaged).
Trouble: . Paper is fed normally, but it is ejected as blank paper.
. Multiple sheets of paper are fed continuously. (Multiple paper feed)
Cause: Incorrect paper detection
Remedy: . Confirm the fixing state of the PE-45 and JD-45 boards. Replace the PE-45 and JD-45
boards if the state is normal.
Trouble: Paper is folded inside a printer and cannot be taken out. (Paper jamming)
Cause: . Abnormal ribbon cassette
. Abnormal paper feed block (e.g., Separation plate deformation and damage)
Remedy: . Remove the mechanical deck block from the lower cabinet and eliminate the paper.
. Replace the K (paper feed) frame assembly if the paper feed block is abnormal.
n
The ribbon cassette is judged to be abnormal when no abnormality is detected in a paper feed
block. Confirm the ribbon cassette.
DPP-EX7 V1
4-5
Page 32
2. Ribbon trouble
Trouble: The ribbon is wound round the capstan roller and cannot be taken out. (Ribbon jamming)
Cause: . Abnormal ribbon cassette
. Abnormal installation position of ribbon guide
. Abnormal chassis assembly (Deterioration in take-up reel clutch torque or ribbon path
abnormality due to chassis deformation)
Remedy: . Remove the mechanical deck block from the lower cabinet, turn the gear engaged with the
stepping motor gear, and eliminate the ribbon.
. Confirm that the ribbon guide is fixed in parallel with the heat sink and in the non-floating
state.
(If the ribbon guide is not fixed in the conditions above)
Loosen the fixing screw and fix the ribbon guide again.
. Replace the chassis assembly if it is abnormal.
3. Print trouble
Trouble: . Paper is not fed from the paper feed tray.
. Abnormality is detected at equal pitch intervals in the paper feed direction of the printed
side.
n
An abnormal point can be confirmed according to the interval of a pitch.
. Pitch interval of 18.8 mm: Pinch roller abnormality
. Pitch interval of 20.4 mm: Capstan roller abnormality
. Pitch interval of 37.7 mm: Platen roller abnormality
Cause: . Adhesion of dust or grease
. Adhesion defect (in case of a pinch roller and platen roller)
. Welding defect (in case of a capstan roller)
Remedy: . Remove the mechanical deck block from the lower cabinet and clean each roller. (For the
dust adhering to the capstan roller, eliminate it using a gum tape.)
Trouble: A stripe is detected in the paper feed direction of the printed side.
Cause: . Adhension of foreign objects to the thermal head surface
. Broken thermal head
. Flaw and scar on ribbon guide
. Flaw and burr on the printed side of paper path of K (paper feed) frame assembly
Remedy: As for the streak caused by the adhesion of foreign objects to the thermal head surface can be
improved by cleaning the surface. Clean the surface using a cloth dampened with ethyl
alcohol back and forth several times. When the trouble persists even after cleaning, replace
other faulty parts that may cause the trouble.
4-6
DPP-EX7 V1
Page 33
4-4. Upgrade
n
Download the latest firmware and technical memo from the home page of GSP.
1. Firmware
The firmware of the DDP-EX7 is stored in IC102 (flash memory) on the DK-45 board.
The firmware can be upgraded using a PC card or a memory stick by employing flash memory for program storage
memory.
2. Upgrade
Upgrade when requiring the improvement in a function (the version up of firmware).
m
Make sure perform the upgrade of firmware after replacing the parts below.
. In case of replacing the DK-45 board
. In case of replacing IC102 on the DK-45 board
3. Upgrading method
1. Copy the latest firmware (downloaded and depressed folder) to the directory of a memory stick or a PC card.
n
For the PC card, the memory stick in which a memory stick PC card adaptor is used causes no problem.
2. Insert the PC card or memory card containing the latest firmware into the PC card or memory stick slots of a printer
and connect the power cord to the printer. (The power LED then lights in red.)
3. Press the POWER key while pressing the PRINT key.
4. Release the keys when the LED of the PC card or memory stick lights and the buzzer “beeps”.
5. The firmware is upgraded in the order below.
(1) The PC card or memory stick LED blinks.
A file is in the read state from the memory stick or PC card.
(2) “Memory stick”, “PC card”, and “personal computer” LEDs blink at long intervals.
The flash memory is in the clear state.
(3) “Memory stick”, “PC card”, and “personal computer” LEDs blink at short intervals.
The flash memory is in the write state.
(4) “Memory stick”, “PC card”, and “personal computer” LEDs blink at normal intervals.
The flash memory is in the verification state.
(5) “PRINT” LED blink alternately. Upgrading is completed.
n
Do not pull out the power cord during upgrading.
6. After completion is confirmed, disconnect the power cord from the printer and take out the memory stick or PC card
from the printer.
7. Restart the printer in the service mode.
8. After the “Check Sum value” is displayed on the monitor screen, confirm that the value is the same as for a technical
memo. The Check Sum is displayed in the lowest row of the menu screen of the service mode.
DPP-EX7 V1
4-7
Page 34
Page 35
SAFETY CHECK-OUT
After correcting the original service problem,
perform the following safety checks before
releasing the set to the customer :
Check the metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC
leakage. Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to
any exposed metal part having a return to
chassis, must not exceed 3.5 mA. Leakage
current can be measured by any one of three
methods.
1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The
Data Precision 245 digital multimeter is
suitable for this job.
3. Measuring the voltage drop across a resistor
by means of a VOM or battery-operated AC
voltmeter. The “limit” indication is 5.25 V, so
analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM
that is suitable. Nearly all battery operated
digital multimeters that have a 20 V AC range
are suitable. (See Fig. A)
DPP-EX7 V1
To Exposed Metal
Parts on Set
0.15 µF 1.5 k
Fig A. Using an AC voltmeter to check AC leakage.
Z
Earth Ground
AC
voltmeter
(5.25V)
Page 36
DPP-EX7 (UC, CE, KR) E
9-955-392-11
Printed in Japan
Sony Corporation 2002. 11 22
B&P Company ©2002
Loading...
