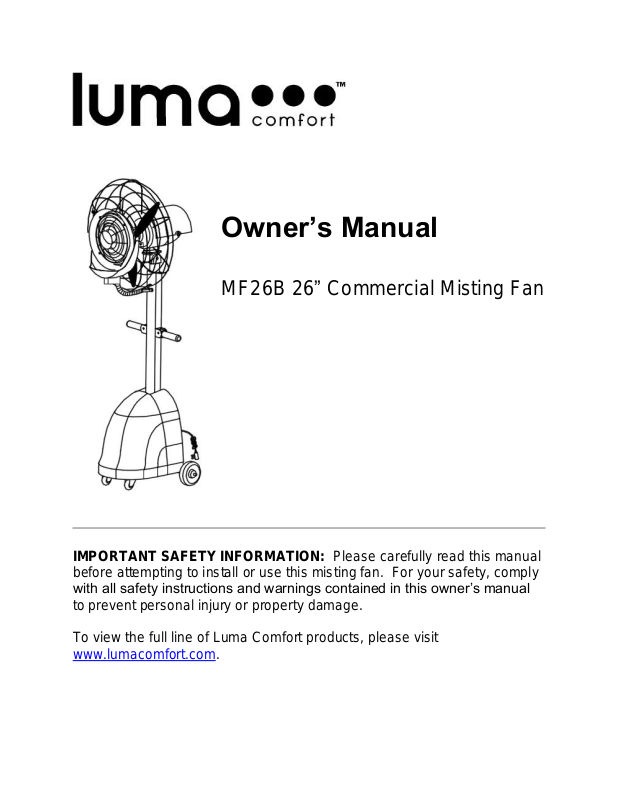

Owner’s Manual

MF26B 26” Commercial Misting Fan

IMPORTANT SAFETY INFORMATION: Please carefully read this manual
before attempting to install or use this misting fan. For your safety, comply

with all safety instructions and warnings contained in this owner’s manual

to prevent personal injury or property damage.
To view the full line of Luma Comfort products, please visit

www.lumacomfort.com.

Contents

Introduction ..................................................................................................................... 1

Product Benefits .............................................................................................................. 1

Important Safety Information ........................................................................................... 1

Assembly Instructions ..................................................................................................... 2

Step 1: Removing the Water Tank ........................................................................... 2

Step 2: Installing the Water Pump ............................................................................ 3

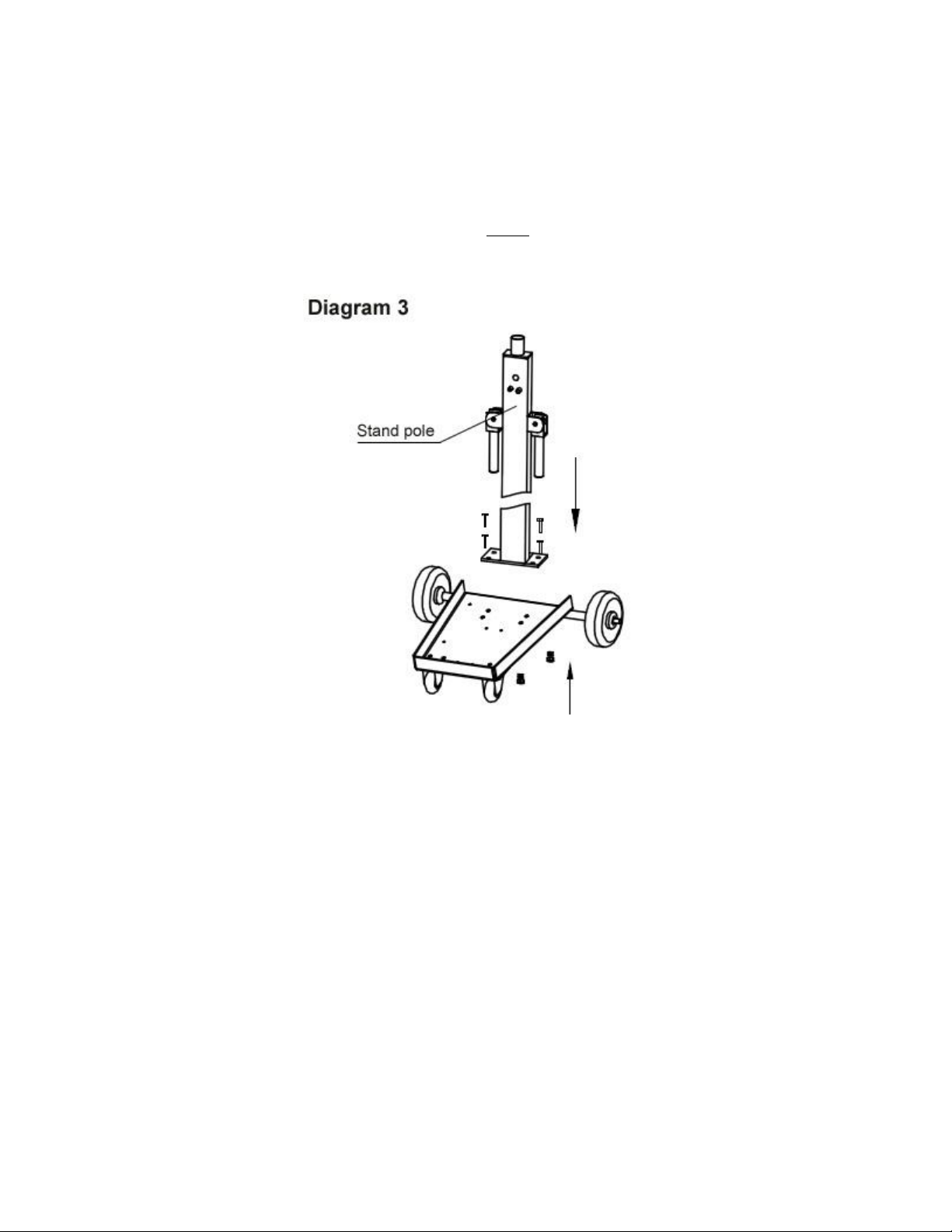

Step 3: Assembling the Stand Pole .......................................................................... 4

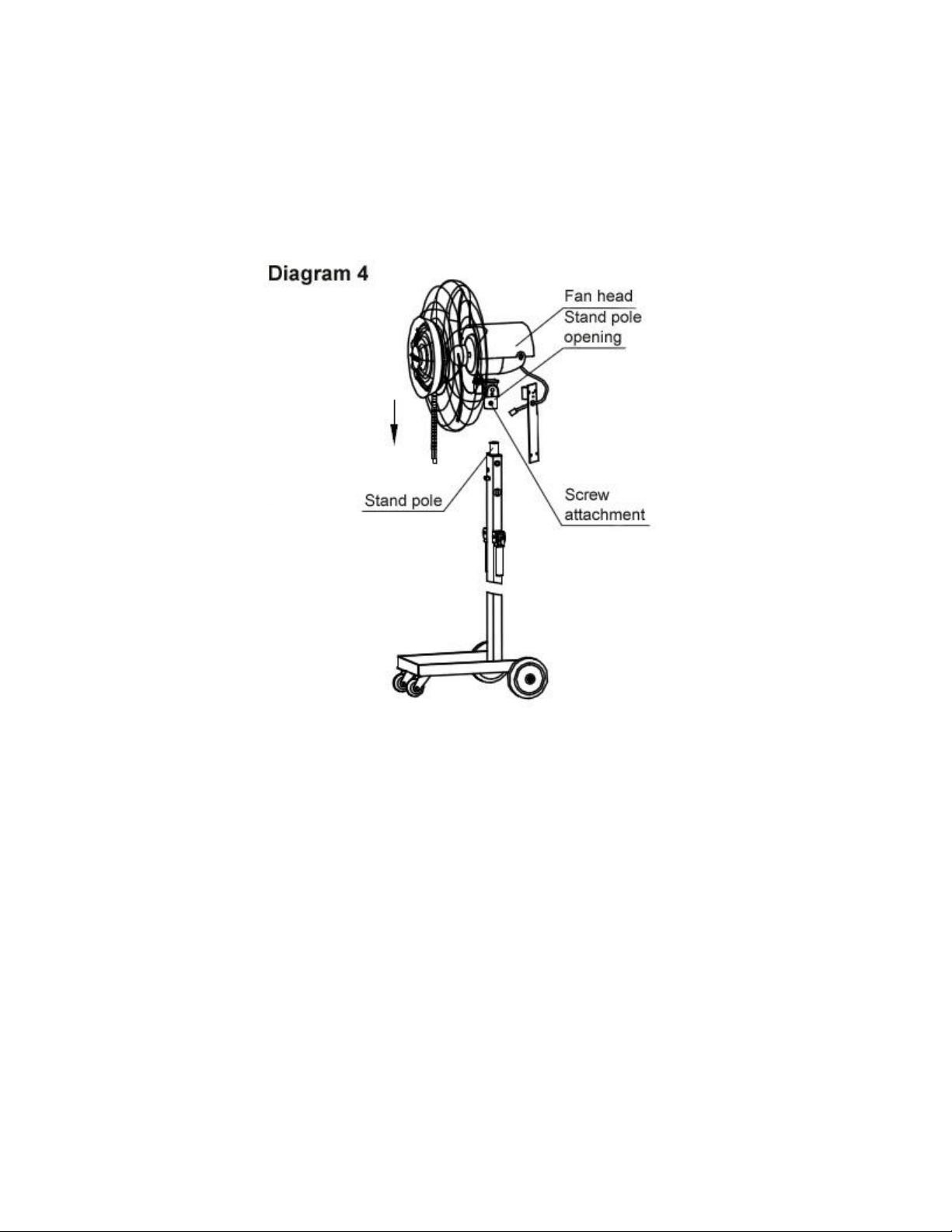

Step 4: Assembling the Fan Head ............................................................................ 5

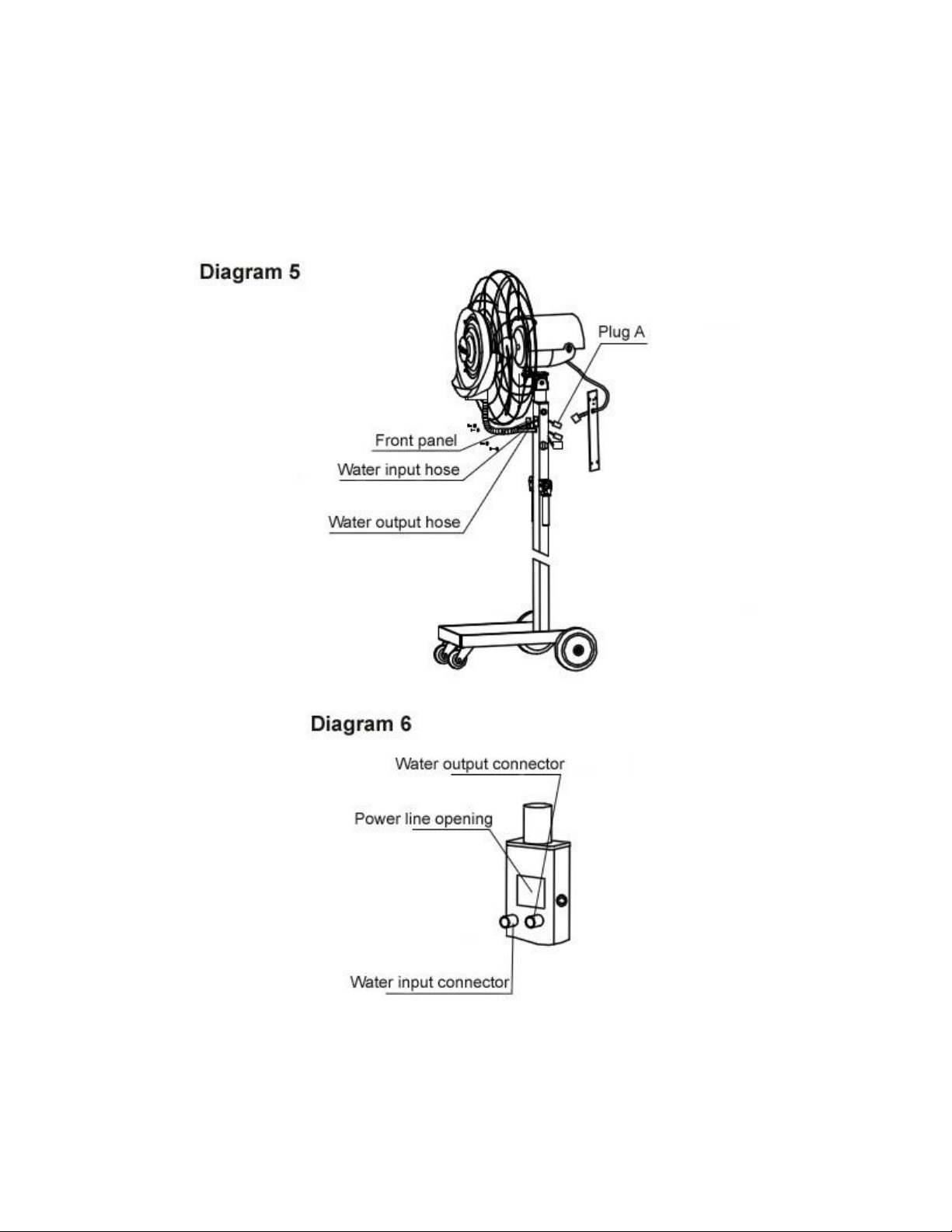

Step 5: Connecting the Power Supply & Water Hoses ............................................. 6

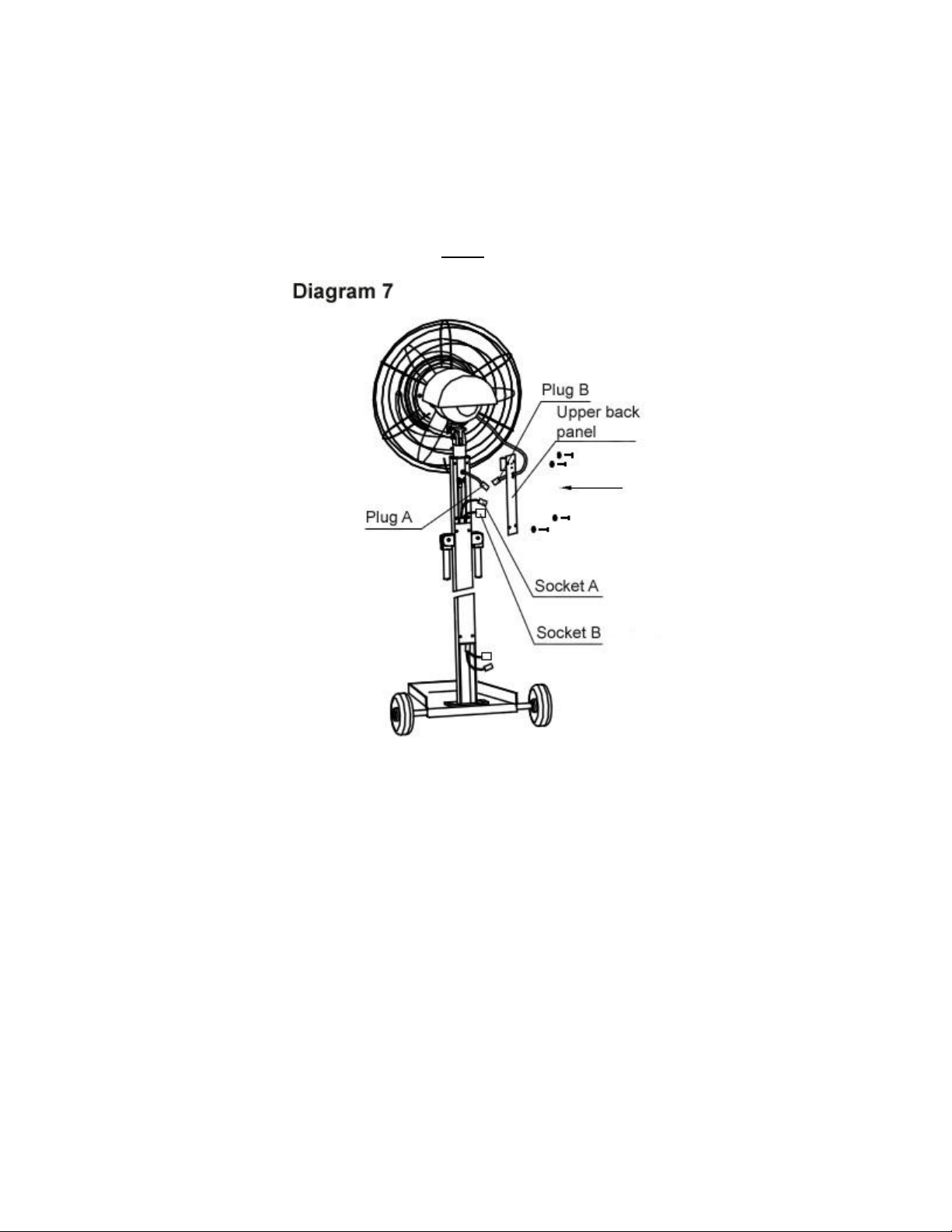

Step 6: Connecting the Power Supply (Upper Back Panel) ..................................... 7

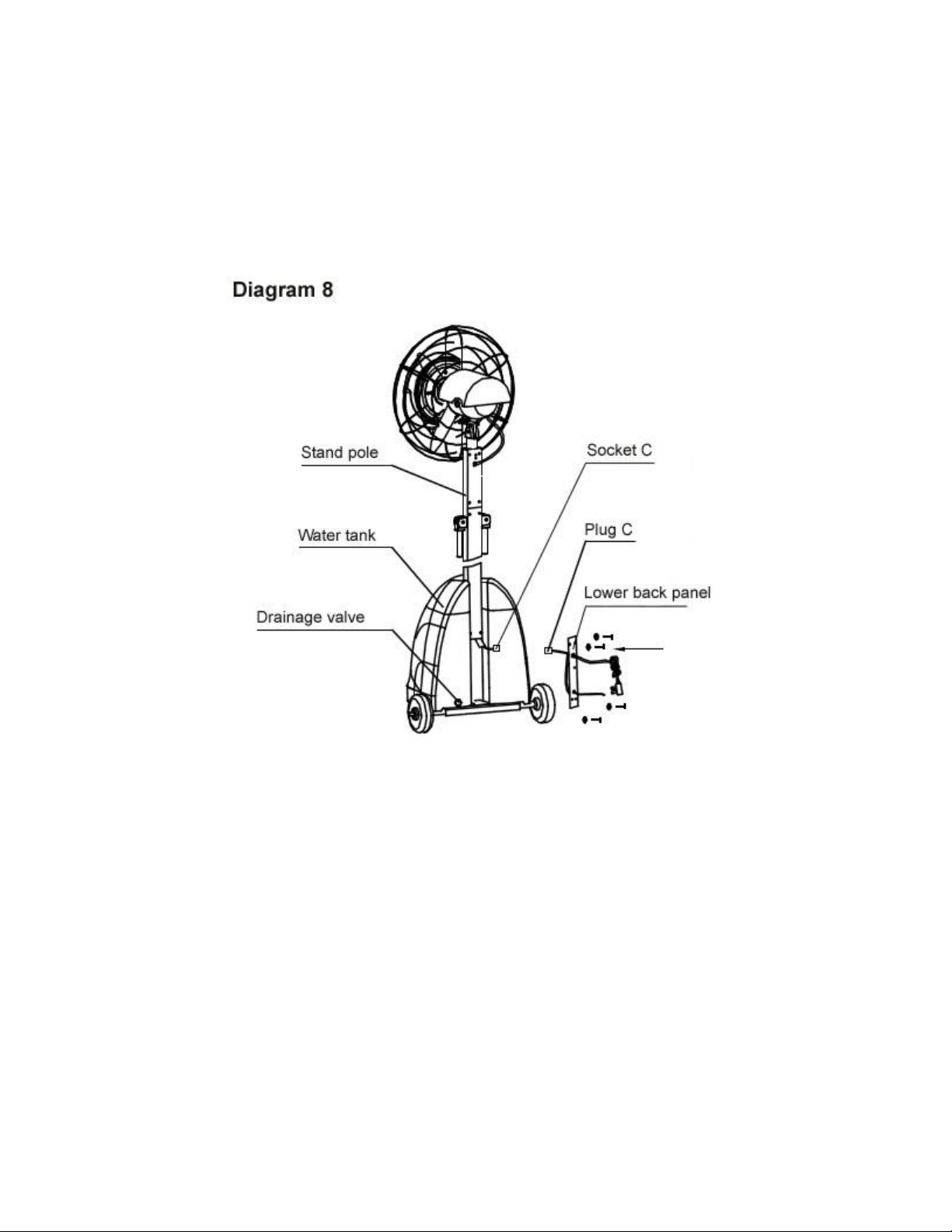

Step 7: Connecting the Power Supply (Lower Back Panel) ..................................... 8

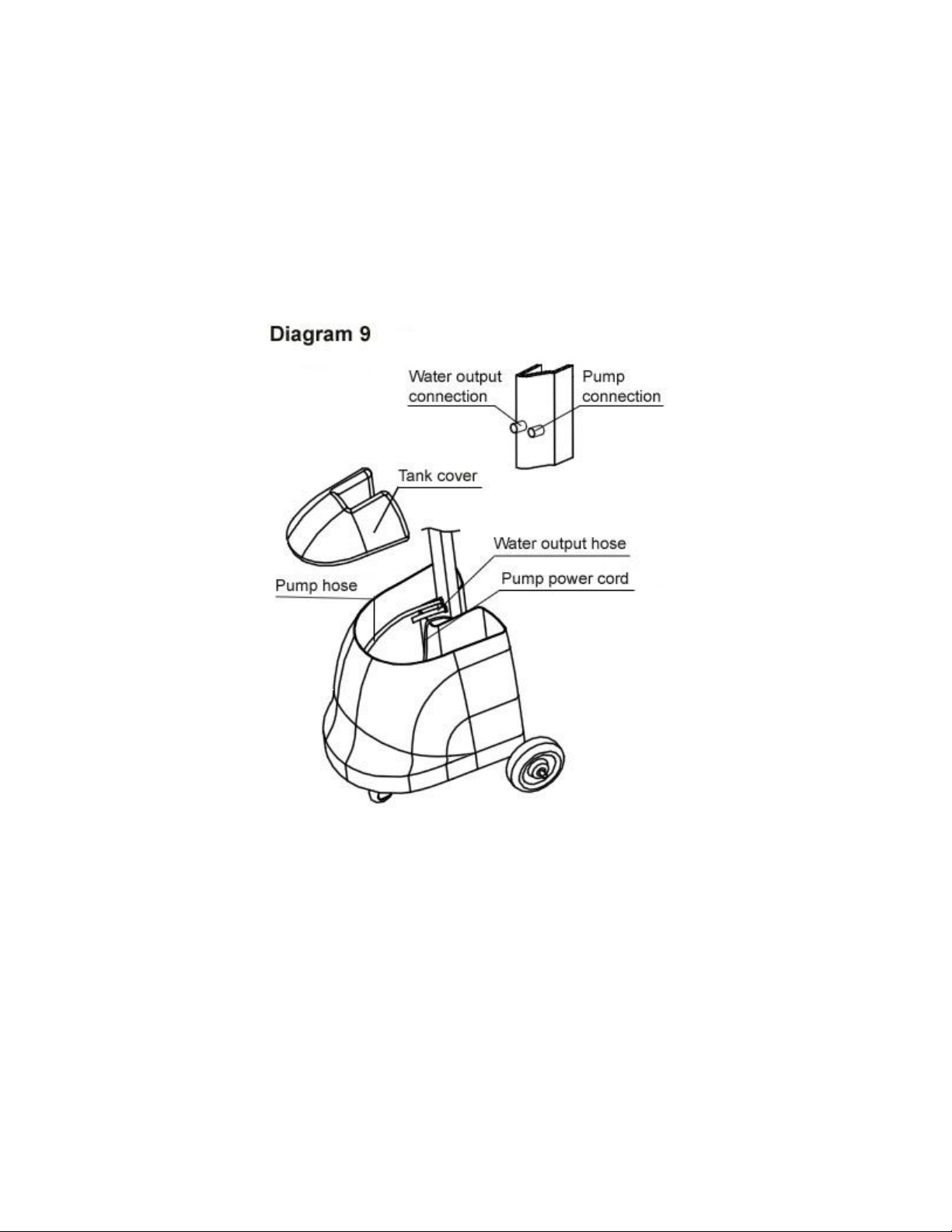

Step 8: Connecting the Pump & Water Output Hoses .............................................. 9

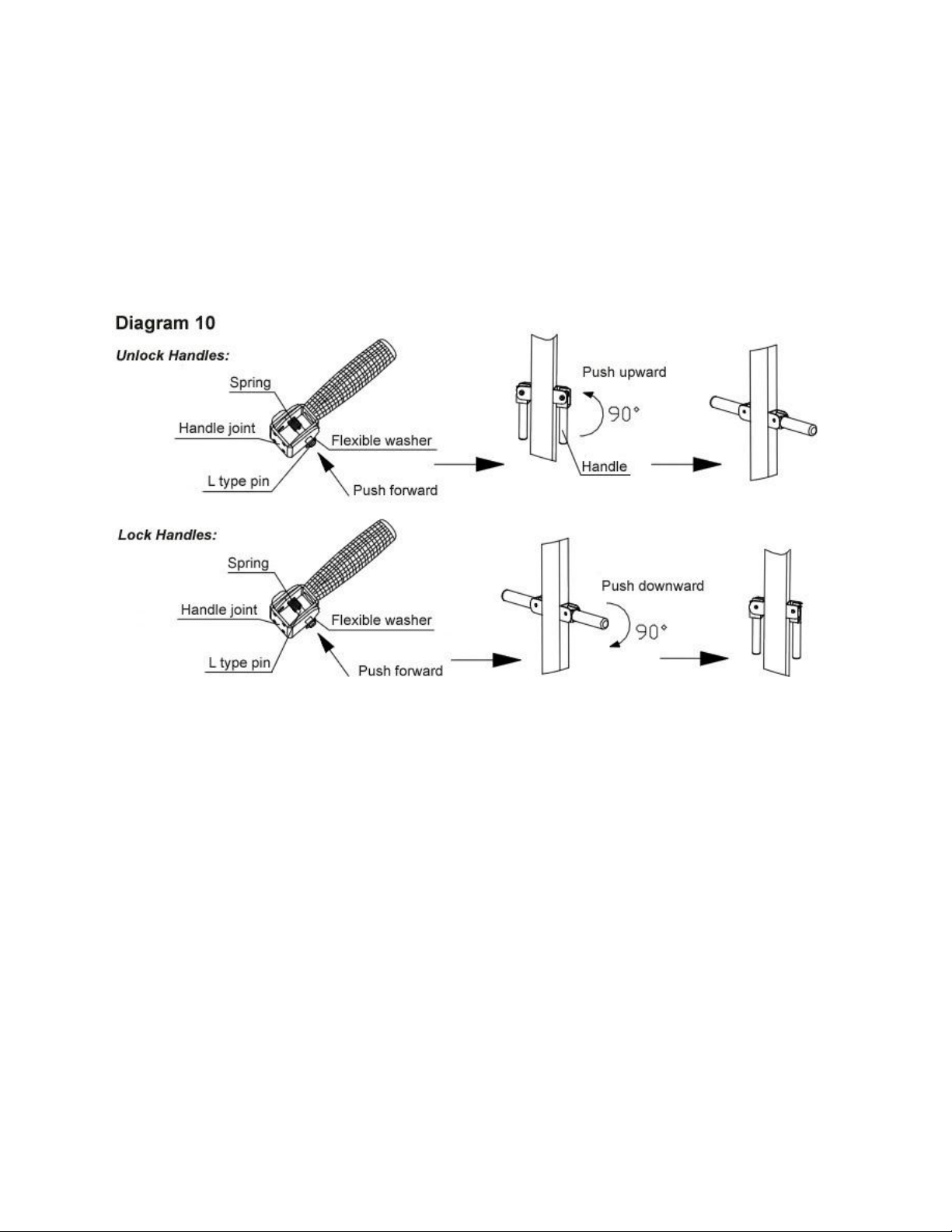

Step 9: Locking/Unlocking the Handles .................................................................. 10

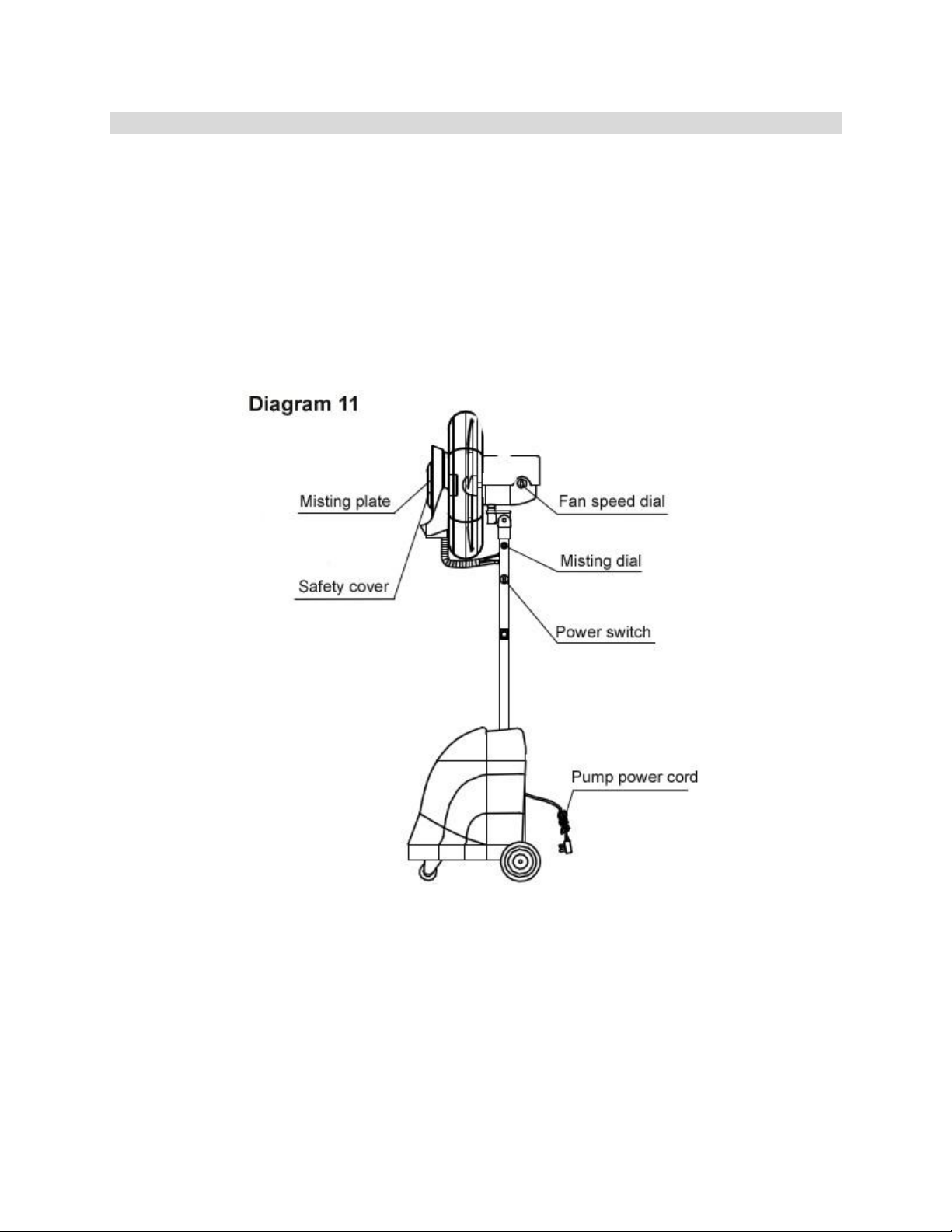

Operating Instructions ................................................................................................... 11

Maintenance .................................................................................................................. 12

Technical Support ......................................................................................................... 12

Product Specifications ................................................................................................... 12

Warranty ........................................................................................................................ 13

Introduction

Thank you for purchasing this misting fan from Luma Comfort, the world leader in home appliances and
home comfort products.

This owner’s manual provides specific operating instructions for your misting fan. Use the misting fan

only as instructed in this owner’s manual.

Product Benefits

 Designed for cooling large areas such as patios, factories, manufacturing facilities, garages,

athletic fields, greenhouses and more

 Centrifugal misting system means no clogged nozzles and no need to use filtered water
 Fan head constructed of heavy-gauge, anticorrosive metal for safety and durability
 Quiet, high-efficiency fan motor
 Adjustable misting flow with a fully-insulated seal around the water pump
 Adds moisture to dry environments and eliminates airborne dust particles
 Covers up to 1,000 square feet and features a 5-hour maximum run time with each full tank

Important Safety Information

These instructions are not meant to cover every possible condition and situation that may occur. Please
read all instructions before using this misting fan. Failure to carefully read all instructions may result in
possible electric shock or fire hazard, and will void the manufacturer’s warranty.

1. Use this misting fan only as instructed in this owner’s manual. Other uses may cause electric
shock, injury or fire.

2. Close supervision is required if this fan is used near children or pets.

3. To protect against electric shock, do not immerse this fan or its plug and cord in water.

4. If the fan is being transported or will not be in use, disconnect it from the power supply by tightly

gripping the fan’s plug and pulling it from the power outlet. Do not disconnect the power supply

by pulling on the fan’s power cord.

5. Avoid contact with any of the misting fan’s moving parts.

6. Place the misting fan on a level surface.

7. This misting fan is intended to fit into a matching receptacle. Under no circumstances should the
grounded plug be altered in any way. An improper connection can result in electric shock.

8. If possible, avoid using extension cords with this misting fan. If an extension cord is absolutely
necessary, do not use more than one extension cord to operate more than one fan.

9. Do not insert objects or allow fingers to enter into the fan head, as this may cause electric shock
or bodily injury. Do not block or tamper with the misting fan while it is in operation.

10. Do not place the fan near curtains, drapes, or any other materials that can get caught in the
misting fan’s grills.

11. Do not run the power cord under mats or carpeting, and do not cover the power cord with
runners. Arrange the power cord away from room traffic and where it can be tripped over.

12. Do not operate this misting fan in the presence of flammable substances or explosives.

13. Do not place the fan near an open flame or cooking/heating appliances.

14. If the fan will not be in use, empty the tank of any remaining water.

15. If the fan’s plug or power cord is damaged, do not attempt to repair the components yourself.
Please contact Luma Comfort’s customer service hotline at 1-866-737-6390 or have the fan
examined by an authorized service provider.

SAVE THESE INSTRUCTIONS

1

Assembly Instructions

DO NOT plug in the fan before assembly. This misting fan comes in 3 separate boxes. Carefully remove
all packaging materials and retain for future storage/use. Make sure there is no residual foam left in any
of the components. A screwdriver and wrench will be required to assemble this misting fan.

Step 1: Removing the Water Tank

Refer to diagram 1. Carefully remove the water tank from the tank cart.

2

Step 2: Installing the Water Pump

a. Refer to diagram 2. Remove the water pump from the packaging, making sure not to pull it out by

the power cord. The water pump will be attached to a metal panel.

b. Position the water pump in an upright position and place it on the plastic beam located at the

bottom of the water tank. A small portion of the power cord will be submerged in the tank, but
most of it should be placed outside the water tank.
