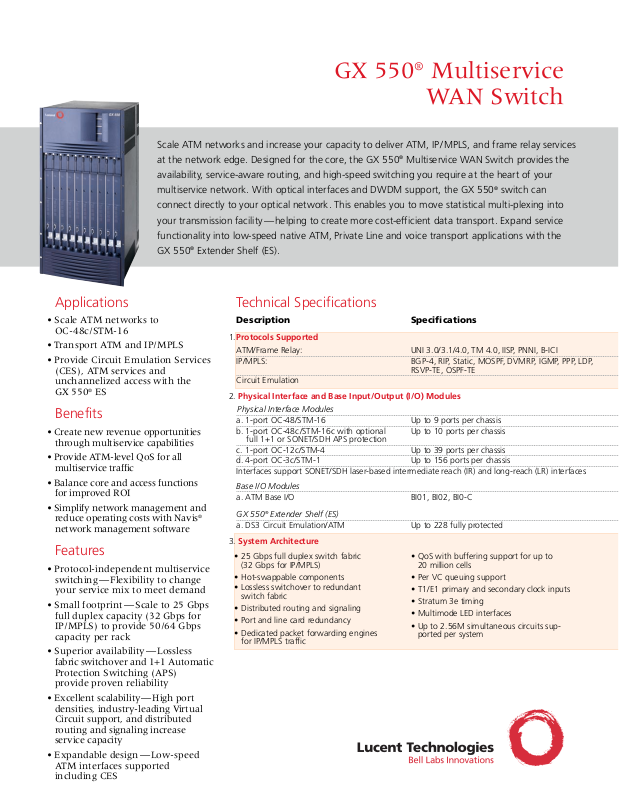

GX 550®Multiservice

WAN Switch

Scale ATM networks and increase your capacity to deliver ATM, IP/MPLS, and frame relay services
at the network edge. Designed for the core, the GX 550®Multiservice WAN Switch provides the
availability, service-aware routing, and high-speed switching you require at the heart of your
multiservice network. With optical interfaces and DWDM support, the GX 550®switch can
connect directly to your optical network. This enables you to move statistical multi-plexing into
your transmission facility— helping to create more cost-efficient data transport. Expand service
functionality into low-speed native ATM, Private Line and voice transport applications with the
GX 550®Extender Shelf (ES).

Applications

• Scale ATM networks to
OC-48c/STM-16

• Transport ATM and IP/MPLS

• Provide Circuit Emulation Services
(CES), ATM services and
unchannelized access with the
GX 550®ES

Benefits

• Create new revenue opportunities
through multiservice capabilities

• Provide ATM-level QoS for all
multiservice traffic

• Balance core and access functions
for improved ROI

• Simplify network management and
reduce operating costs with Navis

®

network management software

Features

• Protocol-independent multiservice
switching— Flexibility to change
your service mix to meet demand

• Small footprint —Scale to 25 Gbps
full duplex capacity (32 Gbps for
IP/MPLS) to provide 50/64 Gbps
capacity per rack

• Superior availability— Lossless
fabric switchover and 1+1 Automatic
Protection Switching (APS)
provide proven reliability

• Excellent scalability— High port
densities, industry-leading Virtual
Circuit support, and distributed
routing and signaling increase
service capacity

• Expandable design— Low-speed
ATM interfaces supported
including CES

Technical Specifications

Description Specifications

1.Protocols Supported

ATM/Frame Relay: UNI 3.0/3.1/4.0, TM 4.0, IISP, PNNI, B-ICI
IP/MPLS: BGP-4, RIP, Static, MOSPF, DVMRP, IGMP, PPP, LDP,

RSVP-TE, OSPF-TE

Circuit Emulation

2. Physical Interface and Base Input/Output (I/O) Modules

Physical Interface Modules

a. 1-port OC-48/STM-16 Up to 9 ports per chassis
b. 1-port OC-48c /STM-16c with optional Up to 10 ports per chassis

full 1+1 or SONET/SDH APS protection
c. 1-port OC-12c/STM-4 Up to 39 ports per chassis
d. 4-port OC-3c/STM-1 Up to 156 ports per chassis
Interfaces support SONET/SDH laser-based intermediate reach (IR) and long-reach (LR) interfaces

Base I/O Modules

a. ATM Base I/O BI01, BI02, BI0-C

GX 550®Extender Shelf (ES)

a. DS3 Circuit Emulation/ATM Up to 228 fully protected

3. System Architecture

• 25 Gbps full duplex switch fabric
(32 Gbps for IP/MPLS)

• Hot-swappable components

• Lossless switchover to redundant
switch fabric

• Distributed routing and signaling

• Port and line card redundancy

• Dedicated packet forwarding engines
for IP/MPLS traffic

• QoS with buffering support for up to
20 million cells

• Per VC queuing support

• T1/E1 primary and secondary clock inputs

• Stratum 3e timing

• Multimode LED interfaces

• Up to 2.56M simultaneous circuits sup­ported per system

Specifications subject to change
without notice. Contact your Lucent
representative for information on
availability and upgrades. Lucent
reserves the right to change, modify,
transfer or otherwise revise this
publication without notice.

To learn more about our comprehensive
portfolio, please contact your Lucent
Technologies Sales Representative,
Lucent BusinessPartner or, visit our
web site at www.lucent.com or
www.lucent.com/products/
multiserviceswitching .

GX 550, MXOS, and Navis are trademarks
or registered trademarks of Lucent
Technologies Inc.

NEBS is a registered trademark of
Telcordia Technologies.

UL is a registered trademark of
Underwriters Laboratories Inc.

Specifications are subject to change
without notice.

Copyright © 2003
Lucent Technologies Inc.
All rights reserved

MMS v2 04/03

Technical Specifications (continued)

Description Specifications

4. Multiservice Switch Operating Software (MXOS™)
Carrier-class, innovative software for increased switch reliability and network scalability, IP/MPLS

Feature Pack is available for advanced IP Services delivery

5. Navis

®

Network Management Software

6. Physical Dimensions
Size: Height 37" (93.98 cm)

Width 19" (42.26 cm)
Depth 23" (58.42 cm)

Rack Mount Options: EIA 19" or 23" midmount, central office style

7. Power Requirements
DC Power -48 to -60 volts DC
Current 75 amps @ -48 volts DC
Thermal Dissipation Maximum 3,000 watts

(Average 1154 watts)

AC Power 120 to 240 volts AC

External AC power converter required
Current 48 amps @ 120 volts AC
Thermal Dissipation Maximum 450 watts

8. Environmental Conditions
Temperature 32°F–104° F (0° C– 40°C)

9. Product Certifications
Environmental/NEBS

®

• GR-63-CORE

• GR-1089-CORE

Safety • UL

®

1950

• EN60950

EMC • FCC Part 15 Class A

• EN55022

• EN50082-1

• EN61000

• End-to-end, standards-based management of Lucent IP, MPLS, Frame Relay, and ATM
multiservice networks

• Speed service activation and assure QoS with automated provisioning, unified network
and service management

• Faster and easier service delivery, moves, adds, and changes

• Helps minimize service provider training costs for Lucent multiservice solutions

• Fault and performance management

• Real-time statistics monitoring and accounting
