Description
Specifi cations

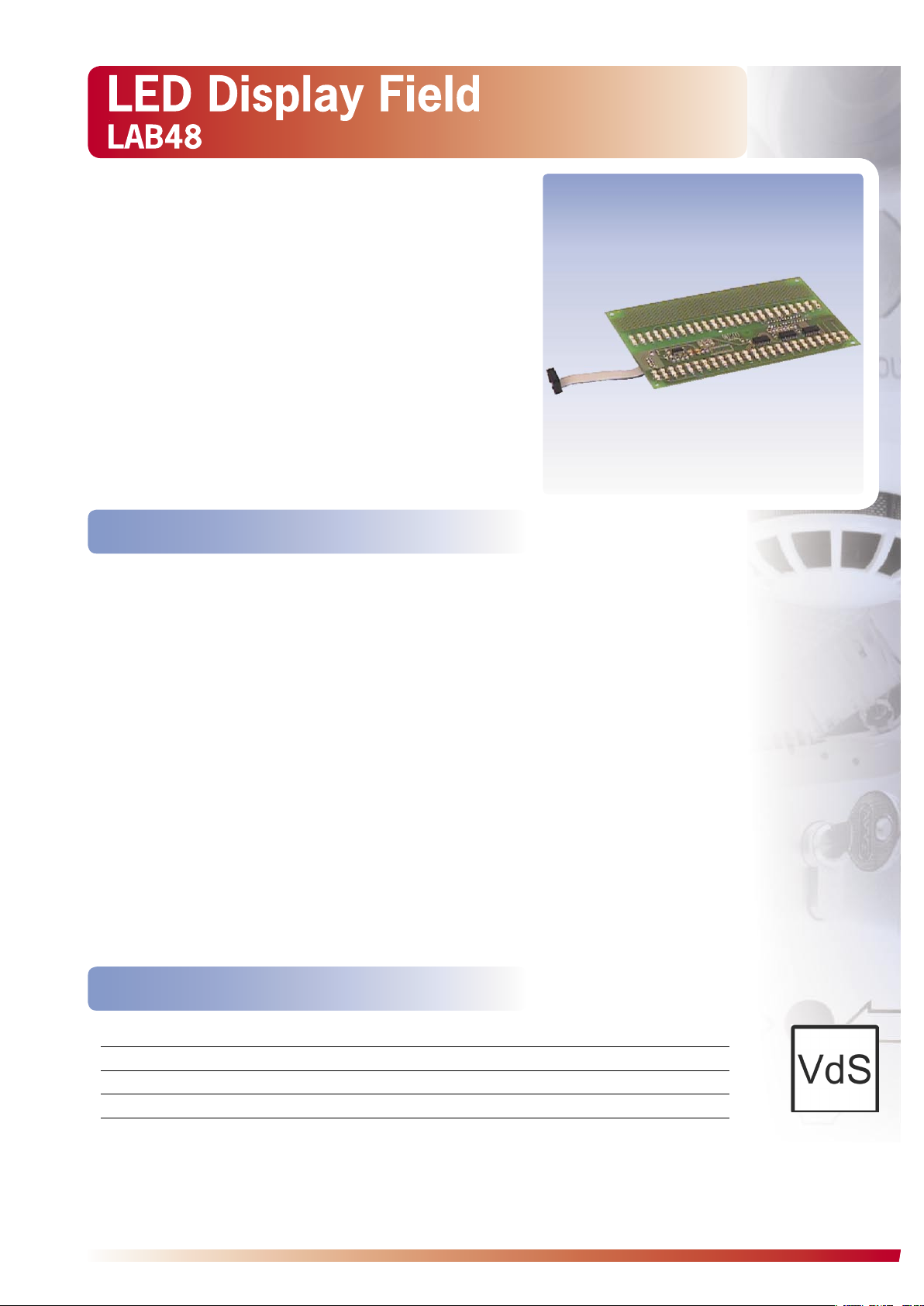

The LED Display Field LAB48 serves for the indication
of the events of detectors, detector zones, actuations,
transmitting devices, or alarming devices on fi re detection control panels Series BC216 or BC016 as well as
the events of fl ooding zones or extinguishing systems
on extinguishing control panels Series LC216.
The LED Display Field is designed to be installed into
fi re detection control panels Series BC216 or into the
LED Display Tableau LAT288:
• The LAB48 can be mounted into a fi re detection control panel Series BC216 with display and operating
fi eld, to which it is directly connected.
• The LED Display Tableau LAT288 can accommodate
up to 3 LED Display Fields LAB48 and the Remote
Tableau Drive Unit PTU288-1. Due to the actuation via
the INFO bus, the LED Display Tableau is a universal
remote tableau for all fi re detection control panels Series BC216 and BC016 as well as the extinguishing
control panel Series LC216.
48 LED pairs are arranged in two rows on the componentry. Each LED pair can be freely assigned to the
individual events. The left LEDs are intended for displaying the alarm or the activation, or for displaying a
system condition, respectively. The right LEDs indicate
the disablement or the fault condition of the assigned
system component.
The LED Display Field is available in multiple versions
with different LED colors for varying applications.
Each LED pair can be individually labeled by means of
labeling strips which are inserted into the front foil of
the case cover.
The componentry is shipped with the necessary accessory for trouble-free mounting on the case cover of
the fi re detection control panel or in the LED Display
Tableau.
• 48 freely programmable LED pairs
• Indication of events and conditions of
fi re detection control panels Series
BC216 or BC016
• Installation in control panels
Series BC216 or
LED Display Tableau LAT288
• Different LED colors available
• Individual labeling by means of
inserted text labeling strips
Current consumption at 24V typ. 2mA no active LED, +0.25mA per LED
Ambient temperature -20°C to +60°C
Dimensions L × W × H 176 × 120 × 15 (mm)
Weight 60g
Page 2
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
[email protected] • WWW.LST.AT • ALL RIGHTS RESERVED
LAB48_DBL_LST_EN_0804.PDF • PAGE 2
ABuilding Safety. Building Security.
LAB48-1
48 LEDs alarm/release/activation red
48 LEDs disablement/fault yellow
Part No. 214024
Order name LED-Display Field LAB48-1
LAB48-2
48 LEDs alarm/release/activation yellow
48 LEDs disablement/fault yellow
Part No. 214030
Order name LED-Display Field LAB48-2
LAB48-3
24 LEDs alarm/release/activation (left side) red
24 LEDs alarm/release/activation (right side) yellow
48 LEDs disablement/fault yellow
Part No. 214032
Order name LED-Display Field LAB48-3
LAB48-4
24 LEDs alarm/release (left side) red
24 LEDs activation (right side) green
24 LEDs disablement/fault (left side) yellow
24 LEDs disablement/fault (right side) yellow
Part No. 214036
Order name LED-Display Field LAB48-4
