Page 1

BCE216-3LG_DBL_LST_EN_0804.PDF • PAGE 1

ABuilding Safety. Building Security.

• BCnet sectional control panel with two integrated loop interfaces

• Extends a BCnet sectional control panel BC216-2 or BC216-3 by two loops

• Analogue ringbus technology with unshielded detector cabling

• Easy installation, also possible later on

Fire is a permanent threat to life and property. Therefore, immediate response to a ﬁ re is imperative. The main objective of the ﬁ re detection control panel Series BC216 is to alarm and to react in time and, consequently, save lives and protect property. For decades LST have focused their aims to undertaking unrivaled efforts in order to realize new innovations in the security area. Research, development and production are loca-

ted within LST premises, thus guaranteeing ﬂ exible and reliable individual solutions.

Using a 32-bit multiprocessor system, the ﬁ re detection control panel Series BC216 ensures topmost efﬁ ciency and speed – prerequisites for saving lives and minimizing damage to property.

Description

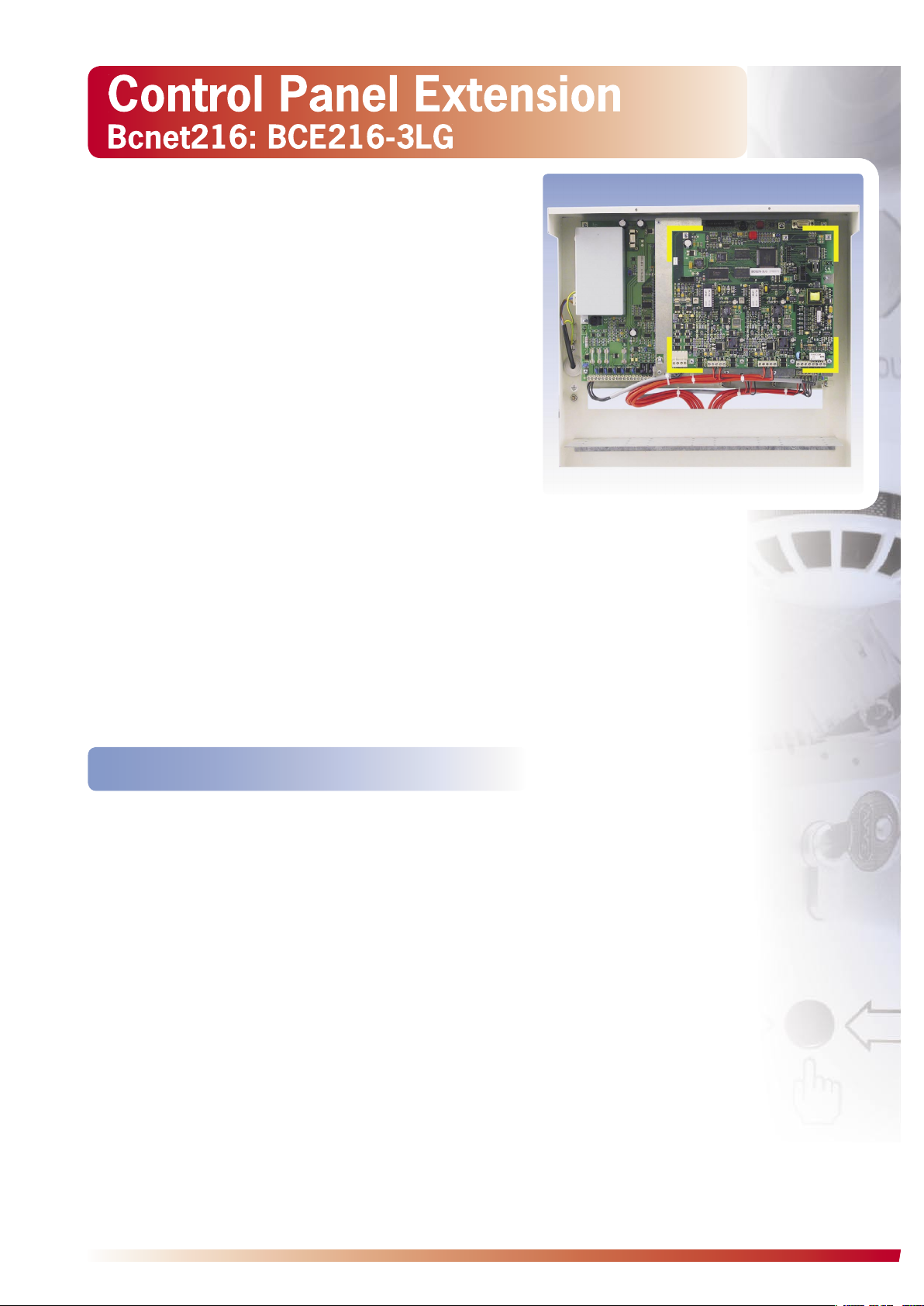

The BCnet Sectional Control Panel/Extension BCE2163LG allows for the extension of a ﬁ re detection control panel BCnet216 by two ADM loops. The extension is integrated into the ﬁ re detection control panel BCnet216 by installing it in a BCnet sectional control panel BC2162 or BC216-3 and connecting it to the GSSnet cabling via the GSSnet interface on the extension.

The 24V supply of the BCnet Sectional Control Panel/Extension BCE216-3LG is powered from the BCnet sectional control panel in whose cabinet it has been installed; it does not have a power supply or battery charger of its own. The extension is designed as compact unit and mounted on a pivoting sheet steel carrier.

The loop processing functions of the BCE216-3LG fully correspond to the functions of a BCnet Sectional Control Panel BC216-2 equipped with two Loop Interfaces LIF64-1.

The ADM loop principle offers intelligent analogue ringbus technology with bi-directional data transfer. Each loop provides for the software-aided administration of up to 198 physical address points in a maximum of 128 detector zones.

Easy parameterisation by means of PC software enables you to optimally adapt the control panel to your individual requirements.

Page 2

BCE216-3LG_DBL_LST_EN_0804.PDF • PAGE 2

ABuilding Safety. Building Security.

Clear Concept

The BCnet Sectional Control Panel/Extension BCE216-3LG extends a BCnet sectional control panel BC216-2 or BC216-3, respectively, by two ADM loops. It provides the following features:

• Detectors and modules in ADM loop technology can

be connected to each Loop Interface LIF64-1. Depending on the parameterisation, either the Apollo/Discovery protocol or the System Sensor/200 protocol is used to achieve bi-directional data transfer.

• Logical combinations of detectors and detector zo-

nes for the activation of external controls and alarming devices facilitate maximum ﬂ exibility. Thus, no additional expenses arise for external relays, logic gates or timers. Thanks to the wide range of parameterisation possibilities, individual requirements even under the most difﬁ cult ambient conditions can be combined into a reasonable ﬁ re protection strategy.

• By integrating input and output modules on any positi-

on in the loop you can realize enablements or disablements as well as control tasks in your system without having to care for additional wires.

• The free combination of detectors and modules into

logic sectors allows for the joint operation of deﬁ ned parts of the system even beyond the limits of loops or sectional control panels.

• The use of unshielded loop cables allows for cost-

saving and uncomplicated installation as well as for the possibility of reusing the existing cabling.

• At a possible breakdown of the central processing unit which is integrated on the extension, the diversiﬁ ed redundancy concept ensures secure alarm recognition.

• The parameter data can be created by means of the PC software PARSOFT and loaded into the control panel in a comfortable way. Thus, a quick and efﬁ cient transfer of the system conﬁ guration into the control panel is guaranteed.

• AUTO setup facilitates parameterisation when the control panel is commissioned or expanded and thus helps to save time.

The BCnet Sectional Control Panel/Extension BCE216-3LG is suitable for later installation in the wall mount cabinet.

Owing to the compact design, a maximum of four loops can be centralized in one single place. The required batteries are accommodated in the wall mount cabinet or in an external auxiliary case. Series BC216 thus stands for modularity and easy expansion.

This product complies with all relevant standards of EN 54 and is VdS-certiﬁ ed. In addition, the product also holds several country-speciﬁ c approvals and certiﬁ cates. LST‘s high quality level is secured by a permanently monitored quality management system certiﬁ ed by ISO 9001.

Page 3

BCE216-3LG_DBL_LST_EN_0804.PDF • PAGE 3

ABuilding Safety. Building Security.

Permanent Connection

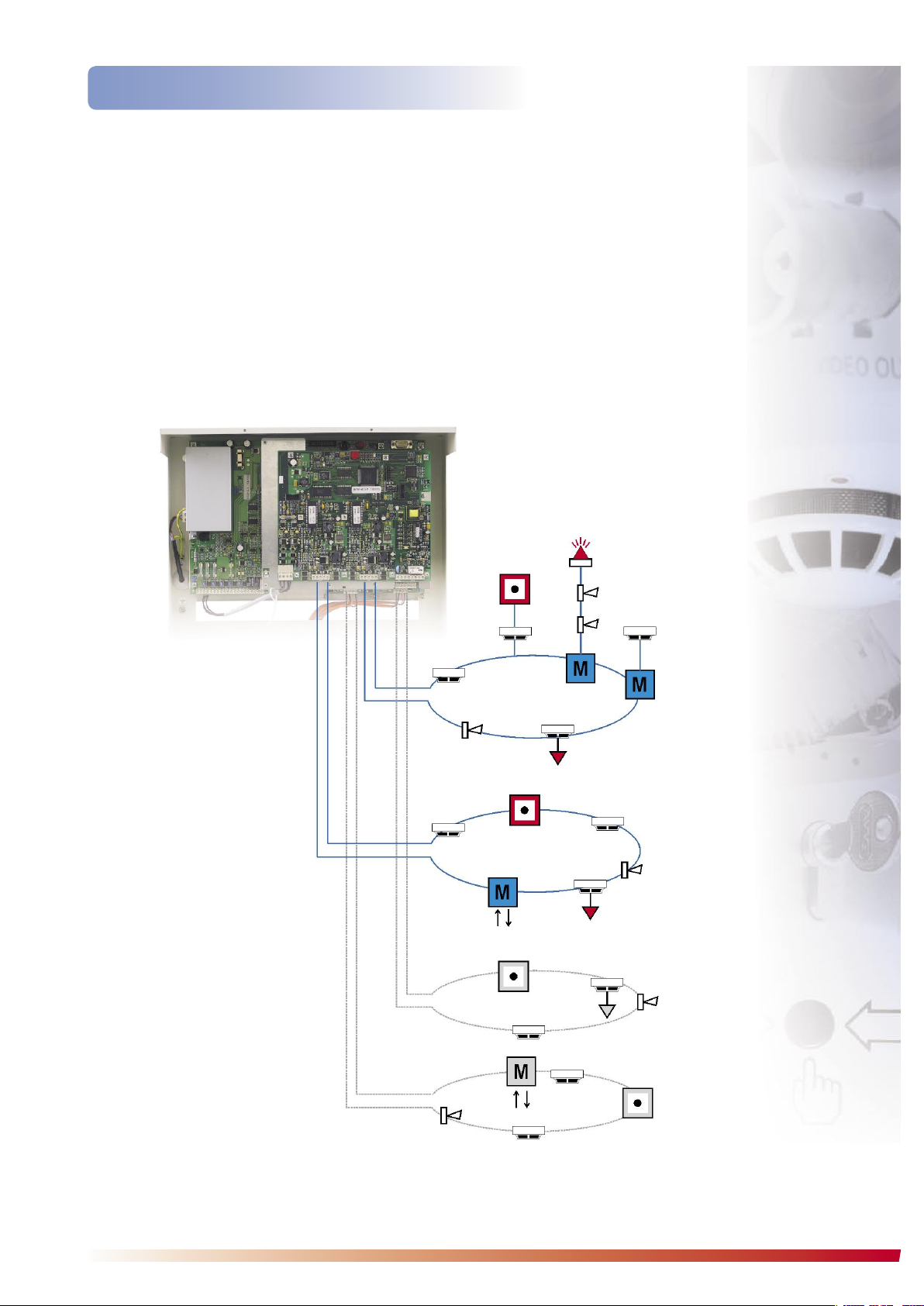

By means of a BCnet Sectional Control Panel/Extension

BCE216-3LG, a Fire Detection Control Panel BC216-2 or BC216-3, respectively, can be extended by two

loops. In one case, you thus have up to four loops at your disposal. In addition, a variety of peripheral devices can be connected to this device:

• Fire brigade key safe

• Fire brigade control unit

• Acoustic and optical signaling devices

• External protocol printer

• Remote display and operating panels

• Remote indication unit

• Actuations

• Electronic monitoring system

• Transmitting device for the actuation of pagers via

ESPA protocol

• Modules for remote parameterisation and remote

maintenance via computer newtork, modem or GSM connection

• Transmitter module for the transmission of messages via SMS or e-mail

– and much more.

Page 4

BCE216-3LG_DBL_LST_EN_0804.PDF • PAGE 4

ABuilding Safety. Building Security.

Speciﬁ cations

Supply voltage 21 – 30 VDC

Current consumption at 24V 140mA (without detectors)

Idle loop current typ. 300µA per detector/module

Total loop current max. 300mA (at reduced line resistance)

Idle loop voltage typ. 26V (Apollo/Discovery) or

typ. 29V (System Sensor/200), respectively

Loop line resistance max. 50Ω per core

Number of ADM loops 2

Number of detector zones max. 128 per loop, max. 144 in total

Ambient temperature -5°C to +50°C

Dimensions W × H × D 248 × 222 × 28 (mm)

Weight approx. 675g

Part No. 214034

Order name BCnet Sectional Control Panel/Extension BCE216-3LG

The ﬁ re detection control panel BCnet216 opens up manifold possibilities for the realization of speciﬁ c requests of ﬁ re detection, especially in spacious buildings, highrise buildings or wide-stretched areas. The decentralized security network that has been created by BCnet216 offers increased security and reduces the total expenses due to a much lower cabling volume. The consistent ring-shaped cabling guarantees communication between the sectional control panels even in the event of a line fault.

A sectional control panel of the BCnet216 is parameterised as main operating unit for the administration of the GSSnet, all other members can be equipped with or without a display and operating unit. The system is designed modularly and can be gradually expanded according to future demands. The maximum size of a BCnet216 comprises 127 network members, 9700 detector zones, 9700 actuations, 999 alarming devices, 99 transmitting devices as well as 199 logic sectors. Different interfaces are available for the connection of external information devices, e.g., a facility management system or a remote maintenance system.

Cabling of the detectors is required only between two neighboring sectional control panels. This clear and ﬂ exible arrangement of the sectional control panel creates a powerful network. In this way, most economical cabling and thus efﬁ cient use of the installation expenses is guaranteed. Larger distances between individual sectional control panels can be bridged through the use of optical ﬁ ber modems or long distance modems.

The entire virtual control panel BCnet216 provides for the monitoring in mid-sized and large systems, applying the same technology and the same software tools as with the single control panel BC216-1. This guarantees a minimum of training and expansion costs as well as expenses of the user and thus guarantees the optimal use of resources during the usable life of the building.

BCnet sectional control panels are available in wall mount cabinets, as 19“ compact version and in 19“ slide-in technology.

Distributed Intelligence in the GSSnet

If required, the BCnet216 can be easily expanded to an extinguishing control panel LCnet216 according to EN 12094-1. The panel can control up to 127 ﬂ ooding zones in a maximum of 127 extinguishing systems. The function of the extinguishing control panel is fully integrated into the ﬁ re detection control panel BCnet216, a combined operation is therefore possible.

The LCnet216 is certiﬁ ed to EN 54-2, EN 54-4, EN 12094-1 and VdS as a pure extinguishing control panel and as a combined ﬁ re detection and extinguishing control panel. Optionally, the LCnet216 can be implemented with full hardware redundancy.

Extinguishing Control System
