4 ZONE AUDIO BASE STATION
DESCRIPTION
The AP-4 is a four-zone audio base station. It is designed for
audio monitoring and interfacing with DVR’s, VCR’s or other
audio devices that accept line level input. The unit is a desk top
audio base station that contains a 3" speaker for monitoring live
audio and playback from a DVR or VCR. AP-4 will
accommodate 4 microphones and zone selection is by
pushbutton. Contains Mute/Playback switch that mutes audio
from remote microphones.
AP-4

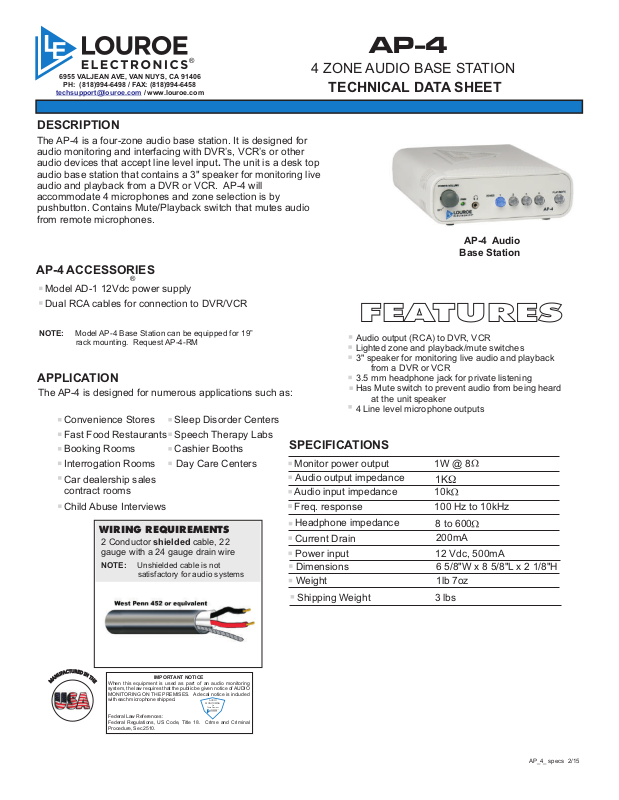

TECHNICAL DATA SHEET
AP-4 Audio
Base Station
AP-4 ACCESSORIES
®
Model AD-1 12Vdc power supply
Dual RCA cables for connection to DVR/VCR
NOTE: Model AP-4 Base Station can be equipped for 19”
rack mounting. Request AP-4-RM
APPLICATION
The AP-4 is designed for numerous applications such as:
Convenience Stores
Fast Food Restaurants
Booking Rooms
Interrogation Rooms
Car dealership sales
contract rooms
Child Abuse Interviews
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
Sleep Disorder Centers
Speech Therapy Labs
Cashier Booths
Day Care Centers
FEATURES
Audio output (RCA) to DVR, VCR
Lighted zone and playback/mute switches
3" speaker for monitoring live audio and playback
from a DVR or VCR
3.5 mm headphone jack for private listening
Has Mute switch to prevent audio from being heard
at the unit speaker
4 Line level microphone outputs
SPECIFICATIONS
Monitor power output 1W @ 8
Audio output impedance
Audio input impedance 10k
Freq. response 100 Hz to 10kHz
Headphone impedance
Current Drain
Power input 12 Vdc, 500mA
Dimensions 6 5/8"W x 8 5/8 x 2 1/8"H"L
Weight 1lb 7oz
Shipping Weight
1K?
8 to 600
200mA
3 lbs
U
R
T
E
C
D
A
I
F
N
U
N
A
M
T
H
E
When this equipment is used as part of an audio monitoring
system, the law requires that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A decal notice is included
with each microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18. Crime and Criminal
Procedure, Sec 2510.
IMPORTANT NOTICE
AUDIO
MONITORING
On
These Premises
TM
AP_4_ specs 2/15
