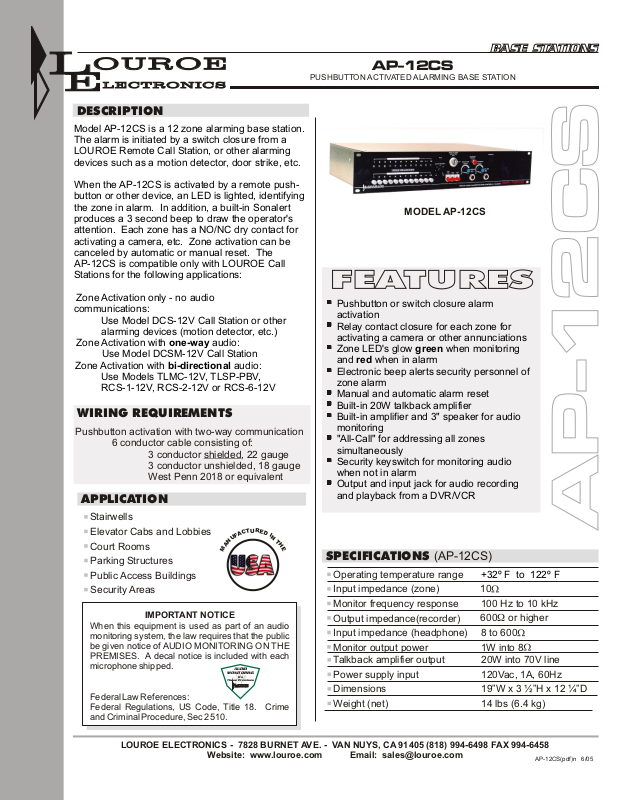

Louroe Electronics AP-12CS Specsheet

LL

OUROEOUROE

EE

LECTRONICSLECTRONICS

DESCRIPTION

Model AP-12CS is a 12 zone alarming base station.
The alarm is initiated by a switch closure from a
LOUROE Remote Call Station, or other alarming
devices such as a motion detector, door strike, etc.

When the AP-12CS is activated by a remote push­button or other device, an LED is lighted, identifying
the zone in alarm. In addition, a built-in Sonalert
produces a 3 second beep to draw the operator's
attention. Each zone has a NO/NC dry contact for
activating a camera, etc. Zone activation can be
canceled by automatic or manual reset. The
AP-12CS is compatible only with LOUROE Call
Stations for the following applications:

Zone Activation only - no audio

communications:

Use Model DCS-12V Call Station or other
alarming devices (motion detector, etc.)

Zone Activation with one-way audio:

Use Model DCSM-12V Call Station

Zone Activation with bi-directional audio:

Use Models TLMC-12V, TLSP-PBV,
RCS-1-12V, RCS-2-12V or RCS-6-12V

WIRING REQUIREMENTS

Pushbutton activation with two-way communication

6 conductor cable consisting of:

3 conductor shielded, 22 gauge
3 conductor unshielded, 18 gauge
West Penn 2018 or equivalent

APPLICATION

Stairwells

U

T

Elevator Cabs and Lobbies
Court Rooms
Parking Structures
Public Access Buildings
Security Areas

IMPORTANT NOTICE

When this equipment is used as part of an audio
monitoring system, the law requires that the public
be given notice of AUDIO MONITORING ON THE
PREMISES. A decal notice is included with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18. Crime
and Criminal Procedure, Sec 2510.

F

U

N

A

M

AUDIO

MONITORING

These Premises

LL

EE

A

On

OUROEOUROE

LECTRONICSLECTRONICS

C

BASE STATIONSBASE STATIONS

AP-12CS

PUSHBUTTON ACTIVATED ALARMING BASE STATION

MODEL AP-12CS

FEATURESFEATURES

+

Pushbutton or switch closure alarm
activation

+

Relay contact closure for each zone for
activating a camera or other annunciations

+

Zone LED's glow green when monitoring
and red when in alarm

+

Electronic beep alerts security personnel of
zone alarm

+

Manual and automatic alarm reset

+

Built-in 20W talkback amplifier

+

Built-in amplifier and 3" speaker for audio
monitoring

+

"All-Call" for addressing all zones
simultaneously

+

Security keyswitch for monitoring audio
when not in alarm

+

Output and input jack for audio recording
and playback from a DVR/VCR

R

E

D

I

N

T

H

E

SPECIFICATIONS (AP-12CS)

Operating temperature range
Input impedance (zone)
Monitor frequency response
Output impedance(recorder)
Input impedance (headphone)
Monitor output power

Talkback amplifier output
Power supply input
Dimensions
Weight (net)

+32º F to 122º F

10

100 Hz to 10 kHz

600W or higher

8 to 600
1W into 8

20W into 70V line
120Vac, 1A, 60Hz
19”W x 3 ½”H x 12 ¼”D
14 lbs (6.4 kg)

AP-12CSAP-12CS

LOUROE ELECTRONICS - 7828 BURNET AVE. - VAN NUYS, CA 91405 [phone] FAX [phone]

Website: www.louroe.com Email: [e-mail]

AP-12CS(pdf)n 6/05
